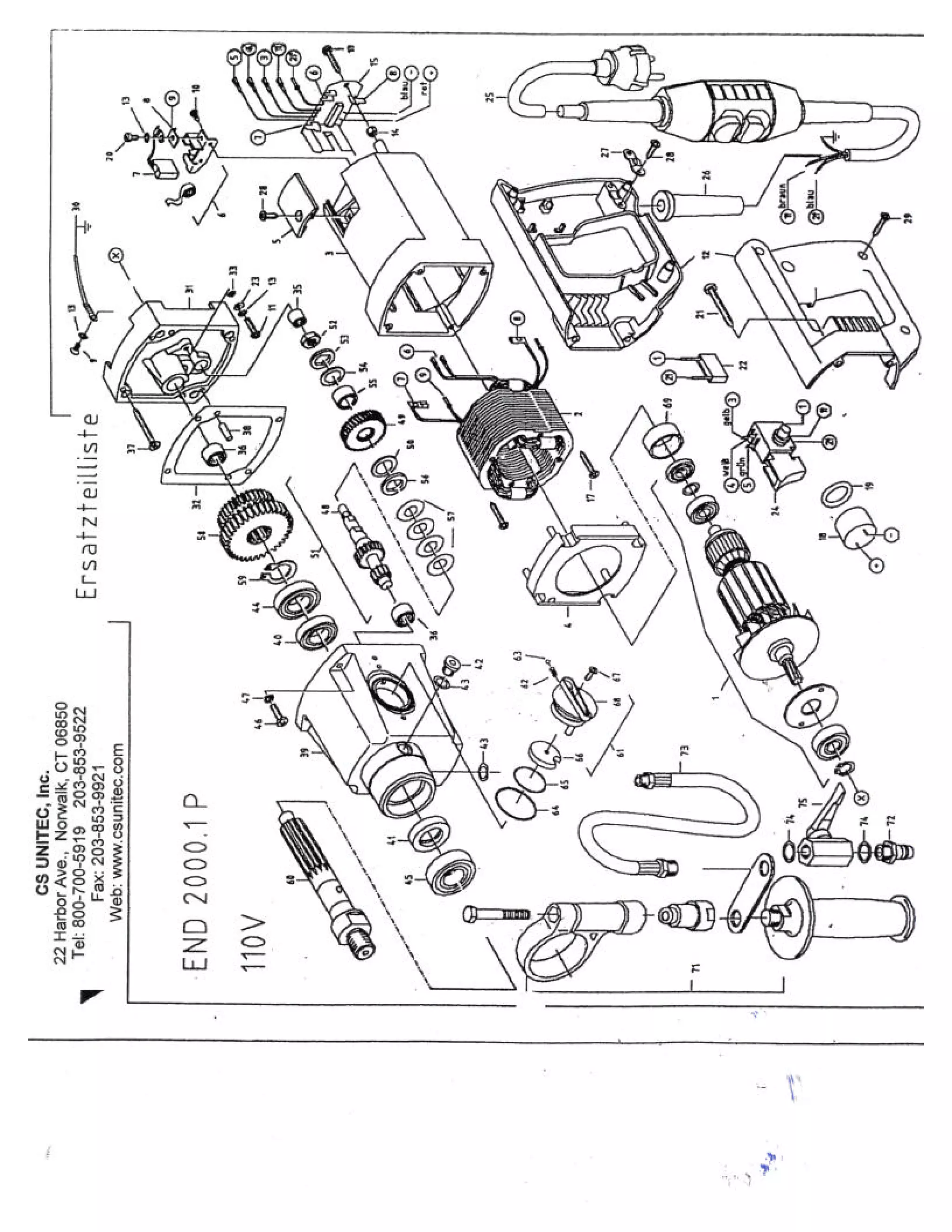

This document is a parts list for a CS UNITEC Model END 2000 P 110 Volt power tool. It contains 75 numbered items with descriptions of each replaceable part. Prices are subject to change without notice and the company is not responsible for typographical errors. The parts list provides replacement part numbers for servicing or repairing the power tool.

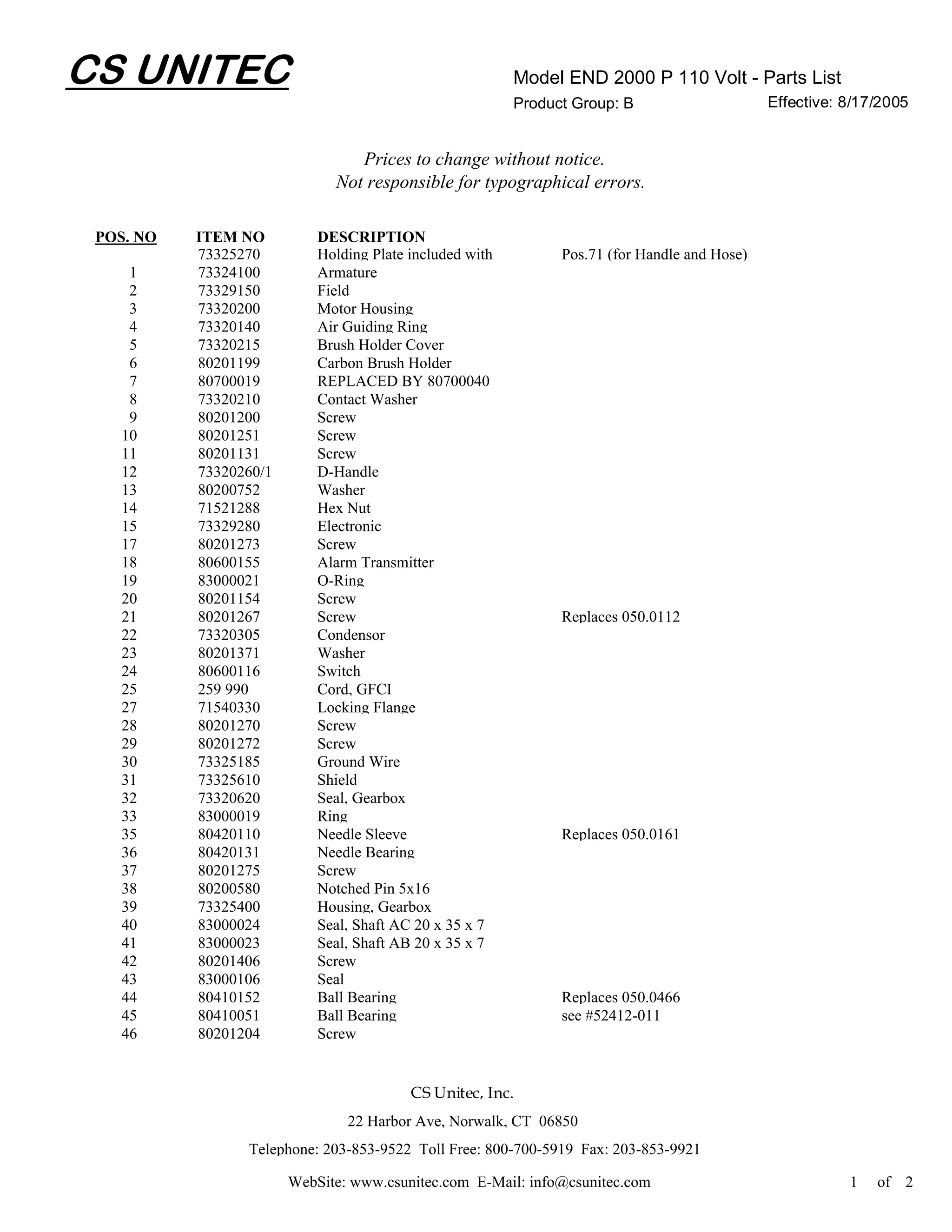

2. CS UNITEC Model END 2000 P 110 Volt - Parts List
Product Group: B Effective: 8/17/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO ITEM NO DESCRIPTION
73325270 Holding Plate included with Pos.71 (for Handle and Hose)
1 73324100 Armature
2 73329150 Field
3 73320200 Motor Housing
4 73320140 Air Guiding Ring
5 73320215 Brush Holder Cover
6 80201199 Carbon Brush Holder
7 80700019 REPLACED BY 80700040
8 73320210 Contact Washer
9 80201200 Screw
10 80201251 Screw
11 80201131 Screw
12 73320260/1 D-Handle
13 80200752 Washer
14 71521288 Hex Nut
15 73329280 Electronic
17 80201273 Screw
18 80600155 Alarm Transmitter
19 83000021 O-Ring
20 80201154 Screw
21 80201267 Screw Replaces 050.0112
22 73320305 Condensor
23 80201371 Washer
24 80600116 Switch
25 259 990 Cord, GFCI
27 71540330 Locking Flange
28 80201270 Screw
29 80201272 Screw
30 73325185 Ground Wire
31 73325610 Shield
32 73320620 Seal, Gearbox
33 83000019 Ring
35 80420110 Needle Sleeve Replaces 050.0161
36 80420131 Needle Bearing
37 80201275 Screw
38 80200580 Notched Pin 5x16
39 73325400 Housing, Gearbox
40 83000024 Seal, Shaft AC 20 x 35 x 7
41 83000023 Seal, Shaft AB 20 x 35 x 7
42 80201406 Screw
43 83000106 Seal
44 80410152 Ball Bearing Replaces 050.0466
45 80410051 Ball Bearing see #52412-011
46 80201204 Screw
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.com 1 of 2

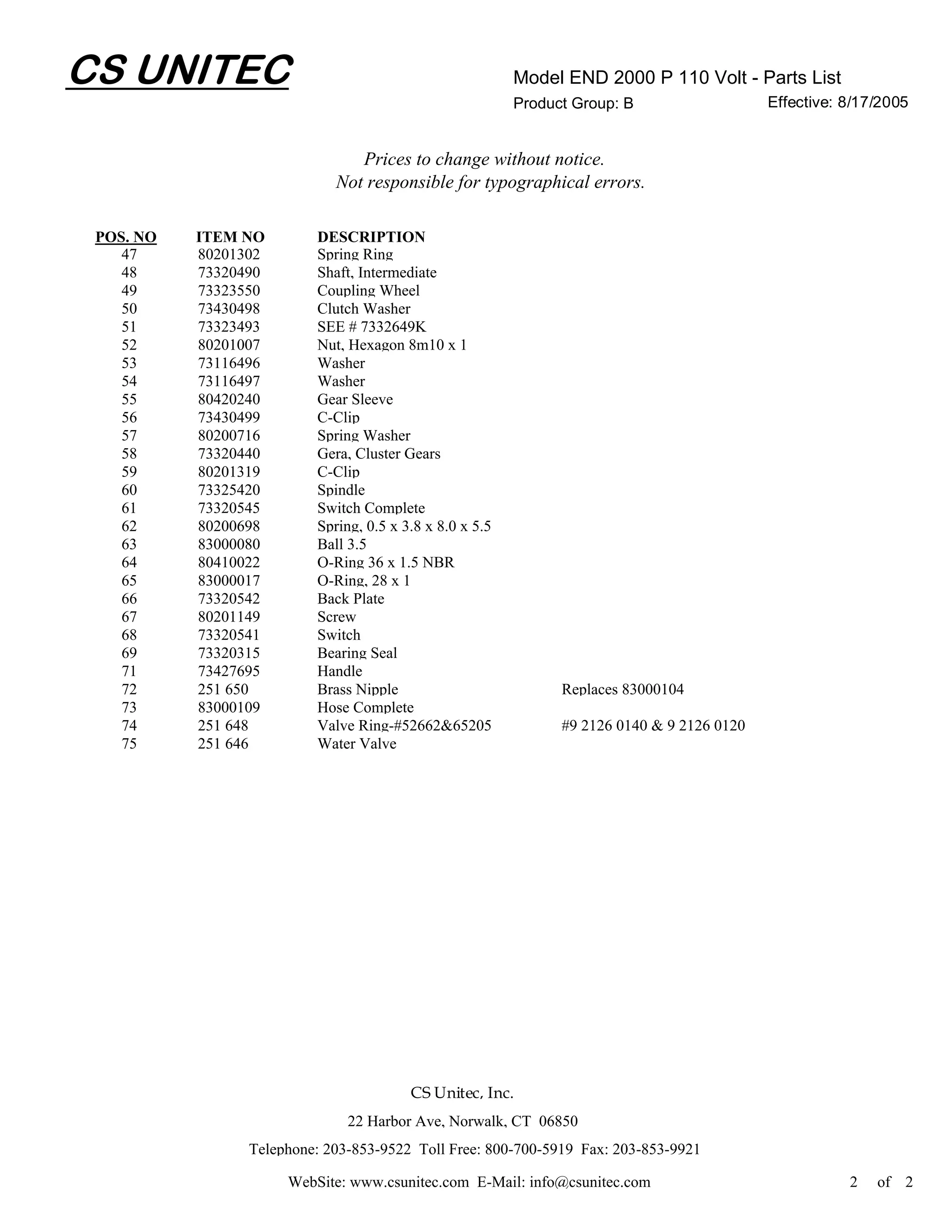

3. CS UNITEC Model END 2000 P 110 Volt - Parts List
Product Group: B Effective: 8/17/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO ITEM NO DESCRIPTION
47 80201302 Spring Ring
48 73320490 Shaft, Intermediate
49 73323550 Coupling Wheel
50 73430498 Clutch Washer
51 73323493 SEE # 7332649K
52 80201007 Nut, Hexagon 8m10 x 1
53 73116496 Washer
54 73116497 Washer
55 80420240 Gear Sleeve
56 73430499 C-Clip
57 80200716 Spring Washer
58 73320440 Gera, Cluster Gears
59 80201319 C-Clip
60 73325420 Spindle
61 73320545 Switch Complete
62 80200698 Spring, 0.5 x 3.8 x 8.0 x 5.5
63 83000080 Ball 3.5
64 80410022 O-Ring 36 x 1.5 NBR
65 83000017 O-Ring, 28 x 1
66 73320542 Back Plate
67 80201149 Screw
68 73320541 Switch
69 73320315 Bearing Seal
71 73427695 Handle
72 251 650 Brass Nipple Replaces 83000104
73 83000109 Hose Complete
74 251 648 Valve Ring-#52662&65205 #9 2126 0140 & 9 2126 0120
75 251 646 Water Valve
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.com 2 of 2
