The document provides a parts list for an air jig saw gearbox model 5 6004 0020 made by CS Unitec, including 107 individual parts numbered and described. It lists the part number, item number, description, and any relevant notes for each part. The parts list is intended to identify all components of the gearbox to facilitate repairs or ordering of replacement parts.

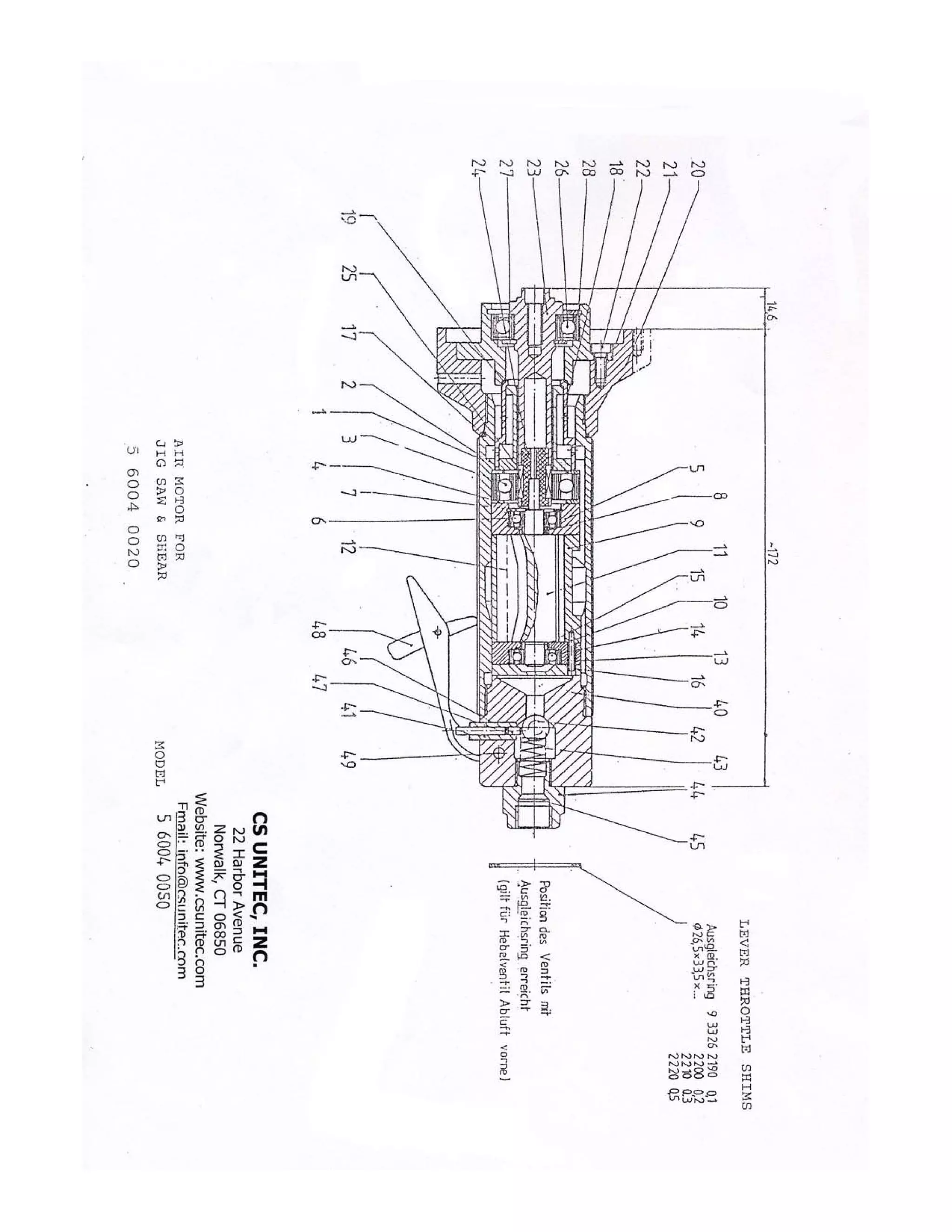

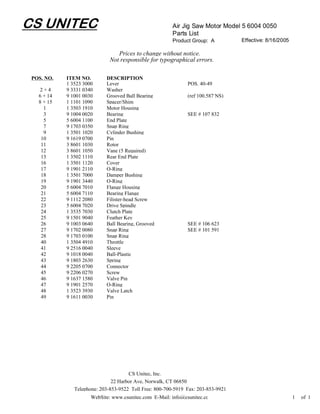

2. CS UNITEC Air Jig Saw Motor Model 5 6004 0050
Parts List
Product Group: A Effective: 8/16/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
1 3523 3000 Lever POS. 40-49
2+4 9 3331 0340 Washer
6 + 14 9 1001 0030 Grooved Ball Bearing (ref 100.587 NS)
8 + 15 1 1101 1090 Spacer/Shim
1 1 3503 1910 Motor Housing
3 9 1004 0020 Bearing SEE # 107 832
5 5 6004 1100 End Plate
7 9 1703 0350 Snap Ring
9 1 3501 1020 Cylinder Bushing
10 9 1619 0700 Pin
11 3 8601 1030 Rotor
12 3 8601 1050 Vane (5 Required)
13 1 3502 1110 Rear End Plate
16 1 3501 1120 Cover
17 9 1901 2110 O-Ring
18 1 3501 7000 Damper Bushing
19 9 1901 3440 O-Ring
20 5 6004 7010 Flange Housing
21 5 6004 7110 Bearing Flange
22 9 1112 2080 Filister-head Screw
23 5 6004 7020 Drive Spindle
24 1 3535 7030 Clutch Plate
25 9 1501 9040 Feather Key
26 9 1003 0640 Ball Bearing, Grooved SEE # 106 623
27 9 1702 0080 Snap Ring SEE # 101 591
28 9 1703 0100 Snap Ring
40 1 3504 4910 Throttle
41 9 2516 0040 Sleeve
42 9 1018 0040 Ball-Plastic
43 9 1803 2630 Spring
44 9 2205 0700 Connector
45 9 2206 0270 Screw
46 9 1637 1580 Valve Pin
47 9 1901 2570 O-Ring
48 1 3523 3930 Valve Latch
49 9 1611 0030 Pin
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 1

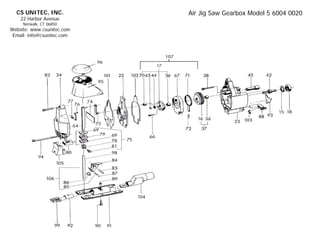

3. CS UNITEC, INC. Air Jig Saw Gearbox Model 5 6004 0020
22 Harbor Avenue
Norwalk, CT 06850
Website: www.csunitec.com
Email: info@csunitec.com

4. CS UNITEC Air Jig Saw Gearbox Model 5 6004 0020 -
Parts List
Product Group: A Effective: 8/16/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
15 100 471 Gasket Ring
16 196 401 Gear Wheel
17 210 471 Eccentric Disk
18 254 442 Bearing SEE # 100 579
22 252 119 Plate
23 251 500 Gear Housing
24 251 493 Cove
36 196 770 Sinter Camp
37 210 463 Gear Wheel
38 195 707 screw
42 102 180 Pinion
44 196 517 Screw
45 196 509 Axle
64 196 444 Rod
65 196 703 Lock Washer
66 101 869 Screw
67 196 363 Counterweight
69 251 496 Seal Plate
70 196 789 Needle Bushing
71 196 525 Cam
72 200 352 Cylinder Screw
73 196 428 Connecting Rod
74 196 495 Sheet Metal
75 252 459 Hubstange komplett
76 196 371 Feather/Spring
77 196 487 Role
78 196 479 Clamping Shoe
79 251 497 Felt Seal
80 251 495 Box
81 210 285 Cylinder Screw
82 159 263 Screw
83 196 746 Cylinder Pin
84 196 541 Rollenhalter
85 196 568 Axle
86 196 576 Role
87 196 711 Snap Ring
88 196 061 Adjusting Lever
89 104 221 Nut
90 203 742 Cylindrical Screw
91 252 787 Saw Table Replaces 200 573
92 196 584 Clamping Jaw
93 196 614 Cover
94 196 797 Screw
95 252 154 COVER
96 252 564 Handle - Replaces 196 053
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 1 of 2

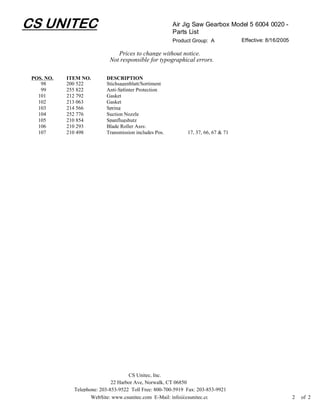

5. CS UNITEC Air Jig Saw Gearbox Model 5 6004 0020 -
Parts List
Product Group: A Effective: 8/16/2005
Prices to change without notice.
Not responsible for typographical errors.
POS. NO. ITEM NO. DESCRIPTION
98 200 522 Stichsagenblatt/Sortiment
99 255 822 Anti-Splinter Protection
101 212 792 Gasket
102 213 063 Gasket
103 214 566 Spring
104 252 776 Suction Nozzle
105 210 854 Spanflugshutz
106 210 293 Blade Roller Assy.
107 210 498 Transmission includes Pos. 17, 37, 66, 67 & 71
CS Unitec, Inc.
22 Harbor Ave, Norwalk, CT 06850
Telephone: 203-853-9522 Toll Free: 800-700-5919 Fax: 203-853-9921
WebSite: www.csunitec.com E-Mail: info@csunitec.co 2 of 2
