1. E.D.D.I.
Enhanced Dialog Driven Intelligence
Gregor Jarisch

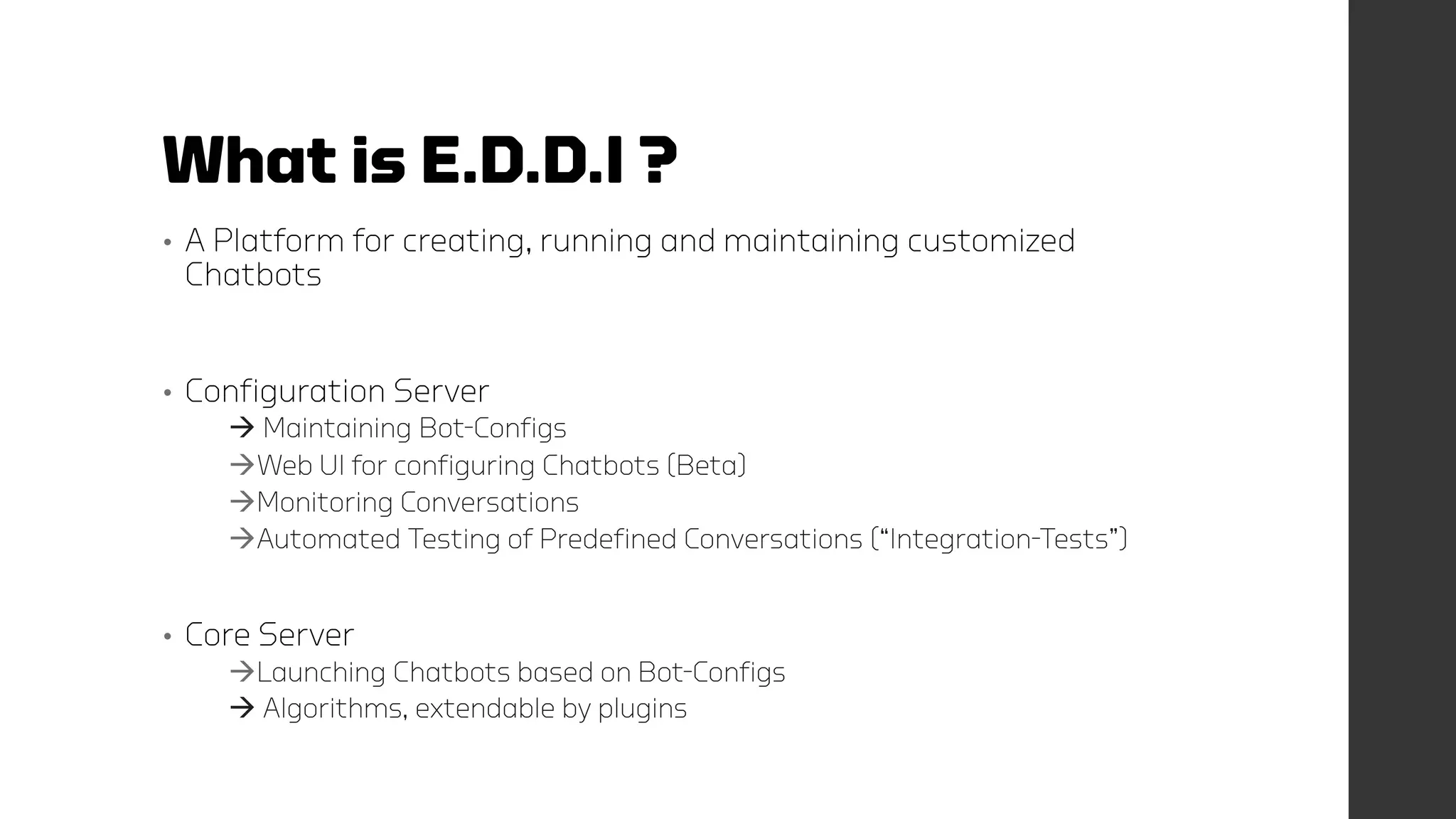

3. What is E.D.D.I ?
• A Platform for creating, running and maintaining customized
Chatbots
• Configuration Server
 Maintaining Bot-Configs
Web UI for configuring Chatbots (Beta)
Monitoring Conversations
Automated Testing of Predefined Conversations (“Integration-Tests”)
• Core Server
Launching Chatbots based on Bot-Configs
 Algorithms, extendable by plugins

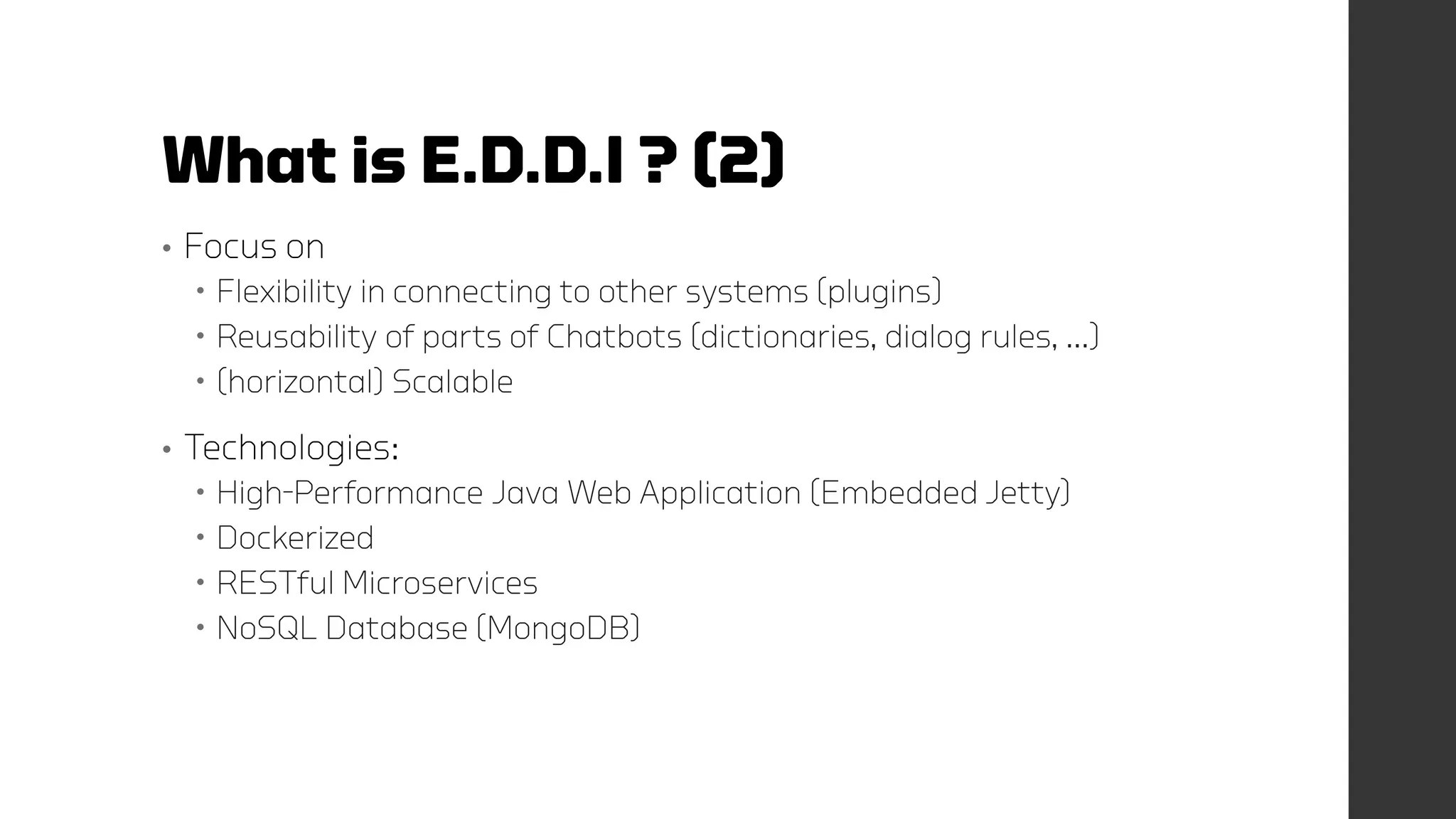

4. What is E.D.D.I ? (2)
• Focus on
 Flexibility in connecting to other systems (plugins)
 Reusability of parts of Chatbots (dictionaries, dialog rules, …)
 (horizontal) Scalable
• Technologies:
 High-Performance Java Web Application (Embedded Jetty)
 Dockerized
 RESTful Microservices
 NoSQL Database (MongoDB)

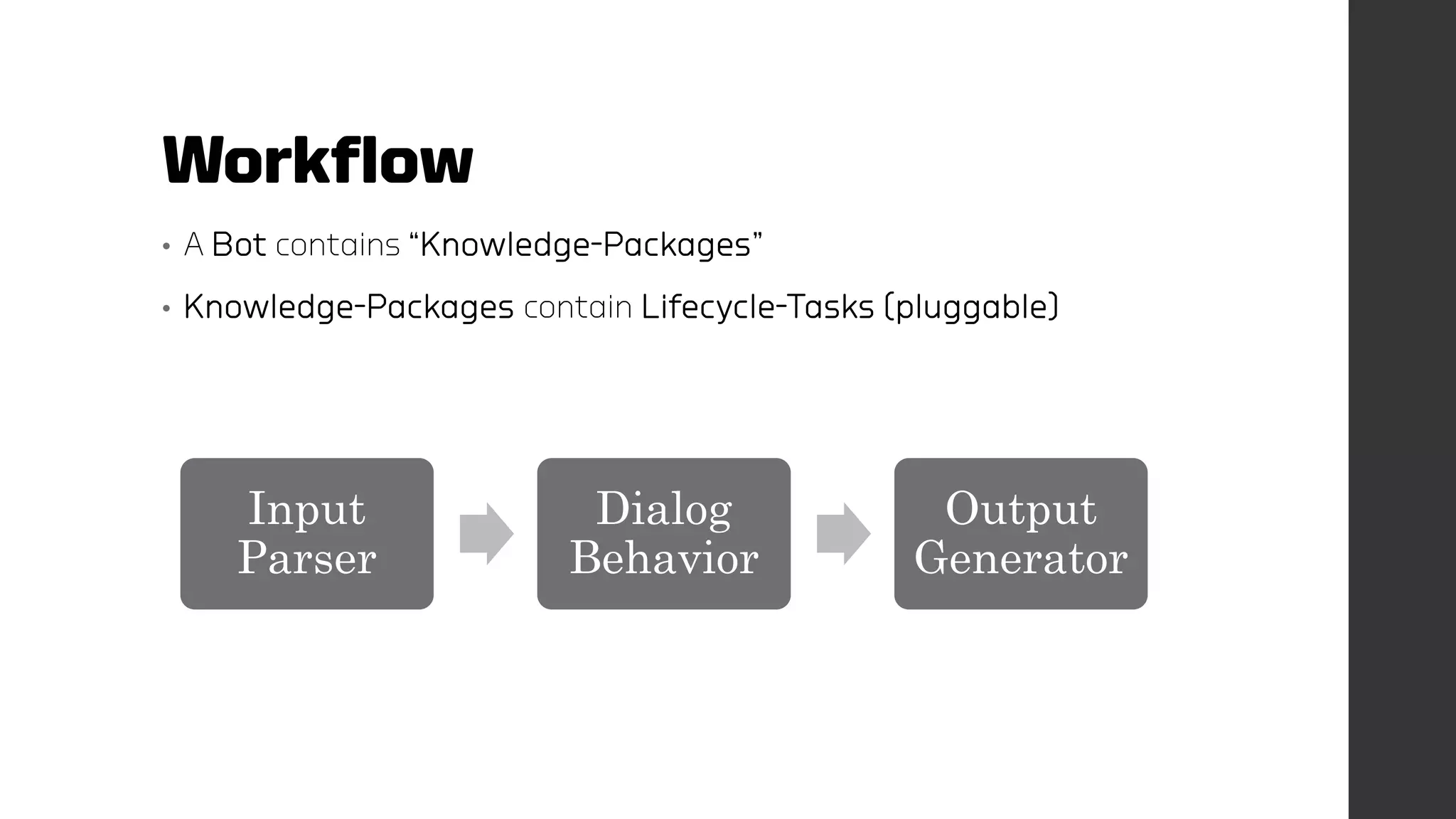

5. Workflow
• A Bot contains “Knowledge-Packages”
• Knowledge-Packages contain Lifecycle-Tasks (pluggable)
Input
Parser
Dialog
Behavior
Output
Generator

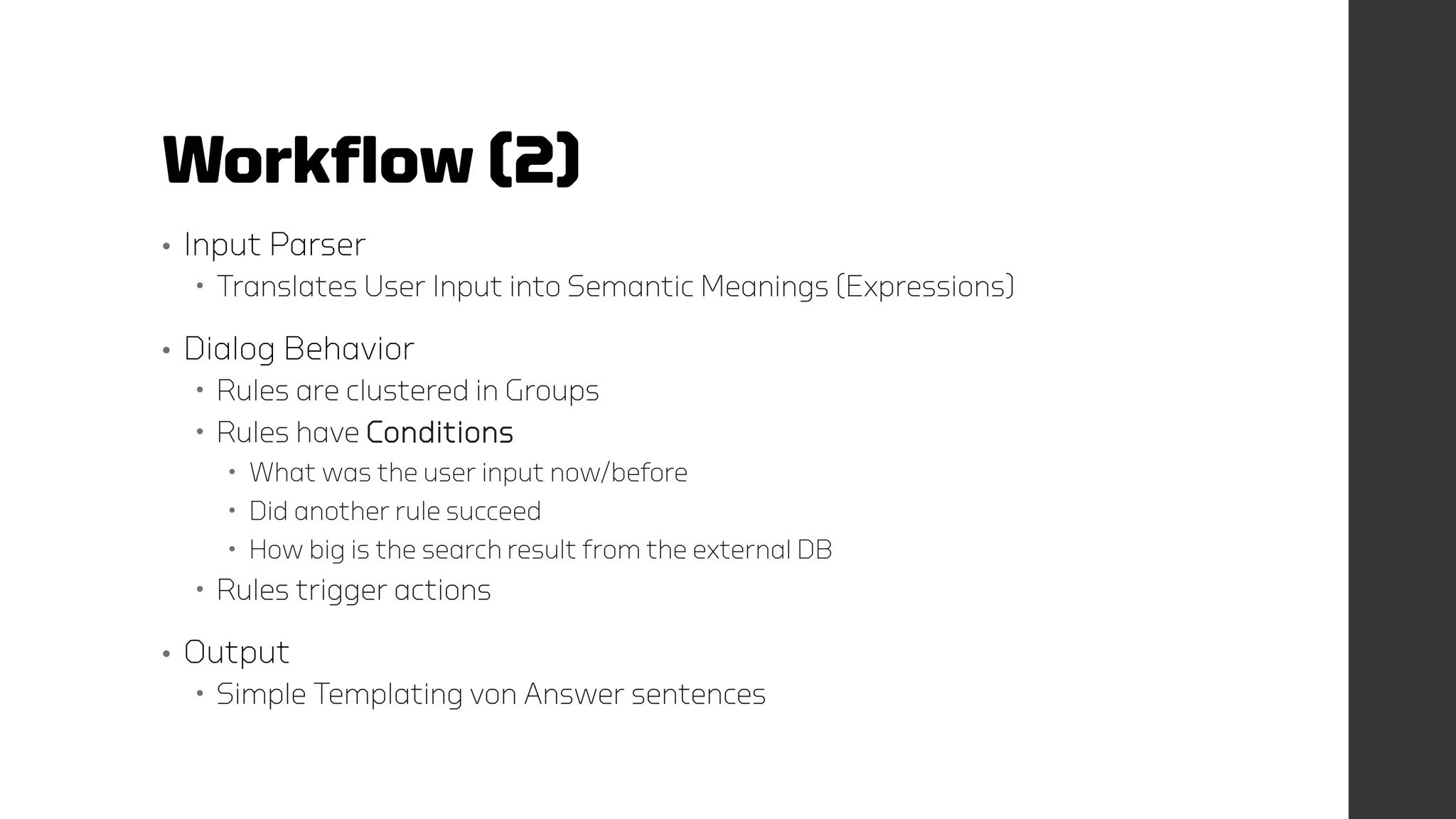

6. Workflow (2)
• Input Parser
 Translates User Input into Semantic Meanings (Expressions)
• Dialog Behavior
 Rules are clustered in Groups
 Rules have Conditions
 What was the user input now/before
 Did another rule succeed
 How big is the search result from the external DB
 Rules trigger actions
• Output
 Simple Templating von Answer sentences

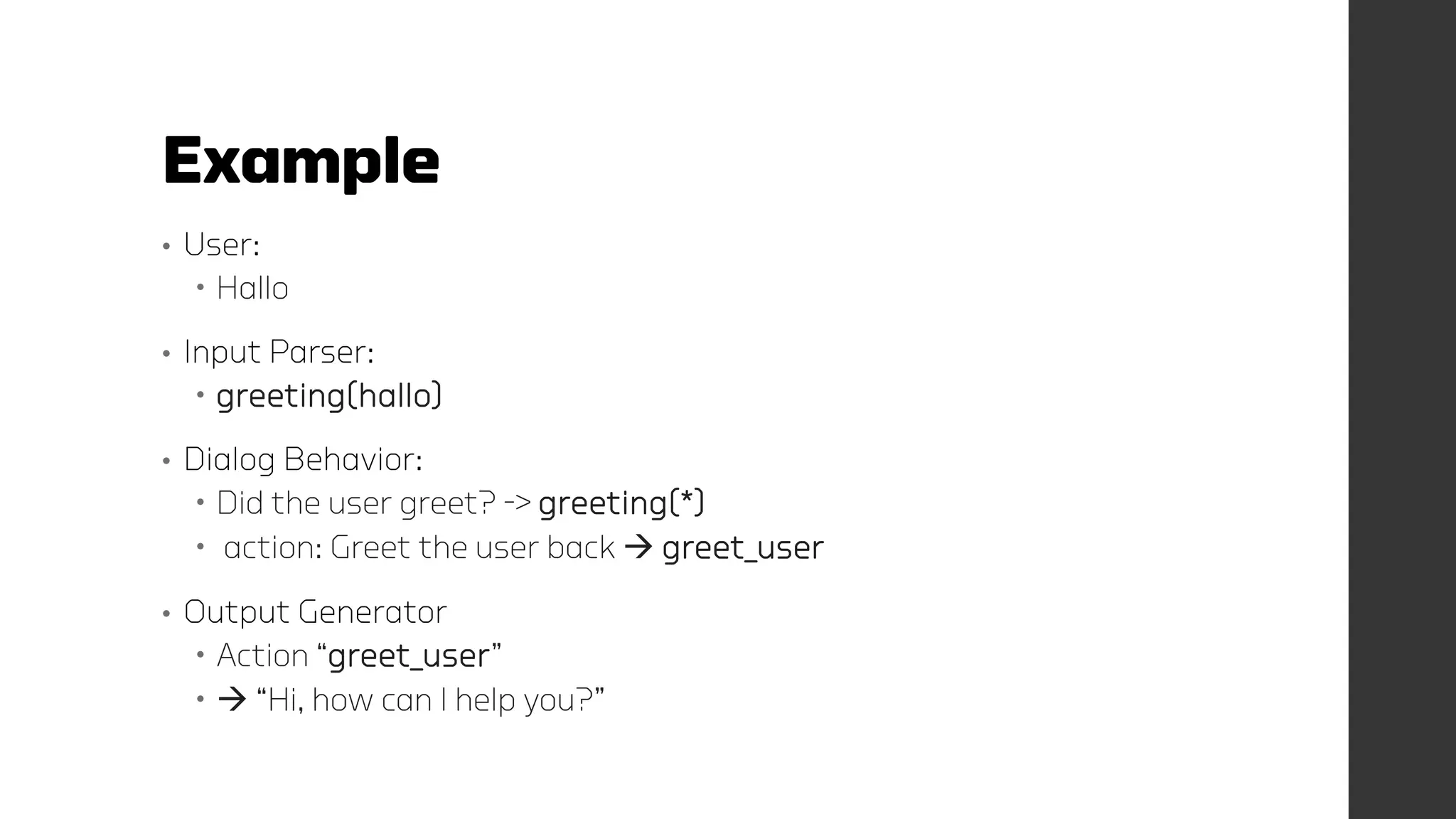

7. Example
• User:
 Hallo
• Input Parser:
 greeting(hallo)
• Dialog Behavior:
 Did the user greet? -> greeting(*)
 action: Greet the user back  greet_user
• Output Generator
 Action “greet_user”
  “Hi, how can I help you?”

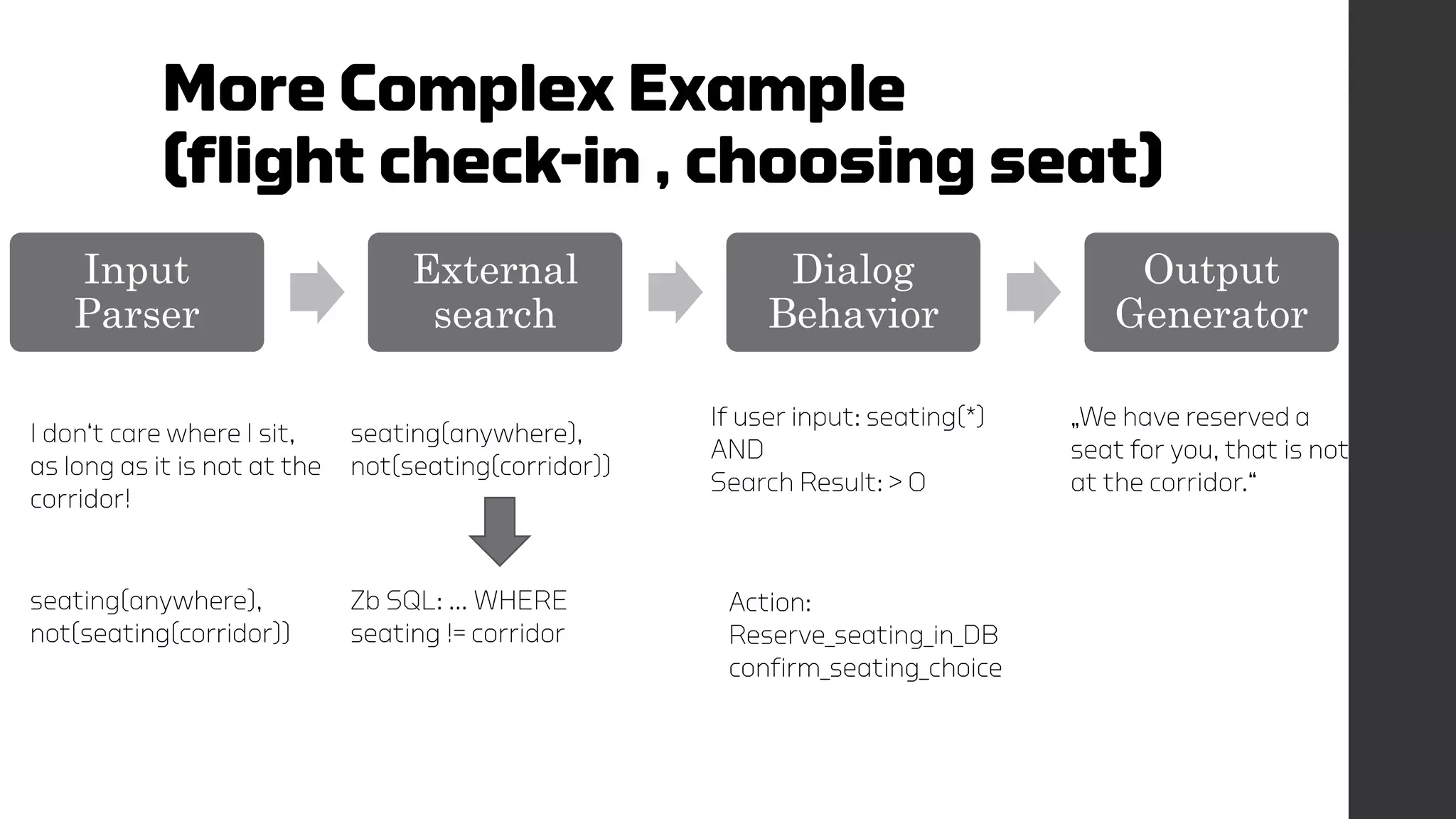

8. More Complex Example
(flight check-in , choosing seat)
Input
Parser
External
search
Dialog
Behavior
Output
Generator
I don‘t care where I sit,
as long as it is not at the
corridor!
seating(anywhere),
not(seating(corridor))
seating(anywhere),
not(seating(corridor))
Zb SQL: … WHERE
seating != corridor
If user input: seating(*)
AND
Search Result: > 0
„We have reserved a
seat for you, that is not
at the corridor.“
Action:
Reserve_seating_in_DB
confirm_seating_choice

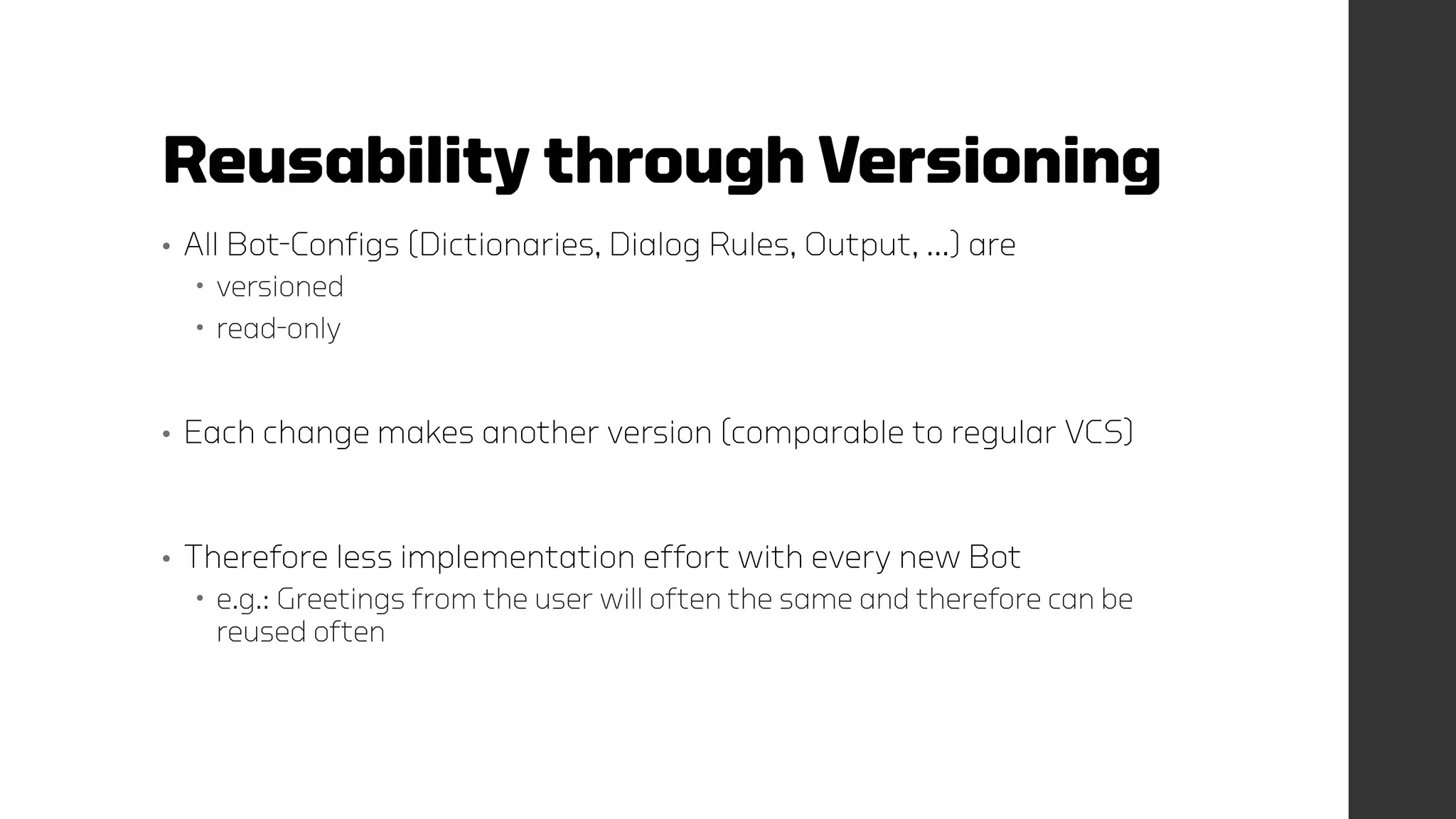

9. Reusability through Versioning
• All Bot-Configs (Dictionaries, Dialog Rules, Output, …) are
 versioned
 read-only
• Each change makes another version (comparable to regular VCS)
• Therefore less implementation effort with every new Bot
 e.g.: Greetings from the user will often the same and therefore can be
reused often

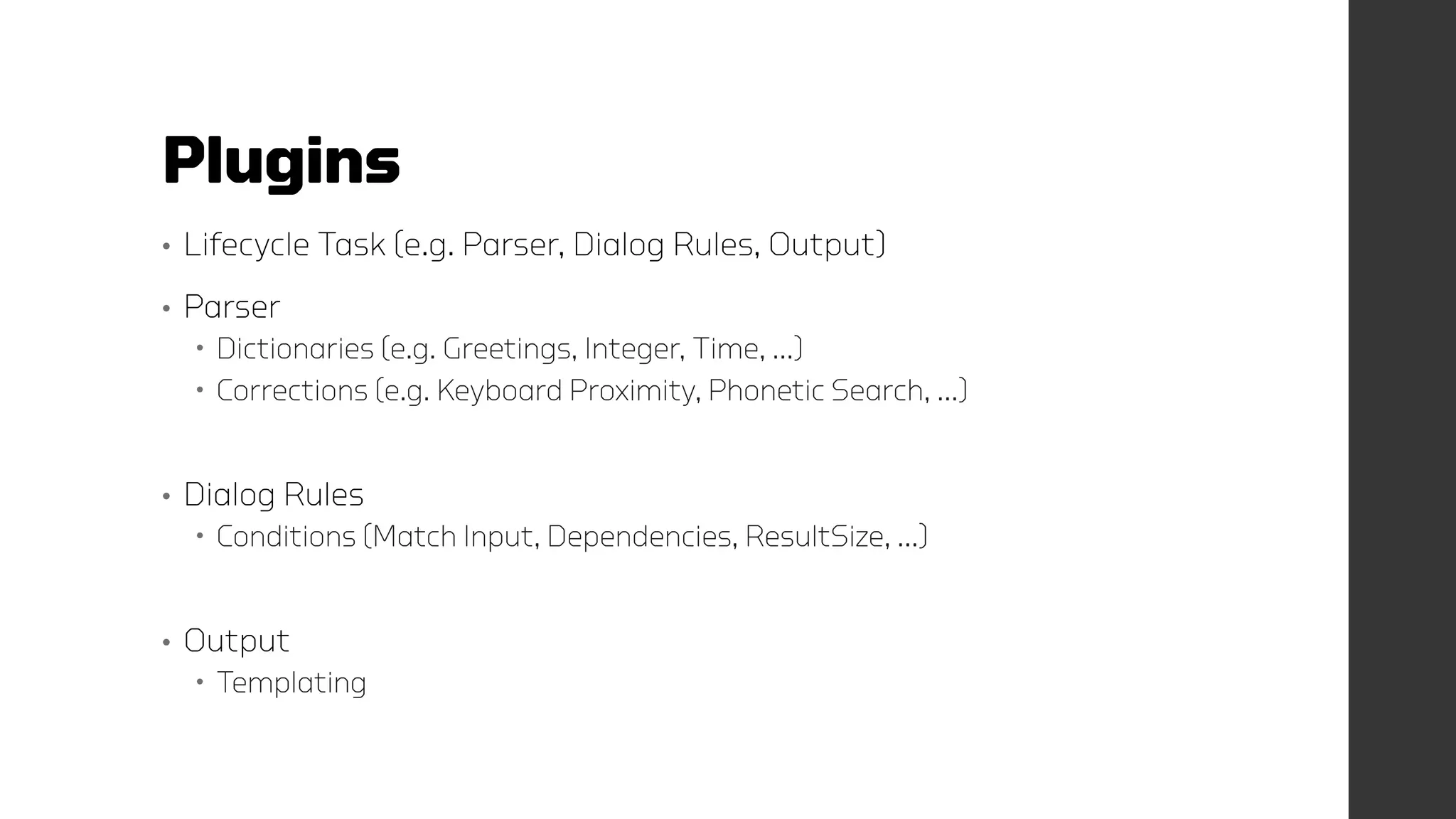

10. Plugins
• Lifecycle Task (e.g. Parser, Dialog Rules, Output)
• Parser
 Dictionaries (e.g. Greetings, Integer, Time, …)
 Corrections (e.g. Keyboard Proximity, Phonetic Search, …)
• Dialog Rules
 Conditions (Match Input, Dependencies, ResultSize, …)
• Output
 Templating

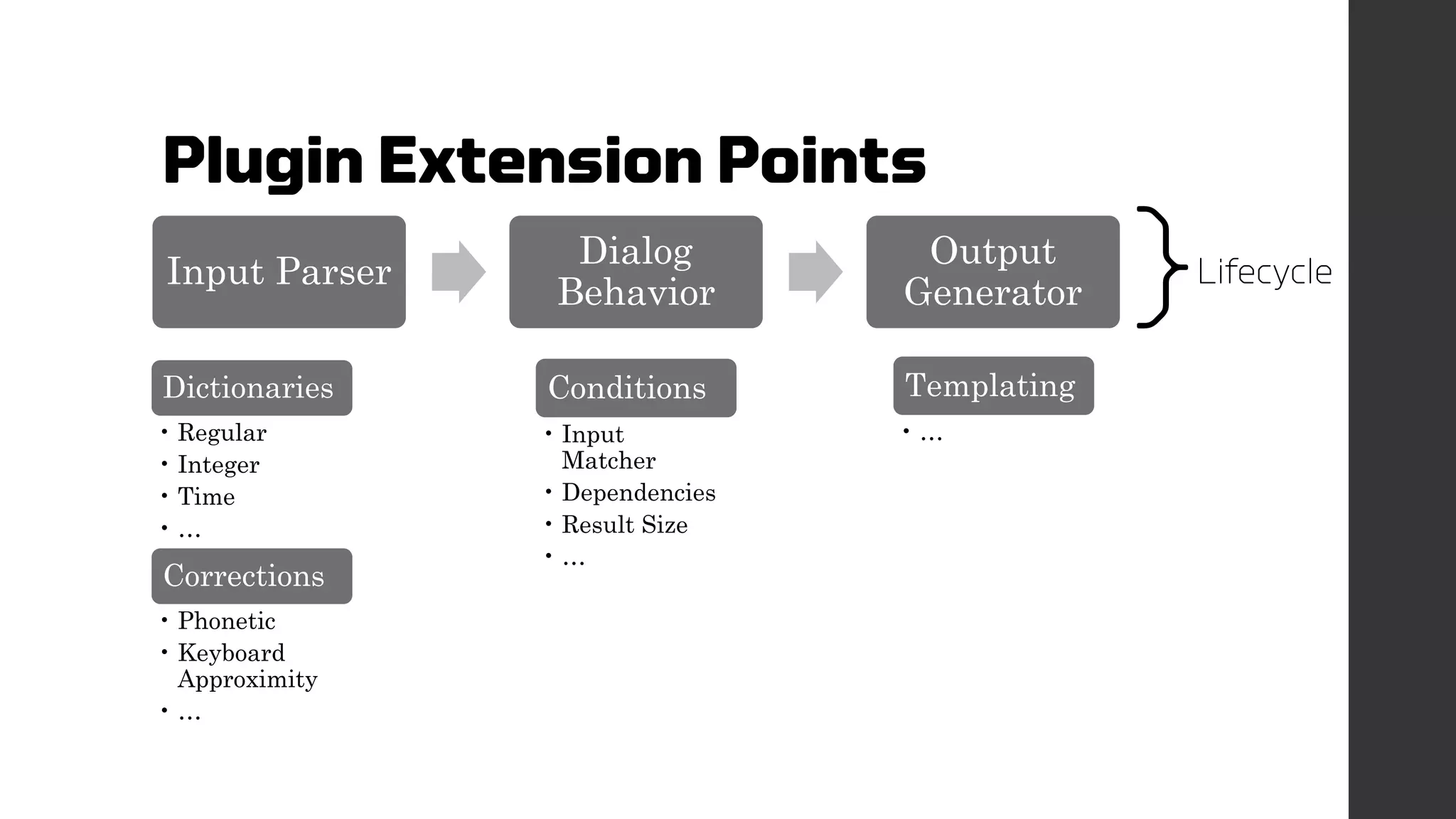

11. Plugin Extension Points
Input Parser
Dialog
Behavior
Output
Generator
Dictionaries
• Regular
• Integer
• Time
• …
Corrections
• Phonetic
• Keyboard
Approximity
• …
Conditions
• Input
Matcher
• Dependencies
• Result Size
• …
Templating
• …
}Lifecycle

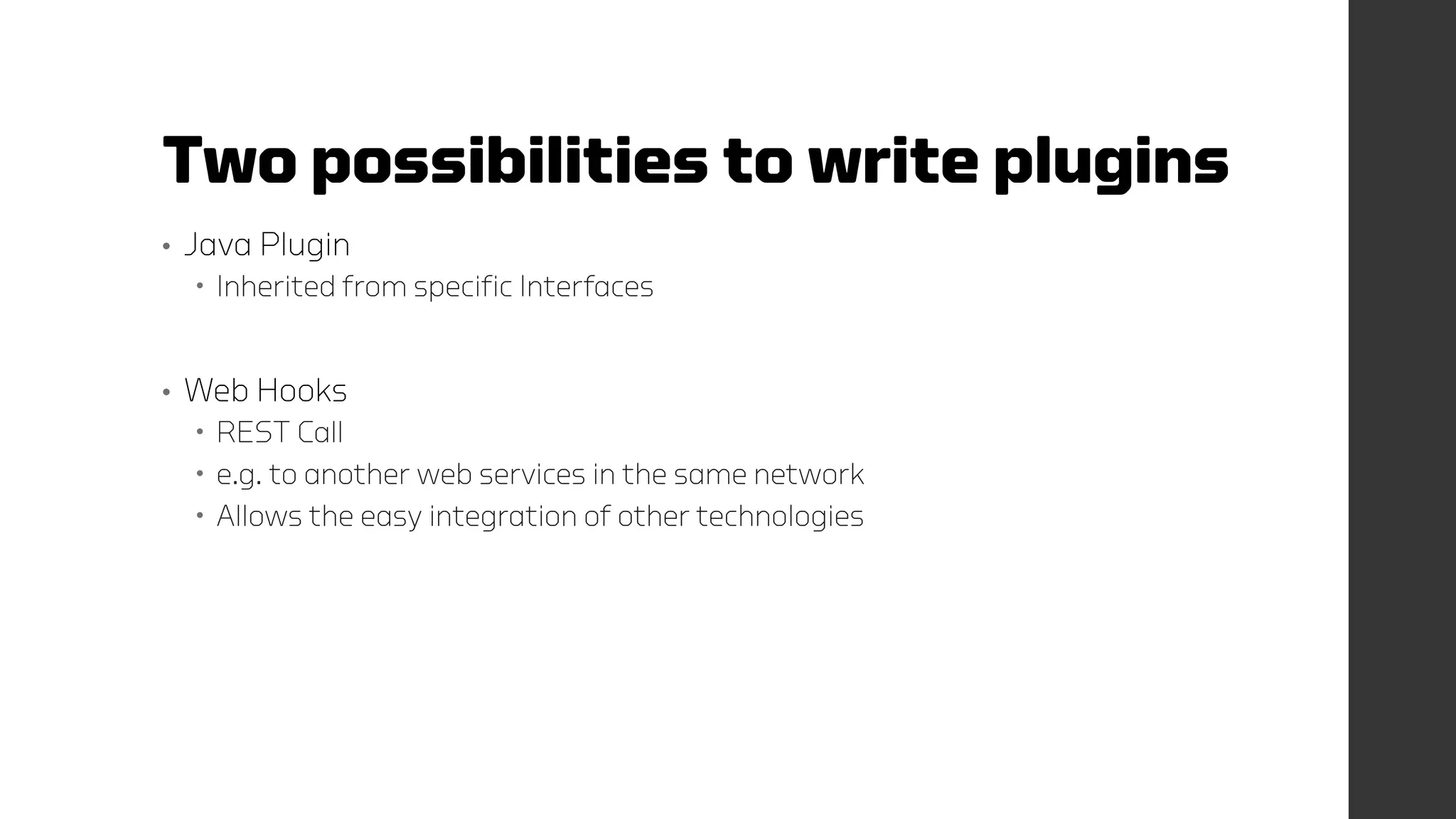

12. Two possibilities to write plugins
• Java Plugin
 Inherited from specific Interfaces
• Web Hooks
 REST Call
 e.g. to another web services in the same network
 Allows the easy integration of other technologies

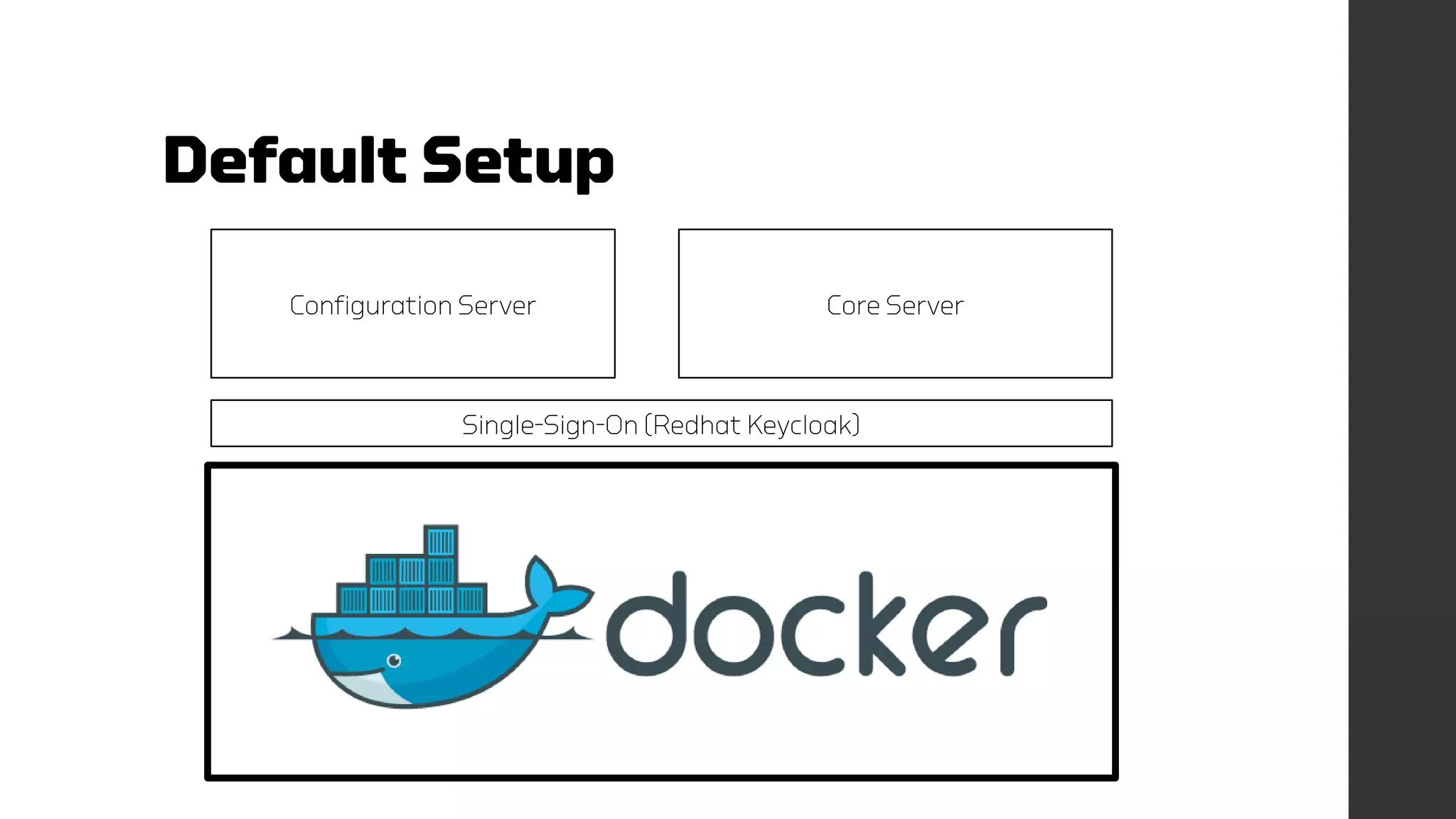

13. Default Setup
Configuration Server Core Server
Single-Sign-On (Redhat Keycloak)

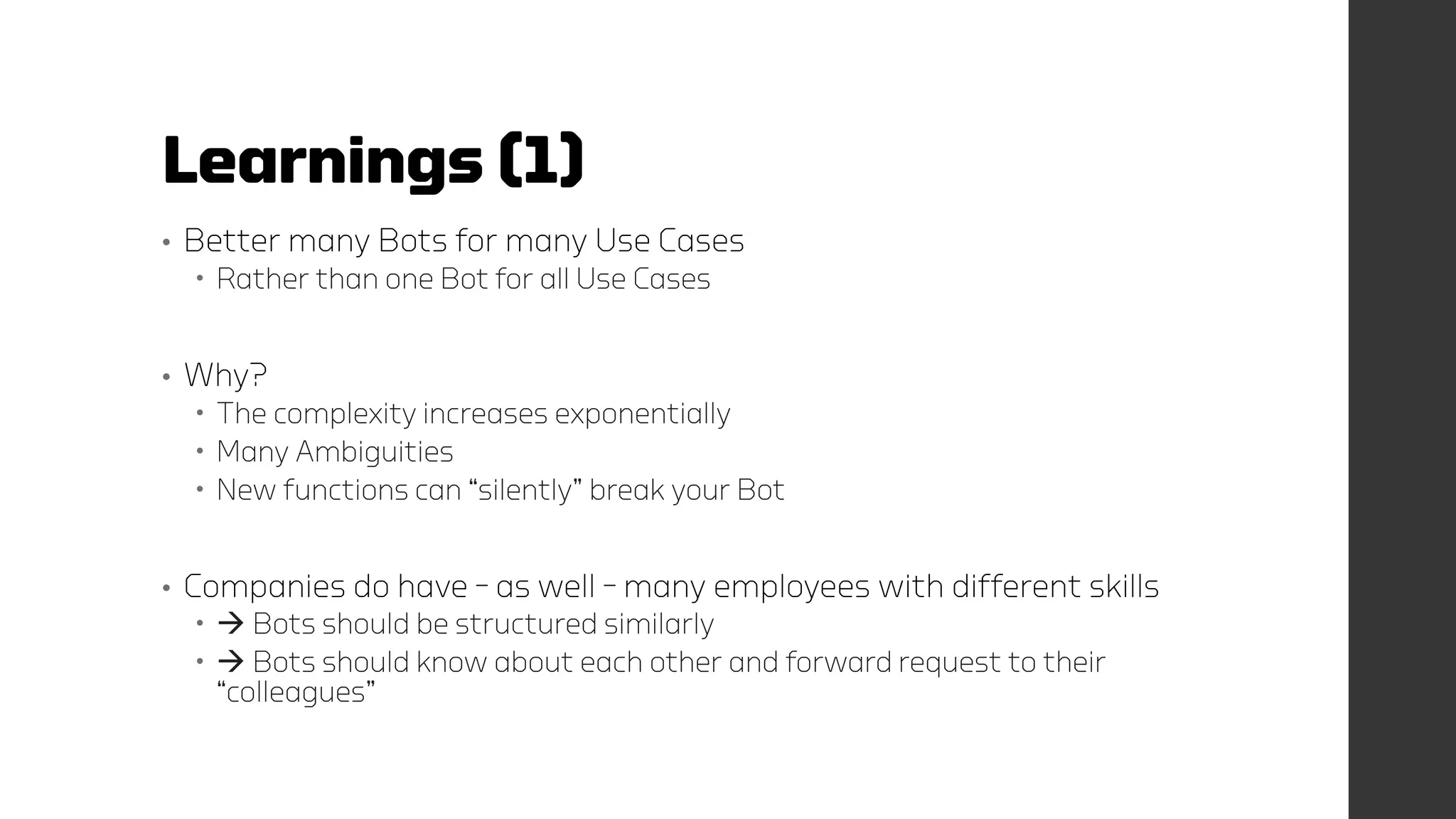

14. Learnings (1)
• Better many Bots for many Use Cases
 Rather than one Bot for all Use Cases
• Why?
 The complexity increases exponentially
 Many Ambiguities
 New functions can “silently” break your Bot
• Companies do have – as well – many employees with different skills
  Bots should be structured similarly
  Bots should know about each other and forward request to their
“colleagues”

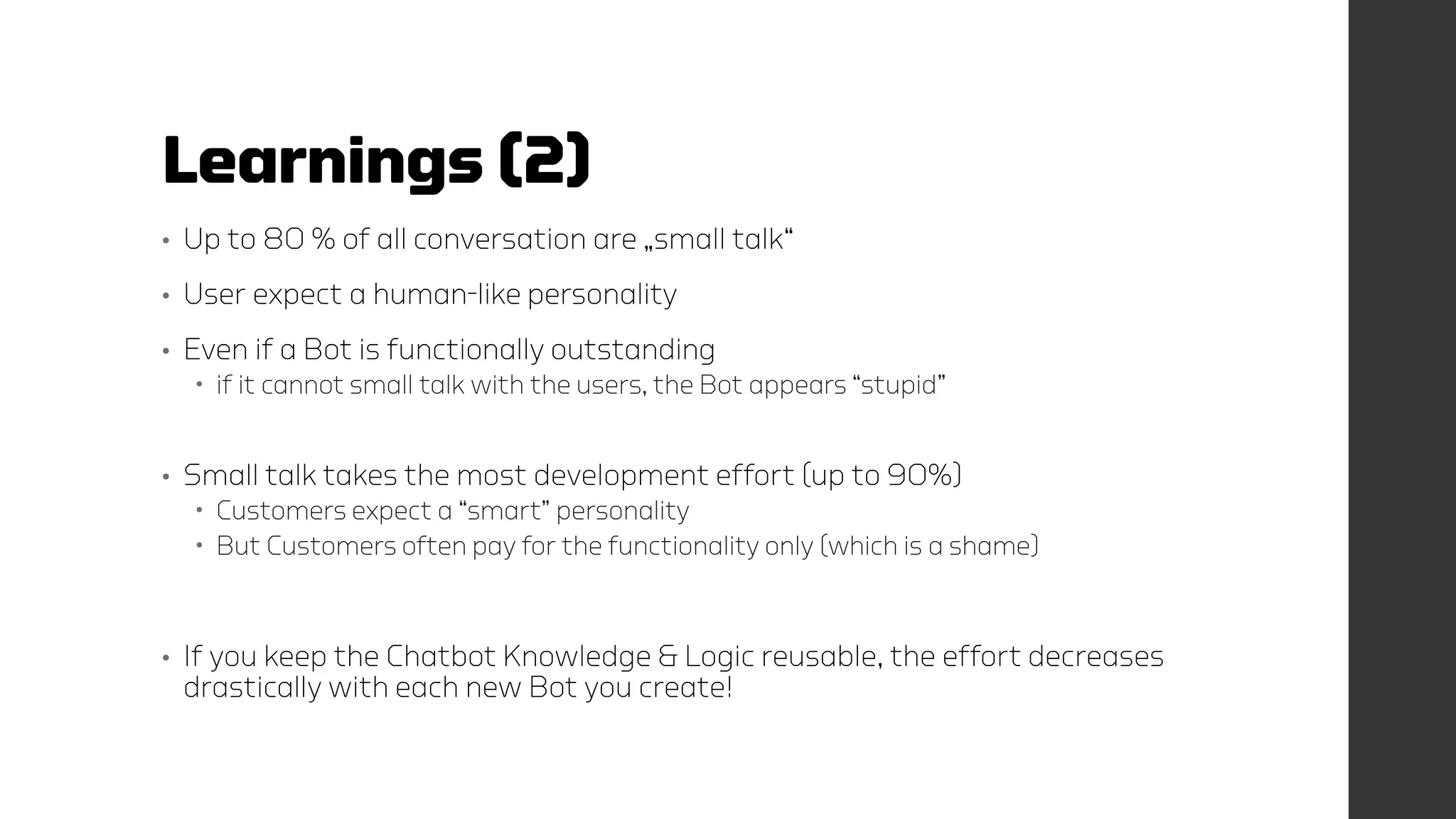

15. Learnings (2)
• Up to 80 % of all conversation are „small talk“
• User expect a human-like personality
• Even if a Bot is functionally outstanding
 if it cannot small talk with the users, the Bot appears “stupid”
• Small talk takes the most development effort (up to 90%)
 Customers expect a “smart” personality
 But Customers often pay for the functionality only (which is a shame)
• If you keep the Chatbot Knowledge & Logic reusable, the effort decreases
drastically with each new Bot you create!

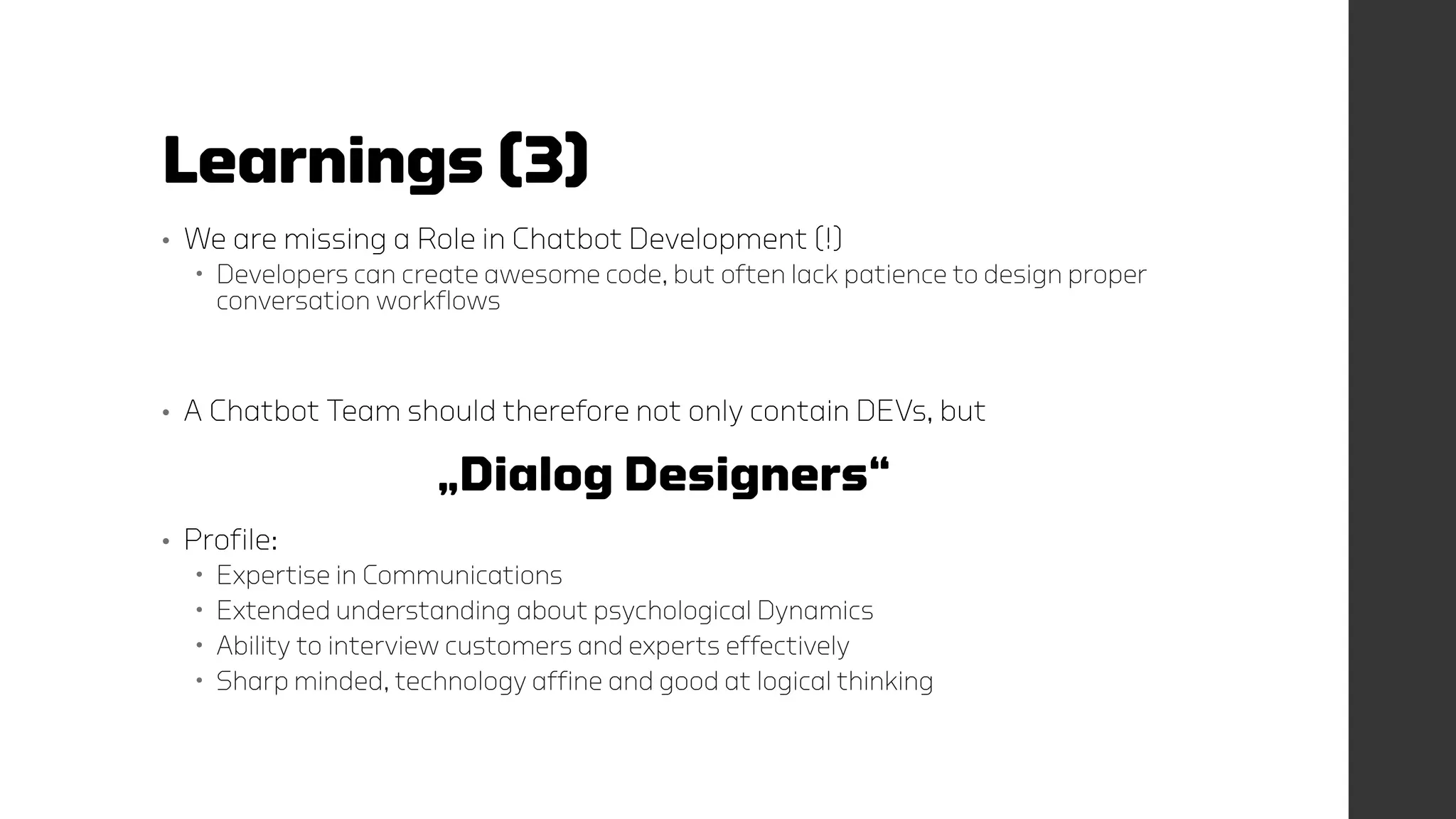

16. Learnings (3)
• We are missing a Role in Chatbot Development (!)
 Developers can create awesome code, but often lack patience to design proper
conversation workflows
• A Chatbot Team should therefore not only contain DEVs, but
„Dialog Designers“
• Profile:
 Expertise in Communications
 Extended understanding about psychological Dynamics
 Ability to interview customers and experts effectively
 Sharp minded, technology affine and good at logical thinking

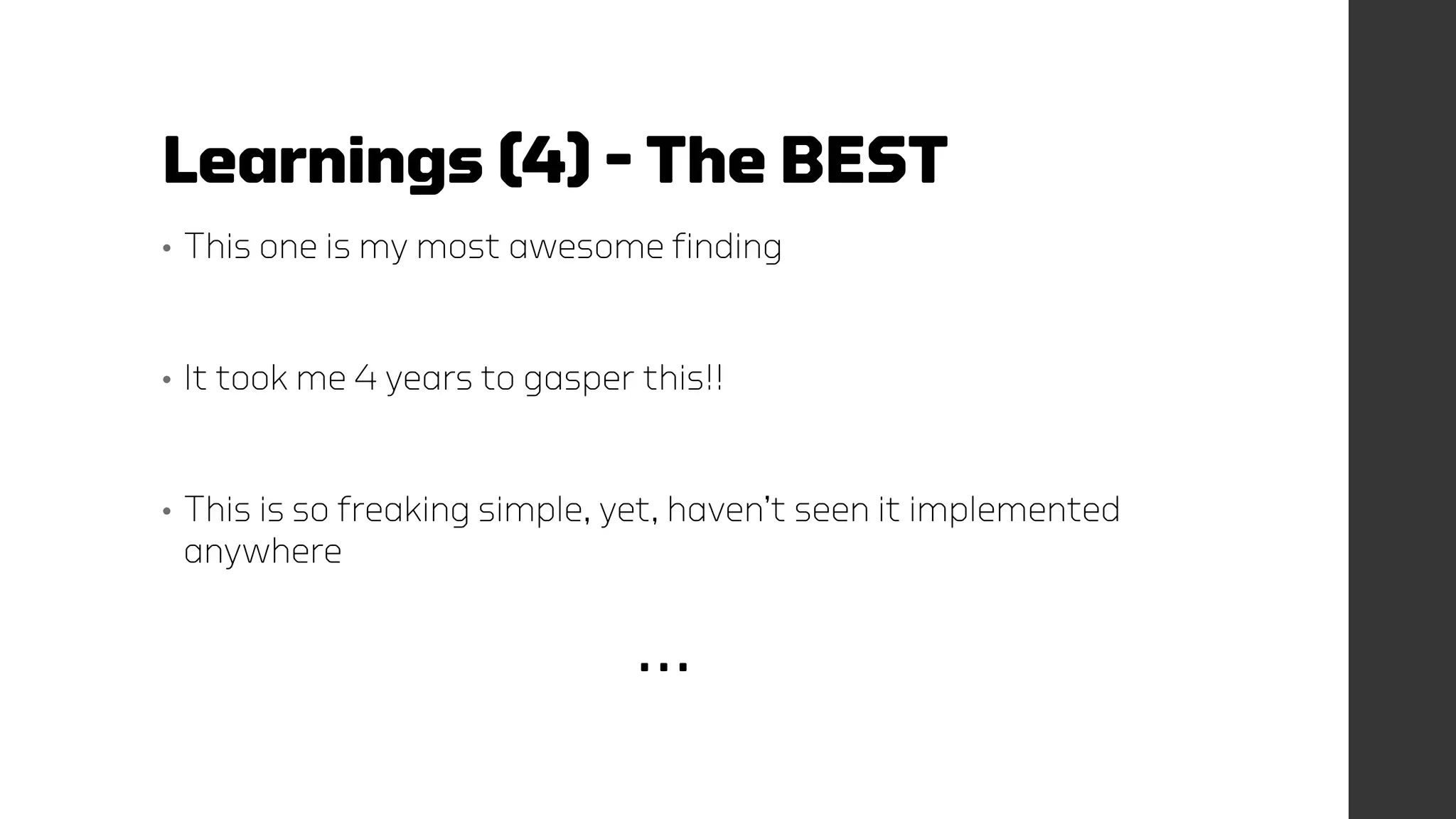

17. Learnings (4) – The BEST
• This one is my most awesome finding
• It took me 4 years to gasper this!!
• This is so freaking simple, yet, haven’t seen it implemented
anywhere
…

18. Let the Users
UNDO
their actions!

19. I have been released
on
github.com/labsai/EDDI
(Beta)
Contributions & Feedback are
Welcomed! 
Lead Dev: Gregor Jarisch
