West Coast DevCon 2014: Concurrency & Parallelism in UE4 - Tips for programming with many CPU cores
The document provides detailed insights into concurrency and parallelism within Unreal Engine 4 (UE4), outlining various synchronization primitives, threading models, and parallelization techniques. It covers classes and constructs such as FThreadSafeCounter, FEvent, and task-based multi-threading, emphasizing the importance of thread-safety in the game development context. Additionally, it discusses communication mechanisms like the Unreal Message Bus and mentions upcoming features aimed at enhancing debugging, profiling, and container management.
More Related Content
Similar to West Coast DevCon 2014: Concurrency & Parallelism in UE4 - Tips for programming with many CPU cores
West Coast DevCon 2014: Concurrency & Parallelism in UE4 - Tips for programming with many CPU cores

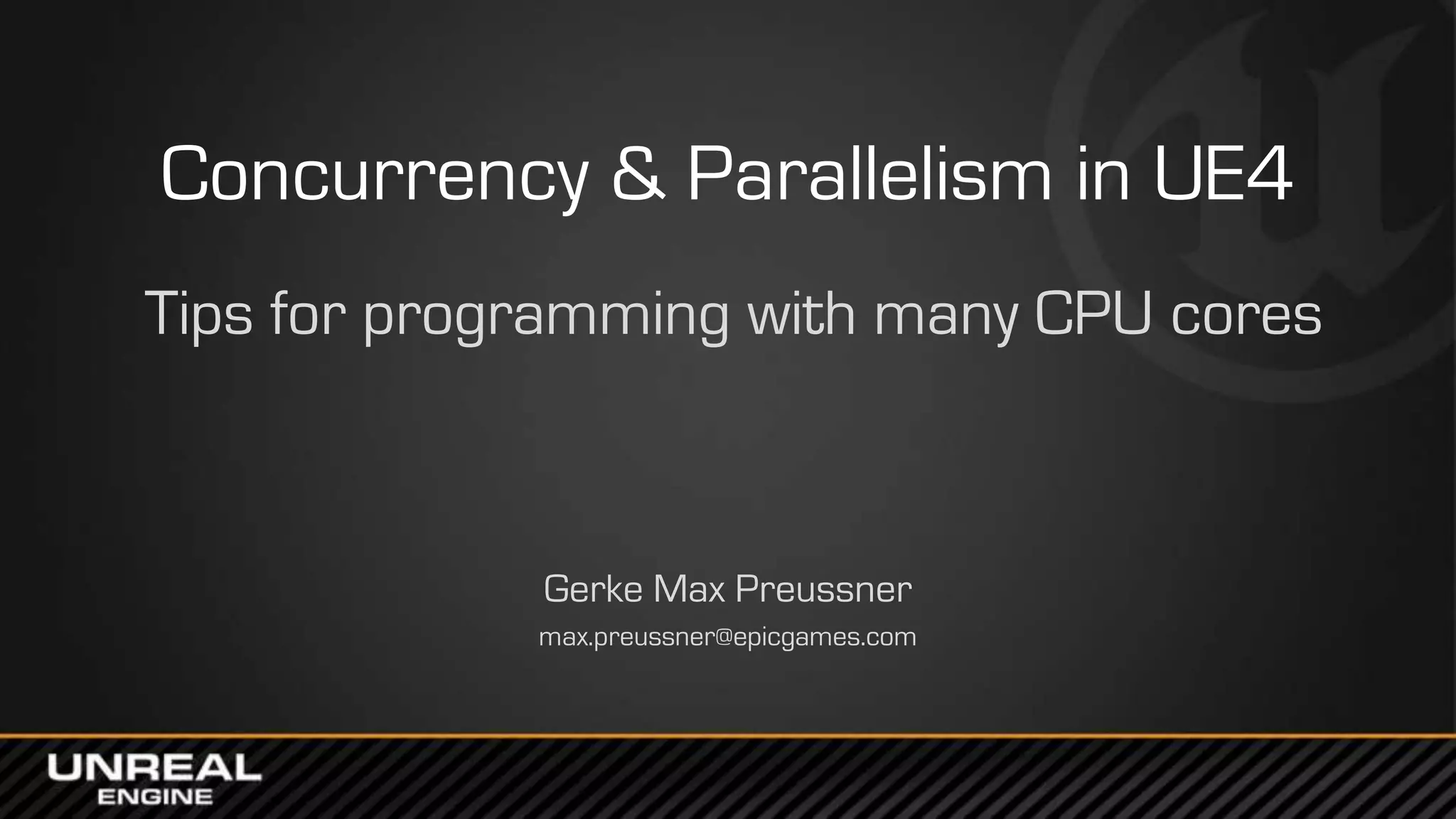

- 1. Concurrency & Parallelismin UE4 Tips for programming with many CPU cores Gerke Max Preussner max.preussner@epicgames.com

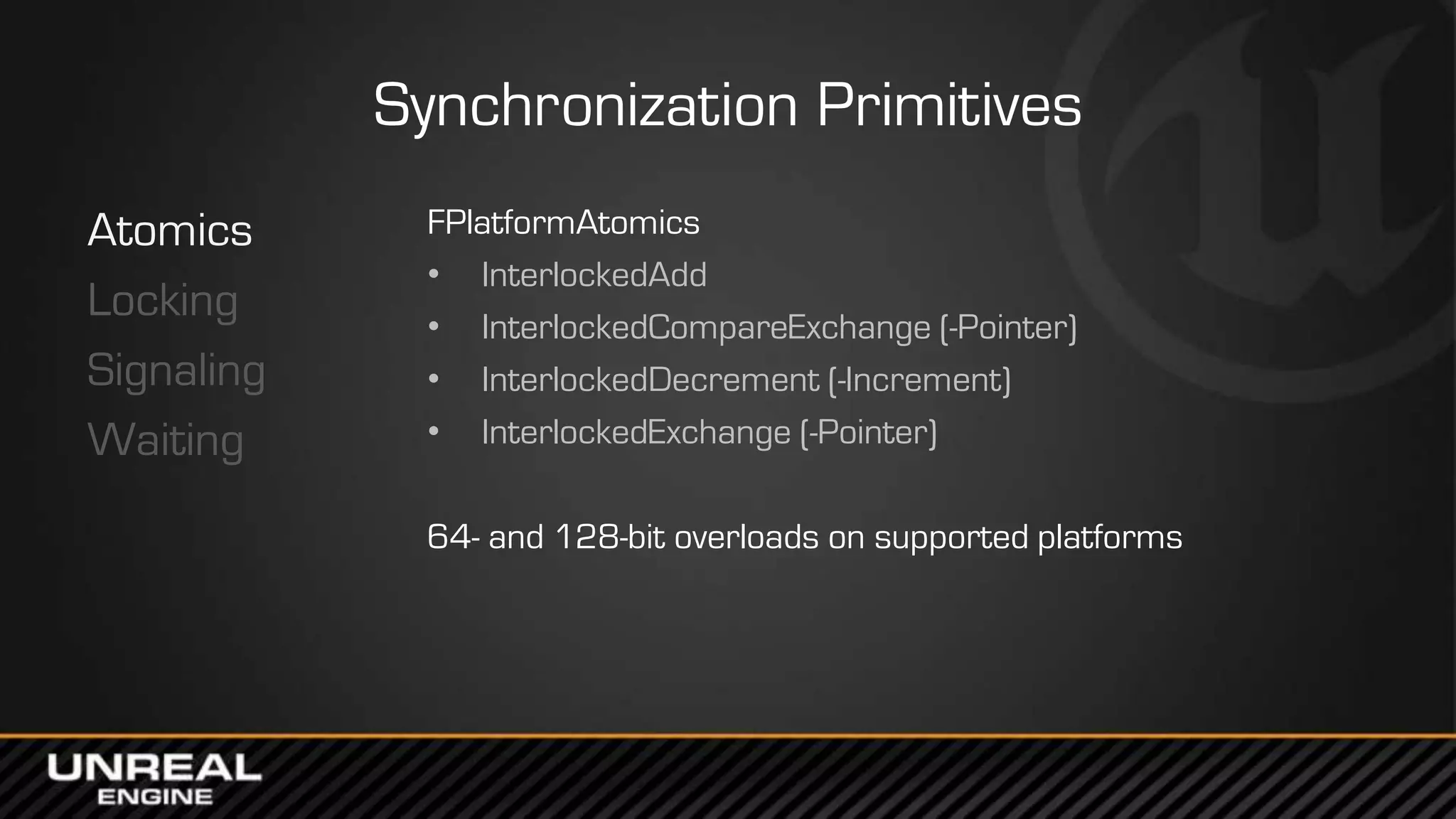

- 2. Synchronization Primitives Atomics Locking Signaling Waiting FPlatformAtomics • InterlockedAdd •InterlockedCompareExchange (-Pointer) • InterlockedDecrement (-Increment) • InterlockedExchange (-Pointer) 64- and 128-bit overloads on supported platforms
- 3. Synchronization Primitives Atomics Locking Signaling Waiting // Example classFThreadSafeCounter { public: int32 Add( int32 Amount ) { return FPlatformAtomics::InterlockedAdd(&Counter, Amount); } private: volatile int32 Counter; };

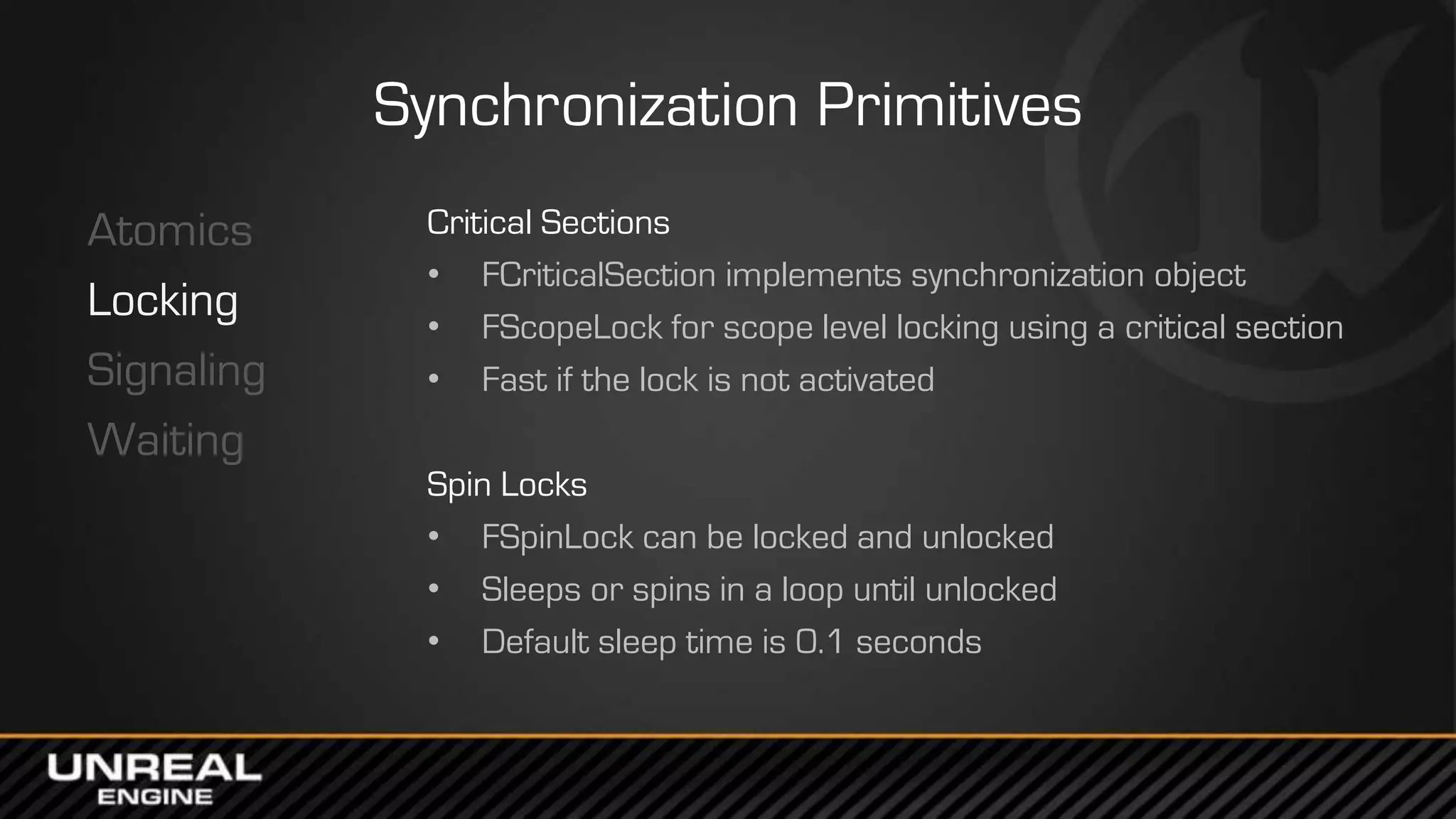

- 4. Synchronization Primitives Atomics Locking Signaling Waiting Critical Sections •FCriticalSection implements synchronization object • FScopeLock for scope level locking using a critical section • Fast if the lock is not activated Spin Locks • FSpinLock can be locked and unlocked • Sleeps or spins in a loop until unlocked • Default sleep time is 0.1 seconds

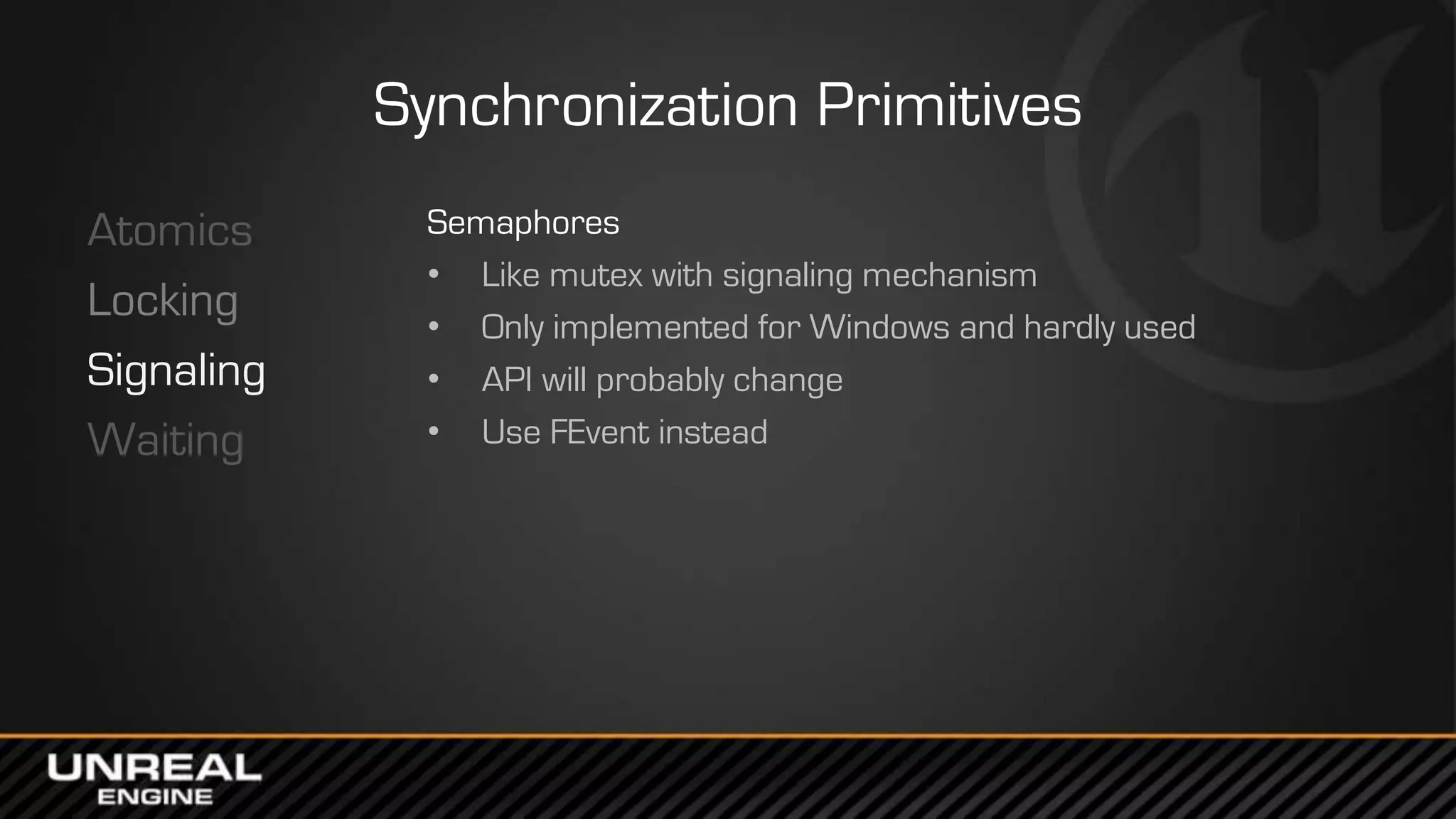

- 5. Synchronization Primitives Atomics Locking Signaling Waiting Semaphores • Likemutex with signaling mechanism • Only implemented for Windows and hardly used • API will probably change • Use FEvent instead
- 6. Synchronization Primitives Atomics Locking Signaling Waiting FEvent • Blocksa thread until triggered or timed out • Frequently used to wake up worker threads FScopedEvent • Wraps an FEvent that blocks on scope exit // Example for scoped events { FScopedEvent Event; DoWorkOnAnotherThread(Event.Get()); // stalls here until other thread triggers Event }

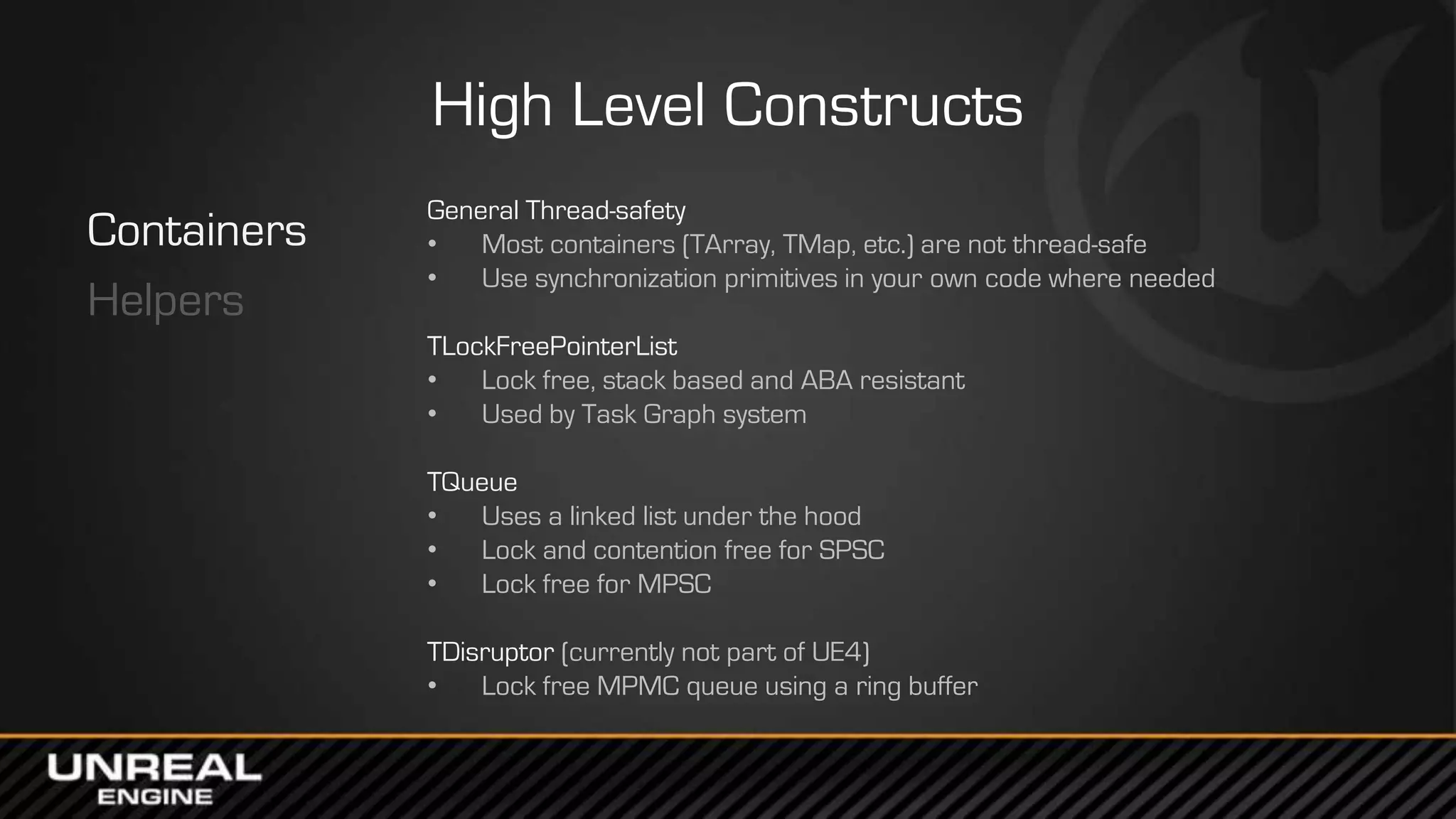

- 7. High Level Constructs Containers Helpers GeneralThread-safety • Most containers (TArray, TMap, etc.) are not thread-safe • Use synchronization primitives in your own code where needed TLockFreePointerList • Lock free, stack based and ABA resistant • Used by Task Graph system TQueue • Uses a linked list under the hood • Lock and contention free for SPSC • Lock free for MPSC TDisruptor (currently not part of UE4) • Lock free MPMC queue using a ring buffer
- 8. High Level Constructs Containers Helpers FThreadSafeCounter FThreadSingleton •Singleton that creates an instance per thread FMemStack • Fast, temporary per-thread memory allocation TLockFreeClassAllocator, TLockFreeFixedSizeAllocator • Another fast allocator for instances of T FThreadIdleStats • Measures how often a thread is idle

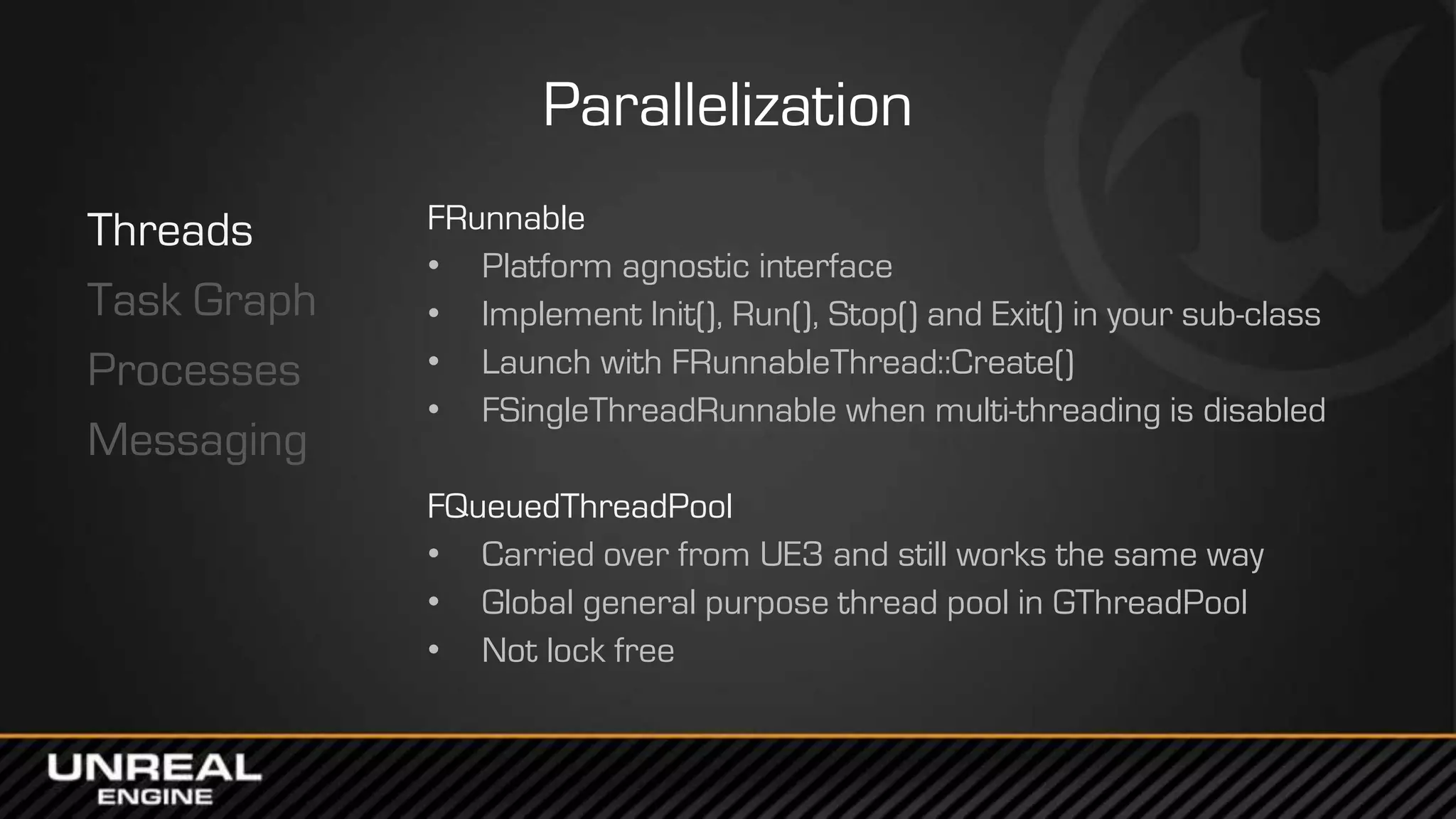

- 9. Parallelization Threads Task Graph Processes Messaging FRunnable • Platformagnostic interface • Implement Init(), Run(), Stop() and Exit() in your sub-class • Launch with FRunnableThread::Create() • FSingleThreadRunnable when multi-threading is disabled FQueuedThreadPool • Carried over from UE3 and still works the same way • Global general purpose thread pool in GThreadPool • Not lock free
- 10. Parallelization Threads Task Graph Processes Messaging Game Thread •All game code, Blueprints and UI • UObjects are not thread-safe! Render Thread • Proxy objects for Materials, Primitives, etc. Stats Thread • Engine performance counters
- 11. Parallelization Threads Task Graph Processes Messaging Task BasedMulti-Threading • Small units of work are pushed to available worker threads • Tasks can have dependencies to each other • Task Graph will figure out order of execution Used by an increasing number of systems • Animation evaluation • Message dispatch and serialization in Messaging system • Object reachability analysis in garbage collector • Render commands in Rendering sub-system • Various tasks in Physics sub-system • Defer execution to a particular thread
- 13. Parallelization Threads Task Graph Processes Messaging FPlatformProcess • CreateProc()executes an external program • LaunchURL() launches the default program for a URL • IsProcRunning() checks whether a process is still running • Plus many other utilities for process management FMonitoredProcess • Convenience class for launching and monitoring processes • Event delegates for cancellation, completion and output

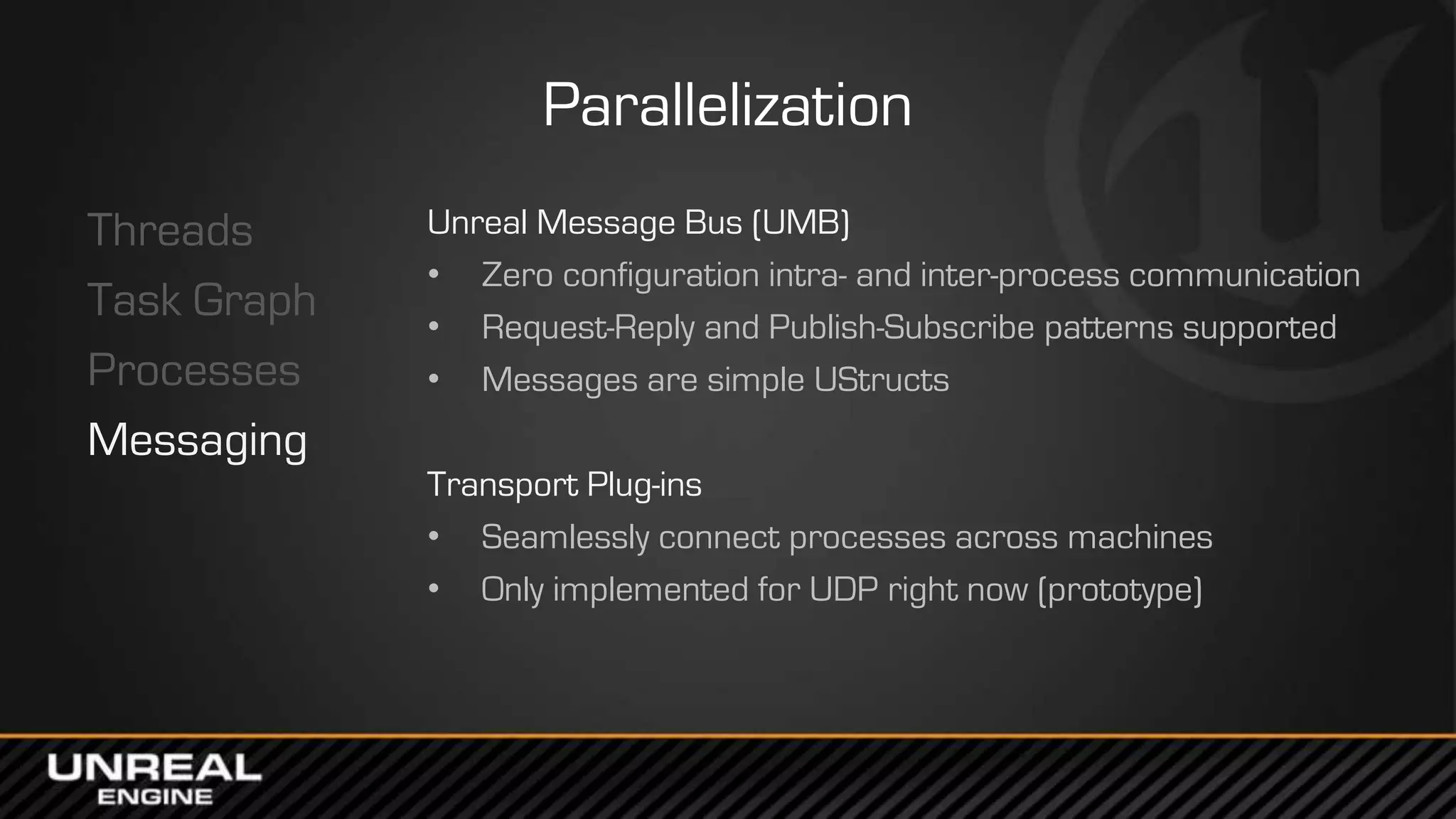

- 14. Parallelization Threads Task Graph Processes Messaging Unreal MessageBus (UMB) • Zero configuration intra- and inter-process communication • Request-Reply and Publish-Subscribe patterns supported • Messages are simple UStructs Transport Plug-ins • Seamlessly connect processes across machines • Only implemented for UDP right now (prototype)

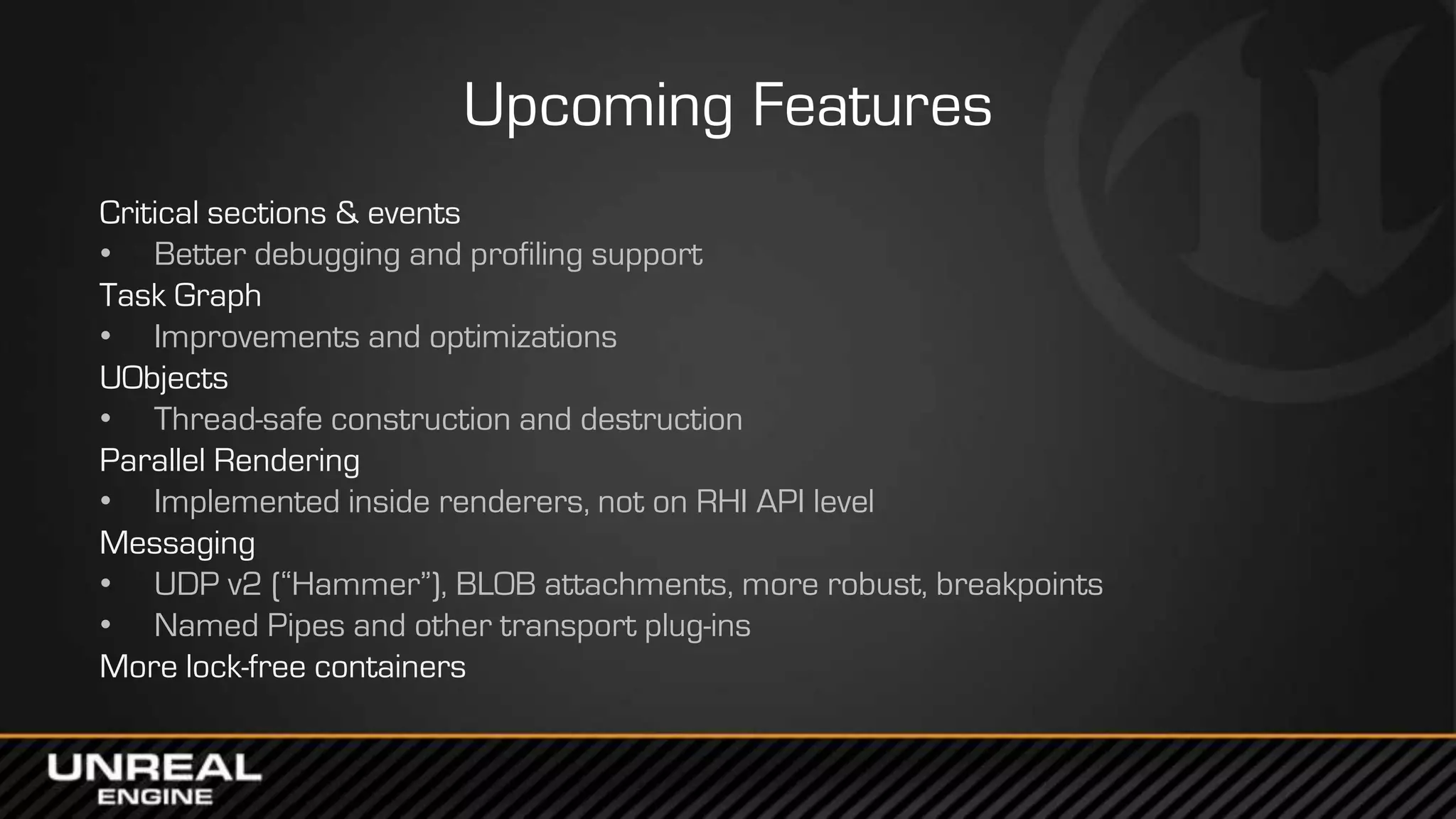

- 16. Upcoming Features Critical sections& events • Better debugging and profiling support Task Graph • Improvements and optimizations UObjects • Thread-safe construction and destruction Parallel Rendering • Implemented inside renderers, not on RHI API level Messaging • UDP v2 (“Hammer”), BLOB attachments, more robust, breakpoints • Named Pipes and other transport plug-ins More lock-free containers

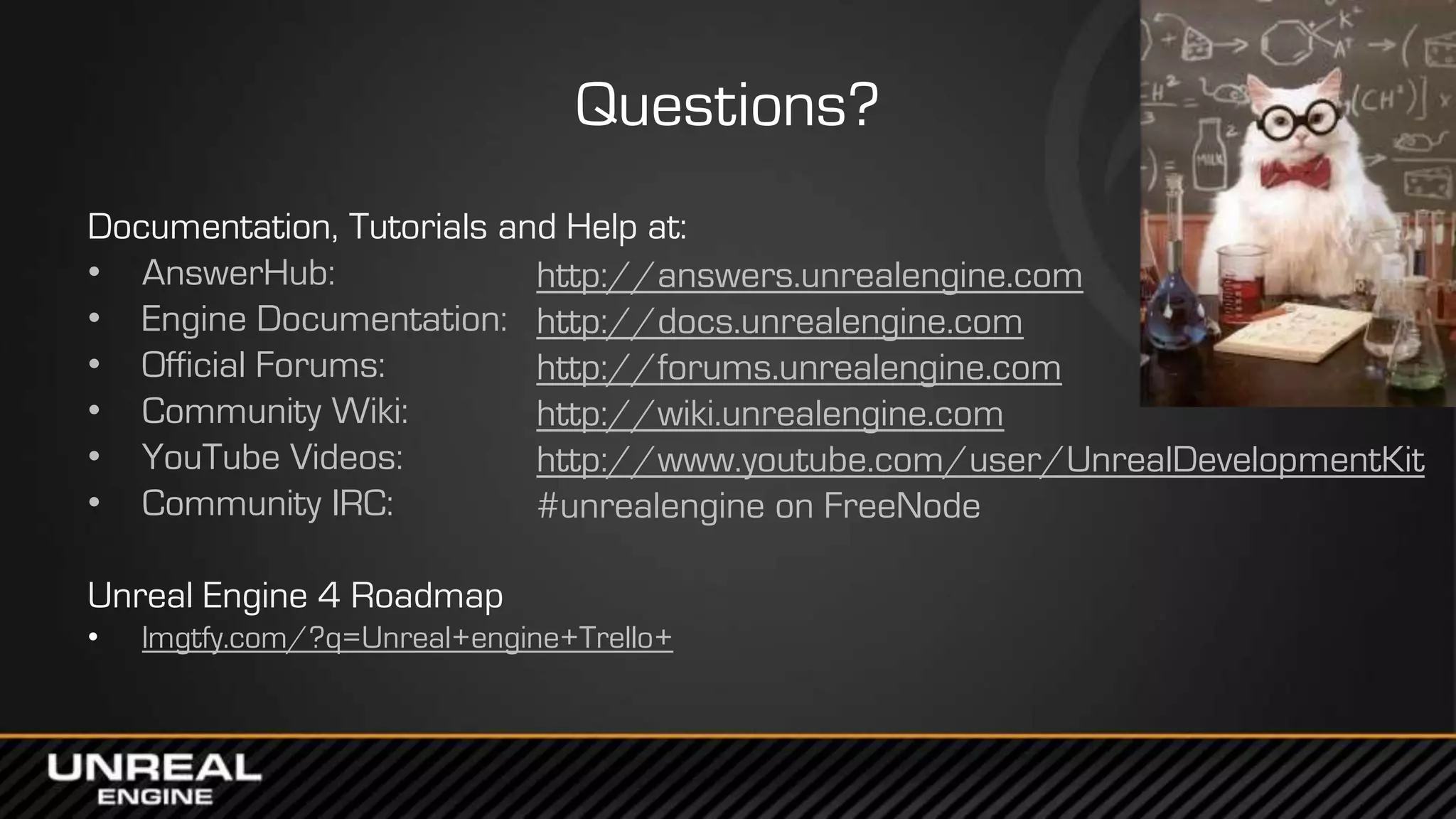

- 17. Questions? Documentation, Tutorials andHelp at: • AnswerHub: • Engine Documentation: • Official Forums: • Community Wiki: • YouTube Videos: • Community IRC: Unreal Engine 4 Roadmap • lmgtfy.com/?q=Unreal+engine+Trello+ http://answers.unrealengine.com http://docs.unrealengine.com http://forums.unrealengine.com http://wiki.unrealengine.com http://www.youtube.com/user/UnrealDevelopmentKit #unrealengine on FreeNode
Editor's Notes
- #2 *** Prepared and presented by Gerke Max Preussner for West Coast MiniDevCon 2014, July 21-24th Hi, my name is Max. I work as a Sr. Engine Programmer at Epic Games and would like to give you a quick overview of multi-threading capabilities in Unreal Engine 4. Games and applications that perform concurrent tasks on one or multiple CPUs or CPU cores are generally hard to write, proof correct, debug and maintain. Not only are there many concepts and mechanisms you have to learn, but also a wide range of very subtle issues that are often dependent on the operating system and the processor it is running on. Unreal Engine provides a range of features, helpers and tools to develop for multi-core computers and mobile devices more easily.
- #3 At the lowest level, the Engine provides a number of synchronization primitives used to synchronize memory access across different threads. Commonly used primitives are atomic operations, mechanisms for locking and signaling threads, as well as for waiting on events from other threads. Atomic operations allow the CPU to read and write a memory location in the same indivisible bus operation. Although this seems to be a rather trivial feature, it is the foundation of many higher level multi-threading mechanisms. The main advantage of atomics is that they are very quick compared to locks, and they avoid the common problems of mutual exclusion and deadlocks. Unreal Engine exposes various atomic operations, such as incrementing and compare-and-exchange in a platform agnostic API. Most atomic operations operate on 32-bit values, but we also provide APIs for 64- and 128-bit values, if the particular platform supports them.
- #4 Here is an example from our code base that uses atomics to implement a thread-safe counter. A normal increment instruction for integers may involve multiple bus operations that read the current value, increment it and write it back to memory. During these multiple steps it is possible – in principle and in practice – that the operating system suspends our thread, and another thread that also wishes to increment the counter modifies our value, causing that increment to be lost when our thread resumes. The use of ‘interlocked add’ in this example ensures that the increment operation cannot be interrupted. Because the counter value can change in asynchronous ways that the compiler cannot foresee, we use the volatile keyword to prevent optimizations of code that accesses the value.
- #5 The main locking mechanisms used in Unreal Engine are Critical Sections and Spin Locks. Critical Sections provide mutually exclusive access to a single resource, usually the internals of a thread-safe class. In combination with Scope Locks they ensure that a given block of code can be executed by only one thread at a time. Compared to atomic operations, they can be a lot slower when the lock is accessed by more than one thread. Spin Locks also provide exclusive access, but instead of using the mutex facilities provided by the OS they sleep in a loop until the lock is removed. The sleep time is configurable (0.1 seconds by default), and for very small durations they may actually just do a no-op spin loop under the hood.
- #6 Semaphores are similar to mutual exclusion locks, but they also contain a signaling mechanism. There is currently an implementation in FPlatformProcess, but it is not quite what one would expect, only implemented for Windows and only used in Lightmass right now. A better choice for signaling between threads would be the FEvent class…
- #7 … which also uses a mutex under the hood. We frequently use events in worker threads to notify them about newly added work items or that we wish to shut them down. If you just want to send a one-shot signal from another thread, you can pass an FScopedEvent into it, and your current thread will stall when the event exits its scope until it is triggered.
- #8 Most container types and classes in the Engine, including TArray and TMap are not thread-safe. We usually just manually add atomics and mutual exclusion locks in our code on an as-needed basis. Of course, locks are not always desirable, so we are also starting to implement basic lock-free containers that are thread-safe. A very useful lock-free container is TQueue, which is lock- and contention-free for SPSC and lock-free for MPSC. It is used in many places that transfer data from one thread to another. (We also implemented a lock-free MPMC queue using the Disruptor pattern at some point – it is not part of UE4 right now, but if you need it, send me an email!)
- #9 We also provide some high level helper objects that are built on top of the synchronization primitives, some of which are shown here. The thread-safe counter we have already seen in the code example earlier. Thread-safe singletons are special singletons that create one instance of a class per thread instead of per process. Memory stacks allow for ultra-fast per-thread memory allocations. We also have a way to measure thread idle times that is always enabled, even in Shipping builds.
- #10 Traditionally, the main work horse of multi-threaded programming are operating system threads. We expose those in the form of the FRunnable base class that you can inherit from. If your thread object inherits from FSingleThreadRunnable, it can also be used when multi-threading is disabled or unavailable. The thread pool from Unreal Engine 3 is still available as well. You can create your own thread pools or just use the global one in GThreadPool.
- #11 Unreal Engine 4 uses threads for a number of things, but the most important ones are GameThread, RenderThread and StatsThread. All code that interfaces with UObjects must run on the GameThread, because UObjects are not thread-safe. The RenderThread allows us to perform rendering related tasks in parallel with the game logic. We recently also added the StatsThread that collects and processes a number of perforce counters for profiling.
- #12 Threads are very heavyweight. Task Based Multi-Threading allows for more fine grained, lightweight use of multiple cores. A task is a small, parallelizable unit of work that can be scheduled to available worker threads that are managed by our Task Graph system. As the name suggests, tasks can also have dependencies on each other, so that certain tasks are not executed until other tasks completed successfully. The Task Graph is used by an increasing number of systems in the Engine, and we encourage you to use it, too.
- #13 The Profiling Tools in the Editor come with a handy feature for visually debugging threads. It shows the cycle counter based statistics, as well as Task Graph usage.
- #14 Unreal Engine 4 also has platform agnostic APIs for creating and monitoring external processes. You can start programs, launch web URLs or open files in other applications. If you need fine control over creating and monitoring external processes, you can use the FMonitoredProcess class.
- #15 Messaging is another important architectural pattern for multi-threaded and distributed applications. Unreal Message Bus implements a message passing infrastructure that can be used to send commands, events or data to other threads, processes and even computers. Our main goal was to unify all the different network communication technologies we used for our tools in UE3, and to allow users to create their own distributed applications and tools without having to deal with low level technicalities, such as network protocols and how exactly messages get from A to B. Messages are simple Unreal structures (that currently require a tiny bit of boilerplate, but we will fix that soon). They can be sent between devices, even across the internet - if desired – and all our Unreal Frontend tools heavily rely on it. Messaging is a great way to get information out of your code classes in a loosely coupled way, and future use cases may include achievement systems, event processing for AI and real-time remote editing on game consoles and mobile phones.
- #16 Debugging the flow of messages tends to be quite cumbersome in code, so the Messaging system comes with a visual debugging tool as well. It is not quite finished yet, but already functional.
- #17 We are continuously working on improving and extending Unreal Engine 4. That UObjects are not thread-safe is sometimes a limitation, and we are currently working on allowing their construction and destruction on non-Game threads. We are also working on parallelizing the Renderer. This will be implemented not in the RHI API, but in the renderers themselves and utilize the Task Graph. The Messaging System will become very important for the new Editor tools we have scheduled for next year, so we will make it more powerful and easier to use as well. Much of our thread-safe code is currently lock based, and we have gotten good results with it, but we are also planning to add more generic lock-free containers.
- #18 With that I would like to conclude this talk. Make sure to check out our extensive materials on the internet, all of which are available for free – even if you don’t have a subscription yet. Are there any questions I can answer right now?
