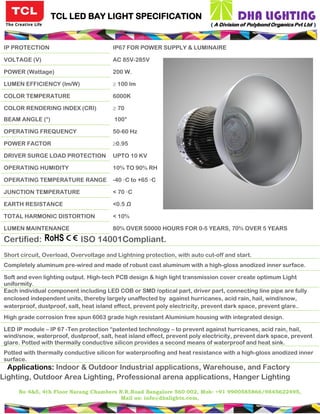

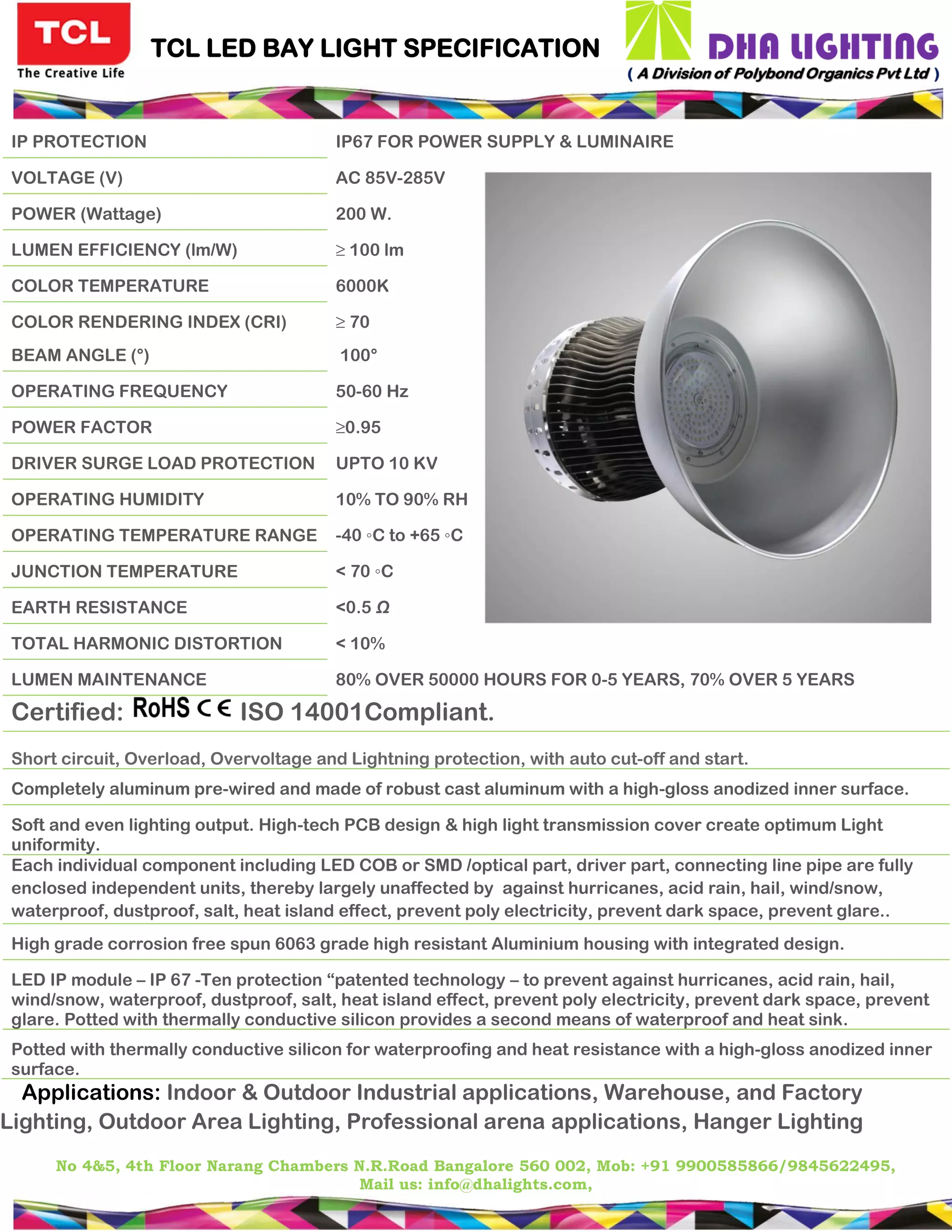

TCL LED BAY Lights from DHA Lighting

TCL LED BAY Lights from DHA Lighting

• 1.
  No 4&5, 4thFloor Narang Chambers N.R.Road Bangalore 560 002, Mob: +91 9900585866/9845622495, Mail us: info@dhalights.com, IP PROTECTION IP67 FOR POWER SUPPLY & LUMINAIRE VOLTAGE (V) AC 85V-285V POWER (Wattage) 200 W. LUMEN EFFICIENCY (lm/W) ≥ 100 lm COLOR TEMPERATURE 6000K COLOR RENDERING INDEX (CRI) ≥ 70 BEAM ANGLE (°) 100° OPERATING FREQUENCY 50-60 Hz POWER FACTOR ≥0.95 DRIVER SURGE LOAD PROTECTION UPTO 10 KV OPERATING HUMIDITY 10% TO 90% RH OPERATING TEMPERATURE RANGE -40 ◦C to +65 ◦C JUNCTION TEMPERATURE < 70 ◦C EARTH RESISTANCE <0.5 Ω TOTAL HARMONIC DISTORTION < 10% LUMEN MAINTENANCE 80% OVER 50000 HOURS FOR 0-5 YEARS, 70% OVER 5 YEARS Certified: ISO 14001Compliant. Short circuit, Overload, Overvoltage and Lightning protection, with auto cut-off and start. Completely aluminum pre-wired and made of robust cast aluminum with a high-gloss anodized inner surface. Soft and even lighting output. High-tech PCB design & high light transmission cover create optimum Light uniformity. Each individual component including LED COB or SMD /optical part, driver part, connecting line pipe are fully enclosed independent units, thereby largely unaffected by against hurricanes, acid rain, hail, wind/snow, waterproof, dustproof, salt, heat island effect, prevent poly electricity, prevent dark space, prevent glare.. High grade corrosion free spun 6063 grade high resistant Aluminium housing with integrated design. LED IP module – IP 67 -Ten protection “patented technology – to prevent against hurricanes, acid rain, hail, wind/snow, waterproof, dustproof, salt, heat island effect, prevent poly electricity, prevent dark space, prevent glare. Potted with thermally conductive silicon provides a second means of waterproof and heat sink. Potted with thermally conductive silicon for waterproofing and heat resistance with a high-gloss anodized inner surface. Applications: Indoor & Outdoor Industrial applications, Warehouse, and Factory Lighting, Outdoor Area Lighting, Professional arena applications, Hanger Lighting TCL LED BAY LIGHT SPECIFICATION
