1. Thanh Nguyen
+84 938203080
nnthanh101@gmail.com
Serverless Architecture 101 ⚡

2. Agenda
Why are Customers adopting a Serverless-first Strategy?
AXA >> Rearchitecting with Serverless to accelerate innovation

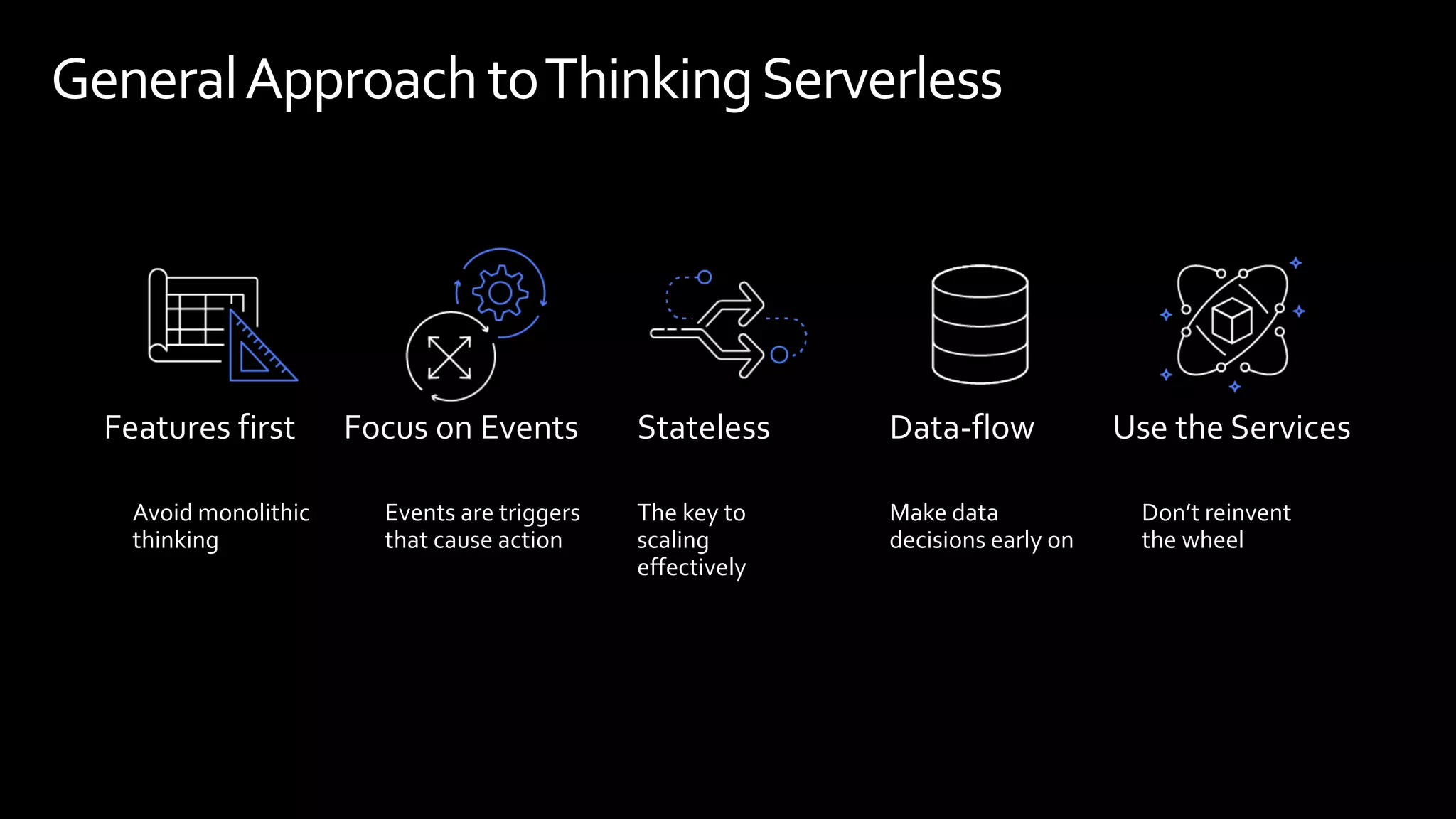

Thinking Serverless
from Business Problem to Serverless Solution ⚡

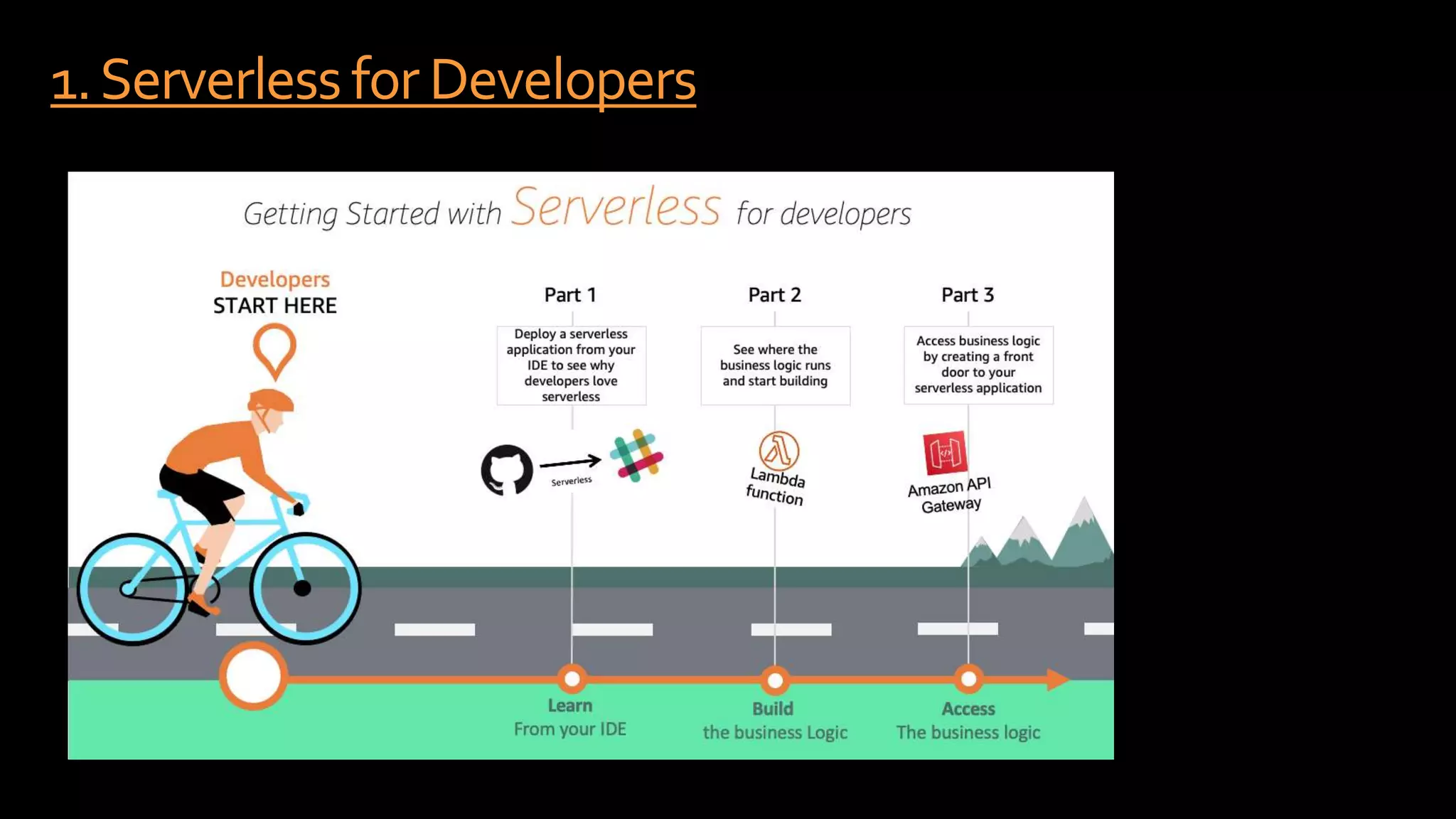

Getting started with serverless for developers
Demo & Discussion
Quiz

3. © 2021
3
What do our customers need to drive success?
Get to market faster High performance
and scalability
Security and
isolation by design
Lower total cost of
ownership

4. © 2021
4
CIO’s say that 80% of developers’ time is spent on the operations
and maintenance of applications and only 20% of the time is
actually spent on innovation
Source: Deloitte 2019

5. © 2021
6
Why are customers building with a serverless-first
strategy?
Agility Performance Cost Security

6. © 2021
7

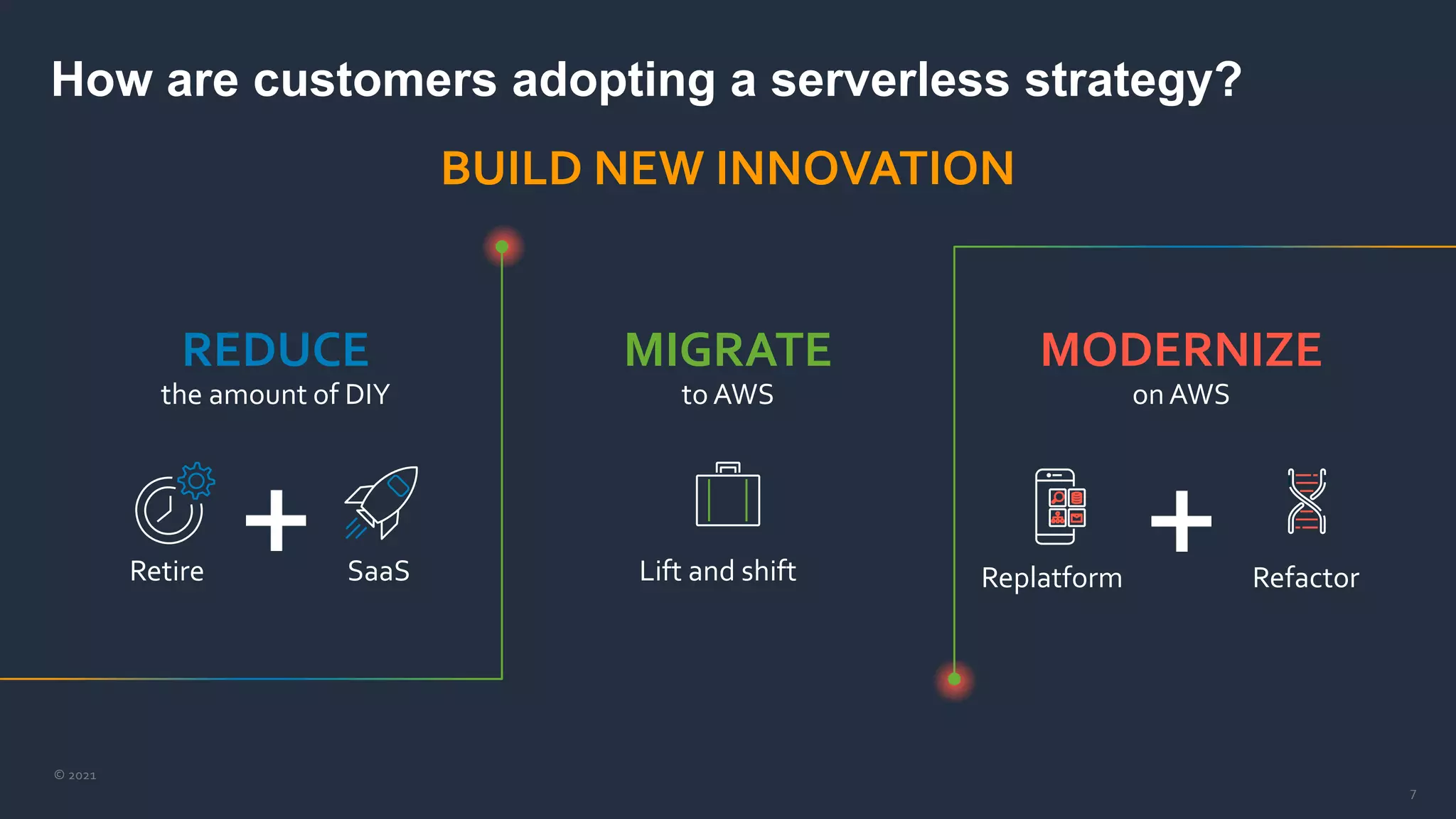

How are customers adopting a serverless strategy?
Lift and shift
REDUCE
the amount of DIY
MIGRATE
to AWS
MODERNIZE
onAWS
Retire SaaS Refactor
Replatform
BUILD NEW INNOVATION

7. © 2021
8

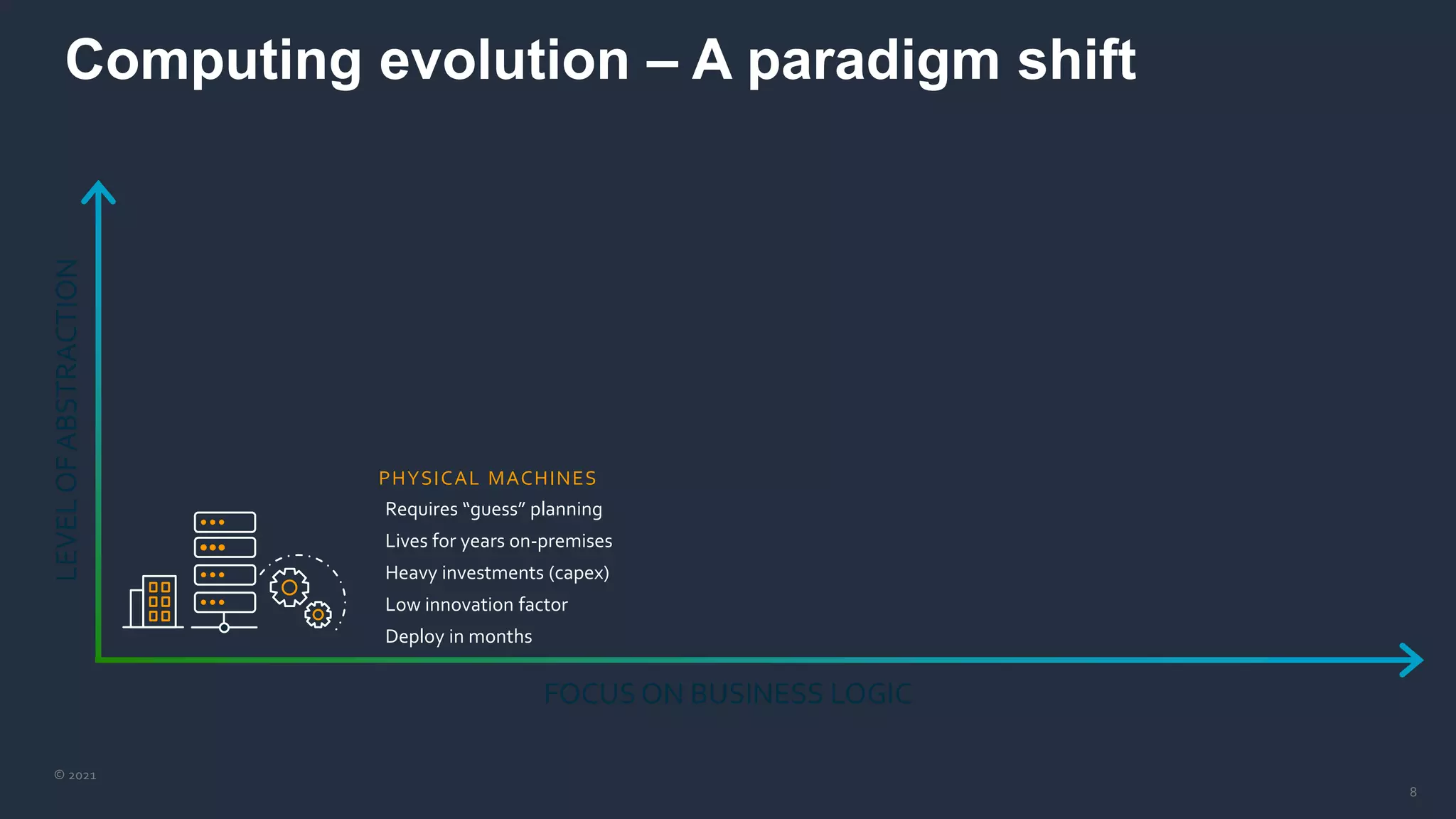

Computing evolution – A paradigm shift
LEVEL
OF
ABSTRACTION
FOCUS ON BUSINESS LOGIC
PHYSICAL MACHINES
Requires “guess” planning
Lives for years on-premises
Heavy investments (capex)
Low innovation factor
Deploy in months

8. © 2021
9

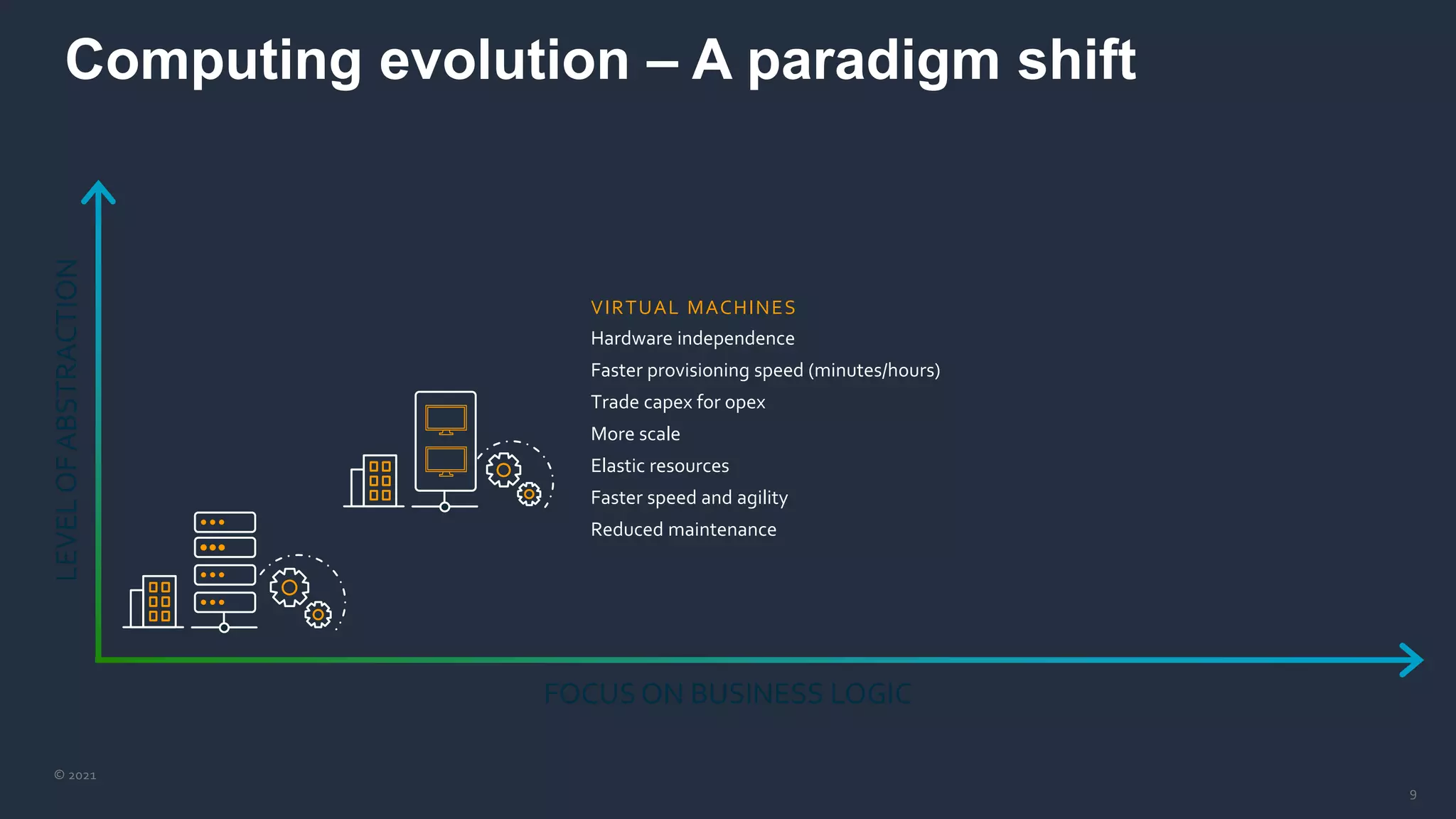

Computing evolution – A paradigm shift
LEVEL
OF
ABSTRACTION
FOCUS ON BUSINESS LOGIC
VIRTUAL MACHINES
Hardware independence
Faster provisioning speed (minutes/hours)
Trade capex for opex
More scale
Elastic resources
Faster speed and agility
Reduced maintenance

9. © 2021
10

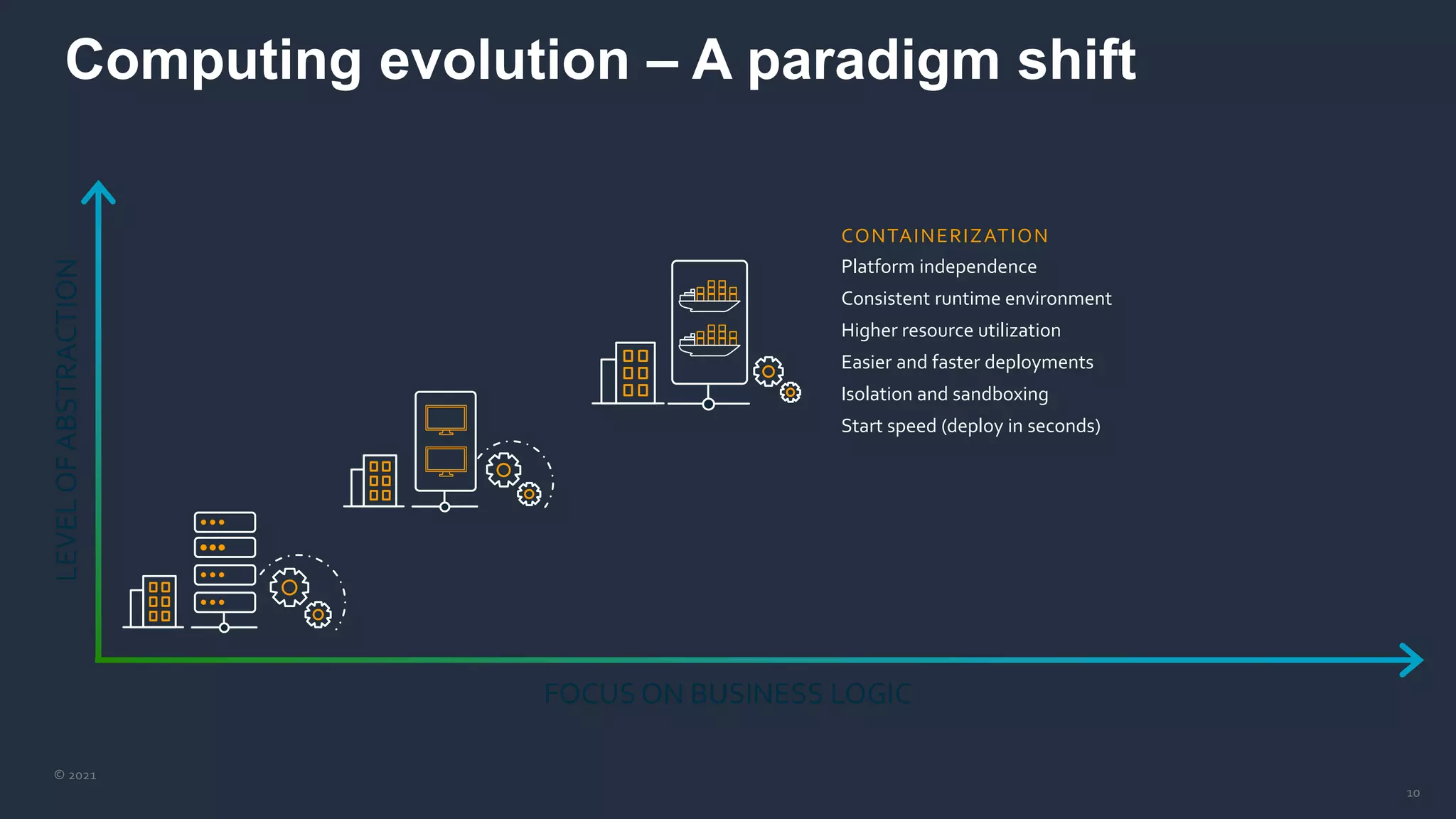

Computing evolution – A paradigm shift
LEVEL
OF
ABSTRACTION
FOCUS ON BUSINESS LOGIC
CONTAINERIZATION
Platform independence
Consistent runtime environment
Higher resource utilization
Easier and faster deployments
Isolation and sandboxing
Start speed (deploy in seconds)

10. © 2021
11

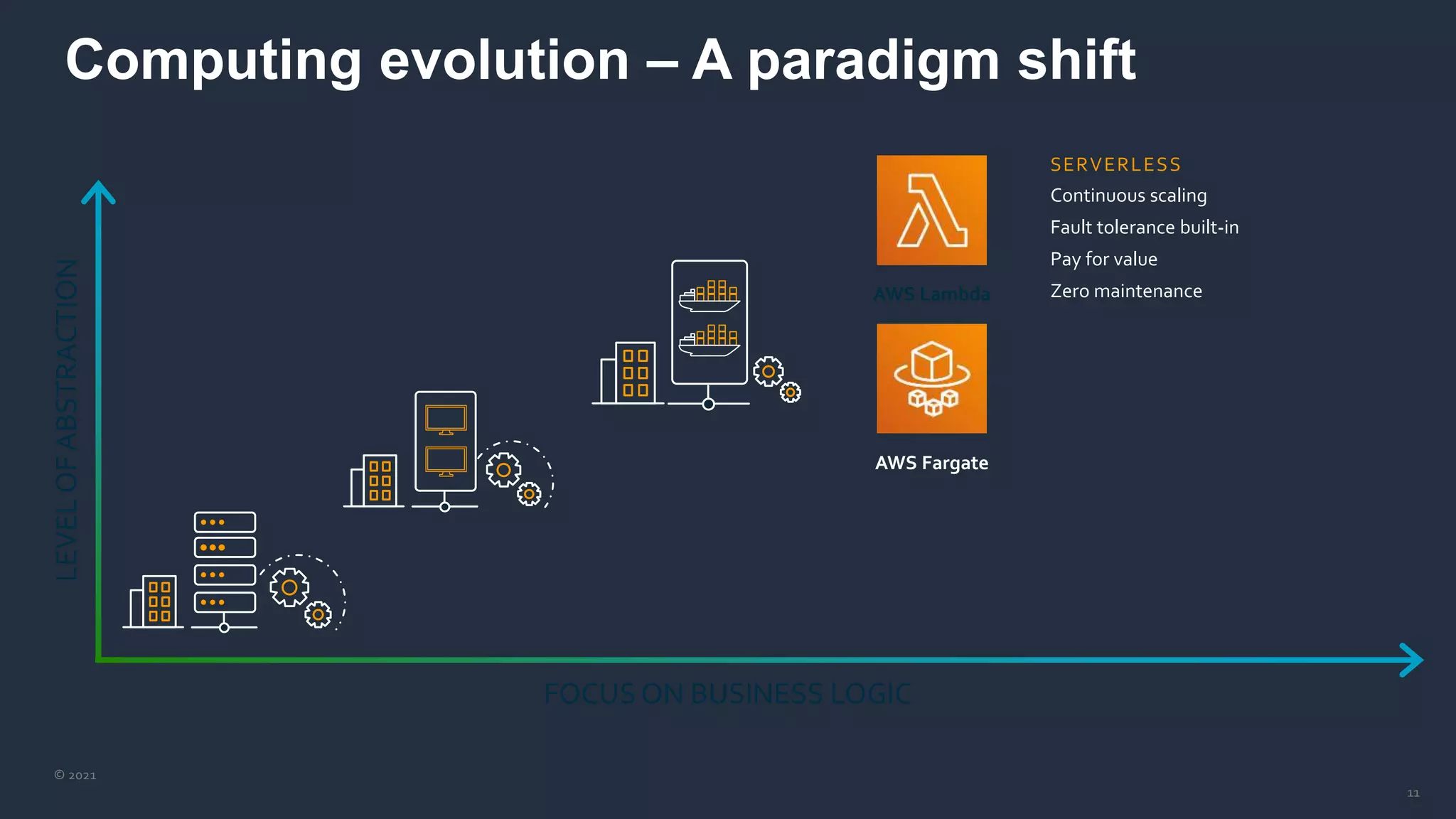

Computing evolution – A paradigm shift
AWS Lambda
AWS Fargate
LEVEL
OF
ABSTRACTION
FOCUS ON BUSINESS LOGIC
Continuous scaling
Fault tolerance built-in
Pay for value
Zero maintenance
SERVERLESS

11. © 2021
12

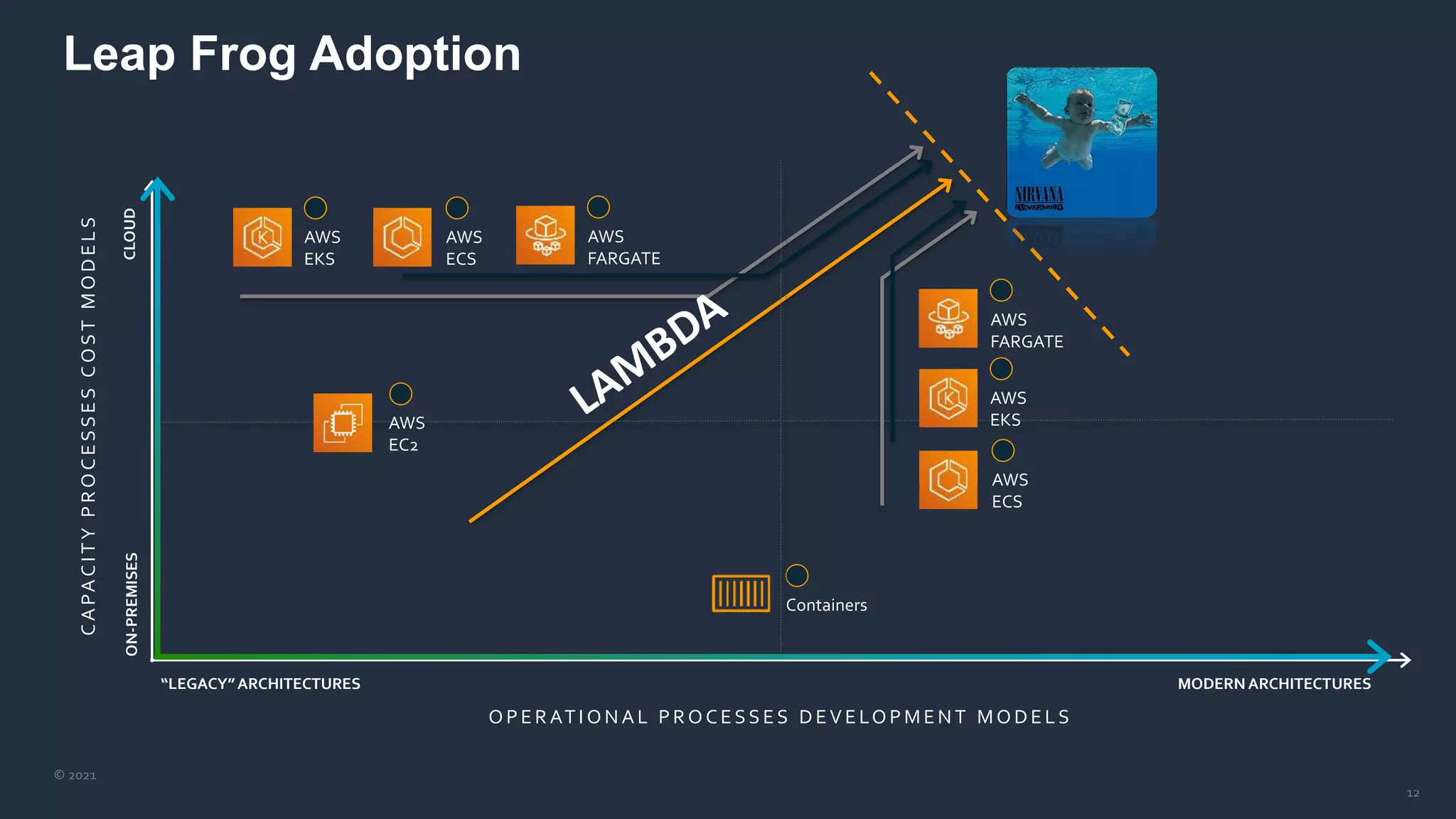

Leap Frog Adoption
C
A
PA
C
I
T
Y
P
R
O
C
E
S
S
E
S
C
O
S
T
M
O
D
E
L
S
OP ER AT I ON AL P R OCESS ES DEV ELOP MEN T MODELS
ON-PREMISES
CLOUD
“LEGACY”ARCHITECTURES MODERNARCHITECTURES
AWS
EC2
AWS
ECS
AWS
FARGATE
AWS
EKS
Containers
AWS
ECS
AWS
FARGATE
AWS
EKS

12. © 2021
13

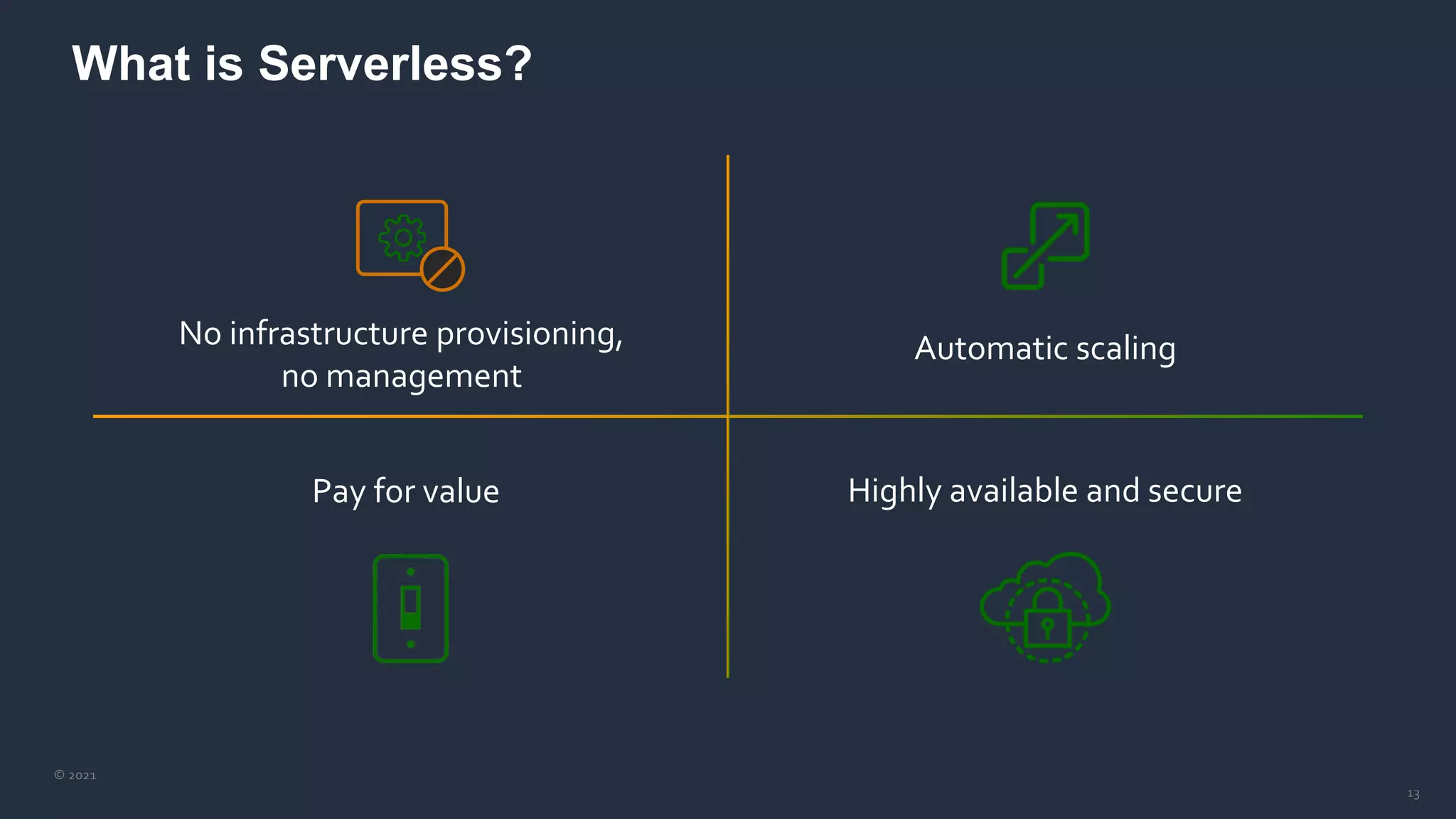

What is Serverless?
No infrastructure provisioning,
no management
Automatic scaling
Pay for value Highly available and secure

13. © 2021

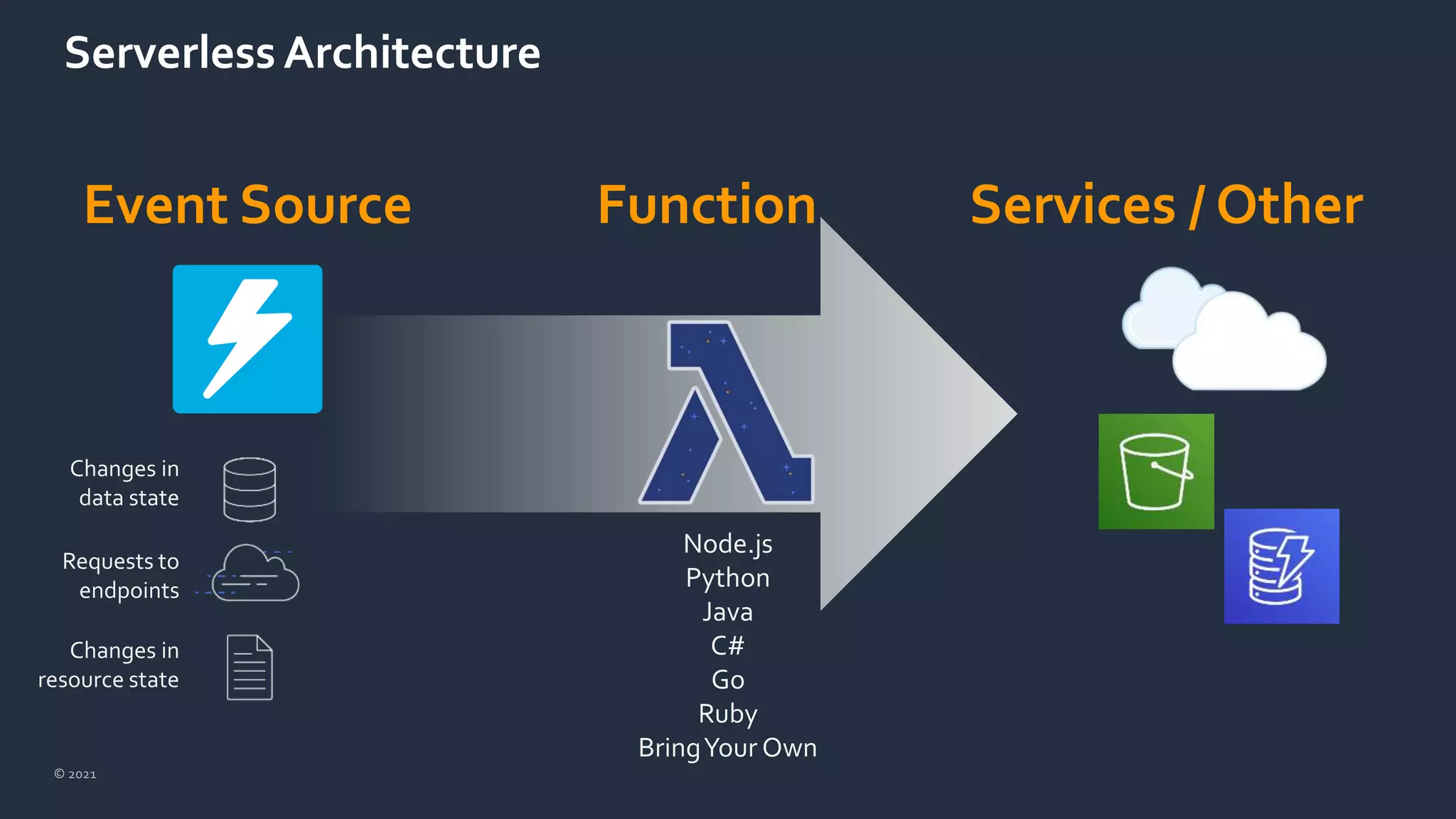

Serverless Architecture
Event Source Function Services / Other
Node.js
Python
Java
C#
Go
Ruby
BringYour Own
Changes in
data state
Requests to
endpoints
Changes in
resource state

14. © 2021
15

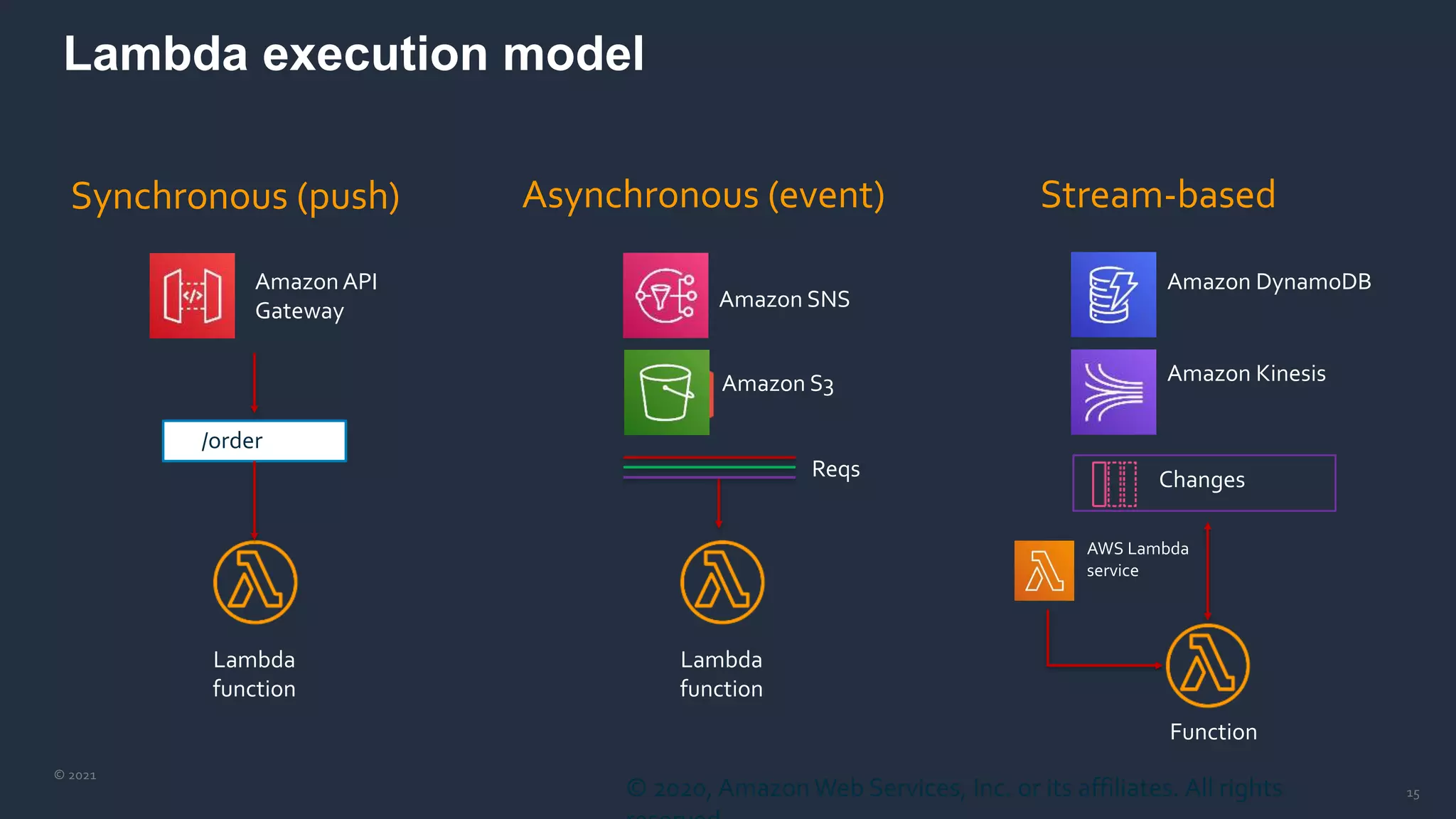

Lambda execution model
© 2020, AmazonWeb Services, Inc. or its affiliates. All rights
Synchronous (push) Asynchronous (event) Stream-based
Amazon API
Gateway
Lambda
function
Amazon DynamoDB
Amazon SNS
/order
Lambda
function
Amazon S3
Reqs
Amazon Kinesis
Changes
AWS Lambda
service
Function

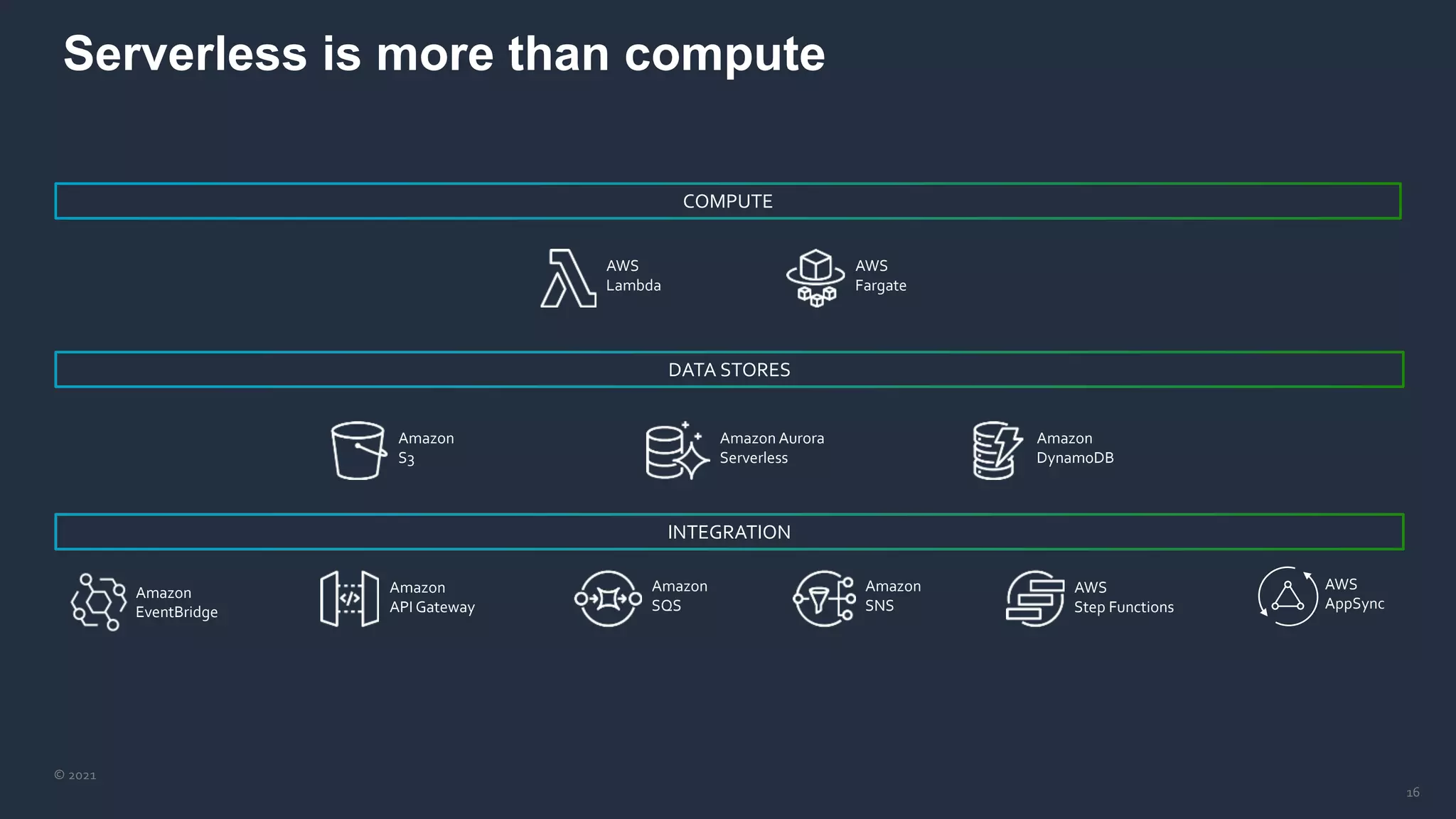

15. © 2021
16
AWS
Lambda
AWS
Fargate
Amazon
API Gateway
Amazon
SNS
Amazon
SQS
AWS
Step Functions
COMPUTE
DATA STORES
INTEGRATION
AWS
AppSync
Amazon Aurora
Serverless
Amazon
S3
Amazon
DynamoDB
Amazon
EventBridge

16. AXA:RearchitectingwithServerlessto accelerate
innovation
Multinational insurance firm that
engages in property-casualty insurance,
life and savings, and asset management
Present in 57 countries, with 160,000
employees and distributors, to serve our
108 million clients
AXA Group Operations
Emerging technologies
and data division
Explores and scales value of data and
emerging technologies with potential to
disrupt current insurance
business model
AXA GO
6 years in business
Flagship project – automotive
telematics, which combine data science
and data processing chain
Team-developed and maintained
solution (data science, network, mobile,
backend, and so on)
Telematics team

17. Business rational
• Develop data-driven motor
insurance policies
• Pay per mile, per day, per risk profile, with
periodic premium adjustment
• Provide immediate “post-trip” risk feedback to
help customer drive safer
Where we are today
• Live connection with black boxes, smartphones,
and native car connectivity
as GPS sources
• 5 offers on EU market
• 40,000+ customers
• 60,000+ vehicle trips per day
AXA-TEXproject –TelematicsExchange platform

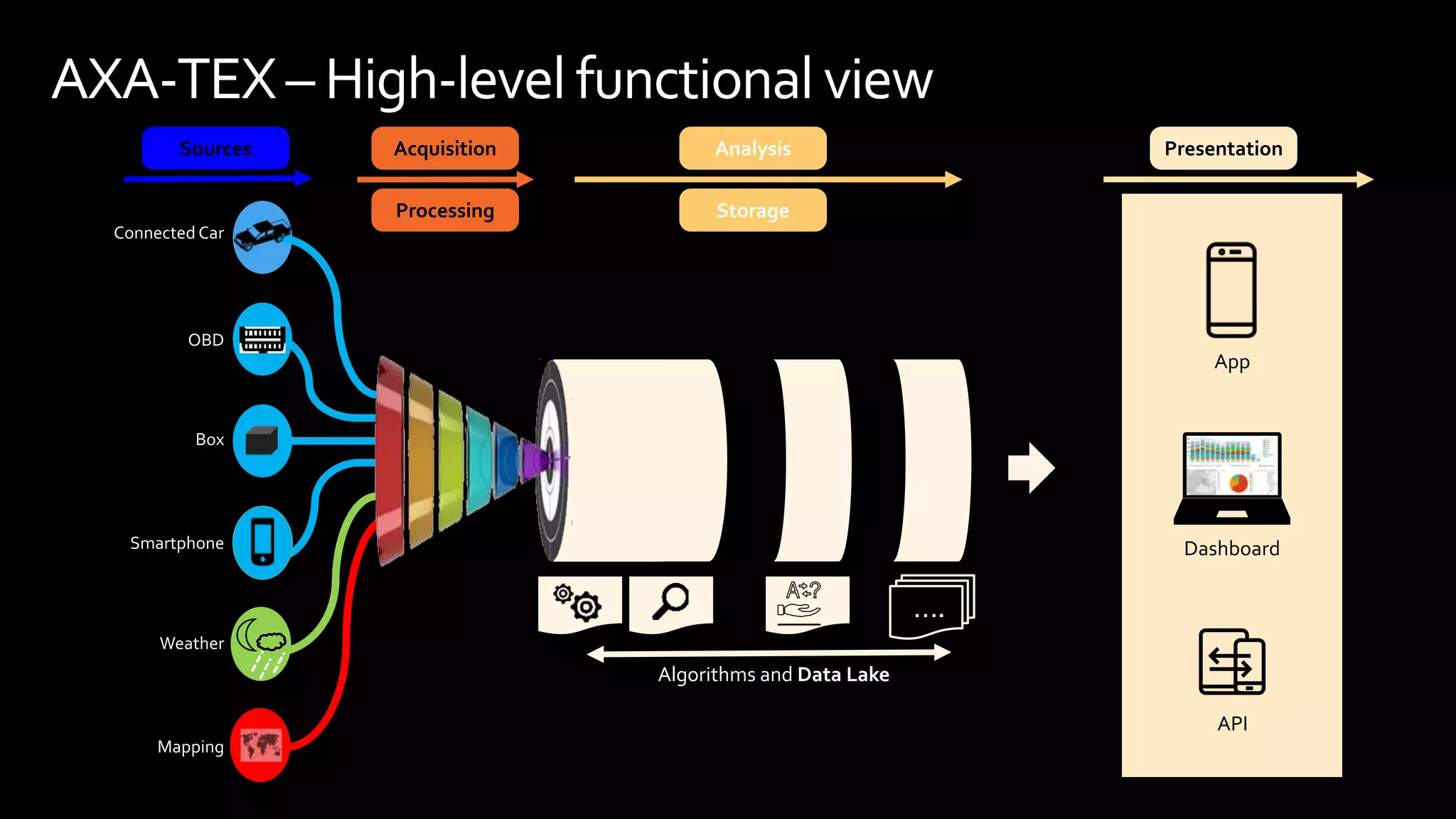

18. AXA-TEX– High-levelfunctional view
Sources Acquisition
Storage
Analysis
….
Processing
OBD
Presentation
Box
Smartphone
Weather
Mapping
Algorithms and Data Lake
Connected Car
Dashboard
App
API

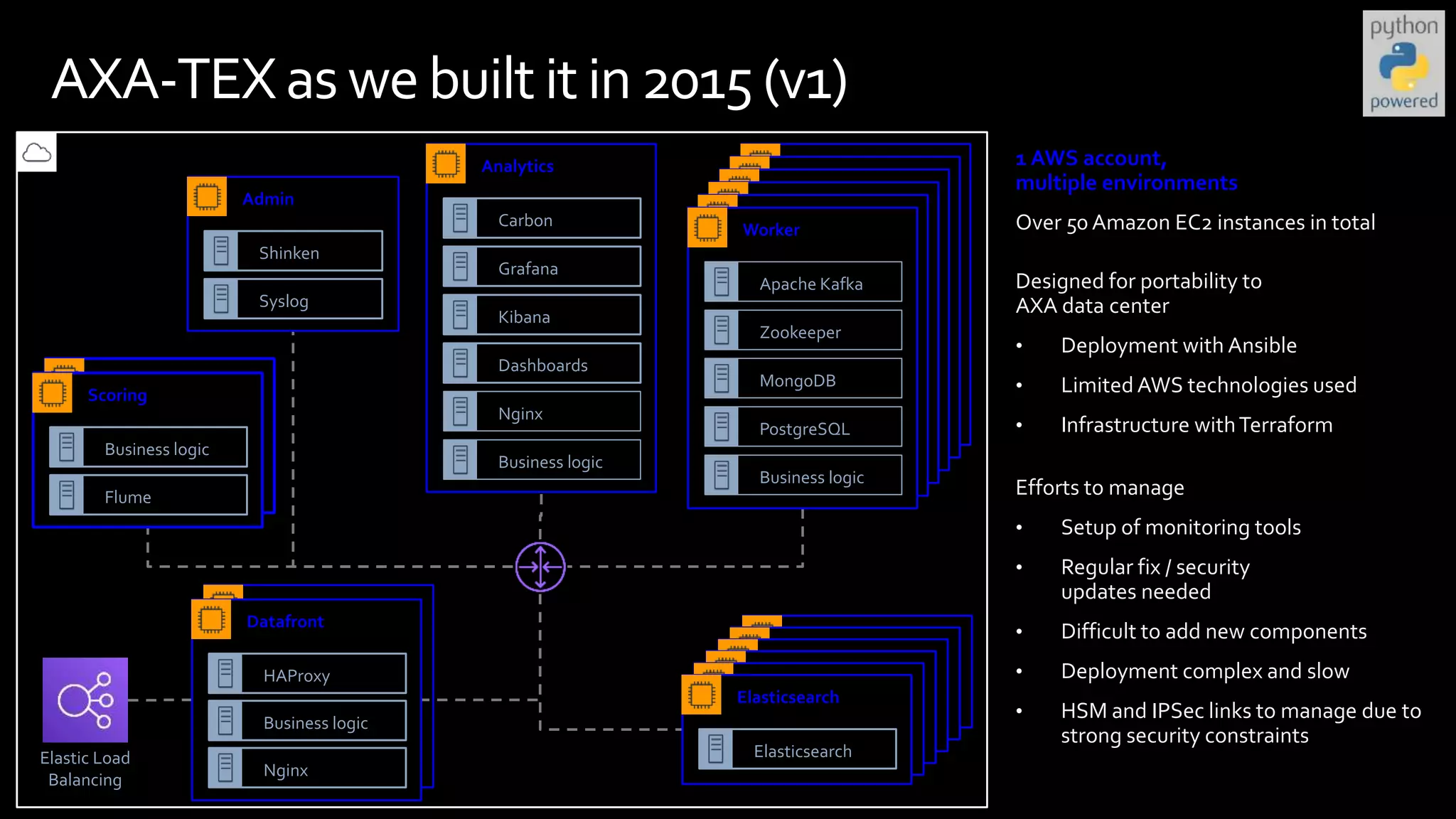

19. 1 AWS account,
multiple environments
Over 50 Amazon EC2 instances in total
Designed for portability to
AXA data center
• Deployment with Ansible
• Limited AWS technologies used
• Infrastructure withTerraform
AXA-TEXas webuilt it in 2015 (v1)
Elastic Load
Balancing
AWS Cloud
Admin
Shinken
Syslog
Scoring
Business logic
Flume
Datafront
HAProxy
Business logic
Nginx
Analytics
Carbon
Grafana
Kibana
Dashboards
Nginx
Business logic
Worker
Apache Kafka
Zookeeper
MongoDB
PostgreSQL
Business logic
Elasticsearch
Elasticsearch
Efforts to manage
• Setup of monitoring tools
• Regular fix / security
updates needed
• Difficult to add new components
• Deployment complex and slow
• HSM and IPSec links to manage due to
strong security constraints

20. Whyweneeded tochange?
Focus on features
We want to spend more
time developing
functionalities than
managing a system
Easier scaling
Scalability of our
architecture is possible, but
both manual and difficult
Lack of scalability of some
components due to hasty
decisions
Less system
engineering
Amazon EC2 management
requires regular system
updates, advanced
monitoring and major
operational challenges
More security
We are subject to strong
constraints that are
difficult for our team to
manage

21. TEXv2

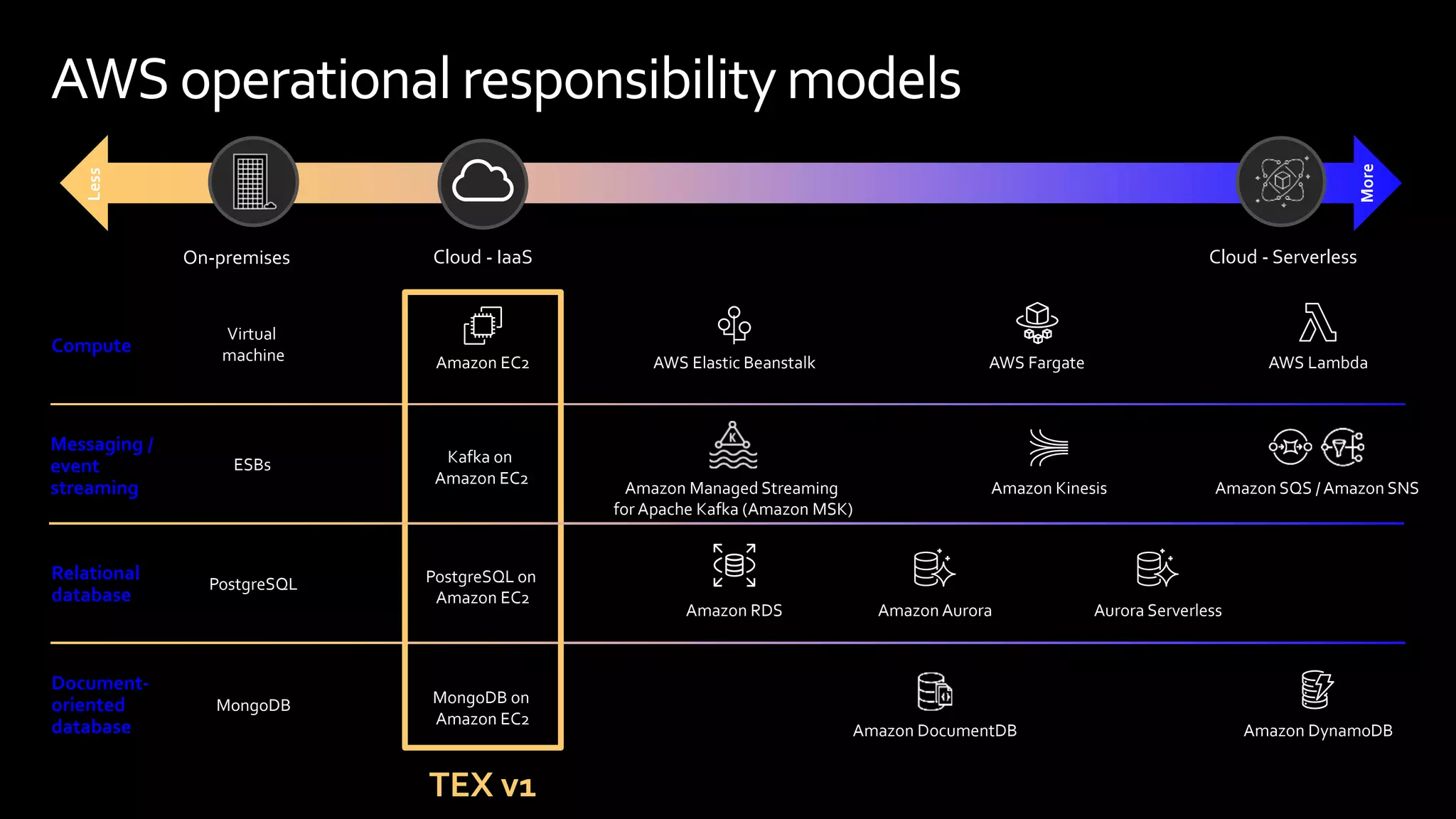

22. Messaging /
event
streaming
ESBs
Amazon Managed Streaming
for Apache Kafka (Amazon MSK)
Amazon Kinesis Amazon SQS / Amazon SNS
Kafka on
Amazon EC2
AWS operational responsibilitymodels
On-premises Cloud - IaaS
TEX v1
Less
More
Compute
Virtual
machine Amazon EC2 AWS Elastic Beanstalk AWS Lambda
AWS Fargate
Relational
database
PostgreSQL PostgreSQL on
Amazon EC2
Amazon RDS Amazon Aurora Aurora Serverless
Amazon DynamoDB
MongoDB MongoDB on
Amazon EC2
Amazon DocumentDB
Document-
oriented
database
Cloud - Serverless

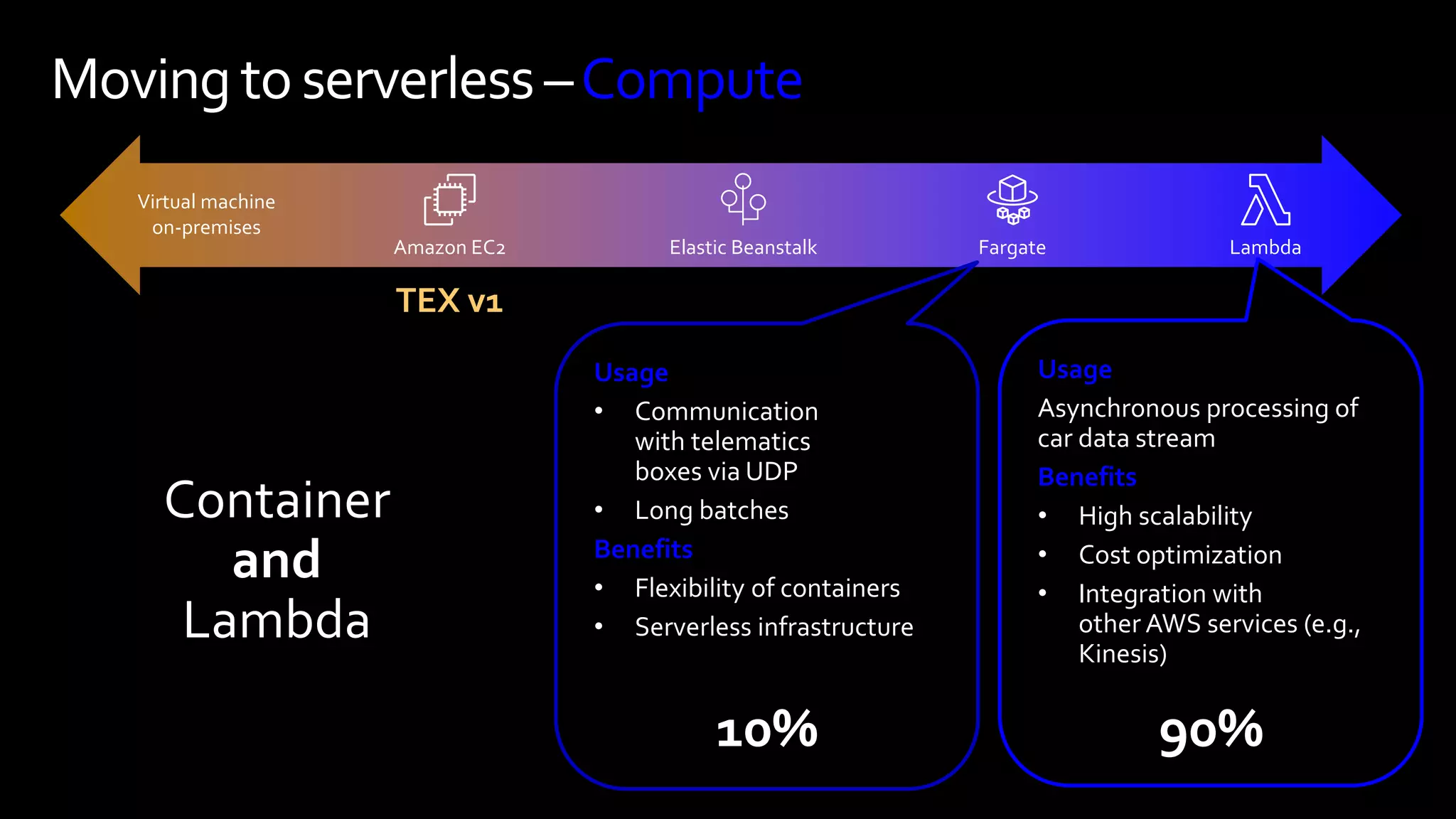

23. Moving toserverless –Compute
Virtual machine
on-premises
Amazon EC2 Elastic Beanstalk Lambda
Fargate
TEX v1
Usage
Asynchronous processing of
car data stream
Benefits
• High scalability
• Cost optimization
• Integration with
other AWS services (e.g.,
Kinesis)
Usage
• Communication
with telematics
boxes via UDP
• Long batches
Benefits
• Flexibility of containers
• Serverless infrastructure
90%
10%

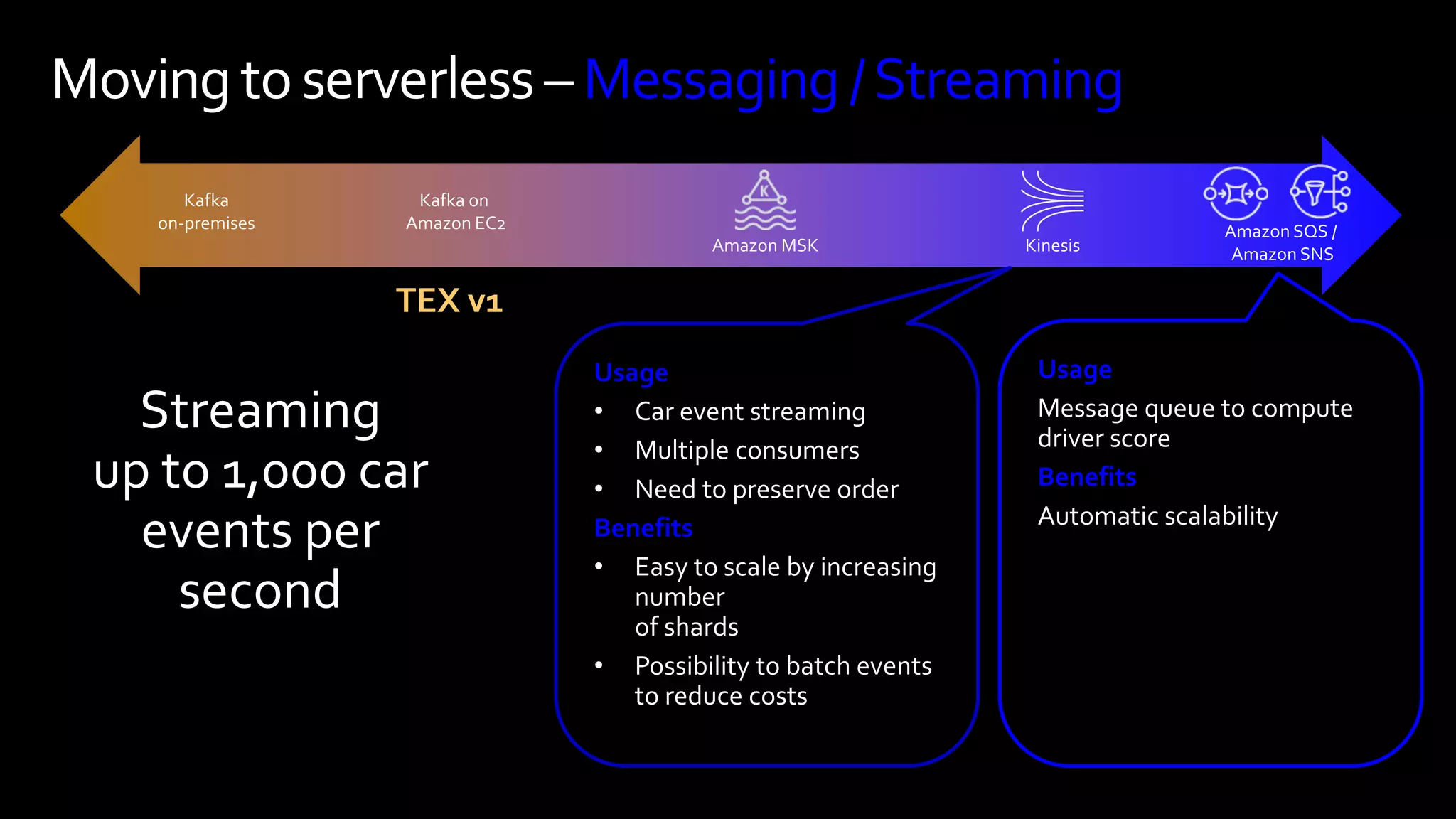

24. Moving toserverless – Messaging/Streaming
Usage
Message queue to compute
driver score
Benefits
Automatic scalability
Usage
• Car event streaming
• Multiple consumers
• Need to preserve order
Benefits
• Easy to scale by increasing
number
of shards
• Possibility to
TEX v1
Amazon MSK Kinesis
Amazon SQS /
Amazon SNS
Kafka on
Amazon EC2
Kafka
on-premises

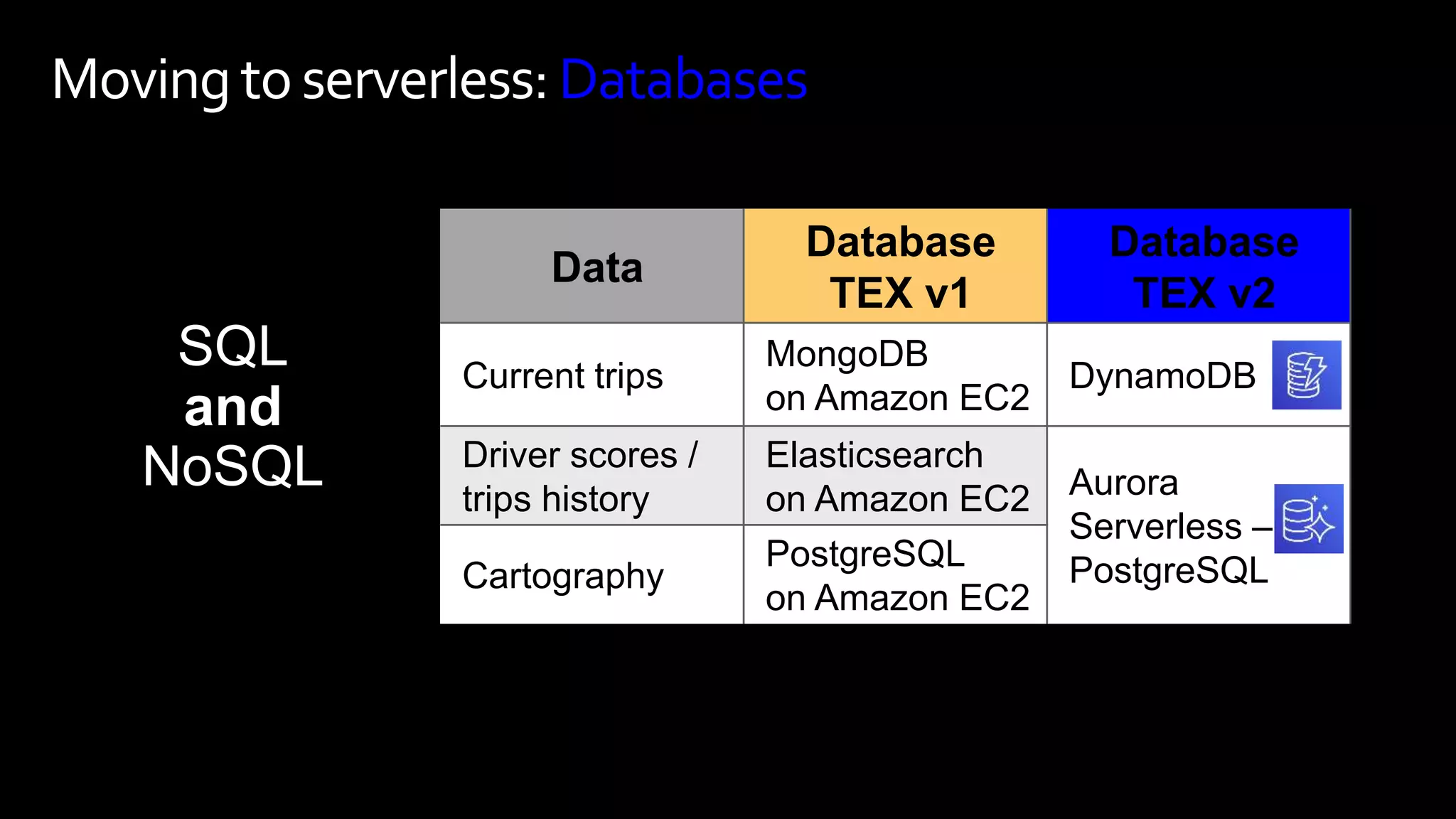

25. Data
Database
TEX v1
Database
TEX v2
Current trips
MongoDB
on Amazon EC2
DynamoDB
Moving toserverless:Databases
Data
Database
TEX v1
Database
TEX v2
Current trips
MongoDB
on Amazon EC2
DynamoDB
Driver scores /
trips history
Elasticsearch
on Amazon EC2 Aurora
Serverless –
PostgreSQL
Cartography
PostgreSQL
on Amazon EC2

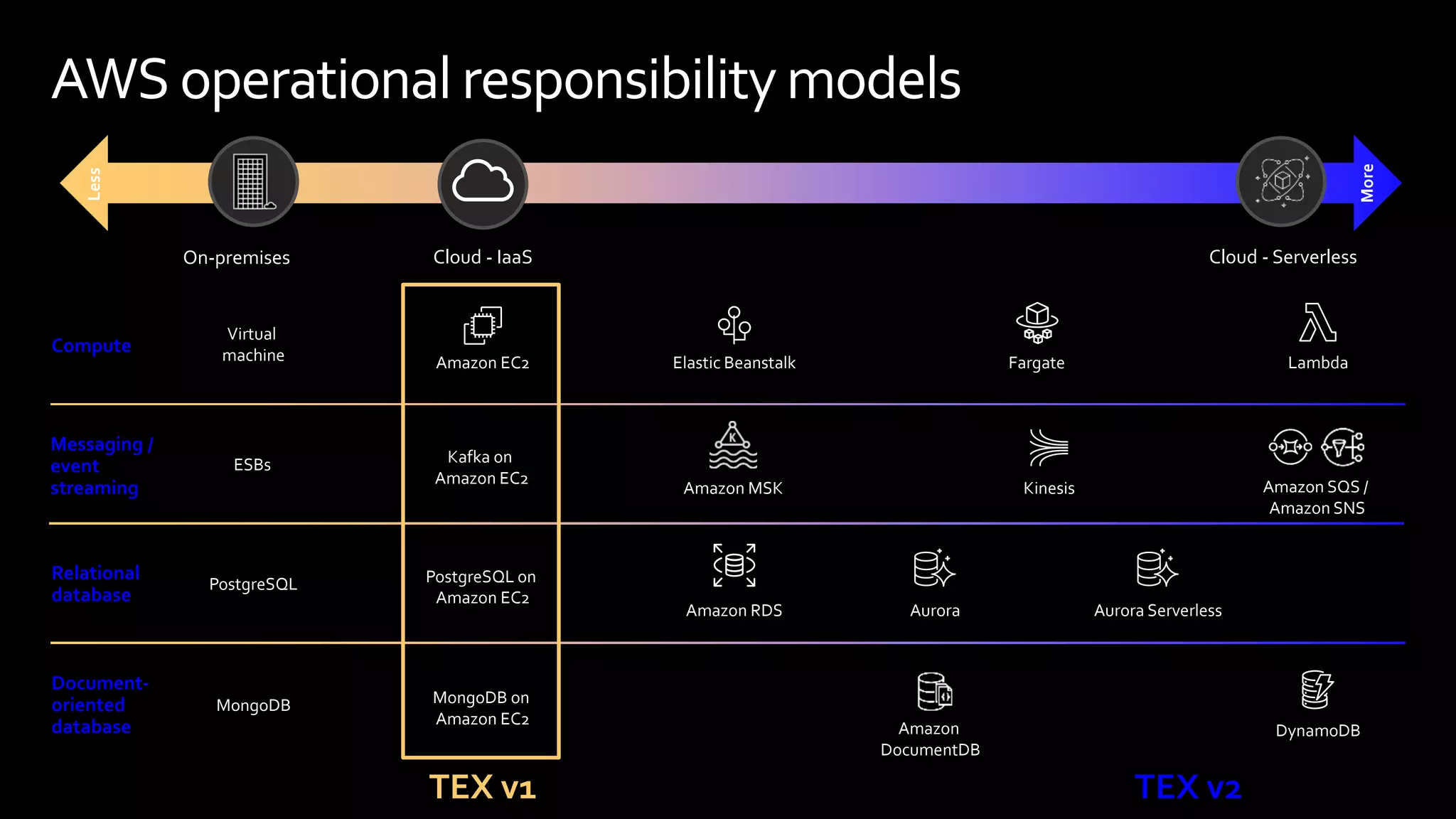

26. Messaging /
event
streaming
ESBs
Amazon MSK Kinesis Amazon SQS /
Amazon SNS
Kafka on
Amazon EC2
AWS operational responsibilitymodels
Compute
Virtual
machine Amazon EC2 Elastic Beanstalk Lambda
Fargate
On-premises
Less
More
Relational
database
PostgreSQL PostgreSQL on
Amazon EC2
Amazon RDS Aurora Aurora Serverless
DynamoDB
MongoDB MongoDB on
Amazon EC2
Amazon
DocumentDB
Document-
oriented
database
TEX v1 TEX v2
Cloud - IaaS Cloud - Serverless

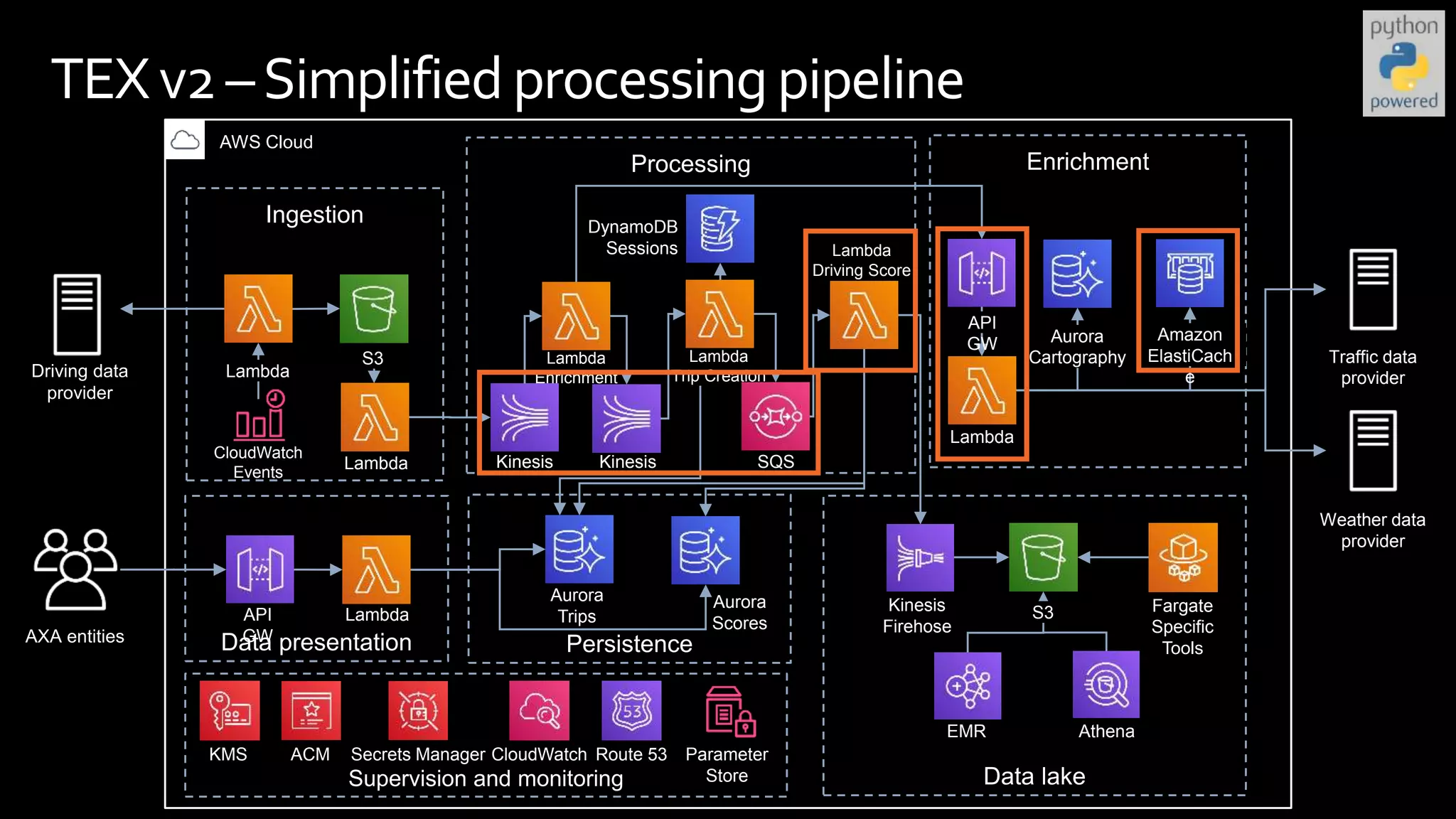

27. TEXv2 –Simplified processing pipeline
Supervision and monitoring
KMS ACM Secrets Manager CloudWatch Route 53 Parameter
Store
AWS Cloud
Athena
EMR
Kinesis
Firehose
Fargate
Specific
Tools
S3
Data lake
Aurora
Trips
Aurora
Scores
Persistence
AXA entities
Lambda
API
GW
Data presentation
Enrichment
Traffic data
provider
Weather data
provider
Lambda
Aurora
Cartography
Amazon
ElastiCach
e
API
GW
Ingestion
Driving data
provider
S3
Lambda
Lambda
CloudWatch
Events
Processing
DynamoDB
Sessions
Kinesis Kinesis SQS
Lambda
Enrichment
Lambda
Trip Creation
Lambda
Driving Score

28. Business logic scaling effect
• Smoothly scale depending on road traffic
• Development environment – no traffic
≃$0 for Lambda
• Production environment – lower cost than
fault-tolerant servers dedicated to business logic
TEXv2 – Lambda activities
Kinesis incoming records Data enrichment
Lambda invocations

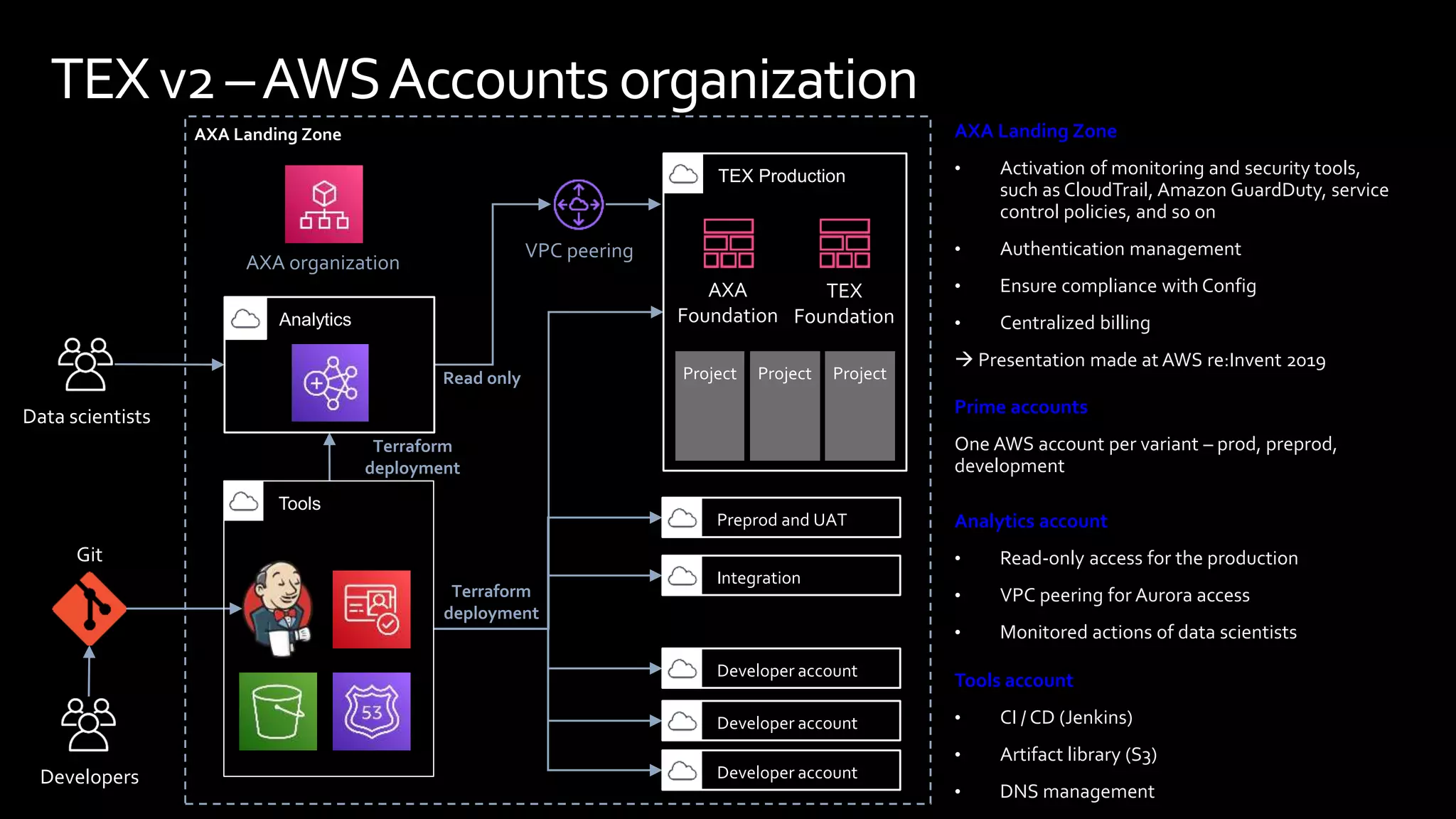

29. AXA Landing Zone
• Activation of monitoring and security tools,
such as CloudTrail, Amazon GuardDuty, service
control policies, and so on
• Authentication management
• Ensure compliance with Config
• Centralized billing
 Presentation made at AWS re:Invent 2019
TEXv2 –AWSAccounts organization
Developers
Terraform
deployment
Read only
Terraform
deployment
Data scientists
AXA Landing Zone
Project Project Project
Git
Analytics
Tools
TEX Production
Preprod and UAT
Integration
Developer account
Developer account
Developer account
AXA organization
VPC peering
TEX
Foundation
AXA
Foundation
Prime accounts
One AWS account per variant – prod, preprod,
development
Analytics account
• Read-only access for the production
• VPC peering for Aurora access
• Monitored actions of data scientists
Tools account
• CI / CD (Jenkins)
• Artifact library (S3)
• DNS management

30. TEXv2 – Did we succeedin resolvingour issues?
Less system
engineering
Easier scaling More security Focus on features
✓ ✓ ✓ ✓
A full class of issues
disappeared with the
serverless migration
The architecture and the
infrastructure just scale
Some components may
need manual tuning
We spend less time in
maintaining the
infrastructure,
So we are more comfortable
in adding new features
We do not think about it
anymore
Remaining tasks are on
database performance with
business logic

31. Lessons learned
Aurora Serverless requires aVPC configuration
Kinesis shards and Aurora units need manual tuning
Full serverless is not always possible, hybrid approach should be kept in
mind and integrated in infrastructure as code
Fewer features with Aurora Serverless than with Amazon RDS equivalents
Kinesis costs, even if not used
Serverless still needs configuration
Hybrid architecture
Techno maturity
Lambda can scale too much and be costly if bug in logic or
architecture – set alarms and limits
Control automatic scaling

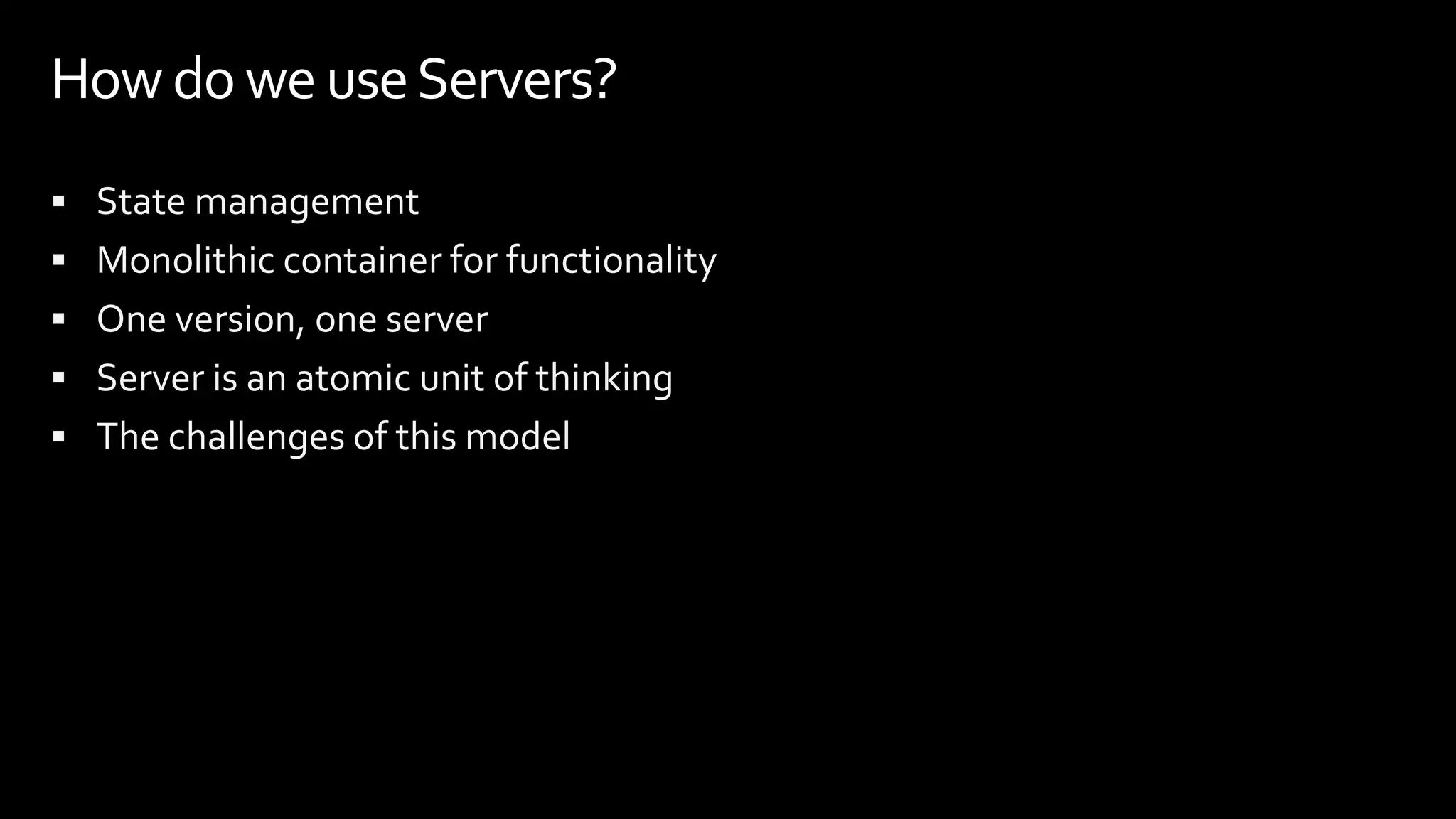

32.  State management
 Monolithic container for functionality
 One version, one server
 Server is an atomic unit of thinking
 The challenges of this model
How do weuseServers?

34. Features first Focus on Events Stateless Data-flow Use the Services
Avoid monolithic
thinking
Events are triggers
that cause action
The key to
scaling
effectively
Make data
decisions early on
Don’t reinvent
the wheel
GeneralApproach toThinkingServerless

35. Attributes
 Runs on demand
 Supports many runtimes
 Responds to events
 Stateless
 Automatically scales
Best practices
 Avoid lift-and-shift
 One function per purpose
 Keep functions small
 Choose the right runtime for the job
 Use functions for business logic and
plumbing between services
✍️Understanding howAWS Lambda fitsin

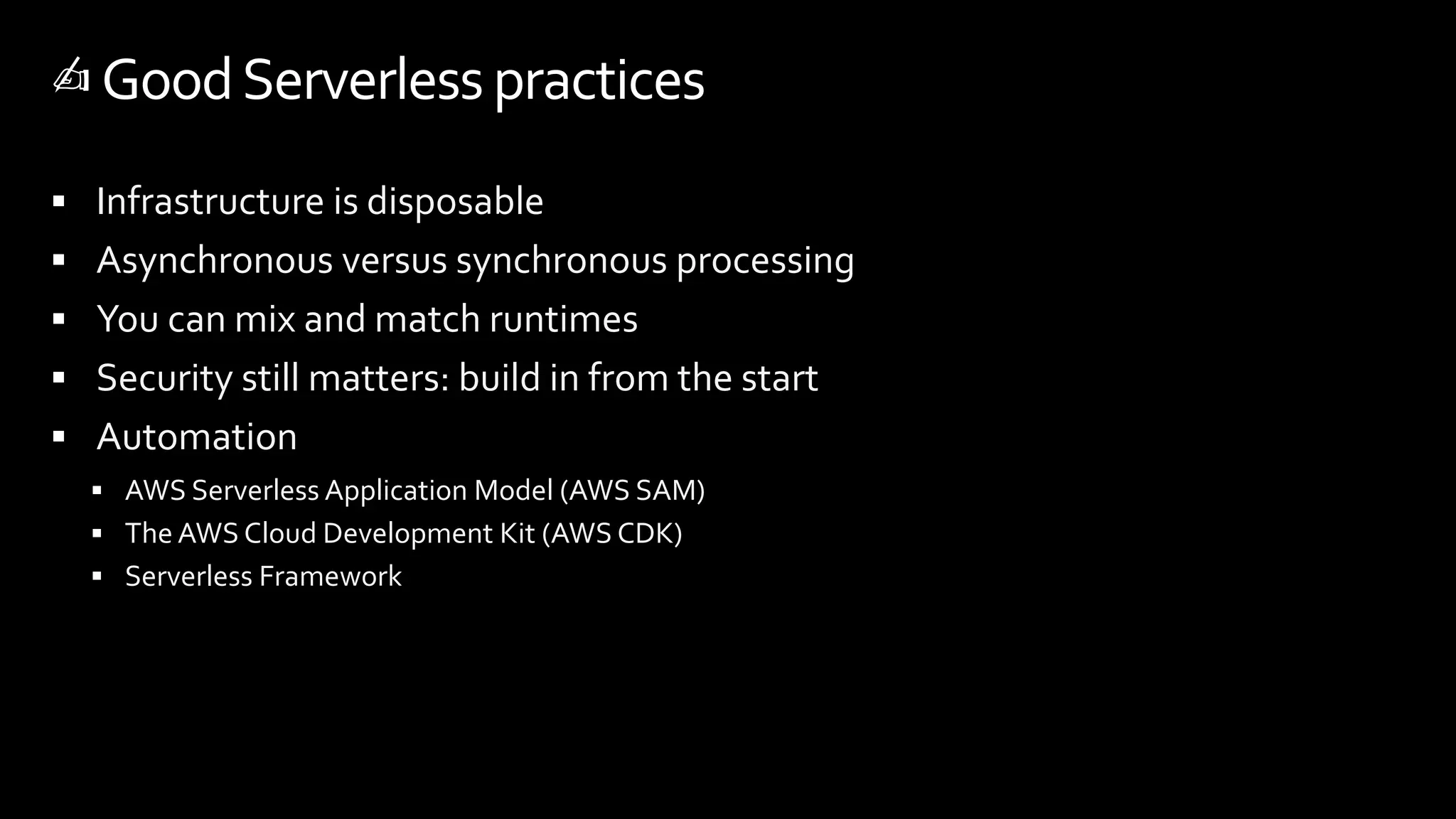

36.  Infrastructure is disposable
 Asynchronous versus synchronous processing
 You can mix and match runtimes
 Security still matters: build in from the start
 Automation
 AWS Serverless Application Model (AWS SAM)
 The AWS Cloud Development Kit (AWS CDK)
 Serverless Framework
✍️GoodServerlesspractices

37. 1. Form upload
Create a serverless application to support a customer review form submitted from
a webpage

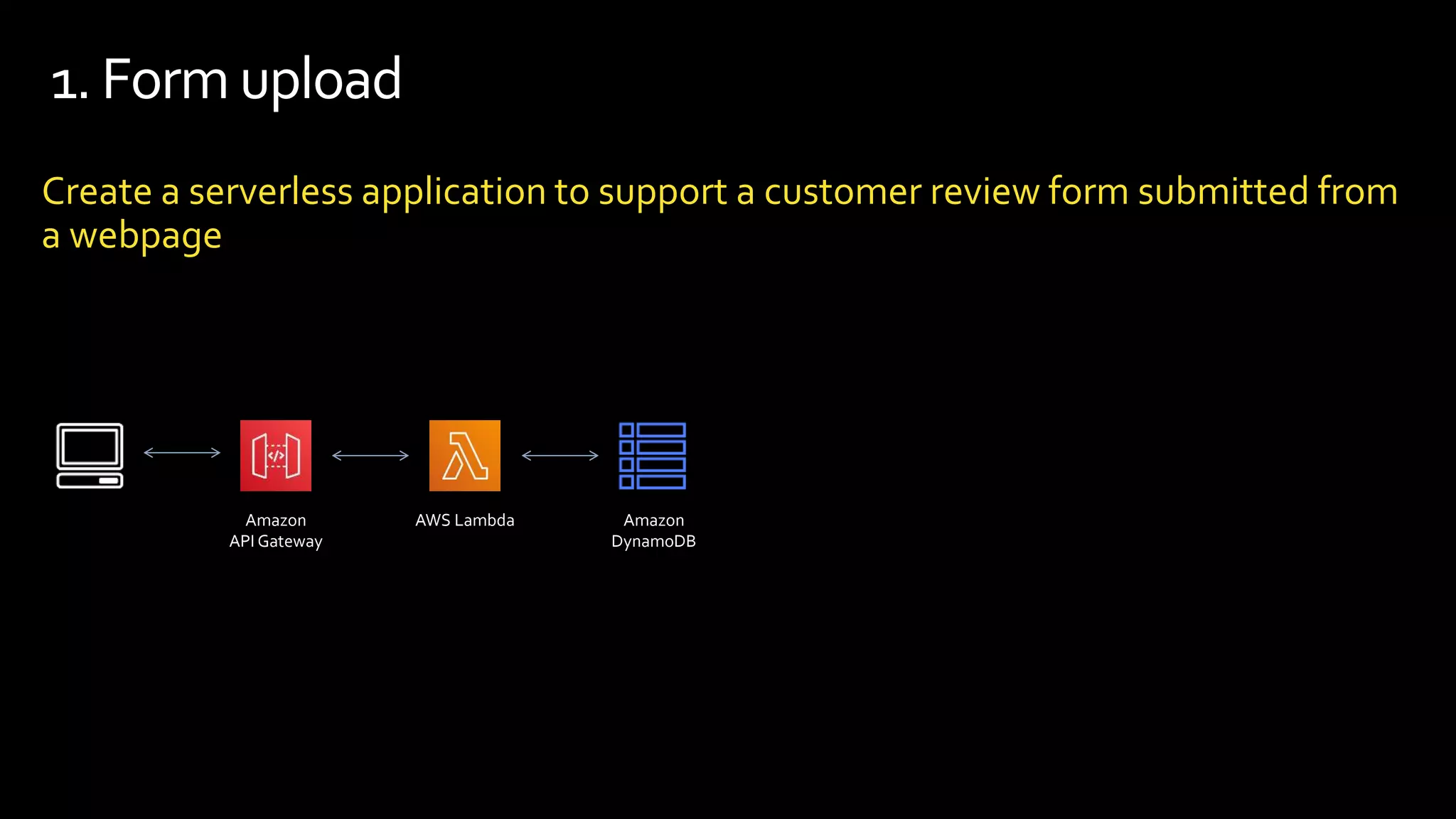

38. 1. Form upload
Create a serverless application to support a customer review form submitted from
a webpage
Amazon
API Gateway
AWS Lambda Amazon
DynamoDB

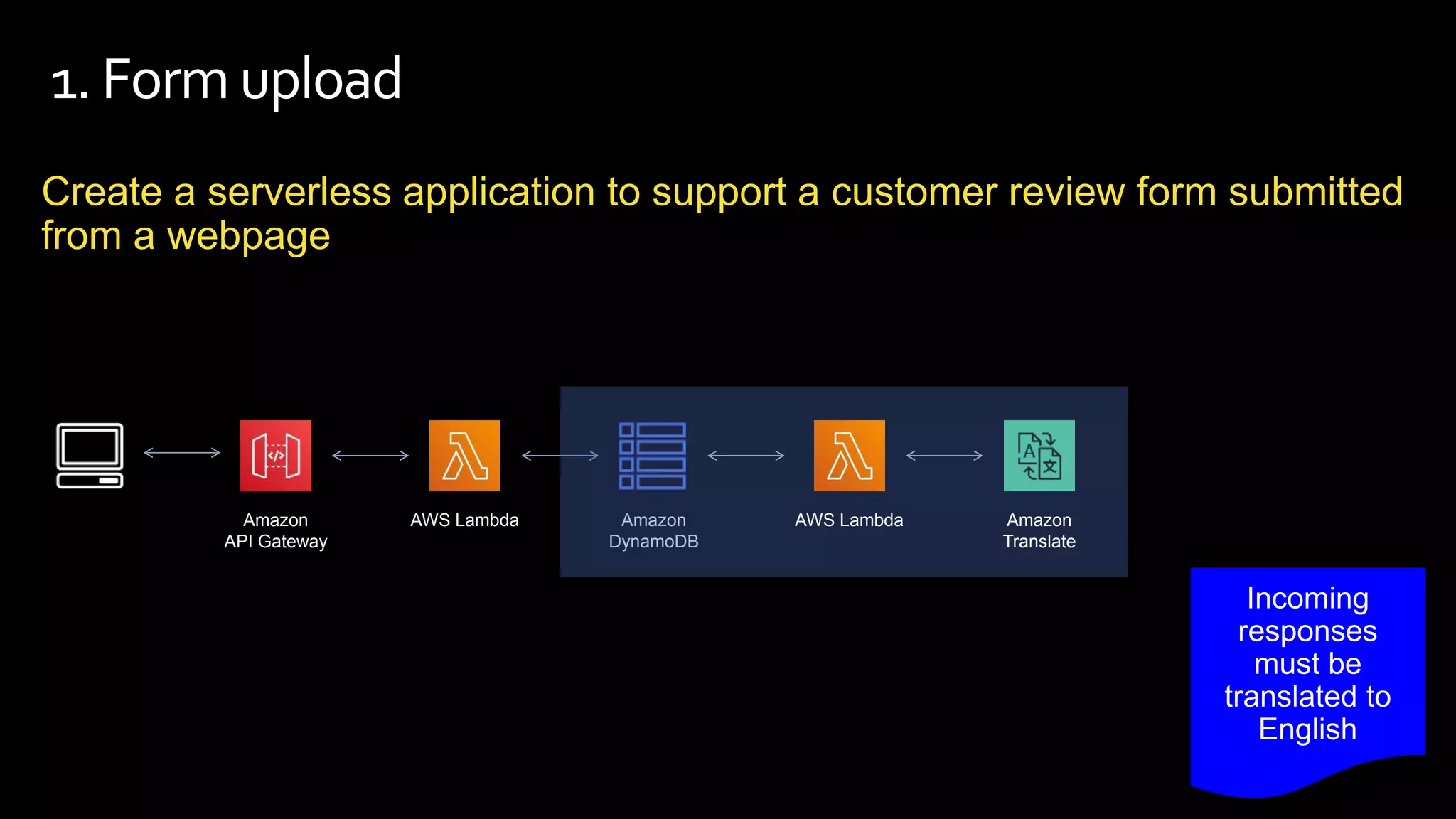

39. 1. Form upload
Create a serverless application to support a customer review form submitted
from a webpage
Amazon
API Gateway
AWS Lambda Amazon
DynamoDB
AWS Lambda Amazon
Translate

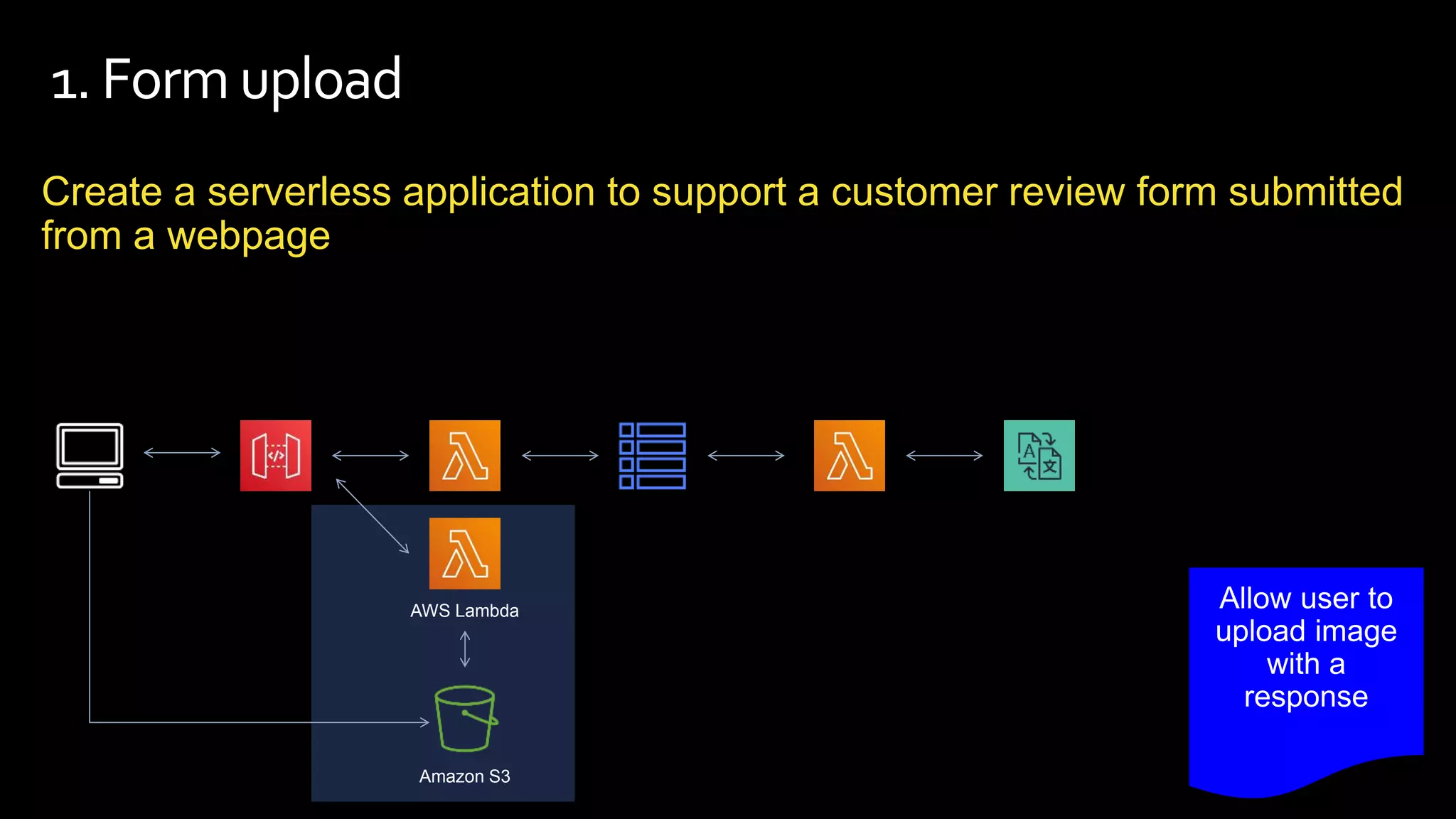

40. 1. Form upload
Create a serverless application to support a customer review form submitted
from a webpage
AWS Lambda
Amazon S3

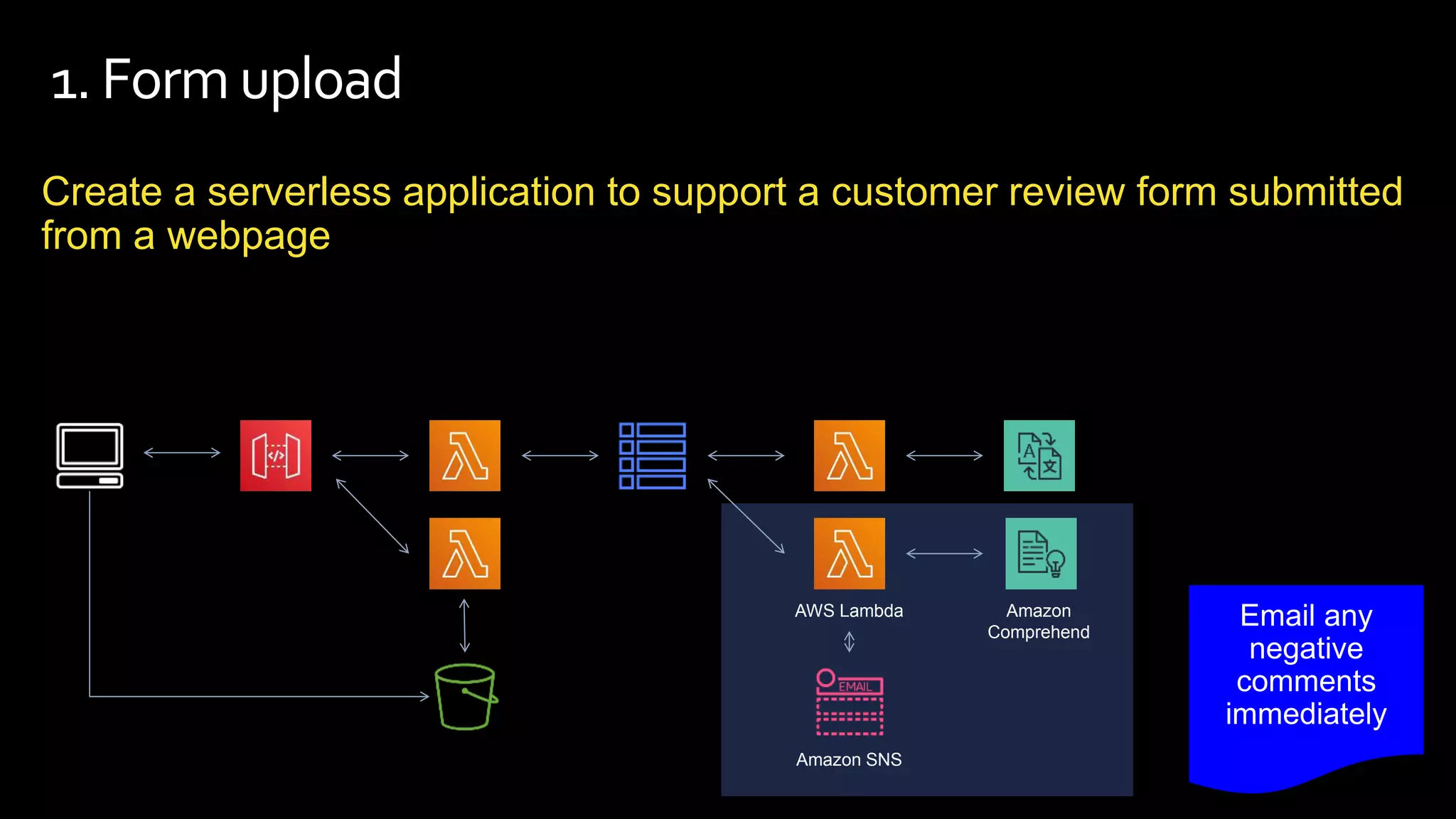

41. 1. Form upload
Create a serverless application to support a customer review form submitted
from a webpage
AWS Lambda
Amazon SNS
Amazon
Comprehend

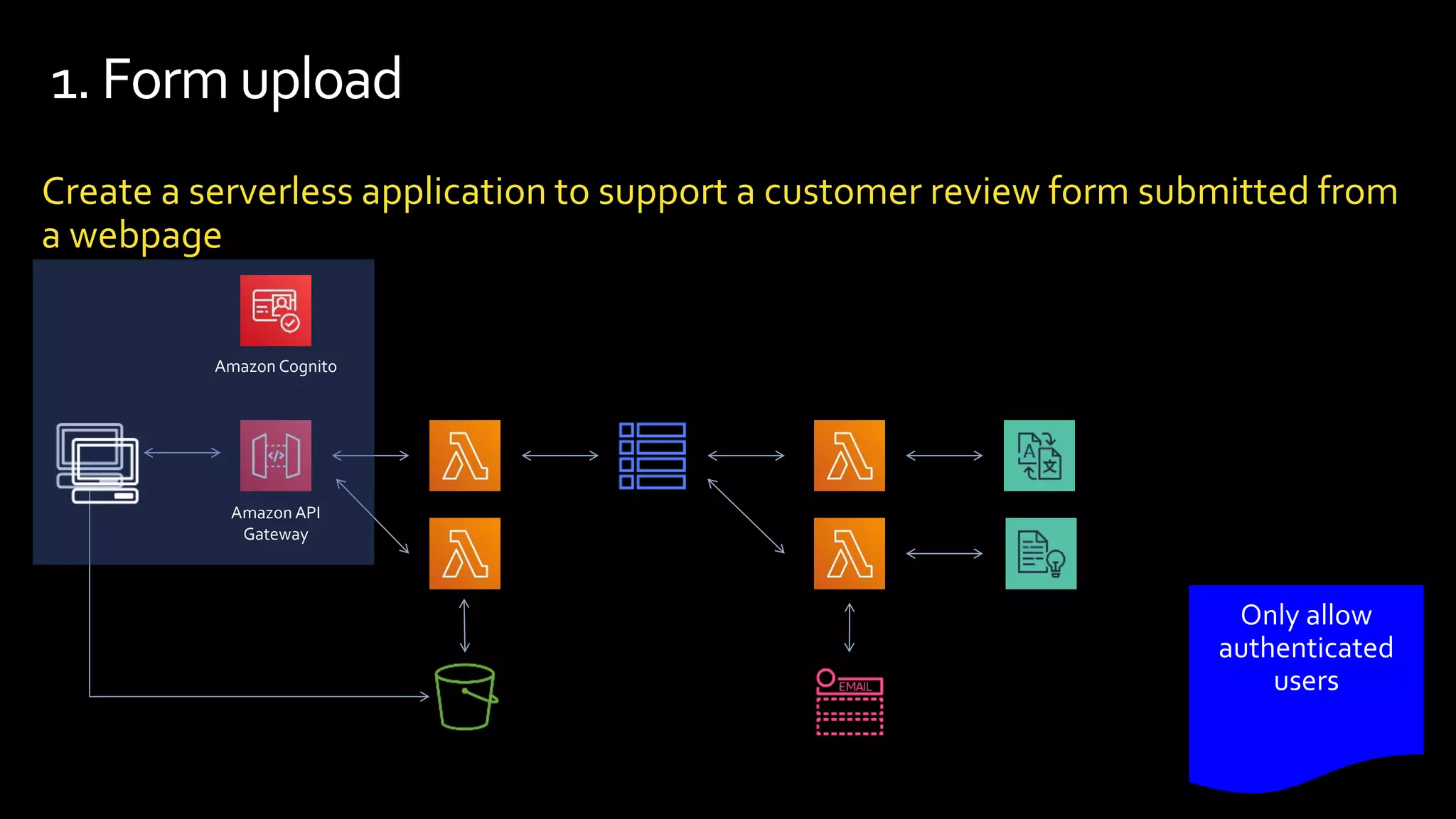

42. 1. Form upload
Create a serverless application to support a customer review form submitted from
a webpage
Amazon Cognito
Amazon API
Gateway

43. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue

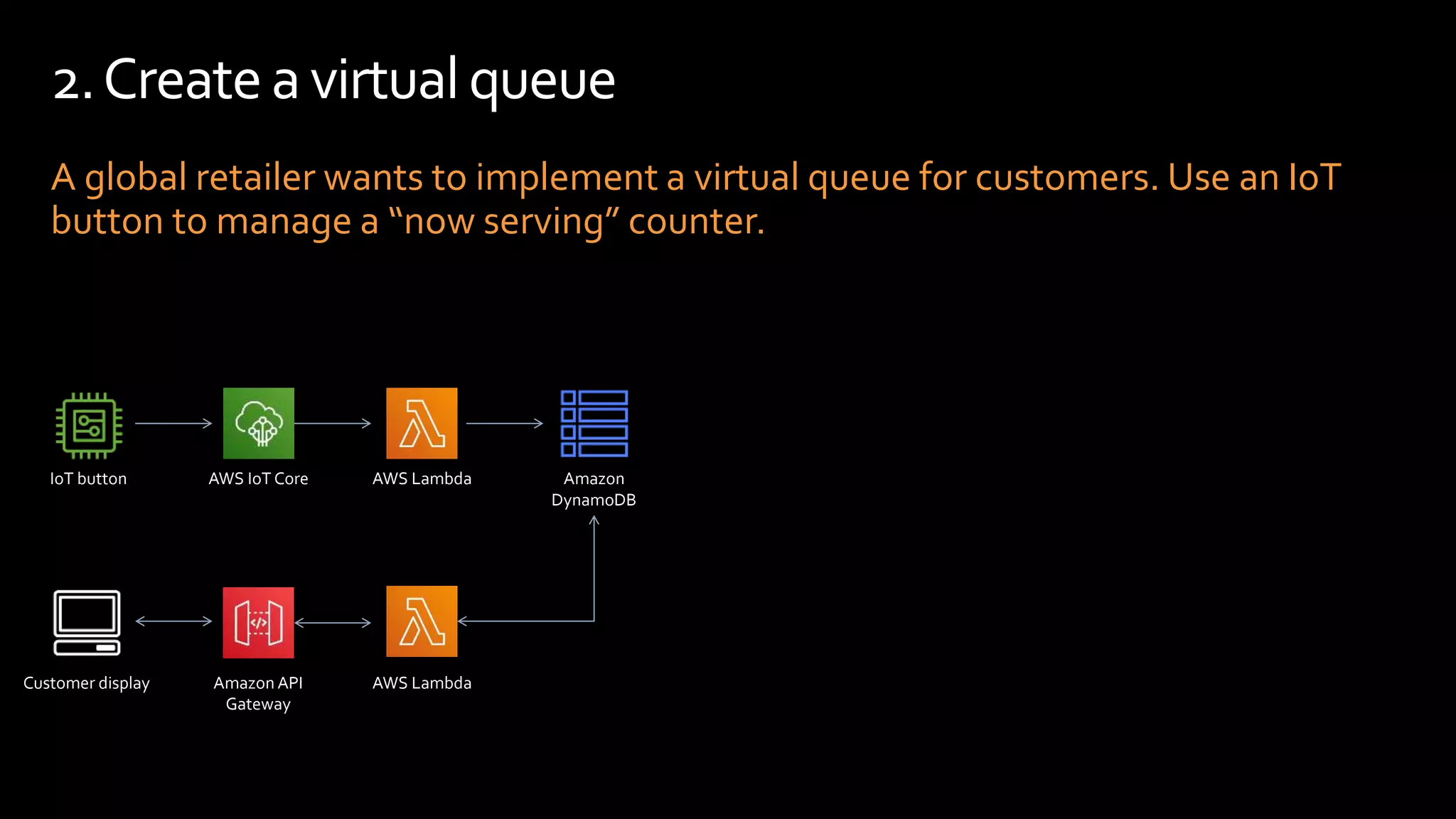

44. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue
IoT button AWS IoT Core AWS Lambda Amazon
DynamoDB
AWS Lambda
Amazon API
Gateway
Customer display

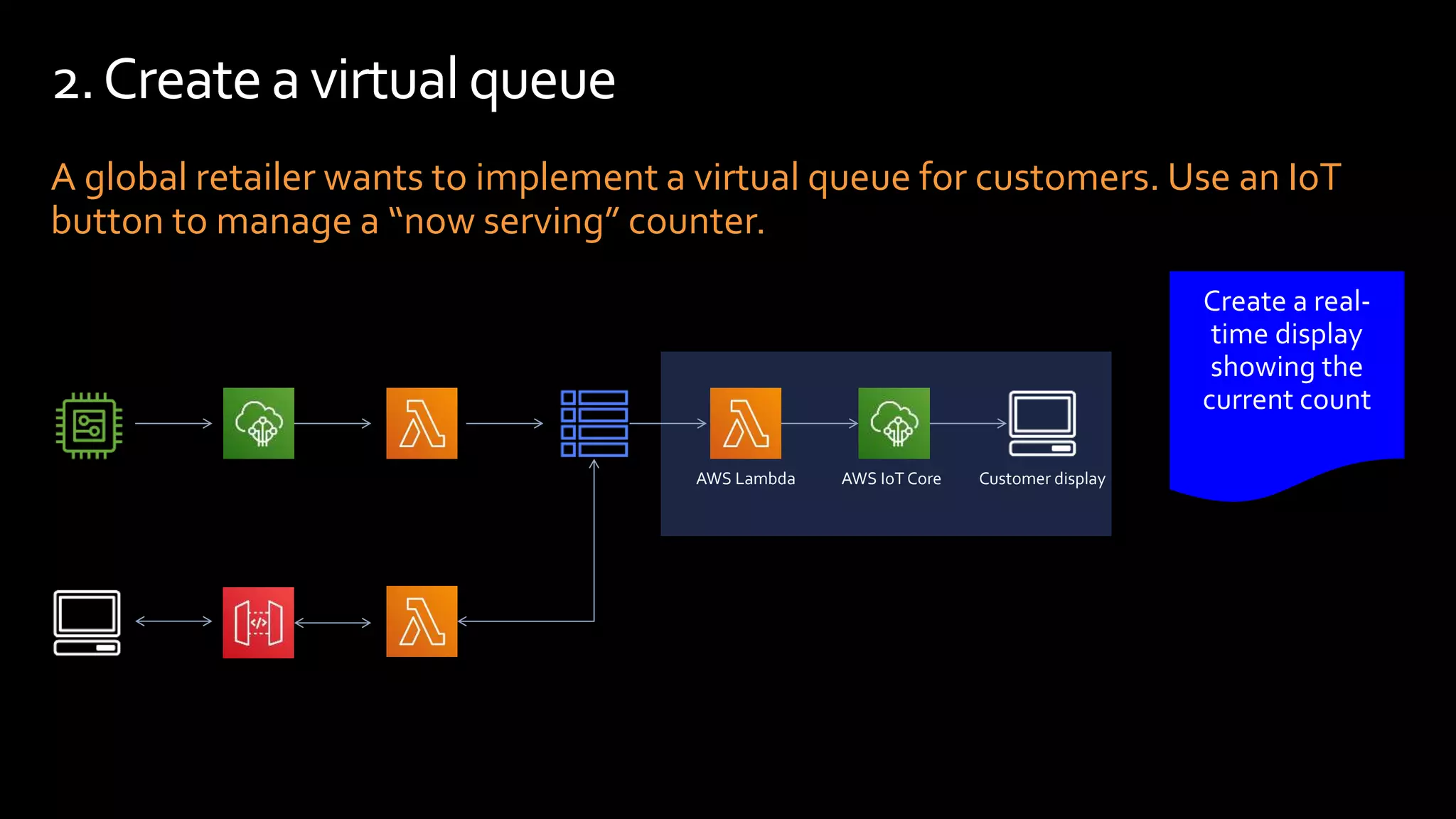

45. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue
AWS Lambda AWS IoT Core Customer display

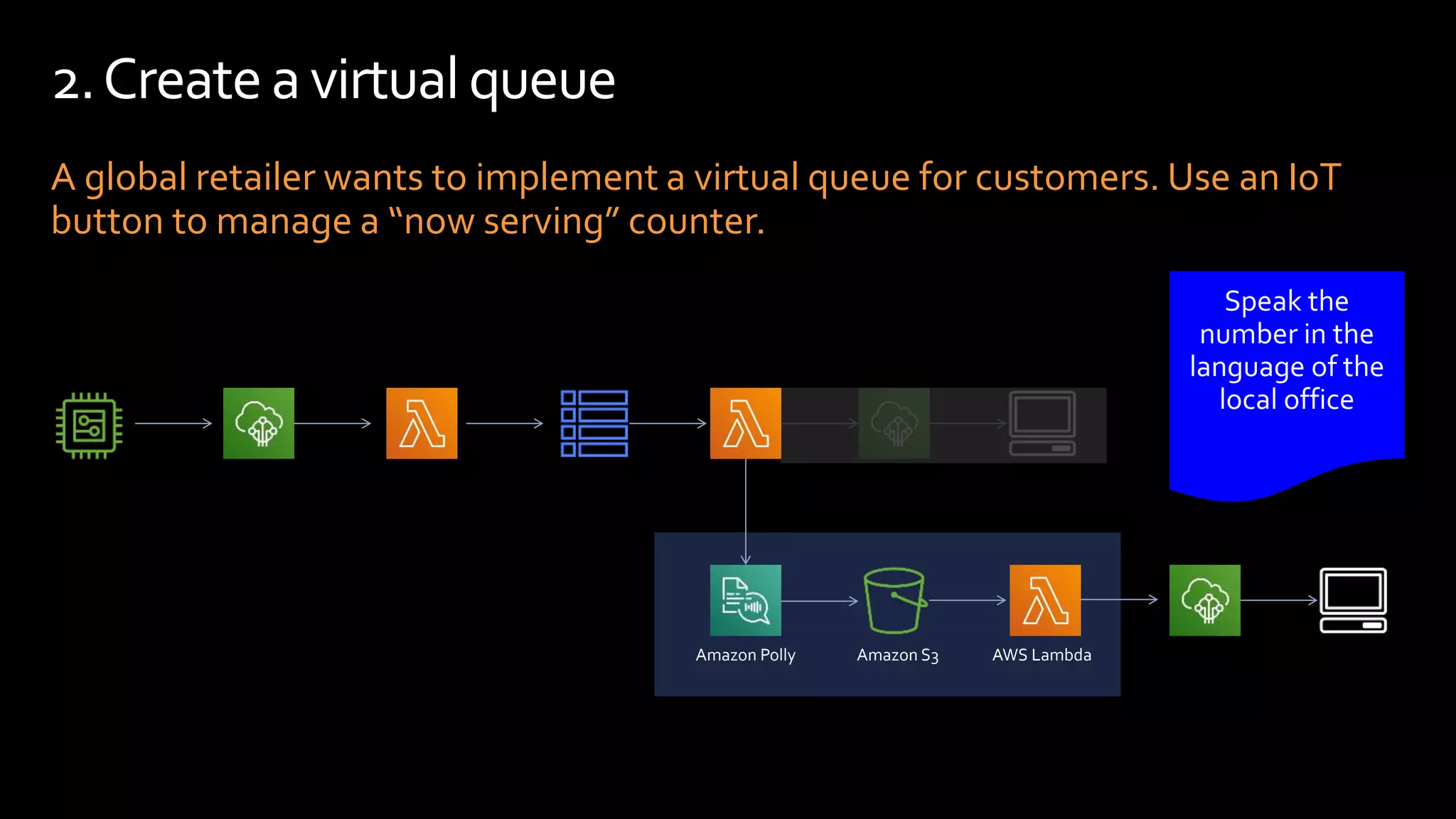

46. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue
AWS Lambda
Amazon S3
Amazon Polly

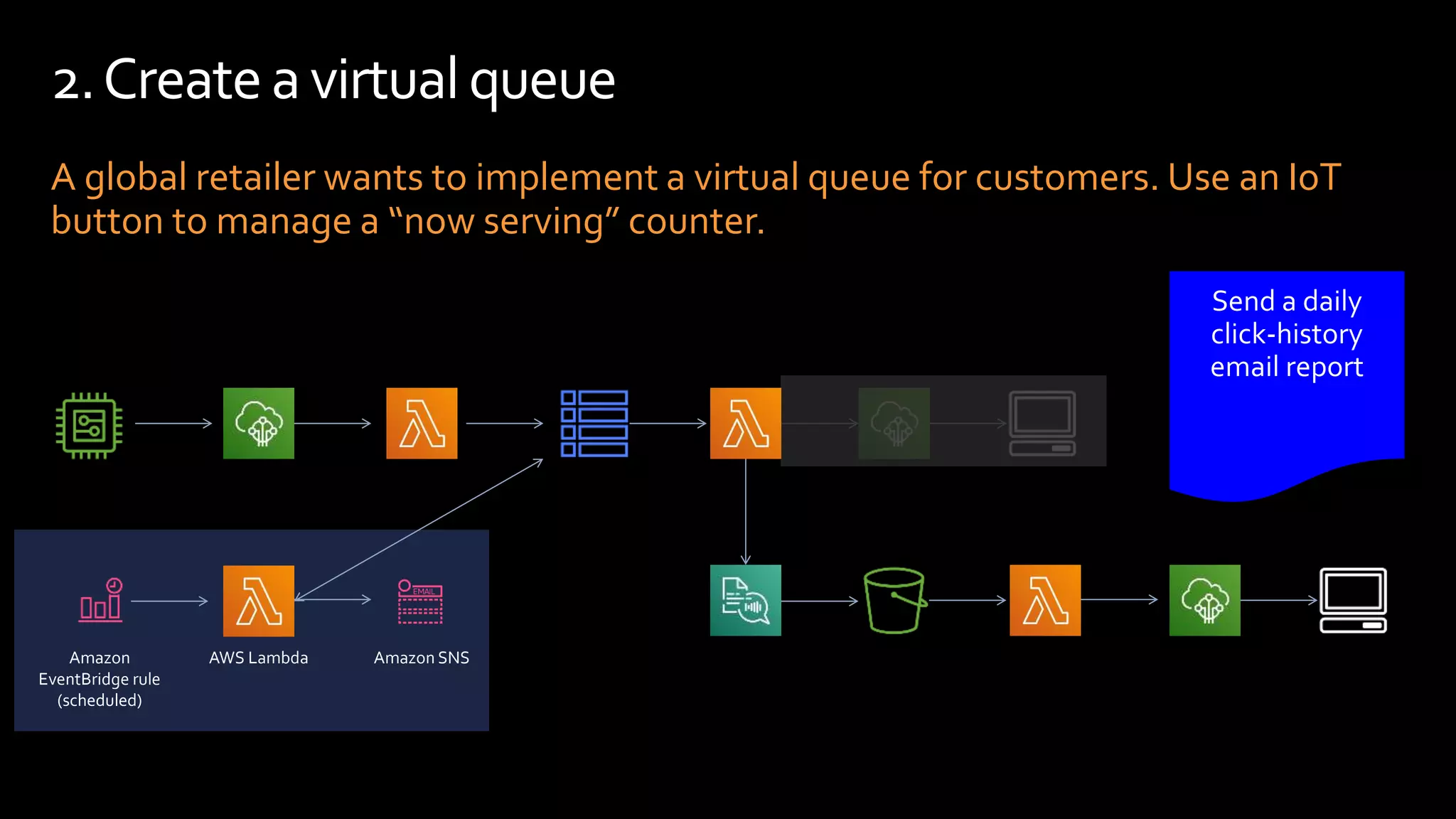

47. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue
Amazon
EventBridge rule
(scheduled)
AWS Lambda Amazon SNS

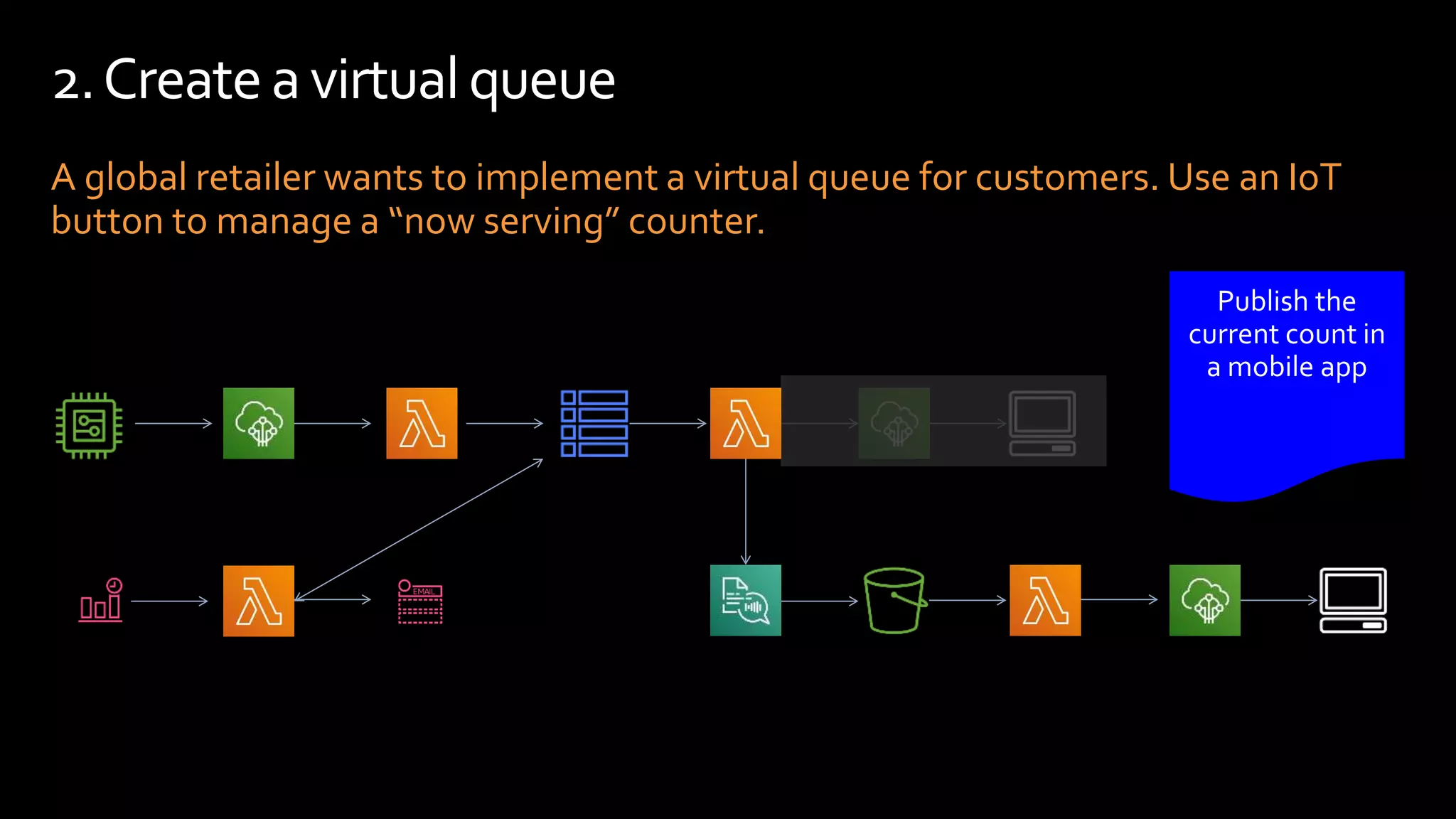

48. A global retailer wants to implement a virtual queue for customers. Use an IoT
button to manage a “now serving” counter.
2.Createa virtualqueue

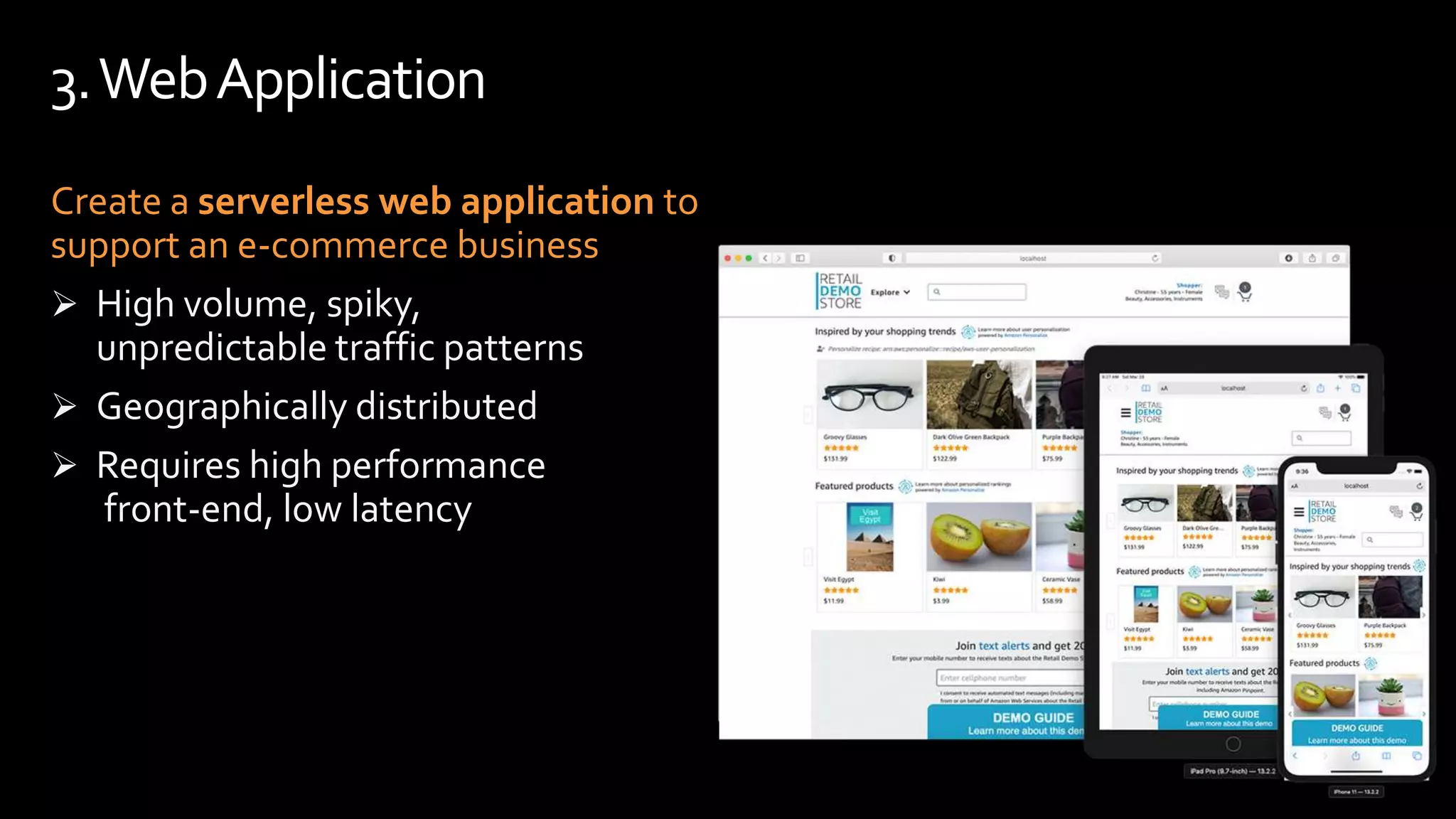

49. Create a serverless web application to
support an e-commerce business
 High volume, spiky,
unpredictable traffic patterns
 Geographically distributed
 Requires high performance
front-end, low latency
3.WebApplication

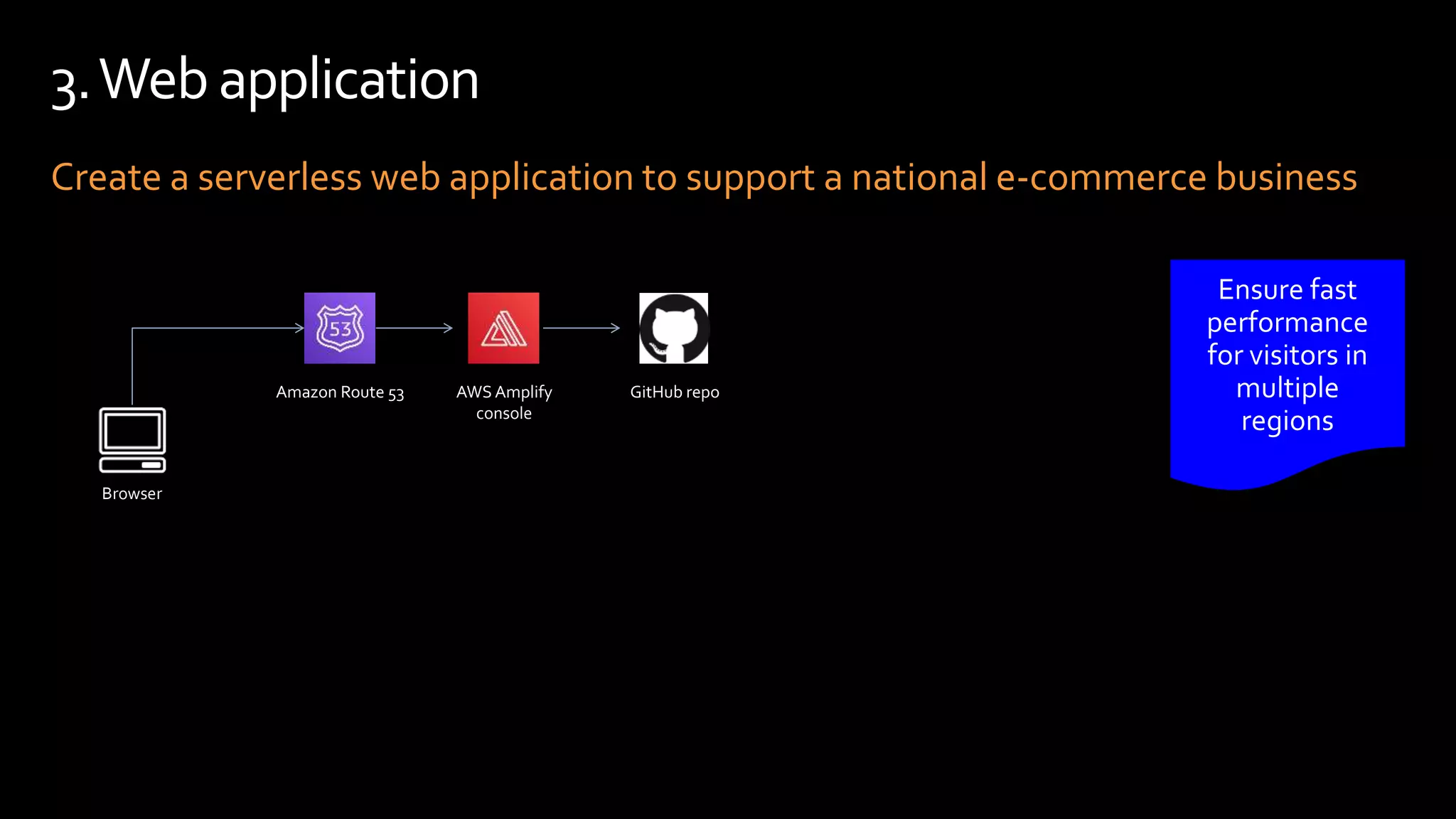

50. Create a serverless web application to support a national e-commerce business
3.Web application
Browser
Amazon Route 53 AWS Amplify
console
GitHub repo

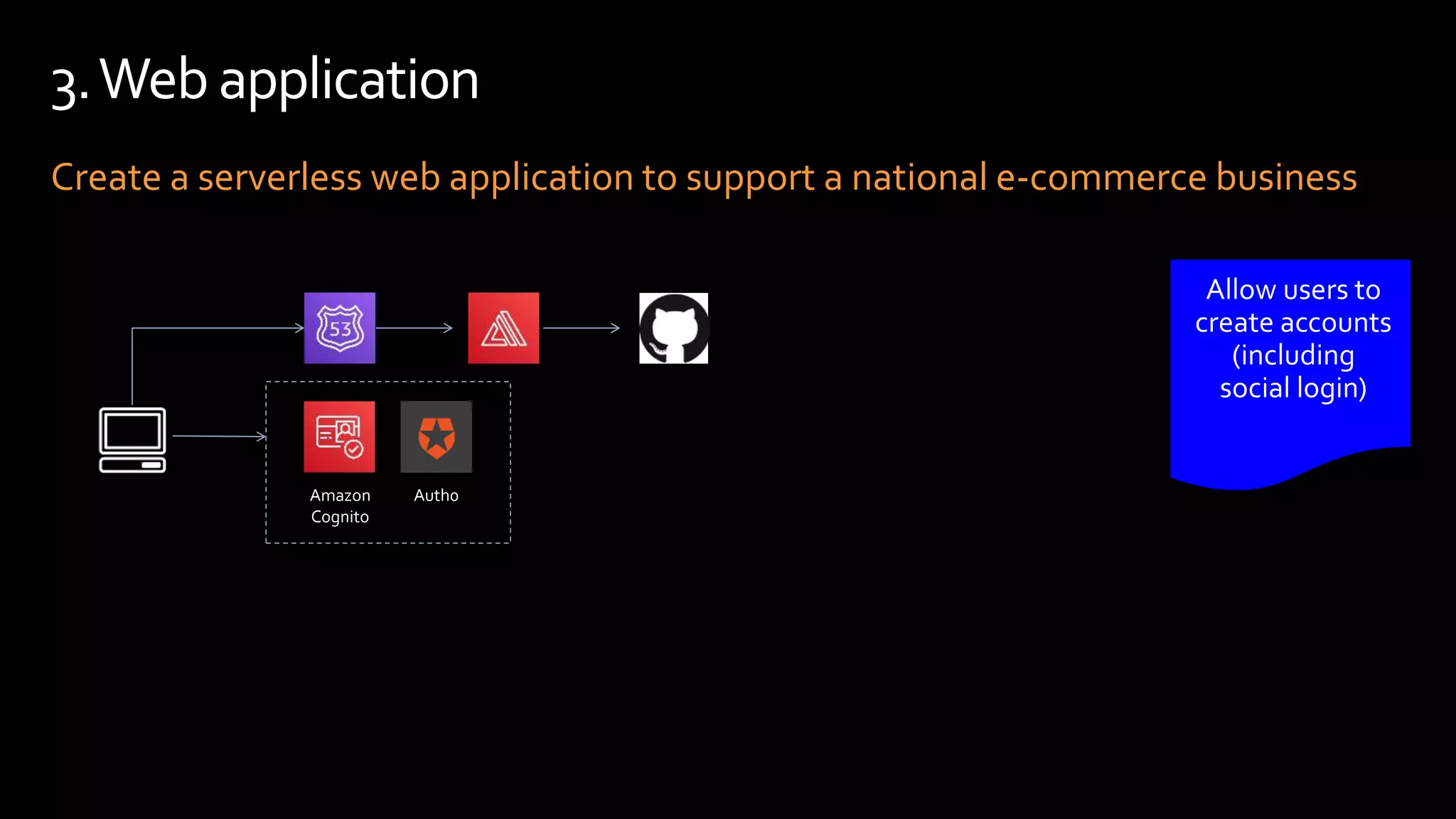

51. Create a serverless web application to support a national e-commerce business
3.Web application
Amazon
Cognito
Auth0

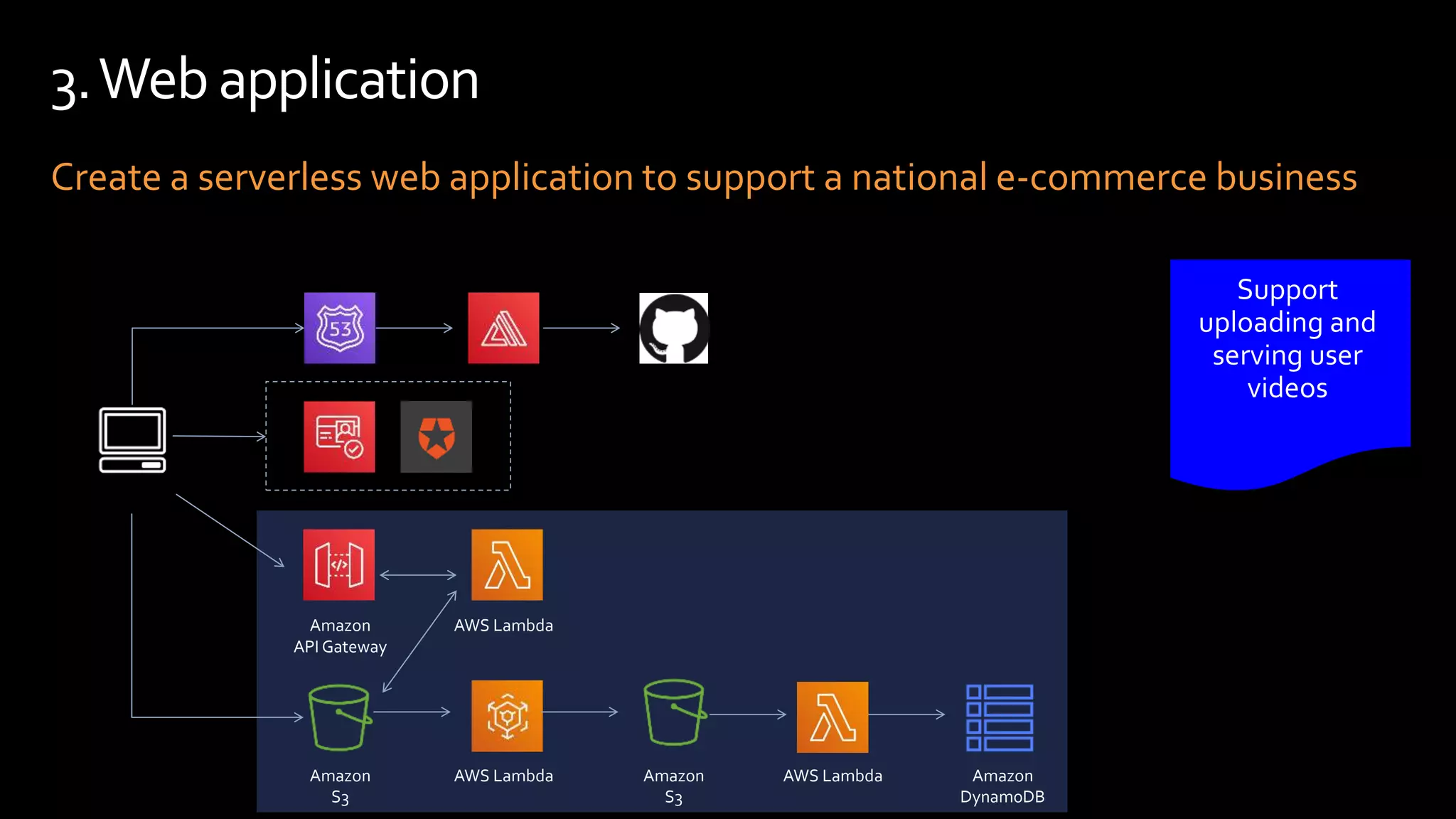

52. Create a serverless web application to support a national e-commerce business
3.Web application
Amazon
API Gateway
AWS Lambda
Amazon
S3
AWS Lambda Amazon
S3
AWS Lambda Amazon
DynamoDB

53. 1.Serverlessfor Developers

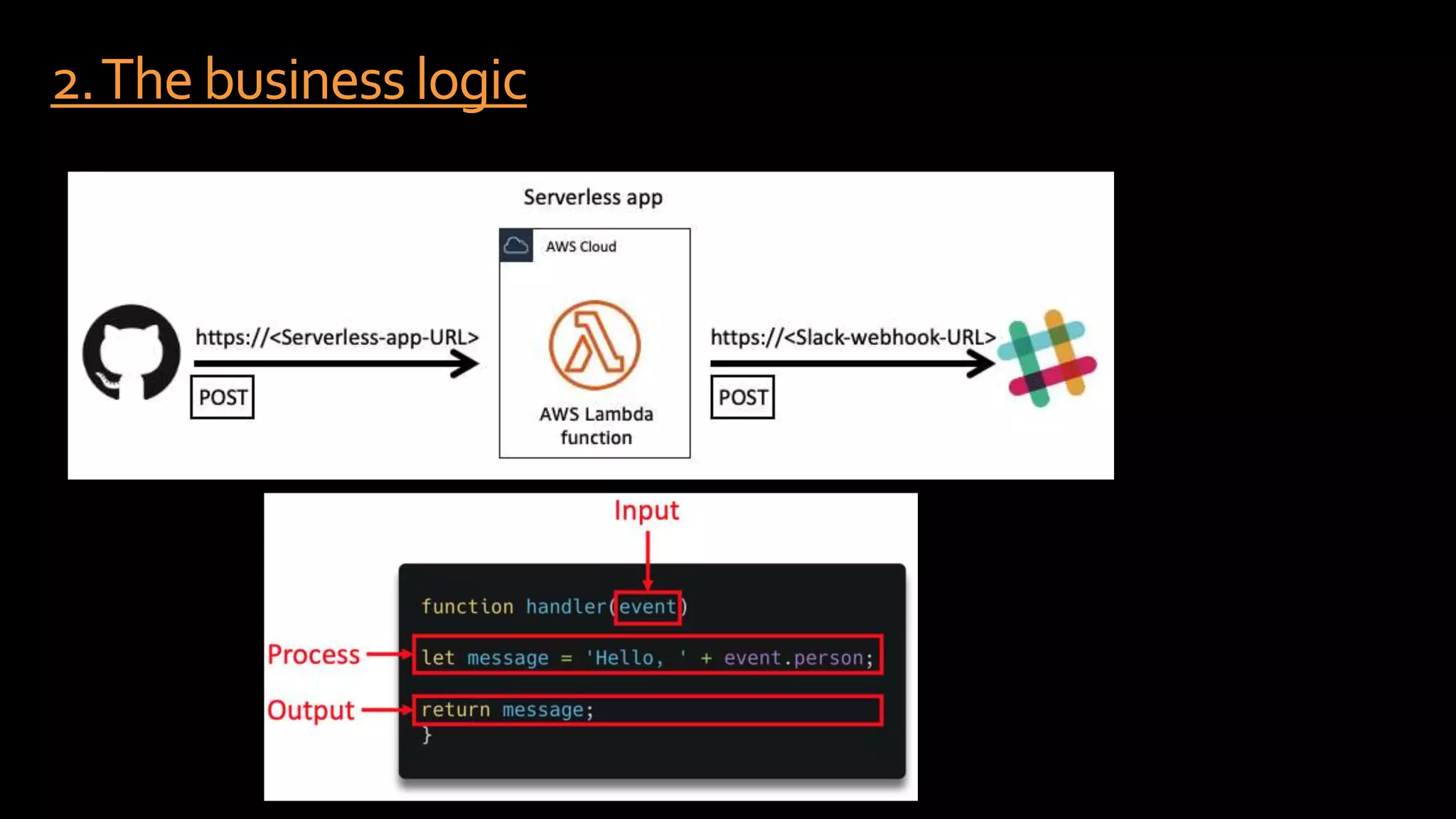

54. 2.Thebusinesslogic

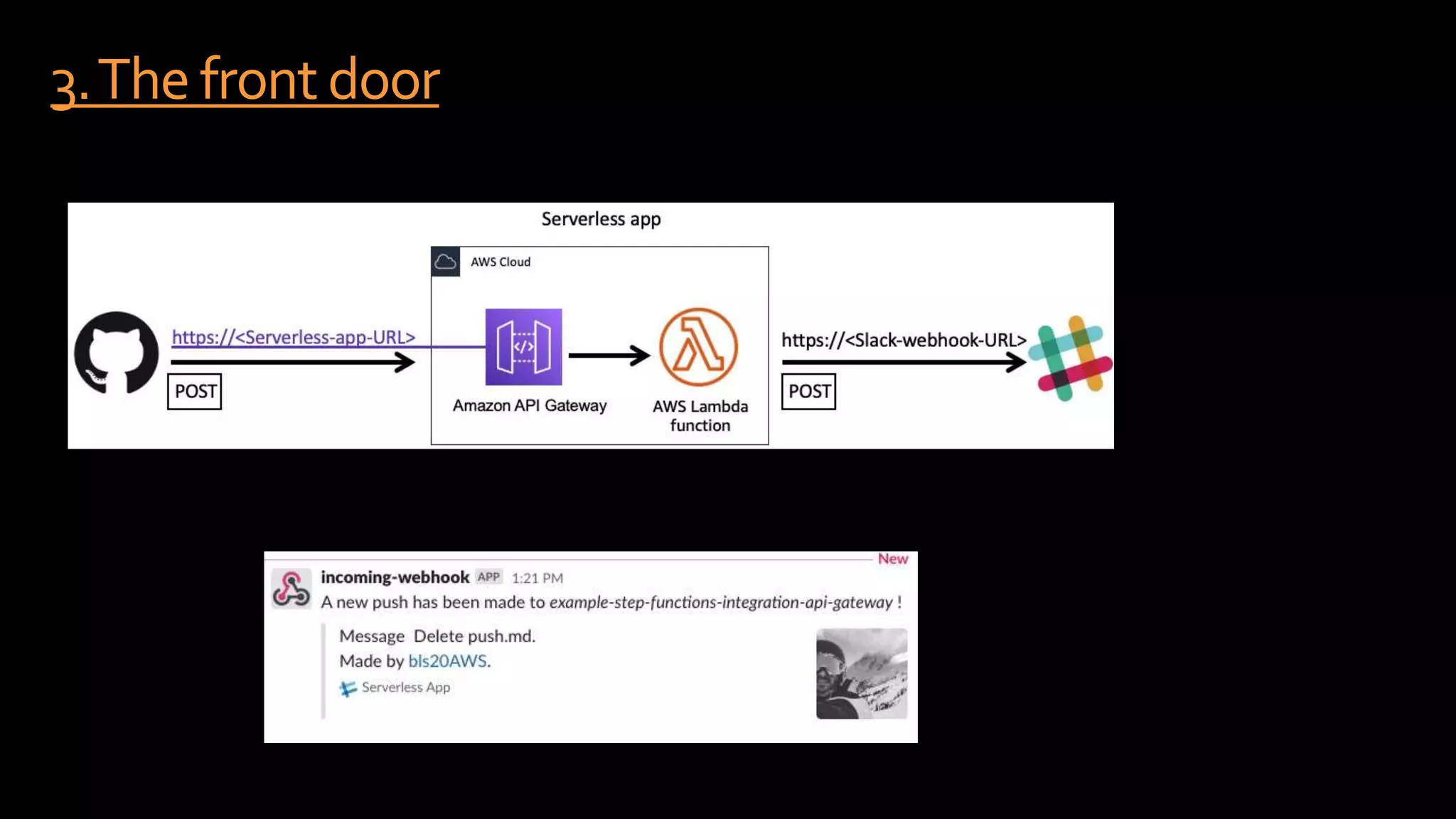

55. 3.Thefront door

56. 4.Localdeveloper workflow

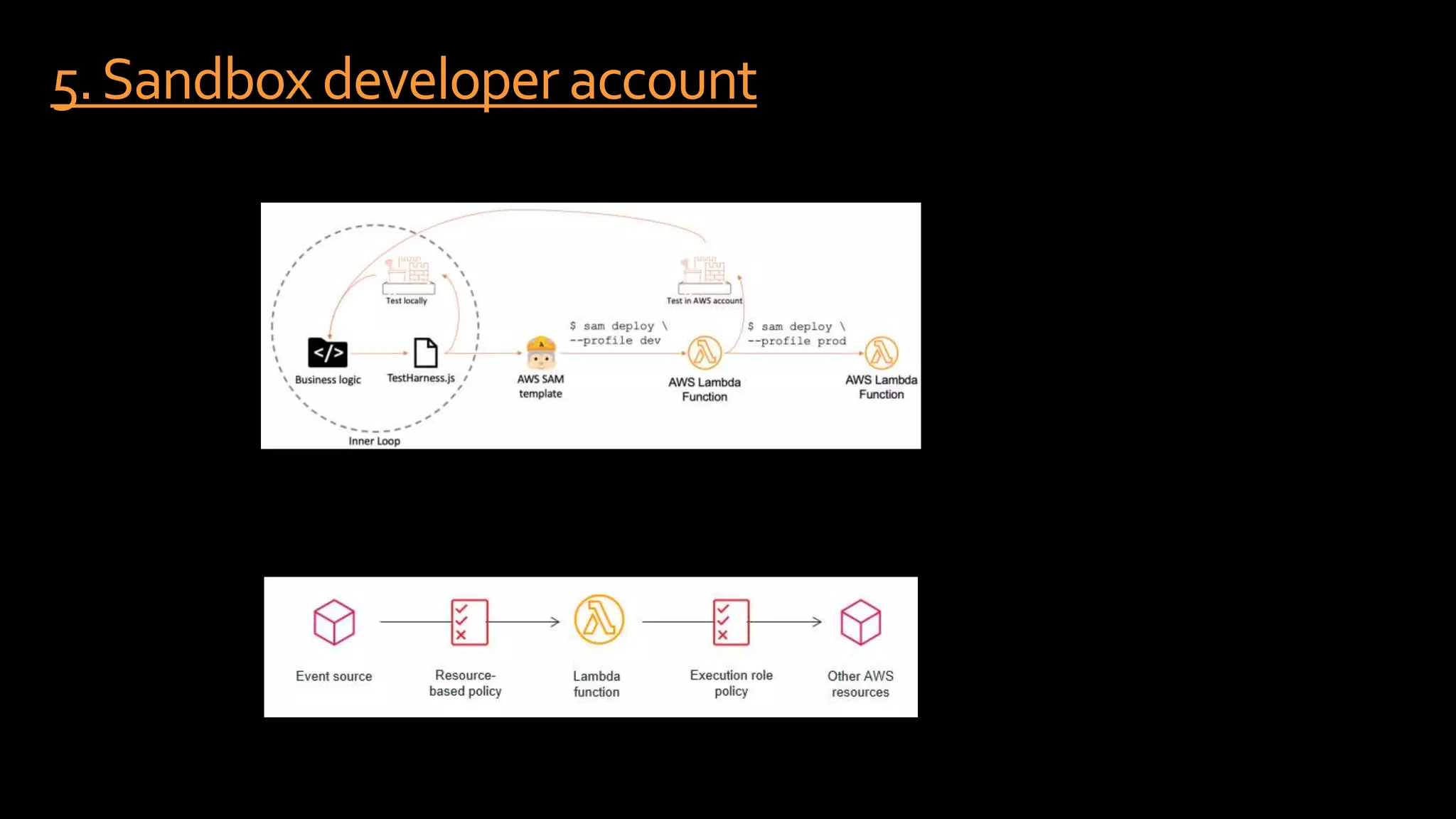

57. 5.Sandbox developer account

58. © 2021, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
© 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved.
Serverl
ess
vocabu
lary
Live Demo
https://dashboard.job4u.io

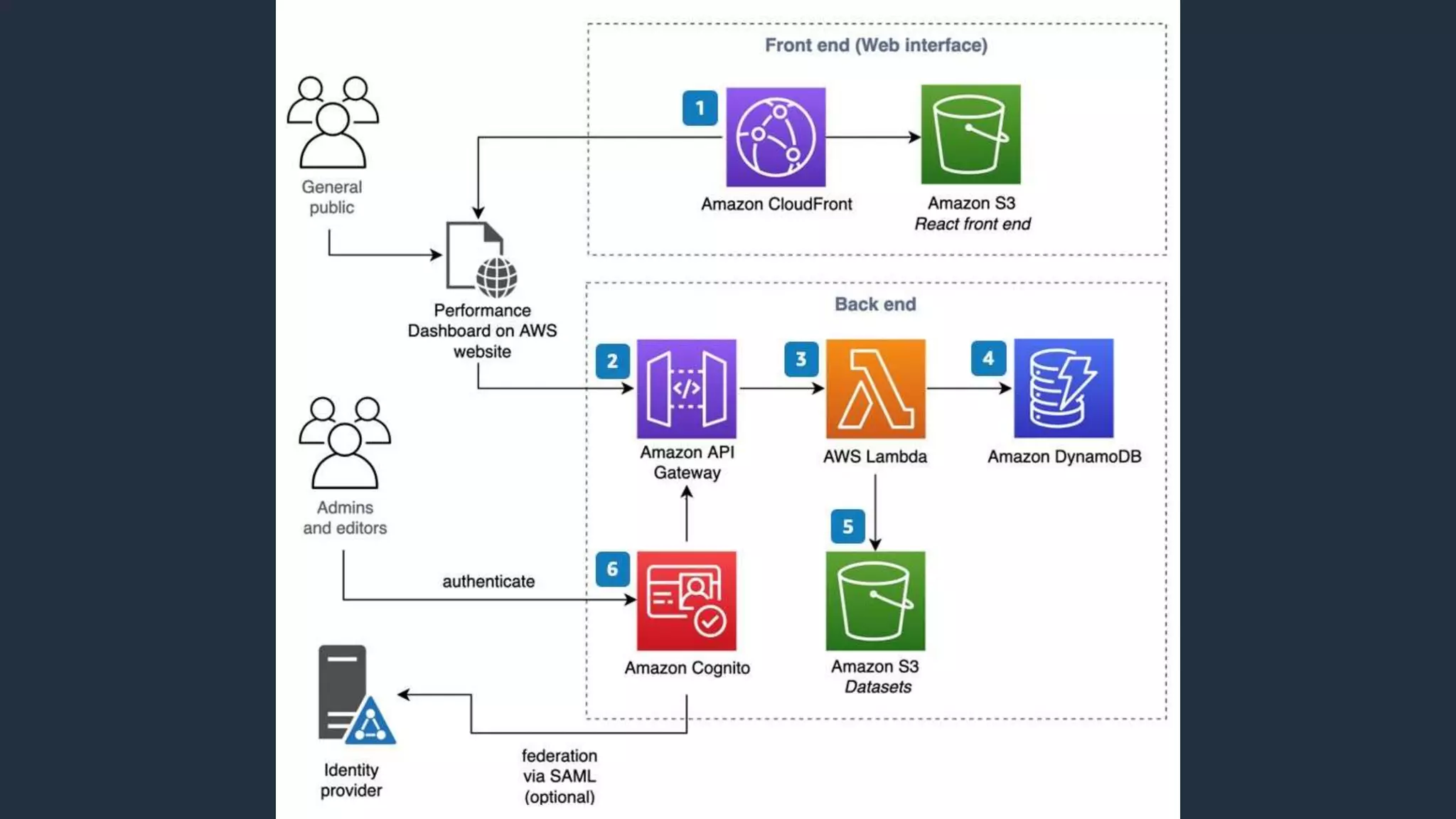

KPI Dashboard on AWS
Data Ingestion API
Operations
 Runbook: logging, monitoring, alerting on issues
 Scaling: how to scale Performance Dashboard
 Security
 Shared Responsibility between AWS & Customer
 IP Blocking: limit access to come from
an IP range (e.g. on-premises network)

60. © 2021, Amazon Web Services, Inc. or its Affiliates. All rights reserved. Amazon Confidential and Trademark
© 2020, AmazonWeb Services, Inc. or its affiliates. All rights reserved.
Serverl
ess
vocabu
lary

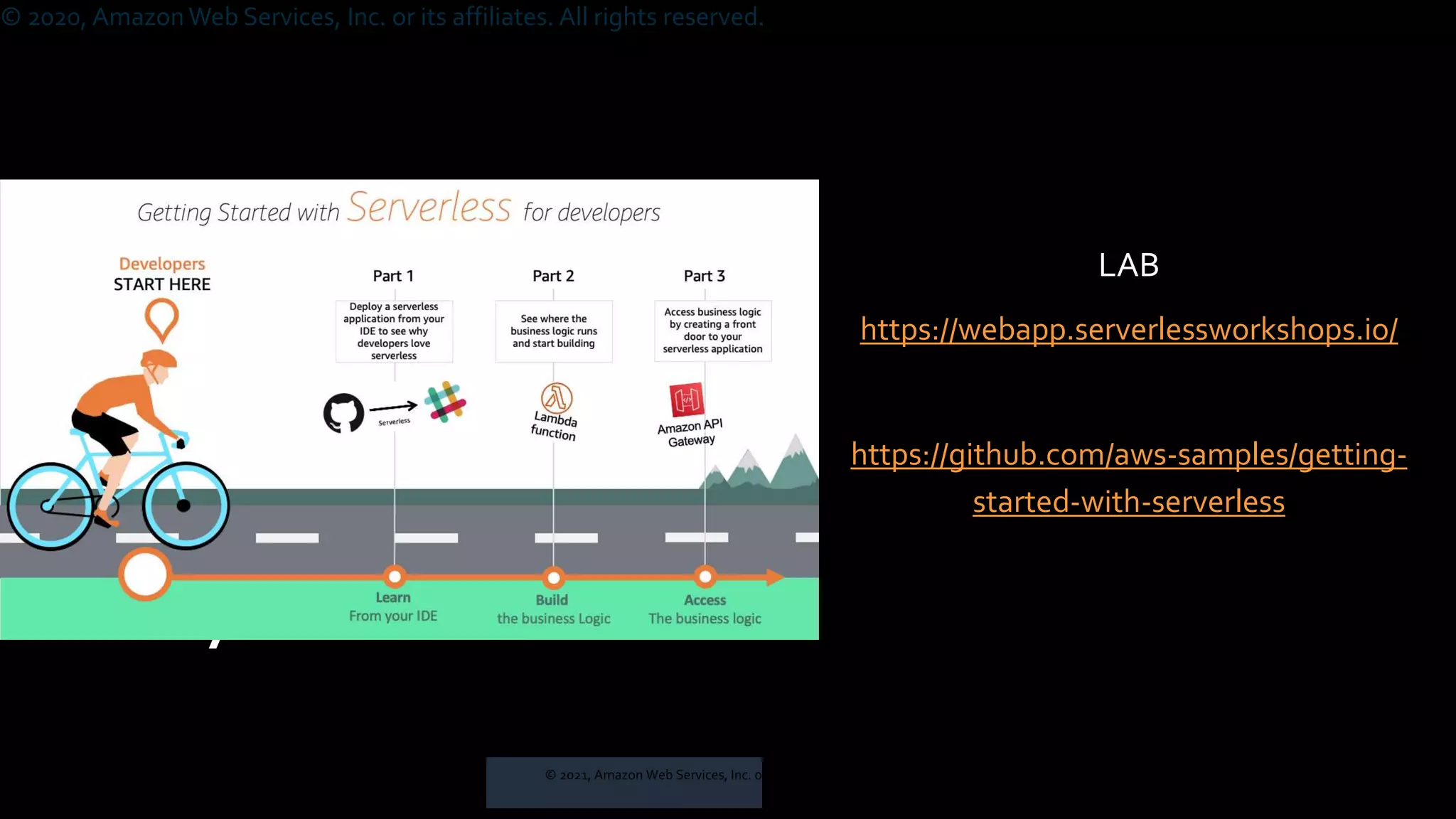

LAB
https://webapp.serverlessworkshops.io/
https://github.com/aws-samples/getting-
started-with-serverless

61. Thankyou!
© 2021
https://www.facebook.com/groups/devax
https://github.com/DevAx101/MicroServices
https://github.com/DevAx101/Terraform
https://dashboard.job4u.io 🔥
