E doctor(usecase)
- 1. Presentation on USE CASE DIAGRAM of E-Doctor YOU COME,WE CARE TAUHIDUL ISLAM DEVOPRIYA TIRTHO 16.02.04.031 16.02.04.033 SHAFIN RAHMAN DIPESH SHOME 16.02.04.040 16.02.04.045 E-Doctor 08/08/2019 E-DOCTOR 108/08/2019 E-DOCTOR 1
- 2. Content… • Motivation of the project E-Doctor.. • Overview of feasibility analysis. • Overview of requirement analysis and questionnaire. • List of Primary Actors. • List of Secondary Actors. • Use cases according to the Primary Actors • Conclusion 08/08/2019 E-DOCTOR 108/08/2019 E-DOCTOR 2

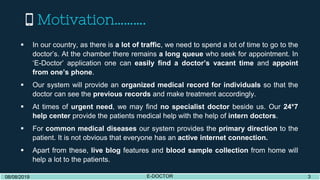

- 3. Motivation………. 08/08/2019 E-DOCTOR 308/08/2019 E-DOCTOR 3 In our country, as there is a lot of traffic, we need to spend a lot of time to go to the doctor’s. At the chamber there remains a long queue who seek for appointment. In ‘E-Doctor’ application one can easily find a doctor’s vacant time and appoint from one’s phone. Our system will provide an organized medical record for individuals so that the doctor can see the previous records and make treatment accordingly. At times of urgent need, we may find no specialist doctor beside us. Our 24*7 help center provide the patients medical help with the help of intern doctors. For common medical diseases our system provides the primary direction to the patient. It is not obvious that everyone has an active internet connection. Apart from these, live blog features and blood sample collection from home will help a lot to the patients.

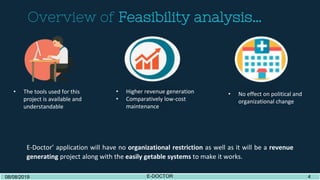

- 4. Overview of Feasibility analysis… 08/08/2019 E-DOCTOR 308/08/2019 E-DOCTOR 4 E-Doctor’ application will have no organizational restriction as well as it will be a revenue generating project along with the easily getable systems to make it works. • The tools used for this project is available and understandable • Higher revenue generation • Comparatively low-cost maintenance • No effect on political and organizational change
- 5. Overview of Functional Requirements and Questionnaire……. 08/08/2019 E-DOCTOR 308/08/2019 E-DOCTOR 5 • From the questionnaire we have convinced that this project will serve the patient and the doctors in a great manner. • The requirements which impact the whole system is known as non-functional requirement • The functional requirements of a system are defined by use cases

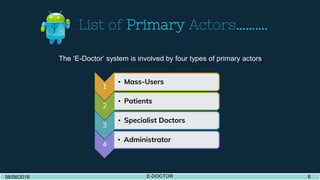

- 6. List of Primary Actors………. 1 • Mass-Users 2 • Patients 3 • Specialist Doctors 4 • Administrator 08/08/2019 E-DOCTOR 408/08/2019 E-DOCTOR 6 The ‘E-Doctor’ system is involved by four types of primary actors.

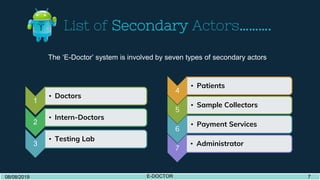

- 7. List of Secondary Actors………. 1 • Doctors 2 • Intern-Doctors 3 • Testing Lab 4 • Patients 5 • Sample Collectors 6 • Payment Services 7 • Administrator 08/08/2019 E-DOCTOR 508/08/2019 E-DOCTOR 7 The ‘E-Doctor’ system is involved by seven types of secondary actors.
- 8. Use case diagram for Mass Users………. 08/08/2019 E-DOCTOR 608/08/2019 E-DOCTOR 8 Mass-Users << Register an account Search Doctors Search Remedies <<include>> Department wise <<extend>> Location wise View Features Read Blogs Online appointments Sample Collection 24/7 call service Approval from admin <<include>> Wait for Confirmation
- 9. Use case diagram for Registered Patients.. Registered Patient Intern-Doctor Payment << Service>> Admin Doctor 08/08/2019 E-DOCTOR 708/08/2019 E-DOCTOR 9 Request appointment <<include>> Choose Vacant time & date Log In <<include>> Cancel appointment Payment By Cash By Card View Request for Sample Blog <<extend>> Write Blog Delete Account <<extend>> Reappointment Call Service Update Profile <<extend>> <<include>> Pathology Reports Prescription <<include>> <<include>> <<include>> <<include>>
- 10. Specialist Doctor Admin Use case diagram for Specialist Doctors.. Patients <<Payment Services>> 08/08/2019 E-DOCTOR 108/08/2019 E-DOCTOR 10 Register an account Make Appointment Routine <<extend>> Change Routine Check Appointments Prescribe Medicine Log In <<include>> Retrieve History Update Profile <<extend>> Delete Account <<include>> <<include>> <<extend>> Approval for admin <<include>> Withdraw Payment <<include>> <<include>> Recieve Payment <<include>>
- 11. 08/08/2019 E-DOCTOR 11 Use case diagram for Administrator.. Administrator Sample Collectors Intern-Doctors Testing Lab Doctor Add Assign Collector Manage Manage Fees Manage Reports Manage SchedulesRemove Doctors Collectors Labs Doctor Testing Lab Sample Collector Verify Doctor<<include>> Log In <<include>> <<include>> <<include>>
- 12. Conclusion…. 08/08/2019 E-DOCTOR 908/08/2019 E-DOCTOR 12 ‘E-DOCTOR’ is a project which is planned only for helping people out. Now-a-days no one wants to waste their time to go to doctors for appointments and sit for a long time. People want more digitalized way where they can view the prescription and the report from their phone. They also want help any time they need. This application will work to provide all the services to the user so that they can save their time, energy and money.
- 13. THANK YOU ALL 08/08/2019 E-DOCTOR 9 08/08/2019 E-DOCTOR 13
