DS41_DS305_M03_DataAccess_SEQ.ppt

1. (305) 4-1
Advanced DataStage
Working with
Sequential Data
Module
3

2. (305) 4-2
Advanced DataStage

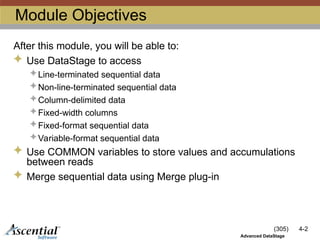

Module Objectives
After this module, you will be able to:
 Use DataStage to access
Line-terminated sequential data
Non-line-terminated sequential data
Column-delimited data
Fixed-width columns
Fixed-format sequential data
Variable-format sequential data
 Use COMMON variables to store values and accumulations
between reads
 Merge sequential data using Merge plug-in

3. (305) 4-3
Advanced DataStage

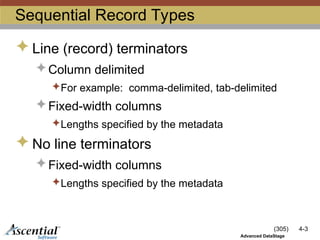

Sequential Record Types
 Line (record) terminators
 Column delimited
For example: comma-delimited, tab-delimited
 Fixed-width columns
Lengths specified by the metadata
 No line terminators
 Fixed-width columns
Lengths specified by the metadata

4. (305) 4-4
Advanced DataStage

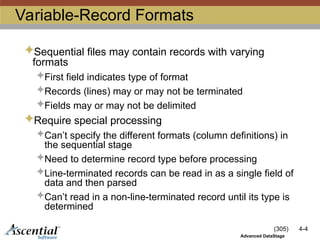

Variable-Record Formats
Sequential files may contain records with varying
formats
First field indicates type of format
Records (lines) may or may not be terminated
Fields may or may not be delimited
Require special processing
Can’t specify the different formats (column definitions) in
the sequential stage
Need to determine record type before processing
Line-terminated records can be read in as a single field of
data and then parsed
Can’t read in a non-line-terminated record until its type is
determined

5. (305) 4-5
Advanced DataStage

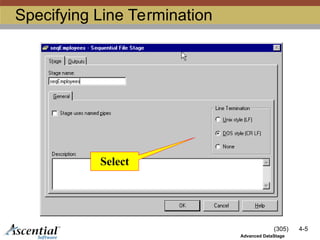

Specifying Line Termination
Select

6. (305) 4-6
Advanced DataStage
Delimited or Fixed-Width Columns
Column delimiter
Fixed-width columns

7. (305) 4-7
Advanced DataStage
Accessing Line Terminated Data
 Using Sequential stage
 Specify line terminator
 Specify column delimiter or fixed-width
 Define columns
 Using DataStage BASIC
 OPENSEQ pathname TO file.handle THEN … ELSE ...
 READSEQ variable FROM file.handle THEN … ELSE ...
 FIELD(variable, delimiter, n)
 variable[n, l]
 WRITESEQ expression TO file.handle THEN … ELSE ...
 CLOSESEQ file.handle

8. (305) 4-8
Advanced DataStage

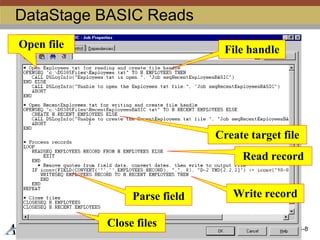

DataStage BASIC Reads
Open file File handle
Create target file
Read record
Write record
Close files
Parse field

9. (305) 4-9
Advanced DataStage
Parsing Fixed-Width Columns
Parse field Display value in log
for debugging

10. (305) 4-10
Advanced DataStage

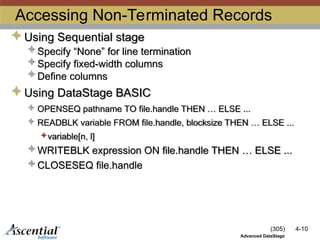

Accessing Non-Terminated Records
 Using Sequential stage
 Specify “None” for line termination
 Specify fixed-width columns
 Define columns
 Using DataStage BASIC
 OPENSEQ pathname TO file.handle THEN … ELSE ...
 READBLK variable FROM file.handle, blocksize THEN … ELSE ...
variable[n, l]
 WRITEBLK expression ON file.handle THEN … ELSE ...
 CLOSESEQ file.handle

11. (305) 4-11
Advanced DataStage
Reading Record Blocks
Reading block
Number bytes in record

12. (305) 4-12
Advanced DataStage

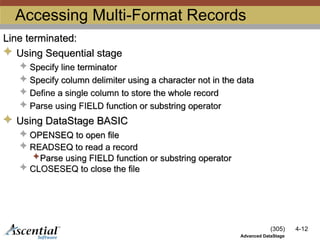

Accessing Multi-Format Records
Line terminated:
 Using Sequential stage
 Specify line terminator
 Specify column delimiter using a character not in the data
 Define a single column to store the whole record
 Parse using FIELD function or substring operator
 Using DataStage BASIC
 OPENSEQ to open file
 READSEQ to read a record
Parse using FIELD function or substring operator
 CLOSESEQ to close the file

13. (305) 4-13
Advanced DataStage

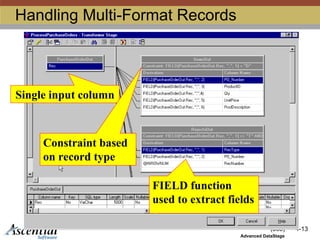

Handling Multi-Format Records
Single input column
Constraint based
on record type
FIELD function
used to extract fields

14. (305) 4-14
Advanced DataStage
Accessing Multi-Format Records
No Line terminators:
 Don’t use Sequential stage
 Using DataStage BASIC
 OPENSEQ to open file
 READBLK to read first byte of a new record to
determine its type
 READBLK the rest of the record based on its
type
Parse using substring operator based on record type
 CLOSESEQ to close the file

15. (305) 4-15
Advanced DataStage

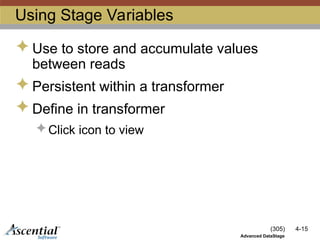

Using Stage Variables
 Use to store and accumulate values
between reads
 Persistent within a transformer
 Define in transformer
 Click icon to view

16. (305) 4-16
Advanced DataStage

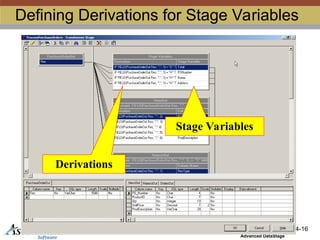

Defining Derivations for Stage Variables
Stage Variables
Derivations

17. (305) 4-17
Advanced DataStage

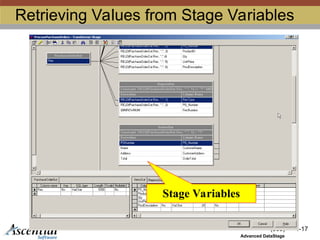

Retrieving Values from Stage Variables
Stage Variables

18. (305) 4-18
Advanced DataStage

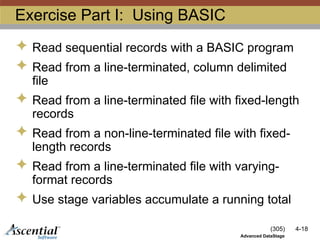

Exercise Part I: Using BASIC
 Read sequential records with a BASIC program
 Read from a line-terminated, column delimited
file
 Read from a line-terminated file with fixed-length
records
 Read from a non-line-terminated file with fixed-
length records
 Read from a line-terminated file with varying-
format records
 Use stage variables accumulate a running total

19. (305) 4-19
Advanced DataStage

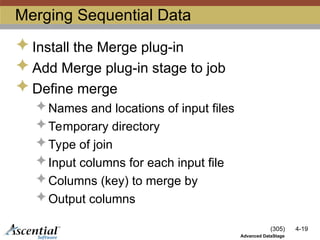

Merging Sequential Data
 Install the Merge plug-in
 Add Merge plug-in stage to job
 Define merge
 Names and locations of input files
 Temporary directory
 Type of join
 Input columns for each input file
 Columns (key) to merge by
 Output columns

20. (305) 4-20
Advanced DataStage

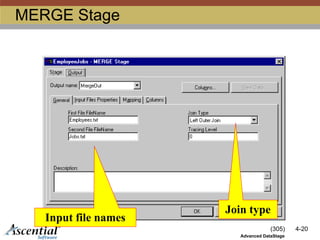

MERGE Stage
Join type
Input file names

21. (305) 4-21
Advanced DataStage

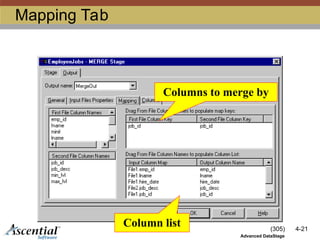

Mapping Tab
Columns to merge by
Column list

22. (305) 4-22
Advanced DataStage
Exercise Part II: Merge Plug-In
 If necessary, install Merge plug-in server
and client components
 Merge sequential data using the Merge
plug-in
