DS41_DS305_M06_JobControl.ppt

1. (305) 4-1
Advanced DataStage
Job Control
Module
6

2. (305) 4-2
Advanced DataStage

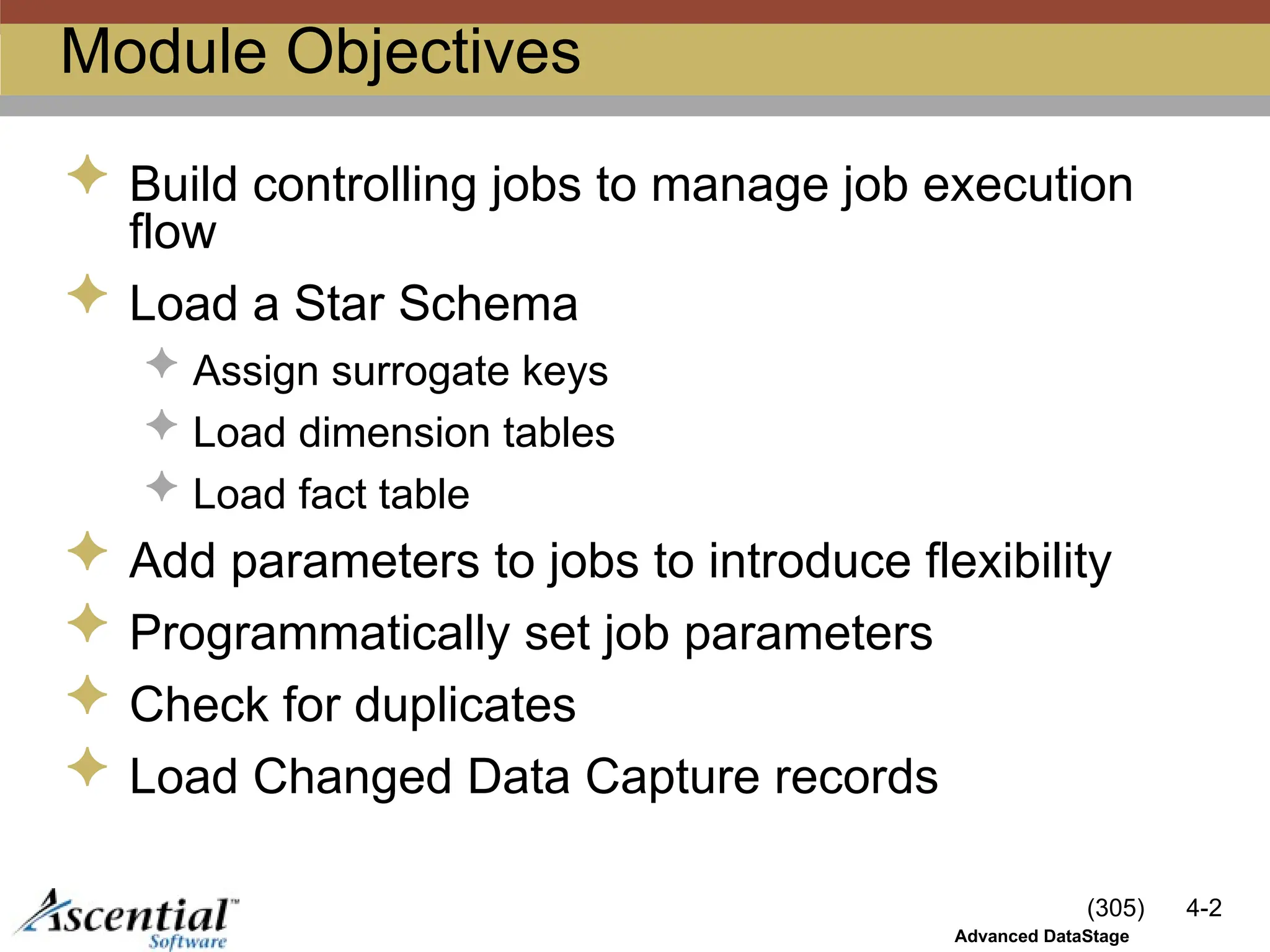

Module Objectives
 Build controlling jobs to manage job execution
flow
 Load a Star Schema
 Assign surrogate keys
 Load dimension tables
 Load fact table
 Add parameters to jobs to introduce flexibility
 Programmatically set job parameters
 Check for duplicates
 Load Changed Data Capture records

3. (305) 4-3
Advanced DataStage

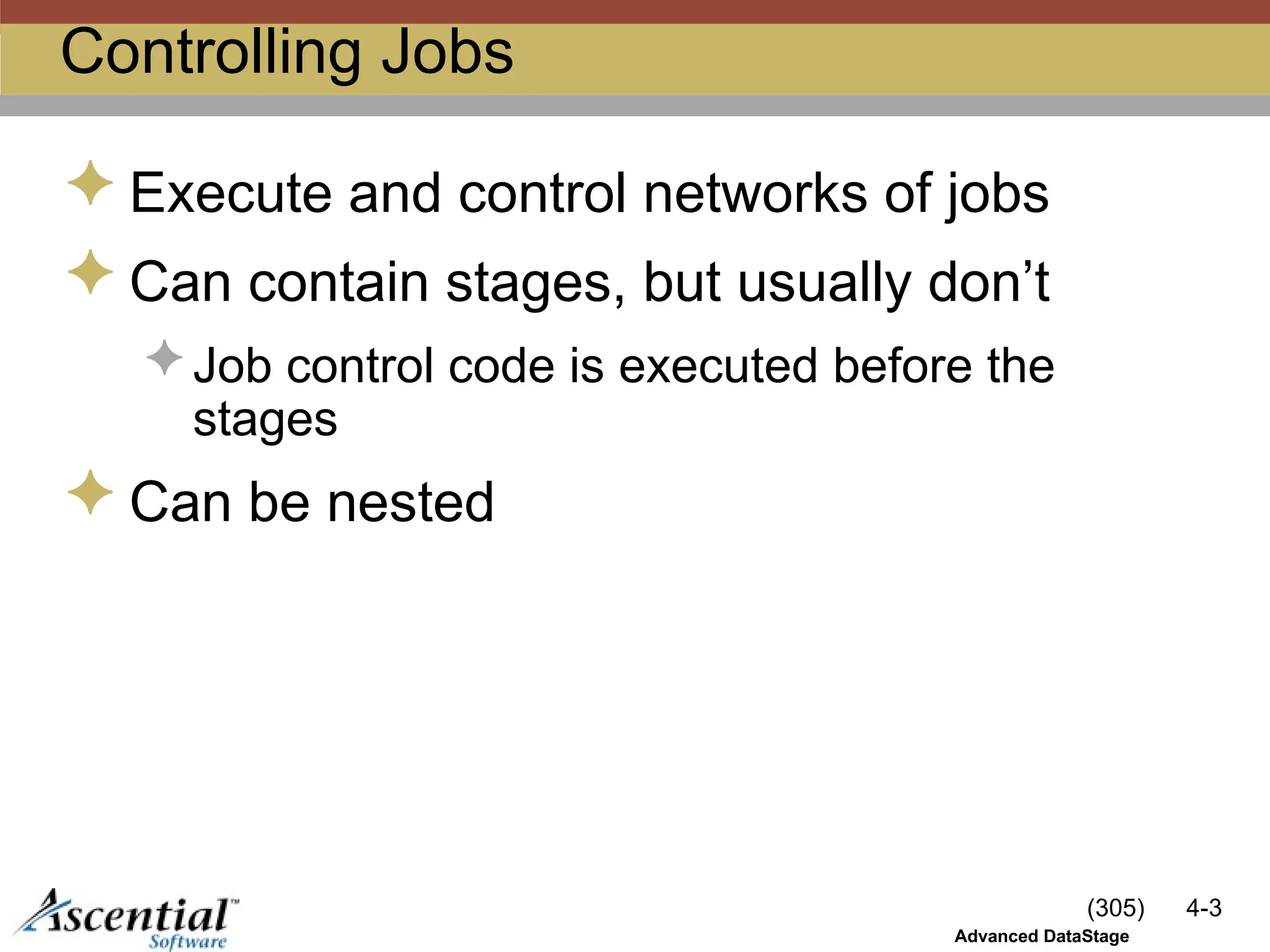

Controlling Jobs
 Execute and control networks of jobs
 Can contain stages, but usually don’t
 Job control code is executed before the
stages
 Can be nested

4. (305) 4-4
Advanced DataStage

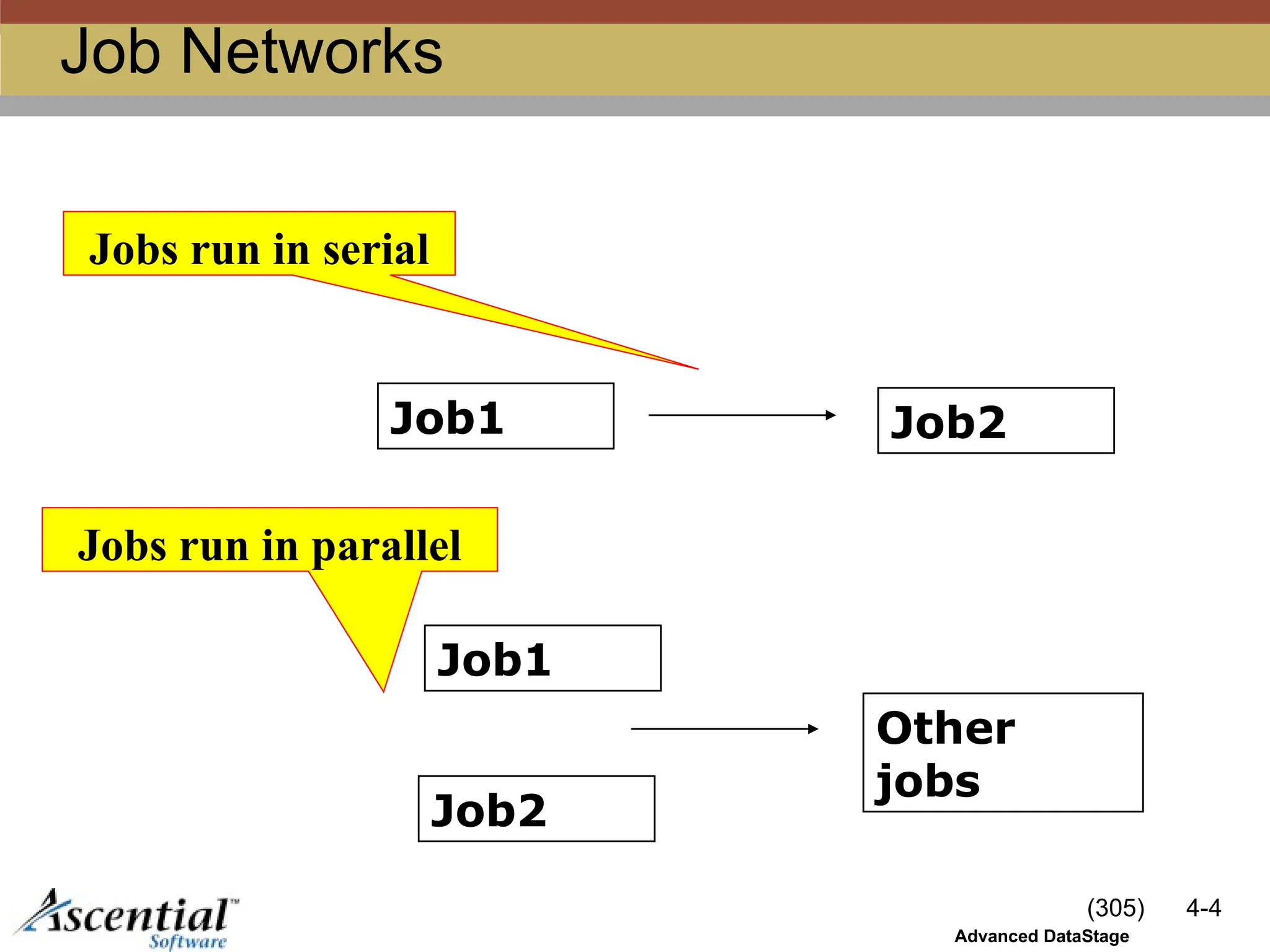

Job Networks
Job1 Job2
Job1
Job2
Other
jobs
Jobs run in serial
Jobs run in parallel

5. (305) 4-5
Advanced DataStage

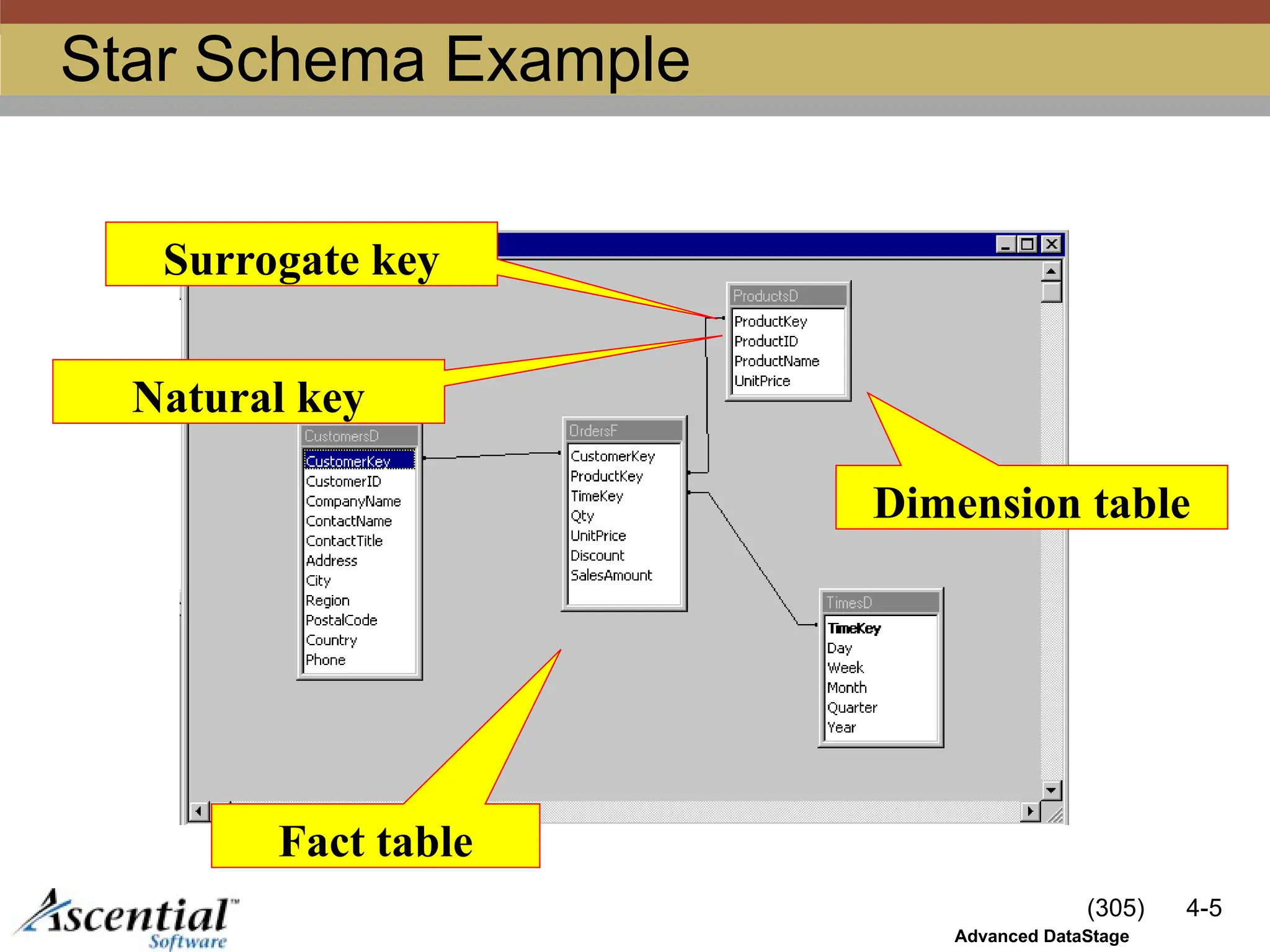

Star Schema Example
Fact table
Dimension table
Surrogate key
Natural key

6. (305) 4-6
Advanced DataStage
Loading the Star
 Load dimension tables
 Load hashed file lookup tables
 Used as lookups for loading fact table
 Faster than lookups directly to dimension tables
 Load fact table
 Automate the load using a controlling job
 Load all dimension tables in parallel
 Load all lookups in parallel
 Load fact table only if all dimension tables are
successfully loaded

7. (305) 4-7
Advanced DataStage

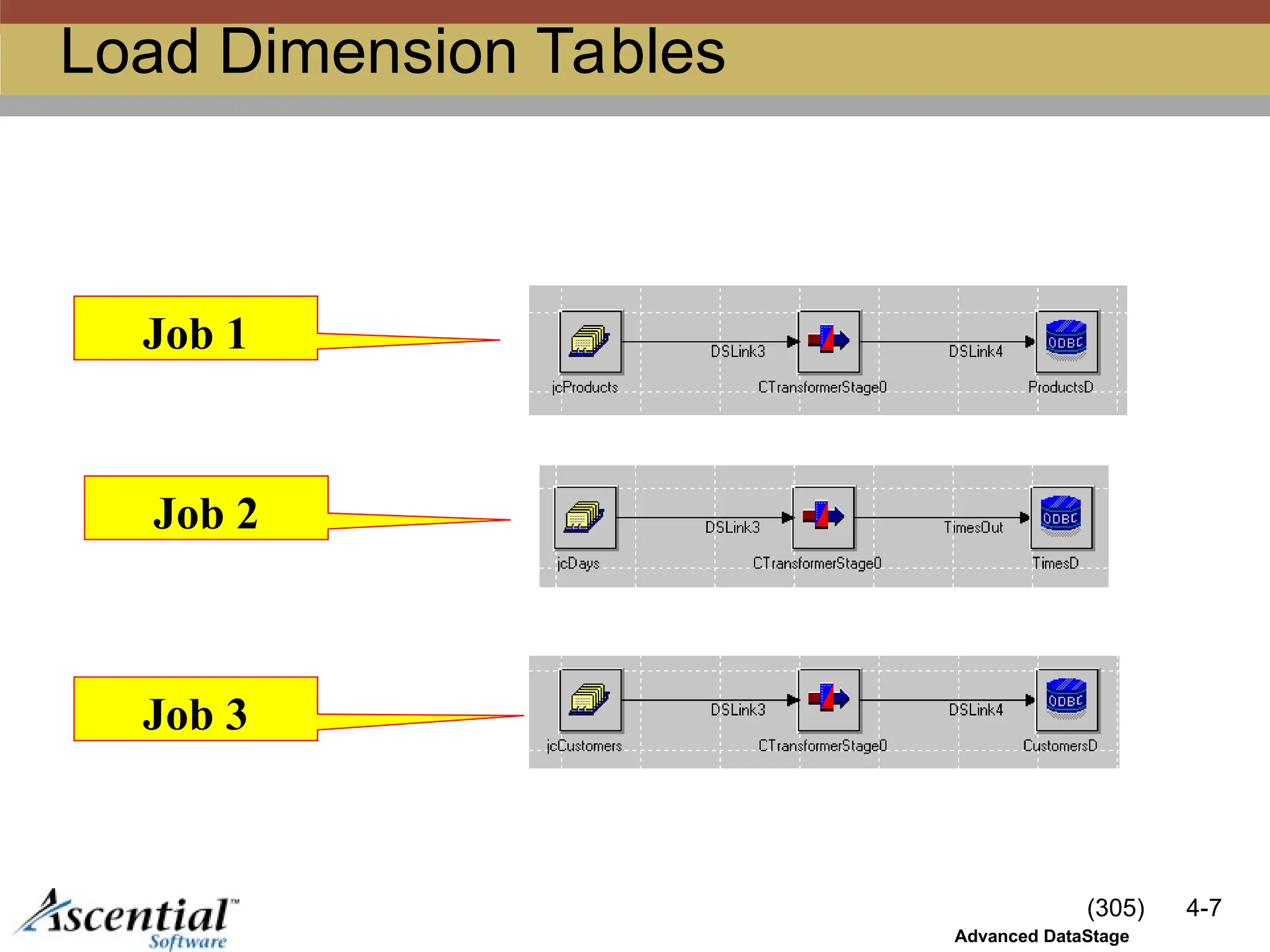

Load Dimension Tables
Job 1
Job 2
Job 3

8. (305) 4-8
Advanced DataStage

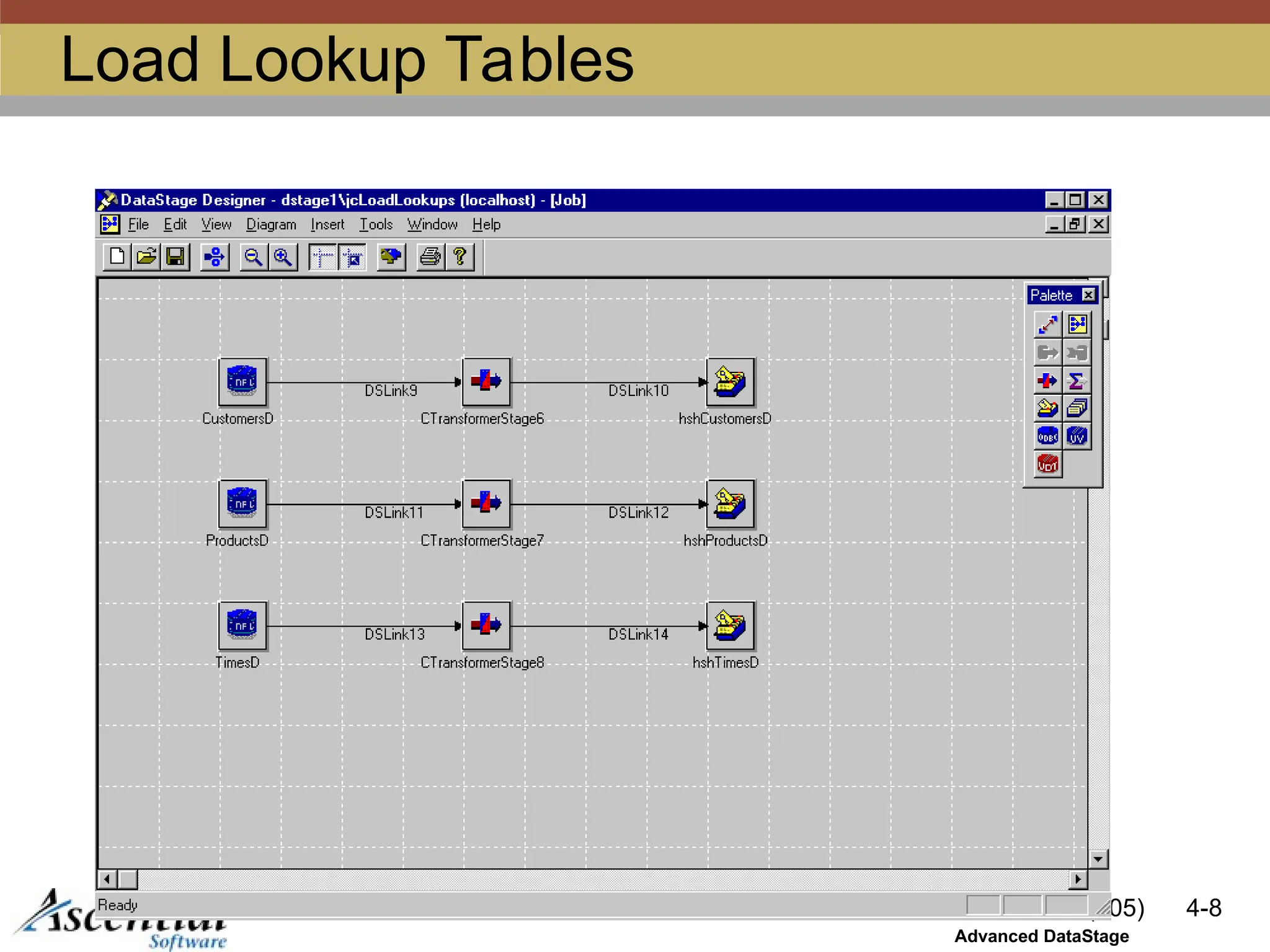

Load Lookup Tables

9. (305) 4-9
Advanced DataStage

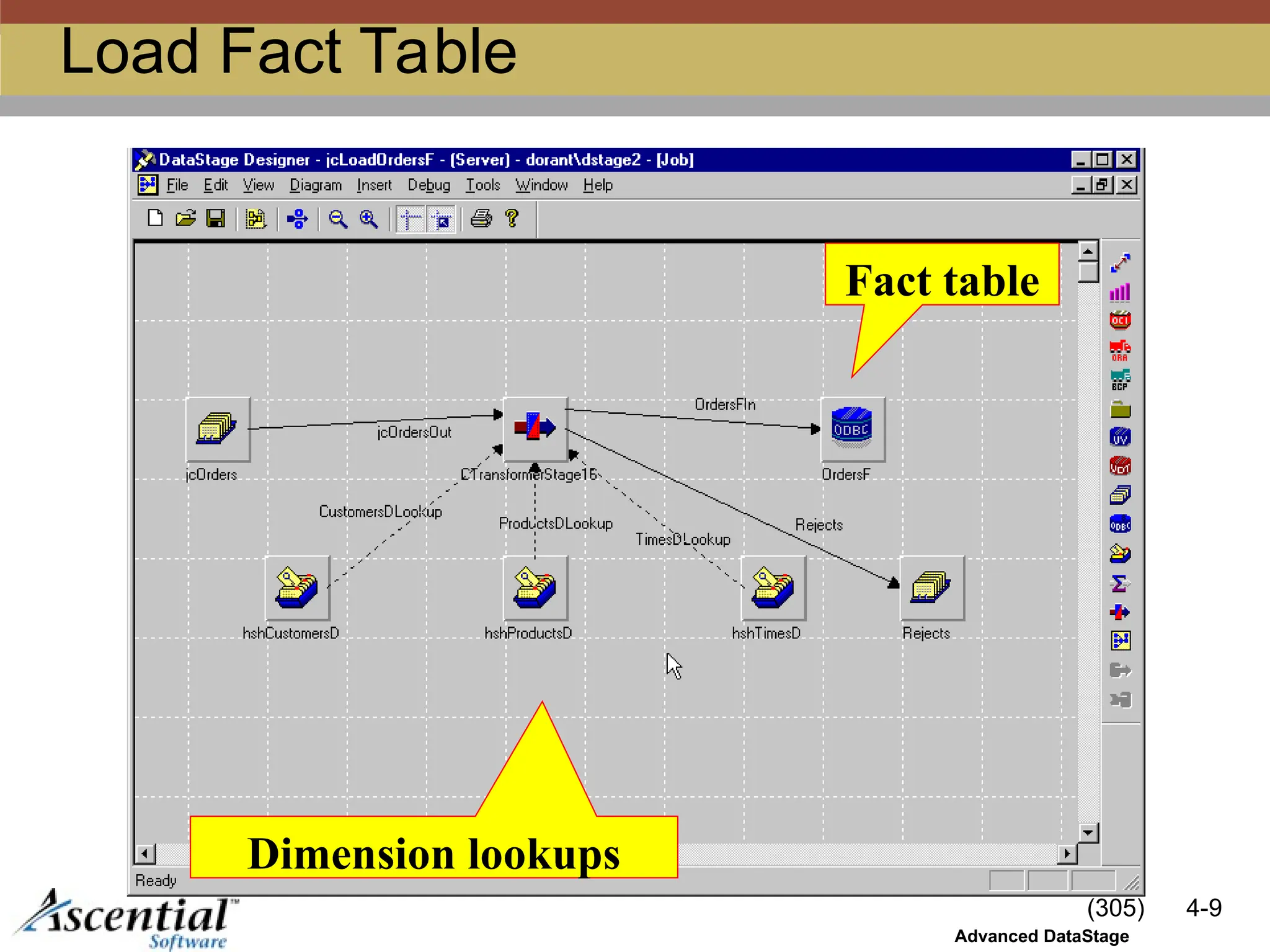

Load Fact Table
Dimension lookups
Fact table

10. (305) 4-10
Advanced DataStage

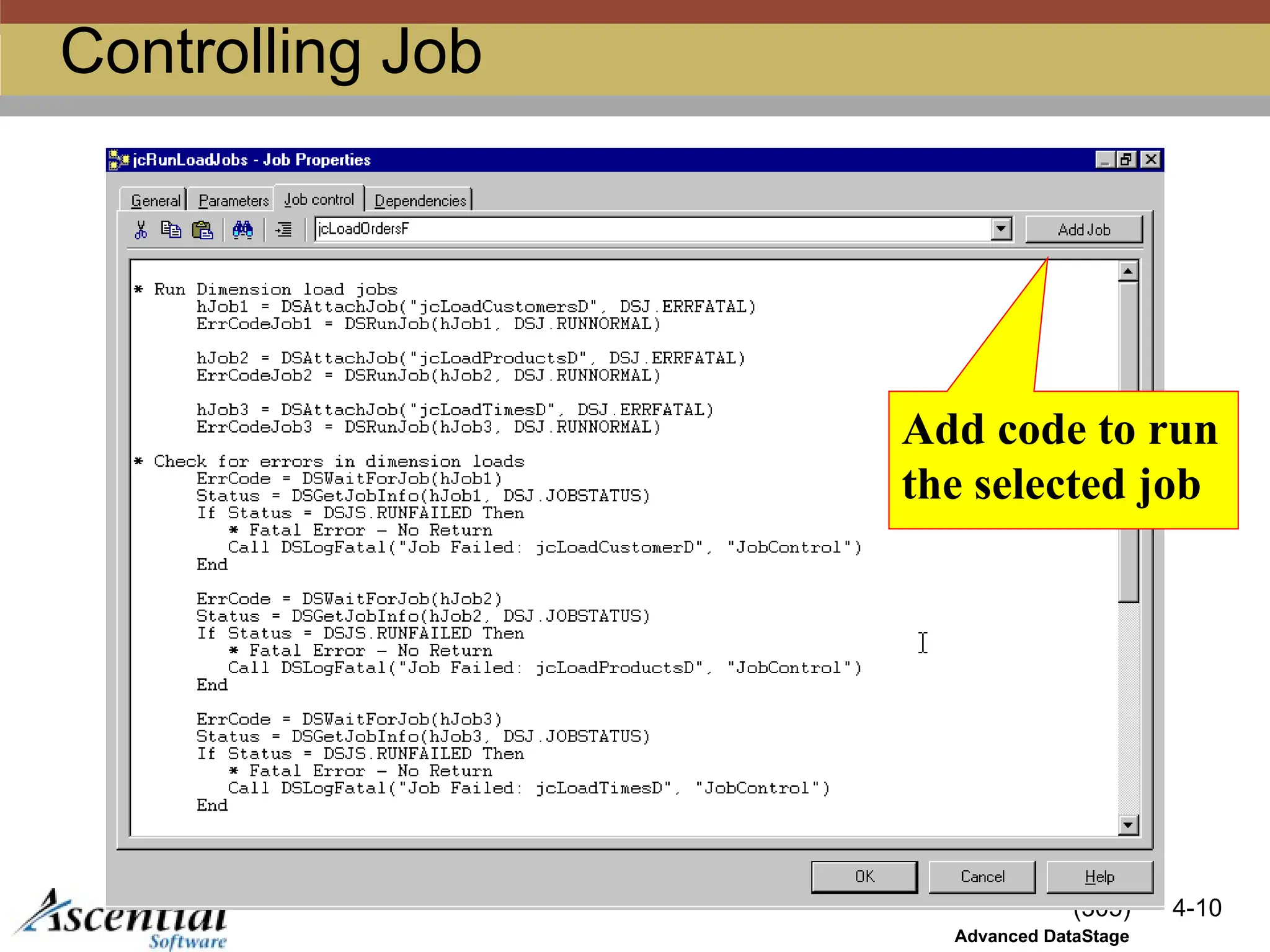

Controlling Job
Add code to run
the selected job

11. (305) 4-11
Advanced DataStage

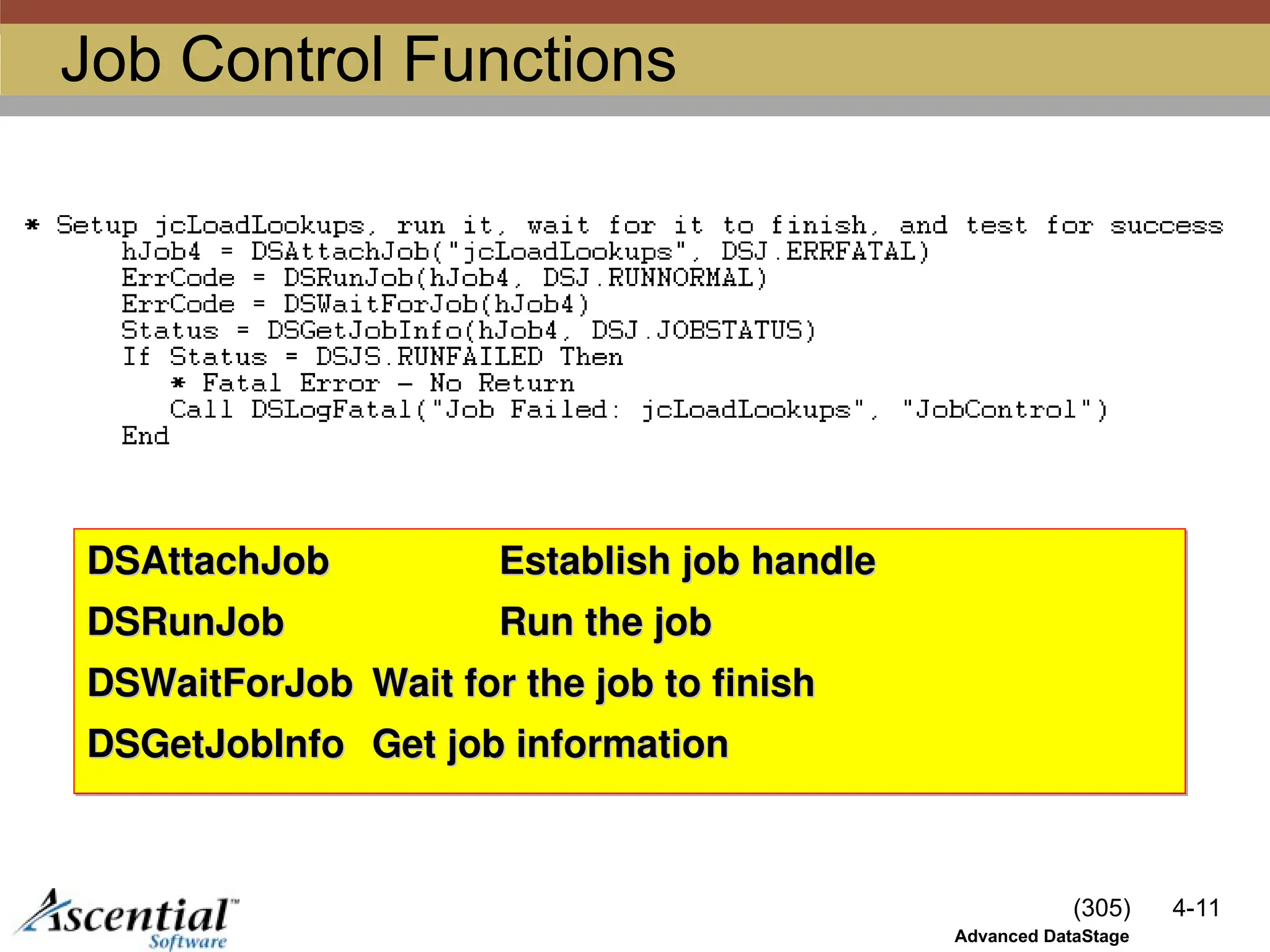

Job Control Functions
DSAttachJob
DSAttachJob Establish job handle
Establish job handle
DSRunJob
DSRunJob Run the job
Run the job
DSWaitForJob
DSWaitForJob Wait for the job to finish
Wait for the job to finish
DSGetJobInfo
DSGetJobInfo Get job information
Get job information

12. (305) 4-12
Advanced DataStage

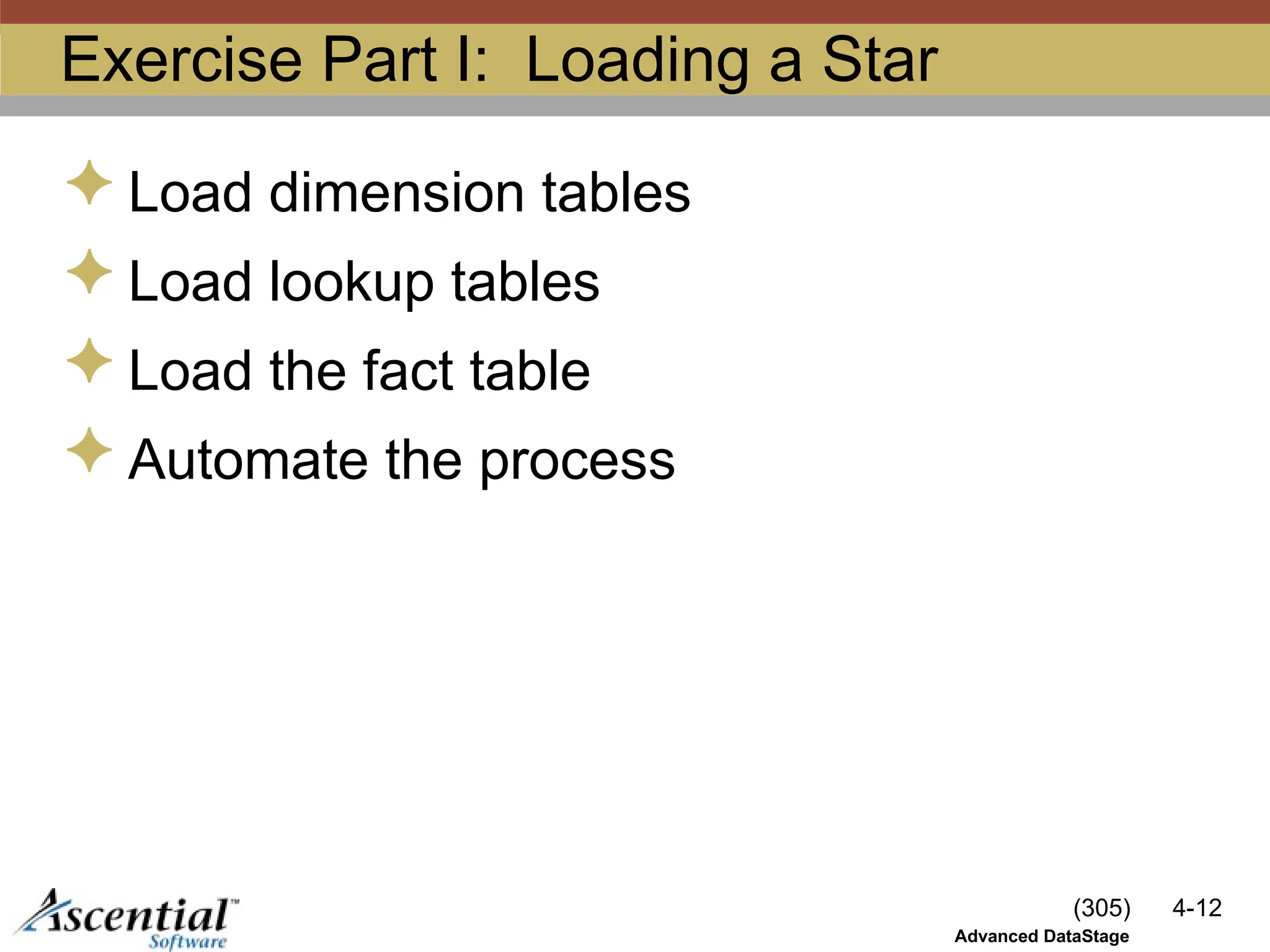

Exercise Part I: Loading a Star
 Load dimension tables
 Load lookup tables
 Load the fact table
 Automate the process

13. (305) 4-13
Advanced DataStage

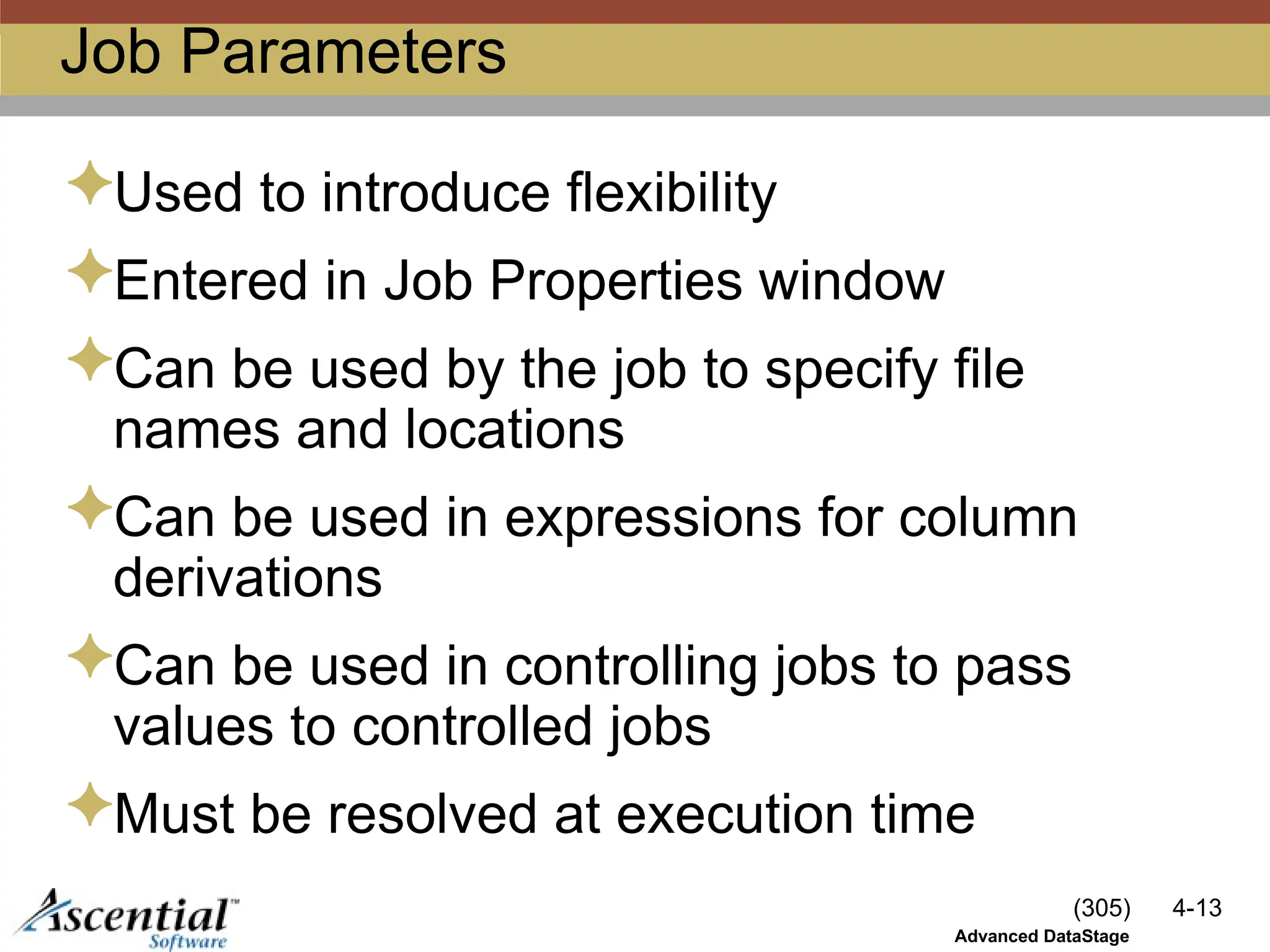

Job Parameters
Used to introduce flexibility
Entered in Job Properties window
Can be used by the job to specify file
names and locations
Can be used in expressions for column
derivations
Can be used in controlling jobs to pass
values to controlled jobs
Must be resolved at execution time

14. (305) 4-14
Advanced DataStage

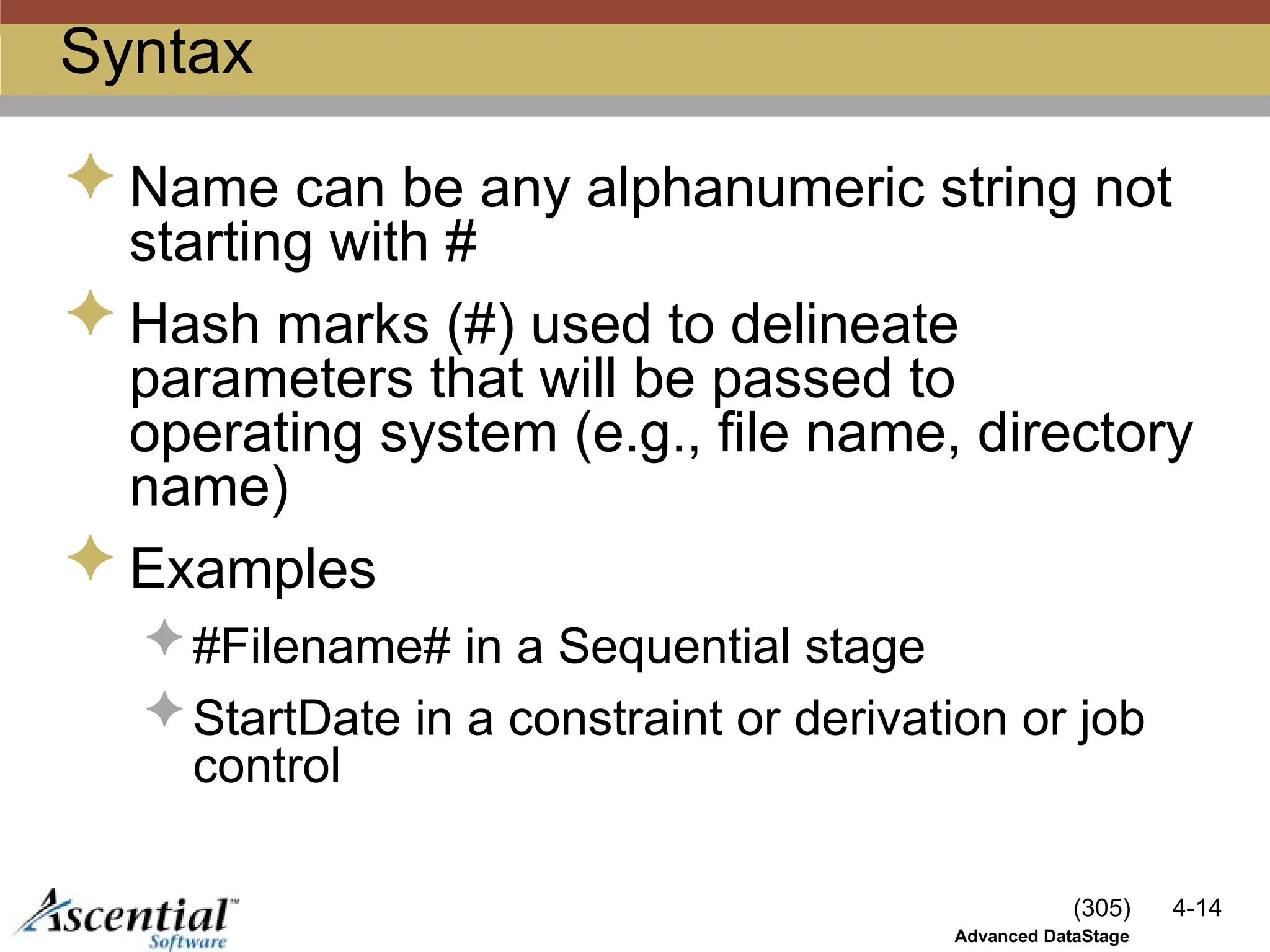

Syntax
 Name can be any alphanumeric string not
starting with #
 Hash marks (#) used to delineate
parameters that will be passed to
operating system (e.g., file name, directory
name)
 Examples
 #Filename# in a Sequential stage
 StartDate in a constraint or derivation or job
control

15. (305) 4-15
Advanced DataStage

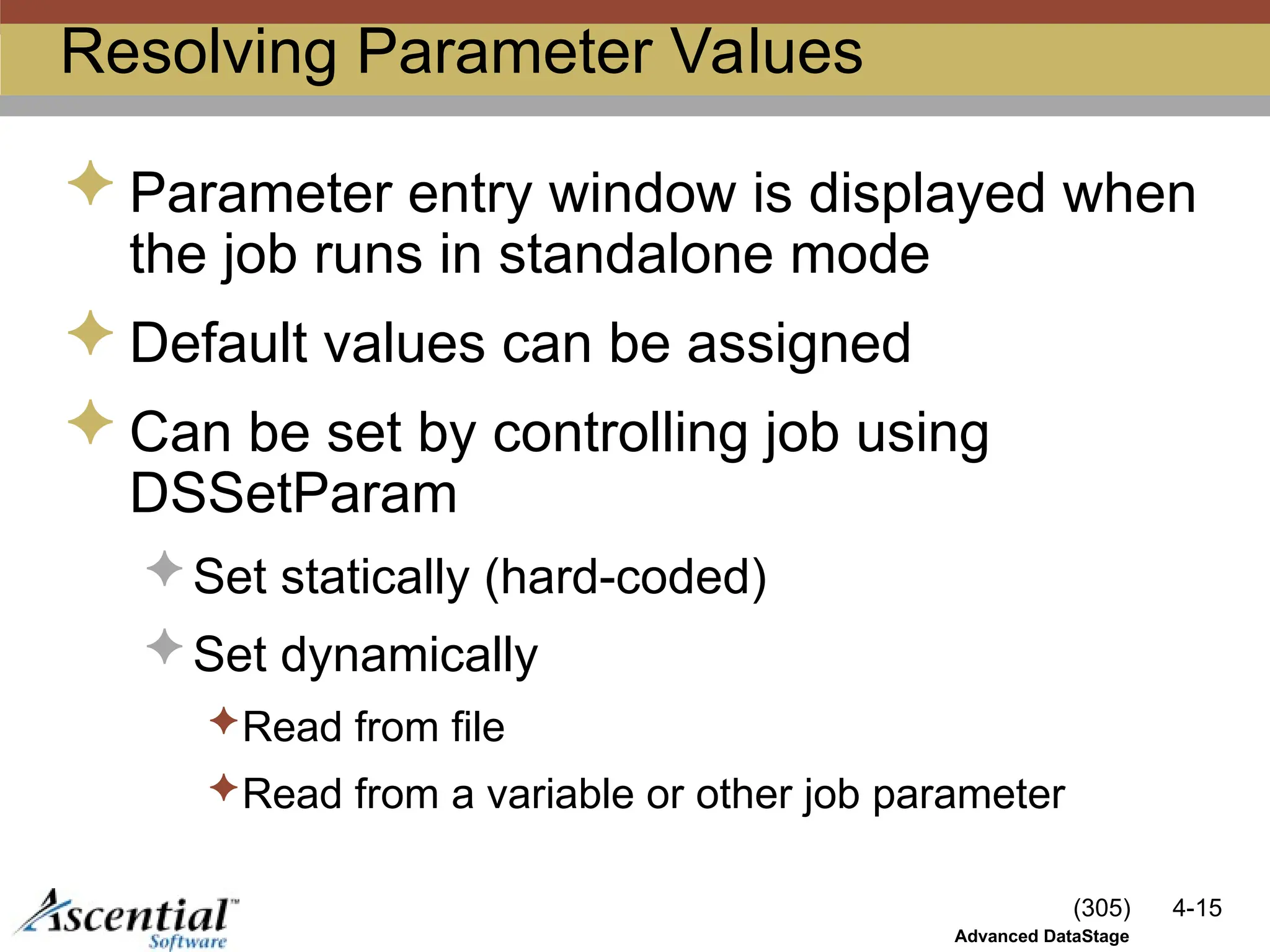

Resolving Parameter Values
 Parameter entry window is displayed when
the job runs in standalone mode
 Default values can be assigned
 Can be set by controlling job using
DSSetParam
 Set statically (hard-coded)
 Set dynamically
Read from file
Read from a variable or other job parameter

16. (305) 4-16
Advanced DataStage

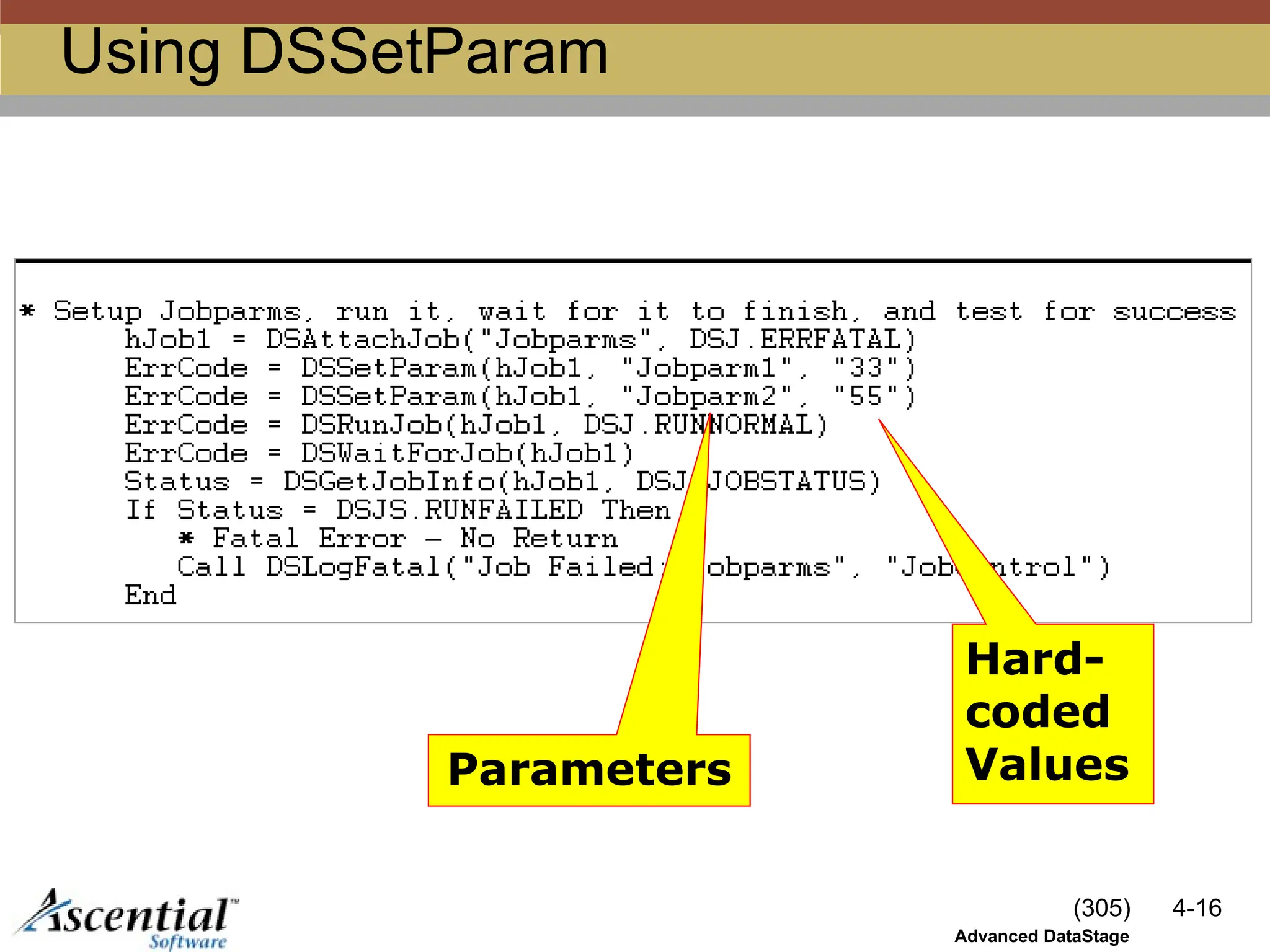

Using DSSetParam
Parameters
Hard-
coded
Values

17. (305) 4-17
Advanced DataStage

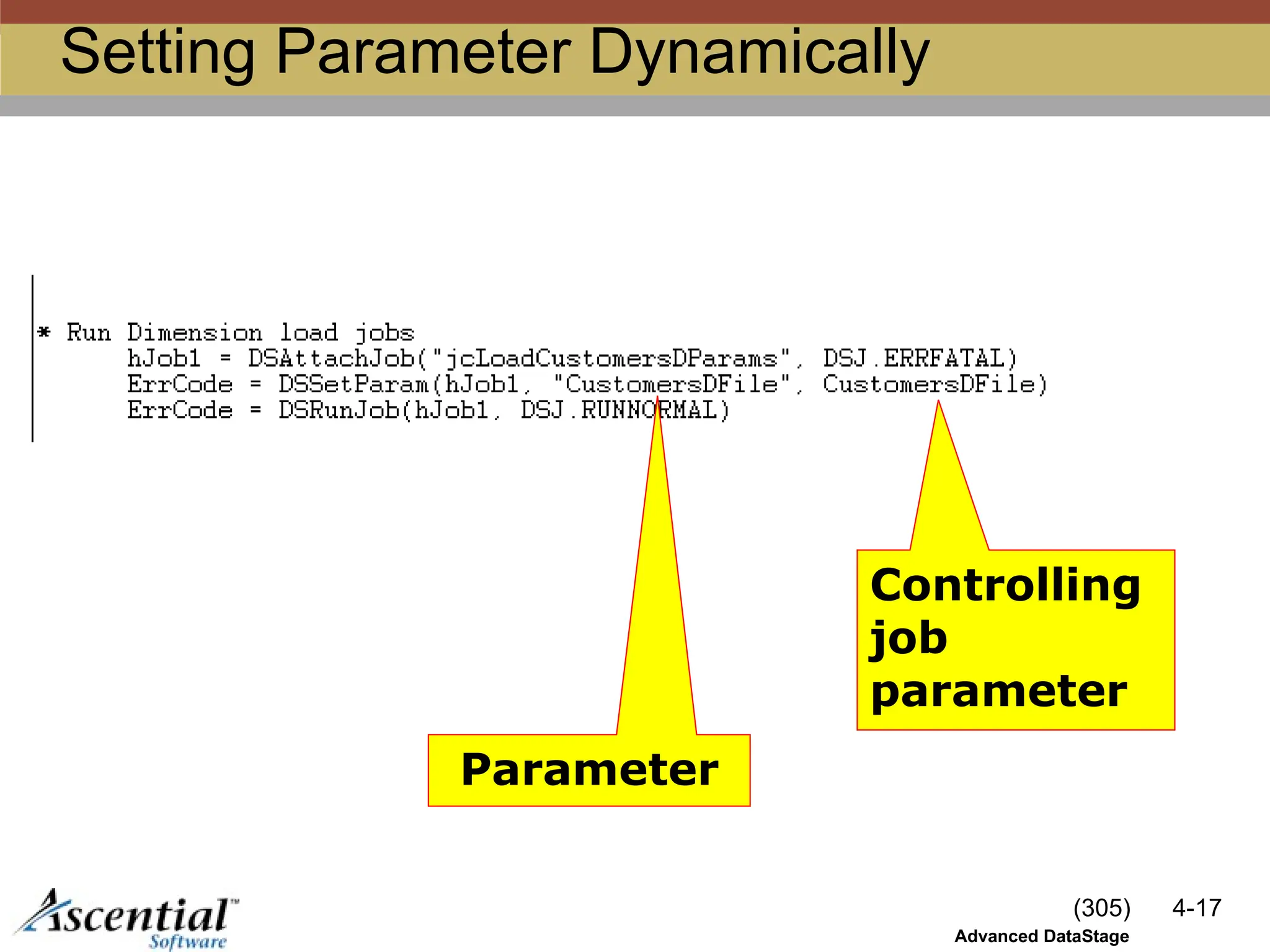

Setting Parameter Dynamically
Parameter
Controlling
job
parameter

18. (305) 4-18
Advanced DataStage

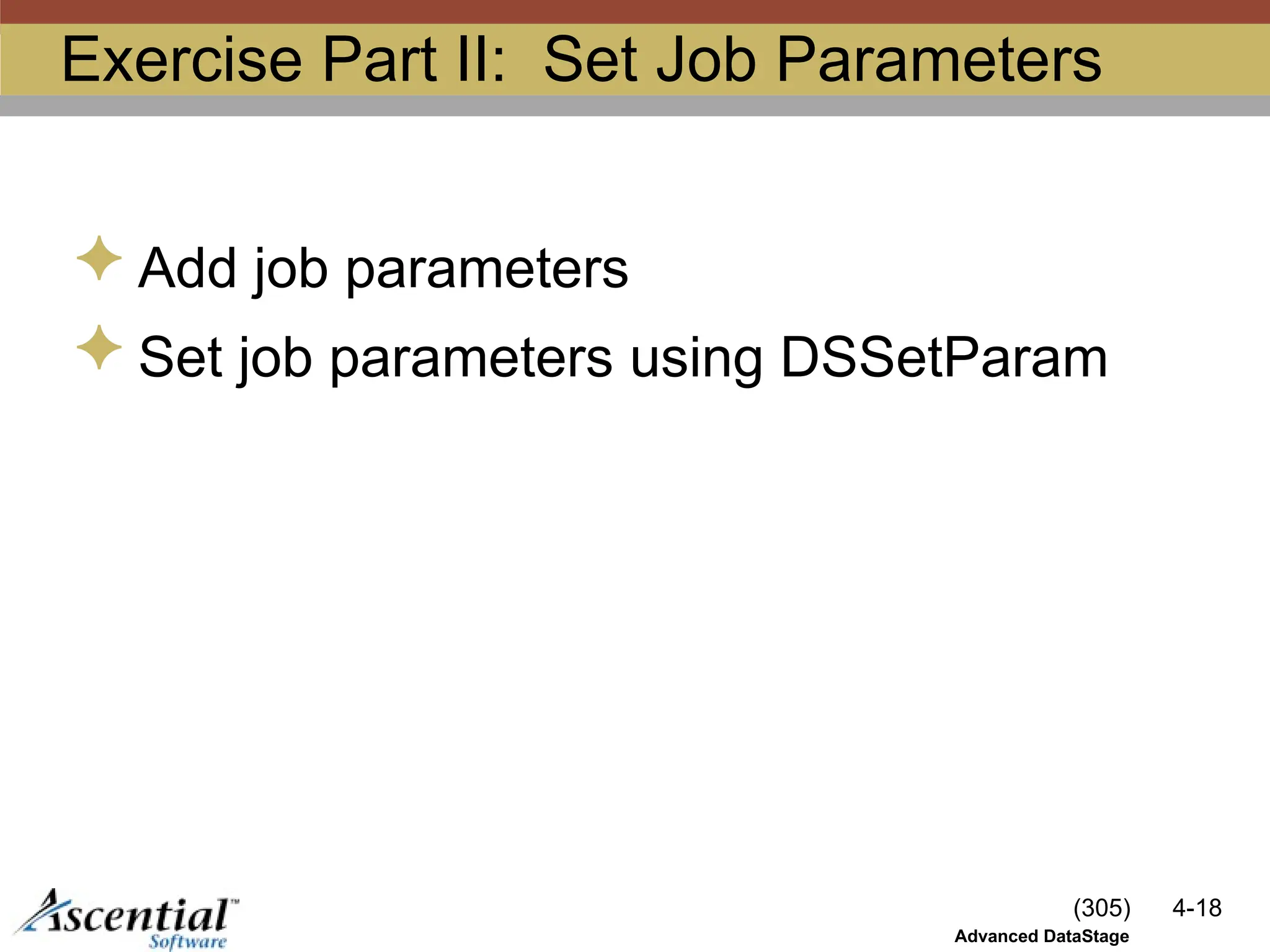

Exercise Part II: Set Job Parameters
 Add job parameters
 Set job parameters using DSSetParam

19. (305) 4-19
Advanced DataStage

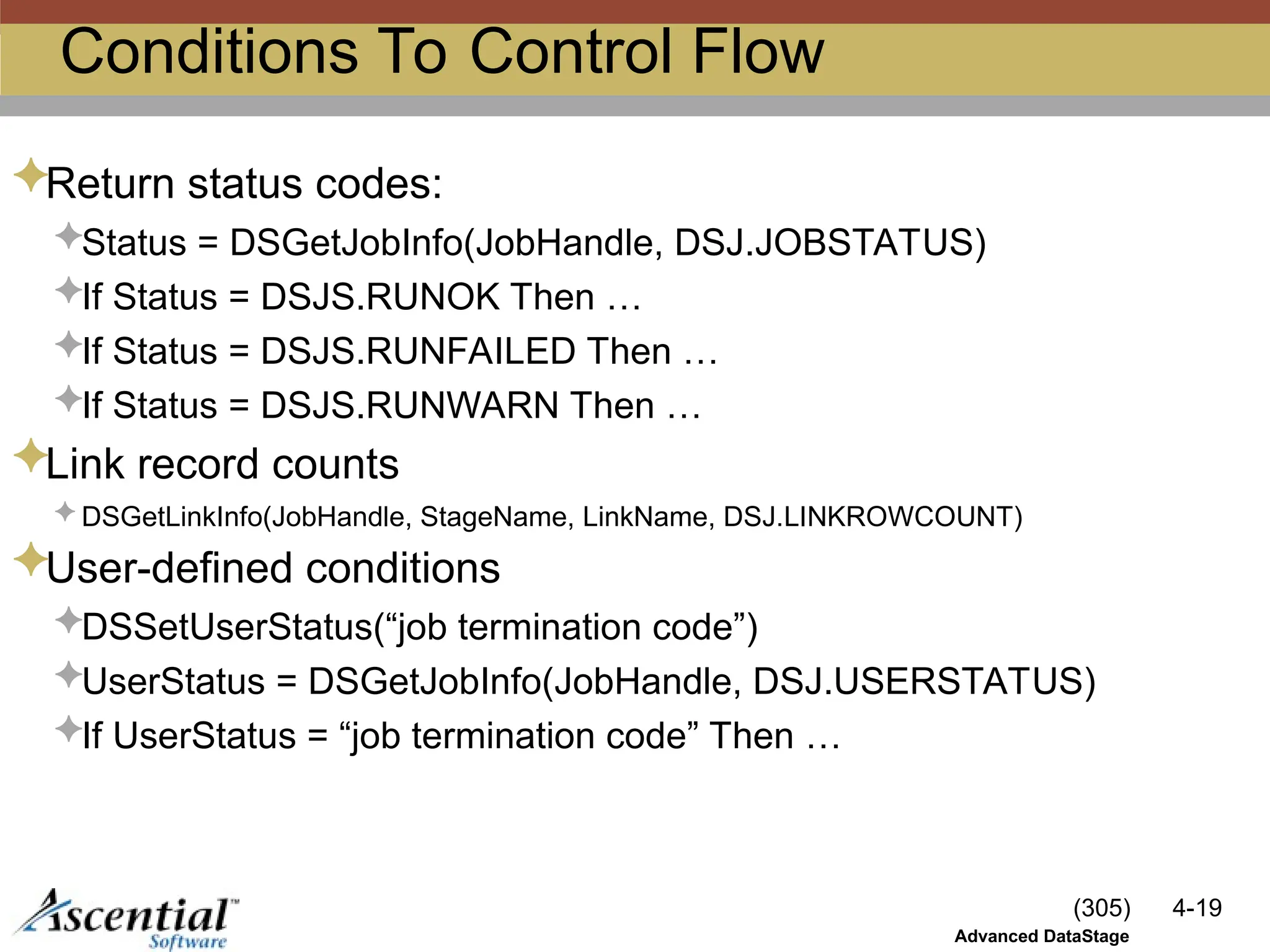

Conditions To Control Flow
Return status codes:
Status = DSGetJobInfo(JobHandle, DSJ.JOBSTATUS)
If Status = DSJS.RUNOK Then …
If Status = DSJS.RUNFAILED Then …
If Status = DSJS.RUNWARN Then …
Link record counts
 DSGetLinkInfo(JobHandle, StageName, LinkName, DSJ.LINKROWCOUNT)
User-defined conditions
DSSetUserStatus(“job termination code”)
UserStatus = DSGetJobInfo(JobHandle, DSJ.USERSTATUS)
If UserStatus = “job termination code” Then …

20. (305) 4-20
Advanced DataStage

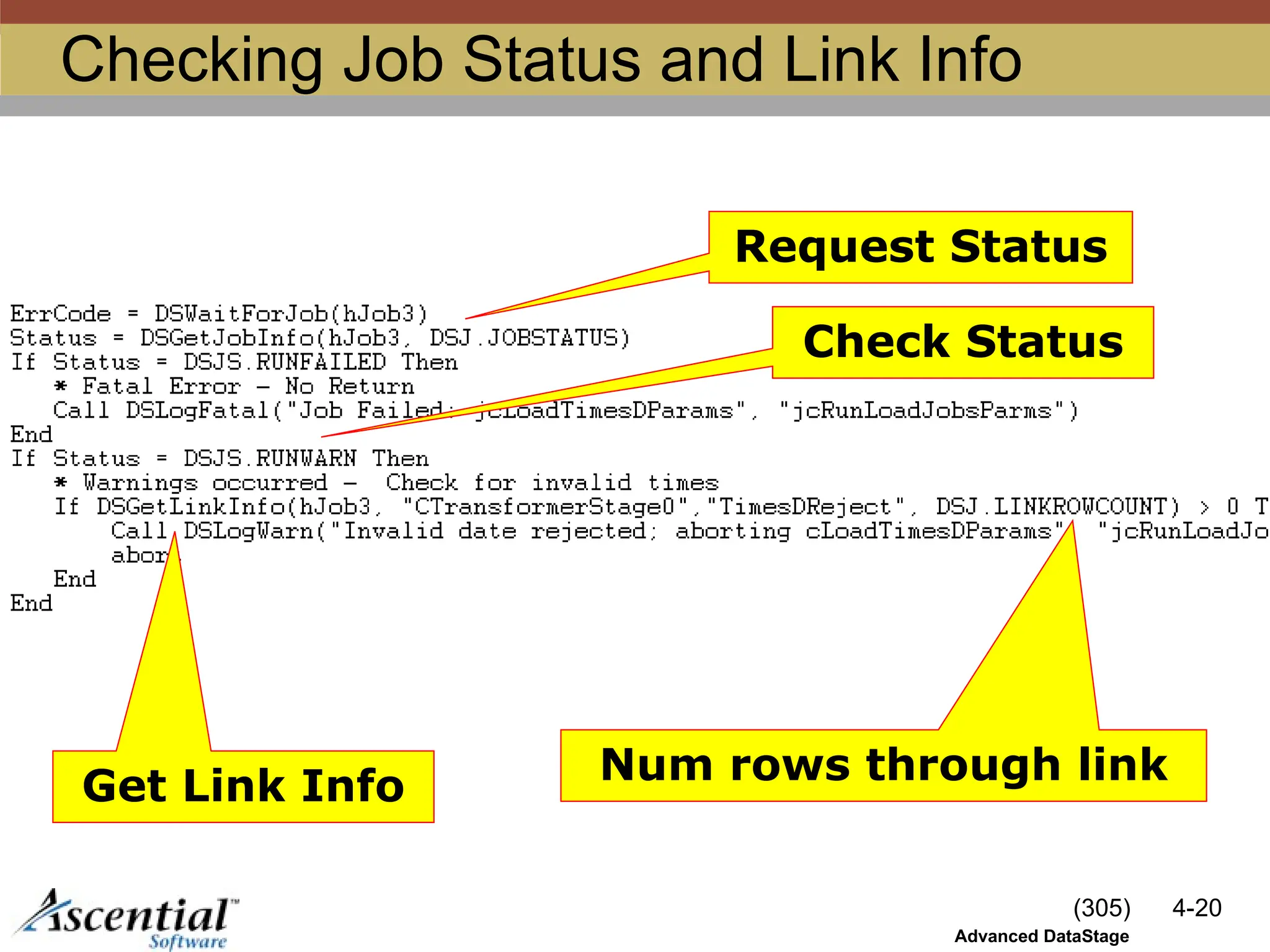

Checking Job Status and Link Info
Check Status
Request Status
Get Link Info Num rows through link

21. (305) 4-21
Advanced DataStage

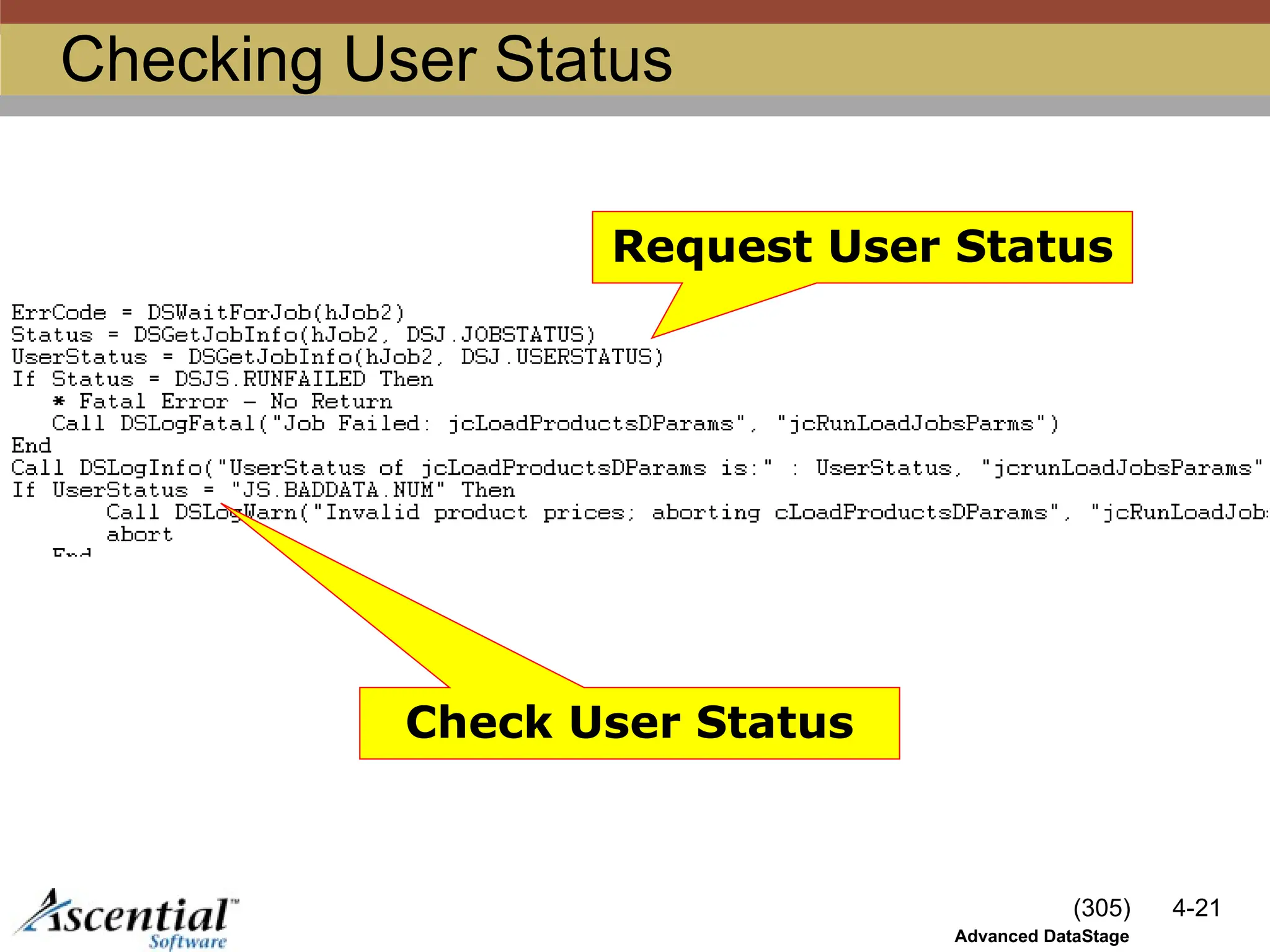

Checking User Status
Request User Status
Check User Status

22. (305) 4-22
Advanced DataStage
Ex. Part III: Controlling Program Flow
 Test for bad data
 Test job status codes
 Get job link information
 Set user status codes
 Test user status codes

23. (305) 4-23
Advanced DataStage
Ex. Part IV: Update the dimension tables
 Check for duplicate records
 Update records in dimension tables

24. (305) 4-24
Advanced DataStage

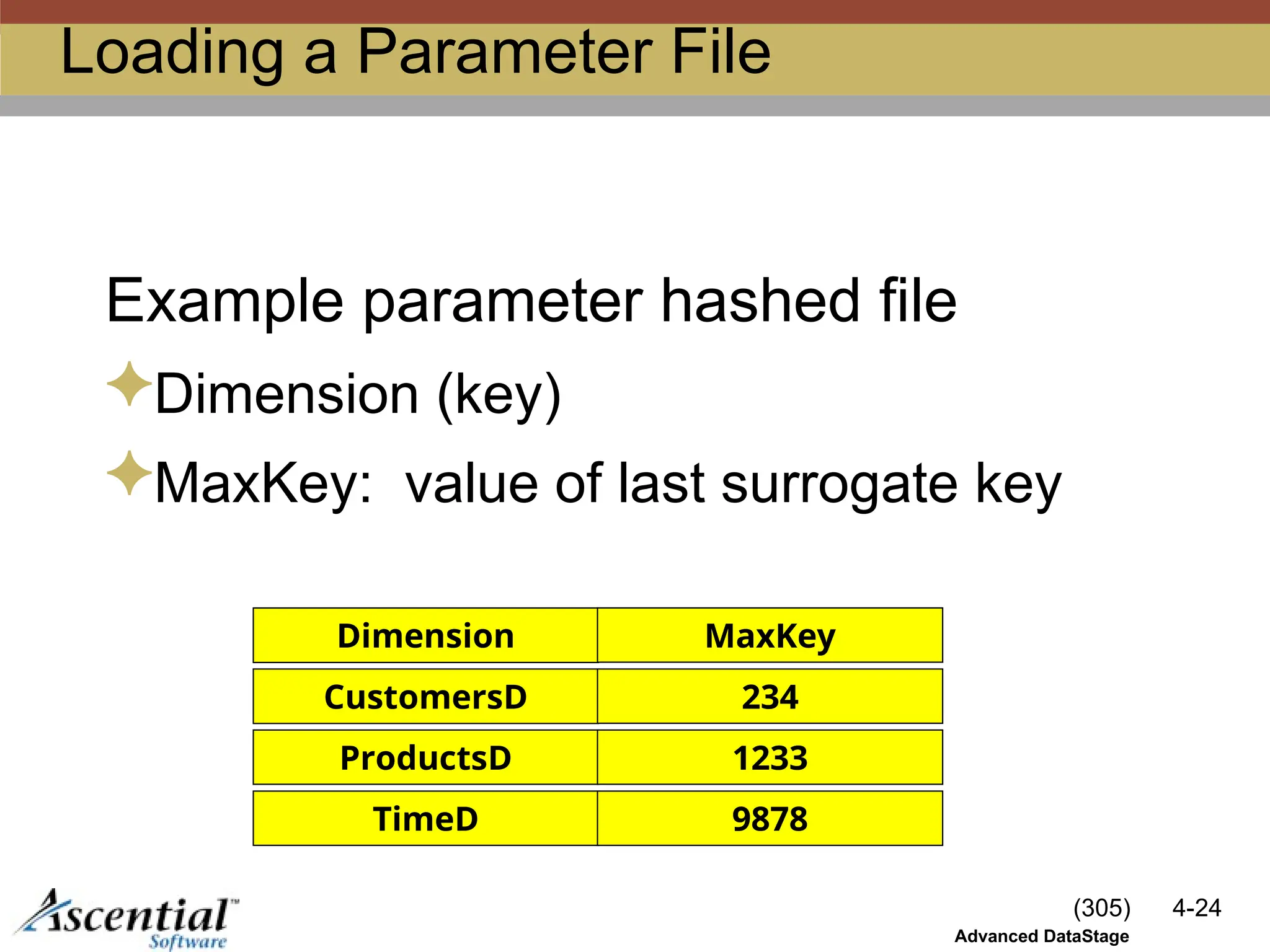

Loading a Parameter File
Example parameter hashed file
Dimension (key)
MaxKey: value of last surrogate key
CustomersD 234
ProductsD 1233
TimeD 9878
Dimension MaxKey

25. (305) 4-25
Advanced DataStage

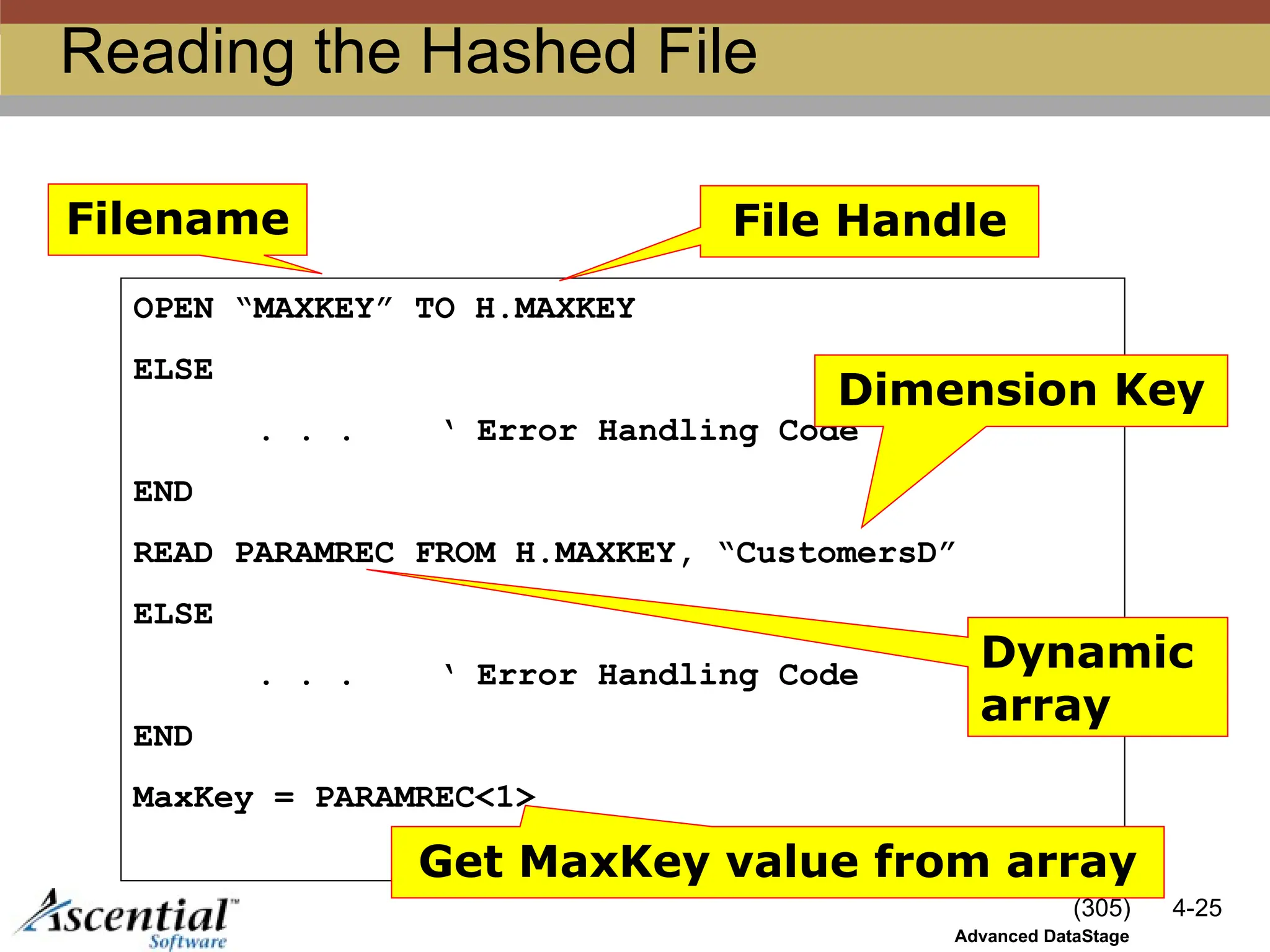

Reading the Hashed File
OPEN “MAXKEY” TO H.MAXKEY
ELSE
. . . ‘ Error Handling Code
END
READ PARAMREC FROM H.MAXKEY, “CustomersD”
ELSE
. . . ‘ Error Handling Code
END
MaxKey = PARAMREC<1>
Filename File Handle
Dimension Key
Dynamic
array
Get MaxKey value from array

26. (305) 4-26
Advanced DataStage

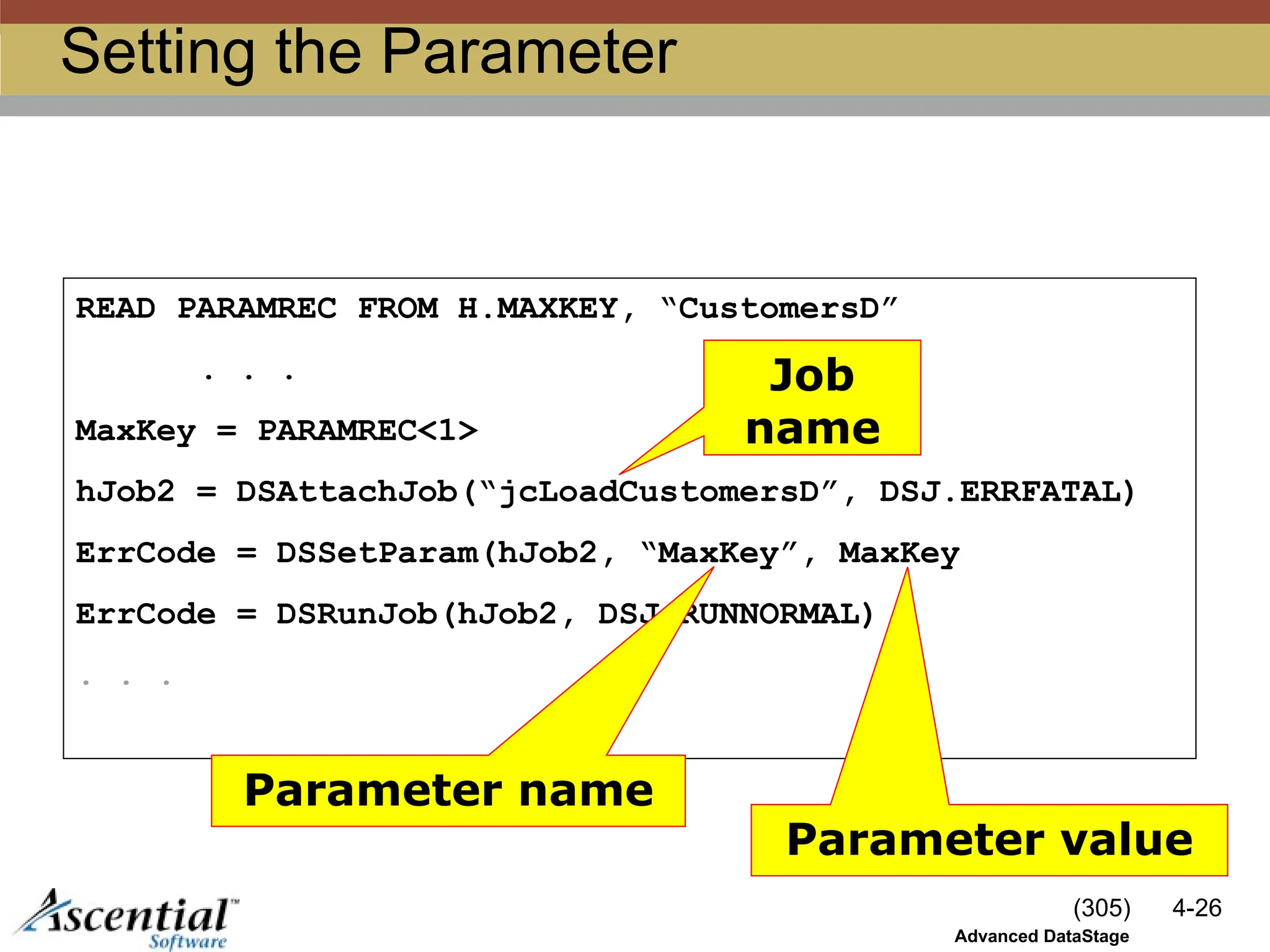

Setting the Parameter
READ PARAMREC FROM H.MAXKEY, “CustomersD”
. . .
MaxKey = PARAMREC<1>
hJob2 = DSAttachJob(“jcLoadCustomersD”, DSJ.ERRFATAL)
ErrCode = DSSetParam(hJob2, “MaxKey”, MaxKey
ErrCode = DSRunJob(hJob2, DSJ.RUNNORMAL)
. . .
Job
name
Parameter name
Parameter value

27. (305) 4-27
Advanced DataStage
Exercise Part V: Changed Data Capture
 Load a parameter file with the maximum
key
 Read maximum key from parameter file
 Generate surrogate key values
sequentially from maximum key value
