Double Performance Prism: innovation performance Measurement systems for manufacturing SMEs

International Journal of Innovative Research in Advanced Engineering (IJIRAE) ISSN: 2349-2163
Issue 03, Volume 4 (March 2017) www.ijirae.com
_________________________________________________________________________________________________
IJIRAE: Impact Factor Value – SJIF: Innospace, Morocco (2016): 3.916 | PIF: 2.469 | Jour Info: 4.085 |
ISRAJIF (2016): 3.715 | Indexcopernicus: (ICV 2015): 47.91
IJIRAE © 2014- 17, All Rights Reserved Page -113

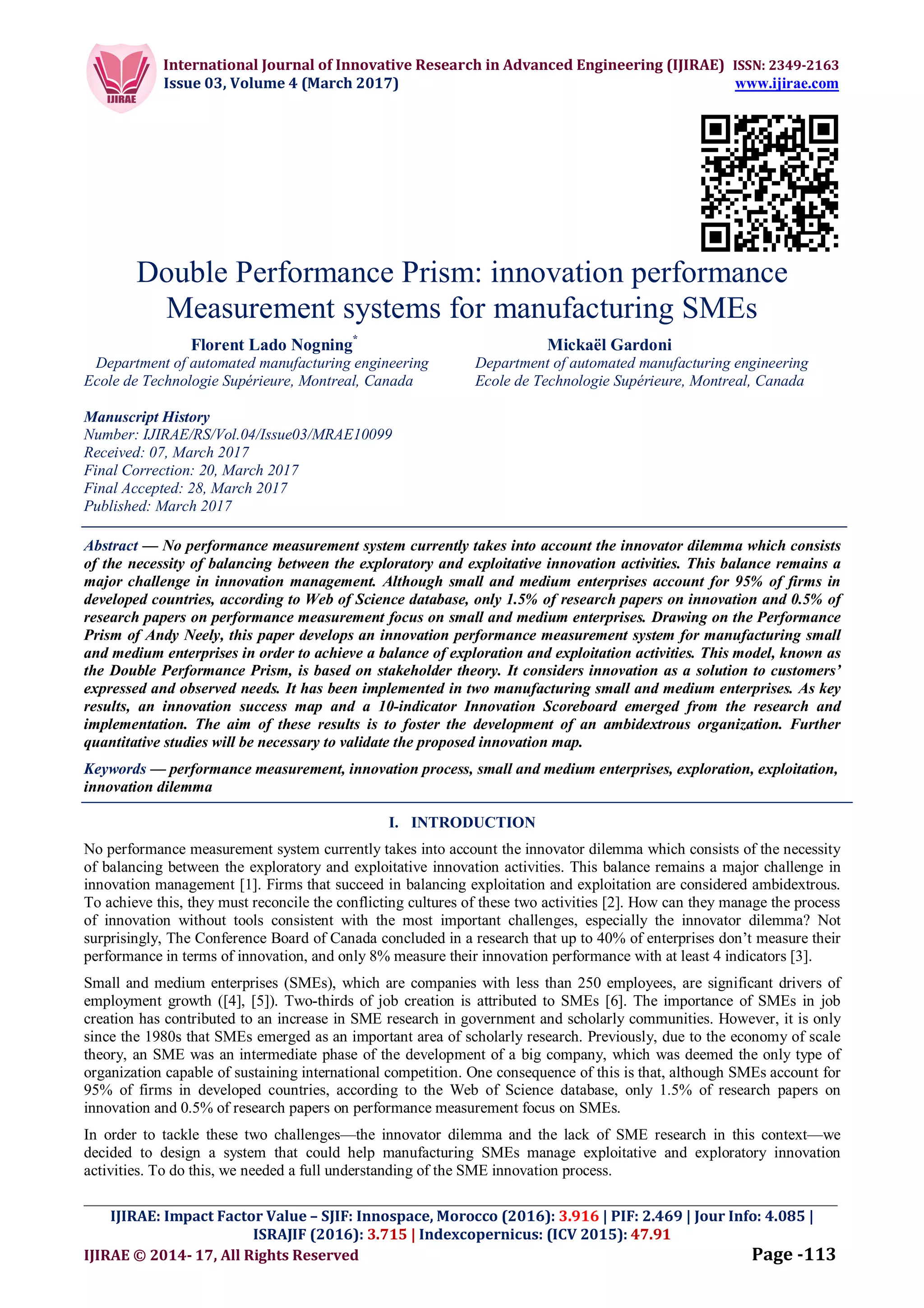

Double Performance Prism: innovation performance
Measurement systems for manufacturing SMEs
Florent Lado Nogning*
Mickaël Gardoni
Department of automated manufacturing engineering Department of automated manufacturing engineering
Ecole de Technologie Supérieure, Montreal, Canada Ecole de Technologie Supérieure, Montreal, Canada
Manuscript History
Number: IJIRAE/RS/Vol.04/Issue03/MRAE10099
Received: 07, March 2017
Final Correction: 20, March 2017
Final Accepted: 28, March 2017
Published: March 2017
Abstract — No performance measurement system currently takes into account the innovator dilemma which consists
of the necessity of balancing between the exploratory and exploitative innovation activities. This balance remains a
major challenge in innovation management. Although small and medium enterprises account for 95% of firms in
developed countries, according to Web of Science database, only 1.5% of research papers on innovation and 0.5% of
research papers on performance measurement focus on small and medium enterprises. Drawing on the Performance
Prism of Andy Neely, this paper develops an innovation performance measurement system for manufacturing small
and medium enterprises in order to achieve a balance of exploration and exploitation activities. This model, known as
the Double Performance Prism, is based on stakeholder theory. It considers innovation as a solution to customers’
expressed and observed needs. It has been implemented in two manufacturing small and medium enterprises. As key
results, an innovation success map and a 10-indicator Innovation Scoreboard emerged from the research and
implementation. The aim of these results is to foster the development of an ambidextrous organization. Further
quantitative studies will be necessary to validate the proposed innovation map.
Keywords — performance measurement, innovation process, small and medium enterprises, exploration, exploitation,
innovation dilemma
I. INTRODUCTION
No performance measurement system currently takes into account the innovator dilemma which consists of the necessity
of balancing between the exploratory and exploitative innovation activities. This balance remains a major challenge in
innovation management [1]. Firms that succeed in balancing exploitation and exploitation are considered ambidextrous.
To achieve this, they must reconcile the conflicting cultures of these two activities [2]. How can they manage the process
of innovation without tools consistent with the most important challenges, especially the innovator dilemma? Not
surprisingly, The Conference Board of Canada concluded in a research that up to 40% of enterprises don’t measure their
performance in terms of innovation, and only 8% measure their innovation performance with at least 4 indicators [3].
Small and medium enterprises (SMEs), which are companies with less than 250 employees, are significant drivers of
employment growth ([4], [5]). Two-thirds of job creation is attributed to SMEs [6]. The importance of SMEs in job
creation has contributed to an increase in SME research in government and scholarly communities. However, it is only
since the 1980s that SMEs emerged as an important area of scholarly research. Previously, due to the economy of scale
theory, an SME was an intermediate phase of the development of a big company, which was deemed the only type of
organization capable of sustaining international competition. One consequence of this is that, although SMEs account for
95% of firms in developed countries, according to the Web of Science database, only 1.5% of research papers on
innovation and 0.5% of research papers on performance measurement focus on SMEs.
In order to tackle these two challenges—the innovator dilemma and the lack of SME research in this context—we
decided to design a system that could help manufacturing SMEs manage exploitative and exploratory innovation
activities. To do this, we needed a full understanding of the SME innovation process.

_________________________________________________________________________________________________
IJIRAE © 2014- 17, All Rights Reserved Page - 115

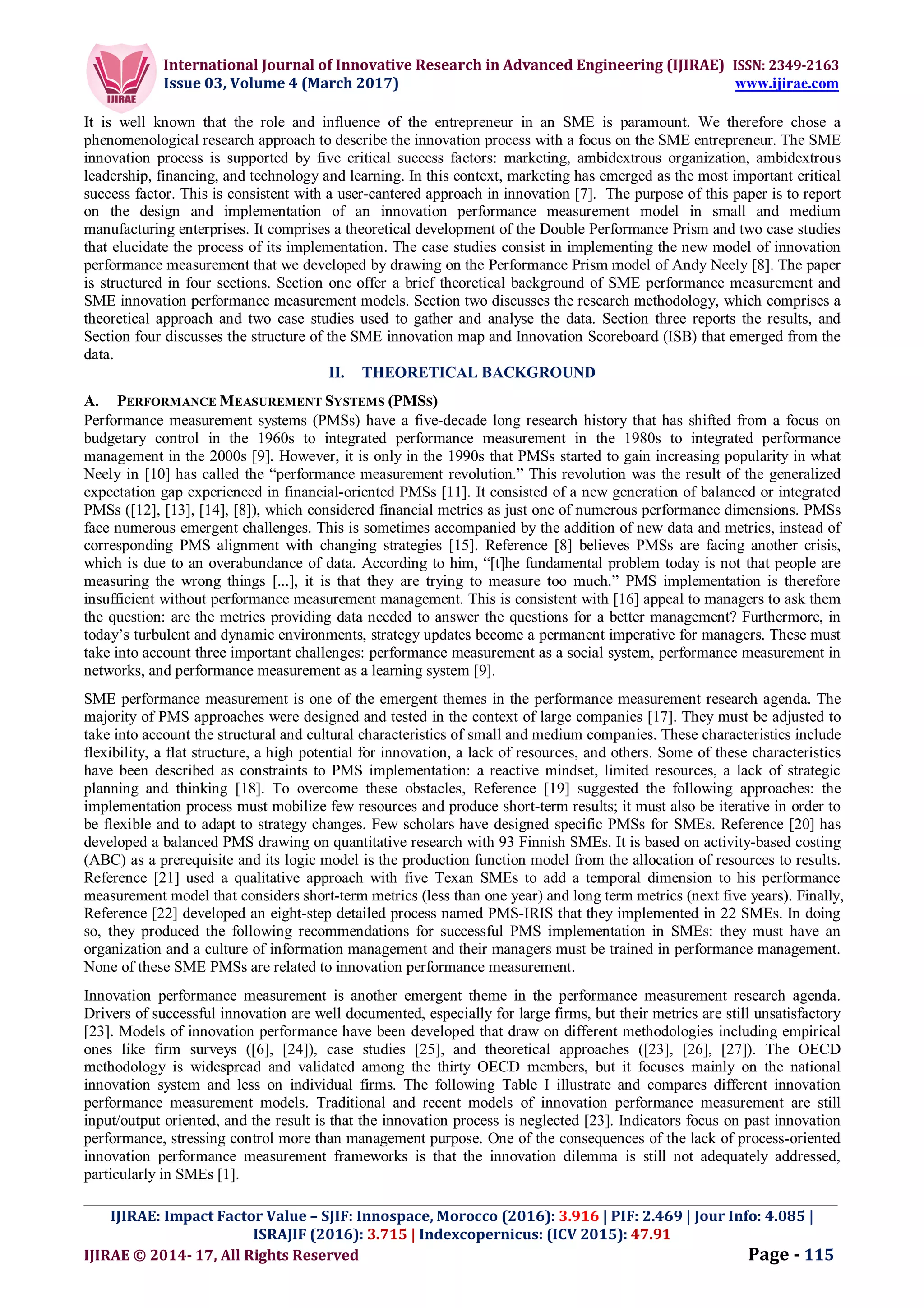

It is well known that the role and influence of the entrepreneur in an SME is paramount. We therefore chose a
phenomenological research approach to describe the innovation process with a focus on the SME entrepreneur. The SME
innovation process is supported by five critical success factors: marketing, ambidextrous organization, ambidextrous
leadership, financing, and technology and learning. In this context, marketing has emerged as the most important critical
success factor. This is consistent with a user-cantered approach in innovation [7]. The purpose of this paper is to report
on the design and implementation of an innovation performance measurement model in small and medium
manufacturing enterprises. It comprises a theoretical development of the Double Performance Prism and two case studies
that elucidate the process of its implementation. The case studies consist in implementing the new model of innovation
performance measurement that we developed by drawing on the Performance Prism model of Andy Neely [8]. The paper
is structured in four sections. Section one offer a brief theoretical background of SME performance measurement and
SME innovation performance measurement models. Section two discusses the research methodology, which comprises a
theoretical approach and two case studies used to gather and analyse the data. Section three reports the results, and
Section four discusses the structure of the SME innovation map and Innovation Scoreboard (ISB) that emerged from the
data.
II. THEORETICAL BACKGROUND
A. PERFORMANCE MEASUREMENT SYSTEMS (PMSS)
Performance measurement systems (PMSs) have a five-decade long research history that has shifted from a focus on
budgetary control in the 1960s to integrated performance measurement in the 1980s to integrated performance
management in the 2000s [9]. However, it is only in the 1990s that PMSs started to gain increasing popularity in what
Neely in [10] has called the “performance measurement revolution.” This revolution was the result of the generalized
expectation gap experienced in financial-oriented PMSs [11]. It consisted of a new generation of balanced or integrated
PMSs ([12], [13], [14], [8]), which considered financial metrics as just one of numerous performance dimensions. PMSs
face numerous emergent challenges. This is sometimes accompanied by the addition of new data and metrics, instead of
corresponding PMS alignment with changing strategies [15]. Reference [8] believes PMSs are facing another crisis,
which is due to an overabundance of data. According to him, “[t]he fundamental problem today is not that people are
measuring the wrong things [...], it is that they are trying to measure too much.” PMS implementation is therefore
insufficient without performance measurement management. This is consistent with [16] appeal to managers to ask them
the question: are the metrics providing data needed to answer the questions for a better management? Furthermore, in
today’s turbulent and dynamic environments, strategy updates become a permanent imperative for managers. These must
take into account three important challenges: performance measurement as a social system, performance measurement in
networks, and performance measurement as a learning system [9].
SME performance measurement is one of the emergent themes in the performance measurement research agenda. The
majority of PMS approaches were designed and tested in the context of large companies [17]. They must be adjusted to
take into account the structural and cultural characteristics of small and medium companies. These characteristics include
flexibility, a flat structure, a high potential for innovation, a lack of resources, and others. Some of these characteristics
have been described as constraints to PMS implementation: a reactive mindset, limited resources, a lack of strategic
planning and thinking [18]. To overcome these obstacles, Reference [19] suggested the following approaches: the
implementation process must mobilize few resources and produce short-term results; it must also be iterative in order to
be flexible and to adapt to strategy changes. Few scholars have designed specific PMSs for SMEs. Reference [20] has
developed a balanced PMS drawing on quantitative research with 93 Finnish SMEs. It is based on activity-based costing
(ABC) as a prerequisite and its logic model is the production function model from the allocation of resources to results.
Reference [21] used a qualitative approach with five Texan SMEs to add a temporal dimension to his performance
measurement model that considers short-term metrics (less than one year) and long term metrics (next five years). Finally,
Reference [22] developed an eight-step detailed process named PMS-IRIS that they implemented in 22 SMEs. In doing
so, they produced the following recommendations for successful PMS implementation in SMEs: they must have an
organization and a culture of information management and their managers must be trained in performance management.
None of these SME PMSs are related to innovation performance measurement.
Innovation performance measurement is another emergent theme in the performance measurement research agenda.
Drivers of successful innovation are well documented, especially for large firms, but their metrics are still unsatisfactory
[23]. Models of innovation performance have been developed that draw on different methodologies including empirical
ones like firm surveys ([6], [24]), case studies [25], and theoretical approaches ([23], [26], [27]). The OECD
methodology is widespread and validated among the thirty OECD members, but it focuses mainly on the national
innovation system and less on individual firms. The following Table I illustrate and compares different innovation
performance measurement models. Traditional and recent models of innovation performance measurement are still
input/output oriented, and the result is that the innovation process is neglected [23]. Indicators focus on past innovation
performance, stressing control more than management purpose. One of the consequences of the lack of process-oriented
innovation performance measurement frameworks is that the innovation dilemma is still not adequately addressed,
particularly in SMEs [1].

_________________________________________________________________________________________________

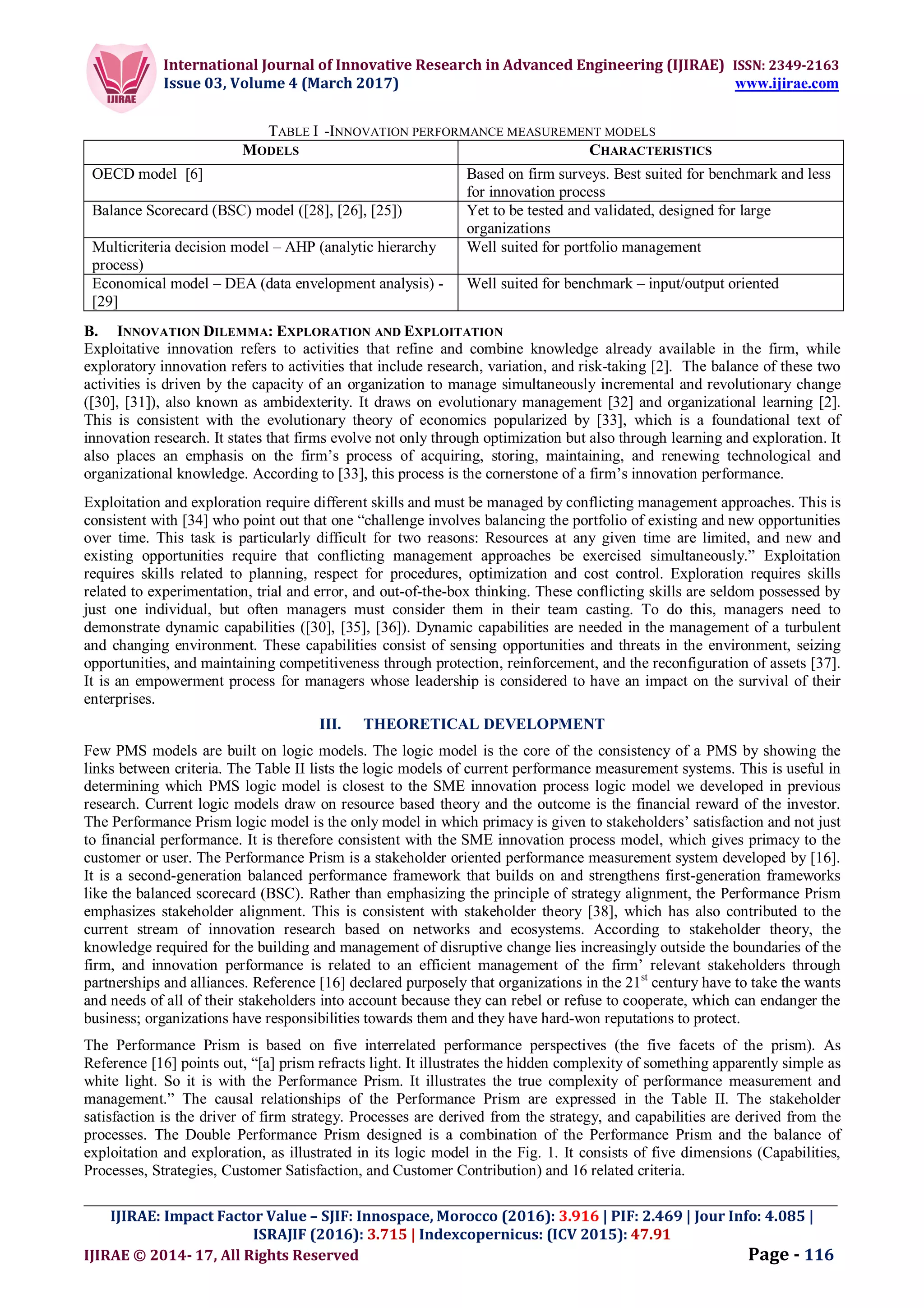

TABLE I -INNOVATION PERFORMANCE MEASUREMENT MODELS
MODELS CHARACTERISTICS
OECD model [6] Based on firm surveys. Best suited for benchmark and less
for innovation process
Balance Scorecard (BSC) model ([28], [26], [25]) Yet to be tested and validated, designed for large
organizations
Multicriteria decision model – AHP (analytic hierarchy
process)
Well suited for portfolio management
Economical model – DEA (data envelopment analysis) -
[29]
Well suited for benchmark – input/output oriented
B. INNOVATION DILEMMA: EXPLORATION AND EXPLOITATION
Exploitative innovation refers to activities that refine and combine knowledge already available in the firm, while
exploratory innovation refers to activities that include research, variation, and risk-taking [2]. The balance of these two
activities is driven by the capacity of an organization to manage simultaneously incremental and revolutionary change
([30], [31]), also known as ambidexterity. It draws on evolutionary management [32] and organizational learning [2].
This is consistent with the evolutionary theory of economics popularized by [33], which is a foundational text of
innovation research. It states that firms evolve not only through optimization but also through learning and exploration. It
also places an emphasis on the firm’s process of acquiring, storing, maintaining, and renewing technological and
organizational knowledge. According to [33], this process is the cornerstone of a firm’s innovation performance.
Exploitation and exploration require different skills and must be managed by conflicting management approaches. This is
consistent with [34] who point out that one “challenge involves balancing the portfolio of existing and new opportunities
over time. This task is particularly difficult for two reasons: Resources at any given time are limited, and new and
existing opportunities require that conflicting management approaches be exercised simultaneously.” Exploitation
requires skills related to planning, respect for procedures, optimization and cost control. Exploration requires skills
related to experimentation, trial and error, and out-of-the-box thinking. These conflicting skills are seldom possessed by
just one individual, but often managers must consider them in their team casting. To do this, managers need to
demonstrate dynamic capabilities ([30], [35], [36]). Dynamic capabilities are needed in the management of a turbulent
and changing environment. These capabilities consist of sensing opportunities and threats in the environment, seizing
opportunities, and maintaining competitiveness through protection, reinforcement, and the reconfiguration of assets [37].
It is an empowerment process for managers whose leadership is considered to have an impact on the survival of their
enterprises.
III. THEORETICAL DEVELOPMENT
Few PMS models are built on logic models. The logic model is the core of the consistency of a PMS by showing the
links between criteria. The Table II lists the logic models of current performance measurement systems. This is useful in
determining which PMS logic model is closest to the SME innovation process logic model we developed in previous
research. Current logic models draw on resource based theory and the outcome is the financial reward of the investor.
The Performance Prism logic model is the only model in which primacy is given to stakeholders’ satisfaction and not just
to financial performance. It is therefore consistent with the SME innovation process model, which gives primacy to the
customer or user. The Performance Prism is a stakeholder oriented performance measurement system developed by [16].
It is a second-generation balanced performance framework that builds on and strengthens first-generation frameworks
like the balanced scorecard (BSC). Rather than emphasizing the principle of strategy alignment, the Performance Prism
emphasizes stakeholder alignment. This is consistent with stakeholder theory [38], which has also contributed to the
current stream of innovation research based on networks and ecosystems. According to stakeholder theory, the
knowledge required for the building and management of disruptive change lies increasingly outside the boundaries of the
firm, and innovation performance is related to an efficient management of the firm’ relevant stakeholders through
partnerships and alliances. Reference [16] declared purposely that organizations in the 21st
century have to take the wants
and needs of all of their stakeholders into account because they can rebel or refuse to cooperate, which can endanger the
business; organizations have responsibilities towards them and they have hard-won reputations to protect.
The Performance Prism is based on five interrelated performance perspectives (the five facets of the prism). As
Reference [16] points out, “[a] prism refracts light. It illustrates the hidden complexity of something apparently simple as
white light. So it is with the Performance Prism. It illustrates the true complexity of performance measurement and
management.” The causal relationships of the Performance Prism are expressed in the Table II. The stakeholder
satisfaction is the driver of firm strategy. Processes are derived from the strategy, and capabilities are derived from the

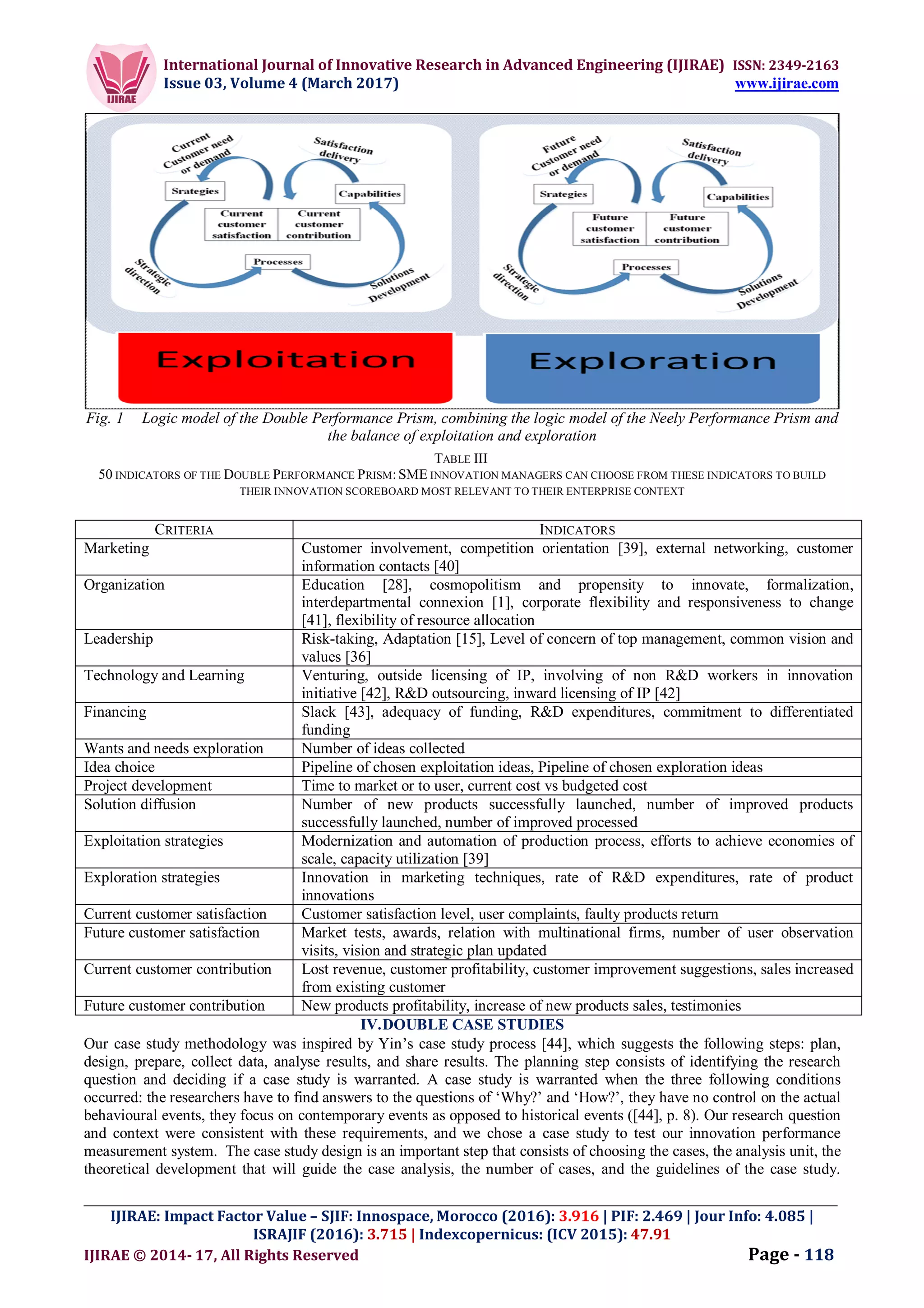

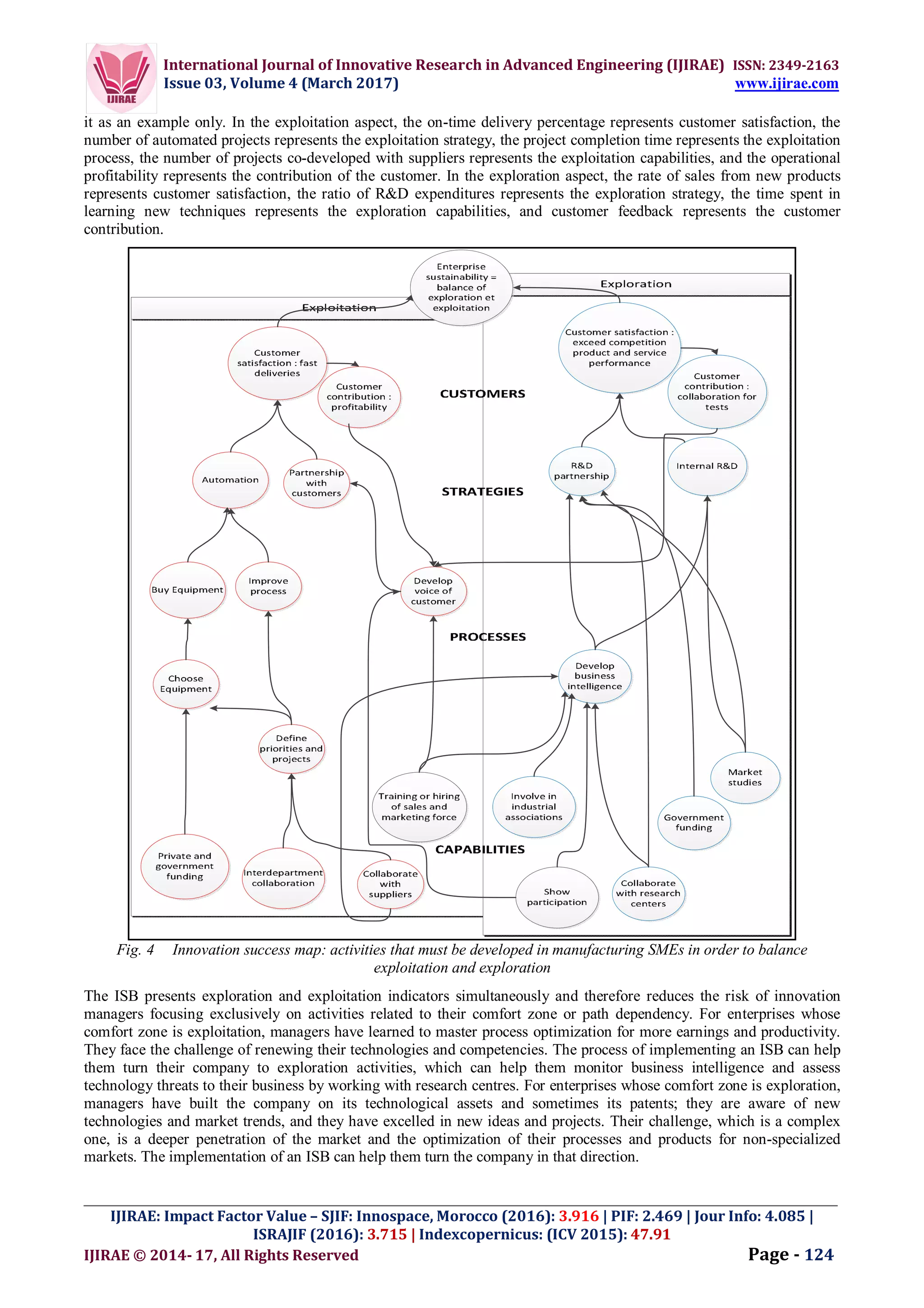

processes. The Double Performance Prism designed is a combination of the Performance Prism and the balance of
exploitation and exploration, as illustrated in its logic model in the Fig. 1. It consists of five dimensions (Capabilities,
Processes, Strategies, Customer Satisfaction, and Customer Contribution) and 16 related criteria.

_________________________________________________________________________________________________

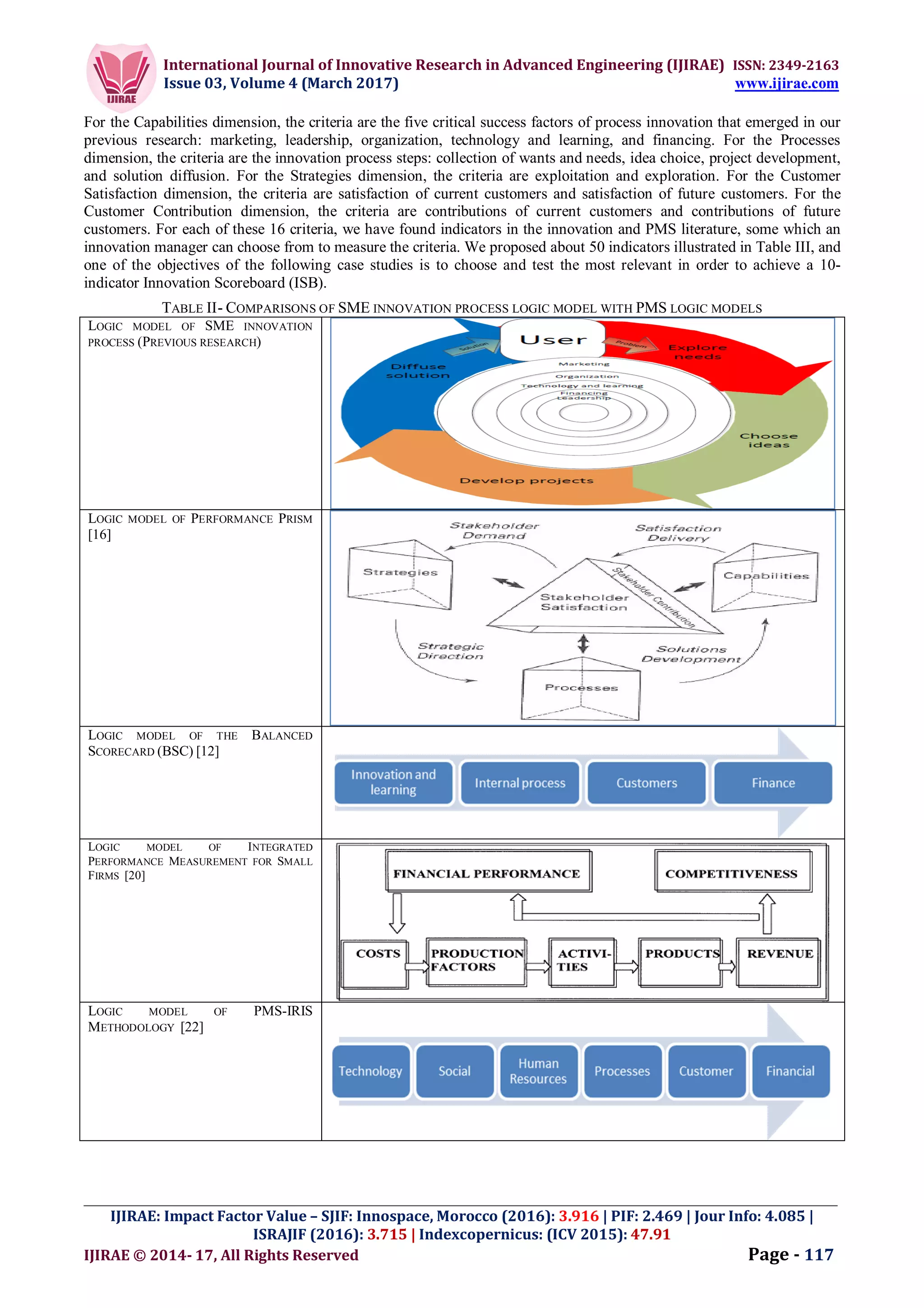

For the Capabilities dimension, the criteria are the five critical success factors of process innovation that emerged in our
previous research: marketing, leadership, organization, technology and learning, and financing. For the Processes
dimension, the criteria are the innovation process steps: collection of wants and needs, idea choice, project development,
and solution diffusion. For the Strategies dimension, the criteria are exploitation and exploration. For the Customer
Satisfaction dimension, the criteria are satisfaction of current customers and satisfaction of future customers. For the
Customer Contribution dimension, the criteria are contributions of current customers and contributions of future
customers. For each of these 16 criteria, we have found indicators in the innovation and PMS literature, some which an
innovation manager can choose from to measure the criteria. We proposed about 50 indicators illustrated in Table III, and
one of the objectives of the following case studies is to choose and test the most relevant in order to achieve a 10-
indicator Innovation Scoreboard (ISB).
TABLE II- COMPARISONS OF SME INNOVATION PROCESS LOGIC MODEL WITH PMS LOGIC MODELS
LOGIC MODEL OF SME INNOVATION
PROCESS (PREVIOUS RESEARCH)
LOGIC MODEL OF PERFORMANCE PRISM
[16]
LOGIC MODEL OF THE BALANCED
SCORECARD (BSC) [12]
LOGIC MODEL OF INTEGRATED
PERFORMANCE MEASUREMENT FOR SMALL
FIRMS [20]
LOGIC MODEL OF PMS-IRIS
METHODOLOGY [22]

_________________________________________________________________________________________________
Fig. 1 Logic model of the Double Performance Prism, combining the logic model of the Neely Performance Prism and
the balance of exploitation and exploration
TABLE III
50 INDICATORS OF THE DOUBLE PERFORMANCE PRISM:SME INNOVATION MANAGERS CAN CHOOSE FROM THESE INDICATORS TO BUILD
THEIR INNOVATION SCOREBOARD MOST RELEVANT TO THEIR ENTERPRISE CONTEXT
CRITERIA INDICATORS
Marketing Customer involvement, competition orientation [39], external networking, customer
information contacts [40]
Organization Education [28], cosmopolitism and propensity to innovate, formalization,
interdepartmental connexion [1], corporate flexibility and responsiveness to change
[41], flexibility of resource allocation
Leadership Risk-taking, Adaptation [15], Level of concern of top management, common vision and
values [36]
Technology and Learning Venturing, outside licensing of IP, involving of non R&D workers in innovation
initiative [42], R&D outsourcing, inward licensing of IP [42]
Financing Slack [43], adequacy of funding, R&D expenditures, commitment to differentiated
funding
Wants and needs exploration Number of ideas collected
Idea choice Pipeline of chosen exploitation ideas, Pipeline of chosen exploration ideas
Project development Time to market or to user, current cost vs budgeted cost
Solution diffusion Number of new products successfully launched, number of improved products
successfully launched, number of improved processed
Exploitation strategies Modernization and automation of production process, efforts to achieve economies of
scale, capacity utilization [39]
Exploration strategies Innovation in marketing techniques, rate of R&D expenditures, rate of product
innovations
Current customer satisfaction Customer satisfaction level, user complaints, faulty products return
Future customer satisfaction Market tests, awards, relation with multinational firms, number of user observation
visits, vision and strategic plan updated
Current customer contribution Lost revenue, customer profitability, customer improvement suggestions, sales increased
from existing customer
Future customer contribution New products profitability, increase of new products sales, testimonies
IV.DOUBLE CASE STUDIES
Our case study methodology was inspired by Yin’s case study process [44], which suggests the following steps: plan,
design, prepare, collect data, analyse results, and share results. The planning step consists of identifying the research
question and deciding if a case study is warranted. A case study is warranted when the three following conditions
occurred: the researchers have to find answers to the questions of ‘Why?’ and ‘How?’, they have no control on the actual
behavioural events, they focus on contemporary events as opposed to historical events ([44], p. 8). Our research question
and context were consistent with these requirements, and we chose a case study to test our innovation performance
measurement system. The case study design is an important step that consists of choosing the cases, the analysis unit, the
theoretical development that will guide the case analysis, the number of cases, and the guidelines of the case study.

_________________________________________________________________________________________________
Furthermore, a solid theoretical development must precede the case study ([44], p. 136). In our research, the unit of
analysis is the entire internal organization of the SME as the innovation process is transversal and encompasses every
unit of the organization. In the design phase, the researcher could choose among five technical analysis types: form
matching, explanation construction, chronological series analysis, logic models, and cross-case synthesis. We chose the
Double Performance Prism logic model as the guideline for our case study. We also chose two case studies for literal
replication instead of theoretical replication ([44], p. 54).
The key success criterion of the data collection preparation is the training of the researcher to master the following skills:
asking relevant questions, listening carefully, being flexible and ready to accommodate, being knowledgeable about
related research concepts, being unbiased and eschewing preconceived ideas ([44], p. 69). The researcher mastered these
skills through his 10-year professional activities of economic development advisor. In the preparation phase, it was also
necessary to obtain ethics approval from the academic institution. We received temporary approval on February 2015 and
final approval on June 2015. For the sake of research reliability, a case study protocol must be prepared in this phase. We
used the Double Performance Prism logic model to build the case study protocol. In order to choose the cases in a
relevant approach, Reference [45] suggests four criteria or activities. (1) Acquire a good knowledge of the case context
dynamic. This was facilitated by the professional network of the researcher. (2) No professional relationship between the
researcher and the participant. The researcher had ceased any professional relationship (economic development advisory)
with the participant in case A and had no professional relationship with the participant in case B. (3) Monitor
geographical distribution of the cases to minimize costs. The two cases were located in Canada in the province of Quebec.
(4) Add one case to strengthen the research results. We could have chosen one case for the implementation of our model,
but we chose a double case study for literal replication. Six data sources can be used in a case study: documentation,
archived databases, interviews, direct observation, participant observation, and physical artefacts. The criteria for
assessing the quality of data collected for a case study are multiple convergent data sources, a case study database, a
chain of evidence which consists of explicit links among the questions asked, the data collected, and the conclusions
drawn ([44], p. 98). Our key data sources were a focus group for case A and an interview for case B (questionnaire
illustrated in Table IV below). We also used observations and documentation for the two cases. In qualitative research,
focus groups can be relevant for data collection. As Reference [46] points out, “[f]ocus groups are advantageous when
the interaction among interviewees will likely yield the best information, when interviewees are similar and cooperative
with each other, when time to collect information is limited, and when individuals interviewed one-on-one may be
hesitant to provide information” (p. 164). This is the case for management teams, especially in SMEs.

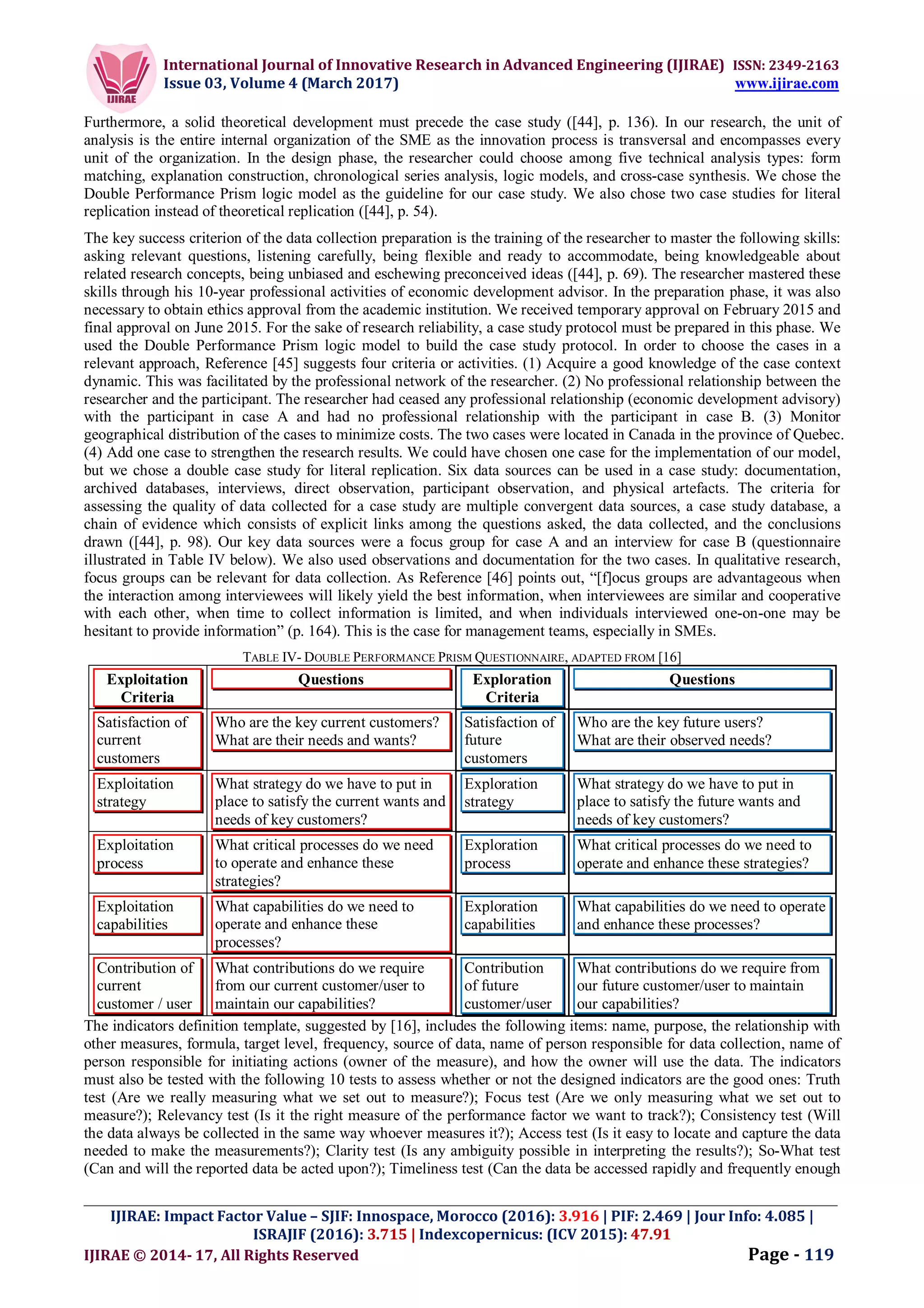

TABLE IV- DOUBLE PERFORMANCE PRISM QUESTIONNAIRE, ADAPTED FROM [16]
Exploitation
Criteria
Questions Exploration
Criteria
Questions
Satisfaction of
current
customers
Who are the key current customers?
What are their needs and wants?
Satisfaction of
future
customers
Who are the key future users?
What are their observed needs?
Exploitation
strategy
What strategy do we have to put in
place to satisfy the current wants and
needs of key customers?
Exploration
strategy
What strategy do we have to put in
place to satisfy the future wants and
needs of key customers?
Exploitation
process
What critical processes do we need
to operate and enhance these
strategies?
Exploration
process
What critical processes do we need to
operate and enhance these strategies?
Exploitation
capabilities
What capabilities do we need to
operate and enhance these
processes?
Exploration
capabilities
What capabilities do we need to operate
and enhance these processes?
Contribution of
current
customer / user
What contributions do we require
from our current customer/user to
maintain our capabilities?
Contribution
of future
customer/user
What contributions do we require from
our future customer/user to maintain
our capabilities?
The indicators definition template, suggested by [16], includes the following items: name, purpose, the relationship with
other measures, formula, target level, frequency, source of data, name of person responsible for data collection, name of
person responsible for initiating actions (owner of the measure), and how the owner will use the data. The indicators
must also be tested with the following 10 tests to assess whether or not the designed indicators are the good ones: Truth
test (Are we really measuring what we set out to measure?); Focus test (Are we only measuring what we set out to
measure?); Relevancy test (Is it the right measure of the performance factor we want to track?); Consistency test (Will
the data always be collected in the same way whoever measures it?); Access test (Is it easy to locate and capture the data
needed to make the measurements?); Clarity test (Is any ambiguity possible in interpreting the results?); So-What test
(Can and will the reported data be acted upon?); Timeliness test (Can the data be accessed rapidly and frequently enough

_________________________________________________________________________________________________
for action?); Cost test (Is the measure worth the cost of measurement?); and Gaming test (Is the measure likely to
encourage undesirable or inappropriate behaviours?). Data collection and data analysis must be an iterative rather than a
linear process. The researcher can use four analysis strategies as suggested by ([44], p. 130): reference to theoretical
hypothesis, case description, use of qualitative and quantitative data, and examination of rival explanations. These
strategies can be used with one of the five tactics identified previously. Our analysis was based on the Double
Performance Prism theory and logic model. The organizational logic model identifies the chronology and logic of events
and activities in the company. In our research, the analysis step consists of drawing those logical links we call the
innovation success map. The implementation process of the Double Prism Performance model is illustrated in Fig. 2
below and consisted of 11 workshops and a total of 40 hours per case study, involving the management team of each of
the 2 SMEs.
V. CASE STUDIES RESULTS
A. DESCRIPTION OF CASE A
The first case study is of a 50 year-old manufacturer of mechanical parts mainly for the aerospace industry. The 120
employee-SME operates a foundry. The president and vice-president in charge of operations showed their willingness to
participate in our research by the regular involvement of 10 employees in the research discussion group. They were
motivated to participate due to their need to validate their current internal key performance indicator (KPI)
implementation process. Furthermore, they were involved in an organizational transformation in which the management
wanted to leverage the engagement and creativity of all employees while undertaking necessary technological changes.
The critical success factors for the implementation of a PMS in this company are presented here.
 Strategic formulation process: internal audit in July 2014; mission, values, and vision formulation in 2014;
sustainable development audit in 2015; current integration of the two audits to generate a single action plan; KPI
design. In June 2015, a consultant was hired to coach the management team in strategic thinking processes.
 Information system: There is no ERP but many interrelated software: ACCPAC for finance, ACCESS for
operations, EXCEL for cost and procurement. Recently, the company analysed ERP costs versus benefits and
decided not to invest. A lot of data is generated and the challenge is to use this in the decision process.
 Strategy implementation process: KPIs are processed monthly.
 Senior management leadership: a 10-person management team is involved in the research.
 Organizational learning level: major investment in employee training.
 Quality management culture: the company is certified ISO 9001 2008.

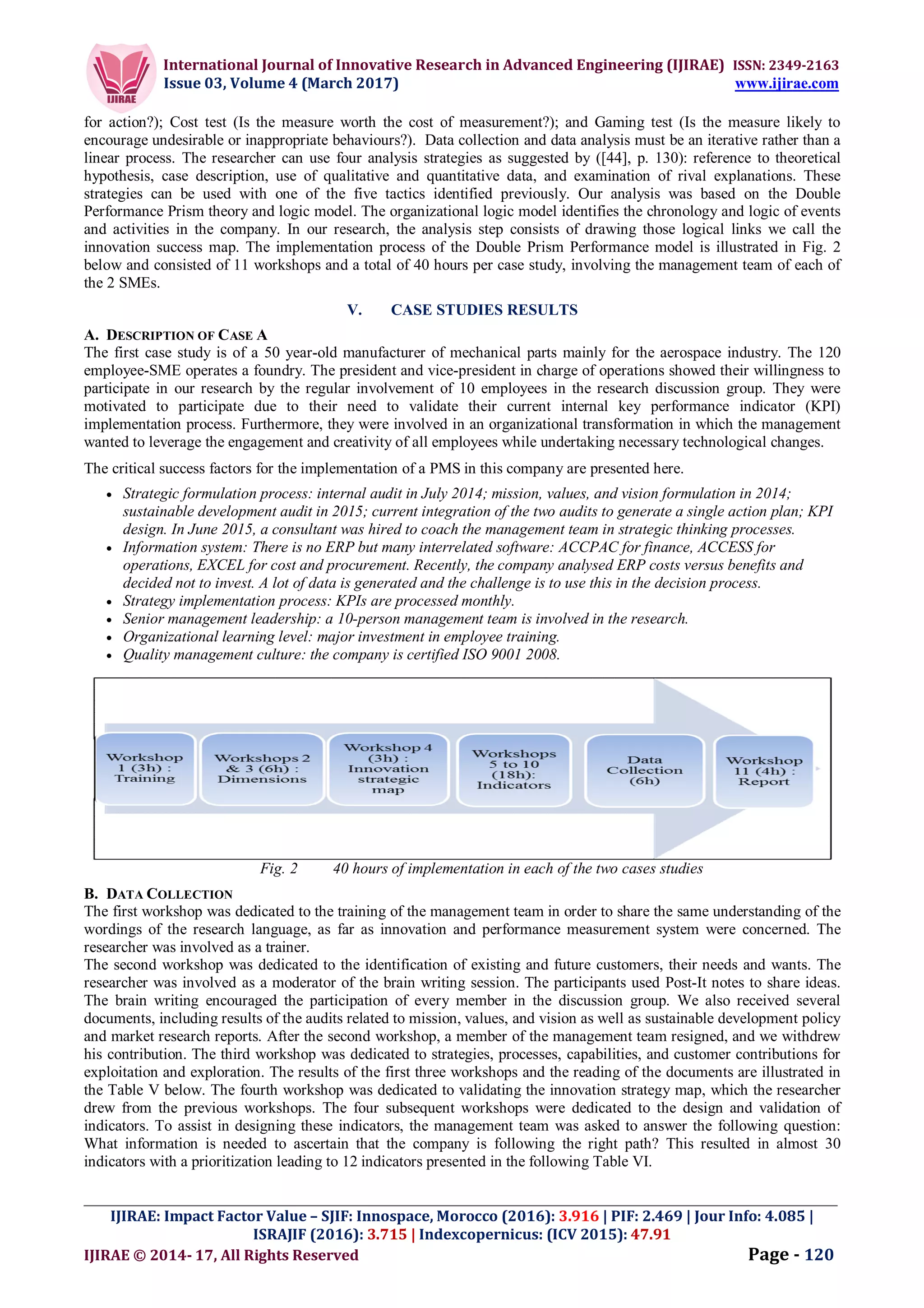

Fig. 2 40 hours of implementation in each of the two cases studies
B. DATA COLLECTION
The first workshop was dedicated to the training of the management team in order to share the same understanding of the
wordings of the research language, as far as innovation and performance measurement system were concerned. The
researcher was involved as a trainer.
The second workshop was dedicated to the identification of existing and future customers, their needs and wants. The
researcher was involved as a moderator of the brain writing session. The participants used Post-It notes to share ideas.
The brain writing encouraged the participation of every member in the discussion group. We also received several
documents, including results of the audits related to mission, values, and vision as well as sustainable development policy
and market research reports. After the second workshop, a member of the management team resigned, and we withdrew
his contribution. The third workshop was dedicated to strategies, processes, capabilities, and customer contributions for
exploitation and exploration. The results of the first three workshops and the reading of the documents are illustrated in
the Table V below. The fourth workshop was dedicated to validating the innovation strategy map, which the researcher
drew from the previous workshops. The four subsequent workshops were dedicated to the design and validation of
indicators. To assist in designing these indicators, the management team was asked to answer the following question:
What information is needed to ascertain that the company is following the right path? This resulted in almost 30
indicators with a prioritization leading to 12 indicators presented in the following Table VI.

_________________________________________________________________________________________________

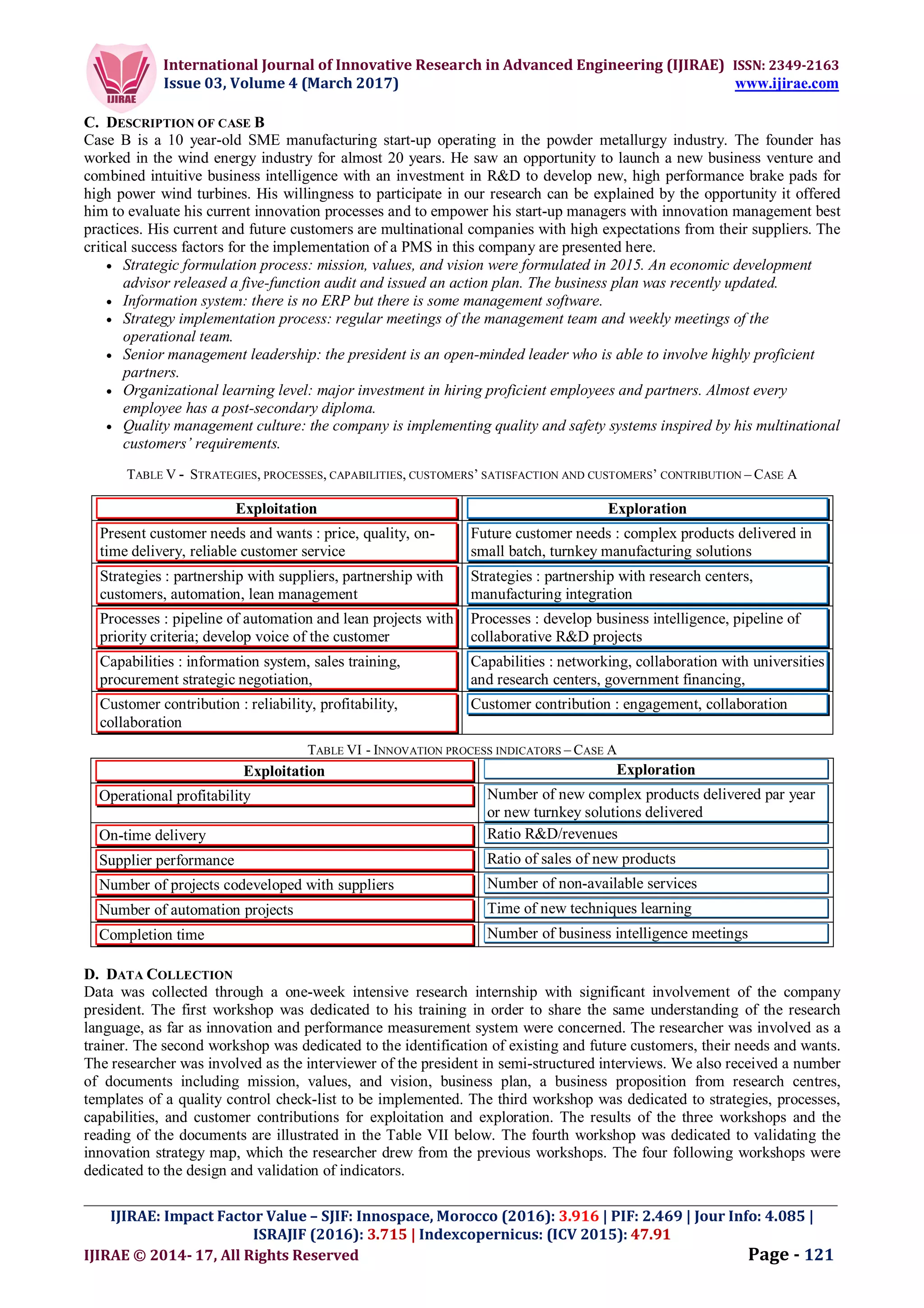

C. DESCRIPTION OF CASE B
Case B is a 10 year-old SME manufacturing start-up operating in the powder metallurgy industry. The founder has
worked in the wind energy industry for almost 20 years. He saw an opportunity to launch a new business venture and
combined intuitive business intelligence with an investment in R&D to develop new, high performance brake pads for
high power wind turbines. His willingness to participate in our research can be explained by the opportunity it offered
him to evaluate his current innovation processes and to empower his start-up managers with innovation management best
practices. His current and future customers are multinational companies with high expectations from their suppliers. The
critical success factors for the implementation of a PMS in this company are presented here.
 Strategic formulation process: mission, values, and vision were formulated in 2015. An economic development
advisor released a five-function audit and issued an action plan. The business plan was recently updated.
 Information system: there is no ERP but there is some management software.
 Strategy implementation process: regular meetings of the management team and weekly meetings of the
operational team.
 Senior management leadership: the president is an open-minded leader who is able to involve highly proficient
partners.
 Organizational learning level: major investment in hiring proficient employees and partners. Almost every
employee has a post-secondary diploma.
 Quality management culture: the company is implementing quality and safety systems inspired by his multinational
customers’ requirements.
TABLE V - STRATEGIES, PROCESSES, CAPABILITIES, CUSTOMERS’ SATISFACTION AND CUSTOMERS’ CONTRIBUTION – CASE A
Exploitation Exploration
Present customer needs and wants : price, quality, on-
time delivery, reliable customer service
Future customer needs : complex products delivered in
small batch, turnkey manufacturing solutions
Strategies : partnership with suppliers, partnership with
customers, automation, lean management
Strategies : partnership with research centers,
manufacturing integration
Processes : pipeline of automation and lean projects with
priority criteria; develop voice of the customer
Processes : develop business intelligence, pipeline of
collaborative R&D projects
Capabilities : information system, sales training,
procurement strategic negotiation,
Capabilities : networking, collaboration with universities
and research centers, government financing,
Customer contribution : reliability, profitability,
collaboration
Customer contribution : engagement, collaboration
TABLE VI - INNOVATION PROCESS INDICATORS – CASE A
Operational profitability Number of new complex products delivered par year
or new turnkey solutions delivered
On-time delivery Ratio R&D/revenues
Supplier performance Ratio of sales of new products
Number of projects codeveloped with suppliers Number of non-available services
Number of automation projects Time of new techniques learning
Completion time Number of business intelligence meetings
D. DATA COLLECTION
Data was collected through a one-week intensive research internship with significant involvement of the company
president. The first workshop was dedicated to his training in order to share the same understanding of the research
language, as far as innovation and performance measurement system were concerned. The researcher was involved as a
trainer. The second workshop was dedicated to the identification of existing and future customers, their needs and wants.
The researcher was involved as the interviewer of the president in semi-structured interviews. We also received a number
of documents including mission, values, and vision, business plan, a business proposition from research centres,
templates of a quality control check-list to be implemented. The third workshop was dedicated to strategies, processes,
capabilities, and customer contributions for exploitation and exploration. The results of the three workshops and the
reading of the documents are illustrated in the Table VII below. The fourth workshop was dedicated to validating the
innovation strategy map, which the researcher drew from the previous workshops. The four following workshops were
dedicated to the design and validation of indicators.

_________________________________________________________________________________________________

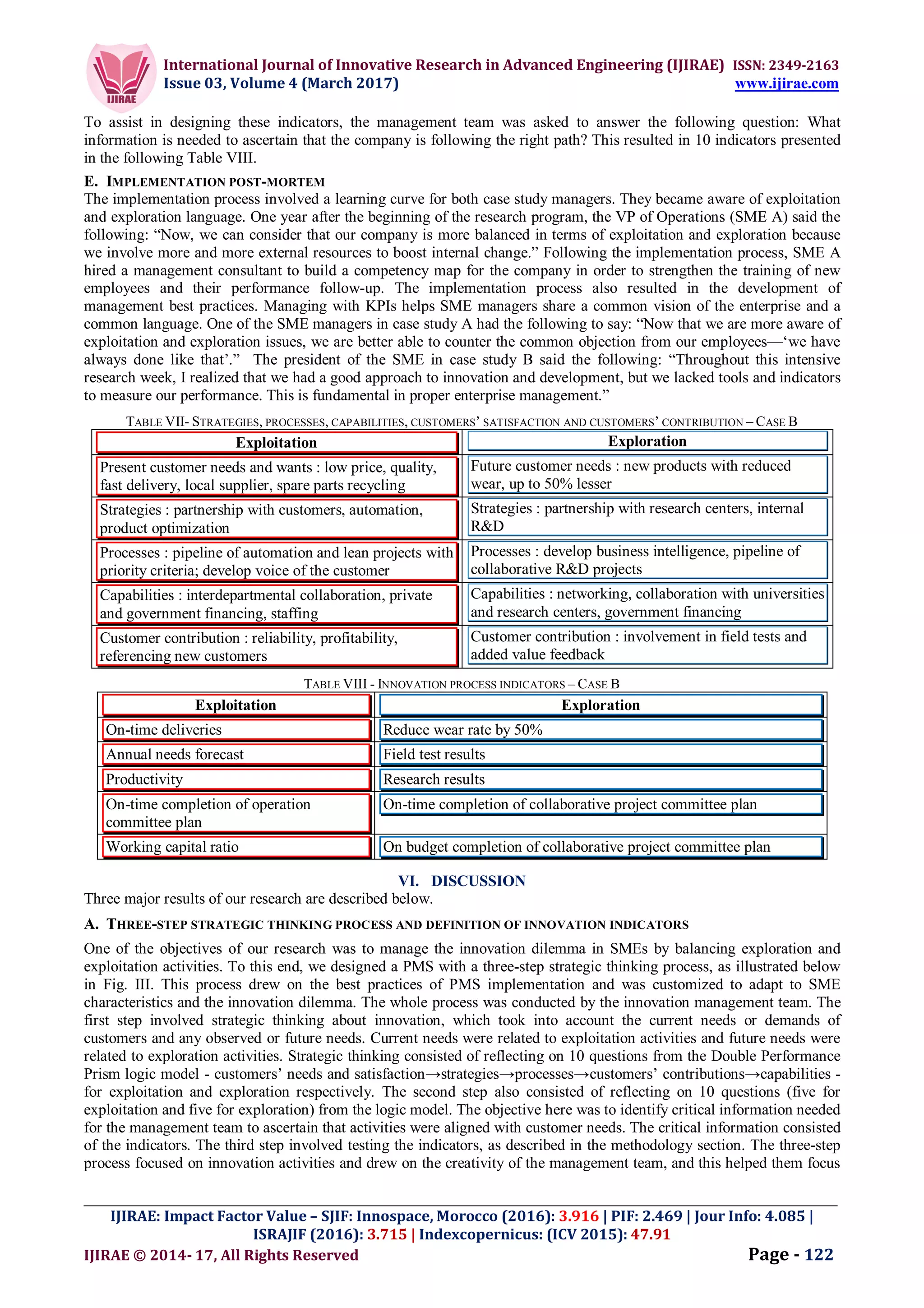

To assist in designing these indicators, the management team was asked to answer the following question: What
information is needed to ascertain that the company is following the right path? This resulted in 10 indicators presented
in the following Table VIII.
E. IMPLEMENTATION POST-MORTEM
The implementation process involved a learning curve for both case study managers. They became aware of exploitation
and exploration language. One year after the beginning of the research program, the VP of Operations (SME A) said the
following: “Now, we can consider that our company is more balanced in terms of exploitation and exploration because
we involve more and more external resources to boost internal change.” Following the implementation process, SME A
hired a management consultant to build a competency map for the company in order to strengthen the training of new
employees and their performance follow-up. The implementation process also resulted in the development of
management best practices. Managing with KPIs helps SME managers share a common vision of the enterprise and a
common language. One of the SME managers in case study A had the following to say: “Now that we are more aware of
exploitation and exploration issues, we are better able to counter the common objection from our employees—‘we have
always done like that’.” The president of the SME in case study B said the following: “Throughout this intensive
research week, I realized that we had a good approach to innovation and development, but we lacked tools and indicators
to measure our performance. This is fundamental in proper enterprise management.”
TABLE VII- STRATEGIES, PROCESSES, CAPABILITIES, CUSTOMERS’ SATISFACTION AND CUSTOMERS’ CONTRIBUTION – CASE B
Present customer needs and wants : low price, quality,
fast delivery, local supplier, spare parts recycling
Future customer needs : new products with reduced
wear, up to 50% lesser
Strategies : partnership with customers, automation,
product optimization
Strategies : partnership with research centers, internal
R&D
Processes : pipeline of automation and lean projects with
priority criteria; develop voice of the customer
Processes : develop business intelligence, pipeline of
collaborative R&D projects
Capabilities : interdepartmental collaboration, private
and government financing, staffing
Capabilities : networking, collaboration with universities
and research centers, government financing
Customer contribution : reliability, profitability,
referencing new customers
Customer contribution : involvement in field tests and
added value feedback
TABLE VIII - INNOVATION PROCESS INDICATORS – CASE B
On-time deliveries Reduce wear rate by 50%
Annual needs forecast Field test results
Productivity Research results
On-time completion of operation
committee plan
On-time completion of collaborative project committee plan
Working capital ratio On budget completion of collaborative project committee plan
VI. DISCUSSION
Three major results of our research are described below.
A. THREE-STEP STRATEGIC THINKING PROCESS AND DEFINITION OF INNOVATION INDICATORS
One of the objectives of our research was to manage the innovation dilemma in SMEs by balancing exploration and
exploitation activities. To this end, we designed a PMS with a three-step strategic thinking process, as illustrated below
in Fig. III. This process drew on the best practices of PMS implementation and was customized to adapt to SME
characteristics and the innovation dilemma. The whole process was conducted by the innovation management team. The
first step involved strategic thinking about innovation, which took into account the current needs or demands of
customers and any observed or future needs. Current needs were related to exploitation activities and future needs were
related to exploration activities. Strategic thinking consisted of reflecting on 10 questions from the Double Performance
Prism logic model - customers’ needs and satisfaction→strategies→processes→customers’ contributions→capabilities -
for exploitation and exploration respectively. The second step also consisted of reflecting on 10 questions (five for
exploitation and five for exploration) from the logic model. The objective here was to identify critical information needed
for the management team to ascertain that activities were aligned with customer needs. The critical information consisted
of the indicators. The third step involved testing the indicators, as described in the methodology section. The three-step
process focused on innovation activities and drew on the creativity of the management team, and this helped them focus

_________________________________________________________________________________________________

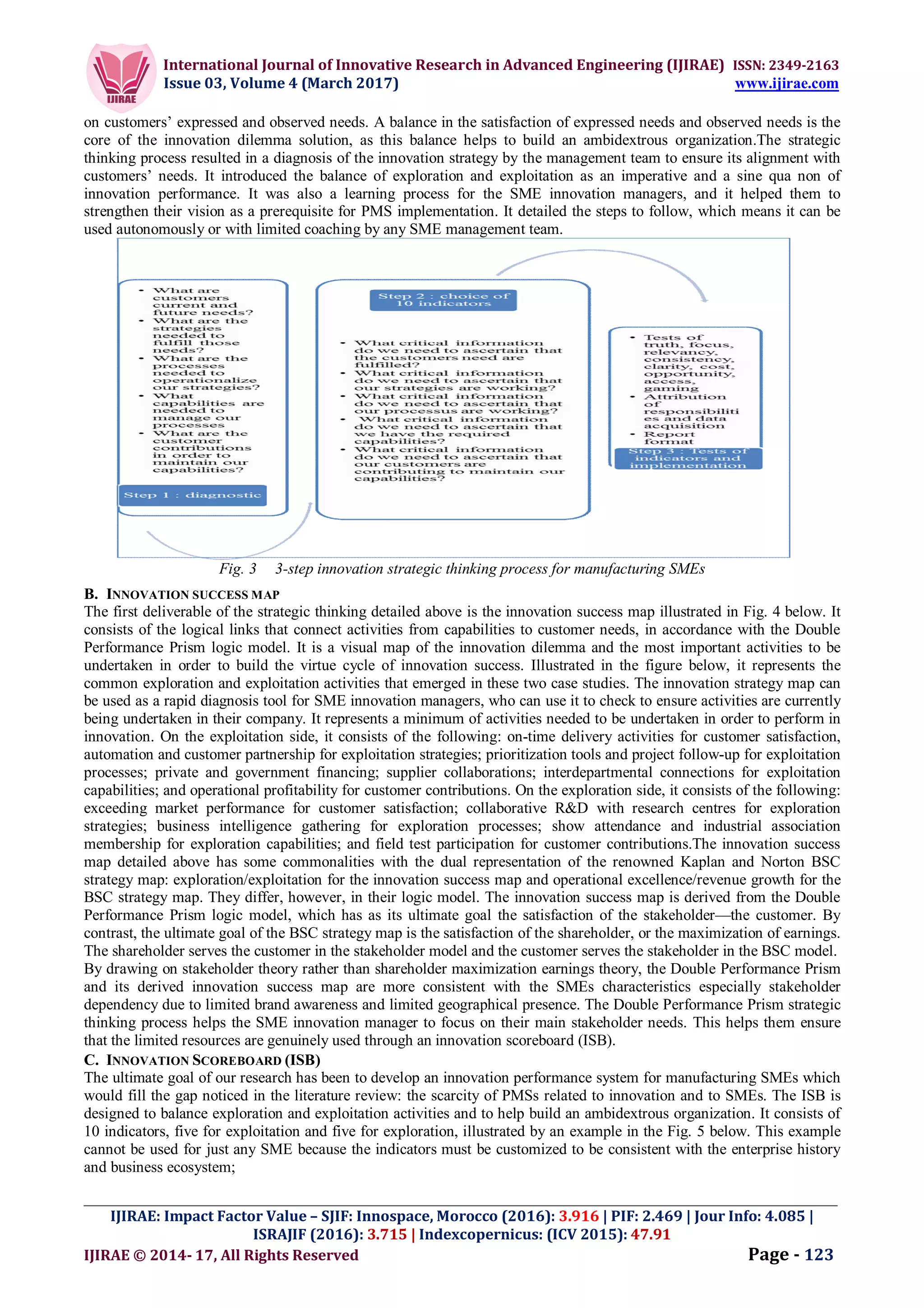

on customers’ expressed and observed needs. A balance in the satisfaction of expressed needs and observed needs is the
core of the innovation dilemma solution, as this balance helps to build an ambidextrous organization.The strategic
thinking process resulted in a diagnosis of the innovation strategy by the management team to ensure its alignment with
customers’ needs. It introduced the balance of exploration and exploitation as an imperative and a sine qua non of
innovation performance. It was also a learning process for the SME innovation managers, and it helped them to
strengthen their vision as a prerequisite for PMS implementation. It detailed the steps to follow, which means it can be
used autonomously or with limited coaching by any SME management team.
Fig. 3 3-step innovation strategic thinking process for manufacturing SMEs
B. INNOVATION SUCCESS MAP
The first deliverable of the strategic thinking detailed above is the innovation success map illustrated in Fig. 4 below. It
consists of the logical links that connect activities from capabilities to customer needs, in accordance with the Double
Performance Prism logic model. It is a visual map of the innovation dilemma and the most important activities to be
undertaken in order to build the virtue cycle of innovation success. Illustrated in the figure below, it represents the
common exploration and exploitation activities that emerged in these two case studies. The innovation strategy map can
be used as a rapid diagnosis tool for SME innovation managers, who can use it to check to ensure activities are currently
being undertaken in their company. It represents a minimum of activities needed to be undertaken in order to perform in
innovation. On the exploitation side, it consists of the following: on-time delivery activities for customer satisfaction,
automation and customer partnership for exploitation strategies; prioritization tools and project follow-up for exploitation
processes; private and government financing; supplier collaborations; interdepartmental connections for exploitation
capabilities; and operational profitability for customer contributions. On the exploration side, it consists of the following:
exceeding market performance for customer satisfaction; collaborative R&D with research centres for exploration
strategies; business intelligence gathering for exploration processes; show attendance and industrial association
membership for exploration capabilities; and field test participation for customer contributions.The innovation success
map detailed above has some commonalities with the dual representation of the renowned Kaplan and Norton BSC
strategy map: exploration/exploitation for the innovation success map and operational excellence/revenue growth for the
BSC strategy map. They differ, however, in their logic model. The innovation success map is derived from the Double
Performance Prism logic model, which has as its ultimate goal the satisfaction of the stakeholder—the customer. By
contrast, the ultimate goal of the BSC strategy map is the satisfaction of the shareholder, or the maximization of earnings.
The shareholder serves the customer in the stakeholder model and the customer serves the stakeholder in the BSC model.
By drawing on stakeholder theory rather than shareholder maximization earnings theory, the Double Performance Prism
and its derived innovation success map are more consistent with the SMEs characteristics especially stakeholder
dependency due to limited brand awareness and limited geographical presence. The Double Performance Prism strategic
thinking process helps the SME innovation manager to focus on their main stakeholder needs. This helps them ensure
that the limited resources are genuinely used through an innovation scoreboard (ISB).
C. INNOVATION SCOREBOARD (ISB)
The ultimate goal of our research has been to develop an innovation performance system for manufacturing SMEs which
would fill the gap noticed in the literature review: the scarcity of PMSs related to innovation and to SMEs. The ISB is
designed to balance exploration and exploitation activities and to help build an ambidextrous organization. It consists of
10 indicators, five for exploitation and five for exploration, illustrated by an example in the Fig. 5 below. This example
cannot be used for just any SME because the indicators must be customized to be consistent with the enterprise history
and business ecosystem;

_________________________________________________________________________________________________
it as an example only. In the exploitation aspect, the on-time delivery percentage represents customer satisfaction, the
number of automated projects represents the exploitation strategy, the project completion time represents the exploitation
process, the number of projects co-developed with suppliers represents the exploitation capabilities, and the operational
profitability represents the contribution of the customer. In the exploration aspect, the rate of sales from new products
represents customer satisfaction, the ratio of R&D expenditures represents the exploration strategy, the time spent in
learning new techniques represents the exploration capabilities, and customer feedback represents the customer
contribution.
Fig. 4 Innovation success map: activities that must be developed in manufacturing SMEs in order to balance
exploitation and exploration
The ISB presents exploration and exploitation indicators simultaneously and therefore reduces the risk of innovation
managers focusing exclusively on activities related to their comfort zone or path dependency. For enterprises whose
comfort zone is exploitation, managers have learned to master process optimization for more earnings and productivity.
They face the challenge of renewing their technologies and competencies. The process of implementing an ISB can help
them turn their company to exploration activities, which can help them monitor business intelligence and assess
technology threats to their business by working with research centres. For enterprises whose comfort zone is exploration,
managers have built the company on its technological assets and sometimes its patents; they are aware of new
technologies and market trends, and they have excelled in new ideas and projects. Their challenge, which is a complex
one, is a deeper penetration of the market and the optimization of their processes and products for non-specialized
markets. The implementation of an ISB can help them turn the company in that direction.

_________________________________________________________________________________________________

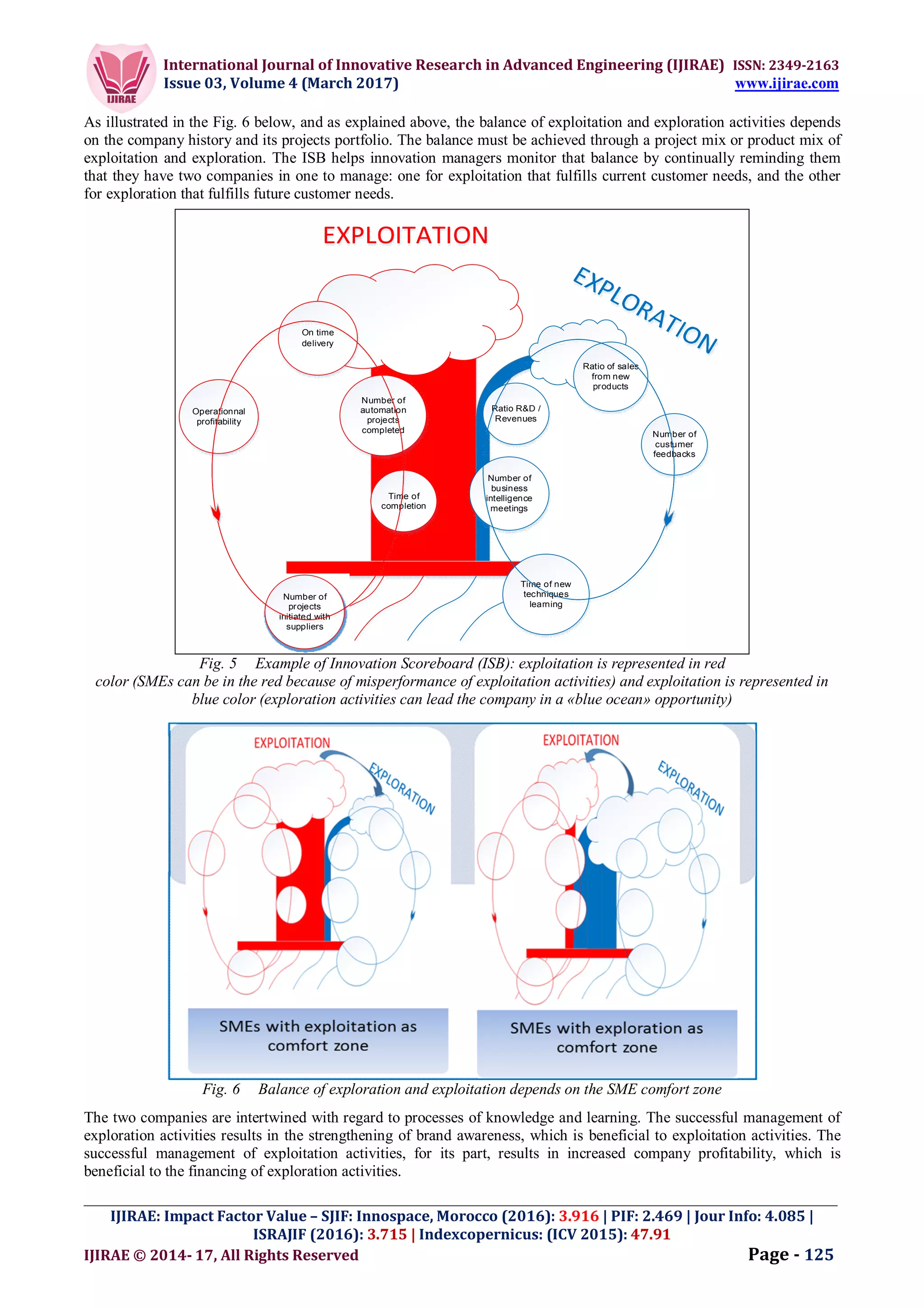

As illustrated in the Fig. 6 below, and as explained above, the balance of exploitation and exploration activities depends
on the company history and its projects portfolio. The balance must be achieved through a project mix or product mix of
exploitation and exploration. The ISB helps innovation managers monitor that balance by continually reminding them
that they have two companies in one to manage: one for exploitation that fulfills current customer needs, and the other
for exploration that fulfills future customer needs.
On time
delivery
Number of
automation
projects
completed
Time of
completion
Number of
projects
initiated with
suppliers
Operationnal
profitability
Ratio of sales
from new
products
Number of
custumer
feedbacks
Number of
business
intelligence
meetings
Time of new
techniques
learning
Ratio R&D /
Revenues
EXPLOITATION
Fig. 5 Example of Innovation Scoreboard (ISB): exploitation is represented in red
color (SMEs can be in the red because of misperformance of exploitation activities) and exploitation is represented in
blue color (exploration activities can lead the company in a «blue ocean» opportunity)
Fig. 6 Balance of exploration and exploitation depends on the SME comfort zone
The two companies are intertwined with regard to processes of knowledge and learning. The successful management of
exploration activities results in the strengthening of brand awareness, which is beneficial to exploitation activities. The
successful management of exploitation activities, for its part, results in increased company profitability, which is
beneficial to the financing of exploration activities.

_________________________________________________________________________________________________

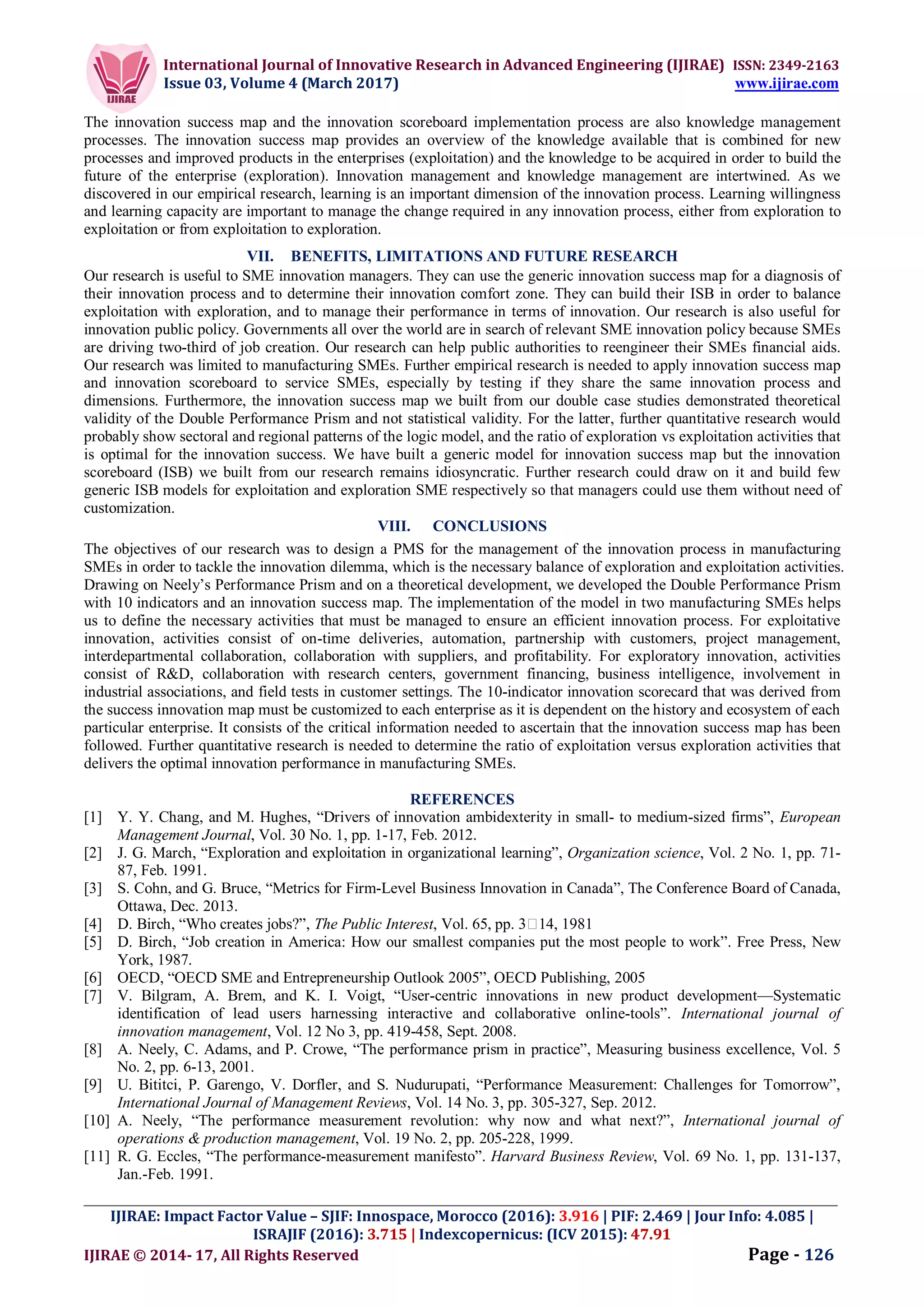

The innovation success map and the innovation scoreboard implementation process are also knowledge management
processes. The innovation success map provides an overview of the knowledge available that is combined for new
processes and improved products in the enterprises (exploitation) and the knowledge to be acquired in order to build the
future of the enterprise (exploration). Innovation management and knowledge management are intertwined. As we
discovered in our empirical research, learning is an important dimension of the innovation process. Learning willingness
and learning capacity are important to manage the change required in any innovation process, either from exploration to
exploitation or from exploitation to exploration.
VII. BENEFITS, LIMITATIONS AND FUTURE RESEARCH
Our research is useful to SME innovation managers. They can use the generic innovation success map for a diagnosis of
their innovation process and to determine their innovation comfort zone. They can build their ISB in order to balance
exploitation with exploration, and to manage their performance in terms of innovation. Our research is also useful for
innovation public policy. Governments all over the world are in search of relevant SME innovation policy because SMEs
are driving two-third of job creation. Our research can help public authorities to reengineer their SMEs financial aids.
Our research was limited to manufacturing SMEs. Further empirical research is needed to apply innovation success map
and innovation scoreboard to service SMEs, especially by testing if they share the same innovation process and
dimensions. Furthermore, the innovation success map we built from our double case studies demonstrated theoretical
validity of the Double Performance Prism and not statistical validity. For the latter, further quantitative research would
probably show sectoral and regional patterns of the logic model, and the ratio of exploration vs exploitation activities that
is optimal for the innovation success. We have built a generic model for innovation success map but the innovation
scoreboard (ISB) we built from our research remains idiosyncratic. Further research could draw on it and build few
generic ISB models for exploitation and exploration SME respectively so that managers could use them without need of
customization.
VIII. CONCLUSIONS
The objectives of our research was to design a PMS for the management of the innovation process in manufacturing
SMEs in order to tackle the innovation dilemma, which is the necessary balance of exploration and exploitation activities.
Drawing on Neely’s Performance Prism and on a theoretical development, we developed the Double Performance Prism
with 10 indicators and an innovation success map. The implementation of the model in two manufacturing SMEs helps
us to define the necessary activities that must be managed to ensure an efficient innovation process. For exploitative
innovation, activities consist of on-time deliveries, automation, partnership with customers, project management,
interdepartmental collaboration, collaboration with suppliers, and profitability. For exploratory innovation, activities
consist of R&D, collaboration with research centers, government financing, business intelligence, involvement in
industrial associations, and field tests in customer settings. The 10-indicator innovation scorecard that was derived from
the success innovation map must be customized to each enterprise as it is dependent on the history and ecosystem of each
particular enterprise. It consists of the critical information needed to ascertain that the innovation success map has been
followed. Further quantitative research is needed to determine the ratio of exploitation versus exploration activities that
delivers the optimal innovation performance in manufacturing SMEs.
REFERENCES
[1] Y. Y. Chang, and M. Hughes, “Drivers of innovation ambidexterity in small- to medium-sized firms”, European
Management Journal, Vol. 30 No. 1, pp. 1-17, Feb. 2012.
[2] J. G. March, “Exploration and exploitation in organizational learning”, Organization science, Vol. 2 No. 1, pp. 71-
87, Feb. 1991.
[3] S. Cohn, and G. Bruce, “Metrics for Firm-Level Business Innovation in Canada”, The Conference Board of Canada,
Ottawa, Dec. 2013.
[4] D. Birch, “Who creates jobs?”, The Public Interest, Vol. 65, pp. 3 14, 1981
[5] D. Birch, “Job creation in America: How our smallest companies put the most people to work”. Free Press, New
York, 1987.
[6] OECD, “OECD SME and Entrepreneurship Outlook 2005”, OECD Publishing, 2005
[7] V. Bilgram, A. Brem, and K. I. Voigt, “User-centric innovations in new product development—Systematic
identification of lead users harnessing interactive and collaborative online-tools”. International journal of
innovation management, Vol. 12 No 3, pp. 419-458, Sept. 2008.
[8] A. Neely, C. Adams, and P. Crowe, “The performance prism in practice”, Measuring business excellence, Vol. 5
No. 2, pp. 6-13, 2001.
[9] U. Bititci, P. Garengo, V. Dorfler, and S. Nudurupati, “Performance Measurement: Challenges for Tomorrow”,
International Journal of Management Reviews, Vol. 14 No. 3, pp. 305-327, Sep. 2012.
[10] A. Neely, “The performance measurement revolution: why now and what next?”, International journal of
operations & production management, Vol. 19 No. 2, pp. 205-228, 1999.
[11] R. G. Eccles, “The performance-measurement manifesto”. Harvard Business Review, Vol. 69 No. 1, pp. 131-137,
Jan.-Feb. 1991.

_________________________________________________________________________________________________

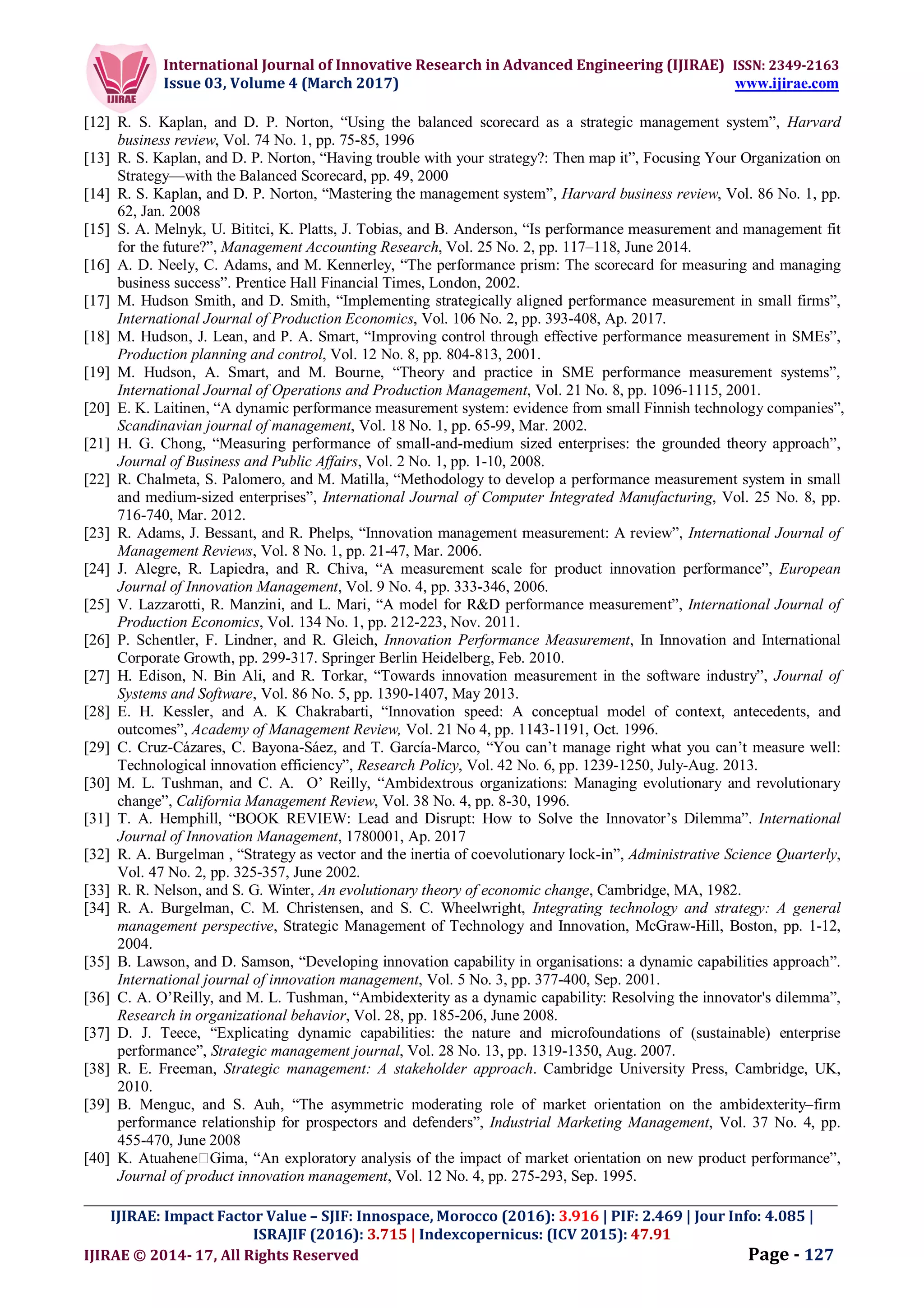

[12] R. S. Kaplan, and D. P. Norton, “Using the balanced scorecard as a strategic management system”, Harvard
business review, Vol. 74 No. 1, pp. 75-85, 1996
[13] R. S. Kaplan, and D. P. Norton, “Having trouble with your strategy?: Then map it”, Focusing Your Organization on
Strategy—with the Balanced Scorecard, pp. 49, 2000
[14] R. S. Kaplan, and D. P. Norton, “Mastering the management system”, Harvard business review, Vol. 86 No. 1, pp.
62, Jan. 2008
[15] S. A. Melnyk, U. Bititci, K. Platts, J. Tobias, and B. Anderson, “Is performance measurement and management fit
for the future?”, Management Accounting Research, Vol. 25 No. 2, pp. 117–118, June 2014.
[16] A. D. Neely, C. Adams, and M. Kennerley, “The performance prism: The scorecard for measuring and managing
business success”. Prentice Hall Financial Times, London, 2002.
[17] M. Hudson Smith, and D. Smith, “Implementing strategically aligned performance measurement in small firms”,
International Journal of Production Economics, Vol. 106 No. 2, pp. 393-408, Ap. 2017.
[18] M. Hudson, J. Lean, and P. A. Smart, “Improving control through effective performance measurement in SMEs”,
Production planning and control, Vol. 12 No. 8, pp. 804-813, 2001.
[19] M. Hudson, A. Smart, and M. Bourne, “Theory and practice in SME performance measurement systems”,
International Journal of Operations and Production Management, Vol. 21 No. 8, pp. 1096-1115, 2001.
[20] E. K. Laitinen, “A dynamic performance measurement system: evidence from small Finnish technology companies”,
Scandinavian journal of management, Vol. 18 No. 1, pp. 65-99, Mar. 2002.
[21] H. G. Chong, “Measuring performance of small-and-medium sized enterprises: the grounded theory approach”,
Journal of Business and Public Affairs, Vol. 2 No. 1, pp. 1-10, 2008.
[22] R. Chalmeta, S. Palomero, and M. Matilla, “Methodology to develop a performance measurement system in small
and medium-sized enterprises”, International Journal of Computer Integrated Manufacturing, Vol. 25 No. 8, pp.
716-740, Mar. 2012.
[23] R. Adams, J. Bessant, and R. Phelps, “Innovation management measurement: A review”, International Journal of
Management Reviews, Vol. 8 No. 1, pp. 21-47, Mar. 2006.
[24] J. Alegre, R. Lapiedra, and R. Chiva, “A measurement scale for product innovation performance”, European
Journal of Innovation Management, Vol. 9 No. 4, pp. 333-346, 2006.
[25] V. Lazzarotti, R. Manzini, and L. Mari, “A model for R&D performance measurement”, International Journal of
Production Economics, Vol. 134 No. 1, pp. 212-223, Nov. 2011.
[26] P. Schentler, F. Lindner, and R. Gleich, Innovation Performance Measurement, In Innovation and International
Corporate Growth, pp. 299-317. Springer Berlin Heidelberg, Feb. 2010.
[27] H. Edison, N. Bin Ali, and R. Torkar, “Towards innovation measurement in the software industry”, Journal of
Systems and Software, Vol. 86 No. 5, pp. 1390-1407, May 2013.
[28] E. H. Kessler, and A. K Chakrabarti, “Innovation speed: A conceptual model of context, antecedents, and
outcomes”, Academy of Management Review, Vol. 21 No 4, pp. 1143-1191, Oct. 1996.
[29] C. Cruz-Cázares, C. Bayona-Sáez, and T. García-Marco, “You can’t manage right what you can’t measure well:
Technological innovation efficiency”, Research Policy, Vol. 42 No. 6, pp. 1239-1250, July-Aug. 2013.
[30] M. L. Tushman, and C. A. O’ Reilly, “Ambidextrous organizations: Managing evolutionary and revolutionary
change”, California Management Review, Vol. 38 No. 4, pp. 8-30, 1996.
[31] T. A. Hemphill, “BOOK REVIEW: Lead and Disrupt: How to Solve the Innovator’s Dilemma”. International
Journal of Innovation Management, 1780001, Ap. 2017
[32] R. A. Burgelman , “Strategy as vector and the inertia of coevolutionary lock-in”, Administrative Science Quarterly,
Vol. 47 No. 2, pp. 325-357, June 2002.
[33] R. R. Nelson, and S. G. Winter, An evolutionary theory of economic change, Cambridge, MA, 1982.
[34] R. A. Burgelman, C. M. Christensen, and S. C. Wheelwright, Integrating technology and strategy: A general
management perspective, Strategic Management of Technology and Innovation, McGraw-Hill, Boston, pp. 1-12,
2004.
[35] B. Lawson, and D. Samson, “Developing innovation capability in organisations: a dynamic capabilities approach”.
International journal of innovation management, Vol. 5 No. 3, pp. 377-400, Sep. 2001.
[36] C. A. O’Reilly, and M. L. Tushman, “Ambidexterity as a dynamic capability: Resolving the innovator's dilemma”,
Research in organizational behavior, Vol. 28, pp. 185-206, June 2008.
[37] D. J. Teece, “Explicating dynamic capabilities: the nature and microfoundations of (sustainable) enterprise
performance”, Strategic management journal, Vol. 28 No. 13, pp. 1319-1350, Aug. 2007.
[38] R. E. Freeman, Strategic management: A stakeholder approach. Cambridge University Press, Cambridge, UK,
2010.
[39] B. Menguc, and S. Auh, “The asymmetric moderating role of market orientation on the ambidexterity–firm
performance relationship for prospectors and defenders”, Industrial Marketing Management, Vol. 37 No. 4, pp.
455-470, June 2008
[40] K. Atuahene Gima, “An exploratory analysis of the impact of market orientation on new product performance”,
Journal of product innovation management, Vol. 12 No. 4, pp. 275-293, Sep. 1995.

_________________________________________________________________________________________________

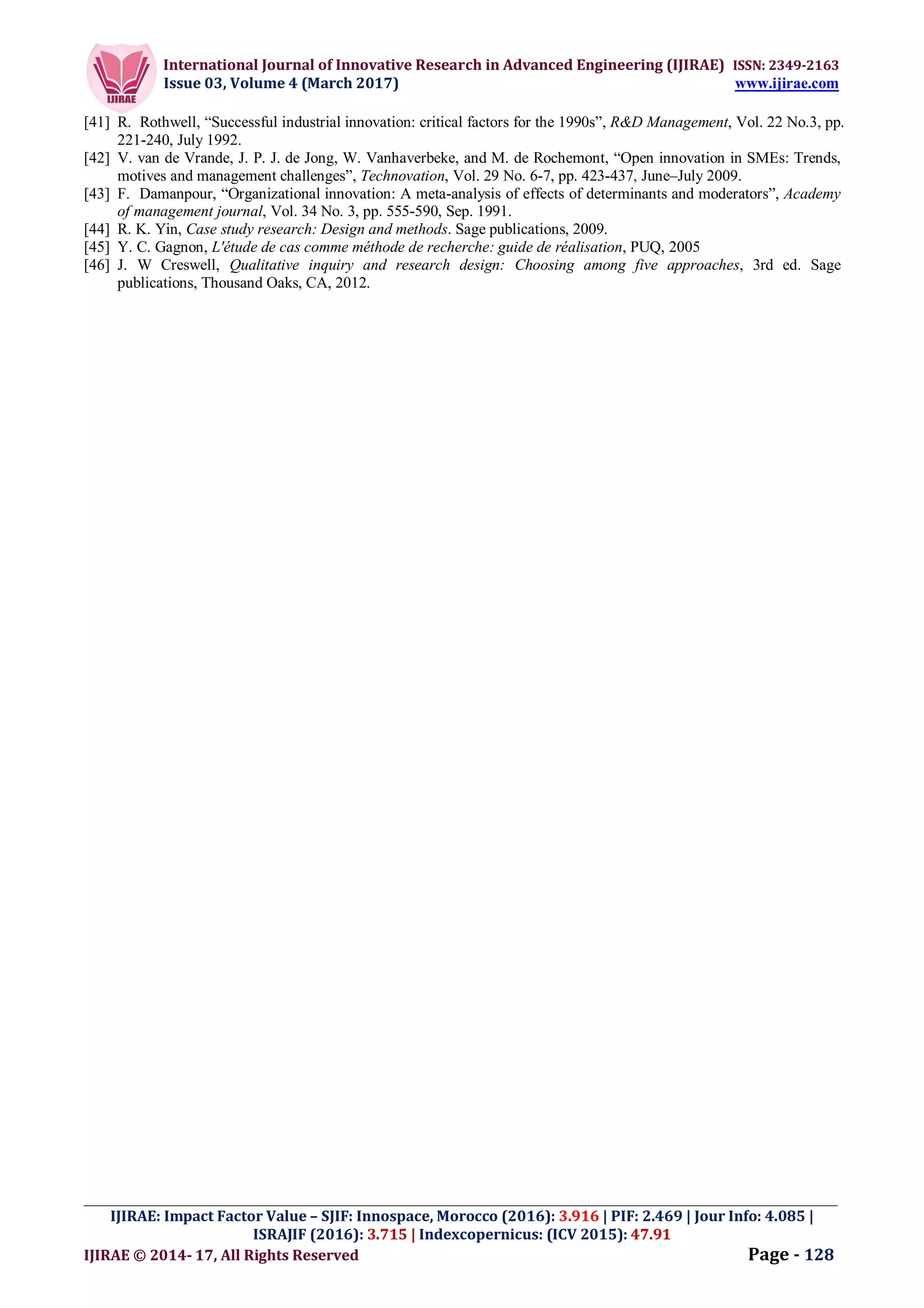

[41] R. Rothwell, “Successful industrial innovation: critical factors for the 1990s”, R&D Management, Vol. 22 No.3, pp.
221-240, July 1992.
[42] V. van de Vrande, J. P. J. de Jong, W. Vanhaverbeke, and M. de Rochemont, “Open innovation in SMEs: Trends,
motives and management challenges”, Technovation, Vol. 29 No. 6-7, pp. 423-437, June–July 2009.
[43] F. Damanpour, “Organizational innovation: A meta-analysis of effects of determinants and moderators”, Academy
of management journal, Vol. 34 No. 3, pp. 555-590, Sep. 1991.
[44] R. K. Yin, Case study research: Design and methods. Sage publications, 2009.
[45] Y. C. Gagnon, L'étude de cas comme méthode de recherche: guide de réalisation, PUQ, 2005
[46] J. W Creswell, Qualitative inquiry and research design: Choosing among five approaches, 3rd ed. Sage
publications, Thousand Oaks, CA, 2012.

Double Performance Prism: innovation performance Measurement systems for manufacturing SMEs

More Related Content

What's hot

Similar to Double Performance Prism: innovation performance Measurement systems for manufacturing SMEs

More from AM Publications

Recently uploaded

Double Performance Prism: innovation performance Measurement systems for manufacturing SMEs
