DOOR CONTROLS Parts Catalog w/ Stanley Part #'s

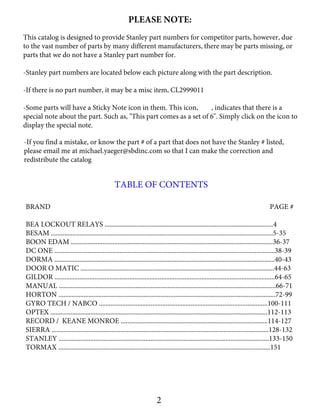

PLEASE NOTE: This catalog is designed to provide Stanley part numbers for competitor parts, however, due to the vast number of parts by many different manufacturers, there may be parts missing, or parts that we do not have a Stanley part number for. -Stanley part numbers are located below each picture along with the part description. -If there is no part number, it may be a misc item, CL2999011 -Some parts will have a Sticky Note icon in them. This icon, , indicates that there is a special note about the part. Such as, "This part comes as a set of 6". Simply click on the icon to display the special note. 2 -If you find a mistake, or know the part # of a part that does not have the Stanley # listed, please email me at michael.yaeger@sbdinc.com so that I can make the correction and redistribute the catalog TABLE OF CONTENTS BRAND PAGE # BEA LOCKOUT RELAYS .....................................................................................................4 BESAM .....................................................................................................................................5-35 BOON EDAM .........................................................................................................................36-37 DC ONE ....................................................................................................................................38-39 DORMA ....................................................................................................................................40-43 DOOR O MATIC ....................................................................................................................44-63 GILDOR ....................................................................................................................................64-65 MANUAL ..................................................................................................................................66-71 HORTON ..................................................................................................................................72-99 GYRO TECH / NABCO .....................................................................................................100-111 OPTEX ..................................................................................................................................112-113 RECORD / KEANE MONROE ........................................................................................114-127 SIERRA ..................................................................................................................................128-132 STANLEY ..............................................................................................................................133-150 TORMAX ...............................................................................................................................151

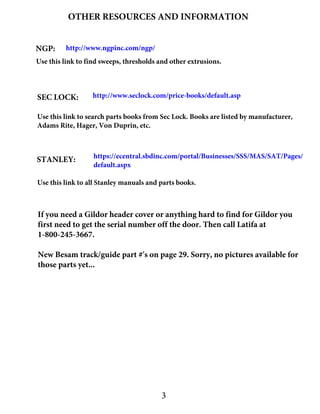

OTHER RESOURCES AND INFORMATION NGP: http://www.ngpinc.com/ngp/ Use this link to find sweeps, thresholds and other extrusions. SEC LOCK: http://www.seclock.com/price-books/default.asp Use this link to search parts books from Sec Lock. Books are listed by manufacturer, Adams Rite, Hager, Von Duprin, etc. STANLEY: https://ecentral.sbdinc.com/portal/Businesses/SSS/MAS/SAT/Pages/ default.aspx Use this link to all Stanley manuals and parts books. 3 If you need a Gildor header cover or anything hard to find for Gildor you first need to get the serial number off the door. Then call Latifa at 1-800-245-3667. New Besam track/guide part #'s on page 29. Sorry, no pictures available for those parts yet...

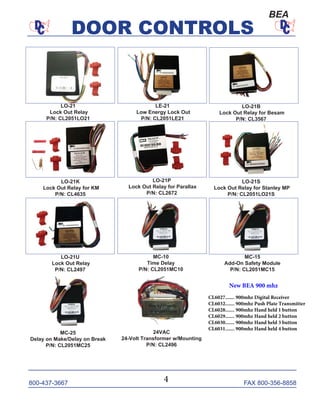

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS LO-21 Lock Out Relay P/N: CL2051LO21 MC-10 Time Delay P/N: CL2051MC10 MC-25 Delay on Make/Delay on Break P/N: CL2051MC25 LE-21 Low Energy Lock Out P/N: CL2051LE21 LO-21B Lock Out Relay for Besam P/N: CL3567 LO-21S Lock Out Relay for Stanley MP P/N: CL2051LO21S LO-21P Lock Out Relay for Parallax P/N: CL2672 LO-21K Lock Out Relay for KM P/N: CL4635 LO-21U Lock Out Relay P/N: CL2497 MC-15 Add-On Safety Module P/N: CL2051MC15 24VAC 24-Volt Transformer w/Mounting P/N: CL2496 BEA 4 New BEA 900 mhz CL6027....... 900mhz Digital Receiver CL6032....... 900mhz Push Plate Transmitter CL6028....... 900mhz Hand held 1 button CL6029....... 900mhz Hand held 2 button CL6030....... 900mhz Hand held 3 button CL6031....... 900mhz Hand held 4 button

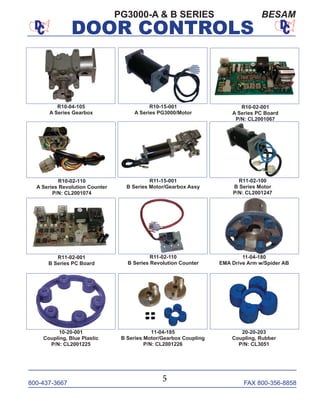

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS R10-02-001 A Series PC Board P/N: CL2001067 R10-02-110 A Series Revolution Counter P/N: CL2001074 R10-04-105 A Series Gearbox R10-15-001 A Series PG3000/Motor R11-02-100 B Series Motor P/N: CL2001247 R11-15-001 B Series Motor/Gearbox Assy R11-02-110 B Series Revolution Counter R11-02-001 B Series PC Board 11-04-180 EMA Drive Arm w/Spider AB 10-20-001 Coupling, Blue Plastic P/N: CL2001225 11-04-185 B Series Motor/Gearbox Coupling P/N: CL2001226 20-20-203 Coupling, Rubber P/N: CL3051 BESAMPG3000-A & B SERIES 5

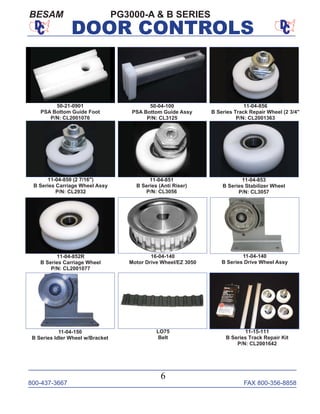

800-437-3667 FAX 800-356-8858 6 DOOR CONTROLS 11-04-850 (2 7/16") B Series Carriage Wheel Assy P/N: CL2932 11-04-853 B Series Stabilizer Wheel P/N: CL3057 11-04-852R B Series Carriage Wheel P/N: CL2001077 11-04-851 B Series (Anti Riser) P/N: CL3056 11-04-856 B Series Track Repair Wheel (2 3/4" P/N: CL2001363 11-04-150 B Series Idler Wheel w/Bracket 11-04-140 B Series Drive Wheel Assy 16-04-140 Motor Drive Wheel/EZ 3050 LO75 Belt 50-21-0901 PSA Bottom Guide Foot P/N: CL2001076 50-04-100 PSA Bottom Guide Assy P/N: CL3125 11-15-111 B Series Track Repair Kit P/N: CL2001642 BESAM PG3000-A & B SERIES

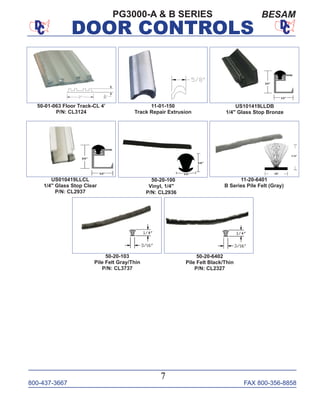

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 7 DOOR CONTROLS PG3000-A & B SERIES US101419LLDB 1/4" Glass Stop Bronze US010419LLCL 1/4" Glass Stop Clear P/N: CL2937 11-01-150 Track Repair Extrusion 50-01-063 Floor Track-CL 4’ P/N: CL3124 11-20-6401 B Series Pile Felt (Gray) 50-20-103 Pile Felt Gray/Thin P/N: CL3737 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-100 Vinyl, 1/4" P/N: CL2936 BESAM

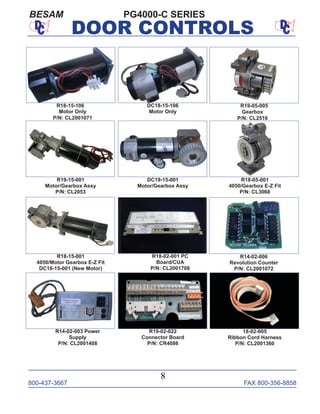

800-437-3667 FAX 800-356-8858 8 DOOR CONTROLS R14-02-006 Revolution Counter P/N: CL2001072 R14-02-003 Power Supply P/N: CL2001408 R19-02-022 Connector Board P/N: CR4086 R18-02-001 PC Board/CUA P/N: CL2001708 R19-15-001 Motor/Gearbox Assy P/N: CL2053 R18-15-106 Motor Only P/N: CL2001071 18-02-005 Ribbon Cord Harness P/N: CL2001360 DC18-15-106 Motor Only R18-15-001 4050/Motor Gearbox E-Z Fit DC18-15-001 (New Motor) R19-05-005 Gearbox P/N: CL2516 R18-05-001 4050/Gearbox E-Z Fit P/N: CL3068 DC19-15-001 Motor/Gearbox Assy PG4000-C SERIESBESAM

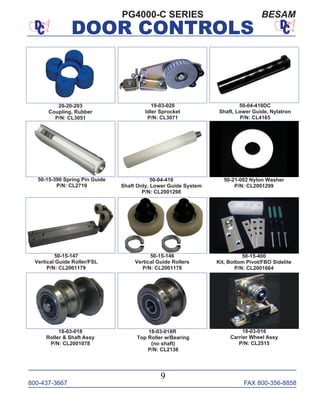

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 9 DOOR CONTROLS PG4000-C SERIES BESAM 18-03-018 Roller & Shaft Assy P/N: CL2001078 18-03-018R Top Roller w/Bearing (no shaft) P/N: CL2136 50-04-410 Shaft Only, Lower Guide System P/N: CL2001298 18-03-016 Carrier Wheel Assy P/N: CL2515 50-04-410DC Shaft, Lower Guide, Nylatron P/N: CL4165 50-15-146 Vertical Guide Rollers P/N: CL2001178 50-15-147 Vertical Guide Roller/FSL P/N: CL2001179 50-15-400 Kit, Bottom Pivot/FBO Sidelite P/N: CL2001664 19-03-020 Idler Sprocket P/N: CL3071 50-15-390 Spring Pin Guide P/N: CL2719 50-21-002 Nylon Washer P/N: CL2001299 20-20-203 Coupling, Rubber P/N: CL3051

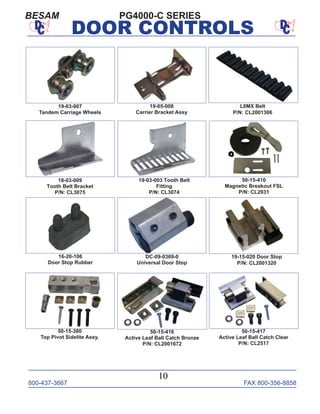

800-437-3667 FAX 800-356-8858 10 DOOR CONTROLS PG4000-C SERIESBESAM 19-05-008 Carrier Bracket Assy L8MX Belt P/N: CL2001306 18-03-009 Tooth Belt Bracket P/N: CL3075 19-03-003 Tooth Belt Fitting P/N: CL3074 50-15-410 Magnetic Breakout FSL P/N: CL2931 16-20-106 Door Stop Rubber 19-15-020 Door Stop P/N: CL2001320 19-03-007 Tandem Carriage Wheels DC-09-0369-0 Universal Door Stop 50-15-417 Active Leaf Ball Catch Clear P/N: CL2517 50-15-380 Top Pivot Sidelite Assy. 50-15-416 Active Leaf Ball Catch Bronze P/N: CL2001672

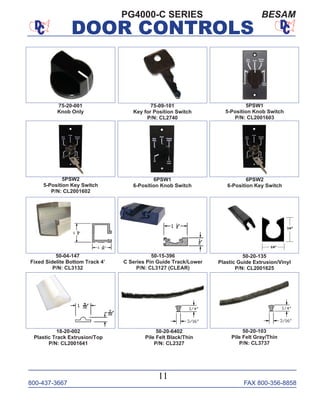

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 11 DOOR CONTROLS PG4000-C SERIES BESAM 75-09-101 Key for Position Switch P/N: CL2740 5PSW1 5-Position Knob Switch P/N: CL2001603 75-20-001 Knob Only 50-04-147 Fixed Sidelite Bottom Track 4’ P/N: CL3132 50-20-135 Plastic Guide Extrusion/Vinyl P/N: CL2001625 50-15-396 C Series Pin Guide Track/Lower P/N: CL3127 (CLEAR) 6PSW1 6-Position Knob Switch 6PSW2 6-Position Key Switch 5PSW2 5-Position Key Switch P/N: CL2001602 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-103 Pile Felt Gray/Thin P/N: CL3737 18-20-002 Plastic Track Extrusion/Top P/N: CL2001641

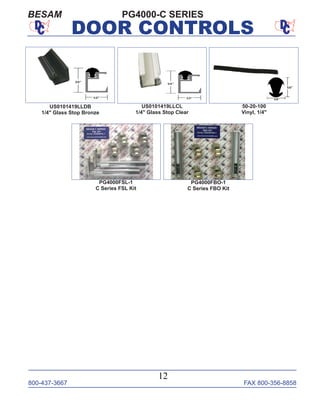

800-437-3667 FAX 800-356-8858 12 DOOR CONTROLS PG4000-C SERIESBESAM US0101419LLDB 1/4" Glass Stop Bronze US0101419LLCL 1/4" Glass Stop Clear PG4000FSL-1 C Series FSL Kit PG4000FBO-1 C Series FBO Kit 50-20-100 Vinyl, 1/4"

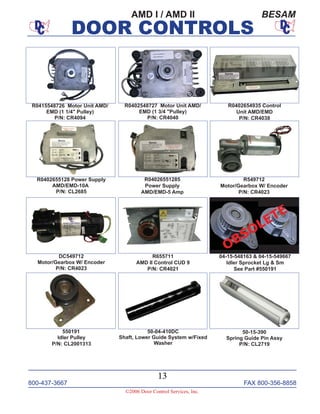

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 13 ©2006 Door Control Services, Inc. DOOR CONTROLS AMD I / AMD II BESAM R0415548726 Motor Unit AMD/ EMD (1 1/4" Pulley) P/N: CR4094 R0402548727 Motor Unit AMD/ EMD (1 3/4 "Pulley) P/N: CR4040 R04026551285 Power Supply AMD/EMD-5 Amp R0402655128 Power Supply AMD/EMD-10A P/N: CL2685 R0402654935 Control Unit AMD/EMD P/N: CR4038 R655711 AMD II Control CUD 9 P/N: CR4021 R549712 Motor/Gearbox W/ Encoder P/N: CR4023 04-15-548163 & 04-15-549667 Idler Sprocket Lg & Sm See Part #550191 50-04-410DC Shaft, Lower Guide System w/Fixed Washer OBSOLETE 550191 Idler Pulley P/N: CL2001313 50-15-390 Spring Guide Pin Assy P/N: CL2719 DC549712 Motor/Gearbox W/ Encoder P/N: CR4023

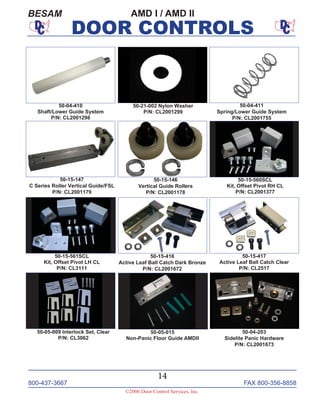

800-437-3667 FAX 800-356-8858 14 ©2006 Door Control Services, Inc. DOOR CONTROLS AMD I / AMD IIBESAM 50-15-146 Vertical Guide Rollers P/N: CL2001178 50-15-147 C Series Roller Vertical Guide/FSL P/N: CL2001179 50-21-002 Nylon Washer P/N: CL2001299 50-04-411 Spring/Lower Guide System P/N: CL2001755 50-05-009 Interlock Set, Clear P/N: CL3062 50-05-015 Non-Panic Floor Guide AMDII 50-15-560SCL Kit, Offset Pivot RH CL P/N: CL2001377 50-15-561SCL Kit, Offset Pivot LH CL P/N: CL3111 50-15-416 Active Leaf Ball Catch Dark Bronze P/N: CL2001672 50-15-417 Active Leaf Ball Catch Clear P/N: CL2517 50-04-203 Sidelite Panic Hardware P/N: CL2001673 50-04-410 Shaft/Lower Guide System P/N: CL2001298

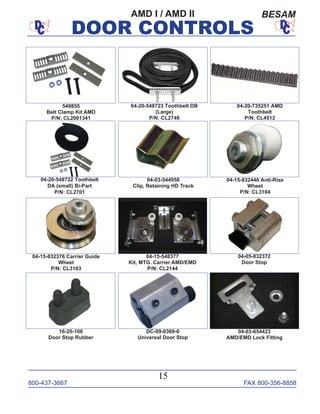

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 15 DOOR CONTROLS AMD I / AMD II BESAM 04-20-548722 Toothbelt DA (small) Bi-Part P/N: CL2701 04-20-735251 AMD Toothbelt P/N: CL4512 04-03-544958 Clip, Retaining HD Track 04-05-832372 Door Stop 04-15-548377 Kit, MTG. Carrier AMD/EMD P/N: CL2144 04-20-548723 Toothbelt DB (Large) P/N: CL2748 04-15-832440 Anti-Rise Wheel P/N: CL3104 04-15-832376 Carrier Guide Wheel P/N: CL3103 16-20-106 Door Stop Rubber DC-09-0369-0 Universal Door Stop 04-03-654423 AMD/EMD Lock Fitting 549855 Belt Clamp Kit AMD P/N: CL2001341

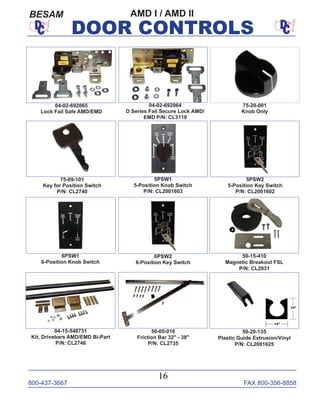

800-437-3667 FAX 800-356-8858 16 DOOR CONTROLS 75-09-101 Key for Position Switch P/N: CL2740 5PSW1 5-Position Knob Switch P/N: CL2001603 6PSW1 6-Position Knob Switch 6PSW2 6-Position Key Switch 5PSW2 5-Position Key Switch P/N: CL2001602 04-15-548731 Kit, Drivebars AMD/EMD Bi-Part P/N: CL2746 50-15-410 Magnetic Breakout FSL P/N: CL2931 50-05-016 Friction Bar 32" - 38" P/N: CL2735 04-02-692064 D Series Fail Secure Lock AMD/ EMD P/N: CL3119 75-20-001 Knob Only 50-20-135 Plastic Guide Extrusion/Vinyl P/N: CL2001625 04-02-692065 Lock Fail Safe AMD/EMD AMD I / AMD IIBESAM
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 17 DOOR CONTROLS AMD I / AMD II BESAM 04-21-701239 AMD Top Track P/N: CL3102 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-103 Pile Felt Gray/Thin P/N: CL3737 US0101419LLCL 1/4" Glass Stop Clear US0101419LLDB 1/4" Glass Stop Bronze AMDFBO-1 AMD I & II FBO Kit 50-04-147 Fixed Sidelite Bottom Track 4’ P/N: CL3132 50-01-600 Single Slide Threshold W/ Vinyl P/N: CL3789 50-01-602 Filler Strip, Threshold P/N: CL4151 50-01-620 Publix Threshold Lead-Up CL P/N: CL3790 50-15-475 Lower Guide Track P/N: CL2340 50-20-100 Vinyl, 1/4" P/N: CL2936

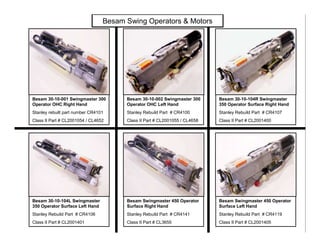

Besam Swingmaster 450 Operator Surface Left Hand Stanley Rebuild Part # CR4119 Class II Part # CL2001405 Besam Swingmaster 450 Operator Surface Right Hand Stanley Rebuild Part # CR4141 Class II Part # CL3655 Besam 30-10-104L Swingmaster 350 Operator Surface Left Hand Stanley Rebuild Part # CR4106 Class II Part # CL2001401 Besam 30-10-104R Swingmaster 350 Operator Surface Right Hand Stanley Rebuild Part # CR4107 Class II Part # CL2001400 Besam 30-10-002 Swingmaster 300 Operator OHC Left Hand Stanley Rebuild Part # CR4100 Class II Part # CL2001055 / CL4658 Besam 30-10-001 Swingmaster 300 Operator OHC Right Hand Stanley rebuilt part number CR4101 Class II Part # CL2001054 / CL4652 Besam Swing Operators & Motors

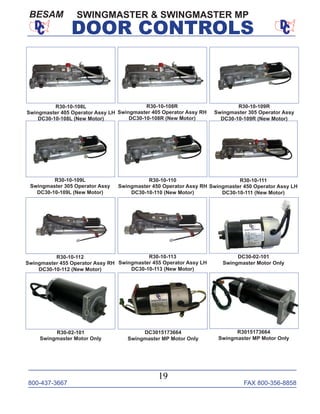

800-437-3667 FAX 800-356-8858 19 DOOR CONTROLS SWINGMASTER & SWINGMASTER MPBESAM DC30-02-101 Swingmaster Motor Only R30-10-108L Swingmaster 405 Operator Assy LH DC30-10-108L (New Motor) R30-10-108R Swingmaster 405 Operator Assy RH DC30-10-108R (New Motor) R30-10-109L Swingmaster 305 Operator Assy DC30-10-109L (New Motor) R30-10-110 Swingmaster 450 Operator Assy RH DC30-10-110 (New Motor) R30-10-111 Swingmaster 450 Operator Assy LH DC30-10-111 (New Motor) R30-10-112 Swingmaster 455 Operator Assy RH DC30-10-112 (New Motor) R30-10-113 Swingmaster 455 Operator Assy LH DC30-10-113 (New Motor) R30-02-101 Swingmaster Motor Only R3015173664 Swingmaster MP Motor Only R30-10-109R Swingmaster 305 Operator Assy DC30-10-109R (New Motor) DC3015173664 Swingmaster MP Motor Only

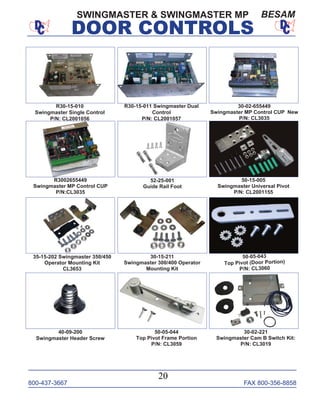

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 20 DOOR CONTROLS SWINGMASTER & SWINGMASTER MP BESAM 30-02-655449 Swingmaster MP Control CUP New P/N: CL3035 R3002655449 Swingmaster MP Control CUP P/N:CL3035 R30-15-011 Swingmaster Dual Control P/N: CL2001057 50-05-044 Top Pivot Frame Portion P/N: CL3059 50-15-005 Swingmaster Universal Pivot P/N: CL2001155 52-25-001 Guide Rail Foot 30-15-211 Swingmaster 300/400 Operator Mounting Kit 35-15-202 Swingmaster 350/450 Operator Mounting Kit CL3653 40-09-200 Swingmaster Header Screw 50-05-043 Top Pivot (Door Portion) P/N: CL3060 R30-15-010 Swingmaster Single Control P/N: CL2001056 30-02-221 Swingmaster Cam B Switch Kit: P/N: CL3019

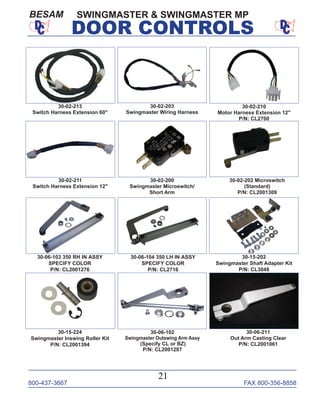

800-437-3667 FAX 800-356-8858 21 DOOR CONTROLS SWINGMASTER & SWINGMASTER MPBESAM 30-06-102 Swingmaster Outswing Arm Assy (Specify CL or BZ) P/N: CL2001287 30-15-202 Swingmaster Shaft Adapter Kit P/N: CL3048 30-06-103 350 RH IN ASSY SPECIFY COLOR P/N: CL2001276 30-06-104 350 LH IN ASSY SPECIFY COLOR P/N: CL2716 30-06-211 Out Arm Casting Clear P/N: CL2001061 30-02-202 Microswitch (Standard) P/N: CL2001309 30-02-200 Swingmaster Microswitch/ Short Arm 30-02-203 Swingmaster Wiring Harness 30-02-211 Switch Harness Extension 12" 30-02-210 Motor Harness Extension 12" P/N: CL2700 30-15-224 Swingmaster Inswing Roller Kit P/N: CL2001394 30-02-213 Switch Harness Extension 60"

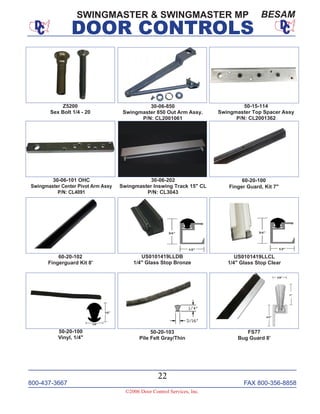

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 22 ©2006 Door Control Services, Inc. DOOR CONTROLS SWINGMASTER & SWINGMASTER MP BESAM FS77 Bug Guard 8’ 60-20-102 Fingerguard Kit 8' US0101419LLDB 1/4" Glass Stop Bronze 60-20-100 Finger Guard, Kit 7" US0101419LLCL 1/4" Glass Stop Clear 50-20-103 Pile Felt Gray/Thin 30-06-202 Swingmaster Inswing Track 15" CL P/N: CL3043 50-15-114 Swingmaster Top Spacer Assy P/N: CL2001362 30-06-101 OHC Swingmaster Center Pivot Arm Assy P/N: CL4091 30-06-850 Swingmaster 850 Out Arm Assy. P/N: CL2001061 Z5200 Sex Bolt 1/4 - 20 50-20-100 Vinyl, 1/4"

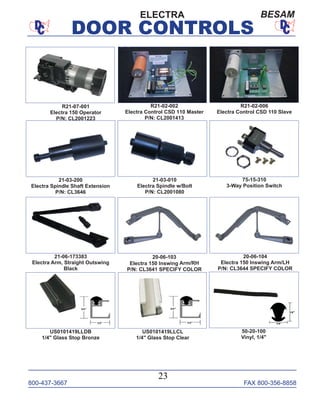

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 23 DOOR CONTROLS ELECTRA BESAM R21-07-001 Electra 150 Operator P/N: CL2001223 R21-02-002 Electra Control CSD 110 Master P/N: CL2001413 R21-02-006 Electra Control CSD 110 Slave 75-15-310 3-Way Position Switch 21-03-200 Electra Spindle Shaft Extension P/N: CL3646 21-03-010 Electra Spindle w/Bolt P/N: CL2001080 20-06-103 Electra 150 Inswing Arm/RH P/N: CL3641 SPECIFY COLOR 21-06-173383 Electra Arm, Straight Outswing Black 20-06-104 Electra 150 Inswing Arm/LH P/N: CL3644 SPECIFY COLOR US0101419LLDB 1/4" Glass Stop Bronze US0101419LLCL 1/4" Glass Stop Clear 50-20-100 Vinyl, 1/4"

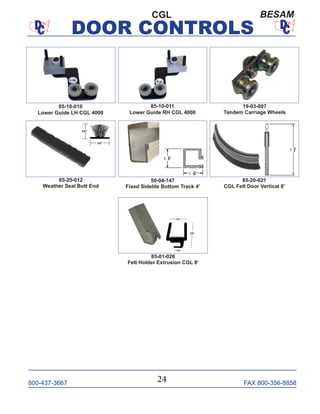

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS CGL BESAM 85-10-010 Lower Guide LH CGL 4000 85-10-011 Lower Guide RH CGL 4000 85-20-021 CGL Felt Door Vertical 8' 50-04-147 Fixed Sidelite Bottom Track 4' 19-03-007 Tandem Carriage Wheels 85-01-026 Felt Holder Extrusion CGL 8' 85-20-012 Weather Seal Butt End 24
800-437-3667 FAX 800-356-8858 25 ©2006 Door Control Services, Inc. DOOR CONTROLS ICUBESAM 12-15-104 Bottom Pivot and Guide ICU RH 12-03-011 Roller Guide Bracket LH 12-03-012 Roller Guide Bracket RH 12-15-105 Bottom Pivot and Guide ICU LH 12-08-005 Roller Wheel 12-21-001 Track Cap-Plastic Extrusion ICU 12-15-115 Carriage Wheel & Anti-Rise ICU RH 12-15-116 Carriage Wheel & Anti-Rise ICU LH 50-15-146 Vertical Guide Rollers P/N: CL2001178 OP-2700 2000 Series Offset Pivot/Flush P/N: CL4565

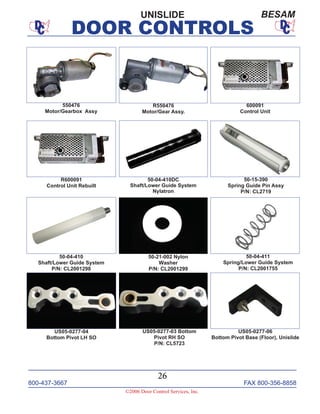

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 26 ©2006 Door Control Services, Inc. DOOR CONTROLS 550476 Motor/Gearbox Assy 50-04-410DC Shaft/Lower Guide System Nylatron 50-04-410 Shaft/Lower Guide System P/N: CL2001298 600091 Control Unit R550476 Motor/Gear Assy. R600091 Control Unit Rebuilt 50-21-002 Nylon Washer P/N: CL2001299 50-15-390 Spring Guide Pin Assy P/N: CL2719 50-04-411 Spring/Lower Guide System P/N: CL2001755 US05-0277-03 Bottom Pivot RH SO P/N: CL5723 US05-0277-04 Bottom Pivot LH SO US05-0277-06 Bottom Pivot Base (Floor), Unislide UNISLIDE BESAM

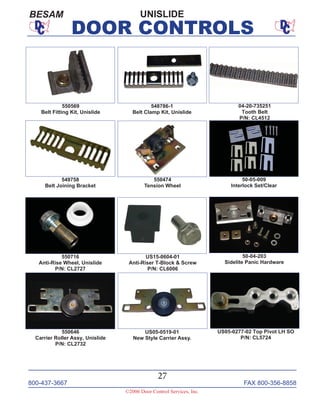

800-437-3667 FAX 800-356-8858 27 ©2006 Door Control Services, Inc. DOOR CONTROLS 50-05-009 Interlock Set/Clear 50-04-203 Sidelite Panic Hardware 550569 Belt Fitting Kit, Unislide 548786-1 Belt Clamp Kit, Unislide 04-20-735251 Tooth Belt P/N: CL4512 549758 Belt Joining Bracket 550474 Tension Wheel 550716 Anti-Rise Wheel, Unislide P/N: CL2727 US15-0604-01 Anti-Riser T-Block & Screw P/N: CL6006 550646 Carrier Roller Assy, Unislide P/N: CL2732 US05-0277-02 Top Pivot LH SO P/N: CL5724 US05-0519-01 New Style Carrier Assy. UNISLIDEBESAM

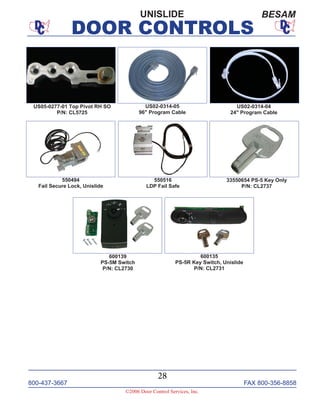

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 28 ©2006 Door Control Services, Inc. DOOR CONTROLS UNISLIDE BESAM US05-0277-01 Top Pivot RH SO P/N: CL5725 US02-0314-04 24" Program Cable US02-0314-05 96" Program Cable 550516 LDP Fail Safe 550494 Fail Secure Lock, Unislide 600135 PS-5R Key Switch, Unislide P/N: CL2731 33550654 PS-5 Key Only P/N: CL2737 600139 PS-5M Switch P/N: CL2730

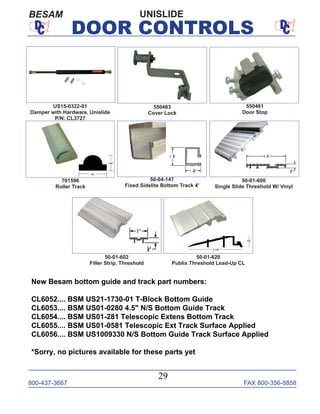

800-437-3667 FAX 800-356-8858 29 DOOR CONTROLS UNISLIDEBESAM 550461 Door Stop 550463 Cover Lock 50-04-147 Fixed Sidelite Bottom Track 4' 50-01-600 Single Slide Threshold W/ Vinyl 50-01-602 Filler Strip, Threshold 50-01-620 Publix Threshold Lead-Up CL US15-0322-01 Damper with Hardware, Unislide P/N: CL3727 701596 Roller Track New Besam bottom guide and track part numbers: CL6052.... BSM US21-1730-01 T-Block Bottom Guide CL6053.... BSM US01-0280 4.5" N/S Bottom Guide Track CL6054.... BSM US01-281 Telescopic Extens Bottom Track CL6055.... BSM US01-0581 Telescopic Ext Track Surface Applied CL6056.... BSM US1009330 N/S Bottom Guide Track Surface Applied *Sorry, no pictures available for these parts yet

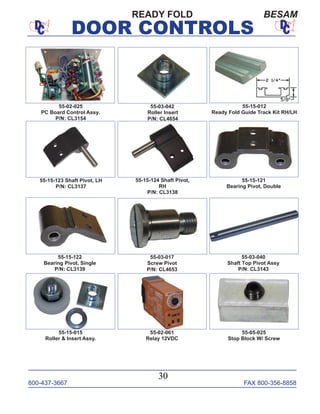

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 30 DOOR CONTROLS 55-03-042 Roller Insert P/N: CL4654 55-15-012 Ready Fold Guide Track Kit RH/LH 55-15-123 Shaft Pivot, LH P/N: CL3137 55-15-124 Shaft Pivot, RH P/N: CL3138 55-15-121 Bearing Pivot, Double 55-15-122 Bearing Pivot, Single P/N: CL3139 55-03-017 Screw Pivot P/N: CL4653 55-03-040 Shaft Top Pivot Assy P/N: CL3143 55-15-015 Roller & Insert Assy. 55-02-061 Relay 12VDC 55-05-025 Stop Block W/ Screw 55-02-025 PC Board Control Assy. P/N: CL3154 READY FOLD BESAM

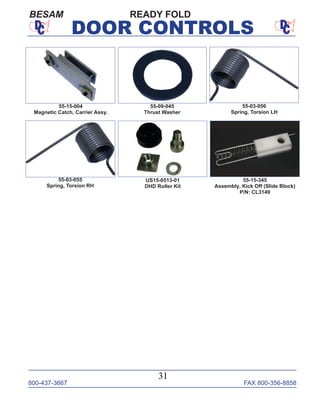

800-437-3667 FAX 800-356-8858 31 DOOR CONTROLS READY FOLDBESAM 55-15-004 Magnetic Catch, Carrier Assy. 55-09-045 Thrust Washer 55-03-056 Spring, Torsion LH US15-0513-01 DHD Roller Kit 55-15-345 Assembly, Kick Off (Slide Block) P/N: CL3149 55-03-055 Spring, Torsion RH
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 32 DOOR CONTROLS ECONOSWING/NAVIG-AIDER/POWERSWING BESAM R20-15-200LI Econoswing Operator LH/IN P/N: CL2001616 R20-15-200RO Econoswing Operator RH/OUT P/N: CL2001616 R20-15-200RI Econoswing Operator RH/IN P/N: CL2001616 R20-15-200LO Econoswing Operator LH/OUT P/N: CL2001616 R2410173233 Navig-Aider Operator (Nav-50) R R600085 Powerswing Control Unit R20-02-101 Econoswing Master Control P/N: CL2001083 655580 Terminal Block Assy. Powerswing R20-02-102 Econoswing Slave PC Board P/N: CL2326 R3002655449 Control CUP P/N: CL3035 30-02-655449 Control CUP P/N: CL3035

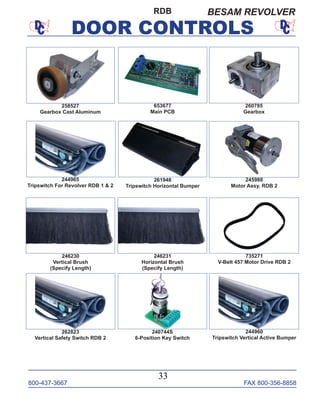

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 33 DOOR CONTROLS RDB BESAM REVOLVER 244960 Tripswitch Vertical Active Bumper 245988 Motor Assy. RDB 2 262823 Vertical Safety Switch RDB 2 653677 Main PCB 735271 V-Belt 457 Motor Drive RDB 2 240744S 6-Position Key Switch 258527 Gearbox Cast Aluminum 244965 Tripswitch For Revolver RDB 1 & 2 246230 Vertical Brush (Specify Length) 246231 Horizontal Brush (Specify Length) 260785 Gearbox 261948 Tripswitch Horizontal Bumper

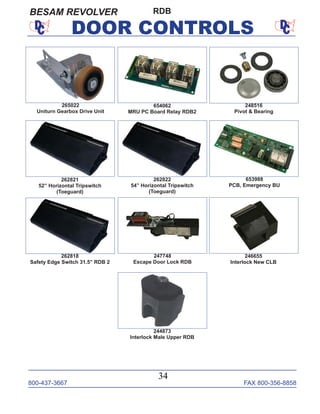

800-437-3667 FAX 800-356-8858 34 DOOR CONTROLS 247748 Escape Door Lock RDB 262818 Safety Edge Switch 31.5” RDB 2 262821 52” Horizontal Tripswitch (Toeguard) 262822 54” Horizontal Tripswitch (Toeguard) 653988 PCB, Emergency BU 244873 Interlock Male Upper RDB 654062 MRU PC Board Relay RDB2 246655 Interlock New CLB 265022 Uniturn Gearbox Drive Unit 248516 Pivot & Bearing BESAM REVOLVER RDB

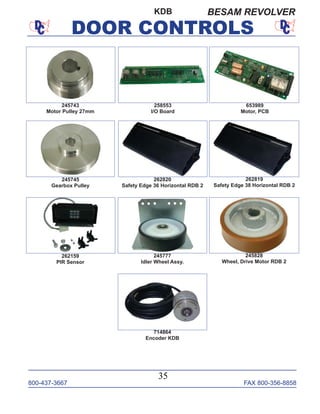

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 35 DOOR CONTROLS 245743 Motor Pulley 27mm 245745 Gearbox Pulley 245777 Idler Wheel Assy. 245828 Wheel, Drive Motor RDB 2 262159 PIR Sensor 262819 Safety Edge 38 Horizontal RDB 2 262820 Safety Edge 36 Horizontal RDB 2 653989 Motor, PCB 258553 I/O Board 714864 Encoder KDB KDB BESAM REVOLVER

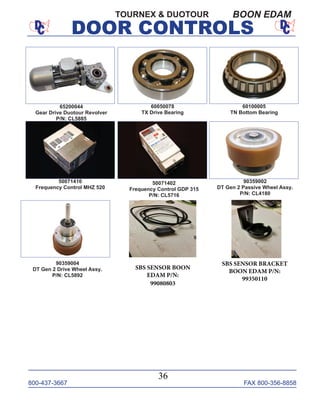

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 36 DOOR CONTROLS TOURNEX & DUOTOUR BOON EDAM 60100005 TN Bottom Bearing 50071402 Frequency Control GDP 315 P/N: CL5716 60050078 TX Drive Bearing 50071410 Frequency Control MHZ 520 90359002 DT Gen 2 Passive Wheel Assy. P/N: CL4180 90359004 DT Gen 2 Drive Wheel Assy. P/N: CL5892 65200044 Gear Drive Duotour Revolver P/N: CL5885 SBS SENSOR BOON EDAM P/N: 99080803 SBS SENSOR BRACKET BOON EDAM P/N: 99350110

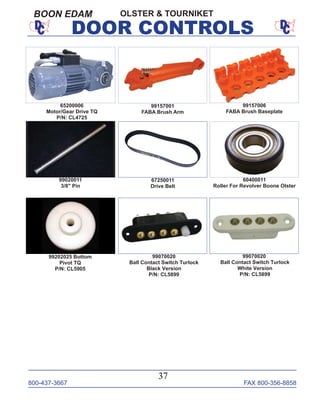

800-437-3667 FAX 800-356-8858 37 DOOR CONTROLS OLSTER & TOURNIKETBOON EDAM 99157006 FABA Brush Baseplate 99157001 FABA Brush Arm 99070020 Ball Contact Switch Turlock White Version P/N: CL5899 99020011 3/8" Pin 60400011 Roller For Revolver Boone Olster 99202025 Bottom Pivot TQ P/N: CL5905 65200006 Motor/Gear Drive TQ P/N: CL4725 67250011 Drive Belt 99070020 Ball Contact Switch Turlock Black Version P/N: CL5899

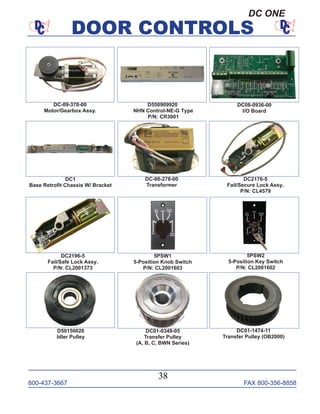

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 38 DOOR CONTROLS D50150020 Idler Pulley DC-09-370-00 Motor/Gearbox Assy. DC08-0936-00 I/O Board DC1 Base Retrofit Chassis W/ Bracket 5PSW1 5-Position Knob Switch P/N: CL2001603 DC-00-278-00 Transformer D550909920 NHN Control-NE-G Type P/N: CR3001 DC01-0349-05 Transfer Pulley (A, B, C, BWN Series) DC2176-5 Fail/Secure Lock Assy. P/N: CL4579 5PSW2 5-Position Key Switch P/N: CL2001602 DC01-1474-11 Transfer Pulley (OB2000) DC2196-5 Fail/Safe Lock Assy. P/N: CL2001373 DC ONE

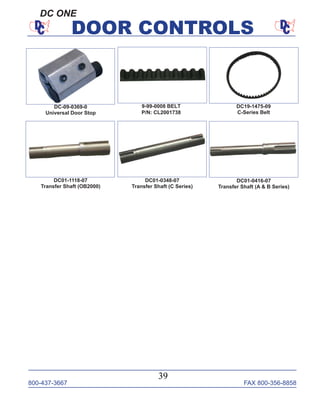

800-437-3667 FAX 800-356-8858 39 DOOR CONTROLS DC ONE 9-99-0008 BELT P/N: CL2001738 DC19-1475-09 C-Series Belt DC01-0416-07 Transfer Shaft (A & B Series) DC01-0348-07 Transfer Shaft (C Series) DC01-1118-07 Transfer Shaft (OB2000) DC-09-0369-0 Universal Door Stop

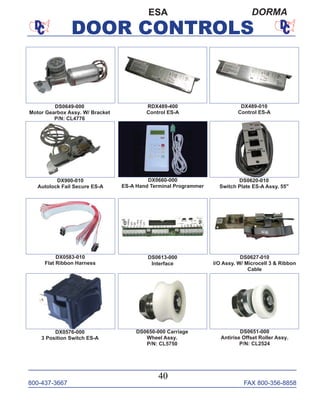

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 40 DOOR CONTROLS ESA DORMA RDX489-400 Control ES-A DX900-010 Autolock Fail Secure ES-A DX0660-000 ES-A Hand Terminal Programmer DX489-010 Control ES-A DS0650-000 Carriage Wheel Assy. P/N: CL5750 DS0649-000 Motor Gearbox Assy. W/ Bracket P/N: CL4776 DS0627-010 I/O Assy. W/ Microcell 3 & Ribbon Cable DS0620-010 Switch Plate ES-A Assy. 55" DS0613-000 Interface DX0583-010 Flat Ribbon Harness DS0651-000 Antirise Offset Roller Assy. P/N: CL2524 DX0576-000 3 Position Switch ES-A

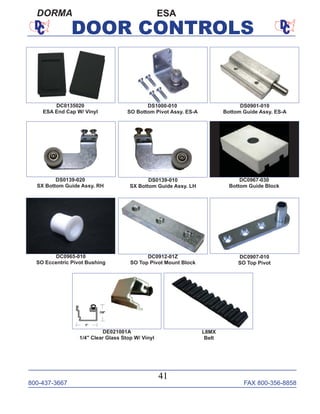

800-437-3667 FAX 800-356-8858 41 DOOR CONTROLS ESADORMA DS0139-020 SX Bottom Guide Assy. RH DS0139-010 SX Bottom Guide Assy. LH DE021001A 1/4" Clear Glass Stop W/ Vinyl DC0967-030 Bottom Guide Block DC0965-010 SO Eccentric Pivot Bushing DC0912-01Z SO Top Pivot Mount Block DC0907-010 SO Top Pivot DC0135020 ESA End Cap W/ Vinyl DS1000-010 SO Bottom Pivot Assy. ES-A DS0901-010 Bottom Guide Assy. ES-A L8MX Belt
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 42 DOOR CONTROLS ED400, 700 ESA II DORMA DC0112-010 Slide Block ITS C886 ED800 Regular Arm RED800 Rebuilt ADA Operator DX0591-010 EDA Full Power Swing Control DX0661-000 EDA Hand Terminal Programmer RED800-3 or RED800-4 3 Pin or 4 Pin CL6026......... ESAII CONTROL BOX, NEW CL6025......... ESAII MOTOR/GEARBOX, NEW CL6020......... ED700 DIGITAL CONTROL CL6021......... ED700 RH OPERATOR CL6022......... ED700 LH OPERATOR CL6023......... ED400 RH OPERATOR CL6024......... ED400 LH OPERATOR CR4059.........ED400 DIGITAL CONTROL (REBUILT FROM ADDISON) * BE AWARE... There are more than one kind of ED400 control. Some controls have black terminals and do not match the controls with the green terminals, so they will have to be re-wired. Specify when ordering which control is needed and request the terminal blocks be shipped with your order, just in case.

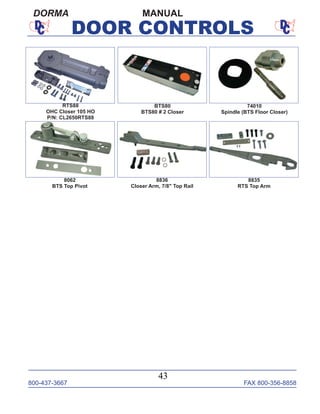

800-437-3667 FAX 800-356-8858 43 DOOR CONTROLS MANUALDORMA 74010 Spindle (BTS Floor Closer) 8062 BTS Top Pivot 8835 RTS Top Arm BTS80 BTS80 # 2 Closer RTS88 OHC Closer 105 HO P/N: CL2650RTS88 8836 Closer Arm, 7/8" Top Rail

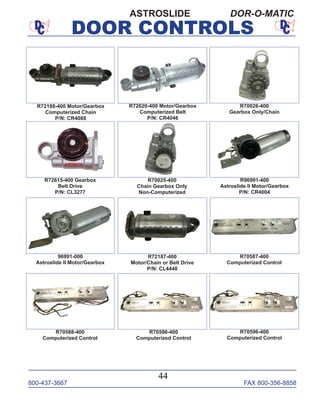

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 44 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC R72188-400 Motor/Gearbox Computerized Chain P/N: CR4088 R72620-400 Motor/Gearbox Computerized Belt P/N: CR4046 R96991-400 Astroslide II Motor/Gearbox P/N: CR4004 R72187-400 Motor/Chain or Belt Drive P/N: CL4440 R70026-400 Gearbox Only/Chain R70587-400 Computerized Control R72615-400 Gearbox Belt Drive P/N: CL3277 R70025-400 Chain Gearbox Only Non-Computerized R70588-400 Computerized Control R70586-400 Computerized Control 96991-000 Astroslide II Motor/Gearbox R70596-400 Computerized Control

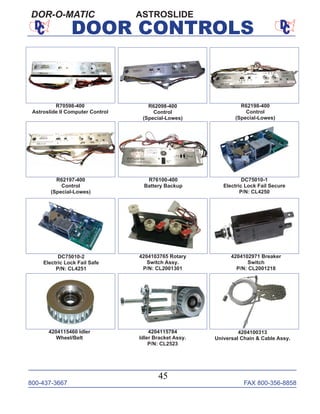

800-437-3667 FAX 800-356-8858 45 DOOR CONTROLS ASTROSLIDEDOR-O-MATIC DC75010-2 Electric Lock Fail Safe P/N: CL4251 DC75010-1 Electric Lock Fail Secure P/N: CL4250 R62198-400 Control (Special-Lowes) R70598-400 Astroslide II Computer Control R76100-400 Battery Backup R62197-400 Control (Special-Lowes) R62098-400 Control (Special-Lowes) 4204115460 Idler Wheel/Belt 4204115784 Idler Bracket Assy. P/N: CL2523 4204103765 Rotary Switch Assy. P/N: CL2001301 4204102971 Breaker Switch P/N: CL2001218 4204100313 Universal Chain & Cable Assy.

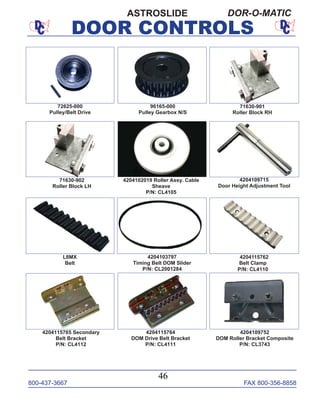

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 46 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC 4204103797 Timing Belt DOM Slider P/N: CL2001284 4204115764 DOM Drive Belt Bracket P/N: CL4111 4204115762 Belt Clamp P/N: CL4110 4204109752 DOM Roller Bracket Composite P/N: CL3743 L8MX Belt 4204102019 Roller Assy. Cable Sheave P/N: CL4105 71630-902 Roller Block LH 71630-901 Roller Block RH 72625-000 Pulley/Belt Drive 96165-000 Pulley Gearbox N/S 4204115765 Secondary Belt Bracket P/N: CL4112 4204109715 Door Height Adjustment Tool

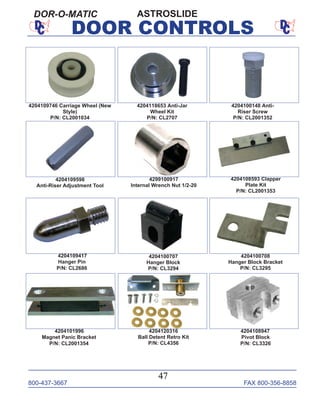

800-437-3667 FAX 800-356-8858 47 DOOR CONTROLS ASTROSLIDEDOR-O-MATIC 4204100707 Hanger Block P/N: CL3294 4204100708 Hanger Block Bracket P/N: CL3295 4204101996 Magnet Panic Bracket P/N: CL2001354 4204120316 Ball Detent Retro Kit P/N: CL4356 4204108947 Pivot Block P/N: CL3326 4299100917 Internal Wrench Nut 1/2-20 4204108593 Clapper Plate Kit P/N: CL2001353 4204109417 Hanger Pin P/N: CL2686 4204109746 Carriage Wheel (New Style) P/N: CL2001034 4204118653 Anti-Jar Wheel Kit P/N: CL2707 4204100148 Anti- Riser Screw P/N: CL2001352 4204109598 Anti-Riser Adjustment Tool

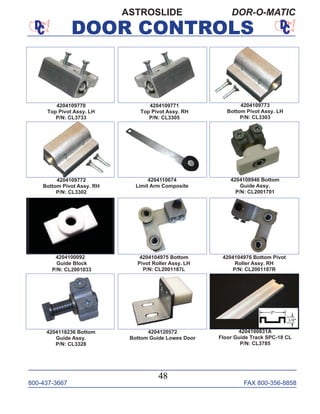

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 48 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC 4204100831A Floor Guide Track SPC-18 CL P/N: CL3785 4204120572 Bottom Guide Lowes Door 4204100092 Guide Block P/N: CL2001033 4204104976 Bottom Pivot Roller Assy. RH P/N: CL2001187R 4204104975 Bottom Pivot Roller Assy. LH P/N: CL2001187L 4204118236 Bottom Guide Assy. P/N: CL3328 4204108946 Bottom Guide Assy. P/N: CL2001701 4204110674 Limit Arm Composite 4204109773 Bottom Pivot Assy. LH P/N: CL3303 4204109772 Bottom Pivot Assy. RH P/N: CL3302 4204109771 Top Pivot Assy. RH P/N: CL3305 4204109770 Top Pivot Assy. LH P/N: CL3733

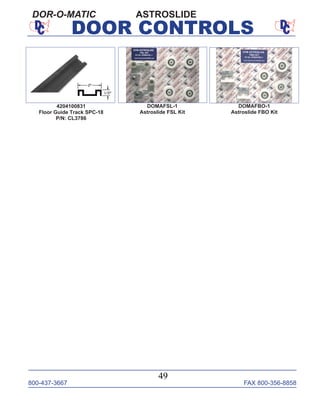

800-437-3667 FAX 800-356-8858 49 DOOR CONTROLS ASTROSLIDEDOR-O-MATIC DOMAFSL-1 Astroslide FSL Kit DOMAFBO-1 Astroslide FBO Kit 4204100831 Floor Guide Track SPC-18 P/N: CL3786

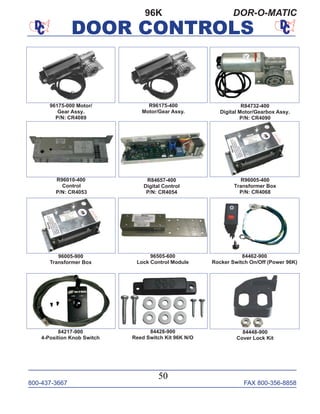

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 50 DOOR CONTROLS 96K DOR-O-MATIC 96505-600 Lock Control Module R84732-400 Digital Motor/Gearbox Assy. P/N: CR4090 R96010-400 Control P/N: CR4053 96175-000 Motor/ Gear Assy. P/N: CR4089 R84657-400 Digital Control P/N: CR4054 R96175-400 Motor/Gear Assy. R96005-400 Transformer Box P/N: CR4068 96005-900 Transformer Box 84217-900 4-Position Knob Switch 84428-900 Reed Switch Kit 96K N/O 84462-900 Rocker Switch On/Off (Power 96K) 84448-900 Cover Lock Kit

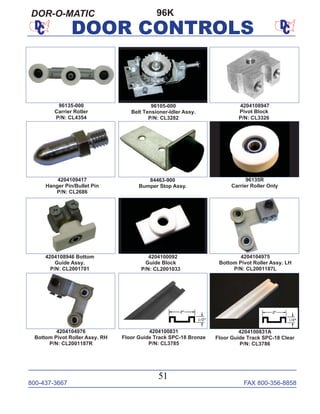

800-437-3667 FAX 800-356-8858 51 DOOR CONTROLS 96KDOR-O-MATIC 96135-000 Carrier Roller P/N: CL4354 96135R Carrier Roller Only 4204109417 Hanger Pin/Bullet Pin P/N: CL2686 4204100092 Guide Block P/N: CL2001033 4204100831 Floor Guide Track SPC-18 Bronze P/N: CL3785 4204104975 Bottom Pivot Roller Assy. LH P/N: CL2001187L 4204100831A Floor Guide Track SPC-18 Clear P/N: CL3786 4204104976 Bottom Pivot Roller Assy. RH P/N: CL2001187R 84463-900 Bumper Stop Assy. 96105-000 Belt Tensioner-Idler Assy. P/N: CL3282 4204108947 Pivot Block P/N: CL3326 4204108946 Bottom Guide Assy. P/N: CL2001701

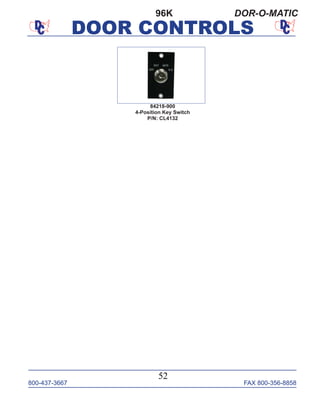

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 52 DOOR CONTROLS 96K DOR-O-MATIC 84218-900 4-Position Key Switch P/N: CL4132

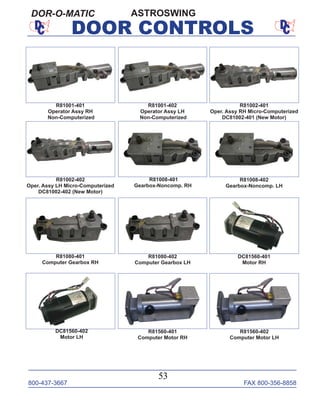

800-437-3667 FAX 800-356-8858 53 DOOR CONTROLS ASTROSWINGDOR-O-MATIC R81001-401 Operator Assy RH Non-Computerized R81001-402 Operator Assy LH Non-Computerized R81002-401 Oper. Assy RH Micro-Computerized DC81002-401 (New Motor) R81002-402 Oper. Assy LH Micro-Computerized DC81002-402 (New Motor) R81560-402 Computer Motor LH R81560-401 Computer Motor RH R81008-401 Gearbox-Noncomp. RH R81008-402 Gearbox-Noncomp. LH R81080-401 Computer Gearbox RH R81080-402 Computer Gearbox LH DC81560-401 Motor RH DC81560-402 Motor LH

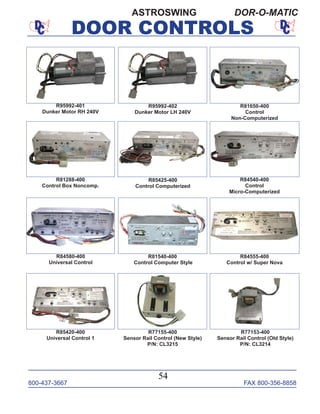

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 54 DOOR CONTROLS ASTROSWING DOR-O-MATIC R81650-400 Control Non-Computerized R85425-400 Control Computerized R84540-400 Control Micro-Computerized R84580-400 Universal Control R81288-400 Control Box Noncomp. R84555-400 Control w/ Super Nova R85420-400 Universal Control 1 R81540-400 Control Computer Style R95992-402 Dunker Motor LH 240V R77155-400 Sensor Rail Control (New Style) P/N: CL3215 R77153-400 Sensor Rail Control (Old Style) P/N: CL3214 R95992-401 Dunker Motor RH 240V

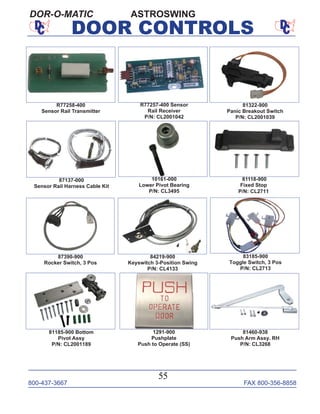

800-437-3667 FAX 800-356-8858 55 DOOR CONTROLS ASTROSWINGDOR-O-MATIC 87137-000 Sensor Rail Harness Cable Kit 10161-000 Lower Pivot Bearing P/N: CL3495 81322-900 Panic Breakout Switch P/N: CL2001039 R77258-400 Sensor Rail Transmitter 81118-900 Fixed Stop P/N: CL2711 83185-900 Toggle Switch, 3 Pos P/N: CL2713 87390-900 Rocker Switch, 3 Pos 84219-900 Keyswitch 3-Position Swing P/N: CL4133 1291-900 Pushplate Push to Operate (SS) 81460-938 Push Arm Assy. RH P/N: CL3268 R77257-400 Sensor Rail Receiver P/N: CL2001042 81185-900 Bottom Pivot Assy P/N: CL2001189

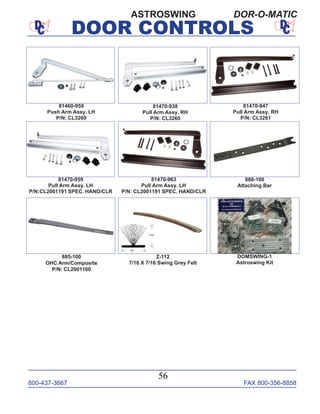

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 56 DOOR CONTROLS ASTROSWING DOR-O-MATIC 81470-938 Pull Arm Assy. RH P/N: CL3260 81470-947 Pull Arm Assy. RH P/N: CL3261 81470-959 Pull Arm Assy. LH P/N:CL2001191 SPEC. HAND/CLR 81460-959 Push Arm Assy. LH P/N: CL3269 885-100 OHC Arm/Composite P/N: CL2001160 81470-963 Pull Arm Assy. LH P/N: CL2001191 SPEC. HAND/CLR 888-100 Attaching Bar DOMSWING-1 Astroswing Kit Z-112 7/16 X 7/16 Swing Grey Felt

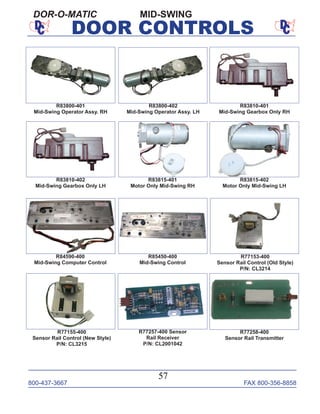

800-437-3667 FAX 800-356-8858 57 DOOR CONTROLS MID-SWINGDOR-O-MATIC R83815-401 Motor Only Mid-Swing RH R83815-402 Motor Only Mid-Swing LH R83800-401 Mid-Swing Operator Assy. RH R83800-402 Mid-Swing Operator Assy. LH R83810-401 Mid-Swing Gearbox Only RH R83810-402 Mid-Swing Gearbox Only LH R84590-400 Mid-Swing Computer Control R85450-400 Mid-Swing Control R77155-400 Sensor Rail Control (New Style) P/N: CL3215 R77257-400 Sensor Rail Receiver P/N: CL2001042 R77153-400 Sensor Rail Control (Old Style) P/N: CL3214 R77258-400 Sensor Rail Transmitter

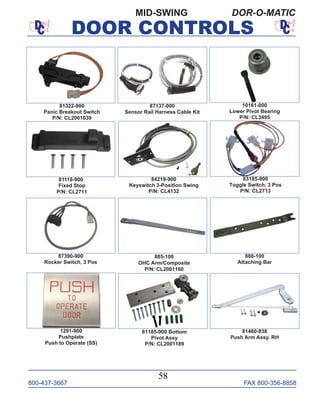

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 58 DOOR CONTROLS MID-SWING DOR-O-MATIC 87137-000 Sensor Rail Harness Cable Kit 10161-000 Lower Pivot Bearing P/N: CL3495 81322-900 Panic Breakout Switch P/N: CL2001039 81118-900 Fixed Stop P/N: CL2711 83185-900 Toggle Switch, 3 Pos P/N: CL2713 87390-900 Rocker Switch, 3 Pos 84219-900 Keyswitch 3-Position Swing P/N: CL4132 1291-900 Pushplate Push to Operate (SS) 885-100 OHC Arm/Composite P/N: CL2001160 81460-938 Push Arm Assy. RH 888-100 Attaching Bar 81185-900 Bottom Pivot Assy P/N: CL2001189

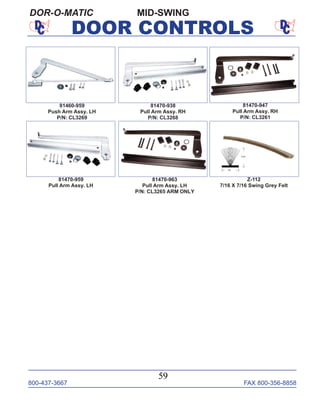

800-437-3667 FAX 800-356-8858 59 DOOR CONTROLS MID-SWINGDOR-O-MATIC 81470-938 Pull Arm Assy. RH P/N: CL3268 81470-947 Pull Arm Assy. RH P/N: CL3261 81470-959 Pull Arm Assy. LH 81460-959 Push Arm Assy. LH P/N: CL3269 81470-963 Pull Arm Assy. LH P/N: CL3265 ARM ONLY Z-112 7/16 X 7/16 Swing Grey Felt
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 60 DOOR CONTROLS SENIOR SWING DOR-O-MATIC R84570-400 Universal Senior Swing Control R85445-400 Senior Swing Control R85440-400 Senior Swing Control Rebuilt R81007-401 Senior Swing Operator Assy. RH R81007-402 Senior Swing Operator Assy. LH

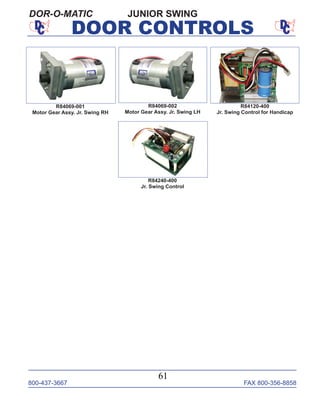

800-437-3667 FAX 800-356-8858 61 DOOR CONTROLS JUNIOR SWINGDOR-O-MATIC R84120-400 Jr. Swing Control for Handicap R84240-400 Jr. Swing Control R84069-001 Motor Gear Assy. Jr. Swing RH R84069-002 Motor Gear Assy. Jr. Swing LH

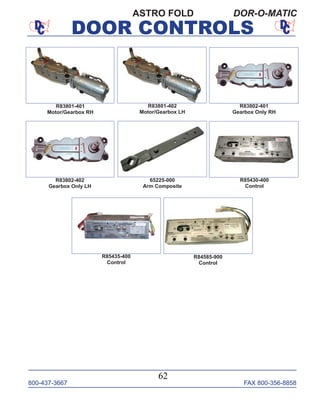

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 62 DOOR CONTROLS ASTRO FOLD DOR-O-MATIC 65225-000 Arm Composite R83801-401 Motor/Gearbox RH R83801-402 Motor/Gearbox LH R83802-401 Gearbox Only RH R85435-400 Control R85430-400 Control R83802-402 Gearbox Only LH R84585-900 Control

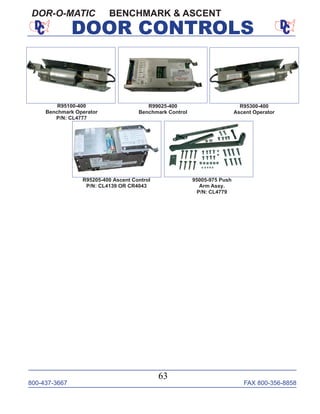

800-437-3667 FAX 800-356-8858 63 DOOR CONTROLS BENCHMARK & ASCENTDOR-O-MATIC 95005-975 Push Arm Assy. P/N: CL4779 R95205-400 Ascent Control P/N: CL4139 OR CR4043 R95100-400 Benchmark Operator P/N: CL4777 R99025-400 Benchmark Control R95300-400 Ascent Operator

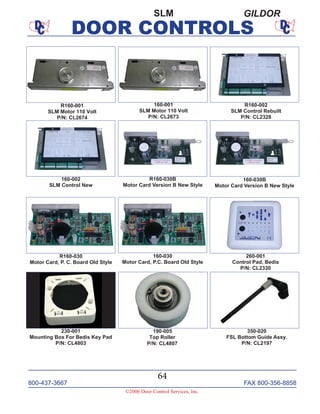

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 64 ©2006 Door Control Services, Inc. DOOR CONTROLS SLM GILDOR R160-030B Motor Card Version B New Style R160-030 Motor Card, P. C. Board Old Style R160-002 SLM Control Rebuilt P/N: CL2328 R160-001 SLM Motor 110 Volt P/N: CL2674 160-001 SLM Motor 110 Volt P/N: CL2673 160-002 SLM Control New 160-030 Motor Card, P.C. Board Old Style 190-005 Top Roller P/N: CL4807 260-001 Control Pad, Bedis P/N: CL2330 230-001 Mounting Box For Bedis Key Pad P/N: CL4803 350-020 FSL Bottom Guide Assy. P/N: CL2197 160-030B Motor Card Version B New Style

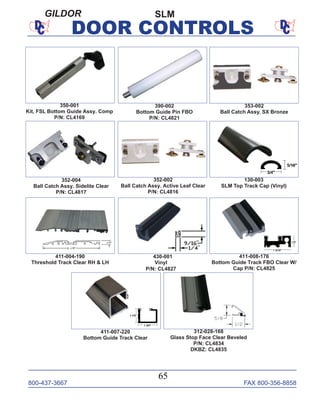

800-437-3667 FAX 800-356-8858 65 DOOR CONTROLS SLMGILDOR 353-002 Ball Catch Assy. SX Bronze 411-004-190 Threshold Track Clear RH & LH 411-008-176 Bottom Guide Track FBO Clear W/ Cap P/N: CL4825 430-001 Vinyl P/N: CL4827 411-007-220 Bottom Guide Track Clear 130-003 SLM Top Track Cap (Vinyl) 312-028-168 Glass Stop Face Clear Beveled P/N: CL4834 DKBZ: CL4835 352-002 Ball Catch Assy. Active Leaf Clear P/N: CL4816 352-004 Ball Catch Assy. Sidelite Clear P/N: CL4817 350-001 Kit, FSL Bottom Guide Assy. Comp P/N: CL4169 390-002 Bottom Guide Pin FBO P/N: CL4821

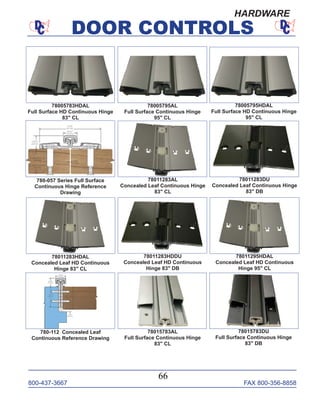

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 66 DOOR CONTROLS HARDWARE 78011283AL Concealed Leaf Continuous Hinge 83" CL 78005783HDAL Full Surface HD Continuous Hinge 83" CL 78005795AL Full Surface Continuous Hinge 95" CL 78005795HDAL Full Surface HD Continuous Hinge 95" CL 78011283DU Concealed Leaf Continuous Hinge 83" DB 78011283HDAL Concealed Leaf HD Continuous Hinge 83" CL 78011283HDDU Concealed Leaf HD Continuous Hinge 83" DB 78011295HDAL Concealed Leaf HD Continuous Hinge 95" CL 78015783AL Full Surface Continuous Hinge 83" CL 78015783DU Full Surface Continuous Hinge 83" DB 780-112 Concealed Leaf Continuous Reference Drawing 780-057 Series Full Surface Continuous Hinge Reference Drawing

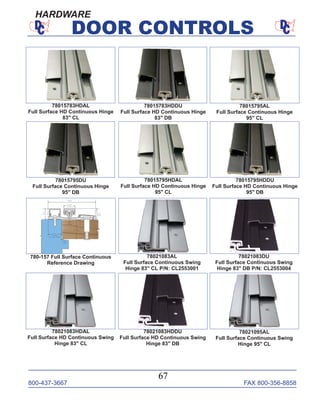

800-437-3667 FAX 800-356-8858 67 DOOR CONTROLS HARDWARE 78015795AL Full Surface Continuous Hinge 95" CL 78015795DU Full Surface Continuous Hinge 95" DB 78015795HDAL Full Surface HD Continuous Hinge 95" CL 78015795HDDU Full Surface HD Continuous Hinge 95" DB 78021083AL Full Surface Continuous Swing Hinge 83" CL P/N: CL2553001 78021083DU Full Surface Continuous Swing Hinge 83" DB P/N: CL2553004 78021083HDAL Full Surface HD Continuous Swing Hinge 83" CL 78021083HDDU Full Surface HD Continuous Swing Hinge 83" DB 78021095AL Full Surface Continuous Swing Hinge 95" CL 780-157 Full Surface Continuous Reference Drawing 78015783HDDU Full Surface HD Continuous Hinge 83" DB 78015783HDAL Full Surface HD Continuous Hinge 83" CL

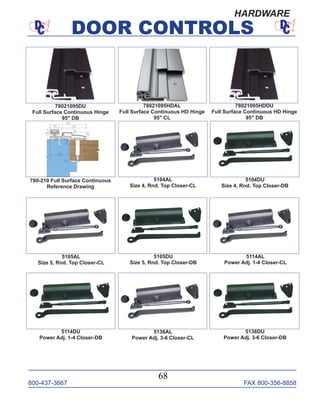

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 68 DOOR CONTROLS 5105DU Size 5, Rnd. Top Closer-DB 5104DU Size 4, Rnd. Top Closer-DB 5105AL Size 5, Rnd. Top Closer-CL 5114AL Power Adj. 1-4 Closer-CL 5114DU Power Adj. 1-4 Closer-DB 5104AL Size 4, Rnd. Top Closer-CL 5136AL Power Adj. 3-6 Closer-CL 5136DU Power Adj. 3-6 Closer-DB 78021095HDAL Full Surface Continuous HD Hinge 95" CL 78021095HDDU Full Surface Continuous HD Hinge 95" DB 780-210 Full Surface Continuous Reference Drawing 78021095DU Full Surface Continuous Hinge 95" DB HARDWARE

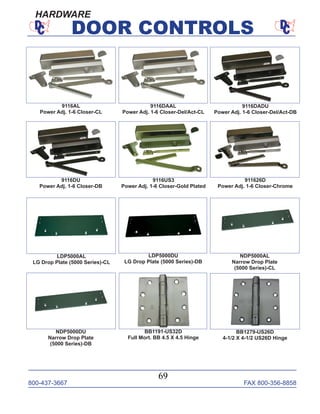

800-437-3667 FAX 800-356-8858 69 DOOR CONTROLS HARDWARE 9116US3 Power Adj. 1-6 Closer-Gold Plated LDP5000DU LG Drop Plate (5000 Series)-DB LDP5000AL LG Drop Plate (5000 Series)-CL 911626D Power Adj. 1-6 Closer-Chrome NDP5000AL Narrow Drop Plate (5000 Series)-CL NDP5000DU Narrow Drop Plate (5000 Series)-DB BB1191-US32D Full Mort. BB 4.5 X 4.5 Hinge BB1279-US26D 4-1/2 X 4-1/2 US26D Hinge 9116AL Power Adj. 1-6 Closer-CL 9116DAAL Power Adj. 1-6 Closer-Del/Act-CL 9116DADU Power Adj. 1-6 Closer-Del/Act-DB 9116DU Power Adj. 1-6 Closer-DB
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 70 DOOR CONTROLS HARDWARE 1371-RWPAAL Surface Mount Closer-RW/PA.A R4021-RH Hydraulic Closer GT 710 2035 OHC Closer W/ Arm & Track Std. NDC-100 Retrofit For Floor Pivot Center, Concealed Floor Closer NDC100BP Bearing Pack-Center Hung NDC101-LH Retrofit For Off Set/Concealed Closer, 3/4" Offset NDC101-RH Retrofit For Off Set/Concealed Closer, 3/4" Offset R4021-LH Hydraulic Closer GT 710 1279-US10A 4-1/2 X 4-1/2 US10A Hinge BB1279-US10A 4-1/2 X 4-1/2 US10A Hinge 1279-US26D 4-1/2 X 4-1/2 US26D Hinge 1461RWPA-DU Parallel Arm Closer-DB

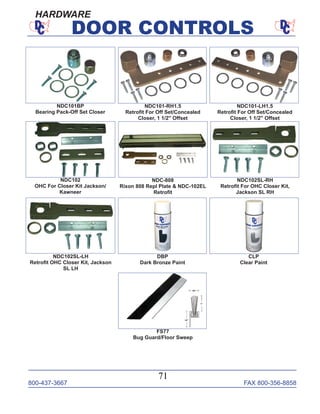

800-437-3667 FAX 800-356-8858 71 DOOR CONTROLS HARDWARE FS77 Bug Guard/Floor Sweep NDC102SL-LH Retrofit OHC Closer Kit, Jackson SL LH NDC102SL-RH Retrofit For OHC Closer Kit, Jackson SL RH NDC-808 Rixon 808 Repl Plate & NDC-102EL Retrofit NDC101BP Bearing Pack-Off Set Closer CLP Clear Paint DBP Dark Bronze Paint NDC101-LH1.5 Retrofit For Off Set/Concealed Closer, 1 1/2" Offset NDC101-RH1.5 Retrofit For Off Set/Concealed Closer, 1 1/2" Offset NDC102 OHC For Closer Kit Jackson/ Kawneer

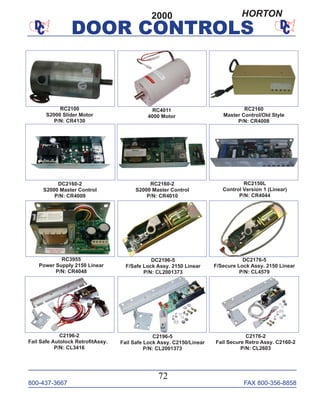

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 72 DOOR CONTROLS RC2100 S2000 Slider Motor P/N: CR4130 RC2160 Master Control/Old Style P/N: CR4008 RC2160-2 S2000 Master Control P/N: CR4010 RC4011 4000 Motor C2176-2 Fail Secure Retro Assy. C2160-2 P/N: CL2603 C2196-2 Fail Safe Autolock RetrofitAssy. P/N: CL3416 RC3955 Power Supply 2150 Linear P/N: CR4048 C2196-5 Fail Safe Lock Assy. C2150/Linear P/N: CL2001373 DC2160-2 S2000 Master Control P/N: CR4009 2000 RC2150L Control Version 1 (Linear) P/N: CR4044 DC2176-5 F/Secure Lock Assy. 2150 Linear P/N: CL4579 DC2196-5 F/Safe Lock Assy. 2150 Linear P/N: CL2001373 HORTON

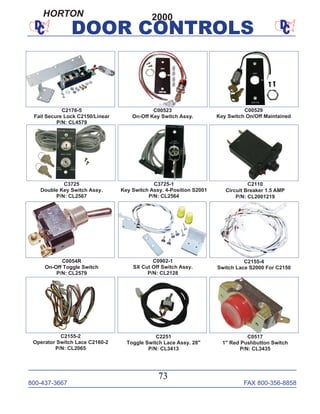

800-437-3667 FAX 800-356-8858 73 DOOR CONTROLS C0054R On-Off Toggle Switch P/N: CL2579 C2251 Toggle Switch Lace Assy. 28" P/N: CL3413 C2155-4 Switch Lace S2000 For C2150 C2110 Circuit Breaker 1.5 AMP P/N: CL2001219 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725-1 Key Switch Assy. 4-Position S2001 P/N: CL2564 C3725 Double Key Switch Assy. P/N: CL2567 C2155-2 Operator Switch Lace C2160-2 P/N: CL2065 C2176-5 Fail Secure Lock C2150/Linear P/N: CL4579 C0517 1" Red Pushbutton Switch P/N: CL3435 C00523 On-Off Key Switch Assy. C00529 Key Switch On/Off Maintained 2000HORTON

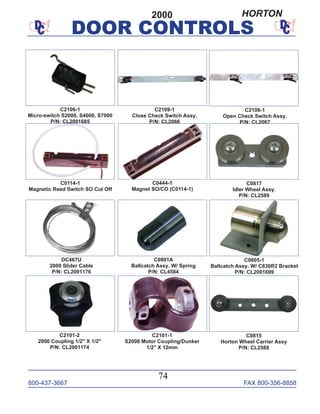

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 74 DOOR CONTROLS C2101-2 2000 Coupling 1/2" X 1/2" P/N: CL2001174 C0805-1 Ballcatch Assy. W/ C830R2 Bracket P/N: CL2001699 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 DC467U 2000 Slider Cable P/N: CL2001176 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) C2106-1 Micro-switch S2000, S4000, S7000 P/N: CL2001685 C2108-1 Open Check Switch Assy. P/N: CL2067 C2109-1 Close Check Switch Assy. P/N: CL2066 C2101-1 S2000 Motor Coupling/Dunker 1/2" X 12mm C0815 Horton Wheel Carrier Assy P/N: CL2588 C0817 Idler Wheel Assy. P/N: CL2589 2000 HORTON

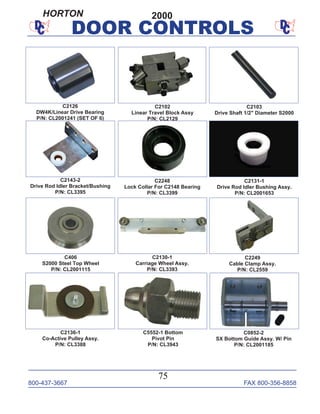

800-437-3667 FAX 800-356-8858 75 DOOR CONTROLS C406 S2000 Steel Top Wheel P/N: CL2001115 C2143-2 Drive Rod Idler Bracket/Bushing P/N: CL3395 C2136-1 Co-Active Pulley Assy. P/N: CL3388 C2249 Cable Clamp Assy. P/N: CL2559 C2248 Lock Collar For C2148 Bearing P/N: CL3399 C2103 Drive Shaft 1/2" Diameter S2000 C2131-1 Drive Rod Idler Bushing Assy. P/N: CL2001653 C2130-1 Carriage Wheel Assy. P/N: CL3393 C2126 DW4K/Linear Drive Bearing P/N: CL2001241 (SET OF 6) C2102 Linear Travel Block Assy P/N: CL2129 C0852-2 SX Bottom Guide Assy. W/ Pin P/N: CL2001185 C5552-1 Bottom Pivot Pin P/N: CL3943 2000HORTON

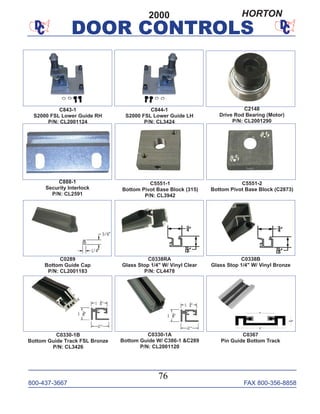

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 76 DOOR CONTROLS C0289 Bottom Guide Cap P/N: CL2001183 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478 C0338B Glass Stop 1/4" W/ Vinyl Bronze C5551-2 Bottom Pivot Base Block (C2873) C5551-1 Bottom Pivot Base Block (315) P/N: CL3942 C888-1 Security Interlock P/N: CL2591 C2148 Drive Rod Bearing (Motor) P/N: CL2001290 C843-1 S2000 FSL Lower Guide RH P/N: CL2001124 C844-1 S2000 FSL Lower Guide LH P/N: CL3424 C0330-1B Bottom Guide Track FSL Bronze P/N: CL3426 C0367 Pin Guide Bottom Track C0330-1A Bottom Guide W/ C386-1 &C289 P/N: CL2001120 2000 HORTON

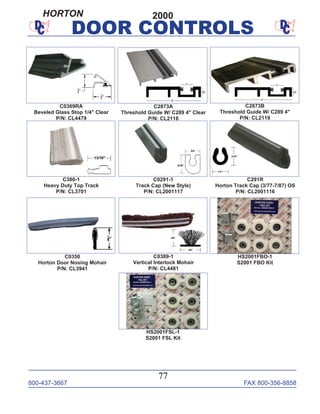

800-437-3667 FAX 800-356-8858 77 DOOR CONTROLS C0389-1 Vertical Interlock Mohair P/N: CL4481 C0350 Horton Door Nosing Mohair P/N: CL3941 C2873A Threshold Guide W/ C289 4" Clear P/N: CL2118 C380-1 Heavy Duty Top Track P/N: CL3701 C291R Horton Track Cap (3/77-7/87) OS P/N: CL2001116 C0291-1 Track Cap (New Style) P/N: CL2001117 HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit C2873B Threshold Guide W/ C289 4" P/N: CL2119 C0369RA Beveled Glass Stop 1/4" Clear P/N: CL4479 2000HORTON

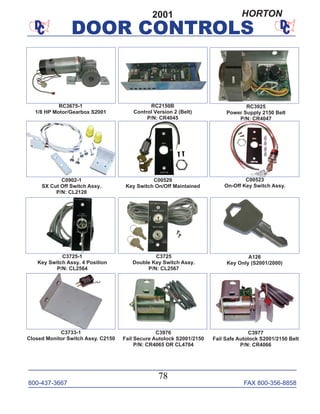

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 78 DOOR CONTROLS RC2150B Control Version 2 (Belt) P/N: CR4045 RC3675-1 1/8 HP Motor/Gearbox S2001 RC3925 Power Supply 2150 Belt P/N: CR4047 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725-1 Key Switch Assy. 4 Position P/N: CL2564 C3725 Double Key Switch Assy. P/N: CL2567 A126 Key Only (S2001/2000) C3733-1 Closed Monitor Switch Assy. C2150 C00529 Key Switch On/Off Maintained C00523 On-Off Key Switch Assy. 2001 C3976 Fail Secure Autolock S2001/2150 P/N: CR4065 OR CL4704 C3977 Fail Safe Autolock S2001/2150 Belt P/N: CR4066 HORTON

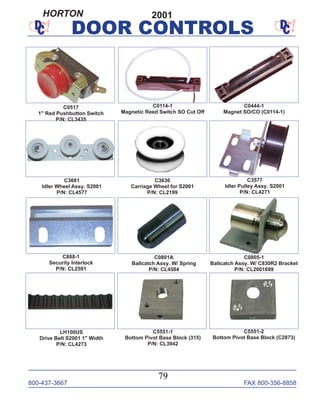

800-437-3667 FAX 800-356-8858 79 DOOR CONTROLS C0805-1 Ballcatch Assy. W/ C830R2 Bracket P/N: CL2001699 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 C3577 Idler Pulley Assy. S2001 P/N: CL4271 C3636 Carriage Wheel for S2001 P/N: CL2199 C3681 Idler Wheel Assy. S2001 P/N: CL4577 LH100US Drive Belt S2001 1" Width P/N: CL4273 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) C888-1 Security Interlock P/N: CL2591 C5551-1 Bottom Pivot Base Block (315) P/N: CL3942 C5551-2 Bottom Pivot Base Block (C2873) C0517 1" Red Pushbutton Switch P/N: CL3435 2001HORTON

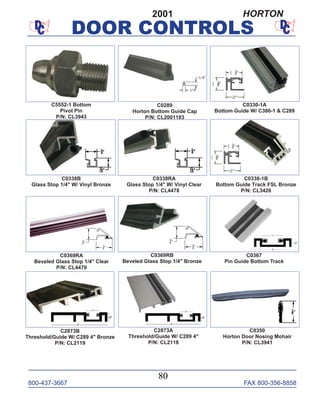

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 80 DOOR CONTROLS 2001 HORTON C0330-1A Bottom Guide W/ C386-1 & C289 C0289 Horton Bottom Guide Cap P/N: CL2001183 C0330-1B Bottom Guide Track FSL Bronze P/N: CL3426 C0338B Glass Stop 1/4" W/ Vinyl Bronze C0367 Pin Guide Bottom Track C5552-1 Bottom Pivot Pin P/N: CL3943 C0369RA Beveled Glass Stop 1/4" Clear P/N: CL4479 C2873B Threshold/Guide W/ C289 4" Bronze P/N: CL2119 C0369RB Beveled Glass Stop 1/4" Bronze C0350 Horton Door Nosing Mohair P/N: CL3941 C2873A Threshold/Guide W/ C289 4" P/N: CL2118 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478

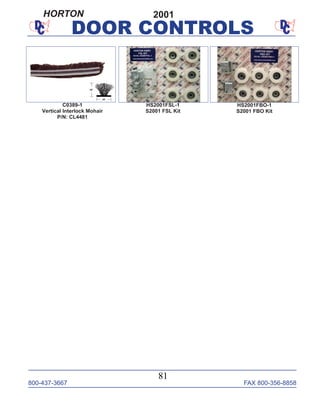

800-437-3667 FAX 800-356-8858 81 DOOR CONTROLS 2001HORTON C0389-1 Vertical Interlock Mohair P/N: CL4481 HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit

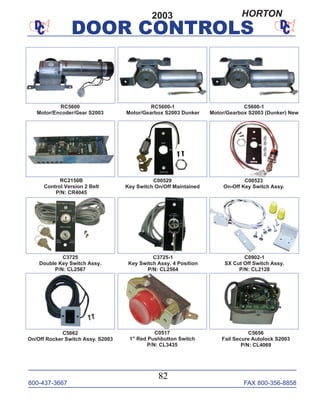

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 82 DOOR CONTROLS RC5600-1 Motor/Gearbox S2003 Dunker RC5600 Motor/Encoder/Gear S2003 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725 Double Key Switch Assy. P/N: CL2567 C5600-1 Motor/Gearbox S2003 (Dunker) New C5662 On/Off Rocker Switch Assy. S2003 C5656 Fail Secure Autolock S2003 P/N: CL4069 C3725-1 Key Switch Assy. 4 Position P/N: CL2564 C00529 Key Switch On/Off Maintained C00523 On-Off Key Switch Assy. 2003 C0517 1" Red Pushbutton Switch P/N: CL3435 RC2150B Control Version 2 Belt P/N: CR4045 HORTON
800-437-3667 FAX 800-356-8858 83 DOOR CONTROLS C0330-1A Bottom Guide W/ C386-1 & C289 C0289 Bottom Guide Cap P/N: CL2001183 K5657B Fail Safe Lock Assy. Bi-Part S2003 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 C888-1 Security Interlock P/N: CL2591 C5605-2 Mount Bracket S2003 Dunker P/N: CL3940 C5623 Idler Pulley Assy. S2003 P/N: CL5702 C3636 Carriage Wheel for S2001 P/N: CL2199 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) K5656B Fail Secure Lock Assy. Bi-Part S2003 C5657 Fail Safe Autolock P/N: CL4705 2003HORTON

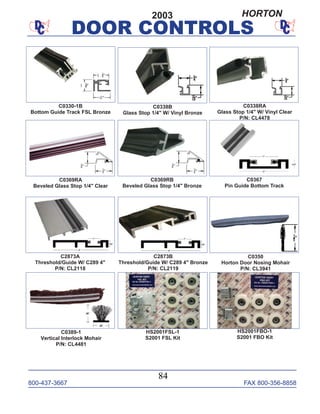

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 84 DOOR CONTROLS C2873B Threshold/Guide W/ C289 4" Bronze P/N: CL2119 C2873A Threshold/Guide W/ C289 4" P/N: CL2118 C0369RA Beveled Glass Stop 1/4" Clear C0350 Horton Door Nosing Mohair P/N: CL3941 C0389-1 Vertical Interlock Mohair P/N: CL4481 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478 C0367 Pin Guide Bottom Track C0338B Glass Stop 1/4" W/ Vinyl Bronze HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit C0369RB Beveled Glass Stop 1/4" Bronze C0330-1B Bottom Guide Track FSL Bronze 2003 HORTON

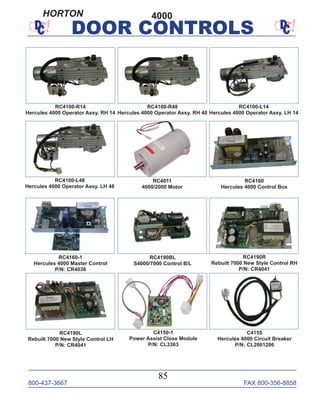

800-437-3667 FAX 800-356-8858 85 DOOR CONTROLS C4150-1 Power Assist Close Module P/N: CL3363 RC4100-L14 Hercules 4000 Operator Assy. LH 14 RC4100-L48 Hercules 4000 Operator Assy. LH 48 RC4011 4000/2000 Motor RC4100-R14 Hercules 4000 Operator Assy. RH 14 RC4100-R48 Hercules 4000 Operator Assy. RH 48 RC4160-1 Hercules 4000 Master Control P/N: CR4036 RC4160 Hercules 4000 Control Box RC4190BL S4000/7000 Control B/L C4155 Hercules 4000 Circuit Breaker P/N: CL2001286 4000 RC4190L Rebuilt 7000 New Style Control LH P/N: CR4041 RC4190R Rebuilt 7000 New Style Control RH P/N: CR4041 HORTON

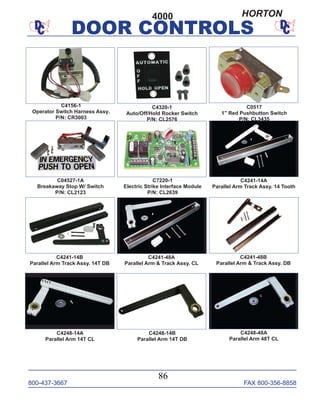

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 86 DOOR CONTROLS C4241-14B Parallel Arm Track Assy. 14T DB C4241-48A Parallel Arm & Track Assy. CL C4241-48B Parallel Arm & Track Assy. DB C4241-14A Parallel Arm Track Assy. 14 Tooth C4248-14A Parallel Arm 14T CL C4248-48A Parallel Arm 48T CL C04527-1A Breakaway Stop W/ Switch P/N: CL2123 C7220-1 Electric Strike Interface Module P/N: CL2639 C4248-14B Parallel Arm 14T DB C4156-1 Operator Switch Harness Assy. P/N: CR3003 C4320-1 Auto/Off/Hold Rocker Switch P/N: CL2576 4000 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON

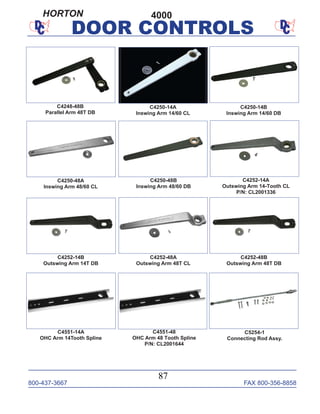

800-437-3667 FAX 800-356-8858 87 DOOR CONTROLS C4252-48A Outswing Arm 48T CL C4551-14A OHC Arm 14Tooth Spline C4551-48 OHC Arm 48 Tooth Spline P/N: CL2001644 C4252-14A Outswing Arm 14-Tooth CL P/N: CL2001336 C4252-14B Outswing Arm 14T DB C4250-48B Inswing Arm 48/60 DB C4252-48B Outswing Arm 48T DB C4250-48A Inswing Arm 48/60 CL C4250-14A Inswing Arm 14/60 CL C4250-14B Inswing Arm 14/60 DB C4248-48B Parallel Arm 48T DB C5254-1 Connecting Rod Assy. 4000HORTON

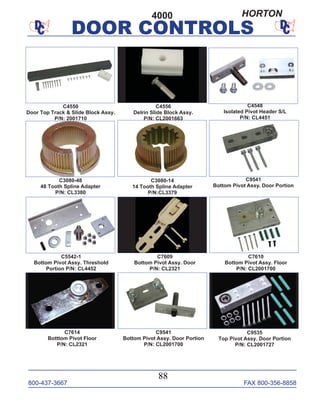

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 88 DOOR CONTROLS C9535 Top Pivot Assy. Door Portion P/N: CL2001727 C7614 Botttom Pivot Floor P/N: CL2321 C9541 Bottom Pivot Assy. Door Portion P/N: CL2001700 C5542-1 Bottom Pivot Assy. Threshold Portion P/N: CL4452 C7610 Bottom Pivot Assy. Floor P/N: CL2001700 C7609 Bottom Pivot Assy. Door P/N: CL2321 C3080-48 48 Tooth Spline Adapter P/N: CL3380 C4550 Door Top Track & Slide Block Assy. P/N: 2001710 C4556 Delrin Slide Block Assy. P/N: CL2001663 C4548 Isolated Pivot Header S/L P/N: CL4451 C3080-14 14 Tooth Spline Adapter P/N:CL3379 C9541 Bottom Pivot Assy. Door Portion 4000 HORTON

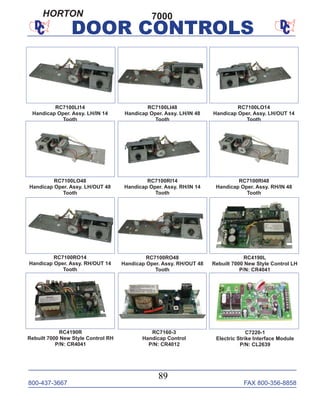

800-437-3667 FAX 800-356-8858 89 DOOR CONTROLS RC4190L Rebuilt 7000 New Style Control LH P/N: CR4041 RC4190R Rebuilt 7000 New Style Control RH P/N: CR4041 RC7100LO48 Handicap Oper. Assy. LH/OUT 48 Tooth RC7100Ll14 Handicap Oper. Assy. LH/IN 14 Tooth RC7100RI14 Handicap Oper. Assy. RH/IN 14 Tooth RC7100LO14 Handicap Oper. Assy. LH/OUT 14 Tooth RC7100RI48 Handicap Oper. Assy. RH/IN 48 Tooth RC7100LI48 Handicap Oper. Assy. LH/IN 48 Tooth RC7100RO14 Handicap Oper. Assy. RH/OUT 14 Tooth RC7100RO48 Handicap Oper. Assy. RH/OUT 48 Tooth RC7160-3 Handicap Control P/N: CR4012 C7220-1 Electric Strike Interface Module P/N: CL2639 7000HORTON

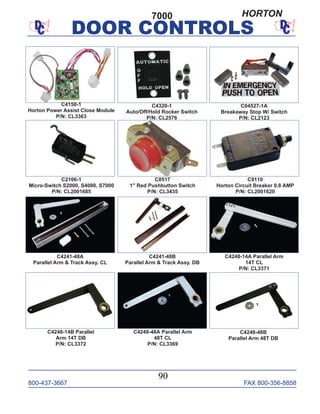

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 90 DOOR CONTROLS C9110 Horton Circuit Breaker 0.8 AMP P/N: CL2001620 C2106-1 Micro-Switch S2000, S4000, S7000 P/N: CL2001685 C4320-1 Auto/Off/Hold Rocker Switch P/N: CL2576 C04527-1A Breakaway Stop W/ Switch P/N: CL2123 C4241-48A Parallel Arm & Track Assy. CL C4248-14A Parallel Arm 14T CL P/N: CL3371 C4241-48B Parallel Arm & Track Assy. DB C4248-48A Parallel Arm 48T CL P/N: CL3369 C4248-14B Parallel Arm 14T DB P/N: CL3372 C4150-1 Horton Power Assist Close Module P/N: CL3363 C4248-48B Parallel Arm 48T DB 7000 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON

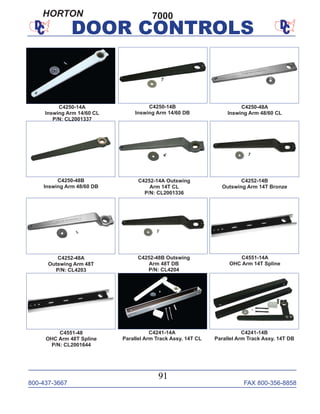

800-437-3667 FAX 800-356-8858 91 DOOR CONTROLS C4250-48A Inswing Arm 48/60 CL C4252-48A Outswing Arm 48T P/N: CL4203 C4252-14A Outswing Arm 14T CL P/N: CL2001336 C4252-14B Outswing Arm 14T Bronze C4250-48B Inswing Arm 48/60 DB C4252-48B Outswing Arm 48T DB P/N: CL4204 C4551-14A OHC Arm 14T Spline C4551-48 OHC Arm 48T Spline P/N: CL2001644 C4250-14B Inswing Arm 14/60 DB C4250-14A Inswing Arm 14/60 CL P/N: CL2001337 C4241-14B Parallel Arm Track Assy. 14T DB C4241-14A Parallel Arm Track Assy. 14T CL 7000HORTON

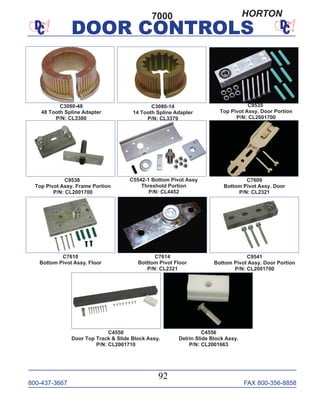

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 92 DOOR CONTROLS C4550 Door Top Track & Slide Block Assy. P/N: CL2001710 C4556 Delrin Slide Block Assy. P/N: CL2001663 C5542-1 Bottom Pivot Assy Threshold Portion P/N: CL4452 C7609 Bottom Pivot Assy. Door P/N: CL2321 C7614 Botttom Pivot Floor P/N: CL2321 C9541 Bottom Pivot Assy. Door Portion P/N: CL2001700 C7610 Bottom Pivot Assy. Floor C9538 Top Pivot Assy. Frame Portion P/N: CL2001700 C9535 Top Pivot Assy. Door Portion P/N: CL2001700 C3080-14 14 Tooth Spline Adapter P/N: CL3379 C3080-48 48 Tooth Spline Adapter P/N: CL3380 7000 HORTON

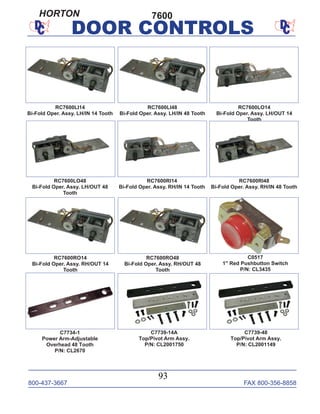

800-437-3667 FAX 800-356-8858 93 DOOR CONTROLS RC7600LI14 Bi-Fold Oper. Assy. LH/IN 14 Tooth RC7600LI48 Bi-Fold Oper. Assy. LH/IN 48 Tooth RC7600LO14 Bi-Fold Oper. Assy. LH/OUT 14 Tooth RC7600LO48 Bi-Fold Oper. Assy. LH/OUT 48 Tooth RC7600RI14 Bi-Fold Oper. Assy. RH/IN 14 Tooth RC7600RI48 Bi-Fold Oper. Assy. RH/IN 48 Tooth RC7600RO14 Bi-Fold Oper. Assy. RH/OUT 14 Tooth RC7600RO48 Bi-Fold Oper. Assy. RH/OUT 48 Tooth C7739-14A Top/Pivot Arm Assy. P/N: CL2001750 C7734-1 Power Arm-Adjustable Overhead 48 Tooth P/N: CL2670 7600 C7739-48 Top/Pivot Arm Assy. P/N: CL2001149 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON

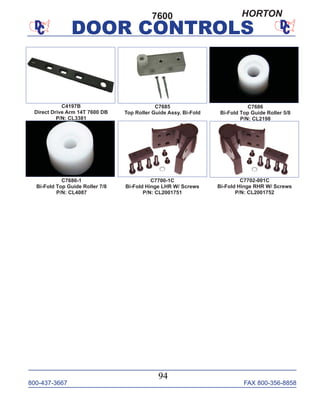

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 94 DOOR CONTROLS C7686 Bi-Fold Top Guide Roller 5/8 P/N: CL2198 C7685 Top Roller Guide Assy. Bi-Fold C7686-1 Bi-Fold Top Guide Roller 7/8 P/N: CL4087 C7700-1C Bi-Fold Hinge LHR W/ Screws P/N: CL2001751 C7702-001C Bi-Fold Hinge RHR W/ Screws P/N: CL2001752 7600 C4197B Direct Drive Arm 14T 7600 DB P/N: CL3381 HORTON

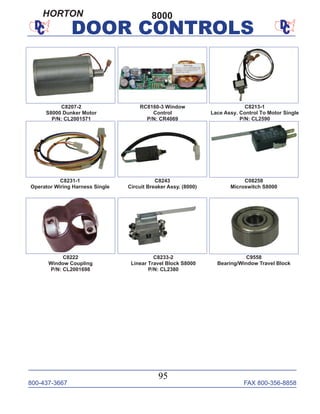

800-437-3667 FAX 800-356-8858 95 DOOR CONTROLS RC8160-3 Window Control P/N: CR4069 C8213-1 Lace Assy. Control To Motor Single P/N: CL2590 C8222 Window Coupling P/N: CL2001698 C8207-2 S8000 Dunker Motor P/N: CL2001571 C8231-1 Operator Wiring Harness Single C8233-2 Linear Travel Block S8000 P/N: CL2380 C8243 Circuit Breaker Assy. (8000) C08258 Microswitch S8000 C9558 Bearing/Window Travel Block 8000HORTON

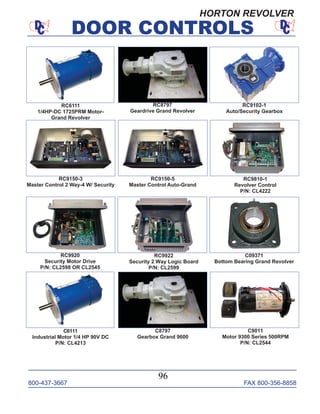

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 96 DOOR CONTROLS RC6111 1/4HP-DC 1725PRM Motor- Grand Revolver RC8797 Geardrive Grand Revolver RC9102-1 Auto/Security Gearbox RC9150-3 Master Control 2 Way-4 W/ Security RC9810-1 Revolver Control P/N: CL4222 RC9150-5 Master Control Auto-Grand RC9920 Security Motor Drive P/N: CL2598 OR CL2545 RC9922 Security 2 Way Logic Board P/N: CL2599 C09371 Bottom Bearing Grand Revolver C9011 Motor 9300 Series 500RPM P/N: CL2544 C6111 Industrial Motor 1/4 HP 90V DC P/N: CL4213 C8797 Gearbox Grand 9600 HORTON REVOLVER

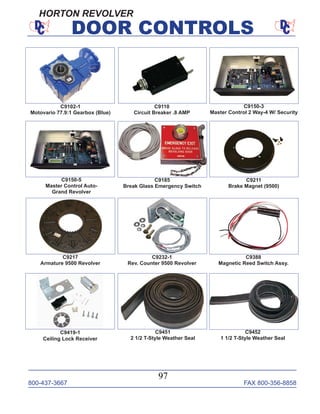

800-437-3667 FAX 800-356-8858 97 DOOR CONTROLS C9150-3 Master Control 2 Way-4 W/ Security C9150-5 Master Control Auto- Grand Revolver C9185 Break Glass Emergency Switch C9211 Brake Magnet (9500) C9102-1 Motovario 77.9:1 Gearbox (Blue) C9110 Circuit Breaker .8 AMP C9232-1 Rev. Counter 9500 Revolver C9217 Armature 9500 Revolver C9419-1 Ceiling Lock Receiver C9388 Magnetic Reed Switch Assy. C9451 2 1/2 T-Style Weather Seal C9452 1 1/2 T-Style Weather Seal HORTON REVOLVER

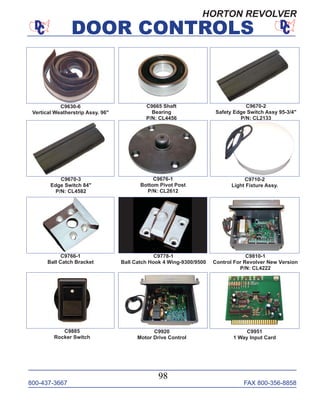

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 98 DOOR CONTROLS C9630-6 Vertical Weatherstrip Assy. 96" C9665 Shaft Bearing P/N: CL4456 C9670-2 Safety Edge Switch Assy 95-3/4" P/N: CL2133 C9670-3 Edge Switch 84" P/N: CL4582 C9676-1 Bottom Pivot Post P/N: CL2612 C9710-2 Light Fixture Assy. C9766-1 Ball Catch Bracket C9778-1 Ball Catch Hook 4 Wing-9300/9500 C9810-1 Control For Revolver New Version P/N: CL4222 C9885 Rocker Switch C9920 Motor Drive Control C9951 1 Way Input Card HORTON REVOLVER
800-437-3667 FAX 800-356-8858 99 DOOR CONTROLS C8940 Collector Ring P/N: CL2596 C8941 Slip Ring Kit RC9150 Auto/Security Control RC9210-1 Speed Control Manual P/N: CL4221 C9725.K Shaft W/ Key Gear DR9300 8" Shaft P/N: CL2594 C9883-1 Collector Ring W/ Plug- Grand Revolver HORTON REVOLVER

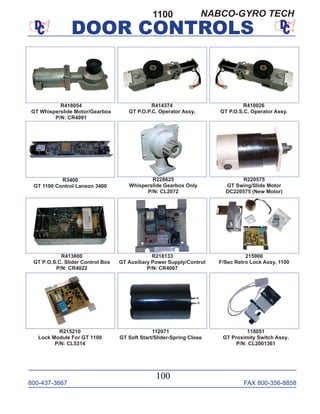

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 100 DOOR CONTROLS 1100 R418054 GT Whisperslide Motor/Gearbox P/N: CR4091 R228625 Whisperslide Gearbox Only P/N: CL2072 R220575 GT Swing/Slide Motor DC220575 (New Motor) R410026 GT P.O.S.C. Operator Assy. R414374 GT P.O.P.C. Operator Assy. R413800 GT P.O.S.C. Slider Control Box P/N: CR4022 R218133 GT Auxiliary Power Supply/Control P/N: CR4007 112071 GT Soft Start/Slider-Spring Close 215900 F/Sec Retro Lock Assy. 1100 118051 GT Proximity Switch Assy. P/N: CL2001361 R215210 Lock Module For GT 1100 P/N: CL5314 R3400 GT 1100 Control Lanson 3400 NABCO-GYRO TECH

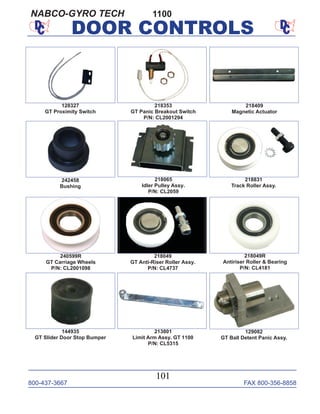

800-437-3667 FAX 800-356-8858 101 DOOR CONTROLS 1100 128327 GT Proximity Switch 218353 GT Panic Breakout Switch P/N: CL2001294 218409 Magnetic Actuator 213801 Limit Arm Assy. GT 1100 P/N: CL5315 218065 Idler Pulley Assy. P/N: CL2059 218831 Track Roller Assy. 240599R GT Carriage Wheels P/N: CL2001098 218049 GT Anti-Riser Roller Assy. P/N: CL4737 144935 GT Slider Door Stop Bumper 129082 GT Ball Detent Panic Assy. 242458 Bushing 218049R Antiriser Roller & Bearing P/N: CL4181 NABCO-GYRO TECH

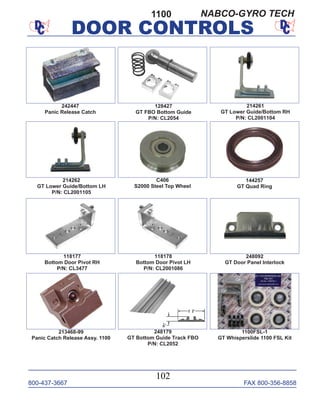

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 102 DOOR CONTROLS 1100 213468-99 Panic Catch Release Assy. 1100 128427 GT FBO Bottom Guide P/N: CL2054 214261 GT Lower Guide/Bottom RH P/N: CL2001104 214262 GT Lower Guide/Bottom LH P/N: CL2001105 C406 S2000 Steel Top Wheel 144257 GT Quad Ring 118177 Bottom Door Pivot RH P/N: CL3477 248092 GT Door Panel Interlock 248179 GT Bottom Guide Track FBO P/N: CL2052 118178 Bottom Door Pivot LH P/N: CL2001086 1100FSL-1 GT Whisperslide 1100 FSL Kit 242447 Panic Release Catch NABCO-GYRO TECH

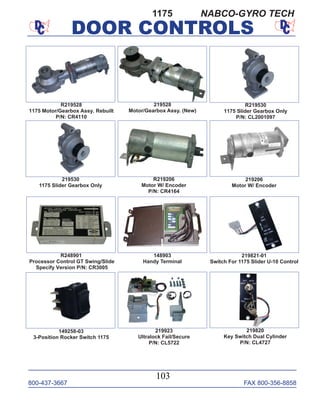

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 103 DOOR CONTROLS R219528 1175 Motor/Gearbox Assy. Rebuilt P/N: CR4110 R219206 Motor W/ Encoder P/N: CR4164 219206 Motor W/ Encoder 219528 Motor/Gearbox Assy. (New) 219530 1175 Slider Gearbox Only 219821-01 Switch For 1175 Slider U-10 Control 148903 Handy Terminal R248901 Processor Control GT Swing/Slide Specify Version P/N: CR3005 219923 Ultralock Fail/Secure P/N: CL5722 149258-03 3-Position Rocker Switch 1175 219820 Key Switch Dual Cylinder P/N: CL4727 1175 R219530 1175 Slider Gearbox Only P/N: CL2001097 NABCO-GYRO TECH

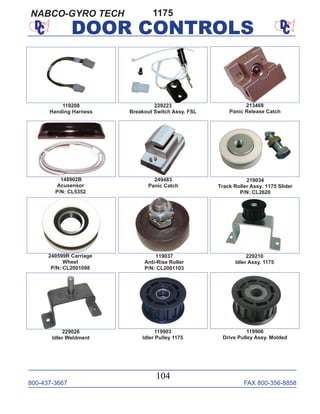

800-437-3667 FAX 800-356-8858 104 DOOR CONTROLS 219034 Track Roller Assy. 1175 Slider P/N: CL2620 229026 Idler Weldment 119906 Drive Pulley Assy. Molded 229210 Idler Assy. 1175 119903 Idler Pulley 1175 119037 Anti-Rise Roller P/N: CL2001103 240599R Carriage Wheel P/N: CL2001098 229223 Breakout Switch Assy. FSL 119208 Handing Harness 1175 148902B Acusensor P/N: CL5352 213468 Panic Release Catch 249483 Panic Catch NABCO-GYRO TECH

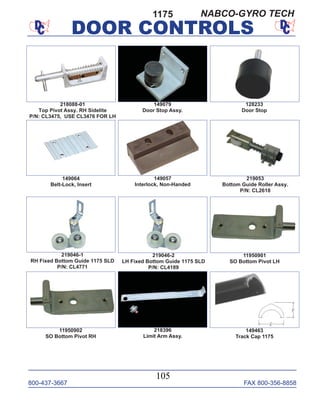

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 105 DOOR CONTROLS 1175 149463 Track Cap 1175 149064 Belt-Lock, Insert 219053 Bottom Guide Roller Assy. P/N: CL2618 128233 Door Stop 149057 Interlock, Non-Handed 149079 Door Stop Assy. 219046-1 RH Fixed Bottom Guide 1175 SLD P/N: CL4771 219046-2 LH Fixed Bottom Guide 1175 SLD P/N: CL4189 11950901 SO Bottom Pivot LH 218088-01 Top Pivot Assy. RH Sidelite P/N: CL3475, USE CL3476 FOR LH 11950902 SO Bottom Pivot RH 218396 Limit Arm Assy. NABCO-GYRO TECH

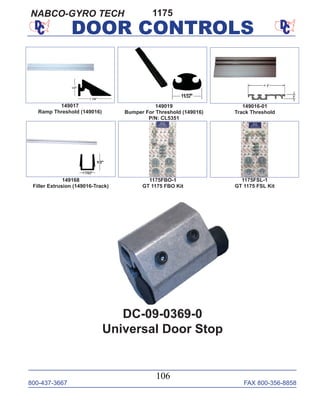

800-437-3667 FAX 800-356-8858 106 DOOR CONTROLS 1175 149017 Ramp Threshold (149016) 149168 Filler Extrusion (149016-Track) 149019 Bumper For Threshold (149016) P/N: CL5351 149016-01 Track Threshold 1175FBO-1 GT 1175 FBO Kit 1175FSL-1 GT 1175 FSL Kit DC-09-0369-0 Universal Door Stop NABCO-GYRO TECH

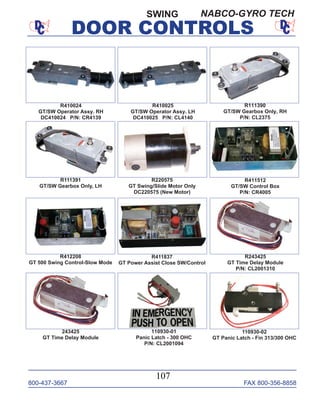

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 107 SWING R410024 GT/SW Operator Assy. RH DC410024 P/N: CR4139 R410025 GT/SW Operator Assy. LH DC410025 P/N: CL4140 R111390 GT/SW Gearbox Only, RH P/N: CL2375 R111391 GT/SW Gearbox Only, LH R411512 GT/SW Control Box P/N: CR4005 R220575 GT Swing/Slide Motor Only DC220575 (New Motor) R412208 GT 500 Swing Control-Slow Mode R411837 GT Power Assist Close SW/Control R243425 GT Time Delay Module P/N: CL2001310 110930-02 GT Panic Latch - Fin 313/300 OHC 243425 GT Time Delay Module 110930-01 Panic Latch - 300 OHC P/N: CL2001094 NABCO-GYRO TECH DOOR CONTROLS

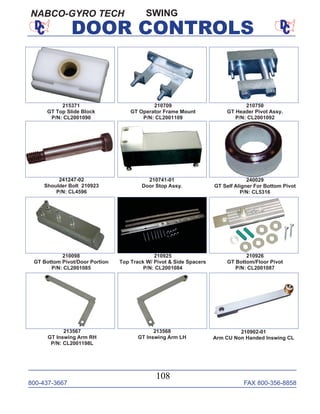

800-437-3667 FAX 800-356-8858 108 DOOR CONTROLS SWING 210750 GT Header Pivot Assy. P/N: CL2001092 241247-02 Shoulder Bolt 210923 P/N: CL4596 210741-01 Door Stop Assy. 215371 GT Top Slide Block P/N: CL2001090 210709 GT Operator Frame Mount P/N: CL2001109 210925 Top Track W/ Pivot & Side Spacers P/N: CL2001084 210098 GT Bottom Pivot/Door Portion P/N: CL2001085 210926 GT Bottom/Floor Pivot P/N: CL2001087 213567 GT Inswing Arm RH P/N: CL2001198L 213568 GT Inswing Arm LH 240029 GT Self Aligner For Bottom Pivot P/N: CL5316 210902-01 Arm CU Non Handed Inswing CL NABCO-GYRO TECH

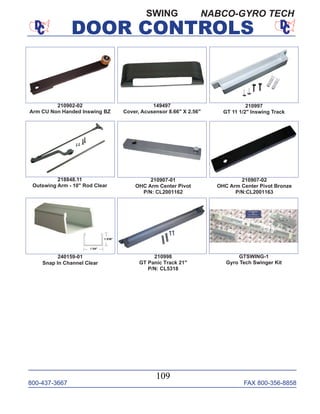

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 109 DOOR CONTROLS 210902-02 Arm CU Non Handed Inswing BZ 210997 GT 11 1/2" Inswing Track 210998 GT Panic Track 21" P/N: CL5318 218848.11 Outswing Arm - 10" Rod Clear 210907-01 OHC Arm Center Pivot P/N: CL2001162 210907-02 OHC Arm Center Pivot Bronze P/N:CL2001163 149497 Cover, Acusensor 8.66" X 2.56" GTSWING-1 Gyro Tech Swinger Kit 240159-01 Snap In Channel Clear SWING NABCO-GYRO TECH

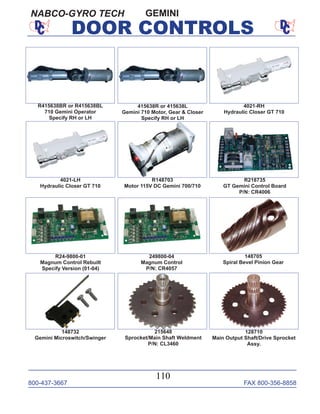

800-437-3667 FAX 800-356-8858 110 DOOR CONTROLS R415638BR or R415638BL 710 Gemini Operator Specify RH or LH 415638R or 415638L Gemini 710 Motor, Gear & Closer Specify RH or LH R218735 GT Gemini Control Board P/N: CR4006 R24-9800-01 Magnum Control Rebuilt Specify Version (01-04) R148703 Motor 115V DC Gemini 700/710 215648 Sprocket/Main Shaft Weldment P/N: CL3460 128710 Main Output Shaft/Drive Sprocket Assy. 148732 Gemini Microswitch/Swinger 4021-RH Hydraulic Closer GT 710 4021-LH Hydraulic Closer GT 710 249800-04 Magnum Control P/N: CR4057 GEMINI 148705 Spiral Bevel Pinion Gear NABCO-GYRO TECH

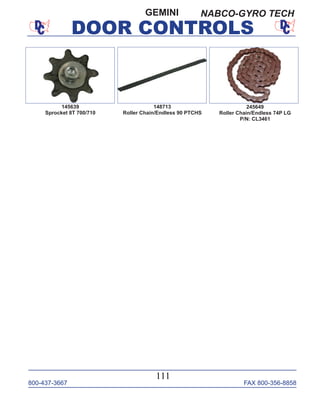

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 111 DOOR CONTROLS 148713 Roller Chain/Endless 90 PTCHS 245649 Roller Chain/Endless 74P LG P/N: CL3461 145639 Sprocket 8T 700/710 GEMINI NABCO-GYRO TECH

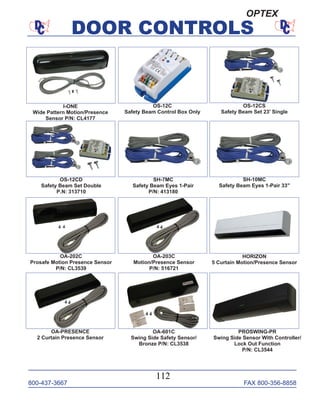

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 112 DOOR CONTROLS I-ONE Wide Pattern Motion/Presence Sensor P/N: CL4177 OS-12C Safety Beam Control Box Only OS-12CS Safety Beam Set 23' Single SH-7MC Safety Beam Eyes 1-Pair P/N: 413180 OS-12CD Safety Beam Set Double P.N: 313710 SH-10MC Safety Beam Eyes 1-Pair 33" OA-202C Prosafe Motion Presence Sensor P/N: CL3539 OA-203C Motion/Presence Sensor P/N: 516721 OA-601C Swing Side Safety Sensor/ Bronze P/N: CL3538 OA-PRESENCE 2 Curtain Presence Sensor HORIZON 5 Curtain Motion/Presence Sensor PROSWING-PR Swing Side Sensor With Controller/ Lock Out Function P/N: CL3544 OPTEX

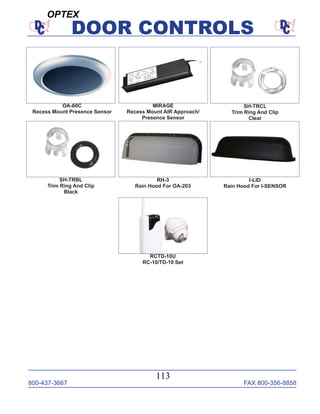

800-437-3667 FAX 800-356-8858 113 DOOR CONTROLS OA-60C Recess Mount Presence Sensor MIRAGE Recess Mount AIR Approach/ Presence Sensor SH-TRCL Trim Ring And Clip Clear SH-TRBL Trim Ring And Clip Black RCTD-10U RC-10/TD-10 Set RH-3 Rain Hood For OA-203 I-LID Rain Hood For I-SENSOR OPTEX

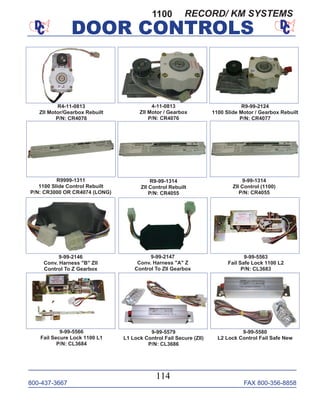

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 114 DOOR CONTROLS 4-11-0813 ZII Motor / Gearbox P/N: CR4076 R9999-1311 1100 Slide Control Rebuilt P/N: CR3000 OR CR4074 (LONG) 9-99-1314 ZII Control (1100) P/N: CR4055 R4-11-0813 ZII Motor/Gearbox Rebuilt P/N: CR4076 9-99-2146 Conv. Harness "B" ZII Control To Z Gearbox 9-99-2147 Conv. Harness "A" Z Control To ZII Gearbox 9-99-5563 Fail Safe Lock 1100 L2 P/N: CL3683 9-99-5580 L2 Lock Control Fail Safe New 9-99-5566 Fail Secure Lock 1100 L1 P/N: CL3684 9-99-5579 L1 Lock Control Fail Secure (ZII) P/N: CL3686 R9-99-2124 1100 Slide Motor / Gearbox Rebuilt P/N: CR4077 1100 R9-99-1314 ZII Control Rebuilt P/N: CR4055 RECORD/ KM SYSTEMS

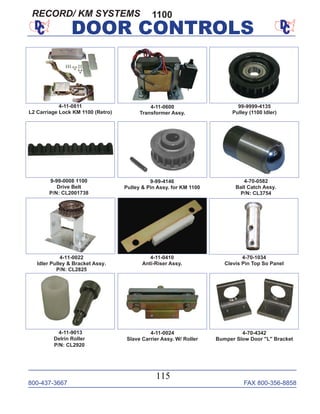

800-437-3667 FAX 800-356-8858 115 DOOR CONTROLS 9-99-4146 Pulley & Pin Assy. for KM 1100 4-11-0600 Transformer Assy. 9-99-0008 1100 Drive Belt P/N: CL2001738 4-70-0582 Ball Catch Assy. P/N: CL3754 4-11-0022 Idler Pulley & Bracket Assy. P/N: CL2825 4-70-1034 Clevis Pin Top So Panel 4-11-9013 Delrin Roller P/N: CL2920 4-11-0024 Slave Carrier Assy. W/ Roller 4-70-4342 Bumper Slow Door "L" Bracket 99-9999-4135 Pulley (1100 Idler) 4-11-0410 Anti-Riser Assy. 1100 4-11-0811 L2 Carriage Lock KM 1100 (Retro) RECORD/ KM SYSTEMS

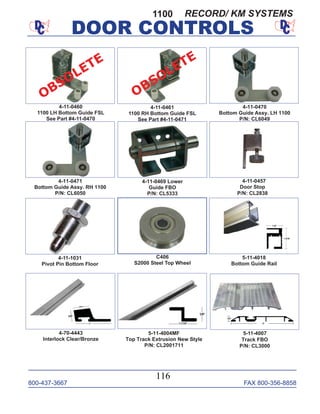

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 116 DOOR CONTROLS 4-11-0469 Lower Guide FBO P/N: CL5333 4-70-4443 Interlock Clear/Bronze 5-11-4004MF Top Track Extrusion New Style P/N: CL2001711 4-11-0457 Door Stop P/N: CL2838 4-11-0461 1100 RH Bottom Guide FSL See Part #4-11-0471 4-11-0470 Bottom Guide Assy. LH 1100 P/N: CL6049 4-11-0471 Bottom Guide Assy. RH 1100 P/N: CL6050 4-11-1031 Pivot Pin Bottom Floor 5-11-4018 Bottom Guide Rail 5-11-4007 Track FBO P/N: CL3000 1100 4-11-0460 1100 LH Bottom Guide FSL See Part #4-11-0470 C406 S2000 Steel Top Wheel OBSOLETE OBSOLETE RECORD/ KM SYSTEMS

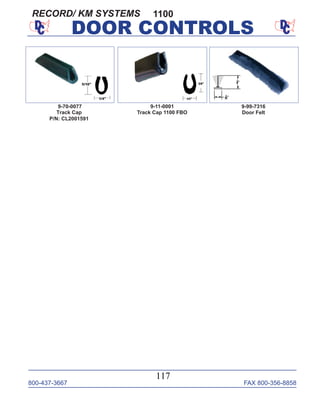

800-437-3667 FAX 800-356-8858 117 DOOR CONTROLS 9-99-7316 Door Felt 1100 9-11-0001 Track Cap 1100 FBO 9-70-0077 Track Cap P/N: CL2001591 RECORD/ KM SYSTEMS

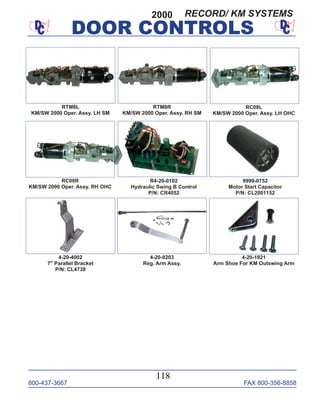

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 118 DOOR CONTROLS RC08L KM/SW 2000 Oper. Assy. LH OHC RC08R KM/SW 2000 Oper. Assy. RH OHC RTM8R KM/SW 2000 Oper. Assy. RH SM 9999-0752 Motor Start Capacitor P/N: CL2001152 RTM8L KM/SW 2000 Oper. Assy. LH SM 4-20-0203 Reg. Arm Assy. 4-20-4002 7" Parallel Bracket P/N: CL4738 R4-20-0102 Hydraulic Swing B Control P/N: CR4052 4-20-1921 Arm Shoe For KM Outswing Arm 2000 RECORD/ KM SYSTEMS

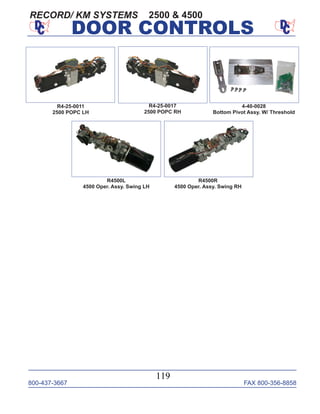

800-437-3667 FAX 800-356-8858 119 DOOR CONTROLS R4-25-0017 2500 POPC RH R4-25-0011 2500 POPC LH 2500 & 4500 4-40-0028 Bottom Pivot Assy. W/ Threshold R4500R 4500 Oper. Assy. Swing RH R4500L 4500 Oper. Assy. Swing LH RECORD/ KM SYSTEMS

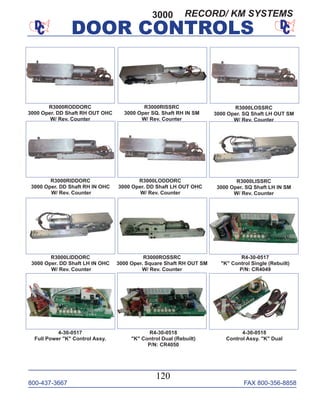

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 120 DOOR CONTROLS R3000ROSSRC 3000 Oper. Square Shaft RH OUT SM W/ Rev. Counter R4-30-0518 "K" Control Dual (Rebuilt) P/N: CR4050 R4-30-0517 "K" Control Single (Rebuilt) P/N: CR4049 R3000RODDORC 3000 Oper. DD Shaft RH OUT OHC W/ Rev. Counter R3000RIDDORC 3000 Oper. DD Shaft RH IN OHC W/ Rev. Counter R3000LOSSRC 3000 Oper. SQ Shaft LH OUT SM W/ Rev. Counter 4-30-0518 Control Assy. "K" Dual R3000LIDDORC 3000 Oper. DD Shaft LH IN OHC W/ Rev. Counter R3000LISSRC 3000 Oper. SQ Shaft LH IN SM W/ Rev. Counter R3000LODDORC 3000 Oper. DD Shaft LH OUT OHC W/ Rev. Counter R3000RISSRC 3000 Oper SQ. Shaft RH IN SM W/ Rev. Counter 4-30-0517 Full Power "K" Control Assy. 3000 RECORD/ KM SYSTEMS

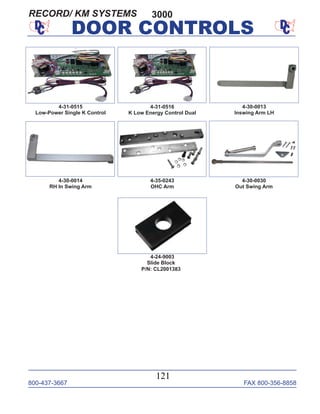

800-437-3667 FAX 800-356-8858 121 DOOR CONTROLS 4-31-0515 Low-Power Single K Control 4-31-0516 K Low Energy Control Dual 4-30-0013 Inswing Arm LH 4-35-0243 OHC Arm 4-30-0014 RH In Swing Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 3000RECORD/ KM SYSTEMS

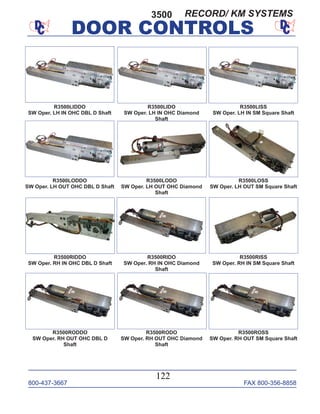

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 122 DOOR CONTROLS R3500RODO SW Oper. RH OUT OHC Diamond Shaft R3500ROSS SW Oper. RH OUT SM Square Shaft R3500LIDDO SW Oper. LH IN OHC DBL D Shaft R3500LIDO SW Oper. LH IN OHC Diamond Shaft R3500LISS SW Oper. LH IN SM Square Shaft R3500LODO SW Oper. LH OUT OHC Diamond Shaft R3500RODDO SW Oper. RH OUT OHC DBL D Shaft R3500RISS SW Oper. RH IN SM Square Shaft R3500RIDO SW Oper. RH IN OHC Diamond Shaft R3500LODDO SW Oper. LH OUT OHC DBL D Shaft R3500LOSS SW Oper. LH OUT SM Square Shaft R3500RIDDO SW Oper. RH IN OHC DBL D Shaft 3500 RECORD/ KM SYSTEMS
800-437-3667 FAX 800-356-8858 123 DOOR CONTROLS 3500 R4-35-0913 3500 Control (Dual) R4-35-0901 3500 Control (Single) P/N: CL2001716 4-30-0014 RH Inswing Arm 4-30-0013 LH Inswing Arm 4-35-0243 OHC Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 4-35-0143 OHC Arm Assy. 3500 RECORD/ KM SYSTEMS
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 124 DOOR CONTROLS R3800LOSS 3800 SW Opr. LH/OUT Square Shaft R3800RIDDO 3800 SW Opr. RH/IN OHC Dbl. D Shaft R3800RIDO 3800 SW Opr. RH/IN OHC Diamond Shaft R3800ROSS 3800 SW Opr. RH/OUT Square Shaft R3800RODDO 3800 SW Opr. RH/OUT OHC Dbl. D Shaft R3800RISS 3800 SW Opr. RH/IN Square Shaft R3800RODO 3800 SW Opr. RH/OUT OHC Diamond Shaft R3800LIDDO 3800 SW Opr. LH/IN OHC Dbl. D Shaft R3800LIDO 3800 SW Opr. LH/IN OHC Diamond Shaft R3800LISS 3800 SW Opr. LH/IN Square Shaft R3800LODDO 3800 SW Opr. LH/OUT OHC Dbl. D Shaft 3800 R3800LODO 3800 SW Opr. LH/OUT OHC Diamond Shaft RECORD/ KM SYSTEMS

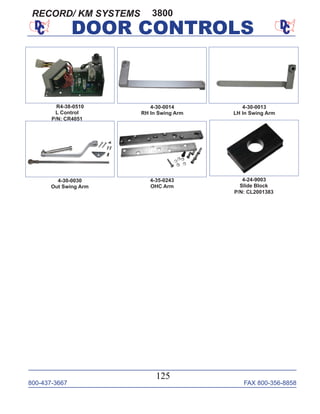

800-437-3667 FAX 800-356-8858 125 DOOR CONTROLS 4-30-0014 RH In Swing Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 4-35-0243 OHC Arm 3800 4-30-0013 LH In Swing Arm R4-38-0510 L Control P/N: CR4051 RECORD/ KM SYSTEMS

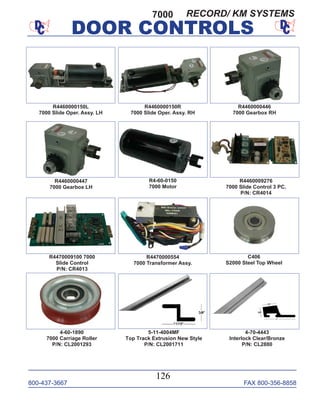

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 126 DOOR CONTROLS R4460000150L 7000 Slide Oper. Assy. LH R4460000150R 7000 Slide Oper. Assy. RH R4460000446 7000 Gearbox RH R4460000447 7000 Gearbox LH R4460009276 7000 Slide Control 3 PC. P/N: CR4014 R4470009100 7000 Slide Control P/N: CR4013 R4-60-0150 7000 Motor R4470000554 7000 Transformer Assy. C406 S2000 Steel Top Wheel 4-60-1890 7000 Carriage Roller P/N: CL2001293 5-11-4004MF Top Track Extrusion New Style P/N: CL2001711 4-70-4443 Interlock Clear/Bronze P/N: CL2880 7000 RECORD/ KM SYSTEMS

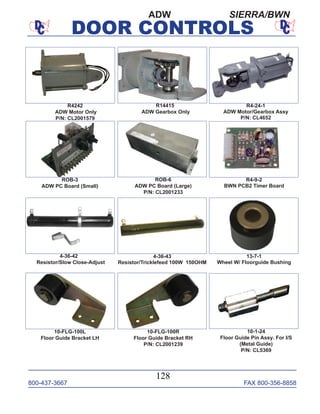

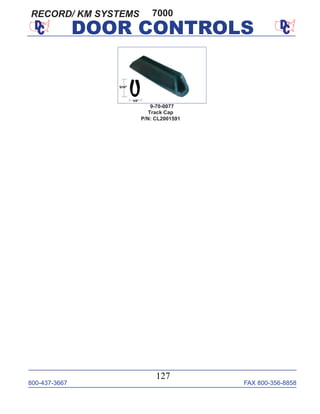

800-437-3667 FAX 800-356-8858 127 DOOR CONTROLS 9-70-0077 Track Cap P/N: CL2001591 7000RECORD/ KM SYSTEMS
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 128 DOOR CONTROLS R4-9-2 BWN PCB2 Timer Board 4-36-43 Resistor/Tricklefeed 100W 150OHM 13-7-1 Wheel W/ Floorguide Bushing 10-1-24 Floor Guide Pin Assy. For I/S (Metal Guide) P/N: CL5369 R4242 ADW Motor Only P/N: CL2001579 SIERRA/BWN R4-24-1 ADW Motor/Gearbox Assy P/N: CL4652 ROB-6 ADW PC Board (Large) P/N: CL2001233 ROB-3 ADW PC Board (Small) R14415 ADW Gearbox Only 4-36-42 Resistor/Slow Close-Adjust 10-FLG-100L Floor Guide Bracket LH 10-FLG-100R Floor Guide Bracket RH P/N: CL2001239 ADW
800-437-3667 FAX 800-356-8858 129 DOOR CONTROLS 10-1-24 Floor Guide Pin Assy. For I/S (Plastic Guide) P/N: CL5369 10-1-12 ADW Idler Sprocket/End Gear Assy P/N: CL4094 5-10-10 ADW Motor Rubber Mount P/N: CL4012 5-9-2R ADW Carriage Wheel w/Bearing 3-2-2 Ball Catch Striker Plate 3-2-4567R Ball Catch Bracket RH 14-3-6 Roller Chain 1013 Floor Track Extrusion (S/M) (Specify CL or BZ) 5-9-3 Antiriser Angle Bracket 11-1-500031 J Shaped Breakout 10-1-1 Track Wheel Assy. P/N: CL2001172 ADW 3-2-4567L Ball Catch Bracket LH SIERRA /BWN

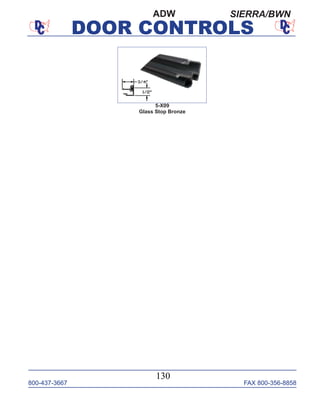

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 130 DOOR CONTROLS SIERRA/BWN 5-X09 Glass Stop Bronze ADW

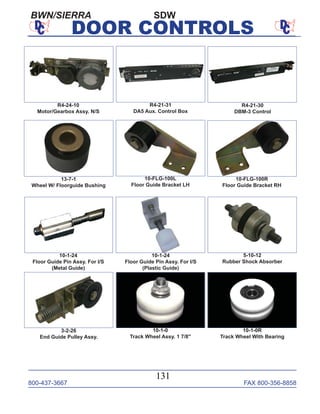

800-437-3667 FAX 800-356-8858 131 DOOR CONTROLS 10-1-24 Floor Guide Pin Assy. For I/S (Plastic Guide) BWN/SIERRA R4-21-30 DBM-3 Control R4-21-31 DA5 Aux. Control Box 10-1-0 Track Wheel Assy. 1 7/8" 10-1-0R Track Wheel With Bearing 3-2-26 End Guide Pulley Assy. R4-24-10 Motor/Gearbox Assy. N/S 10-FLG-100R Floor Guide Bracket RH 10-FLG-100L Floor Guide Bracket LH 13-7-1 Wheel W/ Floorguide Bushing 10-1-24 Floor Guide Pin Assy. For I/S (Metal Guide) 5-10-12 Rubber Shock Absorber SDW

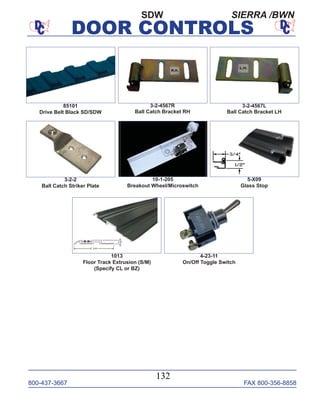

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 132 DOOR CONTROLS SIERRA /BWN 85101 Drive Belt Black SD/SDW 3-2-2 Ball Catch Striker Plate 10-1-205 Breakout Wheel/Microswitch 5-X09 Glass Stop 4-23-11 On/Off Toggle Switch SDW 3-2-4567R Ball Catch Bracket RH 3-2-4567L Ball Catch Bracket LH 1013 Floor Track Extrusion (S/M) (Specify CL or BZ)

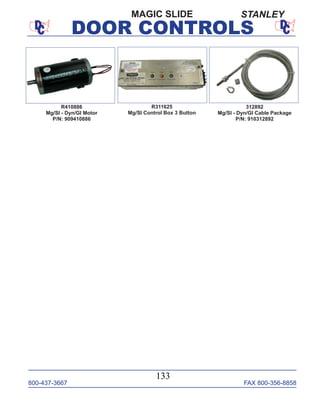

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 133 DOOR CONTROLS R410886 Mg/Sl - Dyn/Gl Motor P/N: 909410886 R311625 Mg/Sl Control Box 3 Button MAGIC SLIDE 312892 Mg/Sl - Dyn/Gl Cable Package P/N: 910312892 STANLEY

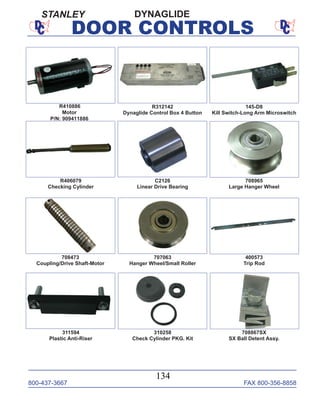

800-437-3667 FAX 800-356-8858 134 DOOR CONTROLS R410886 Motor P/N: 909411886 145-D8 Kill Switch-Long Arm Microswitch R312142 Dynaglide Control Box 4 Button R406079 Checking Cylinder C2126 Linear Drive Bearing 708473 Coupling/Drive Shaft-Motor 400573 Trip Rod 708867SX SX Ball Detent Assy. 311594 Plastic Anti-Riser 310258 Check Cylinder PKG. Kit 707063 Hanger Wheel/Small Roller DYNAGLIDE 708965 Large Hanger Wheel STANLEY

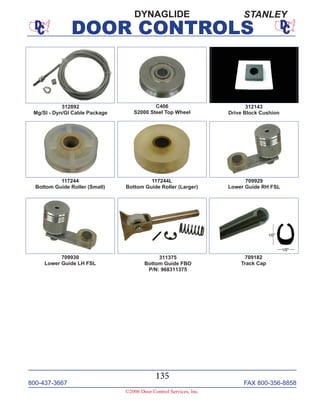

800-437-3667 FAX 800-356-8858 ©2006 Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 135 ©2006 Door Control Services, Inc. DOOR CONTROLS C406 S2000 Steel Top Wheel 312143 Drive Block Cushion 312892 Mg/Sl - Dyn/Gl Cable Package 117244 Bottom Guide Roller (Small) 117244L Bottom Guide Roller (Larger) 709930 Lower Guide LH FSL 709929 Lower Guide RH FSL 311375 Bottom Guide FBO P/N: 968311375 709182 Track Cap DYNAGLIDE STANLEY

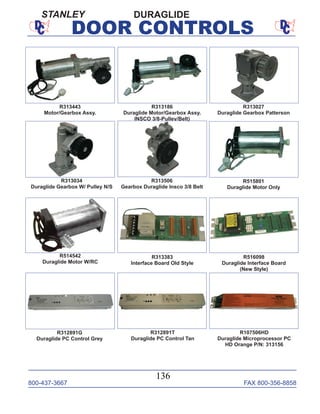

800-437-3667 FAX 800-356-8858 136 DOOR CONTROLS R313443 Motor/Gearbox Assy. R313506 Gearbox Duraglide Insco 3/8 Belt R313186 Duraglide Motor/Gearbox Assy. INSCO 3/8-Pulley/Belt) R313027 Duraglide Gearbox Patterson R313034 Duraglide Gearbox W/ Pulley N/S R515801 Duraglide Motor Only R313383 Interface Board Old Style R312891G Duraglide PC Control Grey R516098 Duraglide Interface Board (New Style) R312891T Duraglide PC Control Tan R107506HD Duraglide Microprocessor PC HD Orange P/N: 313156 R514542 Duraglide Motor W/RC DURAGLIDESTANLEY

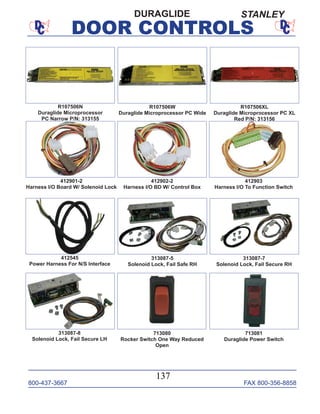

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 137 DOOR CONTROLS 412903 Harness I/O To Function Switch 412545 Power Harness For N/S Interface R107506W Duraglide Microprocessor PC Wide 313087-5 Solenoid Lock, Fail Safe RH 313087-7 Solenoid Lock, Fail Secure RH 313087-8 Solenoid Lock, Fail Secure LH 713080 Rocker Switch One Way Reduced Open 713081 Duraglide Power Switch R107506N Duraglide Microprocessor PC Narrow P/N: 313155 DURAGLIDE R107506XL Duraglide Microprocessor PC XL Red P/N: 313156 412901-2 Harness I/O Board W/ Solenoid Lock 412902-2 Harness I/O BD W/ Control Box STANLEY

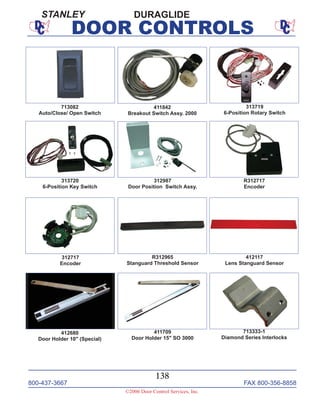

800-437-3667 FAX 800-356-8858 138 ©2006 Door Control Services, Inc. DOOR CONTROLS 312987 Door Position Switch Assy. 412117 Lens Stanguard Sensor 411842 Breakout Switch Assy. 2000 313719 6-Position Rotary Switch 313720 6-Position Key Switch R312965 Stanguard Threshold Sensor R312717 Encoder 312717 Encoder 411709 Door Holder 15" SO 3000 412680 Door Holder 10" (Special) 713333-1 Diamond Series Interlocks 713082 Auto/Close/ Open Switch DURAGLIDESTANLEY

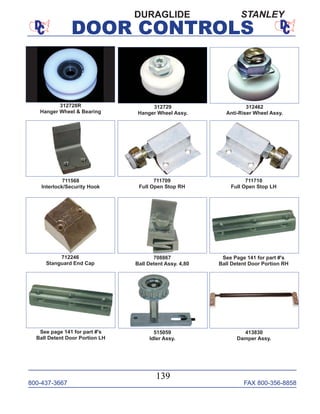

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 139 DOOR CONTROLS 711568 Interlock/Security Hook 711709 Full Open Stop RH 711710 Full Open Stop LH 712246 Stanguard End Cap 708867 Ball Detent Assy. 4,80 See Page 141 for part #'s Ball Detent Door Portion RH See page 141 for part #'s Ball Detent Door Portion LH 515059 Idler Assy. 413830 Damper Assy. 312729 Hanger Wheel Assy. 312462 Anti-Riser Wheel Assy. 312728R Hanger Wheel & Bearing DURAGLIDE STANLEY

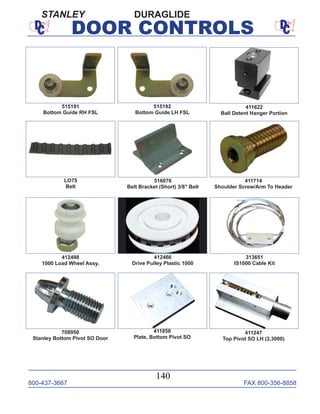

800-437-3667 FAX 800-356-8858 140 DOOR CONTROLS LO75 Belt 411714 Shoulder Screw/Arm To Header 516076 Belt Bracket (Short) 3/8" Belt 412498 1000 Load Wheel Assy. 412466 Drive Pulley Plastic 1000 313651 IS1000 Cable Kit 708950 Stanley Bottom Pivot SO Door 515191 Bottom Guide RH FSL 515192 Bottom Guide LH FSL 411622 Ball Detent Hanger Portion 411247 Top Pivot SO LH (2,3000) DURAGLIDE 411858 Plate, Bottom Pivot SO STANLEY

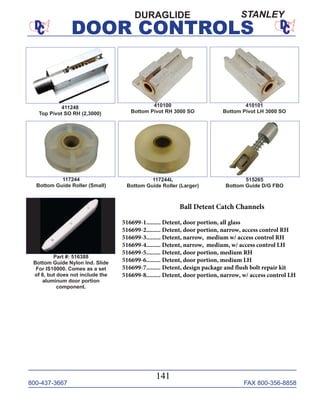

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 141 DOOR CONTROLS 410100 Bottom Pivot RH 3000 SO 410101 Bottom Pivot LH 3000 SO 117244L Bottom Guide Roller (Larger) 515265 Bottom Guide D/G FBO 117244 Bottom Guide Roller (Small) Part #: 516388 Bottom Guide Nylon Ind. Slide For IS10000. Comes as a set of 8, but does not include the aluminum door portion component. DURAGLIDE 411248 Top Pivot SO RH (2,3000) STANLEY Ball Detent Catch Channels 516699-1......... Detent, door portion, all glass 516699-2......... Detent, door portion, narrow, access control RH 516699-3......... Detent, narrow, medium w/ access control RH 516699-4......... Detent, narrow, medium, w/ access control LH 516699-5......... Detent, door portion, medium RH 516699-6......... Detent, door portion, medium LH 516699-7......... Detent, design package and flush bolt repair kit 516699-8......... Detent, door portion, narrow, w/ access control LH

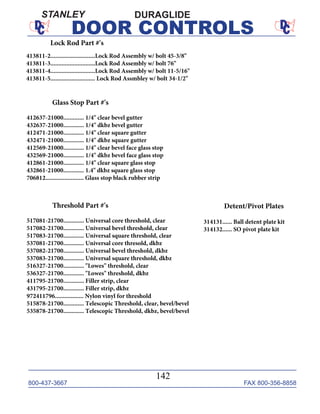

800-437-3667 FAX 800-356-8858 142 DOOR CONTROLS DURAGLIDESTANLEY Lock Rod Part #'s 413811-2............................Lock Rod Assembly w/ bolt 45-3/8" 413811-3............................Lock Rod Assembly w/ bolt 76" 413811-4............................Lock Rod Assembly w/ bolt 11-5/16" 413811-5............................ Lock Rod Assmbley w/ bolt 34-1/2" Glass Stop Part #'s 412637-21000............. 1/4" clear bevel gutter 432637-21000............. 1/4" dkbz bevel gutter 412471-21000............. 1/4" clear square gutter 432471-21000............. 1/4" dkbz square gutter 412569-21000............. 1/4" clear bevel face glass stop 432569-21000............. 1/4" dkbz bevel face glass stop 412861-21000............. 1/4" clear square glass stop 432861-21000............. 1.4" dkbz square glass stop 706812........................ Glass stop black rubber strip Threshold Part #'s 517081-21700............. Universal core threshold, clear 517082-21700............. Universal bevel threshold, clear 517083-21700............. Universal square threshold, clear 537081-21700............. Universal core thresold, dkbz 537082-21700............. Universal bevel threshold, dkbz 537083-21700............. Universal square threshold, dkbz 516327-21700............. "Lowes" threshold, clear 536327-21700............. "Lowes" threshold, dkbz 411795-21700............. Filler strip, clear 431795-21700............. Filler strip, dkbz 972411796.................. Nylon vinyl for threshold 515878-21700............. Telescopic Threshold, clear, bevel/bevel 535878-21700............. Telescopic Threshold, dkbz, bevel/bevel Detent/Pivot Plates 314131...... Ball detent plate kit 314132...... SO pivot plate kit

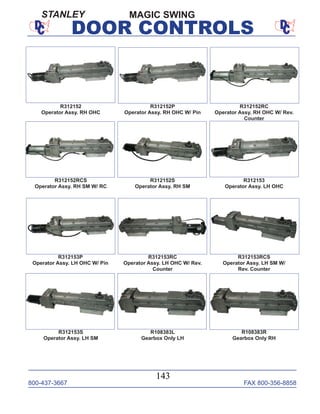

800-437-3667 FAX 800-356-8858 143 DOOR CONTROLS R108383R Gearbox Only RH R108383L Gearbox Only LH R312153S Operator Assy. LH SM R312153RCS Operator Assy. LH SM W/ Rev. Counter R312153RC Operator Assy. LH OHC W/ Rev. Counter R312152 Operator Assy. RH OHC R312152P Operator Assy. RH OHC W/ Pin R312152RC Operator Assy. RH OHC W/ Rev. Counter R312152RCS Operator Assy. RH SM W/ RC R312152S Operator Assy. RH SM R312153 Operator Assy. LH OHC R312153P Operator Assy. LH OHC W/ Pin MAGIC SWINGSTANLEY

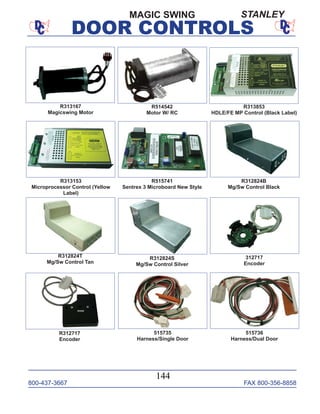

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 144 DOOR CONTROLS 515735 Harness/Single Door 515736 Harness/Dual Door R313167 Magicswing Motor R312824T Mg/Sw Control Tan R312824S Mg/Sw Control Silver R312824B Mg/Sw Control Black R515741 Sentrex 3 Microboard New Style R313853 HDLE/FE MP Control (Black Label) R313153 Microprocessor Control (Yellow Label) R312717 Encoder 312717 Encoder MAGIC SWING R514542 Motor W/ RC STANLEY

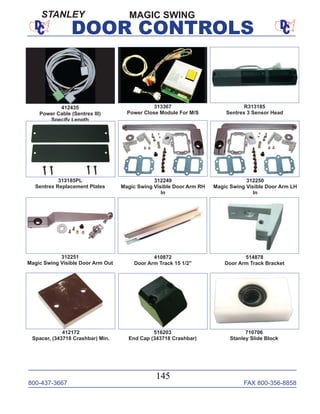

800-437-3667 FAX 800-356-8858 145 DOOR CONTROLS 312250 Magic Swing Visible Door Arm LH In R313185 Sentrex 3 Sensor Head 313367 Power Close Module For M/S 313185PL Sentrex Replacement Plates 312249 Magic Swing Visible Door Arm RH In 312251 Magic Swing Visible Door Arm Out 410872 Door Arm Track 15 1/2" 514878 Door Arm Track Bracket 412172 Spacer, (343718 Crashbar) Min. 516203 End Cap (343718 Crashbar) 710706 Stanley Slide Block 412435 Power Cable (Sentrex III) Specify Length MAGIC SWINGSTANLEY

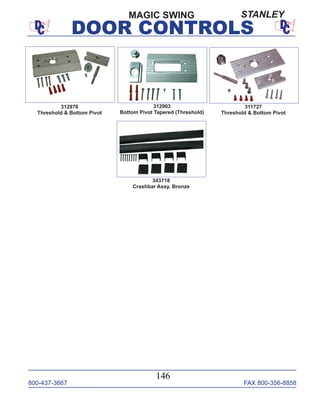

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 146 DOOR CONTROLS 311727 Threshold & Bottom Pivot 312976 Threshold & Bottom Pivot 312903 Bottom Pivot Tapered (Threshold) 343718 Crashbar Assy. Bronze MAGIC SWING STANLEY

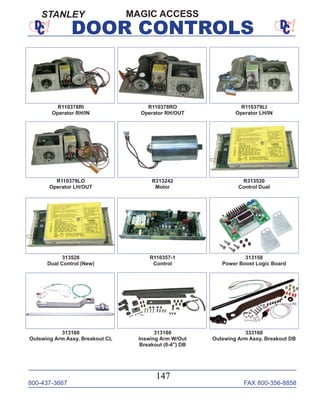

800-437-3667 FAX 800-356-8858 147 DOOR CONTROLS R313530 Control Dual R110378RO Operator RH/OUT R110378RI Operator RH/IN R110379LI Operator LH/IN R110379LO Operator LH/OUT R313242 Motor 313528 Dual Control (New) R110357-1 Control 313150 Power Boost Logic Board 313160 Outswing Arm Assy. Breakout CL 313180 Inswing Arm W/Out Breakout (0-4") DB 333160 Outswing Arm Assy. Breakout DB MAGIC ACCESSSTANLEY
800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 148 DOOR CONTROLS 333180 Inswing Arm W/Out Breakout (0-4") DB 110564 Arm Operator Concealed 710706 Stanley Slide Block MAGIC ACCESS STANLEY

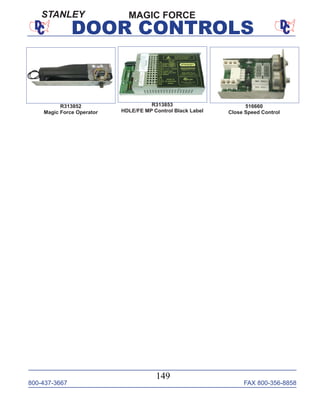

800-437-3667 FAX 800-356-8858 149 DOOR CONTROLS R313852 Magic Force Operator 516660 Close Speed Control R313853 HDLE/FE MP Control Black Label MAGIC FORCESTANLEY

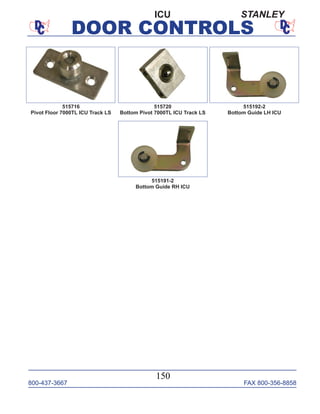

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 150 DOOR CONTROLS 515720 Bottom Pivot 7000TL ICU Track LS 515716 Pivot Floor 7000TL ICU Track LS 515191-2 Bottom Guide RH ICU 515192-2 Bottom Guide LH ICU ICU STANLEY

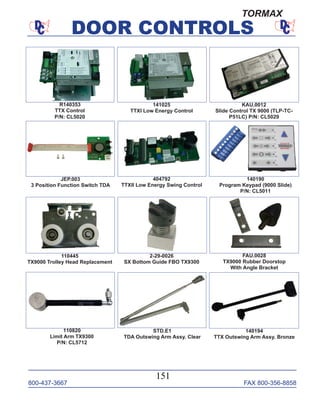

800-437-3667 FAX 800-356-8858 DOOR CONTROLS 800-437-3667 FAX 800-356-8858 151 DOOR CONTROLS STD.E1 TDA Outswing Arm Assy. Clear R140353 TTX Control P/N: CL5020 KAU.0012 Slide Control TX 9000 (TLP-TC- P51LC) P/N: CL5029 JEP.003 3 Position Function Switch TDA 2-29-0026 SX Bottom Guide FBO TX9300 404792 TTXII Low Energy Swing Control 141025 TTXI Low Energy Control 140194 TTX Outswing Arm Assy. Bronze 140190 Program Keypad (9000 Slide) P/N: CL5011 110820 Limit Arm TX9300 P/N: CL5712 FAU.0028 TX9000 Rubber Doorstop With Angle Bracket 110445 TX9000 Trolley Head Replacement TORMAX

More Related Content

PDF
Catalogo valtra
byLeonardo Simões

PDF
2006 Toyota Hiace OEm Electrical Wiring Diagrams
byDardoorASM

PDF
Catálogo Trator 6145 j Jonh Deere
byAndré Sá

PDF
Taller 2 prefabricados GOBM DET mar - 2020
byCarlos Delgado

PDF
2935 4937 40 catalogo airnet español
byYoko Enrique Golding Gomez

PDF
Fiat punto linha 2008 - 1.4 8 v flex - sistema magneti marelli iaw 4df
byAlberto Henrique Pir Junior

PPTX
Cara pemasangan ram
byIswan Mokhtar

PDF
1 ktze pinin pinout
bygoogle.com

Catalogo valtra
byLeonardo Simões

2006 Toyota Hiace OEm Electrical Wiring Diagrams
byDardoorASM

Catálogo Trator 6145 j Jonh Deere
byAndré Sá

Taller 2 prefabricados GOBM DET mar - 2020
byCarlos Delgado

2935 4937 40 catalogo airnet español
byYoko Enrique Golding Gomez

Fiat punto linha 2008 - 1.4 8 v flex - sistema magneti marelli iaw 4df
byAlberto Henrique Pir Junior

Cara pemasangan ram
byIswan Mokhtar

1 ktze pinin pinout
bygoogle.com


What's hot

PDF
Esquema de pinagem_multgiga
byJorgeDoctorov

PDF
L 2638 modulo controle splyt
byEdivaldo Veronese

PDF
Trator Jonh Deere 7500
byCatalogo Fácil Agro Mecânica Tatuí

PDF
Catalogo TL New Holland - Motor
byCatalogo Fácil Agro Mecânica Tatuí

PDF
MANUAL PARTES GIXXER
byARIEL BALBUENA

PDF
Codogos de falla Atego.pdf
byssuser3d39421

PPTX
Latihan elektronik
byHayati Ahmad

PDF
KERTAS PENERANGAN K1
byazlia3

PDF
Mercedes Benz- eletricidade-veicular-completo-04-11-04
byJose Roberto

PDF
Catálogo De Peças Trator Valtra Bl 88.pdf
bymarcia895211

PDF
Diagramas elétricos
byRodrigoEsRa1

DOCX
Qué es una bocina
bydjmash207

PDF
Caterpillar cat 320 c ln excavator (prefix bbl) service repair manual (bbl000...
byfusjfjsekemwer

PDF
Case cx330 tier 3 crawler excavator service repair manual
byhjsemmmd

PDF
Omron jx manual de usuario
bysaulggabriel

PDF
Hyster h007 (h12.00 xm europe) forklift service repair manual
byufjjsejfjksekmem

PDF
auto key chip list
bydoucci

PDF
Dimensionamento cabos baixa tensão
byThalles Anderson

PDF
Manual técnico motores yanmar série tne
byJunior Iung

PDF
CATÁLOGO NAKATA (BARRA DE DIREÇÃO E TERMINAL DE DIREÇÃO)
byKesley de Souza

Esquema de pinagem_multgiga
byJorgeDoctorov

L 2638 modulo controle splyt
byEdivaldo Veronese

Trator Jonh Deere 7500
byCatalogo Fácil Agro Mecânica Tatuí

Catalogo TL New Holland - Motor
byCatalogo Fácil Agro Mecânica Tatuí

MANUAL PARTES GIXXER
byARIEL BALBUENA

Codogos de falla Atego.pdf
byssuser3d39421

Latihan elektronik
byHayati Ahmad

KERTAS PENERANGAN K1
byazlia3

Mercedes Benz- eletricidade-veicular-completo-04-11-04
byJose Roberto

Catálogo De Peças Trator Valtra Bl 88.pdf
bymarcia895211

Diagramas elétricos
byRodrigoEsRa1

Qué es una bocina
bydjmash207

Caterpillar cat 320 c ln excavator (prefix bbl) service repair manual (bbl000...
byfusjfjsekemwer

Case cx330 tier 3 crawler excavator service repair manual
byhjsemmmd

Omron jx manual de usuario
bysaulggabriel

Hyster h007 (h12.00 xm europe) forklift service repair manual
byufjjsejfjksekmem

auto key chip list
bydoucci

Dimensionamento cabos baixa tensão
byThalles Anderson

Manual técnico motores yanmar série tne
byJunior Iung

CATÁLOGO NAKATA (BARRA DE DIREÇÃO E TERMINAL DE DIREÇÃO)
byKesley de Souza


Viewers also liked

PPSX
How to increase your MSP business with the right tools.
byMatt Barton

DOCX
router tipos de router
byAndres Escobar

PPT
Career exploration trip presentation for cdpi (1)
bycdpindiana

PPTX
Power point ucrania ana maroto=)
bypaulaohyeah

PDF
Newsletter Grupo Randazzo : Diciembre 2013
byGrupo Randazzo

PDF
Cómo abrir una cuenta de hushmail
byJorge Luis Sierra

DOCX
Plantilla evaluación dirección y organización de una representación escolar
byCEDEC

PDF
About sourcing: Decision Tree
byJean-Pierre van der Weerd

PDF
Jsp servlet- Tutorial BD Conexión
byPattzy Montero

PPT
Sistema endocrino fisiologia dr ocampo
byjoflaco

PDF
La comunicación del packaging
byGiorgio Giovanni

PPTX
Medical gas cylinders
byrajkumarsrihari

PPTX
VIH MICROBIOLOGIA
byJheny Usuga David

PPTX
Color Models
byMustafa Salam

PPTX
LinkedIn Board Member Connect webinar
byLinkedIn for Good

PDF
Koga No Sato Ninjutsu Village
byAbel Shinobi

PDF
West cork local 2nd august 2012
byWCLN

How to increase your MSP business with the right tools.
byMatt Barton

router tipos de router
byAndres Escobar

Career exploration trip presentation for cdpi (1)
bycdpindiana

Power point ucrania ana maroto=)
bypaulaohyeah

Newsletter Grupo Randazzo : Diciembre 2013
byGrupo Randazzo

Cómo abrir una cuenta de hushmail
byJorge Luis Sierra

Plantilla evaluación dirección y organización de una representación escolar
byCEDEC

About sourcing: Decision Tree
byJean-Pierre van der Weerd

Jsp servlet- Tutorial BD Conexión
byPattzy Montero

Sistema endocrino fisiologia dr ocampo
byjoflaco

La comunicación del packaging
byGiorgio Giovanni

Medical gas cylinders
byrajkumarsrihari

VIH MICROBIOLOGIA
byJheny Usuga David

Color Models
byMustafa Salam

LinkedIn Board Member Connect webinar
byLinkedIn for Good

Koga No Sato Ninjutsu Village
byAbel Shinobi

West cork local 2nd august 2012
byWCLN


Similar to DOOR CONTROL BOOK WITH STANLEY NUMBERS 8.7.15

PDF
Hylec TeeFamily Connectors Up To IP68 - Cable Connectors for IP68 Watertight ...
byThorne & Derrick International

PDF
Catalog Đèn báo nút nhấn Phi 30 IDEC-Beeteco.com
byBeeteco

PDF
CS Unitec Electric Drills and Drive Units: ETE 32/2.3 R/RL
byCS Unitec

PPTX
BFT
byHiTechNour

PDF
E Operators 2010 GB
bymarcofritz

PDF
CS Unitec Electric Drills and Drive Units: EHB 32/2.2 R/RL
byCS Unitec

PDF
Schneider electric code
byElica Electric

PDF
Side Swing Gate Opener Installation Manual
byLeviWu1

PDF
Peas 416 e 988-989
byVanessaPrimoMaia

PDF
Kraus & naimer optional extras and enclosures kn101 gb0715-dienhathe.vn
byDien Ha The

PDF
Kraus & naimer optional extras and enclosures kn101 gb0715
byDien Ha The

PPT
Gsm Wireless Intercom
bynimthomas

PDF
CS Unitec Electric Core Drill Schematics: END 2000 P
byCS Unitec

PDF
CS Unitec Electric Drills and Drive Units: EHB 32/4.2 S
byCS Unitec

PDF
CS Unitec Electric Drills and Drive Units: EHB 32/4.2
byCS Unitec

PDF
Crabtree Part M Accessories
byMark Cheatle

PDF
Slotting, Tuck-Pointing and Grinding Tool: LD 1509 FR
byCS Unitec

PDF
CS Unitec Mixers: EHR 23/1
byCS Unitec

DOCX
cpy
byBhushan agarwal

PDF
Harmony xb4 harmony xb5 - harmony xb7
byHoàng Phương JSC

Hylec TeeFamily Connectors Up To IP68 - Cable Connectors for IP68 Watertight ...
byThorne & Derrick International

Catalog Đèn báo nút nhấn Phi 30 IDEC-Beeteco.com
byBeeteco

CS Unitec Electric Drills and Drive Units: ETE 32/2.3 R/RL
byCS Unitec

BFT
byHiTechNour

E Operators 2010 GB
bymarcofritz

CS Unitec Electric Drills and Drive Units: EHB 32/2.2 R/RL
byCS Unitec

Schneider electric code
byElica Electric

Side Swing Gate Opener Installation Manual
byLeviWu1

Peas 416 e 988-989
byVanessaPrimoMaia

Kraus & naimer optional extras and enclosures kn101 gb0715-dienhathe.vn
byDien Ha The

Kraus & naimer optional extras and enclosures kn101 gb0715
byDien Ha The

Gsm Wireless Intercom
bynimthomas

CS Unitec Electric Core Drill Schematics: END 2000 P
byCS Unitec

CS Unitec Electric Drills and Drive Units: EHB 32/4.2 S
byCS Unitec

CS Unitec Electric Drills and Drive Units: EHB 32/4.2
byCS Unitec

Crabtree Part M Accessories
byMark Cheatle

Slotting, Tuck-Pointing and Grinding Tool: LD 1509 FR
byCS Unitec

CS Unitec Mixers: EHR 23/1
byCS Unitec

cpy
byBhushan agarwal

Harmony xb4 harmony xb5 - harmony xb7
byHoàng Phương JSC


DOOR CONTROL BOOK WITH STANLEY NUMBERS 8.7.15

  • 1.
  • 2.
    PLEASE NOTE: This catalogis designed to provide Stanley part numbers for competitor parts, however, due to the vast number of parts by many different manufacturers, there may be parts missing, or parts that we do not have a Stanley part number for. -Stanley part numbers are located below each picture along with the part description. -If there is no part number, it may be a misc item, CL2999011 -Some parts will have a Sticky Note icon in them. This icon, , indicates that there is a special note about the part. Such as, "This part comes as a set of 6". Simply click on the icon to display the special note. 2 -If you find a mistake, or know the part # of a part that does not have the Stanley # listed, please email me at michael.yaeger@sbdinc.com so that I can make the correction and redistribute the catalog TABLE OF CONTENTS BRAND PAGE # BEA LOCKOUT RELAYS .....................................................................................................4 BESAM .....................................................................................................................................5-35 BOON EDAM .........................................................................................................................36-37 DC ONE ....................................................................................................................................38-39 DORMA ....................................................................................................................................40-43 DOOR O MATIC ....................................................................................................................44-63 GILDOR ....................................................................................................................................64-65 MANUAL ..................................................................................................................................66-71 HORTON ..................................................................................................................................72-99 GYRO TECH / NABCO .....................................................................................................100-111 OPTEX ..................................................................................................................................112-113 RECORD / KEANE MONROE ........................................................................................114-127 SIERRA ..................................................................................................................................128-132 STANLEY ..............................................................................................................................133-150 TORMAX ...............................................................................................................................151
  • 3.
    OTHER RESOURCES ANDINFORMATION NGP: http://www.ngpinc.com/ngp/ Use this link to find sweeps, thresholds and other extrusions. SEC LOCK: http://www.seclock.com/price-books/default.asp Use this link to search parts books from Sec Lock. Books are listed by manufacturer, Adams Rite, Hager, Von Duprin, etc. STANLEY: https://ecentral.sbdinc.com/portal/Businesses/SSS/MAS/SAT/Pages/ default.aspx Use this link to all Stanley manuals and parts books. 3 If you need a Gildor header cover or anything hard to find for Gildor you first need to get the serial number off the door. Then call Latifa at 1-800-245-3667. New Besam track/guide part #'s on page 29. Sorry, no pictures available for those parts yet...
  • 4.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS LO-21 Lock Out Relay P/N: CL2051LO21 MC-10 Time Delay P/N: CL2051MC10 MC-25 Delay on Make/Delay on Break P/N: CL2051MC25 LE-21 Low Energy Lock Out P/N: CL2051LE21 LO-21B Lock Out Relay for Besam P/N: CL3567 LO-21S Lock Out Relay for Stanley MP P/N: CL2051LO21S LO-21P Lock Out Relay for Parallax P/N: CL2672 LO-21K Lock Out Relay for KM P/N: CL4635 LO-21U Lock Out Relay P/N: CL2497 MC-15 Add-On Safety Module P/N: CL2051MC15 24VAC 24-Volt Transformer w/Mounting P/N: CL2496 BEA 4 New BEA 900 mhz CL6027....... 900mhz Digital Receiver CL6032....... 900mhz Push Plate Transmitter CL6028....... 900mhz Hand held 1 button CL6029....... 900mhz Hand held 2 button CL6030....... 900mhz Hand held 3 button CL6031....... 900mhz Hand held 4 button
  • 5.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS R10-02-001 A Series PC Board P/N: CL2001067 R10-02-110 A Series Revolution Counter P/N: CL2001074 R10-04-105 A Series Gearbox R10-15-001 A Series PG3000/Motor R11-02-100 B Series Motor P/N: CL2001247 R11-15-001 B Series Motor/Gearbox Assy R11-02-110 B Series Revolution Counter R11-02-001 B Series PC Board 11-04-180 EMA Drive Arm w/Spider AB 10-20-001 Coupling, Blue Plastic P/N: CL2001225 11-04-185 B Series Motor/Gearbox Coupling P/N: CL2001226 20-20-203 Coupling, Rubber P/N: CL3051 BESAMPG3000-A & B SERIES 5
  • 6.
    800-437-3667 FAX 800-356-8858 6 DOORCONTROLS 11-04-850 (2 7/16") B Series Carriage Wheel Assy P/N: CL2932 11-04-853 B Series Stabilizer Wheel P/N: CL3057 11-04-852R B Series Carriage Wheel P/N: CL2001077 11-04-851 B Series (Anti Riser) P/N: CL3056 11-04-856 B Series Track Repair Wheel (2 3/4" P/N: CL2001363 11-04-150 B Series Idler Wheel w/Bracket 11-04-140 B Series Drive Wheel Assy 16-04-140 Motor Drive Wheel/EZ 3050 LO75 Belt 50-21-0901 PSA Bottom Guide Foot P/N: CL2001076 50-04-100 PSA Bottom Guide Assy P/N: CL3125 11-15-111 B Series Track Repair Kit P/N: CL2001642 BESAM PG3000-A & B SERIES
  • 7.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 7 DOOR CONTROLS PG3000-A & B SERIES US101419LLDB 1/4" Glass Stop Bronze US010419LLCL 1/4" Glass Stop Clear P/N: CL2937 11-01-150 Track Repair Extrusion 50-01-063 Floor Track-CL 4’ P/N: CL3124 11-20-6401 B Series Pile Felt (Gray) 50-20-103 Pile Felt Gray/Thin P/N: CL3737 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-100 Vinyl, 1/4" P/N: CL2936 BESAM
  • 8.
    800-437-3667 FAX 800-356-8858 8 DOORCONTROLS R14-02-006 Revolution Counter P/N: CL2001072 R14-02-003 Power Supply P/N: CL2001408 R19-02-022 Connector Board P/N: CR4086 R18-02-001 PC Board/CUA P/N: CL2001708 R19-15-001 Motor/Gearbox Assy P/N: CL2053 R18-15-106 Motor Only P/N: CL2001071 18-02-005 Ribbon Cord Harness P/N: CL2001360 DC18-15-106 Motor Only R18-15-001 4050/Motor Gearbox E-Z Fit DC18-15-001 (New Motor) R19-05-005 Gearbox P/N: CL2516 R18-05-001 4050/Gearbox E-Z Fit P/N: CL3068 DC19-15-001 Motor/Gearbox Assy PG4000-C SERIESBESAM
  • 9.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 9 DOOR CONTROLS PG4000-C SERIES BESAM 18-03-018 Roller & Shaft Assy P/N: CL2001078 18-03-018R Top Roller w/Bearing (no shaft) P/N: CL2136 50-04-410 Shaft Only, Lower Guide System P/N: CL2001298 18-03-016 Carrier Wheel Assy P/N: CL2515 50-04-410DC Shaft, Lower Guide, Nylatron P/N: CL4165 50-15-146 Vertical Guide Rollers P/N: CL2001178 50-15-147 Vertical Guide Roller/FSL P/N: CL2001179 50-15-400 Kit, Bottom Pivot/FBO Sidelite P/N: CL2001664 19-03-020 Idler Sprocket P/N: CL3071 50-15-390 Spring Pin Guide P/N: CL2719 50-21-002 Nylon Washer P/N: CL2001299 20-20-203 Coupling, Rubber P/N: CL3051
  • 10.
    800-437-3667 FAX 800-356-8858 10 DOORCONTROLS PG4000-C SERIESBESAM 19-05-008 Carrier Bracket Assy L8MX Belt P/N: CL2001306 18-03-009 Tooth Belt Bracket P/N: CL3075 19-03-003 Tooth Belt Fitting P/N: CL3074 50-15-410 Magnetic Breakout FSL P/N: CL2931 16-20-106 Door Stop Rubber 19-15-020 Door Stop P/N: CL2001320 19-03-007 Tandem Carriage Wheels DC-09-0369-0 Universal Door Stop 50-15-417 Active Leaf Ball Catch Clear P/N: CL2517 50-15-380 Top Pivot Sidelite Assy. 50-15-416 Active Leaf Ball Catch Bronze P/N: CL2001672
  • 11.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 11 DOOR CONTROLS PG4000-C SERIES BESAM 75-09-101 Key for Position Switch P/N: CL2740 5PSW1 5-Position Knob Switch P/N: CL2001603 75-20-001 Knob Only 50-04-147 Fixed Sidelite Bottom Track 4’ P/N: CL3132 50-20-135 Plastic Guide Extrusion/Vinyl P/N: CL2001625 50-15-396 C Series Pin Guide Track/Lower P/N: CL3127 (CLEAR) 6PSW1 6-Position Knob Switch 6PSW2 6-Position Key Switch 5PSW2 5-Position Key Switch P/N: CL2001602 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-103 Pile Felt Gray/Thin P/N: CL3737 18-20-002 Plastic Track Extrusion/Top P/N: CL2001641
  • 12.
    800-437-3667 FAX 800-356-8858 12 DOORCONTROLS PG4000-C SERIESBESAM US0101419LLDB 1/4" Glass Stop Bronze US0101419LLCL 1/4" Glass Stop Clear PG4000FSL-1 C Series FSL Kit PG4000FBO-1 C Series FBO Kit 50-20-100 Vinyl, 1/4"
  • 13.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 13 ©2006 Door Control Services, Inc. DOOR CONTROLS AMD I / AMD II BESAM R0415548726 Motor Unit AMD/ EMD (1 1/4" Pulley) P/N: CR4094 R0402548727 Motor Unit AMD/ EMD (1 3/4 "Pulley) P/N: CR4040 R04026551285 Power Supply AMD/EMD-5 Amp R0402655128 Power Supply AMD/EMD-10A P/N: CL2685 R0402654935 Control Unit AMD/EMD P/N: CR4038 R655711 AMD II Control CUD 9 P/N: CR4021 R549712 Motor/Gearbox W/ Encoder P/N: CR4023 04-15-548163 & 04-15-549667 Idler Sprocket Lg & Sm See Part #550191 50-04-410DC Shaft, Lower Guide System w/Fixed Washer OBSOLETE 550191 Idler Pulley P/N: CL2001313 50-15-390 Spring Guide Pin Assy P/N: CL2719 DC549712 Motor/Gearbox W/ Encoder P/N: CR4023
  • 14.
    800-437-3667 FAX 800-356-8858 14 ©2006Door Control Services, Inc. DOOR CONTROLS AMD I / AMD IIBESAM 50-15-146 Vertical Guide Rollers P/N: CL2001178 50-15-147 C Series Roller Vertical Guide/FSL P/N: CL2001179 50-21-002 Nylon Washer P/N: CL2001299 50-04-411 Spring/Lower Guide System P/N: CL2001755 50-05-009 Interlock Set, Clear P/N: CL3062 50-05-015 Non-Panic Floor Guide AMDII 50-15-560SCL Kit, Offset Pivot RH CL P/N: CL2001377 50-15-561SCL Kit, Offset Pivot LH CL P/N: CL3111 50-15-416 Active Leaf Ball Catch Dark Bronze P/N: CL2001672 50-15-417 Active Leaf Ball Catch Clear P/N: CL2517 50-04-203 Sidelite Panic Hardware P/N: CL2001673 50-04-410 Shaft/Lower Guide System P/N: CL2001298
  • 15.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 15 DOOR CONTROLS AMD I / AMD II BESAM 04-20-548722 Toothbelt DA (small) Bi-Part P/N: CL2701 04-20-735251 AMD Toothbelt P/N: CL4512 04-03-544958 Clip, Retaining HD Track 04-05-832372 Door Stop 04-15-548377 Kit, MTG. Carrier AMD/EMD P/N: CL2144 04-20-548723 Toothbelt DB (Large) P/N: CL2748 04-15-832440 Anti-Rise Wheel P/N: CL3104 04-15-832376 Carrier Guide Wheel P/N: CL3103 16-20-106 Door Stop Rubber DC-09-0369-0 Universal Door Stop 04-03-654423 AMD/EMD Lock Fitting 549855 Belt Clamp Kit AMD P/N: CL2001341
  • 16.
    800-437-3667 FAX 800-356-8858 16 DOORCONTROLS 75-09-101 Key for Position Switch P/N: CL2740 5PSW1 5-Position Knob Switch P/N: CL2001603 6PSW1 6-Position Knob Switch 6PSW2 6-Position Key Switch 5PSW2 5-Position Key Switch P/N: CL2001602 04-15-548731 Kit, Drivebars AMD/EMD Bi-Part P/N: CL2746 50-15-410 Magnetic Breakout FSL P/N: CL2931 50-05-016 Friction Bar 32" - 38" P/N: CL2735 04-02-692064 D Series Fail Secure Lock AMD/ EMD P/N: CL3119 75-20-001 Knob Only 50-20-135 Plastic Guide Extrusion/Vinyl P/N: CL2001625 04-02-692065 Lock Fail Safe AMD/EMD AMD I / AMD IIBESAM
  • 17.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 17 DOOR CONTROLS AMD I / AMD II BESAM 04-21-701239 AMD Top Track P/N: CL3102 50-20-6402 Pile Felt Black/Thin P/N: CL2327 50-20-103 Pile Felt Gray/Thin P/N: CL3737 US0101419LLCL 1/4" Glass Stop Clear US0101419LLDB 1/4" Glass Stop Bronze AMDFBO-1 AMD I & II FBO Kit 50-04-147 Fixed Sidelite Bottom Track 4’ P/N: CL3132 50-01-600 Single Slide Threshold W/ Vinyl P/N: CL3789 50-01-602 Filler Strip, Threshold P/N: CL4151 50-01-620 Publix Threshold Lead-Up CL P/N: CL3790 50-15-475 Lower Guide Track P/N: CL2340 50-20-100 Vinyl, 1/4" P/N: CL2936
  • 18.
    Besam Swingmaster 450Operator Surface Left Hand Stanley Rebuild Part # CR4119 Class II Part # CL2001405 Besam Swingmaster 450 Operator Surface Right Hand Stanley Rebuild Part # CR4141 Class II Part # CL3655 Besam 30-10-104L Swingmaster 350 Operator Surface Left Hand Stanley Rebuild Part # CR4106 Class II Part # CL2001401 Besam 30-10-104R Swingmaster 350 Operator Surface Right Hand Stanley Rebuild Part # CR4107 Class II Part # CL2001400 Besam 30-10-002 Swingmaster 300 Operator OHC Left Hand Stanley Rebuild Part # CR4100 Class II Part # CL2001055 / CL4658 Besam 30-10-001 Swingmaster 300 Operator OHC Right Hand Stanley rebuilt part number CR4101 Class II Part # CL2001054 / CL4652 Besam Swing Operators & Motors
  • 19.
    800-437-3667 FAX 800-356-8858 19 DOORCONTROLS SWINGMASTER & SWINGMASTER MPBESAM DC30-02-101 Swingmaster Motor Only R30-10-108L Swingmaster 405 Operator Assy LH DC30-10-108L (New Motor) R30-10-108R Swingmaster 405 Operator Assy RH DC30-10-108R (New Motor) R30-10-109L Swingmaster 305 Operator Assy DC30-10-109L (New Motor) R30-10-110 Swingmaster 450 Operator Assy RH DC30-10-110 (New Motor) R30-10-111 Swingmaster 450 Operator Assy LH DC30-10-111 (New Motor) R30-10-112 Swingmaster 455 Operator Assy RH DC30-10-112 (New Motor) R30-10-113 Swingmaster 455 Operator Assy LH DC30-10-113 (New Motor) R30-02-101 Swingmaster Motor Only R3015173664 Swingmaster MP Motor Only R30-10-109R Swingmaster 305 Operator Assy DC30-10-109R (New Motor) DC3015173664 Swingmaster MP Motor Only
  • 20.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 20 DOOR CONTROLS SWINGMASTER & SWINGMASTER MP BESAM 30-02-655449 Swingmaster MP Control CUP New P/N: CL3035 R3002655449 Swingmaster MP Control CUP P/N:CL3035 R30-15-011 Swingmaster Dual Control P/N: CL2001057 50-05-044 Top Pivot Frame Portion P/N: CL3059 50-15-005 Swingmaster Universal Pivot P/N: CL2001155 52-25-001 Guide Rail Foot 30-15-211 Swingmaster 300/400 Operator Mounting Kit 35-15-202 Swingmaster 350/450 Operator Mounting Kit CL3653 40-09-200 Swingmaster Header Screw 50-05-043 Top Pivot (Door Portion) P/N: CL3060 R30-15-010 Swingmaster Single Control P/N: CL2001056 30-02-221 Swingmaster Cam B Switch Kit: P/N: CL3019
  • 21.
    800-437-3667 FAX 800-356-8858 21 DOORCONTROLS SWINGMASTER & SWINGMASTER MPBESAM 30-06-102 Swingmaster Outswing Arm Assy (Specify CL or BZ) P/N: CL2001287 30-15-202 Swingmaster Shaft Adapter Kit P/N: CL3048 30-06-103 350 RH IN ASSY SPECIFY COLOR P/N: CL2001276 30-06-104 350 LH IN ASSY SPECIFY COLOR P/N: CL2716 30-06-211 Out Arm Casting Clear P/N: CL2001061 30-02-202 Microswitch (Standard) P/N: CL2001309 30-02-200 Swingmaster Microswitch/ Short Arm 30-02-203 Swingmaster Wiring Harness 30-02-211 Switch Harness Extension 12" 30-02-210 Motor Harness Extension 12" P/N: CL2700 30-15-224 Swingmaster Inswing Roller Kit P/N: CL2001394 30-02-213 Switch Harness Extension 60"
  • 22.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 22 ©2006 Door Control Services, Inc. DOOR CONTROLS SWINGMASTER & SWINGMASTER MP BESAM FS77 Bug Guard 8’ 60-20-102 Fingerguard Kit 8' US0101419LLDB 1/4" Glass Stop Bronze 60-20-100 Finger Guard, Kit 7" US0101419LLCL 1/4" Glass Stop Clear 50-20-103 Pile Felt Gray/Thin 30-06-202 Swingmaster Inswing Track 15" CL P/N: CL3043 50-15-114 Swingmaster Top Spacer Assy P/N: CL2001362 30-06-101 OHC Swingmaster Center Pivot Arm Assy P/N: CL4091 30-06-850 Swingmaster 850 Out Arm Assy. P/N: CL2001061 Z5200 Sex Bolt 1/4 - 20 50-20-100 Vinyl, 1/4"
  • 23.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 23 DOOR CONTROLS ELECTRA BESAM R21-07-001 Electra 150 Operator P/N: CL2001223 R21-02-002 Electra Control CSD 110 Master P/N: CL2001413 R21-02-006 Electra Control CSD 110 Slave 75-15-310 3-Way Position Switch 21-03-200 Electra Spindle Shaft Extension P/N: CL3646 21-03-010 Electra Spindle w/Bolt P/N: CL2001080 20-06-103 Electra 150 Inswing Arm/RH P/N: CL3641 SPECIFY COLOR 21-06-173383 Electra Arm, Straight Outswing Black 20-06-104 Electra 150 Inswing Arm/LH P/N: CL3644 SPECIFY COLOR US0101419LLDB 1/4" Glass Stop Bronze US0101419LLCL 1/4" Glass Stop Clear 50-20-100 Vinyl, 1/4"
  • 24.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 DOOR CONTROLS CGL BESAM 85-10-010 Lower Guide LH CGL 4000 85-10-011 Lower Guide RH CGL 4000 85-20-021 CGL Felt Door Vertical 8' 50-04-147 Fixed Sidelite Bottom Track 4' 19-03-007 Tandem Carriage Wheels 85-01-026 Felt Holder Extrusion CGL 8' 85-20-012 Weather Seal Butt End 24
  • 25.
    800-437-3667 FAX 800-356-8858 25 ©2006Door Control Services, Inc. DOOR CONTROLS ICUBESAM 12-15-104 Bottom Pivot and Guide ICU RH 12-03-011 Roller Guide Bracket LH 12-03-012 Roller Guide Bracket RH 12-15-105 Bottom Pivot and Guide ICU LH 12-08-005 Roller Wheel 12-21-001 Track Cap-Plastic Extrusion ICU 12-15-115 Carriage Wheel & Anti-Rise ICU RH 12-15-116 Carriage Wheel & Anti-Rise ICU LH 50-15-146 Vertical Guide Rollers P/N: CL2001178 OP-2700 2000 Series Offset Pivot/Flush P/N: CL4565
  • 26.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 26 ©2006 Door Control Services, Inc. DOOR CONTROLS 550476 Motor/Gearbox Assy 50-04-410DC Shaft/Lower Guide System Nylatron 50-04-410 Shaft/Lower Guide System P/N: CL2001298 600091 Control Unit R550476 Motor/Gear Assy. R600091 Control Unit Rebuilt 50-21-002 Nylon Washer P/N: CL2001299 50-15-390 Spring Guide Pin Assy P/N: CL2719 50-04-411 Spring/Lower Guide System P/N: CL2001755 US05-0277-03 Bottom Pivot RH SO P/N: CL5723 US05-0277-04 Bottom Pivot LH SO US05-0277-06 Bottom Pivot Base (Floor), Unislide UNISLIDE BESAM
  • 27.
    800-437-3667 FAX 800-356-8858 27 ©2006Door Control Services, Inc. DOOR CONTROLS 50-05-009 Interlock Set/Clear 50-04-203 Sidelite Panic Hardware 550569 Belt Fitting Kit, Unislide 548786-1 Belt Clamp Kit, Unislide 04-20-735251 Tooth Belt P/N: CL4512 549758 Belt Joining Bracket 550474 Tension Wheel 550716 Anti-Rise Wheel, Unislide P/N: CL2727 US15-0604-01 Anti-Riser T-Block & Screw P/N: CL6006 550646 Carrier Roller Assy, Unislide P/N: CL2732 US05-0277-02 Top Pivot LH SO P/N: CL5724 US05-0519-01 New Style Carrier Assy. UNISLIDEBESAM
  • 28.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 28 ©2006 Door Control Services, Inc. DOOR CONTROLS UNISLIDE BESAM US05-0277-01 Top Pivot RH SO P/N: CL5725 US02-0314-04 24" Program Cable US02-0314-05 96" Program Cable 550516 LDP Fail Safe 550494 Fail Secure Lock, Unislide 600135 PS-5R Key Switch, Unislide P/N: CL2731 33550654 PS-5 Key Only P/N: CL2737 600139 PS-5M Switch P/N: CL2730
  • 29.
    800-437-3667 FAX 800-356-8858 29 DOORCONTROLS UNISLIDEBESAM 550461 Door Stop 550463 Cover Lock 50-04-147 Fixed Sidelite Bottom Track 4' 50-01-600 Single Slide Threshold W/ Vinyl 50-01-602 Filler Strip, Threshold 50-01-620 Publix Threshold Lead-Up CL US15-0322-01 Damper with Hardware, Unislide P/N: CL3727 701596 Roller Track New Besam bottom guide and track part numbers: CL6052.... BSM US21-1730-01 T-Block Bottom Guide CL6053.... BSM US01-0280 4.5" N/S Bottom Guide Track CL6054.... BSM US01-281 Telescopic Extens Bottom Track CL6055.... BSM US01-0581 Telescopic Ext Track Surface Applied CL6056.... BSM US1009330 N/S Bottom Guide Track Surface Applied *Sorry, no pictures available for these parts yet
  • 30.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 30 DOOR CONTROLS 55-03-042 Roller Insert P/N: CL4654 55-15-012 Ready Fold Guide Track Kit RH/LH 55-15-123 Shaft Pivot, LH P/N: CL3137 55-15-124 Shaft Pivot, RH P/N: CL3138 55-15-121 Bearing Pivot, Double 55-15-122 Bearing Pivot, Single P/N: CL3139 55-03-017 Screw Pivot P/N: CL4653 55-03-040 Shaft Top Pivot Assy P/N: CL3143 55-15-015 Roller & Insert Assy. 55-02-061 Relay 12VDC 55-05-025 Stop Block W/ Screw 55-02-025 PC Board Control Assy. P/N: CL3154 READY FOLD BESAM
  • 31.
    800-437-3667 FAX 800-356-8858 31 DOORCONTROLS READY FOLDBESAM 55-15-004 Magnetic Catch, Carrier Assy. 55-09-045 Thrust Washer 55-03-056 Spring, Torsion LH US15-0513-01 DHD Roller Kit 55-15-345 Assembly, Kick Off (Slide Block) P/N: CL3149 55-03-055 Spring, Torsion RH
  • 32.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 32 DOOR CONTROLS ECONOSWING/NAVIG-AIDER/POWERSWING BESAM R20-15-200LI Econoswing Operator LH/IN P/N: CL2001616 R20-15-200RO Econoswing Operator RH/OUT P/N: CL2001616 R20-15-200RI Econoswing Operator RH/IN P/N: CL2001616 R20-15-200LO Econoswing Operator LH/OUT P/N: CL2001616 R2410173233 Navig-Aider Operator (Nav-50) R R600085 Powerswing Control Unit R20-02-101 Econoswing Master Control P/N: CL2001083 655580 Terminal Block Assy. Powerswing R20-02-102 Econoswing Slave PC Board P/N: CL2326 R3002655449 Control CUP P/N: CL3035 30-02-655449 Control CUP P/N: CL3035
  • 33.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 33 DOOR CONTROLS RDB BESAM REVOLVER 244960 Tripswitch Vertical Active Bumper 245988 Motor Assy. RDB 2 262823 Vertical Safety Switch RDB 2 653677 Main PCB 735271 V-Belt 457 Motor Drive RDB 2 240744S 6-Position Key Switch 258527 Gearbox Cast Aluminum 244965 Tripswitch For Revolver RDB 1 & 2 246230 Vertical Brush (Specify Length) 246231 Horizontal Brush (Specify Length) 260785 Gearbox 261948 Tripswitch Horizontal Bumper
  • 34.
    800-437-3667 FAX 800-356-8858 34 DOORCONTROLS 247748 Escape Door Lock RDB 262818 Safety Edge Switch 31.5” RDB 2 262821 52” Horizontal Tripswitch (Toeguard) 262822 54” Horizontal Tripswitch (Toeguard) 653988 PCB, Emergency BU 244873 Interlock Male Upper RDB 654062 MRU PC Board Relay RDB2 246655 Interlock New CLB 265022 Uniturn Gearbox Drive Unit 248516 Pivot & Bearing BESAM REVOLVER RDB
  • 35.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 35 DOOR CONTROLS 245743 Motor Pulley 27mm 245745 Gearbox Pulley 245777 Idler Wheel Assy. 245828 Wheel, Drive Motor RDB 2 262159 PIR Sensor 262819 Safety Edge 38 Horizontal RDB 2 262820 Safety Edge 36 Horizontal RDB 2 653989 Motor, PCB 258553 I/O Board 714864 Encoder KDB KDB BESAM REVOLVER
  • 36.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 36 DOOR CONTROLS TOURNEX & DUOTOUR BOON EDAM 60100005 TN Bottom Bearing 50071402 Frequency Control GDP 315 P/N: CL5716 60050078 TX Drive Bearing 50071410 Frequency Control MHZ 520 90359002 DT Gen 2 Passive Wheel Assy. P/N: CL4180 90359004 DT Gen 2 Drive Wheel Assy. P/N: CL5892 65200044 Gear Drive Duotour Revolver P/N: CL5885 SBS SENSOR BOON EDAM P/N: 99080803 SBS SENSOR BRACKET BOON EDAM P/N: 99350110
  • 37.
    800-437-3667 FAX 800-356-8858 37 DOORCONTROLS OLSTER & TOURNIKETBOON EDAM 99157006 FABA Brush Baseplate 99157001 FABA Brush Arm 99070020 Ball Contact Switch Turlock White Version P/N: CL5899 99020011 3/8" Pin 60400011 Roller For Revolver Boone Olster 99202025 Bottom Pivot TQ P/N: CL5905 65200006 Motor/Gear Drive TQ P/N: CL4725 67250011 Drive Belt 99070020 Ball Contact Switch Turlock Black Version P/N: CL5899
  • 38.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 38 DOOR CONTROLS D50150020 Idler Pulley DC-09-370-00 Motor/Gearbox Assy. DC08-0936-00 I/O Board DC1 Base Retrofit Chassis W/ Bracket 5PSW1 5-Position Knob Switch P/N: CL2001603 DC-00-278-00 Transformer D550909920 NHN Control-NE-G Type P/N: CR3001 DC01-0349-05 Transfer Pulley (A, B, C, BWN Series) DC2176-5 Fail/Secure Lock Assy. P/N: CL4579 5PSW2 5-Position Key Switch P/N: CL2001602 DC01-1474-11 Transfer Pulley (OB2000) DC2196-5 Fail/Safe Lock Assy. P/N: CL2001373 DC ONE
  • 39.
    800-437-3667 FAX 800-356-8858 39 DOORCONTROLS DC ONE 9-99-0008 BELT P/N: CL2001738 DC19-1475-09 C-Series Belt DC01-0416-07 Transfer Shaft (A & B Series) DC01-0348-07 Transfer Shaft (C Series) DC01-1118-07 Transfer Shaft (OB2000) DC-09-0369-0 Universal Door Stop
  • 40.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 40 DOOR CONTROLS ESA DORMA RDX489-400 Control ES-A DX900-010 Autolock Fail Secure ES-A DX0660-000 ES-A Hand Terminal Programmer DX489-010 Control ES-A DS0650-000 Carriage Wheel Assy. P/N: CL5750 DS0649-000 Motor Gearbox Assy. W/ Bracket P/N: CL4776 DS0627-010 I/O Assy. W/ Microcell 3 & Ribbon Cable DS0620-010 Switch Plate ES-A Assy. 55" DS0613-000 Interface DX0583-010 Flat Ribbon Harness DS0651-000 Antirise Offset Roller Assy. P/N: CL2524 DX0576-000 3 Position Switch ES-A
  • 41.
    800-437-3667 FAX 800-356-8858 41 DOORCONTROLS ESADORMA DS0139-020 SX Bottom Guide Assy. RH DS0139-010 SX Bottom Guide Assy. LH DE021001A 1/4" Clear Glass Stop W/ Vinyl DC0967-030 Bottom Guide Block DC0965-010 SO Eccentric Pivot Bushing DC0912-01Z SO Top Pivot Mount Block DC0907-010 SO Top Pivot DC0135020 ESA End Cap W/ Vinyl DS1000-010 SO Bottom Pivot Assy. ES-A DS0901-010 Bottom Guide Assy. ES-A L8MX Belt
  • 42.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 42 DOOR CONTROLS ED400, 700 ESA II DORMA DC0112-010 Slide Block ITS C886 ED800 Regular Arm RED800 Rebuilt ADA Operator DX0591-010 EDA Full Power Swing Control DX0661-000 EDA Hand Terminal Programmer RED800-3 or RED800-4 3 Pin or 4 Pin CL6026......... ESAII CONTROL BOX, NEW CL6025......... ESAII MOTOR/GEARBOX, NEW CL6020......... ED700 DIGITAL CONTROL CL6021......... ED700 RH OPERATOR CL6022......... ED700 LH OPERATOR CL6023......... ED400 RH OPERATOR CL6024......... ED400 LH OPERATOR CR4059.........ED400 DIGITAL CONTROL (REBUILT FROM ADDISON) * BE AWARE... There are more than one kind of ED400 control. Some controls have black terminals and do not match the controls with the green terminals, so they will have to be re-wired. Specify when ordering which control is needed and request the terminal blocks be shipped with your order, just in case.
  • 43.
    800-437-3667 FAX 800-356-8858 43 DOORCONTROLS MANUALDORMA 74010 Spindle (BTS Floor Closer) 8062 BTS Top Pivot 8835 RTS Top Arm BTS80 BTS80 # 2 Closer RTS88 OHC Closer 105 HO P/N: CL2650RTS88 8836 Closer Arm, 7/8" Top Rail
  • 44.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 44 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC R72188-400 Motor/Gearbox Computerized Chain P/N: CR4088 R72620-400 Motor/Gearbox Computerized Belt P/N: CR4046 R96991-400 Astroslide II Motor/Gearbox P/N: CR4004 R72187-400 Motor/Chain or Belt Drive P/N: CL4440 R70026-400 Gearbox Only/Chain R70587-400 Computerized Control R72615-400 Gearbox Belt Drive P/N: CL3277 R70025-400 Chain Gearbox Only Non-Computerized R70588-400 Computerized Control R70586-400 Computerized Control 96991-000 Astroslide II Motor/Gearbox R70596-400 Computerized Control
  • 45.
    800-437-3667 FAX 800-356-8858 45 DOORCONTROLS ASTROSLIDEDOR-O-MATIC DC75010-2 Electric Lock Fail Safe P/N: CL4251 DC75010-1 Electric Lock Fail Secure P/N: CL4250 R62198-400 Control (Special-Lowes) R70598-400 Astroslide II Computer Control R76100-400 Battery Backup R62197-400 Control (Special-Lowes) R62098-400 Control (Special-Lowes) 4204115460 Idler Wheel/Belt 4204115784 Idler Bracket Assy. P/N: CL2523 4204103765 Rotary Switch Assy. P/N: CL2001301 4204102971 Breaker Switch P/N: CL2001218 4204100313 Universal Chain & Cable Assy.
  • 46.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 46 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC 4204103797 Timing Belt DOM Slider P/N: CL2001284 4204115764 DOM Drive Belt Bracket P/N: CL4111 4204115762 Belt Clamp P/N: CL4110 4204109752 DOM Roller Bracket Composite P/N: CL3743 L8MX Belt 4204102019 Roller Assy. Cable Sheave P/N: CL4105 71630-902 Roller Block LH 71630-901 Roller Block RH 72625-000 Pulley/Belt Drive 96165-000 Pulley Gearbox N/S 4204115765 Secondary Belt Bracket P/N: CL4112 4204109715 Door Height Adjustment Tool
  • 47.
    800-437-3667 FAX 800-356-8858 47 DOORCONTROLS ASTROSLIDEDOR-O-MATIC 4204100707 Hanger Block P/N: CL3294 4204100708 Hanger Block Bracket P/N: CL3295 4204101996 Magnet Panic Bracket P/N: CL2001354 4204120316 Ball Detent Retro Kit P/N: CL4356 4204108947 Pivot Block P/N: CL3326 4299100917 Internal Wrench Nut 1/2-20 4204108593 Clapper Plate Kit P/N: CL2001353 4204109417 Hanger Pin P/N: CL2686 4204109746 Carriage Wheel (New Style) P/N: CL2001034 4204118653 Anti-Jar Wheel Kit P/N: CL2707 4204100148 Anti- Riser Screw P/N: CL2001352 4204109598 Anti-Riser Adjustment Tool
  • 48.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 48 DOOR CONTROLS ASTROSLIDE DOR-O-MATIC 4204100831A Floor Guide Track SPC-18 CL P/N: CL3785 4204120572 Bottom Guide Lowes Door 4204100092 Guide Block P/N: CL2001033 4204104976 Bottom Pivot Roller Assy. RH P/N: CL2001187R 4204104975 Bottom Pivot Roller Assy. LH P/N: CL2001187L 4204118236 Bottom Guide Assy. P/N: CL3328 4204108946 Bottom Guide Assy. P/N: CL2001701 4204110674 Limit Arm Composite 4204109773 Bottom Pivot Assy. LH P/N: CL3303 4204109772 Bottom Pivot Assy. RH P/N: CL3302 4204109771 Top Pivot Assy. RH P/N: CL3305 4204109770 Top Pivot Assy. LH P/N: CL3733
  • 49.
    800-437-3667 FAX 800-356-8858 49 DOORCONTROLS ASTROSLIDEDOR-O-MATIC DOMAFSL-1 Astroslide FSL Kit DOMAFBO-1 Astroslide FBO Kit 4204100831 Floor Guide Track SPC-18 P/N: CL3786
  • 50.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 50 DOOR CONTROLS 96K DOR-O-MATIC 96505-600 Lock Control Module R84732-400 Digital Motor/Gearbox Assy. P/N: CR4090 R96010-400 Control P/N: CR4053 96175-000 Motor/ Gear Assy. P/N: CR4089 R84657-400 Digital Control P/N: CR4054 R96175-400 Motor/Gear Assy. R96005-400 Transformer Box P/N: CR4068 96005-900 Transformer Box 84217-900 4-Position Knob Switch 84428-900 Reed Switch Kit 96K N/O 84462-900 Rocker Switch On/Off (Power 96K) 84448-900 Cover Lock Kit
  • 51.
    800-437-3667 FAX 800-356-8858 51 DOORCONTROLS 96KDOR-O-MATIC 96135-000 Carrier Roller P/N: CL4354 96135R Carrier Roller Only 4204109417 Hanger Pin/Bullet Pin P/N: CL2686 4204100092 Guide Block P/N: CL2001033 4204100831 Floor Guide Track SPC-18 Bronze P/N: CL3785 4204104975 Bottom Pivot Roller Assy. LH P/N: CL2001187L 4204100831A Floor Guide Track SPC-18 Clear P/N: CL3786 4204104976 Bottom Pivot Roller Assy. RH P/N: CL2001187R 84463-900 Bumper Stop Assy. 96105-000 Belt Tensioner-Idler Assy. P/N: CL3282 4204108947 Pivot Block P/N: CL3326 4204108946 Bottom Guide Assy. P/N: CL2001701
  • 52.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 52 DOOR CONTROLS 96K DOR-O-MATIC 84218-900 4-Position Key Switch P/N: CL4132
  • 53.
    800-437-3667 FAX 800-356-8858 53 DOORCONTROLS ASTROSWINGDOR-O-MATIC R81001-401 Operator Assy RH Non-Computerized R81001-402 Operator Assy LH Non-Computerized R81002-401 Oper. Assy RH Micro-Computerized DC81002-401 (New Motor) R81002-402 Oper. Assy LH Micro-Computerized DC81002-402 (New Motor) R81560-402 Computer Motor LH R81560-401 Computer Motor RH R81008-401 Gearbox-Noncomp. RH R81008-402 Gearbox-Noncomp. LH R81080-401 Computer Gearbox RH R81080-402 Computer Gearbox LH DC81560-401 Motor RH DC81560-402 Motor LH
  • 54.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 54 DOOR CONTROLS ASTROSWING DOR-O-MATIC R81650-400 Control Non-Computerized R85425-400 Control Computerized R84540-400 Control Micro-Computerized R84580-400 Universal Control R81288-400 Control Box Noncomp. R84555-400 Control w/ Super Nova R85420-400 Universal Control 1 R81540-400 Control Computer Style R95992-402 Dunker Motor LH 240V R77155-400 Sensor Rail Control (New Style) P/N: CL3215 R77153-400 Sensor Rail Control (Old Style) P/N: CL3214 R95992-401 Dunker Motor RH 240V
  • 55.
    800-437-3667 FAX 800-356-8858 55 DOORCONTROLS ASTROSWINGDOR-O-MATIC 87137-000 Sensor Rail Harness Cable Kit 10161-000 Lower Pivot Bearing P/N: CL3495 81322-900 Panic Breakout Switch P/N: CL2001039 R77258-400 Sensor Rail Transmitter 81118-900 Fixed Stop P/N: CL2711 83185-900 Toggle Switch, 3 Pos P/N: CL2713 87390-900 Rocker Switch, 3 Pos 84219-900 Keyswitch 3-Position Swing P/N: CL4133 1291-900 Pushplate Push to Operate (SS) 81460-938 Push Arm Assy. RH P/N: CL3268 R77257-400 Sensor Rail Receiver P/N: CL2001042 81185-900 Bottom Pivot Assy P/N: CL2001189
  • 56.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 56 DOOR CONTROLS ASTROSWING DOR-O-MATIC 81470-938 Pull Arm Assy. RH P/N: CL3260 81470-947 Pull Arm Assy. RH P/N: CL3261 81470-959 Pull Arm Assy. LH P/N:CL2001191 SPEC. HAND/CLR 81460-959 Push Arm Assy. LH P/N: CL3269 885-100 OHC Arm/Composite P/N: CL2001160 81470-963 Pull Arm Assy. LH P/N: CL2001191 SPEC. HAND/CLR 888-100 Attaching Bar DOMSWING-1 Astroswing Kit Z-112 7/16 X 7/16 Swing Grey Felt
  • 57.
    800-437-3667 FAX 800-356-8858 57 DOORCONTROLS MID-SWINGDOR-O-MATIC R83815-401 Motor Only Mid-Swing RH R83815-402 Motor Only Mid-Swing LH R83800-401 Mid-Swing Operator Assy. RH R83800-402 Mid-Swing Operator Assy. LH R83810-401 Mid-Swing Gearbox Only RH R83810-402 Mid-Swing Gearbox Only LH R84590-400 Mid-Swing Computer Control R85450-400 Mid-Swing Control R77155-400 Sensor Rail Control (New Style) P/N: CL3215 R77257-400 Sensor Rail Receiver P/N: CL2001042 R77153-400 Sensor Rail Control (Old Style) P/N: CL3214 R77258-400 Sensor Rail Transmitter
  • 58.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 58 DOOR CONTROLS MID-SWING DOR-O-MATIC 87137-000 Sensor Rail Harness Cable Kit 10161-000 Lower Pivot Bearing P/N: CL3495 81322-900 Panic Breakout Switch P/N: CL2001039 81118-900 Fixed Stop P/N: CL2711 83185-900 Toggle Switch, 3 Pos P/N: CL2713 87390-900 Rocker Switch, 3 Pos 84219-900 Keyswitch 3-Position Swing P/N: CL4132 1291-900 Pushplate Push to Operate (SS) 885-100 OHC Arm/Composite P/N: CL2001160 81460-938 Push Arm Assy. RH 888-100 Attaching Bar 81185-900 Bottom Pivot Assy P/N: CL2001189
  • 59.
    800-437-3667 FAX 800-356-8858 59 DOORCONTROLS MID-SWINGDOR-O-MATIC 81470-938 Pull Arm Assy. RH P/N: CL3268 81470-947 Pull Arm Assy. RH P/N: CL3261 81470-959 Pull Arm Assy. LH 81460-959 Push Arm Assy. LH P/N: CL3269 81470-963 Pull Arm Assy. LH P/N: CL3265 ARM ONLY Z-112 7/16 X 7/16 Swing Grey Felt
  • 60.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 60 DOOR CONTROLS SENIOR SWING DOR-O-MATIC R84570-400 Universal Senior Swing Control R85445-400 Senior Swing Control R85440-400 Senior Swing Control Rebuilt R81007-401 Senior Swing Operator Assy. RH R81007-402 Senior Swing Operator Assy. LH
  • 61.
    800-437-3667 FAX 800-356-8858 61 DOORCONTROLS JUNIOR SWINGDOR-O-MATIC R84120-400 Jr. Swing Control for Handicap R84240-400 Jr. Swing Control R84069-001 Motor Gear Assy. Jr. Swing RH R84069-002 Motor Gear Assy. Jr. Swing LH
  • 62.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 62 DOOR CONTROLS ASTRO FOLD DOR-O-MATIC 65225-000 Arm Composite R83801-401 Motor/Gearbox RH R83801-402 Motor/Gearbox LH R83802-401 Gearbox Only RH R85435-400 Control R85430-400 Control R83802-402 Gearbox Only LH R84585-900 Control
  • 63.
    800-437-3667 FAX 800-356-8858 63 DOORCONTROLS BENCHMARK & ASCENTDOR-O-MATIC 95005-975 Push Arm Assy. P/N: CL4779 R95205-400 Ascent Control P/N: CL4139 OR CR4043 R95100-400 Benchmark Operator P/N: CL4777 R99025-400 Benchmark Control R95300-400 Ascent Operator
  • 64.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 64 ©2006 Door Control Services, Inc. DOOR CONTROLS SLM GILDOR R160-030B Motor Card Version B New Style R160-030 Motor Card, P. C. Board Old Style R160-002 SLM Control Rebuilt P/N: CL2328 R160-001 SLM Motor 110 Volt P/N: CL2674 160-001 SLM Motor 110 Volt P/N: CL2673 160-002 SLM Control New 160-030 Motor Card, P.C. Board Old Style 190-005 Top Roller P/N: CL4807 260-001 Control Pad, Bedis P/N: CL2330 230-001 Mounting Box For Bedis Key Pad P/N: CL4803 350-020 FSL Bottom Guide Assy. P/N: CL2197 160-030B Motor Card Version B New Style
  • 65.
    800-437-3667 FAX 800-356-8858 65 DOORCONTROLS SLMGILDOR 353-002 Ball Catch Assy. SX Bronze 411-004-190 Threshold Track Clear RH & LH 411-008-176 Bottom Guide Track FBO Clear W/ Cap P/N: CL4825 430-001 Vinyl P/N: CL4827 411-007-220 Bottom Guide Track Clear 130-003 SLM Top Track Cap (Vinyl) 312-028-168 Glass Stop Face Clear Beveled P/N: CL4834 DKBZ: CL4835 352-002 Ball Catch Assy. Active Leaf Clear P/N: CL4816 352-004 Ball Catch Assy. Sidelite Clear P/N: CL4817 350-001 Kit, FSL Bottom Guide Assy. Comp P/N: CL4169 390-002 Bottom Guide Pin FBO P/N: CL4821
  • 66.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 66 DOOR CONTROLS HARDWARE 78011283AL Concealed Leaf Continuous Hinge 83" CL 78005783HDAL Full Surface HD Continuous Hinge 83" CL 78005795AL Full Surface Continuous Hinge 95" CL 78005795HDAL Full Surface HD Continuous Hinge 95" CL 78011283DU Concealed Leaf Continuous Hinge 83" DB 78011283HDAL Concealed Leaf HD Continuous Hinge 83" CL 78011283HDDU Concealed Leaf HD Continuous Hinge 83" DB 78011295HDAL Concealed Leaf HD Continuous Hinge 95" CL 78015783AL Full Surface Continuous Hinge 83" CL 78015783DU Full Surface Continuous Hinge 83" DB 780-112 Concealed Leaf Continuous Reference Drawing 780-057 Series Full Surface Continuous Hinge Reference Drawing
  • 67.
    800-437-3667 FAX 800-356-8858 67 DOORCONTROLS HARDWARE 78015795AL Full Surface Continuous Hinge 95" CL 78015795DU Full Surface Continuous Hinge 95" DB 78015795HDAL Full Surface HD Continuous Hinge 95" CL 78015795HDDU Full Surface HD Continuous Hinge 95" DB 78021083AL Full Surface Continuous Swing Hinge 83" CL P/N: CL2553001 78021083DU Full Surface Continuous Swing Hinge 83" DB P/N: CL2553004 78021083HDAL Full Surface HD Continuous Swing Hinge 83" CL 78021083HDDU Full Surface HD Continuous Swing Hinge 83" DB 78021095AL Full Surface Continuous Swing Hinge 95" CL 780-157 Full Surface Continuous Reference Drawing 78015783HDDU Full Surface HD Continuous Hinge 83" DB 78015783HDAL Full Surface HD Continuous Hinge 83" CL
  • 68.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 68 DOOR CONTROLS 5105DU Size 5, Rnd. Top Closer-DB 5104DU Size 4, Rnd. Top Closer-DB 5105AL Size 5, Rnd. Top Closer-CL 5114AL Power Adj. 1-4 Closer-CL 5114DU Power Adj. 1-4 Closer-DB 5104AL Size 4, Rnd. Top Closer-CL 5136AL Power Adj. 3-6 Closer-CL 5136DU Power Adj. 3-6 Closer-DB 78021095HDAL Full Surface Continuous HD Hinge 95" CL 78021095HDDU Full Surface Continuous HD Hinge 95" DB 780-210 Full Surface Continuous Reference Drawing 78021095DU Full Surface Continuous Hinge 95" DB HARDWARE
  • 69.
    800-437-3667 FAX 800-356-8858 69 DOORCONTROLS HARDWARE 9116US3 Power Adj. 1-6 Closer-Gold Plated LDP5000DU LG Drop Plate (5000 Series)-DB LDP5000AL LG Drop Plate (5000 Series)-CL 911626D Power Adj. 1-6 Closer-Chrome NDP5000AL Narrow Drop Plate (5000 Series)-CL NDP5000DU Narrow Drop Plate (5000 Series)-DB BB1191-US32D Full Mort. BB 4.5 X 4.5 Hinge BB1279-US26D 4-1/2 X 4-1/2 US26D Hinge 9116AL Power Adj. 1-6 Closer-CL 9116DAAL Power Adj. 1-6 Closer-Del/Act-CL 9116DADU Power Adj. 1-6 Closer-Del/Act-DB 9116DU Power Adj. 1-6 Closer-DB
  • 70.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 70 DOOR CONTROLS HARDWARE 1371-RWPAAL Surface Mount Closer-RW/PA.A R4021-RH Hydraulic Closer GT 710 2035 OHC Closer W/ Arm & Track Std. NDC-100 Retrofit For Floor Pivot Center, Concealed Floor Closer NDC100BP Bearing Pack-Center Hung NDC101-LH Retrofit For Off Set/Concealed Closer, 3/4" Offset NDC101-RH Retrofit For Off Set/Concealed Closer, 3/4" Offset R4021-LH Hydraulic Closer GT 710 1279-US10A 4-1/2 X 4-1/2 US10A Hinge BB1279-US10A 4-1/2 X 4-1/2 US10A Hinge 1279-US26D 4-1/2 X 4-1/2 US26D Hinge 1461RWPA-DU Parallel Arm Closer-DB
  • 71.
    800-437-3667 FAX 800-356-8858 71 DOORCONTROLS HARDWARE FS77 Bug Guard/Floor Sweep NDC102SL-LH Retrofit OHC Closer Kit, Jackson SL LH NDC102SL-RH Retrofit For OHC Closer Kit, Jackson SL RH NDC-808 Rixon 808 Repl Plate & NDC-102EL Retrofit NDC101BP Bearing Pack-Off Set Closer CLP Clear Paint DBP Dark Bronze Paint NDC101-LH1.5 Retrofit For Off Set/Concealed Closer, 1 1/2" Offset NDC101-RH1.5 Retrofit For Off Set/Concealed Closer, 1 1/2" Offset NDC102 OHC For Closer Kit Jackson/ Kawneer
  • 72.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 72 DOOR CONTROLS RC2100 S2000 Slider Motor P/N: CR4130 RC2160 Master Control/Old Style P/N: CR4008 RC2160-2 S2000 Master Control P/N: CR4010 RC4011 4000 Motor C2176-2 Fail Secure Retro Assy. C2160-2 P/N: CL2603 C2196-2 Fail Safe Autolock RetrofitAssy. P/N: CL3416 RC3955 Power Supply 2150 Linear P/N: CR4048 C2196-5 Fail Safe Lock Assy. C2150/Linear P/N: CL2001373 DC2160-2 S2000 Master Control P/N: CR4009 2000 RC2150L Control Version 1 (Linear) P/N: CR4044 DC2176-5 F/Secure Lock Assy. 2150 Linear P/N: CL4579 DC2196-5 F/Safe Lock Assy. 2150 Linear P/N: CL2001373 HORTON
  • 73.
    800-437-3667 FAX 800-356-8858 73 DOORCONTROLS C0054R On-Off Toggle Switch P/N: CL2579 C2251 Toggle Switch Lace Assy. 28" P/N: CL3413 C2155-4 Switch Lace S2000 For C2150 C2110 Circuit Breaker 1.5 AMP P/N: CL2001219 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725-1 Key Switch Assy. 4-Position S2001 P/N: CL2564 C3725 Double Key Switch Assy. P/N: CL2567 C2155-2 Operator Switch Lace C2160-2 P/N: CL2065 C2176-5 Fail Secure Lock C2150/Linear P/N: CL4579 C0517 1" Red Pushbutton Switch P/N: CL3435 C00523 On-Off Key Switch Assy. C00529 Key Switch On/Off Maintained 2000HORTON
  • 74.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 74 DOOR CONTROLS C2101-2 2000 Coupling 1/2" X 1/2" P/N: CL2001174 C0805-1 Ballcatch Assy. W/ C830R2 Bracket P/N: CL2001699 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 DC467U 2000 Slider Cable P/N: CL2001176 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) C2106-1 Micro-switch S2000, S4000, S7000 P/N: CL2001685 C2108-1 Open Check Switch Assy. P/N: CL2067 C2109-1 Close Check Switch Assy. P/N: CL2066 C2101-1 S2000 Motor Coupling/Dunker 1/2" X 12mm C0815 Horton Wheel Carrier Assy P/N: CL2588 C0817 Idler Wheel Assy. P/N: CL2589 2000 HORTON
  • 75.
    800-437-3667 FAX 800-356-8858 75 DOORCONTROLS C406 S2000 Steel Top Wheel P/N: CL2001115 C2143-2 Drive Rod Idler Bracket/Bushing P/N: CL3395 C2136-1 Co-Active Pulley Assy. P/N: CL3388 C2249 Cable Clamp Assy. P/N: CL2559 C2248 Lock Collar For C2148 Bearing P/N: CL3399 C2103 Drive Shaft 1/2" Diameter S2000 C2131-1 Drive Rod Idler Bushing Assy. P/N: CL2001653 C2130-1 Carriage Wheel Assy. P/N: CL3393 C2126 DW4K/Linear Drive Bearing P/N: CL2001241 (SET OF 6) C2102 Linear Travel Block Assy P/N: CL2129 C0852-2 SX Bottom Guide Assy. W/ Pin P/N: CL2001185 C5552-1 Bottom Pivot Pin P/N: CL3943 2000HORTON
  • 76.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 76 DOOR CONTROLS C0289 Bottom Guide Cap P/N: CL2001183 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478 C0338B Glass Stop 1/4" W/ Vinyl Bronze C5551-2 Bottom Pivot Base Block (C2873) C5551-1 Bottom Pivot Base Block (315) P/N: CL3942 C888-1 Security Interlock P/N: CL2591 C2148 Drive Rod Bearing (Motor) P/N: CL2001290 C843-1 S2000 FSL Lower Guide RH P/N: CL2001124 C844-1 S2000 FSL Lower Guide LH P/N: CL3424 C0330-1B Bottom Guide Track FSL Bronze P/N: CL3426 C0367 Pin Guide Bottom Track C0330-1A Bottom Guide W/ C386-1 &C289 P/N: CL2001120 2000 HORTON
  • 77.
    800-437-3667 FAX 800-356-8858 77 DOORCONTROLS C0389-1 Vertical Interlock Mohair P/N: CL4481 C0350 Horton Door Nosing Mohair P/N: CL3941 C2873A Threshold Guide W/ C289 4" Clear P/N: CL2118 C380-1 Heavy Duty Top Track P/N: CL3701 C291R Horton Track Cap (3/77-7/87) OS P/N: CL2001116 C0291-1 Track Cap (New Style) P/N: CL2001117 HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit C2873B Threshold Guide W/ C289 4" P/N: CL2119 C0369RA Beveled Glass Stop 1/4" Clear P/N: CL4479 2000HORTON
  • 78.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 78 DOOR CONTROLS RC2150B Control Version 2 (Belt) P/N: CR4045 RC3675-1 1/8 HP Motor/Gearbox S2001 RC3925 Power Supply 2150 Belt P/N: CR4047 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725-1 Key Switch Assy. 4 Position P/N: CL2564 C3725 Double Key Switch Assy. P/N: CL2567 A126 Key Only (S2001/2000) C3733-1 Closed Monitor Switch Assy. C2150 C00529 Key Switch On/Off Maintained C00523 On-Off Key Switch Assy. 2001 C3976 Fail Secure Autolock S2001/2150 P/N: CR4065 OR CL4704 C3977 Fail Safe Autolock S2001/2150 Belt P/N: CR4066 HORTON
  • 79.
    800-437-3667 FAX 800-356-8858 79 DOORCONTROLS C0805-1 Ballcatch Assy. W/ C830R2 Bracket P/N: CL2001699 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 C3577 Idler Pulley Assy. S2001 P/N: CL4271 C3636 Carriage Wheel for S2001 P/N: CL2199 C3681 Idler Wheel Assy. S2001 P/N: CL4577 LH100US Drive Belt S2001 1" Width P/N: CL4273 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) C888-1 Security Interlock P/N: CL2591 C5551-1 Bottom Pivot Base Block (315) P/N: CL3942 C5551-2 Bottom Pivot Base Block (C2873) C0517 1" Red Pushbutton Switch P/N: CL3435 2001HORTON
  • 80.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 80 DOOR CONTROLS 2001 HORTON C0330-1A Bottom Guide W/ C386-1 & C289 C0289 Horton Bottom Guide Cap P/N: CL2001183 C0330-1B Bottom Guide Track FSL Bronze P/N: CL3426 C0338B Glass Stop 1/4" W/ Vinyl Bronze C0367 Pin Guide Bottom Track C5552-1 Bottom Pivot Pin P/N: CL3943 C0369RA Beveled Glass Stop 1/4" Clear P/N: CL4479 C2873B Threshold/Guide W/ C289 4" Bronze P/N: CL2119 C0369RB Beveled Glass Stop 1/4" Bronze C0350 Horton Door Nosing Mohair P/N: CL3941 C2873A Threshold/Guide W/ C289 4" P/N: CL2118 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478
  • 81.
    800-437-3667 FAX 800-356-8858 81 DOORCONTROLS 2001HORTON C0389-1 Vertical Interlock Mohair P/N: CL4481 HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit
  • 82.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 82 DOOR CONTROLS RC5600-1 Motor/Gearbox S2003 Dunker RC5600 Motor/Encoder/Gear S2003 C0902-1 SX Cut Off Switch Assy. P/N: CL2128 C3725 Double Key Switch Assy. P/N: CL2567 C5600-1 Motor/Gearbox S2003 (Dunker) New C5662 On/Off Rocker Switch Assy. S2003 C5656 Fail Secure Autolock S2003 P/N: CL4069 C3725-1 Key Switch Assy. 4 Position P/N: CL2564 C00529 Key Switch On/Off Maintained C00523 On-Off Key Switch Assy. 2003 C0517 1" Red Pushbutton Switch P/N: CL3435 RC2150B Control Version 2 Belt P/N: CR4045 HORTON
  • 83.
    800-437-3667 FAX 800-356-8858 83 DOORCONTROLS C0330-1A Bottom Guide W/ C386-1 & C289 C0289 Bottom Guide Cap P/N: CL2001183 K5657B Fail Safe Lock Assy. Bi-Part S2003 C0801A Ballcatch Assy. W/ Spring P/N: CL4584 C888-1 Security Interlock P/N: CL2591 C5605-2 Mount Bracket S2003 Dunker P/N: CL3940 C5623 Idler Pulley Assy. S2003 P/N: CL5702 C3636 Carriage Wheel for S2001 P/N: CL2199 C0114-1 Magnetic Reed Switch SO Cut Off C0444-1 Magnet SO/CO (C0114-1) K5656B Fail Secure Lock Assy. Bi-Part S2003 C5657 Fail Safe Autolock P/N: CL4705 2003HORTON
  • 84.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 84 DOOR CONTROLS C2873B Threshold/Guide W/ C289 4" Bronze P/N: CL2119 C2873A Threshold/Guide W/ C289 4" P/N: CL2118 C0369RA Beveled Glass Stop 1/4" Clear C0350 Horton Door Nosing Mohair P/N: CL3941 C0389-1 Vertical Interlock Mohair P/N: CL4481 C0338RA Glass Stop 1/4" W/ Vinyl Clear P/N: CL4478 C0367 Pin Guide Bottom Track C0338B Glass Stop 1/4" W/ Vinyl Bronze HS2001FBO-1 S2001 FBO Kit HS2001FSL-1 S2001 FSL Kit C0369RB Beveled Glass Stop 1/4" Bronze C0330-1B Bottom Guide Track FSL Bronze 2003 HORTON
  • 85.
    800-437-3667 FAX 800-356-8858 85 DOORCONTROLS C4150-1 Power Assist Close Module P/N: CL3363 RC4100-L14 Hercules 4000 Operator Assy. LH 14 RC4100-L48 Hercules 4000 Operator Assy. LH 48 RC4011 4000/2000 Motor RC4100-R14 Hercules 4000 Operator Assy. RH 14 RC4100-R48 Hercules 4000 Operator Assy. RH 48 RC4160-1 Hercules 4000 Master Control P/N: CR4036 RC4160 Hercules 4000 Control Box RC4190BL S4000/7000 Control B/L C4155 Hercules 4000 Circuit Breaker P/N: CL2001286 4000 RC4190L Rebuilt 7000 New Style Control LH P/N: CR4041 RC4190R Rebuilt 7000 New Style Control RH P/N: CR4041 HORTON
  • 86.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 86 DOOR CONTROLS C4241-14B Parallel Arm Track Assy. 14T DB C4241-48A Parallel Arm & Track Assy. CL C4241-48B Parallel Arm & Track Assy. DB C4241-14A Parallel Arm Track Assy. 14 Tooth C4248-14A Parallel Arm 14T CL C4248-48A Parallel Arm 48T CL C04527-1A Breakaway Stop W/ Switch P/N: CL2123 C7220-1 Electric Strike Interface Module P/N: CL2639 C4248-14B Parallel Arm 14T DB C4156-1 Operator Switch Harness Assy. P/N: CR3003 C4320-1 Auto/Off/Hold Rocker Switch P/N: CL2576 4000 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON
  • 87.
    800-437-3667 FAX 800-356-8858 87 DOORCONTROLS C4252-48A Outswing Arm 48T CL C4551-14A OHC Arm 14Tooth Spline C4551-48 OHC Arm 48 Tooth Spline P/N: CL2001644 C4252-14A Outswing Arm 14-Tooth CL P/N: CL2001336 C4252-14B Outswing Arm 14T DB C4250-48B Inswing Arm 48/60 DB C4252-48B Outswing Arm 48T DB C4250-48A Inswing Arm 48/60 CL C4250-14A Inswing Arm 14/60 CL C4250-14B Inswing Arm 14/60 DB C4248-48B Parallel Arm 48T DB C5254-1 Connecting Rod Assy. 4000HORTON
  • 88.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 88 DOOR CONTROLS C9535 Top Pivot Assy. Door Portion P/N: CL2001727 C7614 Botttom Pivot Floor P/N: CL2321 C9541 Bottom Pivot Assy. Door Portion P/N: CL2001700 C5542-1 Bottom Pivot Assy. Threshold Portion P/N: CL4452 C7610 Bottom Pivot Assy. Floor P/N: CL2001700 C7609 Bottom Pivot Assy. Door P/N: CL2321 C3080-48 48 Tooth Spline Adapter P/N: CL3380 C4550 Door Top Track & Slide Block Assy. P/N: 2001710 C4556 Delrin Slide Block Assy. P/N: CL2001663 C4548 Isolated Pivot Header S/L P/N: CL4451 C3080-14 14 Tooth Spline Adapter P/N:CL3379 C9541 Bottom Pivot Assy. Door Portion 4000 HORTON
  • 89.
    800-437-3667 FAX 800-356-8858 89 DOORCONTROLS RC4190L Rebuilt 7000 New Style Control LH P/N: CR4041 RC4190R Rebuilt 7000 New Style Control RH P/N: CR4041 RC7100LO48 Handicap Oper. Assy. LH/OUT 48 Tooth RC7100Ll14 Handicap Oper. Assy. LH/IN 14 Tooth RC7100RI14 Handicap Oper. Assy. RH/IN 14 Tooth RC7100LO14 Handicap Oper. Assy. LH/OUT 14 Tooth RC7100RI48 Handicap Oper. Assy. RH/IN 48 Tooth RC7100LI48 Handicap Oper. Assy. LH/IN 48 Tooth RC7100RO14 Handicap Oper. Assy. RH/OUT 14 Tooth RC7100RO48 Handicap Oper. Assy. RH/OUT 48 Tooth RC7160-3 Handicap Control P/N: CR4012 C7220-1 Electric Strike Interface Module P/N: CL2639 7000HORTON
  • 90.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 90 DOOR CONTROLS C9110 Horton Circuit Breaker 0.8 AMP P/N: CL2001620 C2106-1 Micro-Switch S2000, S4000, S7000 P/N: CL2001685 C4320-1 Auto/Off/Hold Rocker Switch P/N: CL2576 C04527-1A Breakaway Stop W/ Switch P/N: CL2123 C4241-48A Parallel Arm & Track Assy. CL C4248-14A Parallel Arm 14T CL P/N: CL3371 C4241-48B Parallel Arm & Track Assy. DB C4248-48A Parallel Arm 48T CL P/N: CL3369 C4248-14B Parallel Arm 14T DB P/N: CL3372 C4150-1 Horton Power Assist Close Module P/N: CL3363 C4248-48B Parallel Arm 48T DB 7000 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON
  • 91.
    800-437-3667 FAX 800-356-8858 91 DOORCONTROLS C4250-48A Inswing Arm 48/60 CL C4252-48A Outswing Arm 48T P/N: CL4203 C4252-14A Outswing Arm 14T CL P/N: CL2001336 C4252-14B Outswing Arm 14T Bronze C4250-48B Inswing Arm 48/60 DB C4252-48B Outswing Arm 48T DB P/N: CL4204 C4551-14A OHC Arm 14T Spline C4551-48 OHC Arm 48T Spline P/N: CL2001644 C4250-14B Inswing Arm 14/60 DB C4250-14A Inswing Arm 14/60 CL P/N: CL2001337 C4241-14B Parallel Arm Track Assy. 14T DB C4241-14A Parallel Arm Track Assy. 14T CL 7000HORTON
  • 92.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 92 DOOR CONTROLS C4550 Door Top Track & Slide Block Assy. P/N: CL2001710 C4556 Delrin Slide Block Assy. P/N: CL2001663 C5542-1 Bottom Pivot Assy Threshold Portion P/N: CL4452 C7609 Bottom Pivot Assy. Door P/N: CL2321 C7614 Botttom Pivot Floor P/N: CL2321 C9541 Bottom Pivot Assy. Door Portion P/N: CL2001700 C7610 Bottom Pivot Assy. Floor C9538 Top Pivot Assy. Frame Portion P/N: CL2001700 C9535 Top Pivot Assy. Door Portion P/N: CL2001700 C3080-14 14 Tooth Spline Adapter P/N: CL3379 C3080-48 48 Tooth Spline Adapter P/N: CL3380 7000 HORTON
  • 93.
    800-437-3667 FAX 800-356-8858 93 DOORCONTROLS RC7600LI14 Bi-Fold Oper. Assy. LH/IN 14 Tooth RC7600LI48 Bi-Fold Oper. Assy. LH/IN 48 Tooth RC7600LO14 Bi-Fold Oper. Assy. LH/OUT 14 Tooth RC7600LO48 Bi-Fold Oper. Assy. LH/OUT 48 Tooth RC7600RI14 Bi-Fold Oper. Assy. RH/IN 14 Tooth RC7600RI48 Bi-Fold Oper. Assy. RH/IN 48 Tooth RC7600RO14 Bi-Fold Oper. Assy. RH/OUT 14 Tooth RC7600RO48 Bi-Fold Oper. Assy. RH/OUT 48 Tooth C7739-14A Top/Pivot Arm Assy. P/N: CL2001750 C7734-1 Power Arm-Adjustable Overhead 48 Tooth P/N: CL2670 7600 C7739-48 Top/Pivot Arm Assy. P/N: CL2001149 C0517 1" Red Pushbutton Switch P/N: CL3435 HORTON
  • 94.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 94 DOOR CONTROLS C7686 Bi-Fold Top Guide Roller 5/8 P/N: CL2198 C7685 Top Roller Guide Assy. Bi-Fold C7686-1 Bi-Fold Top Guide Roller 7/8 P/N: CL4087 C7700-1C Bi-Fold Hinge LHR W/ Screws P/N: CL2001751 C7702-001C Bi-Fold Hinge RHR W/ Screws P/N: CL2001752 7600 C4197B Direct Drive Arm 14T 7600 DB P/N: CL3381 HORTON
  • 95.
    800-437-3667 FAX 800-356-8858 95 DOORCONTROLS RC8160-3 Window Control P/N: CR4069 C8213-1 Lace Assy. Control To Motor Single P/N: CL2590 C8222 Window Coupling P/N: CL2001698 C8207-2 S8000 Dunker Motor P/N: CL2001571 C8231-1 Operator Wiring Harness Single C8233-2 Linear Travel Block S8000 P/N: CL2380 C8243 Circuit Breaker Assy. (8000) C08258 Microswitch S8000 C9558 Bearing/Window Travel Block 8000HORTON
  • 96.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 96 DOOR CONTROLS RC6111 1/4HP-DC 1725PRM Motor- Grand Revolver RC8797 Geardrive Grand Revolver RC9102-1 Auto/Security Gearbox RC9150-3 Master Control 2 Way-4 W/ Security RC9810-1 Revolver Control P/N: CL4222 RC9150-5 Master Control Auto-Grand RC9920 Security Motor Drive P/N: CL2598 OR CL2545 RC9922 Security 2 Way Logic Board P/N: CL2599 C09371 Bottom Bearing Grand Revolver C9011 Motor 9300 Series 500RPM P/N: CL2544 C6111 Industrial Motor 1/4 HP 90V DC P/N: CL4213 C8797 Gearbox Grand 9600 HORTON REVOLVER
  • 97.
    800-437-3667 FAX 800-356-8858 97 DOORCONTROLS C9150-3 Master Control 2 Way-4 W/ Security C9150-5 Master Control Auto- Grand Revolver C9185 Break Glass Emergency Switch C9211 Brake Magnet (9500) C9102-1 Motovario 77.9:1 Gearbox (Blue) C9110 Circuit Breaker .8 AMP C9232-1 Rev. Counter 9500 Revolver C9217 Armature 9500 Revolver C9419-1 Ceiling Lock Receiver C9388 Magnetic Reed Switch Assy. C9451 2 1/2 T-Style Weather Seal C9452 1 1/2 T-Style Weather Seal HORTON REVOLVER
  • 98.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 98 DOOR CONTROLS C9630-6 Vertical Weatherstrip Assy. 96" C9665 Shaft Bearing P/N: CL4456 C9670-2 Safety Edge Switch Assy 95-3/4" P/N: CL2133 C9670-3 Edge Switch 84" P/N: CL4582 C9676-1 Bottom Pivot Post P/N: CL2612 C9710-2 Light Fixture Assy. C9766-1 Ball Catch Bracket C9778-1 Ball Catch Hook 4 Wing-9300/9500 C9810-1 Control For Revolver New Version P/N: CL4222 C9885 Rocker Switch C9920 Motor Drive Control C9951 1 Way Input Card HORTON REVOLVER
  • 99.
    800-437-3667 FAX 800-356-8858 99 DOORCONTROLS C8940 Collector Ring P/N: CL2596 C8941 Slip Ring Kit RC9150 Auto/Security Control RC9210-1 Speed Control Manual P/N: CL4221 C9725.K Shaft W/ Key Gear DR9300 8" Shaft P/N: CL2594 C9883-1 Collector Ring W/ Plug- Grand Revolver HORTON REVOLVER
  • 100.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 100 DOOR CONTROLS 1100 R418054 GT Whisperslide Motor/Gearbox P/N: CR4091 R228625 Whisperslide Gearbox Only P/N: CL2072 R220575 GT Swing/Slide Motor DC220575 (New Motor) R410026 GT P.O.S.C. Operator Assy. R414374 GT P.O.P.C. Operator Assy. R413800 GT P.O.S.C. Slider Control Box P/N: CR4022 R218133 GT Auxiliary Power Supply/Control P/N: CR4007 112071 GT Soft Start/Slider-Spring Close 215900 F/Sec Retro Lock Assy. 1100 118051 GT Proximity Switch Assy. P/N: CL2001361 R215210 Lock Module For GT 1100 P/N: CL5314 R3400 GT 1100 Control Lanson 3400 NABCO-GYRO TECH
  • 101.
    800-437-3667 FAX 800-356-8858 101 DOORCONTROLS 1100 128327 GT Proximity Switch 218353 GT Panic Breakout Switch P/N: CL2001294 218409 Magnetic Actuator 213801 Limit Arm Assy. GT 1100 P/N: CL5315 218065 Idler Pulley Assy. P/N: CL2059 218831 Track Roller Assy. 240599R GT Carriage Wheels P/N: CL2001098 218049 GT Anti-Riser Roller Assy. P/N: CL4737 144935 GT Slider Door Stop Bumper 129082 GT Ball Detent Panic Assy. 242458 Bushing 218049R Antiriser Roller & Bearing P/N: CL4181 NABCO-GYRO TECH
  • 102.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 102 DOOR CONTROLS 1100 213468-99 Panic Catch Release Assy. 1100 128427 GT FBO Bottom Guide P/N: CL2054 214261 GT Lower Guide/Bottom RH P/N: CL2001104 214262 GT Lower Guide/Bottom LH P/N: CL2001105 C406 S2000 Steel Top Wheel 144257 GT Quad Ring 118177 Bottom Door Pivot RH P/N: CL3477 248092 GT Door Panel Interlock 248179 GT Bottom Guide Track FBO P/N: CL2052 118178 Bottom Door Pivot LH P/N: CL2001086 1100FSL-1 GT Whisperslide 1100 FSL Kit 242447 Panic Release Catch NABCO-GYRO TECH
  • 103.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 103 DOOR CONTROLS R219528 1175 Motor/Gearbox Assy. Rebuilt P/N: CR4110 R219206 Motor W/ Encoder P/N: CR4164 219206 Motor W/ Encoder 219528 Motor/Gearbox Assy. (New) 219530 1175 Slider Gearbox Only 219821-01 Switch For 1175 Slider U-10 Control 148903 Handy Terminal R248901 Processor Control GT Swing/Slide Specify Version P/N: CR3005 219923 Ultralock Fail/Secure P/N: CL5722 149258-03 3-Position Rocker Switch 1175 219820 Key Switch Dual Cylinder P/N: CL4727 1175 R219530 1175 Slider Gearbox Only P/N: CL2001097 NABCO-GYRO TECH
  • 104.
    800-437-3667 FAX 800-356-8858 104 DOORCONTROLS 219034 Track Roller Assy. 1175 Slider P/N: CL2620 229026 Idler Weldment 119906 Drive Pulley Assy. Molded 229210 Idler Assy. 1175 119903 Idler Pulley 1175 119037 Anti-Rise Roller P/N: CL2001103 240599R Carriage Wheel P/N: CL2001098 229223 Breakout Switch Assy. FSL 119208 Handing Harness 1175 148902B Acusensor P/N: CL5352 213468 Panic Release Catch 249483 Panic Catch NABCO-GYRO TECH
  • 105.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 105 DOOR CONTROLS 1175 149463 Track Cap 1175 149064 Belt-Lock, Insert 219053 Bottom Guide Roller Assy. P/N: CL2618 128233 Door Stop 149057 Interlock, Non-Handed 149079 Door Stop Assy. 219046-1 RH Fixed Bottom Guide 1175 SLD P/N: CL4771 219046-2 LH Fixed Bottom Guide 1175 SLD P/N: CL4189 11950901 SO Bottom Pivot LH 218088-01 Top Pivot Assy. RH Sidelite P/N: CL3475, USE CL3476 FOR LH 11950902 SO Bottom Pivot RH 218396 Limit Arm Assy. NABCO-GYRO TECH
  • 106.
    800-437-3667 FAX 800-356-8858 106 DOORCONTROLS 1175 149017 Ramp Threshold (149016) 149168 Filler Extrusion (149016-Track) 149019 Bumper For Threshold (149016) P/N: CL5351 149016-01 Track Threshold 1175FBO-1 GT 1175 FBO Kit 1175FSL-1 GT 1175 FSL Kit DC-09-0369-0 Universal Door Stop NABCO-GYRO TECH
  • 107.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 107 SWING R410024 GT/SW Operator Assy. RH DC410024 P/N: CR4139 R410025 GT/SW Operator Assy. LH DC410025 P/N: CL4140 R111390 GT/SW Gearbox Only, RH P/N: CL2375 R111391 GT/SW Gearbox Only, LH R411512 GT/SW Control Box P/N: CR4005 R220575 GT Swing/Slide Motor Only DC220575 (New Motor) R412208 GT 500 Swing Control-Slow Mode R411837 GT Power Assist Close SW/Control R243425 GT Time Delay Module P/N: CL2001310 110930-02 GT Panic Latch - Fin 313/300 OHC 243425 GT Time Delay Module 110930-01 Panic Latch - 300 OHC P/N: CL2001094 NABCO-GYRO TECH DOOR CONTROLS
  • 108.
    800-437-3667 FAX 800-356-8858 108 DOORCONTROLS SWING 210750 GT Header Pivot Assy. P/N: CL2001092 241247-02 Shoulder Bolt 210923 P/N: CL4596 210741-01 Door Stop Assy. 215371 GT Top Slide Block P/N: CL2001090 210709 GT Operator Frame Mount P/N: CL2001109 210925 Top Track W/ Pivot & Side Spacers P/N: CL2001084 210098 GT Bottom Pivot/Door Portion P/N: CL2001085 210926 GT Bottom/Floor Pivot P/N: CL2001087 213567 GT Inswing Arm RH P/N: CL2001198L 213568 GT Inswing Arm LH 240029 GT Self Aligner For Bottom Pivot P/N: CL5316 210902-01 Arm CU Non Handed Inswing CL NABCO-GYRO TECH
  • 109.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 109 DOOR CONTROLS 210902-02 Arm CU Non Handed Inswing BZ 210997 GT 11 1/2" Inswing Track 210998 GT Panic Track 21" P/N: CL5318 218848.11 Outswing Arm - 10" Rod Clear 210907-01 OHC Arm Center Pivot P/N: CL2001162 210907-02 OHC Arm Center Pivot Bronze P/N:CL2001163 149497 Cover, Acusensor 8.66" X 2.56" GTSWING-1 Gyro Tech Swinger Kit 240159-01 Snap In Channel Clear SWING NABCO-GYRO TECH
  • 110.
    800-437-3667 FAX 800-356-8858 110 DOORCONTROLS R415638BR or R415638BL 710 Gemini Operator Specify RH or LH 415638R or 415638L Gemini 710 Motor, Gear & Closer Specify RH or LH R218735 GT Gemini Control Board P/N: CR4006 R24-9800-01 Magnum Control Rebuilt Specify Version (01-04) R148703 Motor 115V DC Gemini 700/710 215648 Sprocket/Main Shaft Weldment P/N: CL3460 128710 Main Output Shaft/Drive Sprocket Assy. 148732 Gemini Microswitch/Swinger 4021-RH Hydraulic Closer GT 710 4021-LH Hydraulic Closer GT 710 249800-04 Magnum Control P/N: CR4057 GEMINI 148705 Spiral Bevel Pinion Gear NABCO-GYRO TECH
  • 111.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 111 DOOR CONTROLS 148713 Roller Chain/Endless 90 PTCHS 245649 Roller Chain/Endless 74P LG P/N: CL3461 145639 Sprocket 8T 700/710 GEMINI NABCO-GYRO TECH
  • 112.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 112 DOOR CONTROLS I-ONE Wide Pattern Motion/Presence Sensor P/N: CL4177 OS-12C Safety Beam Control Box Only OS-12CS Safety Beam Set 23' Single SH-7MC Safety Beam Eyes 1-Pair P/N: 413180 OS-12CD Safety Beam Set Double P.N: 313710 SH-10MC Safety Beam Eyes 1-Pair 33" OA-202C Prosafe Motion Presence Sensor P/N: CL3539 OA-203C Motion/Presence Sensor P/N: 516721 OA-601C Swing Side Safety Sensor/ Bronze P/N: CL3538 OA-PRESENCE 2 Curtain Presence Sensor HORIZON 5 Curtain Motion/Presence Sensor PROSWING-PR Swing Side Sensor With Controller/ Lock Out Function P/N: CL3544 OPTEX
  • 113.
    800-437-3667 FAX 800-356-8858 113 DOORCONTROLS OA-60C Recess Mount Presence Sensor MIRAGE Recess Mount AIR Approach/ Presence Sensor SH-TRCL Trim Ring And Clip Clear SH-TRBL Trim Ring And Clip Black RCTD-10U RC-10/TD-10 Set RH-3 Rain Hood For OA-203 I-LID Rain Hood For I-SENSOR OPTEX
  • 114.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 114 DOOR CONTROLS 4-11-0813 ZII Motor / Gearbox P/N: CR4076 R9999-1311 1100 Slide Control Rebuilt P/N: CR3000 OR CR4074 (LONG) 9-99-1314 ZII Control (1100) P/N: CR4055 R4-11-0813 ZII Motor/Gearbox Rebuilt P/N: CR4076 9-99-2146 Conv. Harness "B" ZII Control To Z Gearbox 9-99-2147 Conv. Harness "A" Z Control To ZII Gearbox 9-99-5563 Fail Safe Lock 1100 L2 P/N: CL3683 9-99-5580 L2 Lock Control Fail Safe New 9-99-5566 Fail Secure Lock 1100 L1 P/N: CL3684 9-99-5579 L1 Lock Control Fail Secure (ZII) P/N: CL3686 R9-99-2124 1100 Slide Motor / Gearbox Rebuilt P/N: CR4077 1100 R9-99-1314 ZII Control Rebuilt P/N: CR4055 RECORD/ KM SYSTEMS
  • 115.
    800-437-3667 FAX 800-356-8858 115 DOORCONTROLS 9-99-4146 Pulley & Pin Assy. for KM 1100 4-11-0600 Transformer Assy. 9-99-0008 1100 Drive Belt P/N: CL2001738 4-70-0582 Ball Catch Assy. P/N: CL3754 4-11-0022 Idler Pulley & Bracket Assy. P/N: CL2825 4-70-1034 Clevis Pin Top So Panel 4-11-9013 Delrin Roller P/N: CL2920 4-11-0024 Slave Carrier Assy. W/ Roller 4-70-4342 Bumper Slow Door "L" Bracket 99-9999-4135 Pulley (1100 Idler) 4-11-0410 Anti-Riser Assy. 1100 4-11-0811 L2 Carriage Lock KM 1100 (Retro) RECORD/ KM SYSTEMS
  • 116.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 116 DOOR CONTROLS 4-11-0469 Lower Guide FBO P/N: CL5333 4-70-4443 Interlock Clear/Bronze 5-11-4004MF Top Track Extrusion New Style P/N: CL2001711 4-11-0457 Door Stop P/N: CL2838 4-11-0461 1100 RH Bottom Guide FSL See Part #4-11-0471 4-11-0470 Bottom Guide Assy. LH 1100 P/N: CL6049 4-11-0471 Bottom Guide Assy. RH 1100 P/N: CL6050 4-11-1031 Pivot Pin Bottom Floor 5-11-4018 Bottom Guide Rail 5-11-4007 Track FBO P/N: CL3000 1100 4-11-0460 1100 LH Bottom Guide FSL See Part #4-11-0470 C406 S2000 Steel Top Wheel OBSOLETE OBSOLETE RECORD/ KM SYSTEMS
  • 117.
    800-437-3667 FAX 800-356-8858 117 DOORCONTROLS 9-99-7316 Door Felt 1100 9-11-0001 Track Cap 1100 FBO 9-70-0077 Track Cap P/N: CL2001591 RECORD/ KM SYSTEMS
  • 118.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 118 DOOR CONTROLS RC08L KM/SW 2000 Oper. Assy. LH OHC RC08R KM/SW 2000 Oper. Assy. RH OHC RTM8R KM/SW 2000 Oper. Assy. RH SM 9999-0752 Motor Start Capacitor P/N: CL2001152 RTM8L KM/SW 2000 Oper. Assy. LH SM 4-20-0203 Reg. Arm Assy. 4-20-4002 7" Parallel Bracket P/N: CL4738 R4-20-0102 Hydraulic Swing B Control P/N: CR4052 4-20-1921 Arm Shoe For KM Outswing Arm 2000 RECORD/ KM SYSTEMS
  • 119.
    800-437-3667 FAX 800-356-8858 119 DOORCONTROLS R4-25-0017 2500 POPC RH R4-25-0011 2500 POPC LH 2500 & 4500 4-40-0028 Bottom Pivot Assy. W/ Threshold R4500R 4500 Oper. Assy. Swing RH R4500L 4500 Oper. Assy. Swing LH RECORD/ KM SYSTEMS
  • 120.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 120 DOOR CONTROLS R3000ROSSRC 3000 Oper. Square Shaft RH OUT SM W/ Rev. Counter R4-30-0518 "K" Control Dual (Rebuilt) P/N: CR4050 R4-30-0517 "K" Control Single (Rebuilt) P/N: CR4049 R3000RODDORC 3000 Oper. DD Shaft RH OUT OHC W/ Rev. Counter R3000RIDDORC 3000 Oper. DD Shaft RH IN OHC W/ Rev. Counter R3000LOSSRC 3000 Oper. SQ Shaft LH OUT SM W/ Rev. Counter 4-30-0518 Control Assy. "K" Dual R3000LIDDORC 3000 Oper. DD Shaft LH IN OHC W/ Rev. Counter R3000LISSRC 3000 Oper. SQ Shaft LH IN SM W/ Rev. Counter R3000LODDORC 3000 Oper. DD Shaft LH OUT OHC W/ Rev. Counter R3000RISSRC 3000 Oper SQ. Shaft RH IN SM W/ Rev. Counter 4-30-0517 Full Power "K" Control Assy. 3000 RECORD/ KM SYSTEMS
  • 121.
    800-437-3667 FAX 800-356-8858 121 DOORCONTROLS 4-31-0515 Low-Power Single K Control 4-31-0516 K Low Energy Control Dual 4-30-0013 Inswing Arm LH 4-35-0243 OHC Arm 4-30-0014 RH In Swing Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 3000RECORD/ KM SYSTEMS
  • 122.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 122 DOOR CONTROLS R3500RODO SW Oper. RH OUT OHC Diamond Shaft R3500ROSS SW Oper. RH OUT SM Square Shaft R3500LIDDO SW Oper. LH IN OHC DBL D Shaft R3500LIDO SW Oper. LH IN OHC Diamond Shaft R3500LISS SW Oper. LH IN SM Square Shaft R3500LODO SW Oper. LH OUT OHC Diamond Shaft R3500RODDO SW Oper. RH OUT OHC DBL D Shaft R3500RISS SW Oper. RH IN SM Square Shaft R3500RIDO SW Oper. RH IN OHC Diamond Shaft R3500LODDO SW Oper. LH OUT OHC DBL D Shaft R3500LOSS SW Oper. LH OUT SM Square Shaft R3500RIDDO SW Oper. RH IN OHC DBL D Shaft 3500 RECORD/ KM SYSTEMS
  • 123.
    800-437-3667 FAX 800-356-8858 123 DOORCONTROLS 3500 R4-35-0913 3500 Control (Dual) R4-35-0901 3500 Control (Single) P/N: CL2001716 4-30-0014 RH Inswing Arm 4-30-0013 LH Inswing Arm 4-35-0243 OHC Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 4-35-0143 OHC Arm Assy. 3500 RECORD/ KM SYSTEMS
  • 124.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 124 DOOR CONTROLS R3800LOSS 3800 SW Opr. LH/OUT Square Shaft R3800RIDDO 3800 SW Opr. RH/IN OHC Dbl. D Shaft R3800RIDO 3800 SW Opr. RH/IN OHC Diamond Shaft R3800ROSS 3800 SW Opr. RH/OUT Square Shaft R3800RODDO 3800 SW Opr. RH/OUT OHC Dbl. D Shaft R3800RISS 3800 SW Opr. RH/IN Square Shaft R3800RODO 3800 SW Opr. RH/OUT OHC Diamond Shaft R3800LIDDO 3800 SW Opr. LH/IN OHC Dbl. D Shaft R3800LIDO 3800 SW Opr. LH/IN OHC Diamond Shaft R3800LISS 3800 SW Opr. LH/IN Square Shaft R3800LODDO 3800 SW Opr. LH/OUT OHC Dbl. D Shaft 3800 R3800LODO 3800 SW Opr. LH/OUT OHC Diamond Shaft RECORD/ KM SYSTEMS
  • 125.
    800-437-3667 FAX 800-356-8858 125 DOORCONTROLS 4-30-0014 RH In Swing Arm 4-30-0030 Out Swing Arm 4-24-9003 Slide Block P/N: CL2001383 4-35-0243 OHC Arm 3800 4-30-0013 LH In Swing Arm R4-38-0510 L Control P/N: CR4051 RECORD/ KM SYSTEMS
  • 126.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 126 DOOR CONTROLS R4460000150L 7000 Slide Oper. Assy. LH R4460000150R 7000 Slide Oper. Assy. RH R4460000446 7000 Gearbox RH R4460000447 7000 Gearbox LH R4460009276 7000 Slide Control 3 PC. P/N: CR4014 R4470009100 7000 Slide Control P/N: CR4013 R4-60-0150 7000 Motor R4470000554 7000 Transformer Assy. C406 S2000 Steel Top Wheel 4-60-1890 7000 Carriage Roller P/N: CL2001293 5-11-4004MF Top Track Extrusion New Style P/N: CL2001711 4-70-4443 Interlock Clear/Bronze P/N: CL2880 7000 RECORD/ KM SYSTEMS
  • 127.
    800-437-3667 FAX 800-356-8858 127 DOORCONTROLS 9-70-0077 Track Cap P/N: CL2001591 7000RECORD/ KM SYSTEMS
  • 128.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 128 DOOR CONTROLS R4-9-2 BWN PCB2 Timer Board 4-36-43 Resistor/Tricklefeed 100W 150OHM 13-7-1 Wheel W/ Floorguide Bushing 10-1-24 Floor Guide Pin Assy. For I/S (Metal Guide) P/N: CL5369 R4242 ADW Motor Only P/N: CL2001579 SIERRA/BWN R4-24-1 ADW Motor/Gearbox Assy P/N: CL4652 ROB-6 ADW PC Board (Large) P/N: CL2001233 ROB-3 ADW PC Board (Small) R14415 ADW Gearbox Only 4-36-42 Resistor/Slow Close-Adjust 10-FLG-100L Floor Guide Bracket LH 10-FLG-100R Floor Guide Bracket RH P/N: CL2001239 ADW
  • 129.
    800-437-3667 FAX 800-356-8858 129 DOORCONTROLS 10-1-24 Floor Guide Pin Assy. For I/S (Plastic Guide) P/N: CL5369 10-1-12 ADW Idler Sprocket/End Gear Assy P/N: CL4094 5-10-10 ADW Motor Rubber Mount P/N: CL4012 5-9-2R ADW Carriage Wheel w/Bearing 3-2-2 Ball Catch Striker Plate 3-2-4567R Ball Catch Bracket RH 14-3-6 Roller Chain 1013 Floor Track Extrusion (S/M) (Specify CL or BZ) 5-9-3 Antiriser Angle Bracket 11-1-500031 J Shaped Breakout 10-1-1 Track Wheel Assy. P/N: CL2001172 ADW 3-2-4567L Ball Catch Bracket LH SIERRA /BWN
  • 130.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 130 DOOR CONTROLS SIERRA/BWN 5-X09 Glass Stop Bronze ADW
  • 131.
    800-437-3667 FAX 800-356-8858 131 DOORCONTROLS 10-1-24 Floor Guide Pin Assy. For I/S (Plastic Guide) BWN/SIERRA R4-21-30 DBM-3 Control R4-21-31 DA5 Aux. Control Box 10-1-0 Track Wheel Assy. 1 7/8" 10-1-0R Track Wheel With Bearing 3-2-26 End Guide Pulley Assy. R4-24-10 Motor/Gearbox Assy. N/S 10-FLG-100R Floor Guide Bracket RH 10-FLG-100L Floor Guide Bracket LH 13-7-1 Wheel W/ Floorguide Bushing 10-1-24 Floor Guide Pin Assy. For I/S (Metal Guide) 5-10-12 Rubber Shock Absorber SDW
  • 132.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 132 DOOR CONTROLS SIERRA /BWN 85101 Drive Belt Black SD/SDW 3-2-2 Ball Catch Striker Plate 10-1-205 Breakout Wheel/Microswitch 5-X09 Glass Stop 4-23-11 On/Off Toggle Switch SDW 3-2-4567R Ball Catch Bracket RH 3-2-4567L Ball Catch Bracket LH 1013 Floor Track Extrusion (S/M) (Specify CL or BZ)
  • 133.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 133 DOOR CONTROLS R410886 Mg/Sl - Dyn/Gl Motor P/N: 909410886 R311625 Mg/Sl Control Box 3 Button MAGIC SLIDE 312892 Mg/Sl - Dyn/Gl Cable Package P/N: 910312892 STANLEY
  • 134.
    800-437-3667 FAX 800-356-8858 134 DOORCONTROLS R410886 Motor P/N: 909411886 145-D8 Kill Switch-Long Arm Microswitch R312142 Dynaglide Control Box 4 Button R406079 Checking Cylinder C2126 Linear Drive Bearing 708473 Coupling/Drive Shaft-Motor 400573 Trip Rod 708867SX SX Ball Detent Assy. 311594 Plastic Anti-Riser 310258 Check Cylinder PKG. Kit 707063 Hanger Wheel/Small Roller DYNAGLIDE 708965 Large Hanger Wheel STANLEY
  • 135.
    800-437-3667 FAX 800-356-8858 ©2006Door Control Services, Inc. DOOR CONTROLS 800-437-3667 FAX 800-356-8858 135 ©2006 Door Control Services, Inc. DOOR CONTROLS C406 S2000 Steel Top Wheel 312143 Drive Block Cushion 312892 Mg/Sl - Dyn/Gl Cable Package 117244 Bottom Guide Roller (Small) 117244L Bottom Guide Roller (Larger) 709930 Lower Guide LH FSL 709929 Lower Guide RH FSL 311375 Bottom Guide FBO P/N: 968311375 709182 Track Cap DYNAGLIDE STANLEY
  • 136.
    800-437-3667 FAX 800-356-8858 136 DOORCONTROLS R313443 Motor/Gearbox Assy. R313506 Gearbox Duraglide Insco 3/8 Belt R313186 Duraglide Motor/Gearbox Assy. INSCO 3/8-Pulley/Belt) R313027 Duraglide Gearbox Patterson R313034 Duraglide Gearbox W/ Pulley N/S R515801 Duraglide Motor Only R313383 Interface Board Old Style R312891G Duraglide PC Control Grey R516098 Duraglide Interface Board (New Style) R312891T Duraglide PC Control Tan R107506HD Duraglide Microprocessor PC HD Orange P/N: 313156 R514542 Duraglide Motor W/RC DURAGLIDESTANLEY
  • 137.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 137 DOOR CONTROLS 412903 Harness I/O To Function Switch 412545 Power Harness For N/S Interface R107506W Duraglide Microprocessor PC Wide 313087-5 Solenoid Lock, Fail Safe RH 313087-7 Solenoid Lock, Fail Secure RH 313087-8 Solenoid Lock, Fail Secure LH 713080 Rocker Switch One Way Reduced Open 713081 Duraglide Power Switch R107506N Duraglide Microprocessor PC Narrow P/N: 313155 DURAGLIDE R107506XL Duraglide Microprocessor PC XL Red P/N: 313156 412901-2 Harness I/O Board W/ Solenoid Lock 412902-2 Harness I/O BD W/ Control Box STANLEY
  • 138.
    800-437-3667 FAX 800-356-8858 138 ©2006Door Control Services, Inc. DOOR CONTROLS 312987 Door Position Switch Assy. 412117 Lens Stanguard Sensor 411842 Breakout Switch Assy. 2000 313719 6-Position Rotary Switch 313720 6-Position Key Switch R312965 Stanguard Threshold Sensor R312717 Encoder 312717 Encoder 411709 Door Holder 15" SO 3000 412680 Door Holder 10" (Special) 713333-1 Diamond Series Interlocks 713082 Auto/Close/ Open Switch DURAGLIDESTANLEY
  • 139.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 139 DOOR CONTROLS 711568 Interlock/Security Hook 711709 Full Open Stop RH 711710 Full Open Stop LH 712246 Stanguard End Cap 708867 Ball Detent Assy. 4,80 See Page 141 for part #'s Ball Detent Door Portion RH See page 141 for part #'s Ball Detent Door Portion LH 515059 Idler Assy. 413830 Damper Assy. 312729 Hanger Wheel Assy. 312462 Anti-Riser Wheel Assy. 312728R Hanger Wheel & Bearing DURAGLIDE STANLEY
  • 140.
    800-437-3667 FAX 800-356-8858 140 DOORCONTROLS LO75 Belt 411714 Shoulder Screw/Arm To Header 516076 Belt Bracket (Short) 3/8" Belt 412498 1000 Load Wheel Assy. 412466 Drive Pulley Plastic 1000 313651 IS1000 Cable Kit 708950 Stanley Bottom Pivot SO Door 515191 Bottom Guide RH FSL 515192 Bottom Guide LH FSL 411622 Ball Detent Hanger Portion 411247 Top Pivot SO LH (2,3000) DURAGLIDE 411858 Plate, Bottom Pivot SO STANLEY
  • 141.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 141 DOOR CONTROLS 410100 Bottom Pivot RH 3000 SO 410101 Bottom Pivot LH 3000 SO 117244L Bottom Guide Roller (Larger) 515265 Bottom Guide D/G FBO 117244 Bottom Guide Roller (Small) Part #: 516388 Bottom Guide Nylon Ind. Slide For IS10000. Comes as a set of 8, but does not include the aluminum door portion component. DURAGLIDE 411248 Top Pivot SO RH (2,3000) STANLEY Ball Detent Catch Channels 516699-1......... Detent, door portion, all glass 516699-2......... Detent, door portion, narrow, access control RH 516699-3......... Detent, narrow, medium w/ access control RH 516699-4......... Detent, narrow, medium, w/ access control LH 516699-5......... Detent, door portion, medium RH 516699-6......... Detent, door portion, medium LH 516699-7......... Detent, design package and flush bolt repair kit 516699-8......... Detent, door portion, narrow, w/ access control LH
  • 142.
    800-437-3667 FAX 800-356-8858 142 DOORCONTROLS DURAGLIDESTANLEY Lock Rod Part #'s 413811-2............................Lock Rod Assembly w/ bolt 45-3/8" 413811-3............................Lock Rod Assembly w/ bolt 76" 413811-4............................Lock Rod Assembly w/ bolt 11-5/16" 413811-5............................ Lock Rod Assmbley w/ bolt 34-1/2" Glass Stop Part #'s 412637-21000............. 1/4" clear bevel gutter 432637-21000............. 1/4" dkbz bevel gutter 412471-21000............. 1/4" clear square gutter 432471-21000............. 1/4" dkbz square gutter 412569-21000............. 1/4" clear bevel face glass stop 432569-21000............. 1/4" dkbz bevel face glass stop 412861-21000............. 1/4" clear square glass stop 432861-21000............. 1.4" dkbz square glass stop 706812........................ Glass stop black rubber strip Threshold Part #'s 517081-21700............. Universal core threshold, clear 517082-21700............. Universal bevel threshold, clear 517083-21700............. Universal square threshold, clear 537081-21700............. Universal core thresold, dkbz 537082-21700............. Universal bevel threshold, dkbz 537083-21700............. Universal square threshold, dkbz 516327-21700............. "Lowes" threshold, clear 536327-21700............. "Lowes" threshold, dkbz 411795-21700............. Filler strip, clear 431795-21700............. Filler strip, dkbz 972411796.................. Nylon vinyl for threshold 515878-21700............. Telescopic Threshold, clear, bevel/bevel 535878-21700............. Telescopic Threshold, dkbz, bevel/bevel Detent/Pivot Plates 314131...... Ball detent plate kit 314132...... SO pivot plate kit
  • 143.
    800-437-3667 FAX 800-356-8858 143 DOORCONTROLS R108383R Gearbox Only RH R108383L Gearbox Only LH R312153S Operator Assy. LH SM R312153RCS Operator Assy. LH SM W/ Rev. Counter R312153RC Operator Assy. LH OHC W/ Rev. Counter R312152 Operator Assy. RH OHC R312152P Operator Assy. RH OHC W/ Pin R312152RC Operator Assy. RH OHC W/ Rev. Counter R312152RCS Operator Assy. RH SM W/ RC R312152S Operator Assy. RH SM R312153 Operator Assy. LH OHC R312153P Operator Assy. LH OHC W/ Pin MAGIC SWINGSTANLEY
  • 144.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 144 DOOR CONTROLS 515735 Harness/Single Door 515736 Harness/Dual Door R313167 Magicswing Motor R312824T Mg/Sw Control Tan R312824S Mg/Sw Control Silver R312824B Mg/Sw Control Black R515741 Sentrex 3 Microboard New Style R313853 HDLE/FE MP Control (Black Label) R313153 Microprocessor Control (Yellow Label) R312717 Encoder 312717 Encoder MAGIC SWING R514542 Motor W/ RC STANLEY
  • 145.
    800-437-3667 FAX 800-356-8858 145 DOORCONTROLS 312250 Magic Swing Visible Door Arm LH In R313185 Sentrex 3 Sensor Head 313367 Power Close Module For M/S 313185PL Sentrex Replacement Plates 312249 Magic Swing Visible Door Arm RH In 312251 Magic Swing Visible Door Arm Out 410872 Door Arm Track 15 1/2" 514878 Door Arm Track Bracket 412172 Spacer, (343718 Crashbar) Min. 516203 End Cap (343718 Crashbar) 710706 Stanley Slide Block 412435 Power Cable (Sentrex III) Specify Length MAGIC SWINGSTANLEY
  • 146.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 146 DOOR CONTROLS 311727 Threshold & Bottom Pivot 312976 Threshold & Bottom Pivot 312903 Bottom Pivot Tapered (Threshold) 343718 Crashbar Assy. Bronze MAGIC SWING STANLEY
  • 147.
    800-437-3667 FAX 800-356-8858 147 DOORCONTROLS R313530 Control Dual R110378RO Operator RH/OUT R110378RI Operator RH/IN R110379LI Operator LH/IN R110379LO Operator LH/OUT R313242 Motor 313528 Dual Control (New) R110357-1 Control 313150 Power Boost Logic Board 313160 Outswing Arm Assy. Breakout CL 313180 Inswing Arm W/Out Breakout (0-4") DB 333160 Outswing Arm Assy. Breakout DB MAGIC ACCESSSTANLEY
  • 148.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 148 DOOR CONTROLS 333180 Inswing Arm W/Out Breakout (0-4") DB 110564 Arm Operator Concealed 710706 Stanley Slide Block MAGIC ACCESS STANLEY
  • 149.
    800-437-3667 FAX 800-356-8858 149 DOORCONTROLS R313852 Magic Force Operator 516660 Close Speed Control R313853 HDLE/FE MP Control Black Label MAGIC FORCESTANLEY
  • 150.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 150 DOOR CONTROLS 515720 Bottom Pivot 7000TL ICU Track LS 515716 Pivot Floor 7000TL ICU Track LS 515191-2 Bottom Guide RH ICU 515192-2 Bottom Guide LH ICU ICU STANLEY
  • 151.
    800-437-3667 FAX 800-356-8858 DOORCONTROLS 800-437-3667 FAX 800-356-8858 151 DOOR CONTROLS STD.E1 TDA Outswing Arm Assy. Clear R140353 TTX Control P/N: CL5020 KAU.0012 Slide Control TX 9000 (TLP-TC- P51LC) P/N: CL5029 JEP.003 3 Position Function Switch TDA 2-29-0026 SX Bottom Guide FBO TX9300 404792 TTXII Low Energy Swing Control 141025 TTXI Low Energy Control 140194 TTX Outswing Arm Assy. Bronze 140190 Program Keypad (9000 Slide) P/N: CL5011 110820 Limit Arm TX9300 P/N: CL5712 FAU.0028 TX9000 Rubber Doorstop With Angle Bracket 110445 TX9000 Trolley Head Replacement TORMAX
