2. WIRING ACCESSORIES
domestic as well as commercial
wiring.
SOME IMPORTANT
ELECTRICAL
ACCESSORIES
▶ SWITCH : Switch is used to make or
break the electric circuit or it is used to
switch ‘’ON or OFF’’ the electric supply.
▶ SURFACE SWITCH : Switches are
mounted on wooden board , fixed over
the surface of the wall.
▶ SOCKET : An electrical device
receiving a plug or light bulb to
make a connection.
Wiring accessori.es are being used in

3. WIRING ACCESSORIES

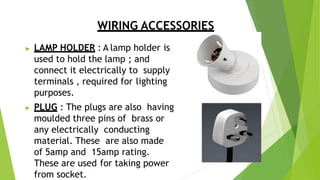

▶ LAMP HOLDER : A lamp holder is
used to hold the lamp ; and
connect it electrically to supply
terminals , required for lighting
purposes.
▶ PLUG : The plugs are also having
moulded three pins of brass or
any electrically conducting
material. These are also made
of 5amp and 15amp rating.
These are used for taking power
from socket.

4. WIRING ACCESSORIES

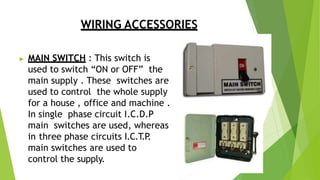

▶ MAIN SWITCH : This switch is
used to switch “ON or OFF” the
main supply . These switches are
used to control the whole supply
for a house , office and machine .
In single phase circuit I.C.D.P
main switches are used, whereas
in three phase circuits I.C.T
.P
.
main switches are used to
control the supply.

5. WIRING ACCESSORIES
▶ I.C.D.P. Switch: Iron Clad Double Pole
main switch is used in single-phase supply
circuits. These are available in 15 Amp, 30
Amp, 60 Amps and 100 amperes current
rating. In these switches, either two
numbers of fuse links are provided or a fuse
link and a neutral link is provided.
▶ I.C.T.P Switch: Iron Clad Triple Pole
main switches are used to control the three
phase supply circuit. These are available in
15 Amp, 30 Amp, 60 Amp,100 Amp, 150 Amp
and 250 Amps current rating. Generally
these switches are also known as 3 phase 4
wires main switches.

6. WIRING ACCESSORIES

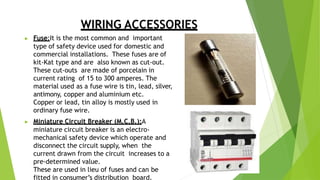

▶ Fuse:It is the most common and important
type of safety device used for domestic and
commercial installations. These fuses are of
kit-Kat type and are also known as cut-out.
These cut-outs are made of porcelain in
current rating of 15 to 300 amperes. The
material used as a fuse wire is tin, lead, silver,
antimony, copper and aluminium etc.
Copper or lead, tin alloy is mostly used in
ordinary fuse wire.
▶ Miniature Circuit Breaker (M.C.B.):A
miniature circuit breaker is an electro-
mechanical safety device which operate and
disconnect the circuit supply, when the
current drawn from the circuit increases to a
pre-determined value.
These are used in lieu of fuses and can be
fitted in consumer’s distribution board.

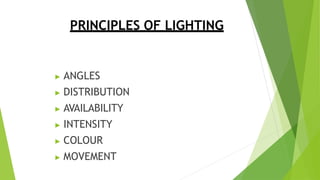

7. PRINCIPLES OF LIGHTING
▶ ANGLES
▶ DISTRIBUTION
▶ AVAILABILITY
▶ INTENSITY
▶ COLOUR
▶ MOVEMENT

8. LIGHTING

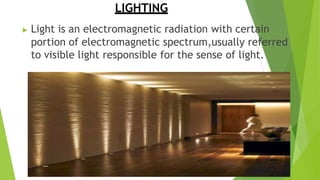

▶ Light is an electromagnetic radiation with certain
portion of electromagnetic spectrum,usually referred
to visible light responsible for the sense of light.

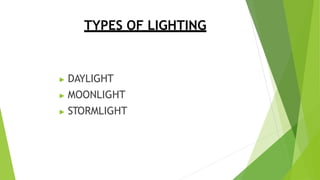

9. TYPES OF LIGHTING
▶ DAYLIGHT
▶ MOONLIGHT
▶ STORMLIGHT

10. ARTIFICIAL LIGHTING

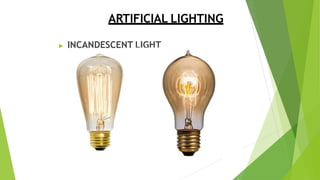

▶ INCANDESCENT LIGHT

11. ▶ FLUORESCENT LIGHT For e.g.:- TUBELIGHTS

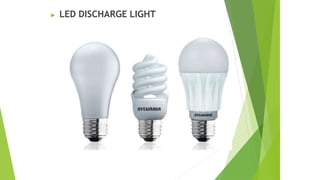

12. ▶ LED DISCHARGE LIGHT

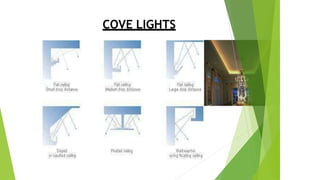

13. COVE LIGHTS

14. TYPES OF LIGHTING

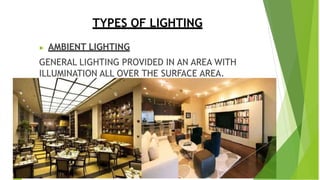

▶ AMBIENT LIGHTING
GENERAL LIGHTING PROVIDED IN AN AREA WITH
ILLUMINATION ALL OVER THE SURFACE AREA.

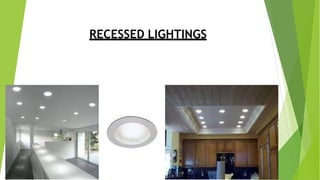

15. RECESSED LIGHTINGS

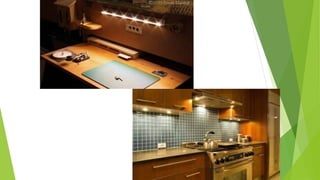

16. ▶ TASK LIGHTING
Often task lighting is referred to increasing he
illuminance to better accomplish the specific activity.

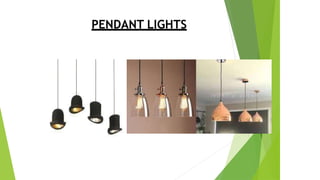

18. PENDANT LIGHTS

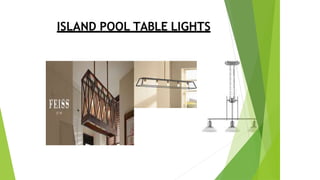

19. ISLAND POOL TABLE LIGHTS

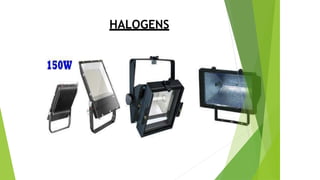

20. HALOGENS

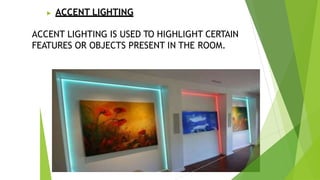

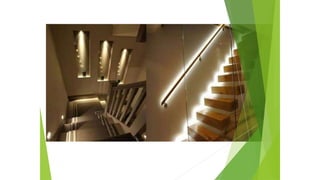

21. ▶ ACCENT LIGHTING
ACCENT LIGHTING IS USED TO HIGHLIGHT CERTAIN
FEATURES OR OBJECTS PRESENT IN THE ROOM.

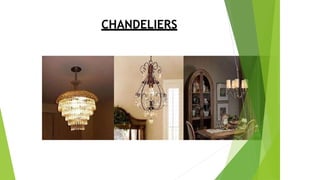

23. CHANDELIERS

24. CEILING MEDALLIONS

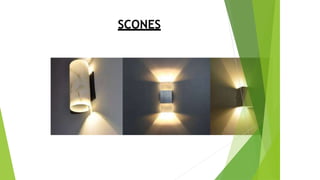

25. SCONES

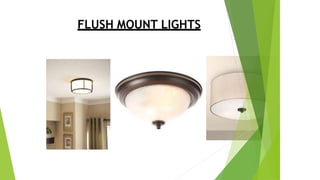

26. FLUSH MOUNT LIGHTS

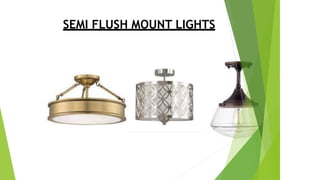

27. SEMI FLUSH MOUNT LIGHTS

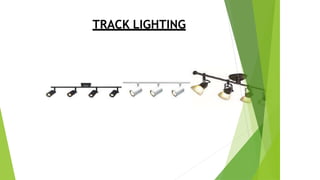

28. TRACK LIGHTING

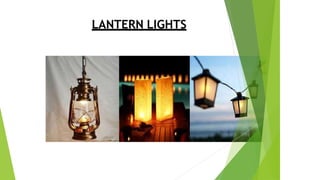

29. LANTERN LIGHTS
