1. DMDW Practical Task E = Excel T = Silverlight L = MS SQLSebastian Burkart & Patrick Reichert

2. AgendaGeneral course of eventsDetailed planDevelopment processPresentation of running applicationQuestions & EndSebastian Burkart & Patrick Reichert

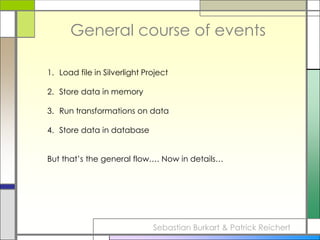

3. General course of eventsLoad file in Silverlight ProjectStore data in memoryRun transformations on dataStore data in databaseBut that’s the general flow…. Now in details…Sebastian Burkart & Patrick Reichert

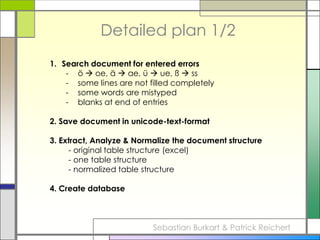

4. Detailed plan 1/2Search document for entered errorsö  oe, ä  ae, ü  ue, ß  ss

5. some lines are not filled completely

6. some words are mistyped

7. blanks at end of entries2. Save document in unicode-text-format3. Extract, Analyze & Normalize the document structure - original table structure (excel) - one table structure - normalized table structure4. Create databaseSebastian Burkart & Patrick Reichert

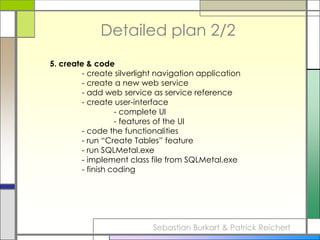

8. Detailed plan 2/25. create & code - create silverlight navigation application - create a new web service - add web service as service reference - create user-interface - complete UI - features of the UI - code the functionalities - run “Create Tables” feature - run SQLMetal.exe - implement class file from SQLMetal.exe - finish codingSebastian Burkart & Patrick Reichert

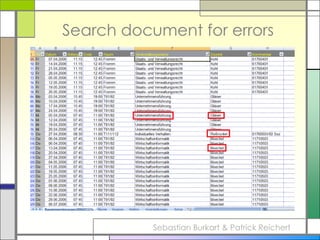

9. Search document for errorsSebastian Burkart & Patrick Reichert

10. Save document in unicode-format 1/3Sebastian Burkart & Patrick Reichert

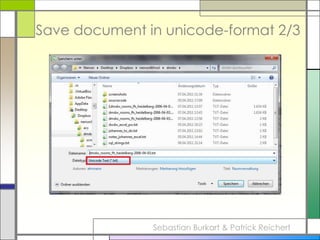

11. Save document in unicode-format 2/3Sebastian Burkart & Patrick Reichert

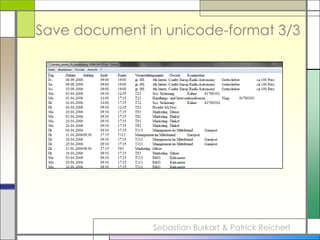

12. Save document in unicode-format 3/3Sebastian Burkart & Patrick Reichert

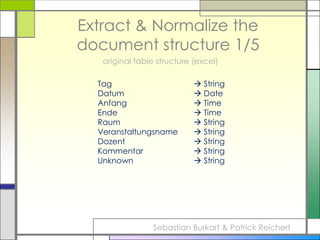

13. Extract & Normalize the document structure 1/5original table structure (excel)Tag  StringDatum  DateAnfang  TimeEnde  TimeRaum  StringVeranstaltungsname  StringDozent  StringKommentar  StringUnknown  StringSebastian Burkart & Patrick Reichert

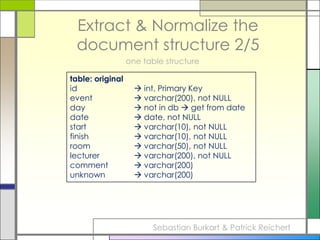

14. Extract & Normalize the document structure 2/5one table structuretable: originalid  int, Primary Keyevent  varchar(200), not NULLday  not in db  get from datedate  date, not NULLstart  varchar(10), not NULLfinish  varchar(10), not NULLroom  varchar(50), not NULLlecturer  varchar(200), not NULLcomment  varchar(200)unknown  varchar(200)Sebastian Burkart & Patrick Reichert

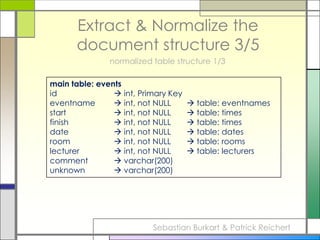

15. Extract & Normalize the document structure 3/5normalized table structure 1/3main table: eventsid  int, Primary Keyeventname  int, not NULL  table: eventnamesstart  int, not NULL  table: timesfinish  int, not NULL  table: timesdate  int, not NULL  table: datesroom  int, not NULL  table: roomslecturer  int, not NULL  table: lecturerscomment  varchar(200)unknown  varchar(200)Sebastian Burkart & Patrick Reichert

16. Extract & Normalize the document structure 4/5normalized table structure 2/3table: eventnamesid  int, Primary Keyeventname  varchar(200), unique, not NULLtable: timesid  int, Primary KeyTime  varchar(10), unique, not NULLtable: datesid  int, Primary Keydate  date, unique, not NULLSebastian Burkart & Patrick Reichert

17. Extract & Normalize the document structure 5/5normalized table structure 3/3table: roomsid  int, Primary Keyroom  varchar(50), unique, not NULLtable: lecturersid  int, Primary Keylecturer  varchar(50), unique, not NULLSebastian Burkart & Patrick Reichert

18. Create database 1/2Sebastian Burkart & Patrick Reichert

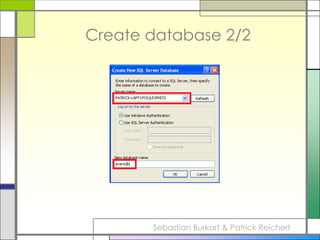

19. Create database 2/2Sebastian Burkart & Patrick Reichert

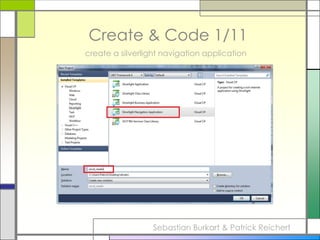

20. Create & Code 1/11create a silverlight navigation applicationSebastian Burkart & Patrick Reichert

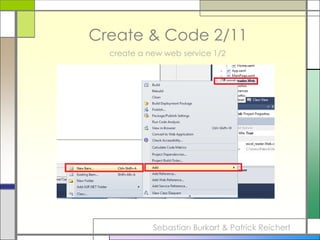

21. Create & Code 2/11create a new web service 1/2Sebastian Burkart & Patrick Reichert

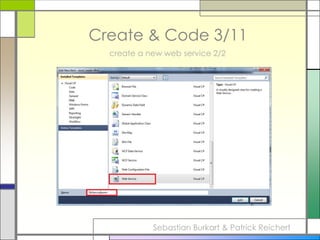

22. Create & Code 3/11create a new web service 2/2Sebastian Burkart & Patrick Reichert

23. Create & Code 4/11Add web service as service reference 1/2Sebastian Burkart & Patrick Reichert

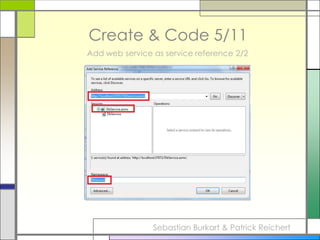

24. Create & Code 5/11Add web service as service reference 2/2Sebastian Burkart & Patrick Reichert

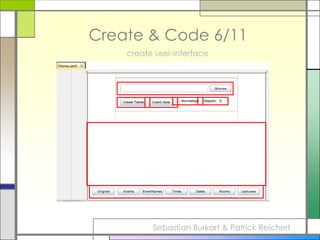

25. Create & Code 6/11create user-interfaceSebastian Burkart & Patrick Reichert

26. Create & Code 7/11use SQLMetal.exeSebastian Burkart & Patrick Reichert

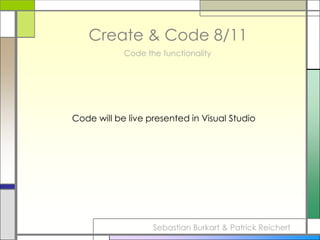

27. Create & Code 8/11Code the functionalityCode will be live presented in Visual StudioSebastian Burkart & Patrick Reichert

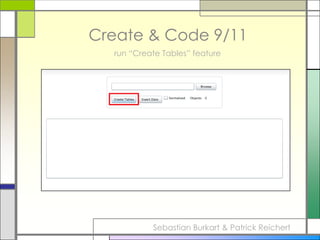

28. Create & Code 9/11run “Create Tables” featureSebastian Burkart & Patrick Reichert
