This is a slide of distributed database architecture by Redwan Ahmed Rizvee

1. Distributed Database
Architecture
https://rizveeredwan.github.io
1

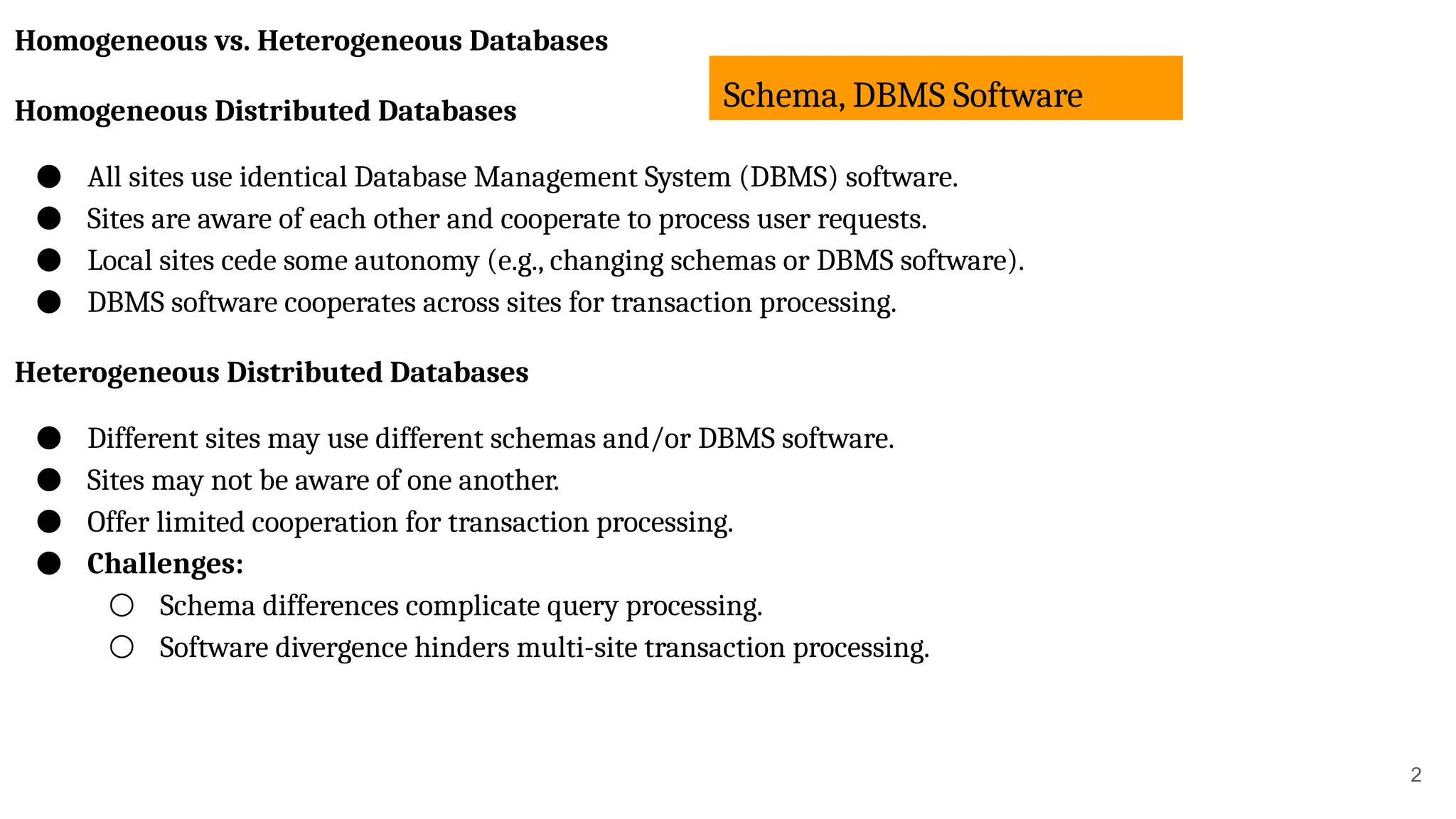

2. Homogeneous vs. Heterogeneous Databases
Homogeneous Distributed Databases
● All sites use identical Database Management System (DBMS) software.
● Sites are aware of each other and cooperate to process user requests.
● Local sites cede some autonomy (e.g., changing schemas or DBMS software).
● DBMS software cooperates across sites for transaction processing.
Heterogeneous Distributed Databases
● Different sites may use different schemas and/or DBMS software.
● Sites may not be aware of one another.
● Offer limited cooperation for transaction processing.
● Challenges:
○ Schema differences complicate query processing.
○ Software divergence hinders multi-site transaction processing.
Schema, DBMS Software
2

3. 3
Data Replication
Definition
● A copy of relation r is stored in two or more sites.
● Full Replication: A copy is stored at every site in the system.
Advantages
1. Availability: If a site containing r fails, r can still be found at another site, allowing queries to continue.
2. Increased Parallelism: For read-heavy operations, multiple sites can process queries involving r in parallel. More
replicas increase the chance of finding data locally, minimizing data movement.
Disadvantages
3. Increased Overhead on Update: All replicas of r must be kept consistent. Any update to r must be propagated to all sites
containing replicas, leading to higher overhead.
Summary
● Replication improves read performance and data availability for read-only transactions.
● Update transactions incur higher overhead and more complex concurrency control.
● Primary Copy Scheme: A common simplification where one replica is designated as the primary copy.

4. 4

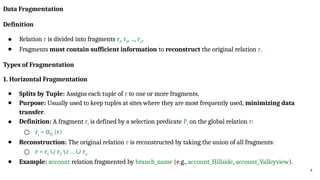

Data Fragmentation
Definition
● Relation r is divided into fragments r1, r2, ..., rn.
● Fragments must contain sufficient information to reconstruct the original relation r.
Types of Fragmentation
1. Horizontal Fragmentation
● Splits by Tuple: Assigns each tuple of r to one or more fragments.
● Purpose: Usually used to keep tuples at sites where they are most frequently used, minimizing data
transfer.
● Definition: A fragment ri is defined by a selection predicate Pi on the global relation r:
○ ri = σPi (r)
● Reconstruction: The original relation r is reconstructed by taking the union of all fragments:
○ r = r1 r
∪ 2 ... r
∪ ∪ n
● Example: account relation fragmented by branch_name (e.g., account_Hillside, account_Valleyview).

5. 5
2. Vertical Fragmentation
● Splits by Attribute: Decomposes the schema R of relation r into subsets of attributes R1, R2, ..., Rn.
● Requirement: R = R1 R
∪ 2 ... R
∪ ∪ n
● Definition: Each fragment ri of r is defined by projecting r onto the attribute subset Ri:
○ ri = ΠRi (r)
● Reconstruction: The original relation r is reconstructed by taking the natural join of all fragments:
○ r = r1 r
⋈ 2 ... r
⋈ ⋈ n
● Ensuring Reconstruction: Include primary-key attributes (or a superkey/tuple-id) in each Ri.
● Example: employee_info fragmented into employee_private_info (employee_id, salary) and
employee_public_info (employee_id, name, designation).
Horizontal Fragmentation Vertical Fragmentation

6. 6
Transparency in Distributed Databases
Concept of Data Transparency
● Users should not need to know the physical location or access methods of data.
● Aims to simplify user interaction and application development.
Forms of Data Transparency
1. Fragmentation Transparency:
○ Users are not required to know how a relation has been fragmented.
○ The system handles the underlying partitioning.
2. Replication Transparency:
○ Users perceive each data object as logically unique.
○ The system manages data replication for performance or availability, without user involvement.
○ Users are unaware of which objects are replicated or where replicas are placed.
3. Location Transparency:
○ Users do not need to know the physical location of the data.
○ The distributed database system can find any data item given its identifier.

7. 7
Naming in Distributed Databases
● Challenge: Ensuring unique names for data items across multiple sites.
● Solution 1: Central Name Server:
○ All names registered centrally.
○ Pros: Ensures unique names, helps locate data.
○ Cons: Performance bottleneck, single point of failure if server crashes.
● Solution 2: Site Identifier Prefixing:
○ Each site prefixes its unique identifier to names it generates (e.g., site17.account).
○ Pros: No central control needed, ensures uniqueness.
○ Cons: Fails to achieve location transparency (users see site IDs).
● Solution 3: Aliases (Preferred):
○ The database system creates alternative, simple names (aliases) for data items.
○ These aliases are translated by the system to complete names (e.g., account instead of site17.account).
○ Mapping of aliases to real names stored at each site. [Locally stored in the distributed system]
○ Benefits: Achieves location transparency, users unaffected by data movement.
Managing Replicas with Transparency
● Users should not specify a particular replica for read requests.
● The system determines which replica to use for reads.
● On write requests, the system automatically updates all replicas.
● Mechanism: A catalog table is maintained by the system to track all replicas for each data item.

8. 8
Distributed Query Processing
Goal
● Minimize the time taken to compute the answer to a query.
Centralized Systems: Primary Cost Criterion
● Number of disk accesses.
Distributed Systems: Additional Considerations
In a distributed system, query processing strategies must also account for:
● Cost of Data Transmission: The overhead of transferring data over the network.
● Parallel Processing Gain: The potential performance improvement from having multiple sites process parts of the
query concurrently.
Optimization Challenge
● The relative costs of network data transfer and disk I/O vary significantly.
● Query optimization must find a good trade-off between these two cost factors, rather than focusing solely on one.

9. 9
Query Transformation in Distributed Databases
Simple Query Example
● Consider a simple query: "Find all the tuples in the account relation."
● Even for simple queries, processing is non-trivial if the account relation is fragmented, replicated, or both.
Impact of Replication
● No Replicas Fragmented: Choose the replica with the lowest transmission cost.
● Replicas Fragmented: More complex, as multiple joins or unions may be needed to reconstruct the
account relation.
● Challenge: The number of possible strategies for query optimization can be very large, making exhaustive
enumeration impractical.

10. 10
Fragmentation Transparency and Query Transformation
● Fragmentation transparency allows users to write queries without knowing the underlying fragmentation.
● Example Query: σbranch_name = "Hillside" (account)
● Name Translation: If account is defined as account1 account
∪ 2 (where account1 and account2 are
fragments), the query becomes:
○ σbranch_name = "Hillside" (account1 account
∪ 2)
● Query Optimization: Using optimization techniques, this expression can be simplified to:
○ σbranch_name = "Hillside" (account1) ∪ σbranch_name = "Hillside" (account2)
● Further Optimization:
○ σbranch_name = "Hillside" (account1): Can be eliminated if account_1 only contains tuples from the Hillside
branch. We can directly put account1 instead of σbranch_name = "Hillside" (account1)
○ σbranch_name = "Hillside" (account2): Applying the definition of account2 (e.g., σbranch_name = "Valleyview"
(account)) results in:
■ σbranch_name = "Hillside" (σbranch_name = "Valleyview" (account))
■ This expression is an empty set. If optimizer knows this, it discards this query.
● Final Strategy: The Hillside site returns account1 as the result of the query.

11. 11
Simple Join Processing in Distributed Databases
Key Decision
● Choosing a join strategy is a major decision in query-processing.
Example Relational-Algebra Expression
● account depositor branch
⋈ ⋈
Scenario
● Three relations (account, depositor, branch) are neither replicated nor fragmented.
● account is at Site S1.
● depositor is at Site S2.
● branch is at Site S3.
● The query is issued at Site S1.
● The system needs to produce the result at Site S1.

12. 12
Possible Strategies for Processing this Query
1. Ship all relations to the query site:
○ Ship copies of all three relations (account, depositor, branch) to Site S1.
○ Compute the entire query locally at Site S1 using centralized query processing techniques.
2. Distributed Join with Intermediate Results:
○ Ship a copy of the account relation (from S1) to Site S2.
○ Compute temp1 = account depositor
⋈ at Site S2.
○ Ship temp1 (from S2) to Site S3.
○ Compute temp2 = temp1 branch
⋈ at Site S3.
○ Ship temp2 (from S3) to Site S1 (the query site) as the final result.
3. Variations of Strategy 2:
○ Devise similar strategies by exchanging the roles of Site S1, S2, and S3. (This implies different orders of
shipping and intermediate join computations).

13. 13
Factors to Consider for Strategy Selection
● Volume of Data Shipped: The amount of data transferred across the network.
● Cost of Transmitting a Block: The network transmission cost per data block between sites.
● Relative Speed of Processing: The processing capabilities and speed of each site.
Comparison of Strategies (Example Discussion)
● Strategy 1 (Ship all to S1):
○ If indices are present at S1, they are useful.
○ If indices are not present at S1, re-creation of indices (or extra processing) would be needed, which is
expensive.
● Strategy 2 (Distributed Join):
○ Potentially large intermediate relations (e.g., account depositor
⋈ ) might need to be shipped.
○ This could result in more extra network transmission compared to Strategy 1, depending on the size of the
intermediate results.
Conclusion
● No single strategy is always the best.
● The optimal strategy depends on a trade-off between data transmission costs and local processing costs, considering
factors like data volume, network speed, and site processing capabilities.

14. 14
Semijoin Strategy
● Goal: Efficiently evaluate r1 r
⋈ 2 where r1 is at Site S1 and r2 is at Site S2, with the result needed at S1.
● Problem: Shipping all of r2 to S1 (or r1 to S2) might be costly, especially if many tuples in r2 do not
contribute to the final join result.
● Strategy Steps:
1. Compute Projection: temp1 ← ΠR1∩R2 (r1) at S1. (This projects r1 onto the common attributes used for
joining with r2).
2. Ship Projection: Ship temp1 from S1 to S2. (Only the relevant join attributes from r1 are sent).
3. Compute Semijoin: temp2 ← r2 temp
⋉ 1 at S2. (This performs a semijoin: it selects tuples from r2 that
match any tuple in temp1).
4. Ship Result: Ship temp2 from S2 to S1. (Only the relevant tuples from r2 are sent back).
5. Final Join: r1 temp
⋈ 2 at S1. (This computes the final join locally at S1).
● Correctness: This strategy correctly computes r1 r
⋈ 2.
● Advantages: Particularly advantageous when relatively few tuples of r2 contribute to the join, reducing
network transmission costs. This often occurs when r1 is the result of a selection operation.
● Disadvantages: Incurs additional cost for shipping temp1 to S2.

15. 15
Join Strategies that Exploit Parallelism
● Scenario: Consider a join of four relations: r1 r
⋈ 2 r
⋈ 3 r
⋈ 4, where each ri is at a different site Si. The result
must be presented at site S1.
● Parallel Evaluation: There are multiple strategies to exploit parallelism.
● Example Strategy:
1. r1 is shipped to S2.
2. r1 r
⋈ 2 is computed at S2.
3. r3 is shipped to S4.
4. r3 r
⋈ 4 is computed at S4.
5. Site S2 ships tuples of (r1 r
⋈ 2) to S1 as they are produced (pipelined join).
6. Site S4 ships tuples of (r3 r
⋈ 4) to S1 as they are produced.
7. Once tuples from both (r1 r
⋈ 2) and (r3 r
⋈ 4) arrive at S1, the computation of the final join (r1 r
⋈ 2) ⋈
(r3 r
⋈ 4) can begin in parallel with the ongoing computations at S2 and S4.
● Benefit: This strategy allows parts of the join to be computed concurrently at different sites, potentially
speeding up the overall query execution.

16. 16
Commit Protocols in Distributed Databases
Purpose
● To ensure atomicity in distributed transactions.
● All sites where a transaction T executed must agree on the final outcome:
○ T must commit at all sites, OR
○ T must abort at all sites.
Mechanism
● The transaction coordinator of T executes a commit protocol.
Key Commit Protocols
1. Two-Phase Commit Protocol (2PC)
○ Simple and widely used.
○ (Details described in Section 19.4.1 of the original text).
2. Three-Phase Commit Protocol (3PC)
○ An alternative to 2PC.
○ Aims to avoid certain disadvantages of 2PC.
○ Adds to complexity and overhead.
○ (Briefly outlined in Section 19.4.2 of the original text).

17. 17
Two-Phase Commit Protocol (2PC)
Purpose
● Ensures atomicity for distributed transactions: a transaction either commits at all participating sites or
aborts at all sites.
Participants
● Transaction T: The distributed transaction.
● Site Si: The site where transaction T was initiated.
● Coordinator Ci: The transaction coordinator for T, located at Site Si.
● Participating Sites: All other sites where T executed.

18. 18
2PC Protocol: Normal Operation
The 2PC protocol begins when all participating sites inform the coordinator Ci that their portion of transaction T has
completed.
Phase 1: Prepare Phase
1. Coordinator (Ci):
○ Writes <prepare T> record to its log.
○ Forces the log to stable storage.
○ Sends a prepare T message to all participating sites.
2. Participating Sites (Transaction Manager):
○ Upon receiving prepare T, determines willingness to commit its portion of T.
○ If unwilling to commit:
■ Writes <no T> record to its log.
■ Sends an abort T message to Ci.
○ If willing to commit:
■ Writes <ready T> record to its log (along with all T's log records).
■ Forces the log to stable storage.
■ Sends a ready T message to Ci.
○ Ready State: Once ready T is sent, the transaction is in the "ready" state at that site, meaning it promises to follow Ci's
commit/abort order. Locks are held until completion.

19. 19
Phase 2: Commit/Abort Phase
1. Coordinator (Ci):
○ Waits for responses from all sites, or for a timeout.
○ Decision Rule:
■ If ready T messages are received from all participating sites, T can be committed.
■ Otherwise (if any abort T is received, or timeout occurs), T must be aborted. (Unanimity is
required for commit; one abort means global abort).
○ Verdict Recording:
■ Writes <commit T> or <abort T> record to its log based on the decision.
■ Forces the log to stable storage. At this point, the fate of T is sealed.
○ Message Sending: Sends commit T or abort T message to all participating sites.
2. Participating Sites (Transaction Manager):
○ Upon receiving commit T or abort T, records the message in its log.

20. 20
Key Characteristics
● Unconditional Abort: A participating site can unilaterally abort T at any time before sending ready T.
● Coordinator Unilateral Abort: The coordinator Ci can unilaterally abort T if it's one of the participating
sites and decides to abort.
● Fate Sealed: The transaction's fate is irrevocably decided once the coordinator writes and forces its verdict
(<commit T> or <abort T>) to stable storage.
● Optional Acknowledge: Some 2PC implementations include an optional third step where sites send
acknowledge T to the coordinator after Phase 2. Ci then writes <complete T> to its log upon receiving all
acknowledgements.

21. 21
Two-Phase Commit (2PC): Handling Failures
1. Failure of a Participating Site
● If Coordinator (Ci) detects a site failure:
○ Before ready T response: Ci assumes an abort T message was sent by the failed site. It will abort T on all the
participant sites.
○ After ready T response: Ci proceeds with the rest of the commit protocol normally, ignoring the failed site. The
participant site failed after providing ready T vote. So, the Ci already got the unanimity vote and does not abort.
Participant site will resume after recovering.
● When a Participating Site (Sk) recovers: Sk examines its log for transactions in progress during the failure.
○ Log contains <commit T>: Sk executes redo(T).
○ Log contains <abort T>: Sk executes undo(T).
○ Log contains <ready T>: Sk must consult Ci. [Sk is not sure if it needs to commit/abort]
■ If Ci is up: Ci informs Sk of T's fate (commit/abort); Sk performs redo(T) or undo(T).
■ If Ci is down: Sk sends query-status T to all other sites.
■ If another site has <commit T> or <abort T>, Sk is notified and performs redo(T) or undo(T).
■ If no site has the information, Sk postpones the decision and periodically re-sends query-status until Ci or
another informative site recovers.
○ Log contains no control records for T: Sk failed before sending ready T. Ci must have aborted T. Sk executes undo(T).
ready T || commit T || abort T

22. 22
2. Failure of the Coordinator (Ci)
● Participating sites must decide T's fate. In some cases, they must wait for Ci's recovery.
● Decision Rules for Active Sites:
○ If any active site has <commit T>: T must be committed.
○ If any active site has <abort T>: T must be aborted.
○ If some active site does not have <ready T>: Ci cannot have decided to commit T. It's preferable to abort T rather than wait for Ci to
recover.
○ If all active sites have <ready T> but no <commit T> or <abort T>:
■ The fate of T is undetermined.
■ Active sites must wait for Ci to recover.
■ Blocking Problem: T continues to hold system resources (e.g., locks), making data unavailable on active sites, potentially for a
long time. This is a major disadvantage of 2PC.
3. Network Partition (Network channel divided, intra partition can communicate but inter partition can not)
● Coordinator and all participants in one partition: No effect on the commit protocol.
● Coordinator and participants in different partitions:
○ Sites not in the coordinator's partition handle it as a coordinator failure.
○ The coordinator and sites in its partition proceed assuming sites in other partitions have failed.
Major Disadvantage of 2PC
● Blocking Problem: Coordinator failure can lead to a transaction being blocked indefinitely, holding resources, until the coordinator recovers.

23. 23
Recovery and Concurrency Control
Recovery Procedure for Failed Sites
● Standard Recovery: When a failed site restarts, it performs standard recovery algorithm.
● Special Handling for In-Doubt Transactions:
○ Definition of In-Doubt: Transactions for which a <ready T> log record is found, but neither a <commit T>
nor an <abort T> log record is found.
○ Action: The recovering site must contact other sites (as described in Failure of the Coordinator) to
determine the commit/abort status of these in-doubt transactions.
Problem with Basic Recovery for In-Doubt Transactions
● Blocking Normal Processing: Normal transaction processing at the recovering site cannot begin until all in-
doubt transactions have their status resolved (committed or rolled back).
● Slow Status Determination: Finding the status can be slow, requiring contact with multiple sites.
● Potential for Indefinite Blocking: If the coordinator has failed and no other site has the commit/abort status, the
recovering site can become blocked indefinitely if 2PC is used, making the site unusable for a long period.

24. 24
Enhanced Recovery with Lock Information
To circumvent the blocking problem and speed up recovery, algorithms provide support for noting lock information in the log:
1. Logging Lock Information:
○ Instead of just <ready T>, the algorithm writes a <ready T, L> log record.
○ L is a list of all write locks held by transaction T when the log record is written.
2. Lock Reacquisition during Recovery:
○ After performing local recovery actions, for every in-doubt transaction T:
■ All write locks noted in its <ready T, L> log record are reacquired.
3. Concurrent Processing:
○ After lock reacquisition is complete for all in-doubt transactions, normal transaction processing can start at the site.
○ The commit or rollback of in-doubt transactions proceeds concurrently with the execution of new transactions.
Benefits of Enhanced Recovery
● Faster Site Recovery: The site becomes usable much quicker.
● Avoids Blocking: Recovery itself never gets blocked, even if the coordinator is down.
Trade-off
● New transactions that have a lock conflict with any write locks held by in-doubt transactions will be blocked until the conflicting in-
doubt transactions are resolved (committed or rolled back).
