Discrete Math

1. Math211
Discrete Mathematics
Propositional Logic II
SAHAR SELIM

2. Agenda

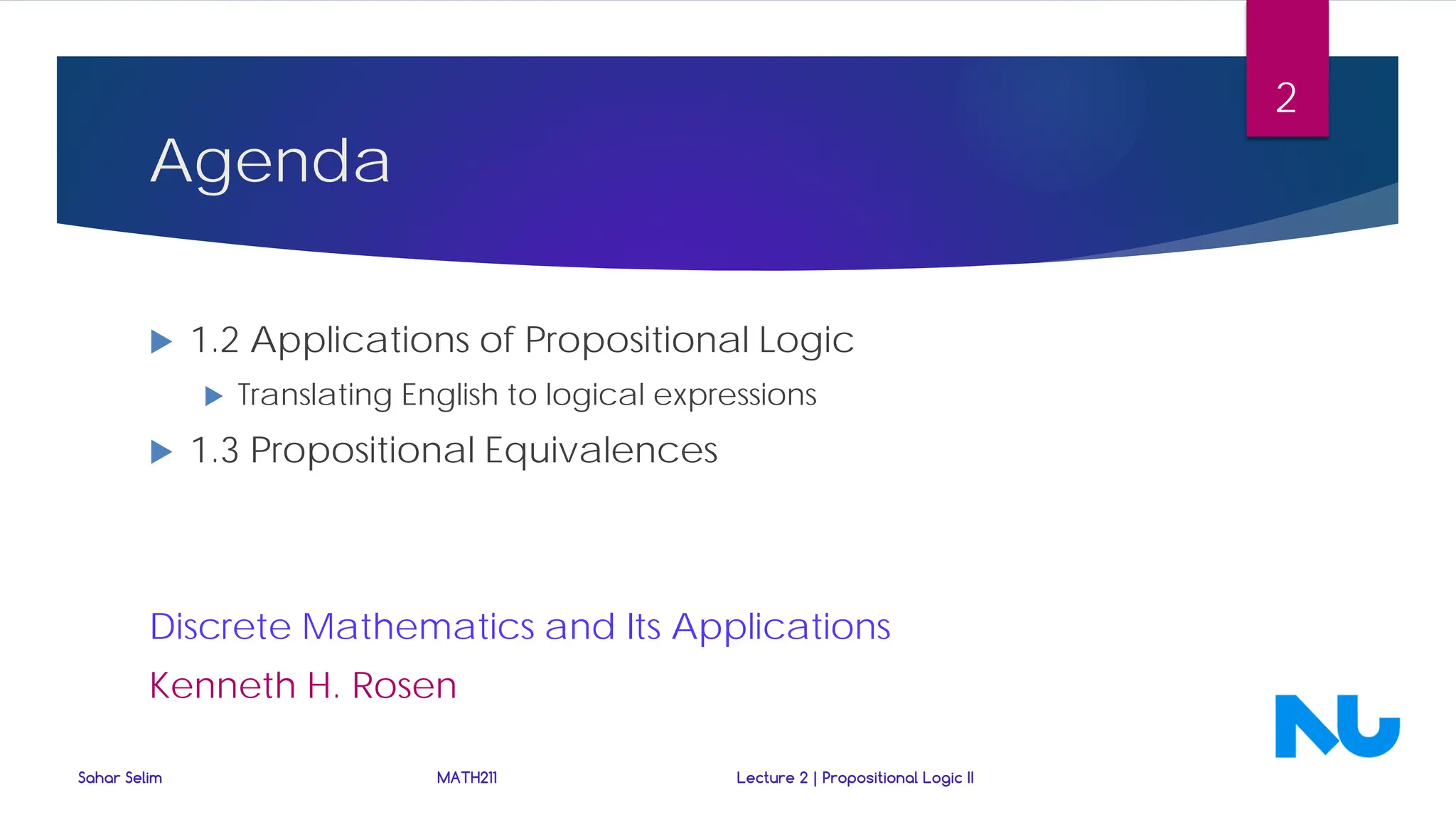

 1.2 Applications of Propositional Logic
 Translating English to logical expressions
 1.3 Propositional Equivalences
Discrete Mathematics and Its Applications
Kenneth H. Rosen
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
2

3. 1.2 Applications of Propositional Logic
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
3

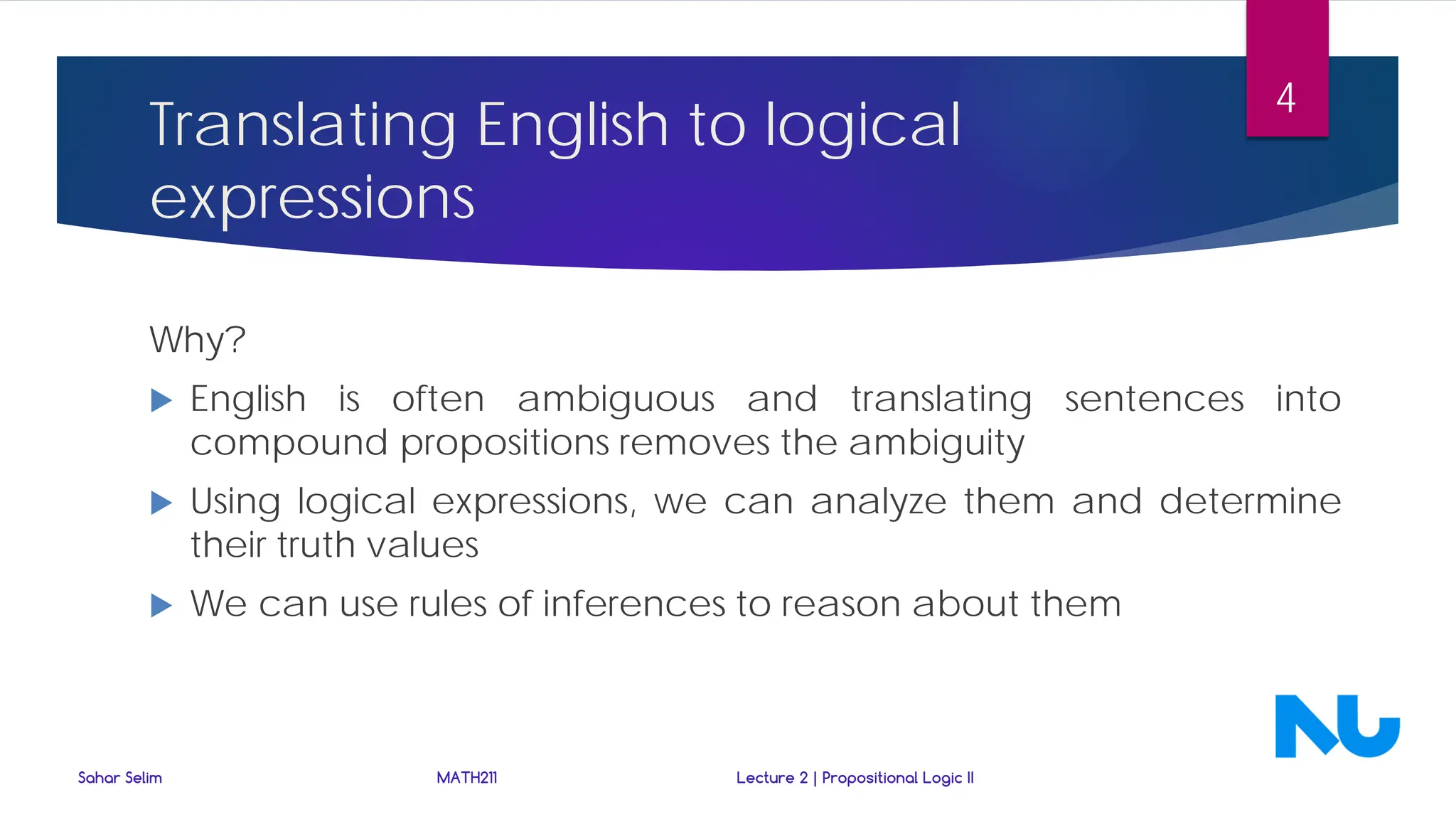

4. Translating English to logical
expressions
Why?
 English is often ambiguous and translating sentences into
compound propositions removes the ambiguity
 Using logical expressions, we can analyze them and determine
their truth values
 We can use rules of inferences to reason about them
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
4

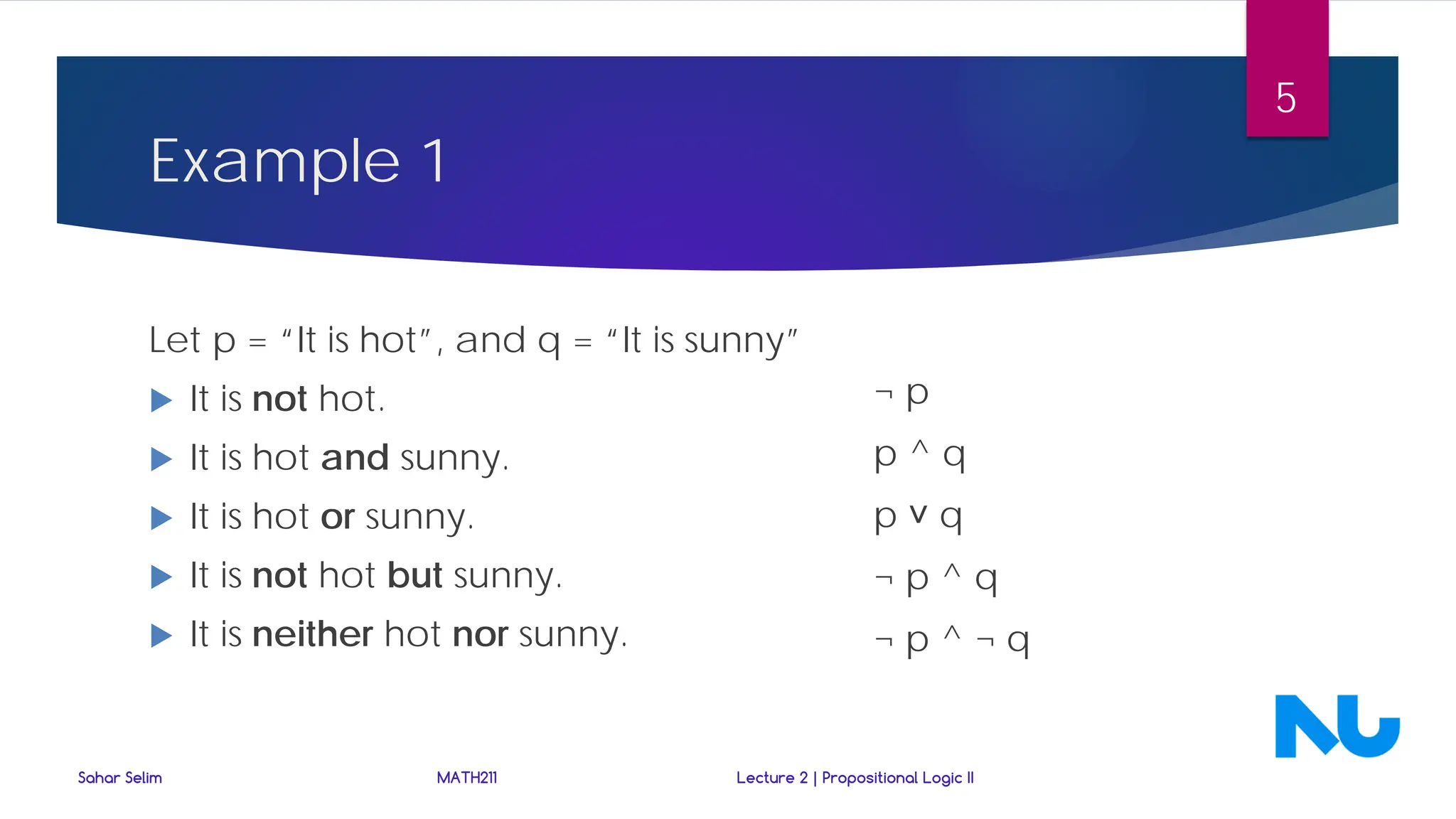

5. Example 1
Let p = “It is hot”, and q = “It is sunny”
 It is not hot.
 It is hot and sunny.
 It is hot or sunny.
 It is not hot but sunny.
 It is neither hot nor sunny.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
5
¬ p
p ^ q
p ˅ q
¬ p ^ q
¬ p ^ ¬ q

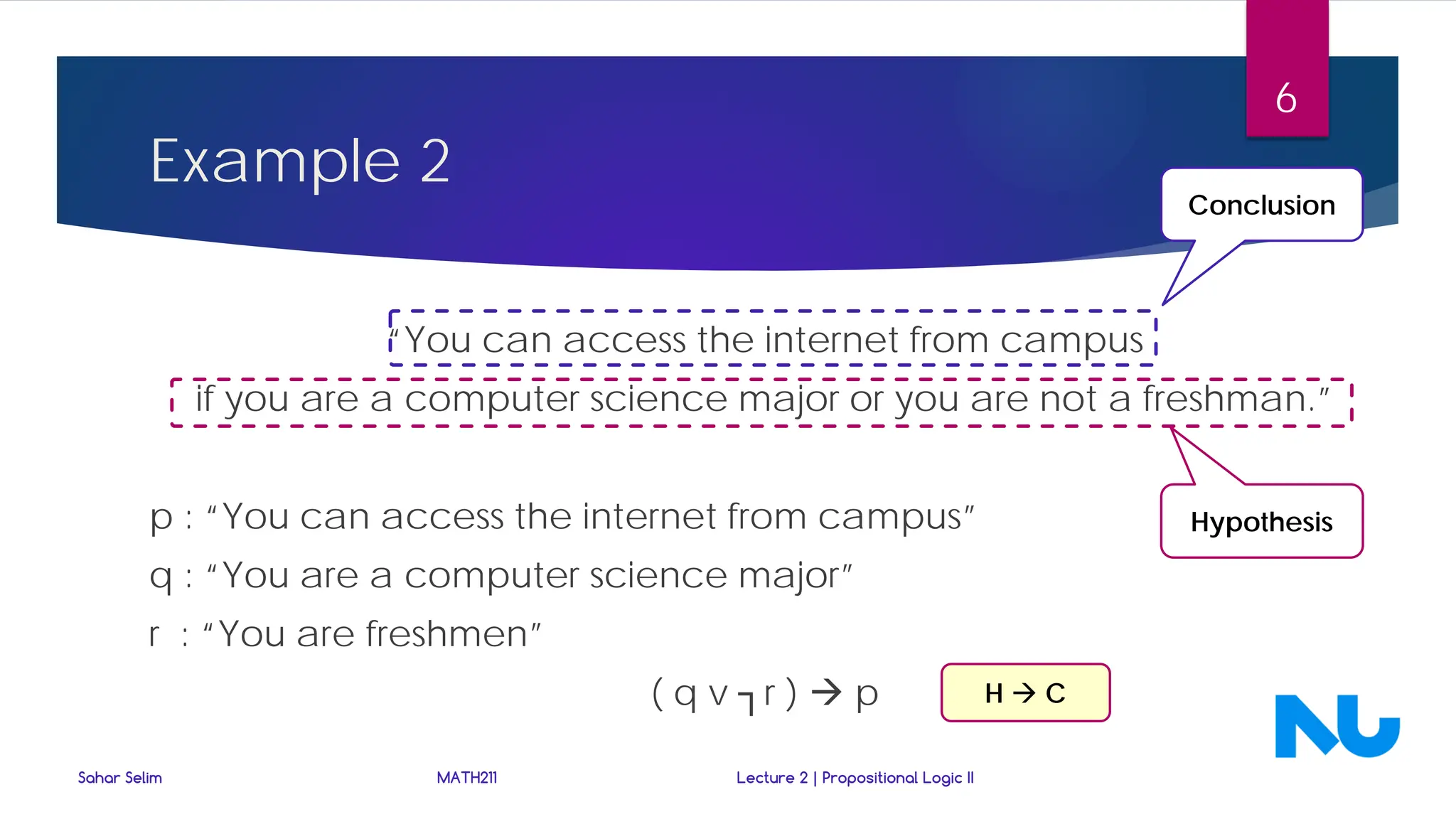

6. Example 2
“You can access the internet from campus
if you are a computer science major or you are not a freshman.”
p : “You can access the internet from campus”
q : “You are a computer science major”
r : “You are freshmen”
( q v ┐r )  p
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
6
Hypothesis
Conclusion
H  C

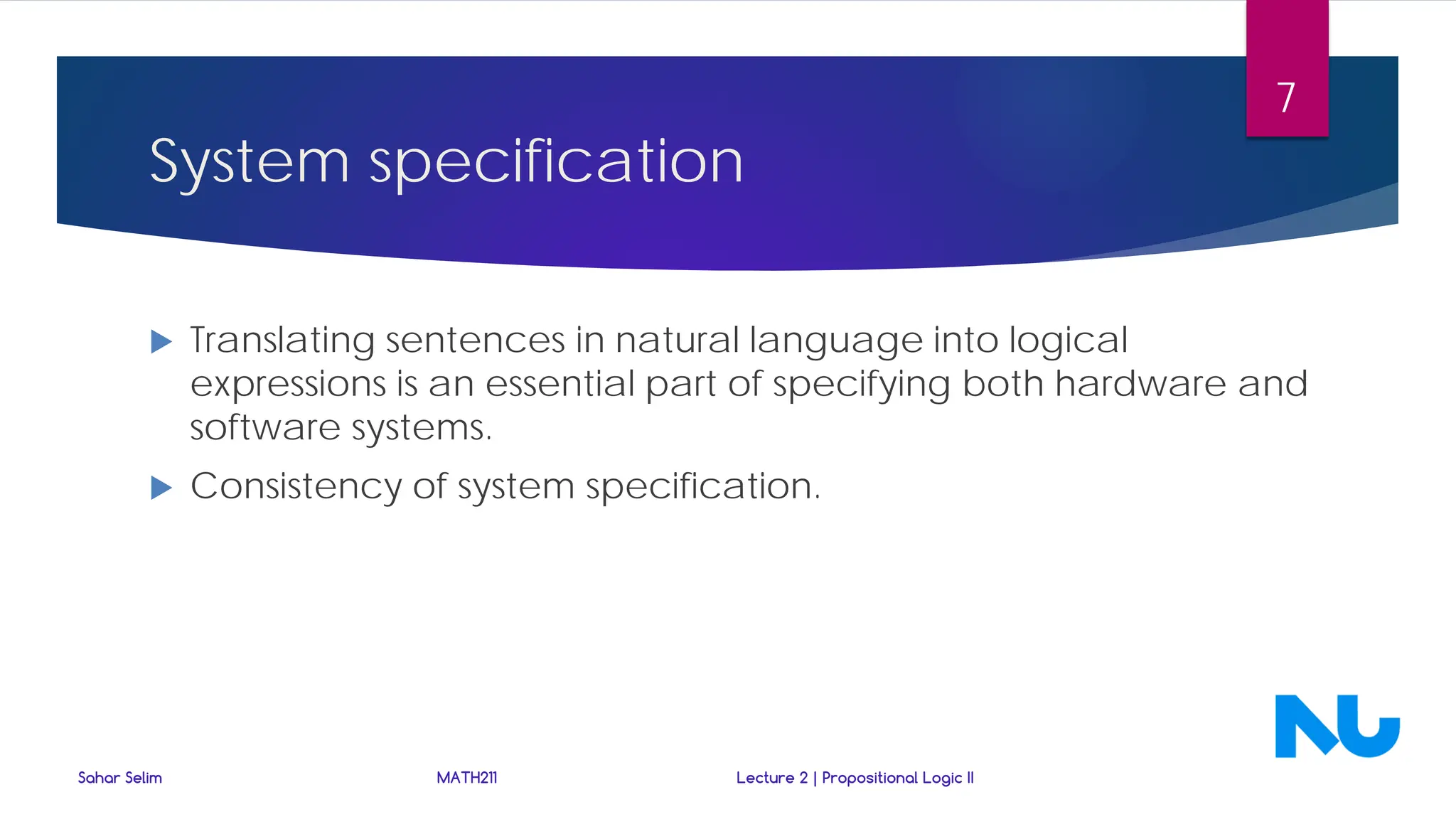

7. System specification
 Translating sentences in natural language into logical
expressions is an essential part of specifying both hardware and
software systems.
 Consistency of system specification.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
7

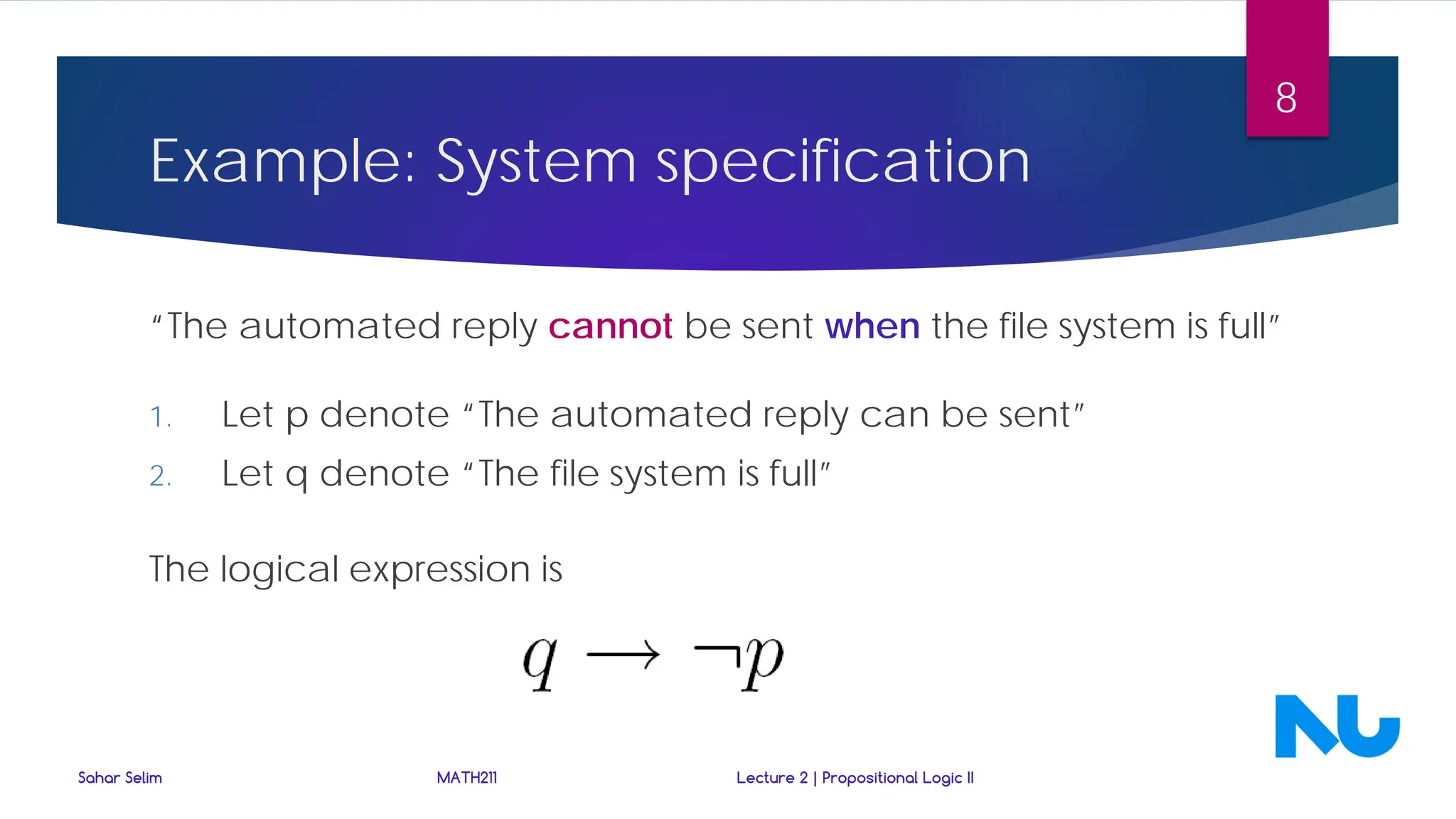

8. “The automated reply cannot be sent when the file system is full”
1. Let p denote “The automated reply can be sent”
2. Let q denote “The file system is full”
The logical expression is
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
8
Example: System specification

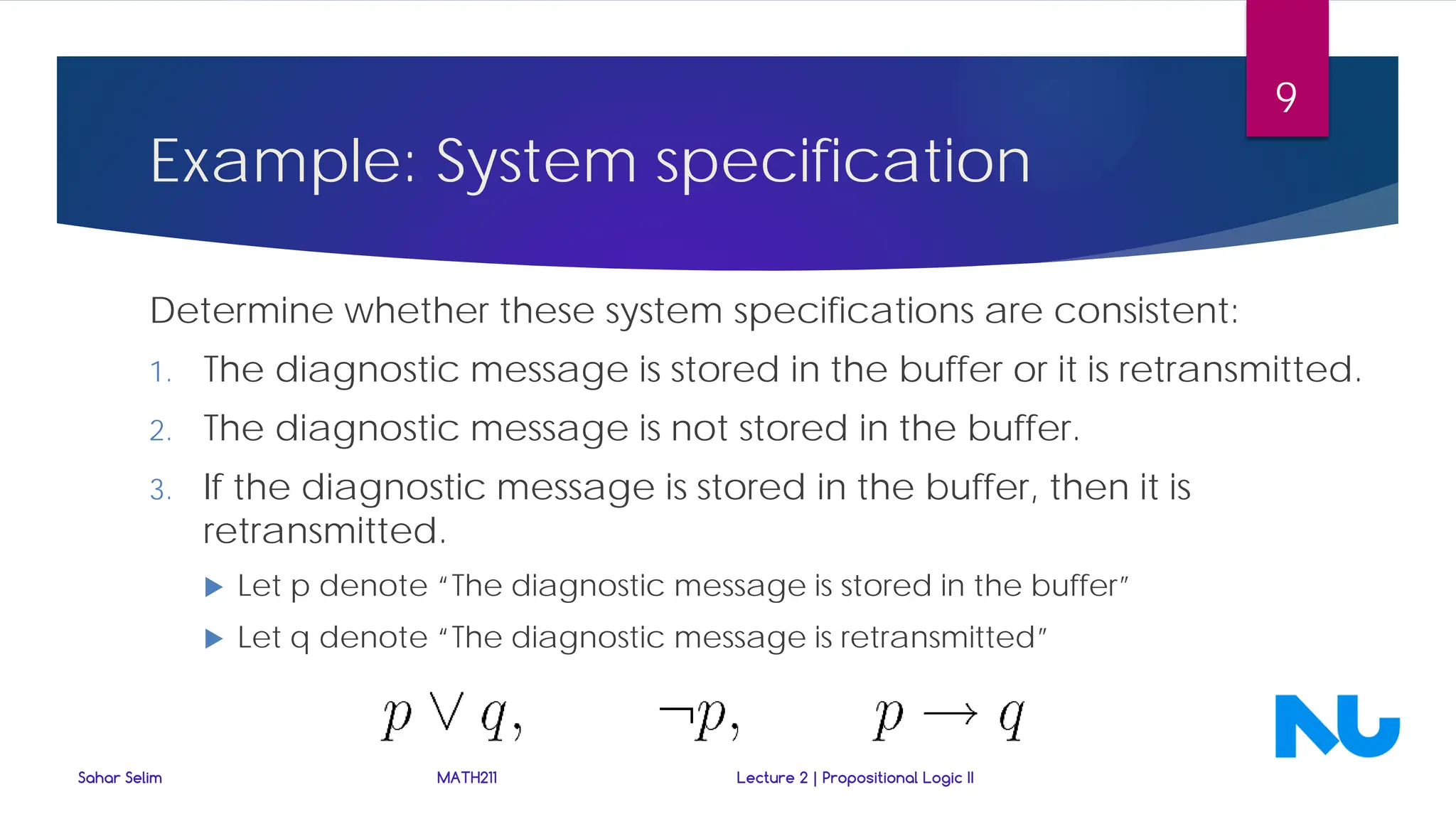

9. Determine whether these system specifications are consistent:
1. The diagnostic message is stored in the buffer or it is retransmitted.
2. The diagnostic message is not stored in the buffer.
3. If the diagnostic message is stored in the buffer, then it is
retransmitted.
 Let p denote “The diagnostic message is stored in the buffer”
 Let q denote “The diagnostic message is retransmitted”
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
9
Example: System specification

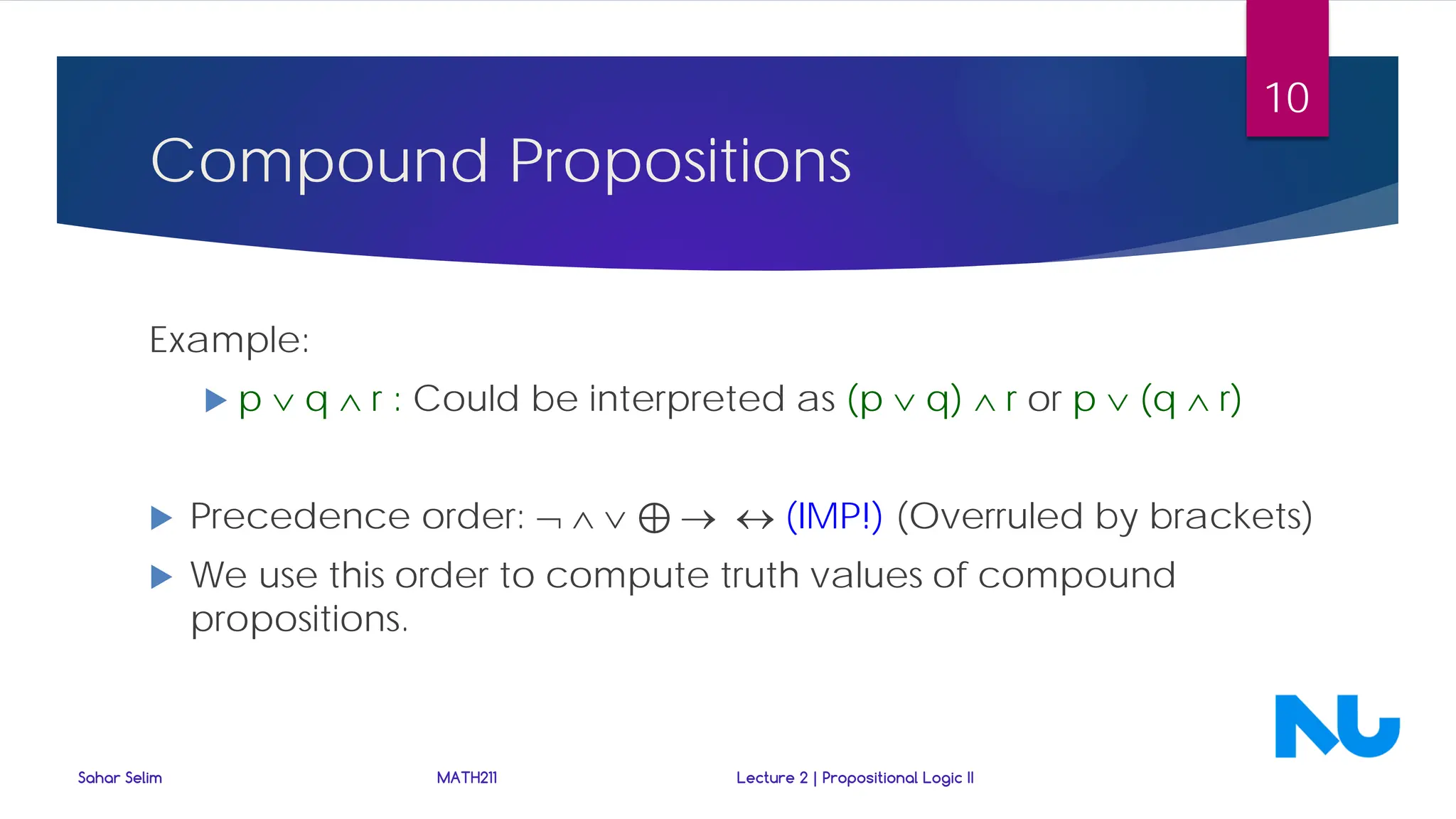

10. Compound Propositions
Example:
 p ∨ q ∧ r : Could be interpreted as (p ∨ q) ∧ r or p ∨ (q ∧ r)
 Precedence order: ¬ ∧ ∨ ⊕ → ↔ (IMP!) (Overruled by brackets)
 We use this order to compute truth values of compound
propositions.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
10

11. 1.3 Propositional Equivalences
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
11

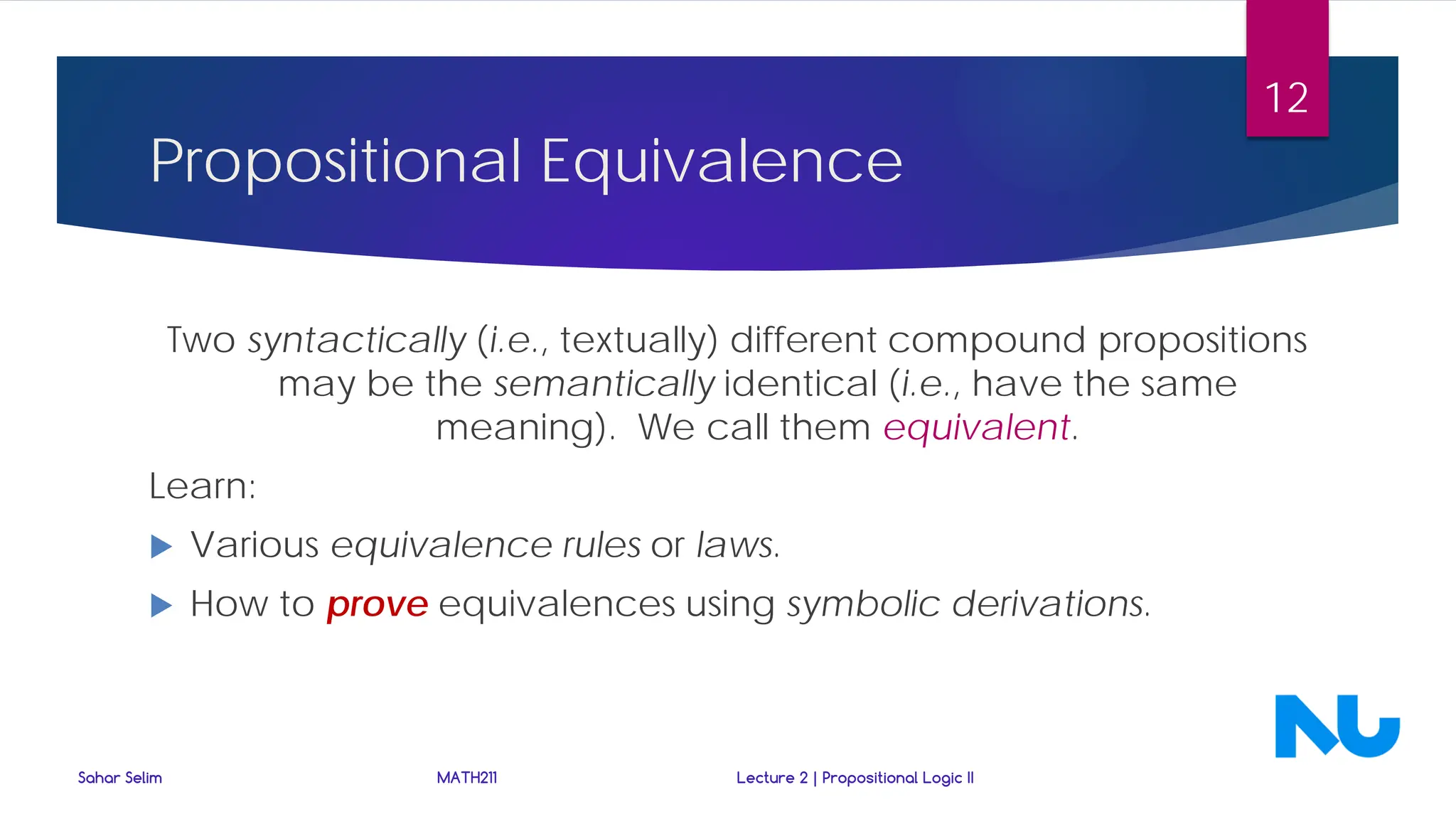

12. Propositional Equivalence
Two syntactically (i.e., textually) different compound propositions
may be the semantically identical (i.e., have the same
meaning). We call them equivalent.
Learn:
 Various equivalence rules or laws.
 How to prove equivalences using symbolic derivations.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
12

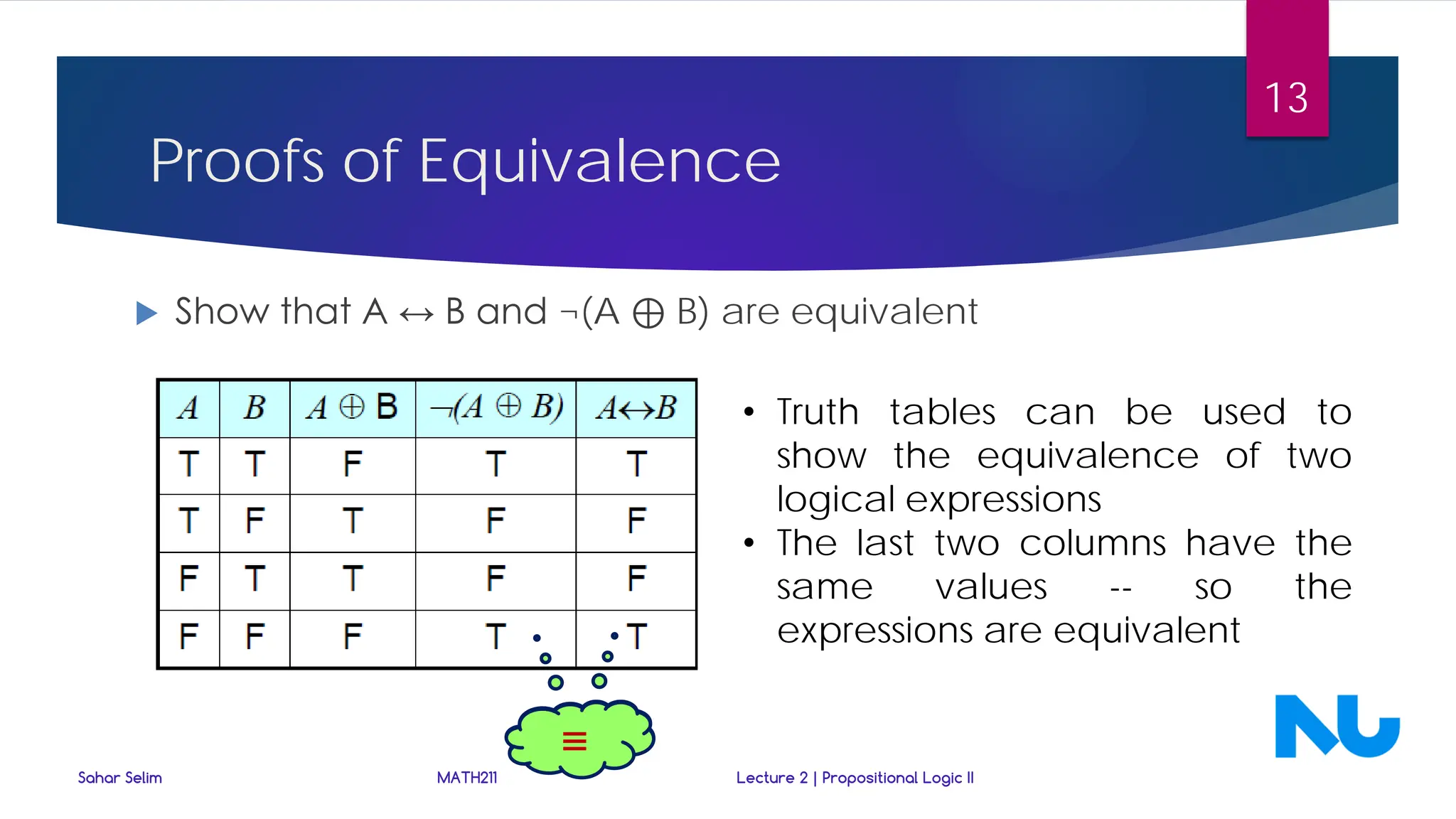

13. Proofs of Equivalence
 Show that A ↔ B and ¬(A ⊕ B) are equivalent
≡
≡
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
13
• Truth tables can be used to
show the equivalence of two
logical expressions
• The last two columns have the
same values -- so the
expressions are equivalent

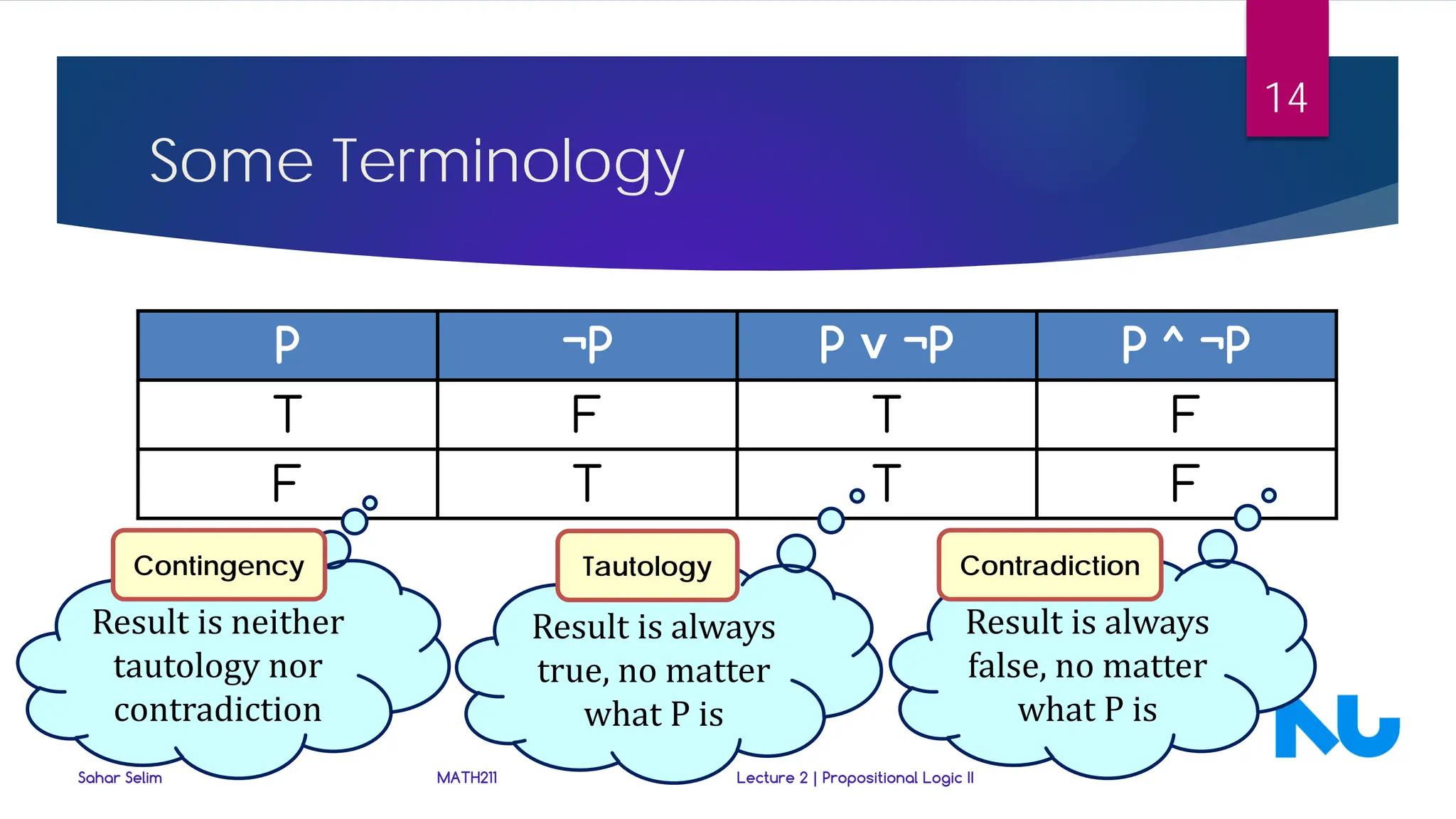

14. Some Terminology
P ¬P P ˅ ¬P P ^ ¬P
T F T F
F T T F
Result is always
true, no matter
what P is
Result is always
false, no matter
what P is
Tautology Contradiction
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
14
Result is neither
tautology nor
contradiction
Contingency

15.  A tautology is a proposition which is always true
Classic Example: P ∨ ¬P
 A contradiction is a proposition which is always false
Classic Example: P ∧ ¬P
 A contingency is a proposition which neither a tautology nor a
contradiction.
Example: (P ∨ Q) → ¬R
Some Terminology
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
15

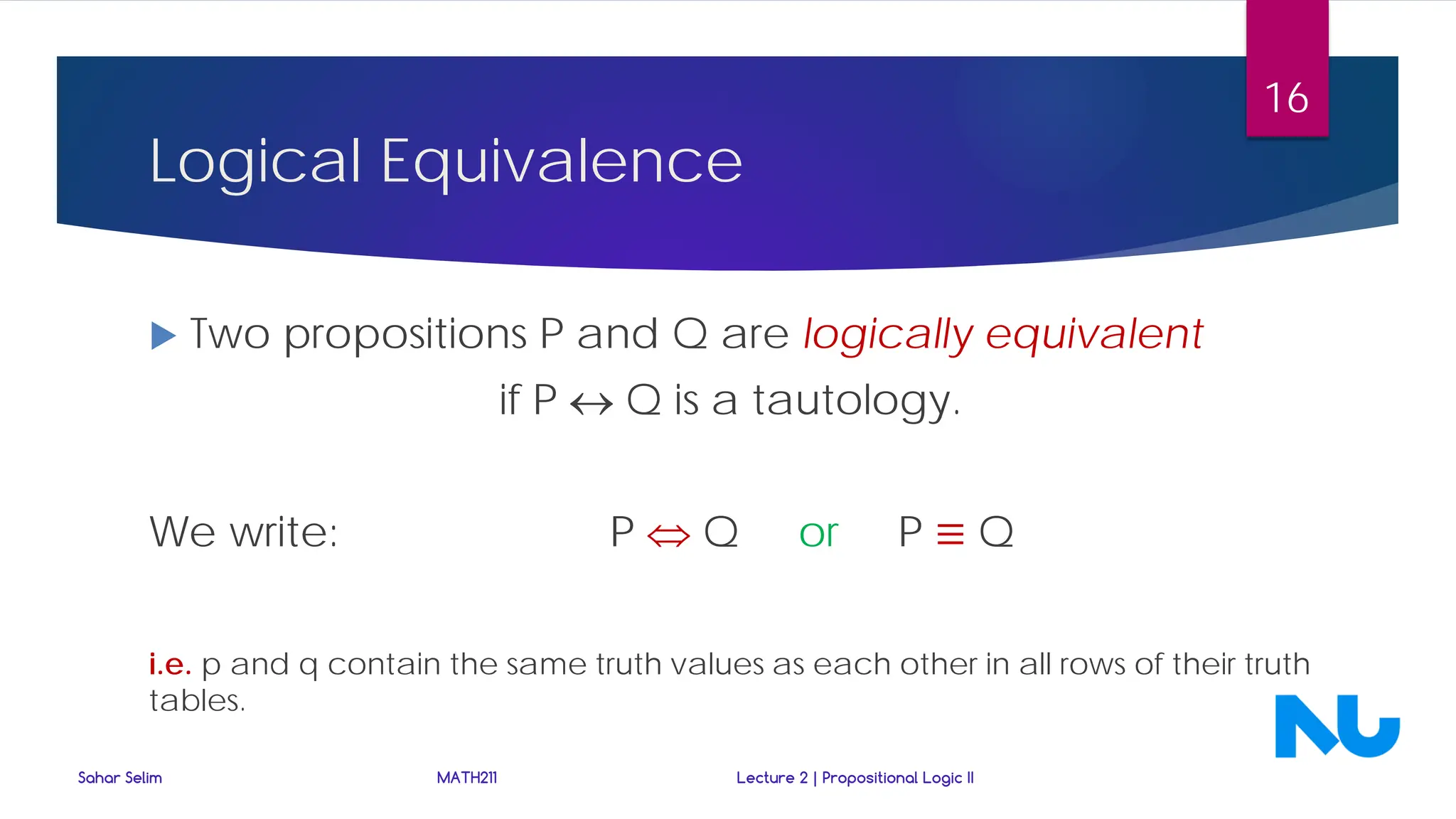

16. Logical Equivalence
 Two propositions P and Q are logically equivalent
if P ↔ Q is a tautology.
We write: P ⇔ Q or P ≡ Q
i.e. p and q contain the same truth values as each other in all rows of their truth
tables.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
16

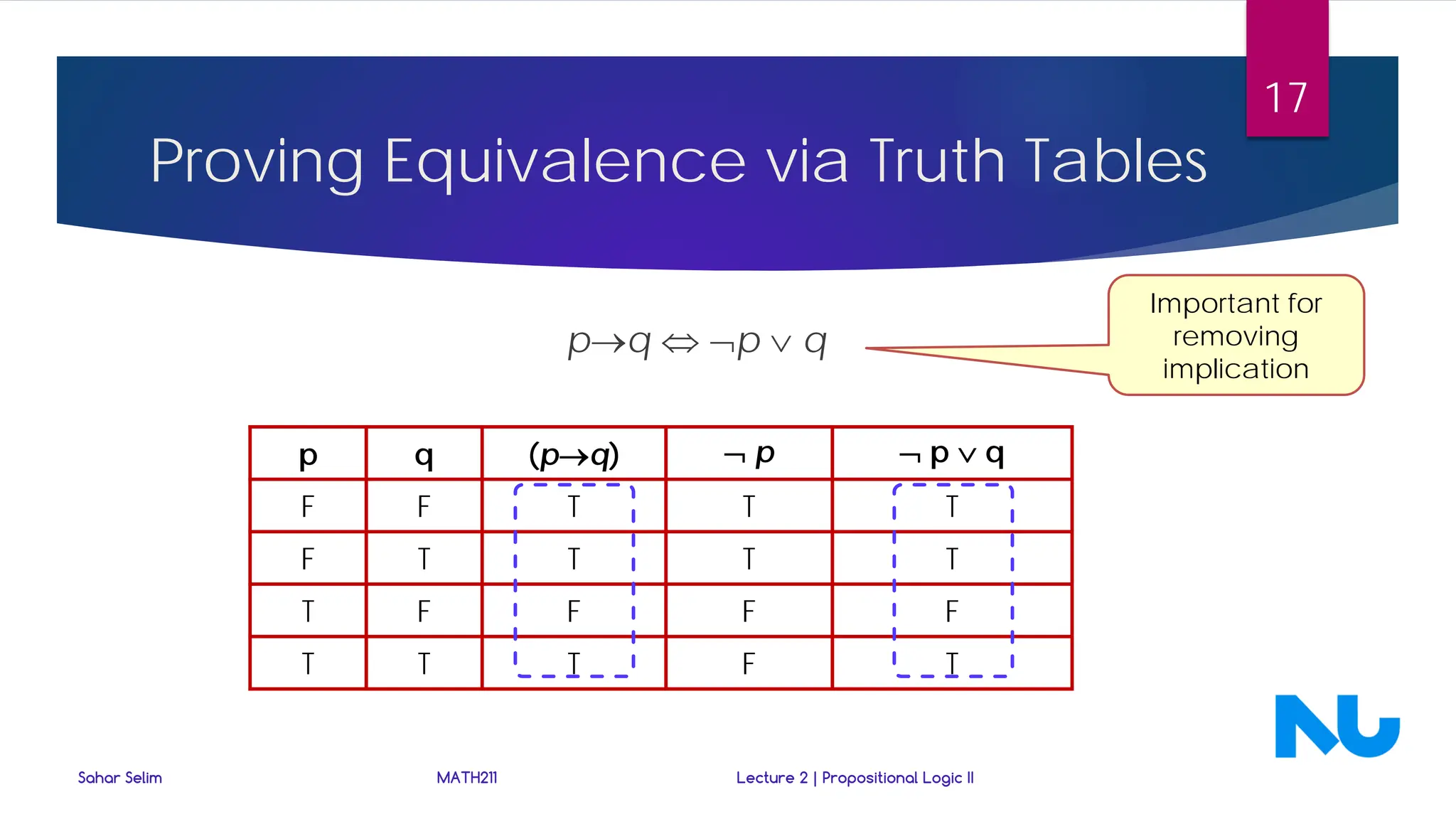

17. Proving Equivalence via Truth Tables
p→q ⇔ ¬p ∨ q
p q (p→q) ¬ p ¬ p ∨ q
F F T T T
F T T T T
T F F F F
T T T F T
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
17
Important for
removing
implication

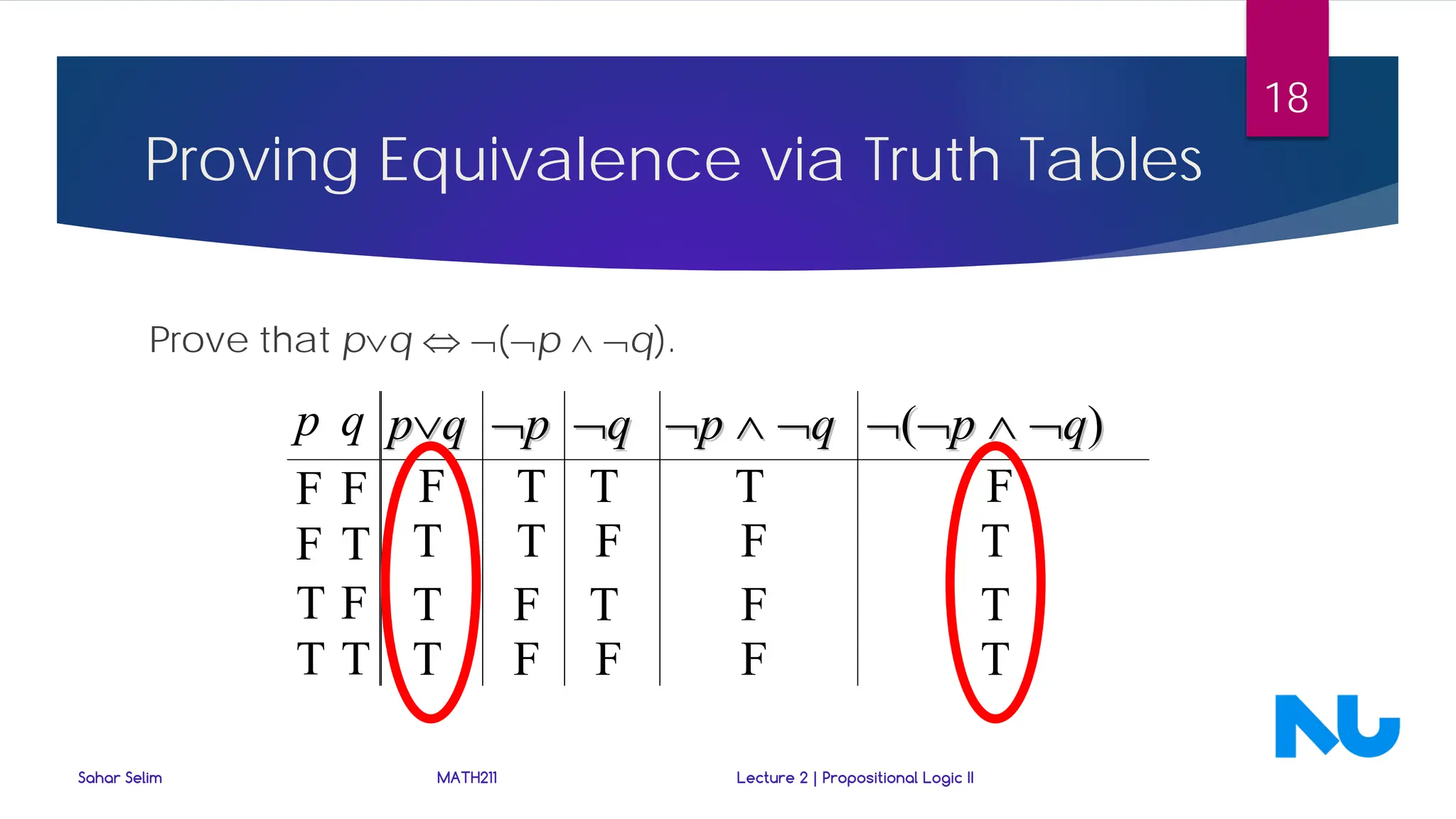

18. Prove that p∨q ⇔ ¬(¬p ∧ ¬q).
Proving Equivalence via Truth Tables
p q p
p∨
∨q
q ¬
¬p
p ¬
¬q
q ¬
¬p
p ∧
∧ ¬
¬q
q ¬
¬(
(¬
¬p
p ∧
∧ ¬
¬q
q)
)
F F
F T
T F
T T
F
T
T
T
T
T
T
T
T
T
F
F
F
F
F
F
F
F
T
T
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
18

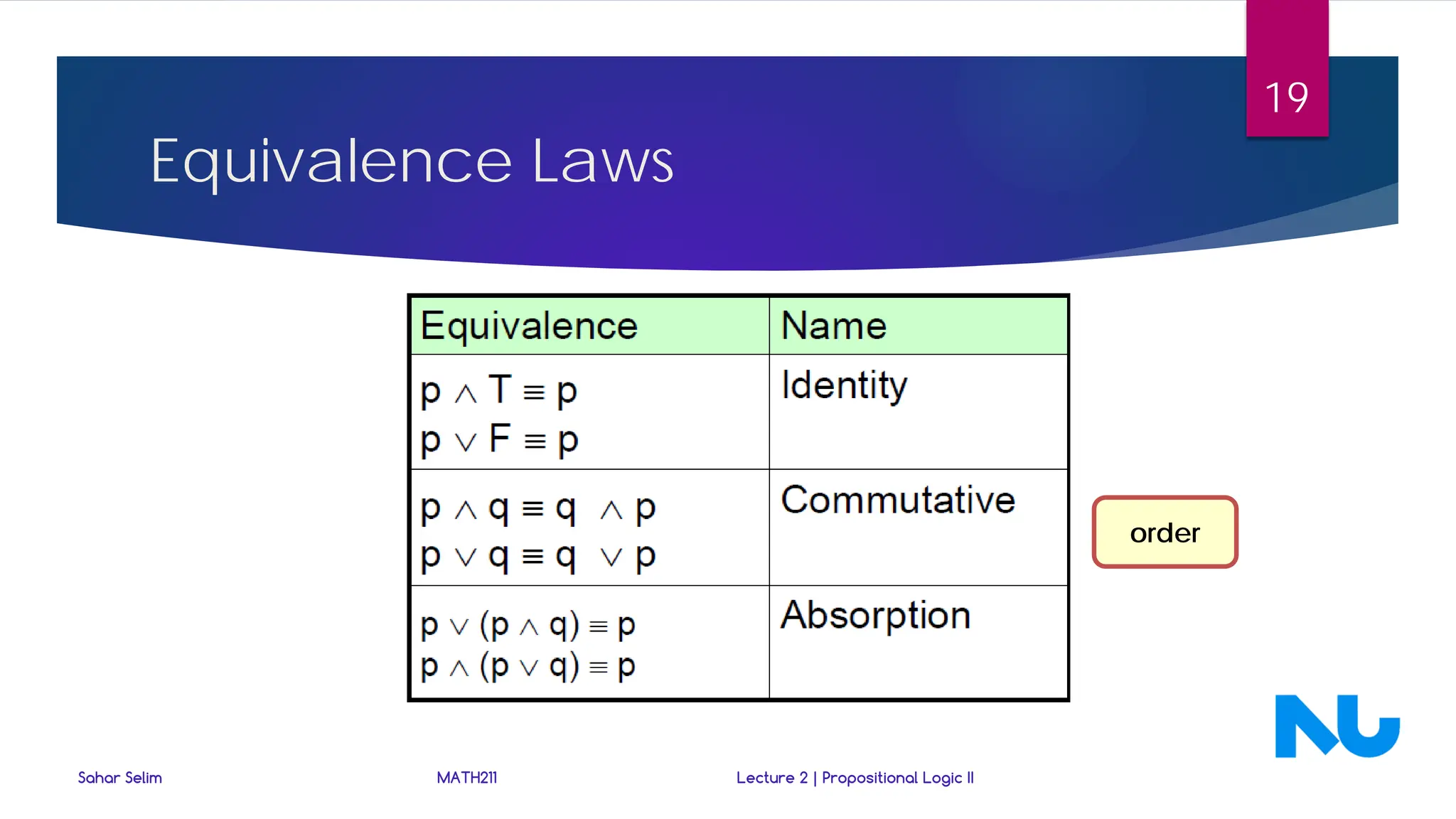

19. Equivalence Laws
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
19
order

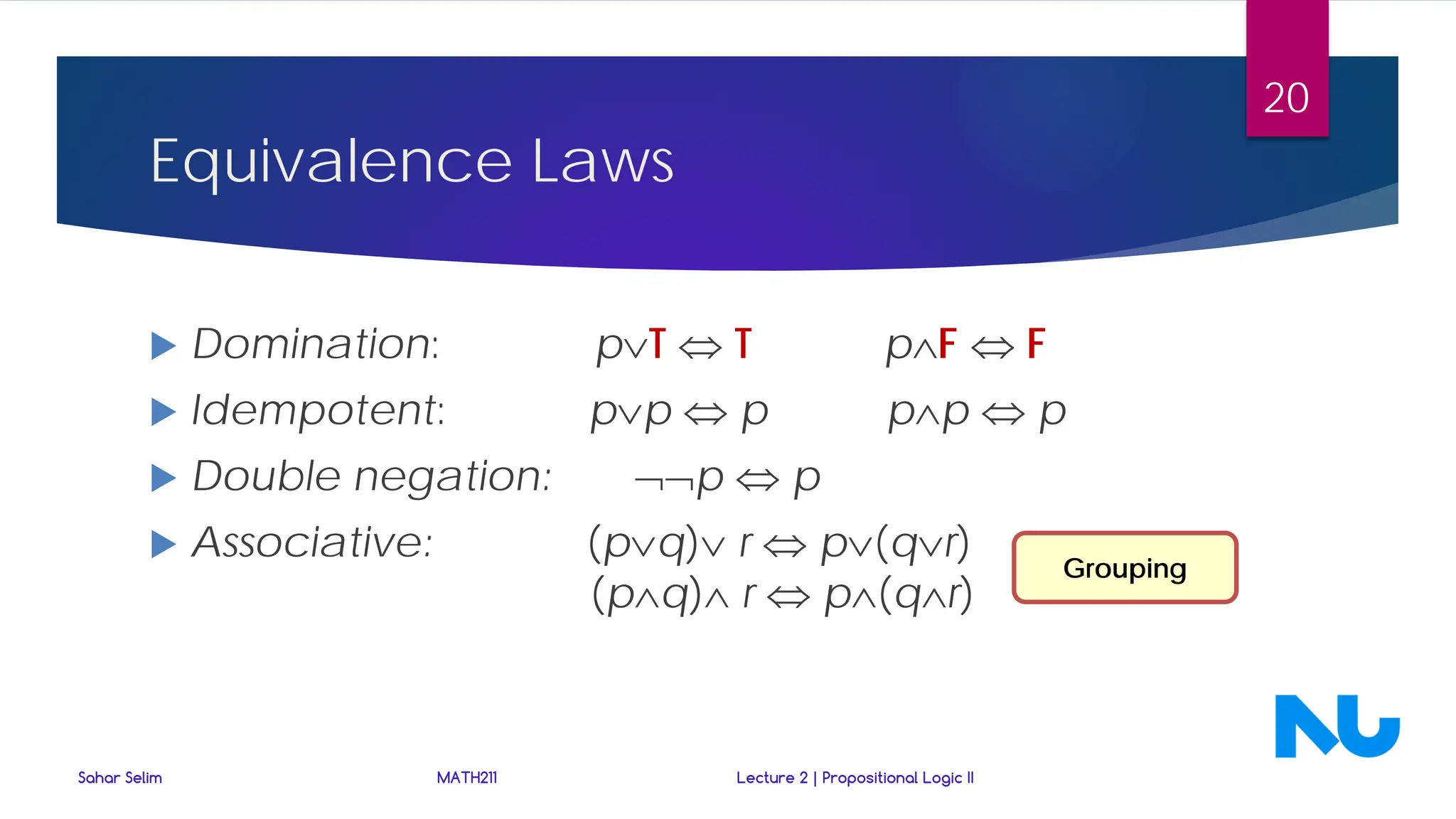

20. Equivalence Laws
 Domination: p∨T ⇔ T p∧F ⇔ F
 Idempotent: p∨p ⇔ p p∧p ⇔ p
 Double negation: ¬¬p ⇔ p
 Associative: (p∨q)∨ r ⇔ p∨(q∨r)
(p∧q)∧ r ⇔ p∧(q∧r)
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
20
Grouping

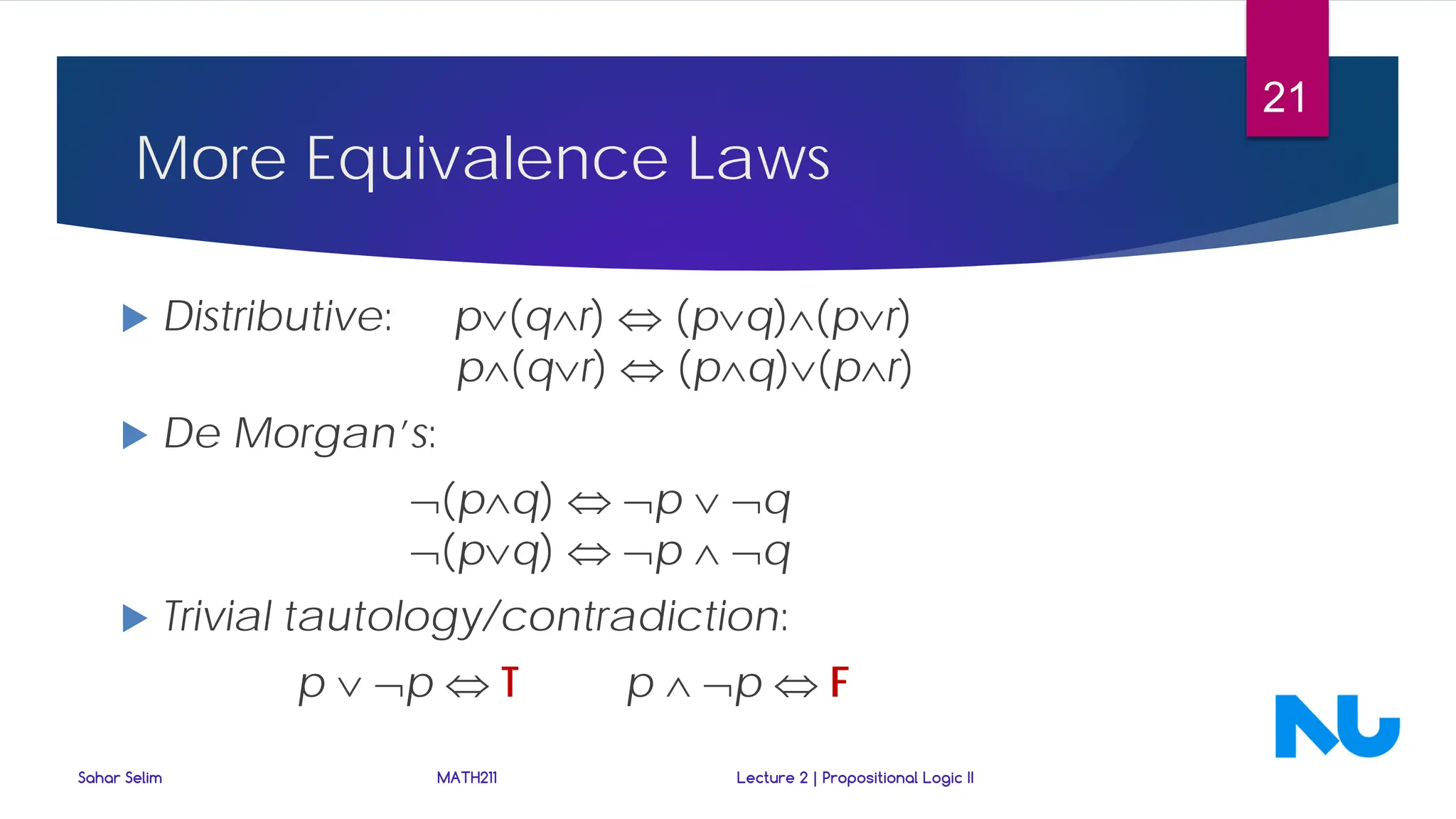

21. More Equivalence Laws
 Distributive: p∨(q∧r) ⇔ (p∨q)∧(p∨r)
p∧(q∨r) ⇔ (p∧q)∨(p∧r)
 De Morgan’s:
¬(p∧q) ⇔ ¬p ∨ ¬q
¬(p∨q) ⇔ ¬p ∧ ¬q
 Trivial tautology/contradiction:
p ∨ ¬p ⇔ T p ∧ ¬p ⇔ F
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
21

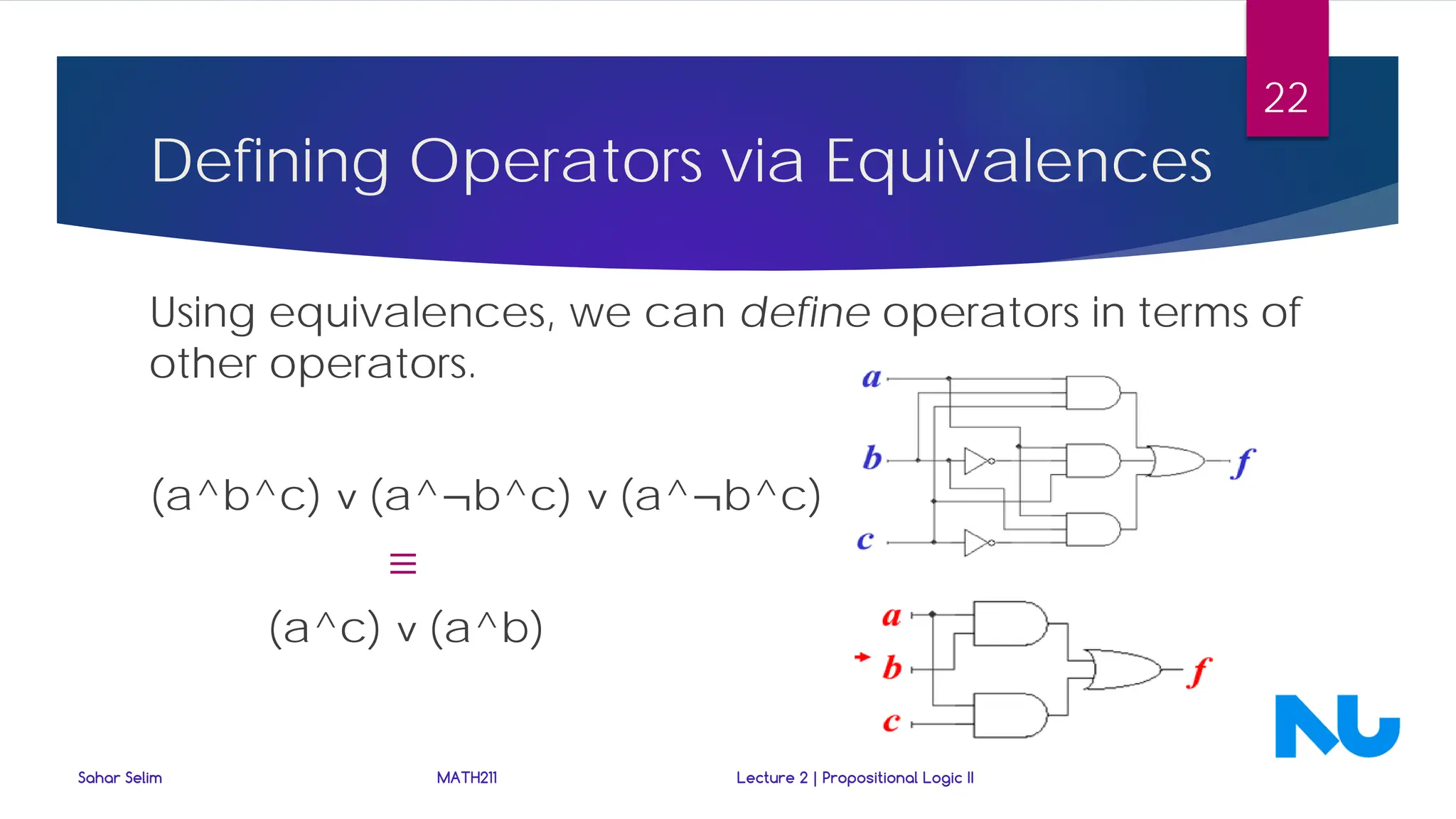

22. Defining Operators via Equivalences
Using equivalences, we can define operators in terms of
other operators.
(a^b^c) ˅ (a^¬b^c) ˅ (a^¬b^c)
≡
(a^c) ˅ (a^b)
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
22

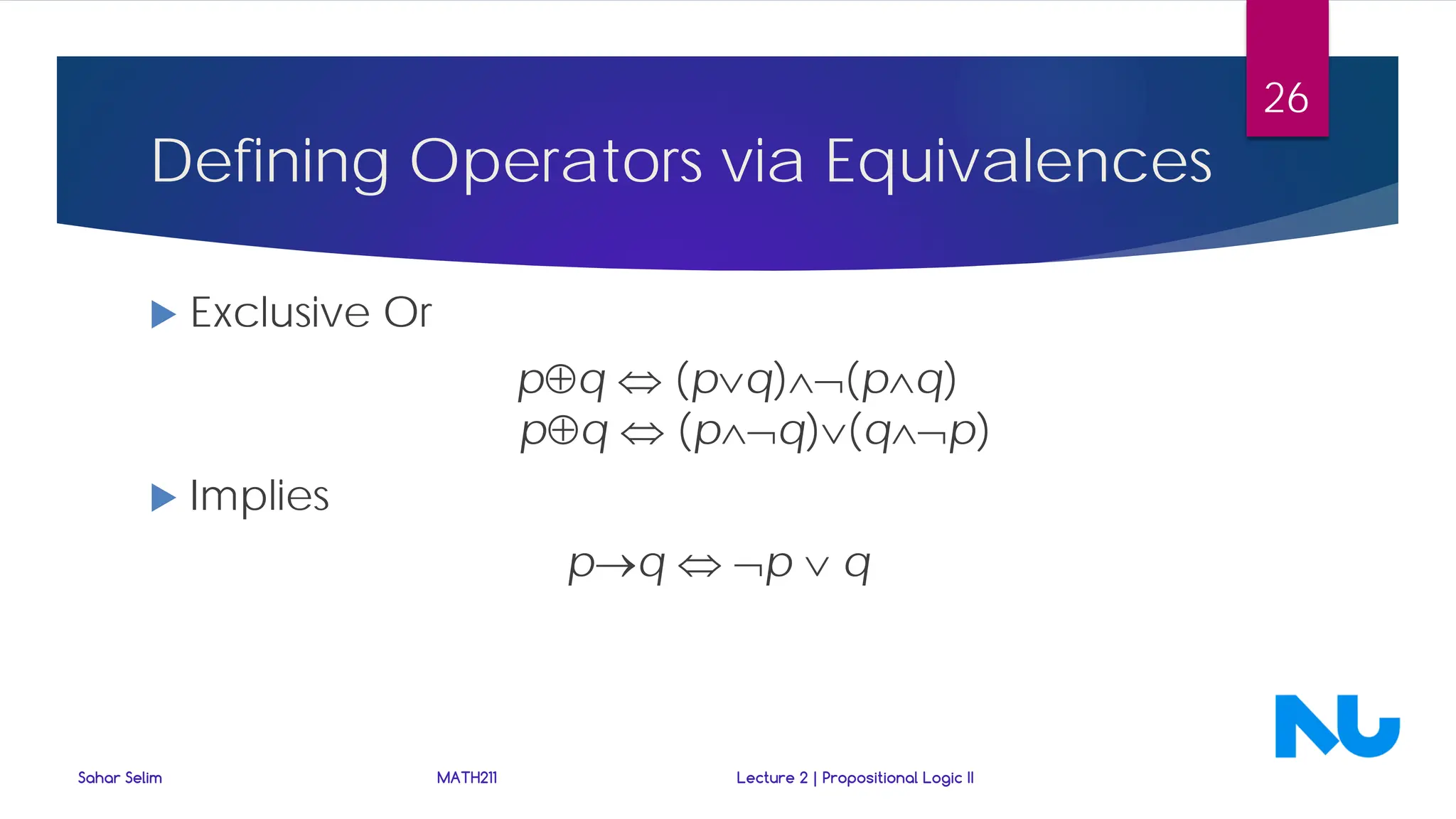

23. Defining Operators via Equivalences
 Exclusive Or
p⊕q ⇔ (p∨q)∧¬(p∧q)
p⊕q ⇔ (p∧¬q)∨(q∧¬p)
 Implies
p→q ⇔ ¬p ∨ q
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
26

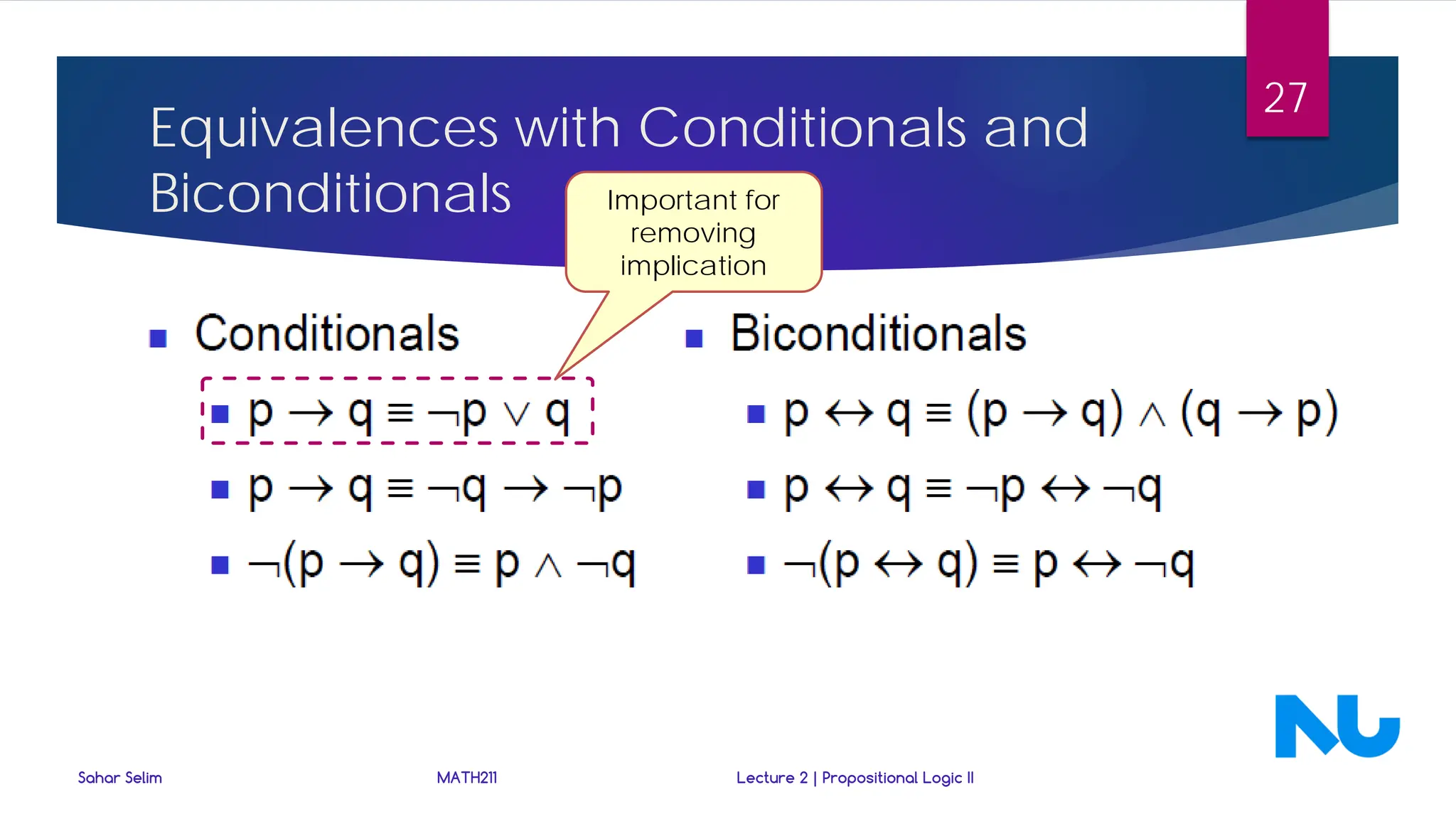

24. Equivalences with Conditionals and
Biconditionals
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
27
Important for
removing
implication

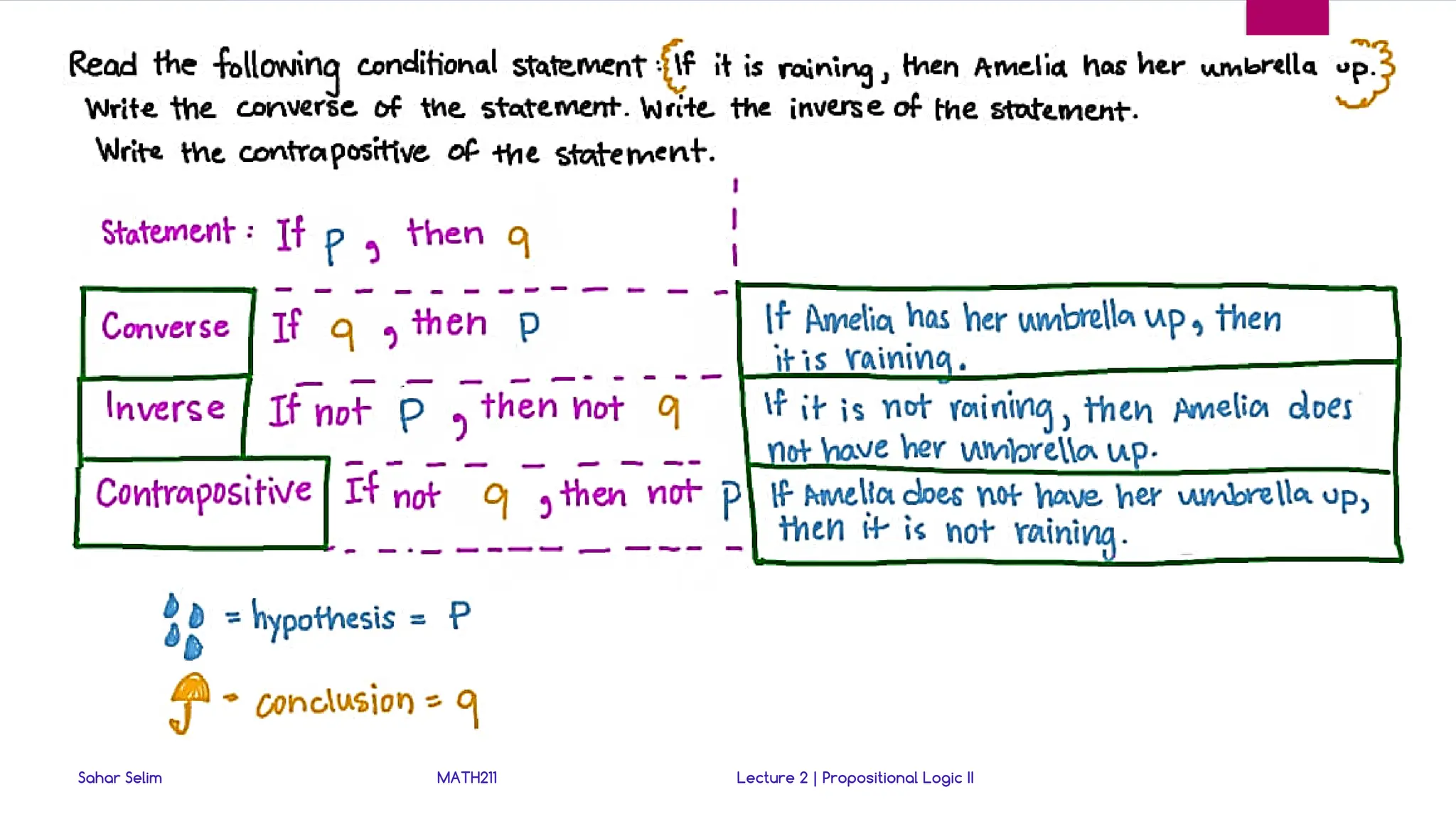

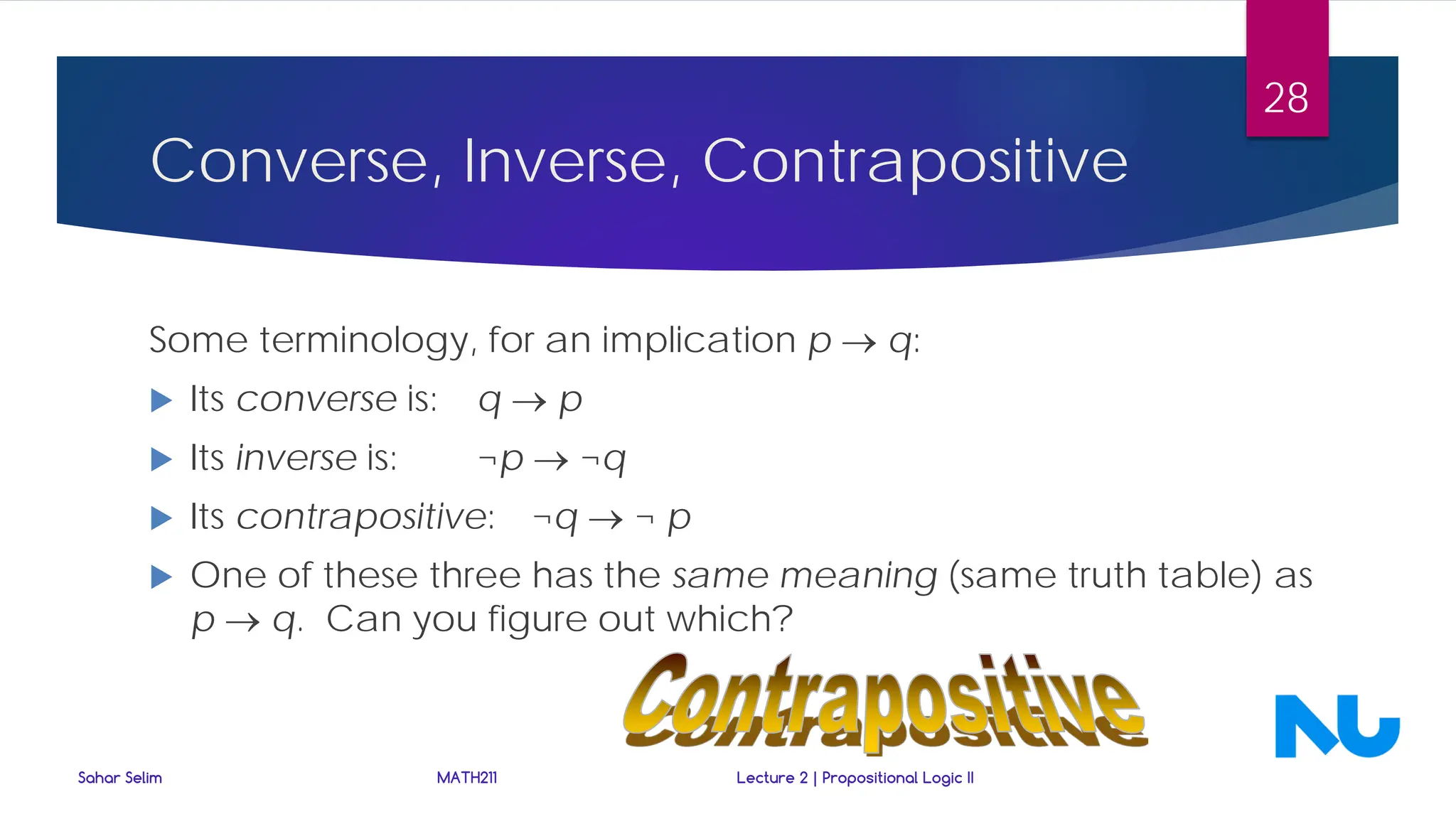

25. Converse, Inverse, Contrapositive
Some terminology, for an implication p → q:
 Its converse is: q → p
 Its inverse is: ¬p → ¬q
 Its contrapositive: ¬q → ¬ p
 One of these three has the same meaning (same truth table) as
p → q. Can you figure out which?
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
28

26. Sahar Selim MATH211 Lecture 2 | Propositional Logic II
29

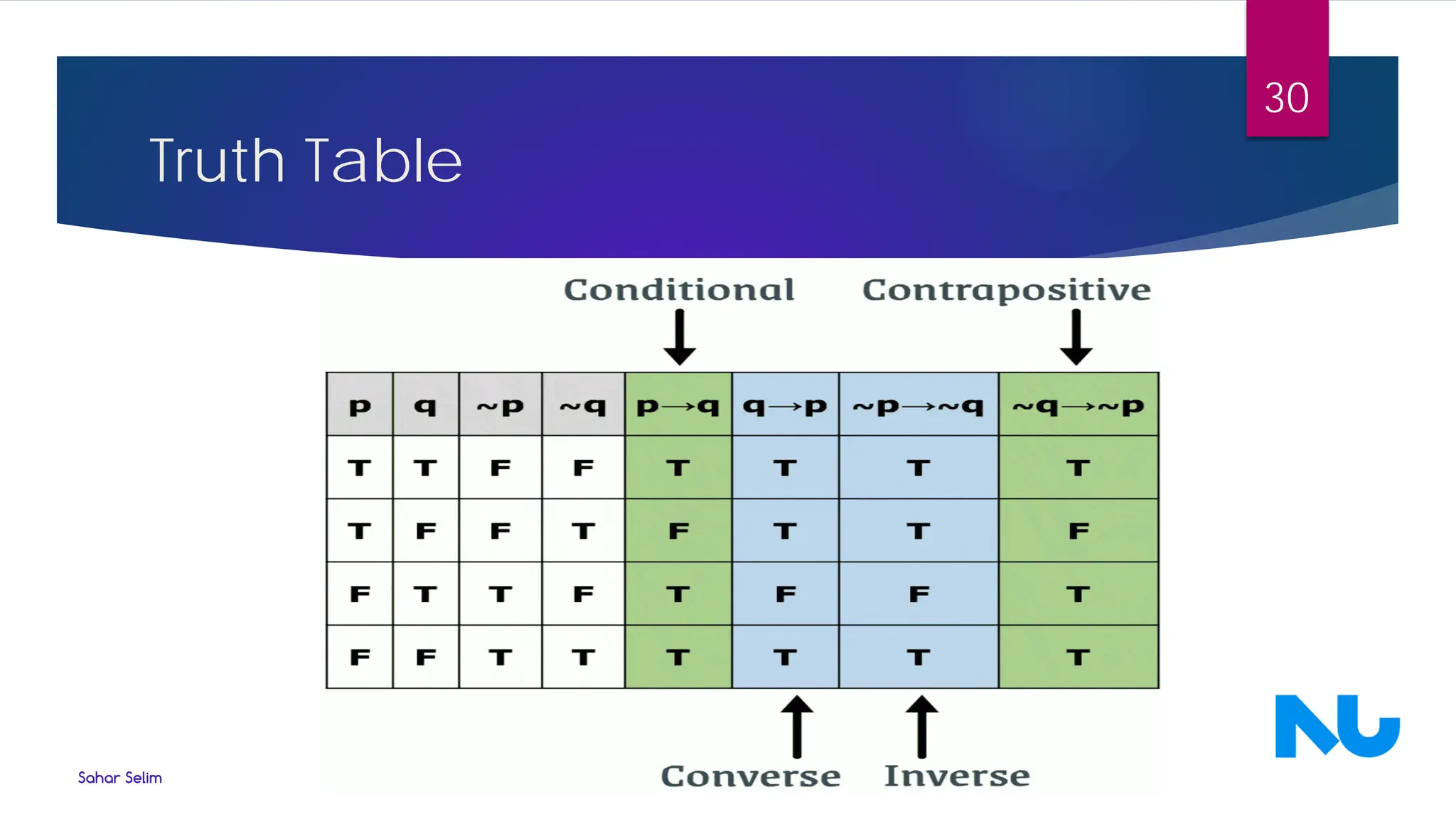

27. Truth Table
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
30

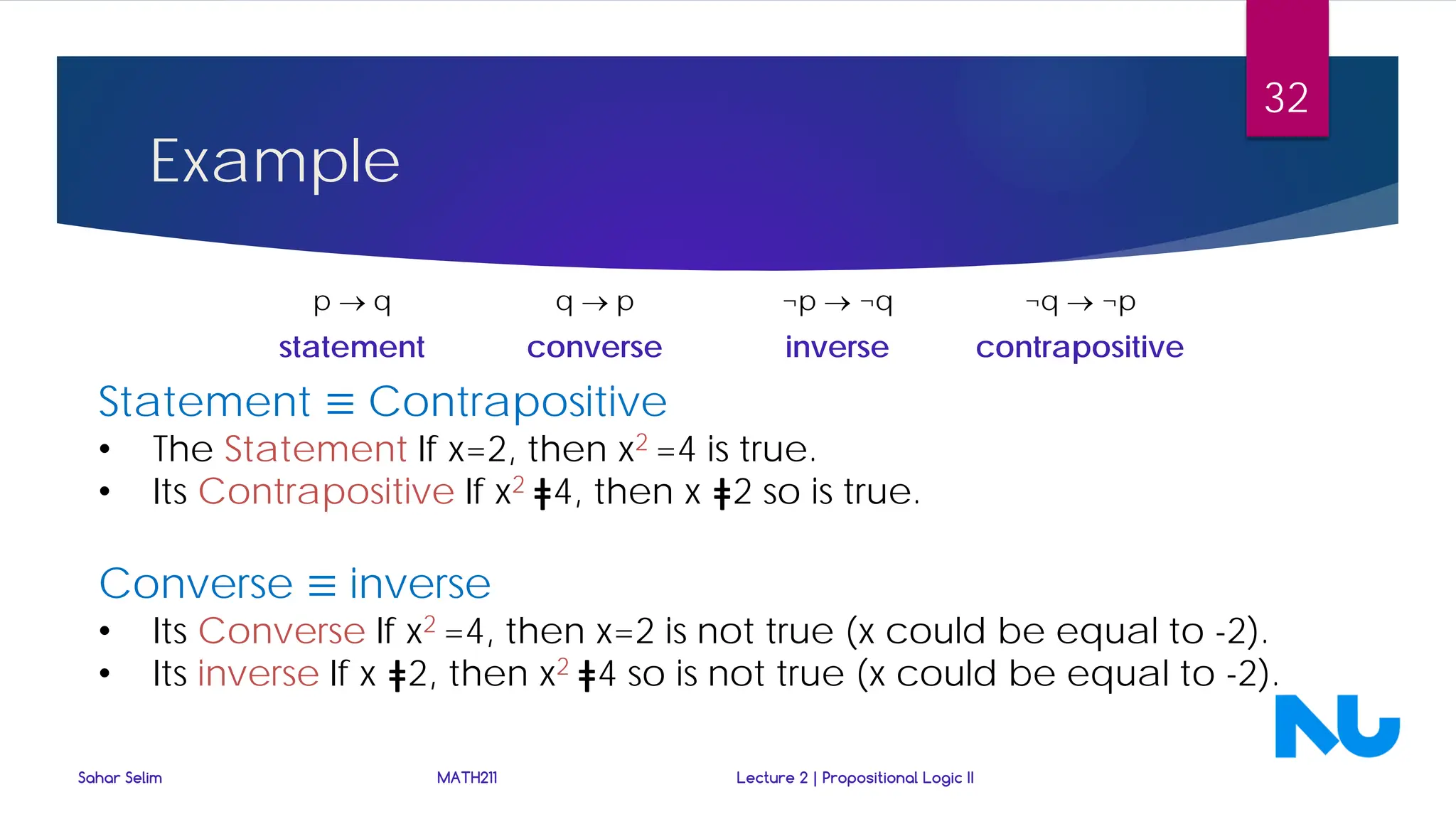

28. Statement ≡ Contrapositive
• The Statement If x=2, then x2 =4 is true.
• Its Contrapositive If x2 ǂ4, then x ǂ2 so is true.
Converse ≡ inverse
• Its Converse If x2 =4, then x=2 is not true (x could be equal to -2).
• Its inverse If x ǂ2, then x2 ǂ4 so is not true (x could be equal to -2).
p → q q → p ¬p → ¬q ¬q → ¬p
statement converse inverse contrapositive
Example
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
32

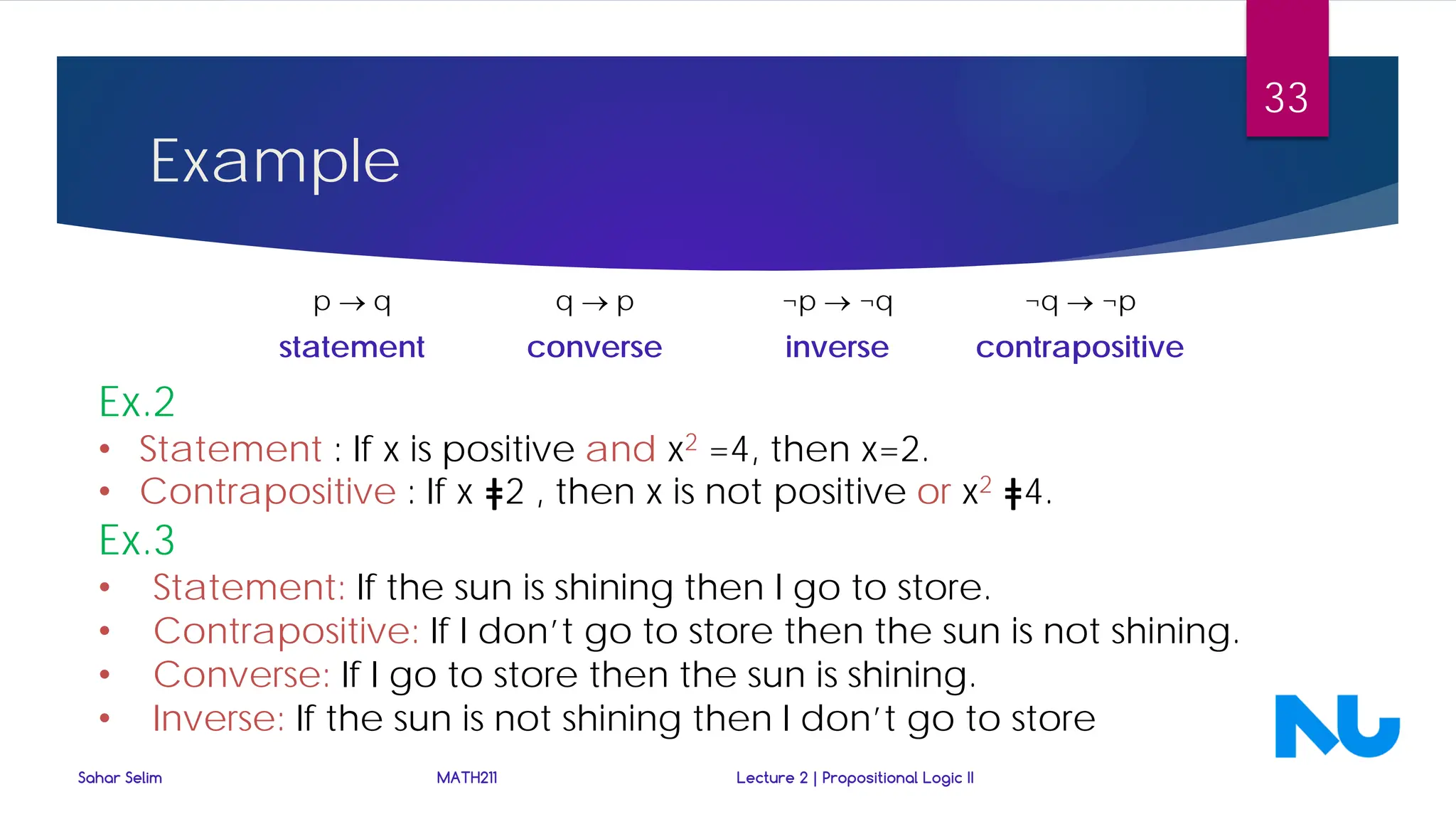

29. Ex.2
• Statement : If x is positive and x2 =4, then x=2.
• Contrapositive : If x ǂ2 , then x is not positive or x2 ǂ4.
Ex.3
• Statement: If the sun is shining then I go to store.
• Contrapositive: If I don’t go to store then the sun is not shining.
• Converse: If I go to store then the sun is shining.
• Inverse: If the sun is not shining then I don’t go to store
p → q q → p ¬p → ¬q ¬q → ¬p
statement converse inverse contrapositive
Example
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
33

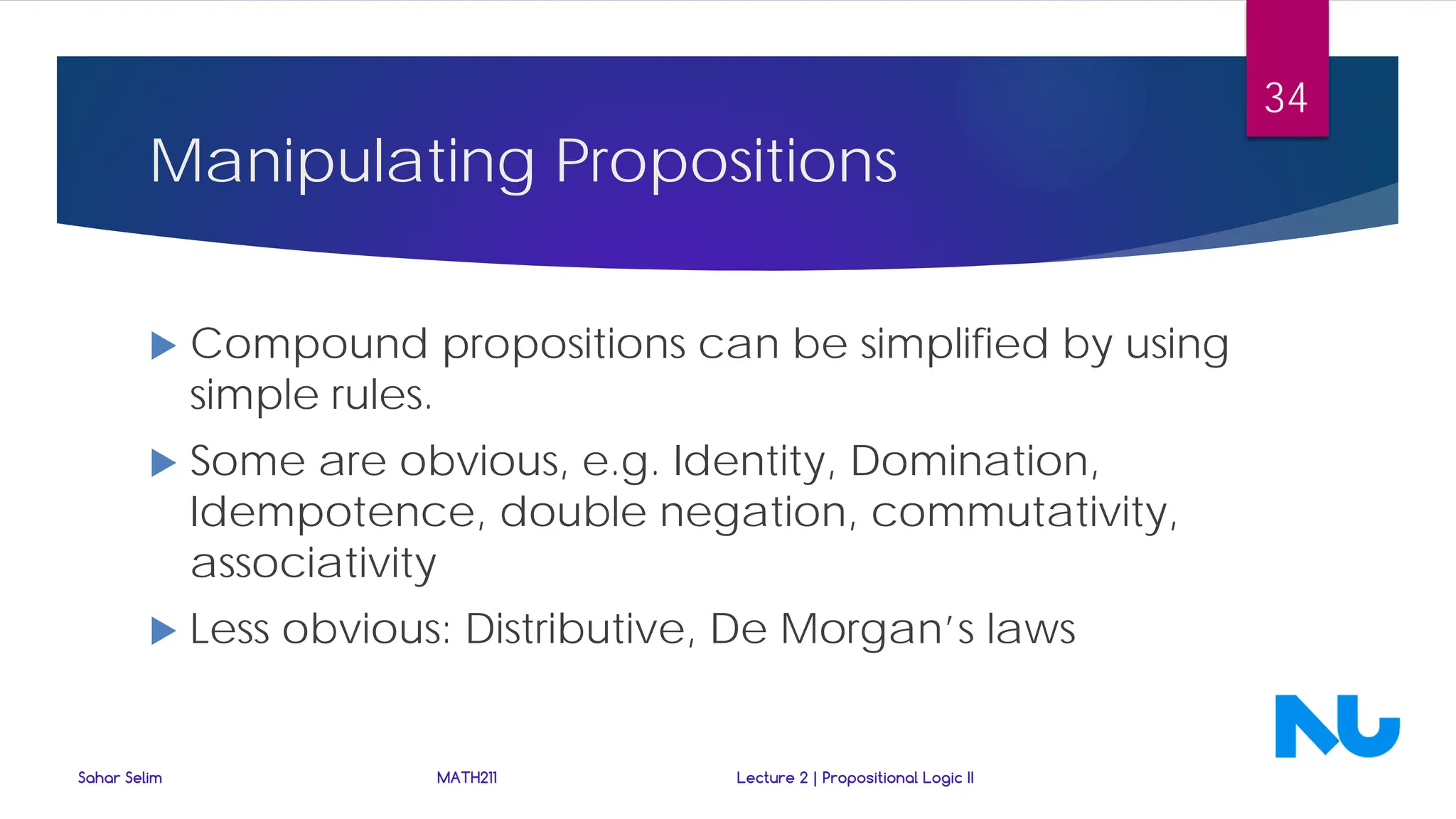

30. Manipulating Propositions
 Compound propositions can be simplified by using
simple rules.
 Some are obvious, e.g. Identity, Domination,
Idempotence, double negation, commutativity,
associativity
 Less obvious: Distributive, De Morgan’s laws
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
34

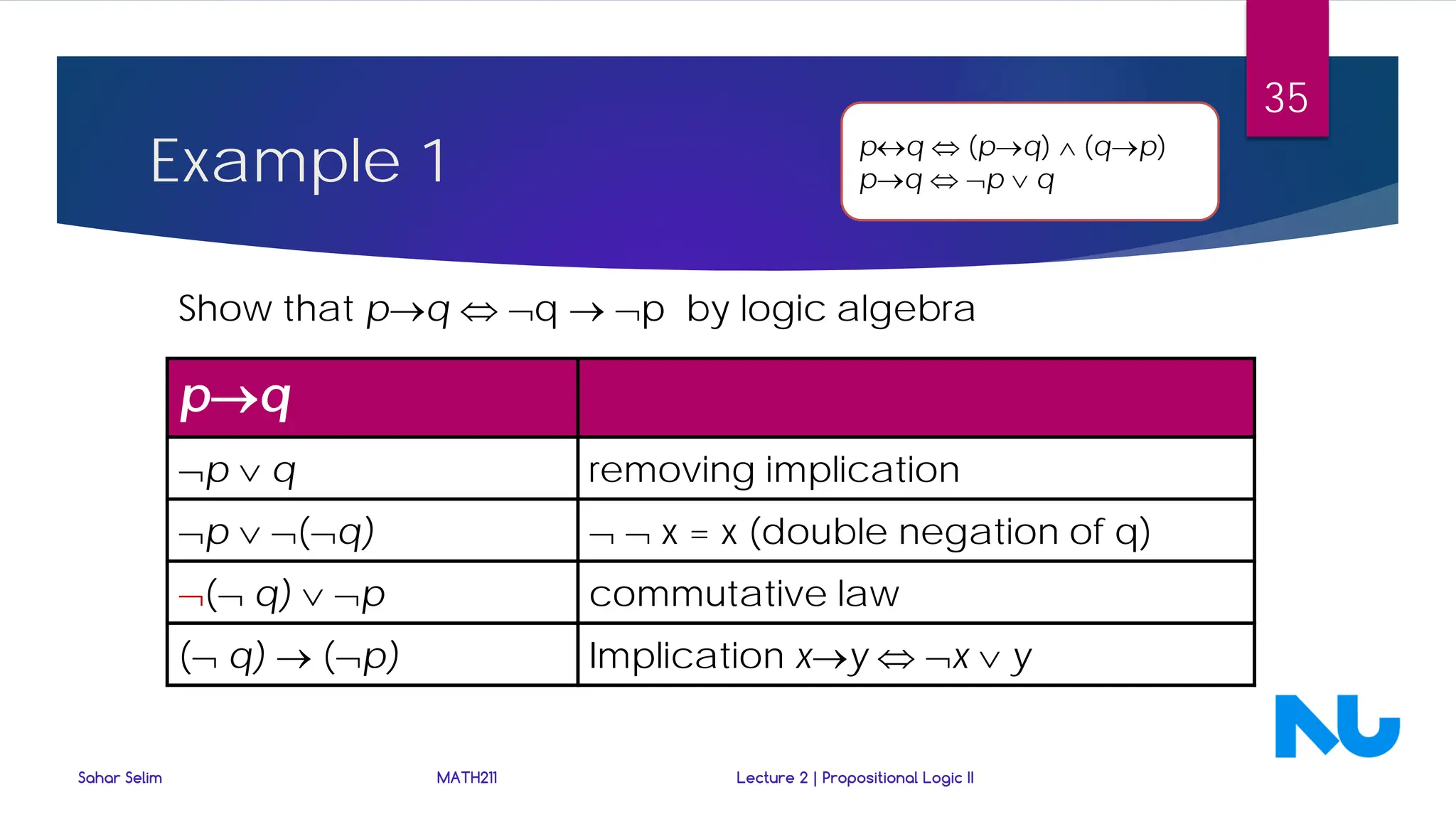

31. Example 1
p→q
¬p ∨ q removing implication
¬p ∨ ¬(¬q) ¬ ¬ x = x (double negation of q)
¬(¬ q) ∨ ¬p commutative law
(¬ q) → (¬p) Implication x→y ⇔ ¬x ∨ y
Show that p→q ⇔ ¬q → ¬p by logic algebra
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
35
p↔q ⇔ (p→q) ∧ (q→p)
p→q ⇔ ¬p ∨ q

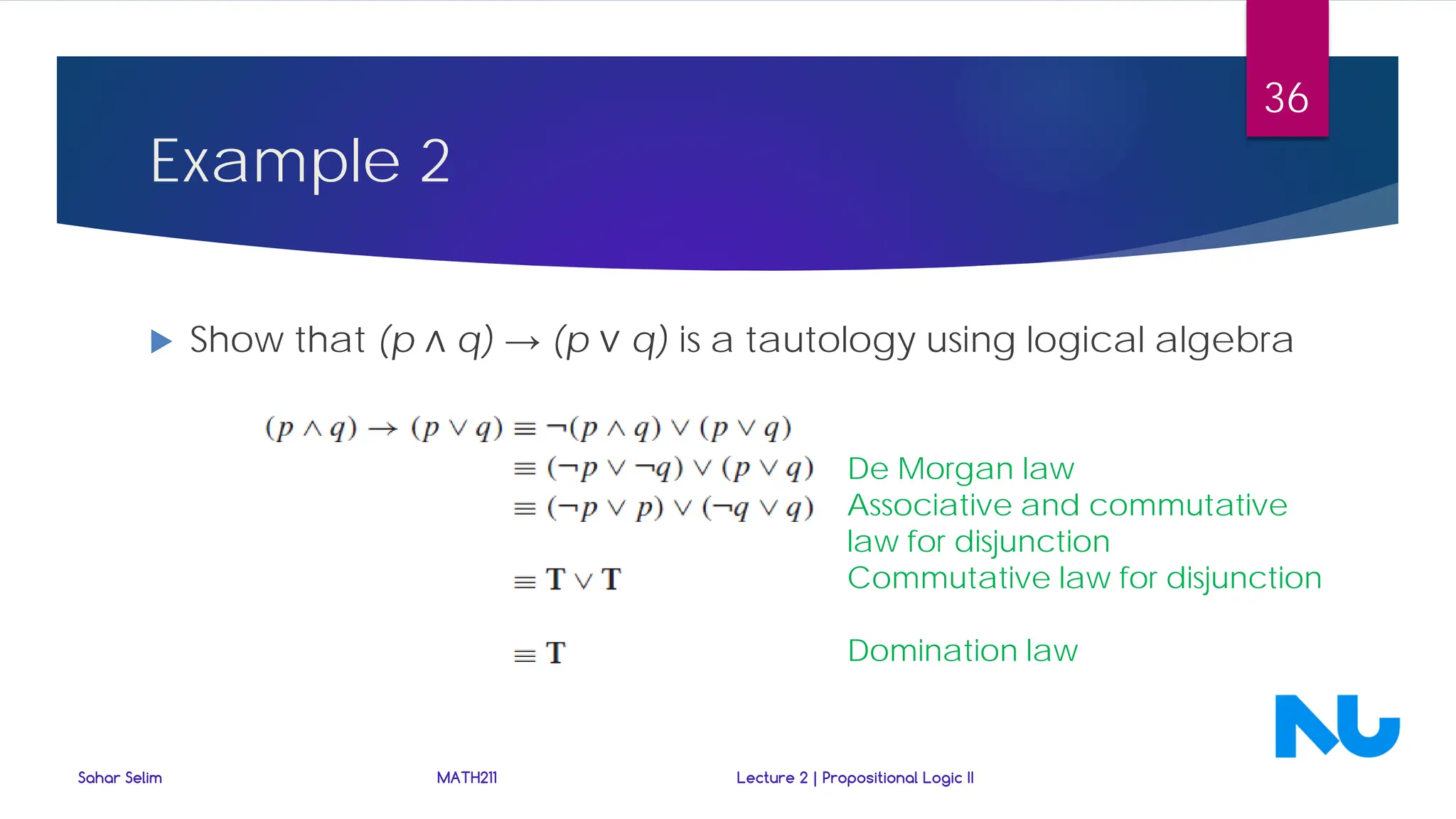

32. Example 2
 Show that (p ∧ q) → (p ∨ q) is a tautology using logical algebra
De Morgan law
Associative and commutative
law for disjunction
Commutative law for disjunction
Domination law
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
36

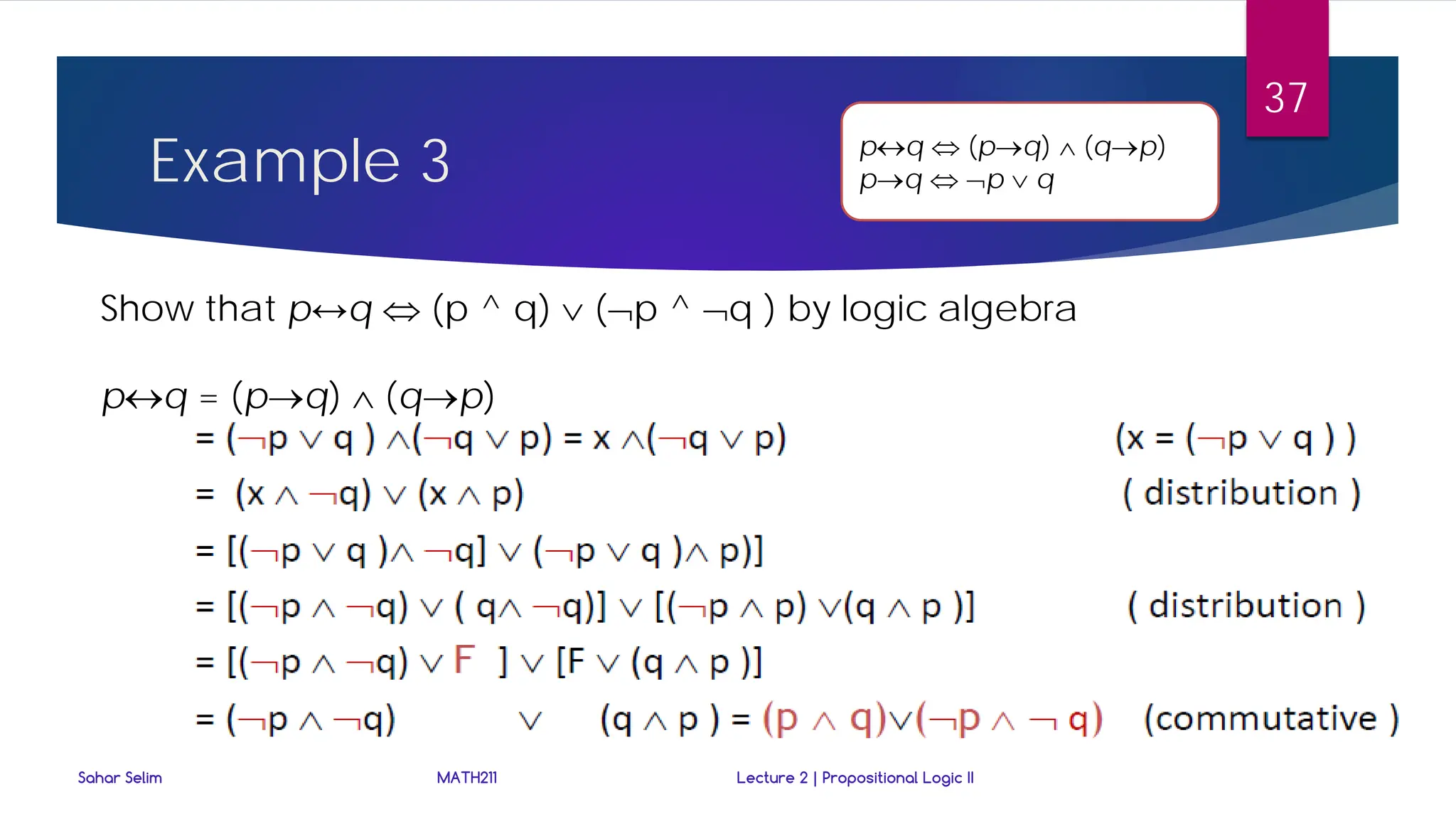

33. Example 3
Show that p↔q ⇔ (p ^ q) ∨ (¬p ^ ¬q ) by logic algebra
p↔q = (p→q) ∧ (q→p)
p↔q ⇔ (p→q) ∧ (q→p)
p→q ⇔ ¬p ∨ q
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
37

34. Sahar Selim MATH211 Lecture 2 | Propositional Logic II
38

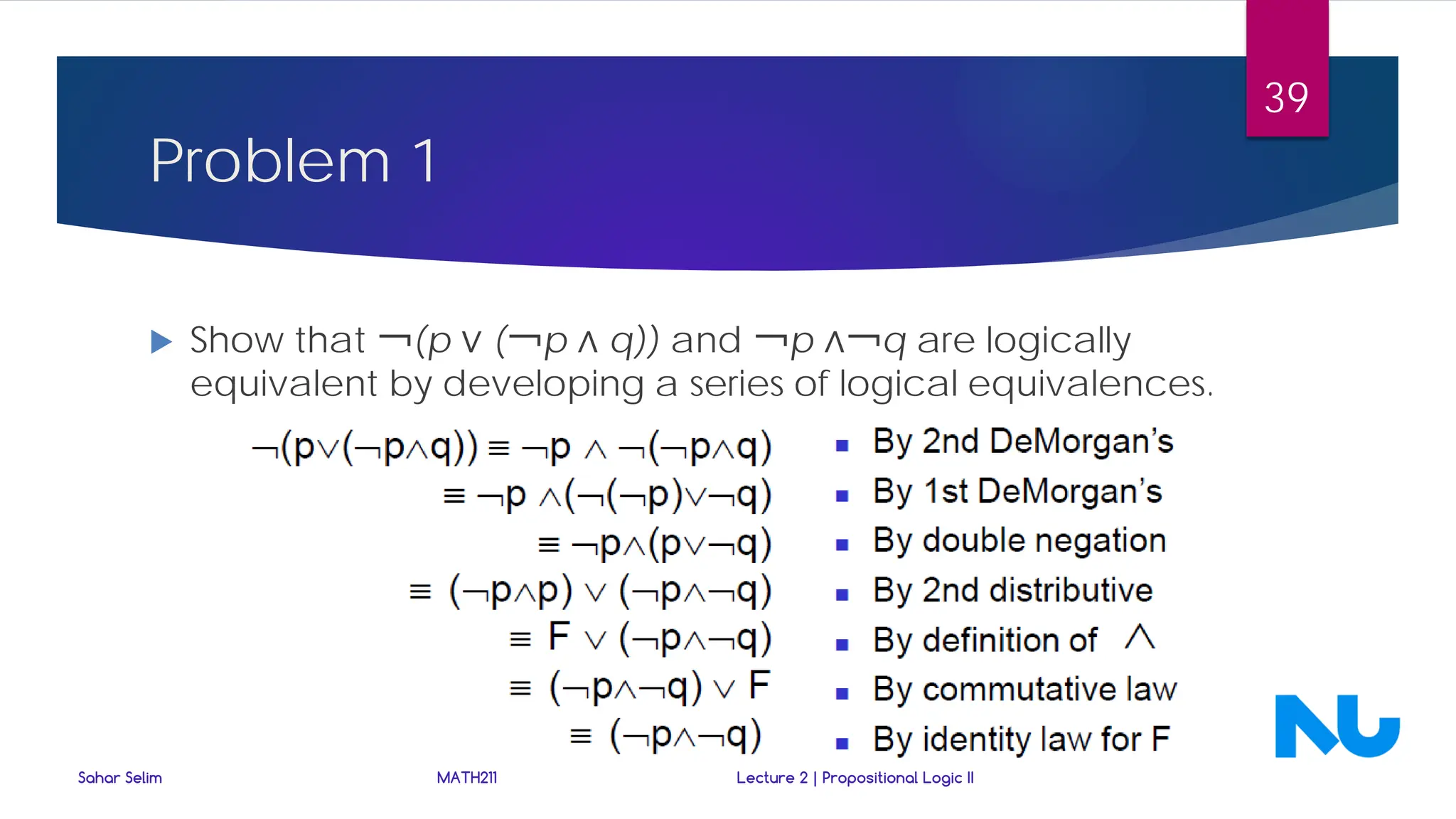

35. Problem 1
 Show that ￢(p ∨ (￢p ∧ q)) and ￢p ∧￢q are logically
equivalent by developing a series of logical equivalences.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
39

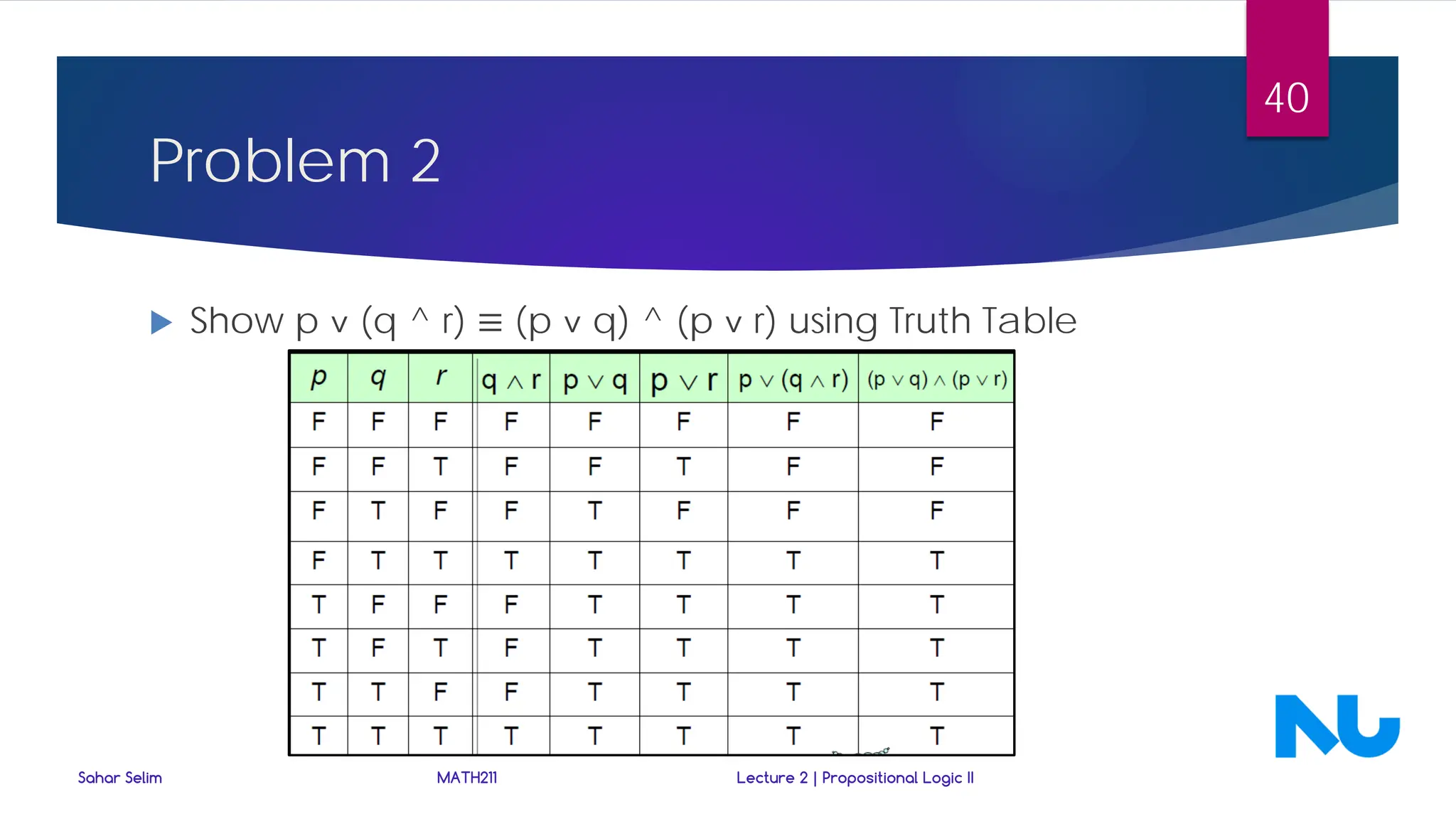

36. Problem 2
 Show p ˅ (q ^ r) ≡ (p ˅ q) ^ (p ˅ r) using Truth Table
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
40

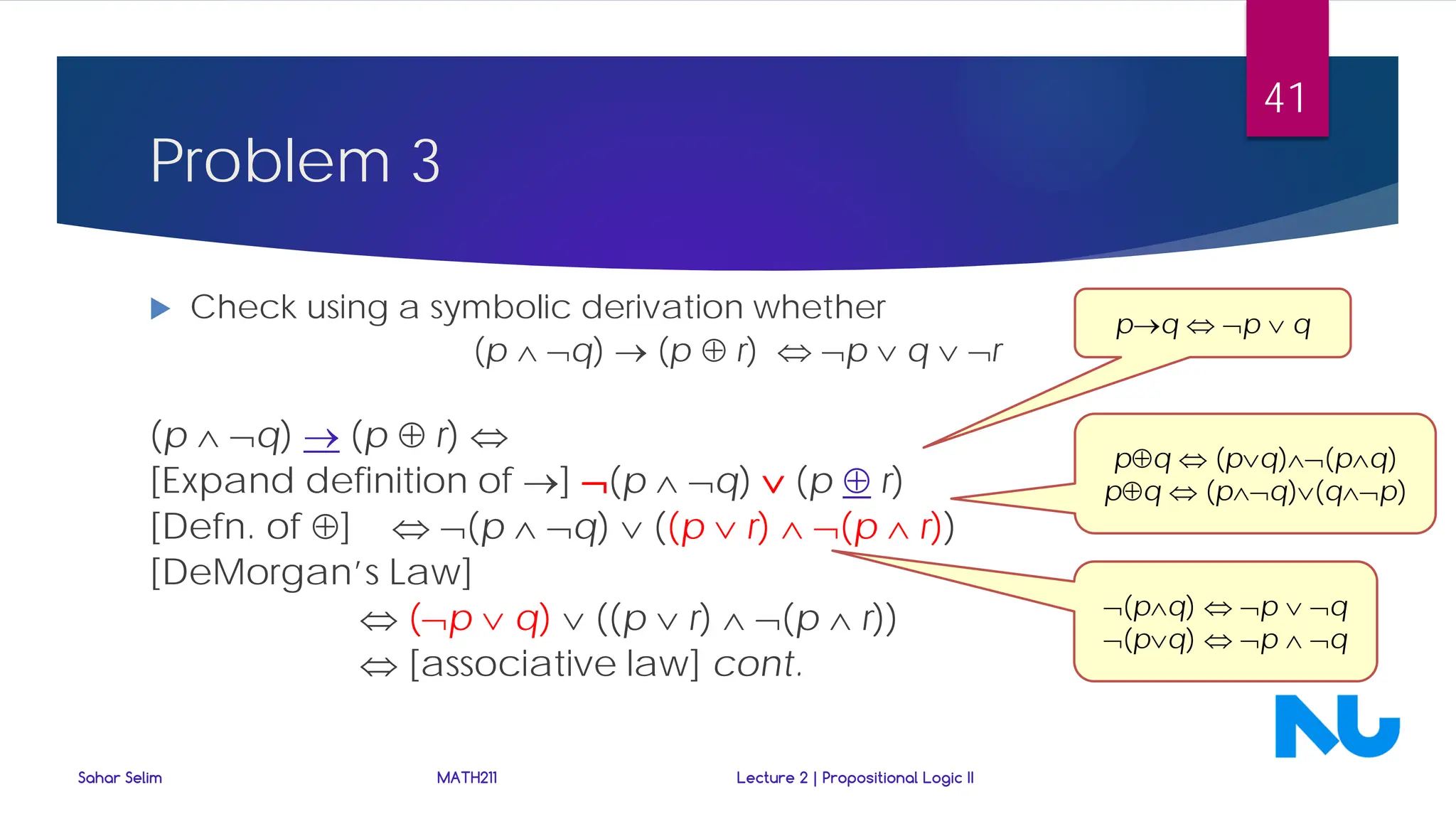

37. Problem 3
 Check using a symbolic derivation whether
(p ∧ ¬q) → (p ⊕ r) ⇔ ¬p ∨ q ∨ ¬r
(p ∧ ¬q) → (p ⊕ r) ⇔
[Expand definition of →] ¬(p ∧ ¬q) ∨ (p ⊕ r)
[Defn. of ⊕] ⇔ ¬(p ∧ ¬q) ∨ ((p ∨ r) ∧ ¬(p ∧ r))
[DeMorgan’s Law]
⇔ (¬p ∨ q) ∨ ((p ∨ r) ∧ ¬(p ∧ r))
⇔ [associative law] cont.
p→q ⇔ ¬p ∨ q
p⊕q ⇔ (p∨q)∧¬(p∧q)
p⊕q ⇔ (p∧¬q)∨(q∧¬p)
¬(p∧q) ⇔ ¬p ∨ ¬q
¬(p∨q) ⇔ ¬p ∧ ¬q
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
41

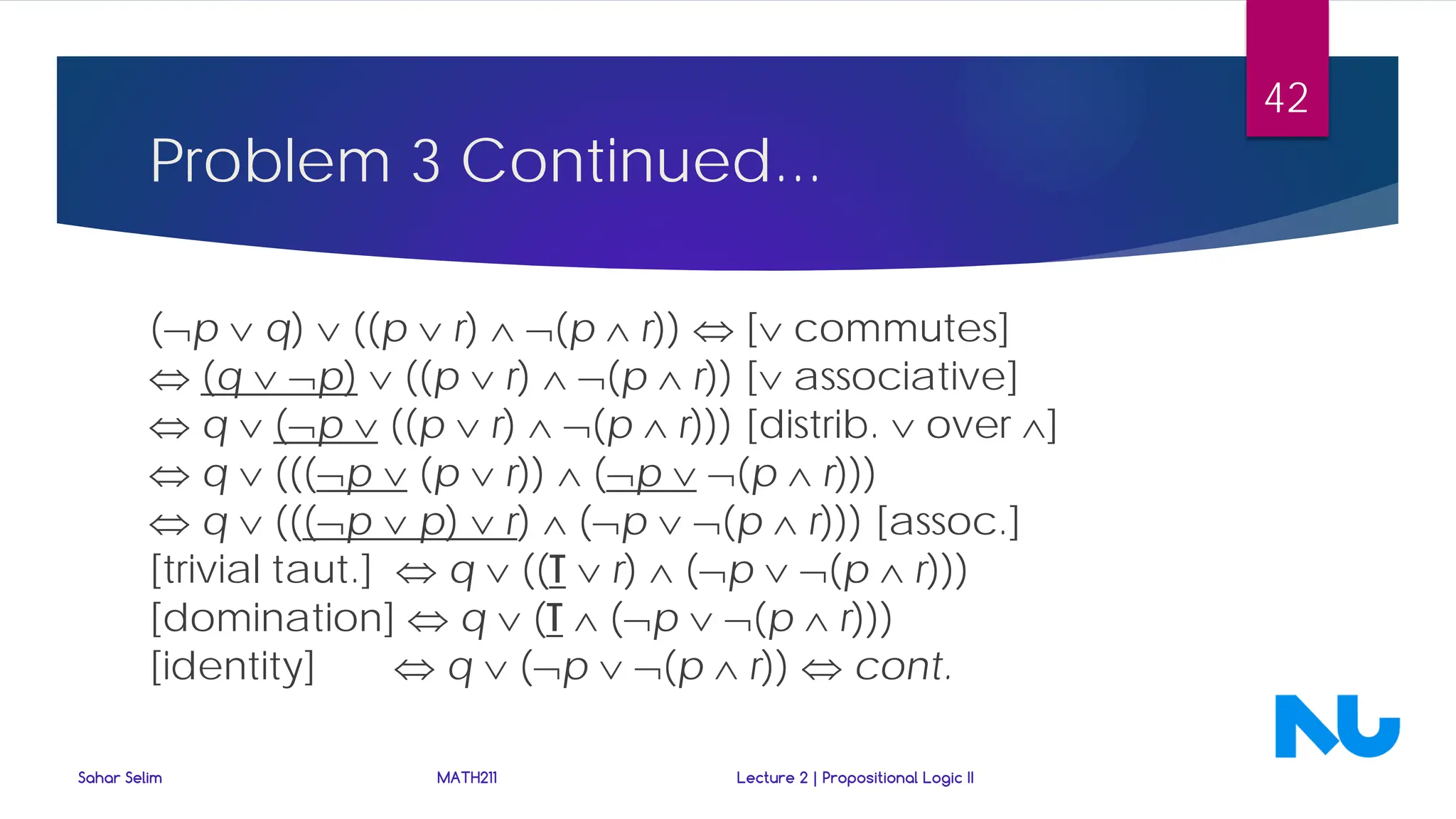

38. Problem 3 Continued...
(¬p ∨ q) ∨ ((p ∨ r) ∧ ¬(p ∧ r)) ⇔ [∨ commutes]
⇔ (q ∨ ¬p) ∨ ((p ∨ r) ∧ ¬(p ∧ r)) [∨ associative]
⇔ q ∨ (¬p ∨ ((p ∨ r) ∧ ¬(p ∧ r))) [distrib. ∨ over ∧]
⇔ q ∨ (((¬p ∨ (p ∨ r)) ∧ (¬p ∨ ¬(p ∧ r)))
⇔ q ∨ (((¬p ∨ p) ∨ r) ∧ (¬p ∨ ¬(p ∧ r))) [assoc.]
[trivial taut.] ⇔ q ∨ ((T ∨ r) ∧ (¬p ∨ ¬(p ∧ r)))
[domination] ⇔ q ∨ (T ∧ (¬p ∨ ¬(p ∧ r)))
[identity] ⇔ q ∨ (¬p ∨ ¬(p ∧ r)) ⇔ cont.
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
42

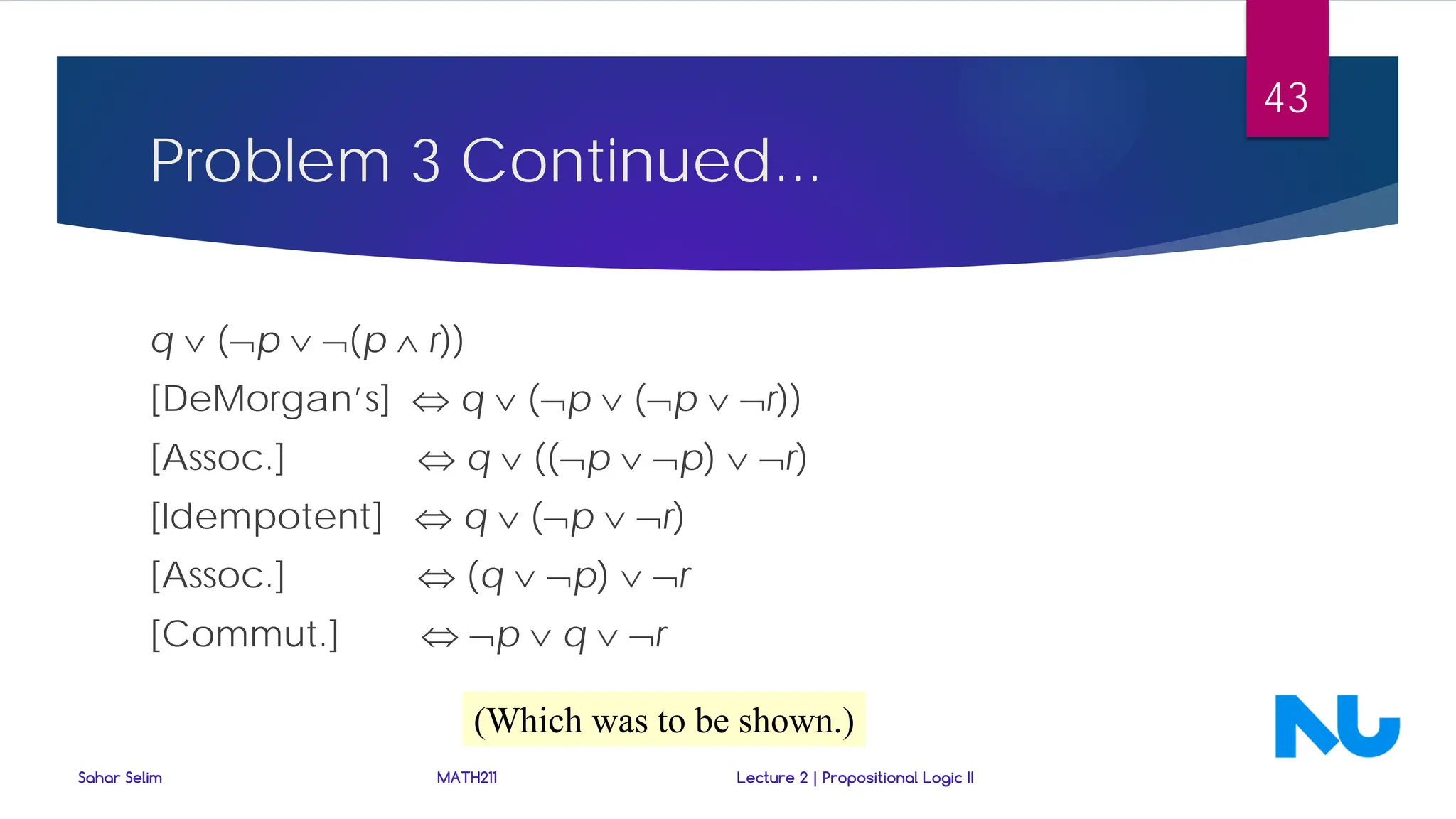

39. Problem 3 Continued...
q ∨ (¬p ∨ ¬(p ∧ r))
[DeMorgan’s] ⇔ q ∨ (¬p ∨ (¬p ∨ ¬r))
[Assoc.] ⇔ q ∨ ((¬p ∨ ¬p) ∨ ¬r)
[Idempotent] ⇔ q ∨ (¬p ∨ ¬r)
[Assoc.] ⇔ (q ∨ ¬p) ∨ ¬r
[Commut.] ⇔ ¬p ∨ q ∨ ¬r
(Which was to be shown.)
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
43

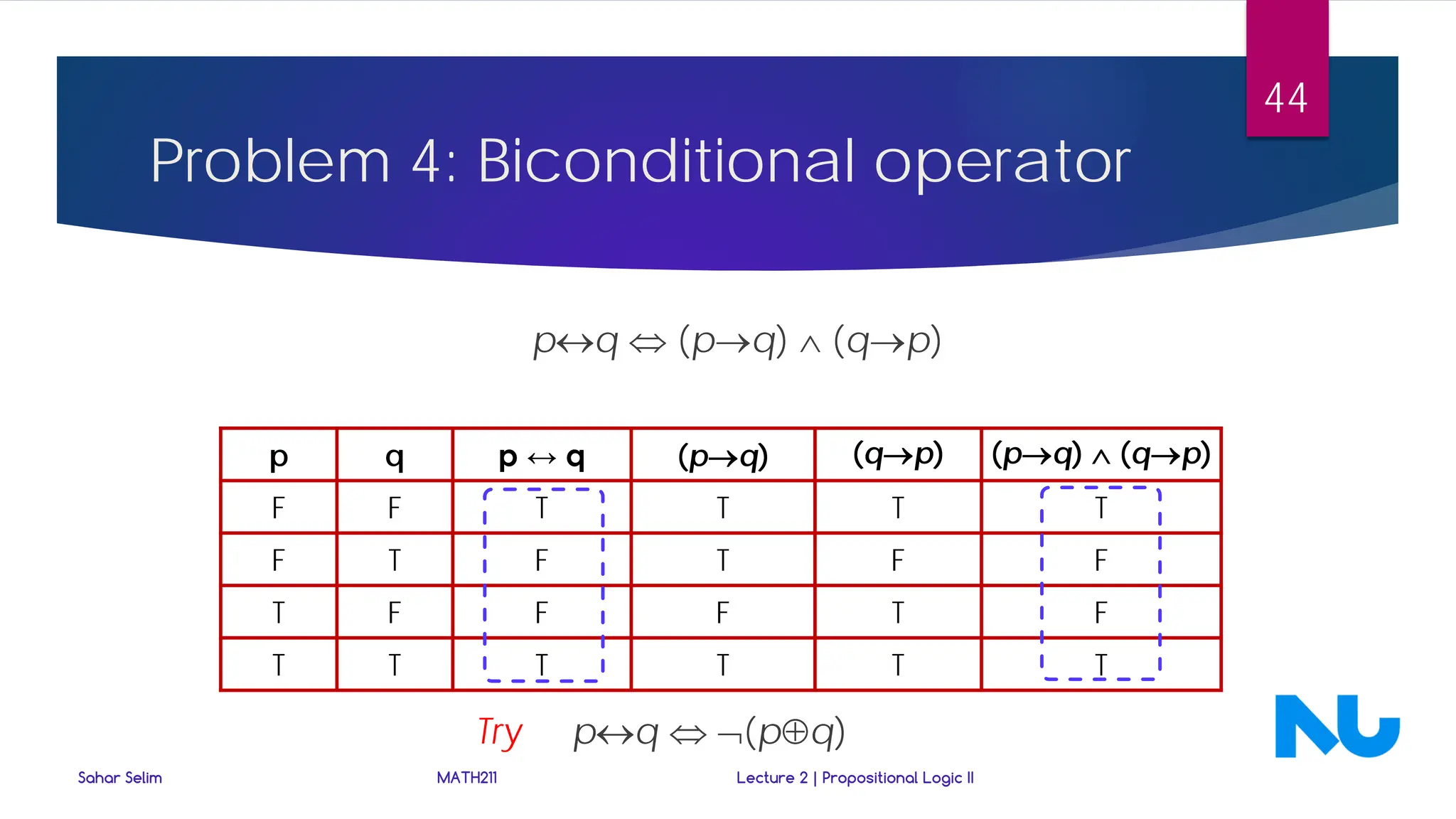

40. Problem 4: Biconditional operator
p↔q ⇔ (p→q) ∧ (q→p)
p q p ↔ q (p→q) (q→p) (p→q) ∧ (q→p)
F F T T T T
F T F T F F
T F F F T F
T T T T T T
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
44
Try p↔q ⇔ ¬(p⊕q)

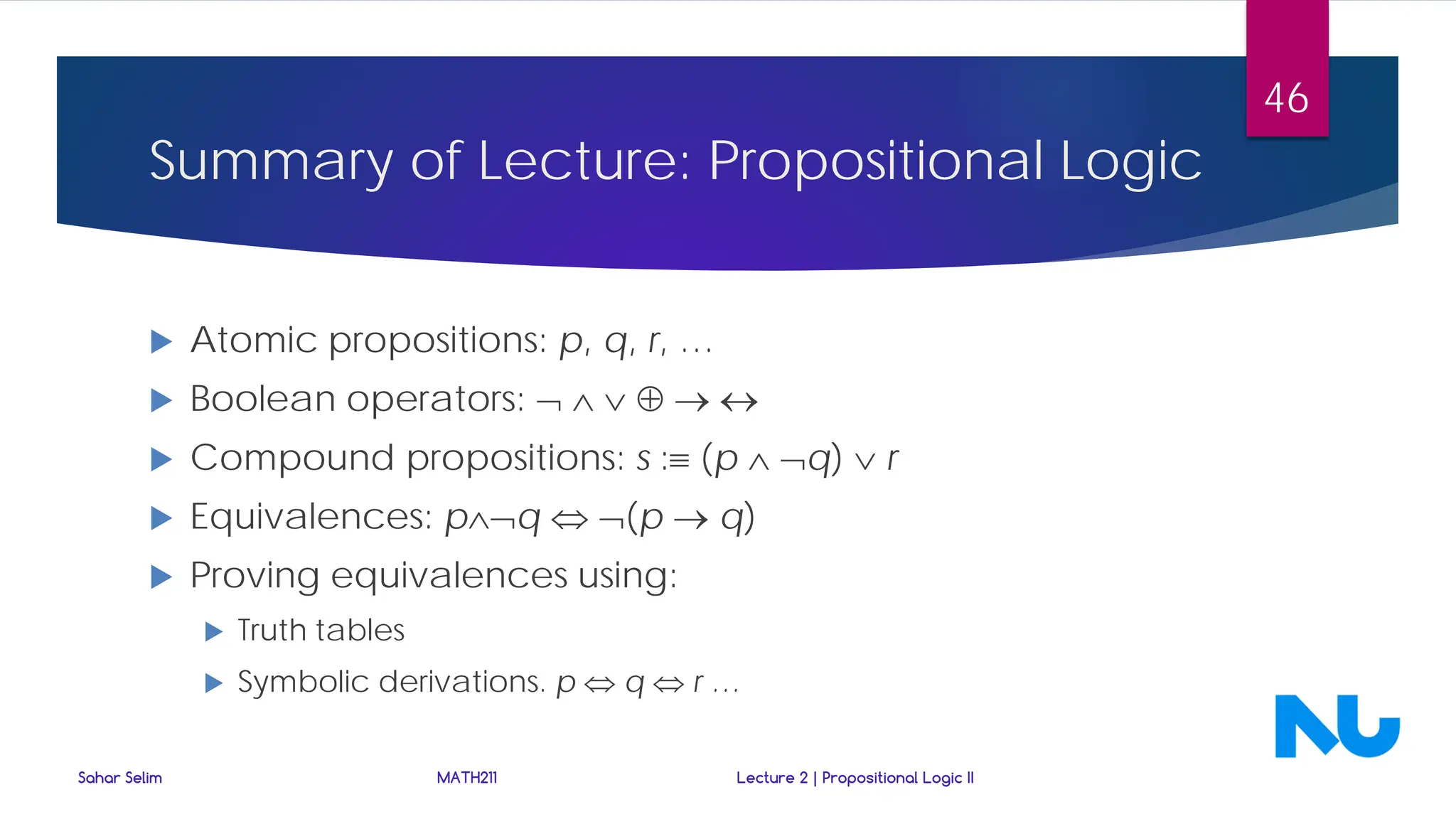

41. Summary of Lecture: Propositional Logic
 Atomic propositions: p, q, r, …
 Boolean operators: ¬ ∧ ∨ ⊕ → ↔
 Compound propositions: s :≡ (p ∧ ¬q) ∨ r
 Equivalences: p∧¬q ⇔ ¬(p → q)
 Proving equivalences using:
 Truth tables
 Symbolic derivations. p ⇔ q ⇔ r …
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
46

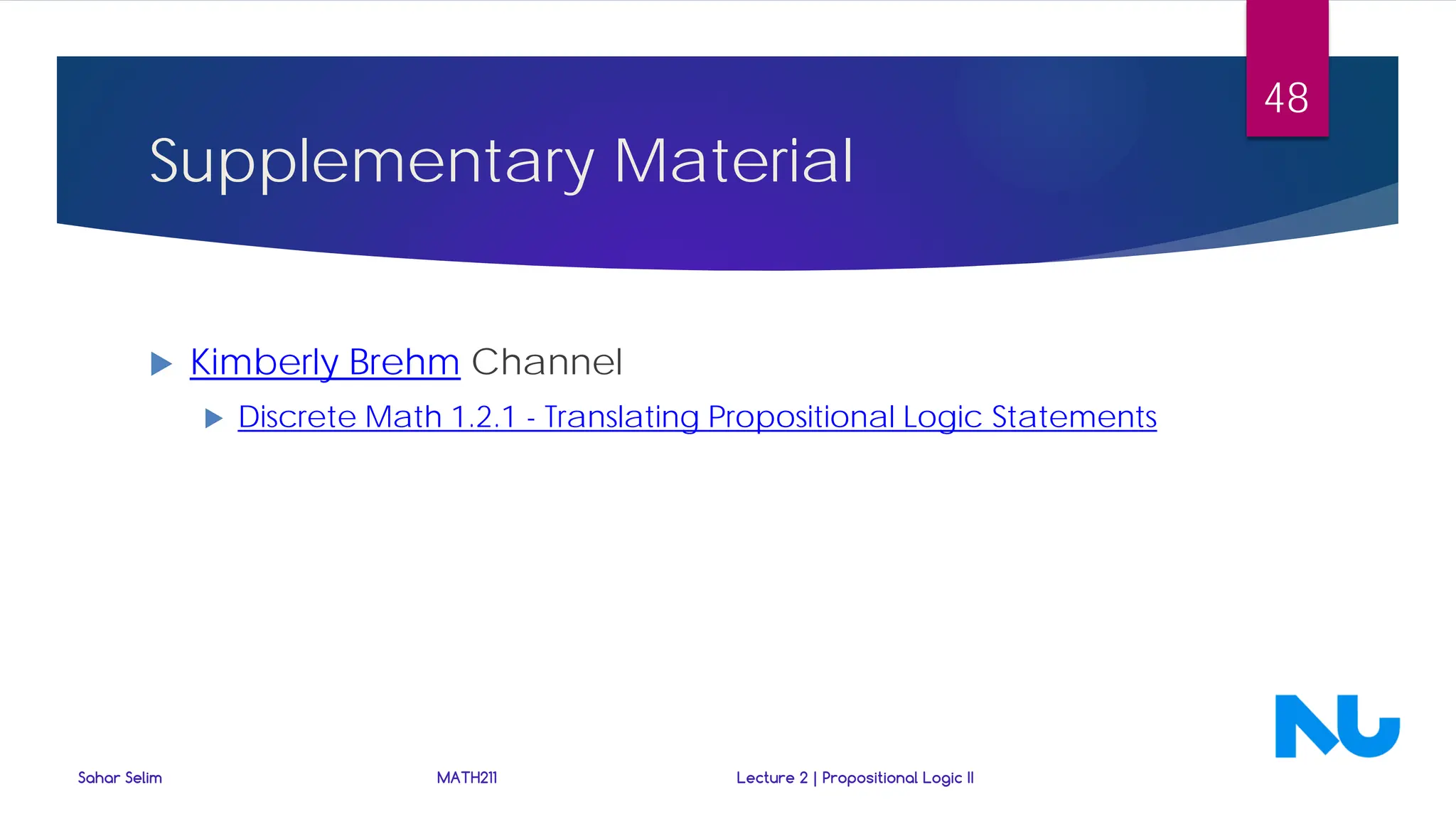

42. Supplementary Material
 Kimberly Brehm Channel
 Discrete Math 1.2.1 - Translating Propositional Logic Statements
Sahar Selim MATH211 Lecture 2 | Propositional Logic II
48

43. Sahar Selim MATH211 Lecture 2 | Propositional Logic II
49
