The document contains dimensional drawings and specifications for a touch monitor. It includes dimensions in millimeters for the monitor, VESA mount points, mounting holes, ports, and optional kits. Measurement details are provided for the landscape and portrait orientations, thickness, dimensions of cutouts and slots, and wall mounting configurations. Revision and date information is listed at the top along with a model number.

1. 1541.9
868.64
58.9
94.6
923.6
1596.9
600
600
R , x420
DIMENSIONAL DRAWING: 7001LT
REV: C
DATE: 07/22/2015
MS601654
DIMENSIONS ARE IN MILLIMETERS
AMBIENT LIGHT SENSOR
M8 THREADS, X4
VESA MOUNT PER MIS-F 600X600,
MAX THREAD DEPTH = 14MM
SEE DETAIL B
0.800SCALE
BDETAIL
AC POWER REMOTE OSD
DISPLAY PORT IN
HDMI IN
VGA IN TOUCH USB
HEADPHONE
LINE IN

2. DIMENSIONAL DRAWING: 7001LT
REV: C
DATE: 07/22/2015
MS601654
DIMENSIONS ARE IN MILLIMETERS
LANDSCAPE ORIENTATION
PORTRAIT ORIENTATION
(COMPUTER MODULE BAY MUST BE ON TOP)

3. 99.6 (3.9")
COMBINED THICKNESS
OF TOUCHMONITOR AND BRACKET
406.4 (16")
609.6 (24")
60
449
50
182
182.7
10 SLOT ADJUSTMENT
DIMENSIONAL DRAWING: 7001LT
REV: C
DATE: 07/22/2015
MS601654
DIMENSIONS ARE IN MILLIMETERS

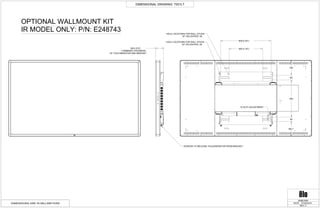

OPTIONAL WALLMOUNT KIT
IR MODEL ONLY: P/N: E248743
SCREWS TO RELEASE TOUCHMONITOR FROM BRACKET
HOLE LOCATIONS FOR WALL STUDS
24" ON CENTER, X8
HOLE LOCATIONS FOR WALL STUDS
16" ON CENTER, X8

4. 65.8
14
798.4
159
DIMENSIONAL DRAWING: 7001LT
REV: C
DATE: 07/22/2015
MS601654
DIMENSIONS ARE IN MILLIMETERS

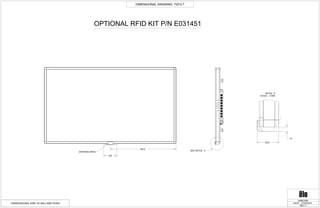

OPTIONAL RFID KIT P/N E031451
ANTENNA AREA
SEE DETAIL A
0.800SCALE
ADETAIL
