This document contains dimensional drawings and specifications for an ET4602L display. It includes dimensions for the active display area, input/output connections, VESA mount, and optional accessories like an ECM kit, stand, wall mount, and side mount bracket. Dimensions are provided in millimeters for both infrared and projected capacitive touchscreen models.

1. 1082.8
637.4
1018.1
ACTIVE AREA
572.7
ACTIVE AREA
32.4
61.6
400
400
574.4
BEZEL OPENING
1019.8
BEZEL OPENING
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
IR MODEL
I/O CONNECTIONS
(UNDER SECURITY COVER)
18.8, X4LIGHT SENSOR
VESA MOUNT 400X400
M6 THREADS, X4
THREADS START 8.5MM BELOW
MOUNTING SURFACE
MAX SCREW DEPTH = 16MM FROM
MOUNTING SURFACE
ENSURE MINIMUM THREAD
ENGAGEMENT = 5MM
POWER BUTTON
TOUCH OSD
SECURITY COVER
SPEAKER, X4 PERIPHERAL MOUNT, X4
(TOP, BOTTOM, LEFT, RIGHT)
COVER FOR OPTIONAL ECM CONNECTIONS
SIDE MOUNT, X4 M4 THREADS,
MAX THREAD DEPTH = 6MM
DISPLAYPORT
HDMI
VGA
OSD REMOTE
TOUCH USB
AUDIO IN
AUDIO OUT
GPIO
AC POWER IN
9OF1SHEET

2. 39
287.9
100.6
, X425
4.1
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
IR MODEL WITH OPTIONAL ECM KIT
OPTIONAL EXTENSION SPACERS AND SCREWS (X4)
INCLUDED WITH ECM KIT
ECM CONNECTIONS ON SAME SIDE
AS IDS I/O CONNECTIONS
9OF2SHEET

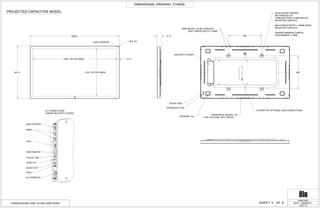

3. 1082.8
637.4 574.7 ACTIVE AREA
1020.1 ACTIVE AREA
51.3 400
400
31.4
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
PROJECTED CAPACITIVE MODEL
I/O CONNECTIONS
(UNDER SECURITY COVER)
18.8, X4LIGHT SENSOR
VESA MOUNT 400X400
M6 THREADS, X4
THREADS START 8.5MM BELOW
MOUNTING SURFACE
MAX SCREW DEPTH = 25MM FROM
MOUNTING SURFACE
ENSURE MINIMUM THREAD
ENGAGEMENT = 5MM
POWER BUTTON
TOUCH OSD
SECURITY COVER
SPEAKER, X4
PERIPHERAL MOUNT, X4
(TOP, BOTTOM, LEFT, RIGHT)
COVER FOR OPTIONAL ECM CONNECTIONS
SIDE MOUNT, X4 M4 THREADS,
MAX THREAD DEPTH = 6MM
DISPLAYPORT
HDMI
VGA
OSD REMOTE
TOUCH USB
AUDIO IN
AUDIO OUT
GPIO
AC POWER IN
9OF3SHEET

4. 90.3
39
287.9
, X425
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
PROJECTED CAPACITIVE MODEL WITH OPTIONAL ECM KIT
OPTIONAL EXTENSION SPACERS AND SCREWS (X4)
INCLUDED WITH ECM KITECM CONNECTIONS ON SAME SIDE
AS IDS I/O CONNECTIONS
9OF4SHEET

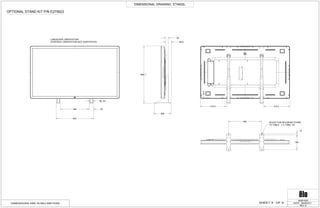

5. 30
66.8
452
52348
208
400
180
14
HOLES FOR SECURING STAND
TO TABLE THRU, X44
690.7
36, X2
315.5 315.3
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL STAND KIT P/N E275623
LANDSCAPE ORIENTATION
(PORTRAIT ORIENTATION NOT SUPPORTED)
9OF5SHEET

6. TOTAL THICKNESS INCLUDING BRACKET
IR = 77.1
PCAP = 66
98.7
104.2
65
336.5
33
17
, X87
106.5
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
SEE NEXT PAGE FOR DIMENSIONS WITH ECM KIT
LANDSCAPE ORIENTATION
LOGO ON BOTTOM
PORTRAIT ORIENTATION
LOGO ON LEFT
9OF6SHEET

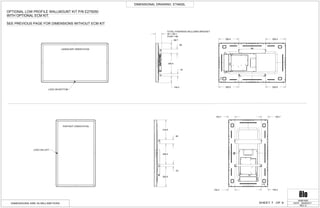

7. TOTAL THICKNESS INCLUDING BRACKET
IR = 100.1
PCAP = 89
98.7
104.2
65
336.5
33
318.9
65
336.5
33
326.9
326.4 326.4
326.9326.9
103.7103.7
104.2104.2
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
WITH OPTIONAL ECM KIT.
SEE PREVIOUS PAGE FOR DIMENSIONS WITHOUT ECM KIT
LANDSCAPE ORIENTATION
LOGO ON BOTTOM
PORTRAIT ORIENTATION
LOGO ON LEFT
9OF7SHEET

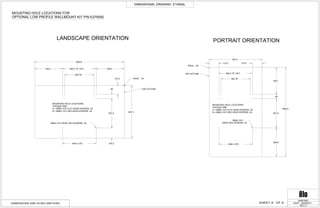

8. 1082.8
355 "B"
406.4 "A" (16")
406.4 (16")
357.9
48
107.4
124.2
637.4
R , X418.8
338.2338.2
637.4
355 "B"
406.4 "A" (16")
48
330.1
357.9
346.9
406.4 (16")
115.5
1082.8
R , X418.8
115.5
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
MOUNTING HOLE LOCATIONS FOR
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
LANDSCAPE ORIENTATION
MOUNTING HOLE LOCATIONS
CHOOSE ONE:
A = 6MM (1/4") FLAT HEAD SCREWS, X4
B = 6MM (1/4") HEX HEAD SCREWS, X4
6MM (1/4") HEAD HEX SCREWS, X2
IDS OUTLINE
PORTRAIT ORIENTATION
MOUNTING HOLE LOCATIONS
CHOOSE ONE:
A = 6MM (1/4") FLAT HEAD SCREWS, X4
B = 6MM (1/4") HEX HEAD SCREWS, X4
IDS OUTLINE
6MM (1/4")
HEAD HEX SCREWS, X2
9OF8SHEET

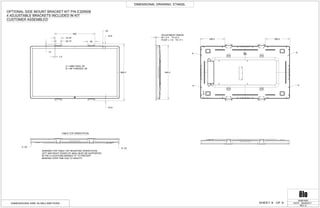

9. 685.3
490
90
23.9
50 "A"
75 "B"
23.9
ADJUSTMENT RANGE:
IR = 2.4 TO 27.4
PCAP = -7.9 TO 17.1
654.3
296.4 296.4
10
7.5
20
DIMENSIONAL DRAWING: ET4602L
REV: D
DATE: 06/28/2017
MS601605
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL SIDE MOUNT BRACKET KIT P/N E329508
4 ADJUSTABLE BRACKETS INCLUDED IN KIT
CUSTOMER ASSEMBLED
A = 4MM THRU, X8
B = M4 THREADS, X8
WARNING FOR TABLE-TOP MOUNTING ORIENTATION:
LEFT AND RIGHT EDGES OF 4602L MUST BE SUPPORTED
IN THE 4 LOCATIONS MARKED "A" TO PREVENT
BENDING OVER TIME DUE TO GRAVITY
TABLE-TOP ORIENTATION
A
A A
A
A, X2
A, X2
9OF9SHEET
