This document contains dimensional drawings and specifications for a touchscreen monitor. It includes dimensions for the viewable area, tilt angles, ports, mounting interfaces, and peripheral mounting locations on the device. Additional details are provided for an optional handle kit and VESA mounting interface.

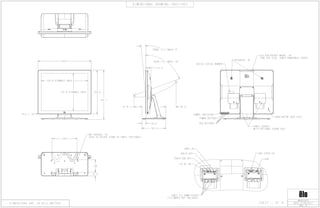

1. 376.8 VIEWABLE AREA
301.8 VIEWABLE AREA 354.6
429.6
R , X412.7
29.8
REAR TILT ANGLE 70 $
FRONT TILT ANGLE 5 $
41.6
193.4
61.8 82.4
200
100
397.7
31.9
DIMENSIONAL DRAWING: 1902/1903
REV: A
DATE:12/05/2017
MS601973
DIMENSIONS ARE IN MILLIMETERS
POWER INDICATOR
POWER BUTTON
OSD BUTTONS
KENSINGTON LOCK SLOT
CABLE COVERS,
WITH OPTIONAL SCREW LOCK
SPEAKERS, X2
DEVICE SERIAL NUMBER
ELO PERIPHERAL MOUNT, X4
(ONE PER SIDE, UNDER REMOVABLE COVER)
M4 THREADS, X4
USED TO SECURE STAND TO TABLE (OPTIONAL)
12V DC IN
TOUCH USB OUT
AUDIO OUT
HDMI IN
VGA VIDEO IN
USB
CABLE TIE-DOWN POINTS
(TIE-WRAPS NOT INCLUDED)
SHEET 1 OF 4

2. 100
100
65
DIMENSIONAL DRAWING: 1902/1903
REV: A
DATE: 12/05/2017
MS601973
DIMENSIONS ARE IN MILLIMETERS

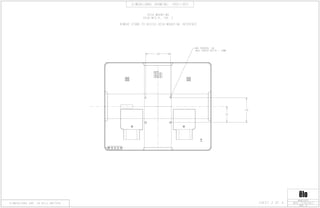

VESA MOUNTING
VESA MIS-D, 100, C
REMOVE STAND TO ACCESS VESA MOUNTING INTERFACE
M4 THREADS, X4
MAX THREAD DEPTH = 10MM
SHEET 2 OF 4

3. 513.2
119.5
41.8
237.1
DIMENSIONAL DRAWING: 1902/1903
REV: A
DATE: 12/05/2017
MS601973
DIMENSIONS ARE IN MILLIMETERS

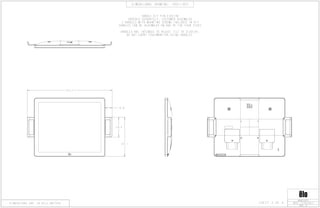

HANDLE KIT P/N E352196
ORDERED SEPARATELY, CUSTOMER ASSEMBLED
2 HANDLES WITH MOUNTING SCREWS INCLUDED IN KIT
HANDLES CAN BE ASSEMBLED ON ANY OF THE FOUR SIDES
HANDLES ARE INTENDED TO ADJUST TILT OF DISPLAY.
DO NOT CARRY TOUCHMONITOR USING HANDLES.
SHEET 3 OF 4

4. 102
5.9
102
5.9
14.2
TOUCHSCREEN TO
PERIPHERAL MOUNTING SURFACE
DIMENSIONAL DRAWING: 1902/1903
REV: A
DATE: 12/05/2017
MS601973
DIMENSIONS ARE IN MILLIMETERS

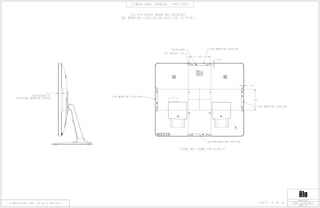

ELO PERIPHERAL MOUNTING INTERFACE
ONE MOUNTING LOCATION ON EACH SIDE (4 TOTAL)
M3 THREADS, X2
MICRO-USB
SIDE MOUNTING LOCATION
SIDE MOUNTING LOCATION
TOP MOUNTING LOCATION
BOTTOM MOUNTING LOCATION
STAND NOT SHOWN FOR CLARITY
SHEET 4 OF 4
