This document contains dimensional drawings and specifications for a touchscreen device. It includes measurements for active areas, peripheral locations, ports, mounting holes, and optional accessory kits that can be attached to the device, such as barcode scanners and stands. Dimensions are provided in millimeters and it includes revision details.

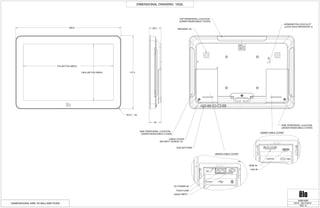

1. 218 (ACTIVE AREA)
136.6 (ACTIVE AREA)
254.6
177.3
28.5
29
R , X412.3
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS
TOP PERIPHERAL LOCATION
(UNDER REMOVABLE COVER)
SIDE PERIPHERAL LOCATION
(UNDER REMOVABLE COVER)
SIDE PERIPHERAL LOCATION
(UNDER REMOVABLE COVER)
OSD BUTTONS
CABLE COVER
SECURITY SCREW, X2
SPEAKER, X2
KENSINGTON LOCK SLOT
(LOCK SOLD SEPARATELY)
DC POWER IN
TOUCH USB
AUDIO INPUT
UNDER CABLE COVER
HDMI IN
VGA IN
UNDER CABLE COVER

2. 75
75
51.1
89.8
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS

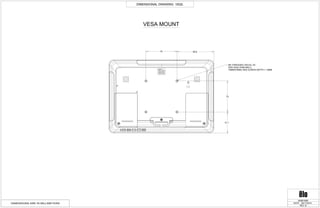

VESA MOUNT
M4 THREADED HOLES, X4
PER VESA FDMI MIS-C,
75MMX75MM, MAX SCREW DEPTH = 10MM

3. 20
119.9
28.7
0.2
2.3
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS

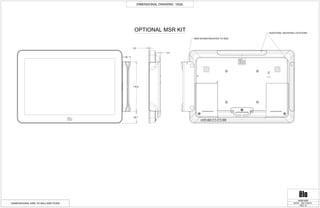

OPTIONAL MSR KIT
MSR SHOWN MOUNTED TO SIDE
ADDITIONAL MOUNTING LOCATIONS

4. 90° 90°
45
19
11
17.4
22.4
7.5
34
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS

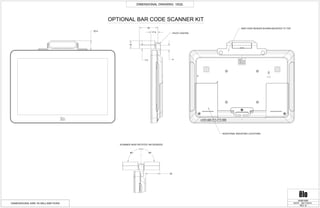

OPTIONAL BAR CODE SCANNER KIT
PIVOT CENTER
BAR CODE READER SHOWN MOUNTED TO TOP
ADDITIONAL MOUNTING LOCATIONS
SCANNER HEAD ROTATES 180 DEGREES

5. ROTATION RANGE
135°
53.3
75.1
20
11
17.4
28.7
64.1
103.9
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS

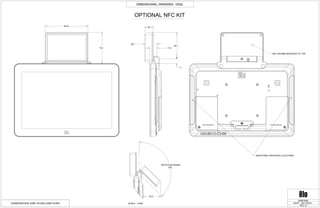

OPTIONAL NFC KIT
NFC SHOWN MOUNTED TO TOP
ADDITIONAL MOUNTING LOCATIONS
0.800SCALE

6. MAX TILT
FROM VERTICAL = 70°
146
180
230.5
DIMENSIONAL DRAWING: 1002L
REV: B
DATE: 06/17/2015
MS601669
DIMENSIONS ARE IN MILLIMETERS

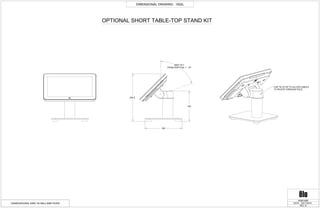

OPTIONAL SHORT TABLE-TOP STAND KIT
CAP TILTS UP TO ALLOW CABLES
TO ROUTE THROUGH POLE
