This document contains dimensional drawings and specifications for a touchscreen display model 5502L, including dimensions for: - Bezel and active screen areas - Mounting holes for optional wall mounting and side bracket kits - Connector and button locations - Dimensions are provided for the display alone and with optional external connection modules and mounting accessories.

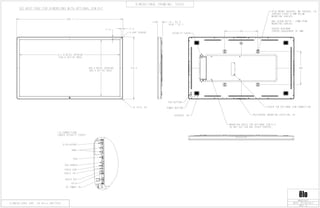

1. 1282.7
753.5
1211.8 BEZEL OPENING
1209.6 ACTIVE AREA
682.6 BEZEL OPENING
680.4 ACTIVE AREA
IR = 62.9
PCAP = 52.7
17.6 17.6
400
400
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
I/O CONNECTIONS
(UNDER SECURITY COVER)
SEE NEXT PAGE FOR DIMENSIONS WITH OPTIONAL ECM KIT
DISPLAYPORT
HDMI
VGA
OSD REMOTE
TOUCH USB
AUDIO IN
AUDIO OUT
GPIO
AC POWER IN
LIGHT SENSOR
R 18.8, X4 COVER FOR OPTIONAL ECM CONNECTION
SPEAKER, X4
POWER BUTTON
OSD BUTTON
SECURITY COVER
VESA MOUNT 400X400, M6 THREADS, X4
THREADS START 8.5MM BELOW
MOUNTING SURFACE
MAX SCREW DEPTH = 25MM FROM
MOUNTING SURFACE
ENSURE MINIMUM
THREAD ENGAGEMENT OF 5MM
MOUNTING HOLES FOR OPTIONAL ECM KIT,
DO NOT USE FOR ANY OTHER PURPOSE.
PERIPHERAL MOUNTING LOCATION, X4

2. , VESA MOUNT EXTENSION SPACER, X425
287.9
39
IR MODEL = 101.9
PCAP MODEL = 91.7
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
ECM CONNECTIONS ON SAME SIDE
AS IDS I/O CONNECTIONS
OPTIONAL ECM KIT
VESA MOUNT EXTENSION SPACERS AND SCREWS (X4)
INCLUDED WITH ECM KIT ECM KIT

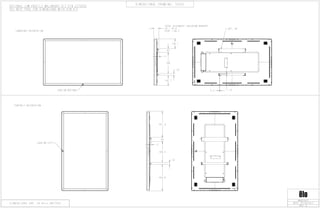

3. TOTAL THICKNESS INCLUDING BRACKET
IR = 78.4
PCAP = 68.2
156.7
65
336
33
162.7
, X87
6.5 10
65
421.3
426.8
33
336.5
17
17
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
SEE NEXT PAGE FOR DIMENSIONS WITH ECM KIT
LANDSCAPE ORIENTATION
PORTRAIT ORIENTATION
LOGO ON BOTTOM
LOGO ON LEFT

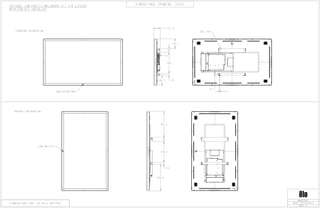

4. 101.4
156.7
65
336
33162.7
3.6
, X87
6.5
10
65
421.3
336.5
33
426.8
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
WITH ECM KIT INSTALLED
LANDSCAPE ORIENTATION
PORTRAIT ORIENTATION
LOGO ON BOTTOM
LOGO ON LEFT

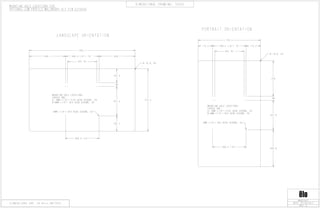

5. 1282.7
753.5
48
357.4
355 "B"
406.4 (16") "A" 438.1438.1
182.7
406.4 (16")
165.4
48
357.9
446.8
430
355 "B"
406.4 (16") "A"
753.5
173.5173.5
406.4 (16")
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
MOUNTING HOLE LOCATIONS FOR
OPTIONAL LOW PROFILE WALLMOUNT KIT P/N E275050
LANDSCAPE ORIENTATION
PORTRAIT ORIENTATION
MOUNTING HOLE LOCATIONS:
CHOOSE ONE:
A= 6MM (1/4") FLAT HEAD SCREWS, X4
B=6MM (1/4") HEX HEAD SCREWS, X4
MOUNTING HOLE LOCATIONS:
CHOOSE ONE:
A= 6MM (1/4") FLAT HEAD SCREWS, X4
B=6MM (1/4") HEX HEAD SCREWS, X4
6MM (1/4") HEX HEAD SCREWS, X2
R 18.8, X4
6MM (1/4") HEX HEAD SCREWS, X2
R 18.8, X4

6. 1342.5
490
90
50 "A"
75 "B"
10
7.5
23.9, X4
20
29.9, X4
ADJUSTMENT RANGE (25MM):
IR = 4.6 TO 29.6
PCAP = -5.5 TO 19.5
801.3
THRU, X2, (EACH BRACKET)4
DIMENSIONAL DRAWING: 5502L
REV: A
DATE: 05/30/2017
MS601912
DIMENSIONS ARE IN MILLIMETERS
OPTIONAL SIDE MOUNT BRACKET KIT P/N E329508
8 ADJUSTABLE BRACKETS INCLUDED IN KIT
CUSTOMER ASSEMBLED
M4 THREADS, X2 (EACH BRACKET)
