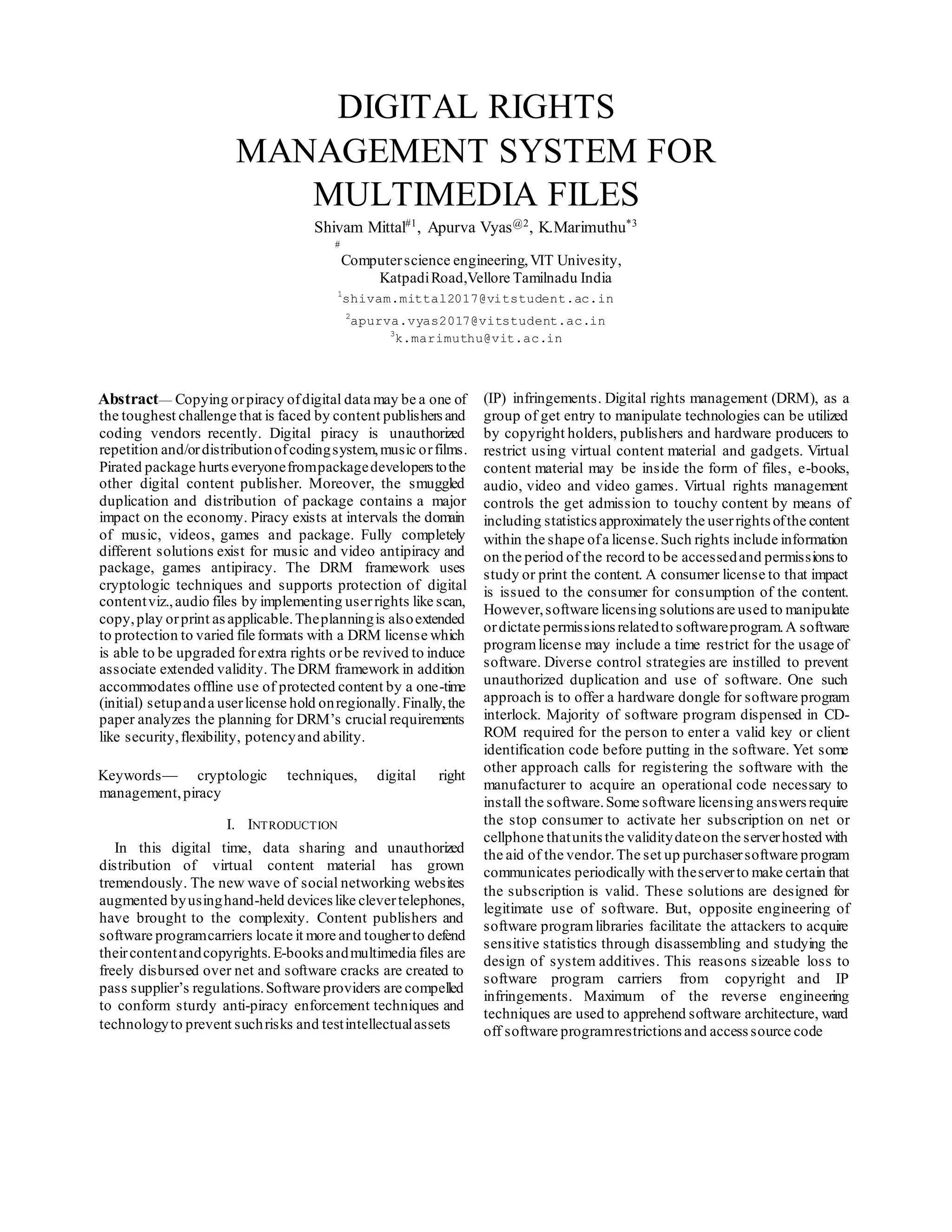

1. DIGITAL RIGHTS
MANAGEMENT SYSTEM FOR
MULTIMEDIA FILES
Shivam Mittal#1
, Apurva Vyas@2
, K.Marimuthu*3
#
Computerscience engineering,VIT Univesity,
KatpadiRoad,Vellore Tamilnadu India
1
shivam.mittal2017@vitstudent.ac.in
2
apurva.vyas2017@vitstudent.ac.in
3
k.marimuthu@vit.ac.in
Abstract— Copying orpiracy ofdigital data may be a one of
the toughest challenge that is faced by content publishers and
coding vendors recently. Digital piracy is unauthorized
repetition and/ordistributionofcodingsystem,music orfilms.
Pirated package hurts everyonefrompackagedevelopers tothe
other digital content publisher. Moreover, the smuggled
duplication and distribution of package contains a major
impact on the economy. Piracy exists at intervals the domain
of music, videos, games and package. Fully completely
different solutions exist for music and video antipiracy and
package, games antipiracy. The DRM framework uses
cryptologic techniques and supports protection of digital
contentviz.,audio files by implementing userrights like scan,
copy,play orprint asapplicable.Theplanningis alsoextended
to protection to varied file formats with a DRM license which
is able to be upgraded forextra rights orbe revived to induce
associate extended validity. The DRM framework in addition
accommodates offline use of protected content by a one-time
(initial) setupanda userlicense hold onregionally.Finally,the
paper analyzes the planning for DRM’s crucial requirements
like security,flexibility, potencyand ability.
Keywords— cryptologic techniques, digital right
management,piracy
I. INTRODUCTION
In this digital time, data sharing and unauthorized
distribution of virtual content material has grown
tremendously. The new wave of social networking websites
augmented byusinghand-held deviceslike clevertelephones,
have brought to the complexity. Content publishers and
software programcarriers locate it more and tougherto defend
theircontentandcopyrights.E-booksandmultimedia files are
freely disbursed over net and software cracks are created to
pass supplier’s regulations.Software providers are compelled
to conform sturdy anti-piracy enforcement techniques and
technologyto prevent suchrisks and testintellectualassets
(IP) infringements. Digital rights management (DRM), as a
group of get entry to manipulate technologies can be utilized
by copyright holders, publishers and hardware producers to
restrict using virtual content material and gadgets. Virtual
content material may be inside the form of files, e-books,
audio, video and video games. Virtual rights management
controls the get admission to touchy content by means of
including statistics approximately the userrights ofthe content
within the shape ofa license.Such rights include information
on the period of the record to be accessedand permissionsto
study or print the content. A consumer license to that impact
is issued to the consumer for consumption of the content.
However,software licensing solutions are used to manipulate
ordictate permissions relatedto softwareprogram.A software
programlicense may include a time restrict for the usage of
software. Diverse control strategies are instilled to prevent
unauthorized duplication and use of software. One such
approach is to offer a hardware dongle for software program
interlock. Majority of software program dispensed in CD-
ROM required for the person to enter a valid key or client
identification code before putting in the software. Yet some
other approach calls for registering the software with the
manufacturer to acquire an operational code necessary to
install the software.Some software licensing answersrequire
the stop consumer to activate her subscription on net or
cellphone thatunits the validitydateon the serverhosted with
the aid of the vendor.The set up purchasersoftware program
communicates periodically with theserverto make certain that
the subscription is valid. These solutions are designed for
legitimate use of software. But, opposite engineering of
software programlibraries facilitate the attackers to acquire
sensitive statistics through disassembling and studying the
design of system additives. This reasons sizeable loss to
software program carriers from copyright and IP
infringements. Maximum of the reverse engineering
techniques are used to apprehend software architecture, ward
off software programrestrictions and access source code

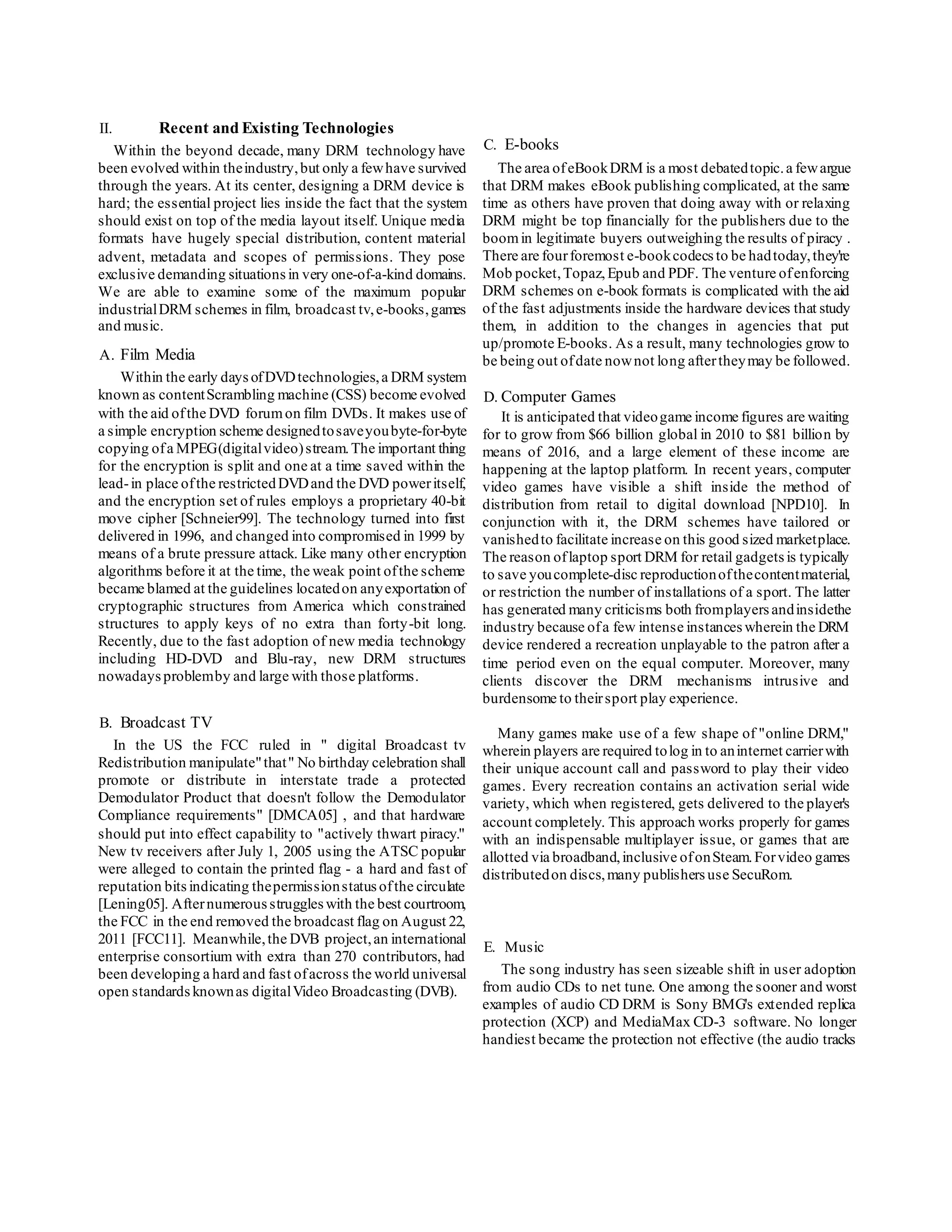

2. II. Recent and Existing Technologies
Within the beyond decade, many DRM technology have
been evolved within theindustry,but only a fewhave survived
through the years. At its center, designing a DRM device is
hard; the essential project lies inside the fact that the system
should exist on top of the media layout itself. Unique media
formats have hugely special distribution, content material
advent, metadata and scopes of permissions. They pose
exclusive demanding situationsin very one-of-a-kind domains.
We are able to examine some of the maximum popular
industrialDRM schemes in film, broadcast tv,e-books,games
and music.
A. Film Media
Within the early daysofDVDtechnologies,a DRM system
known as contentScrambling machine (CSS) become evolved
with the aid ofthe DVD forumon film DVDs. It makes use of
a simple encryption scheme designedtosaveyoubyte-for-byte
copying ofa MPEG(digitalvideo)stream.The important thing
for the encryption is split and one at a time saved within the
lead-in place ofthe restrictedDVDand the DVD poweritself,
and the encryption set of rules employs a proprietary 40-bit
move cipher [Schneier99]. The technology turned into first
delivered in 1996, and changed into compromised in 1999 by
means of a brute pressure attack. Like many other encryption
algorithms before it at the time, the weak point ofthe scheme
became blamed at the guidelines locatedon anyexportation of
cryptographic structures from America which constrained
structures to apply keys of no extra than forty-bit long.
Recently, due to the fast adoption of new media technology
including HD-DVD and Blu-ray, new DRM structures
nowadaysproblemby and large with those platforms.
B. Broadcast TV
In the US the FCC ruled in " digital Broadcast tv
Redistribution manipulate"that" No birthday celebration shall
promote or distribute in interstate trade a protected
Demodulator Product that doesn't follow the Demodulator
Compliance requirements" [DMCA05] , and that hardware
should put into effect capability to "actively thwart piracy."
New tv receivers after July 1, 2005 using the ATSC popular
were alleged to contain the printed flag - a hard and fast of
reputation bitsindicating thepermissionstatusofthe circulate
[Lening05]. Afternumerousstruggleswith the best courtroom,
the FCC in the end removed the broadcast flag on August 22,
2011 [FCC11]. Meanwhile,the DVB project,an international
enterprise consortium with extra than 270 contributors, had
been developing a hard and fast ofacross the world universal
open standardsknownas digitalVideo Broadcasting (DVB).
C. E-books
The area ofeBookDRM is a most debatedtopic.a fewargue
that DRM makes eBook publishing complicated, at the same
time as others have proven that doing away with or relaxing
DRM might be top financially for the publishers due to the
boomin legitimate buyers outweighing the results of piracy .
There are fourforemost e-bookcodecs to be hadtoday,they're
Mob pocket,Topaz,Epub and PDF. The venture ofenforcing
DRM schemes on e-book formats is complicated with the aid
of the fast adjustments inside the hardware devices that study
them, in addition to the changes in agencies that put
up/promote E-books. As a result, many technologies grow to
be being out ofdate nownot long aftertheymay be followed.
D. Computer Games
It is anticipated that videogame income figures are waiting
for to grow from $66 billion global in 2010 to $81 billion by
means of 2016, and a large element of these income are
happening at the laptop platform. In recent years, computer
video games have visible a shift inside the method of
distribution from retail to digital download [NPD10]. In
conjunction with it, the DRM schemes have tailored or
vanishedto facilitate increase on this good sized marketplace.
The reason oflaptop sport DRM for retail gadgets is typically
to save youcomplete-disc reproductionofthecontentmaterial,
or restriction the number of installations of a sport. The latter
has generated many criticisms both fromplayers andinsidethe
industry because ofa few intense instances wherein the DRM
device rendered a recreation unplayable to the patron after a
time period even on the equal computer. Moreover, many
clients discover the DRM mechanisms intrusive and
burdensome to theirsport play experience.
Many games make use of a few shape of "online DRM,"
wherein players are required tolog in to aninternet carrierwith
their unique account call and password to play their video
games. Every recreation contains an activation serial wide
variety, which when registered, gets delivered to the player's
account completely. This approach works properly for games
with an indispensable multiplayer issue, or games that are
allotted via broadband,inclusive ofonSteam.Forvideo games
distributedon discs,many publishers use SecuRom.
E. Music
The song industry has seen sizeable shift in user adoption
from audio CDs to net tune. One among the sooner and worst
examples of audio CD DRM is Sony BMG's extended replica
protection (XCP) and MediaMax CD-3 software. No longer
handiest became the protection not effective (the audio tracks

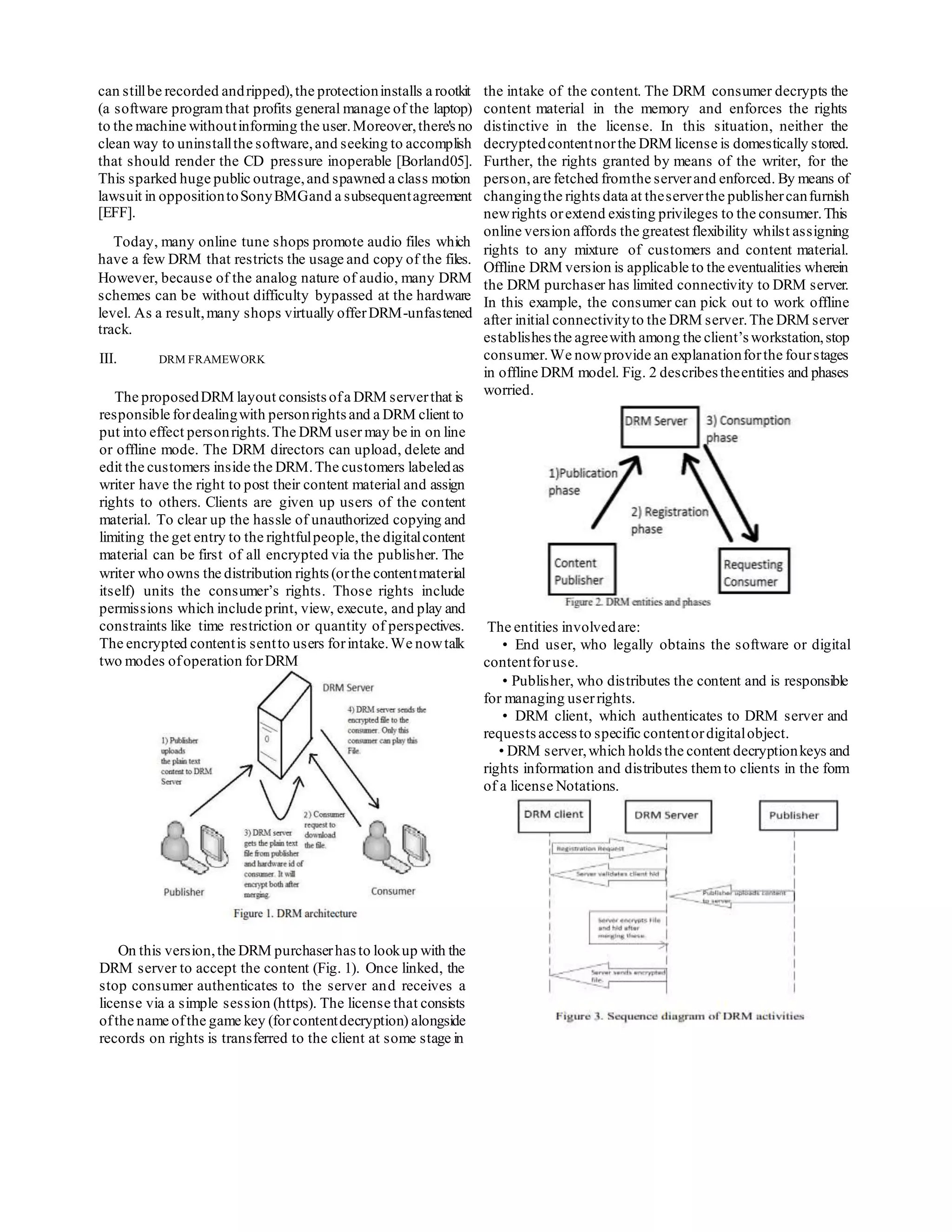

3. can stillbe recorded andripped),the protectioninstalls a rootkit
(a software programthat profits general manage of the laptop)
to the machine withoutinforming the user.Moreover,there's no
clean way to uninstallthe software,and seeking to accomplish
that should render the CD pressure inoperable [Borland05].
This sparked huge public outrage,and spawned a class motion
lawsuit in oppositiontoSonyBMGand a subsequentagreement
[EFF].
Today, many online tune shops promote audio files which
have a few DRM that restricts the usage and copy of the files.
However, because of the analog nature of audio, many DRM
schemes can be without difficulty bypassed at the hardware
level. As a result,many shops virtually offerDRM-unfastened
track.
III. DRM FRAMEWORK
The proposedDRM layout consistsofa DRM serverthat is
responsible fordealingwith personrightsand a DRM client to
put into effect personrights.The DRM user may be in on line
or offline mode. The DRM directors can upload, delete and
edit the customers inside the DRM.The customers labeledas
writer have the right to post their content material and assign
rights to others. Clients are given up users of the content
material. To clear up the hassle of unauthorized copying and
limiting the get entry to the rightfulpeople,the digitalcontent
material can be first of all encrypted via the publisher. The
writer who owns the distribution rights(orthe contentmaterial
itself) units the consumer’s rights. Those rights include
permissions which include print, view, execute, and play and
constraints like time restriction or quantity of perspectives.
The encrypted contentis sentto users forintake.We nowtalk
two modes ofoperation forDRM
On this version,the DRM purchaserhasto lookup with the
DRM server to accept the content (Fig. 1). Once linked, the
stop consumer authenticates to the server and receives a
license via a simple session (https). The license that consists
ofthe name ofthe game key (forcontentdecryption) alongside
records on rights is transferred to the client at some stage in
the intake of the content. The DRM consumer decrypts the
content material in the memory and enforces the rights
distinctive in the license. In this situation, neither the
decryptedcontentnorthe DRM license is domestically stored.
Further, the rights granted by means of the writer, for the
person,are fetched fromthe serverand enforced. By means of
changingthe rights data at theserverthe publishercanfurnish
newrights orextend existing privileges to the consumer.This
online version affords the greatest flexibility whilst assigning
rights to any mixture of customers and content material.
Offline DRM version is applicable to the eventualities wherein
the DRM purchaser has limited connectivity to DRM server.
In this example, the consumer can pick out to work offline
after initial connectivityto the DRM server.The DRM server
establishes the agreewith among the client’s workstation,stop
consumer.We nowprovide an explanationforthe fourstages
in offline DRM model. Fig. 2 describes theentities and phases
worried.
The entities involvedare:
• End user, who legally obtains the software or digital
contentforuse.
• Publisher, who distributes the content and is responsible
for managing userrights.
• DRM client, which authenticates to DRM server and
requests access to specific contentordigitalobject.
• DRM server,which holds the content decryptionkeys and
rights information and distributes themto clients in the form
of a license Notations.

4. In Fig. 3,we have illustrated the diverse entitiesworried and
the collection of interactions between them. An offline DRM
version uses asymmetric and symmetric cryptographic
mixture of keys and DRM licenses. First difference between
offline and online version is inside the license format and its
transport mechanism. In offline version, the content material
decryption key in the license is wrapped with client’s public
key and this license can be stored regionally. Offline DRM
licenses also are certain to unique customers.
a Registration phase
An existing DRM (online) user needs to accomplish
certificate registration to work in offline mode. In this phase,
the user acquires machine certificate and a user certificate to
establish a trust between DRM server and the user’s
workstation.
Step 1.UserU authenticatesto servervictimization Uid and
Upwd and requestsmachine certificate (by assignedappletor
a trustworthy application like the DRM shopper itself) from
DRM server.
Step 2.Server validates the hid of the shopperby causinga
sample programand checkits output.
b. Publication phase
In this part, the publisheruploads the content to the DRM
serverand encryptsit with a randomkey referred to as content
key. The content keys additionalprotected and keep in DRM
server’s information. Once userrequestsaccessto a particular
content,the content key and appropriate data is transferredto
the user within the sort of a tamperproof DRM license.
Publisher P uploads a digital content C, and encrypts it
victimizations the cryptography operate E and a randomkey
k to create EC.
c. ConsumptionPhase
Consumption part during this part, the DRM consumer
enforces the user rights for consumption of the content. One
DRM consumer will render multiple file formats supported
file kind
Step 1. To figure in offline mode, user must request the
license file UL from the DRM server.UL may be sent by the
publisher.
Step 2. Server generates the specified license file UL to
access encrypted content EC. The license file UL contains
contentkey encryptedwith user’spublic key Upub.
Step 3. DRM consumer stores the encrypted file EC and
corresponding license ULin its native information.
Step 4. Once usertries toaccessa file fromhernative DRM
consumer, the middle from the machine certificate Mcert is
matched with current machine ID. The integrity of the
corresponding license file UL is additionally verified.
Step 5. The DRM consumerdecrypts the encryptedcontent
world organization,and renders the content whenapplyingthe
rights.
IV.ANALYSIS
In this section, we have a tendency to analyze our design of
the DRM necessities like flexibility, efficiency, ability and
security supportedourobservations.
A. Flexibility Content format:
It’s potential to safeguard multiple formats (theoretically any
sort ofcontent)with the DRM server.Such formats Text,PDF,
image, audio, video, etc. Assignment of rights is versatile.
Permissions andconstraints may be enforcedat granularlevel,
for selected user, on selected content. Revocation of rights is
additionally easy. Approved customers will consume the
contenton any machine exploitationthe DRM consumer.The
framework is transportable to multiple platforms.
B. lustiness
The design is strong to support load reconciliation and
clump. Just in case of any failure at primary server,a backup
server will take over. The user load may be distributed on to
multiple DRM servers.
C. Quality
The model is fairly easy and might be simply enforced. In
offline model, key and certificate management is that the
overheadforthe advantageofoffline consumptionofcontent.
D. Handiness
The protectedcontentis offered to any orallthe legitimate
users fromthe server. If a license file is lost, a backup copy
may be obtained. If there is two publishers, say A and B,
publisherA cannot grant any rights on the content printedby
B similar applies to generationofDRM licenses.In Multi-user
atmosphere, users have to be compelled to attest to DRM
server for winning licenses. In offline model, the licenses of
two measure guaranteed to specific users on specific
machines. Repetition license files or sealed objects fromone
machine to different cannot breakthe DRM protection.
E. Security
All the communications from DRM consumer to server
happen over SSL/https. Each time the content must be
consumed,userauthenticationto serveroverhttps is required.
Therefore eavesdropping and man-in-the middle sort of
attacks aren'tpotential. Within theeventofa tamperedlicense,
the DRM consumerwon't settle forthelicense file.The license
file carries the DRM server’s digitalsignature to facilitate the
detection of change of state. All the crypto logical keys

5. measure adequately protected exploitation access controls or
exploitation key wrapping. For added protection to crypto
logicalkeys,white-boxcrypto logicaltechniquesmay be used
so the attackers don’t have access to the keys throughout
decoding. Reading of IDS/IPS and observation the DRM
serverlogs will facilitate for hindrance ofsuch attacks.
CONCLUSION
In this paper, we provided a DRM framework to defend
digital multimedia content and which can be extended to
software program packages. The framework can also be
extended to help more than one content materialformats.We
found it flexible and efficient to manage consumer rights,
comfortable in design andinteroperable with the openorthird
party clients. Future scope of this work consists of the
investigation on extending this framework to a cloud
environment.
REFERENCES
[1] Privacy-Preserving Digital Rights Management based
978-1-4799-3223-8/14/$31.00 ©2014 IEEE
[2] A Robust Approach to Prevent Software Piracy 978-1-
4673-0455-9/12/$31.00 ©2012 IEEE
[3] A P2P Cultural Multimedia Network – Maximizing
Cultural Dissemination and supporting Copyright Protection
and Management,©2014IEEE
[4] ADRMS: Active Directory Digital Rights Management
Overview. Available:
http://msdn.microsoft.com/enus/library/cc530389
(v=vs.85).aspx.
[5] Adobe Content Server,In
http://www.adobe.com/products/
[6] WebGuard: A System for Web Content Protection.
Available:
http://domino.watson.ibm.com/comm/research_projects.nsf/p
ages/labasec.WebGuard.htm
[7] DRM-JVM: Digital-Rights-Management-Enabled Java
Virtual Machine. Available:
http://domino.watson.ibm.com/comm/research_projects.nsf/p
ages/labasec.DRM-JVM.html
[8] New Method of Hardware Encryption against Piracy
978-0-7695-3600-2/09 $25.00 © 2009 IEEE
[9] Enterprise DigitalRights ManagementSystembasedon
Smart Card. 978-1-61284-842-6/11/$26.00 ©2011 IEEE
[10] A DRM Framework Towards Preventing Digital
Piracy. 978-1-4577-2155-7/11/$26.00 c_2011 IEEE [11]
Unifying Broadcast Encryption and Traitor Tracing for
Content Protection.1063-9527/09 $26.00 © 2009 IEEE
[12] Annoyance Maximization for Digital Cinema Anti-
piracy Applications 978-0-7695-3959-1/09 $26.00 © 2009
IEEE.
