Uploaded byDario Bonino
dfl
This document introduces a block-based data fusion language for defining complex event processing queries in smart cities without requiring expertise in CEP languages. It uses processing blocks that can be chained together to represent queries. Templates define custom blocks with free input/output parameters. Wildcard template binding selects data streams at deployment time based on stream metadata or SPARQL constraints. This enables non-experts like city administrators to define CEP queries for large volumes of sensor data in smart cities. Future work includes implementing full SPARQL-based wildcard instantiation and usability testing.
dfl

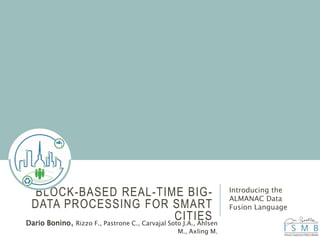

- 1. BLOCK-BASED REAL-TIME BIG- DATAPROCESSING FOR SMART CITIES Introducing the ALMANAC Data Fusion Language Dario Bonino, Rizzo F., Pastrone C., Carvajal Soto J.A., Ahlsen M., Axling M.

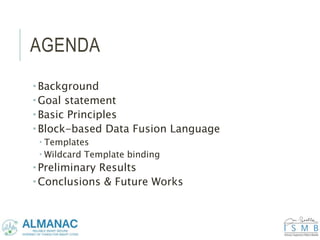

- 2. AGENDA Background Goalstatement Basic Principles Block-based Data Fusion Language Templates Wildcard Template binding Preliminary Results Conclusions & Future Works

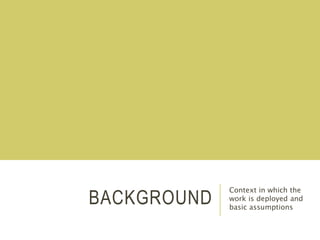

- 3. BACKGROUND Context in whichthe work is deployed and basic assumptions

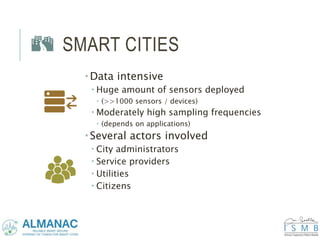

- 4. SMART CITIES Dataintensive Huge amount of sensors deployed (>>1000 sensors / devices) Moderately high sampling frequencies (depends on applications) Several actors involved City administrators Service providers Utilities Citizens
- 5. DATA HANDLING Technology capable to Handle in real-time>> 1000 datapoints /s E.g. Complex Event Processing (CEP) Store and Handle >> 100k datapoints* E.g. NoSQL and or Time Series Databases Requires programming by experts select avg(cast(waterMeter.resultValue, double)) from Observation.win:time(600 sec).std:unique(datastream.id) as waterMeter where (waterMeter.sensor.metadata like '%FlowSensor' or waterMeter.resultType='Flo')
- 6. However Knowledge about“relevant” processing is owned by not experts Utility operators City Administrators (low/mid level) It often unfeasible/not scalable to Set dedicated positions for CEP experts to address Smart City processing needs DATA HANDLING

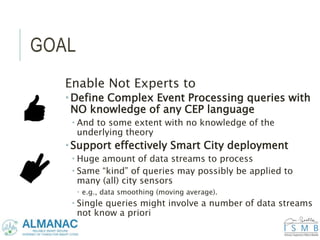

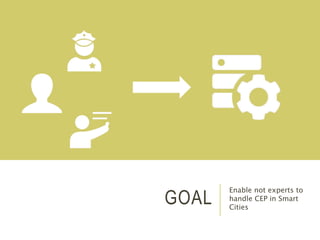

- 7. GOAL Enable not expertsto handle CEP in Smart Cities
- 8. GOAL Enable Not Expertsto Define Complex Event Processing queries with NO knowledge of any CEP language And to some extent with no knowledge of the underlying theory Support effectively Smart City deployment Huge amount of data streams to process Same “kind” of queries may possibly be applied to many (all) city sensors e.g., data smoothing (moving average). Single queries might involve a number of data streams not know a priori
- 9.

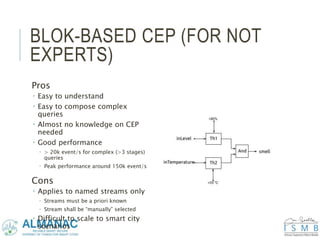

- 10. BLOK-BASED CEP (FORNOT EXPERTS) Based on previous work (SpChains) Processing Block Single, parametrized query Cascading Permits to concatenate simple blocks to obtain complex queries
- 11. BLOK-BASED CEP (FORNOT EXPERTS) Pros Easy to understand Easy to compose complex queries Almost no knowledge on CEP needed Good performance > 20k event/s for complex (>3 stages) queries Peak performance around 150k event/s Cons Applies to named streams only Streams must be a priori known Stream shall be “manually” selected Difficult to scale to smart city scenarios
- 12. BLOCK-BASED DATA FUSION LANGUAGE ExtendSpChains to support Smart City CEP
- 13. BLOCK-BASED DATA FUSION LANGUAGE Basedon SpChains, introduces 2 extensions for smart city scenarios Template Special class of processing chain with “free” input / ouput (source/drain) Wild-card template binding Flexible algorithm to bind data sources and processing chain inputs Carried when queries are deployed Based on data stream metadata Declarative description of “allowed streams”

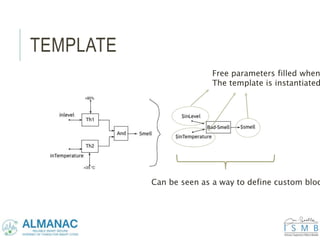

- 14. TEMPLATE Free parameters filledwhen The template is instantiated Can be seen as a way to define custom bloc

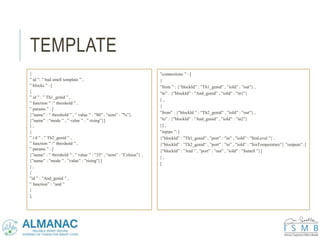

- 15. TEMPLATE { ” id ”:” bad smell template ” , ” blocks ” : [ { ” id ” : ” Th1_genid ” , ” function ” :” threshold ” , ” params ” : [ {”name” : ” threshold ” , ” value ” : ”80” , ”uom” : ”%”}, {”name” : ”mode ” , ” value ” : ” rising”}] } , { ” i d ” : ” Th2_genid ” , ” function ” :” threshold ” , ” params ” : [ {”name” : ” threshold ” , ” value ” : ”35” , ”uom” : ”Celsius”} , {”name” : ”mode ” , ”value” : ”rising”}] } , { ”id ” : ”And_genid ” , ” function” : ”and ” } ], ”connections ” : [ { ”from ” : {”blockId” : ”Th1_genid” , ”ioId” : ”out”} , ”to” : {”blockId” : ”And_genid” , ”ioId” : ”in1”} } , { ”from” : {”blockId ” : ”Th2_genid” , ”ioId” : ”out”} , ”to” : {”blockId” : ”And_genid” , ”ioId” : ”in2”} }] , ”inputs ”: [ {”blockId” : ”Th1_genid” , ”port” : ”in” , ”ioId” : ”$inLevel ”} , {”blockId” : ”Th2_genid” , ”port” : ”in” , ”ioId” : ”$inTemperature”} ”outputs”: [ {”blockId” : ”And ” , ”port” : ”out” , ”ioId” : ”$smell ”}] } , ]

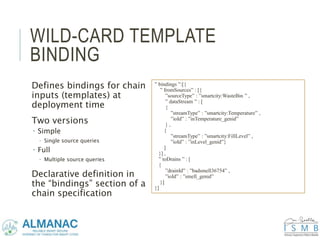

- 16. WILD-CARD TEMPLATE BINDING Defines bindingsfor chain inputs (templates) at deployment time Two versions Simple Single source queries Full Multiple source queries Declarative definition in the “bindings” section of a chain specification ” bindings ”:[{ ” fromSources” : [{ ”sourceType” : ”smartcity:WasteBin ” , ” dataStream ” : [ { ”streamType” : ”smartcity:Temperature” , ”ioId” : ”inTemperature_genid” } , { ”streamType” : ”smartcity:FillLevel” , ”ioId” : ”inLevel_genid”} ] }] , ” toDrains ” : [ { ”drainId” : ”badsmell36754” , ”ioId” : ”smell_genid” }] }]

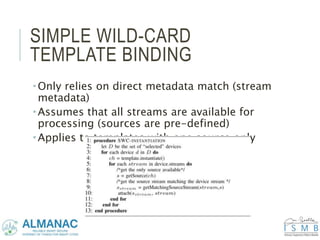

- 17. SIMPLE WILD-CARD TEMPLATE BINDING Only relies on direct metadata match (stream metadata) Assumes that all streams are available for processing (sources are pre-defined) Applies to templates with one source only

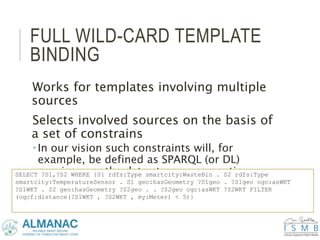

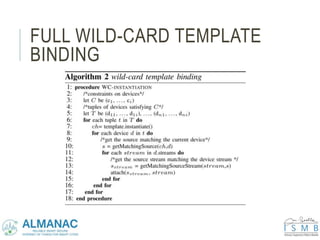

- 18. FULL WILD-CARD TEMPLATE BINDING Worksfor templates involving multiple sources Selects involved sources on the basis of a set of constrains In our vision such constraints will, for example, be defined as SPARQL (or DL) queries over the data streams semantic metadata SELECT ?S1,?S2 WHERE {S1 rdfs:Type smartcity:WasteBin . S2 rdfs:Type smartcity:TemperatureSensor . S1 geo:hasGeometry ?S1geo . ?S1geo ogc:asWKT ?S1WKT . S2 geo:hasGeometry ?S2geo . . ?S2geo ogc:asWKT ?S2WKT FILTER (ogcf:distance(?S1WKT , ?S2WKT , my:Meter) < 5)}
- 19.
- 20.

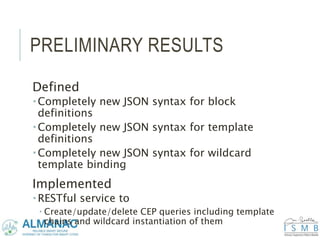

- 21. PRELIMINARY RESULTS Defined Completelynew JSON syntax for block definitions Completely new JSON syntax for template definitions Completely new JSON syntax for wildcard template binding Implemented RESTful service to Create/update/delete CEP queries including template chains and wildcard instantiation of them

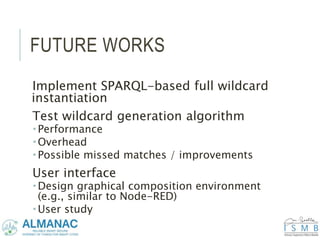

- 22. FUTURE WORKS Implement SPARQL-basedfull wildcard instantiation Test wildcard generation algorithm Performance Overhead Possible missed matches / improvements User interface Design graphical composition environment (e.g., similar to Node-RED) User study
- 23. QUESTIONS? Block-based Real- time Big-Data Processingfor Smart CitiesDario Bonino, bonino@ismb.it The project is co-funded by the European Commission under grant agreement 609081. This presentation reflects solely the views of its authors. The European Commission is not liable for any use that may be made of the information contained therein
