Bhakti Mehta presented on architecting microservices for failures and lessons learned. Some key points include: 1) When developing microservices, techniques like circuit breakers, timeouts, retries, and rate limiting can help avoid cascading failures. 2) extensive testing including load testing and failure injection testing should be done before production deployment. 3) After deploying to production, continuous monitoring of metrics and health checks is important to quickly identify issues.

1. #DevoxxUS
Architecting for failures in micro
services:
Patterns and lessons learned
Bhakti Mehta
@bhakti_mehta

2. INTRODUCTION
➤ Platform@Atlassian
➤ In the past Platform Lead at BlueJeans Network
➤ Worked at Sun Microsystems/Oracle for 13 years
➤ Committer to numerous open source projects including
GlassFish Application Server

3. MY RECENT BOOK

4. PREVIOUS BOOK

5. ATLASSSIAN

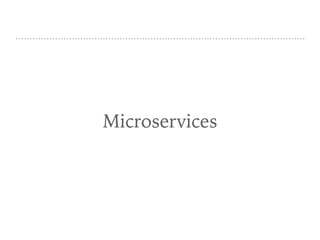

6. Microservices

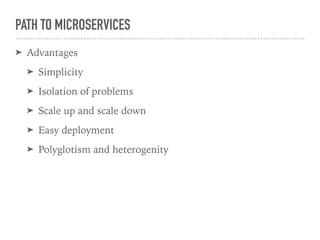

7. PATH TO MICROSERVICES
➤ Advantages
➤ Simplicity
➤ Isolation of problems
➤ Scale up and scale down
➤ Easy deployment
➤ Polyglotism and heterogenity

8. Sounds great!!

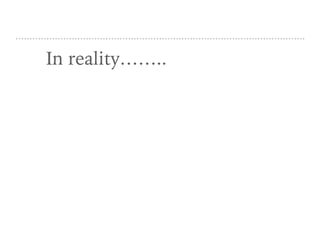

9. In reality……..

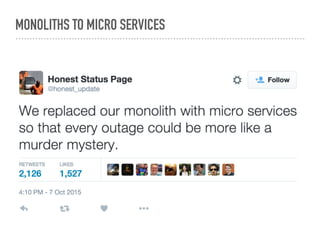

10. MONOLITHS TO MICRO SERVICES

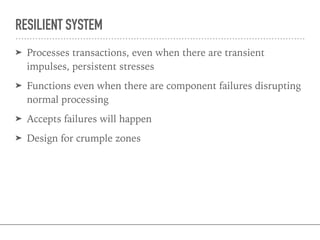

11. RESILIENT SYSTEM
➤ Processes transactions, even when there are transient
impulses, persistent stresses
➤ Functions even when there are component failures disrupting
normal processing
➤ Accepts failures will happen
➤ Design for crumple zones

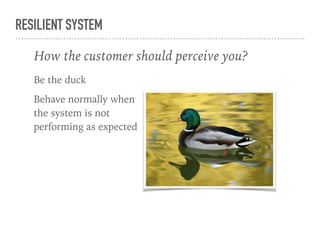

12. RESILIENT SYSTEM
Be the duck
Behave normally when
the system is not
performing as expected
in face of outages
Behave normally
How the customer should perceive you?

13. RESILIENT SYSTEM
How the system needs to function?
Heal quickly before customers notice

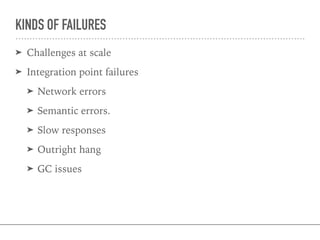

14. KINDS OF FAILURES
➤ Challenges at scale
➤ Integration point failures
➤ Network errors
➤ Semantic errors.
➤ Slow responses
➤ Outright hang
➤ GC issues

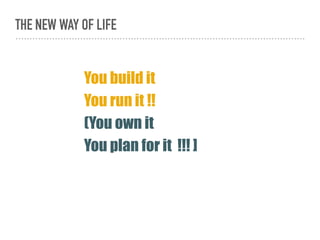

15. THE NEW WAY OF LIFE
You build it
You run it !!
(You own it
You plan for it !!! ]

17. ➤
PERFECT STORM

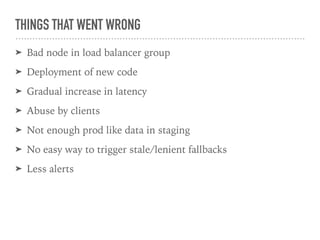

18. THINGS THAT WENT WRONG
➤ Bad node in load balancer group
➤ Deployment of new code
➤ Gradual increase in latency
➤ Abuse by clients
➤ Not enough prod like data in staging
➤ No easy way to trigger stale/lenient fallbacks
➤ Less alerts

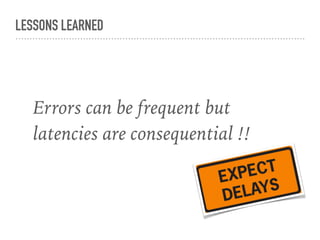

19. LESSONS LEARNED
consequential !!!!
Errors can be frequent but
latencies are consequential !!

20. ACTION PLAN
➤ Circuit breakers
➤ Fallback (lenient acceptable values)
➤ Predictive caching
➤ Reduce surface area by clients
➤ Load tests
➤ Failure injection testing
➤ Monitor
➤ Alerts
Development time
Before a deploy
Post deploy

21. The more you sweat on the field
the less you bleed in war!!!

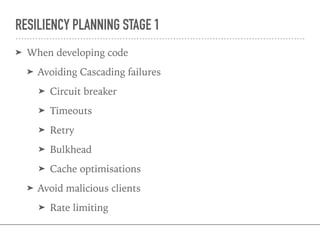

22. RESILIENCY PLANNING STAGE 1
➤ When developing code
➤ Avoiding Cascading failures
➤ Circuit breaker
➤ Timeouts
➤ Retry
➤ Bulkhead
➤ Cache optimisations
➤ Avoid malicious clients
➤ Rate limiting

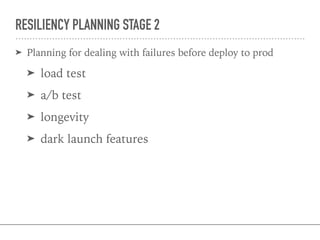

23. RESILIENCY PLANNING STAGE 2
➤ Planning for dealing with failures before deploy to prod
➤ load test
➤ a/b test
➤ longevity
➤ dark launch features

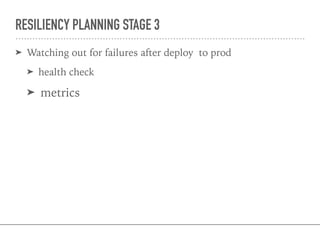

24. RESILIENCY PLANNING STAGE 3
➤ Watching out for failures after deploy to prod
➤ health check
➤ metrics

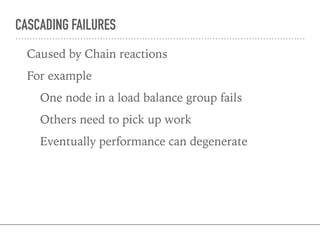

26. CASCADING FAILURES
Caused by Chain reactions
For example
One node in a load balance group fails
Others need to pick up work
Eventually performance can degenerate

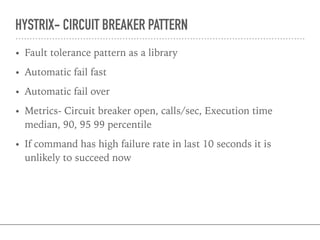

27. HYSTRIX- CIRCUIT BREAKER PATTERN
• Fault tolerance pattern as a library
• Automatic fail fast
• Automatic fail over
• Metrics- Circuit breaker open, calls/sec, Execution time
median, 90, 95 99 percentile
• If command has high failure rate in last 10 seconds it is
unlikely to succeed now

28. TIMEOUTS PATTERN

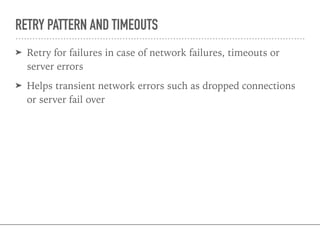

29. RETRY PATTERN AND TIMEOUTS
➤ Retry for failures in case of network failures, timeouts or
server errors
➤ Helps transient network errors such as dropped connections
or server fail over

30. BULKHEAD

31. RATE LIMITING

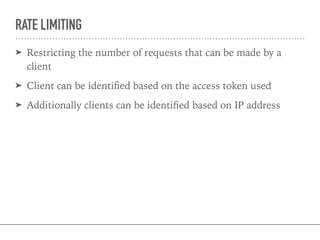

32. RATE LIMITING
➤ Restricting the number of requests that can be made by a
client
➤ Client can be identified based on the access token used
➤ Additionally clients can be identified based on IP address

33. CACHE OPTIMIZATIONS
Getting from first level cache
Getting from second
level cache
Getting from the DB

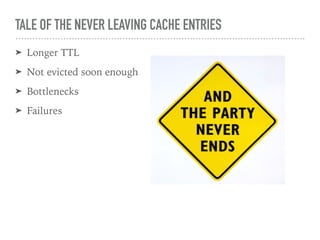

34. TALE OF THE NEVER LEAVING CACHE ENTRIES
➤ Longer TTL
➤ Not evicted soon enough
➤ Bottlenecks
➤ Failures

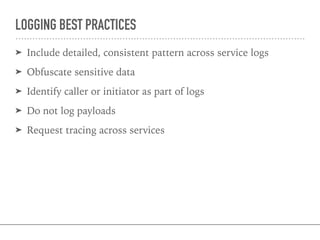

35. LOGGING BEST PRACTICES
➤ Include detailed, consistent pattern across service logs
➤ Obfuscate sensitive data
➤ Identify caller or initiator as part of logs
➤ Do not log payloads
➤ Request tracing across services

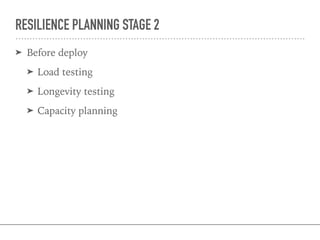

36. RESILIENCE PLANNING STAGE 2
➤ Before deploy
➤ Load testing
➤ Longevity testing
➤ Capacity planning

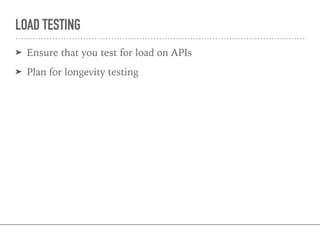

37. LOAD TESTING
➤ Ensure that you test for load on APIs
➤ Plan for longevity testing

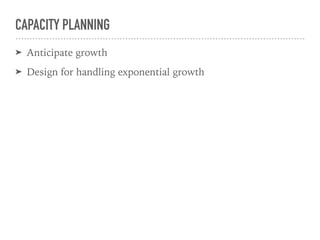

38. CAPACITY PLANNING
➤ Anticipate growth
➤ Design for handling exponential growth

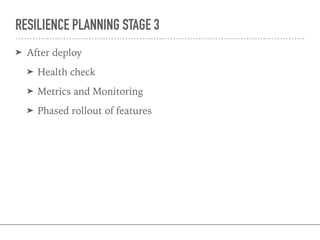

39. RESILIENCE PLANNING STAGE 3
➤ After deploy
➤ Health check
➤ Metrics and Monitoring
➤ Phased rollout of features

40. Health Check

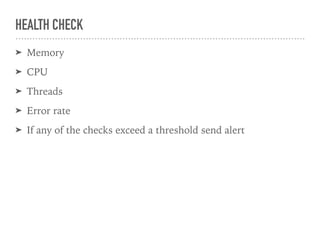

41. HEALTH CHECK
➤ Memory
➤ CPU
➤ Threads
➤ Error rate
➤ If any of the checks exceed a threshold send alert

42. Metrics and Monitoring

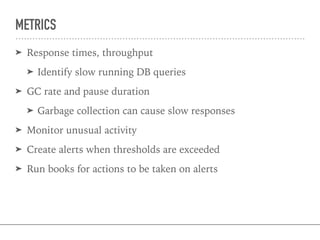

43. METRICS
➤ Response times, throughput
➤ Identify slow running DB queries
➤ GC rate and pause duration
➤ Garbage collection can cause slow responses
➤ Monitor unusual activity
➤ Create alerts when thresholds are exceeded
➤ Run books for actions to be taken on alerts

44. Thoughts of the on call person paged at 3 am
debugging an issue in your code

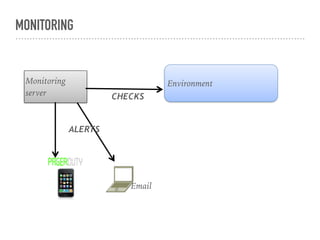

45. MONITORING
Monitoring
server
Environment
CHECKS
ALERTS
Email

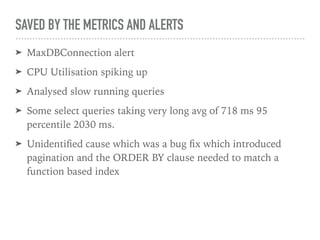

46. SAVED BY THE METRICS AND ALERTS
➤ MaxDBConnection alert
➤ CPU Utilisation spiking up
➤ Analysed slow running queries
➤ Some select queries taking very long avg of 718 ms 95
percentile 2030 ms.
➤ Unidentified cause which was a bug fix which introduced
pagination and the ORDER BY clause needed to match a
function based index

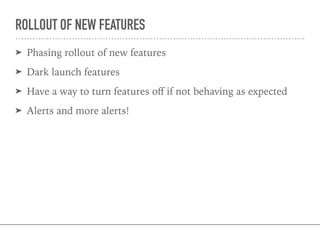

47. ROLLOUT OF NEW FEATURES
➤ Phasing rollout of new features
➤ Dark launch features
➤ Have a way to turn features off if not behaving as expected
➤ Alerts and more alerts!

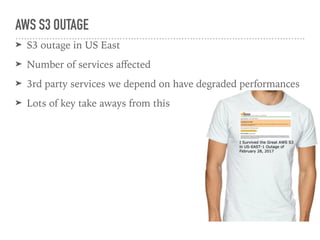

48. AWS S3 OUTAGE
➤ S3 outage in US East
➤ Number of services affected
➤ 3rd party services we depend on have degraded performances
➤ Lots of key take aways from this

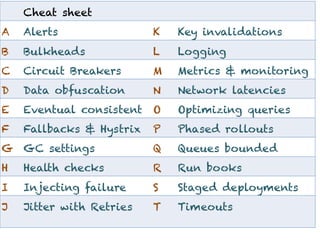

49. Cheat sheet
A Alerts K Key invalidations
B Bulkheads L Logging
C Circuit Breakers M Metrics & monitoring
D Data obfuscation N Network latencies
E Eventual consistent O Optimizing queries
F Fallbacks & Hystrix P Phased rollouts
G GC settings Q Queues bounded
H Health checks R Run books
I Injecting failure S Staged deployments
J Jitter with Retries T Timeouts

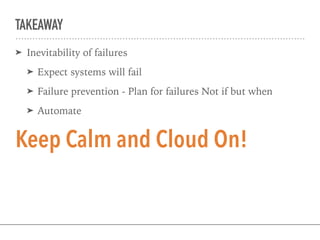

50. TAKEAWAY
➤ Inevitability of failures
➤ Expect systems will fail
➤ Failure prevention - Plan for failures Not if but when
➤ Automate
Keep Calm and Cloud On!

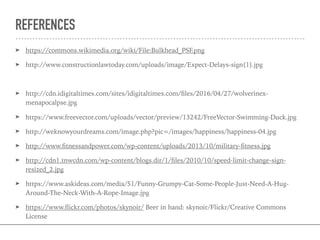

51. REFERENCES
➤ https://commons.wikimedia.org/wiki/File:Bulkhead_PSF.png
➤ http://www.constructionlawtoday.com/uploads/image/Expect-Delays-sign(1).jpg
➤ http://cdn.idigitaltimes.com/sites/idigitaltimes.com/files/2016/04/27/wolverinex-
➤ https://www.freevector.com/uploads/vector/preview/13242/FreeVector-Swimming-Duck.jpg
➤ http://weknowyourdreams.com/image.php?pic=/images/happiness/happiness-04.jpg
➤ http://www.fitnessandpower.com/wp-content/uploads/2013/10/military-fitness.jpg
➤ http://cdn1.tnwcdn.com/wp-content/blogs.dir/1/files/2010/10/speed-limit-change-sign-
➤ https://www.askideas.com/media/51/Funny-Grumpy-Cat-Some-People-Just-Need-A-Hug-
➤ https://www.flickr.com/photos/skynoir/ Beer in hand: skynoir/Flickr/Creative Commons
License

52. #DevoxxUS
Questions
@bhakti_mehta
