1. PAGE1
DEVOPS INDONESIA
DEVOPS INDONESIA
Jakarta, 05 Desember 2017
DevOps Toolchain & Technology
DevOps Community in Indonesia

2. PAGE2
DEVOPS INDONESIA
Enjoy, we provide
rice... snack

3. PAGE3
DEVOPS INDONESIA
Let’s get know each other

4. PAGE4
DEVOPS INDONESIA
DevOps Trainer | DevOps Consultant | Agile Practitioner | Engineer
Made Mulia Santosa Indrajaya

5. PAGE5
DEVOPS INDONESIA
“We’re hearing more lately
something called ‘DevOps’. It is
Product Management, Development,
IT Operations, and event
information security all working
together and supporting one
another.
“
“
Gene Kim
Author of the Phoenix Project
Researcher & DevOps Evangelist

6. PAGE6
DEVOPS INDONESIA
How to build, test and release faster,
more frequently and more reliable ?

7. PAGE7
DEVOPS INDONESIA

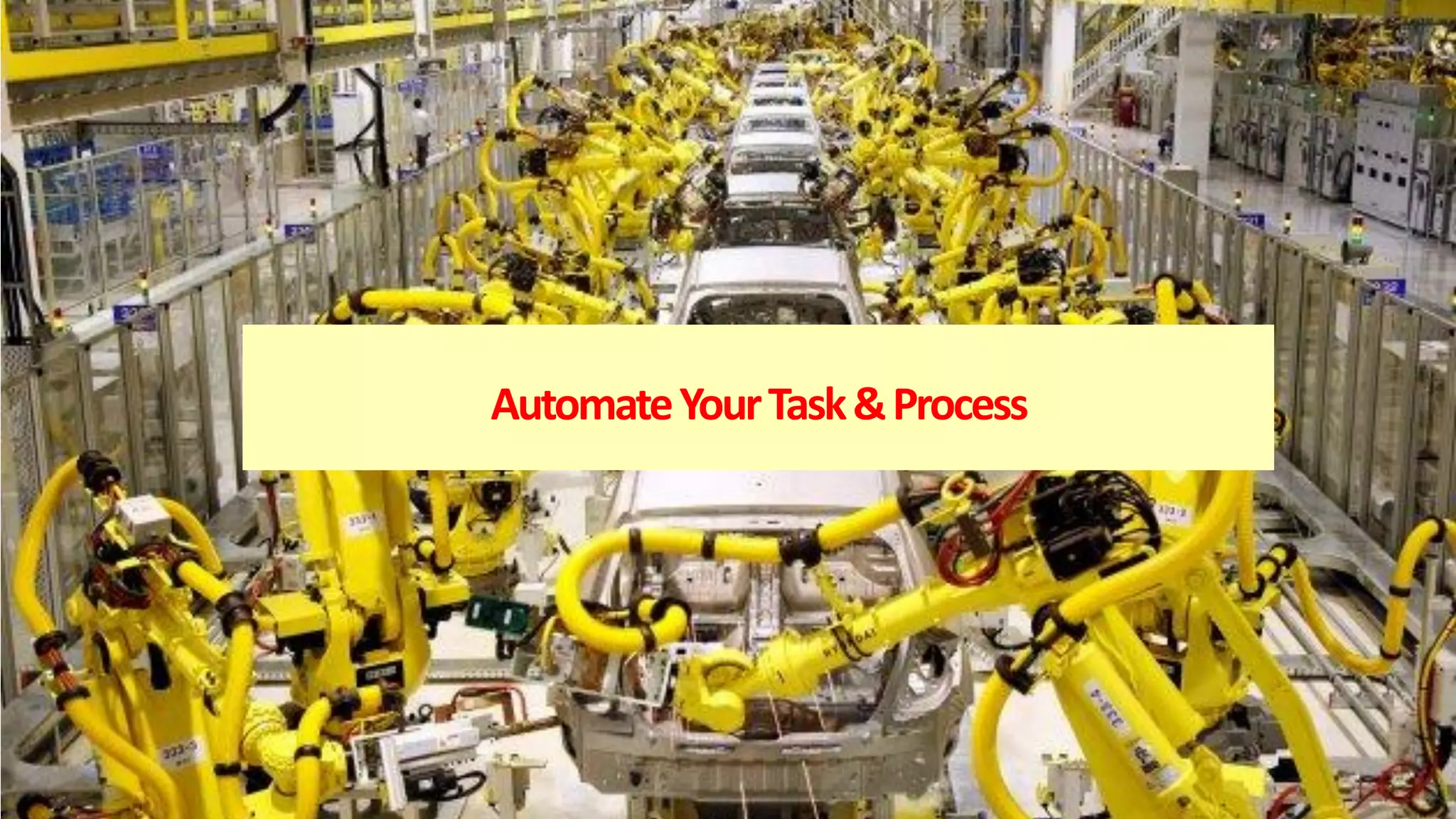

AutomateYourTask&Process

8. PAGE8
DEVOPS INDONESIA
Okay, I am using
several tools and
trying to
automate things
What is DevOps
Toolchain ?

9. PAGE9
DEVOPS INDONESIA

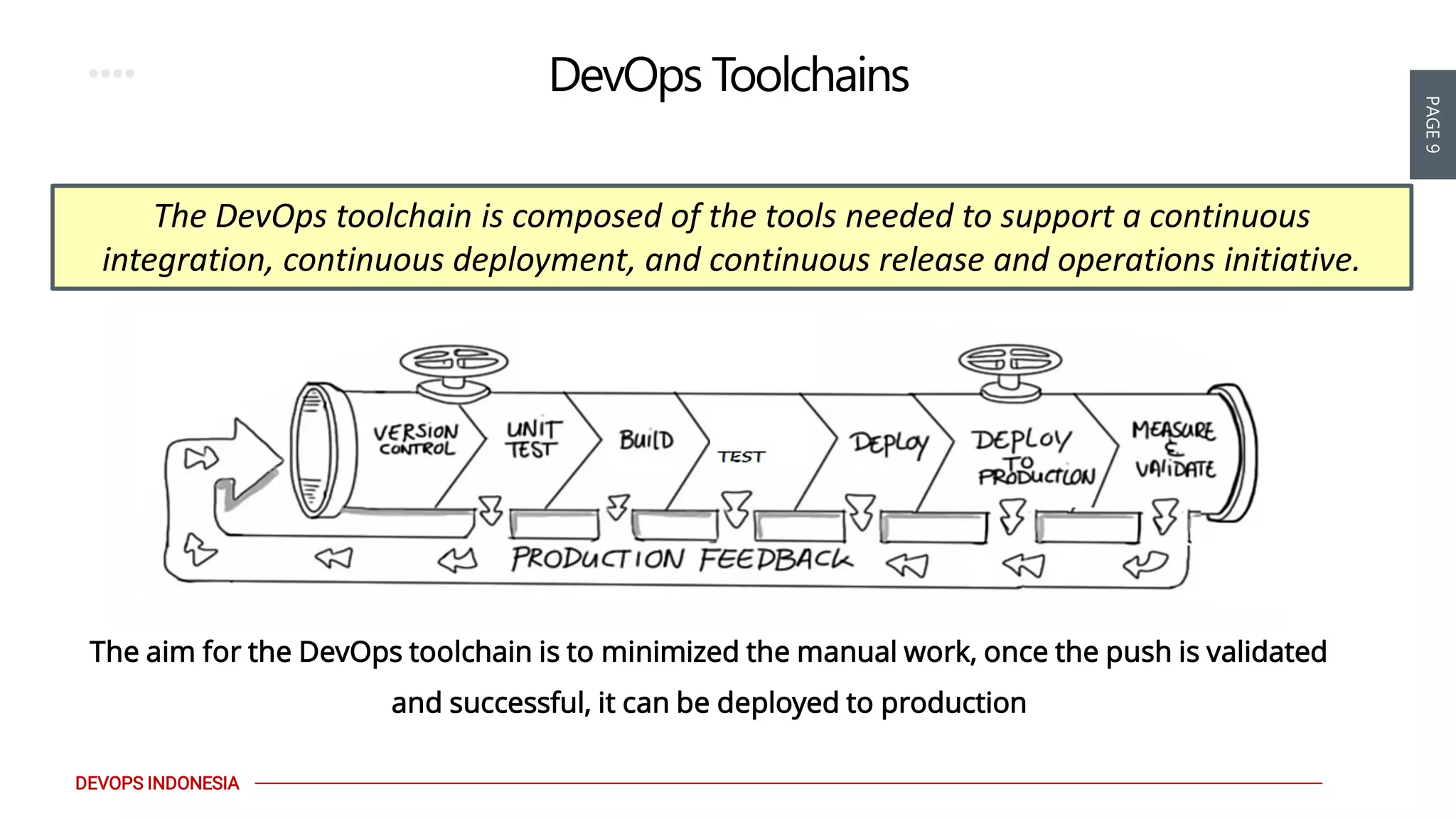

DevOps Toolchains
The DevOps toolchain is composed of the tools needed to support a continuous
integration, continuous deployment, and continuous release and operations initiative.
The aim for the DevOps toolchain is to minimized the manual work, once the push is validated
and successful, it can be deployed to production

10. PAGE10

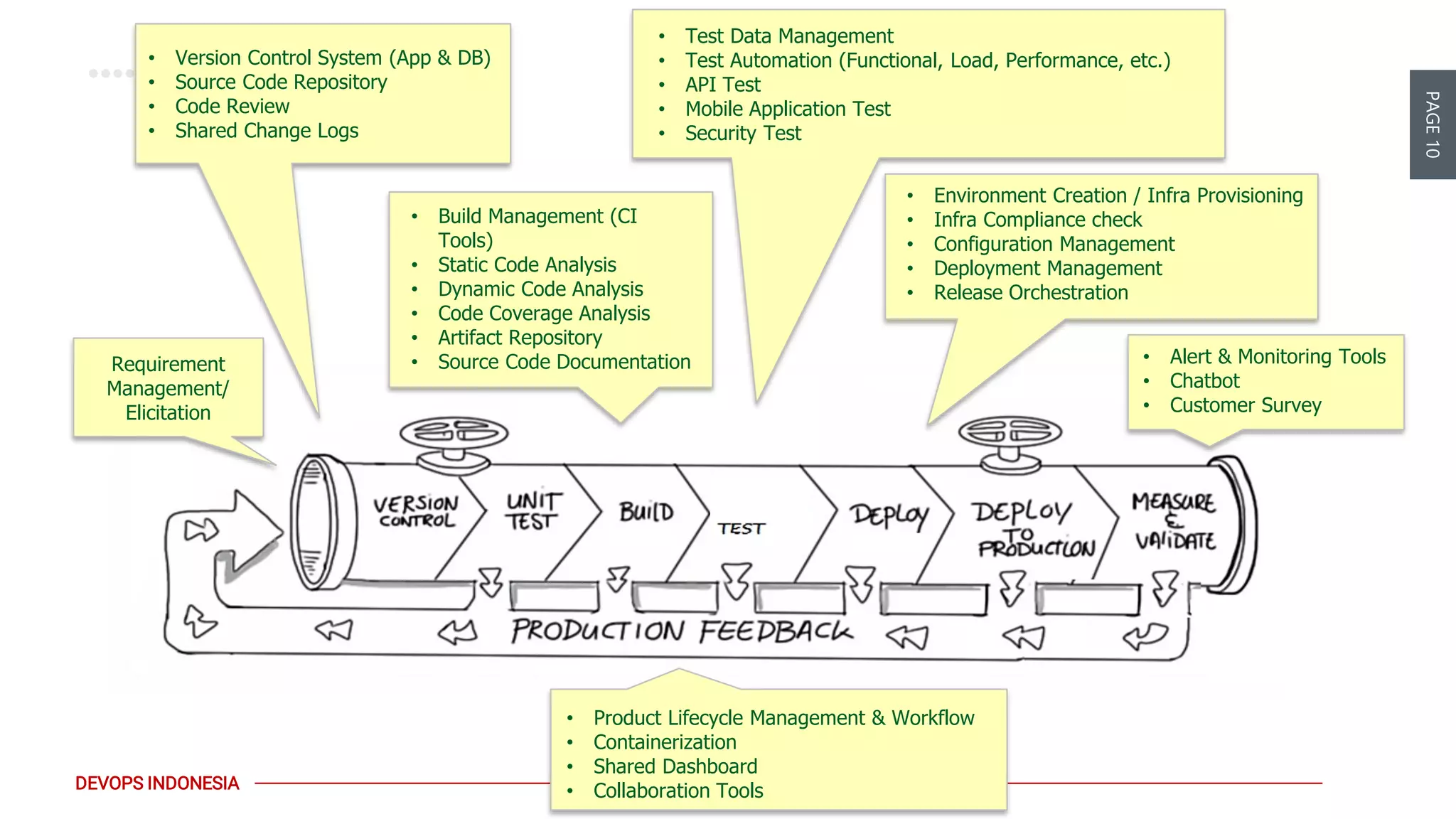

DEVOPS INDONESIA
Requirement
Management/
Elicitation
• Version Control System (App & DB)
• Source Code Repository
• Code Review
• Shared Change Logs
• Build Management (CI
Tools)
• Static Code Analysis
• Dynamic Code Analysis
• Code Coverage Analysis
• Artifact Repository
• Source Code Documentation
• Test Data Management
• Test Automation (Functional, Load, Performance, etc.)
• API Test
• Mobile Application Test
• Security Test
• Environment Creation / Infra Provisioning
• Infra Compliance check
• Configuration Management
• Deployment Management
• Release Orchestration
• Alert & Monitoring Tools
• Chatbot
• Customer Survey
• Product Lifecycle Management & Workflow
• Containerization
• Shared Dashboard
• Collaboration Tools

11. PAGE11
DEVOPS INDONESIA

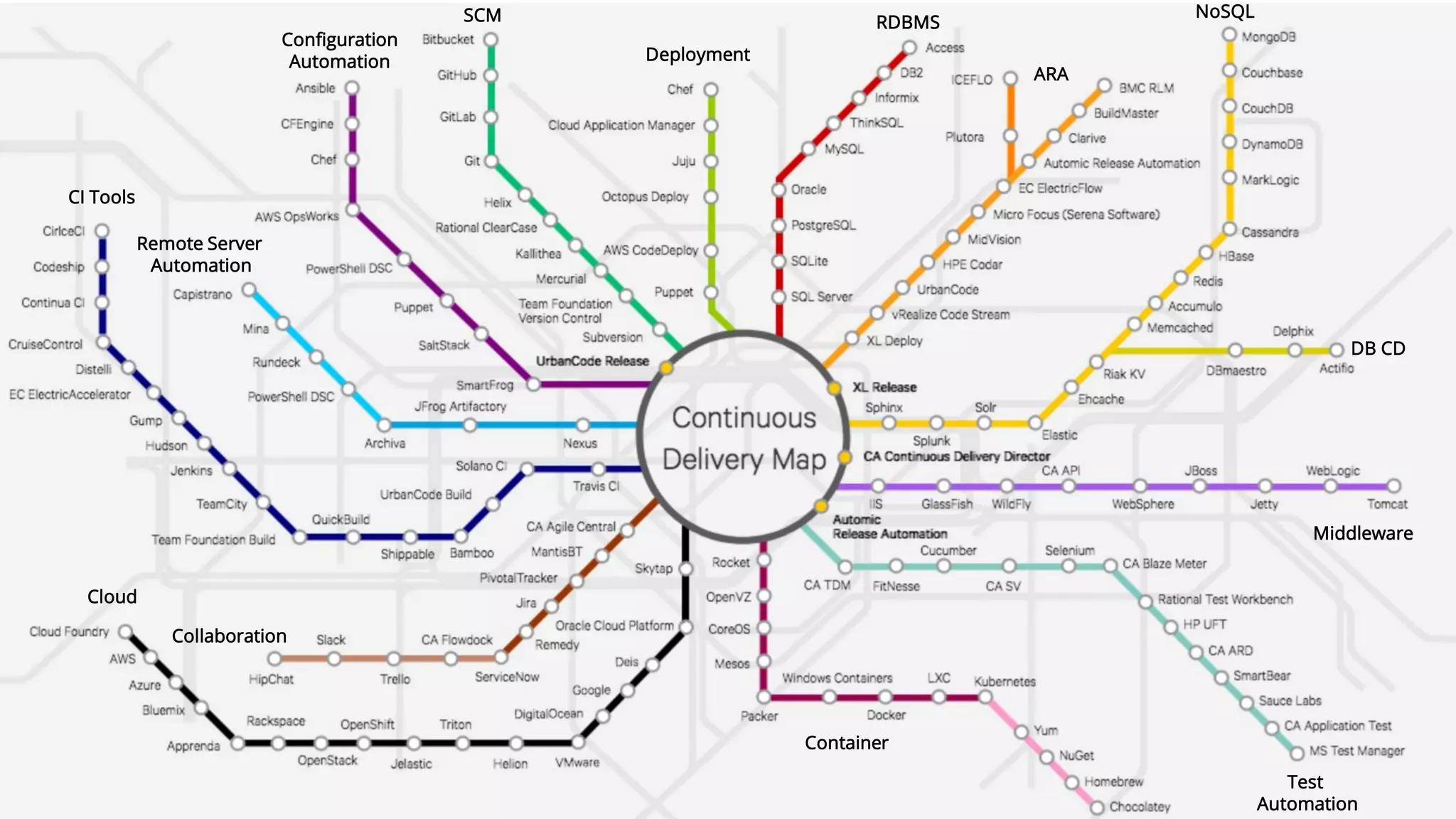

SCM
Deployment
RDBMS
ARA
NoSQL
DB CD
Middleware
Test
Automation
Container
Cloud
Collaboration
CI Tools
Remote Server
Automation
Configuration
Automation

12. PAGE12
DEVOPS INDONESIA

13. PAGE13
DEVOPS INDONESIA

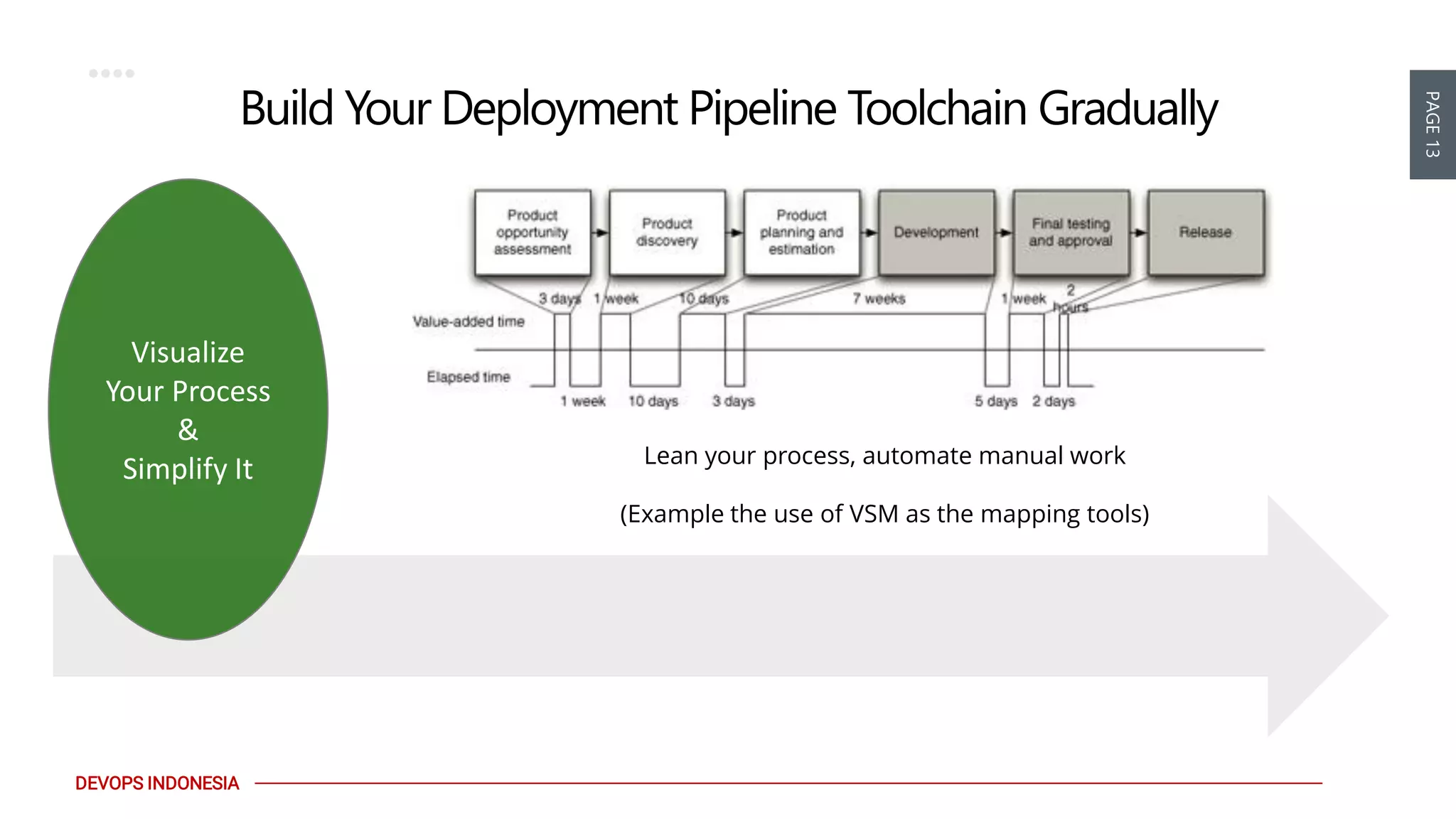

Build Your Deployment Pipeline Toolchain Gradually
Visualize
Your Process
&
Simplify It Lean your process, automate manual work
(Example the use of VSM as the mapping tools)

14. PAGE14
DEVOPS INDONESIA

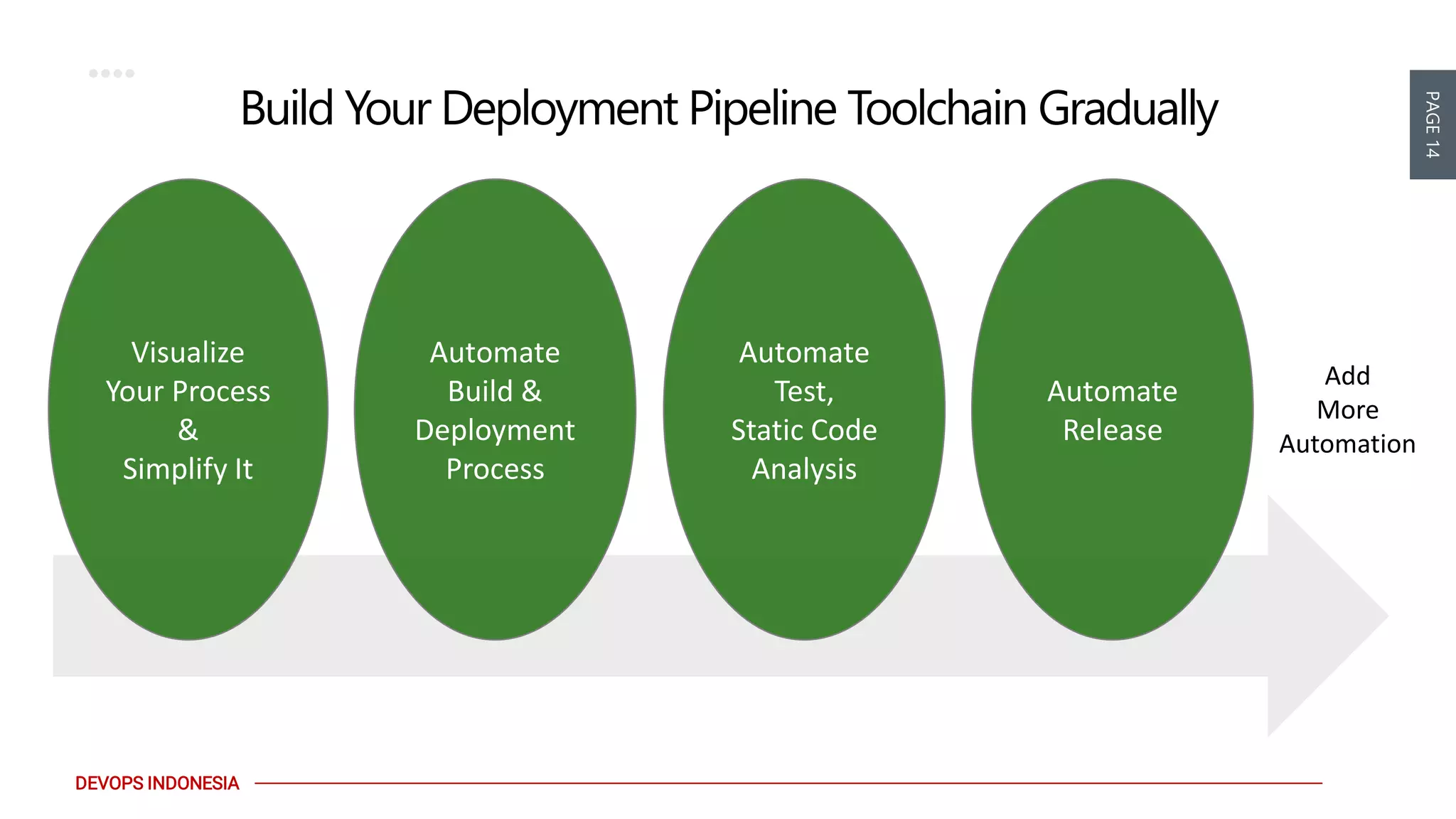

Build Your Deployment Pipeline Toolchain Gradually
Visualize
Your Process
&
Simplify It
Automate
Build &
Deployment
Process
Automate
Test,
Static Code
Analysis
Automate
Release
Add
More
Automation

15. PAGE15
DEVOPS INDONESIA

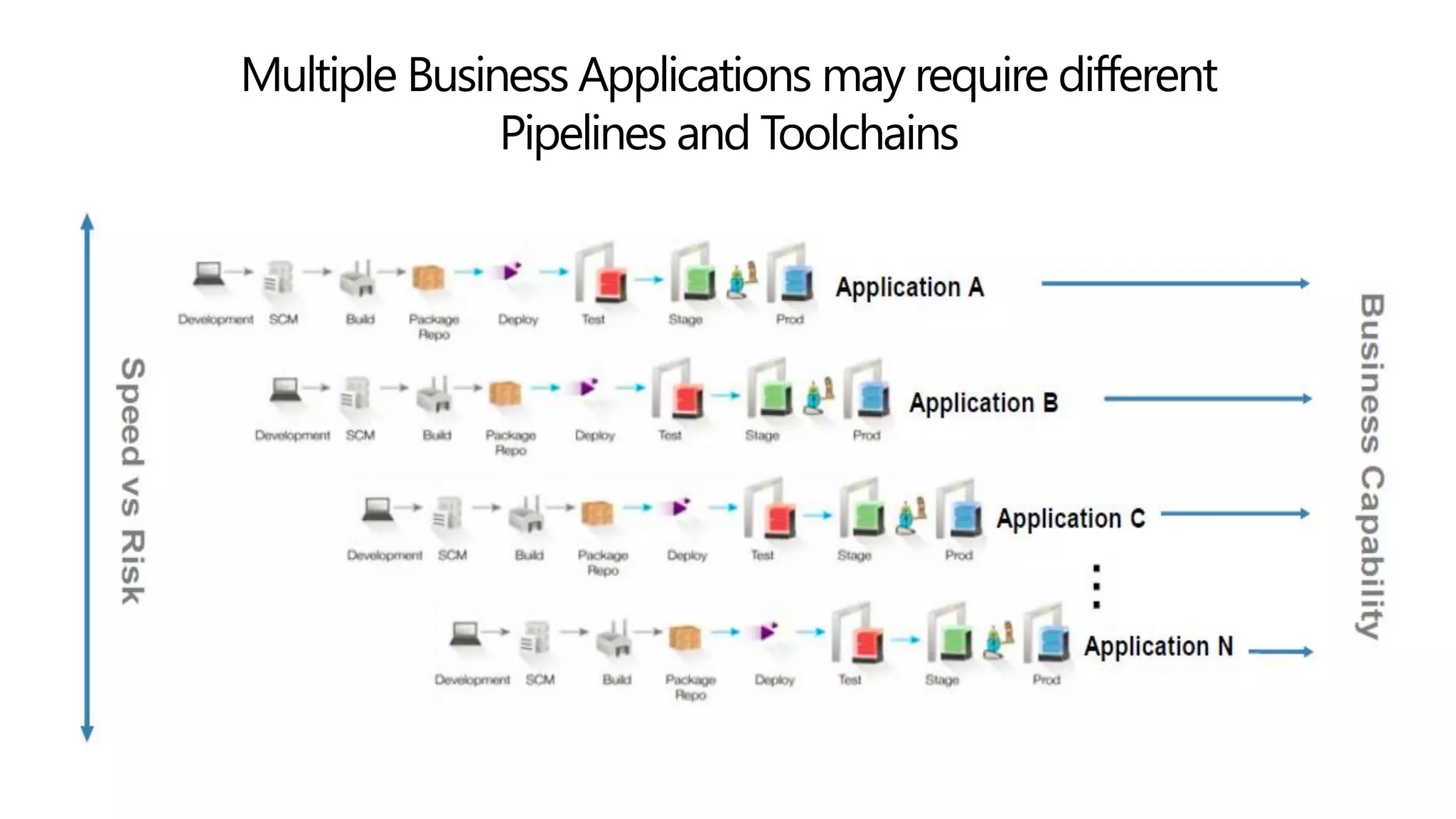

Multiple Business Applications may require different
Pipelines and Toolchains

16. PAGE16
DEVOPS INDONESIA
The use of containerization will help you with
deployment, consistency & scalability issue

17. PAGE17
DEVOPS INDONESIA
The use of containerization will help you with
deployment, consistency & scalability issue

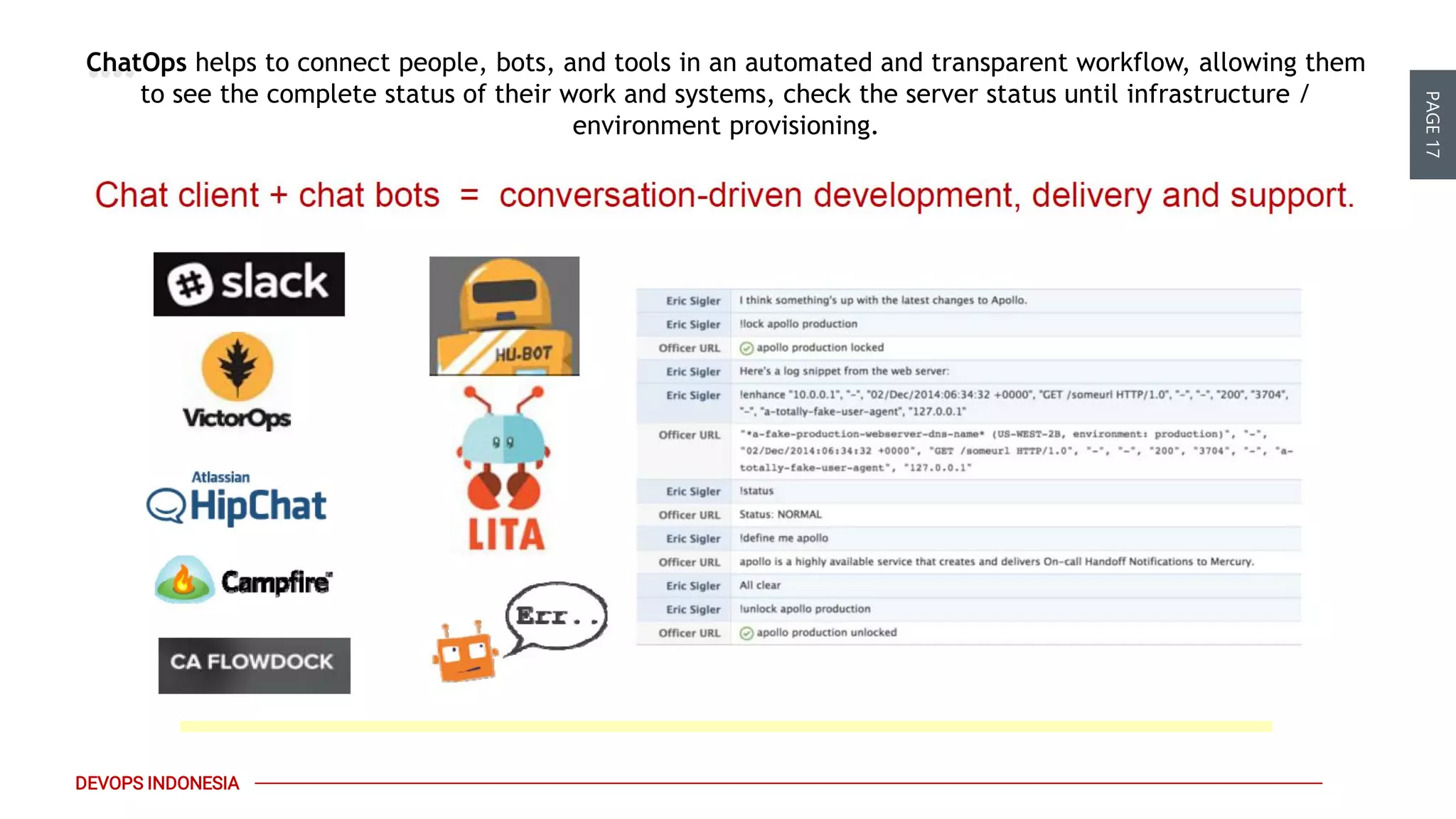

ChatOps helps to connect people, bots, and tools in an automated and transparent workflow, allowing them
to see the complete status of their work and systems, check the server status until infrastructure /
environment provisioning.

18. PAGE18
DEVOPS INDONESIA

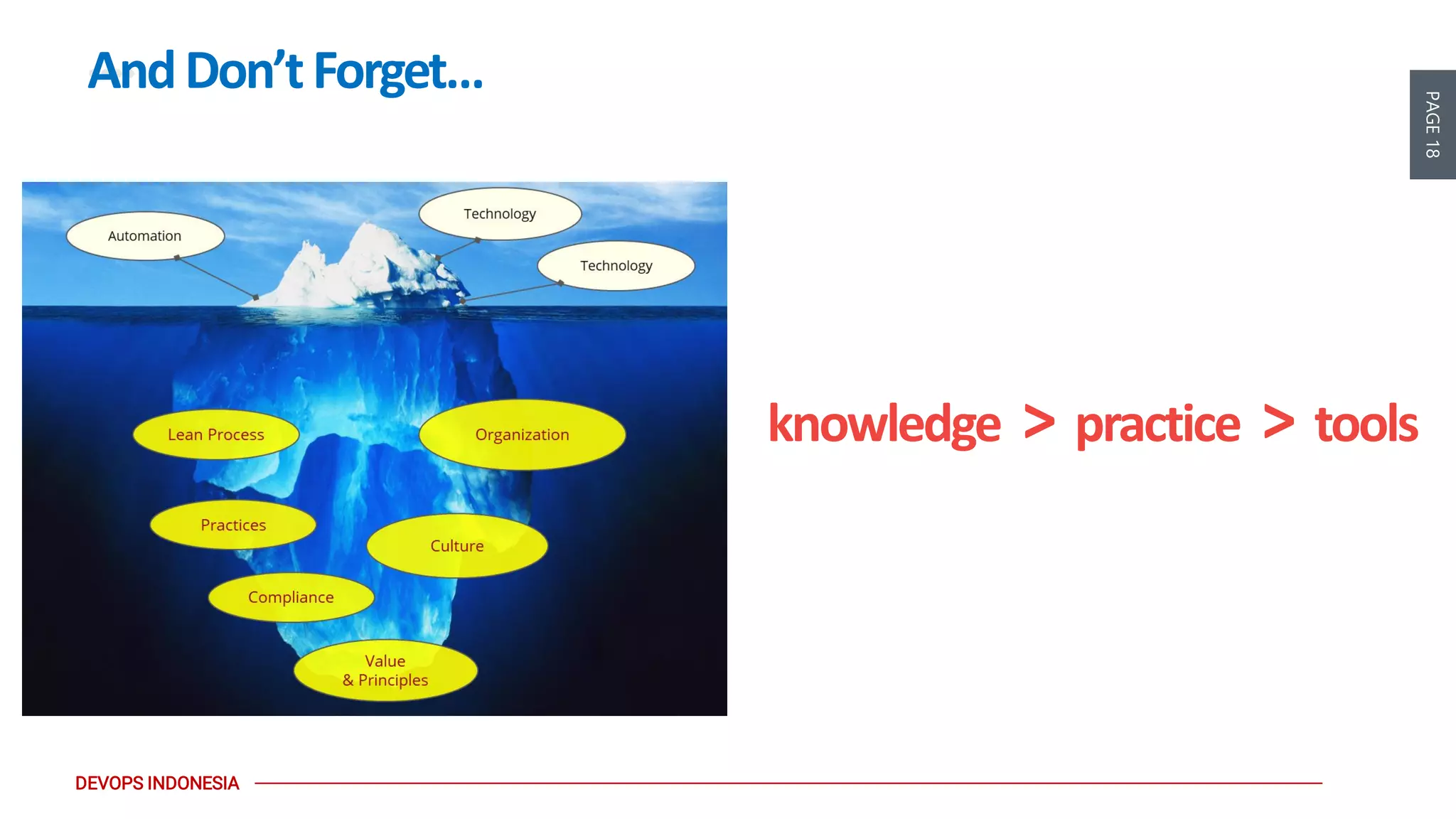

AndDon’tForget…
knowledge > practice > tools

19. PAGE19
DEVOPS INDONESIA
Agile practitioner | LEAN thinker | Software Engineer | Technologist
Thomas Rothe

20. PAGE20
DEVOPS INDONESIA
The pace of change is accelerating….

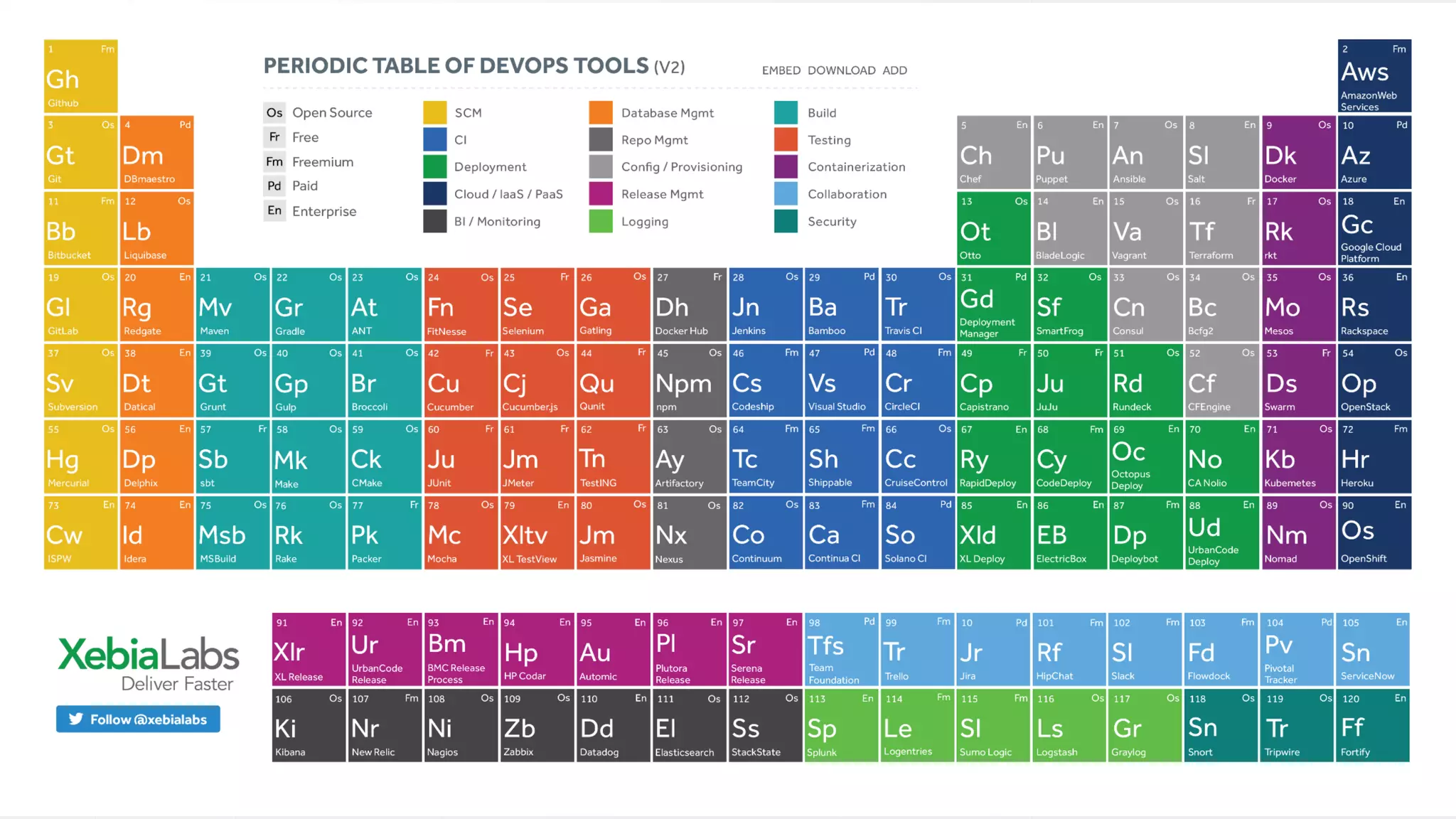

21. PAGE21
DEVOPS INDONESIA

22. PAGE22
DEVOPS INDONESIA
My life as a Software Engineer ….
Prepare yourself
Image: Alamy Stock Photo

23. PAGE23
DEVOPS INDONESIA

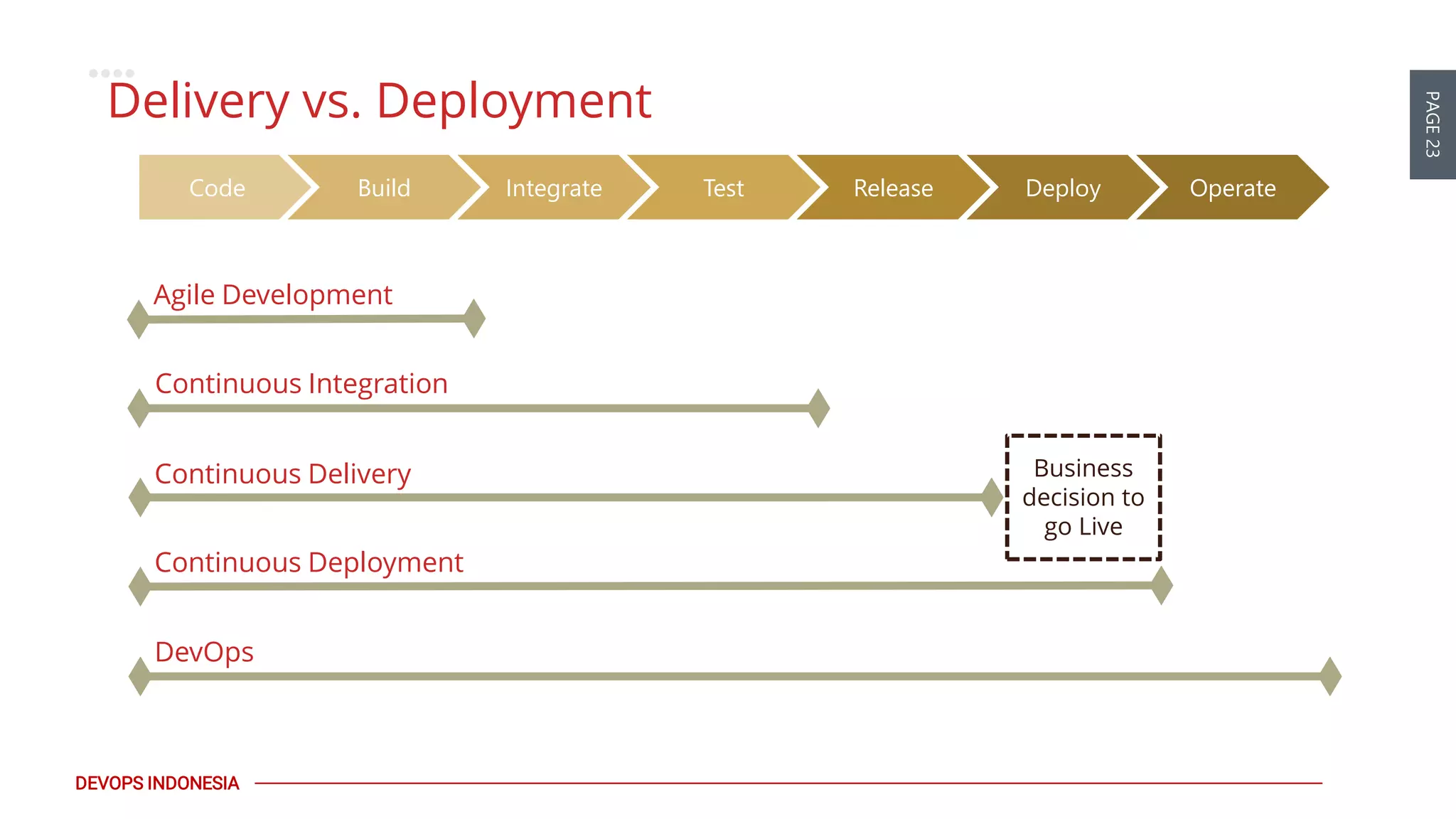

Business
decision to
go Live
Code Build Integrate Test Release Deploy Operate
Agile Development
Continuous Integration
Continuous Delivery
Continuous Deployment
DevOps
Delivery vs. Deployment

24. PAGE24
DEVOPS INDONESIA

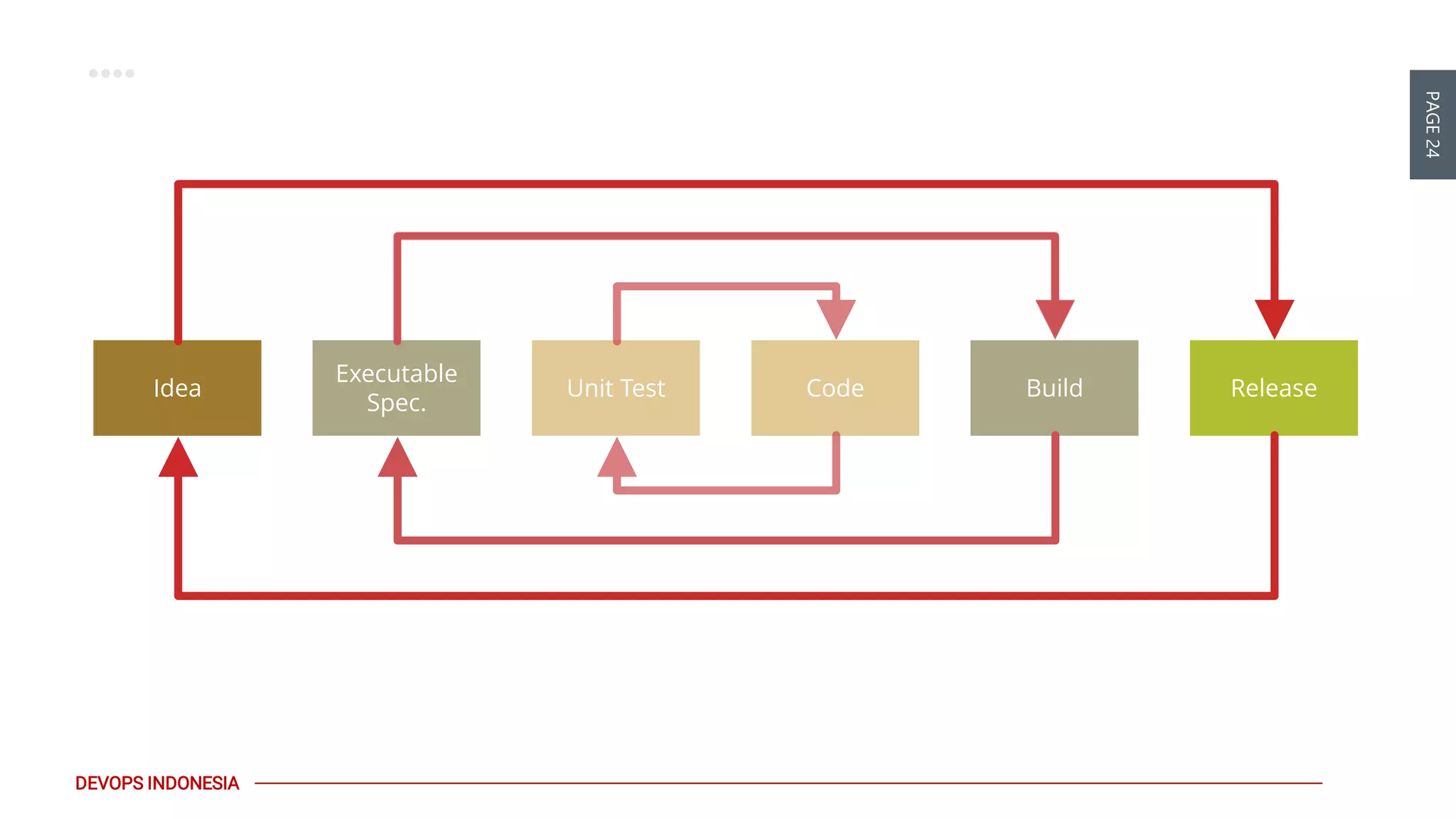

Executable
Spec.
Unit TestIdea Code Build Release
Feedback Loops

25. PAGE25
DEVOPS INDONESIA

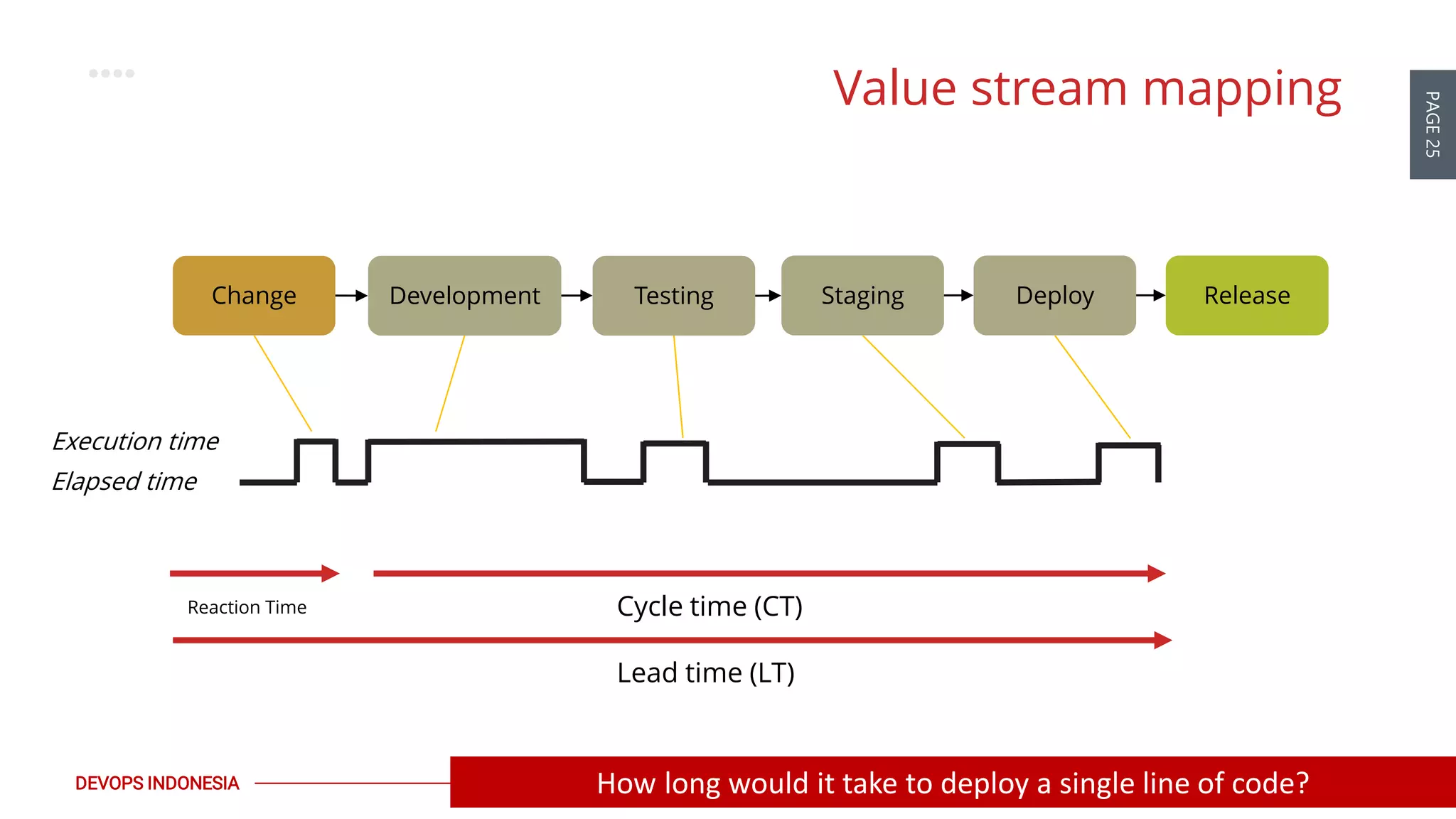

Change Development Testing Staging Deploy Release
Value stream mapping
Execution time
Elapsed time
Cycle time (CT)
Lead time (LT)
Reaction Time
How long would it take to deploy a single line of code?

26. PAGE26
DEVOPS INDONESIA
Continuous
Integration
methodology daily automated

27. PAGE27
DEVOPS INDONESIA
Continuous Integration is a software
development practice where members of a
team integrate their work frequently; usually
each person integrate at least daily leading to
multiple integrations per day.
Martin Fowler

28. PAGE28
DEVOPS INDONESIA
28

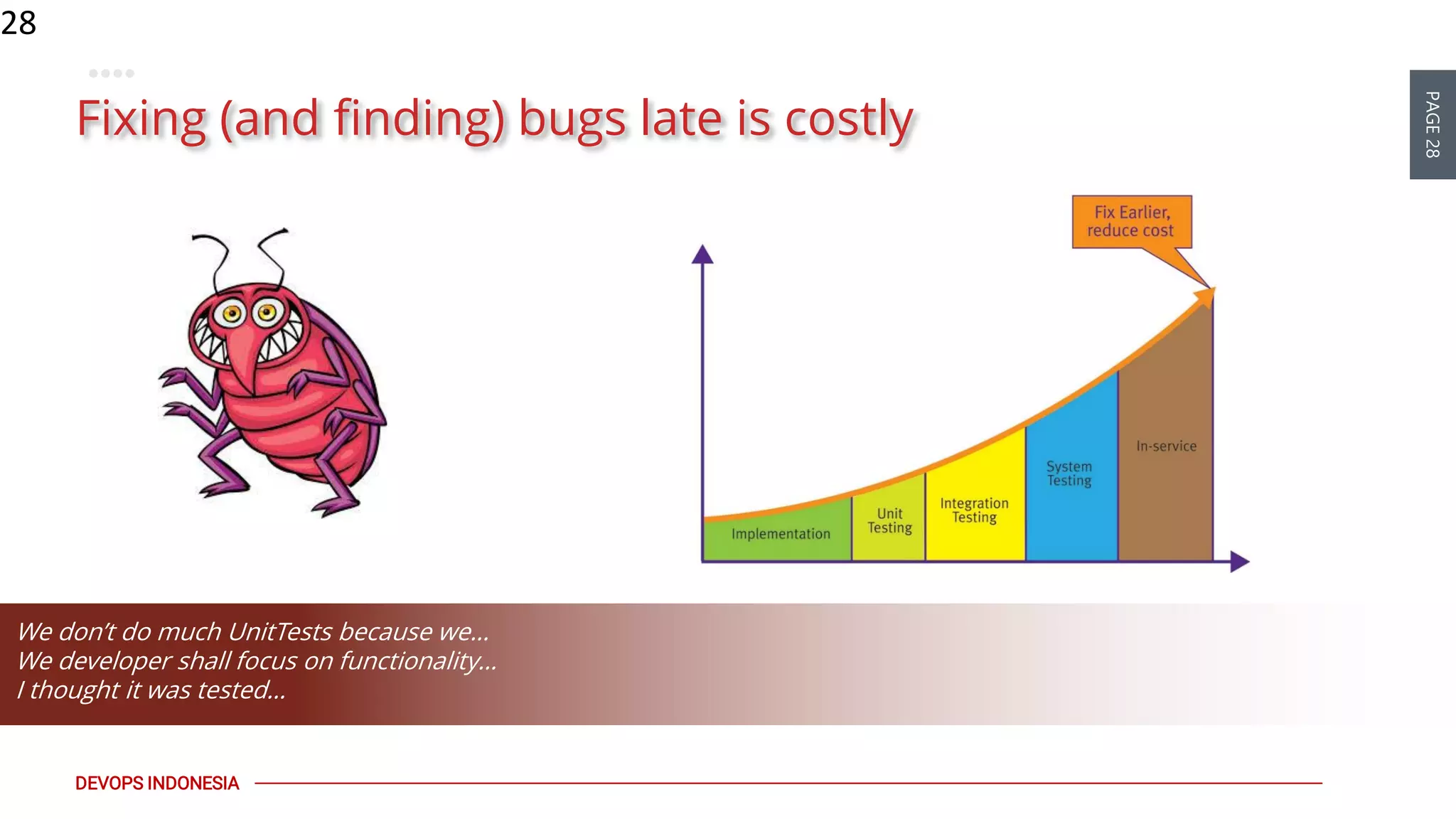

Fixing (and finding) bugs late is costly
We don’t do much UnitTests because we…
We developer shall focus on functionality…
I thought it was tested…

29. PAGE29
DEVOPS INDONESIA
29
Lack of
The changes to method XYZ are incompatible with mine, how do we merge now…
When did we decide to upgrade to version…
I thought you fixed that two month ago…

30. PAGE30
DEVOPS INDONESIA
Poor quality code base
We have 3 classes doing the same thing…
Why cant I just include this and require all 5 dependent libraries…
Do anybody know what this interface is doing…

31. PAGE31
DEVOPS INDONESIA
31
Lack of project visibility
What do you mean with the tests are failing…
What is our current code-coverage…
What is in version XYZ of the build…

32. PAGE32
DEVOPS INDONESIA

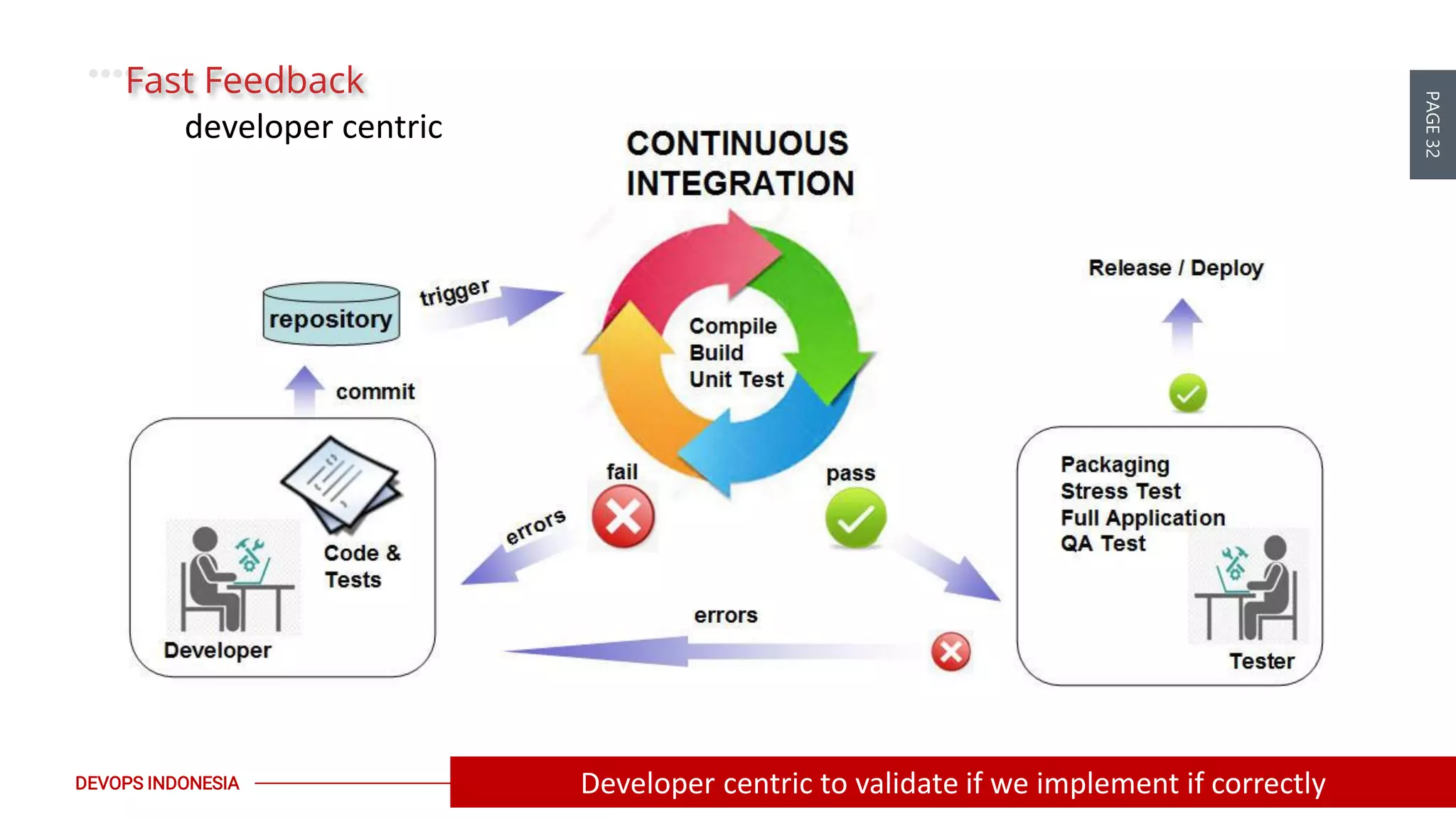

Fast Feedback
developer centric
Developer centric to validate if we implement if correctly

33. PAGE33
DEVOPS INDONESIA Nobody has a more important job than fixing the problem!

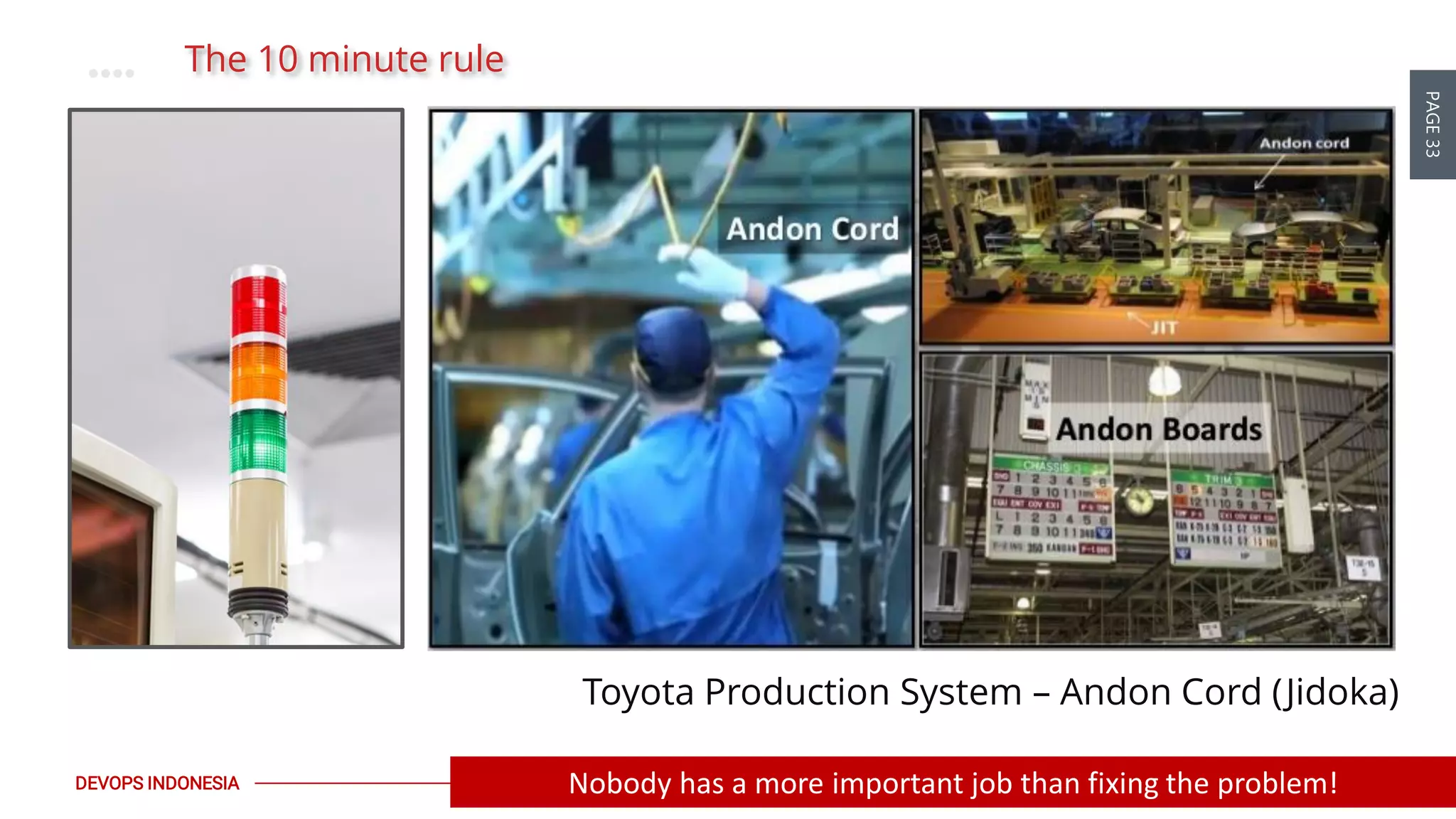

The 10 minute rule
Toyota Production System – Andon Cord (Jidoka)

34. PAGE34
DEVOPS INDONESIA

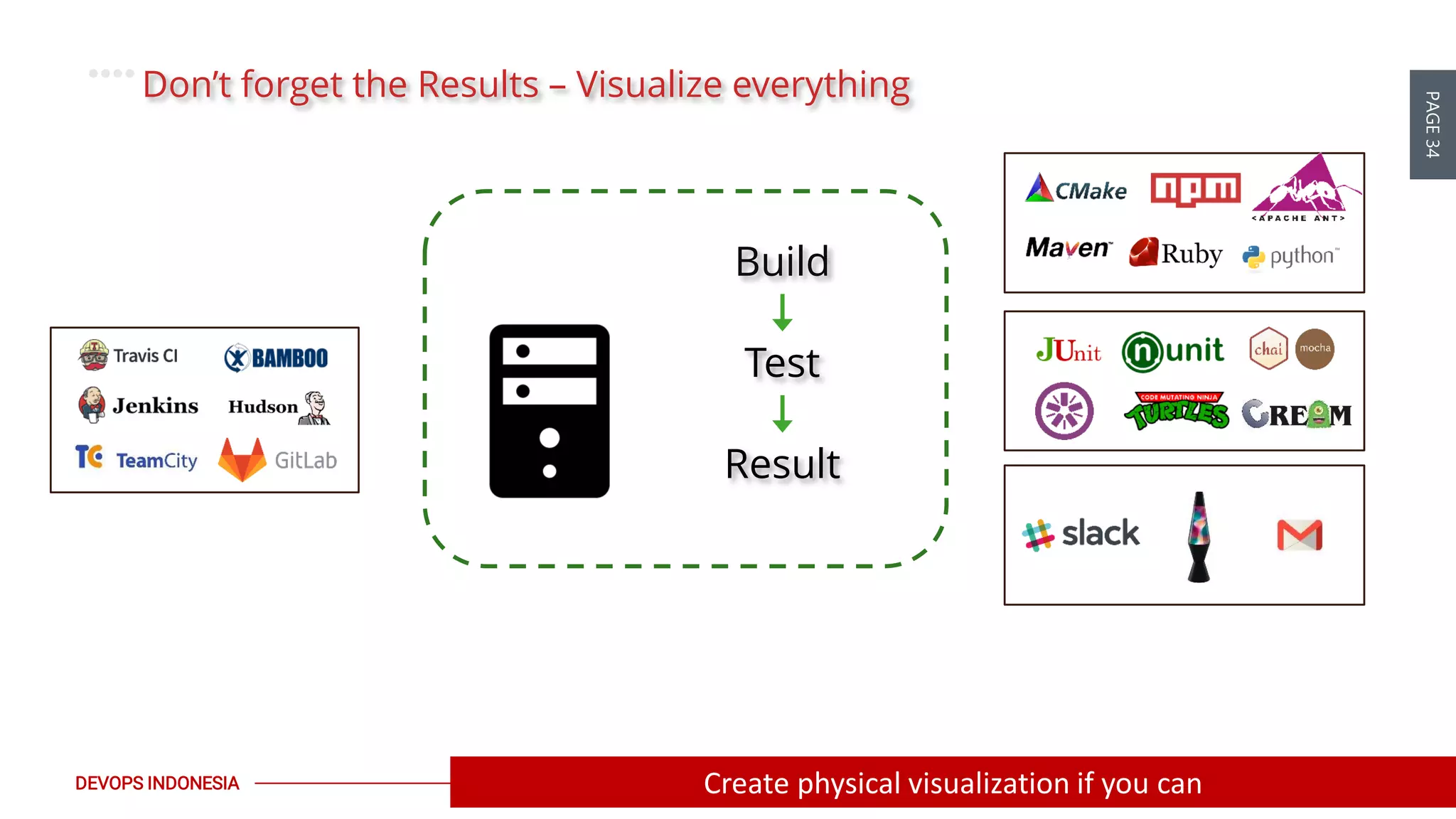

Build
Test
Result
Don’t forget the Results – Visualize everything
Create physical visualization if you can

35. PAGE35
DEVOPS INDONESIA

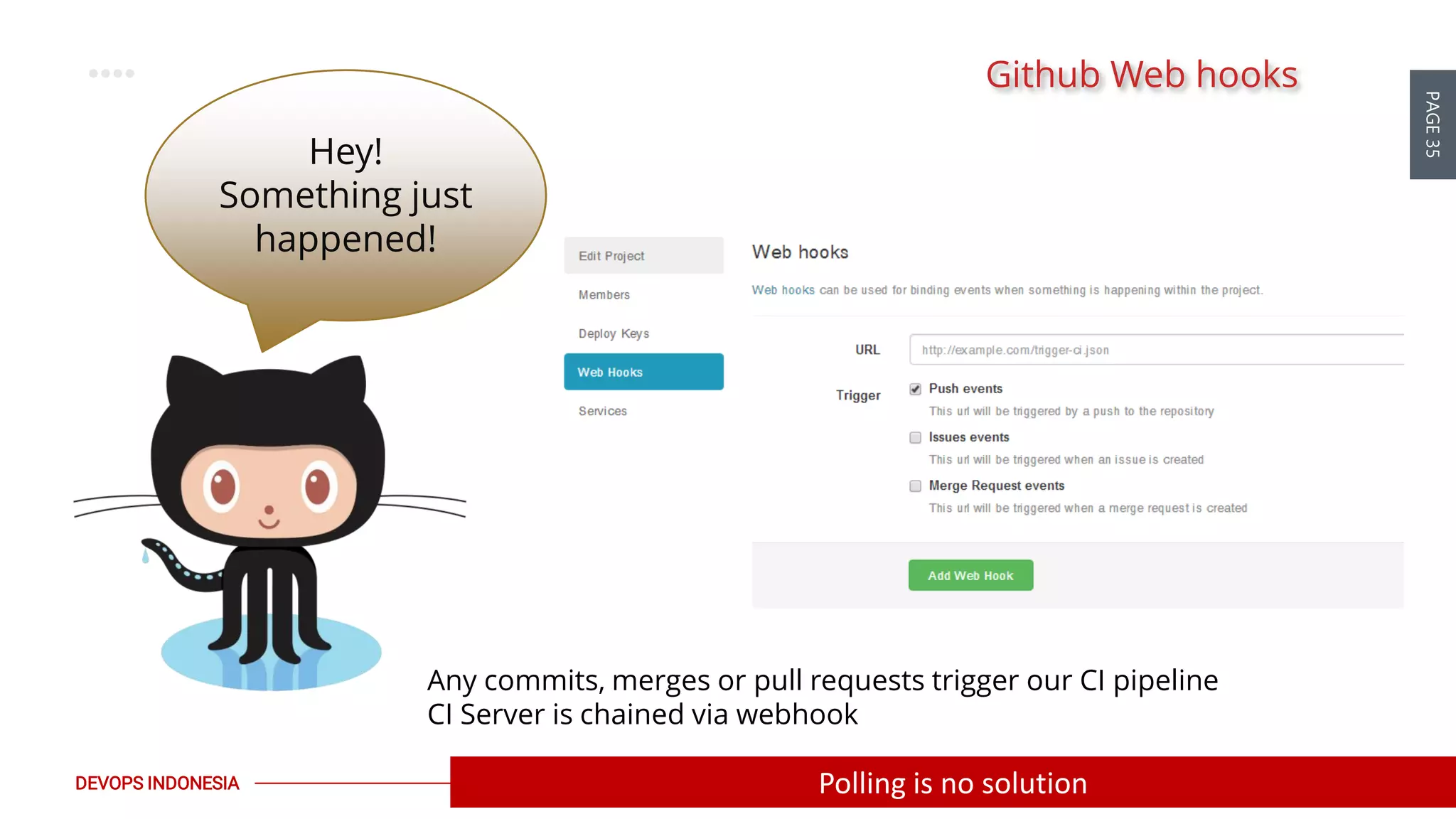

Github Web hooks
Any commits, merges or pull requests trigger our CI pipeline
CI Server is chained via webhook
Hey!
Something just
happened!
Polling is no solution

36. PAGE36
DEVOPS INDONESIA

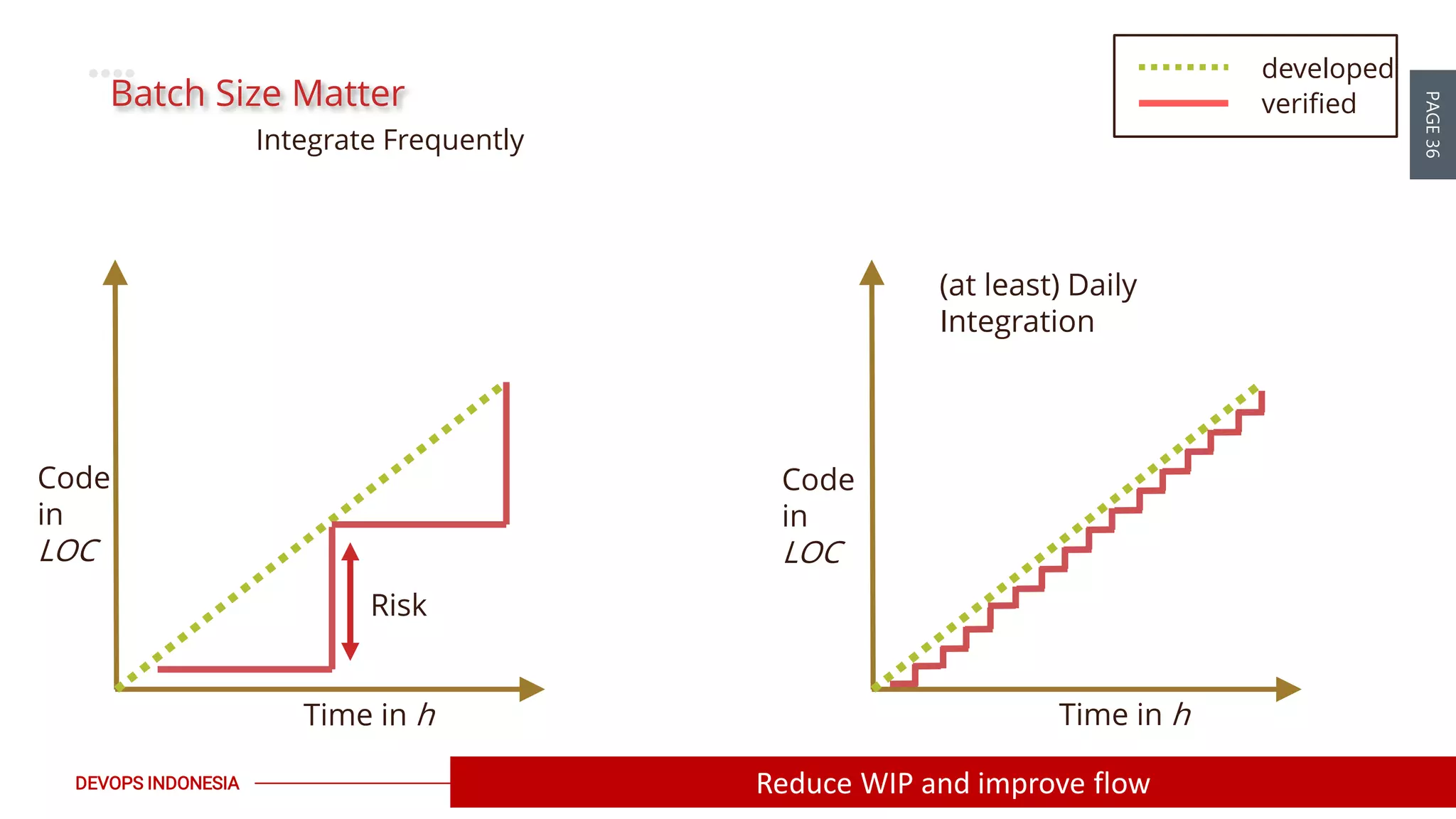

Batch Size Matter
(at least) Daily
Integration
Code
in
LOC
Time in h
Risk
developed
verified
Code
in
LOC
Time in h
Reduce WIP and improve flow
Integrate Frequently

37. PAGE37
DEVOPS INDONESIA

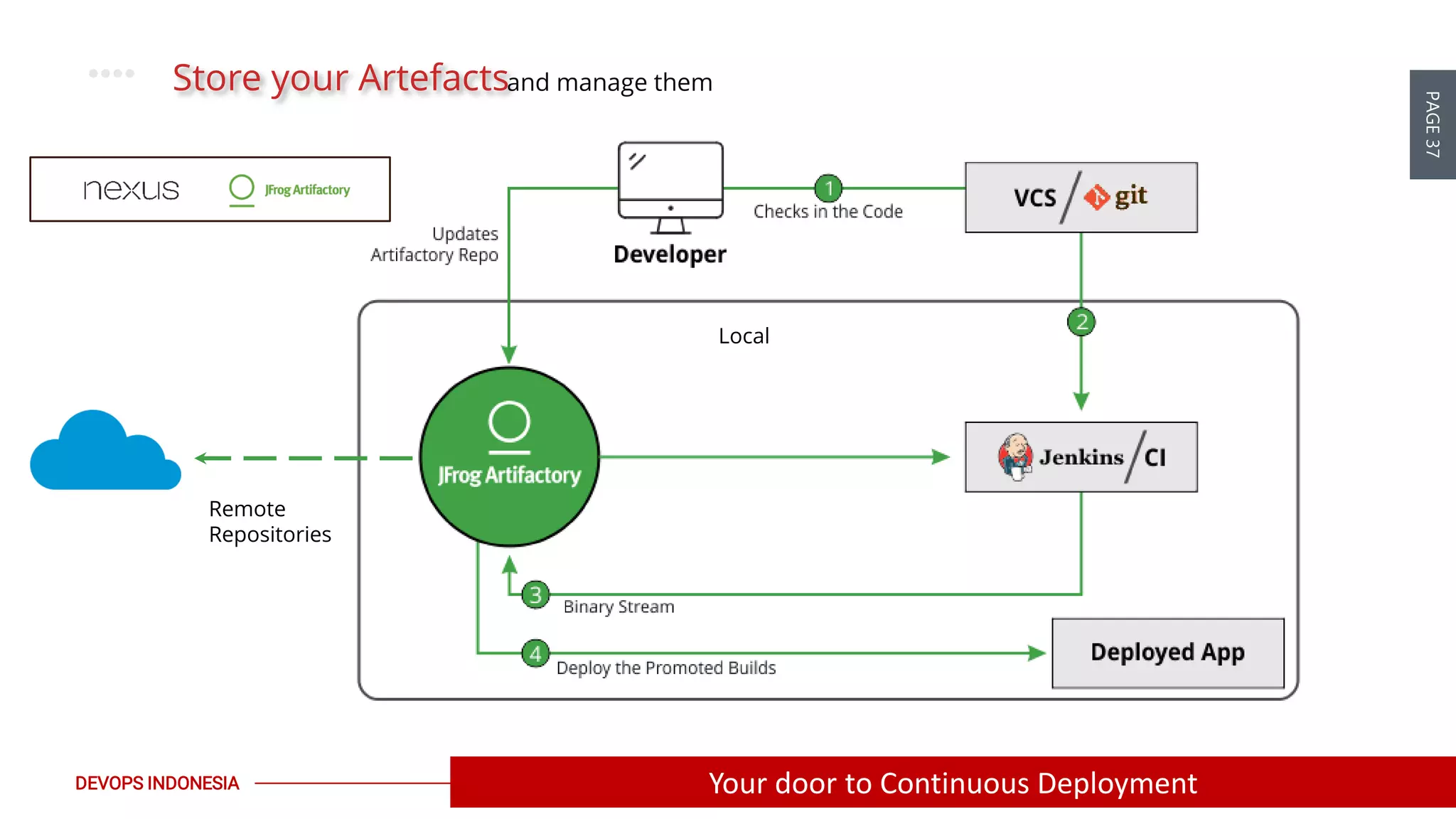

Store your Artefacts
Remote
Repositories
Local
and manage them
Your door to Continuous Deployment

38. PAGE38
DEVOPS INDONESIA

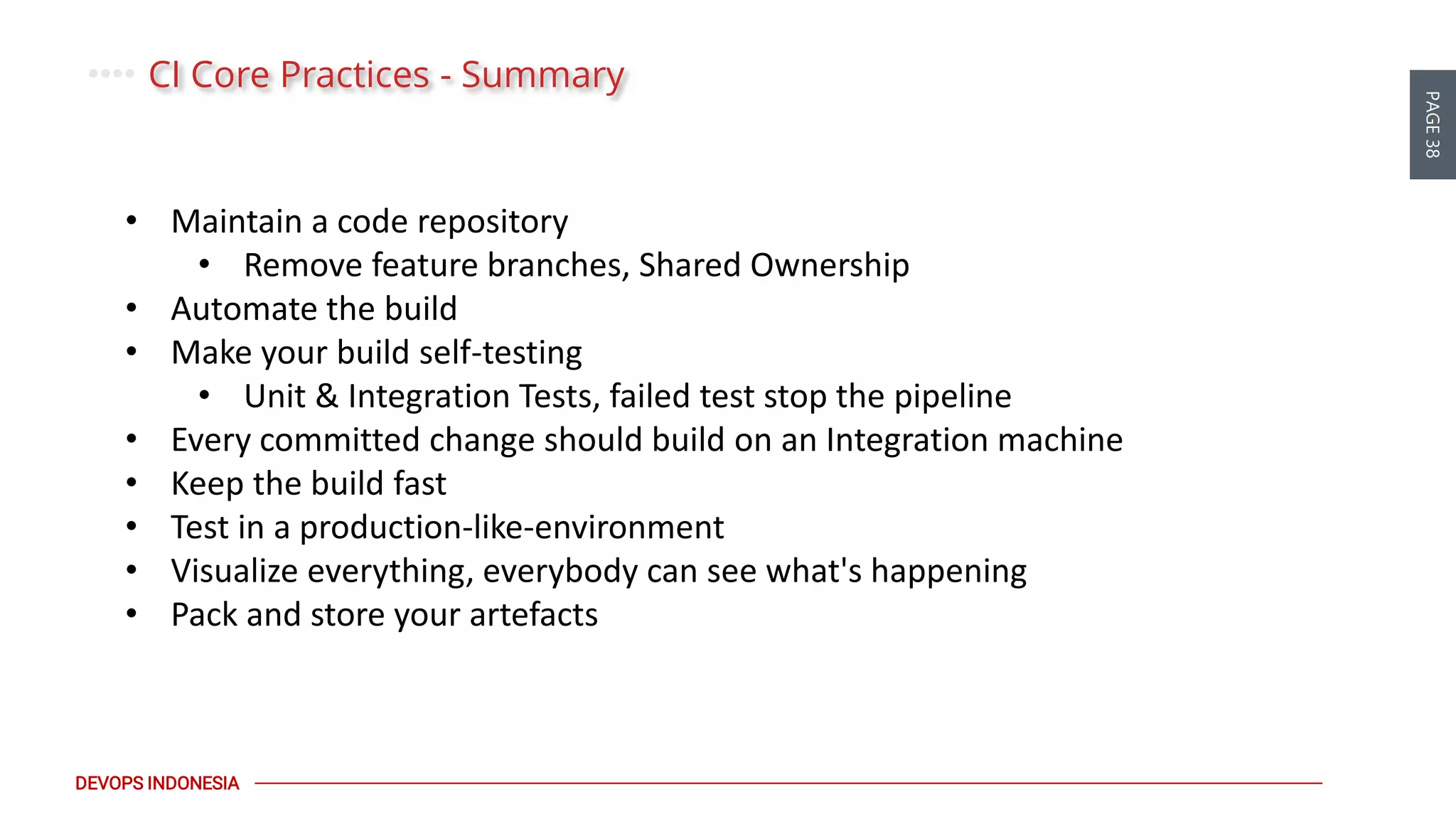

CI Core Practices - Summary
• Maintain a code repository
• Remove feature branches, Shared Ownership
• Automate the build
• Make your build self-testing
• Unit & Integration Tests, failed test stop the pipeline
• Every committed change should build on an Integration machine
• Keep the build fast
• Test in a production-like-environment
• Visualize everything, everybody can see what's happening
• Pack and store your artefacts

39. PAGE39
DEVOPS INDONESIA
39

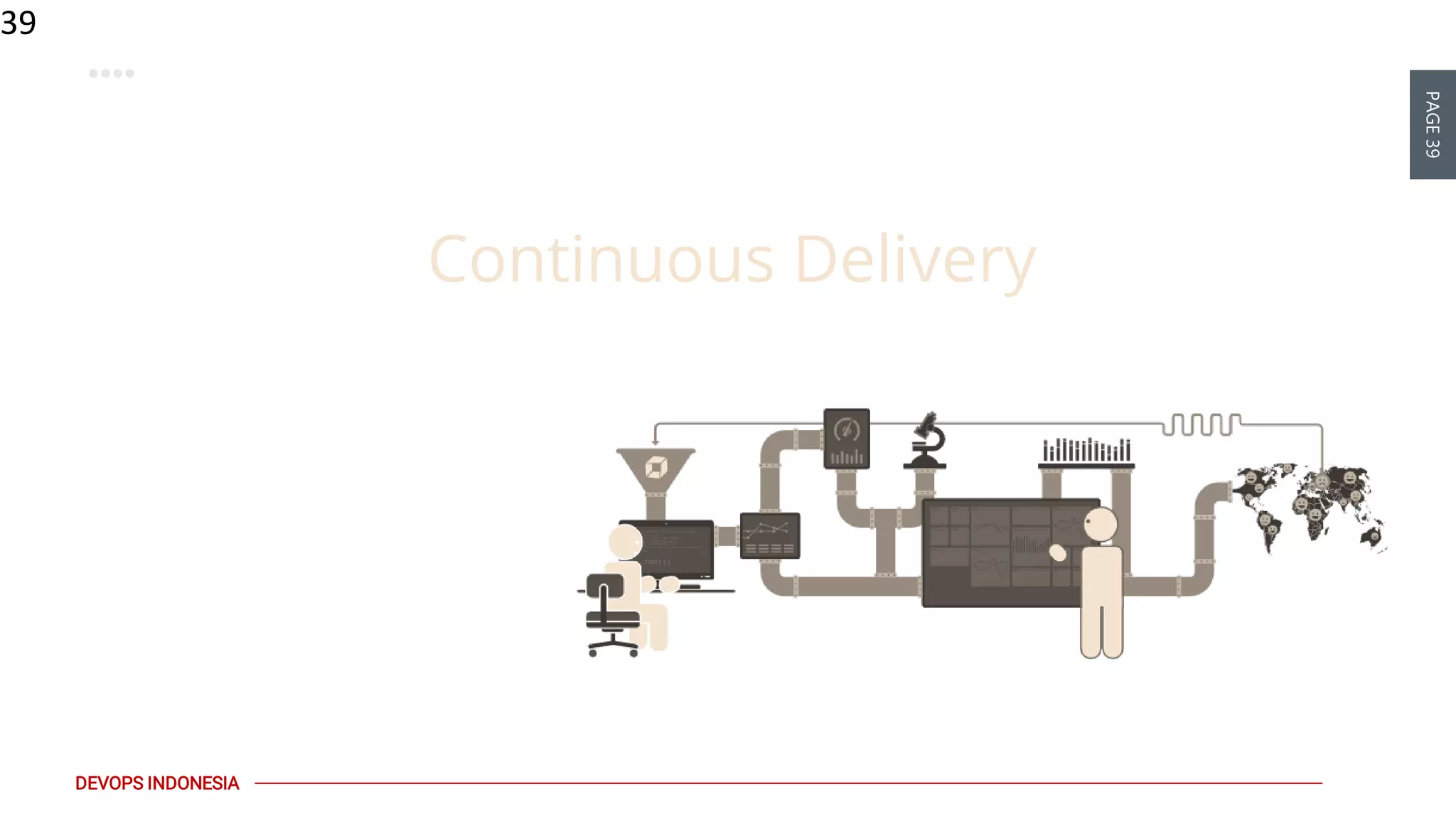

Continuous Delivery
Ingredients:
Continuous Integration (CI)
Version Control
Test Automation
Automated &
Repeatable Deployment

40. PAGE40
DEVOPS INDONESIA
Continuous Delivery is a software
development discipline where you build
software in such a ways that the software can
be released to production at any time.
Martin Fowler

41. PAGE41
DEVOPS INDONESIA
Continuous Integration (CI)
Version Control
Test Automation
Automated & Repeatable Deployment

42. PAGE42
DEVOPS INDONESIA

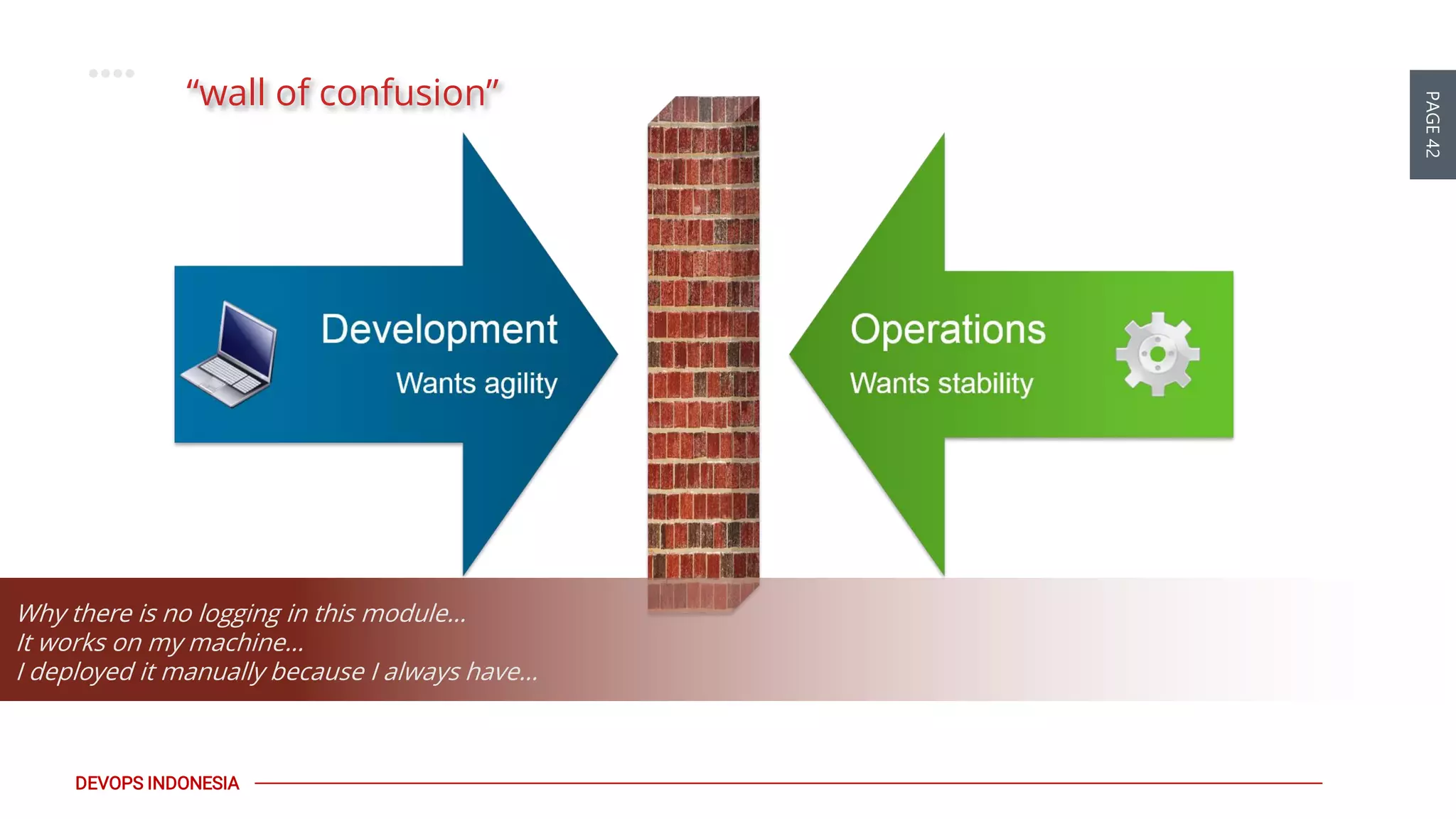

Why there is no logging in this module…
It works on my machine…
I deployed it manually because I always have…
“wall of confusion”

43. PAGE43
DEVOPS INDONESIA
The
80% done
syndrome
Work in Progress (WIP) problem
DONE = Shippable into production

44. PAGE44
DEVOPS INDONESIA

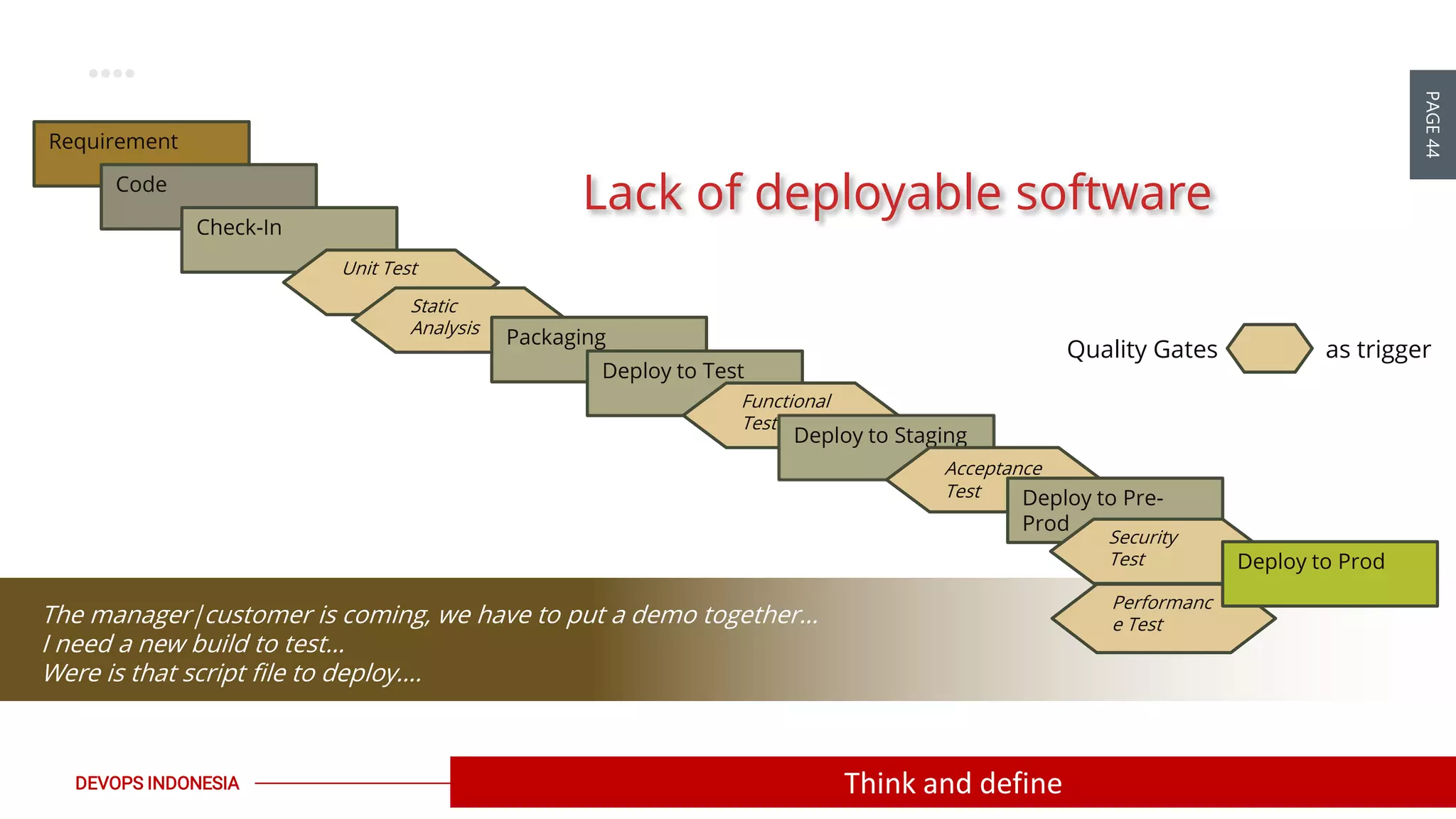

Requirement
Code
Check-In
Unit Test
Static
Analysis
Packaging
Deploy to Test
Functional
Test
Deploy to Staging
Acceptance
Test Deploy to Pre-
Prod
Security
Test
Performanc
e Test
Quality Gates as trigger
Lack of deployable software
The manager|customer is coming, we have to put a demo together…
I need a new build to test…
Were is that script file to deploy….
Deploy to Prod
Think and define

45. PAGE45
DEVOPS INDONESIA

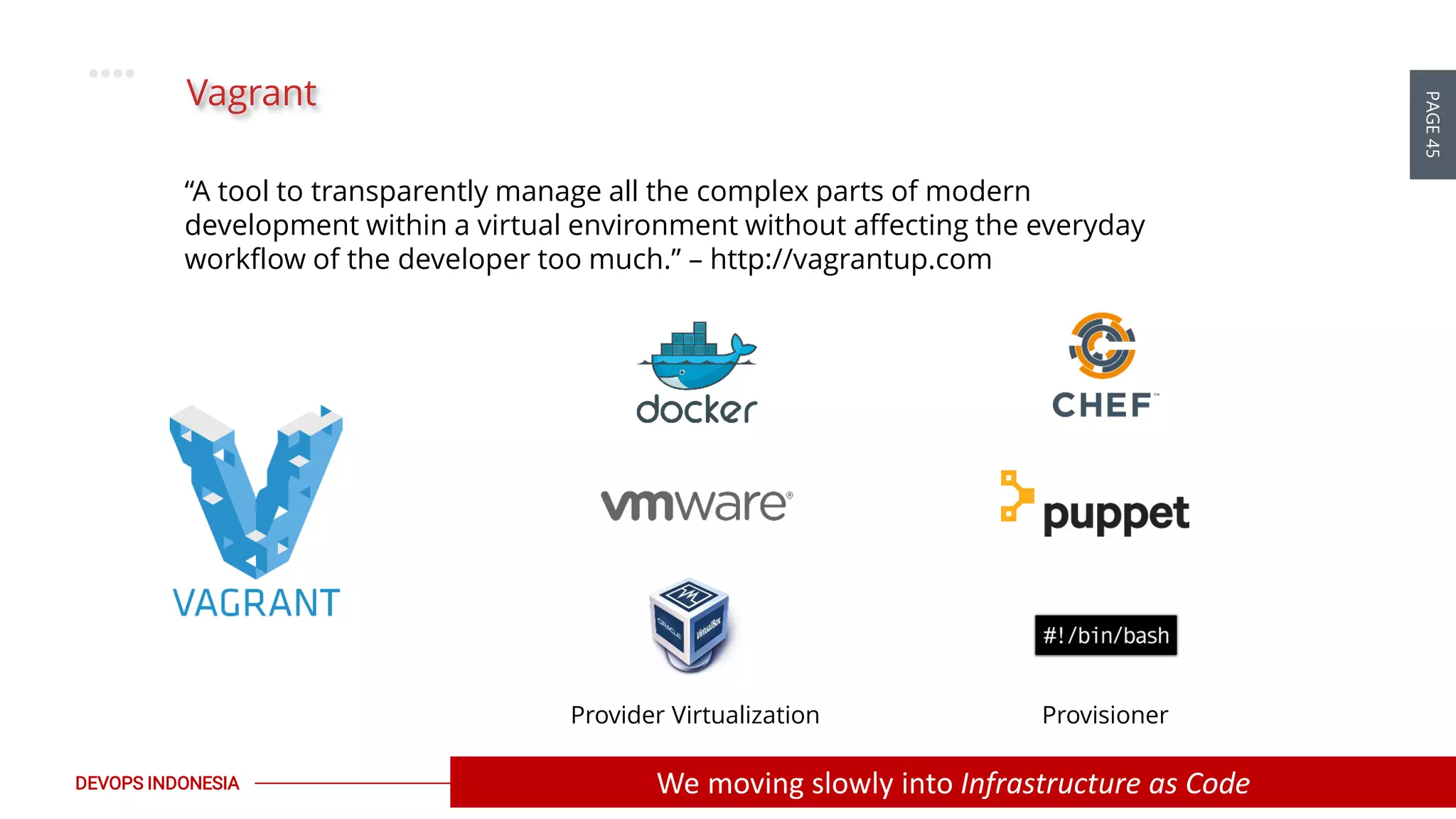

“A tool to transparently manage all the complex parts of modern
development within a virtual environment without affecting the everyday
workflow of the developer too much.” – http://vagrantup.com
Vagrant
Provider Virtualization Provisioner
We moving slowly into Infrastructure as Code

46. PAGE46
DEVOPS INDONESIA
46

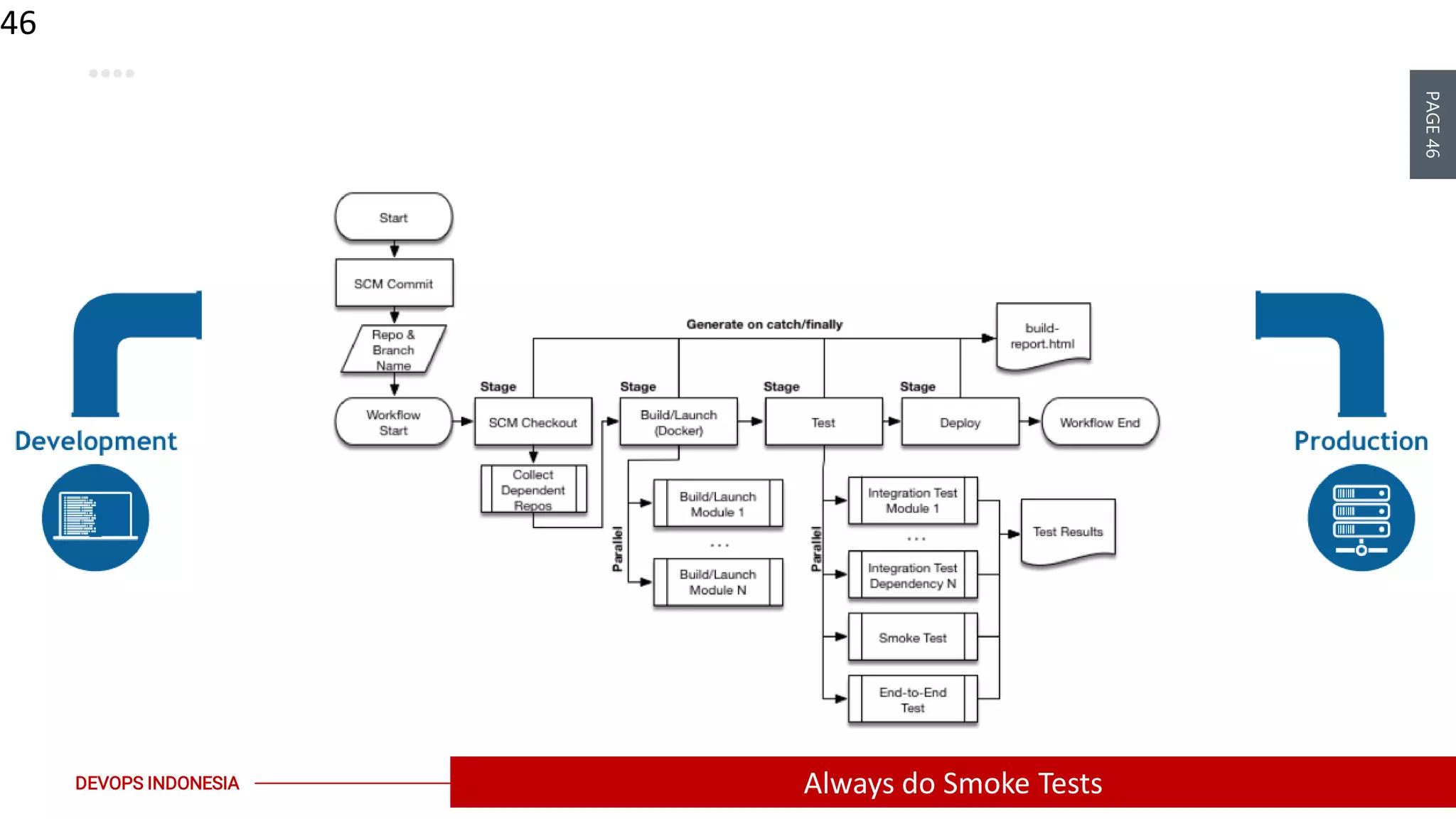

Always do Smoke Tests

47. PAGE47

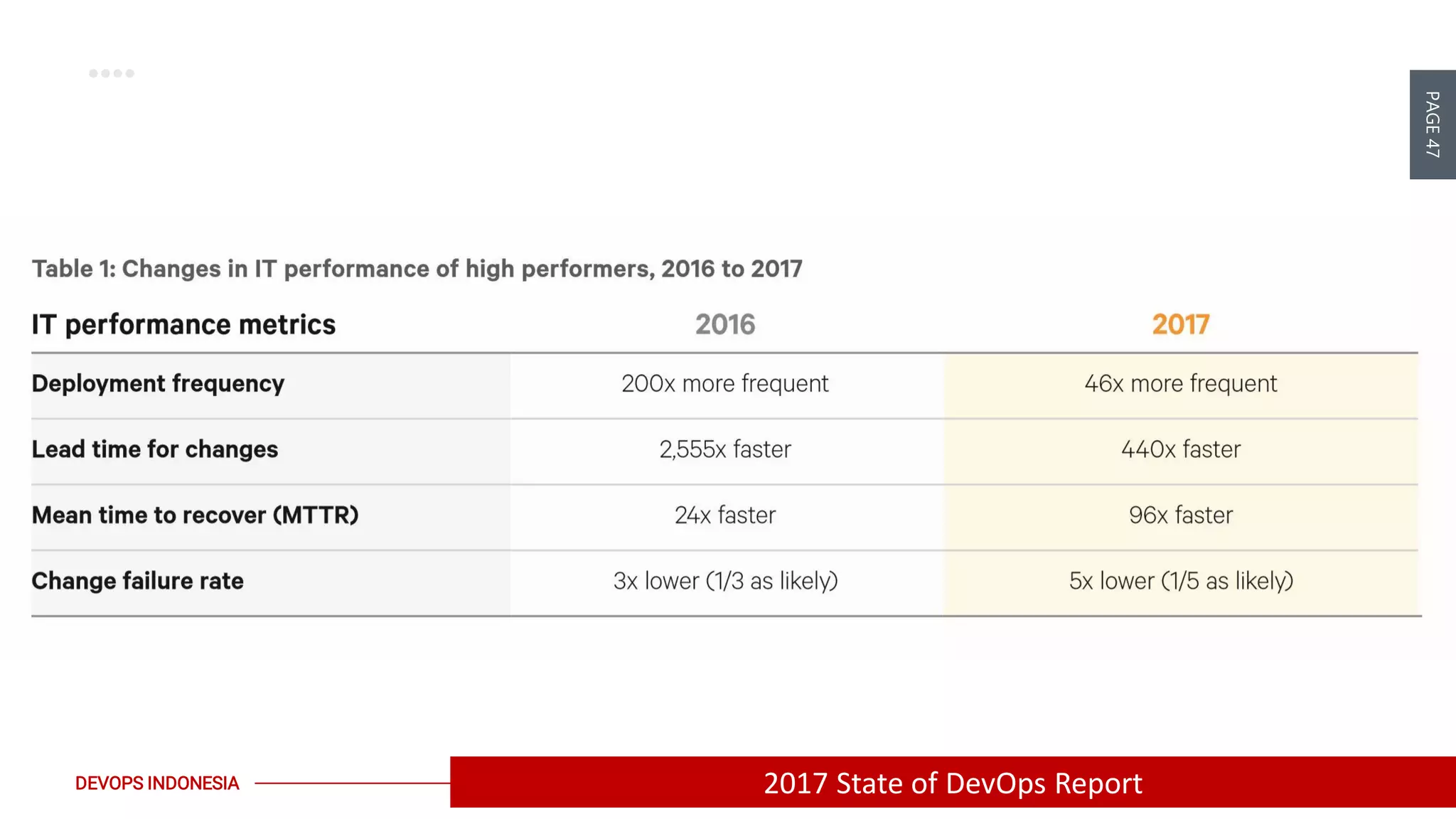

DEVOPS INDONESIA 2017 State of DevOps Report

48. PAGE48
DEVOPS INDONESIA

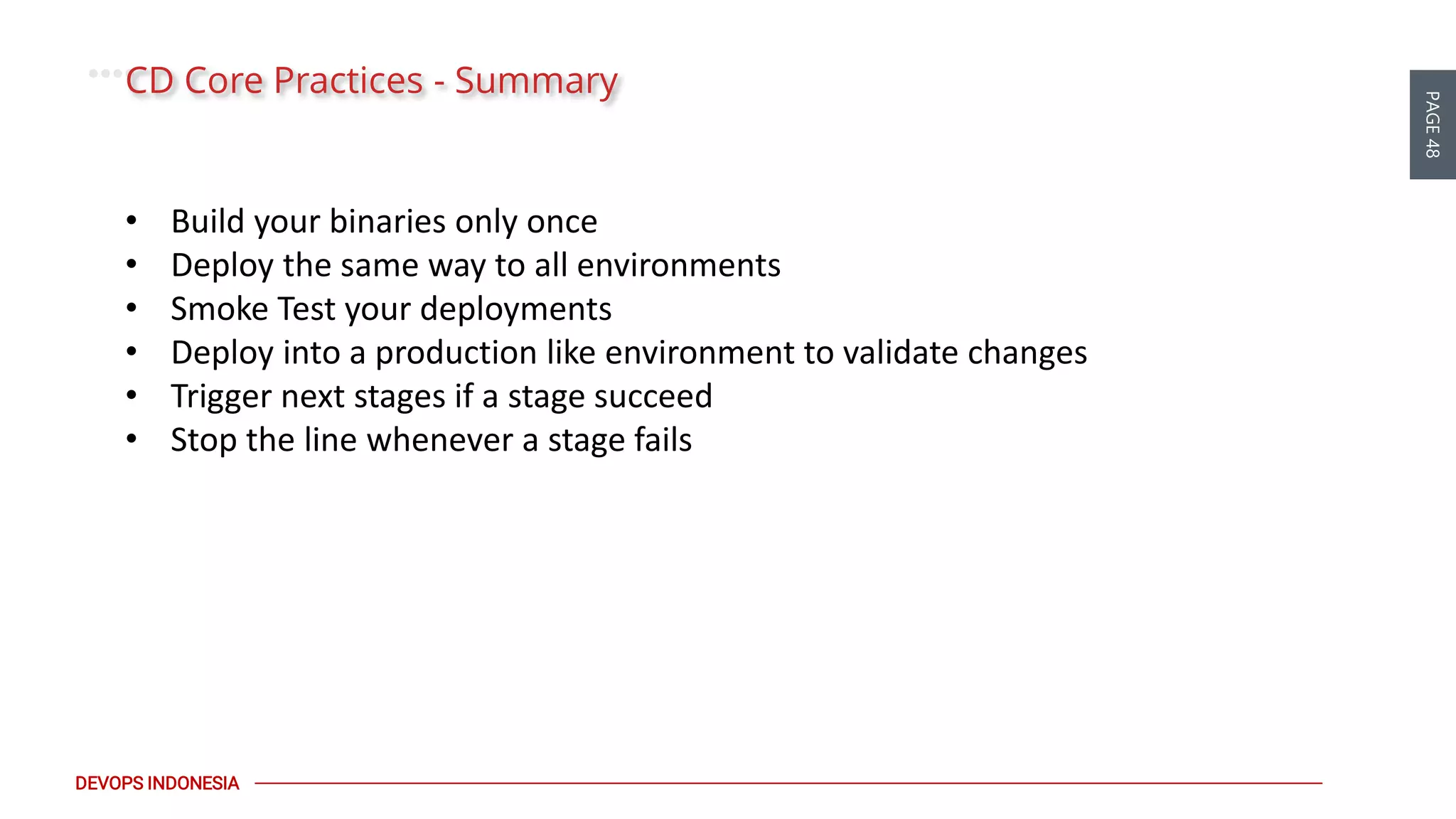

CD Core Practices - Summary
• Build your binaries only once
• Deploy the same way to all environments
• Smoke Test your deployments
• Deploy into a production like environment to validate changes
• Trigger next stages if a stage succeed
• Stop the line whenever a stage fails

49. PAGE49
DEVOPS INDONESIA
linkedin.com/in/throthe/
http://www.agilecircles.id
Stay Connected
@devopsindonesia
@thomas.rothe.bali
http://www.devopsindonesia.com
linkedin.com/in/mademulia/

50. PAGE50
DEVOPS INDONESIA
Alone We are smart, together We are brilliant
THANKYOU !
Quote by Steve Anderson
