The document outlines contributions to the OpenNMS Dev Jam 2019, detailing how to participate in the OpenNMS project through documentation, coding, and various workflows. It provides guidance on setting up a development environment, utilizing Git and GitHub, and following specific coding conventions and build steps. Additionally, it includes resources for further information, including links to guides, community discussions, and the GitHub repository.

1. Contribute to OpenNMS
DEV JAM 2019
June 24, 2019 to June 28, 2019
Markus von Rüden
who | what | where | how

2. Who Am I
Involved with OpenNMS since end of 2012
Full time contributor for The OpenNMS
Project since March 2013
Stuttgart, DE
https://dev.marskuh.de
mvr@opennms.com
https://github.com/mvrueden
Joined ~2013
mvrueden // mvr
Markus von Rüden
Most Recent Contributions
Bootstrap 4 Migration
Ulf Login Screen
Geocoder Config UI
Grafana Endpoint UI
Reporting UI (WIP)

3. Who contributes to the
OpenNMS project?
The OpenNMS Group (TOG)
Order of The Green Polo (OGP)
OpenNMS Community

4. What to contribute?
Documentation
Code
Configs
Report templates
Bug Reports
Knowledge
Features
Stories
Ideas
Games
Comics
Songs

5. Where to Contribute?
Chat GITHUB JIRADiscourse
Configuration, documentation, patches,
features
Knowledge
blogyoutube

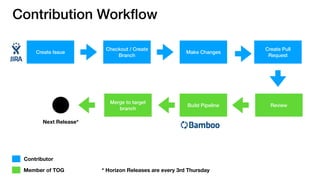

6. Contribution Workflow
Create Issue
Checkout / Create
Branch
Make Changes
Create Pull
Request
Contributor
Member of TOG
ReviewBuild Pipeline
Merge to target
branch
Next Release*
* Horizon Releases are every 3rd Thursday

7. Create Issue // Important fields
Feature?
Bug?
Configuration?
Story
Bug
Configuration
Issue TypeIs it a
Don’t worry about the fields too much
we will fill them in for you
Summary
Affected Version
Description
Required fields
@ issues.opennms.org

8. Issue Workflow
OPEN
IN PROGRESS
IN REVIEW
RESOLVED/
CLOSED
Issue Created
Working on
Issue
Pull Request
created
Pull Request
merged

9. Set up your environment
latest JDK 8
Maven >= 3.5
PostgreSQL Server >= 9.5
makensis
Pearl
git
MAC OS Users
https://opennms.discourse.group/t/set-up-local-development-environment-macos/485
Docker Build Image
https://hub.docker.com/r/opennms/build-env
jicmp, jicmp6 (optional)
https://github.com/OpenNMS/jicmp6
https://github.com/OpenNMS/jicmp

10. Git & Github
Create account @ https://github.com/join
Generate SSH Key
https://help.github.com/en/articles/generating-a-new-ssh-key-and-adding-it-to-the-ssh-agent
Add SSH Key to your Account
https://help.github.com/en/enterprise/2.15/user/articles/adding-a-new-ssh-key-to-your-github-account
Optionally add GPG Key to your Account
https://help.github.com/en/articles/adding-a-new-gpg-key-to-your-github-account
Install git either via desktop.github.com or git command o/

11. Git Settings
Ensure git config —global
user.name and user.email are set
properly
Optionally sign the commits
The user.email should match any github user account email address
Please use real user name and email
address as it shows up in the
commit history
1
2
1
2

12. Code base // Github
• Code is hosted at GitHub
• Everything (https://github.com/OpenNMS)
• OpenNMS (https://github.com/OpenNMS/opennms)
• Patches, Config files, Documentation typo fixes, new documentation
• Only members of The OpenNMS Group and The Order of the Green Polo have
direct commit access
• There is a way for contribution —> Fork Project
• Questions: https://chat.opennms.org @ OpenNMS Development Channel

13. 1. Go to the OpenNMS repository @ https://github.com/OpenNMS/opennms
3. Go to your fork of OpenNMS
@ https://github.com/mvrueden/opennms
2. Fork OpenNMS
Forking the OpenNMS Project

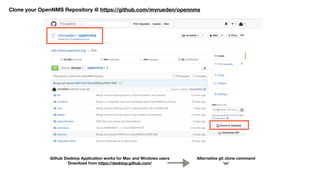

14. Github Desktop Application works for Mac and Windows users
Download from https://desktop.github.com/
Clone your OpenNMS Repository @ https://github.com/mvrueden/opennms
Alternative git clone command
o/

15. Manually create pull request at https://github.com/OpenNMS/opennms/pulls/create and
compare across forks
Pull Request Magic
Choose base fork/branch and head fork/branch

16. OCA not signed?
Fill out https://wiki.opennms.org/wiki/images/6/6b/ContributorAgreement.pdf
send to oca@opennms.org

17. Tools
Atom.io
Visual Studio Code
Vi, Emacs, …
IntelliJ
Eclipse
yEd - Graph Editor
DataGrip - Database Tool
Development Single File / Documentation Others

18. Which base branch to use?
Meridian Horizon Branch
M2015 H14 foundation
bug fixes
M2016 H17 foundation-2016
M2017 H19 foundation-2017
M2018 H21 foundation-2018
M2019 TBA, most likely H25
foundation-2019
(not yet available)
- H24.1.1 release-24.1.1
next major release develop new features

19. Branch naming conventions
most branches jira/<issue-number> jira/NMS-1000
feature branches features/ features/graph-service
test branches <user-prefix>/ mvr/navbar-rework

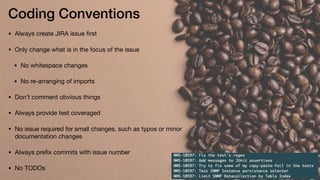

20. Coding Conventions
• Always create JIRA issue first
• Only change what is in the focus of the issue
• No whitespace changes
• No re-arranging of imports
• Don’t comment obvious things
• Always provide test coveraged
• No issue required for small changes, such as typos or minor
documentation changes
• Always prefix commits with issue number
• No TODOs

21. Useful git commands
Git Cheat Sheet
https://opennms.discourse.group/t/git-cheat-sheet/602

22. General Build Steps
./clean.pl Deletes all target directory for root and
assembly projects
./compile.pl -DskipTests compiles project
./assemble.pl -p dir -DskipTests [-Dopennms.home=/opt/opennms] produces tar.gz distribution
time (./clean.pl && ./compile.pl -DskipTests && ./assemble.pl -Dopennms.home=/opt/opennms -
DskipTests); say "OpenNMS may be ready for deployment”
Takes roughly 15-20 Minutes if .m2 already
populated, otherwise hours

23. Run Individual Tests
Do a full build
cd features/<my-feature>
mvn clean install -DskipTests
mvn test
For the whole module, will not run ITs
mvn verify -DskipITs=false
Runs Unit and Integration Tests
mvn clean test -Dtest=<myTest> -Dmaven.surefire.debug
mvn clean verify -DskipITs=false -Dit.test=<myIT> -Dmaven.failsafe.debug
This will also run all Unit Tests and the specified IT

24. Run Smoke Test
Always only run a single test. Never the whole suite!
Requires Firefox 45.0.2. Alternatively use Chrome, which requires chromedriver
Do a full build
(or use mvn clean install -DskipTests --also-make)
cd smoke-test
mvn clean install -DskipTests
(make sure it compiles)
mvn clean verify -Dsmoke=true -DskipITs=false -Dit.test=<myTest> [-Dmaven.failsafe.debug]
mvn clean verify -Dorg.opennms.smoketest.webdriver.use-chrome -D"chrome.path=/
Applications/Google Chrome.app/Contents/MacOS/Google Chrome" -DskipITs=false -
Dit.test=AngularLoginRedirectIT [-Dmaven.failsafe.debug]
(Run with Chrome instead of Firefox)

25. Run System Test
Always only run a single system test, never the whole suite
System Tests require the OpenNMS Docker Test images
Bamboo must have build them, otherwise this is going to be more tricky
Checkout repository
https://github.com/OpenNMS/opennms-system-test-api
Modify accordingly
https://github.com/mvrueden/scripts/blob/master/opennms/system-tests.sh
Downloads the RPMs from Bamboo and builds the Docker Images
./system-tests.sh https://bamboo.opennms.org/browse/OPENNMS-OPENNMS57-2
mvn clean verify -Dorg.opennms.smoketest.docker=true -Dsmoke=true [-
Dorg.opennms.smoketest.docker.skipTearDown=true] -DskipITs=false -Dit.test=HealthCheckIT -
Dorg.opennms.advertised-host-address=192.168.2.158

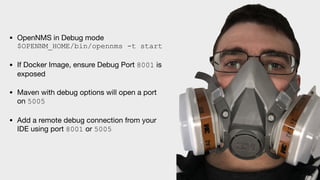

26. • OpenNMS in Debug mode
$OPENNM_HOME/bin/opennms -t start
• If Docker Image, ensure Debug Port 8001 is
exposed
• Maven with debug options will open a port
on 5005
• Add a remote debug connection from your
IDE using port 8001 or 5005

27. bundle:watch *
• OpenNMS is most likely run as root
• link <root-home>/.m2/repository to <your-user>/.m2/
repository
• ssh into OpenNMS’ Karaf Shell: ssh admin@localhost -p 8101
• bundle:watch *
• now do a mvn clean install -DskipTests of your maven module
(must be a bundle) and it will automatically be refreshed no rebuild
required

28. Only assemble.pl
Check all the root modules which have been changed
git status
Manually build each non bundle maven module (i.e. opennms-webapp)
mvn clean install -DskipTests
Stop OpenNMS, delete target and rerun
./assemble.pl -p dir -DskipTests
Even faster
If only one jar changed, you can copy it to target/opennms-<version>/lib and
restart OpenNMS

29. UI Work
Most UI Work can be done without restarting or rebuilding
(except Java changes or new Javascript Modules)
Java-Script changes
• Link jetty-webapps/opennms/assets to core/web-assets
•echo "org.opennms.web.assets.minified=false" > ${OPENNMS_HOME}/etc/
opennms.properties.d/assets.properties
• yarn build in core/web-assets on each change or yarn watch
JSP-Changes in opennms-webapp
rsync -auv src/main/webapp/ /Users/mvrueden/dev/opennms/drift2/target/
opennms-25.0.0-SNAPSHOT/jetty-webapps/opennms

30. Questions?

31. Where to go from here?
Developer Guide
https://docs.opennms.org/opennms/branches/develop/guide-development/guide-
development.html
IntelliJ
https://wiki.opennms.org/wiki/IDEA_and_OpenNMS
Eclipse
https://wiki.opennms.org/wiki/Eclipse_and_OpenNMS
Issues
https://issues.opennms.org
Discourse
community.opennms.com
https://opennms.discourse.group/c/development
https://opennms.discourse.group/tags/devjam-2019
Chat
chat.opennms.com @ DEV JAM
Checkout the Github Repository
https://github.com/opennms/opennms
Git Cheat Sheet
https://opennms.discourse.group/t/git-cheat-sheet/602
