1. IBM Cloud
This is not just any cloud.
This is the IBM Cloud.Lecture @ University College Cork
November 22nd 2017
Sanjay Nayak
Michael O’Sullivan

2. IBM
Cloud

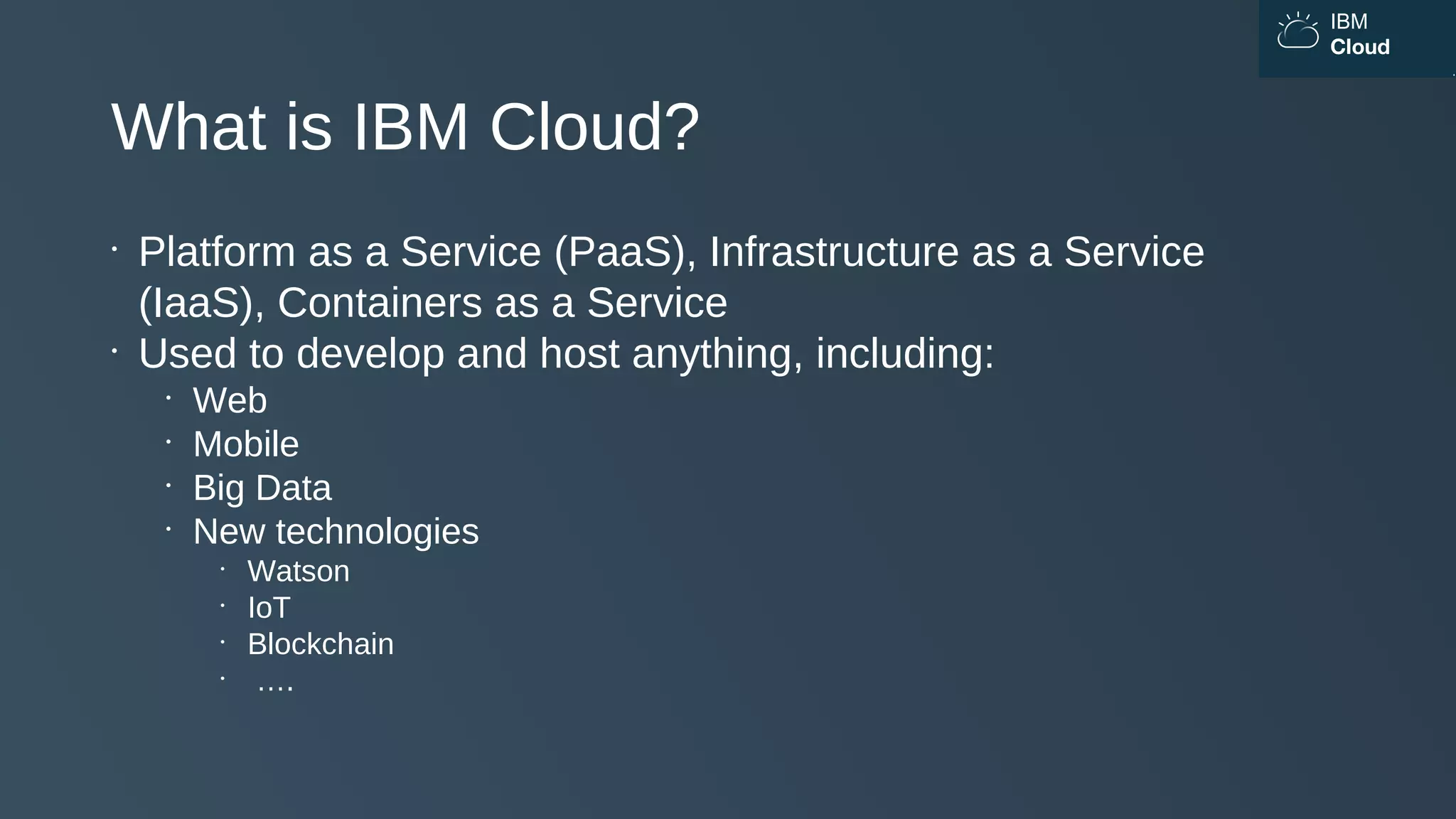

What is IBM Cloud?
•
Platform as a Service (PaaS), Infrastructure as a Service
(IaaS), Containers as a Service
•
Used to develop and host anything, including:
•
Web
•
Mobile
•
Big Data
•
New technologies
•
Watson
•
IoT
•
Blockchain
•
….

3. IBM
Cloud

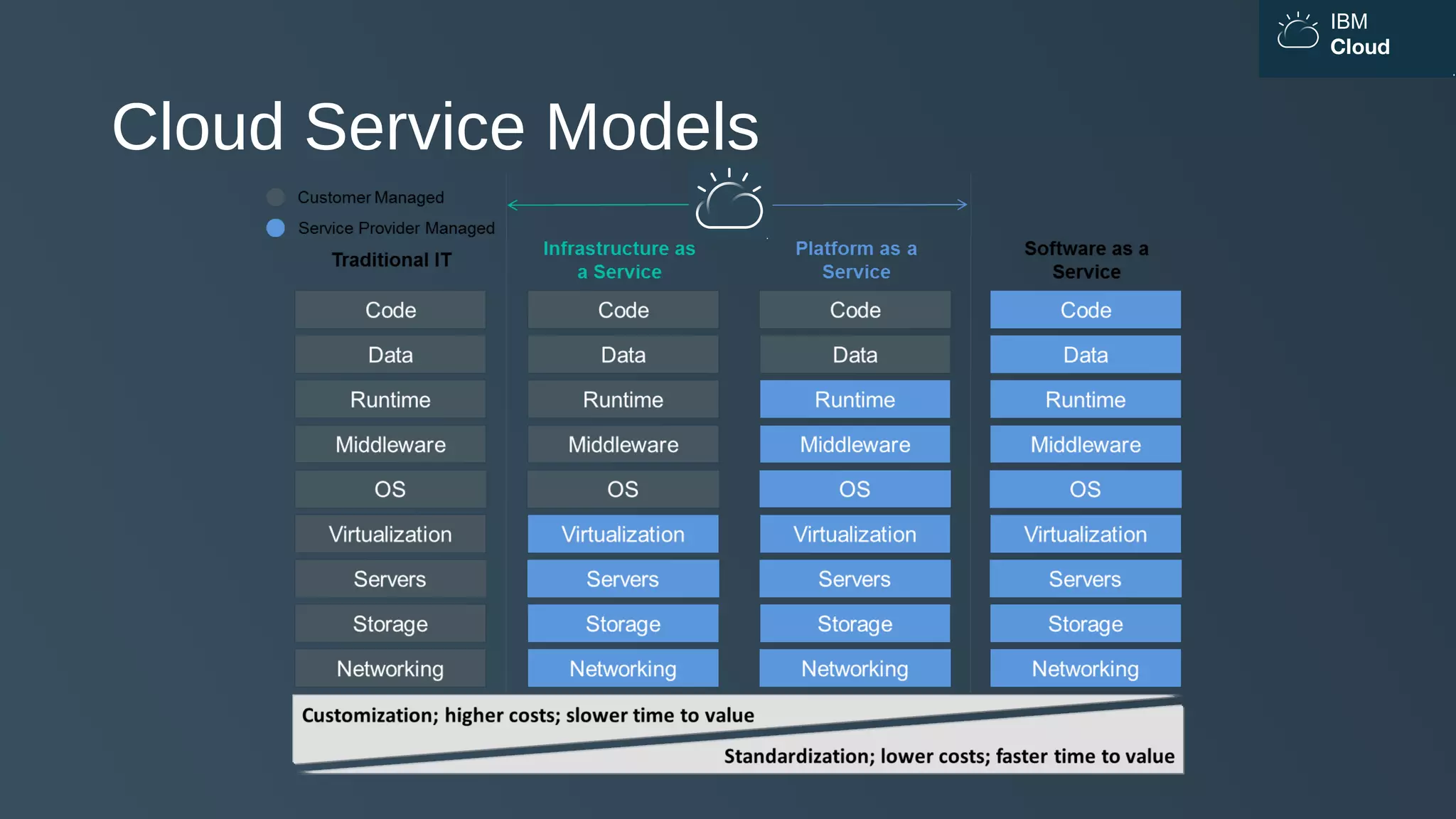

Cloud Service Models

4. IBM
Cloud

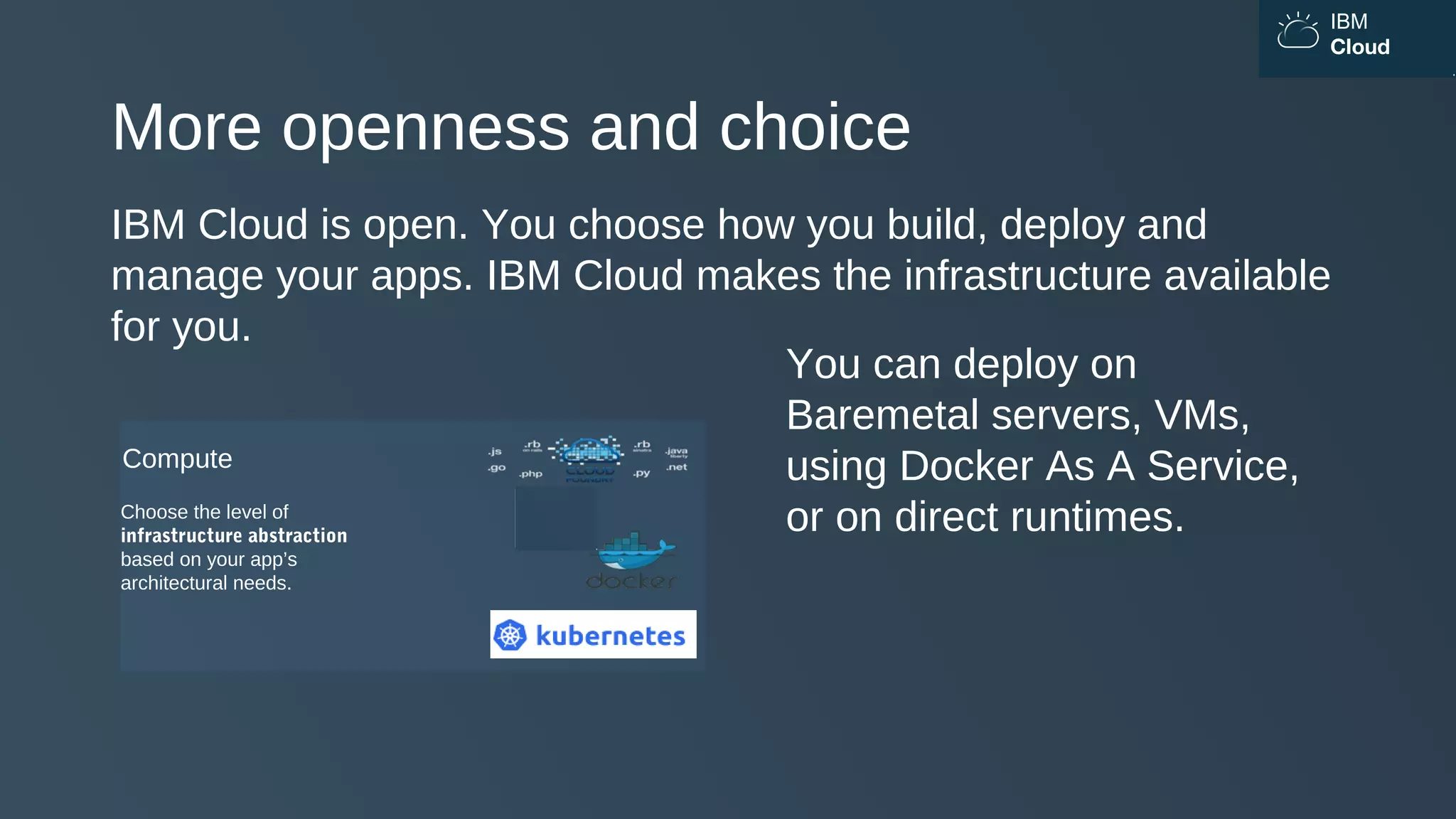

More openness and choice
IBM Cloud is open. You choose how you build, deploy and
manage your apps. IBM Cloud makes the infrastructure available
for you.
Compute
Choose the level of
infrastructure abstraction
based on your app’s
architectural needs.
You can deploy on
Baremetal servers, VMs,
using Docker As A Service,
or on direct runtimes.

5. IBM
Cloud

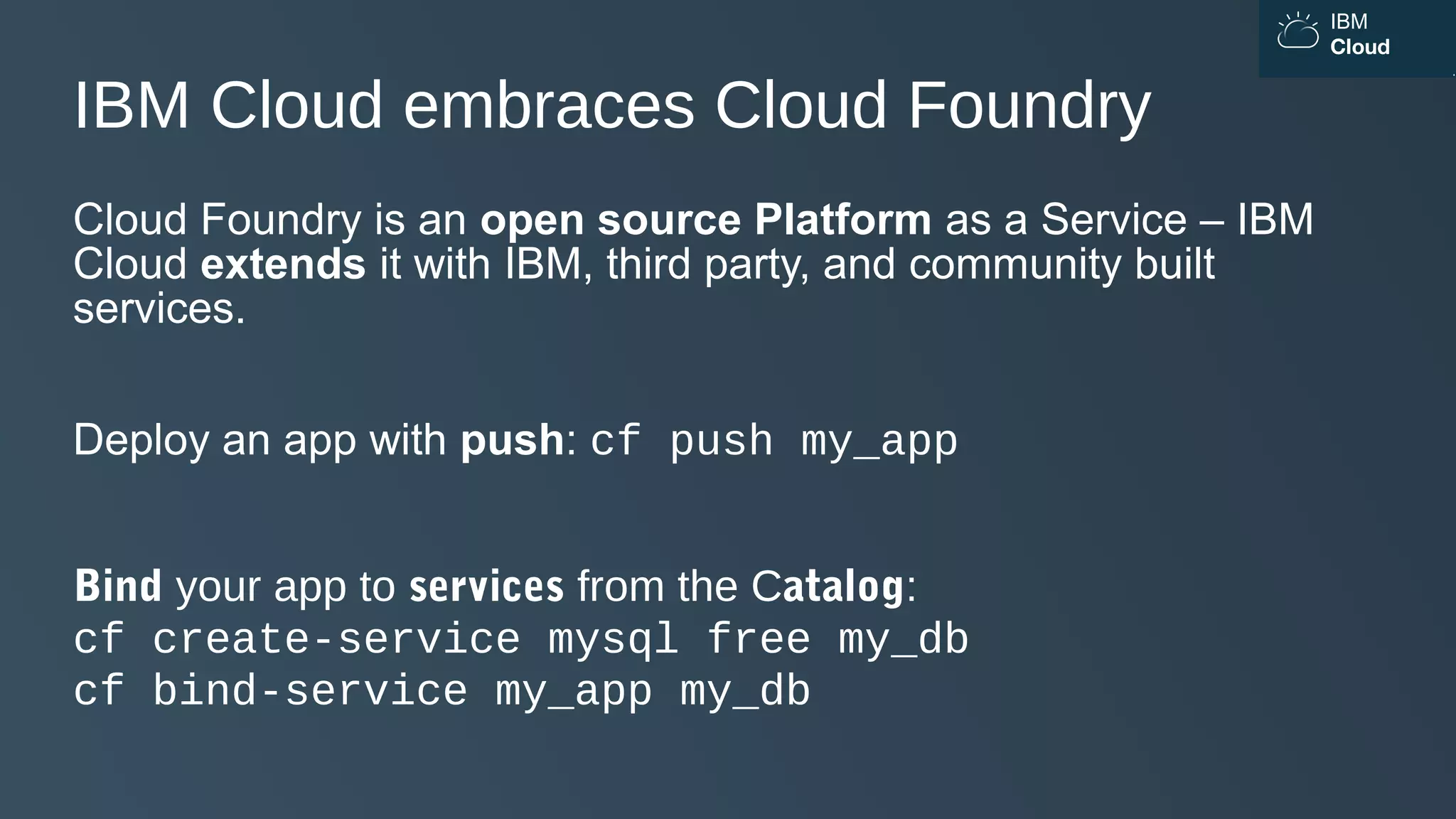

IBM Cloud embraces Cloud Foundry
Cloud Foundry is an open source Platform as a Service – IBM
Cloud extends it with IBM, third party, and community built
services.
Deploy an app with push: cf push my_app
Bind your app to services from the Catalog:
cf create-service mysql free my_db
cf bind-service my_app my_db

6. IBM
Cloud

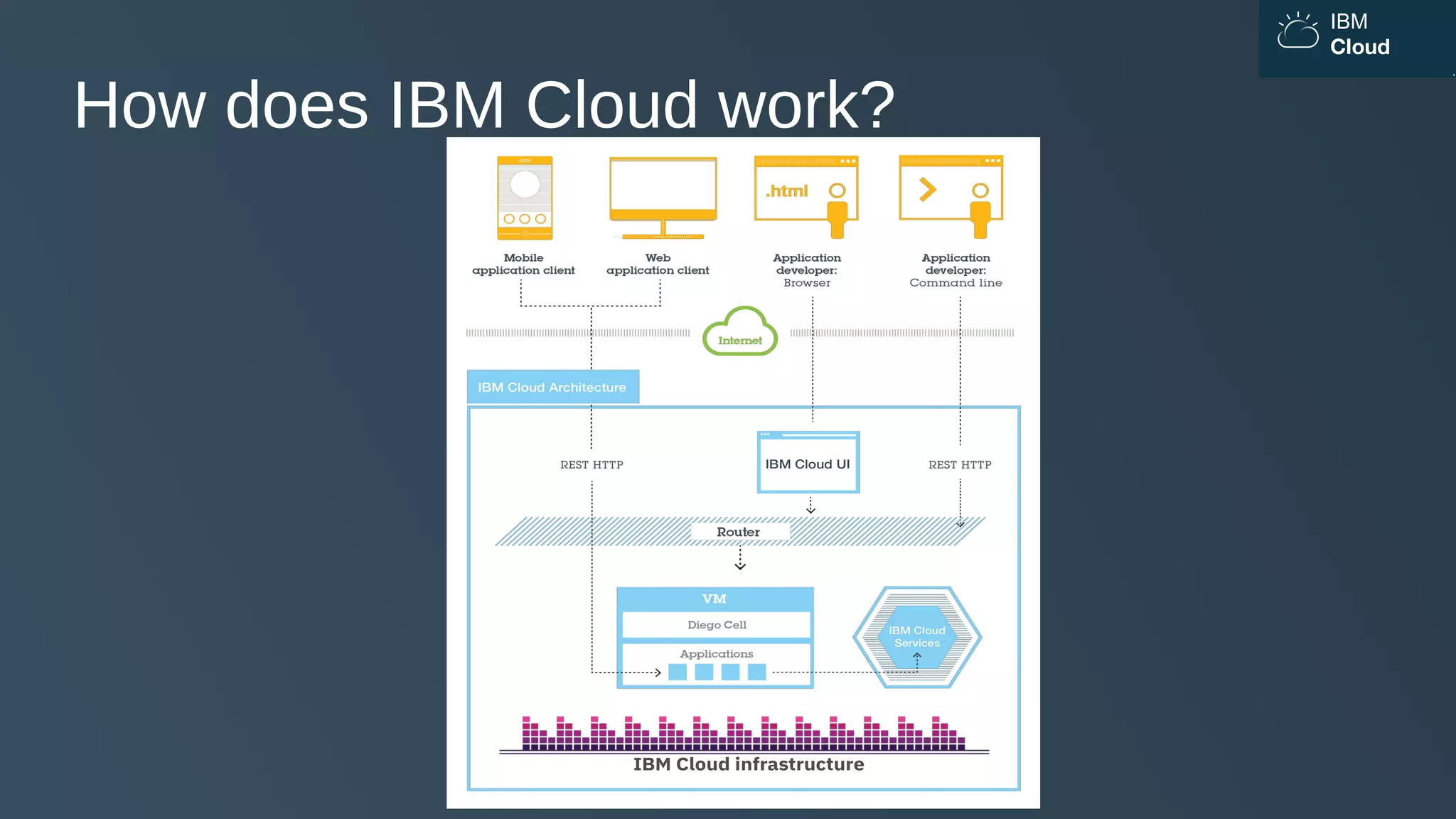

How does IBM Cloud work?

7. IBM
Cloud

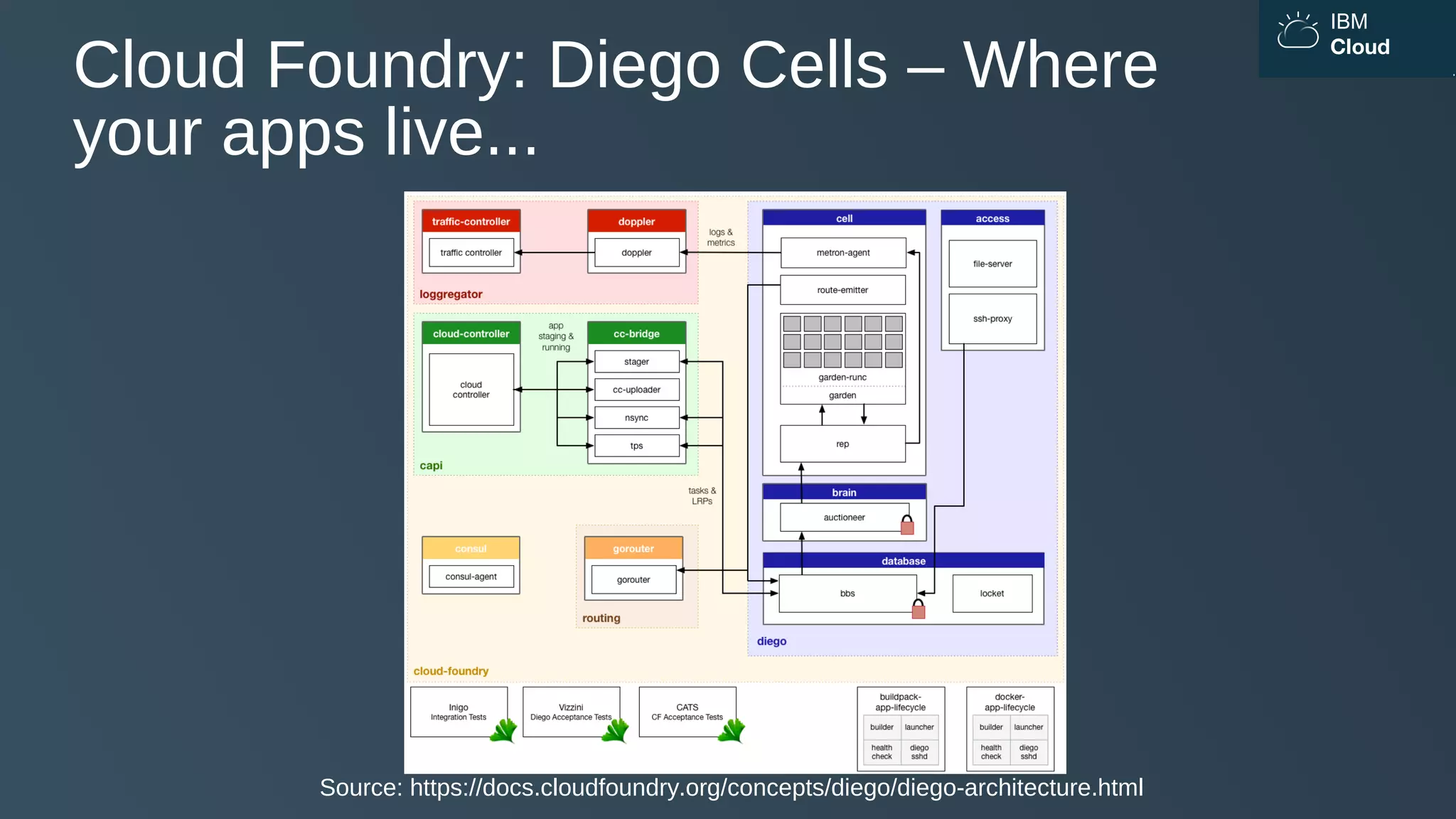

Cloud Foundry: Diego Cells – Where
your apps live...
Source: https://docs.cloudfoundry.org/concepts/diego/diego-architecture.html

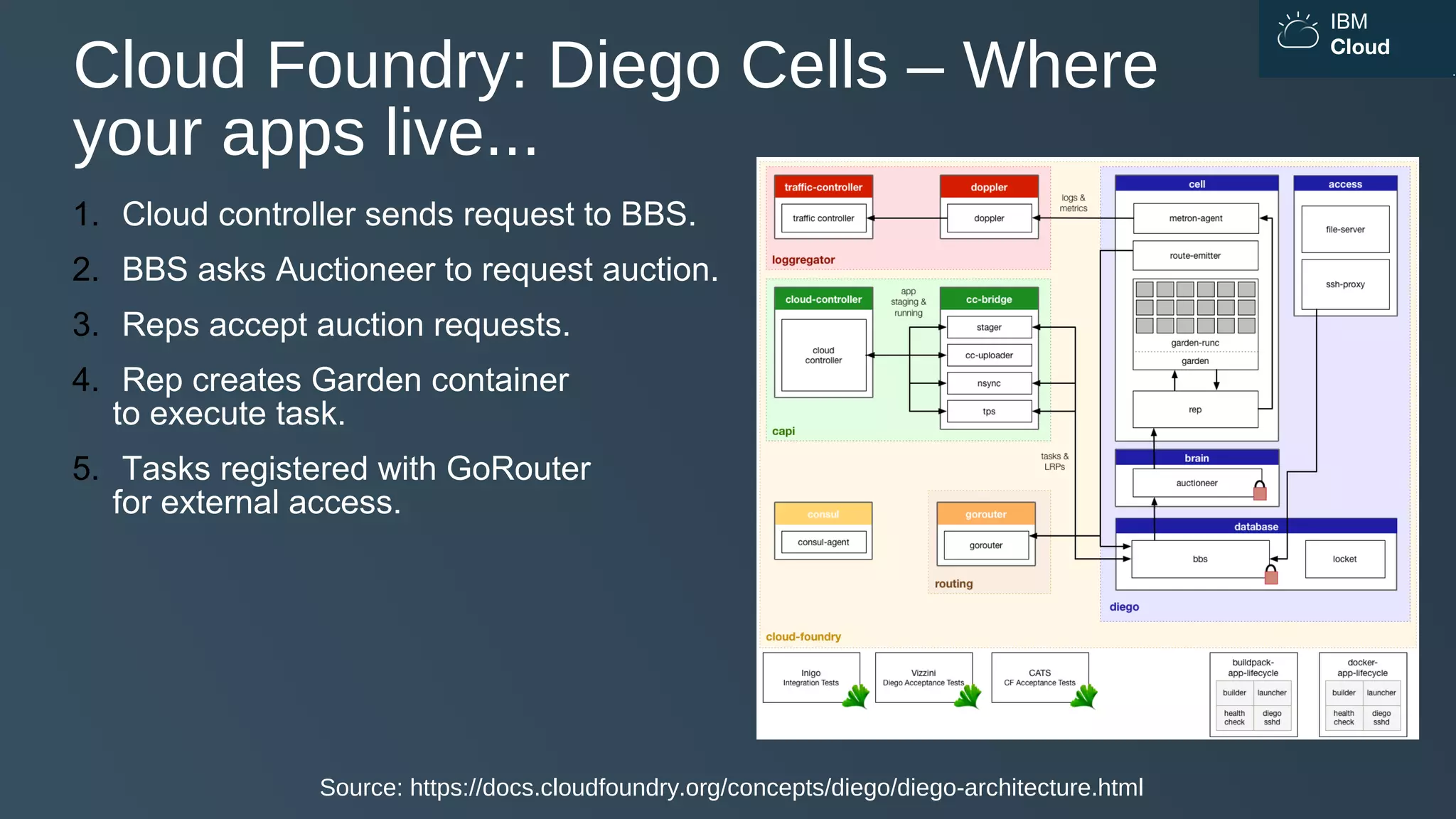

8. IBM
Cloud
Cloud Foundry: Diego Cells – Where
your apps live...
Source: https://docs.cloudfoundry.org/concepts/diego/diego-architecture.html
1. Cloud controller sends request to BBS.
2. BBS asks Auctioneer to request auction.
3. Reps accept auction requests.
4. Rep creates Garden container
to execute task.
5. Tasks registered with GoRouter
for external access.

9. IBM
Cloud

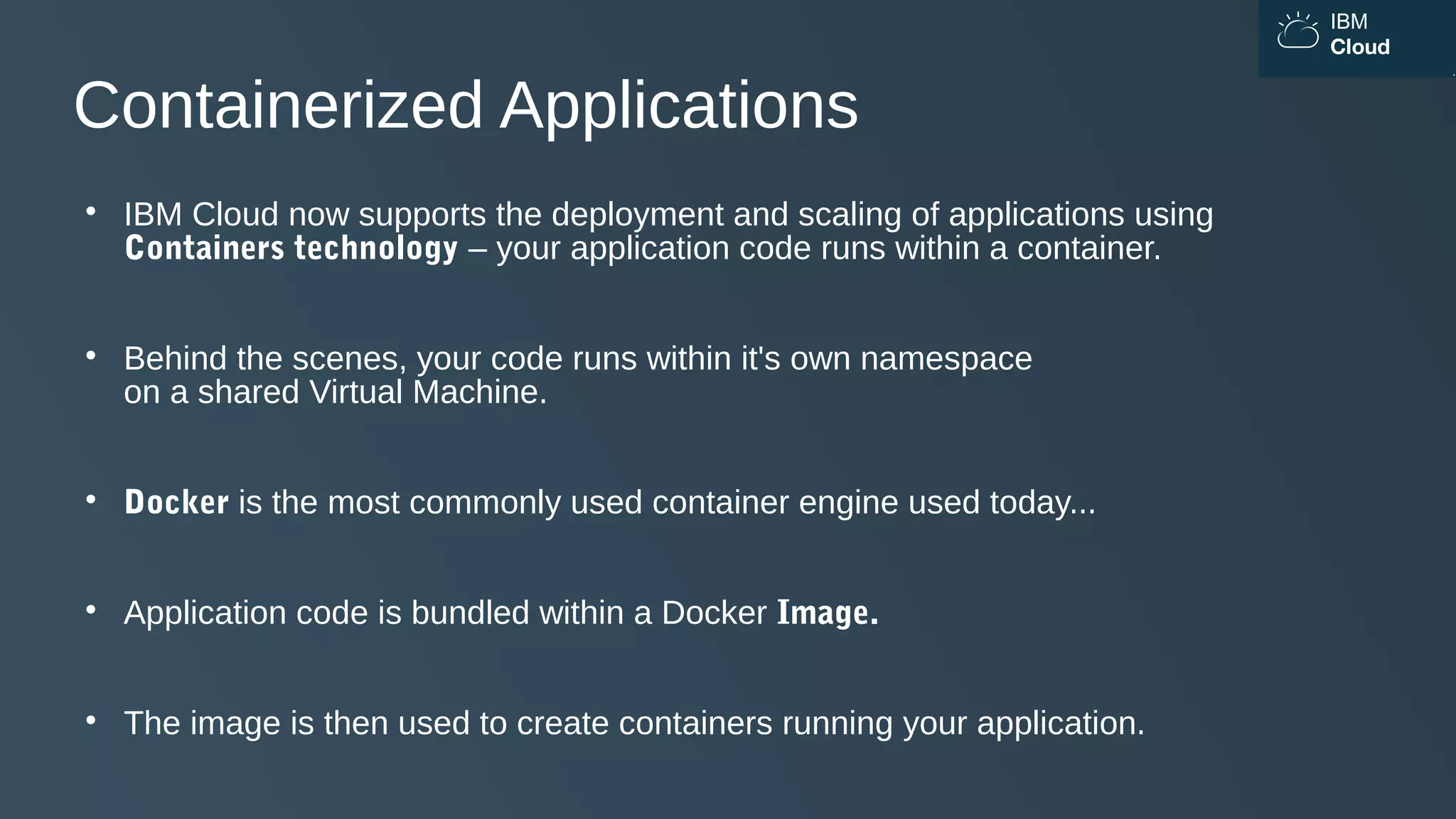

Containerized Applications

IBM Cloud now supports the deployment and scaling of applications using
Containers technology – your application code runs within a container.

Behind the scenes, your code runs within it's own namespace
on a shared Virtual Machine.

Docker is the most commonly used container engine used today...

Application code is bundled within a Docker Image.

The image is then used to create containers running your application.

10. IBM
Cloud

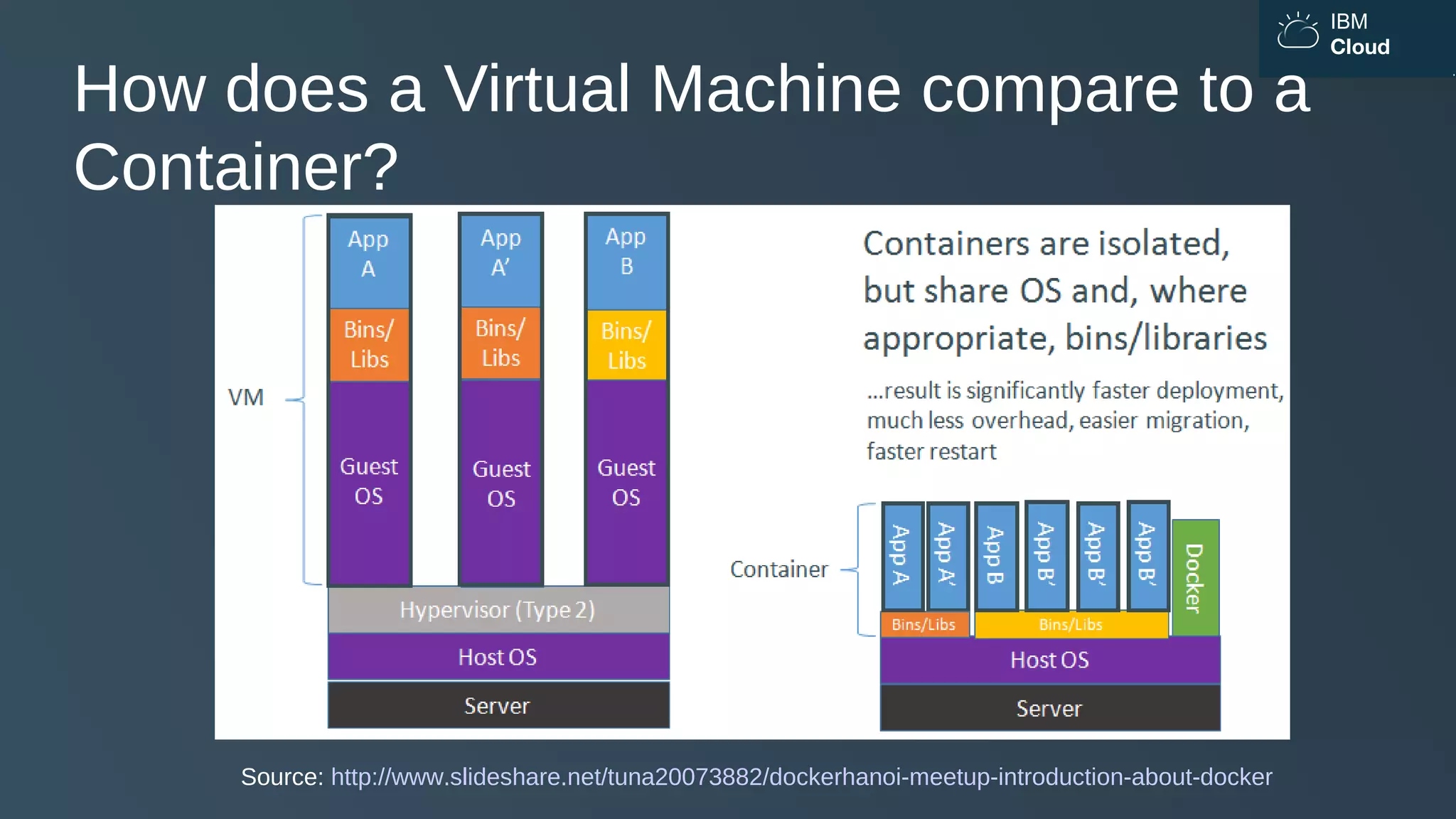

How does a Virtual Machine compare to a
Container?
Source: http://www.slideshare.net/tuna20073882/dockerhanoi-meetup-introduction-about-docker

11. IBM
Cloud

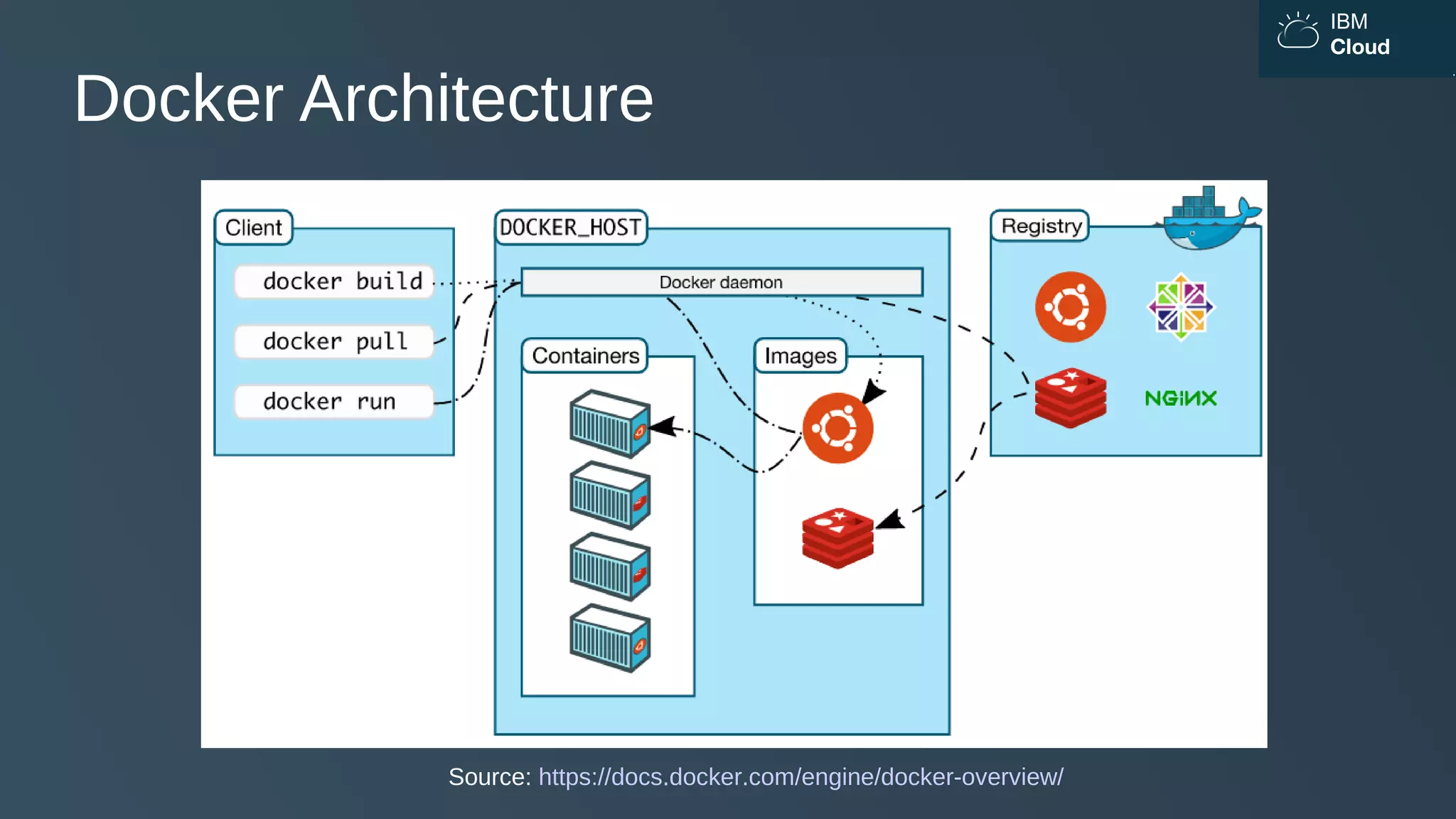

Docker Architecture
Source: https://docs.docker.com/engine/docker-overview/

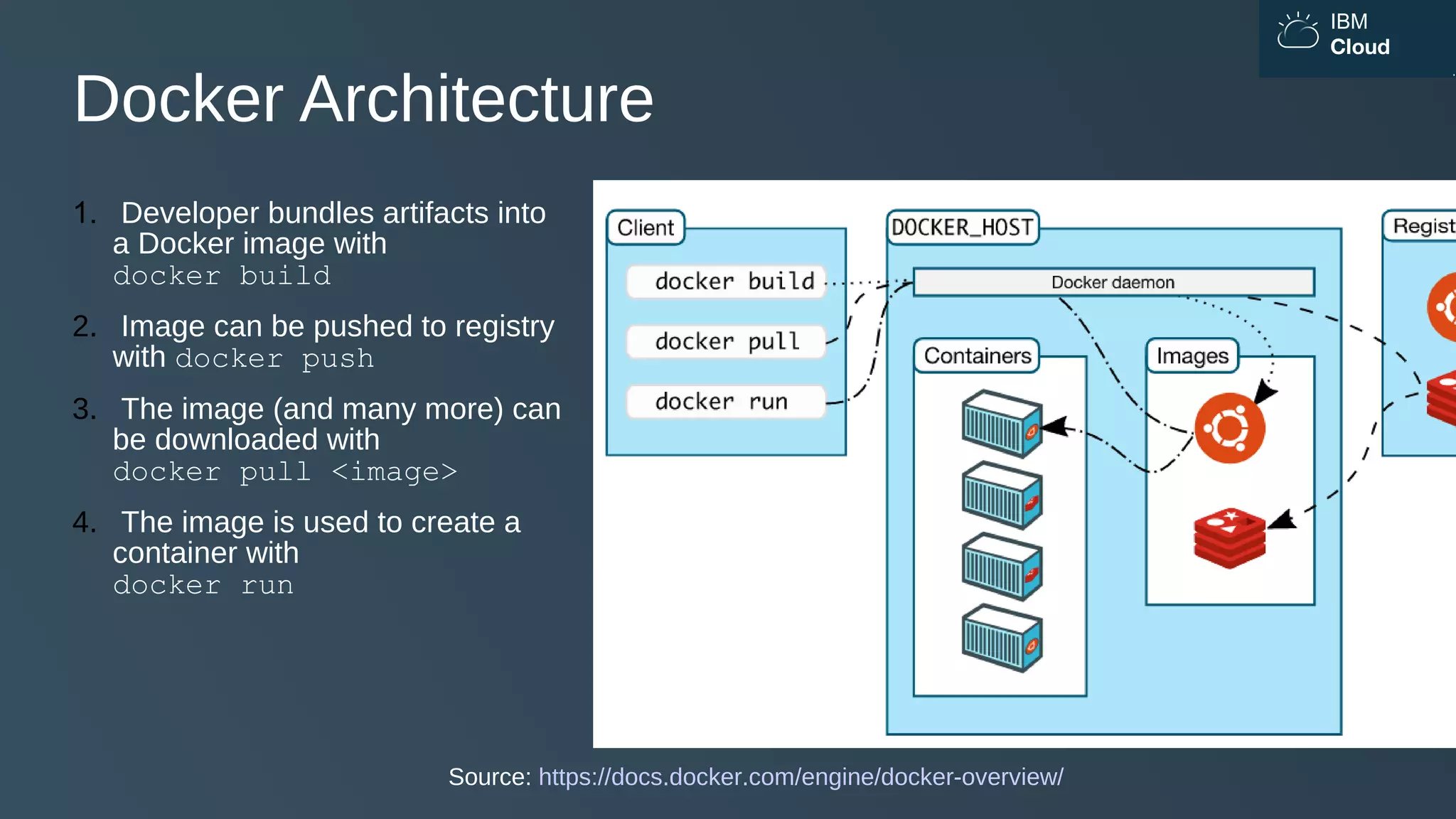

12. IBM
Cloud
Docker Architecture
Source: https://docs.docker.com/engine/docker-overview/
1. Developer bundles artifacts into
a Docker image with
docker build
2. Image can be pushed to registry
with docker push
3. The image (and many more) can
be downloaded with
docker pull <image>
4. The image is used to create a
container with
docker run

13. IBM
Cloud

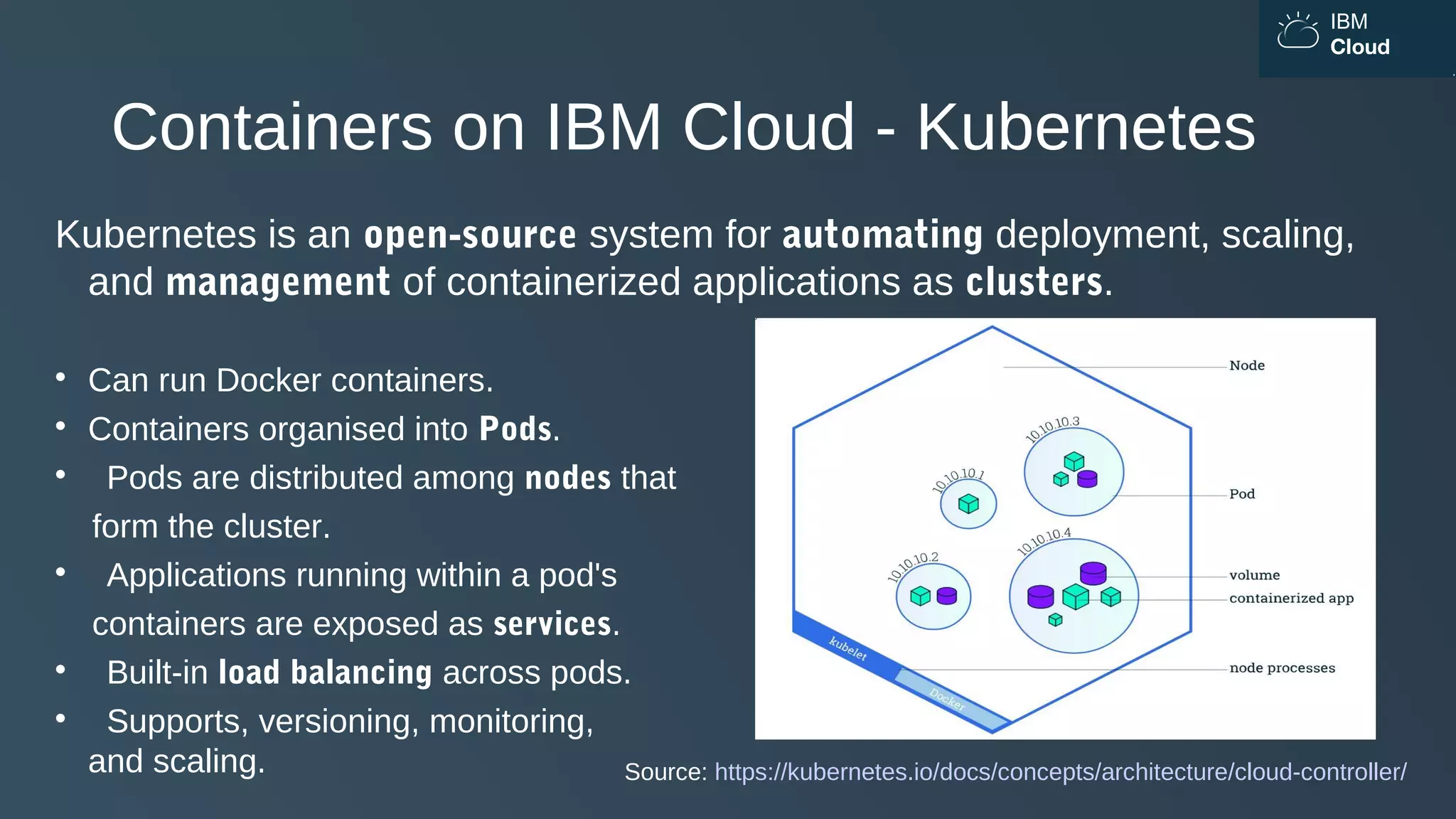

Containers on IBM Cloud - Kubernetes
Kubernetes is an open-source system for automating deployment, scaling,
and management of containerized applications as clusters.

Can run Docker containers.

Containers organised into Pods.

Pods are distributed among nodes that
form the cluster.

Applications running within a pod's
containers are exposed as services.

Built-in load balancing across pods.

Supports, versioning, monitoring,
and scaling. Source: https://kubernetes.io/docs/concepts/architecture/cloud-controller/

14. IBM
Cloud
Source: https://kubernetes.io/docs/concepts/architecture/cloud-controller/

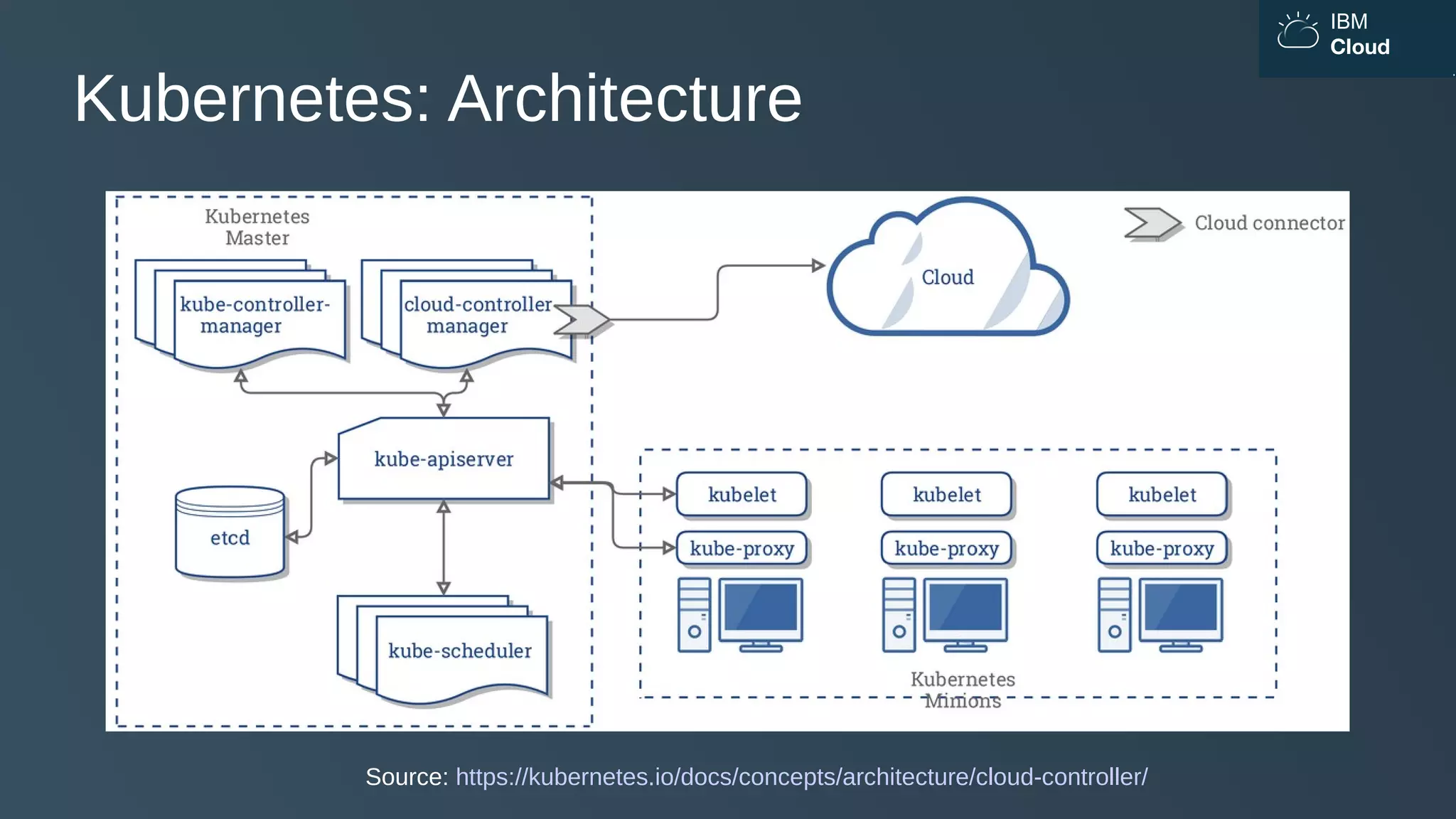

Kubernetes: Architecture

15. IBM
Cloud

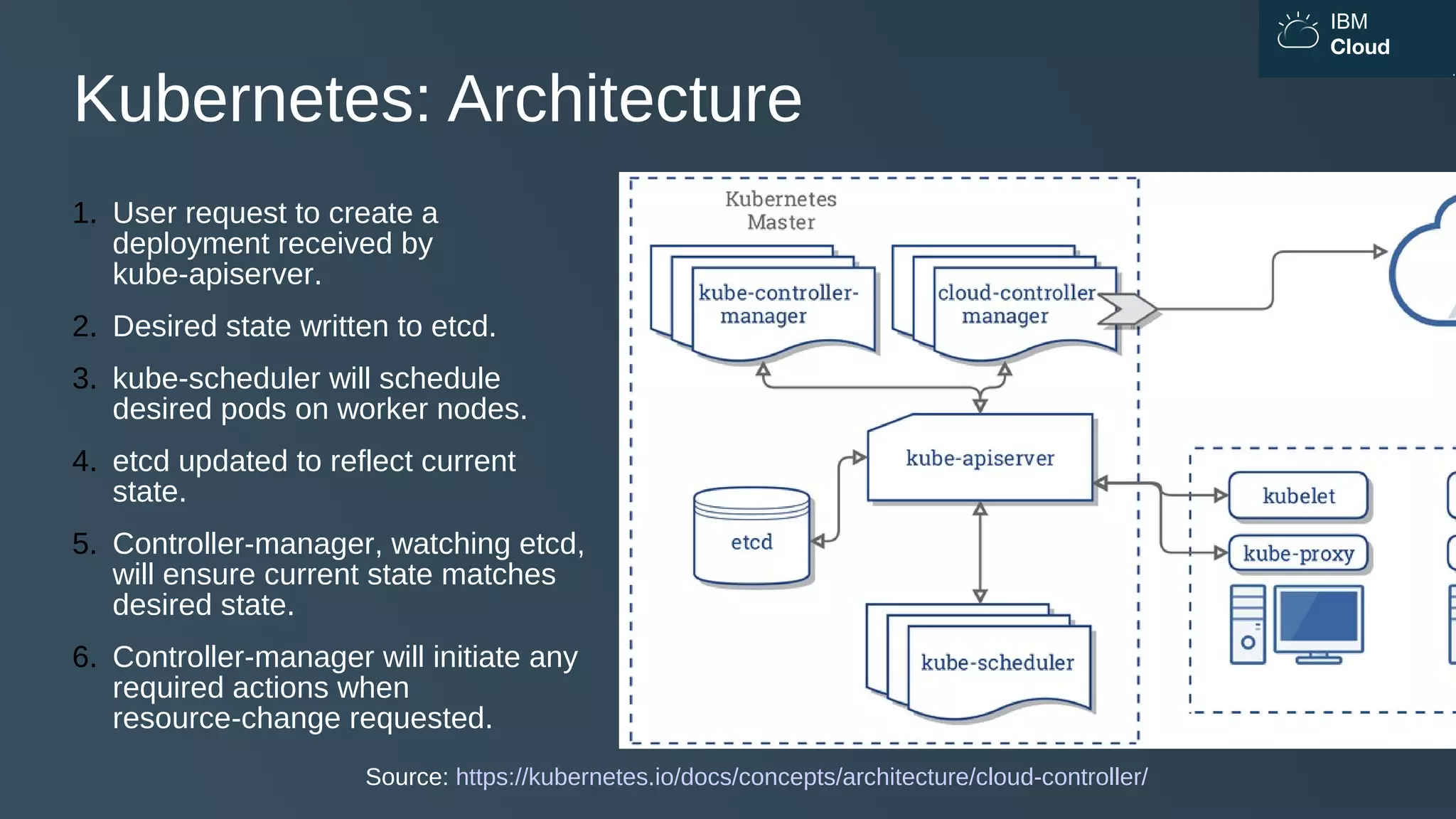

Kubernetes: Architecture
Source: https://kubernetes.io/docs/concepts/architecture/cloud-controller/
1. User request to create a
deployment received by
kube-apiserver.
2. Desired state written to etcd.
3. kube-scheduler will schedule
desired pods on worker nodes.
4. etcd updated to reflect current
state.
5. Controller-manager, watching etcd,
will ensure current state matches
desired state.
6. Controller-manager will initiate any
required actions when
resource-change requested.

16. IBM
Cloud

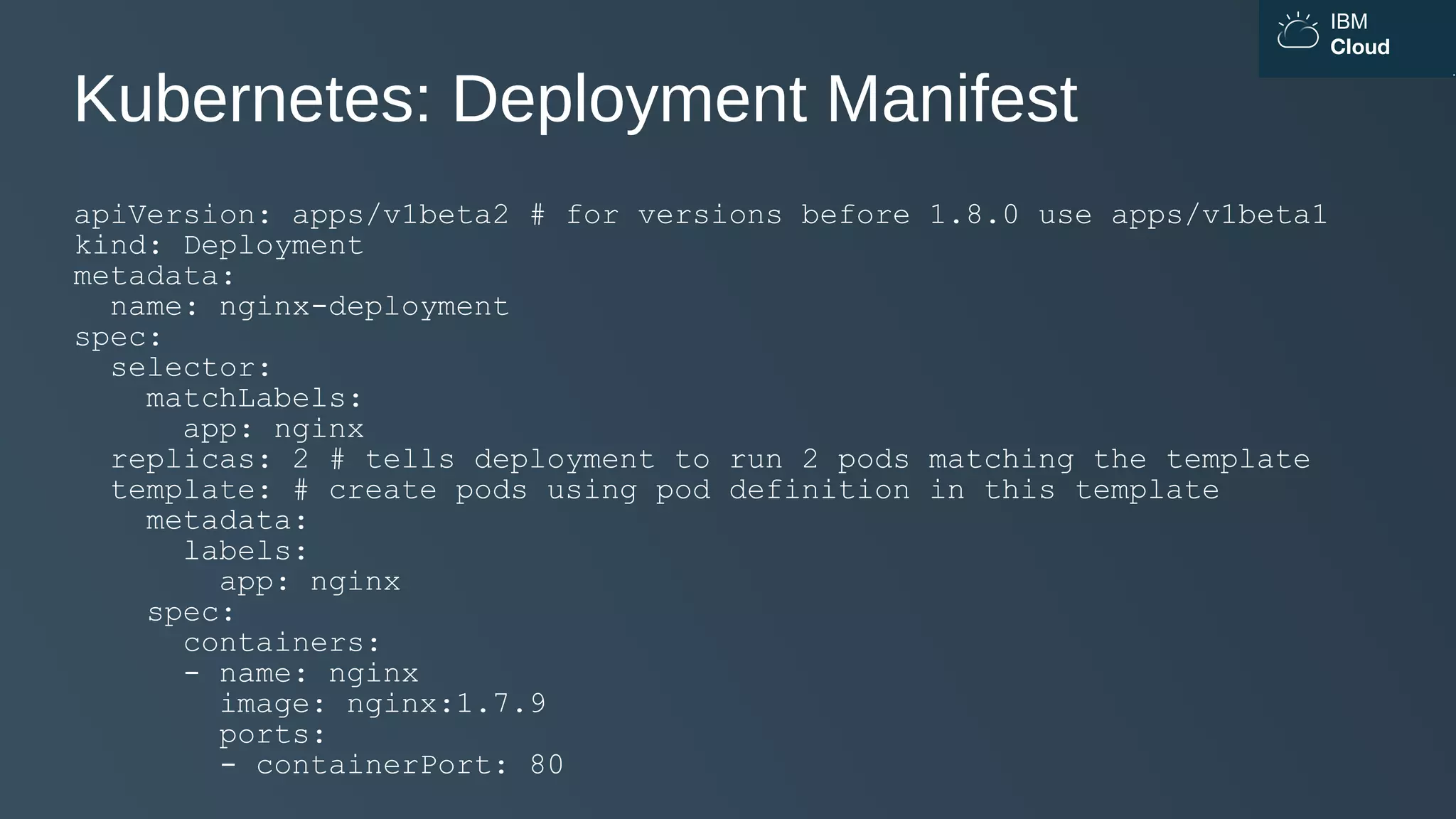

Kubernetes: Deployment Manifest
apiVersion: apps/v1beta2 # for versions before 1.8.0 use apps/v1beta1
kind: Deployment
metadata:
name: nginx-deployment
spec:
selector:
matchLabels:
app: nginx
replicas: 2 # tells deployment to run 2 pods matching the template
template: # create pods using pod definition in this template
metadata:
labels:
app: nginx
spec:
containers:
- name: nginx
image: nginx:1.7.9
ports:
- containerPort: 80

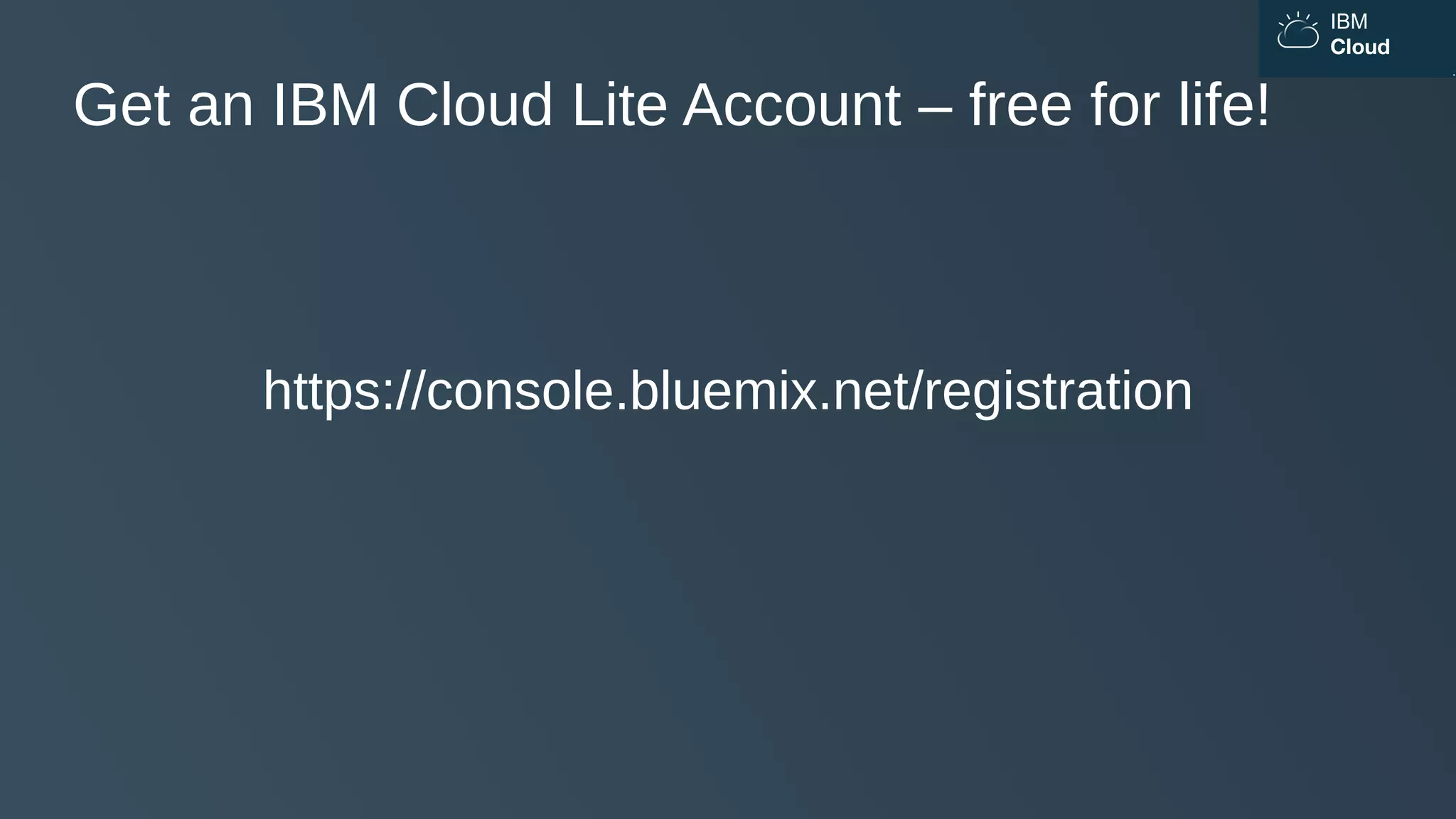

17. IBM
Cloud
https://console.bluemix.net/registration
Get an IBM Cloud Lite Account – free for life!

18. IBM
Cloud

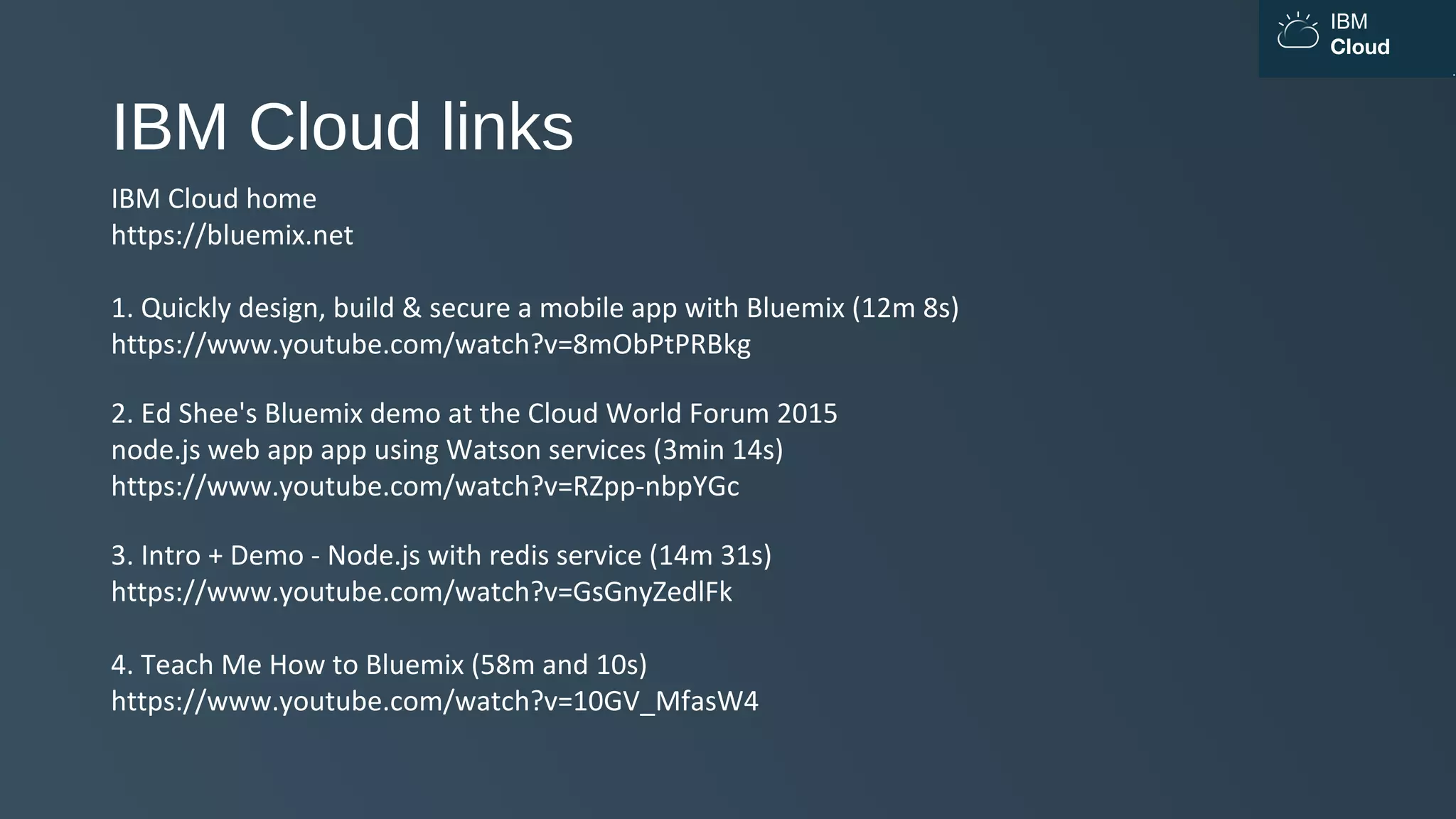

IBM Cloud links
IBM Cloud home
https://bluemix.net
1. Quickly design, build & secure a mobile app with Bluemix (12m 8s)
https://www.youtube.com/watch?v=8mObPtPRBkg
2. Ed Shee's Bluemix demo at the Cloud World Forum 2015
node.js web app app using Watson services (3min 14s)
https://www.youtube.com/watch?v=RZpp-nbpYGc
3. Intro + Demo - Node.js with redis service (14m 31s)
https://www.youtube.com/watch?v=GsGnyZedlFk
4. Teach Me How to Bluemix (58m and 10s)
https://www.youtube.com/watch?v=10GV_MfasW4

19. IBM
Cloud

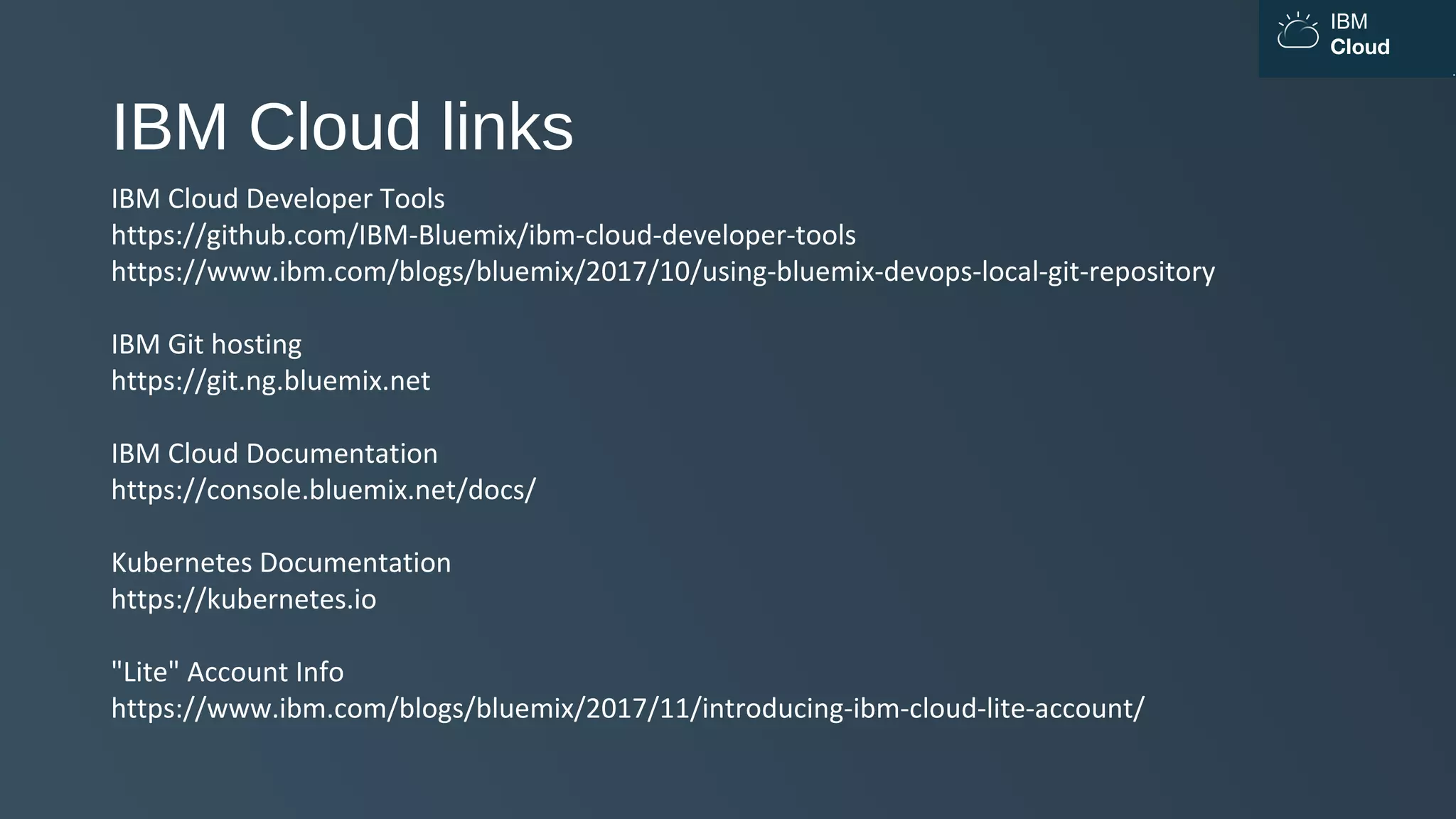

IBM Cloud links
IBM Cloud Developer Tools
https://github.com/IBM-Bluemix/ibm-cloud-developer-tools
https://www.ibm.com/blogs/bluemix/2017/10/using-bluemix-devops-local-git-repository
IBM Git hosting
https://git.ng.bluemix.net
IBM Cloud Documentation
https://console.bluemix.net/docs/
Kubernetes Documentation
https://kubernetes.io
"Lite" Account Info
https://www.ibm.com/blogs/bluemix/2017/11/introducing-ibm-cloud-lite-account/
