The document discusses options for designing an e-infrastructure architecture to share laboratory data across multiple institutions for the TCS project. It notes that current states vary, with some institutions having good infrastructures and metadata schemes while others only have data stored locally. Three generic architecture options are presented: fully distributed, metadata centralized, and metadata and data centralized. A hybrid option is recommended to accommodate different institutional setups. Key points are that some effort is needed for metadata harmonization and digital infrastructure, and the chosen architecture should balance technical and resource factors with willingness to share.

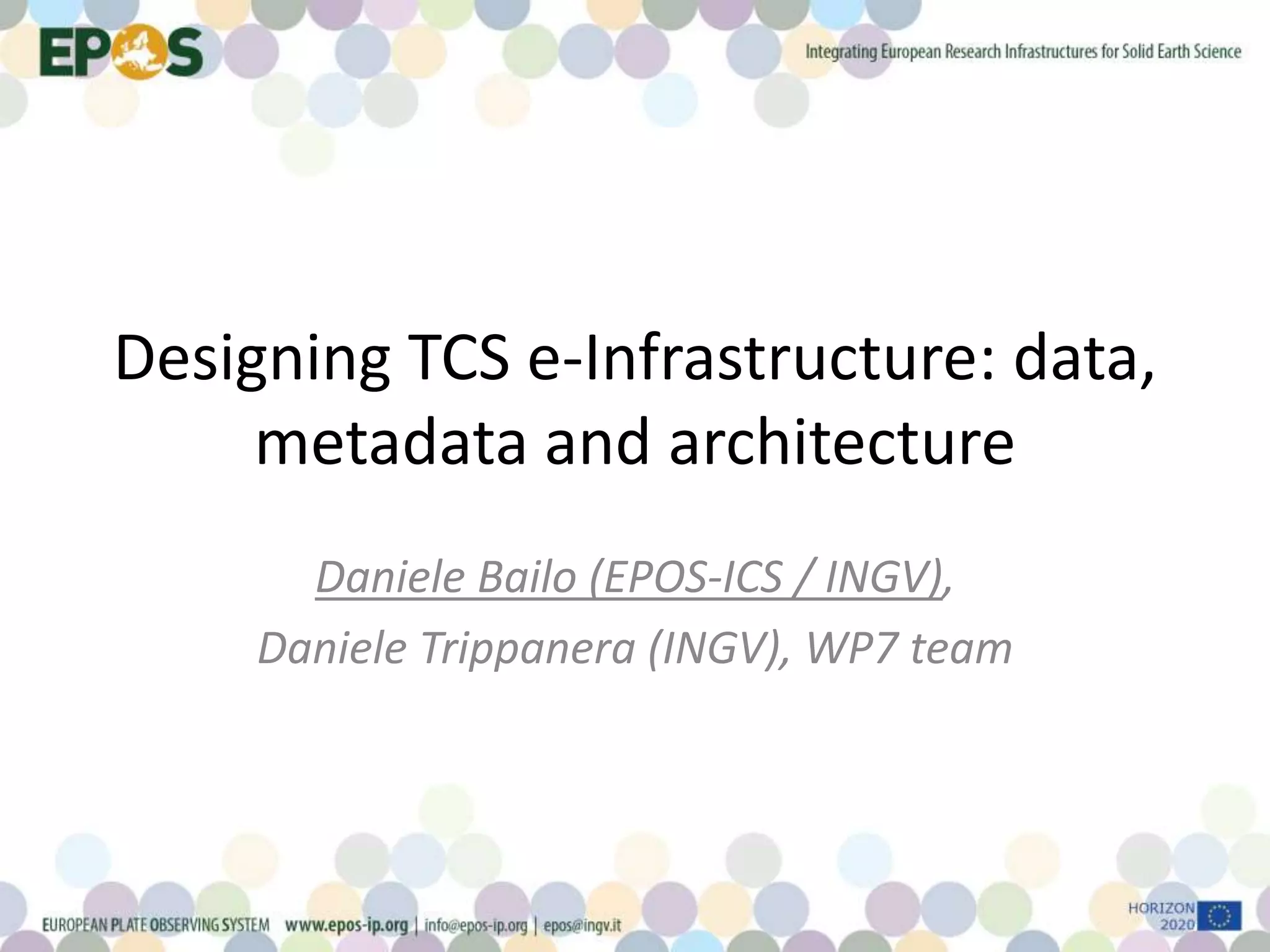

1. Designing TCS e-Infrastructure: data,
metadata and architecture
Daniele Bailo (EPOS-ICS / INGV),
Daniele Trippanera (INGV), WP7 team

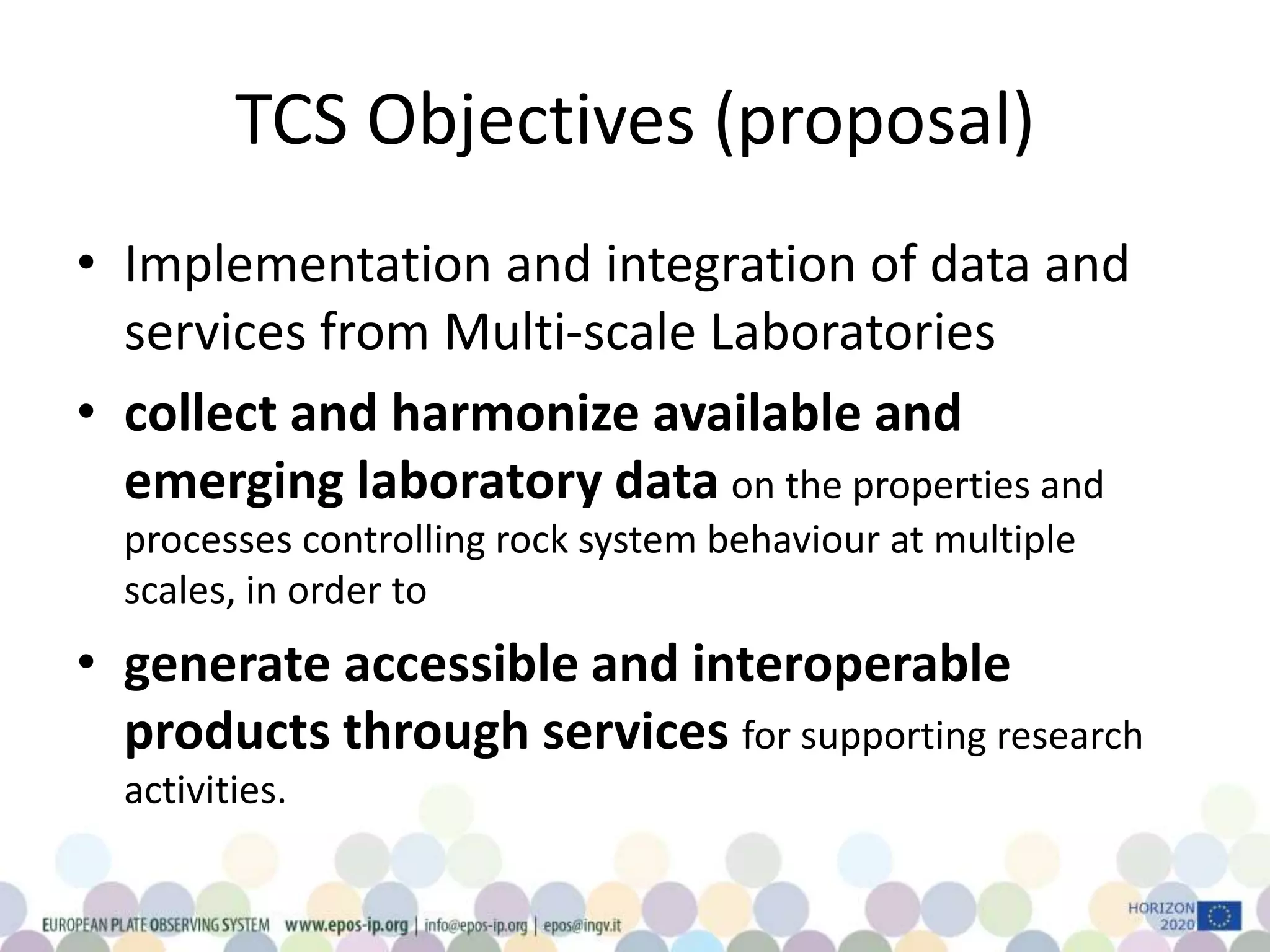

2. TCS Objectives (proposal)
• Implementation and integration of data and
services from Multi-scale Laboratories
• collect and harmonize available and
emerging laboratory data on the properties and
processes controlling rock system behaviour at multiple
scales, in order to
• generate accessible and interoperable
products through services for supporting research
activities.

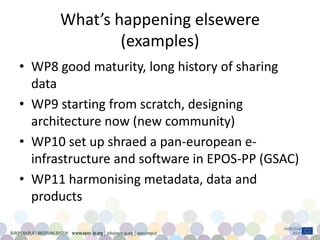

3. What’s happening elsewere
(examples)
• WP8 good maturity, long history of sharing
data
• WP9 starting from scratch, designing
architecture now (new community)
• WP10 set up shraed a pan-european e-
infrastructure and software in EPOS-PP (GSAC)
• WP11 harmonising metadata, data and
products

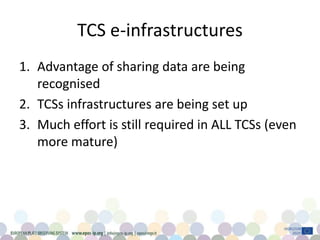

4. TCS e-infrastructures
1. Advantage of sharing data are being
recognised
2. TCSs infrastructures are being set up
3. Much effort is still required in ALL TCSs (even
more mature)

5. WP16 state of the art
• Some institutions have good e-infrastructures
and metadata scheme
• Some have data stored on local drives
• Some have only data stored on accessible
repositories
• Some have repositories and portals with
proprietary metadata scheme
 Quite heterogenous

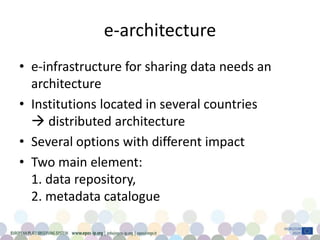

6. e-architecture
• e-infrastructure for sharing data needs an
architecture
• Institutions located in several countries
 distributed architecture
• Several options with different impact
• Two main element:
1. data repository,
2. metadata catalogue

7. Generic TCS-ICS architecture
TCS system Data/metada
ta catalogue
National
network
National
repository
API / web service
Local HPC

8. Option 1: fully distributed
ICS
Institution 1 Institution 2
Metadata
catalogue
DATA
Web Service Web Service
Metadata
catalogue
DATA
Institution 3
Web Service
Metadata
catalogue
DATA
PROs
1. No delegation:
each institution has full
control over data and
metadata
CONs
1. Several access points
2. Institution’s effort to
set up and maintain
the e-infrastructure
(WS, institutional data
storage system, MD
catalogue)

9. Option 2: metadata centralised
(distributed institutional data storage system)
ICS
Institution 1
Institution 2
DATA
Web Service
Metadata
catalogue
DATA
Institution 3
DATA
PROs
1. Very low delegation:
each institution only
provides metadata
2. Less effort: each
instituion only
maintain institutional
data storage system
CONs TODO
1. Agreements on
metadata provision
Metadata
extraction
Metadata
extraction

10. Option 3: metadata and data
repository centralised
ICS
Institution 1
Institution 2
DATA
Web Service
Metadata
catalogue
DATA
Institution 3
DATA
PROs
1. No effort: from
institutions
CONs
1. Full delegation:
each institution
provides both data and
metadata to central
node
2. Agreements on
data/metadata
provision
3. No infrastructure is
built locally
RISK
1. No data is shared
Metadata
extraction
Metadata
extraction

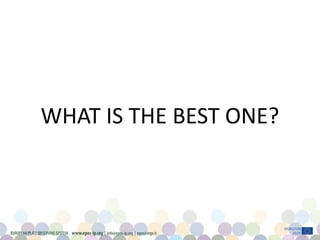

11. WHAT IS THE BEST ONE?

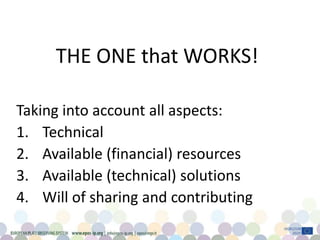

12. THE ONE that WORKS!
Taking into account all aspects:
1. Technical
2. Available (financial) resources
3. Available (technical) solutions
4. Will of sharing and contributing

13. Reality is complex
WP16 Institutions have different set-ups

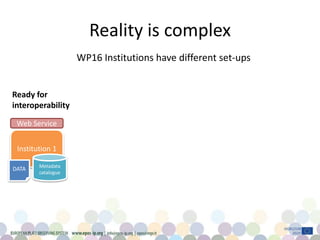

14. Reality is complex
Institution 1
Metadata
catalogue
DATA
Web Service
Ready for
interoperability
WP16 Institutions have different set-ups

15. Reality is complex
Institution 1
Metadata
catalogue
DATA
Web Service
Ready to provide
metadata
Institution 1
DATA
WP16 Institutions have different set-ups
Metadata
extraction

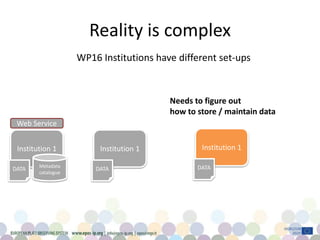

16. Reality is complex
Institution 1
Metadata
catalogue
DATA
Web Service
Needs to figure out
how to store / maintain data
Institution 1
DATA
Institution 1
DATA
WP16 Institutions have different set-ups

17. Hybrid Option
ICS
Institution 2
CENTRAL
NODE
DATA
Web Service
Metadata
catalogueDATA
PROs
1. Low perturbation of
existing systems
TODOs
1. Agreements on
provision of data /
metadata
RISK
“Empty box” scenario:
nothing is really shared,
only examples files
Metadata
extraction
Institution 1
DATA
MD
Extr.
Institution 3
Metadata
catalogueDATA

18. DOI
• Allow to uniquely identify data
• Ensure Citation of the dataset
• Data access via DOI link
• Guarantee timewise availability of data access

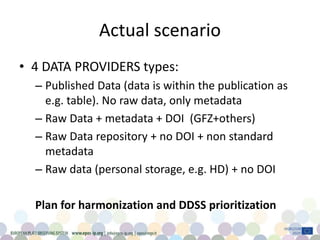

19. Actual scenario
• 4 DATA PROVIDERS types:
– Published Data (data is within the publication as
e.g. table). No raw data, only metadata
– Raw Data + metadata + DOI (GFZ+others)
– Raw Data repository + no DOI + non standard
metadata
– Raw data (personal storage, e.g. HD) + no DOI
Plan for harmonization and DDSS prioritization

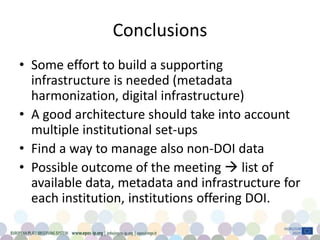

20. Conclusions
• Some effort to build a supporting
infrastructure is needed (metadata
harmonization, digital infrastructure)
• A good architecture should take into account
multiple institutional set-ups
• Find a way to manage also non-DOI data
• Possible outcome of the meeting  list of
available data, metadata and infrastructure for
each institution, institutions offering DOI.

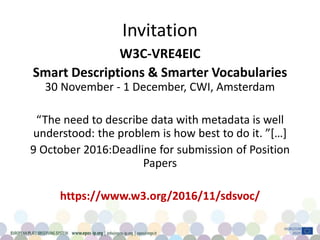

21. Invitation
W3C-VRE4EIC
Smart Descriptions & Smarter Vocabularies
30 November - 1 December, CWI, Amsterdam
“The need to describe data with metadata is well
understood: the problem is how best to do it. ”[…]
9 October 2016:Deadline for submission of Position
Papers
https://www.w3.org/2016/11/sdsvoc/
