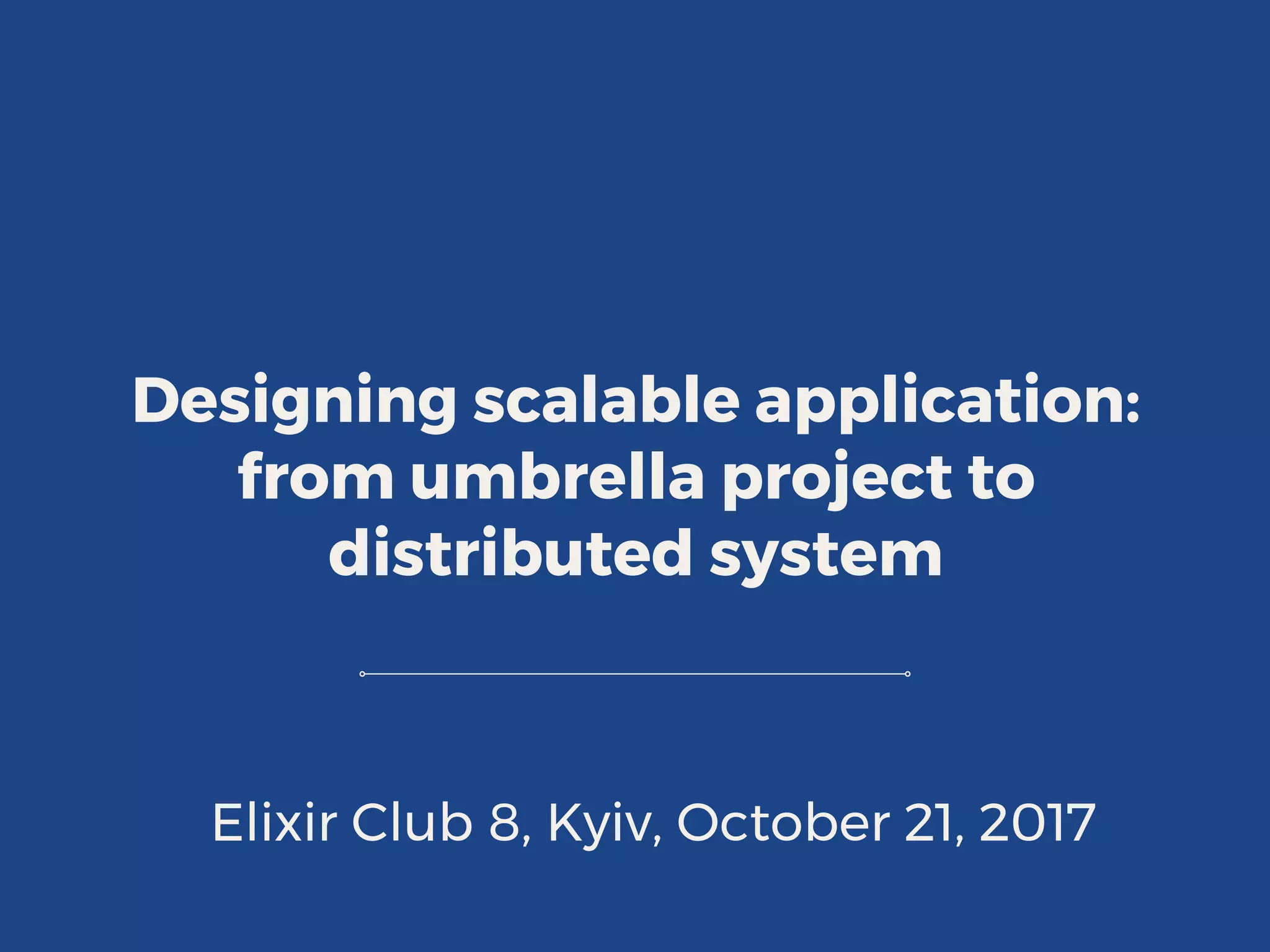

1. Designing scalable application:
from umbrella project to
distributed system
Elixir Club 8, Kyiv, October 21, 2017

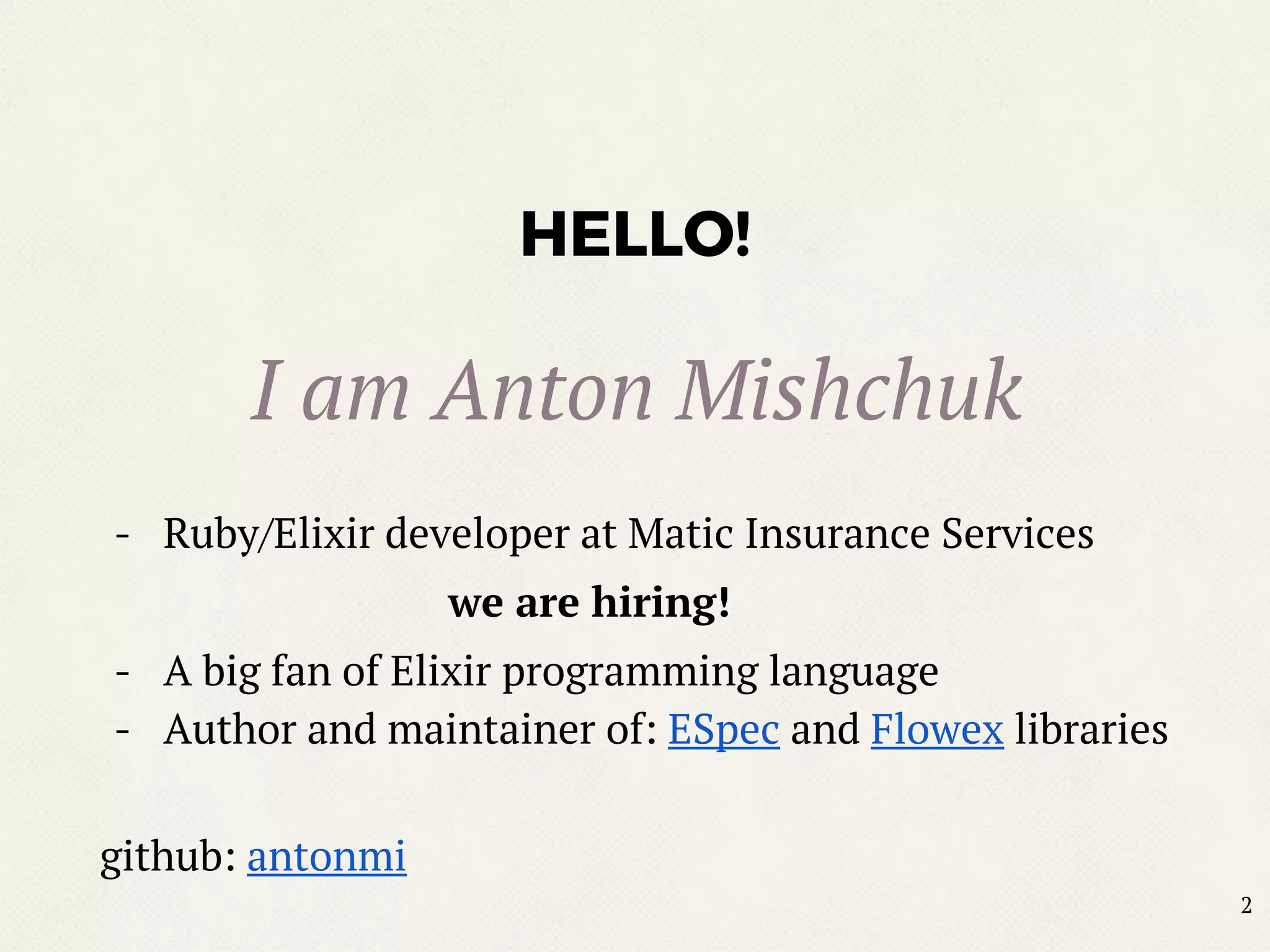

2. HELLO!
I am Anton Mishchuk
- Ruby/Elixir developer at Matic Insurance Services
we are hiring!
- A big fan of Elixir programming language
- Author and maintainer of: ESpec and Flowex libraries
github: antonmi
2

3. BEAM Applications
BEAM VM
Application
GS S GS
GS GS
Application
GS S GS
GS GS
Application
GS S GS
GS GS
3

4. Intro
○ Monolith or micro-services
○ BEAM approach
○ Umbrella project
○ Inter-service communication
4

5. Contents
○ “ML Tools” demo project
○ Three levels of code organization
○ Interfaces modules
○ Scaling to distributed system
○ Limiting concurrency
5

6. ML Tools
○ Stands for “Machine Learning Tools”
○ One can find it here:
□ https://github.com/antonmi/ml_tools
○ Umbrella project with 4 applications:
□ Datasets
□ Models
□ Utils
□ Main
6

7. Umbrella project
Monolith and microservices at the same time:
○ All applications are in one place
○ Easy to develop and test
○ Service-oriented architecture
○ Ready to scale
7

8. Code organization
○ Service level
○ Context level
○ Implementation level
8

9. Service level
Main
Datasets Models Utils
9

10. Context and
implementation
(datasets)
datasets/
lib/
datasets/
fetchers/
fetchers.ex
aws.ex
kaggle.ex
collections/
○ Datasets.Fetchers
○ Datasets.Fetchers.Aws
○ Datasets.Fetchers.Kaggle
10

11. Context and
implementation
(models)
models/
lib/
models/
lm/
lm.ex
engine.ex
rf/
rf.ex
engine.ex
○ Models.Lm
○ Models.Lm.Engine
○ Models.Rf
○ Models.Rf.Engine
11

12. Context and
implementation
(utils)
utils/
lib/
utils/
pre_processing/
pre_processing.ex
filter.ex
normalizer.ex
visualization/
...
○ Utils.PreProcessing
○ Utils.PreProcessing.Filter
○ Utils.PreProcessing.Normalizer
12

13. Main application
defp deps do
[
{:datasets, in_umbrella: true},
{:models, in_umbrella: true},
{:utils, in_umbrella: true}
]
end
13

14. Main application
defmodule Main.Zillow do
def rf_fit do
Datasets.Fetchers.zillow_data
|> Utils.PrePorcessing.normalize_data
|> Models.Rf.fit_model
end
end
14

15. What’s wrong with
this code?
defmodule Main.Zillow do
def rf_fit do
Datasets.Fetchers.zillow_data
|> Utils.PreProcessing.normalize_data
|> Models.Rf.fit_model
end
end
15

16. Encapsulation
problem
○ Modules, functions and that’s it!
○ Main application has access to all public
functions in all the applications
○ Micro-services -> tightly coupled monolith
16

17. Interfaces Modules
○ Specific modules in the application that
implements public interface
○ Grouped by context
○ Other application must use only functions
from this modules
17

18. Just delegate
defmodule Datasets.Interfaces.Fetchers do
alias Datasets.Fetchers
defdelegate zillow_data, to: Fetchers
defdelegate landsat_data, to: Fetchers
end
18

19. Use Interfaces only!
def rf_fit do
Datasets.Interfaces.Fetchers.zillow_data
|> Utils.Interfaces.PreProcessing.normalize_data
|> Models.Interfaces.Rf.fit_model
end
19

20. Interfaces Modules
○ It’s just a convention
○ But very important convention
○ It creates a good basis for future scaling
20

21. Let’s scale!
○ We decide to run each of the applications
on a different node
○ Modules from one application will be not
accessible in another one
○ But we still want keep all the things in one
place
21

22. Interface applications
Main
Datasets Models Utils
DatasetsInterface
ModelsInterface
UtilsInterface
22

23. Interface application
models_interface/
config/
lib/
models_interface/
models_interface.ex
lm.ex
rf.ex
mix.ex
23

24. Inter-Application
Communication
○ RPC (for ‘models’ app)
○ Distributed tasks (for ‘datasets’ app)
○ HTTP (for ‘utils’ app)
24

25. RPC
○ Remote Procedure Call
○ :rpc.call(node, module, fun, args)
○ BEAM handles all the serialization and
deserialization stuff
25

26. ModelsInterface.Rf
defmodule ModelsInterface.Rf do
def fit_model(data) do
ModelsInterface.remote_call(
Models.Interfaces.Rf,
:fit_model,
[data]
)
end
end
26

27. ModelsInterface
defmodule ModelsInterface do
def remote_call(module, fun, args, env Mix.env) do
do_remote_call({module, fun, args}, env)
end
defp do_remote_call({module, fun, args}, :test) do
apply(module, fun, args)
end
defp do_remote_call({module, fun, args}, _) do
:rpc.call(remote_node(), module, fun, args)
end
end 27

28. Quick refactoring
○ Replace Models.Interfaces with
ModelsInterface and that’s it
○ You continue develop with the same speed
○ Nothing to change in tests
28

29. What about tests
defp do_remote_call({module, fun, args}, :test) do
apply(module, fun, args)
end
defp do_remote_call({module, fun, args}, _) do
:rpc.call(remote_node(), module, fun, args)
end
29

30. What about tests
defp deps do
[
...
{:models, in_umbrella: true, only: [:test]},
{:models_interface, in_umbrella: true},
...
]
end
30

31. RPC cons
○ Synchronous calls from “local” process
○ Needs additional logic for
asynchronous execution
31

32. Distributed tasks
○ Build on top of Elixir Task
○ Task are spawned on remote node
○ Supervisor controls the tasks
32

33. Start Supervisor
defmodule Datasets.Application do
...
def start(_type, _args) do
children = [
supervisor(Task.Supervisor,
[[name: Datasets.Task.Supervisor]],
[restart: :temporary, shutdown: 10000])
]
...
end
end 33

34. DatasetsInterface
defmodule DatasetsInterface do
...
defp do_spawn_task({module, fun, args}, _) do
Task.Supervisor.async(remote_supervisor(),
module, fun, args)
|> Task.await
end
defp remote_supervisor, do: #config data
end
34

35. Erlang Distribution
Protocol
Pros:
○ Battle-tested over decades
○ Free serialization / deserialization
Cons:
○ Not very secure
○ No very fast
○ BEAM specific
35

36. HTTP
UtilsInterface
defmodule UtilsInterface do
...
defp do_remote_call({module, fun, args}, _) do
{:ok, resp} = HTTPoison.post(remote_url(),
serialize({module, fun, args}))
deserialize(resp.body)
end
...
end
36

37. Plug in Utils app
defmodule Utils.Interfaces.Plug do
use Plug.Router
...
post "/remote" do
{:ok, body, conn} = Plug.Conn.read_body(conn)
{module, fun, args} = deserialize(body)
result = apply(module, fun, args)
send_resp(conn, 200, serialize(result))
end
end
37

38. Limiting
concurrency
When do you need this?
○ Third-party API rate limits
○ Heavy calculations per request
38

39. def start(_type, _args) do
pool_opts = [
name: {:local, Models.Interface},
worker_module: Models.Interfaces.Worker,
size: 5, max_overflow: 5]
children = [
:poolboy.child_spec(Models.Interface, pool_opts, []),
]
end
poolboy in
Models.Application
39

40. defmodule Models.Interfaces.Worker do
use GenServer
...
def handle_call({module, fun, args}, _from, state) do
result = apply(module, fun, args)
{:reply, result, state}
end
end
Models.Interfaces.Worker
40

41. defmodule Models.Interfaces.Rf do
def fit_model(data) do
with_poolboy({Models.Rf, :fit_model, [data]})
end
def with_poolboy(args) do
worker = :poolboy.checkout(Models.Interface)
result = GenServer.call(worker, args, :infinity)
:poolboy.checkin(Models.Interface, worker)
result
end
end
Models.Interfaces.Rf
41

42. Conclusion
○ Start with micro-services from
the very beginning
○ Think carefully about app interface
○ Use EDP for communication when scale
○ Keep “communication” code in separate app
42

43. THANKS!
Ask me questions!
