Design pattern concrete implementation

The document discusses software design patterns as reusable solutions to common problems, highlighting issues of bad design such as rigidity, fragility, and immobility. It categorizes patterns into creational, structural, and behavioral types, providing examples like singleton and factory methods. It emphasizes the importance of decoupling functions to promote flexibility and reduce errors in software implementation.

Engineering◦

Design pattern concrete implementation

1.
design pattern concrete implementation
2.
“A software designpattern is a general, reusable solution to a commonly occurring problem within a given context in software design.” Photo by rawpixel on Unsplash
3.
Bad design (RobertMartin) •Rigidity •Fragility •Immobility
4.
Bad design (RobertMartin) •Rigidity •Fragility •Immobility
5.
Bad design (RobertMartin) •Rigidity •Fragility •Immobility
6.

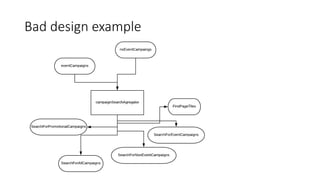

Bad design example
7.
Solution • Creational patterns •(singleton, factory method, dependency injection, …)
8.
Solution • Creational patterns •(singleton, factory method, dependency injection, …) • Structural pattern • (adapter, decorator, façade, …)
9.
Solution • Creational patterns •(singleton, factory method, dependency injection, …) • Structural pattern • (adapter, decorator, façade, …) • Behavioral pattern • (chain of responsibility, command, observer, template, strategy, …)
10.
About the searchproject Purpose: • External fee • Possible interchangeable sources • Same output to the end user
11.
Transform this Souce 1Source 2
12.

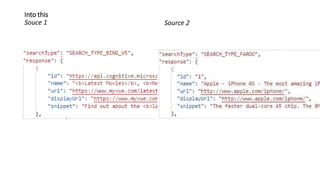

Into this Souce 1Source 2
13.
Implementation 1. No transformationfrom source to destination (sending to output directly Bing json)
14.
2. One classthat will deal with the transformation (something like fetchSearchResoults)
15.
• 3. Decouplefetching the search stream from transforming it into a readable solution for the output (separation of concerns … )
16.

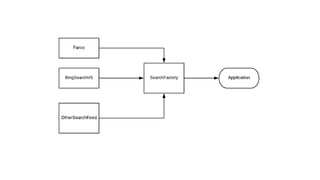

Factory Image from: https://www.tutorialspoint.com/design_pattern/factory_pattern.htm
17.
The factory class
18.
Fetching Bing searchfeed
20.
Adapter Image from: https://www.tutorialspoint.com/design_pattern/adapter_pattern.htm
21.

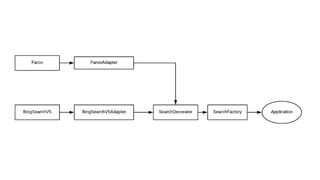

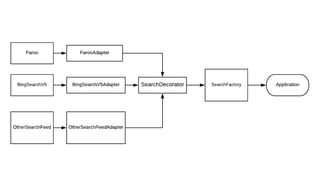

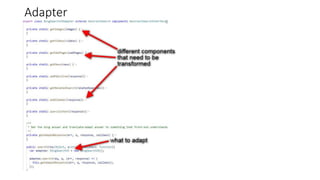

Adapter
23.

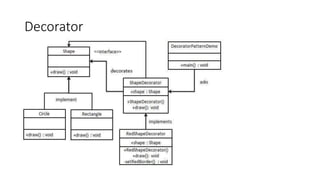

Decorator
24.

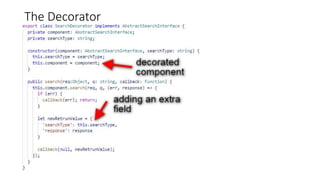

The Decorator
26.

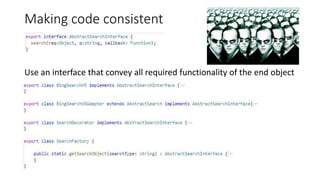

Making code consistent Usean interface that convey all required functionality of the end object
27.

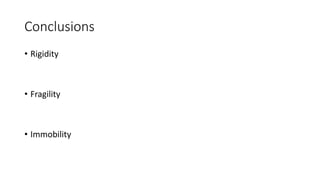

Conclusions • Rigidity • Fragility •Immobility
29.

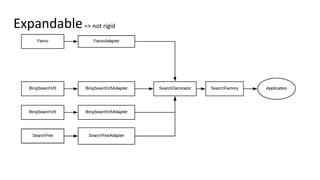

Expandable=> not rigid
30.
Expandable=> not rigid
31.

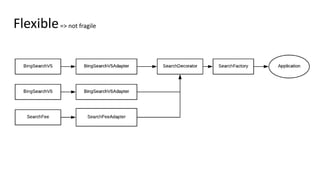

Flexible=> not fragile
32.

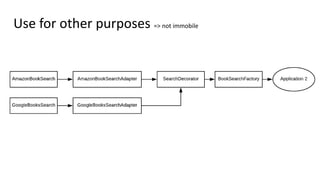

Use for otherpurposes => not immobile
33.

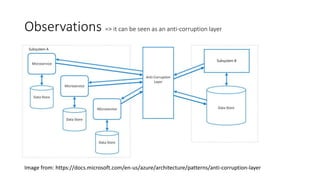

Observations => itcan be seen as an anti-corruption layer Image from: https://docs.microsoft.com/en-us/azure/architecture/patterns/anti-corruption-layer
34.

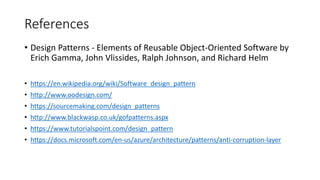

References • Design Patterns- Elements of Reusable Object-Oriented Software by Erich Gamma, John Vlissides, Ralph Johnson, and Richard Helm • https://en.wikipedia.org/wiki/Software_design_pattern • http://www.oodesign.com/ • https://sourcemaking.com/design_patterns • http://www.blackwasp.co.uk/gofpatterns.aspx • https://www.tutorialspoint.com/design_pattern • https://docs.microsoft.com/en-us/azure/architecture/patterns/anti-corruption-layer

Editor's Notes

#3 Oop design principles represent a set of guidelines Assist us in avoiding bad design How do I see design patterns role: have the problem, divide it (more like a jigsaw puzzle) and fit each design pattern into its own place
#4 according to Robert Martin there are 3 important characteristics of a bad design that should be avoided Rigidity - It is hard to change because every change affects too many other parts of the system. Fragility - When you make a change, unexpected parts of the system break. Immobility - It is hard to reuse in another application because it cannot be disentangled from the current application.
#5 according to Robert Martin there are 3 important characteristics of a bad design that should be avoided Rigidity - It is hard to change because every change affects too many other parts of the system. Fragility - When you make a change, unexpected parts of the system break. Immobility - It is hard to reuse in another application because it cannot be disentangled from the current application.
#6 according to Robert Martin there are 3 important characteristics of a bad design that should be avoided Rigidity - It is hard to change because every change affects too many other parts of the system. Fragility - When you make a change, unexpected parts of the system break. Immobility - It is hard to reuse in another application because it cannot be disentangled from the current application.
#7 One search function that would aggregate and search for different campaigns. Function is being used in many parts of the application serving different purposes Function would accept various length of parameters (like: startDate, endDate, includeEventCampaigns, eventCampaigns, nonEventCampaigns, ….) Is rigid; would have 500 to 1000 lines, any small change would have big impact If fragile: first page campaign tiles (that are not in a search) are pulled from this function Immobile: hard to use it again, let’s say search for approved/unapproved event campaigns
#8 Creational patterns - the creational patterns aim to separate a system from how its objects are created, (composed, and represented). - they increase the system's flexibility Singleton – can have only one object Structural pattern - defining a consistent way of modelling relations between different application components Façade – unified interface to a set of interfaces “Facade defines a new interface, whereas Adapter reuses an old interface” Behavioral pattern - Deals with responsibilities between objects. chain of responsibility - send a command without knowing what object will receive and handle it Command Observer - a subject has to be observed by one or more observers
#9 Creational patterns - the creational patterns aim to separate a system from how its objects are created, (composed, and represented). - they increase the system's flexibility Singleton – can have only one object Structural pattern - defining a consistent way of modelling relations between different application components Façade – unified interface to a set of interfaces “Facade defines a new interface, whereas Adapter reuses an old interface” Behavioral pattern - Deals with responsibilities between objects. chain of responsibility - send a command without knowing what object will receive and handle it Command Observer - a subject has to be observed by one or more observers
#10 Creational patterns - the creational patterns aim to separate a system from how its objects are created, (composed, and represented). - they increase the system's flexibility Singleton – can have only one object Structural pattern - defining a consistent way of modelling relations between different application components Façade – unified interface to a set of interfaces “Facade defines a new interface, whereas Adapter reuses an old interface” Behavioral pattern - Deals with responsibilities between objects. chain of responsibility - send a command without knowing what object will receive and handle it Command Observer - a subject has to be observed by one or more observers
#11 How do I deal with the search (use external source) How that would be presented to the user (same output) Need to interchange sources due to high changes in their policy and how they are being offered
#12 In the initial feed we have more pieces of information than we need Structure of it might be inappropriate for our app Different naming for items that we already have
#13 In the initial feed we have more pieces of information than we need Structure of it might be inappropriate for our app Different naming for items that we already have
#14 (Explore this option and why this is not a good option) Highly coupled with an exterior factor => highly dependent on the external source Hard to support multiple versions or to transit from one version to the next Hard to add and support a new independent source
#15 (Explore this option and why this is not a good option) Hard to support different versions of external feed Adding new sources complicates thinks High coupling Potential for creating a big/ugly and hard to read class All processes of transformation will become more and more complex over time
#16 Possibilities of having multiple sources Possibilities of easily supporting multiple versions of the external feed Low impact over the application if external feed fails Clear and readable classes Easy to maintain and update
#18 This class creates and returns required object. In order to further enforce consistency a certain class type is required as of returned object.

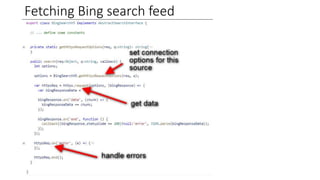

#19 BingSearchV5 class does: Set search options connect to external api Fetch the feed and return it Does not Parse the result into a meaningful json for app Add any extra pieces of information on top of it
#20 Problems with this design: Each source has different formats
#22 BingSearchV5Adapter does Take BingSearchV5 result and pares it component by component, element by element Transform each into something readable for the application BingSearchV5Adapter does not Add any extra content
#27 Advantages Enforce that all objected created by this factory have similar structure This enable the segregation of factory object from the rest of the application
