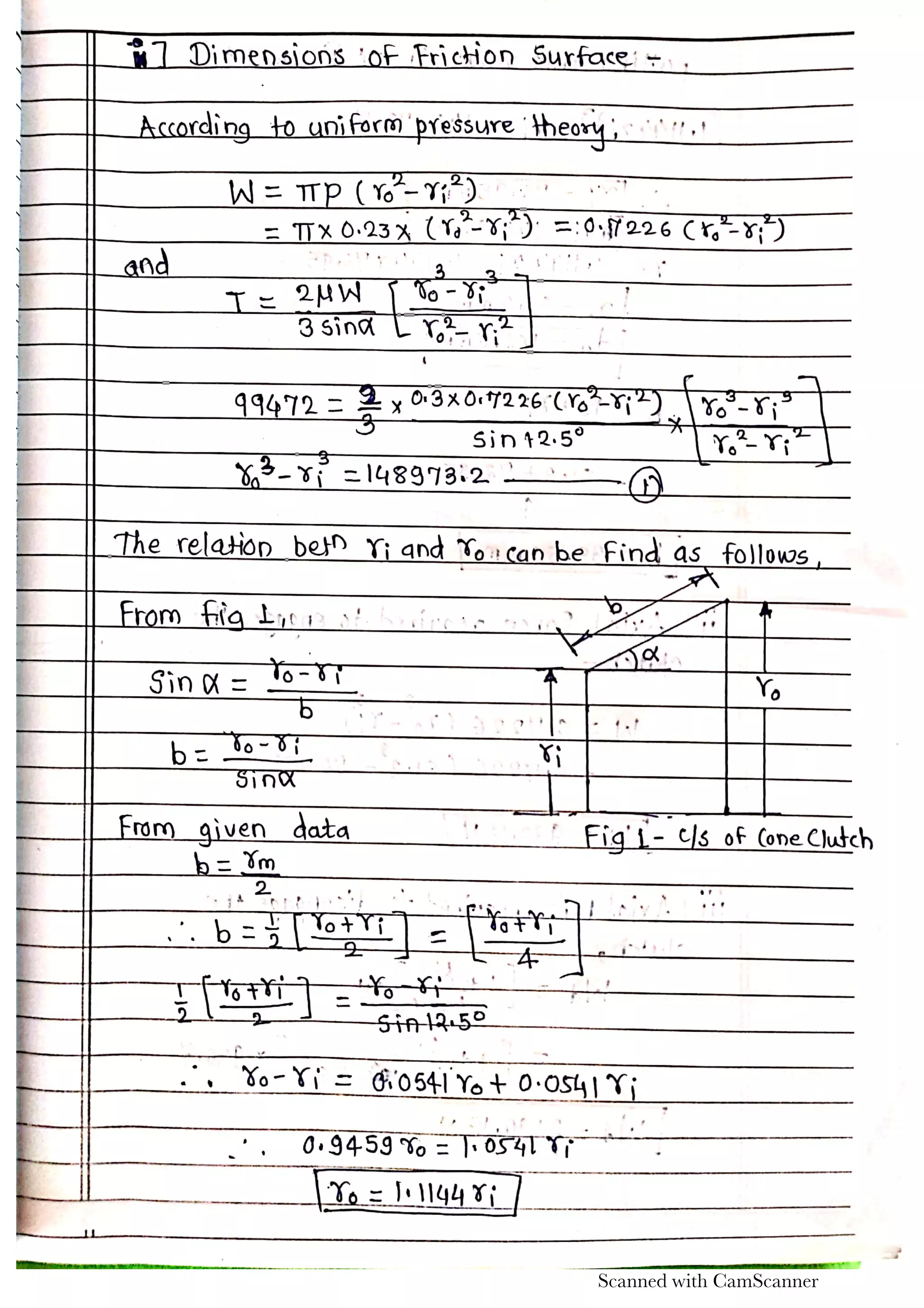

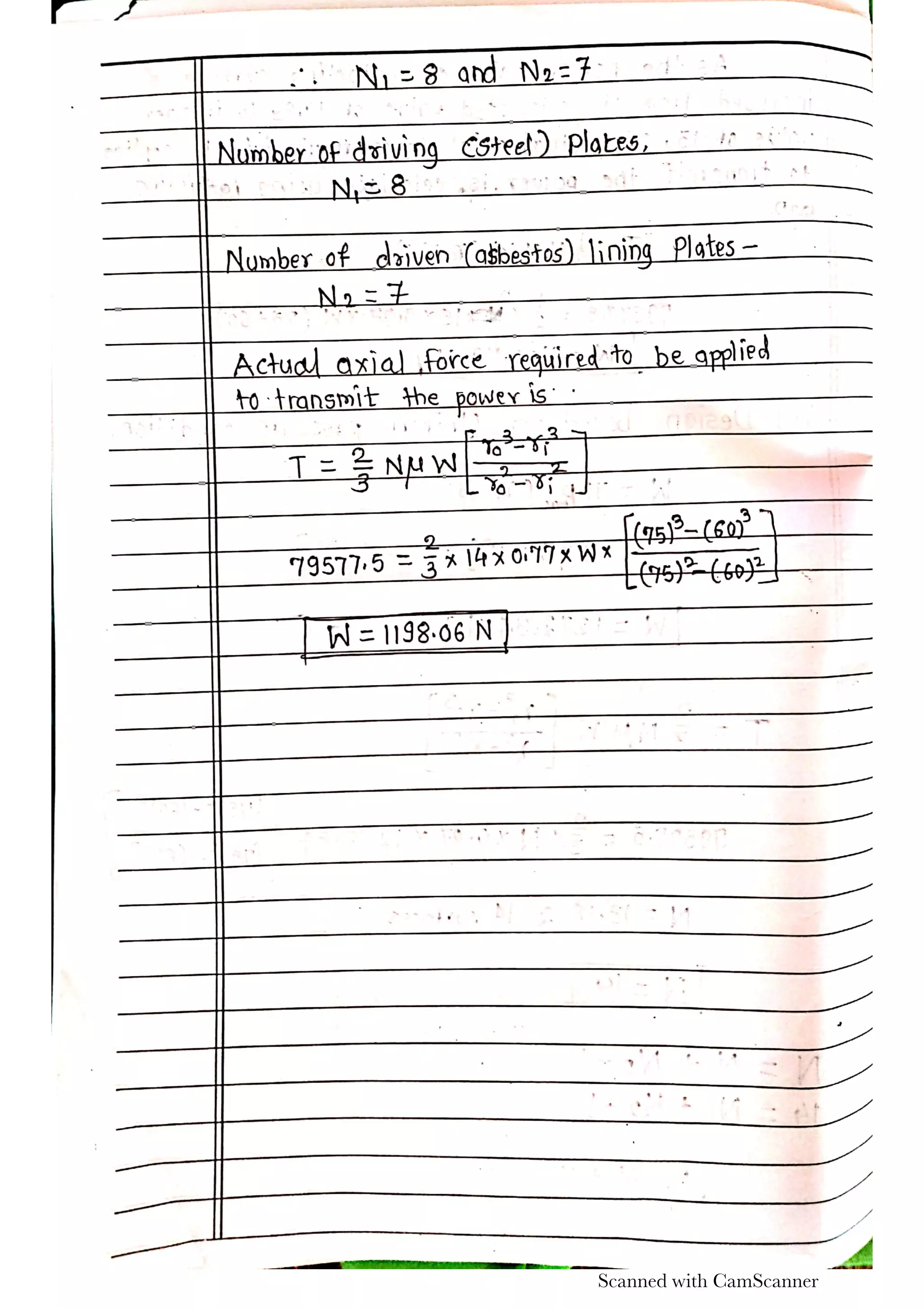

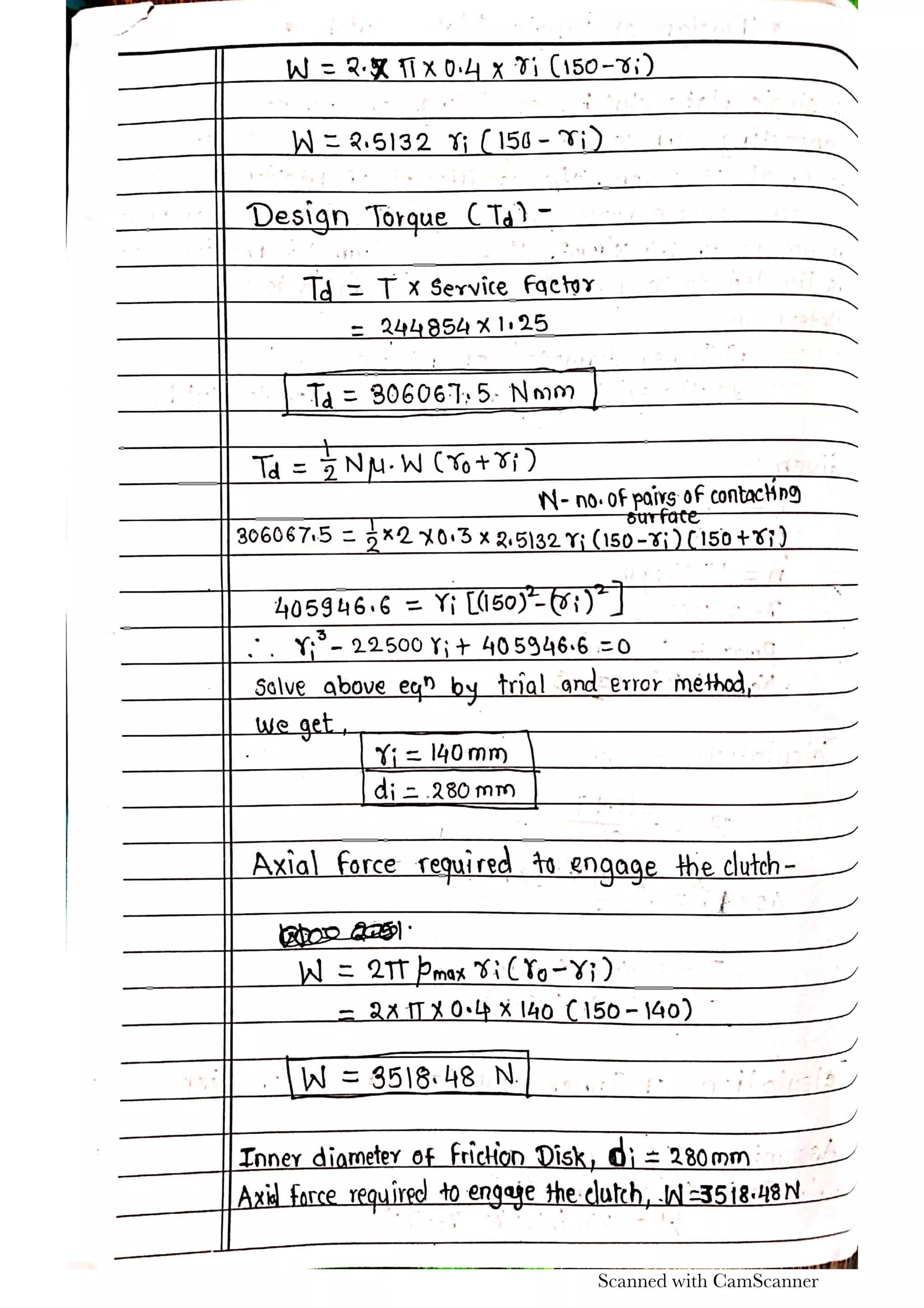

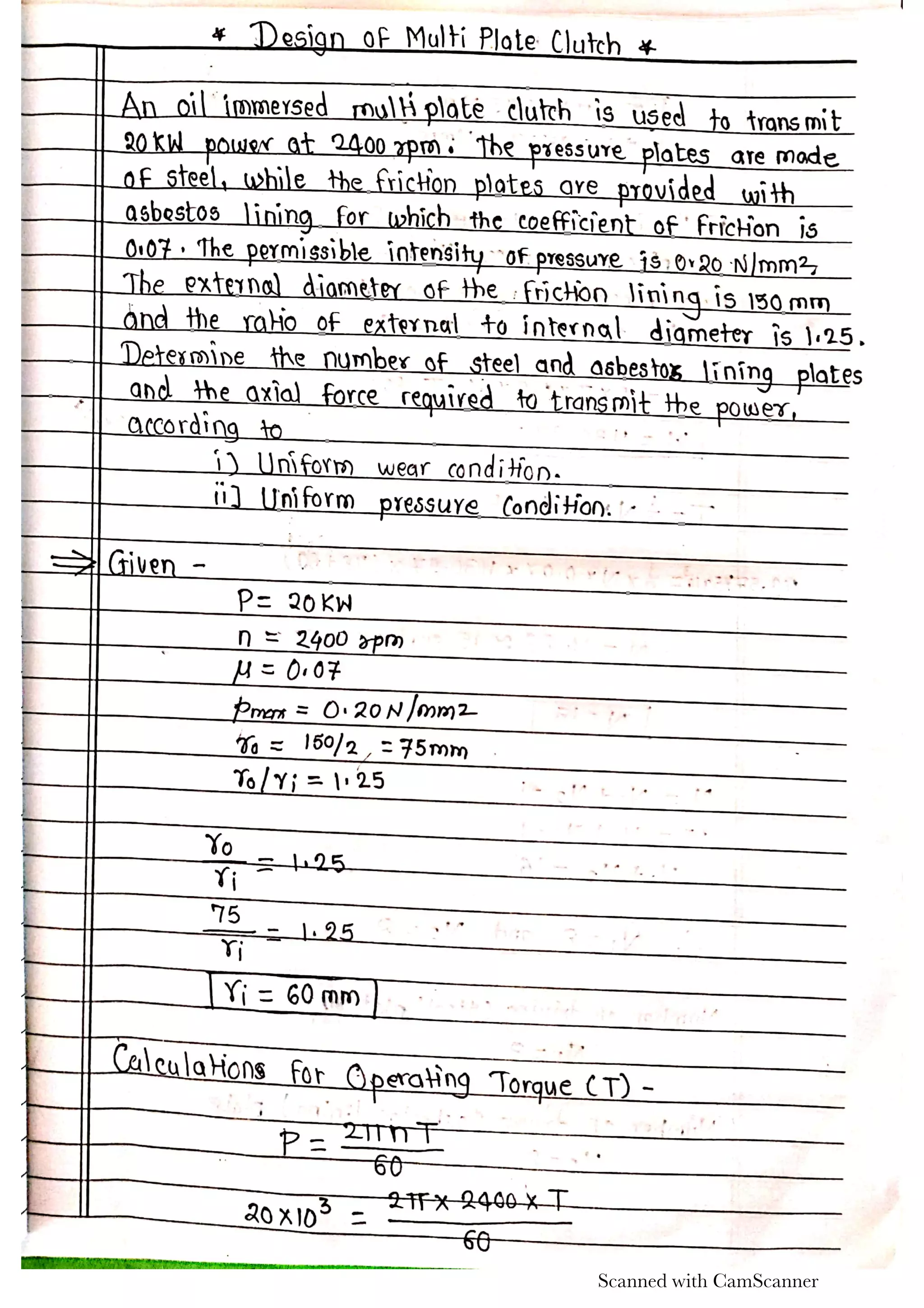

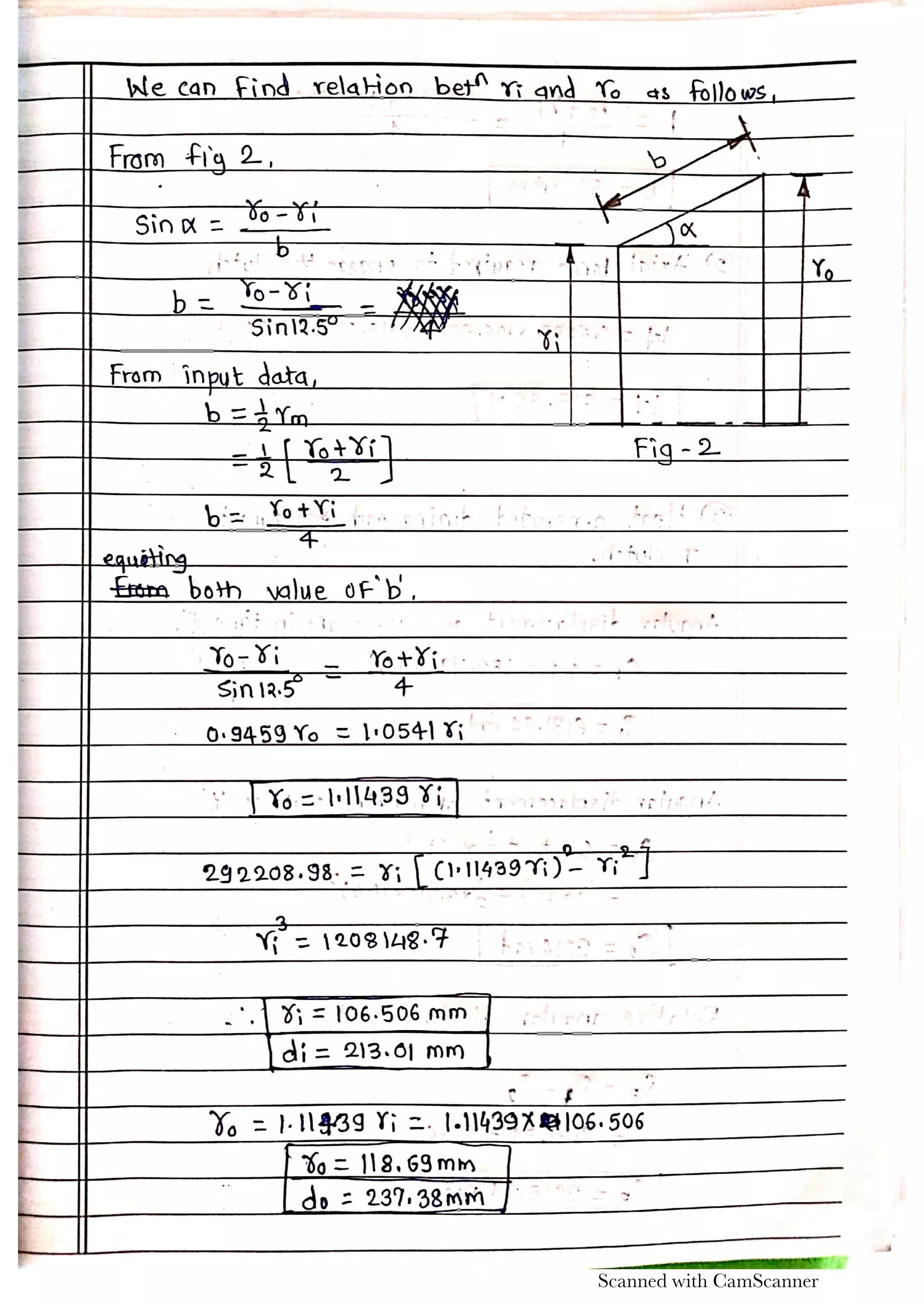

Design of Clutch numerical by Prof. Sagar Dhotare

Numerical of design of single plate clutch. Multi Plate Clutch and Cone clutch. Calculation of axial force Calculation of dimensions of plate Calculation of dimensions of cone Force required for engage and disengage of clutch
