Demystifying dependency Injection: Dagger and Toothpick

1.
I come withknifes A story of Daggers and Toothpicks… Droidcon Krakow 2016 Danny Preussler @PreusslerBerlin

2.
@PreusslerBerlin Once upon atime

3.
@PreusslerBerlin A single activity

4.
@PreusslerBerlin public class LonelyActivityextends Activity { @Override protected void onCreate(Bundle state) { super.onCreate(state); setContentView(R.layout.activity_main); } }

5.
@PreusslerBerlin needs to

6.
@PreusslerBerlin needs to support

7.
@PreusslerBerlin needs to support Tracking

8.
@PreusslerBerlin The journey totestability starts

9.
@PreusslerBerlin Starring

10.
@PreusslerBerlin Tracker as component publicinterface Tracker { void trackStarted(); }

11.
@PreusslerBerlin GoogleAnalyticsTracker as Tracker publicclass GoogleAnalyticsTracker implements Tracker { @Override public void trackStarted() { } }

12.
@PreusslerBerlin Prolog The Untestable

13.
@PreusslerBerlin public class LonelyActivityextends Activity { private final Tracker tracker = new GoogleAnalyticsTracker(); @Override protected void onCreate(Bundle state) { super.onCreate(state); setContentView(R.layout.activity_main); tracker.trackStarted(); } }

14.

15.
@PreusslerBerlin public class LonelyActivityextends Activity { private final Tracker tracker = new GoogleAnalyticsTracker(); @Override protected void onCreate(Bundle state) { super.onCreate(state); setContentView(R.layout.activity_main); tracker.trackStarted(); } } Not testable!

16.
@PreusslerBerlin A voice outof the dark: Inversion of Control!

17.
@PreusslerBerlin A voice outof the dark: Inversion of Control!

18.

19.
@PreusslerBerlin Act I The Factory

20.
@PreusslerBerlin public class Dependencies{ static Dependencies instance = new Dependencies(); public static Dependencies getInstance() { return instance; } public Tracker getTracker() { return new GoogleAnalyticsTracker(); } …

21.

22.

23.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { Tracker tracker = getInstance().getTracker(); @Override protected void onCreate(Bundle state) { super.onCreate(state); ... tracker.trackStarted(); } }

24.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { Tracker tracker = getInstance().getTracker(); @Override protected void onCreate(Bundle state) { super.onCreate(state); ... tracker.trackStarted(); } }

25.

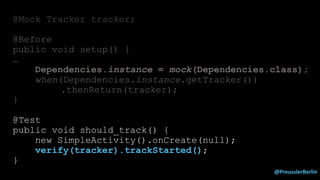

@PreusslerBerlin @Mock Tracker tracker; @Before publicvoid setup() { … Dependencies.instance = mock(Dependencies.class); when(Dependencies.instance.getTracker()) .thenReturn(tracker); } @Test public void should_track() { new SimpleActivity().onCreate(null); verify(tracker).trackStarted(); }

26.

27.

28.

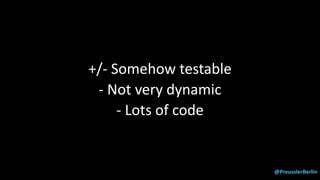

@PreusslerBerlin +/- Somehow testable -Not very dynamic - Lots of code

29.
@PreusslerBerlin Act II The Map

30.

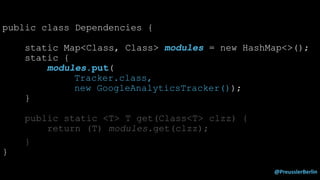

@PreusslerBerlin public class Dependencies{ static Map<Class, Class> modules = new HashMap<>(); static { modules.put( Tracker.class, new GoogleAnalyticsTracker()); } public static <T> T get(Class<T> clzz) { return (T) modules.get(clzz); } }

31.
@PreusslerBerlin public class Dependencies{ static Map<Class, Class> modules = new HashMap<>(); static { modules.put( Tracker.class, new GoogleAnalyticsTracker()); } public static <T> T get(Class<T> clzz) { return (T) modules.get(clzz); } }

32.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { Tracker tracker = getInstance().get(Tracker.class); @Override protected void onCreate(Bundle state) { super.onCreate(state); ... tracker.trackStarted(); } }

33.

34.
@PreusslerBerlin + Testable + Dynamic -Instances created at startup

35.
@PreusslerBerlin Act III Reflection(s)

36.
@PreusslerBerlin public class Dependencies{ private final static Map<Class, Class> modules = new HashMap<>(); static { modules.put( Tracker.class, GoogleAnalyticsTracker.class); } static <T> T get(Class<T> clzz) { …

37.
@PreusslerBerlin public class GoogleAnalyticsTrackerimplements Tracker { GoogleAnalyticsTracker(Activity activity) { ...} GoogleAnalyticsTracker(Application application) { ...} GoogleAnalyticsTracker(Context context) { ...} ...

38.
@PreusslerBerlin public class GoogleAnalyticsTrackerimplements Tracker { GoogleAnalyticsTracker(Activity activity) { ...} GoogleAnalyticsTracker(Application application) { ...} @Inject GoogleAnalyticsTracker(Context context) { ...} ...

39.
@PreusslerBerlin package javax.inject; @Target({ METHOD,CONSTRUCTOR, FIELD }) @Retention(RUNTIME) public @interface Inject {}

40.
@PreusslerBerlin public class Dependencies{ private final static Map<Class, Class> modules = new HashMap<>(); static { modules.put( Tracker.class, GoogleAnalyticsTracker.class); } static <T> T get(Class<T> clzz) { …

41.
@PreusslerBerlin static <T> Tget(Class<T> clzz) { … Constructor<?>[] constructors = clzz.getDeclaredConstructors(); for(Constructor ctr: constructors) {

42.
@PreusslerBerlin static <T> Tget(Class<T> clzz) { … Constructor<?>[] constructors = clzz.getDeclaredConstructors(); for(Constructor ctr: constructors) {

43.
@PreusslerBerlin ... if(ctr.getDeclaredAnnotation(Inject.class) != null) { Class[]types = ctr.getParameterTypes(); Object[] params = new Object[types.length]; for (int i=1; i< params.length; i++) { params[i] = get(types[i]); }

44.
@PreusslerBerlin if(ctr.getDeclaredAnnotation(Inject.class) != null) { Class[]types = ctr.getParameterTypes(); Object[] params = new Object[types.length]; for (int i=1; i< params.length; i++) { params[i] = get(types[i]); }

45.
@PreusslerBerlin if(ctr.getDeclaredAnnotation(Inject.class) != null) { Class[]types = ctr.getParameterTypes(); Object[] params = new Object[types.length]; for (int i=1; i< params.length; i++) { params[i] = get(types[i]); }

46.
@PreusslerBerlin ... try { return (T)ctr.newInstance(params); } catch (Exception e) { ... }

47.

48.

49.
@PreusslerBerlin + Testable + Dynamic +Flexible

50.
@PreusslerBerlin Can we improvethat?

51.

52.

53.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); ... tracker.trackStarted(); } }

54.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); Dependencies.inject(this); ... tracker.trackStarted(); } }

55.
@PreusslerBerlin static void inject(Objectinstance) { Field[] fields = instance.getClass().getDeclaredFields(); for (Field f: fields) { if (f.getDeclaredAnnotation(Inject.class) != null){ try { field.set(instance, get(f.getType())); } catch (IllegalAccessException e) {...} ...

56.

57.

58.

59.
@PreusslerBerlin OMG, We just built

60.
@PreusslerBerlin OMG, We just built Guice!

61.
@PreusslerBerlin OMG, We just built RoboGuice!

62.
@PreusslerBerlin OMG, We just built RoboGuice!

63.
@PreusslerBerlin import static Dependencies.getInstance; classLonelyActivity extends Activity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); Dependencies.inject(this); ... tracker.trackStarted(); } }

64.

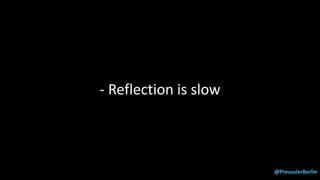

@PreusslerBerlin - Reflection isslow

65.

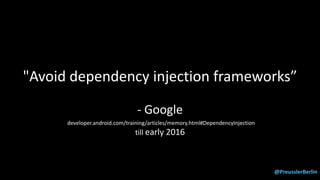

@PreusslerBerlin "Avoid dependency injectionframeworks” - Google developer.android.com/training/articles/memory.html#DependencyInjection till early 2016

66.
@PreusslerBerlin Act IV Compiler Magic

67.
@PreusslerBerlin Annotation processing & Code generation

68.

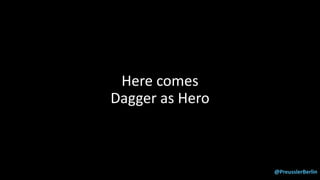

@PreusslerBerlin Here comes Dagger asHero

69.
@PreusslerBerlin The end!?

70.
@PreusslerBerlin In its firstscreen appearance: Toothpick as unknown stranger

71.
@PreusslerBerlin “YOUR boilerplate sucks”

72.
@PreusslerBerlin “YOU don’t evenknow how to unit test!”

73.
@PreusslerBerlin Fight!

74.
@PreusslerBerlin The module

75.
@PreusslerBerlin @Module static class BaseModule{ ... BaseModule(Application application) { ... } @Provides public Tracker provideTracker() { return new GoogleAnalyticsTracker(); } }

76.
@PreusslerBerlin class BaseModule extendsModule { public BaseModule(Application application) { bind(Tracker.class) .to(GoogleAnalyticsTracker.class); ...

77.
@PreusslerBerlin The component

78.
@PreusslerBerlin @Component(modules = {BaseModule.class}) interfaceAppComponent { void inject(LonelyActivity activity); }

79.
@PreusslerBerlin “WHAT component???”

80.
@PreusslerBerlin Setup Dagger 0 :1 Toothpick

81.
@PreusslerBerlin Usage

82.
@PreusslerBerlin class LonelyActivity extendsActivity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); ... tracker.trackStarted(); } }

83.
@PreusslerBerlin class MainApplication extendsApplication { @Override public void onCreate() { super.onCreate(); DaggerDependencies_AppComponent .builder() .baseModule( new BaseModule(this)) .build()

84.
@PreusslerBerlin class LonelyActivity extendsActivity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); getApplication().getComponent().inject(this); tracker.trackStarted(); } }

85.
@PreusslerBerlin Scope scope = openScope("APPLICATION") scope.installModules( newBaseModule(application));

86.
@PreusslerBerlin import static Toothpick.openScope; classLonelyActivity extends Activity { @Inject Tracker tracker; @Override protected void onCreate(Bundle state) { super.onCreate(state); openScope("APPLICATION").inject(this); tracker.trackStarted(); } }

87.
@PreusslerBerlin Usage Dagger 1 :2 Toothpick

88.
@PreusslerBerlin Testing

89.
@PreusslerBerlin Testing

90.
@PreusslerBerlin @Mock Tracker tracker; classTestModule extends Dependencies.BaseModule { TestModule() { super(mock(Application.class)); } @Provides public Tracker provideTracker() { return tracker; } } }

91.
@PreusslerBerlin @Mock Tracker tracker; classTestModule extends Dependencies.BaseModule { TestModule() { super(mock(Application.class)); } @Provides public Tracker provideTracker() { return tracker; } } }

92.

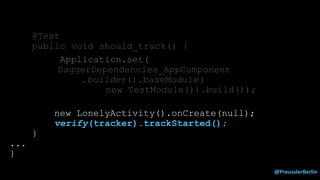

@PreusslerBerlin @Test public void should_track(){ Application.set( DaggerDependencies_AppComponent .builder().baseModule( new TestModule()).build()); new LonelyActivity().onCreate(null); verify(tracker).trackStarted(); } ... }

93.
@PreusslerBerlin @Test public void should_track(){ Application.set( DaggerDependencies_AppComponent .builder().baseModule( new TestModule()).build()); new LonelyActivity().onCreate(null); verify(tracker).trackStarted(); } ... }

94.
@PreusslerBerlin @Mock Tracker tracker; @Rule publicToothPickRule toothPickRule = new ToothPickRule(this, "APPLICATION_SCOPE"); @Test public void should_track() { new LonelyActivity().onCreate(null); verify(tracker).trackStarted(); }

95.
@PreusslerBerlin @Mock Tracker tracker; @Rule publicToothPickRule toothPickRule = new ToothPickRule(this, "APPLICATION_SCOPE"); @Test public void should_track() { new LonelyActivity().onCreate(null); verify(tracker).trackStarted(); }

96.
@PreusslerBerlin Testing Dagger 1 :3 Toothpick

97.
@PreusslerBerlin Scopes

98.
@PreusslerBerlin @Singleton

99.
@PreusslerBerlin @Scope @Retention(RUNTIME) public @interface ActivityScope{} @ActivityScope @Subcomponent(modules = {ScopeModule.class}) interface ScopeComponent { void inject(ScopeActivity activity); }

100.

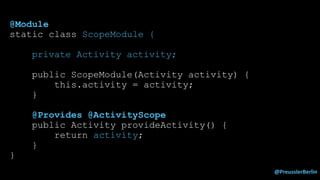

@PreusslerBerlin @Module static class ScopeModule{ private Activity activity; public ScopeModule(Activity activity) { this.activity = activity; } @Provides @ActivityScope public Activity provideActivity() { return activity; } }

101.
@PreusslerBerlin @Component(modules = {BaseModule.class}) interfaceAppComponent { void inject(LonelyActivity activity); ScopeComponent plus(ScopeModule module); }

102.
@PreusslerBerlin “That’s Annotation Porn!”

103.
@PreusslerBerlin public class ScopeActivityextends Activity { … private ScopeComponent scope; @Override protected void onCreate(Bundle state) { super.onCreate(state); setContentView(R.layout.activity_main); scope = createScope(this); scope.inject(this); … } // call from fragments... public ScopeComponent getScope() { return scope; } }

104.
@PreusslerBerlin public class ScopeActivityextends Activity { … private ScopeComponent scope; @Override protected void onCreate(Bundle state) { super.onCreate(state); setContentView(R.layout.activity_main); scope = createScope(this); scope.inject(this); … } // call from fragments... public ScopeComponent getScope() { return scope; } }

105.
@PreusslerBerlin “Stop this madness!”

106.
@PreusslerBerlin class ScopeModule extendsModule { public ScopeModule(Activity activity) { bind(Activity.class).toInstance(activity); }

107.
@PreusslerBerlin Scope scope = openScopes(”APPLICATION_SCOPE”, activity.getClass().getName()); scope.installModules( newScopeModule(activity));

108.
@PreusslerBerlin Scope scope = openScopes(”APPLICATION_SCOPE”, activity.getClass().getName()); scope.installModules( newScopeModule(activity));

109.

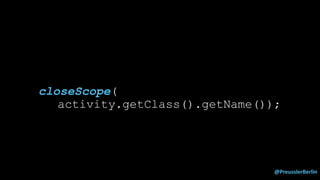

@PreusslerBerlin closeScope( activity.getClass().getName());

110.
@PreusslerBerlin Scopes Dagger 1 :4 Toothpick

111.
@PreusslerBerlin Performance

112.
1000 injections • Dagger1: 33 ms • Dagger 2: 31 ms • Toothpick: 35 ms 6400 injections • Dagger 1: 45 ms • Dagger 2: 42 ms • Toothpick: 66 ms

113.
@PreusslerBerlin Performance Dagger 2 :4 Toothpick

114.
@PreusslerBerlin And there ismore: SmoothieModule

115.
@PreusslerBerlin Ease of use Speed Roboguice Dagger Toothpick

116.
@PreusslerBerlin Dagger: + compile safe +feature rich + performant

117.
@PreusslerBerlin Dagger: -heavy weight - topdown - annotation porn - hard on unit tests

118.
@PreusslerBerlin Toothpick: + light weight +bottom up + less boilerplate + testing focus

119.
@PreusslerBerlin Toothpick: -not idiot proof -performance

120.
@PreusslerBerlin Choose the right tool foryour problem! ABetterToolbyTheMarmot,CCby2.0,flickr.com/photos/themarmot/6283203163

121.

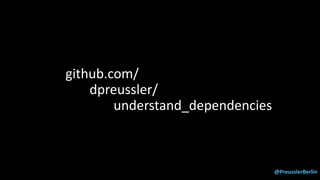

@PreusslerBerlin github.com/ dpreussler/ understand_dependencies

122.
@PreusslerBerlin TP written by StephaneNicolas Daniel Molinero Reguera Presented by Danny Preussler Special thanks to Florina Muntenescu
