This document provides an overview of NoSQL databases, including what they are, common types, uses cases, and examples. It defines NoSQL as distributed, schema-less databases and discusses four main types: columnar, document, key-value, and graph databases. The document also examines specific NoSQL databases like HBase, MongoDB, Redis, and Neo4j, providing information on their architectures, features, and how they are used. General recommendations are made around reading documentation, design reviews, and isolating NoSQL clusters.

1. Demystfying Nosql
Databases
Mike King & Matt Thomas
Enterprise Technologists, Big Data

2. 2 Dell - Restricted - Confidential
What are databases?
• Tedd Codd & Chris Date
– 13 rules
– An Introduction to Database Systems
• Wikia/Wikipedia
• Mike
– An organized collection of data offering varying levels
of availability, scalability, performance, consistency,
management, accessibility and quality.
• Matt
Databases defined

3. 3 Dell - Restricted - Confidential
What types of databases
exist?
• Network – Adabas
• Hierarchical – IMS
• Relational – PostgreSQL
• Object Oriented – Versant
• Nosql – MongoDB, Hbase
• Newsql – VoltDB, MemSQL
• XML – MarkLogic, Xyleme

4. 4 Dell - Restricted - Confidential
Nosql background, issues and considerations
• History
– Google Big Table, Amazon Dynamo
• What does schema-less mean?
– On read
– Still structured
– Embedded
– Can vary between records
• Languages & formats used
– Java, Python
– JSON, BSON, XML, CSV

5. 5 Dell - Restricted - Confidential
Nosql background, issues and considerations
continued
• Eric Brewer’s CAP theorem
– Can’t do all three.
• What does NoSQL really mean?
– Distributed, shared-nothing aggregate oriented database
– “Not only SQL” versus “No”
• What are the factors for the various choices?
– Best fit
– Use case(s)
– KV
– HA, Multi-site
– Network
– Kevin Bacon
• Sharding
– Partitioning

6. 6 Dell - Restricted - Confidential
NewSQL
• SQL as predominant access method
• OLTP
• Larger user populations than nosql
• Better consistency than nosql
• Still subject to Brewer’s CAP theorem
• Examples
– VoltDB, MemSQL, Clustrix, NuoDB

7. 7 Dell - Restricted - Confidential
RDBMS or NOSQL?-tablify
• RDBMS
– Large user populations
– Structured
– Static schema
– Strong typing
– Access by PK, AK, indexes
– Complex structures
– Feature rich
– Multi-purpose, shared by apps
– OLTP
– ACID
– Complex queries
– >3 way joins
– Small to medium sized dbs
– COTS pkgs
– Datamarts
• Nosql
– Smaller user populations
– Multi-structured
– Schema evolution
– Weak typing
– Mostly random access by PK
– Simple structures
– Bare bones functionality
– Single purpose/use case, not shared by apps
– Not transactional
– BASE
– Simple queries
– VLDB
– Horizontal scalability

8. 8 Dell - Restricted - Confidential
NoSQL Database Types
• Four types
– Columnar
– Hbase, Cassandra
– Document
– MongoDB, Couchbase
– KV
– Riak, Redis
– Graph
– Neo4j, Titan
• How many do you need?
– By type
– Within type
• Who will manage them?
– DBAs
• How do you access them?
– SQL, nosql
– Sequential

9. 9 Dell - Restricted - Confidential
Nosql Commonalities
• Mostly open source
• Weak typing
• Multi-structured
• Horizontal scale
• No standardization
• VLDB
• Single purpose, per database

10. 10 Dell - Restricted - Confidential
Nosql Differences
• Access
• Formats supported
• Features
• Management
• Administration
• VLDB
• Performance & tuning
• Resource consumption
• Language bindings
• APIs
• Security
• Persistence
• Programmability
• ?Schemas

11. 11 Dell - Restricted - Confidential
How are nosql databases typically used?
• As an adjunct to Hadoop
• As a partial replacement for some RDBMS workloads
• To scale linearly
• As a data store for semi-structured and multi-structured data

12. 12 Dell - Restricted - Confidential
What questions do our customers ask?
• Why is my Hbase cluster so CPU hungry?
• Do you have an RA for <Your favorite nosql db goes here>?
• Can I replace all my Oracle databases w/ some nosql databases?

13. 13 Dell - Restricted - Confidential
What are some common problems?
• Cohabitation with Hadoop and other programs on a cluster.
• Poor db design
• Falling prey to vendor hype

14. 14 Dell - Restricted - Confidential

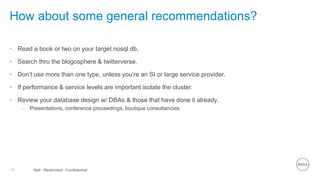

How about some general recommendations?
• Read a book or two on your target nosql db.
• Search thru the blogosphere & twitterverse.
• Don’t use more than one type, unless you’re an SI or large service provider.
• If performance & service levels are important isolate the cluster.
• Review your database design w/ DBAs & those that have done it already.
– Presentations, conference proceedings, boutique consultancies

15. 15 Dell - Restricted - Confidential
Nosql Examples, Diving Deeper
• Hbase
• MongoDB
• Redis
• Neo4j

16. 16 Dell - Restricted - Confidential
Hbase
• Columnar
– Column families
• Uses ZK
• Has a master
• WAL
• Region servers
• Memstore
• Hfiles
• HDFS
• Uses jvm heap
• Access
– Row key
– Get
– Put
– Scan
– Bulk load
• Design
– Beware of skew
– Tune for peaks
• Perf
– CPU intensive
– Very fast for puts & gets by key

17. 17 Dell - Restricted - Confidential
Neo4j
• Property graph
– Nodes, edges, relationship/arc, direction, data/properties(node & arc)
– Edge labeled multi-digraph
• REST API
• ACID
• Fast, scaleablable lookups
• Lucene index for search

18. 18 Dell - Restricted - Confidential
