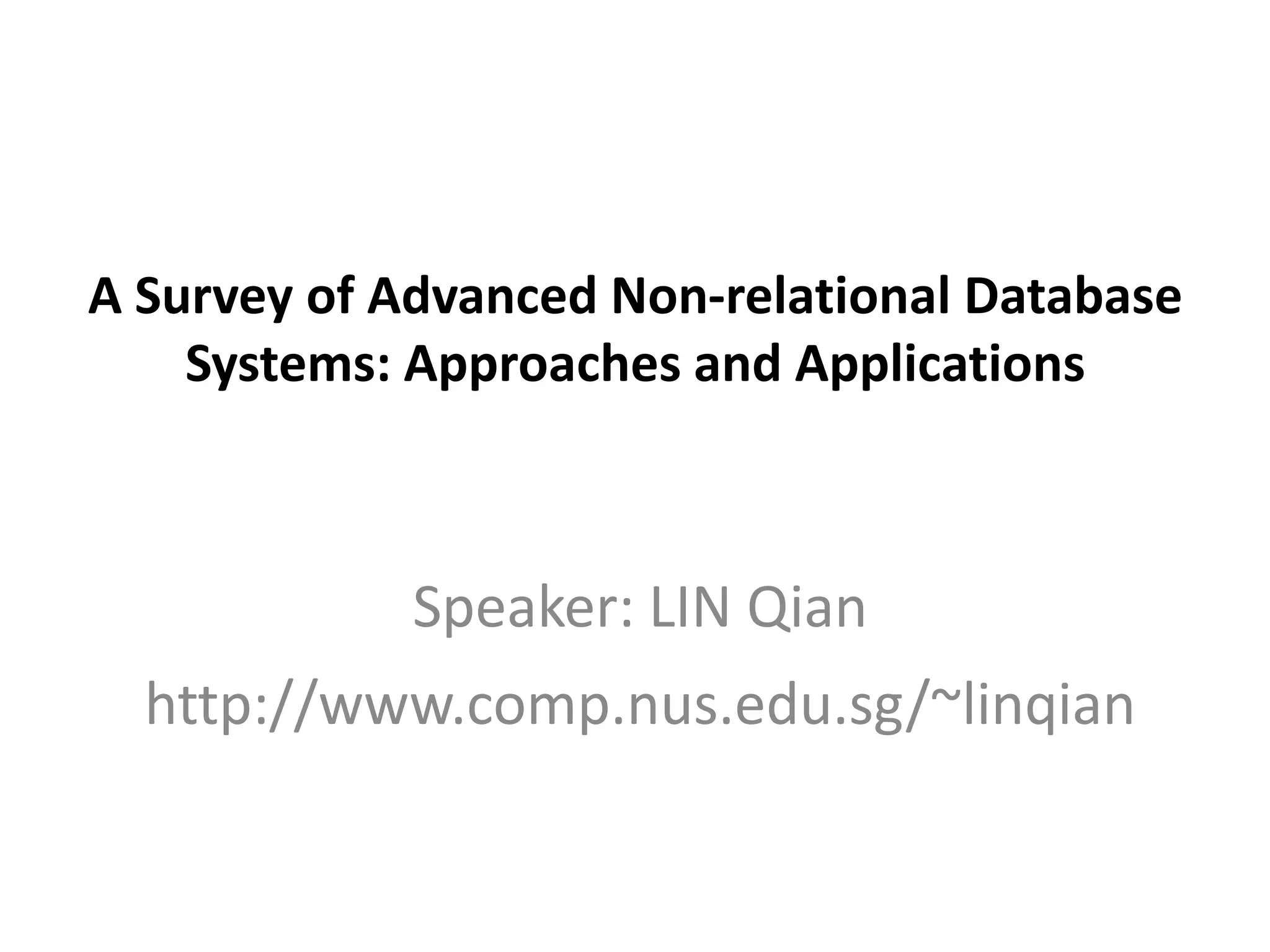

A Survey of Advanced Non-relational Database
    Systems: Approaches and Applications



             Speaker: LIN Qian
  http://www.comp.nus.edu.sg/~linqian

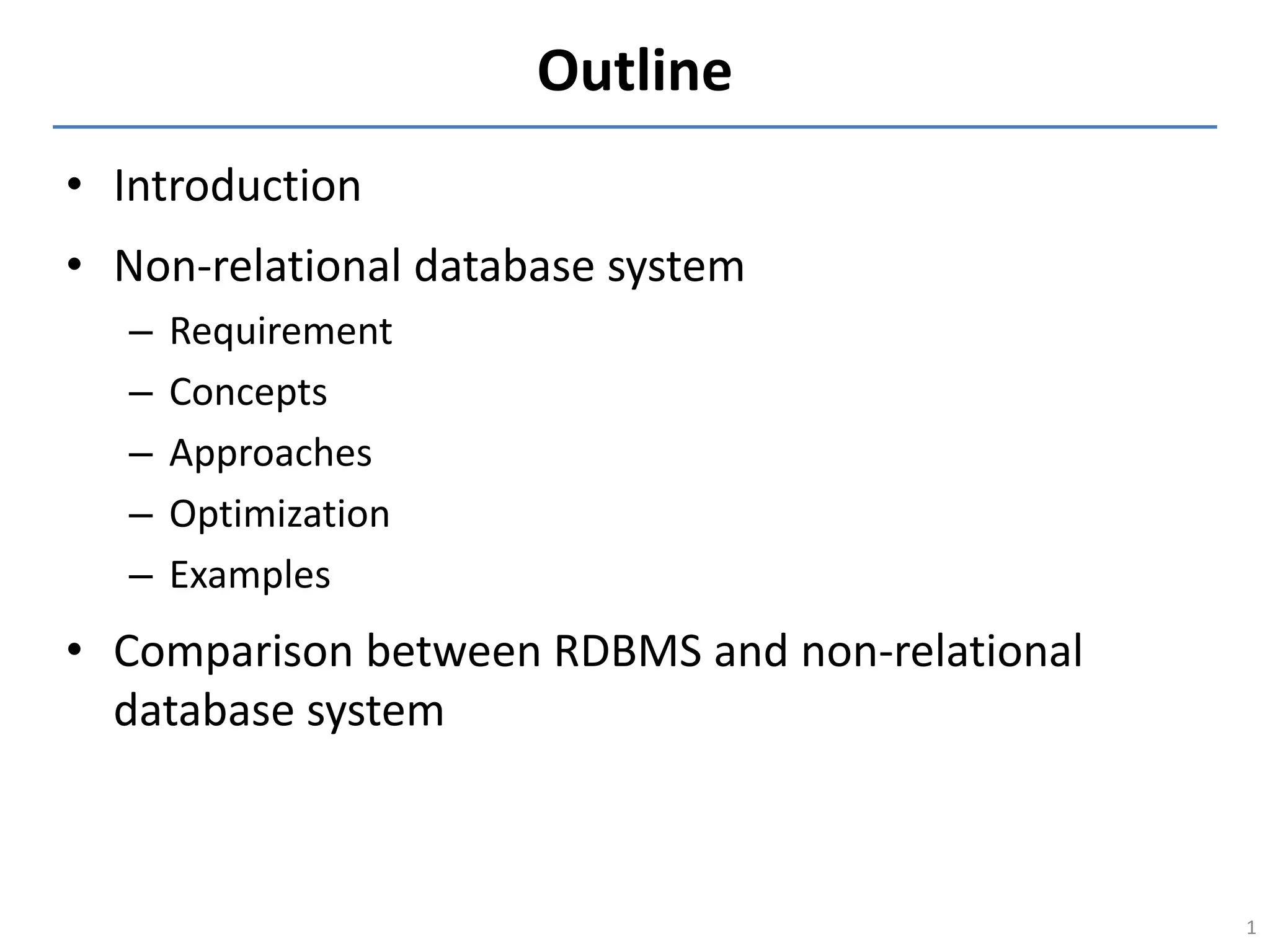

Outline
• Introduction
• Non-relational database system
  –   Requirement
  –   Concepts
  –   Approaches
  –   Optimization
  –   Examples
• Comparison between RDBMS and non-relational
  database system



                                                1
Problem
• The Web introduces a new scale for applications, in
  terms of:
   –   Concurrent users (millions of reqs/second)
   –   Data (peta-bytes generated daily)
   –   Processing (all this data needs processing)
   –   Exponential growth (surging unpredictable demands)
• Shortage of existing RDBMS
   – Oracle, MS SQL, Sybase, MySQL, PostgreSQL, …
   – Trouble when dealing with very large traffic
   – Even with their high-end clustering solutions


                                                            2
Problem
• Why?
  – Applications using normalized database schema require the
    use of join, which doesn't perform well under lots of data
    and/or nodes
  – Existing RDBMS clustering solutions require scale-up, which
    is limited and not really scalable when dealing with
    exponential growth (e.g., 1000+ nodes)
  – Machines have upper limits on capacity




                                                                  3
Problem
• Why not just use sharding?
    – Very complex and application-specific
         •   Increased complexity of SQL
         •   Single point of failure
         •   Failover servers more complex
         •   Backups more complex
         •   Operational complexity added
    – Very problematic when adding/removing nodes
    – Basically, you end up denormalizing everything and loosing
      all benefits of relational databases

Sharding: Split one or more tables by row across potentially multiple instances of the
schema and database servers.

                                                                                         4
Who faced this problem?
• Web applications dealing with high traffic and massive
  data
   – Web service providers
      • Google, Yahoo!, Amazon, Facebook, Twitter, LinkedIn, …
   – Scientific data analysis
      • Weather, Ocean, tide, geothermy, …
   – Complex information processing
      • Financial, stock, telecommunication, …




                                                                 5
Solution
• A new kind of DBMS, capable of handling web scale
    – Possibly sacrificing some level of feature
• CAP theorem*: You can only optimize 2 out of these 3
    – Consistency - the system is in a consistent state after an operation
         • All nodes see the same data at the same time
         • Strong consistency (ACID) vs. eventual consistency (BASE)
    – Availability - the system is “always on”, no downtime
         • Node failure tolerance: All clients can find some available replica.
         • software/hardware upgrade tolerance
    – Partition tolerance
         • The system continues to operate (read/write) despite arbitrary message
           loss or failure of part of the system


* Eric A. Brewer, Towards Robust Distributed Systems, Proceedings of the 19th annual
ACM symposium on Principles of Distributed Computing (PODC), 2000                      6
Non-relational database systems
• Various solutions & products
   –   BigTable, LevelDB (developed at Google)
   –   Hbase (developed at Yahoo!)
   –   Dynamo (developed at Amazon)
   –   Cassandra (developed at FaceBook)
   –   Voldemort (developed at LinkedIn)
   –   Riak, Redis, CouchDB, MongoDB, Berkeley DB, …
• Researches
   – NoDB, Walnut, LogBase, Albatross, Citrusleaf, HadoopDB
   – PIQL, RAMCloud


                                                              7
Benefits
• Massively scalable
• Extremely fast
• Highly available, decentralized and fault tolerant
   – no single-point-of-failure
• Transparent sharding (consistent hashing)
• Elasticity
• Parallel processing
• Dynamic schema
• Automatic conflict resolution

                                                       8
Cost
• Allows sacrificing consistency (ACID)
   – at certain circumstances, but can deal with it
• Non-standard new API model
• Non-standard new Schema model
• New knowledge required to tune/optimize
• Less mature




                                                      9
Data/API/Schema model
• Data model: Key-Value store
   – (row:string, column:string, time:int64) → string
   – An opaque serialized object
• API model
   –   Get(key)
   –   Put(key, value)
   –   Delete(key)
   –   Execute(operation, key_list)
• Schema model
   – None
   – Kind of sparse table
                                                        10
Data processing
• MapReduce*
     – An API exposed by non-relational databases to process data
     – A functional programming pattern for parallelizing work
     – Brings the workers to the data
          • excellent fit for non-relational databases
     – Minimizes the programming to 2 simple functions
          • map & reduce



*: Jeffrey Dean and Sanjay Ghemawat,
MapReduce: Simplified Data Processing
on Large Clusters, Proceedings of the
6th Symposium on Operating Systems
Design and Implementation (OSDI),
2004.
                                                                    11
Optimization: Distributed indexing
• Exploits the characteristics of Cayley graphs to provide the scalability for
  supporting multiple distributed indexes of different types.
• Define a methodology to map various types of data and P2P overlays to a
  generalized Cayley graph structure.
• Propose self-tuning strategies to optimize the performance of the indexes
  defined over the generic Cayley overlay.




                                                                                 12
Optimization: Data migration
• Albatross is a technique for live migration in a
  multitenant database which can migrate a live tenant
  database with no aborted transactions.
   – Phase 1: Begin Migration.
   – Phase 2: Iterative Copying.
   – Phase 3: Atomic Handover.




                                                         13
Example: Oracle Berkeley DB
• High-performance embeddable database providing
  SQL, Java Object and Key-Value storage
  – Relational Storage - Support SQL.
  – Synchronization - extend the reach of existing applications
    to mobile devices by supporting unparalleled performance
    and a robust data store on the mobile device.
  – Replication - Provide a single-master multi-replica highly
    available database configuration.




                                             Storage engine

                                                                  14
Example: Amazon DynamoDB
• Fully managed NoSQL database service providing fast
  and predictable performance with seamless scalability
   – Provisioned throughput
      • Allocate dedicated resources to table to performance requirements,
        and automatically partitions data over a sufficient number of
        servers to meet request capacity.
   – Consistency model
      • The eventual consistency option maximizes read throughput.
   – Data Model
      • Attributes, Items and Tables




                                                                             15
Example: HBase
• Non-relational, distributed database running on top of
  HDFS providing Bigtable-like capabilities for Hadoop
   –   Strongly consistent reads/writes
   –   Automatic sharding
   –   Hadoop/HDFS Integration
   –   Block Cache and Bloom Filters
   –   Operational Management




                                                           16
Example: CouchDB
• Scalable, fault-tolerant, and schema-free document-
  oriented database
   –   Document Storage
   –   Distributed Architecture with Replication
   –   Map/Reduce Views and Indexes
   –   ACID Semantics
   –   Eventual Consistency
   –   Built for Offline




                                                        17
Example: Riak
• A distributed database architected for availability,
  fault-tolerance, operational simplicity and scalability.
   –   Operate in highly distributed environments
   –   Scale simply and intelligently
   –   Master-less
   –   Highly fault-tolerant
   –   Incredibly stable




                                                             18
Example: MongoDB
• Document-oriented NoSQL database system
  –   Scale horizontally without compromising functionality
  –   Document-oriented storage
  –   Full index support
  –   Master-slave replication
  –   Rich, document-based queries




                                                              19
Comparison with RDBMS
• Transaction
   – Web apps can (usually) do without transactions / strong
     consistency / integrity
   – Bigtable does not support transactions across multiple rows
      • support single-row transactions
      • provide an interface for batching writes across row keys at the
        clients

• Scalability
   – Parallel DBMS vs. MapReduce-base system




                                                                          20
THANK YOU!




             21
Backup




         22
Example of the CAP theorem
• When you have a lot of data which needs to be highly
  available, you'll usually need to partition it across
  machines & also replicate it to be more fault-tolerant
• This means, that when writing a record, all replica's
  must be updated too
• Now you need to choose between:
   – Lock all relevant replicas during update => be less available
   – Don't lock the replicas => be less consistent




                                                                     23
