Dec.20.2019, Arduino based on Mbed os

Daniel Lee
2019.10.20
Arduino based on
Mbed OS

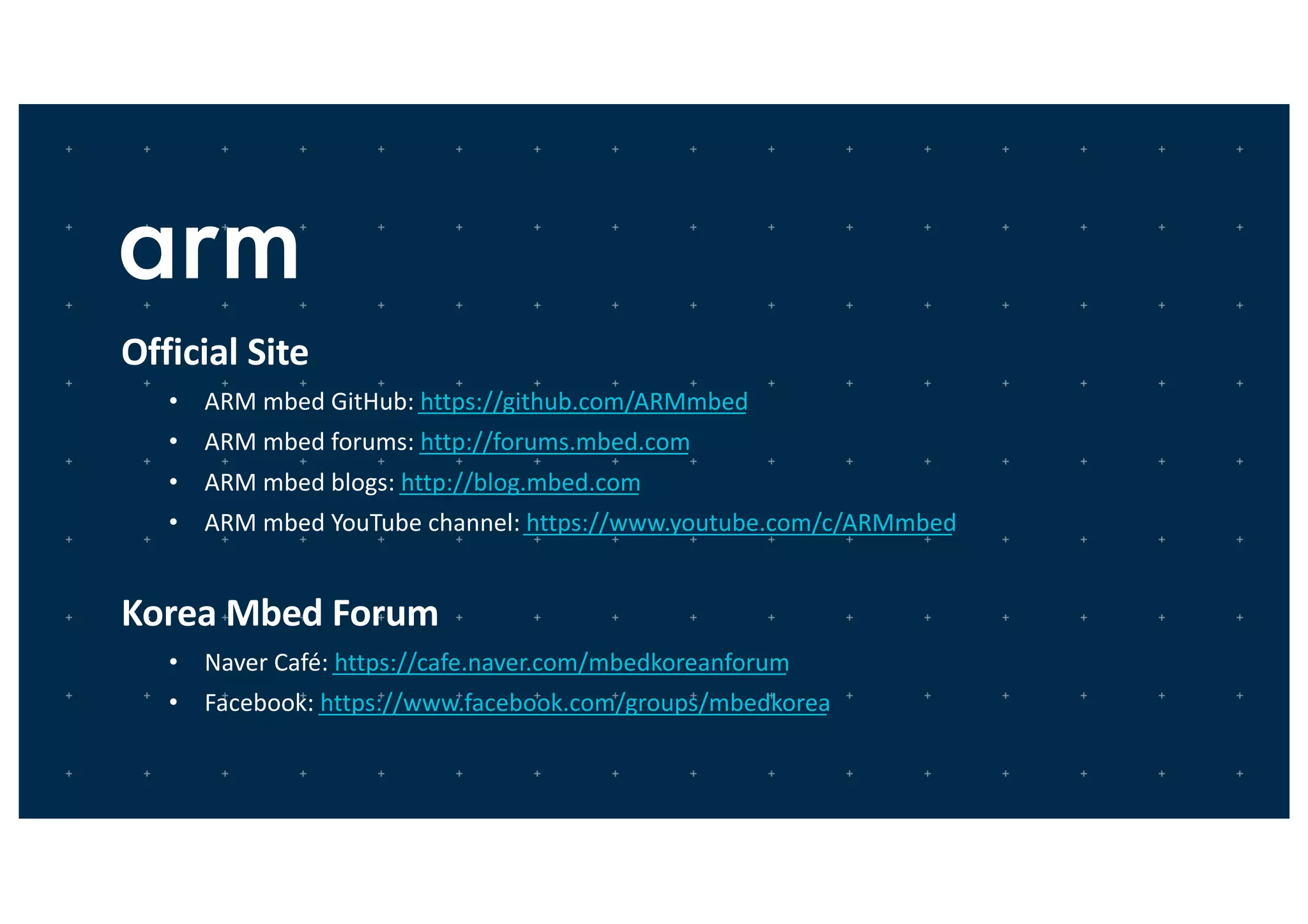

Official Site
• ARM mbed GitHub: https://github.com/ARMmbed
• ARM mbed forums: http://forums.mbed.com
• ARM mbed blogs: http://blog.mbed.com
• ARM mbed YouTube channel: https://www.youtube.com/c/ARMmbed
Korea Mbed Forum
• Naver Café: https://cafe.naver.com/mbedkoreanforum
• Facebook: https://www.facebook.com/groups/mbedkorea

3 © 2019 Arm Limited
https://blog.arduino.cc/2019/07/31/why-we-chose-to-build-the-arduino-nano-33-ble-core-on-mbed-os/

https://www.youtube.com/watch?v=Jcts97vfr7M

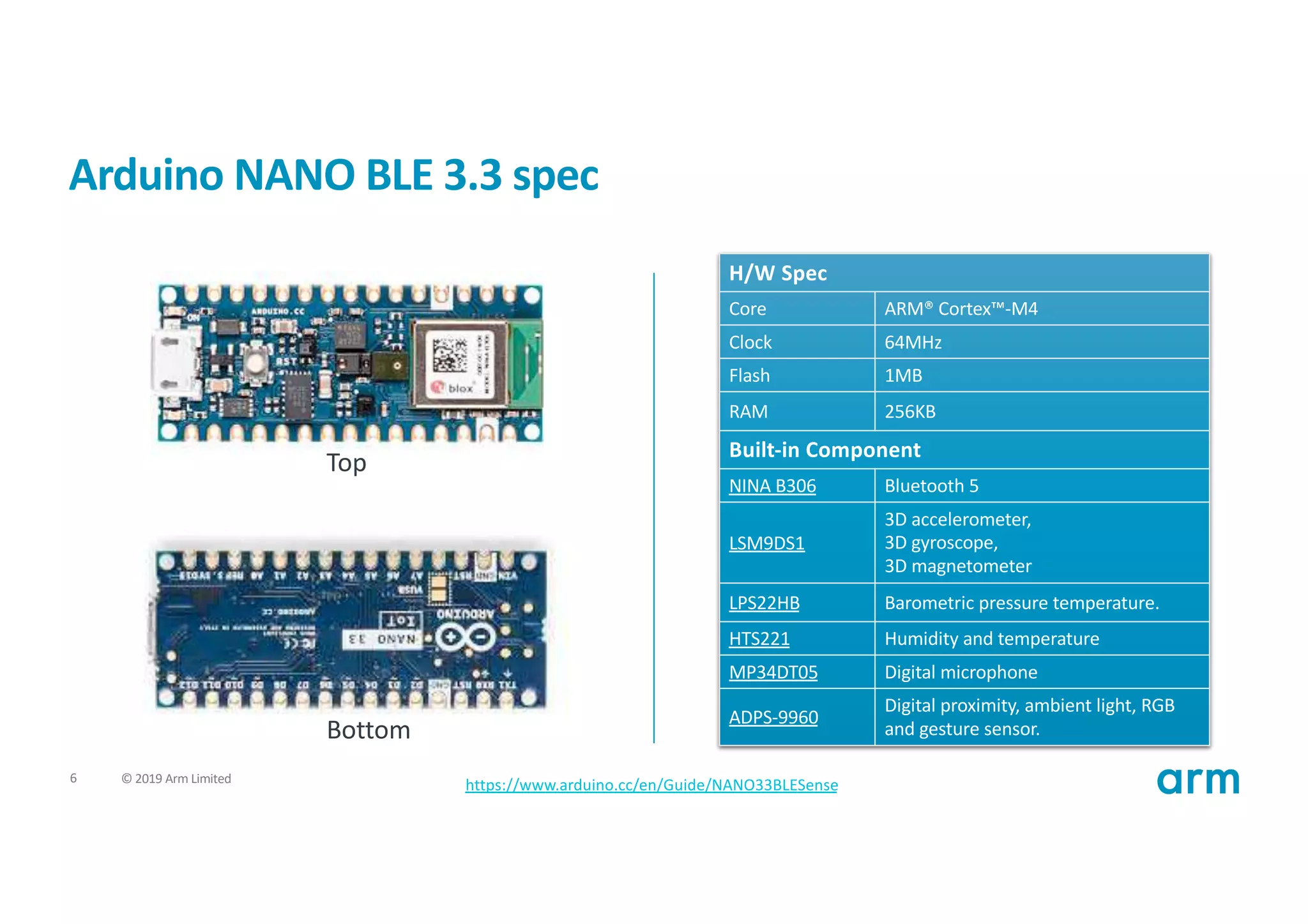

Arduino NANO BLE 3.3 spec
H/W Spec
Core ARM® Cortex™-M4
Clock 64MHz
Flash 1MB
RAM 256KB
Built-in Component
NINA B306 Bluetooth 5
LSM9DS1
3D accelerometer,
3D gyroscope,
3D magnetometer
LPS22HB Barometric pressure temperature.
HTS221 Humidity and temperature
MP34DT05 Digital microphone
ADPS-9960
Digital proximity, ambient light, RGB
and gesture sensor.
https://www.arduino.cc/en/Guide/NANO33BLESense
Top
Bottom

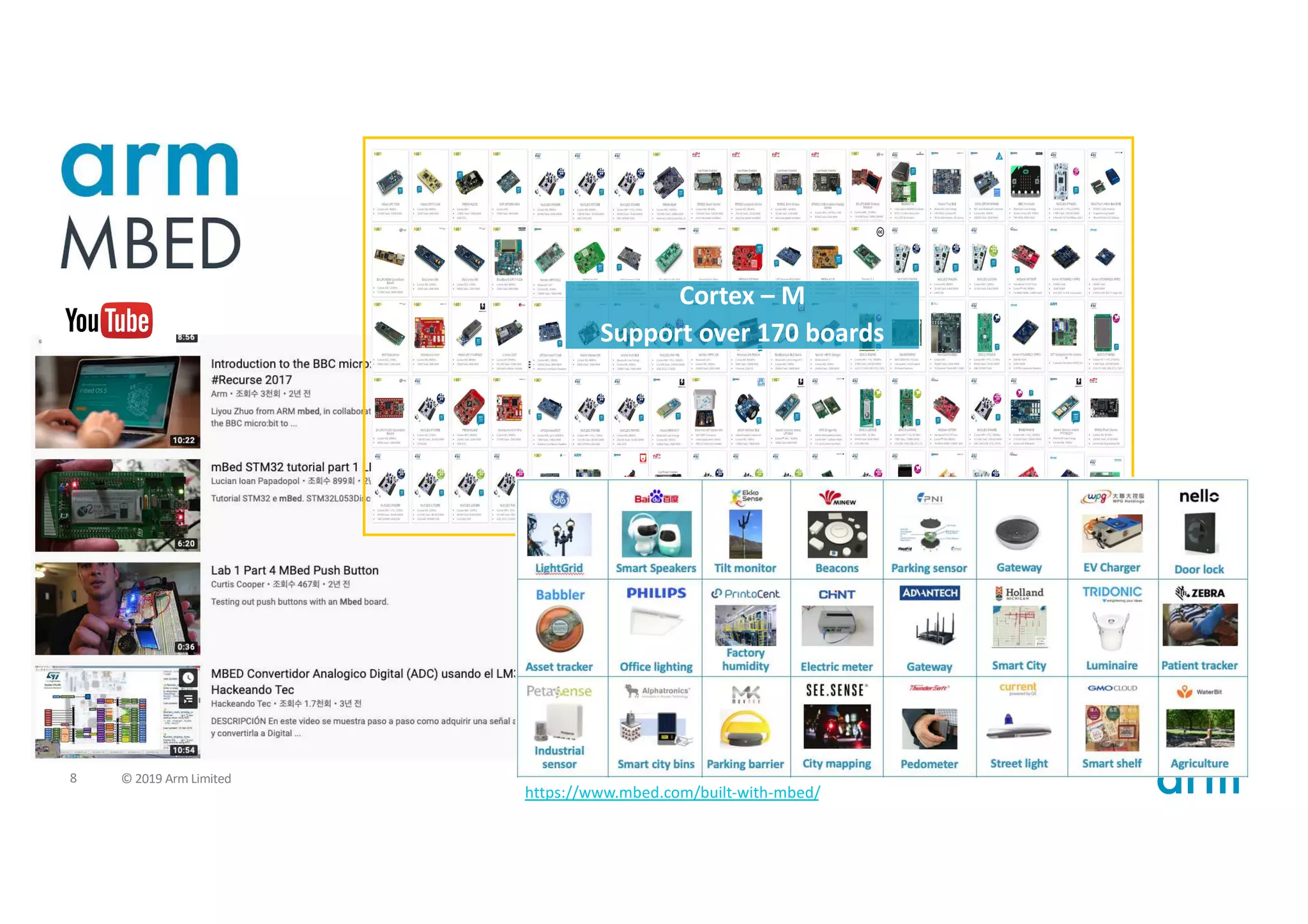

Cortex – M
Support over 170 boards
https://www.mbed.com/built-with-mbed/

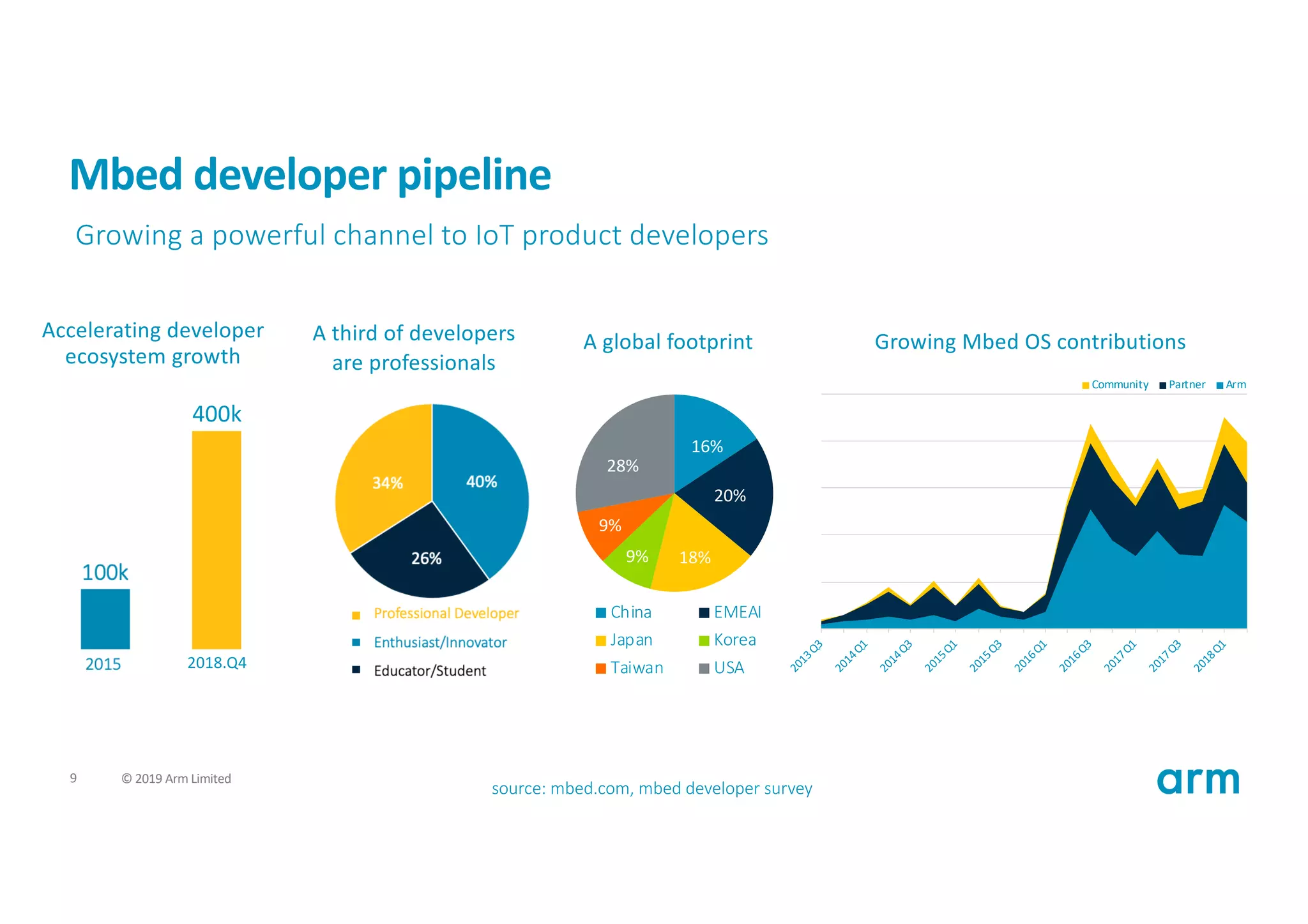

Mbed developer pipeline
source: mbed.com, mbed developer survey
400k
2018.Q4
Accelerating developer
ecosystem growth
A third of developers
are professionals
A global footprint
Growing a powerful channel to IoT product developers
16%
20%
18%9%
9%
28%
China EMEAI
Japan Korea
Taiwan USA
Growing Mbed OS contributions
0
100
200
300
400
500
2013Q3
2014Q1
2014Q3
2015Q1
2015Q3
2016Q1
2016Q3
2017Q1
2017Q3
2018Q1
Community Partner Arm

2015 2016 2019.09
V5.14

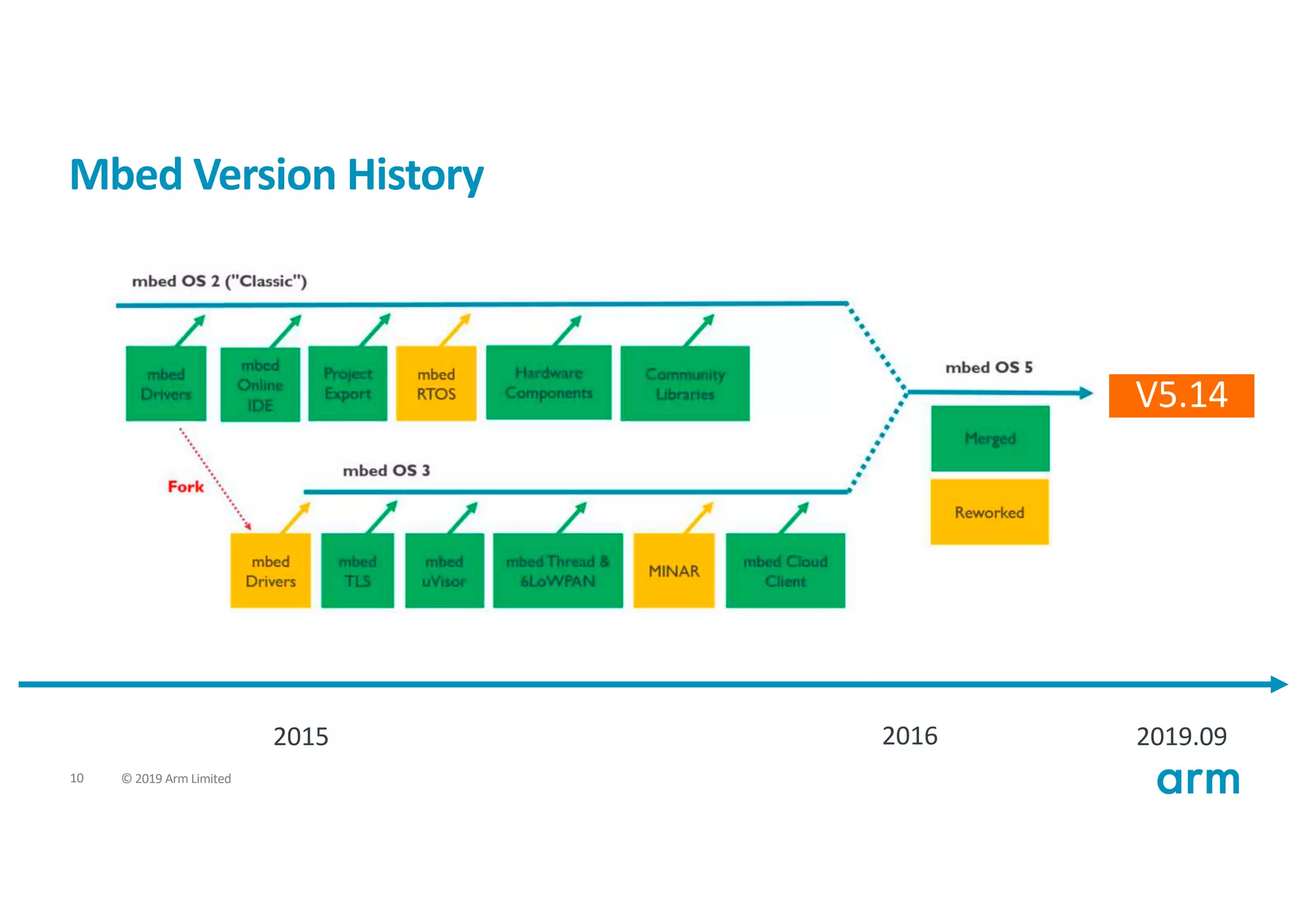

Mbed Version History

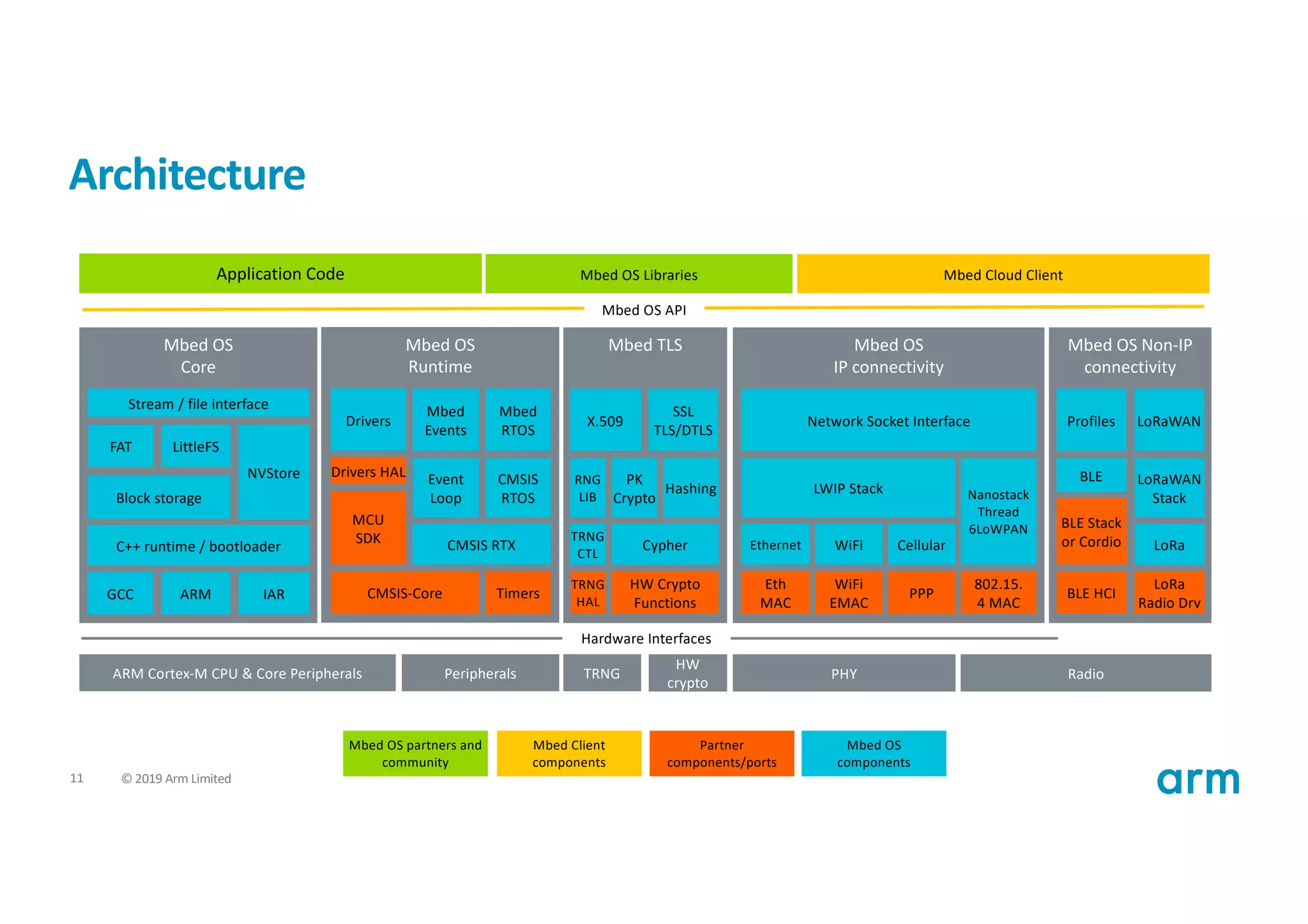

Architecture
Mbed TLS Mbed OS Non-IP
connectivity
Mbed OS
IP connectivity
Partner
components/ports
Mbed OS
components
Hardware Interfaces
ARM Cortex-M CPU & Core Peripherals PHY Radio
Mbed OS API
802.15.
4 MAC
Nanostack
Thread
6LoWPAN
LWIP Stack
WiFi
Eth
MAC
WiFi
EMAC
Ethernet
Network Socket Interface
TRNG
Mbed Client
components
Mbed OS partners and
community
Mbed OS
Core
Mbed OS
Runtime
CMSIS-Core
CMSIS RTX
Drivers HAL
Drivers
Event
Loop
CMSIS
RTOS
Mbed
Events
Mbed
RTOS
MCU
SDK
C++ runtime / bootloader
GCC ARM IAR
FAT
Block storage
Stream / file interface
LittleFS
NVStore
Mbed OS LibrariesApplication Code Mbed Cloud Client
HW
crypto
Cellular
PPP
BLE Stack
or Cordio
BLE HCI
BLE
Profiles
LoRaWAN
Stack
LoRa
Radio Drv
LoRaWAN
LoRa
TRNG
HAL
X.509
Hashing
HW Crypto
Functions
SSL
TLS/DTLS
Cypher
Peripherals
TRNG
CTL
RNG
LIB
PK
Crypto
Timers

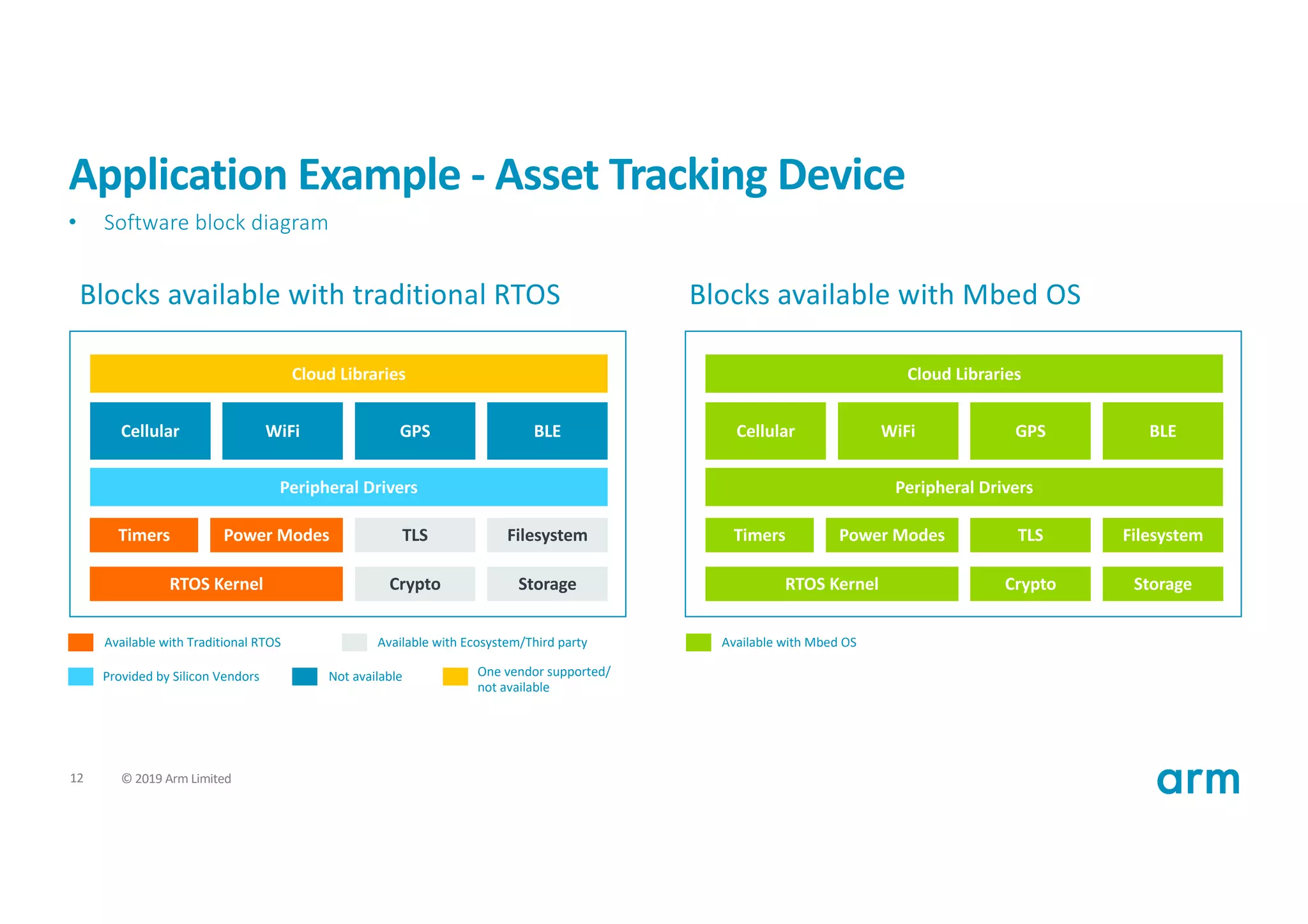

Application Example - Asset Tracking Device
Blocks available with traditional RTOS Blocks available with Mbed OS
Cloud Libraries
Cellular WiFi GPS BLE
Peripheral Drivers
Timers Power Modes TLS Filesystem
RTOS Kernel Crypto Storage
Available with Traditional RTOS Available with Ecosystem/Third party
Provided by Silicon Vendors Not available One vendor supported/
not available
Cloud Libraries
Cellular WiFi GPS BLE
Peripheral Drivers
Timers Power Modes TLS Filesystem
RTOS Kernel Crypto Storage
Available with Mbed OS
• Software block diagram

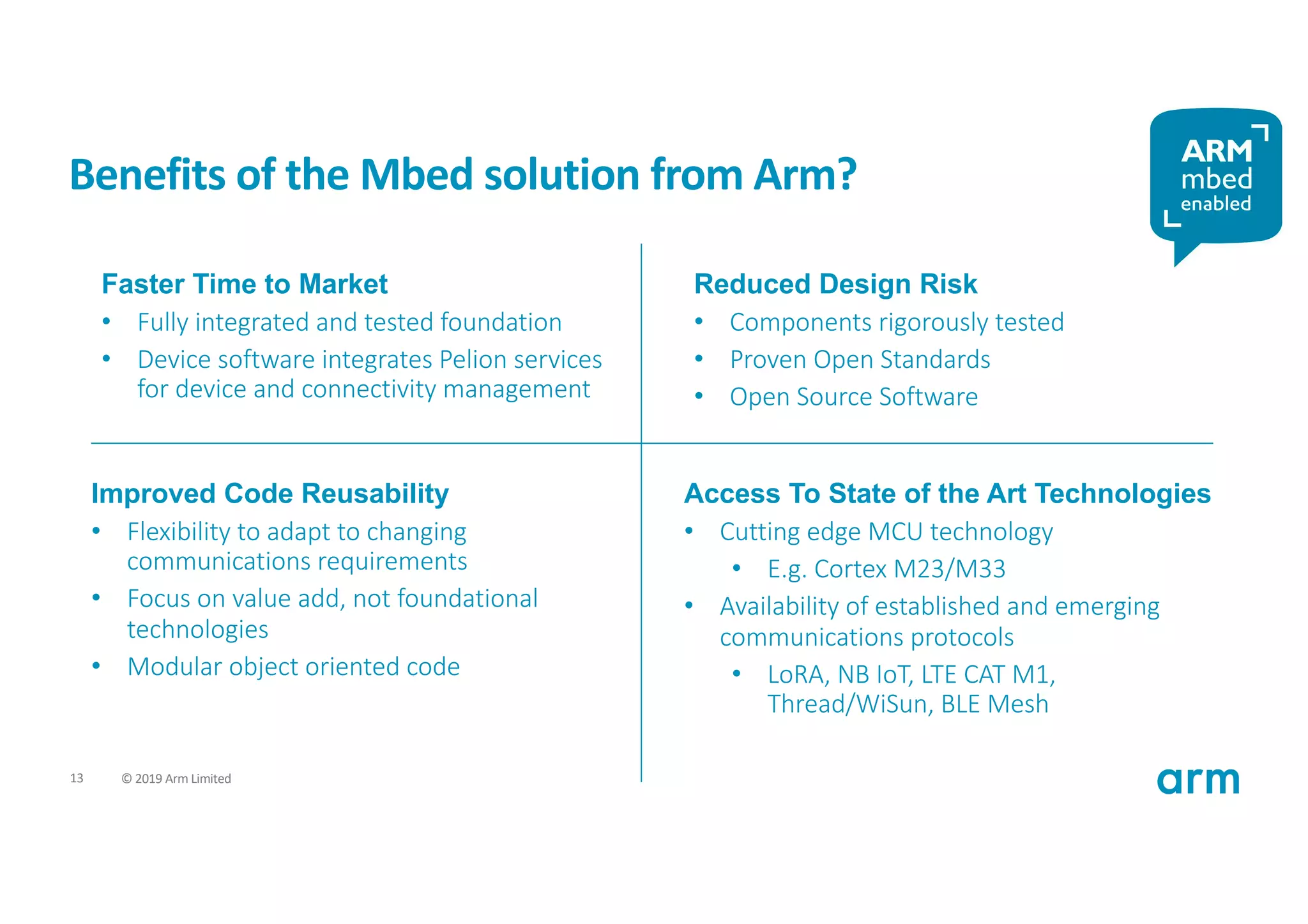

Faster Time to Market
• Fully integrated and tested foundation
• Device software integrates Pelion services
for device and connectivity management
Improved Code Reusability
• Flexibility to adapt to changing
communications requirements
• Focus on value add, not foundational
technologies
• Modular object oriented code
Reduced Design Risk
• Components rigorously tested
• Proven Open Standards
• Open Source Software
Access To State of the Art Technologies
• Cutting edge MCU technology
• E.g. Cortex M23/M33
• Availability of established and emerging
communications protocols
• LoRA, NB IoT, LTE CAT M1,
Thread/WiSun, BLE Mesh
Benefits of the Mbed solution from Arm?

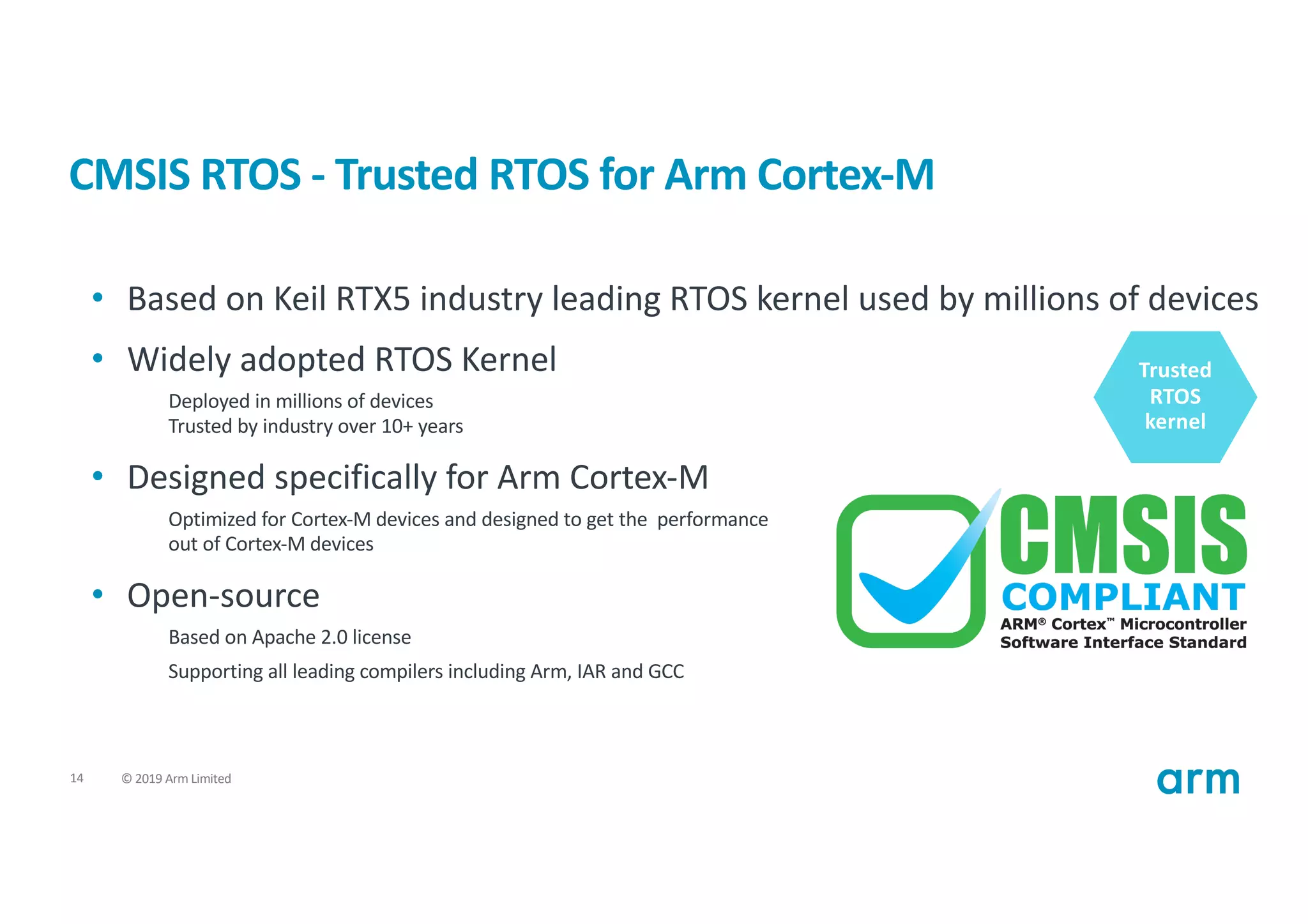

CMSIS RTOS - Trusted RTOS for Arm Cortex-M
• Based on Keil RTX5 industry leading RTOS kernel used by millions of devices
• Widely adopted RTOS Kernel
• Deployed in millions of devices
• Trusted by industry over 10+ years
• Designed specifically for Arm Cortex-M
• Optimized for Cortex-M devices and designed to get the performance
• out of Cortex-M devices
• Open-source
• Based on Apache 2.0 license
• Supporting all leading compilers including Arm, IAR and GCC
Trusted
RTOS
kernel

• Separate partitions
communicating through
limited secure channels
• Good for information hiding
• Good for damage control
Partition Management
• All crypto hardware is
abstracted
• Guarantee that crypto
hardware is automatically
used where present
• All crypto functions are
easily accessible for
developers
• Protect data in transit:
authentication, integrity,
confidentiality
• Use TLS, a battle-tested
protocol for secure
communication
• Library is lightweight,
modular, and documented
Crypto Features Transport Layer Security
Device management services extend security protection to the field

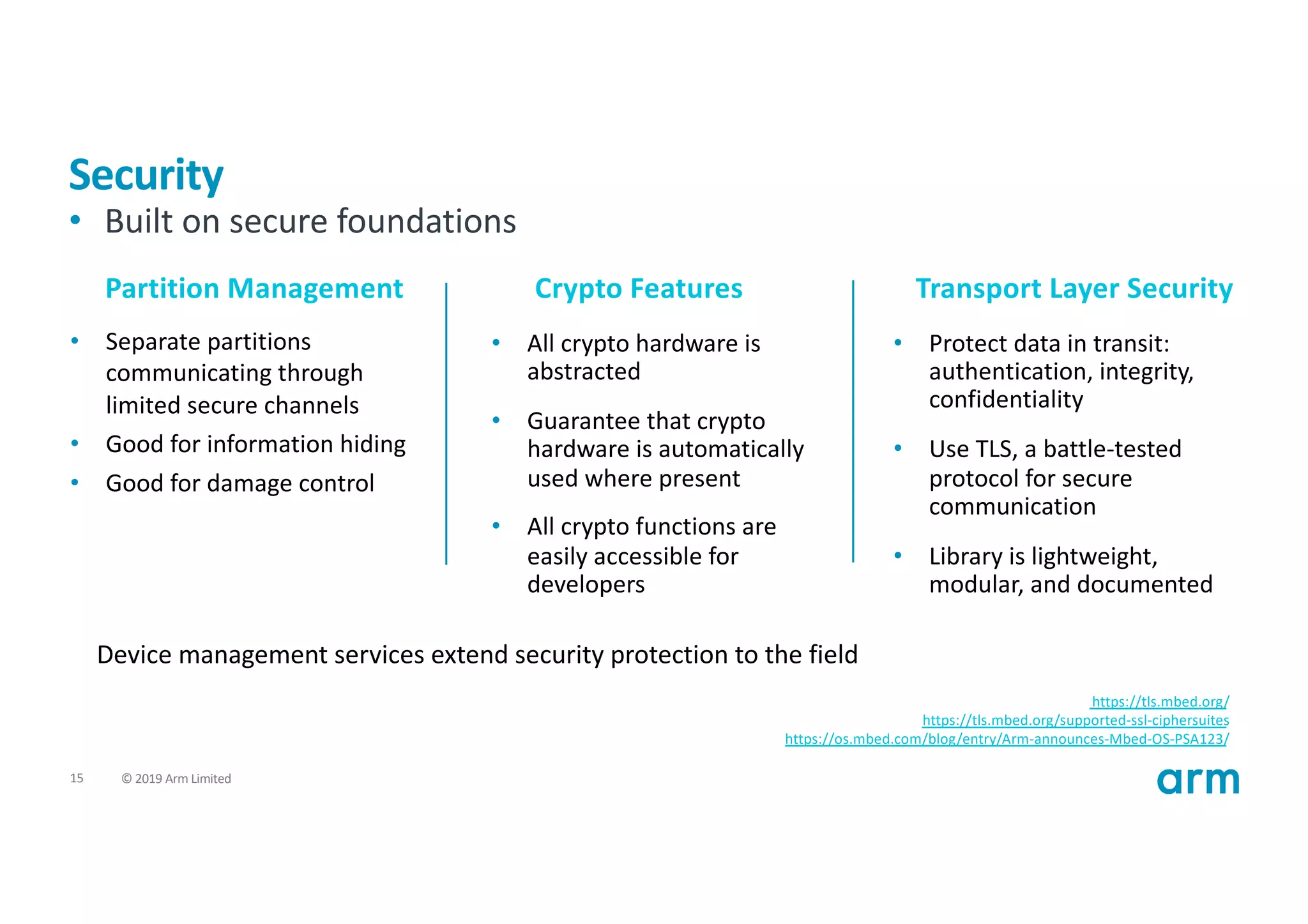

Security
• Built on secure foundations
https://tls.mbed.org/
https://tls.mbed.org/supported-ssl-ciphersuites
https://os.mbed.com/blog/entry/Arm-announces-Mbed-OS-PSA123/

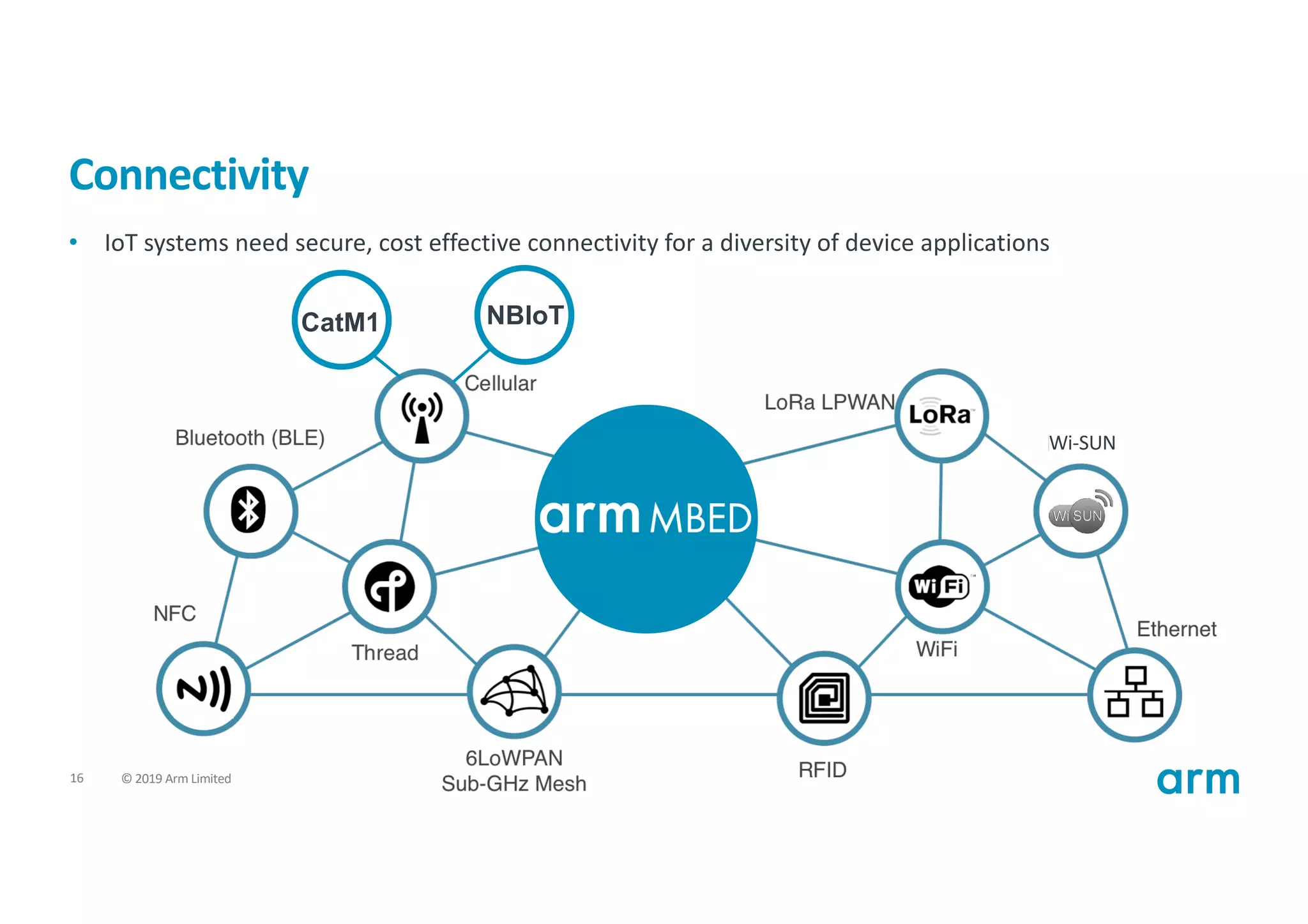

Connectivity
• IoT systems need secure, cost effective connectivity for a diversity of device applications
Wi-SUN
CatM1 NBIoT

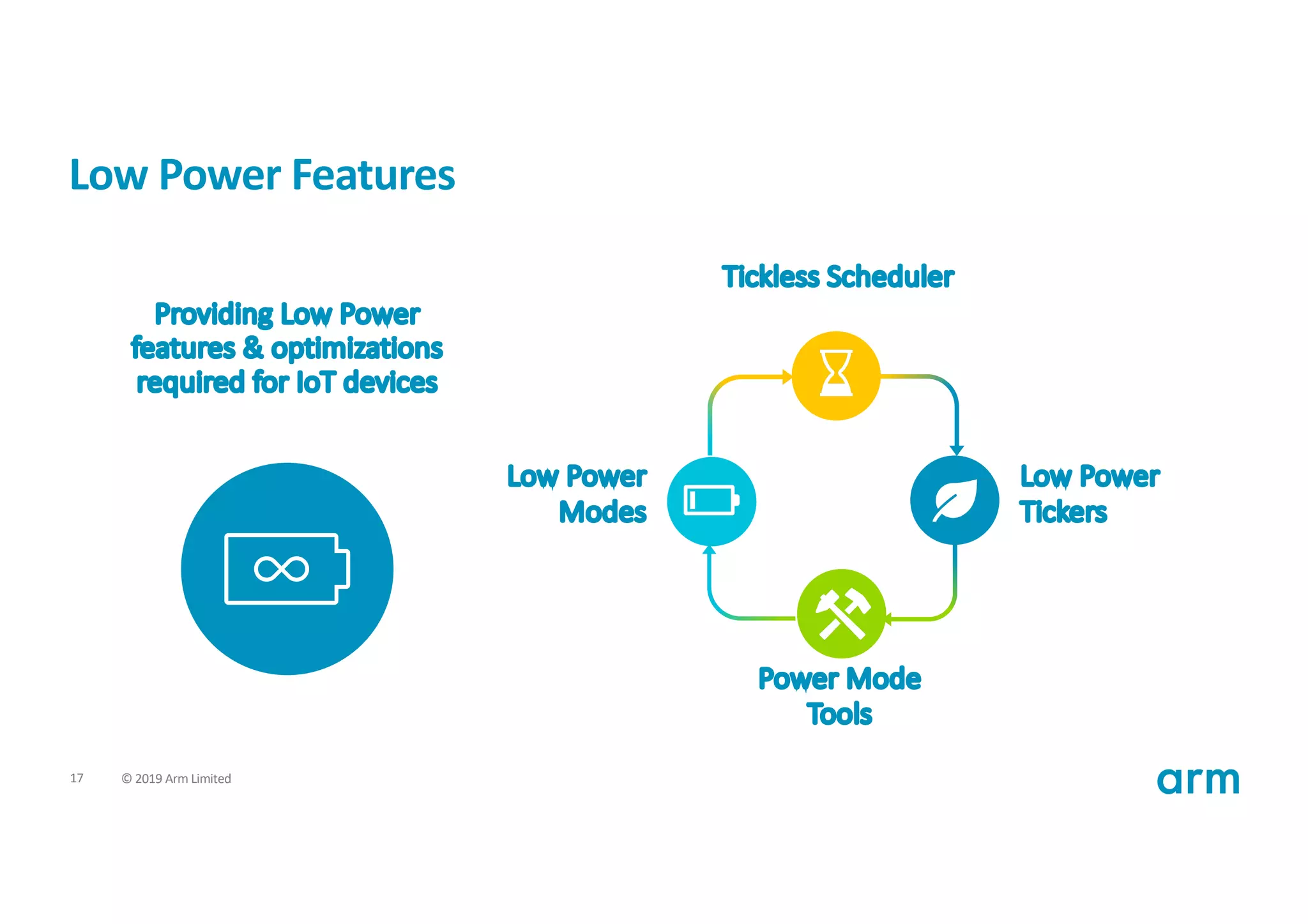

Low Power Features
Providing Low Power
features & optimizations
required for IoT devices
Low Power
Tickers
Low Power
Modes
Power Mode
Tools
Tickless Scheduler

Flexible Storage Offering
• Mbed supports multiple storage types for addressing different storage requirements
Mbed OS Storage
MCU Program
FLASH
Low-Cost SPI
FLASH
Removable Media
(SD, USB)
NVStore LittleFS FatFS
https://os.mbed.com/docs/mbed-os/v5.12/reference/storage.html

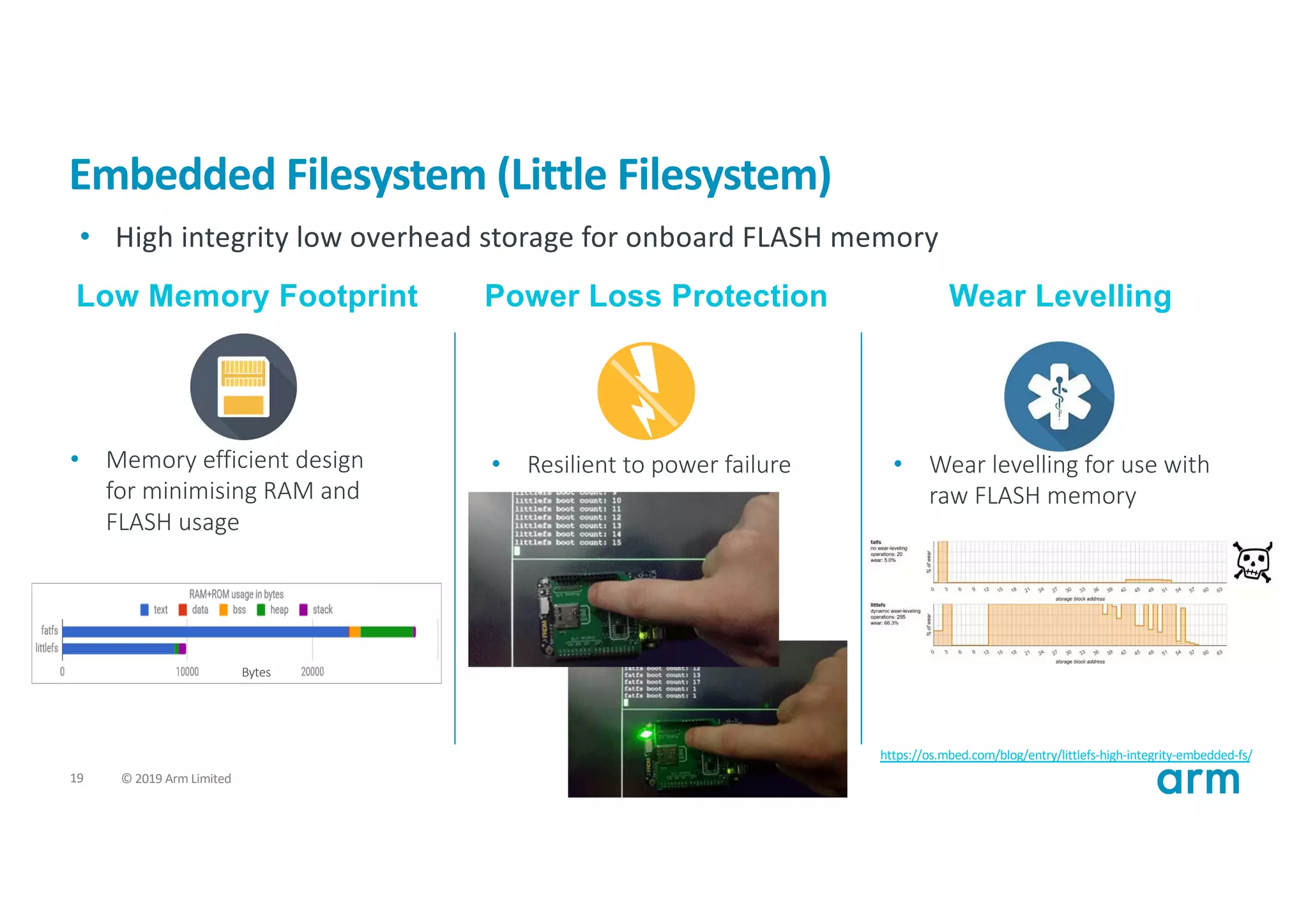

Embedded Filesystem (Little Filesystem)
• Memory efficient design
for minimising RAM and
FLASH usage
• High integrity low overhead storage for onboard FLASH memory
Low Memory Footprint
• Resilient to power failure • Wear levelling for use with
raw FLASH memory
Power Loss Protection Wear Levelling
Bytes
https://os.mbed.com/blog/entry/littlefs-high-integrity-embedded-fs/

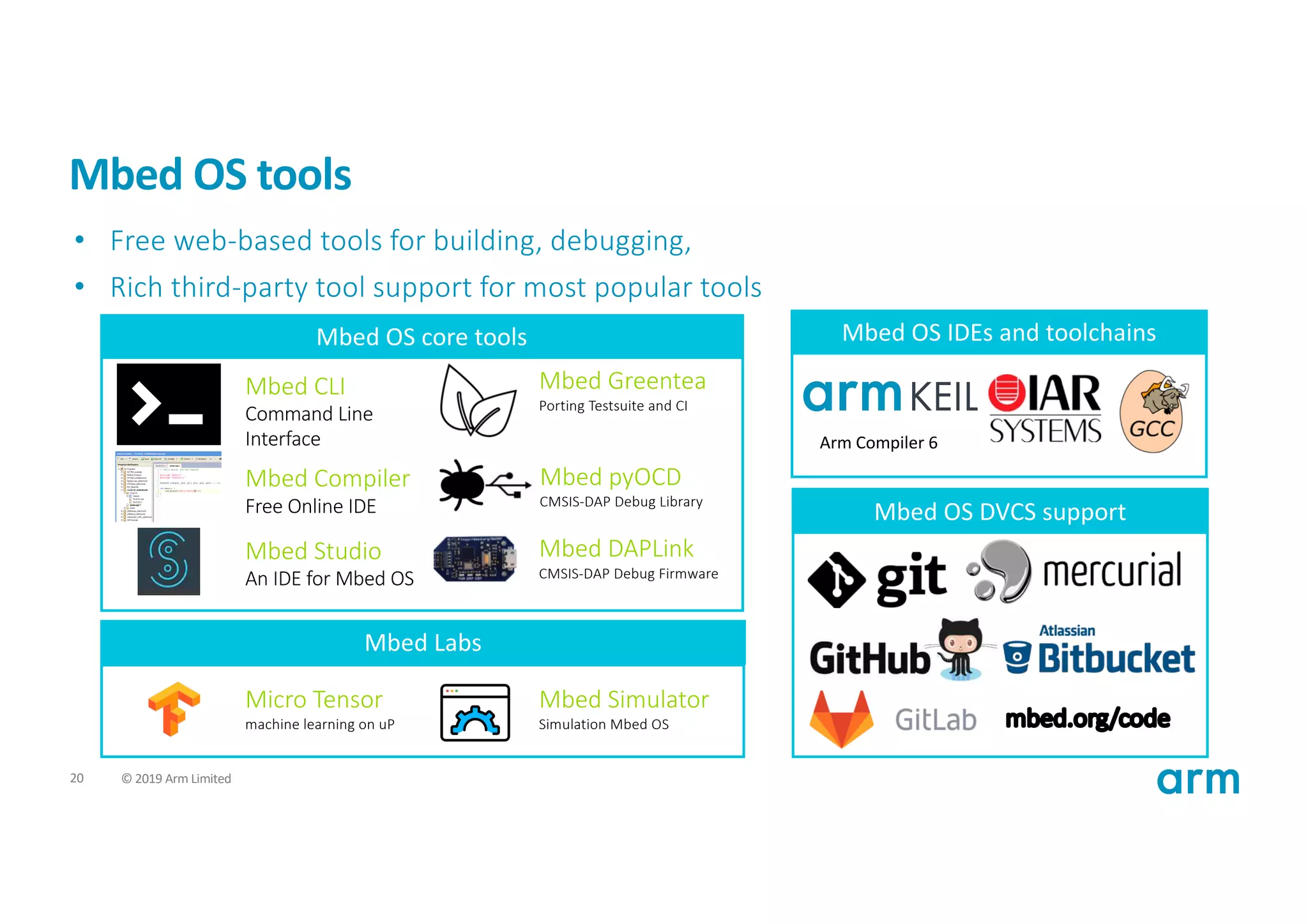

Mbed OS tools
• Free web-based tools for building, debugging,
• Rich third-party tool support for most popular tools
mbed.org/code
Mbed OS DVCS support
Mbed OS IDEs and toolchains
Arm Compiler 6
Mbed Studio
An IDE for Mbed OS
Mbed CLI
Command Line
Interface
Mbed pyOCD
CMSIS-DAP Debug Library
Mbed DAPLink
CMSIS-DAP Debug Firmware
Mbed Greentea
Porting Testsuite and CI
Mbed Compiler
Free Online IDE
Mbed OS core tools
Mbed Simulator
Simulation Mbed OS
Micro Tensor
machine learning on uP
Mbed Labs

Video clip
(https://youtu.be/-TUkizoOxC0)

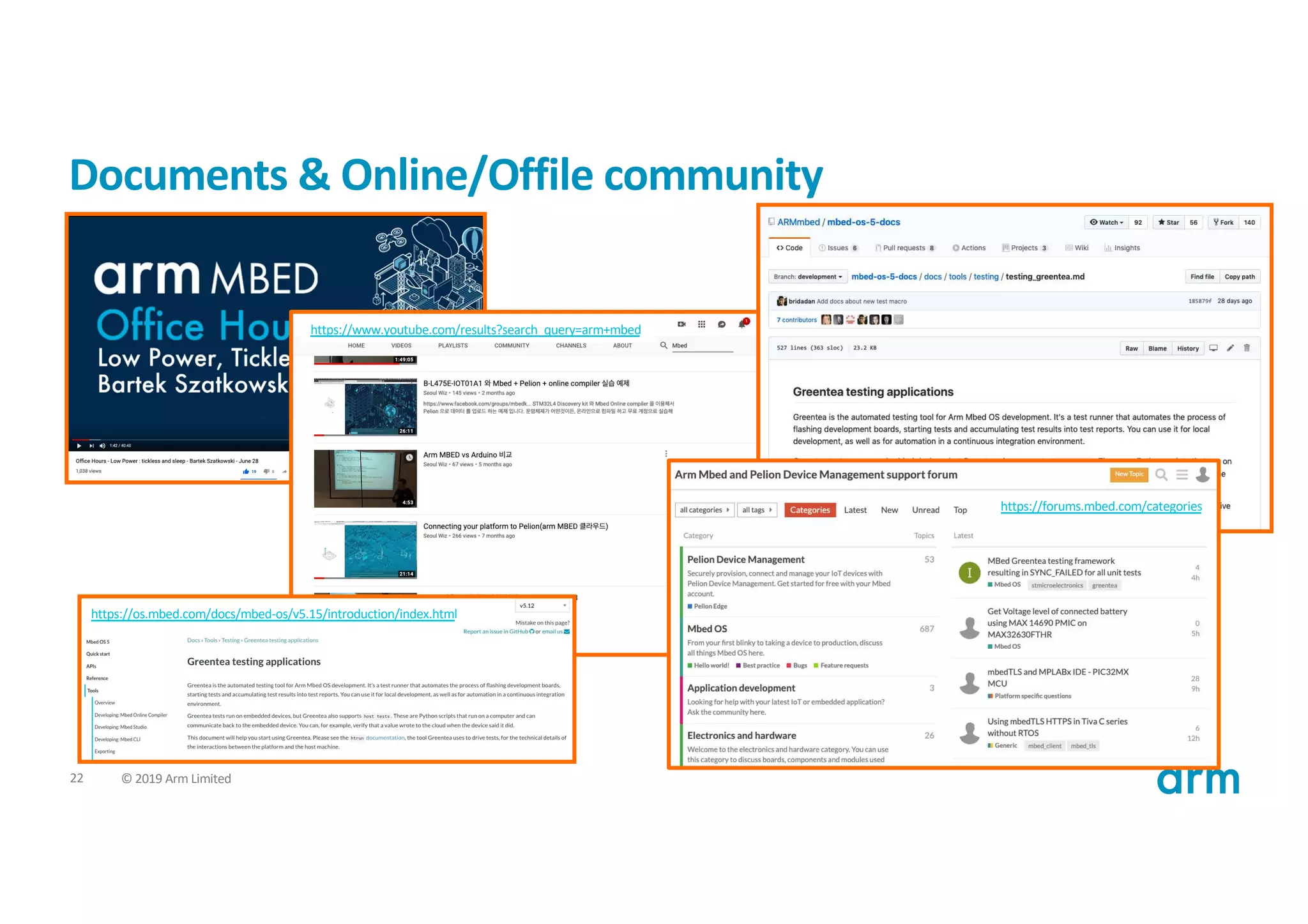

Documents & Online/Offile community
https://www.youtube.com/results?search_query=arm+mbed
https://forums.mbed.com/categories
https://os.mbed.com/docs/mbed-os/v5.15/introduction/index.html

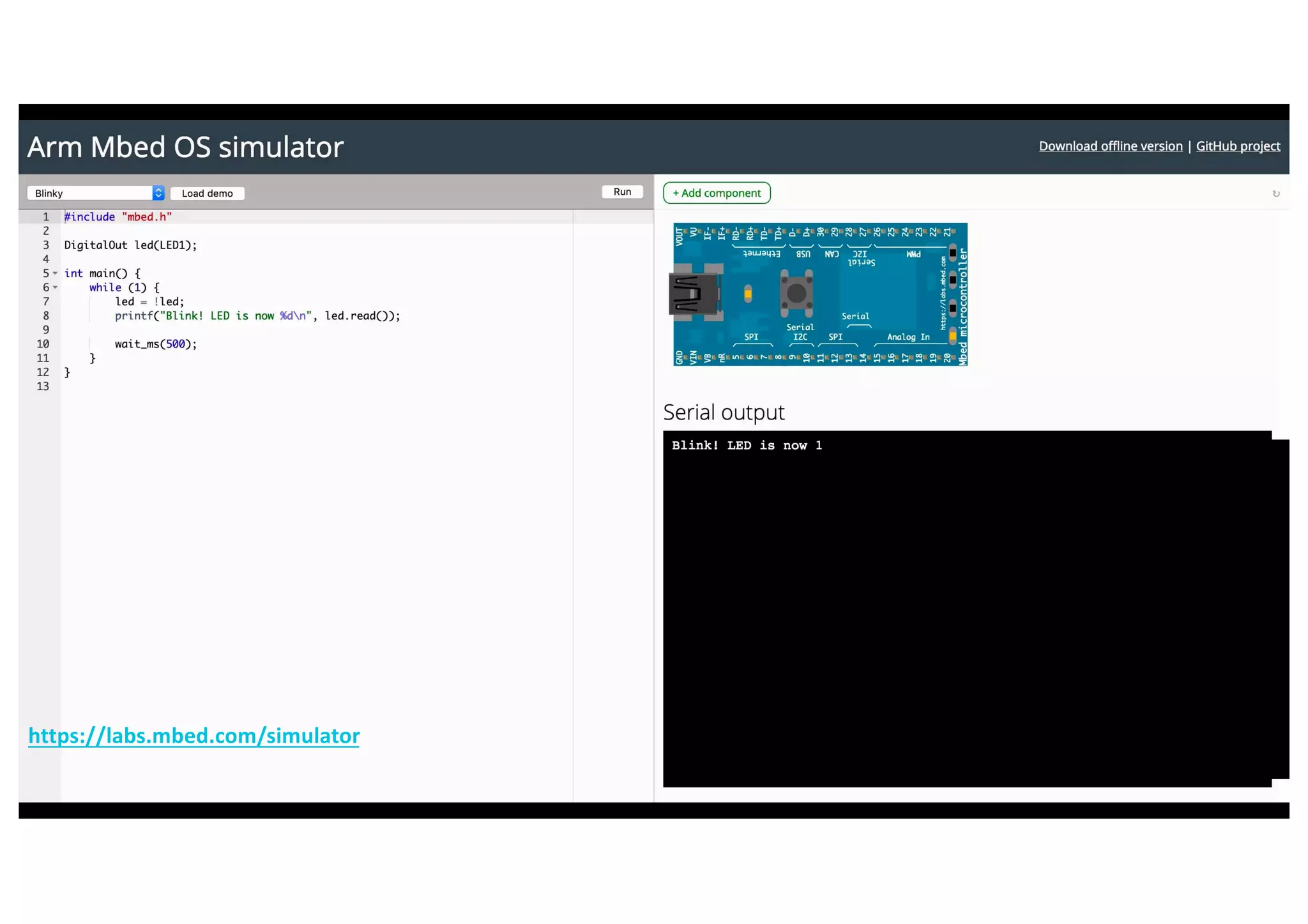

https://labs.mbed.com/simulator

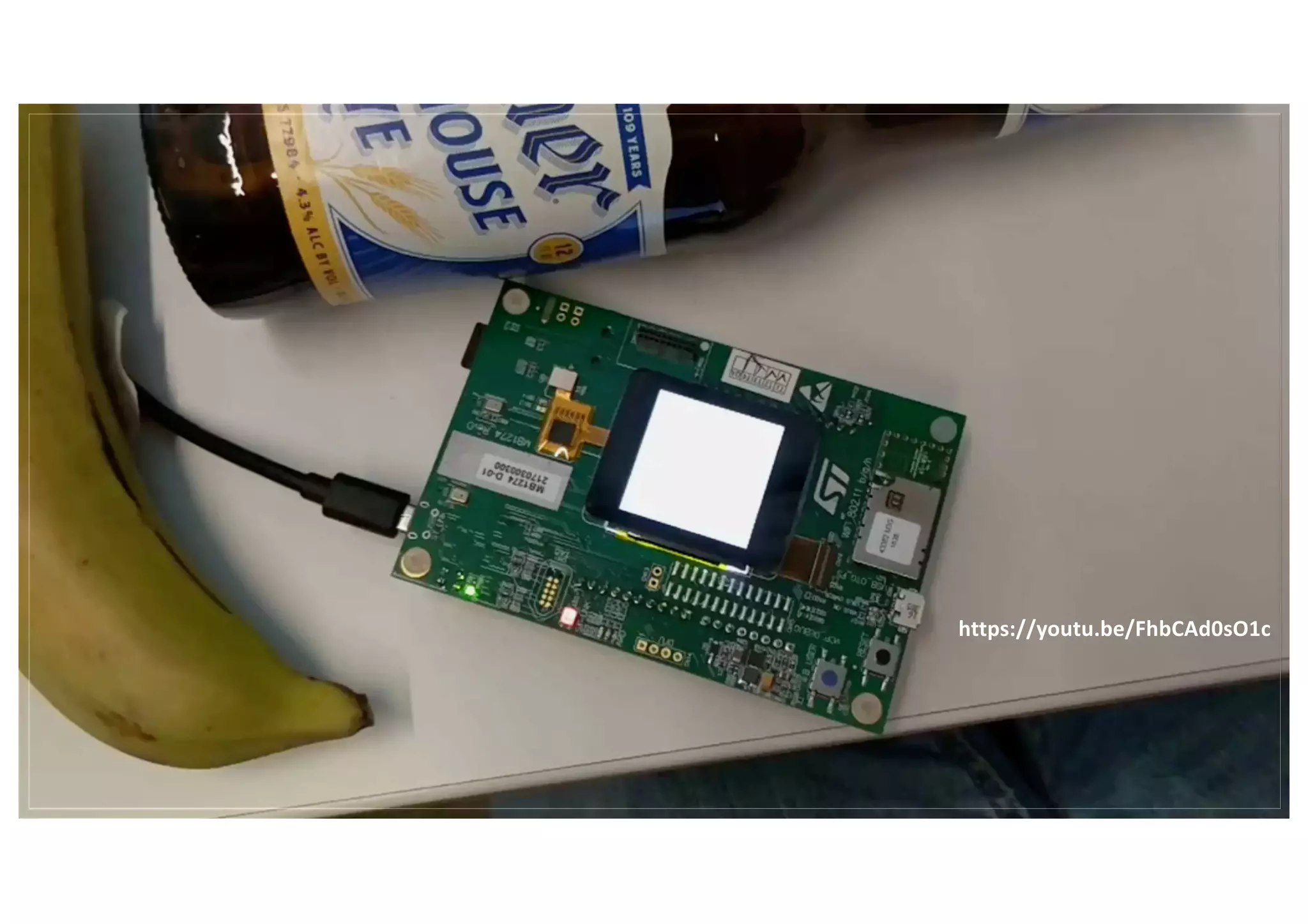

https://youtu.be/FhbCAd0sO1c

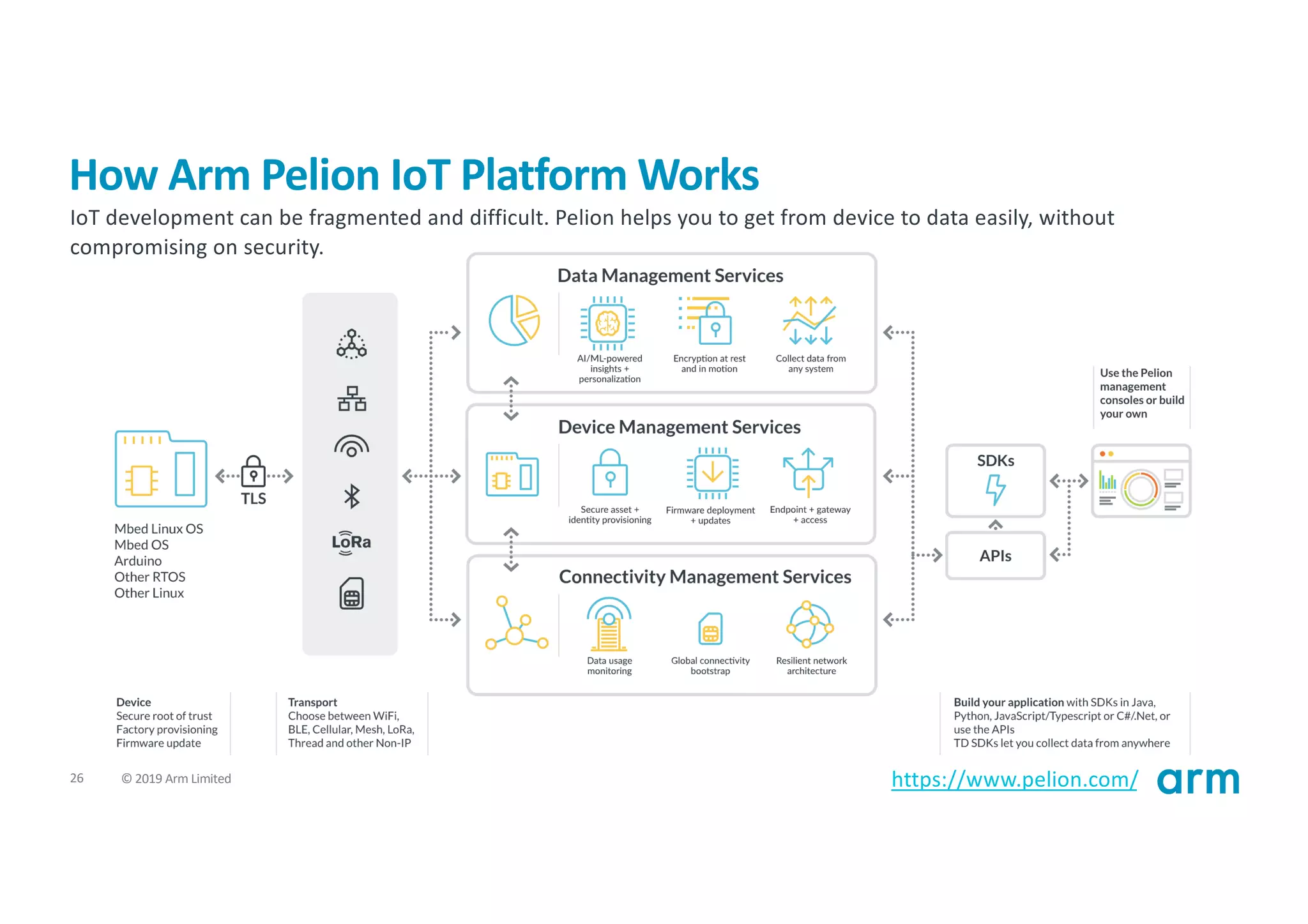

How Arm Pelion IoT Platform Works
https://www.pelion.com/
IoT development can be fragmented and difficult. Pelion helps you to get from device to data easily, without
compromising on security.

Let’s get start with Mbed OS
http://bit.ly/2pzTlDF

1
2
3
4

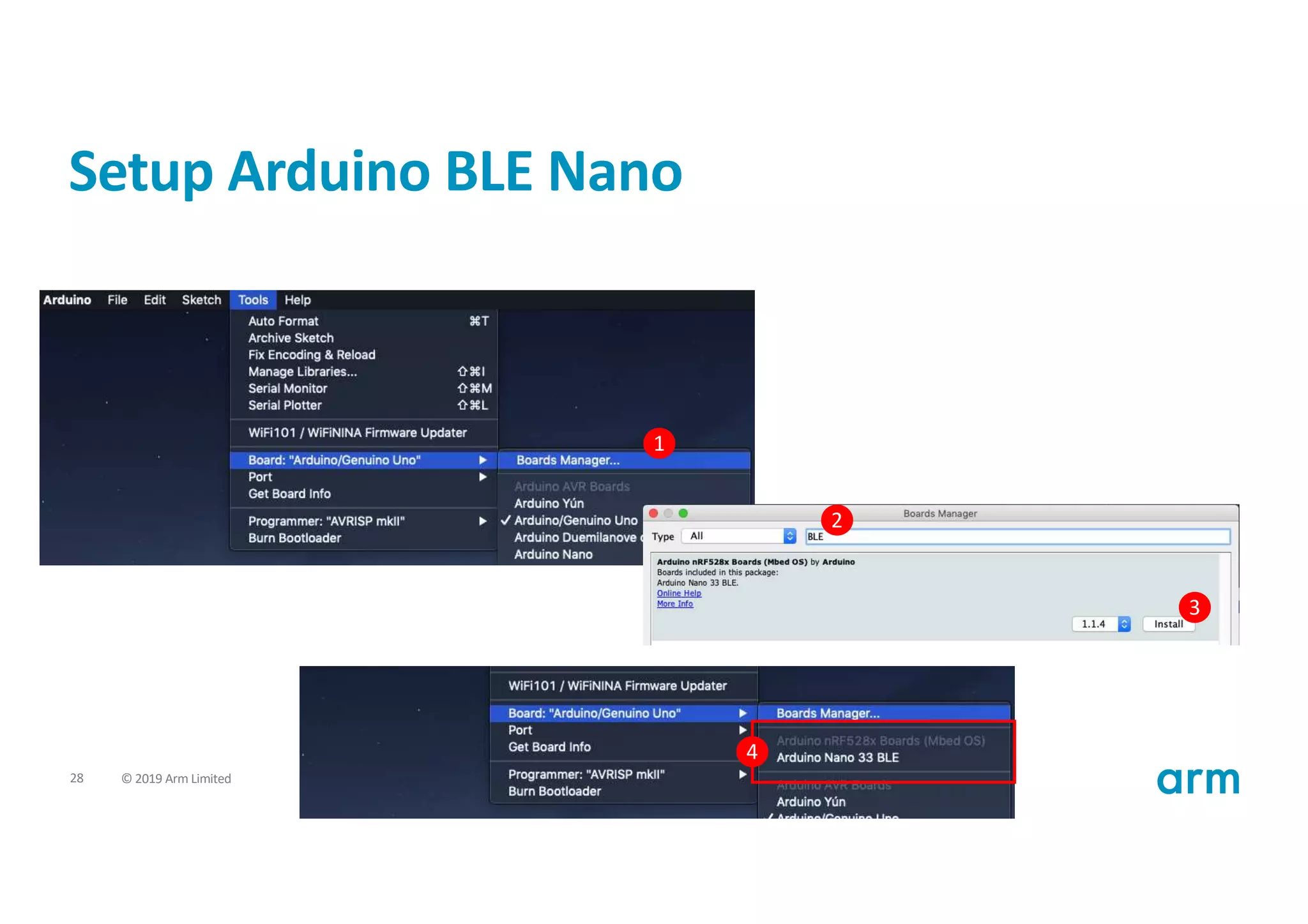

Setup Arduino BLE Nano

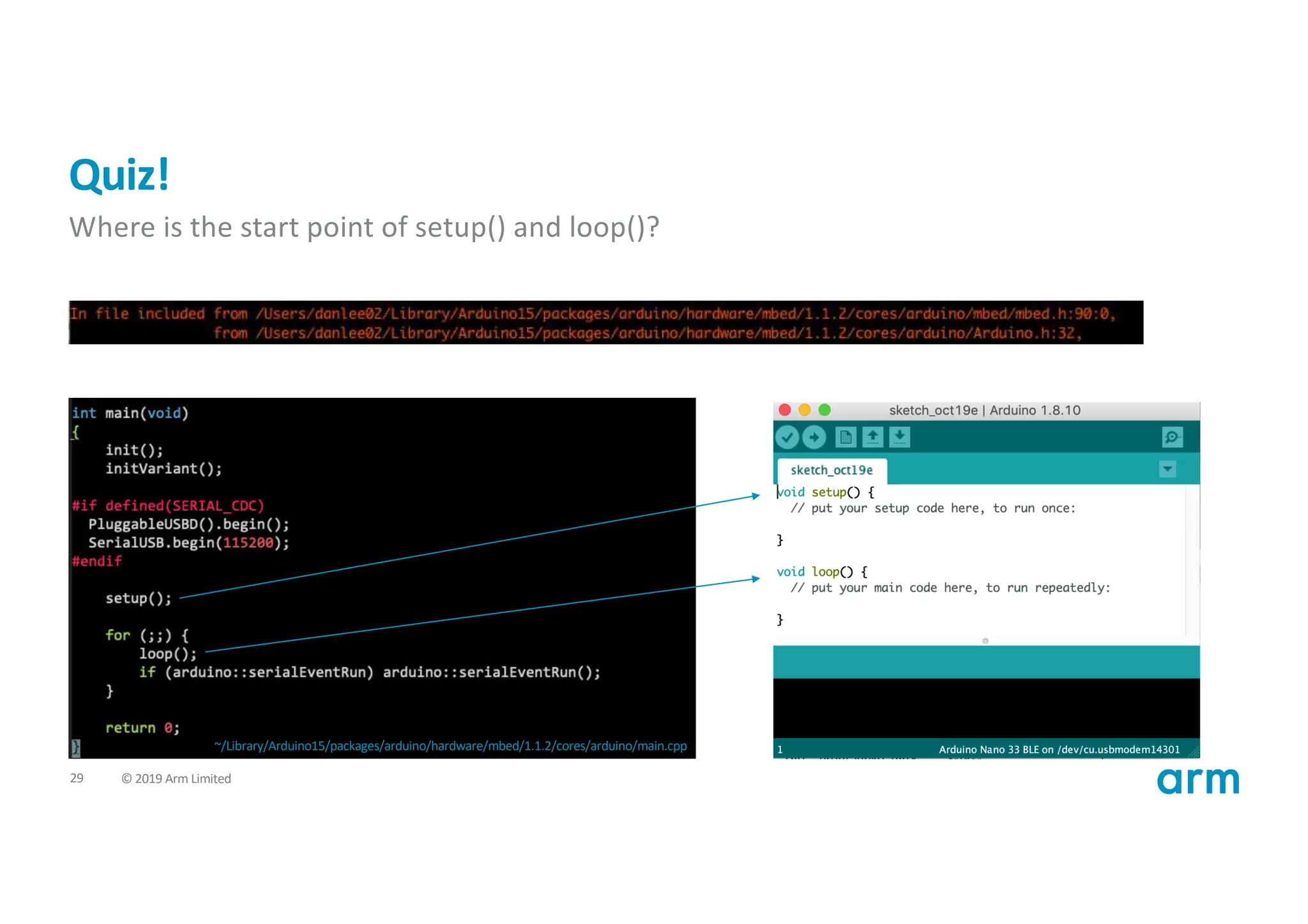

Quiz!
Where is the start point of setup() and loop()?
~/Library/Arduino15/packages/arduino/hardware/mbed/1.1.2/cores/arduino/main.cpp

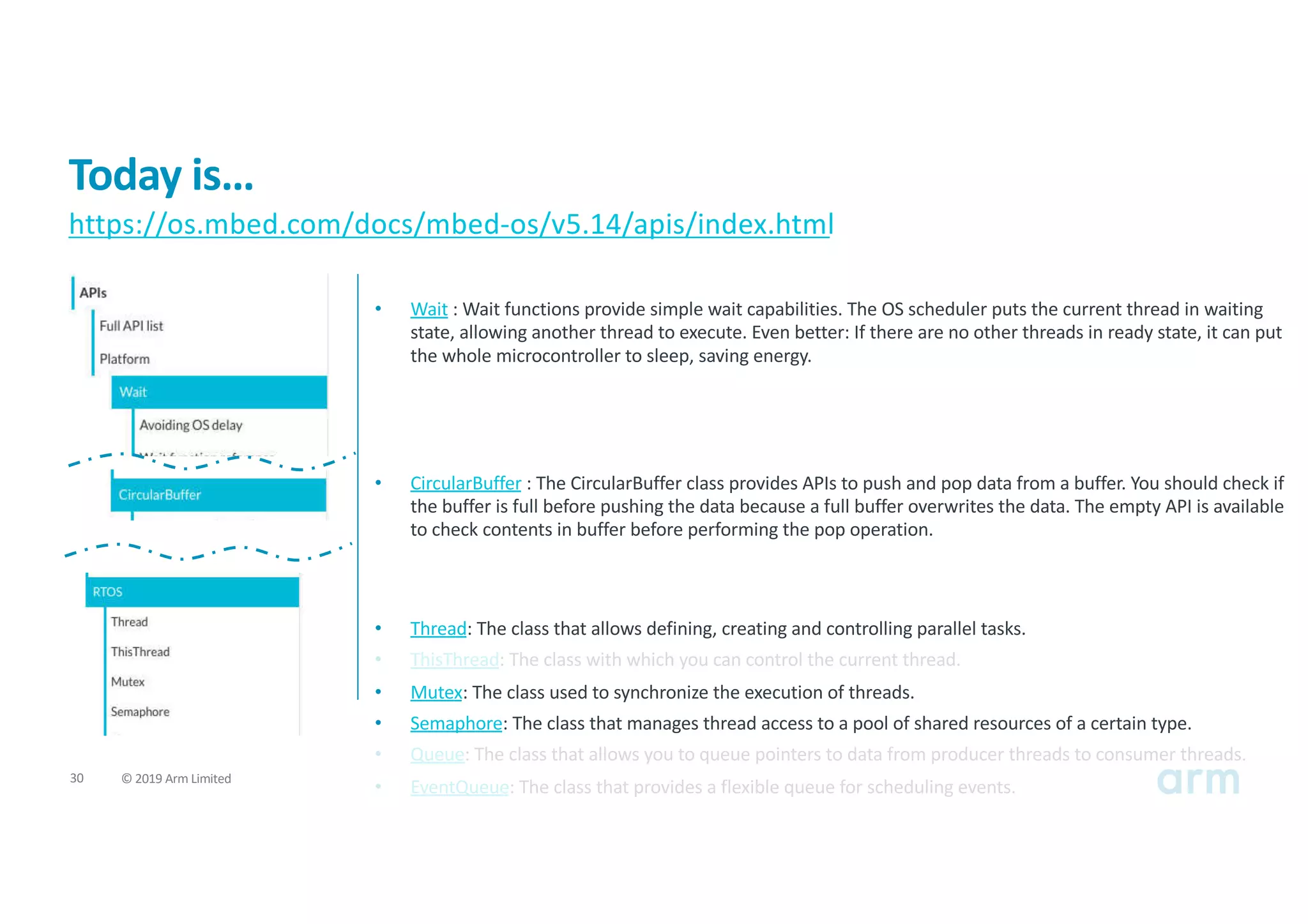

Today is…
https://os.mbed.com/docs/mbed-os/v5.14/apis/index.html
• Thread: The class that allows defining, creating and controlling parallel tasks.
• ThisThread: The class with which you can control the current thread.
• Mutex: The class used to synchronize the execution of threads.
• Semaphore: The class that manages thread access to a pool of shared resources of a certain type.
• Queue: The class that allows you to queue pointers to data from producer threads to consumer threads.
• EventQueue: The class that provides a flexible queue for scheduling events.
• Wait : Wait functions provide simple wait capabilities. The OS scheduler puts the current thread in waiting
state, allowing another thread to execute. Even better: If there are no other threads in ready state, it can put
the whole microcontroller to sleep, saving energy.
• CircularBuffer : The CircularBuffer class provides APIs to push and pop data from a buffer. You should check if
the buffer is full before pushing the data because a full buffer overwrites the data. The empty API is available
to check contents in buffer before performing the pop operation.

Mbed OS - Wait
• https://github.com/redbear/nRF5x/blob/master/nRF52832/arduino/arduino-1.8.0/hardware/RBL/RBL_nRF52832/cores/RBL_nRF52832/mbed_os/platform/mbed_wait_api_rtos.cpp
https://os.mbed.com/docs/mbed-os/v5.15/apis/wait.htmlhttps://www.arduino.cc/reference/en/#functions
wait()
wait_ms();
wait_us();
wait_ns();

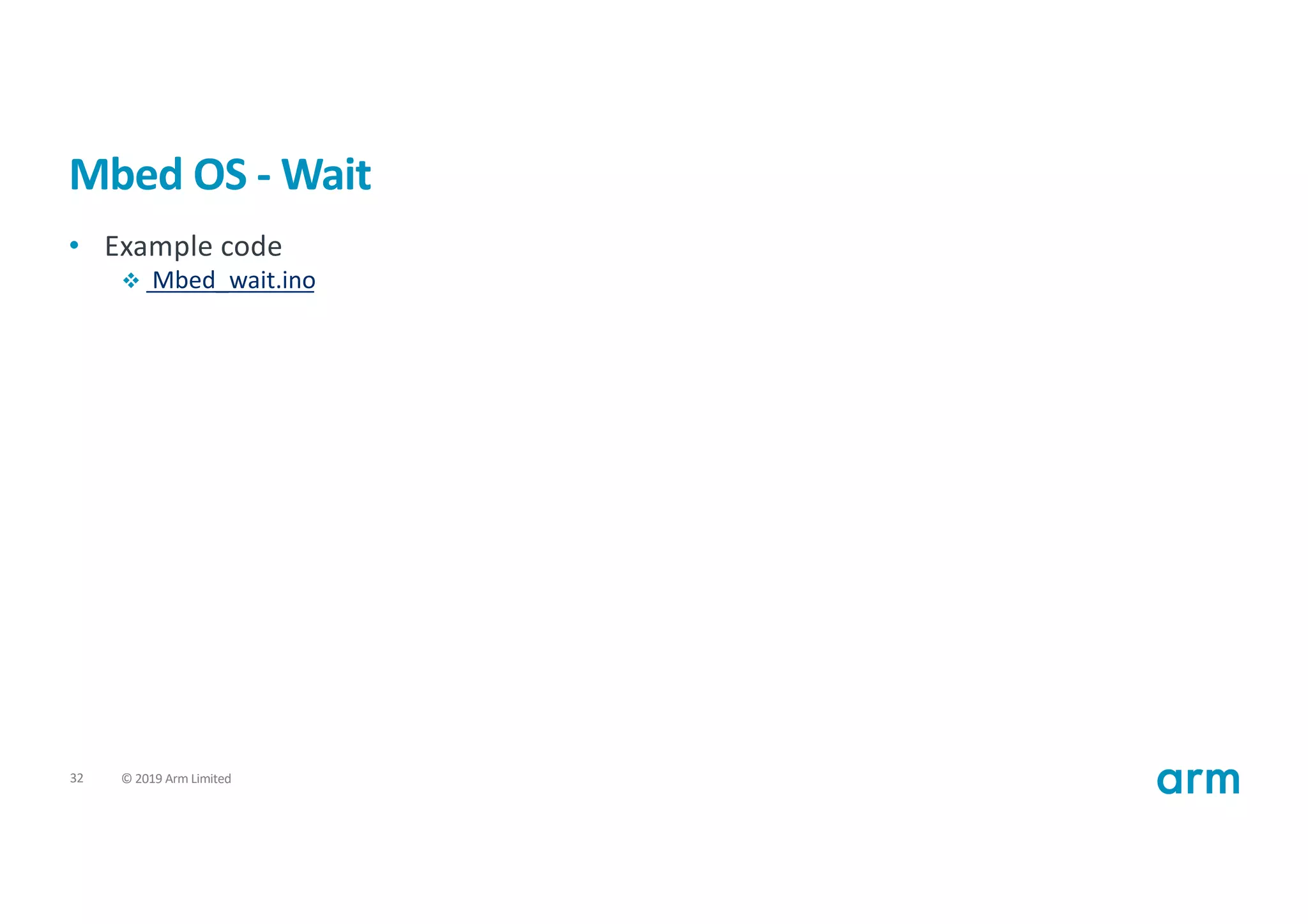

Mbed OS - Wait
• Example code
v Mbed_wait.ino

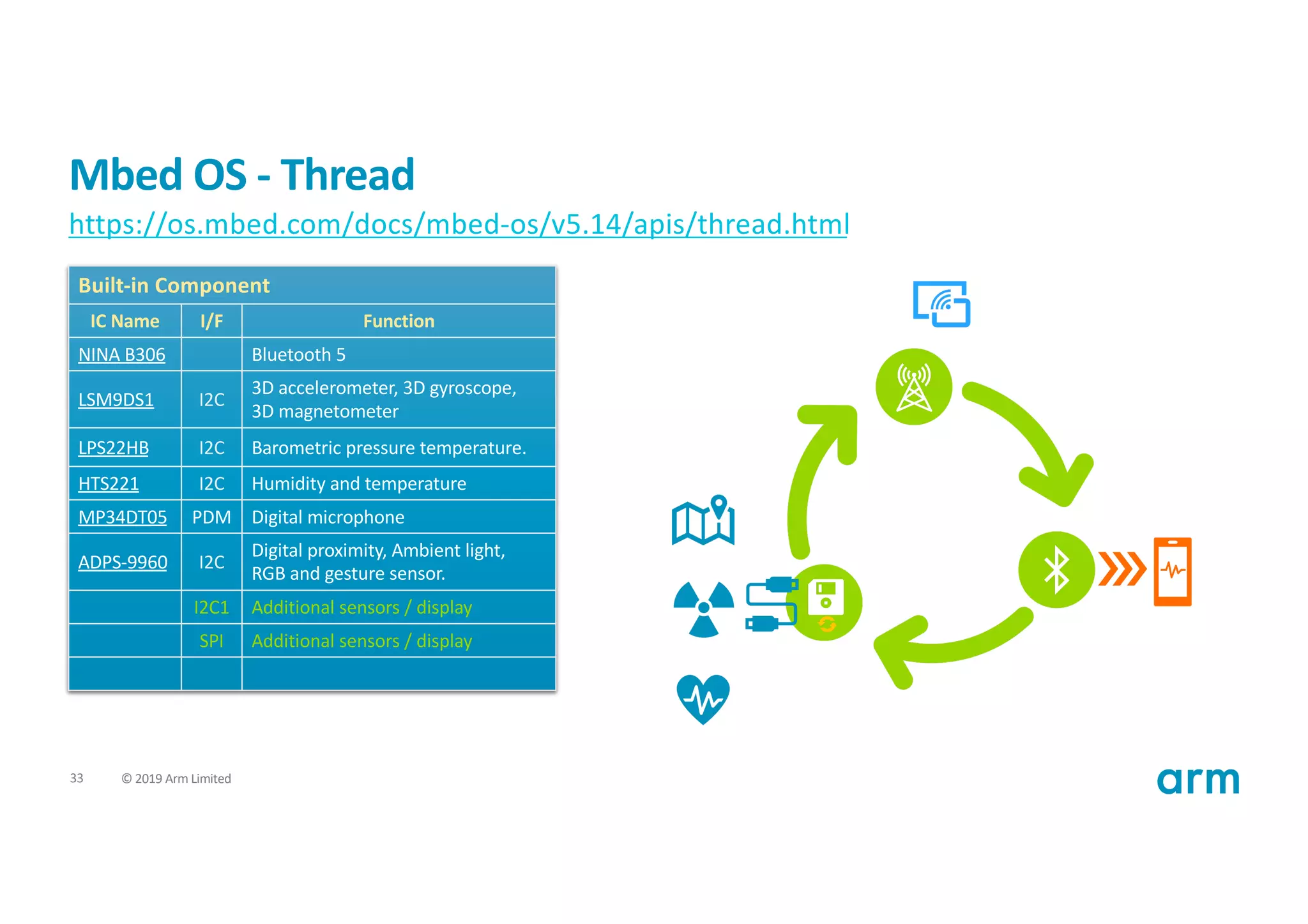

Mbed OS - Thread
https://os.mbed.com/docs/mbed-os/v5.14/apis/thread.html
Built-in Component
IC Name I/F Function
LSM9DS1 I2C
3D accelerometer, 3D gyroscope,
3D magnetometer
LPS22HB I2C Barometric pressure temperature.
HTS221 I2C Humidity and temperature
MP34DT05 PDM Digital microphone
ADPS-9960 I2C
Digital proximity, Ambient light,
RGB and gesture sensor.
I2C1 Additional sensors / display
SPI Additional sensors / display

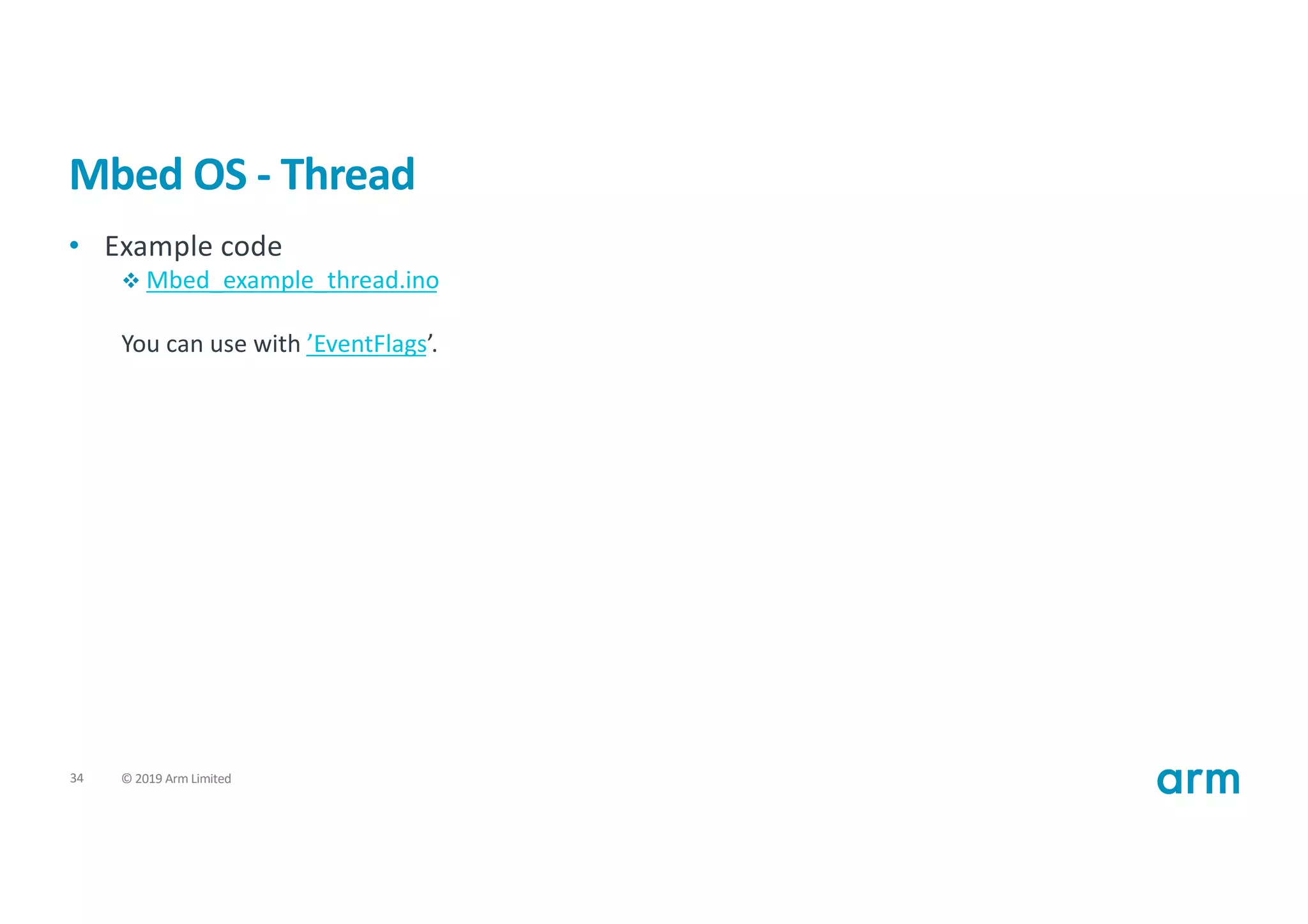

Mbed OS - Thread
• Example code
v Mbed_example_thread.ino
You can use with ’EventFlags’.

Mbed OS – Mutex
https://os.mbed.com/docs/mbed-os/v5.14/apis/mutex.html
Built-in Component
IC Name I/F Function
LSM9DS1 I2C
3D accelerometer,
3D gyroscope,
3D magnetometer
LPS22HB I2C
Barometric
pressure
temperature.
HTS221 I2C
Humidity and
temperature
MP34DT05 Digital microphone
ADPS-9960 I2C
Digital proximity,
Ambient light,
RGB and
gesture sensor.
• Information

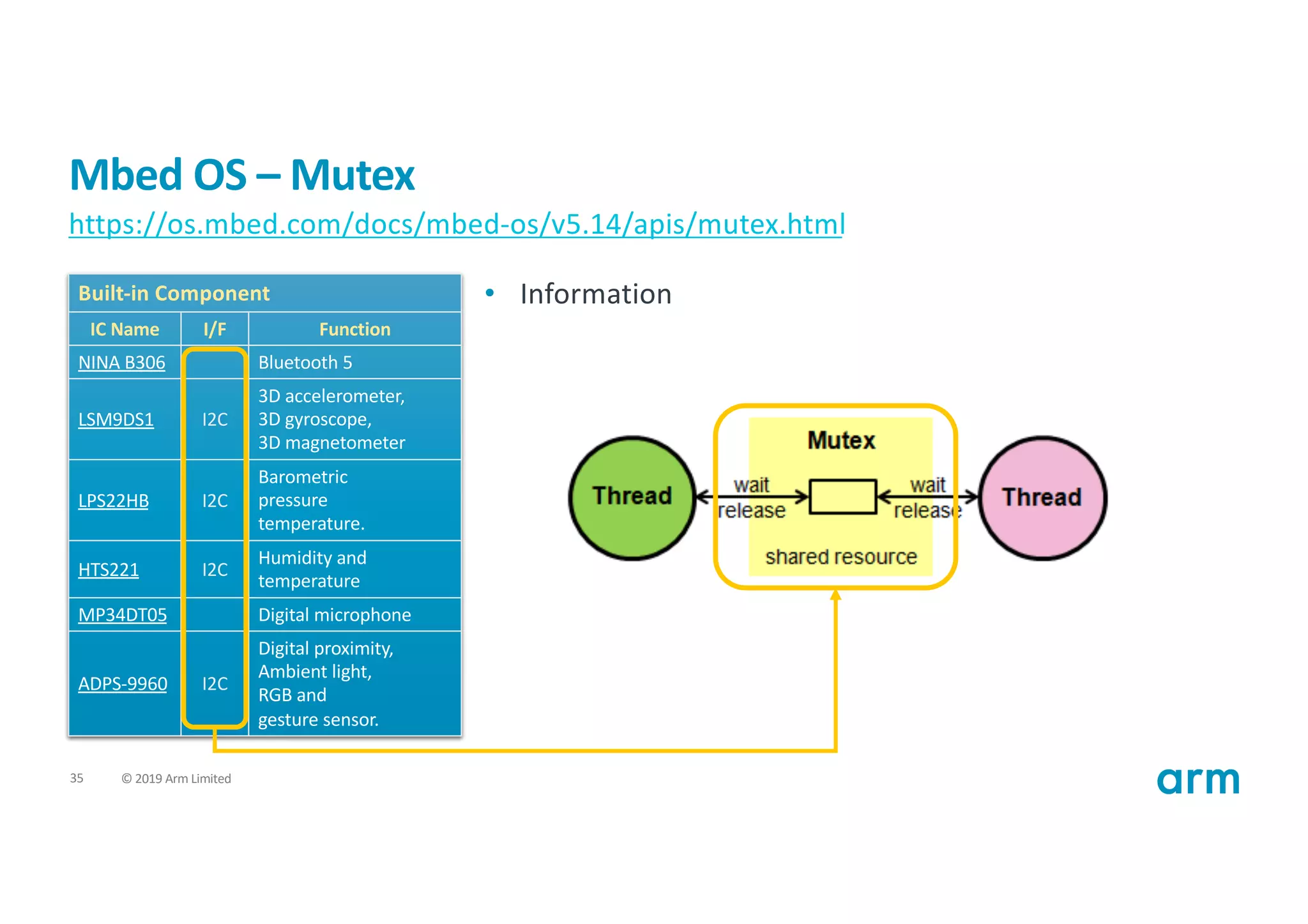

Mbed OS – Mutex
https://content.arduino.cc/assets/NANO33BLE_V2.0_sch.pdf

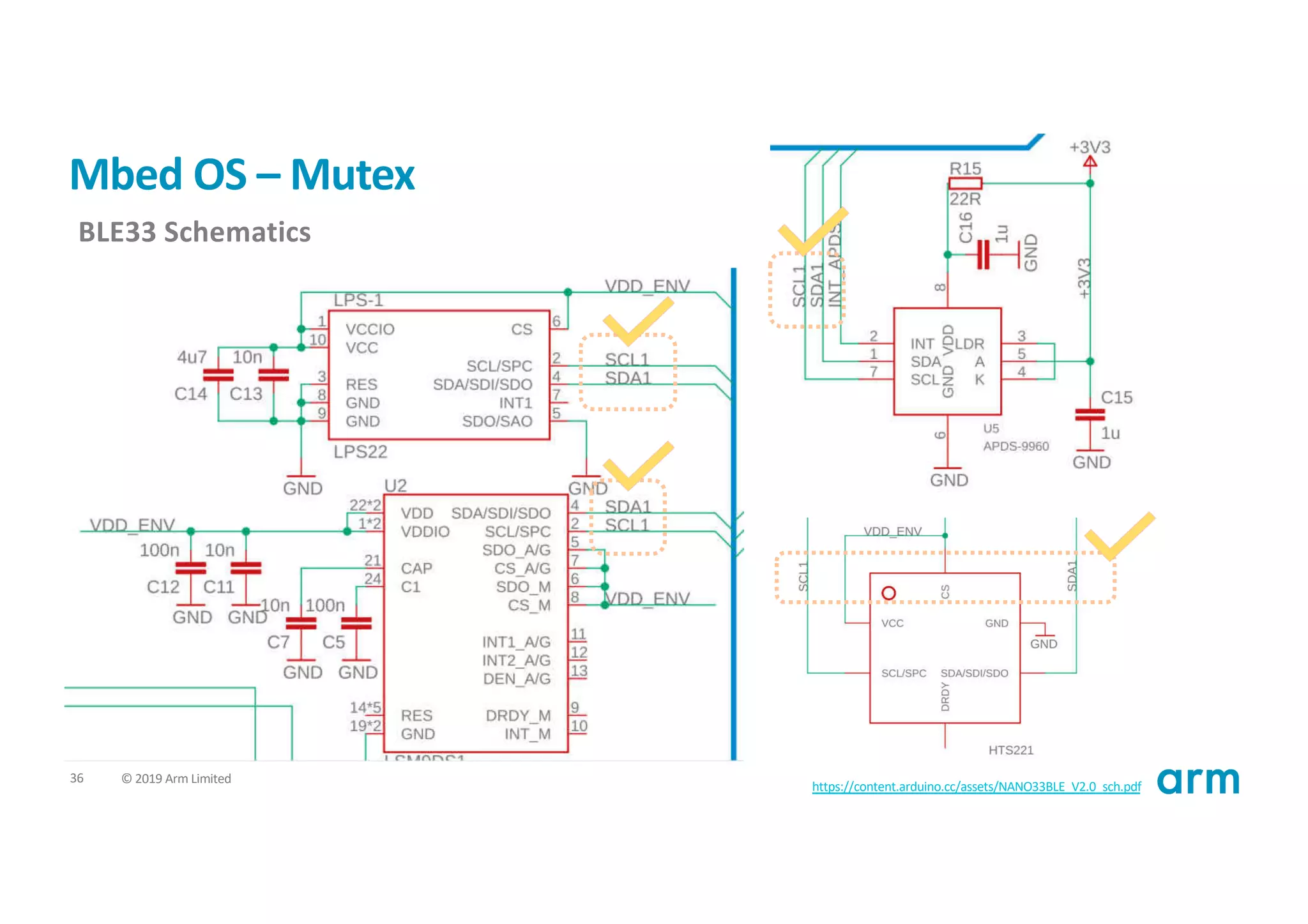

BLE33 Schematics

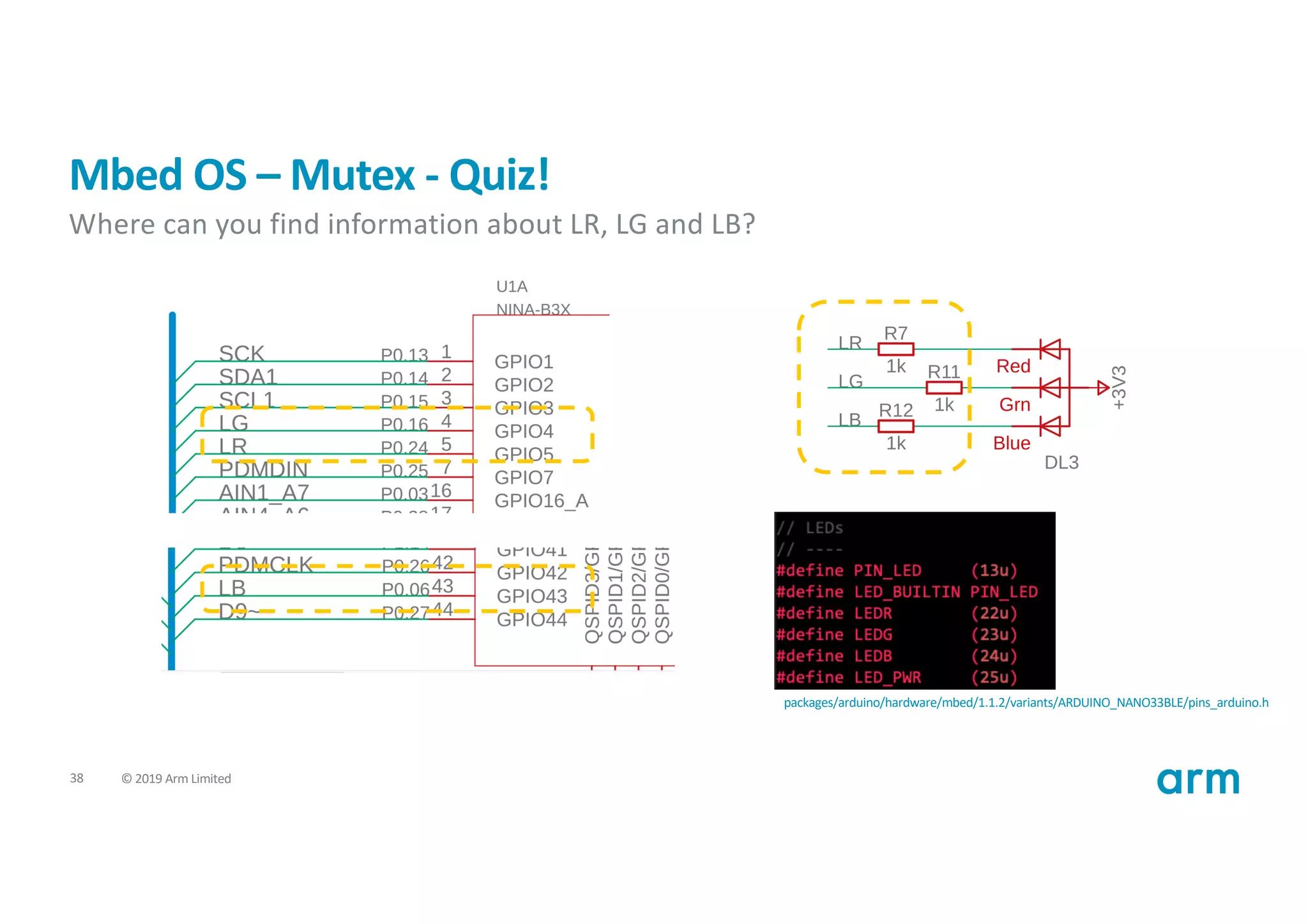

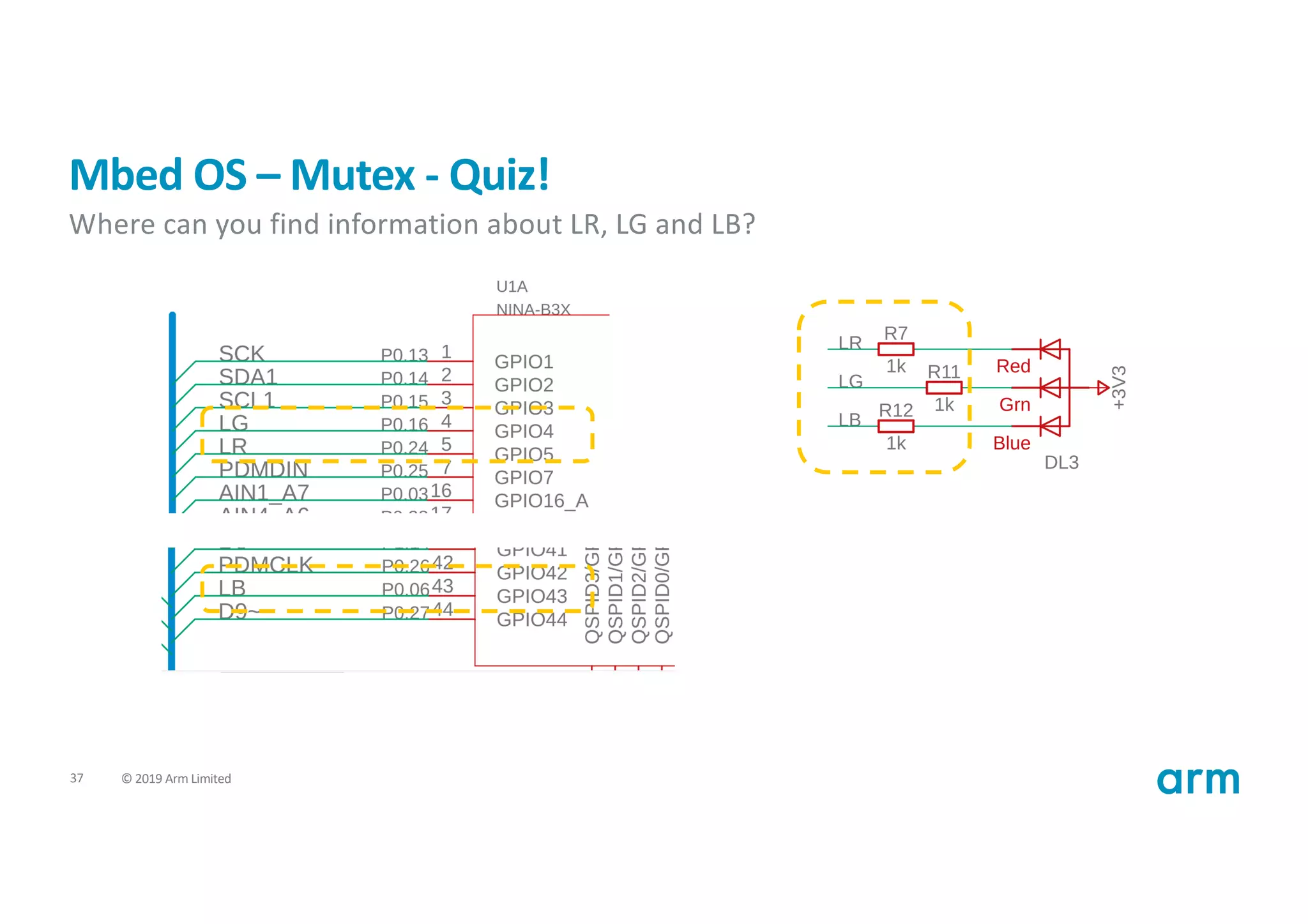

Mbed OS – Mutex - Quiz!
Where can you find information about LR, LG and LB?
packages/arduino/hardware/mbed/1.1.2/variants/ARDUINO_NANO33BLE/pins_arduino.h

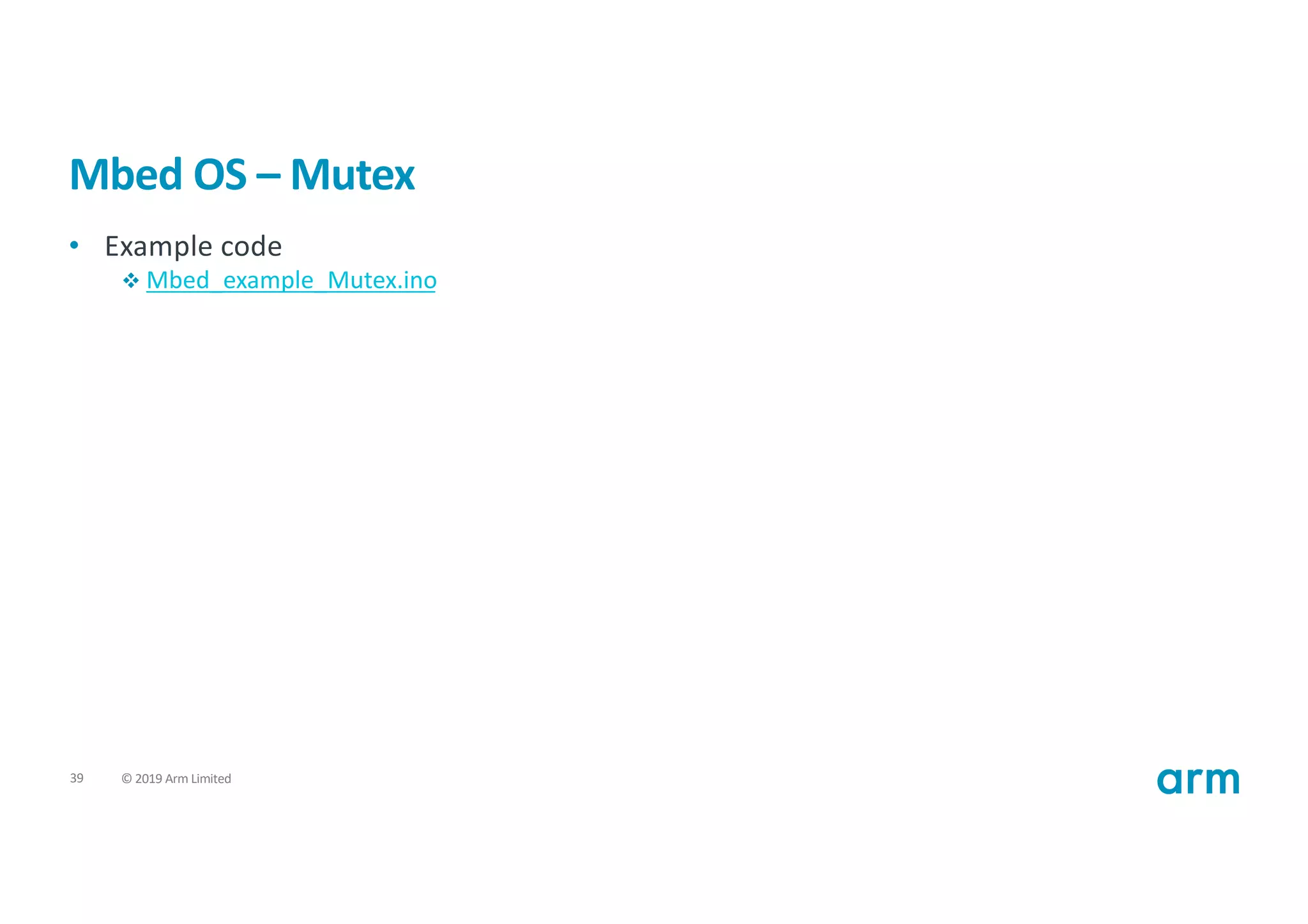

Mbed OS – Mutex
• Example code
v Mbed_example_Mutex.ino

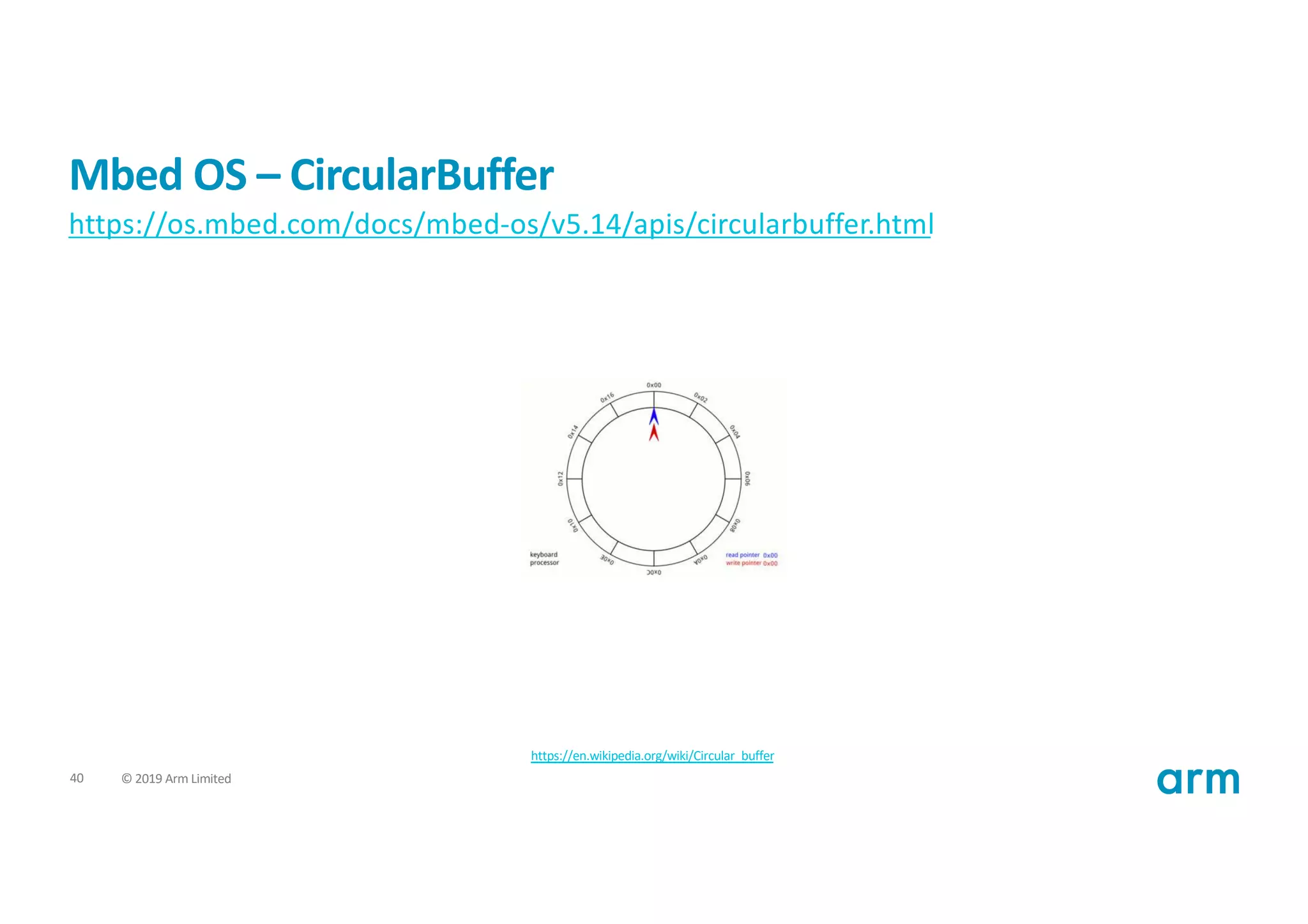

Mbed OS – CircularBuffer
https://os.mbed.com/docs/mbed-os/v5.14/apis/circularbuffer.html
https://en.wikipedia.org/wiki/Circular_buffer

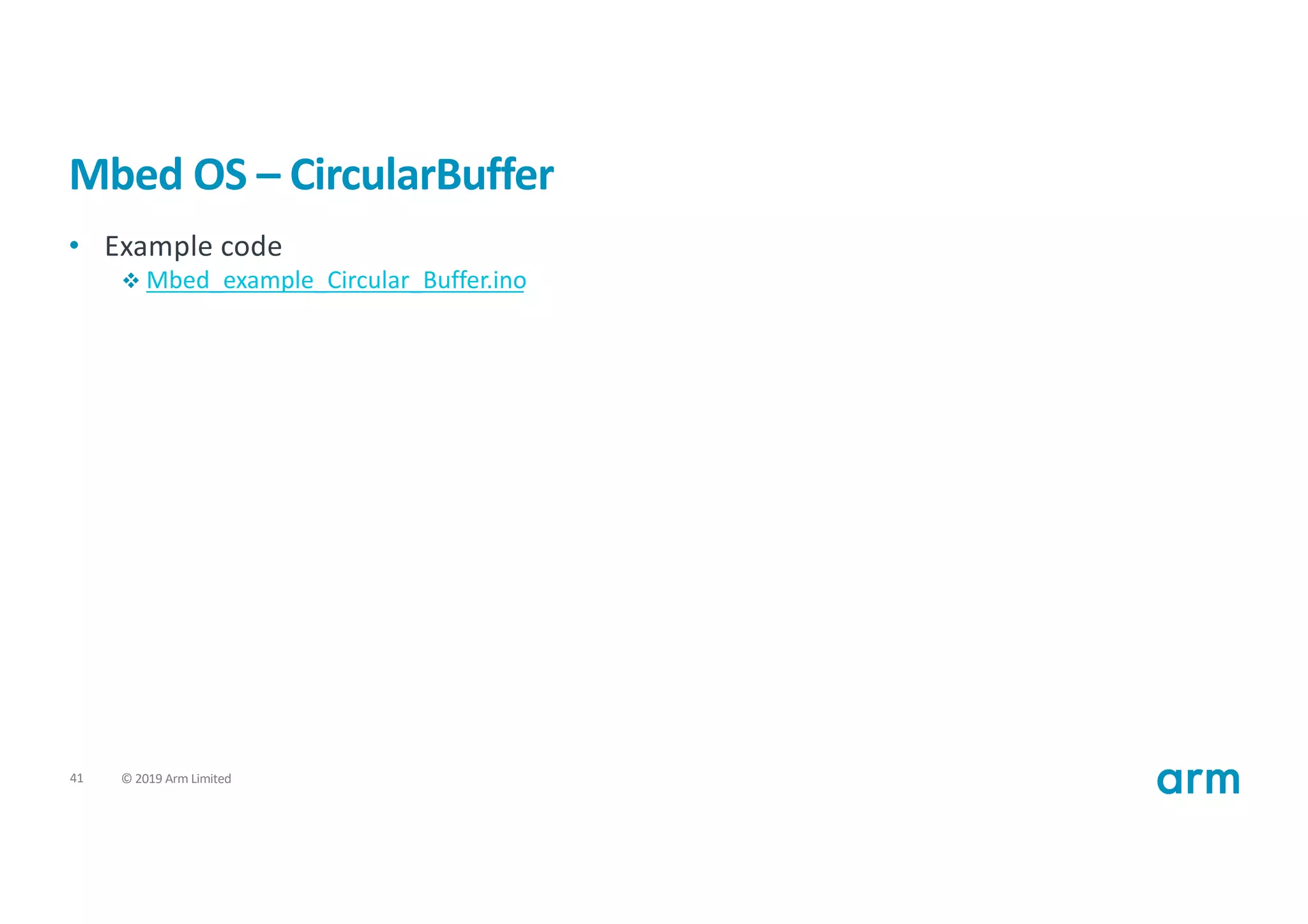

Mbed OS – CircularBuffer
• Example code
v Mbed_example_Circular_Buffer.ino

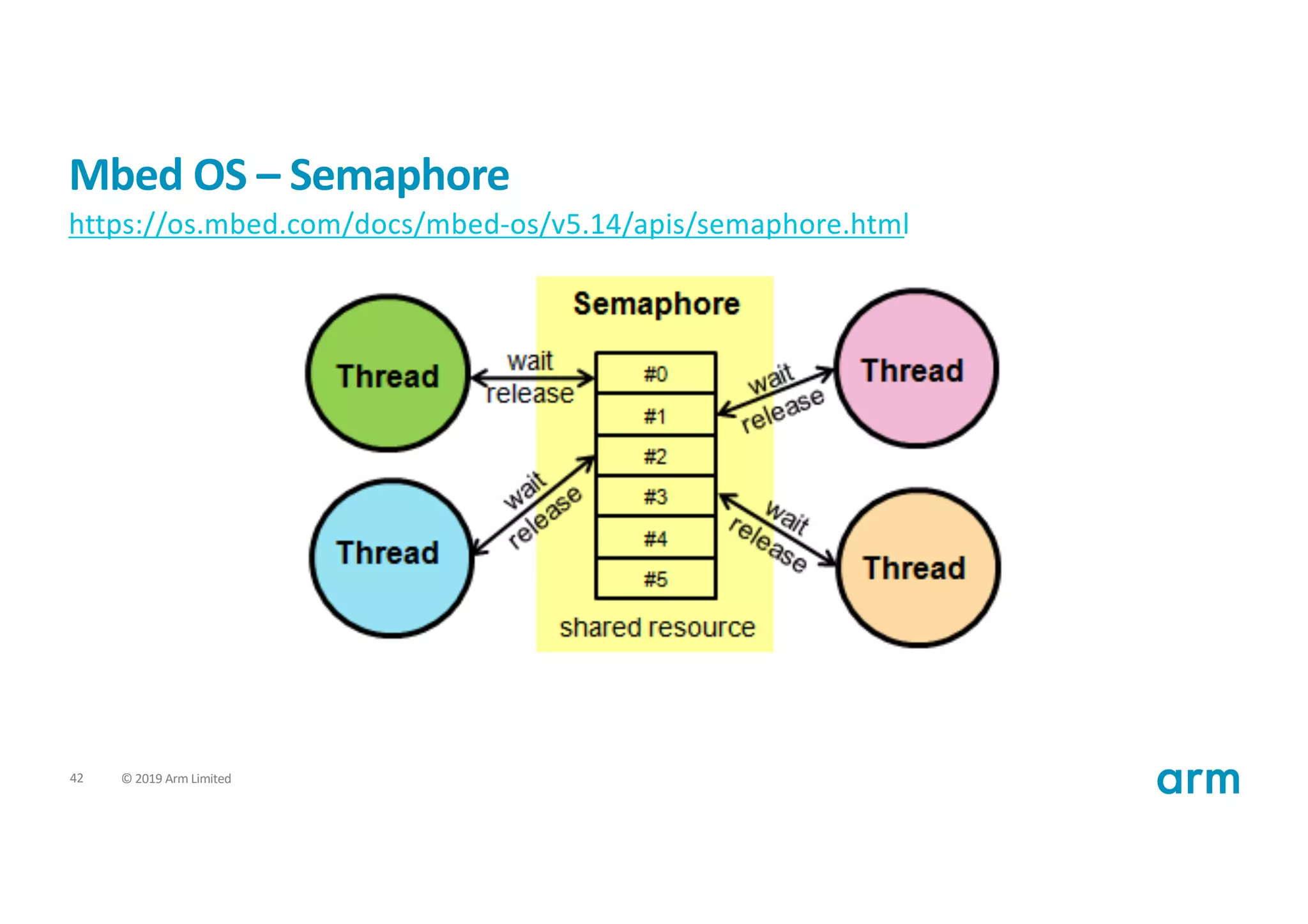

Mbed OS – Semaphore
https://os.mbed.com/docs/mbed-os/v5.14/apis/semaphore.html

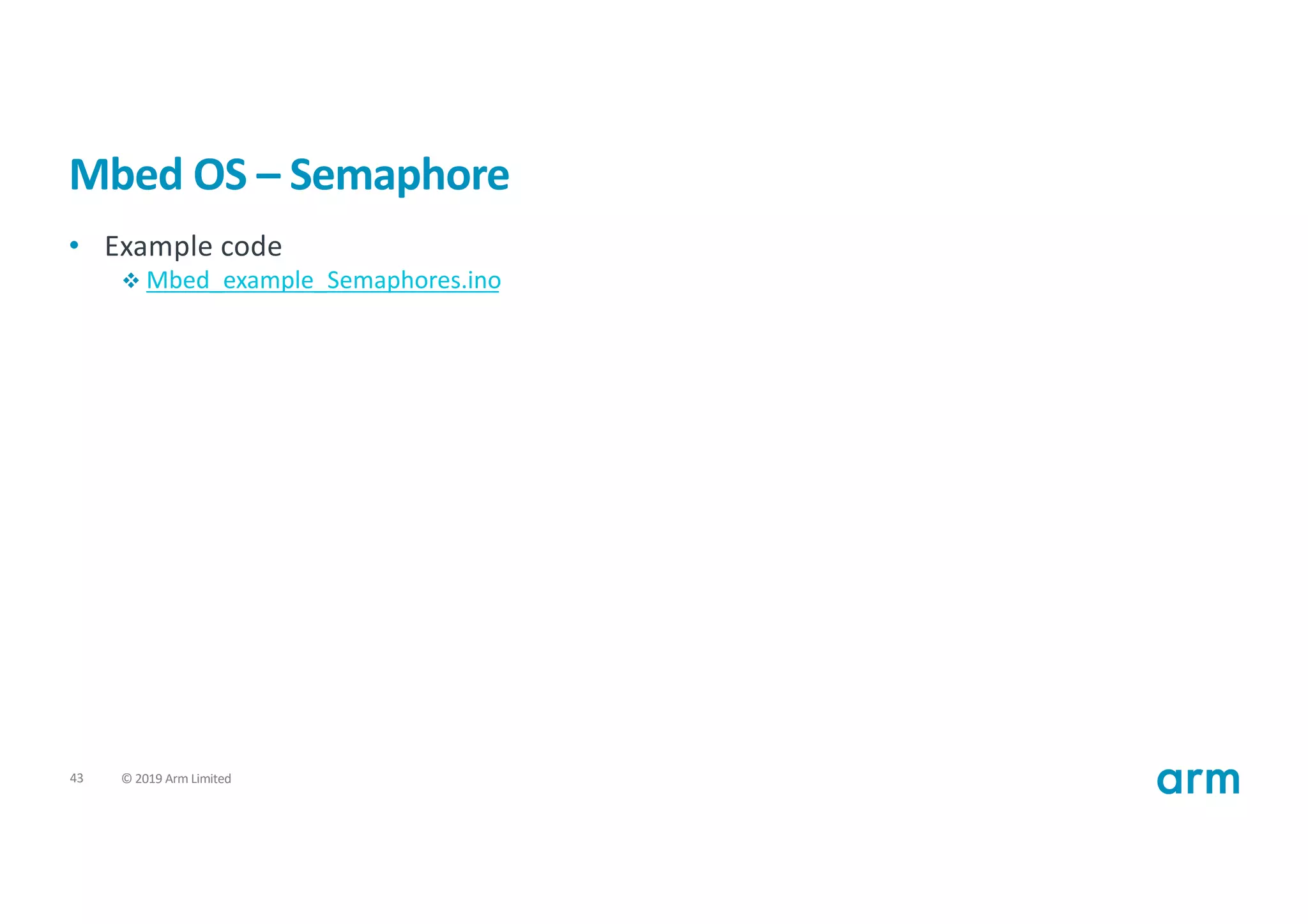

Mbed OS – Semaphore
• Example code
v Mbed_example_Semaphores.ino

Recap
• Most computers are neither in your pocket nor on your desk.
• A constraint device does not have to be scary, actually it can be fun.
• Mbed is the platform to help you with this!
• Come and join our community at https://os.mbed.com !

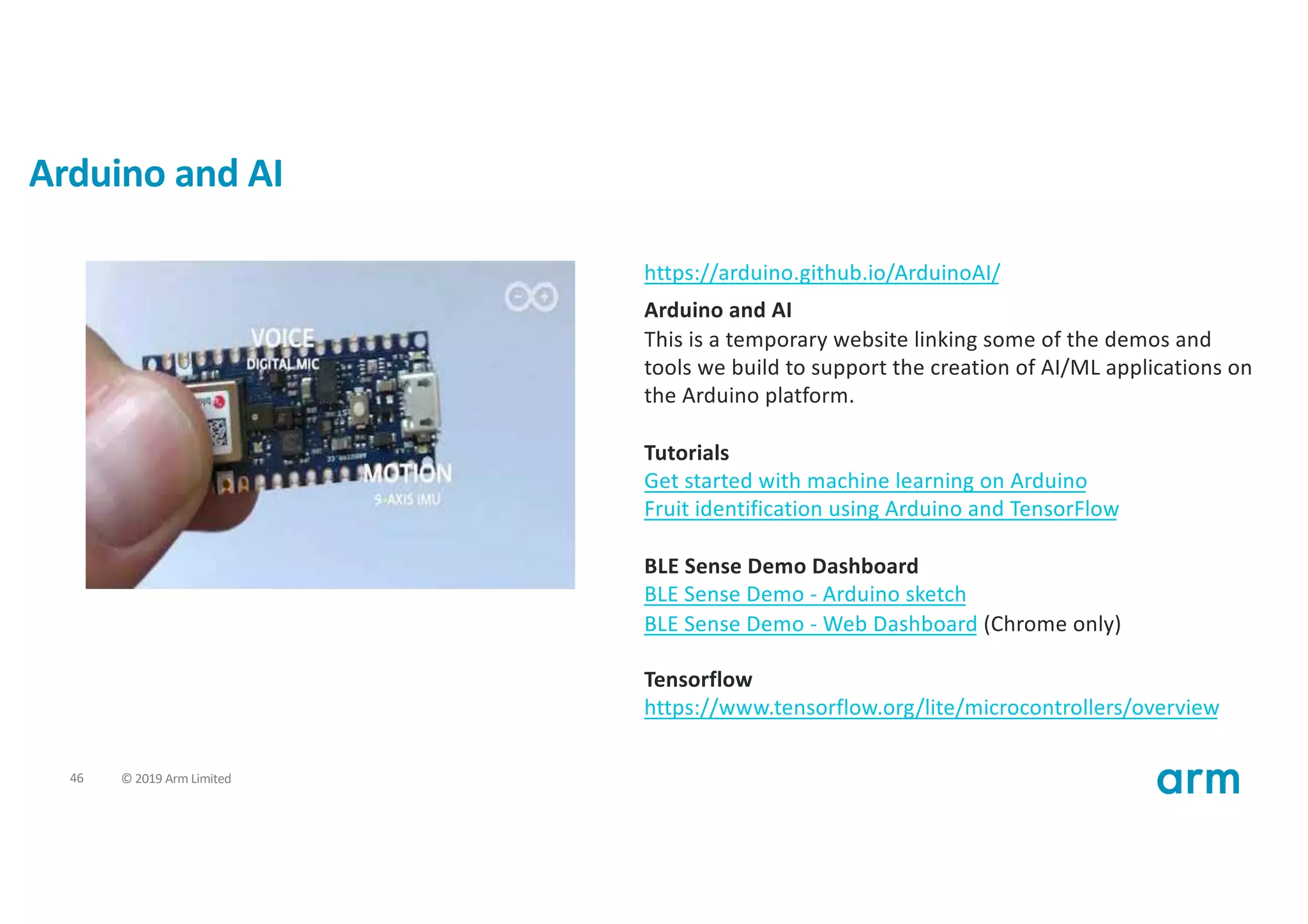

Arduino and AI
https://arduino.github.io/ArduinoAI/
Arduino and AI
This is a temporary website linking some of the demos and
tools we build to support the creation of AI/ML applications on
the Arduino platform.
Tutorials
Get started with machine learning on Arduino
Fruit identification using Arduino and TensorFlow
BLE Sense Demo Dashboard
BLE Sense Demo - Arduino sketch
BLE Sense Demo - Web Dashboard (Chrome only)
Tensorflow
https://www.tensorflow.org/lite/microcontrollers/overview

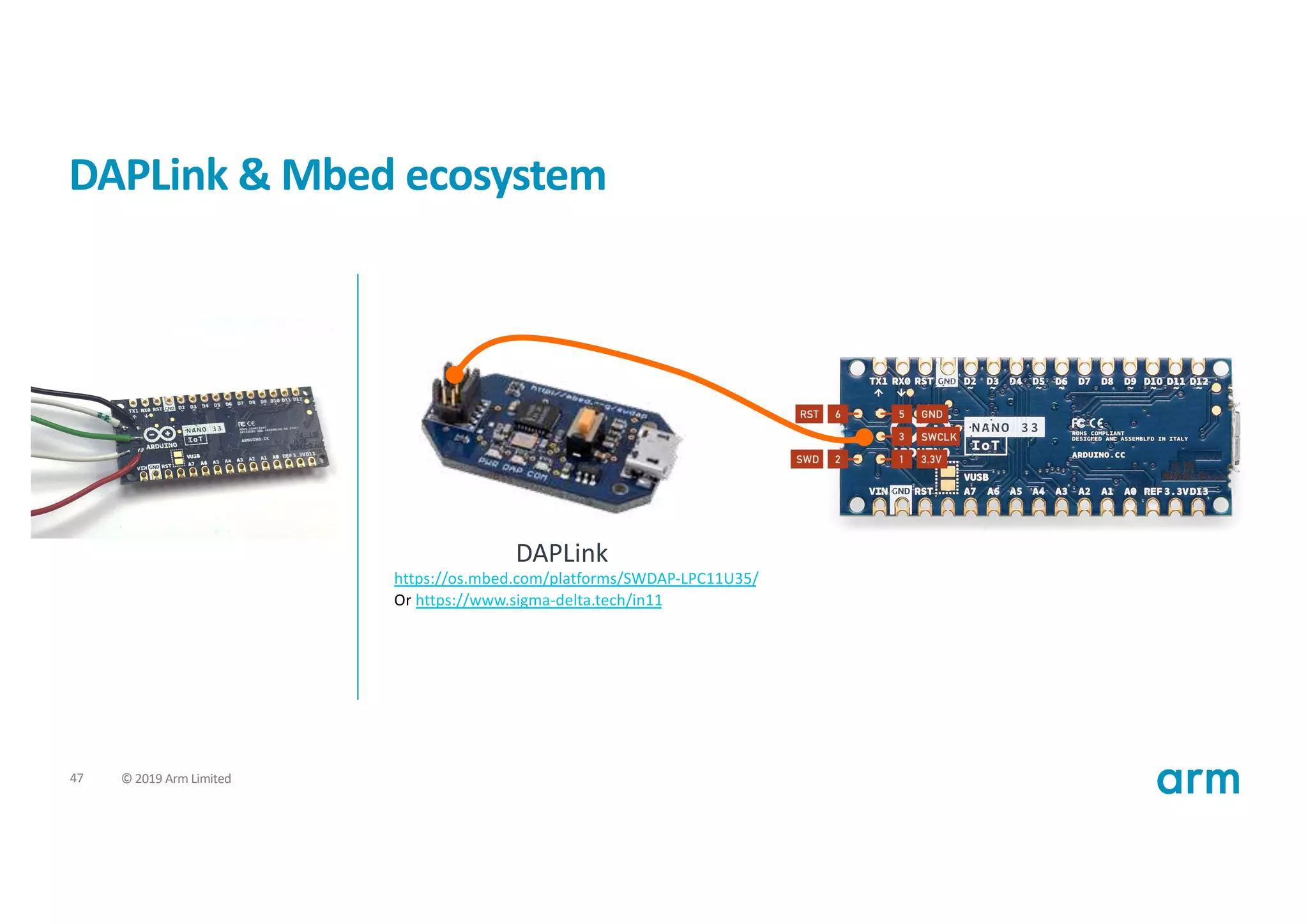

DAPLink & Mbed ecosystem
DAPLink
https://os.mbed.com/platforms/SWDAP-LPC11U35/
Or https://www.sigma-delta.tech/in11

Dec.20.2019, Arduino based on Mbed os

Recommended

Recommended

More Related Content

Similar to Dec.20.2019, Arduino based on Mbed os

Similar to Dec.20.2019, Arduino based on Mbed os (20)

Recently uploaded

Recently uploaded (20)

Dec.20.2019, Arduino based on Mbed os
