DBSetup is a Java library for setting up test databases in an easier way than DBUnit. It defines data in Java code instead of XML files. This makes the data definition simpler, faster, and independent of other libraries. DBSetup examples show how to insert, generate, and repeat test data values. It can also execute SQL statements and handle cyclic dependencies between tables. While limited to inserting data, it integrates well with DBUnit for comparing test databases to expected values.

1. DBSetup
By Franck Benault
Created 03/07/2014
Last updated 13/08/2015

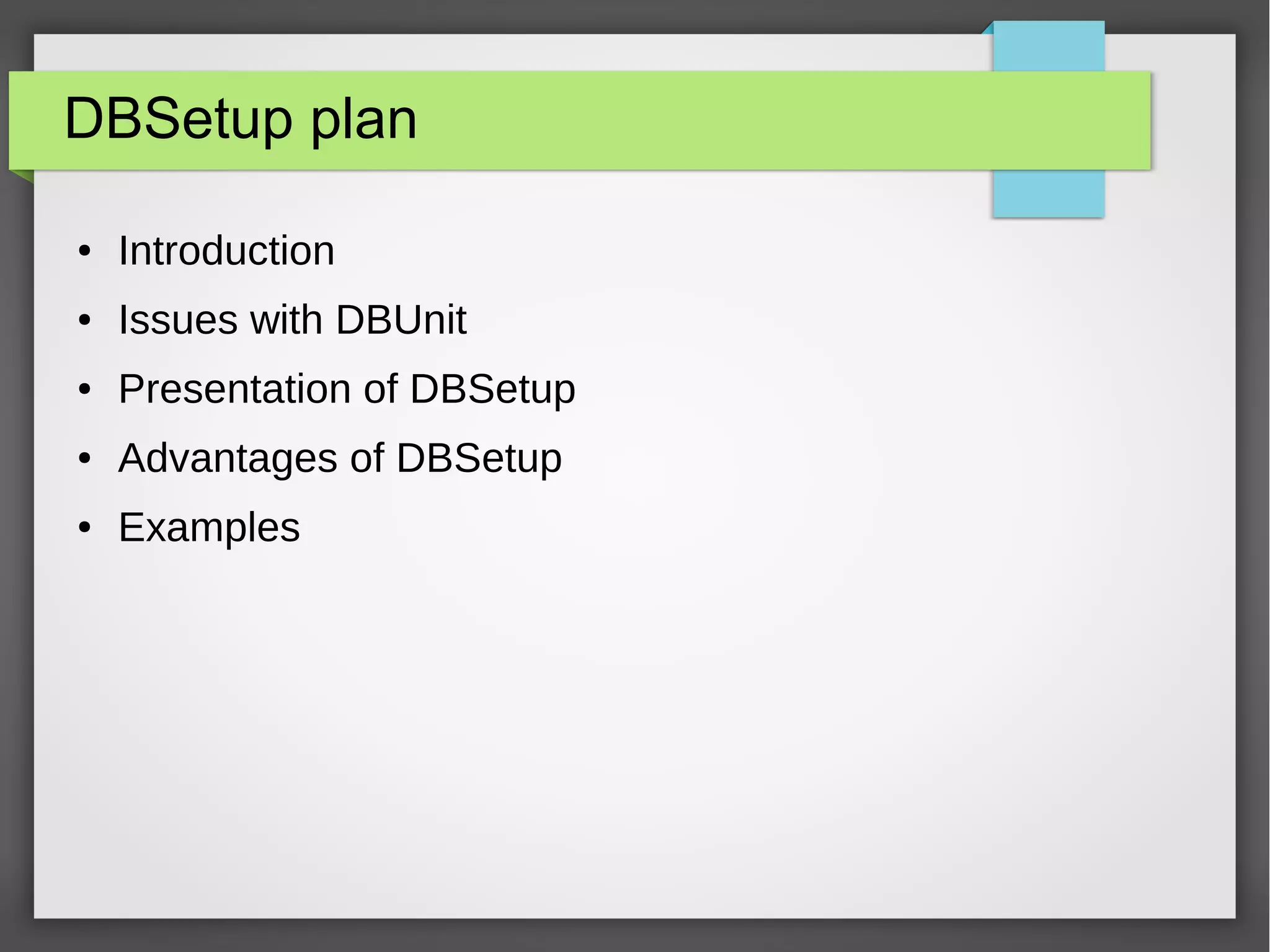

2. DBSetup plan

3. DBSetup : introduction
● I have used DBUnit for several years in Java EE project
including access to Dabase (often with Hibernate)
● I have a lot of Junit tests with DBUnit
● DBUnit has helpt me a lot... but I am not satisfy by the
result
● The test are heavy, slow, difficult to maintain
● The solution is new library DBSetup

4. Issues with DBUnit
● DBUnit is not independant, this is a Junit extension
● DBUnit is using XML files (verbious, far from Java code)
● DBUnit is larger than DbSetup
– DBSetup : data injection in database only
– DBUnit : it is possible to check the content of the
database (not useful)

5. Presentation of DBSetup
● Goal : setup your database to execute unit tests
– Like DbUnit but simplier
● Web site :
● http://dbsetup.ninja-squad.com/
● Last version 1.6.0 (06/2015)

6. Advantages of DBSetup
● No XML
– Data are defined in Java
● Easy to factory the data set
● No dependencies
– DbUnit has 3 dependencies
● Fast
● OpenSource

7. Example1 : clean insert in a table
Operation DELETE_ALL = deleteAllFrom("USERS");
Operation INSERT_USERS_DATA =insertInto("USERS")
.columns("ID", "LOGIN", "PASSWORD")
.values(1L, "root", "pwd")
.values(2L, "guest", "pwd").build();
Operation operation = Operations.sequenceOf(
DBSetupCommonOperations.DELETE_ALL,
DBSetupCommonOperations.INSERT_USERS_DATA);
DbSetup dbSetup = new DbSetup(new DataSourceDestination(getDataSource()),
operation);
dbSetup.launch();

8. Example 2a: auto increment for the
keys
Operation DELETE_ALL = deleteAllFrom("USERS");
Operation INSERT_USERS_DATA = insertInto("USERS")
.withGeneratedValue("ID",
ValueGenerators.sequence().startingAt(100L).incrementingBy(10))
.columns("LOGIN", "PASSWORD")
.values("root", "pwd")
.values("guest", "pwd").build();
Operation operation = Operations.sequenceOf(
DBSetupCommonOperations.DELETE_ALL,
DBSetupCommonOperations.INSERT_USERS_DATA);
DbSetup dbSetup = new DbSetup(new DataSourceDestination(getDataSource()), operation);
dbSetup.launch();

9. Example 2b: repeating values
Operation DELETE_ALL = deleteAllFrom("USERS");
Operation INSERT_USERS_DATA_REPEATING = insertInto("USERS")
.withGeneratedValue("ID", ValueGenerators.sequence().startingAt(1L))
.withGeneratedValue("LOGIN",
ValueGenerators.stringSequence("user-").startingAt(1L))
.withGeneratedValue("PASSWORD",
ValueGenerators.stringSequence("pwd-").startingAt(1L))
.columns("DESCRIPTION").repeatingValues("fake description")
.times(10).build();
Operation operation = Operations.sequenceOf(
DBSetupCommonOperations.DELETE_ALL,
DBSetupCommonOperations.INSERT_USERS_DATA_REPEATING);
../..

10. Example 3: date
● I want in my dataset a date = yesterday or tomorrow or
one year ago...
● Very difficult with DBUnit
● Very easy DbSetup because the dataset is defined in the
java code
Operation INSERT_USERS_DATA = insertInto("USERS")
.columns("ID","LOGIN", "PASSWORD", "DEACTIVATION_DATE")
.values(1L,"root", "pwd", DateUtil.getTomorrow())
.values(2L,"guest", "pwd", DateUtil.getTomorrow())
.values(3L,"guest", "pwd", DateUtil.getYesterday()).build();

11. Example 4: setup tracker
● My data set may be modified by the tests
@Before
public void setUp() {
.../...
DbSetup dbSetup = new DbSetup(new DataSourceDestination(dbManager.getDataSource()), operation);
dbSetupTracker.launchIfNecessary(dbSetup);
}
@Test
public void testFindAllUsers() {
dbSetupTracker.skipNextLaunch();
// a test which does not modify the data set
}

12. Example5 : cyclic dependencies
● How to update a (bad designed) data model when two tables a
linked with foreign
● With DBUnit no solution / DbSetup add sql request...
Operation insertVendorsAndProducts = sequenceOf(
insertInto("VENDOR")
.columns("ID", "VCODE", "NAME")
.values(1L, "AMA", "AMAZON")
.build(),
insertInto("PRODUCT")
.columns("ID", "NAME", "VENDOR_ID")
.values(1L, "Kindle", 1L).build(),
sql("update VENDOR set FEATURED_PRODUCT_ID = 1 where ID = 1"));

13. Example 6 : DBUnit compare
tables
● DBSetup is limited to fill database
● With DBUnit it is possible to compare the content of the database
with an excepted result defined in XML
// Fetch database data after executing your code
IDatabaseConnection dc = new DatabaseConnection(dbManager.getConnection());
IDataSet databaseDataSet = dc.createDataSet();
ITable actualTable = databaseDataSet.getTable("USERS");
// Load expected data from an XML dataset
InputStream is = UserQueriesTestWithDbUnit.class.getResourceAsStream("/usersWithoutGuest.xml");
IDataSet expectedDataSet = new FlatXmlDataSetBuilder().build(is);
ITable expectedTable = expectedDataSet.getTable("USERS");
// Assert actual database table match expected table
new DbUnitAssert().assertEquals(expectedTable, actualTable);

14. Conclusion
● DBSetup as fast or a little faster as DBUnit
● Ready to use DBSetup ?
● Questions
– How to migrate from DBUnit to DBSetup
● Tools XML -> Java
– Futur of DBSetup ?
