1. Dates and Times
2015-07-01T12:40:00-07:00

2. Solar time

3. Solar time
● We’ve always equated the passage of time
with the sun’s position in the sky.
● This is called solar time.
● Time for the sun to return to its previous
position in the sky is called a solar day.

4. Mean solar day

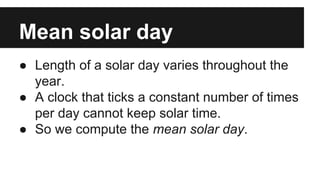

5. Mean solar day
● Length of a solar day varies throughout the
year.
● A clock that ticks a constant number of times
per day cannot keep solar time.
● So we compute the mean solar day.

6. GMT

7. GMT
● Long ago, Britain had a kick-ass navy.
● Many nautical maps referred to Greenwich,
London as their Prime Meridian.
● All clocks synchronized against its mean
solar time.

8. Tidal effects

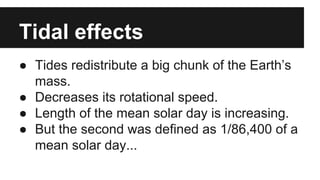

9. Tidal effects
● Tides redistribute a big chunk of the Earth’s
mass.
● Decreases its rotational speed.
● Length of the mean solar day is increasing.
● But the second was defined as 1/86,400 of a
mean solar day...

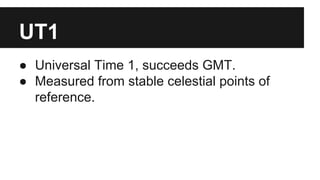

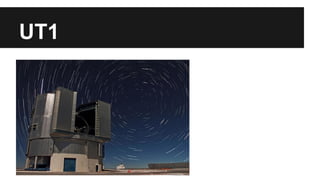

10. UT1

11. UT1
● Universal Time 1, succeeds GMT.
● Measured from stable celestial points of
reference.

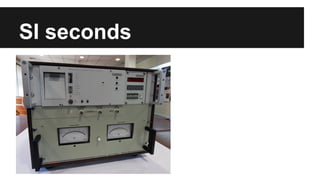

12. SI seconds

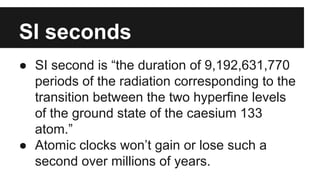

13. SI seconds
● SI second is “the duration of 9,192,631,770
periods of the radiation corresponding to the
transition between the two hyperfine levels
of the ground state of the caesium 133
atom.”
● Atomic clocks won’t gain or lose such a
second over millions of years.

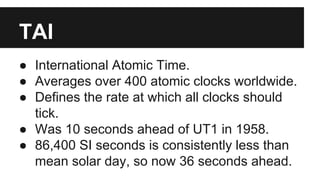

14. TAI
● International Atomic Time.
● Averages over 400 atomic clocks worldwide.
● Defines the rate at which all clocks should
tick.
● Was 10 seconds ahead of UT1 in 1958.
● 86,400 SI seconds is consistently less than
mean solar day, so now 36 seconds ahead.

15. TAI
TAI
UT1

16. UTC and leap seconds
● We want clocks to reflect solar time, or UT1.
● We want clocks to tick SI seconds, like TAI.
● UTC is an integer offset from TAI that
approximates UT1.
○ English: coordinated universal time (CUT)
○ French: temps universel coordonné (TUC)
● Leap seconds pump the brakes on TAI.

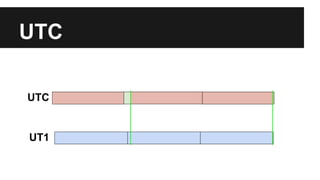

17. UTC and leap seconds
UTC
UT1
inserted leap second

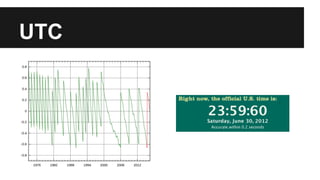

18. UTC and leap seconds

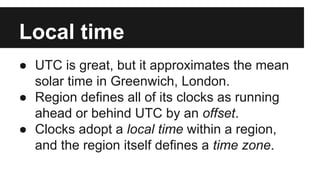

19. Local time
● UTC is great, but it approximates the mean
solar time in Greenwich, London.
● Region defines all of its clocks as running
ahead or behind UTC by an offset.
● Clocks adopt a local time within a region,
and the region itself defines a time zone.

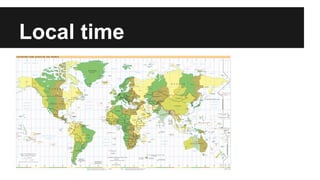

20. Local time

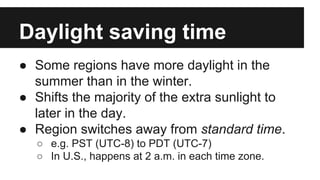

21. Daylight saving time
● Some regions have more daylight in the
summer than in the winter.
● Shifts the majority of the extra sunlight to
later in the day.
● Region switches away from standard time.
○ e.g. PST (UTC-8) to PDT (UTC-7)
○ In U.S., happens at 2 a.m. in each time zone.

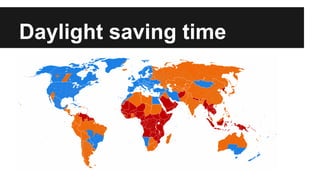

22. Daylight saving time

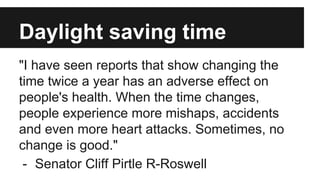

23. Daylight saving time
"I have seen reports that show changing the
time twice a year has an adverse effect on
people's health. When the time changes,
people experience more mishaps, accidents
and even more heart attacks. Sometimes, no
change is good."
- Senator Cliff Pirtle R-Roswell

24. tz database
● Defines regions where all clocks have
shared the same time since Jan 1, 1970.
● Has history of time zones with UTC offsets
and daylight saving rules for each region.

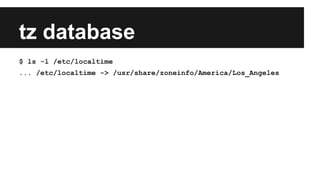

25. tz database

26. tz database
$ ls -l /etc/localtime
... /etc/localtime -> /usr/share/zoneinfo/America/Los_Angeles

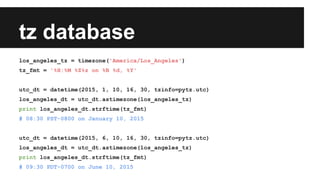

27. tz database
los_angeles_tz = timezone('America/Los_Angeles')
tz_fmt = '%H:%M %Z%z on %B %d, %Y'
utc_dt = datetime(2015, 1, 10, 16, 30, tzinfo=pytz.utc)
los_angeles_dt = utc_dt.astimezone(los_angeles_tz)
print los_angeles_dt.strftime(tz_fmt)
# 08:30 PST-0800 on January 10, 2015
utc_dt = datetime(2015, 6, 10, 16, 30, tzinfo=pytz.utc)
los_angeles_dt = utc_dt.astimezone(los_angeles_tz)
print los_angeles_dt.strftime(tz_fmt)
# 09:30 PDT-0700 on June 10, 2015

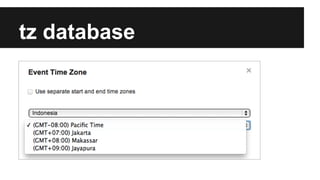

28. tz database

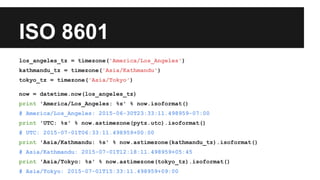

29. ISO 8601
los_angeles_tz = timezone('America/Los_Angeles')
kathmandu_tz = timezone('Asia/Kathmandu')
tokyo_tz = timezone('Asia/Tokyo')
now = datetime.now(los_angeles_tz)
print 'America/Los_Angeles: %s' % now.isoformat()
# America/Los_Angeles: 2015-06-30T23:33:11.498959-07:00
print 'UTC: %s' % now.astimezone(pytz.utc).isoformat()
# UTC: 2015-07-01T06:33:11.498959+00:00
print 'Asia/Kathmandu: %s' % now.astimezone(kathmandu_tz).isoformat()
# Asia/Kathmandu: 2015-07-01T12:18:11.498959+05:45
print 'Asia/Tokyo: %s' % now.astimezone(tokyo_tz).isoformat()
# Asia/Tokyo: 2015-07-01T15:33:11.498959+09:00

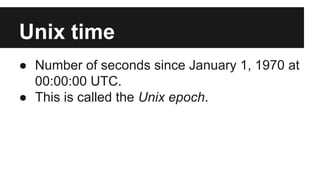

30. Unix time
● Number of seconds since January 1, 1970 at
00:00:00 UTC.
● This is called the Unix epoch.

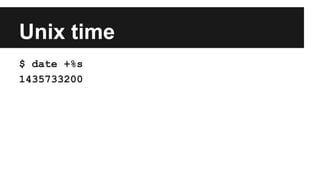

31. Unix time
$ date +%s
1435733200

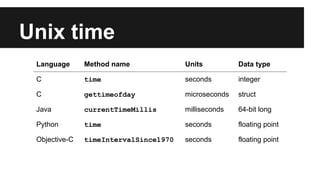

32. Unix time
Language Method name Units Data type
C time seconds integer
C gettimeofday microseconds struct
Java currentTimeMillis milliseconds 64-bit long
Python time seconds floating point
Objective-C timeIntervalSince1970 seconds floating point

33. Unix time
● Unlike UTC, Unix time does not include leap
seconds.
● Midnight between days is always 86,400
seconds.
● Unix time is discontinuous around leap
seconds.
● It is a lossy encoding of UTC.

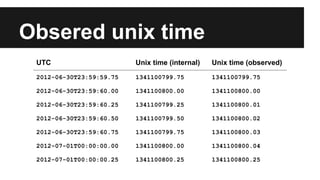

34. Obsered unix time
UTC Unix time (internal) Unix time (observed)
2012-06-30T23:59:59.75 1341100799.75 1341100799.75
2012-06-30T23:59:60.00 1341100800.00 1341100800.00
2012-06-30T23:59:60.25 1341100799.25 1341100800.01
2012-06-30T23:59:60.50 1341100799.50 1341100800.02
2012-06-30T23:59:60.75 1341100799.75 1341100800.03
2012-07-01T00:00:00.00 1341100800.00 1341100800.04
2012-07-01T00:00:00.25 1341100800.25 1341100800.25

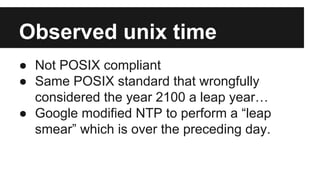

35. Observed unix time
● Not POSIX compliant.
● Same POSIX standard that wrongfully
considered the year 2100 a leap year…
● Google modified NTP to perform a “leap
smear” which is over the preceding day.

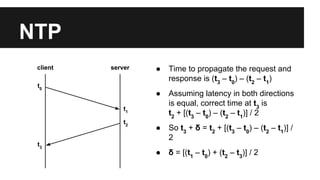

36. NTP
t0
t3
t1
t2
● Time to propagate the request and
response is (t3
– t0
) – (t2
– t1
)
● Assuming latency in both directions
is equal, correct time at t3
is
t2
+ [(t3
– t0
) – (t2
– t1
)] / 2
● So t3
+ δ = t2
+ [(t3
– t0
) – (t2
– t1
)] /
2
● δ = [(t1
– t0
) + (t2
– t3
)] / 2
client server
