The MGV-4000/PA controller from Trans Data Management enables the routing of audio inputs to connected speaker zones with features including simultaneous announcements, speaker selection, and priority levels. It supports VoIP communication, provides recorded evidence of announcements, and allows remote configuration. The system meets several safety and EMC standards, operating under various environmental conditions and providing several interfaces and protocol support.

1. Features
 Up to 8 simultaneous announcements
 Speaker zone/group selection (line-based or serial protocol)
 Priority announcements
 Wideband audio
 Local pre-recorded announcement can be triggered by external events
 Simultaneous streaming to the voice recorder on TDM’s NIS system
 Integration into maintenance centre of TDM’s NIS system
 Remote configuration and software download
 Support DNS/DHCP
 Hot-swappable, field-replaceable front-end boards
The MGV-4000/PA Controller from TDM allows routing of audio inputs from different sources to the
connected speaker zones. The controller converts the VoIP audio codecs into analogue signals as input
for the connected amplifiers and their speakers.
The zone selection feature allows the operator or dispatcher to select dedicated speakers to broadcast
an announcement at a specific location. Each broadcast can be assigned a priority level, those with a
higher priority will take precedence over announcements of lower priority.
All announcements are duplicated on the MGV-4000 /PA Controller and forwarded to the voice recorder
on TDM’s NIS system; providing recorded evidence of each audio announcements.

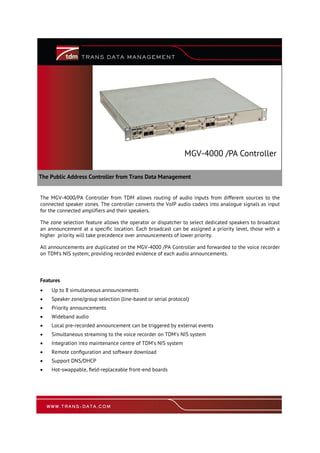

MGV-4000 /PA Controller
The Public Address Controller from Trans Data Management

2. General
Dimension
(W x L x H)
452 x 380 x 44mm
(19”, 1U)
Weight
5.0kg (MGV-4000 chassis)
6.0kg (MGV-4000 with 4 MGC-
204)
Protection grade IP 20 (EN 60529)
Mounting
Mounting brackets can be
adjusted in depth: 0 /30 /60mm
MTBF 180,000h
MART 0.5h
Environmental
Operating Temp. 0°C to +55°C
Storage Temp. -35°C to +70°C
Humidity 5% to 95% (non-condensing)
Power Supply
Input Voltage
 100 to 230 VAC, 50 to 60 Hz
(Option /230)
 -48VDC (Option /48)
Power
consumption
(all 8 channels)
 25W during operation
 15W in idle mode
Connectors MGV-4000
In case of Input Voltage
Option / 230
C14 Inlet with Fuse holder
In case of Input Voltage
Option / 48
Base strip DFK-PC 7.62mm pitch
(connected on screw terminal; Max.
wire size 4mm2
)
Ground bolt for protective earth
Network
2 Ethernet Ports, 10 /100 Base T,
8P8C RJ45 Jack
Approvals
EMC
EMC Directive 2004/ 108/ EC
EN 55022: 2010
EN 55024: 2010
Safety EN 60950-1: 2005
CE Marking Directive 93 /68 /EWG
References
218270-00100
MGV-4000 chassis for -48VDC input
voltage, with internal LAN Switch
218270-00110
MGV-4000 chassis for 230VAC input
voltage, with internal LAN Switch
218270-30020 MGC-204 /PA (front-end board)
SPECIFICATIONS: MGV-4000 /PA Gateway
* VoIP Communication System from Trans Data Management or any other VoIP System
USE CASE: MGV-4000/PA Gateway
TDM’s
NIS System*
3rd party
PA System
MGV-4000
PA Gateway

3. General
Channels 2 individual channels per MGC-204
Interfaces per
Channel
 1 E&M Audio Interface
 3 + 1 Photo coupler Inputs
 4 + 1 Relay Outputs
 1 RS-232
 48VDC Output, short circuit proof
 3 Status LEDs, bicolour
Interfaces per MGC
-204
1 Console Interface (serial)
Galvanic Isolation
1 kV; all interfaces are galvanically
isolated
Dimension 100 x 160mm (Europa)
Weight 0.25kg
Communication Protocols
VoIP SIP/RTP
Codecs G.711, G.722
Management SNMP V1, V2c
Remote Access SSH
Audio Interface (1 per Channel)
Type 4-Wire
Impedance
Transmit: 600 Ohm
Receive: 600 Ohm or High-Z
Frequency Resp. 50 ... 7000 Hz
THD+N (Signal
Level –10 dBm)
<= -60 dB (<= 0.1%)
Linearity +/- 1 dB
Max. Level
(@600 Ohm)
+ 9 dBm (+6.8 dBV / 2.2 Vrms)
Connector 8P8C RJ-48 Jack
RS-232 Interface
Signals
RxD, TxD, GND, RTS, CTS, DTR, DSR,
DCD
Baud rate
Configurable, depends on the
application
Connector DSUB-25
SPECIFICATIONS: MGC-204 /PA Front-End Boards
Relay Contacts (5 per Channel)
Max. Switching Current 1 A
Contact Resistance < 1 Ohm
Max. Switching Power 30W (DC)
Max. Switching Voltage 110VDC
Relay Idle Position
Configurable: Normally Open
(NO) or Normally Closed (NC)
Relay Types, (per
Channel)
4 x Monostable; 1 x Bistable
Connector DSUB-25
Note
Each relay contact can be read
back from the software to
ensure the actual setting.
Photocoupler Inputs (4 per Channel)
Input Polarity Bipolar (polarity independent)
‘Off’ Threshold 0 ... 2VDC
‘On’ Threshold 24 ... 75VDC
Rin > 30k Ohm
Connector DSUB-25
Status LEDs (3 per Channel)
Type
Bicolour (rd /gn, rd /gn, ye /
gn)
Note
Displays function/fault and
connection status.
Console Interface
Signals RxD, TxD, GND
Baud rate 115.2 k Baud
Connector Molex PicoBlade
Note
The monitor interface is used
for local service purposes, i.e.
initial setup.
References
218270-30020
MGC-204 /PA (front-end
board)
Trans Data Management Ltd
12 Raleigh Court, Priestley Way, RH10 9PD, UK
Tel (+44) 0 1293 516 691
Fax (+44) 0 870 458 0586
info@trans-data.com
Trans Data Management AG
Freiburgstrasse 251, CH 3018 Bern, Schweiz
Tel (+41) 31 566 55 55
Fax (+41) 31 566 55 66
info@trans-data.com
