1. Dataflow
The declarative concurrent
programming model

2. Larry Diehl
{:larrytheliquid =>
%w[.com
github
twitter]}

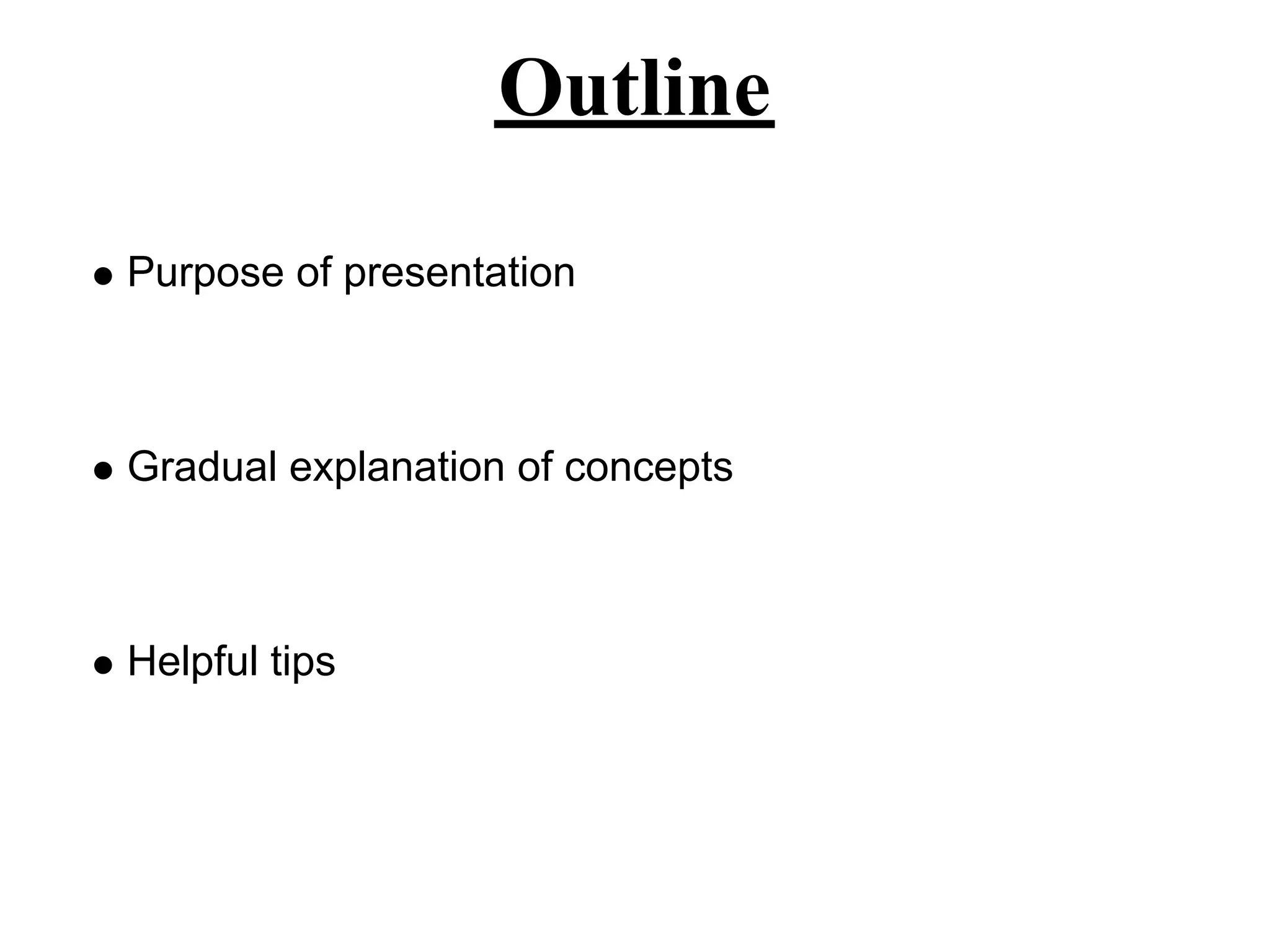

3. Outline
Purpose of presentation
Gradual explanation of concepts
Helpful tips

4. Purpose

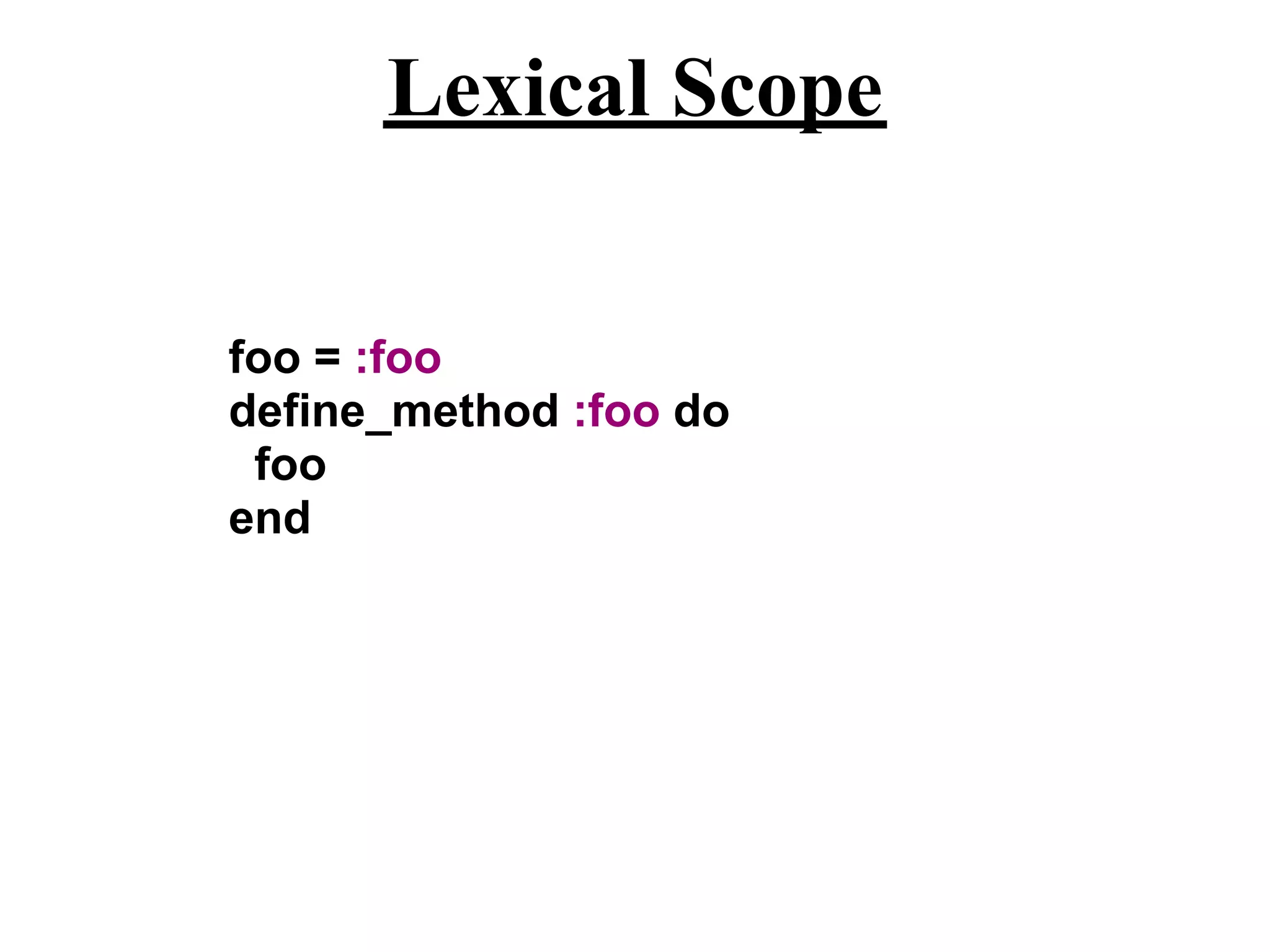

5. Lexical Scope
foo = :foo
define_method :foo do
foo
end

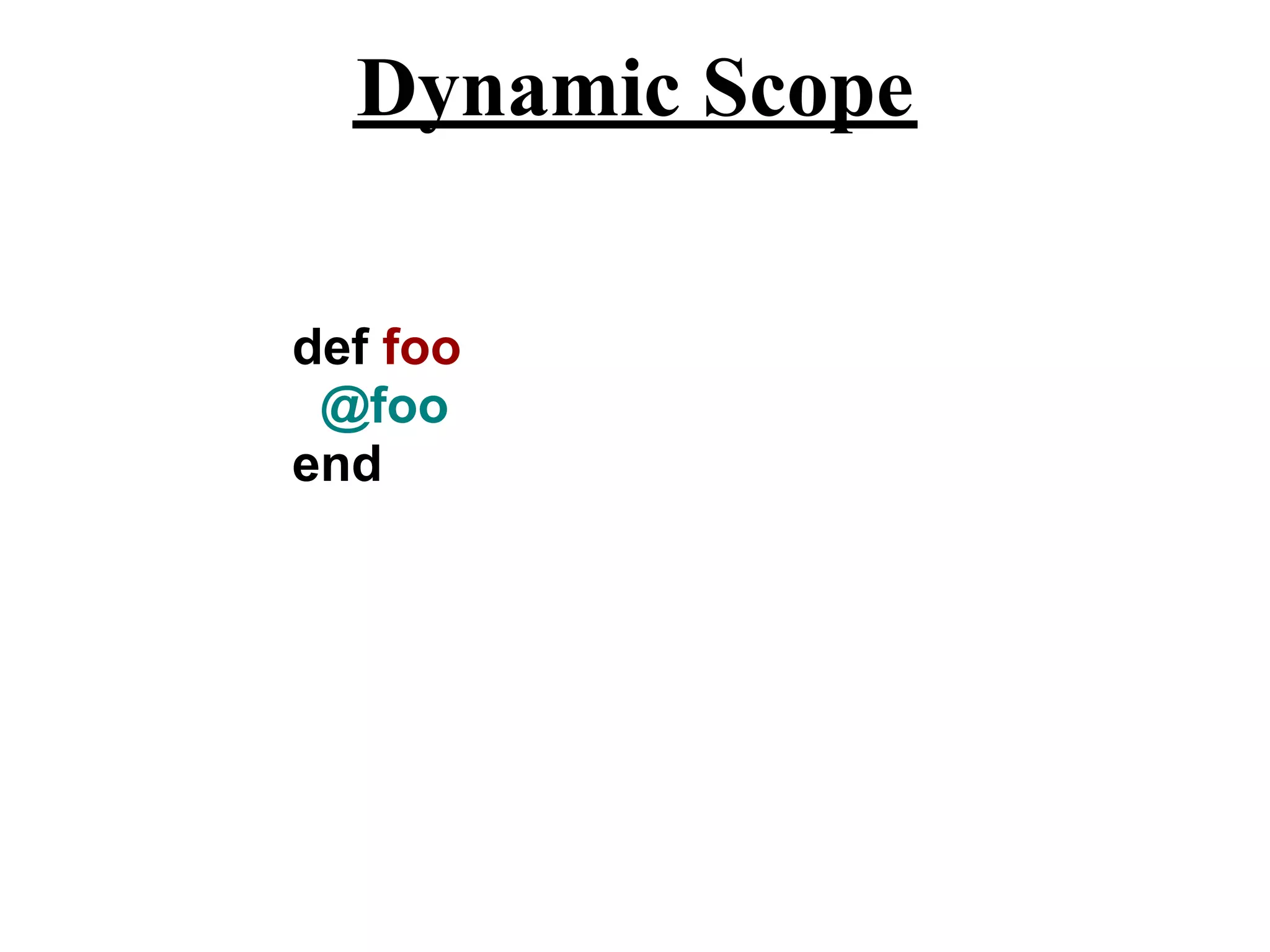

6. Dynamic Scope
def foo
@foo
end

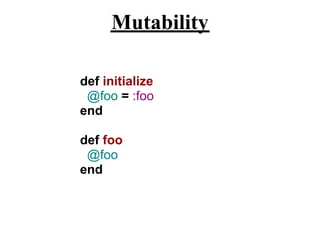

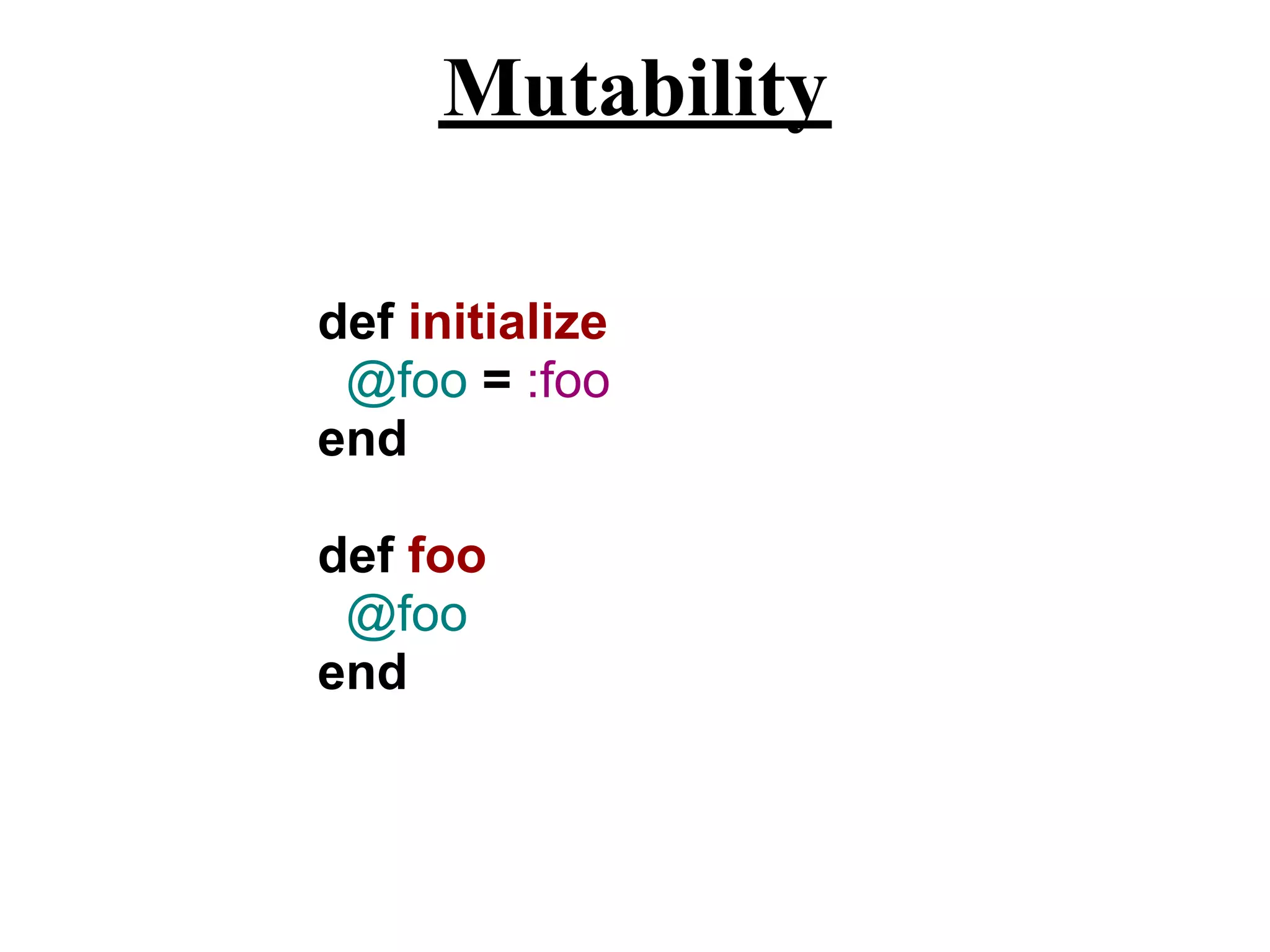

7. Mutability
def initialize
@foo = :foo
end
def foo
@foo
end

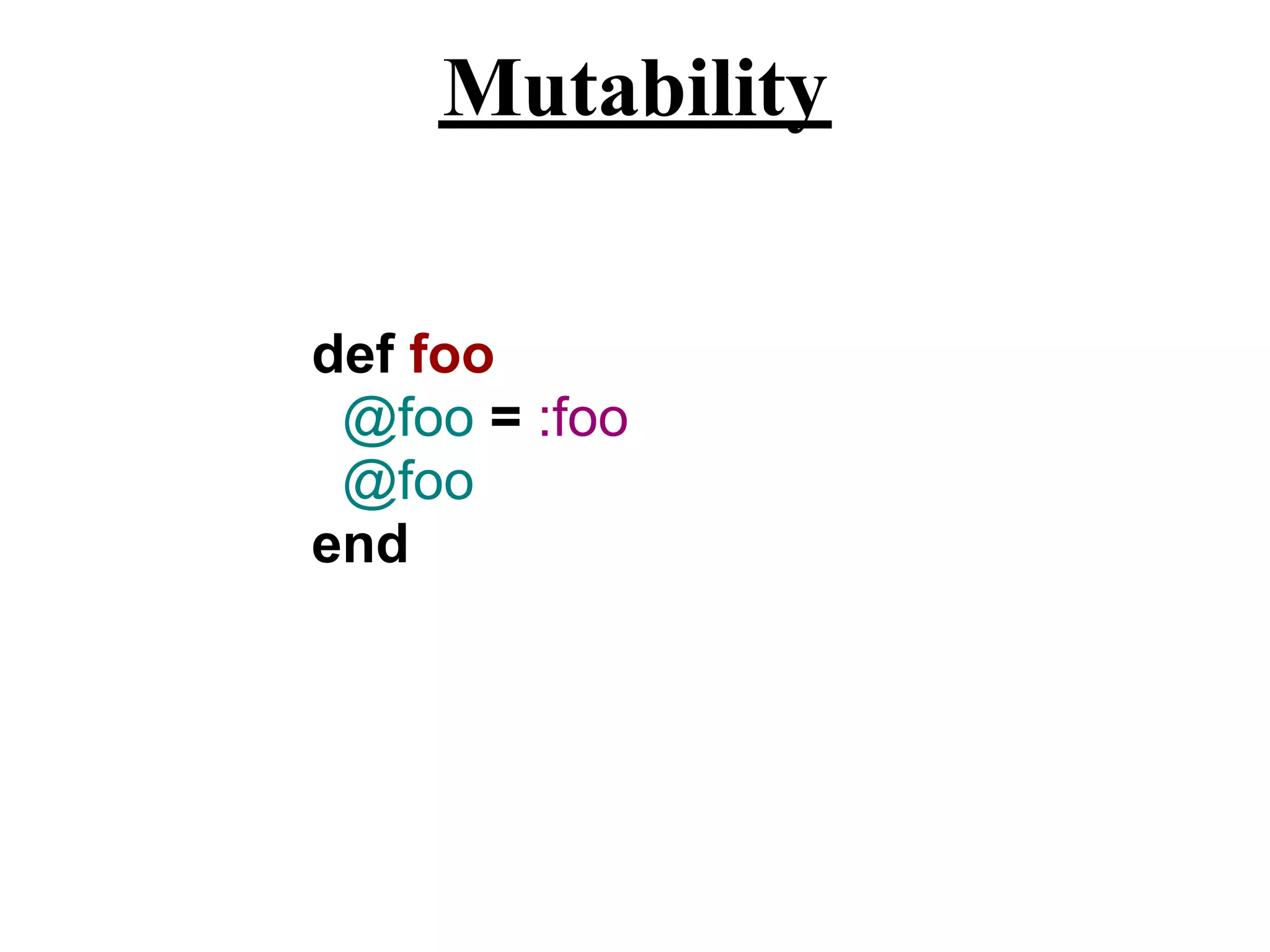

8. Mutability
def foo
@foo = :foo
@foo
end

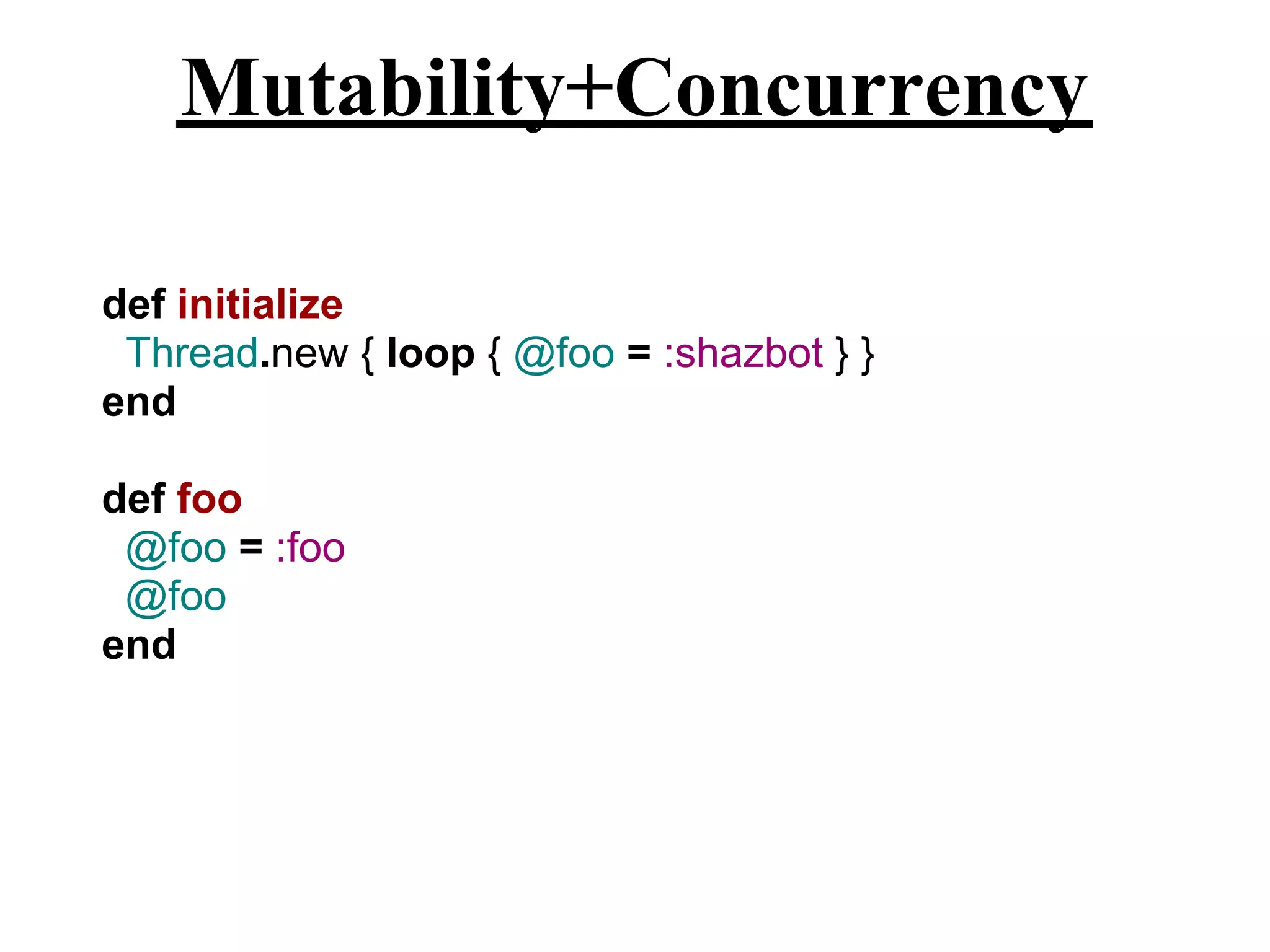

9. Mutability+Concurrency
def initialize
Thread.new { loop { @foo = :shazbot } }
end
def foo
@foo = :foo
@foo
end

10. The Declarative Model

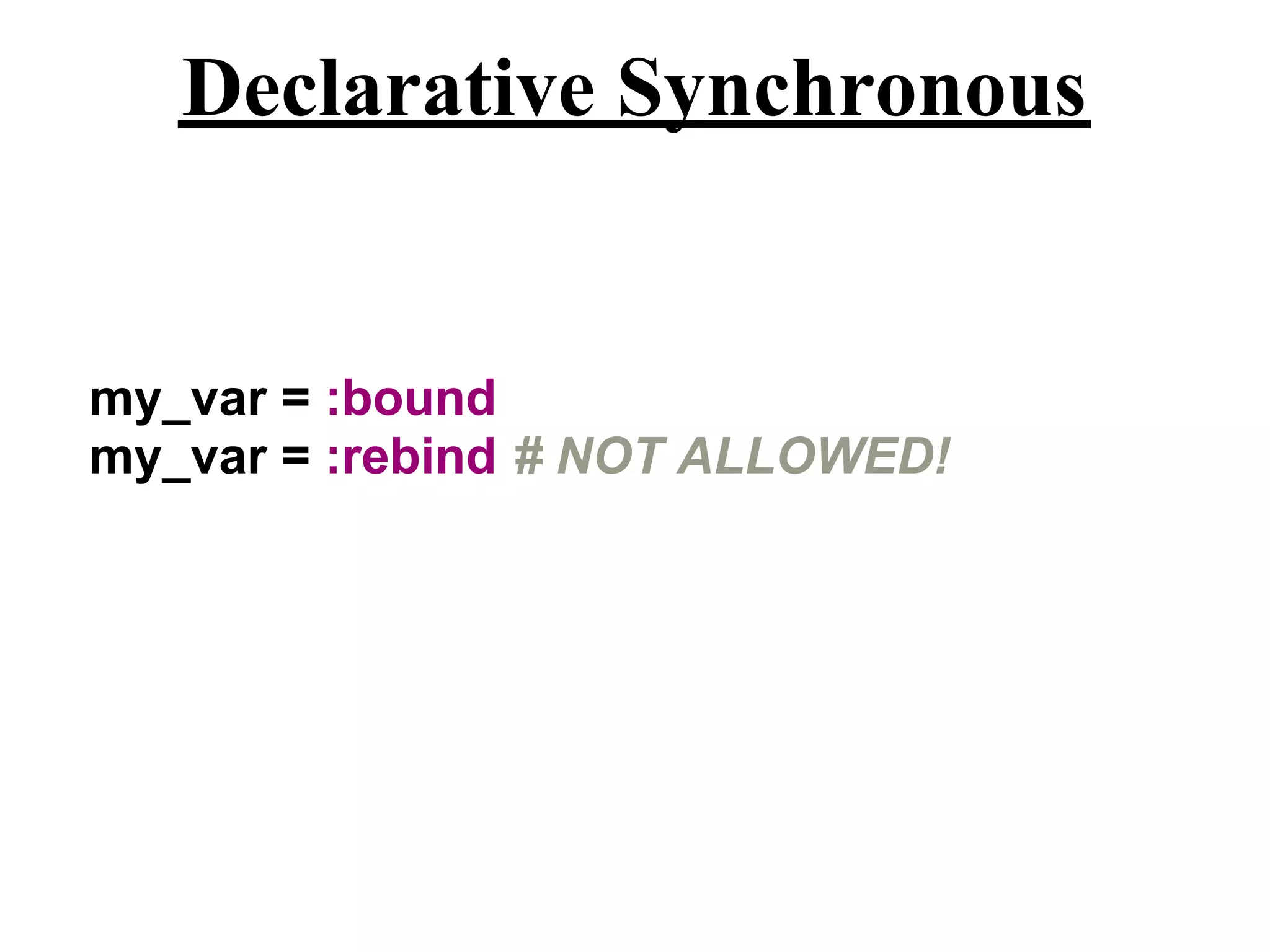

11. Declarative Synchronous
my_var = :bound
my_var = :rebind # NOT ALLOWED!

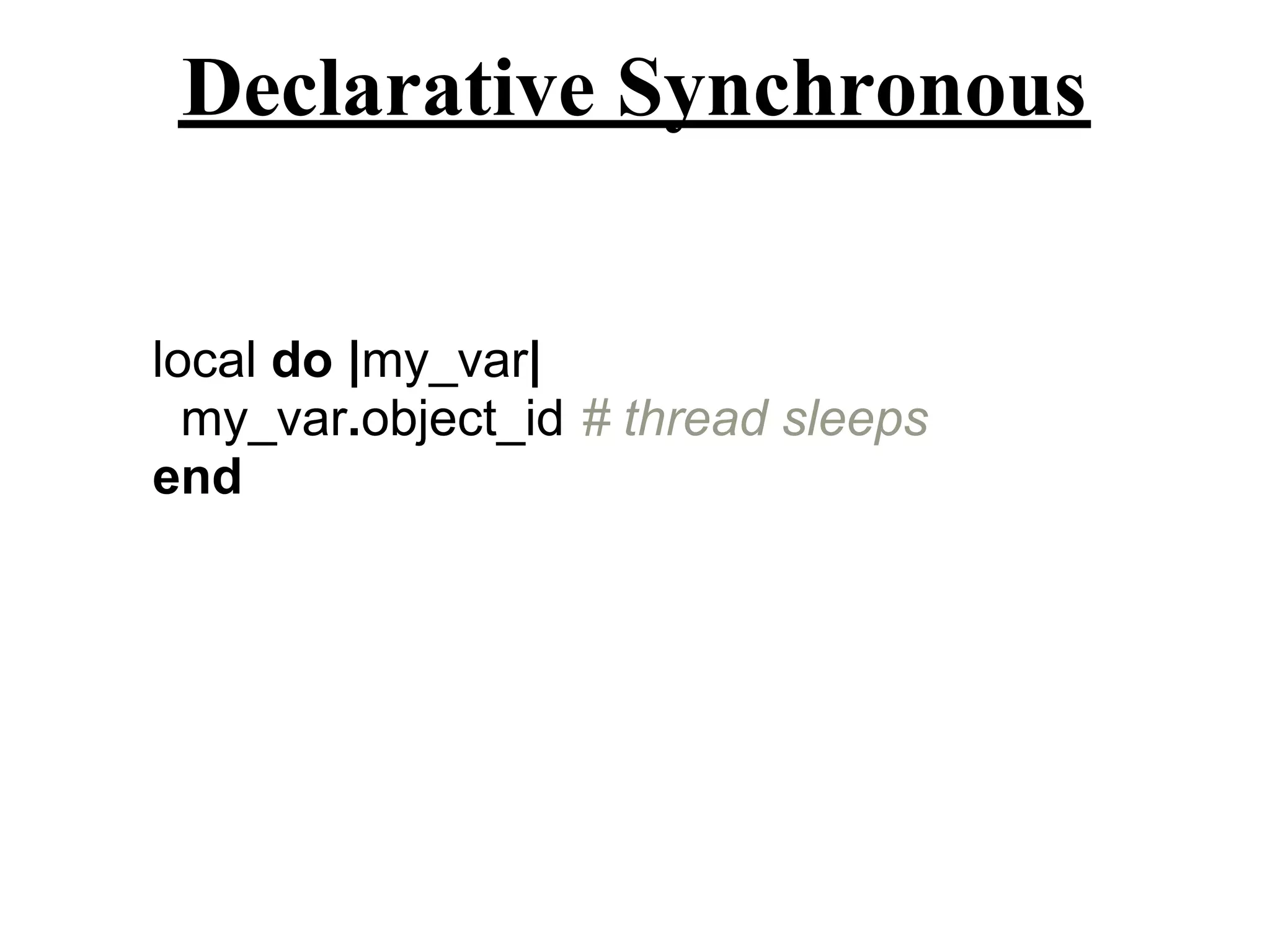

12. Declarative Synchronous
local do |my_var|
my_var.object_id # thread sleeps
end

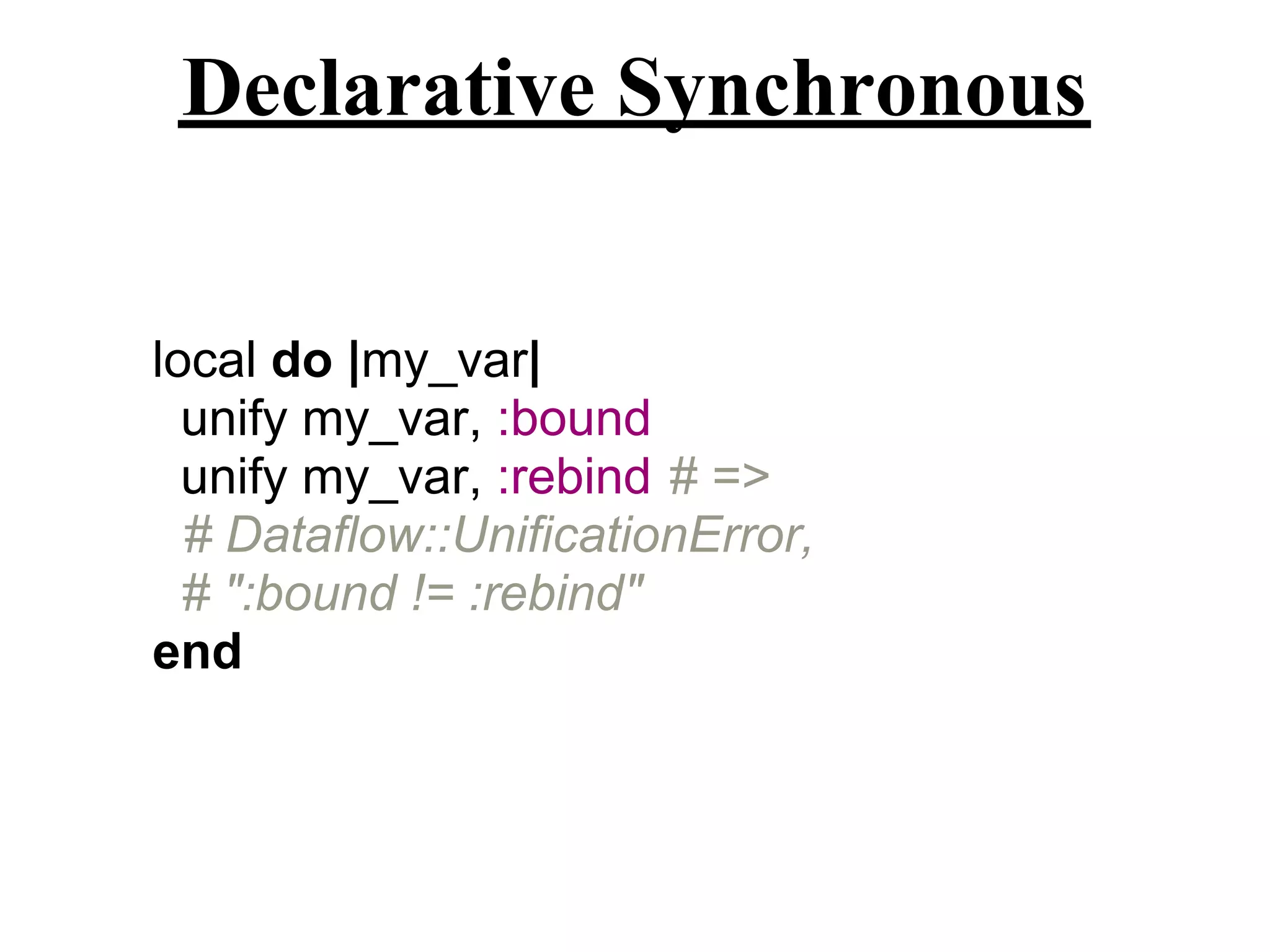

13. Declarative Synchronous
local do |my_var|
unify my_var, :bound
unify my_var, :rebind # =>
# Dataflow::UnificationError,
# ":bound != :rebind"
end

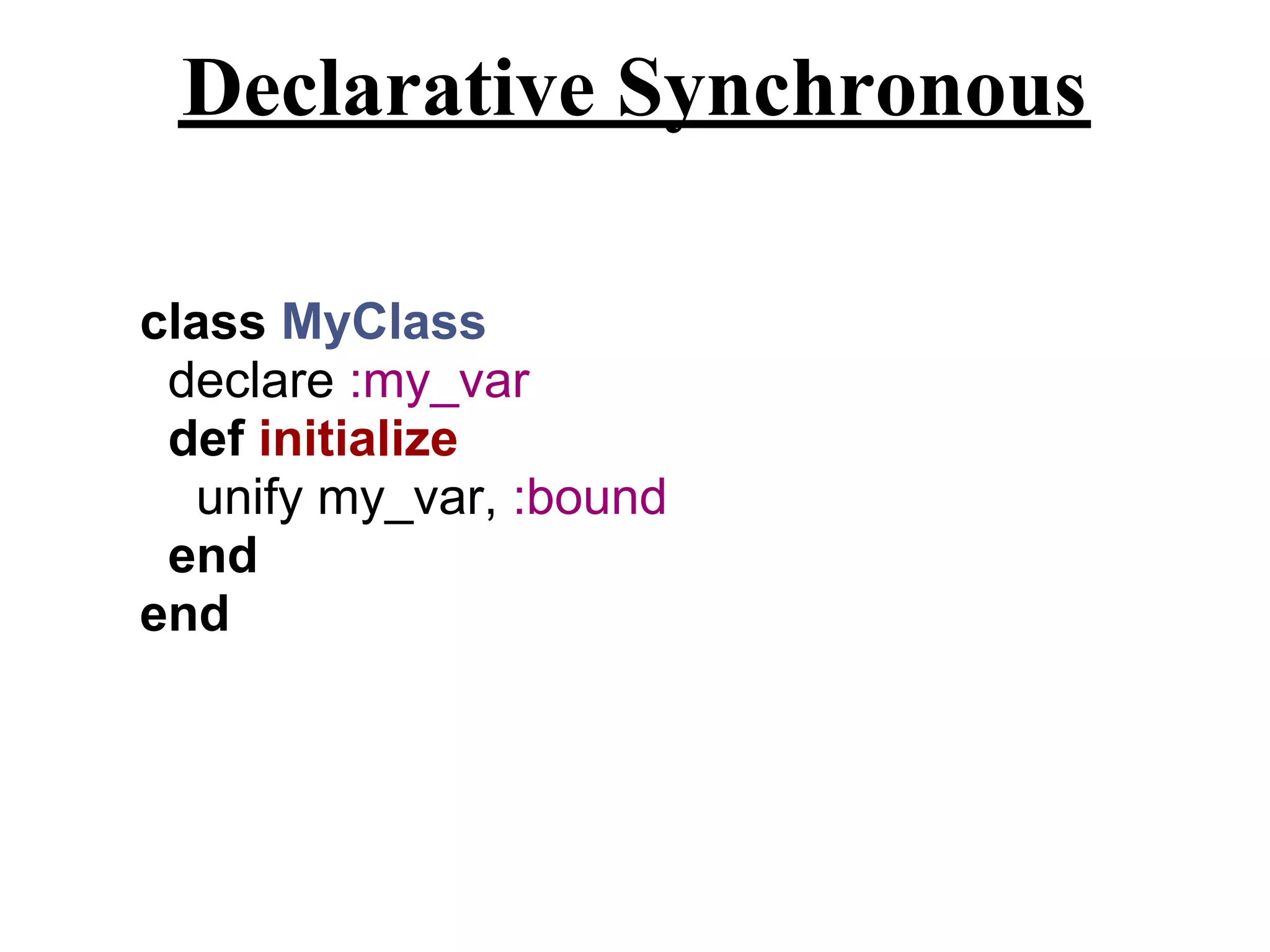

14. Declarative Synchronous
class MyClass
declare :my_var
def initialize
unify my_var, :bound
end
end

15. Declarative Concurrent
(MAGIC)

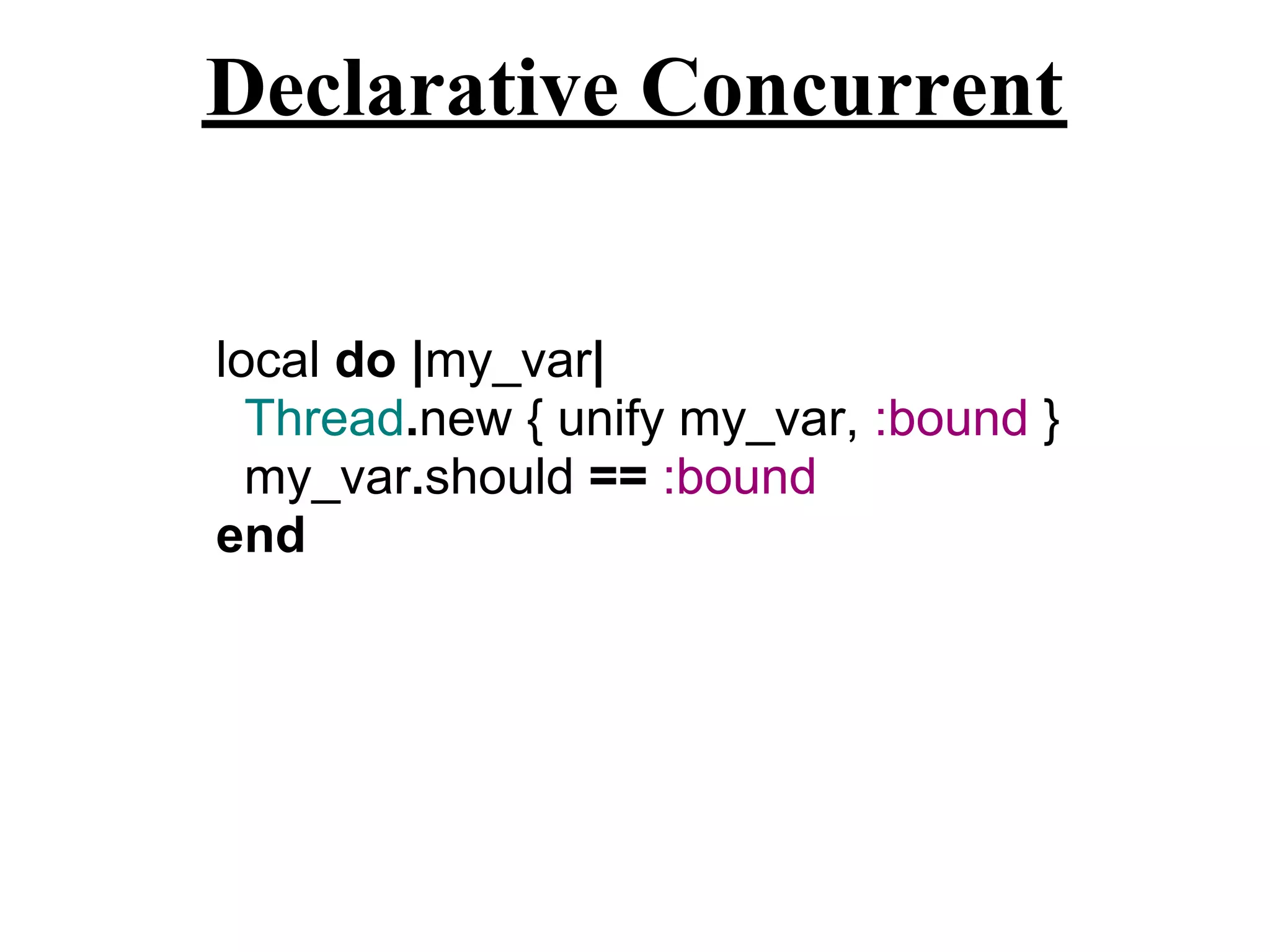

16. Declarative Concurrent
local do |my_var|
Thread.new { unify my_var, :bound }
my_var.should == :bound
end

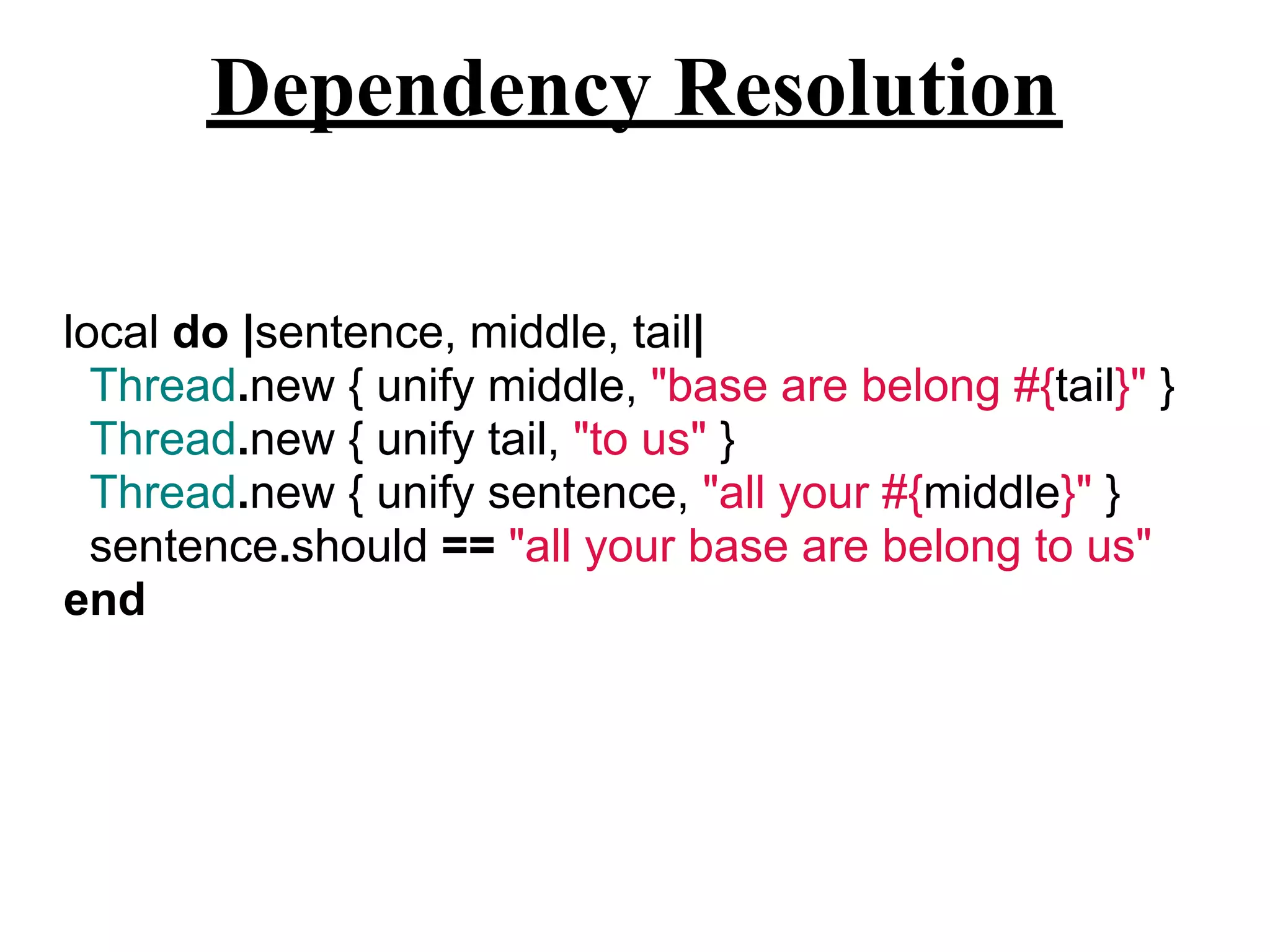

17. Dependency Resolution
local do |sentence, middle, tail|
Thread.new { unify middle, "base are belong #{tail}" }
Thread.new { unify tail, "to us" }
Thread.new { unify sentence, "all your #{middle}" }
sentence.should == "all your base are belong to us"
end

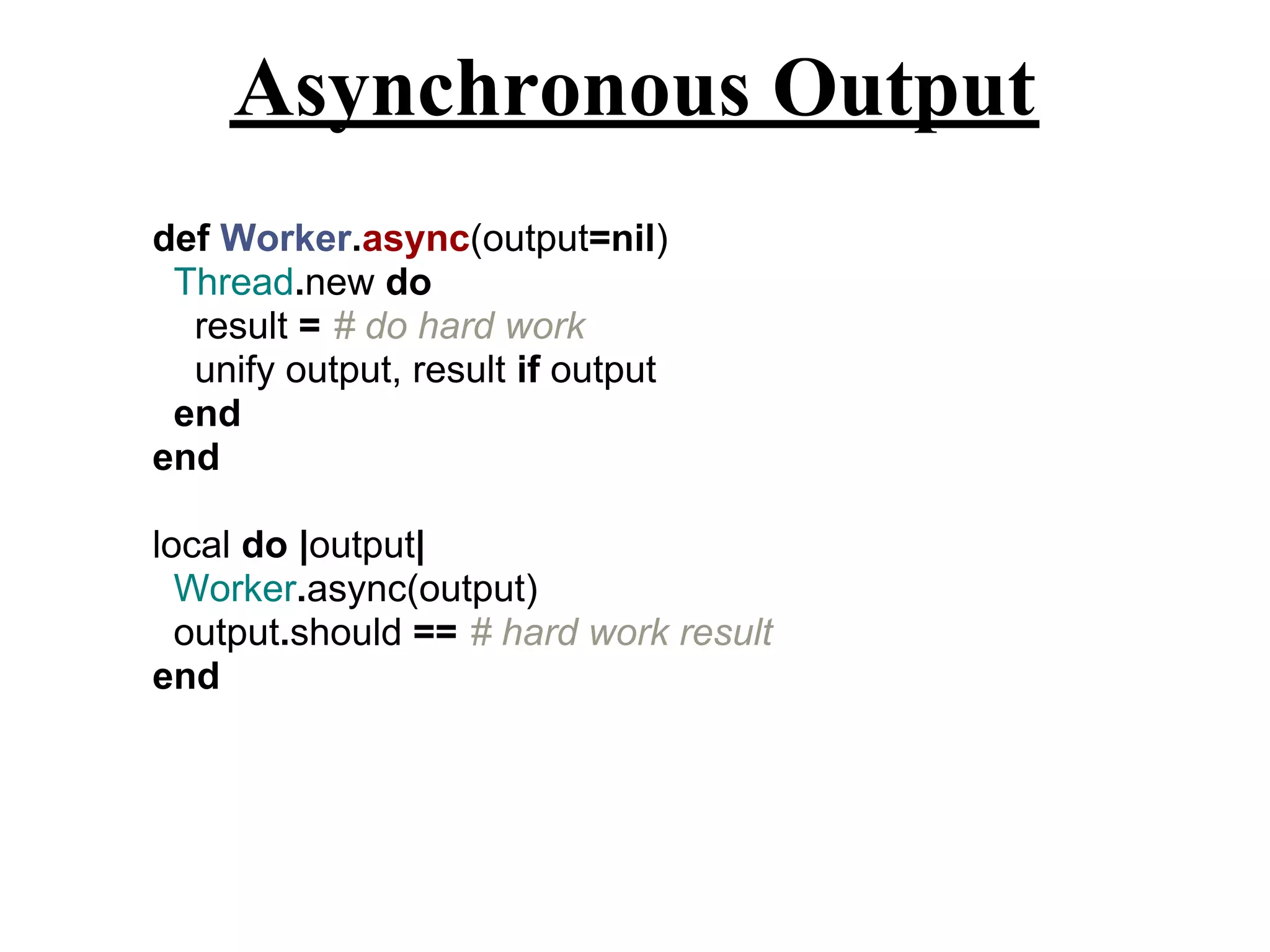

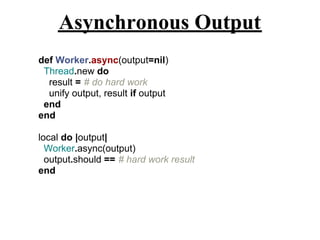

18. Asynchronous Output
def Worker.async(output=nil)
Thread.new do
result = # do hard work
unify output, result if output
end
end
local do |output|
Worker.async(output)
output.should == # hard work result
end

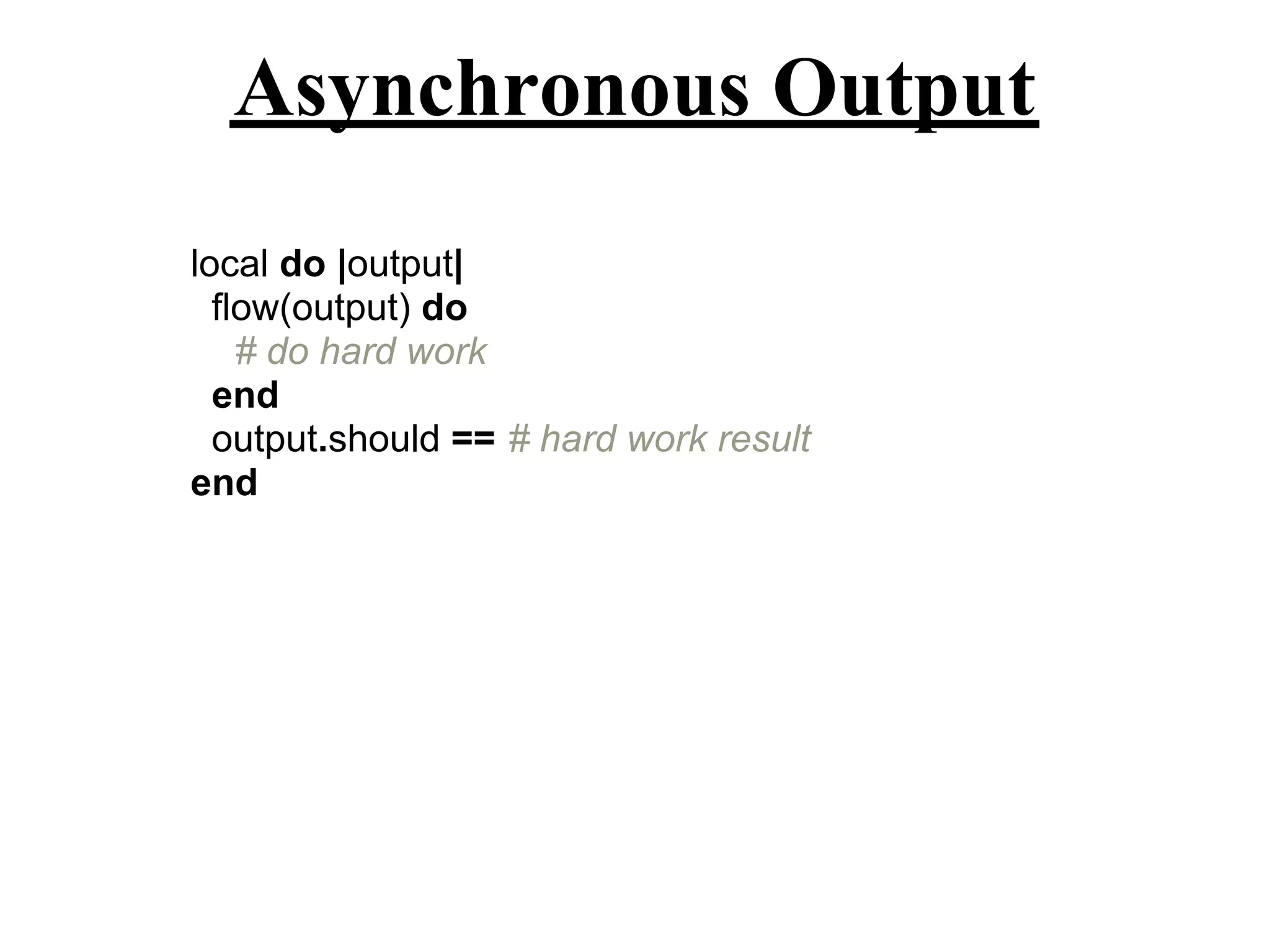

19. Asynchronous Output
local do |output|
flow(output) do
# do hard work
end
output.should == # hard work result
end

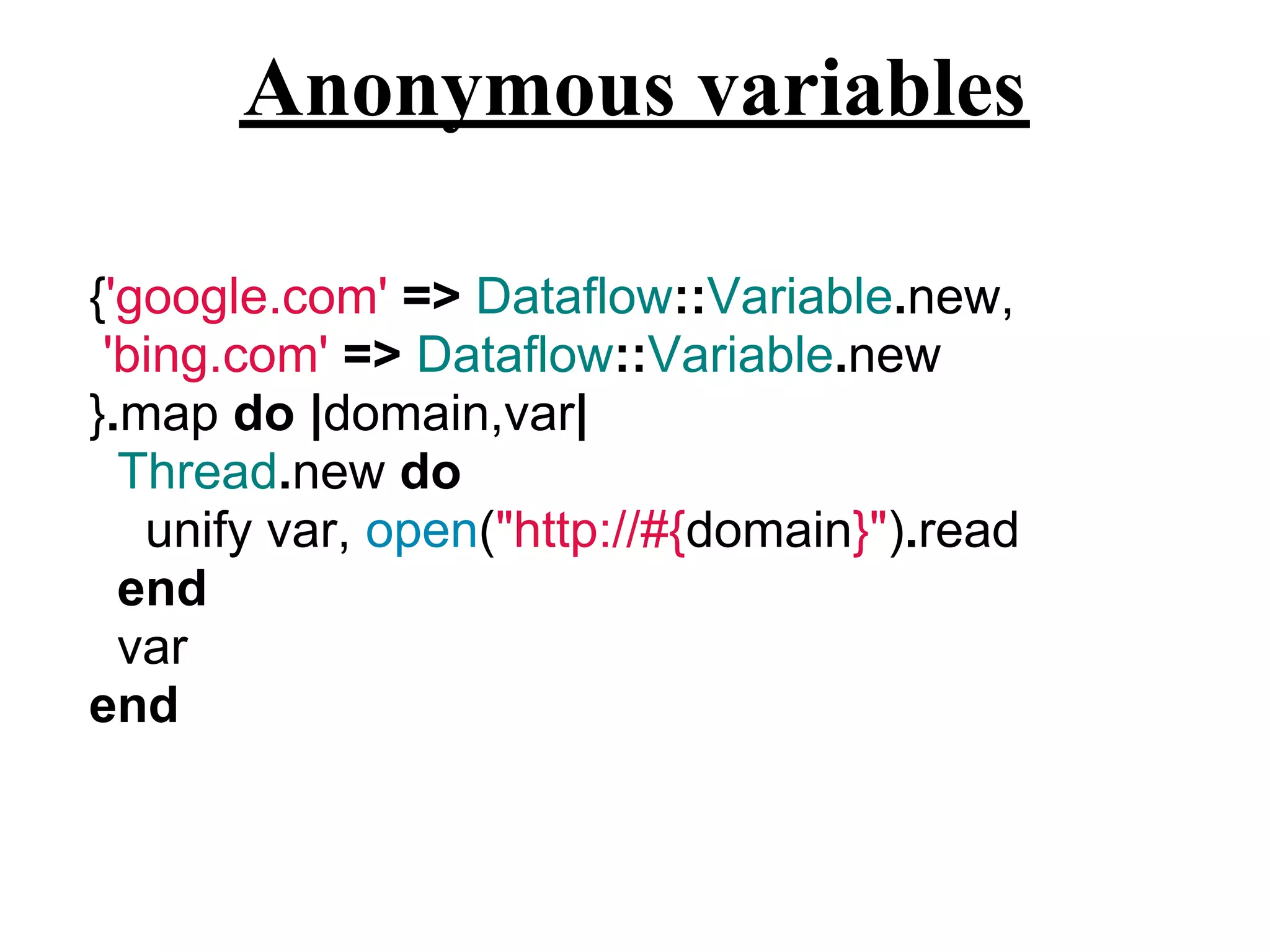

20. Anonymous variables
{'google.com' => Dataflow::Variable.new,
'bing.com' => Dataflow::Variable.new
}.map do |domain,var|
Thread.new do
unify var, open("http://#{domain}").read
end
var
end

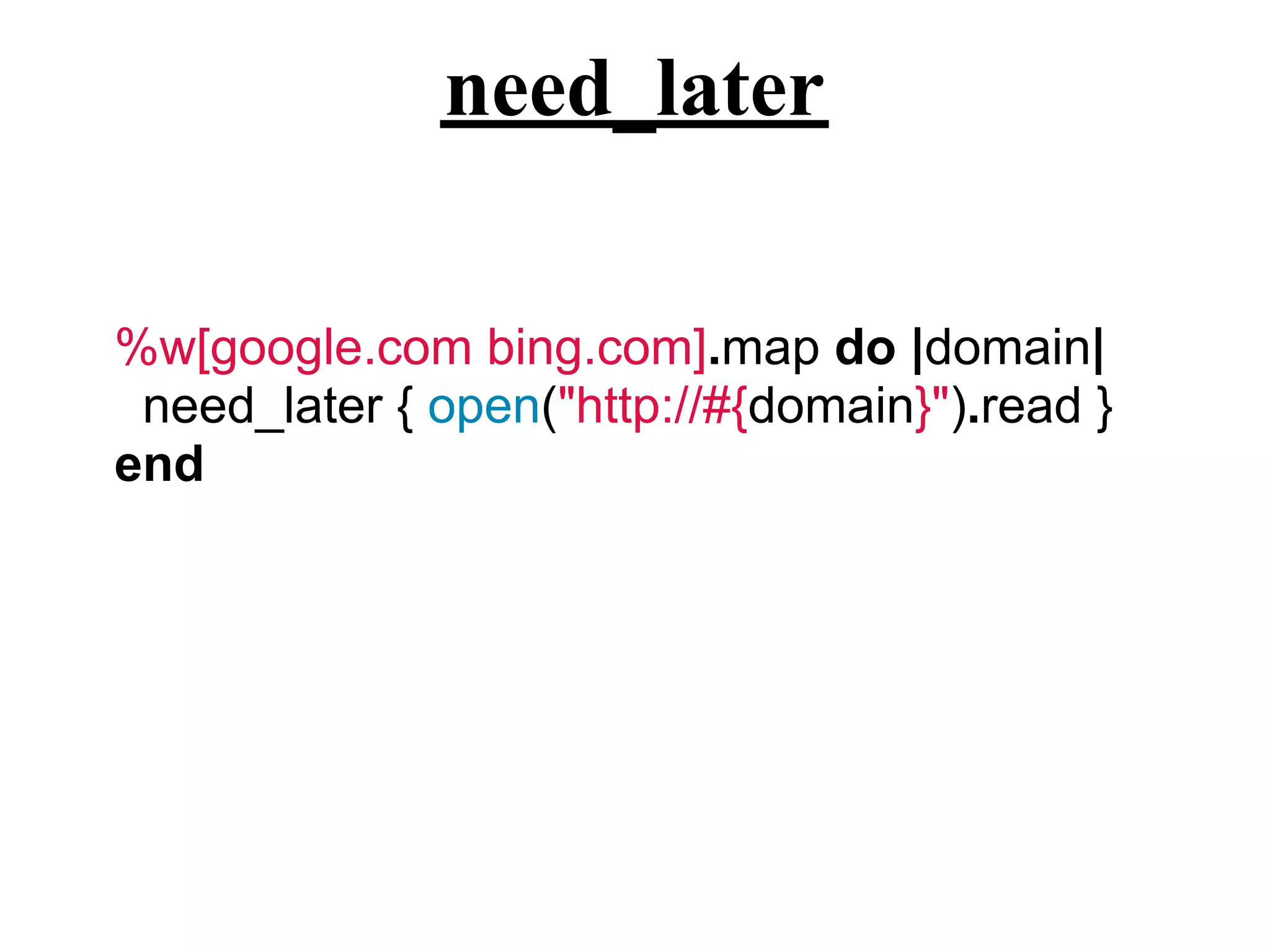

21. need_later
%w[google.com bing.com].map do |domain|
need_later { open("http://#{domain}").read }
end

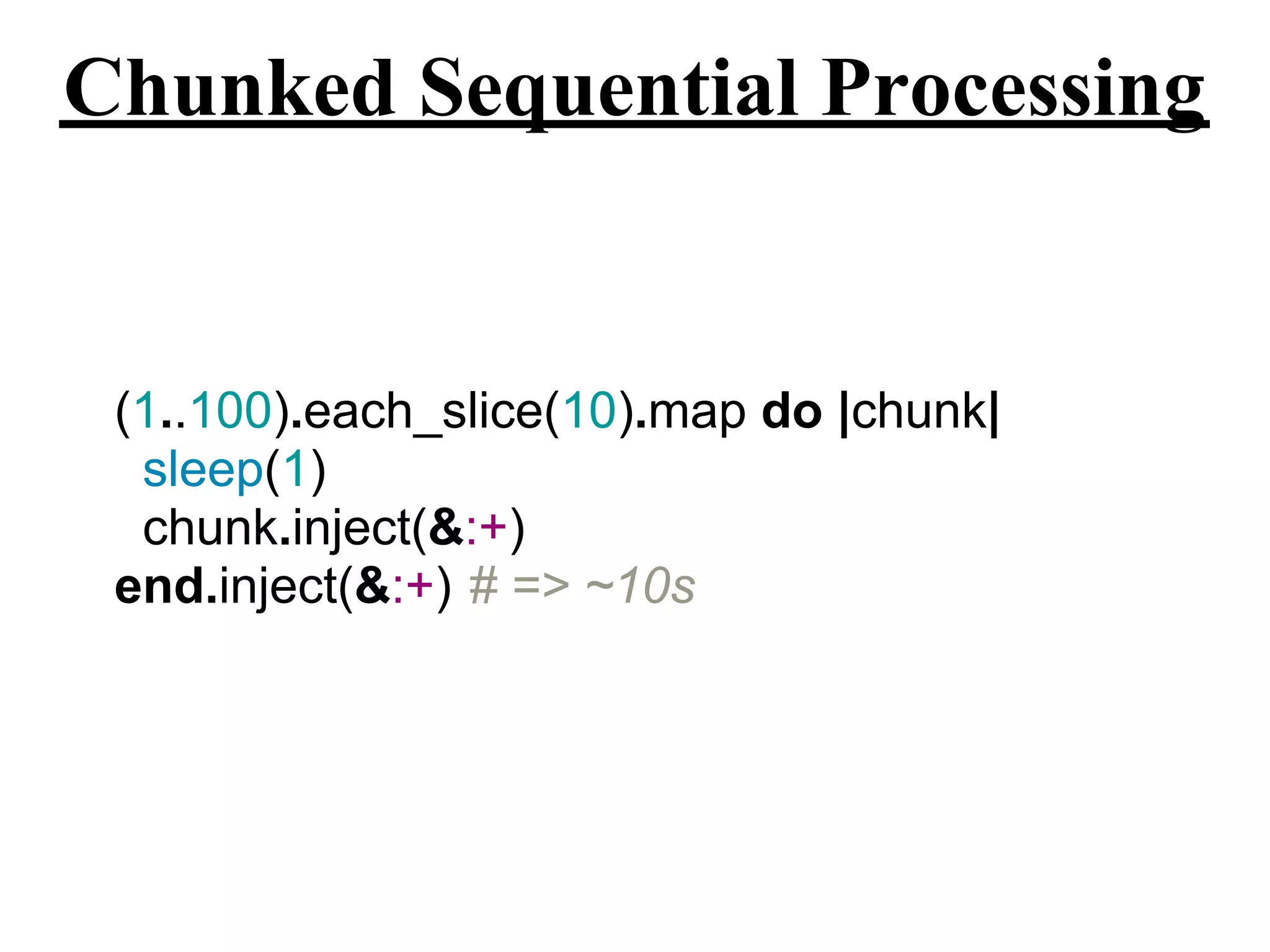

22. Chunked Sequential Processing
(1..100).each_slice(10).map do |chunk|
sleep(1)
chunk.inject(&:+)
end.inject(&:+) # => ~10s

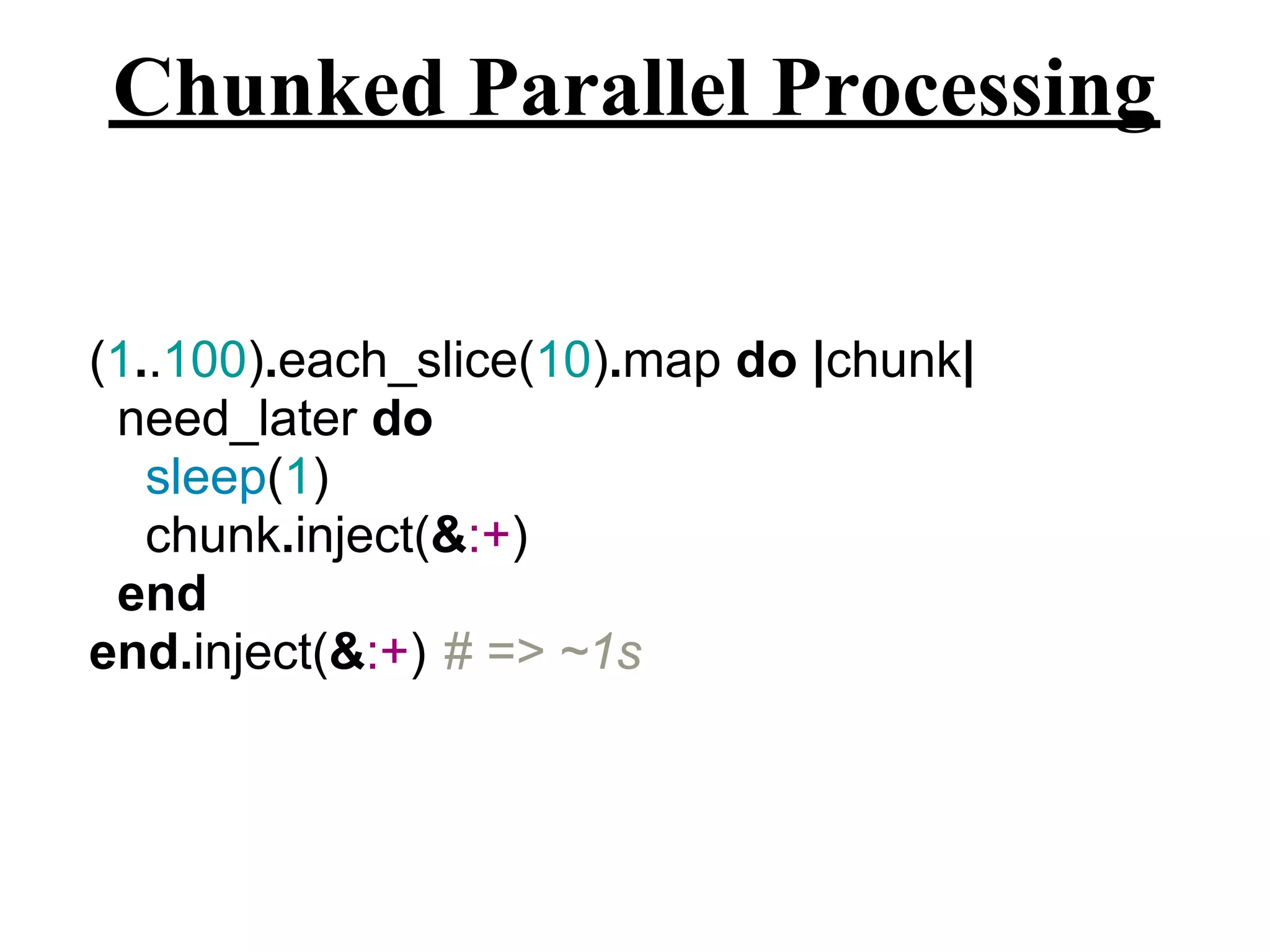

23. Chunked Parallel Processing
(1..100).each_slice(10).map do |chunk|
need_later do
sleep(1)
chunk.inject(&:+)
end
end.inject(&:+) # => ~1s

24. Leaving Declarative
via Async

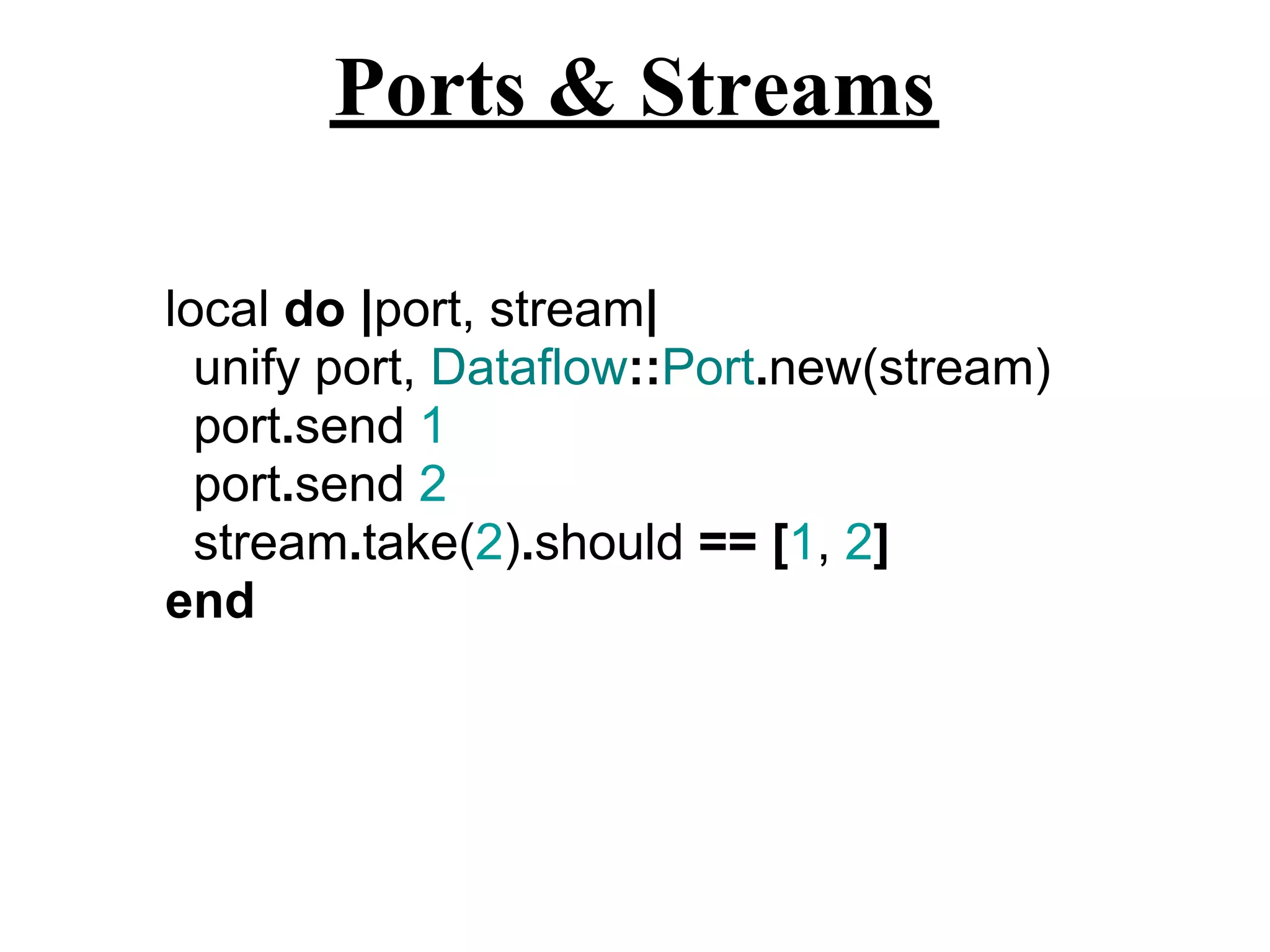

25. Ports & Streams
local do |port, stream|
unify port, Dataflow::Port.new(stream)
port.send 1
port.send 2
stream.take(2).should == [1, 2]
end

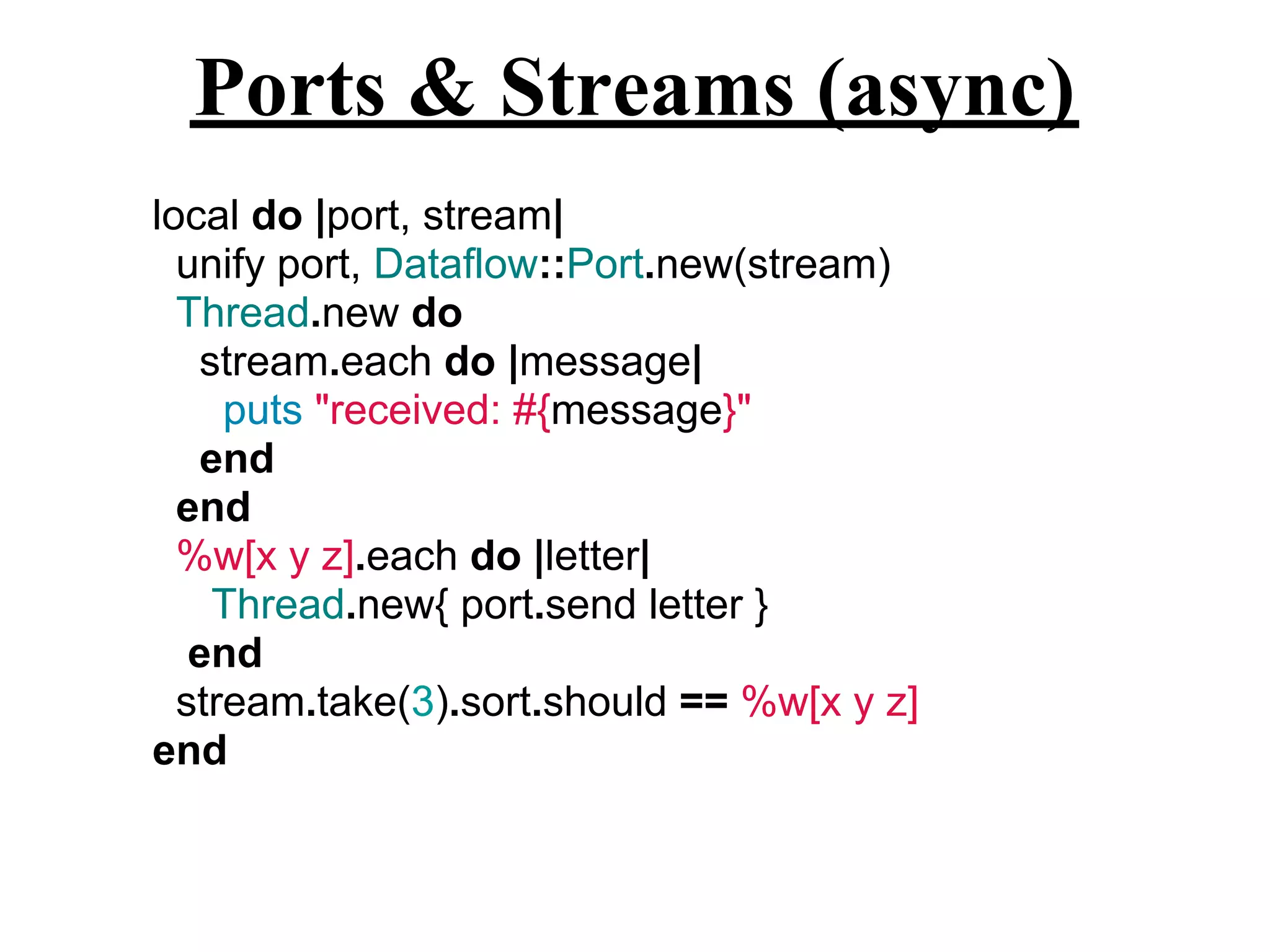

26. Ports & Streams (async)
local do |port, stream|
unify port, Dataflow::Port.new(stream)
Thread.new do
stream.each do |message|
puts "received: #{message}"
end
end
%w[x y z].each do |letter|
Thread.new{ port.send letter }
end
stream.take(3).sort.should == %w[x y z]
end

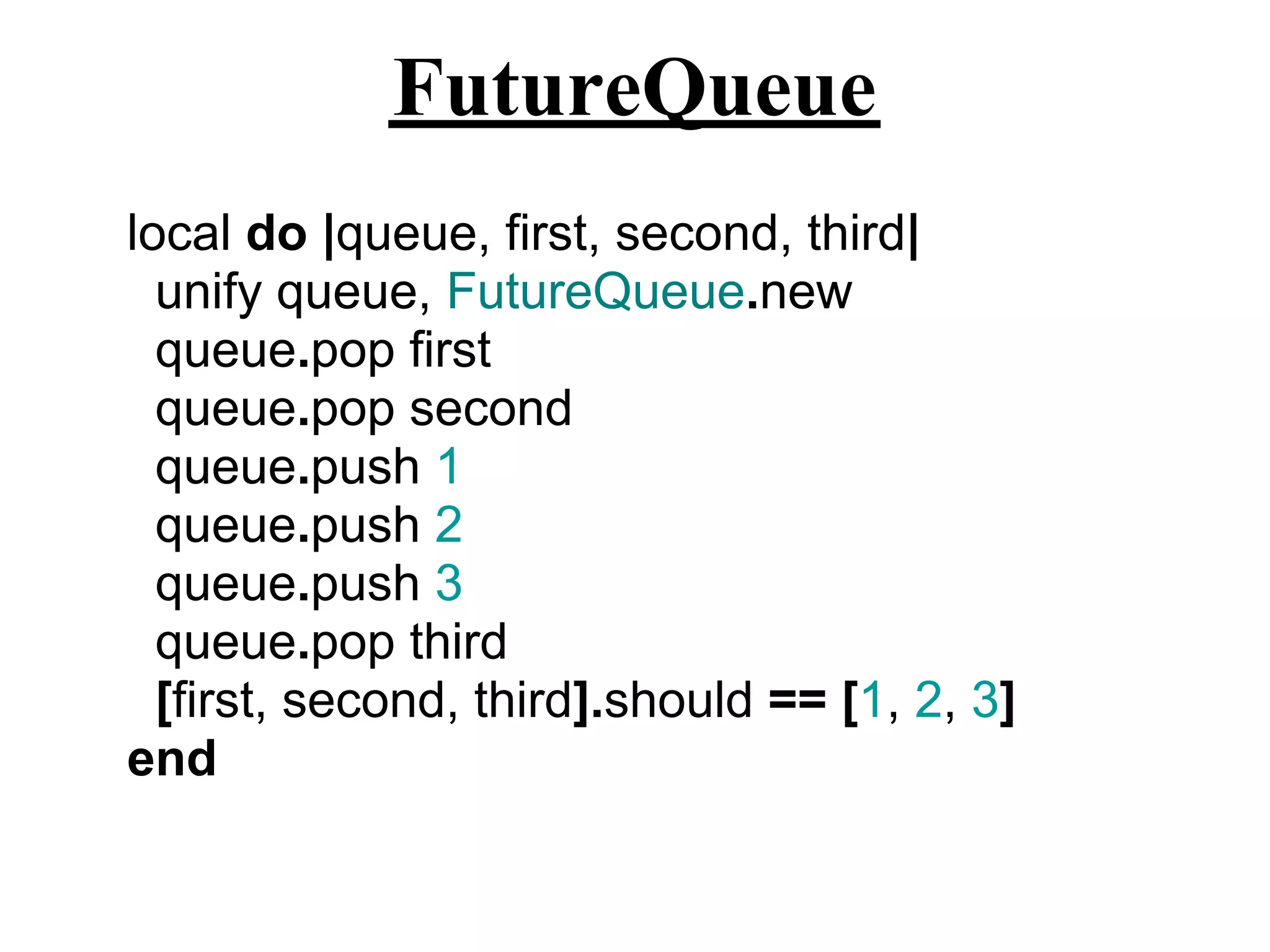

27. FutureQueue
local do |queue, first, second, third|
unify queue, FutureQueue.new
queue.pop first
queue.pop second
queue.push 1
queue.push 2
queue.push 3
queue.pop third
[first, second, third].should == [1, 2, 3]
end

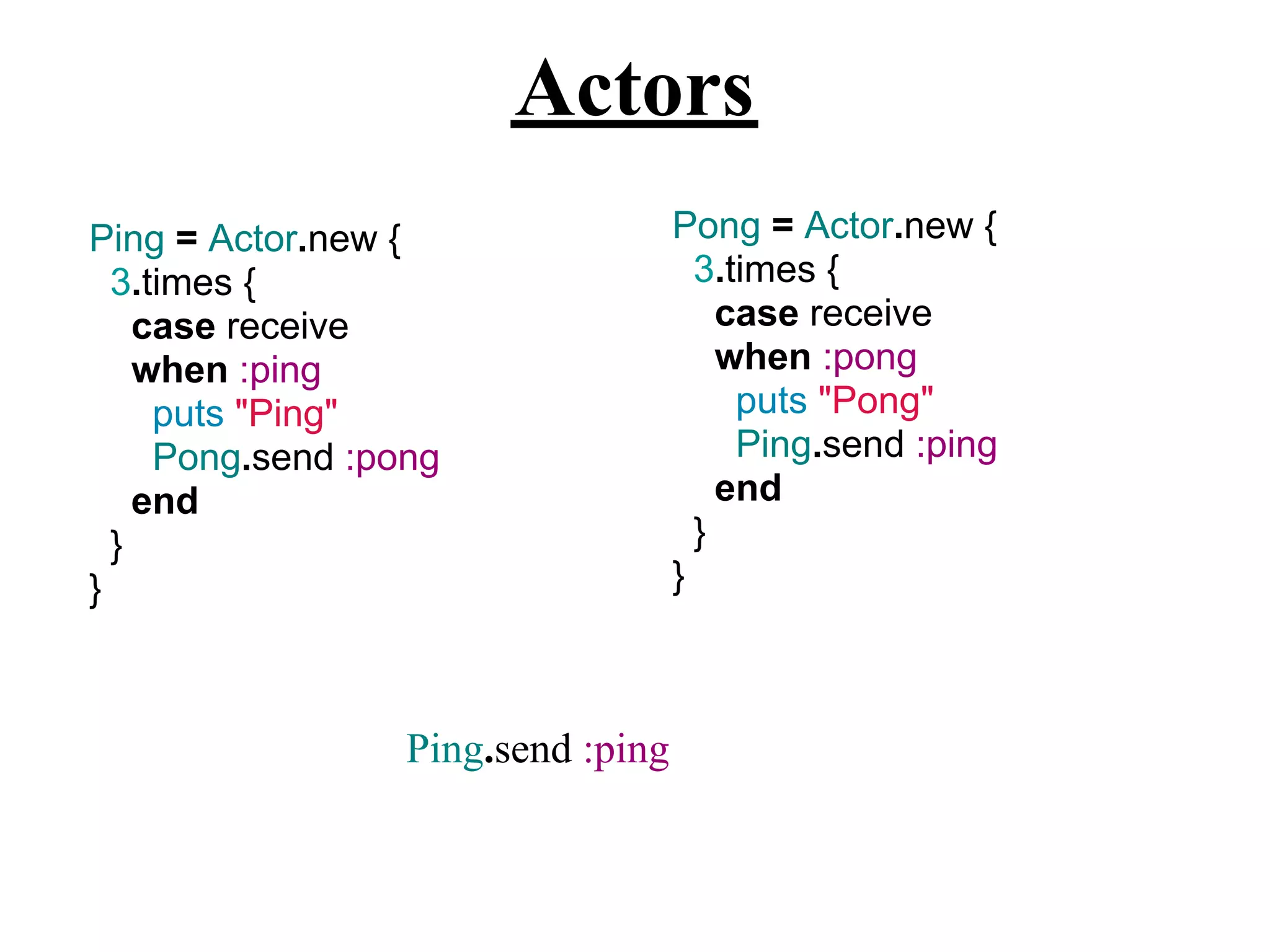

28. Actors
Ping = Actor.new { Pong = Actor.new {
3.times { 3.times {
case receive case receive
when :ping when :pong
puts "Ping" puts "Pong"
Pong.send :pong Ping.send :ping
end end
} }
} }
Ping.send :ping

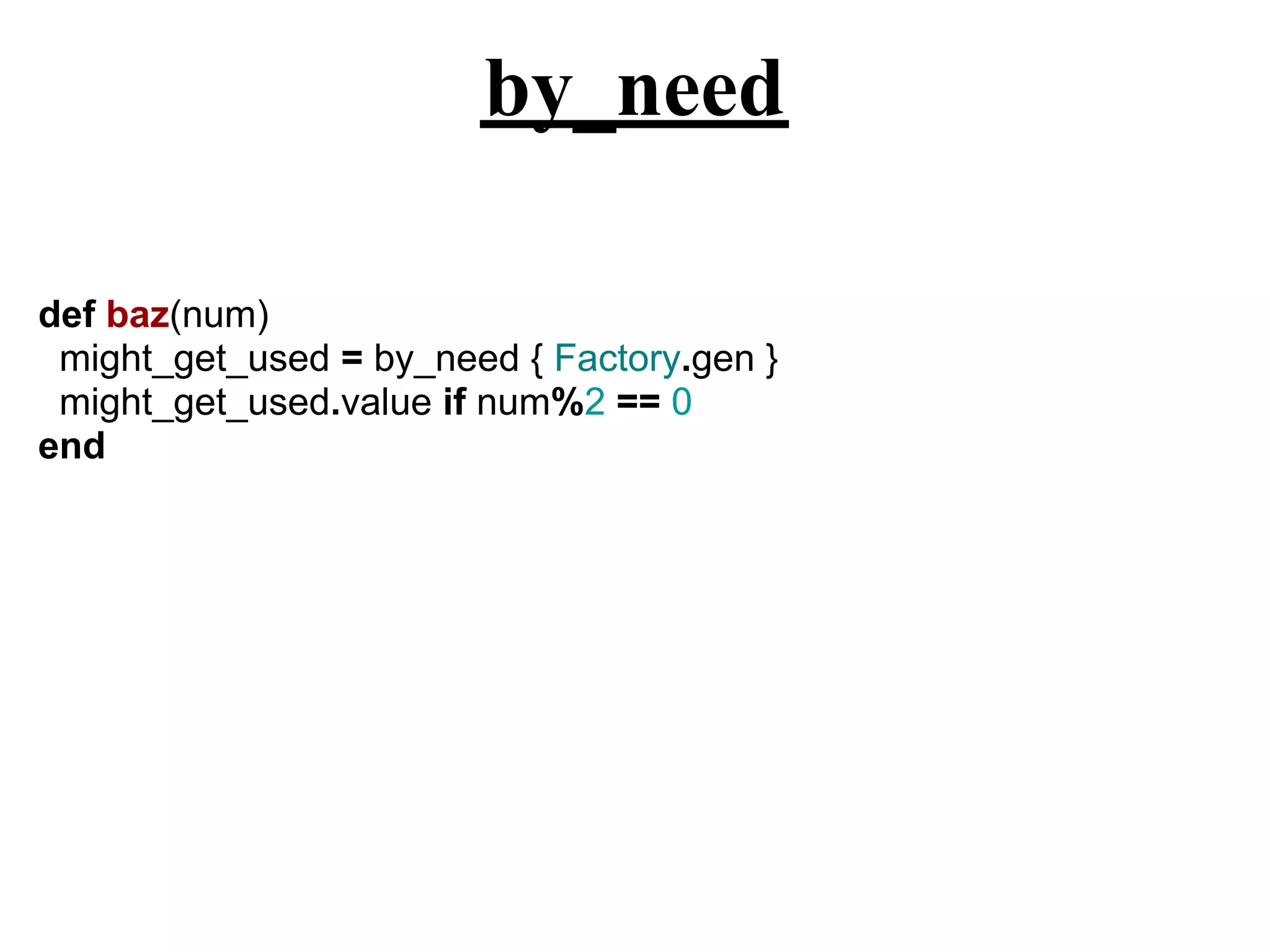

29. by_need
def baz(num)
might_get_used = by_need { Factory.gen }
might_get_used.value if num%2 == 0
end

30. Tips

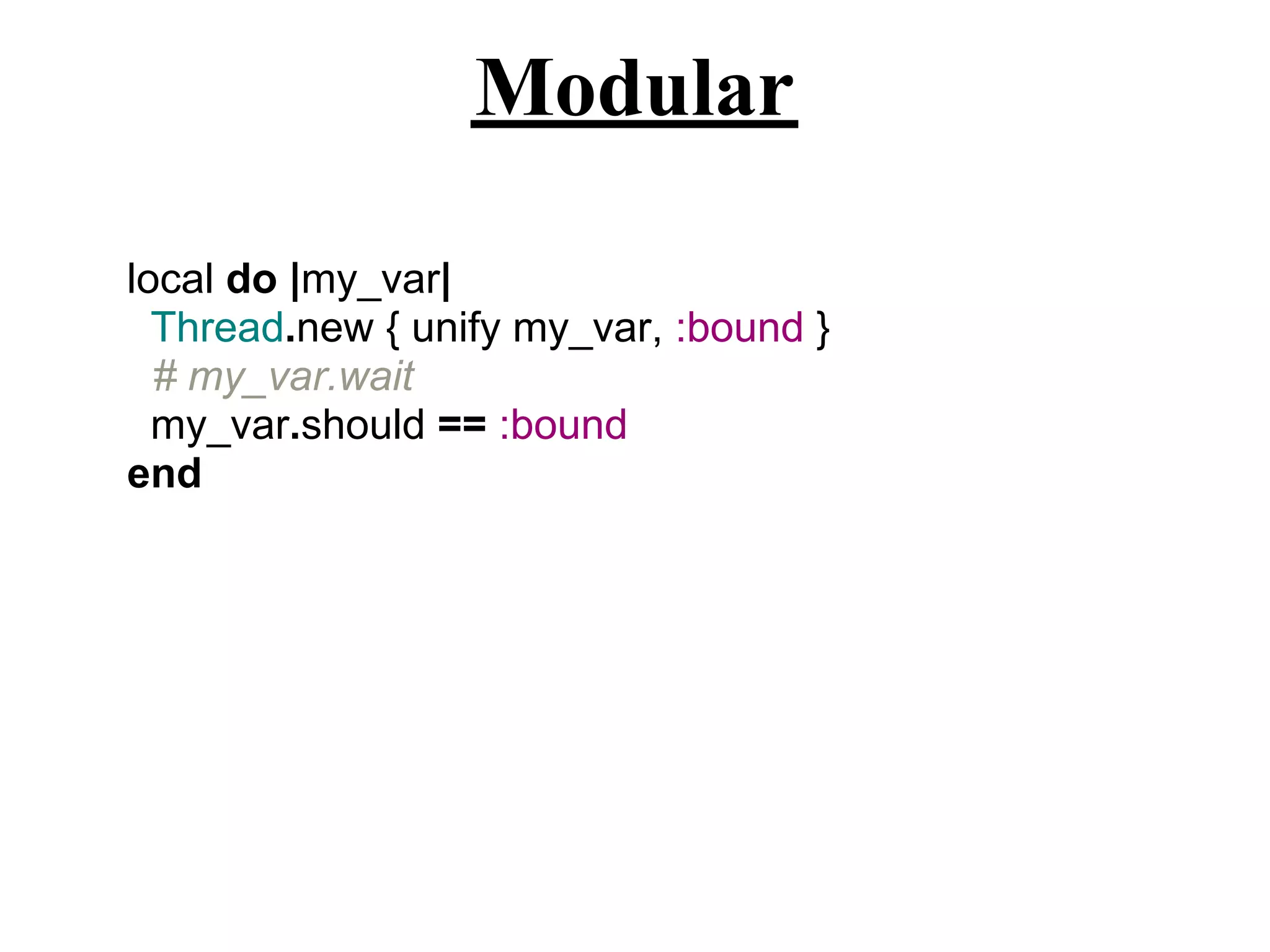

31. Modular
local do |my_var|
Thread.new { unify my_var, :bound }
# my_var.wait
my_var.should == :bound
end

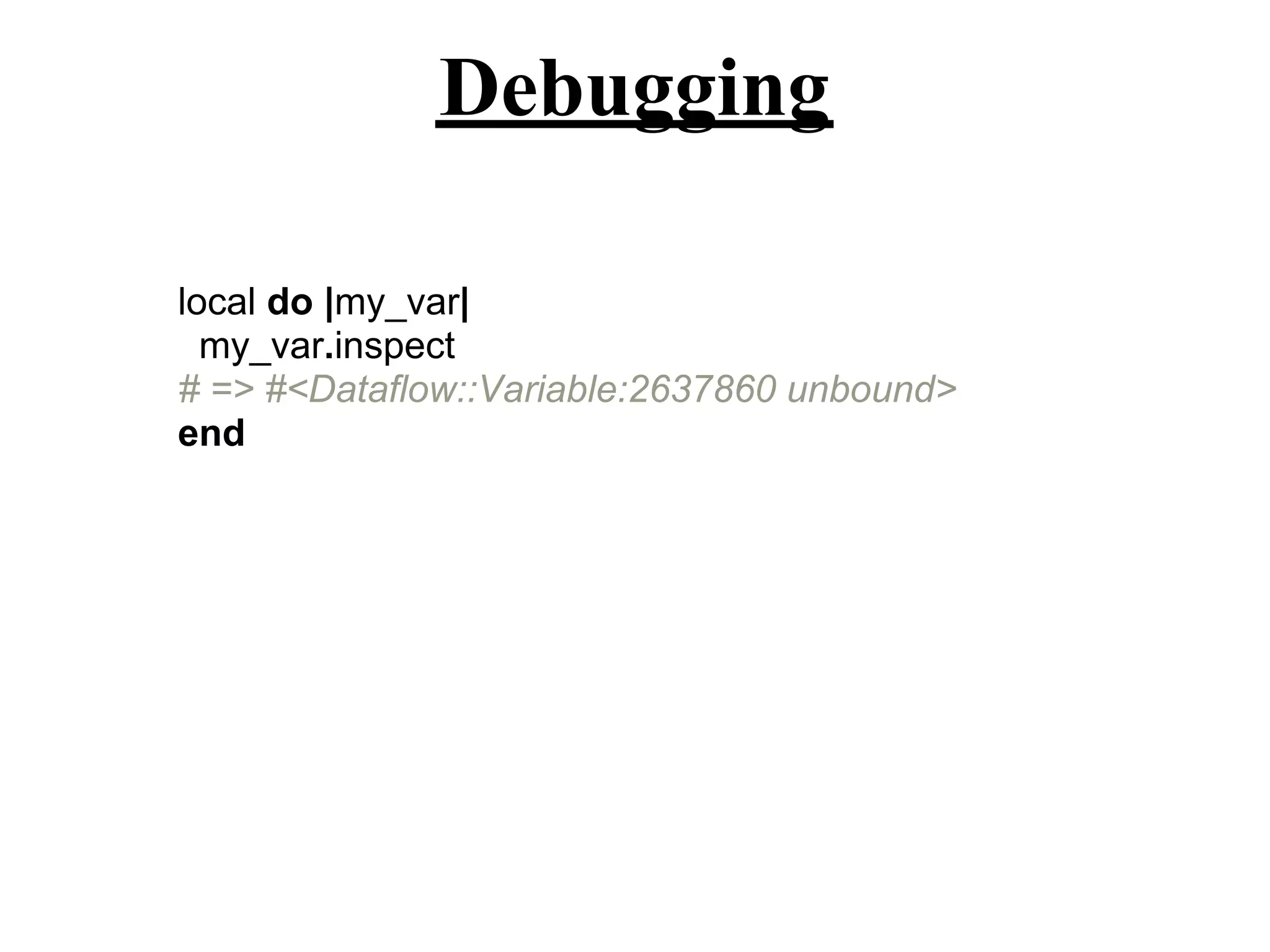

32. Debugging
local do |my_var|
my_var.inspect
# => #<Dataflow::Variable:2637860 unbound>
end

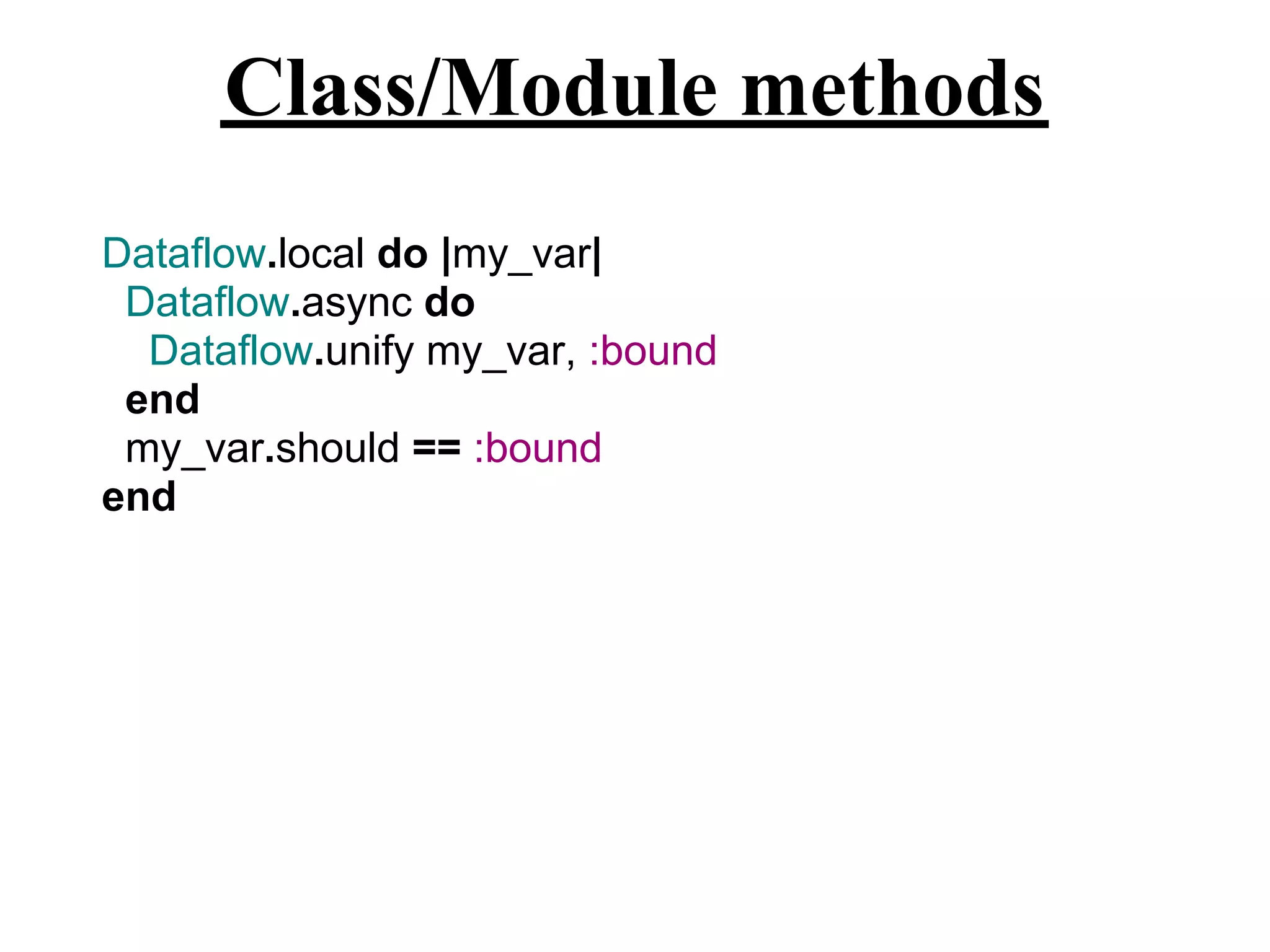

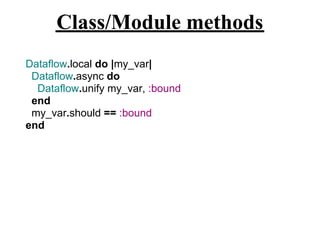

33. Class/Module methods
Dataflow.local do |my_var|
Dataflow.async do
Dataflow.unify my_var, :bound
end
my_var.should == :bound
end

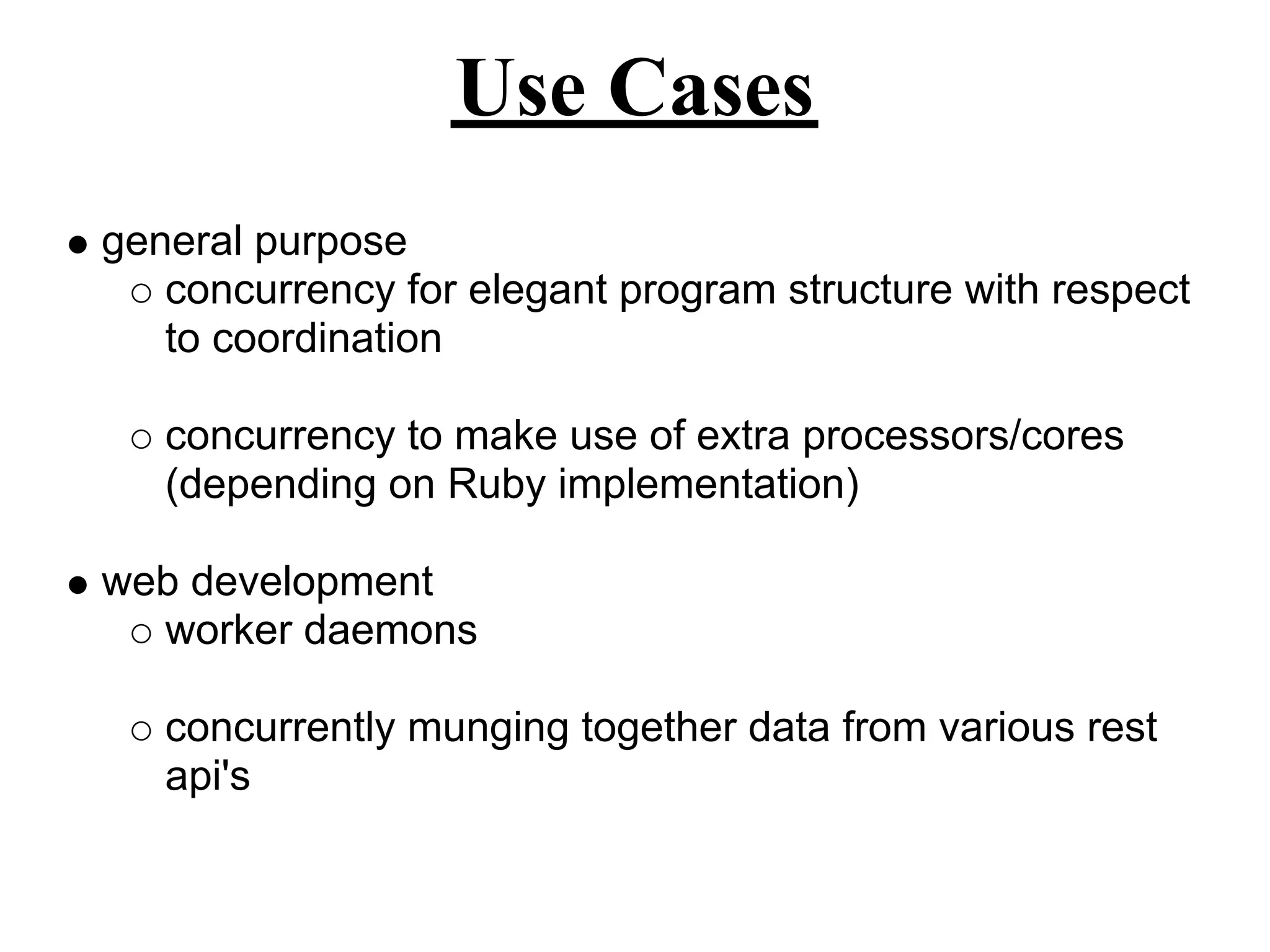

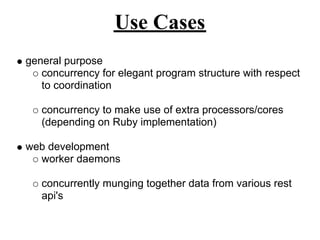

34. Use Cases
general purpose
concurrency for elegant program structure with respect
to coordination
concurrency to make use of extra processors/cores
(depending on Ruby implementation)
web development
worker daemons
concurrently munging together data from various rest
api's

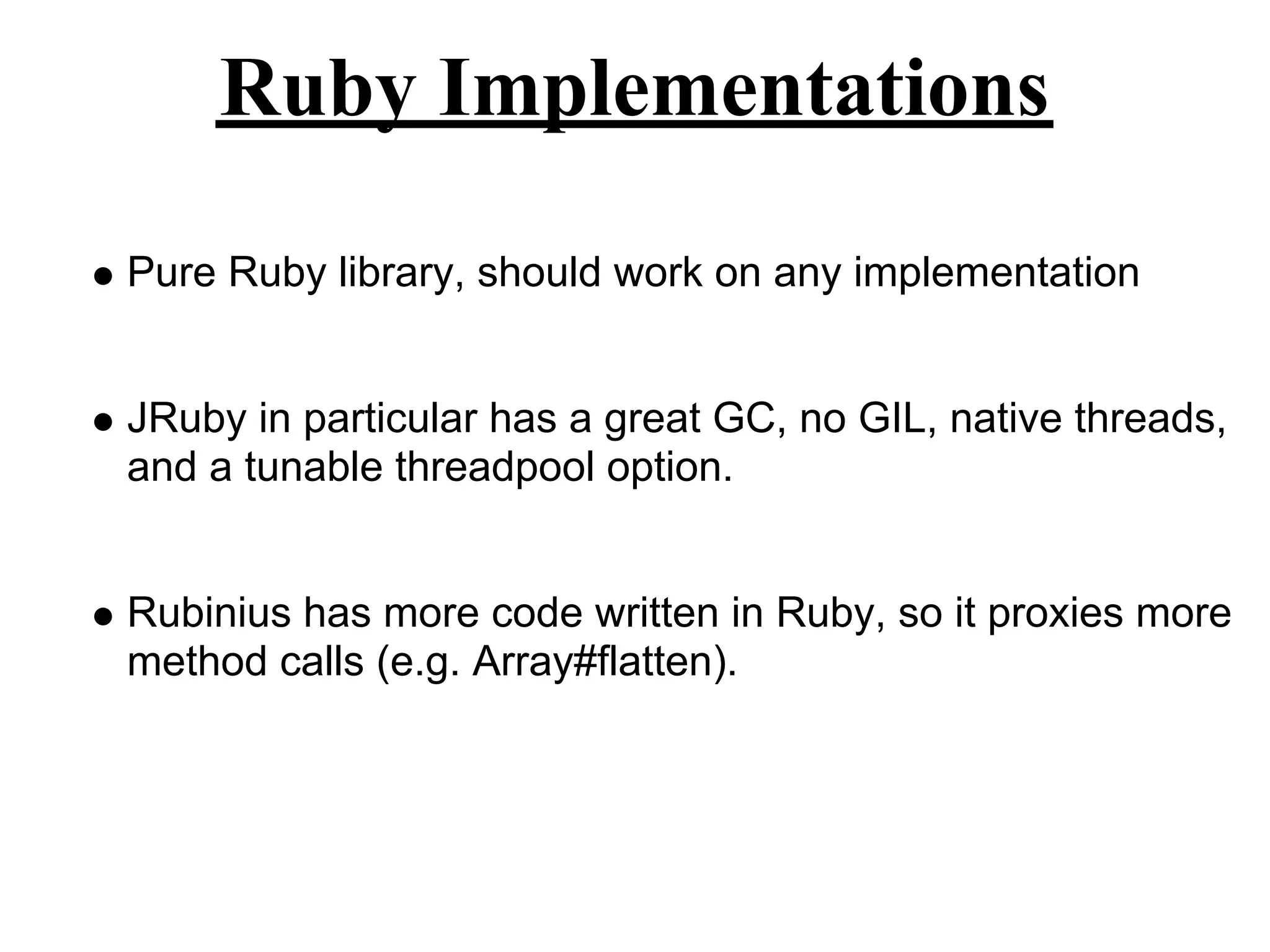

35. Ruby Implementations
Pure Ruby library, should work on any implementation
JRuby in particular has a great GC, no GIL, native threads,
and a tunable threadpool option.
Rubinius has more code written in Ruby, so it proxies more
method calls (e.g. Array#flatten).

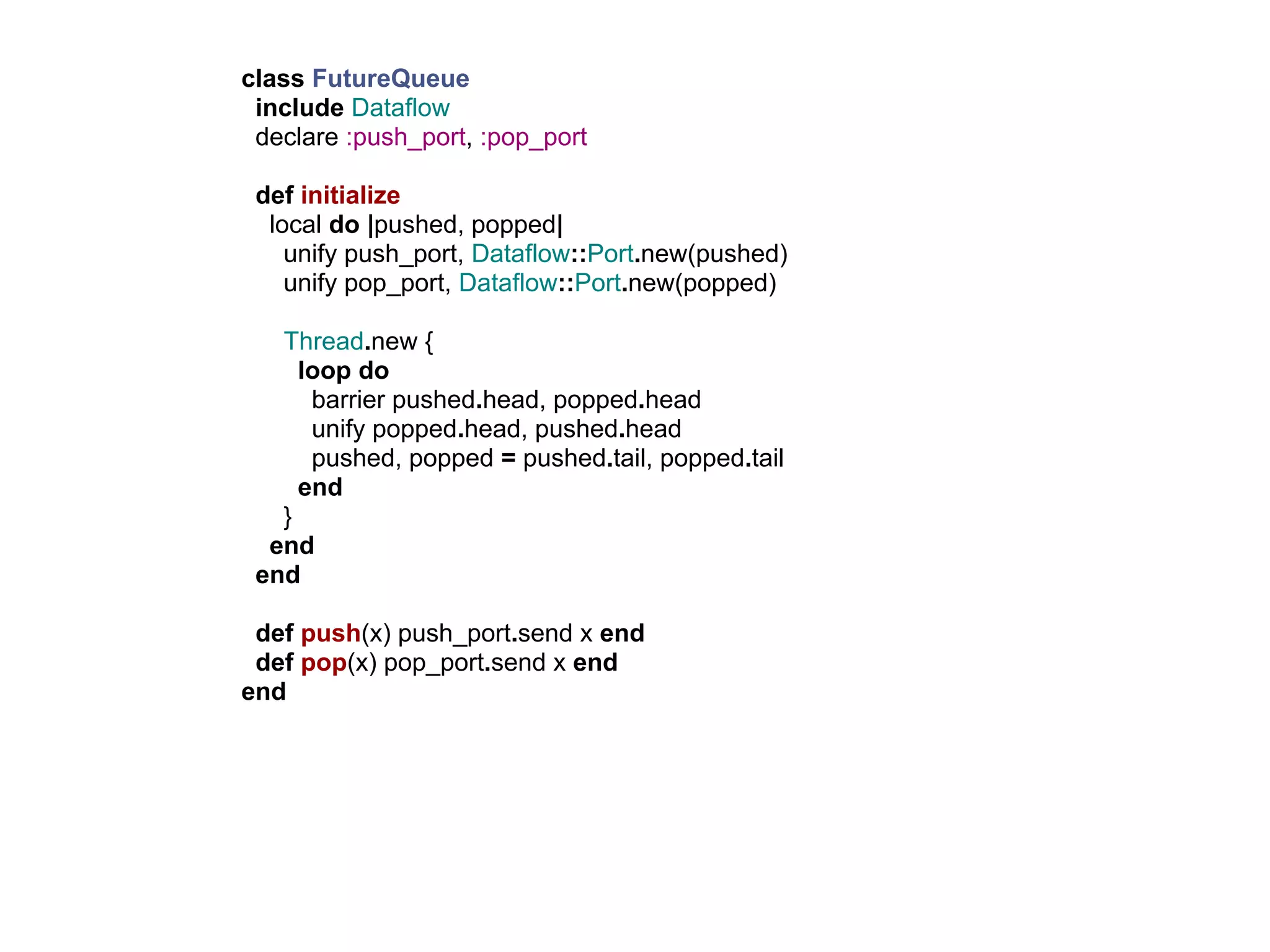

36. class FutureQueue
include Dataflow
declare :push_port, :pop_port
def initialize
local do |pushed, popped|
unify push_port, Dataflow::Port.new(pushed)
unify pop_port, Dataflow::Port.new(popped)
Thread.new {
loop do
barrier pushed.head, popped.head
unify popped.head, pushed.head
pushed, popped = pushed.tail, popped.tail
end
}
end
end
def push(x) push_port.send x end
def pop(x) pop_port.send x end
end

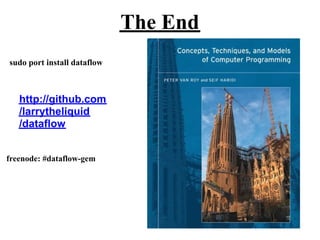

37. The End
sudo port install dataflow
http://github.com
/larrytheliquid
/dataflow
freenode: #dataflow-gem
