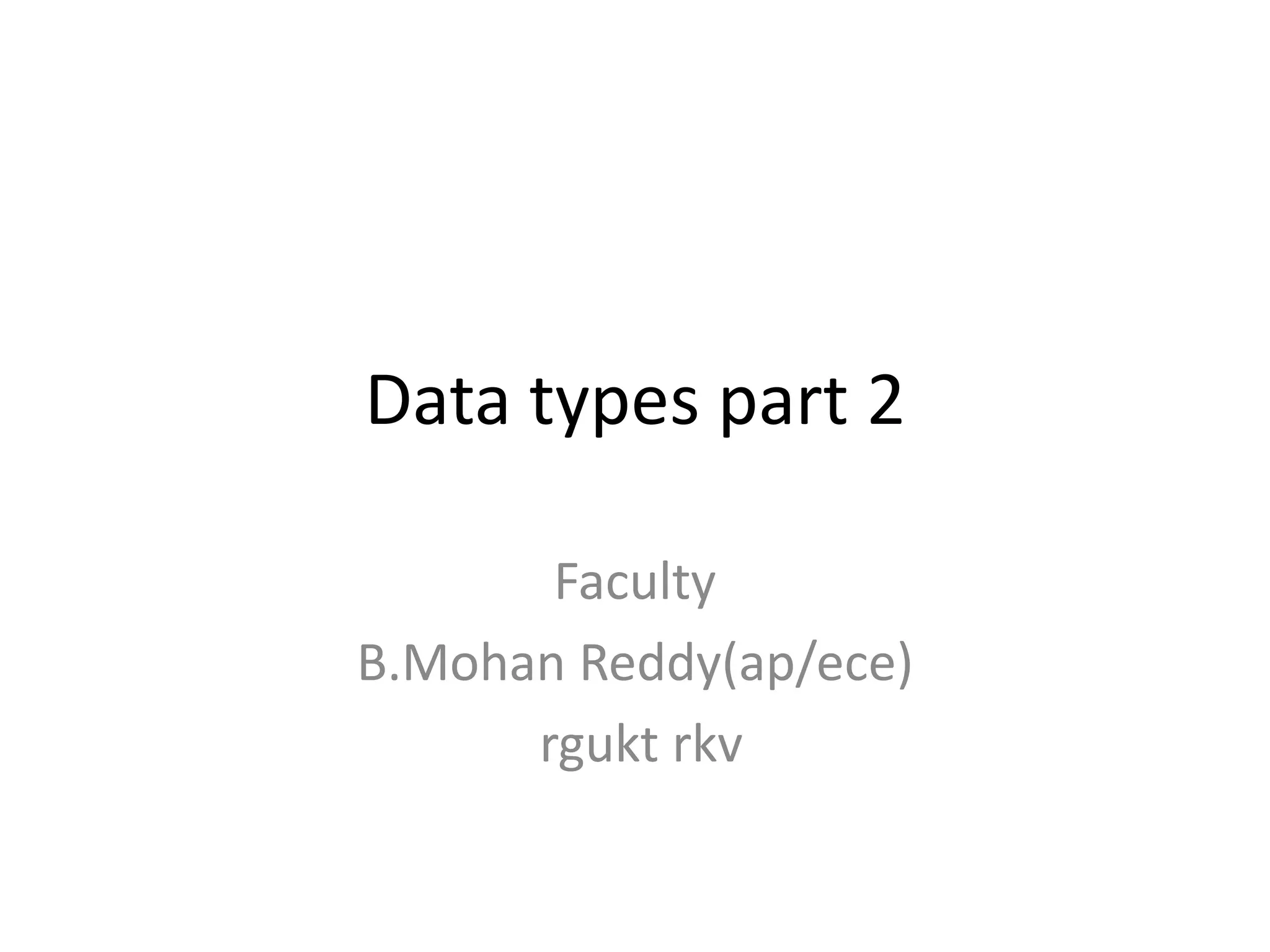

1. Data types part 2
Faculty
B.Mohan Reddy(ap/ece)
rgukt rkv

2. Type conversions
• 1.static casting:
module ExampleStaticCasting;
logic [3:0] a;
logic signed [3:0] b;
logic signed [7:0] c;
initial begin
// Initialize a to 4-bit binary value 1010
a = 4'b1010;
// Static casting from 4-bit unsigned to 4-bit signed
b = signed'(a);
// Static casting from 4-bit signed to 8-bit signed
c = signed'(b);
// Display the values
$display("a: %0d, b: %0d, c: %0d", a, b, c);
end
endmodule
Example 2:
int i;
real r;
i=int’(10.0-0.1);
r= real’(42);

3. Contd..
• Dynamic casting: using $cast
• 1.It allows to check for out of bound values
• 2.It can be used as a function or as a task

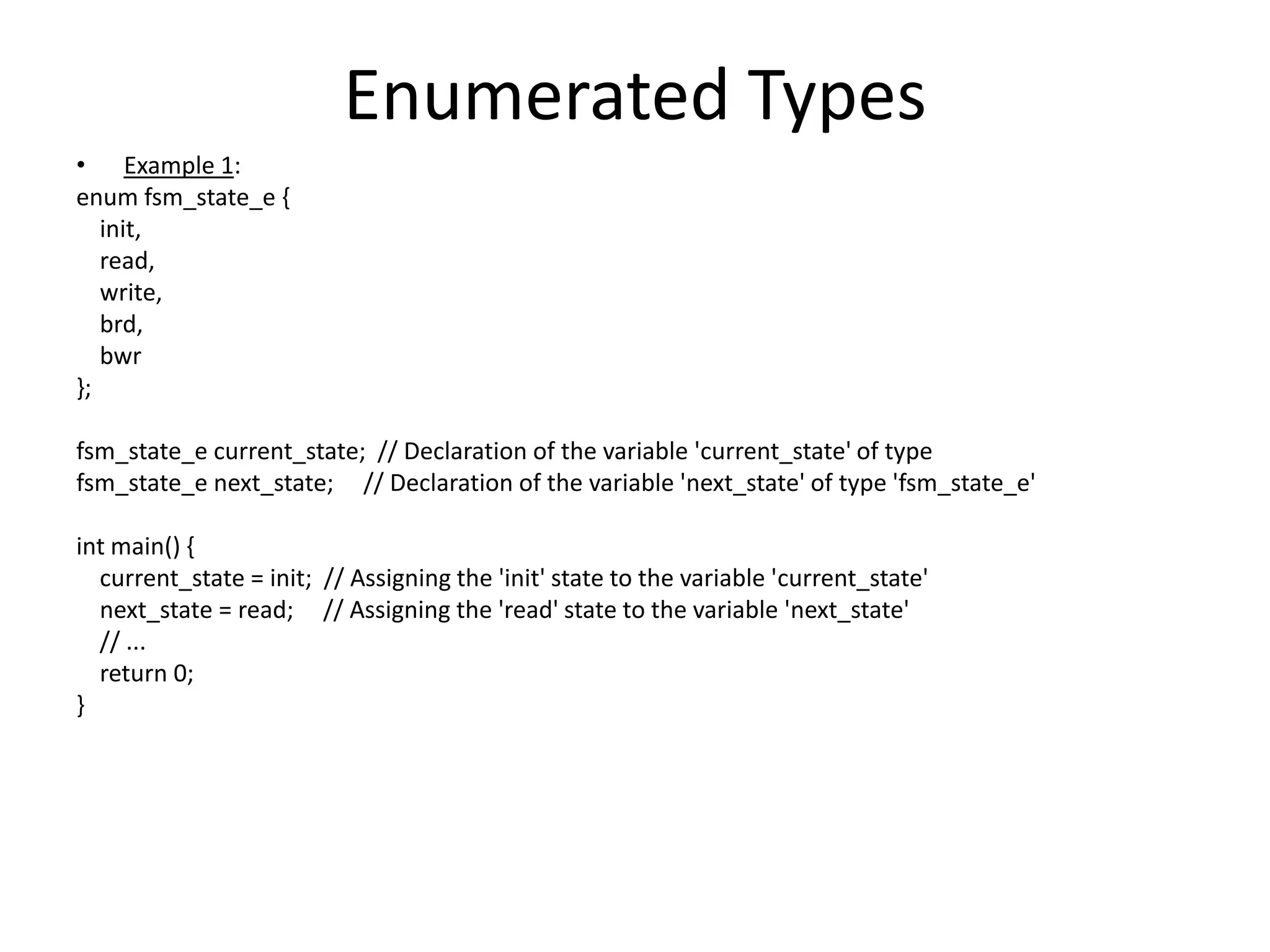

4. Enumerated Types
• Example 1:
enum fsm_state_e {
init,
read,
write,
brd,
bwr
};
fsm_state_e current_state; // Declaration of the variable 'current_state' of type
fsm_state_e next_state; // Declaration of the variable 'next_state' of type 'fsm_state_e'
int main() {
current_state = init; // Assigning the 'init' state to the variable 'current_state'
next_state = read; // Assigning the 'read' state to the variable 'next_state'
// ...
return 0;
}

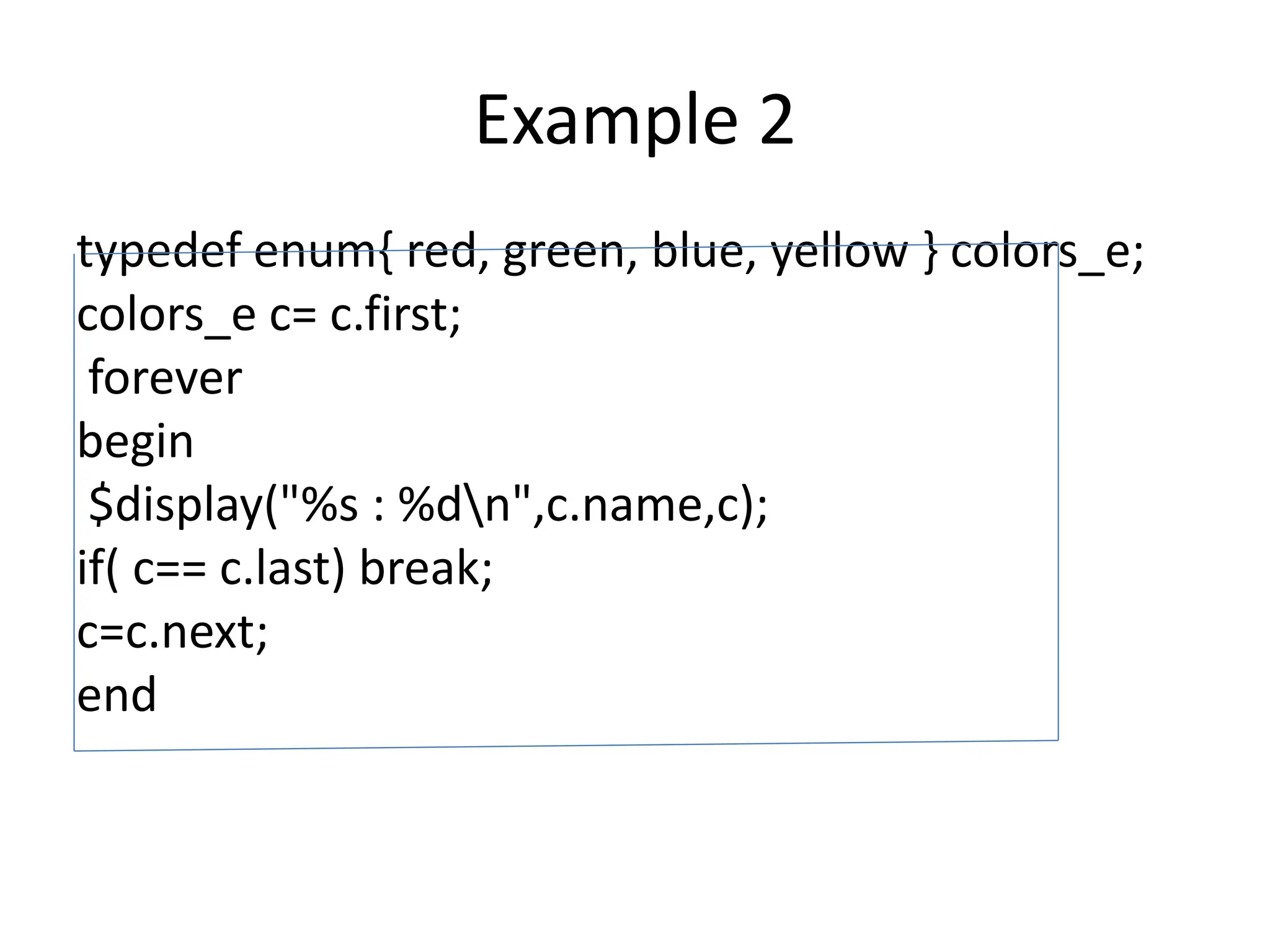

5. Example 2
typedef enum{ red, green, blue, yellow } colors_e;
colors_e c= c.first;
forever
begin
$display("%s : %dn",c.name,c);
if( c== c.last) break;
c=c.next;
end

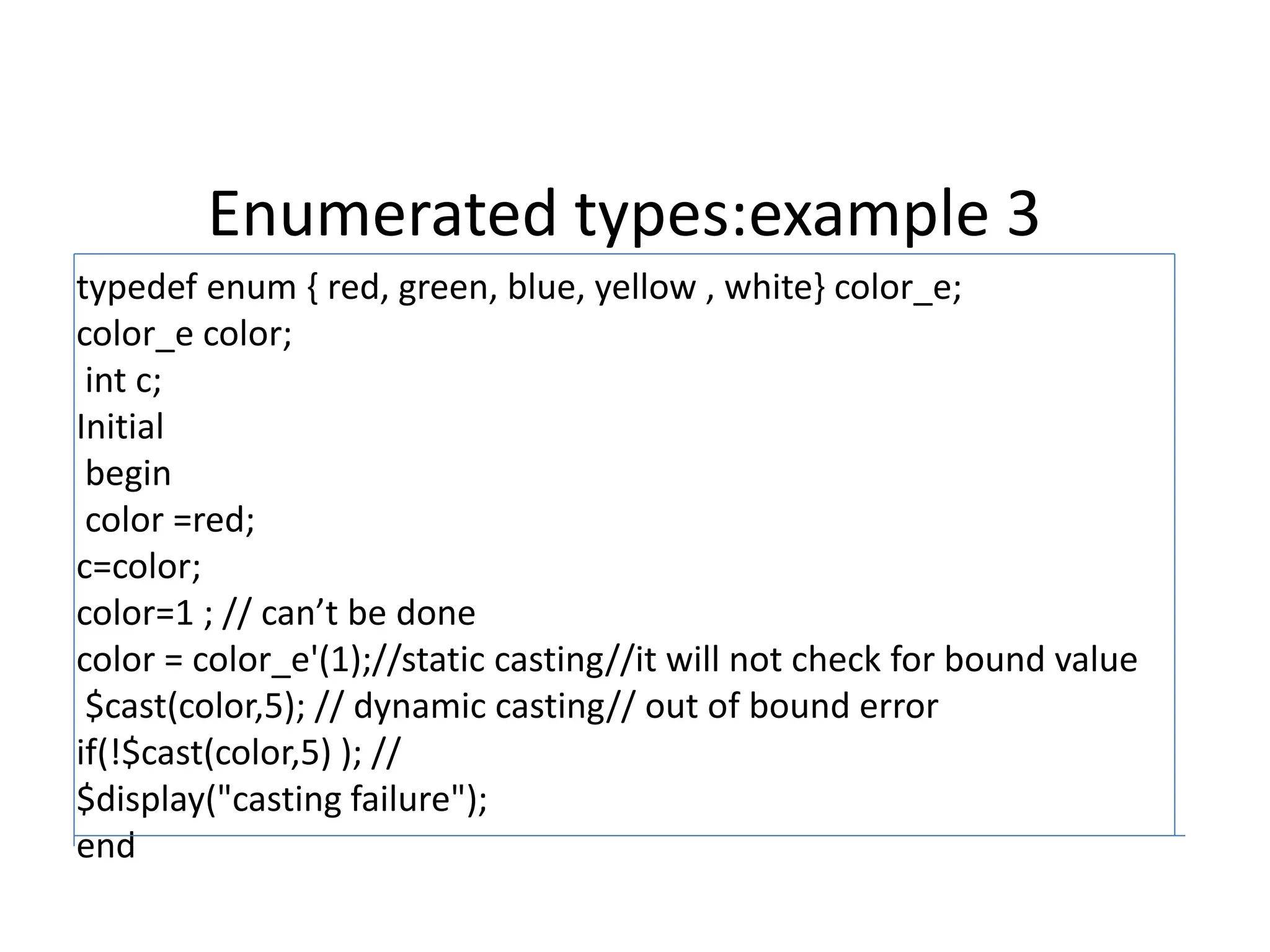

6. Enumerated types:example 3
typedef enum { red, green, blue, yellow , white} color_e;
color_e color;
int c;
Initial
begin
color =red;
c=color;
color=1 ; // can’t be done
color = color_e'(1);//static casting//it will not check for bound value
$cast(color,5); // dynamic casting// out of bound error
if(!$cast(color,5) ); //
$display("casting failure");
end

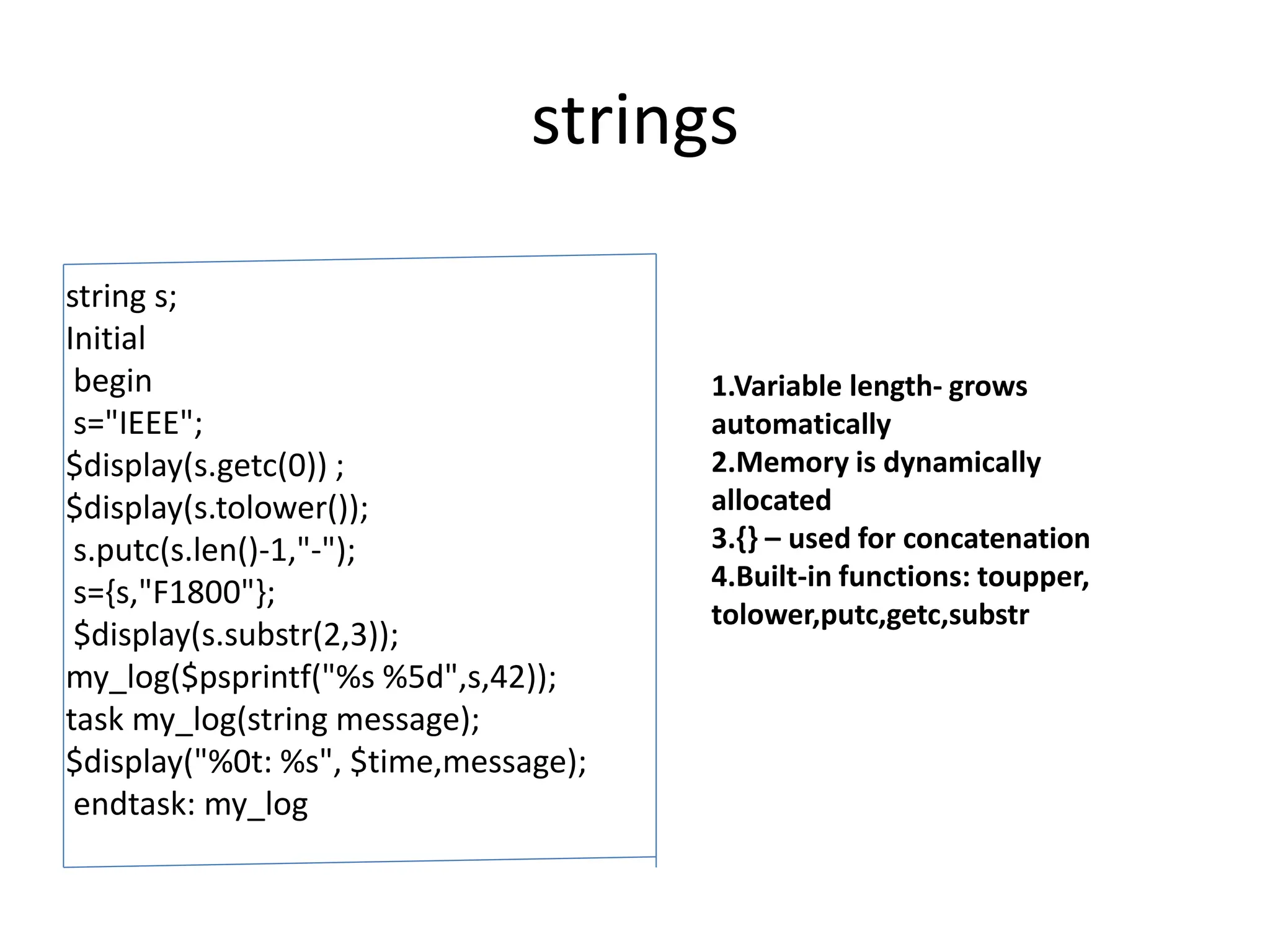

7. strings
string s;
Initial
begin
s="IEEE";
$display(s.getc(0)) ;
$display(s.tolower());
s.putc(s.len()-1,"-");
s={s,"F1800"};
$display(s.substr(2,3));
my_log($psprintf("%s %5d",s,42));
task my_log(string message);
$display("%0t: %s", $time,message);
endtask: my_log
1.Variable length- grows
automatically
2.Memory is dynamically
allocated
3.{} – used for concatenation
4.Built-in functions: toupper,
tolower,putc,getc,substr

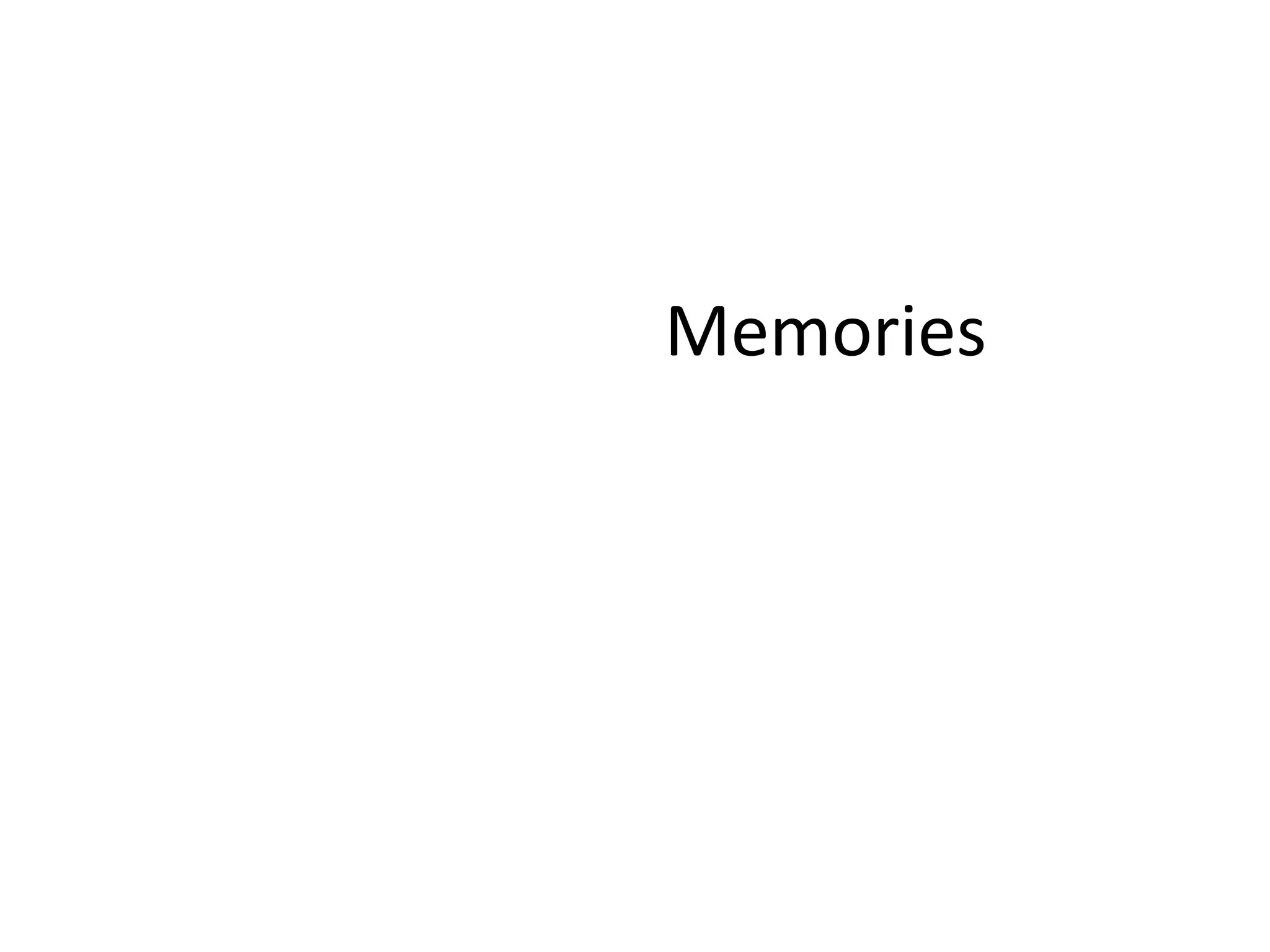

8. Memories

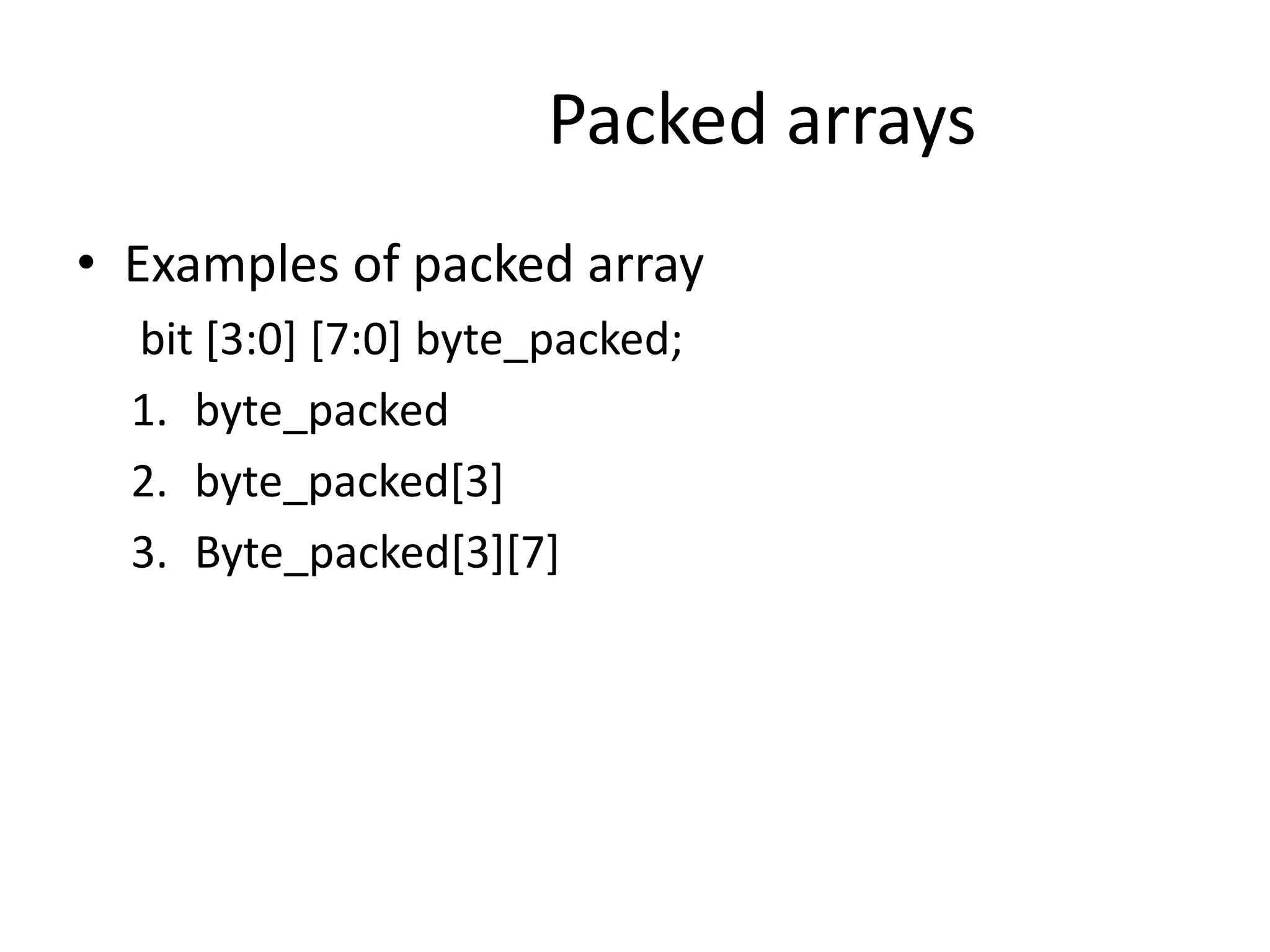

9. Packed arrays
• Examples of packed array
bit [3:0] [7:0] byte_packed;
1. byte_packed
2. byte_packed[3]
3. Byte_packed[3][7]

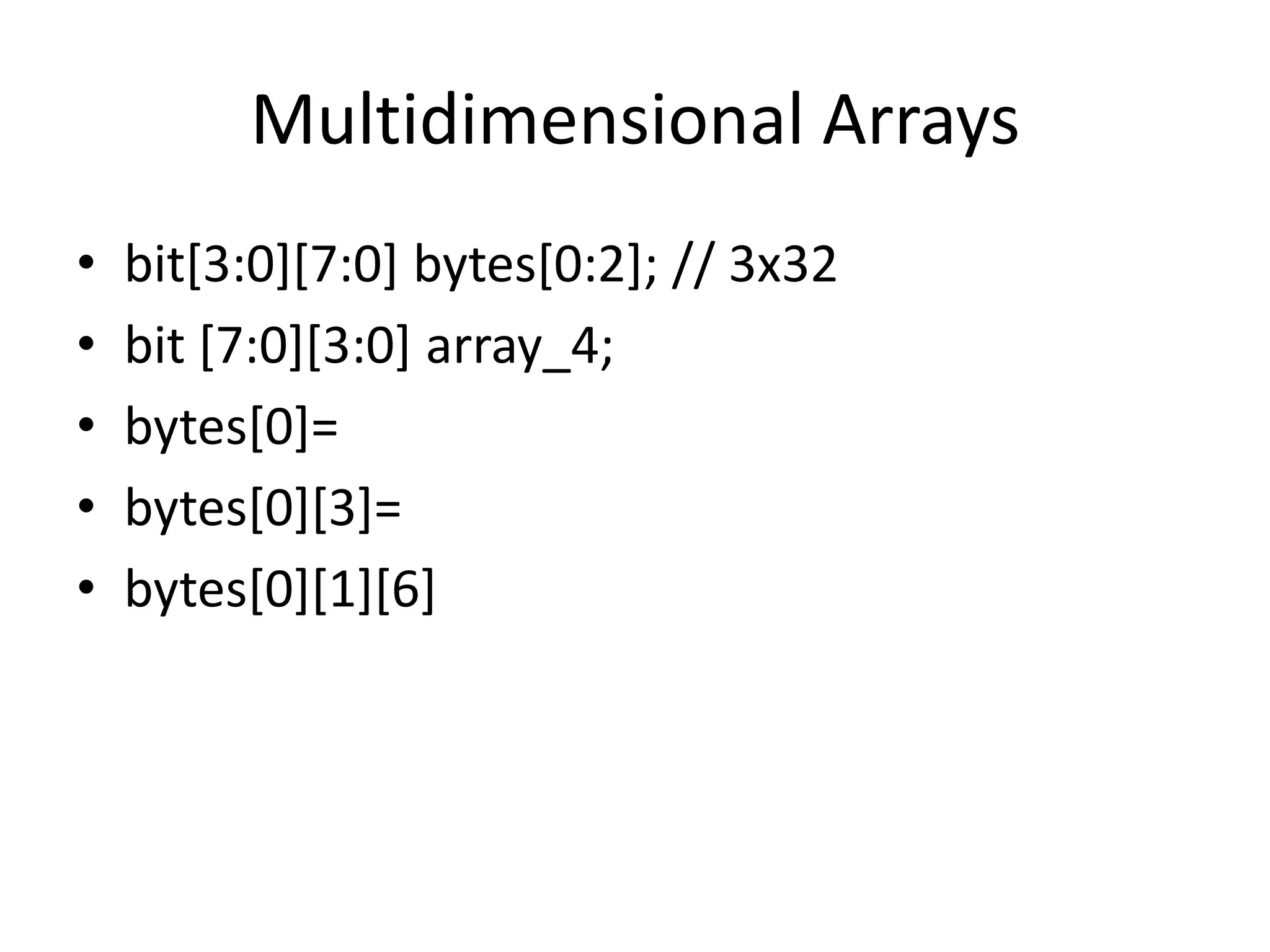

10. Multidimensional Arrays
• bit[3:0][7:0] bytes[0:2]; // 3x32
• bit [7:0][3:0] array_4;
• bytes[0]=
• bytes[0][3]=
• bytes[0][1][6]

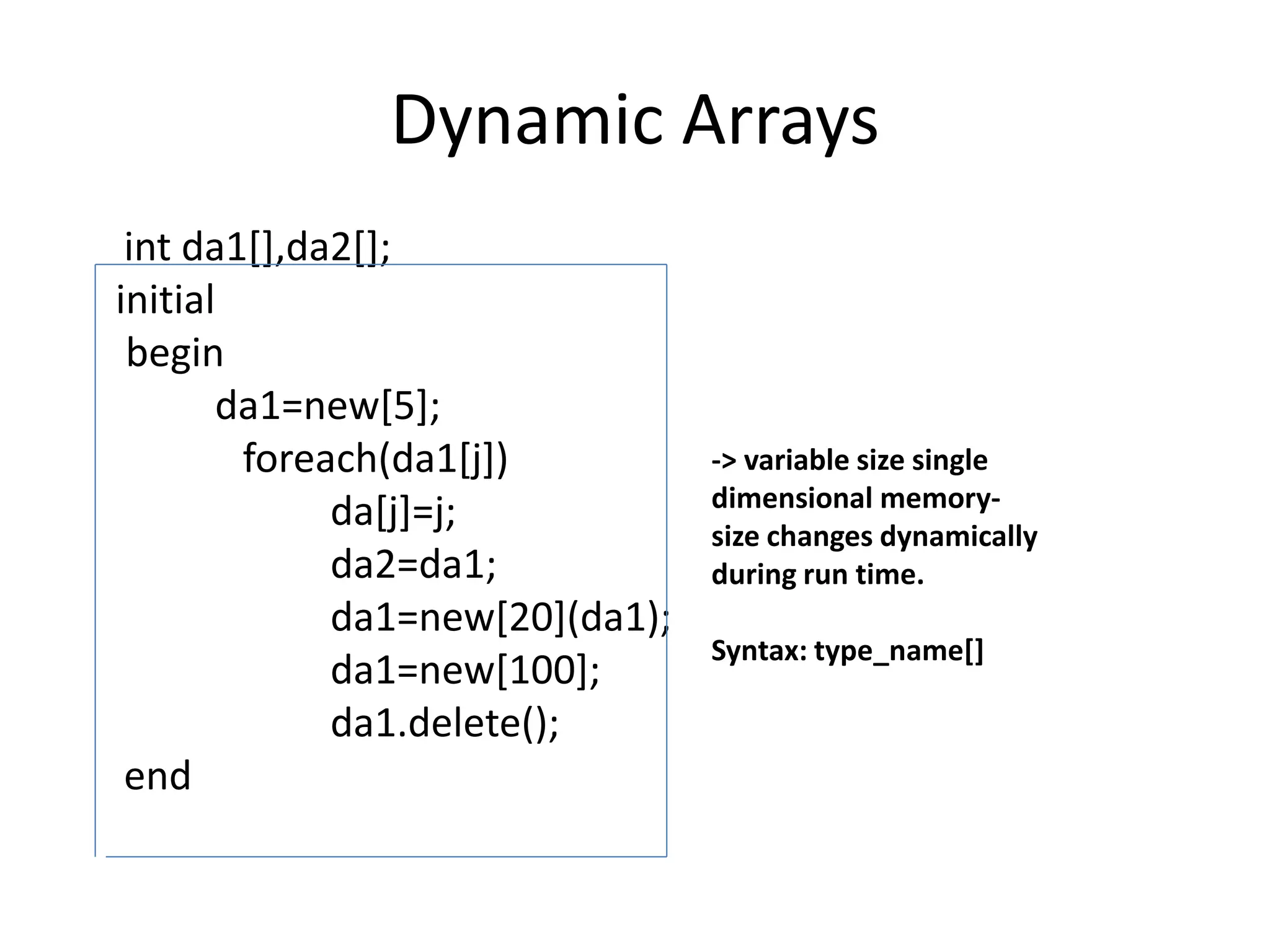

11. Dynamic Arrays
int da1[],da2[];
initial
begin
da1=new[5];
foreach(da1[j])
da[j]=j;
da2=da1;
da1=new[20](da1);
da1=new[100];
da1.delete();
end
-> variable size single
dimensional memory-
size changes dynamically
during run time.
Syntax: type_name[]

12. queues
• Flexible memory – variable sizing
• Single dimensional array with automatic sizing
• Many searching,sorting, and insertion
methods
Syntax: type_name[$]

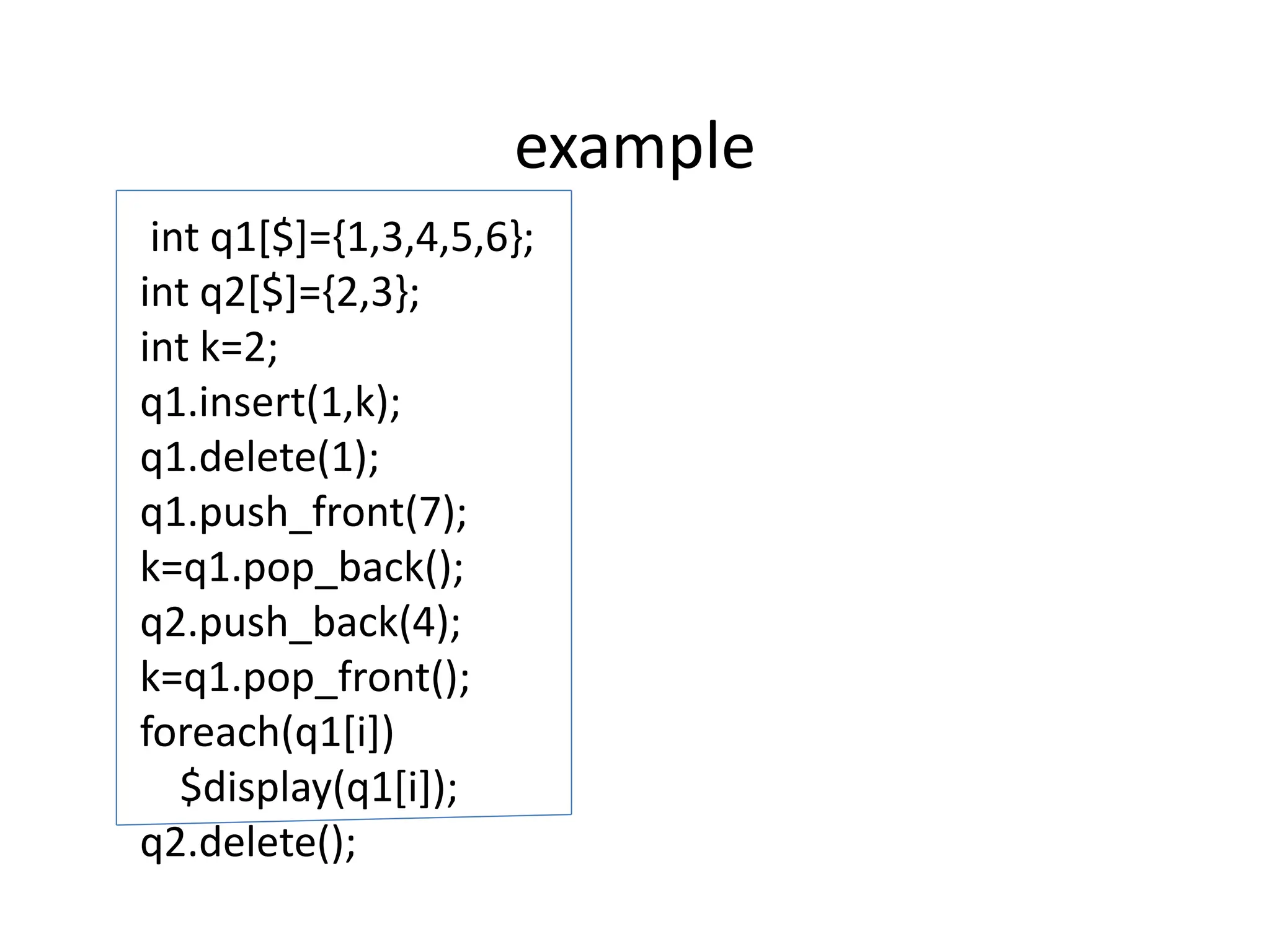

13. example
int q1[$]={1,3,4,5,6};
int q2[$]={2,3};
int k=2;
q1.insert(1,k);
q1.delete(1);
q1.push_front(7);
k=q1.pop_back();
q2.push_back(4);
k=q1.pop_front();
foreach(q1[i])
$display(q1[i]);
q2.delete();

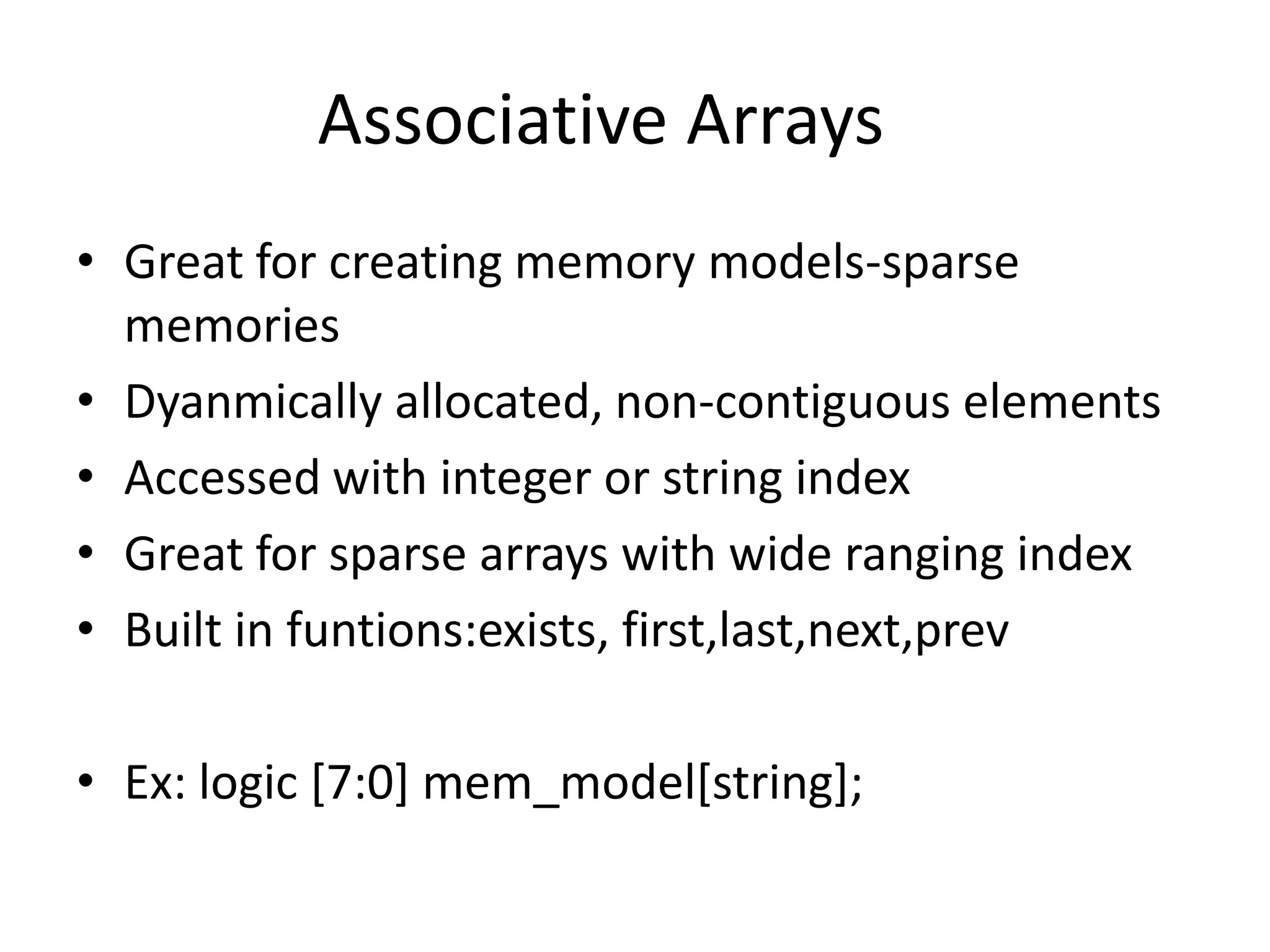

14. Associative Arrays
• Great for creating memory models-sparse
memories
• Dyanmically allocated, non-contiguous elements
• Accessed with integer or string index
• Great for sparse arrays with wide ranging index
• Built in funtions:exists, first,last,next,prev
• Ex: logic [7:0] mem_model[string];

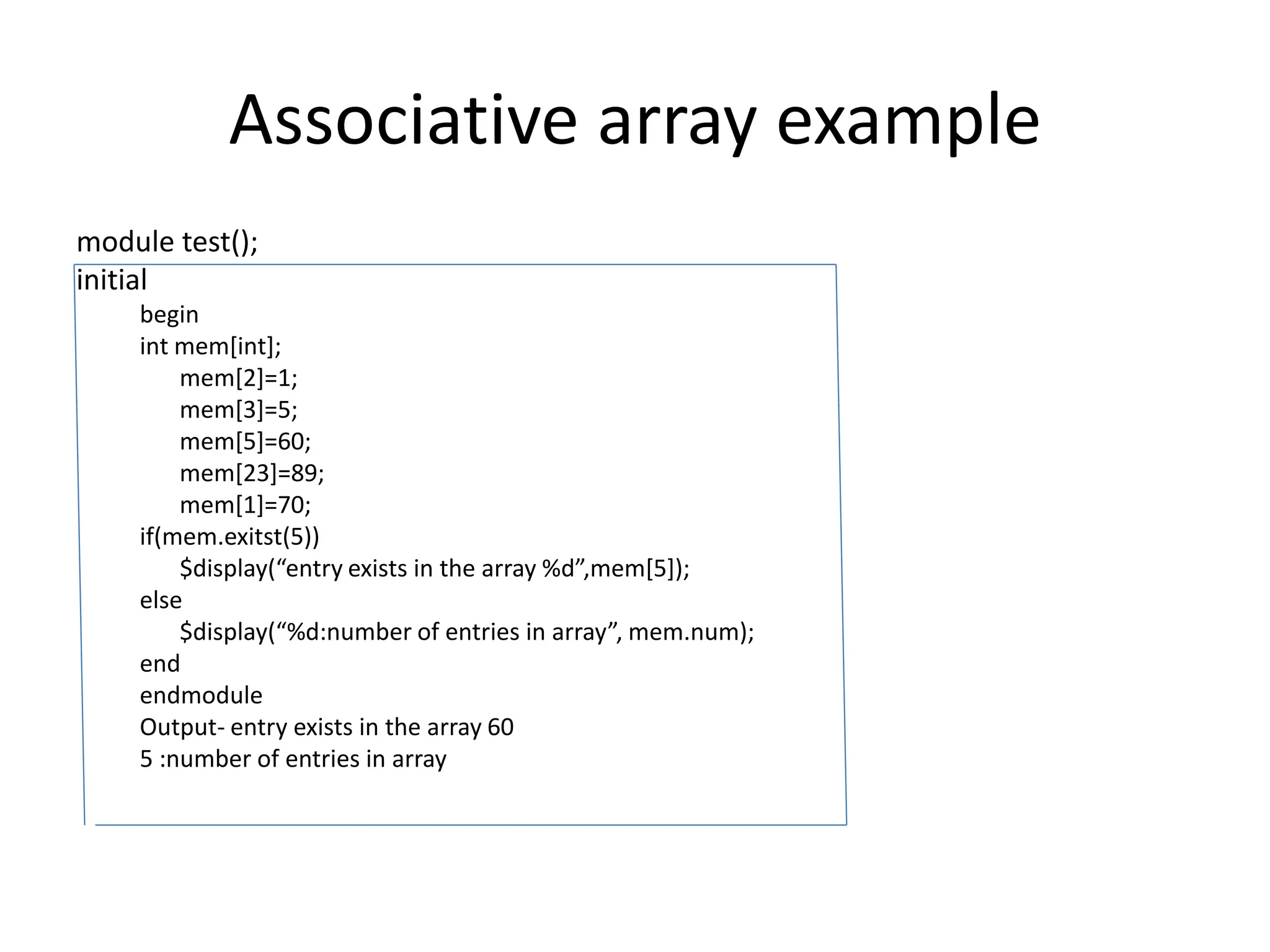

15. Associative array example
module test();
initial
begin
int mem[int];
mem[2]=1;
mem[3]=5;
mem[5]=60;
mem[23]=89;
mem[1]=70;
if(mem.exitst(5))
$display(“entry exists in the array %d”,mem[5]);
else
$display(“%d:number of entries in array”, mem.num);
end
endmodule
Output- entry exists in the array 60
5 :number of entries in array

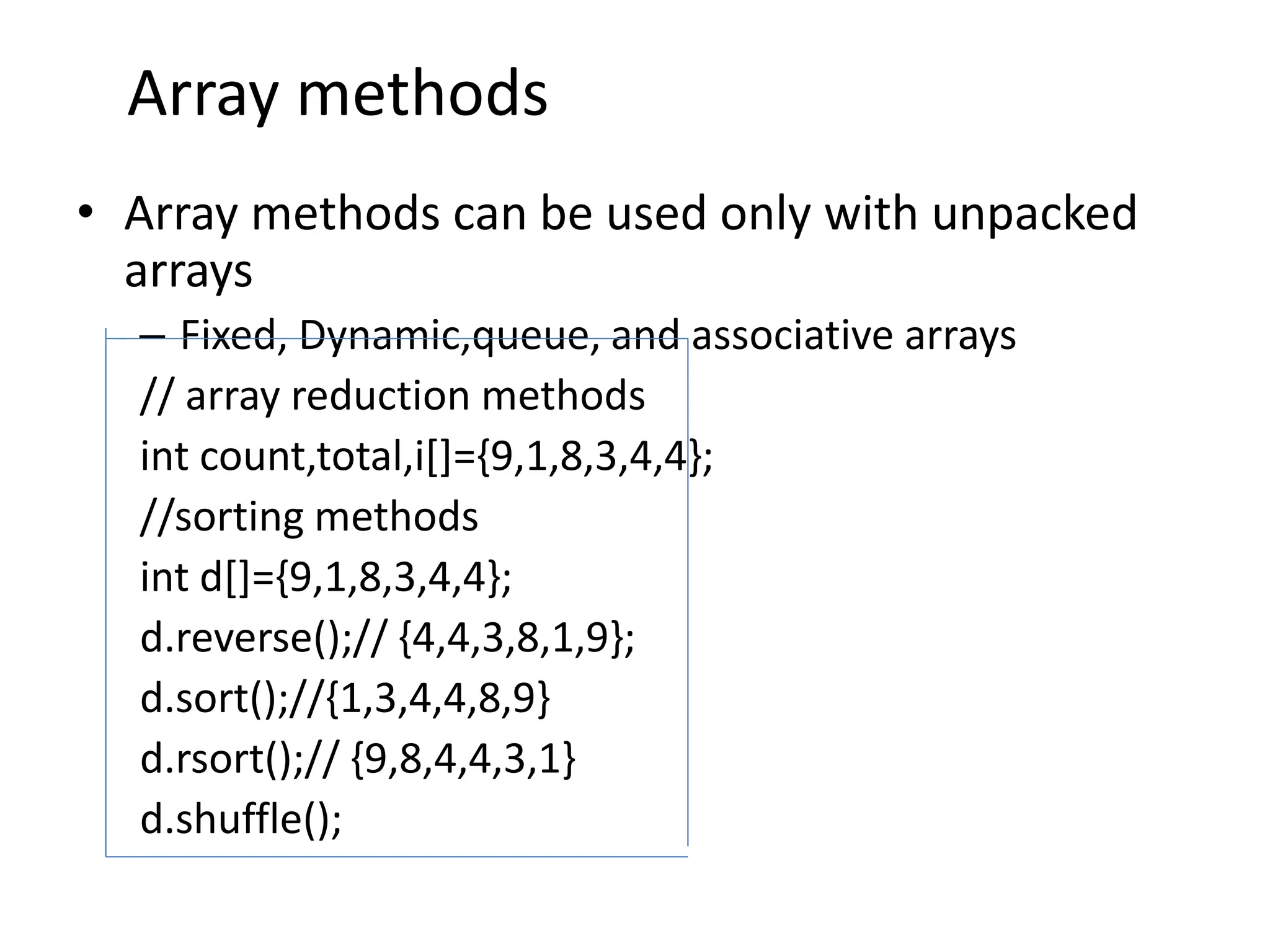

16. Array methods
• Array methods can be used only with unpacked
arrays
– Fixed, Dynamic,queue, and associative arrays
// array reduction methods
int count,total,i[]={9,1,8,3,4,4};
//sorting methods
int d[]={9,1,8,3,4,4};
d.reverse();// {4,4,3,8,1,9};
d.sort();//{1,3,4,4,8,9}
d.rsort();// {9,8,4,4,3,1}
d.shuffle();

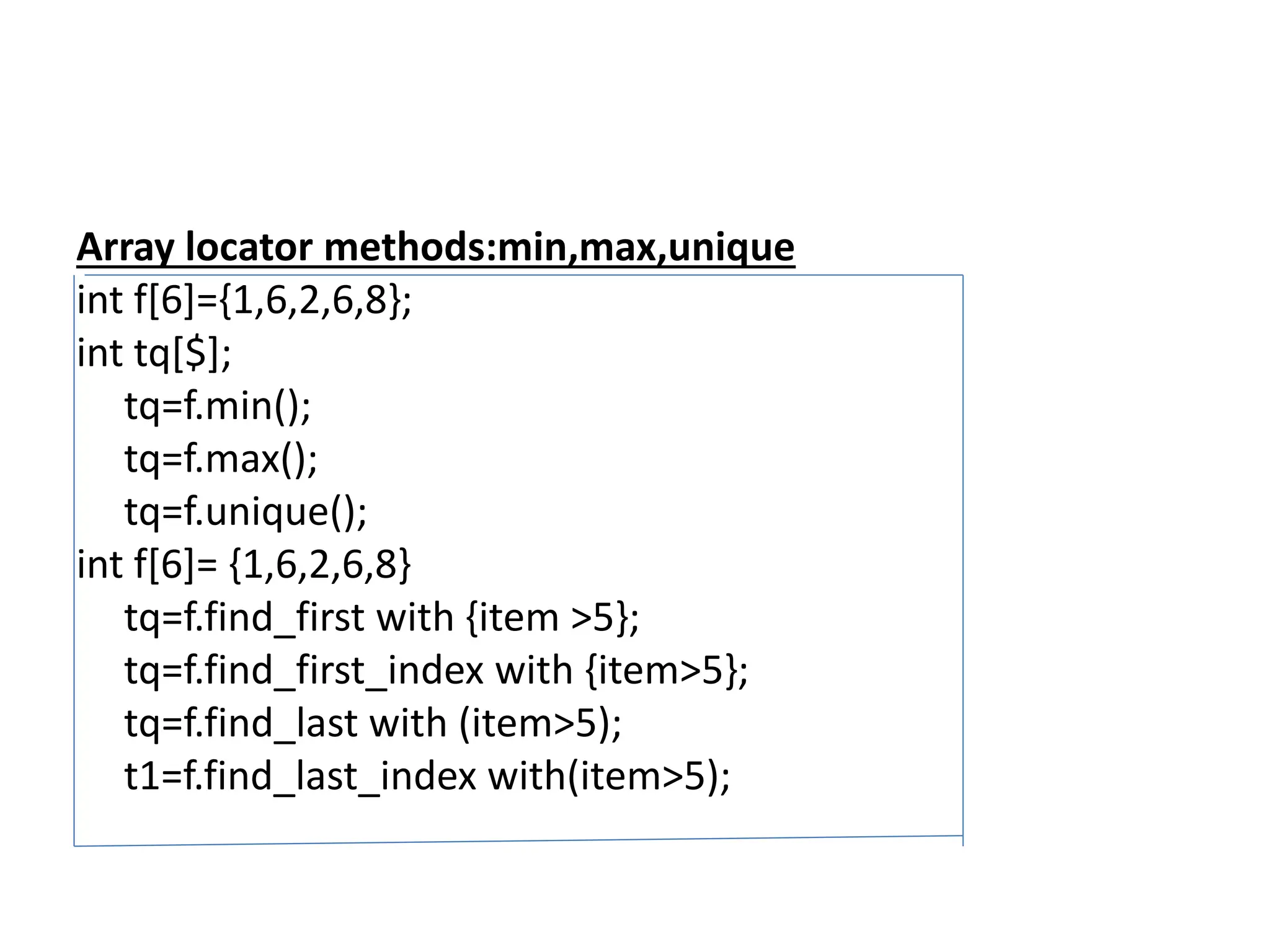

17. Array locator methods:min,max,unique
int f[6]={1,6,2,6,8};
int tq[$];
tq=f.min();
tq=f.max();
tq=f.unique();
int f[6]= {1,6,2,6,8}
tq=f.find_first with {item >5};
tq=f.find_first_index with {item>5};
tq=f.find_last with (item>5);
t1=f.find_last_index with(item>5);
