Dr. SubraMANI Paramasivam is a CEO and principal consultant with extensive experience in data modeling. He discusses X-Events in SQL Server, which provide efficient event handling and monitoring with low system resource usage. The document demonstrates how to build packages to contain events, actions, targets, and predicates in X-Events. It also shows how to capture event data to an XML file target and analyze the results to find long-running queries.

1. www.dageop.com
Data
Modeling
®
DM-04 X-Events
DR. SUBRAMANI
PARAMASIVAM
(MANI)

2. About
me
Dr. SubraMANI Paramasivam
PhD., MCT, MCSE, MCITP, MCP, MCTS, MCSA
CEO, Principal Consultant & Trainer
@ DAGEOP (UK)
Email: mani@dageop.com
Blog: http://dataap.org/blog
Follow
Us
https://www.facebook.com/pages/YOUR-SQL-MAN-LTD/
http://www.youtube.com/user/YourSQLMAN
https://twitter.com/dageop
https://uk.linkedin.com/in/dageop
Proud Sponsor
• SQLBits
• SQL Saturdays
• MCT Summit
• SQL Server Geeks
Summit
• Data Awareness
Programme
• Dageop’s Data Day
®
www.DataAP.org
SPEAKER

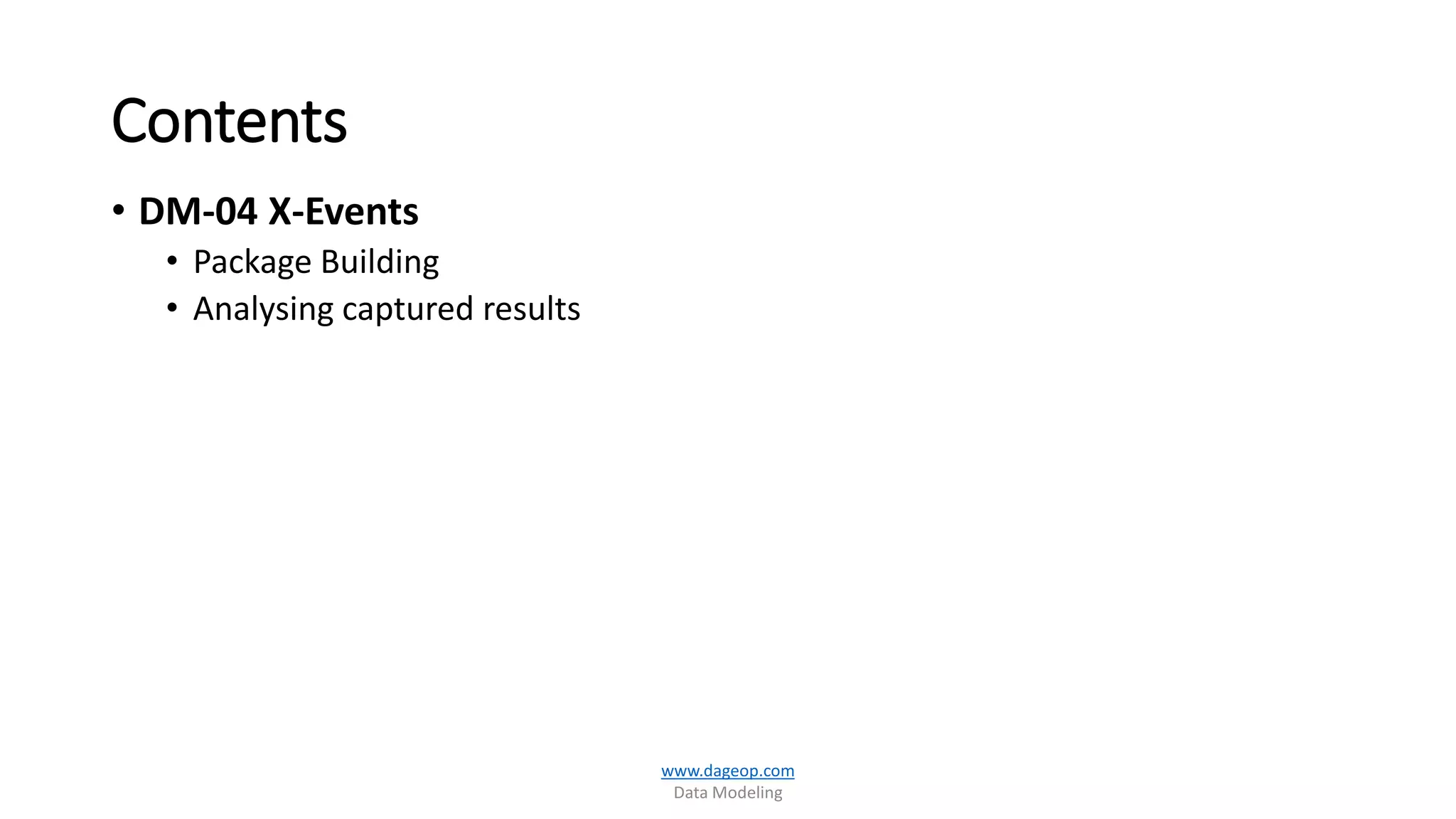

3. Contents
• DM-04 X-Events
• Package Building
• Analysing captured results
www.dageop.com
Data Modeling

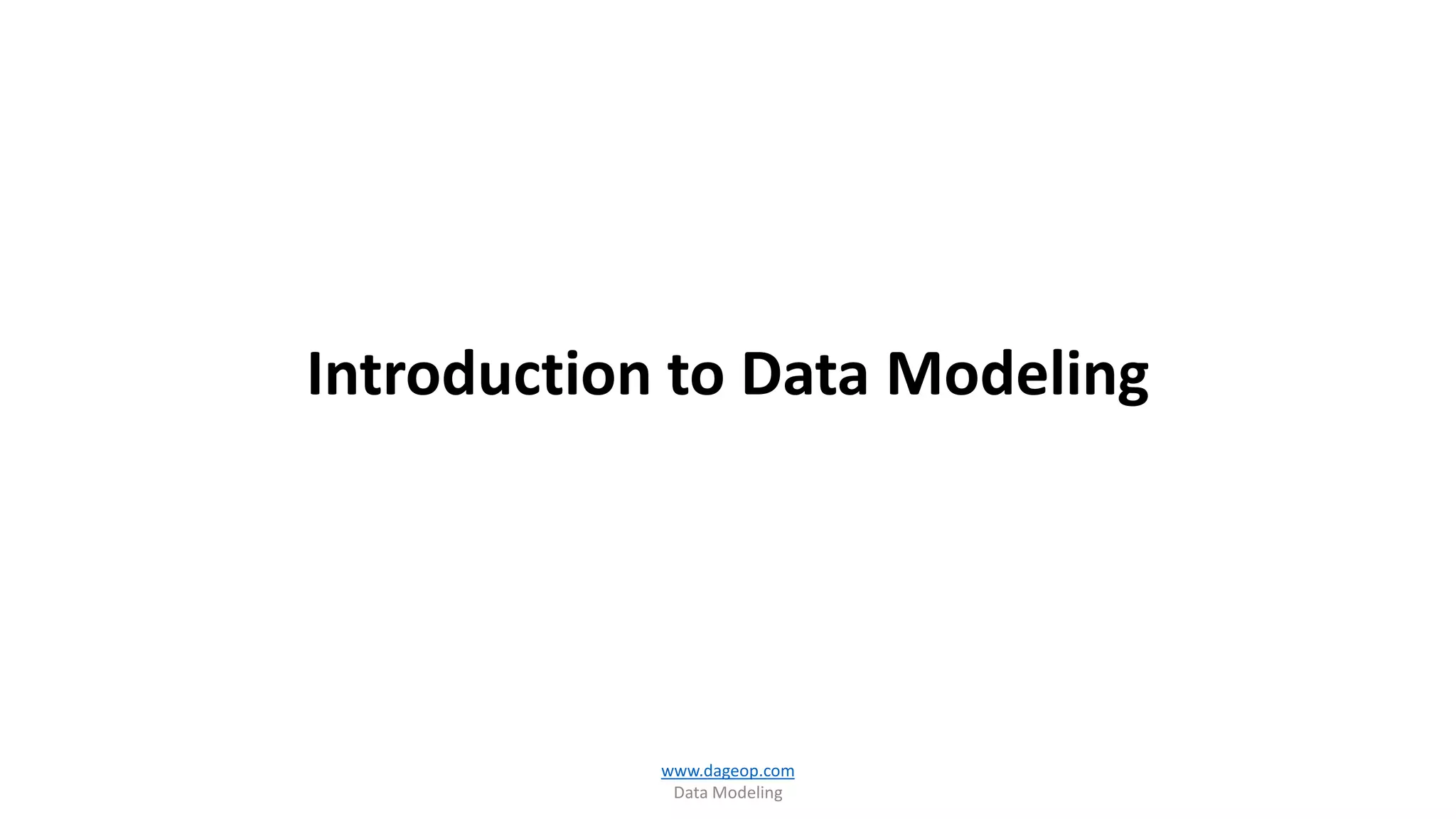

4. Introduction to Data Modeling
www.dageop.com
Data Modeling

5. Introduction to Data Modeling

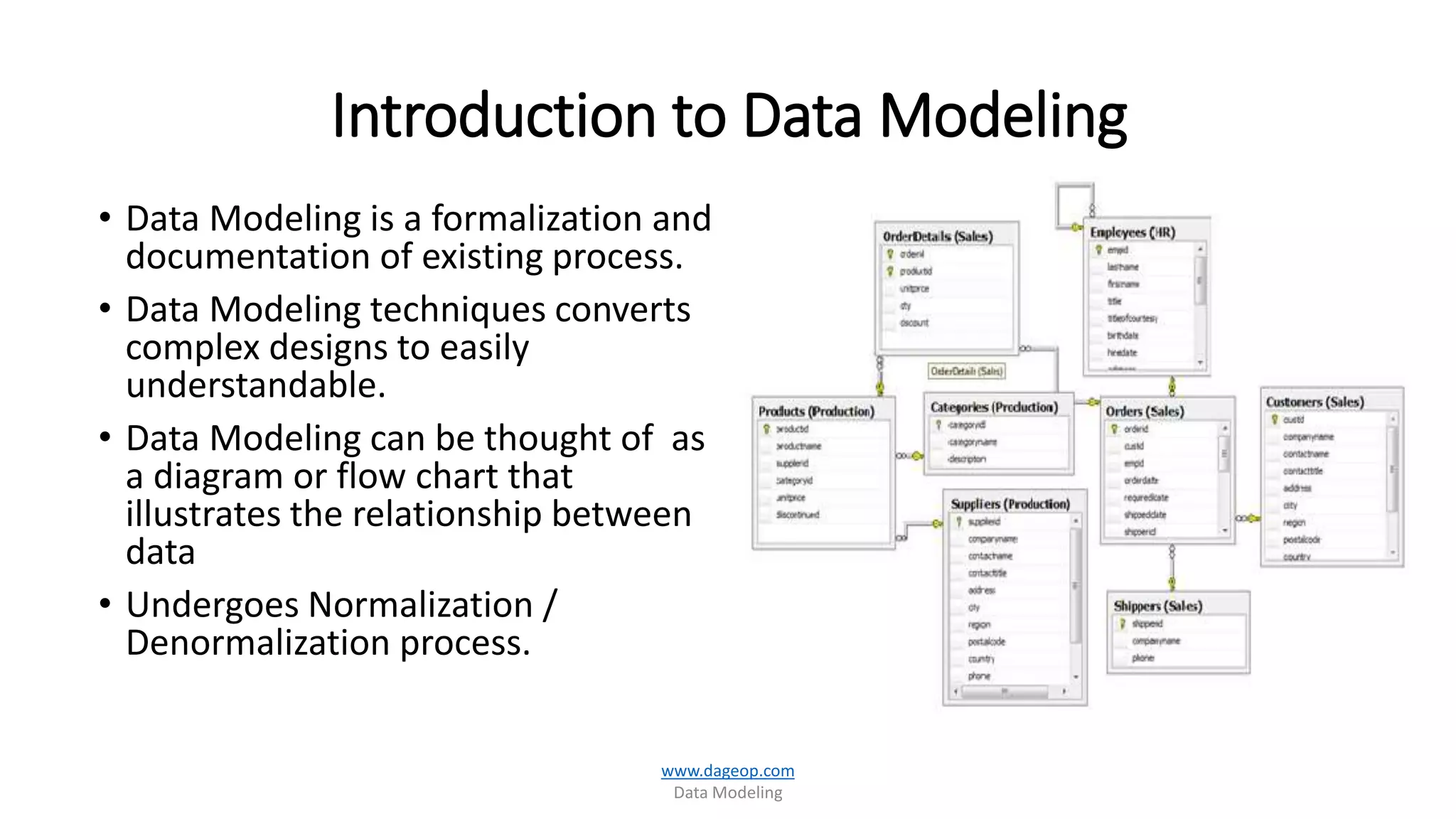

• Data Modeling is a formalization and
documentation of existing process.
• Data Modeling techniques converts
complex designs to easily
understandable.
• Data Modeling can be thought of as
a diagram or flow chart that
illustrates the relationship between
data
• Undergoes Normalization /
Denormalization process.
www.dageop.com
Data Modeling

6. Introduction to Data Modeling

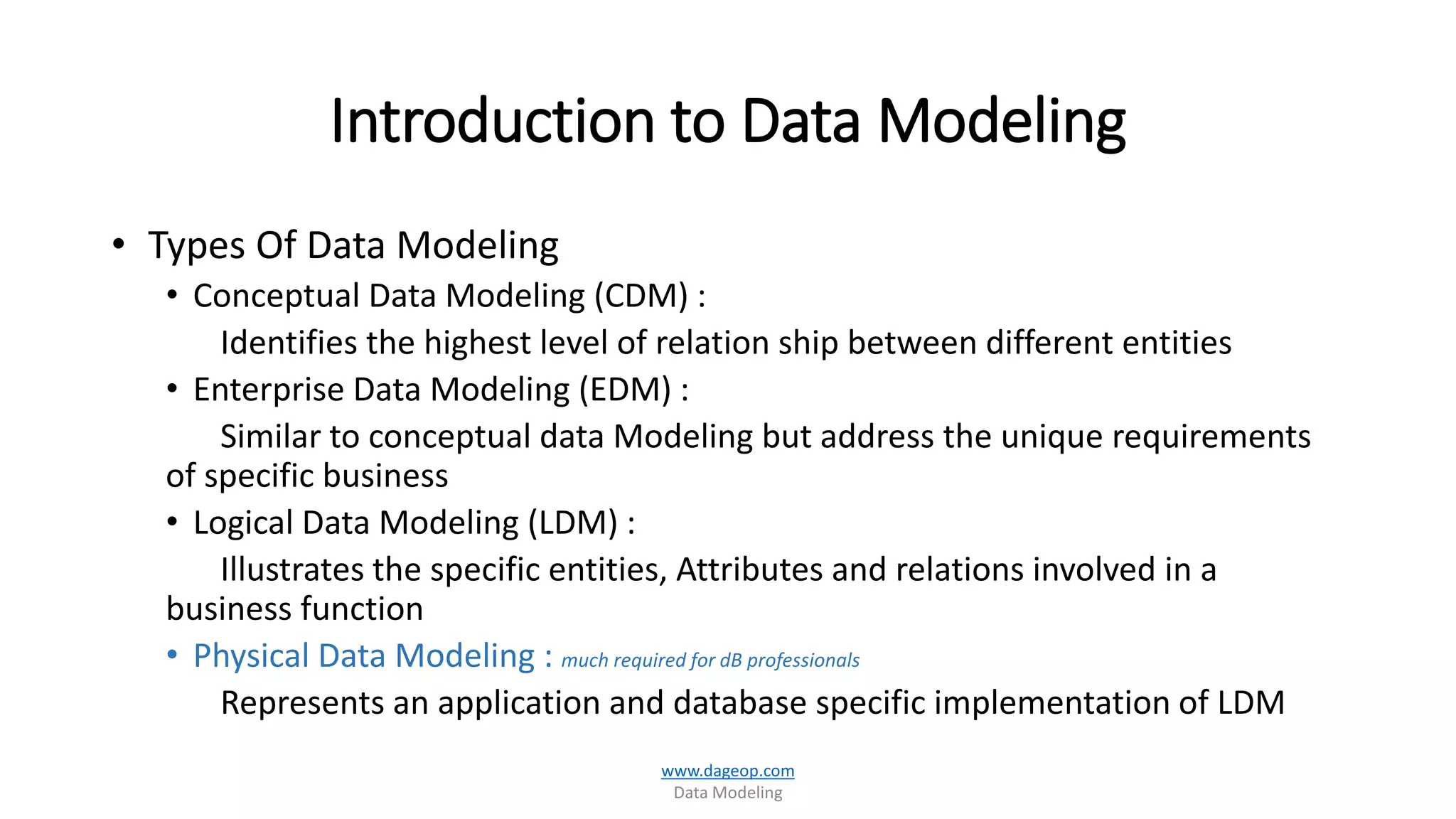

• Types Of Data Modeling
• Conceptual Data Modeling (CDM) :
Identifies the highest level of relation ship between different entities
• Enterprise Data Modeling (EDM) :
Similar to conceptual data Modeling but address the unique requirements
of specific business
• Logical Data Modeling (LDM) :
Illustrates the specific entities, Attributes and relations involved in a
business function
• Physical Data Modeling : much required for dB professionals
Represents an application and database specific implementation of LDM
www.dageop.com
Data Modeling

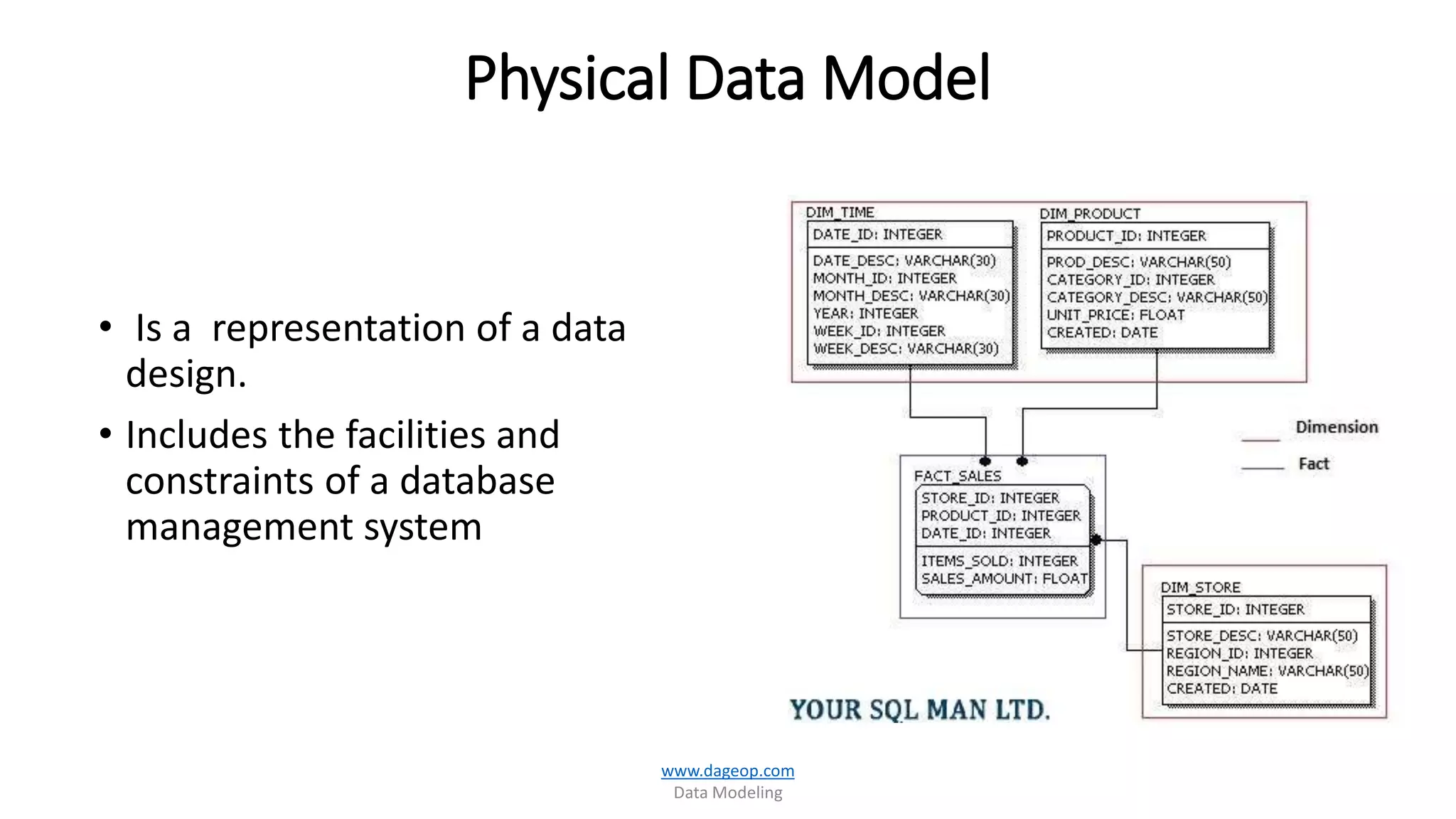

7. Physical Data Model
• Is a representation of a data
design.
• Includes the facilities and
constraints of a database
management system
www.dageop.com
Data Modeling

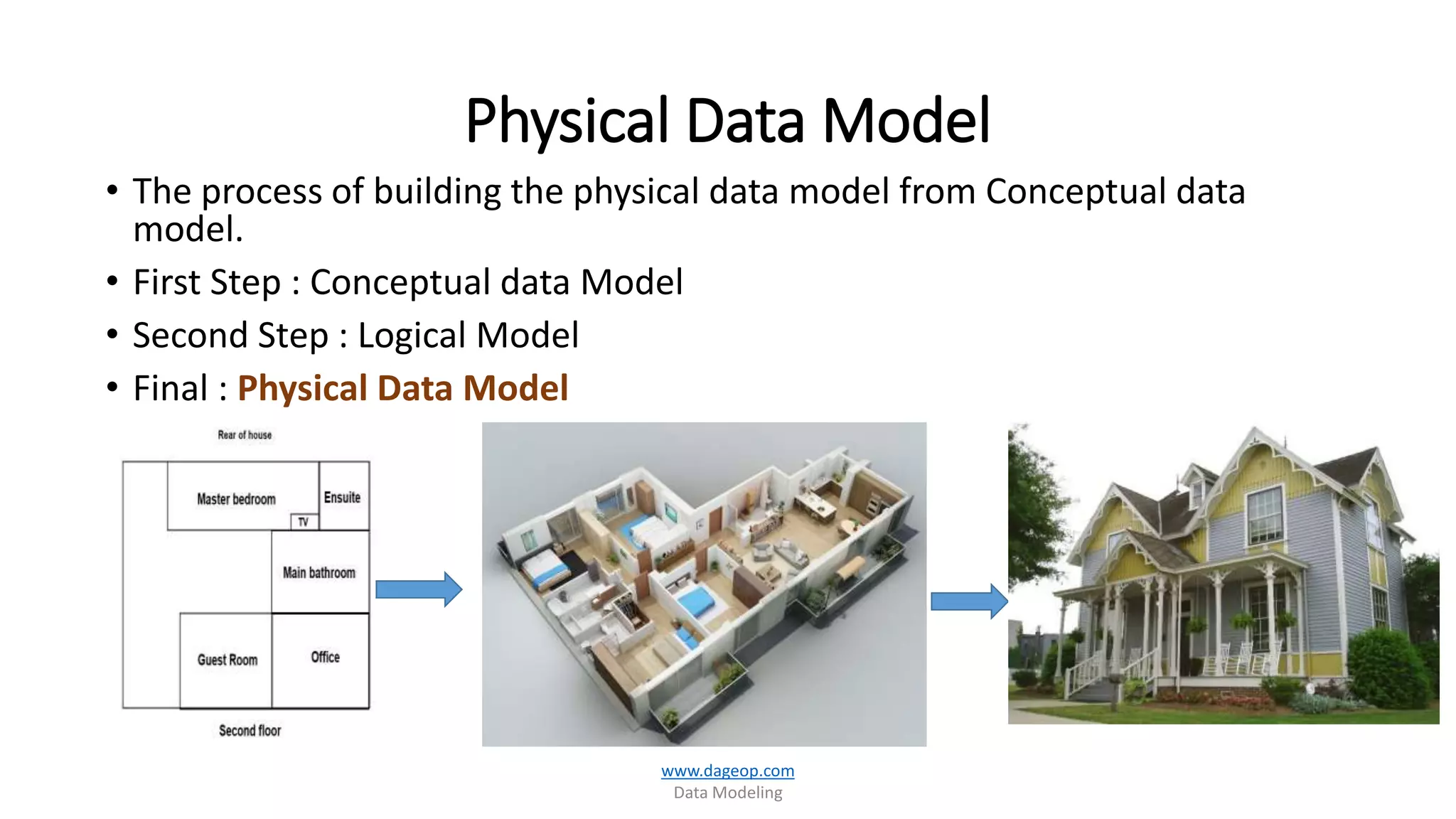

8. Physical Data Model
• The process of building the physical data model from Conceptual data
model.
• First Step : Conceptual data Model
• Second Step : Logical Model
• Final : Physical Data Model
www.dageop.com
Data Modeling

9. Physical Data Model

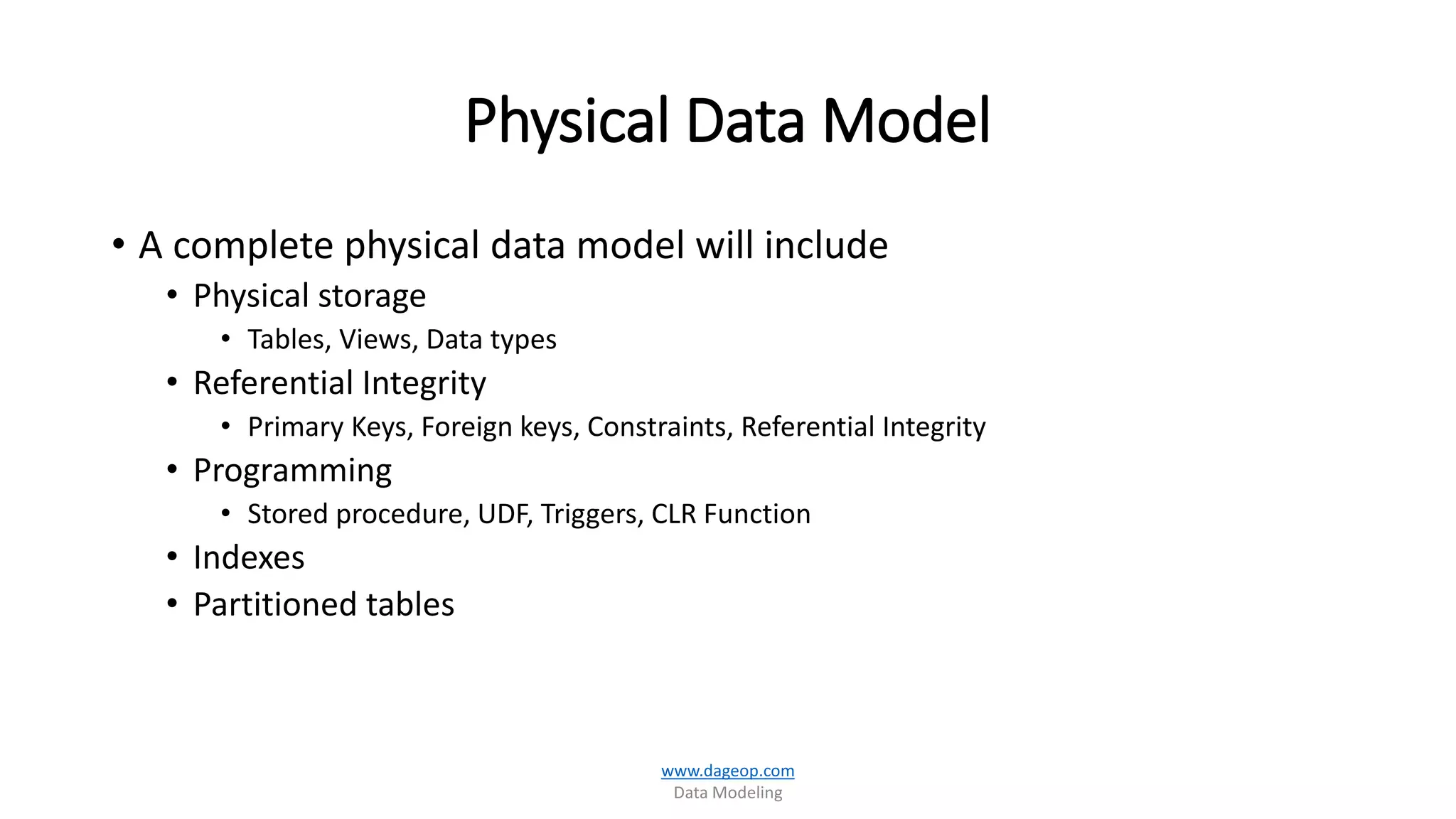

• A complete physical data model will include
• Physical storage
• Tables, Views, Data types
• Referential Integrity
• Primary Keys, Foreign keys, Constraints, Referential Integrity
• Programming
• Stored procedure, UDF, Triggers, CLR Function
• Indexes
• Partitioned tables
www.dageop.com
Data Modeling

10. DM-04 X-Events
www.dageop.com
Data Modeling

11. X-Events

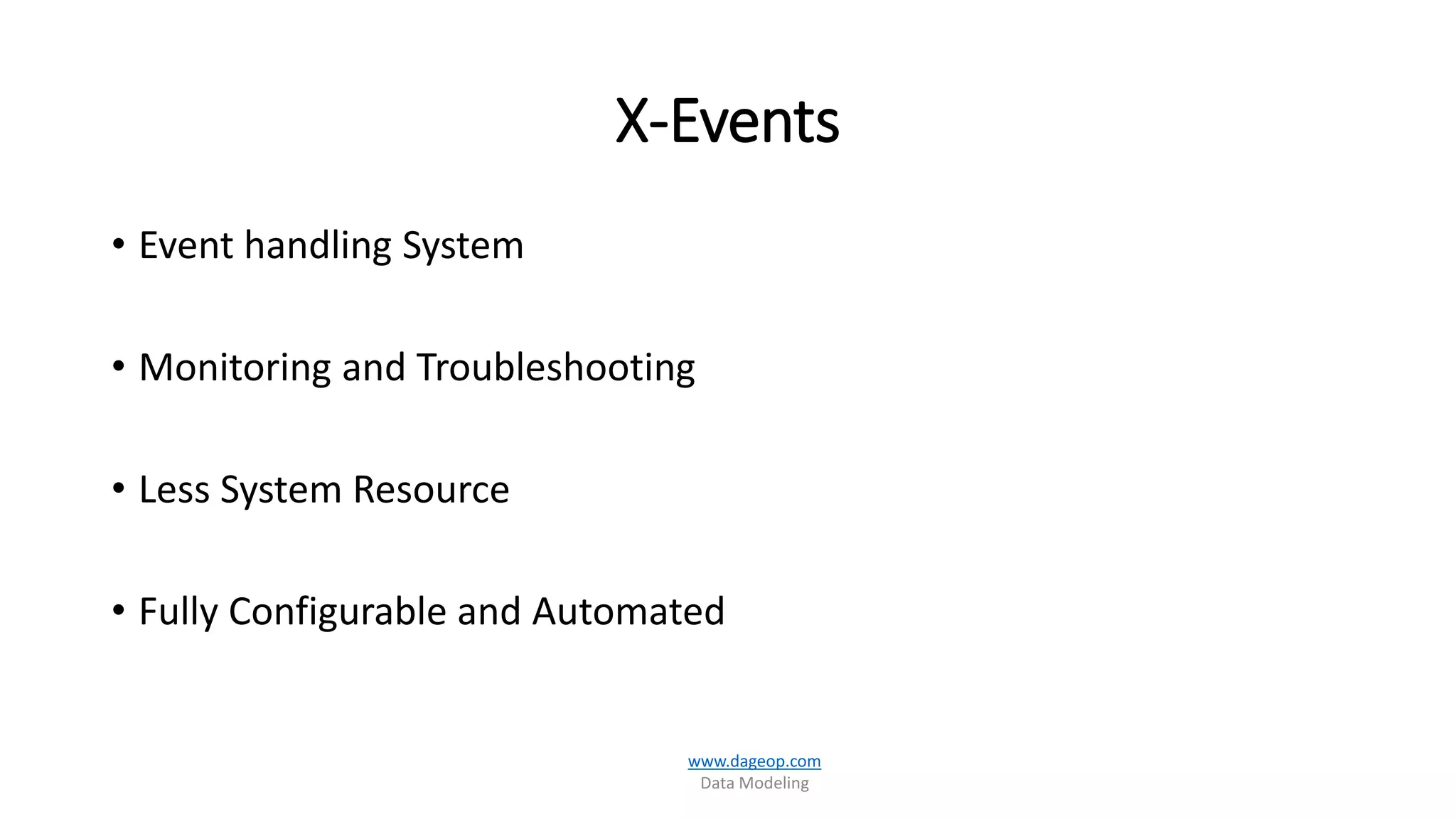

• Event handling System
• Monitoring and Troubleshooting
• Less System Resource
• Fully Configurable and Automated
www.dageop.com
Data Modeling

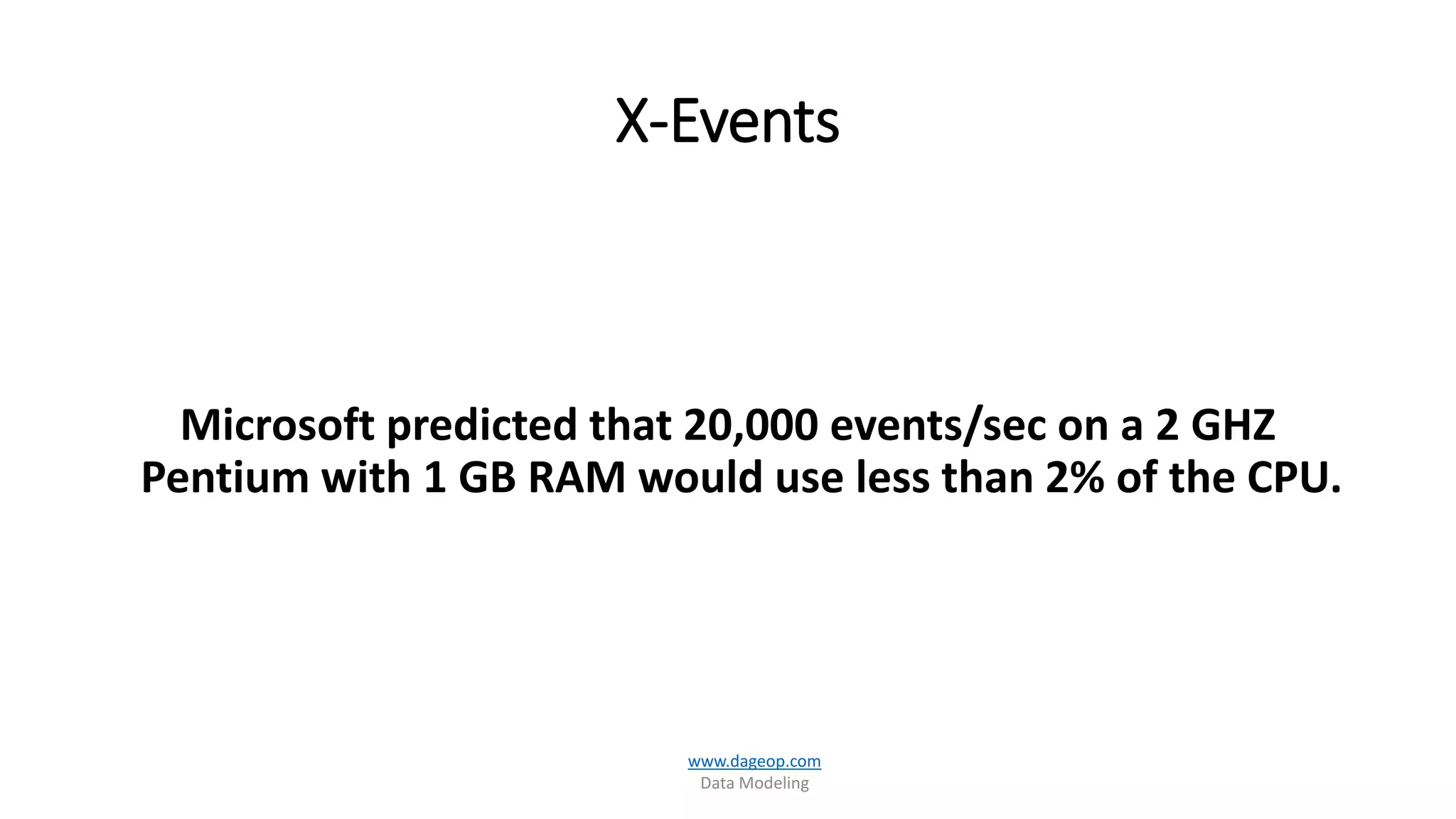

12. Microsoft predicted that 20,000 events/sec on a 2 GHZ
Pentium with 1 GB RAM would use less than 2% of the CPU.
X-Events
www.dageop.com
Data Modeling

13. X-Events
WHY?
www.dageop.com
Data Modeling

14. X-Events
www.dageop.com
Data Modeling

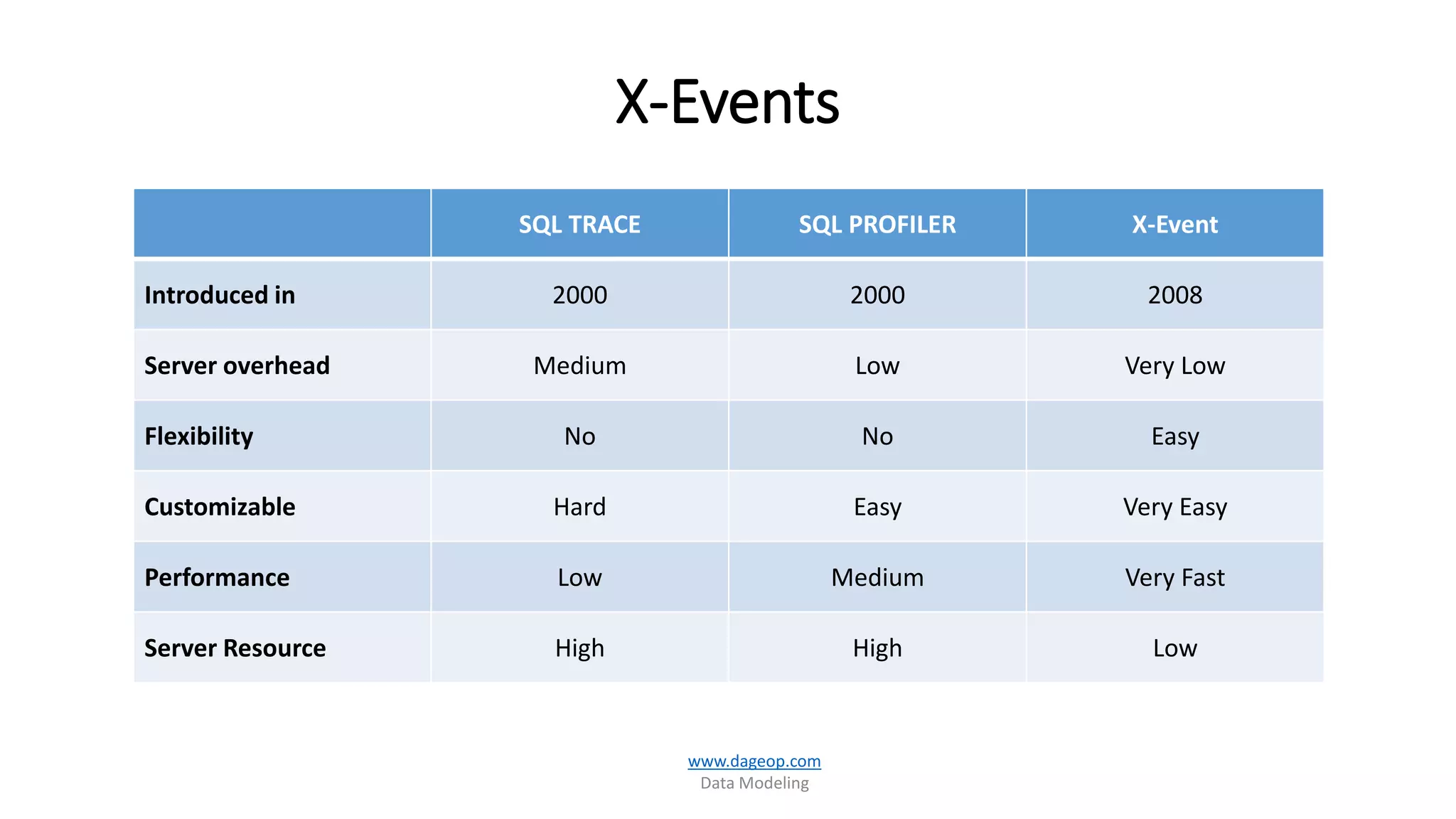

SQL TRACE SQL PROFILER X-Event
Introduced in 2000 2000 2008
Server overhead Medium Low Very Low
Flexibility No No Easy
Customizable Hard Easy Very Easy
Performance Low Medium Very Fast
Server Resource High High Low

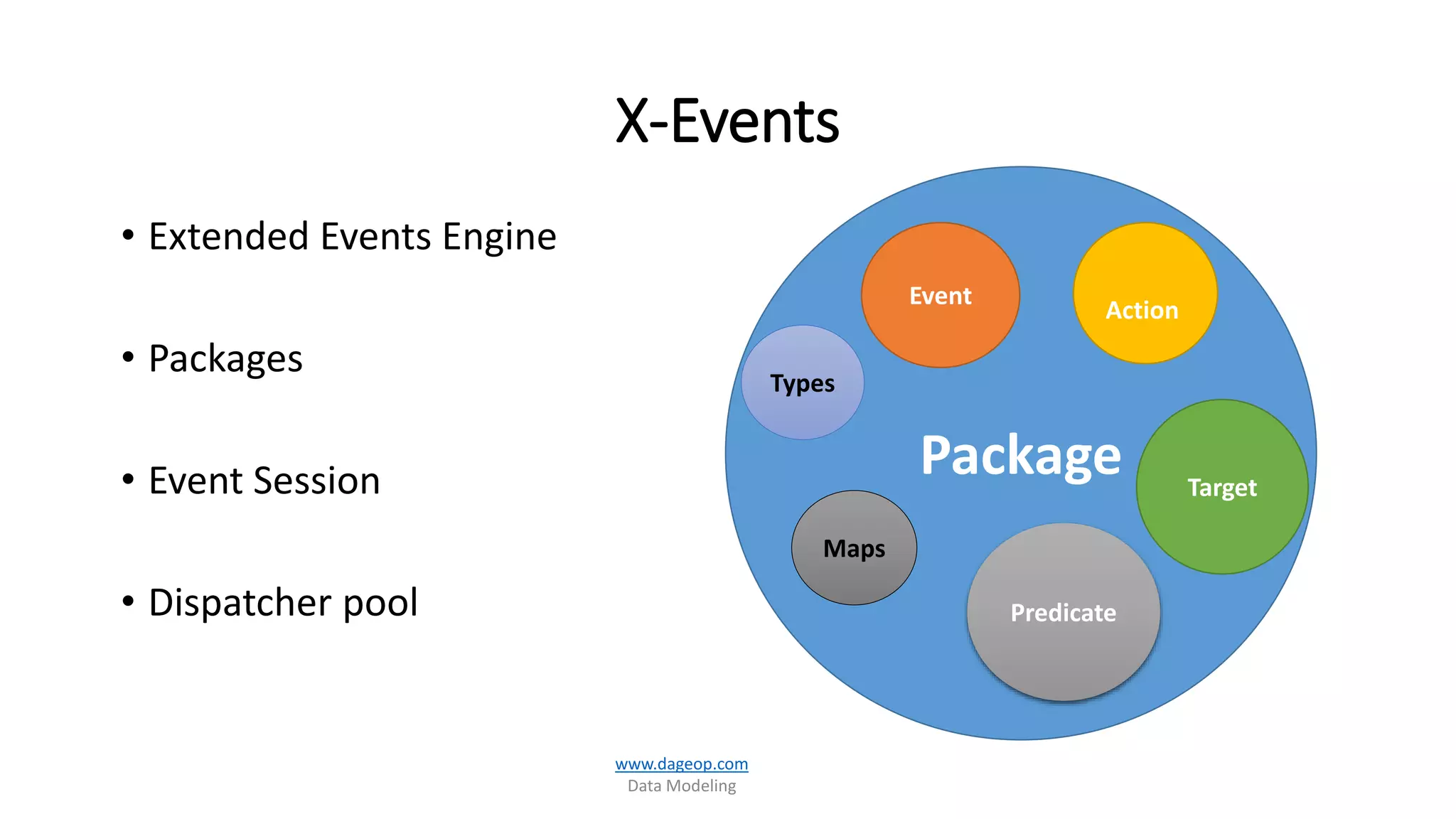

15. X-Events
• Extended Events Engine
• Packages
• Event Session
• Dispatcher pool
Package
Event
Action
Target
Predicate
Types
Maps
www.dageop.com
Data Modeling

16. DEMO
www.dageop.com
Data Modeling

17. Building Packages
www.dageop.com
Data Modeling

18. Packages
• It is a Container
• Totally 4 Packages are available
SELECT * FROM sys.dm_xe_packages
Package0
Sqlos
Sqlserver
SecAudit
www.dageop.com
Data Modeling

19. Packages

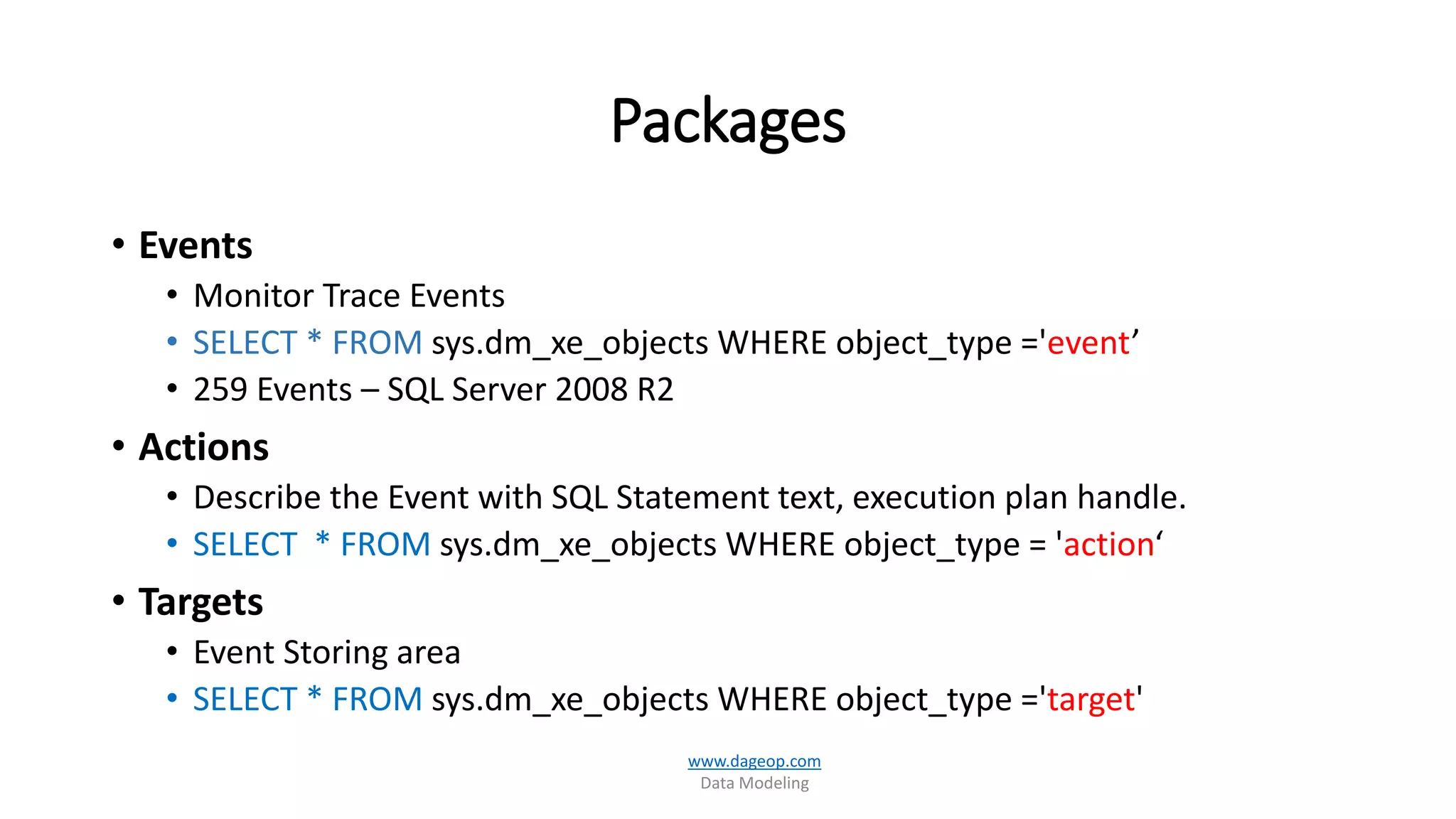

• Events
• Monitor Trace Events
• SELECT * FROM sys.dm_xe_objects WHERE object_type ='event’
• 259 Events – SQL Server 2008 R2
• Actions
• Describe the Event with SQL Statement text, execution plan handle.
• SELECT * FROM sys.dm_xe_objects WHERE object_type = 'action‘
• Targets
• Event Storing area
• SELECT * FROM sys.dm_xe_objects WHERE object_type ='target'
www.dageop.com
Data Modeling

20. Packages

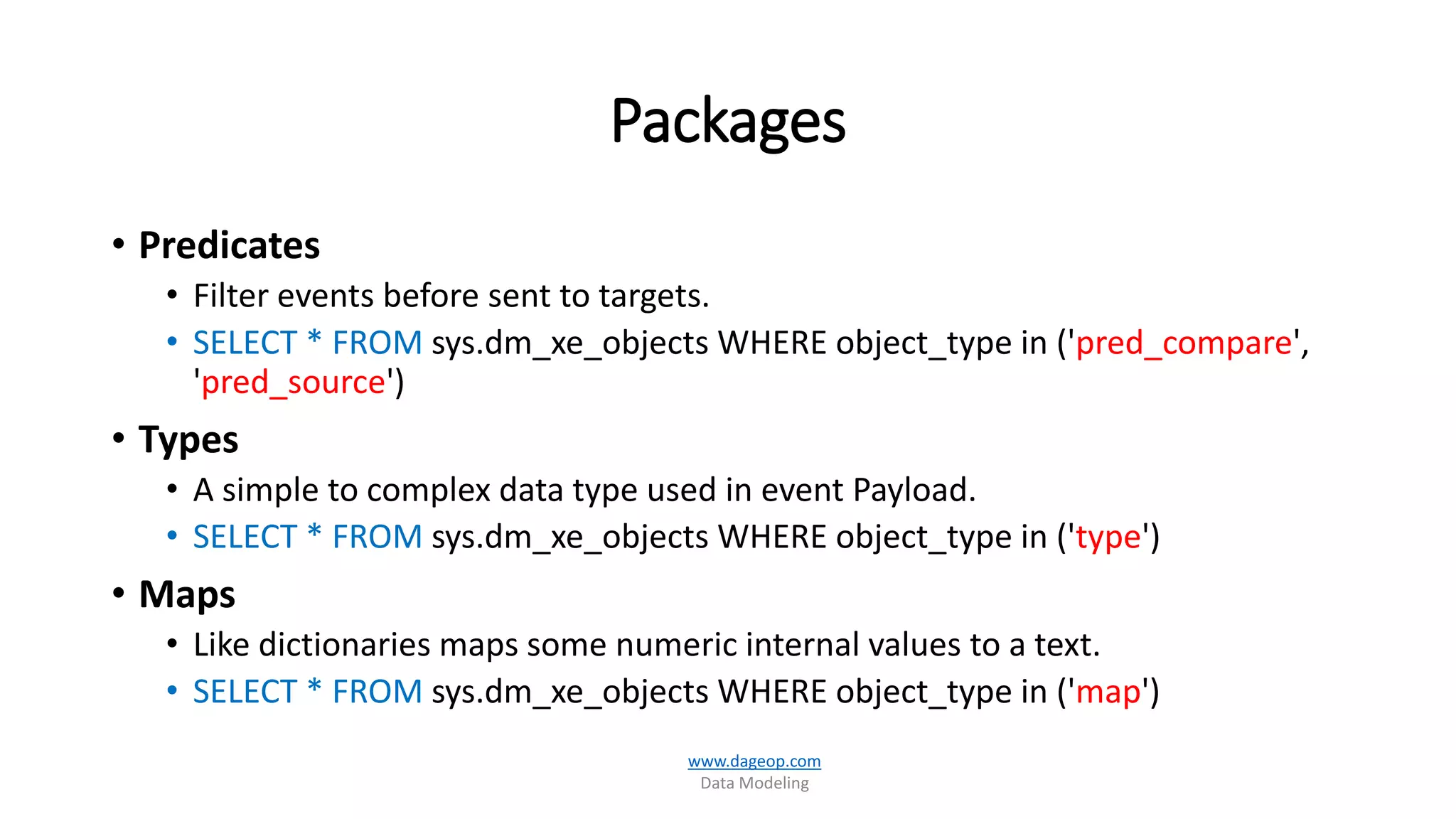

• Predicates
• Filter events before sent to targets.
• SELECT * FROM sys.dm_xe_objects WHERE object_type in ('pred_compare',
'pred_source')
• Types
• A simple to complex data type used in event Payload.
• SELECT * FROM sys.dm_xe_objects WHERE object_type in ('type')
• Maps
• Like dictionaries maps some numeric internal values to a text.
• SELECT * FROM sys.dm_xe_objects WHERE object_type in ('map')
www.dageop.com
Data Modeling

21. Demo
www.dageop.com
Data Modeling

22. Analysing Captured Results
www.dageop.com
Data Modeling

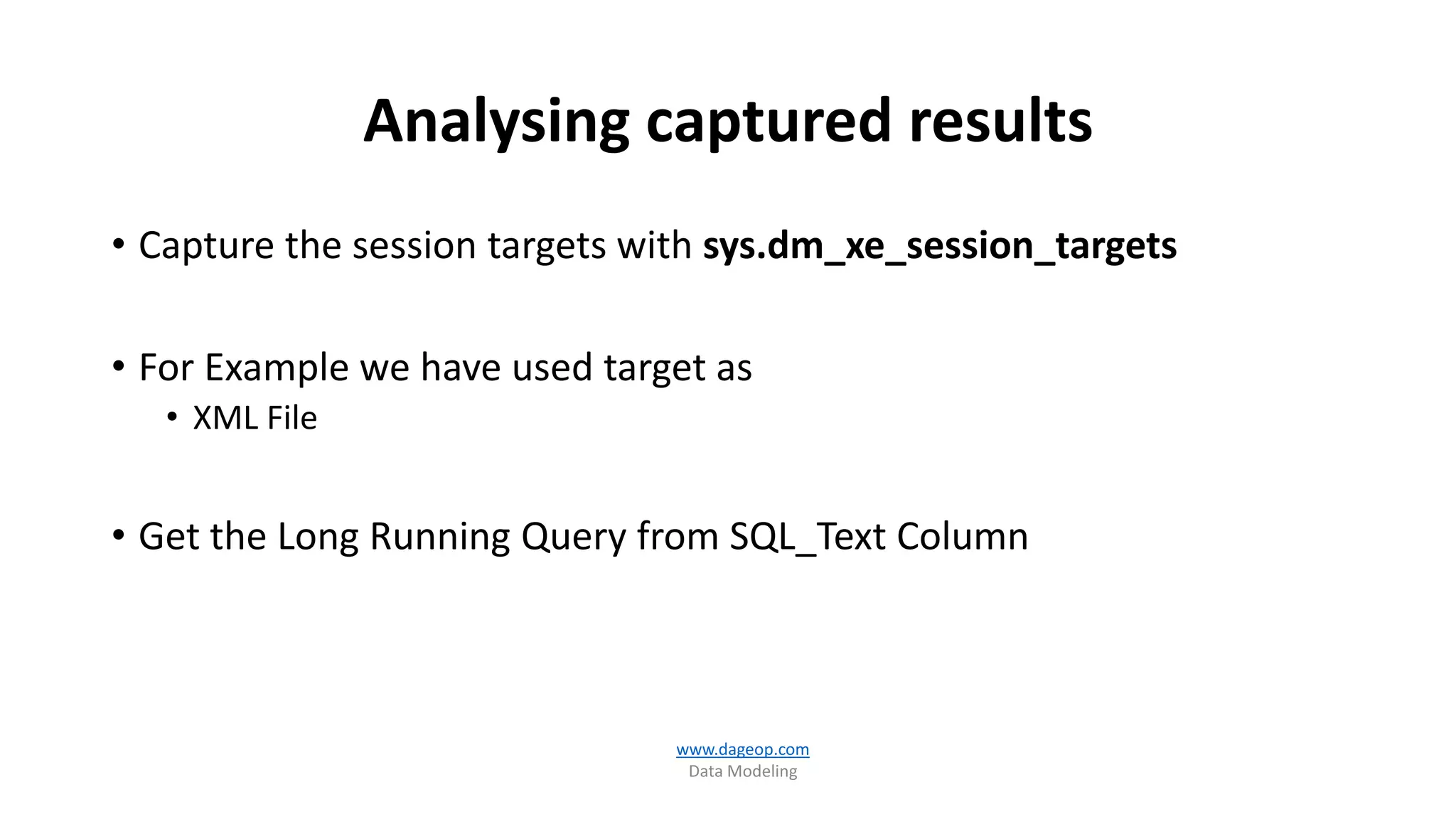

23. Analysing captured results
