Data Communication and Networking Part 1 (Introduction)

DATACOMMUNICATION AND
NETWORKING
UNIT 1 – PART 1
02/02/2021 & 03/02/2021
STAFF NAME : Ms. P. ABIRAMI
DEPARTMENT OF COMPUTER SCIENCE
ETHIRAJ COLLEGE FOR WOMEN - CHENNAI

2
P ABIRAMI (ASST PROF - DEPT OF COMPUTER SCIENCE)
Feb 2 & 3 , 2021

3
Feb 2 & 3 , 2021

4
Feb 2 & 3 , 2021

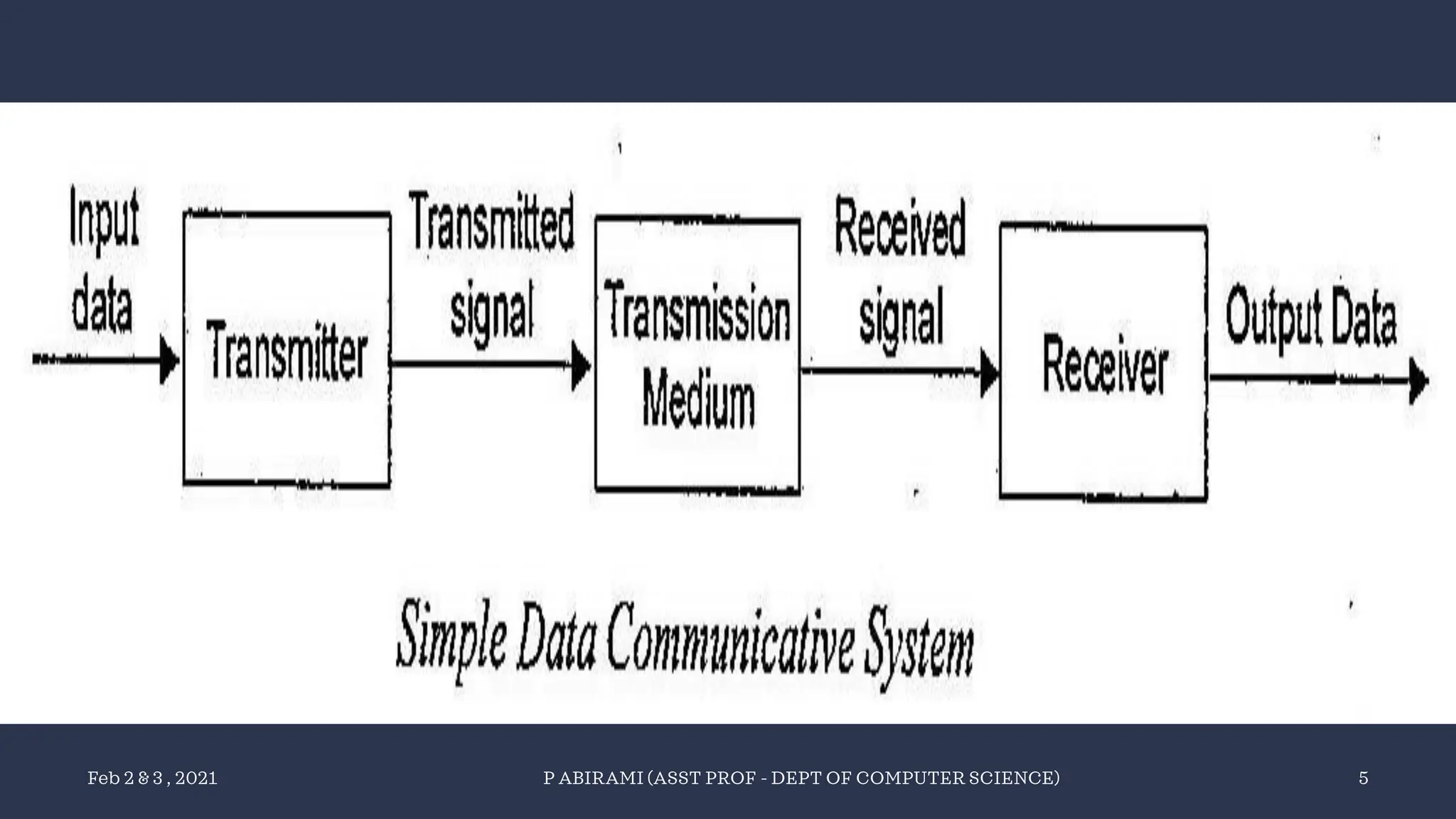

5
Feb 2 & 3 , 2021

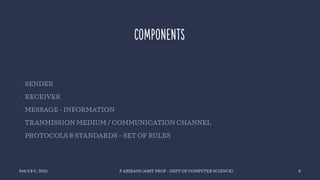

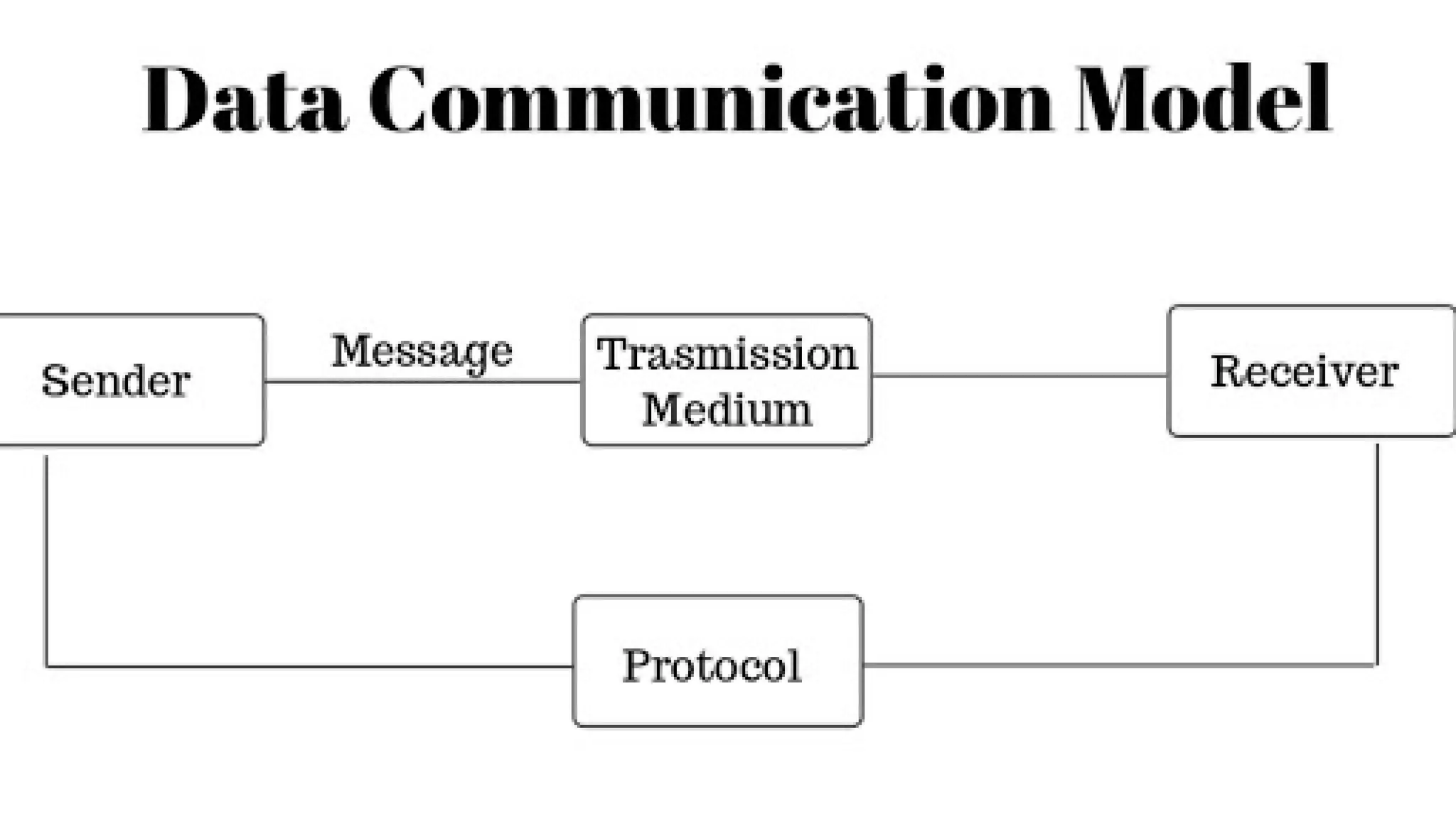

COMPONENTS
•
•
•
•
•
6
Feb 2 & 3 , 2021

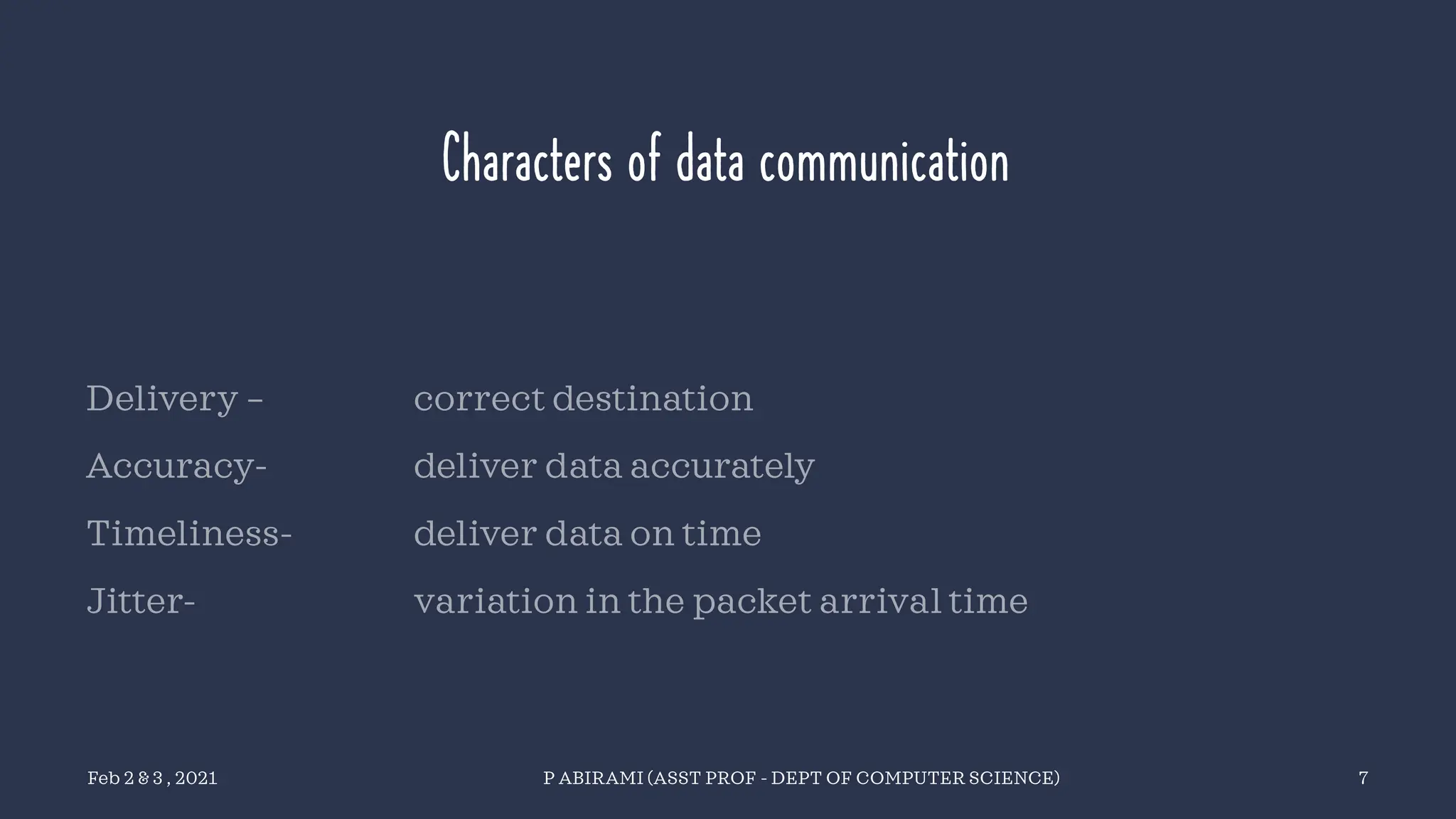

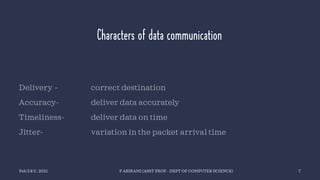

Characters of data communication
7
Feb 2 & 3 , 2021

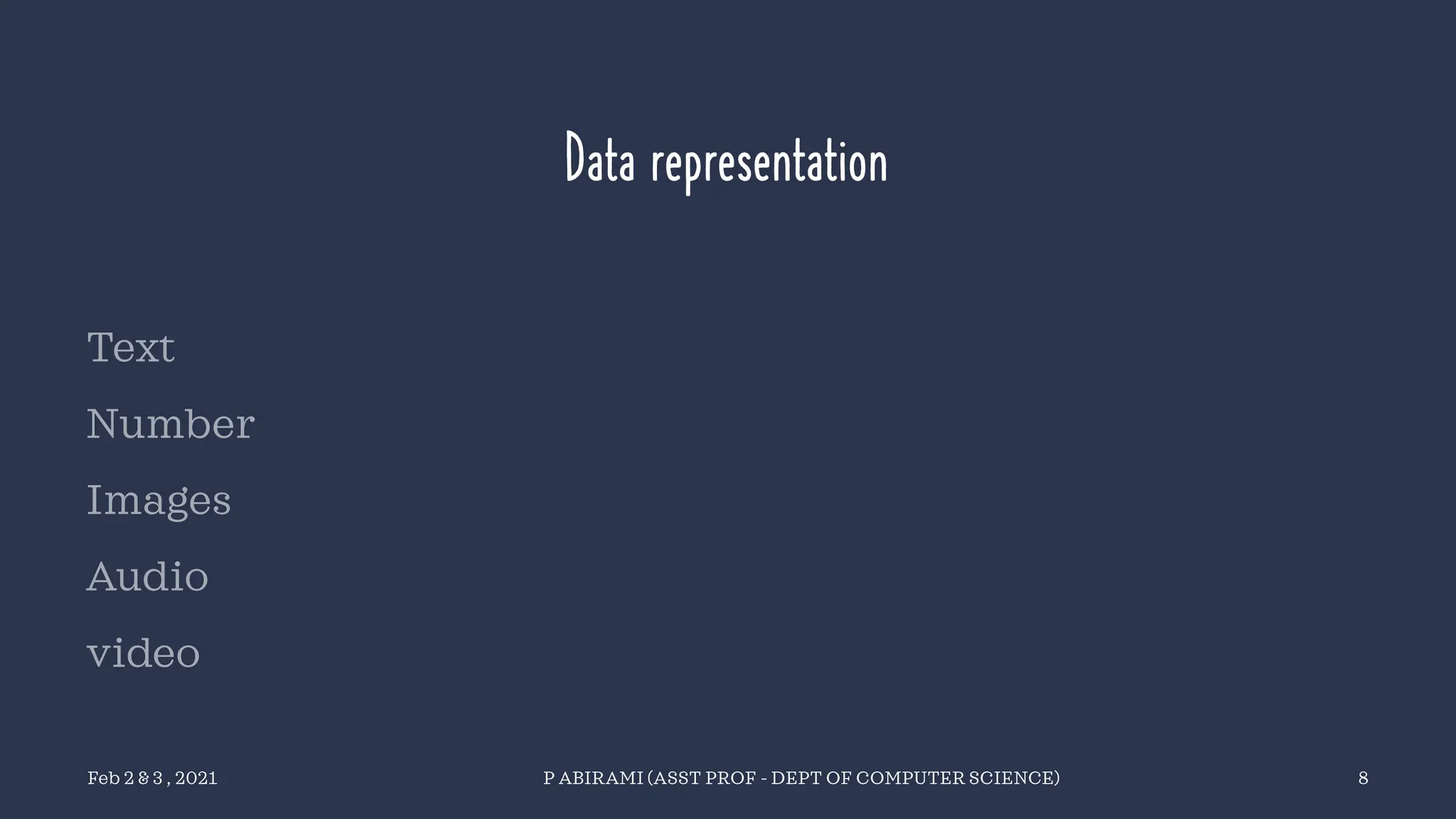

Data representation
8
Feb 2 & 3 , 2021

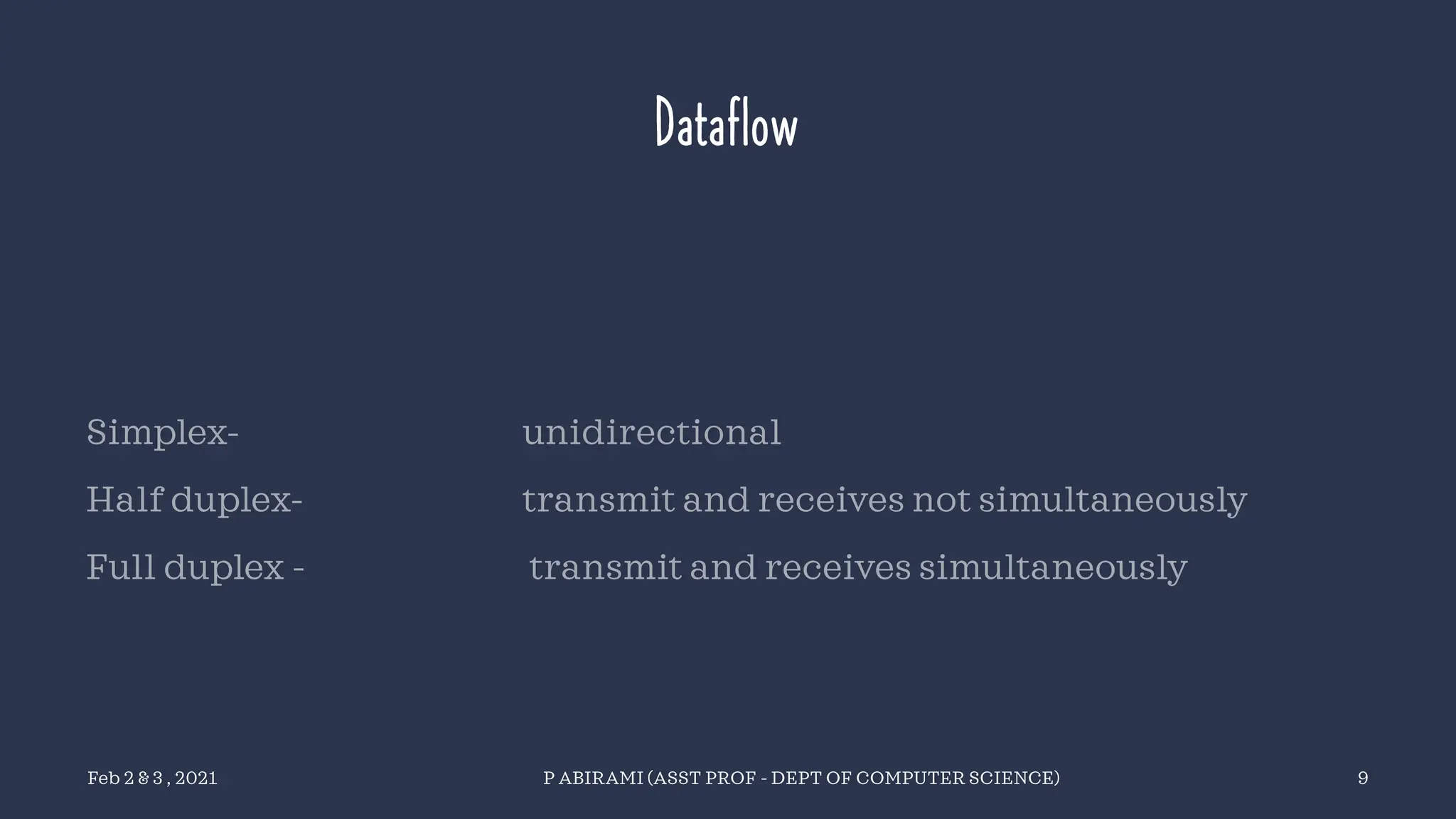

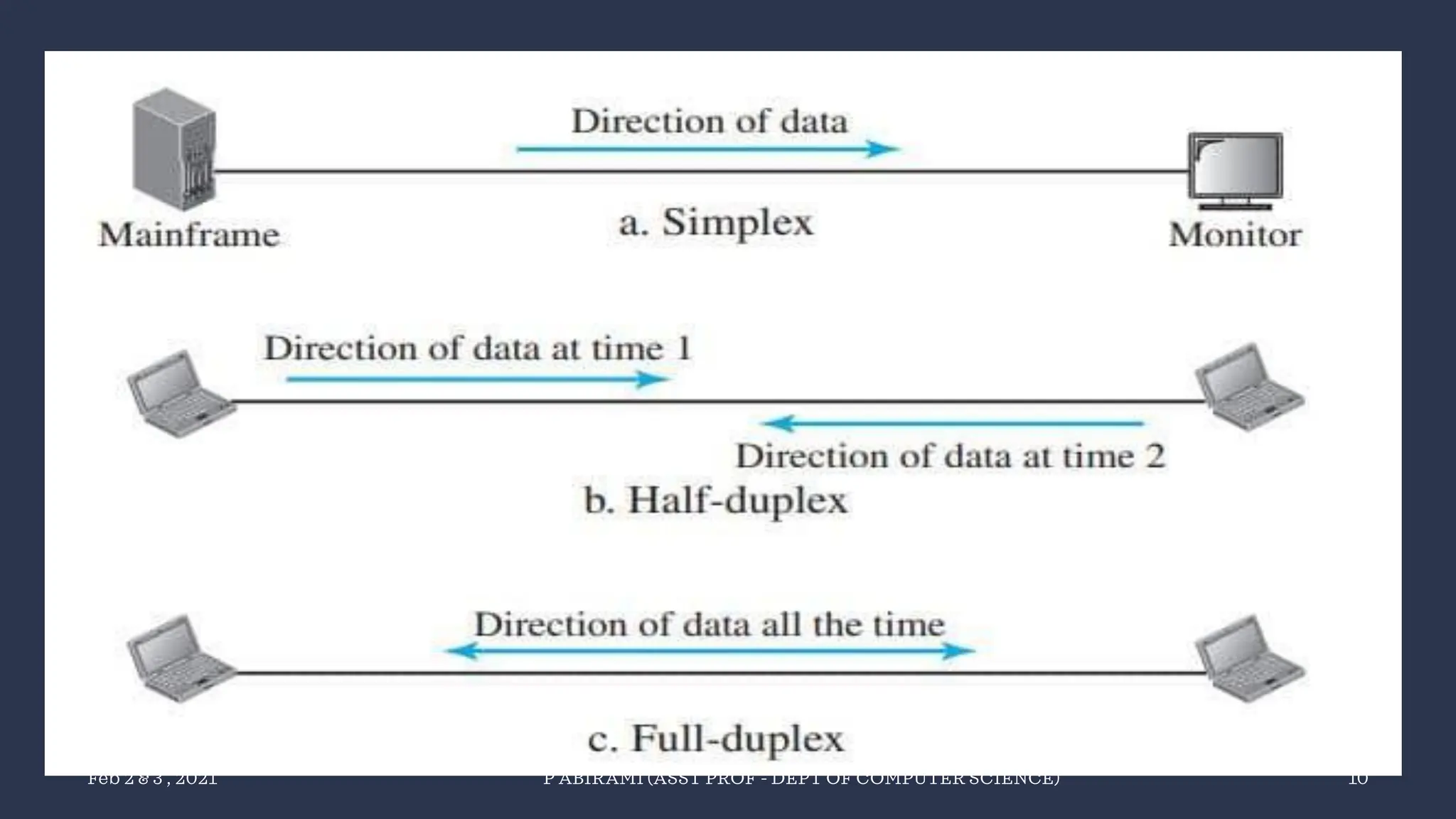

Dataflow
9
Feb 2 & 3 , 2021

10
Feb 2 & 3 , 2021

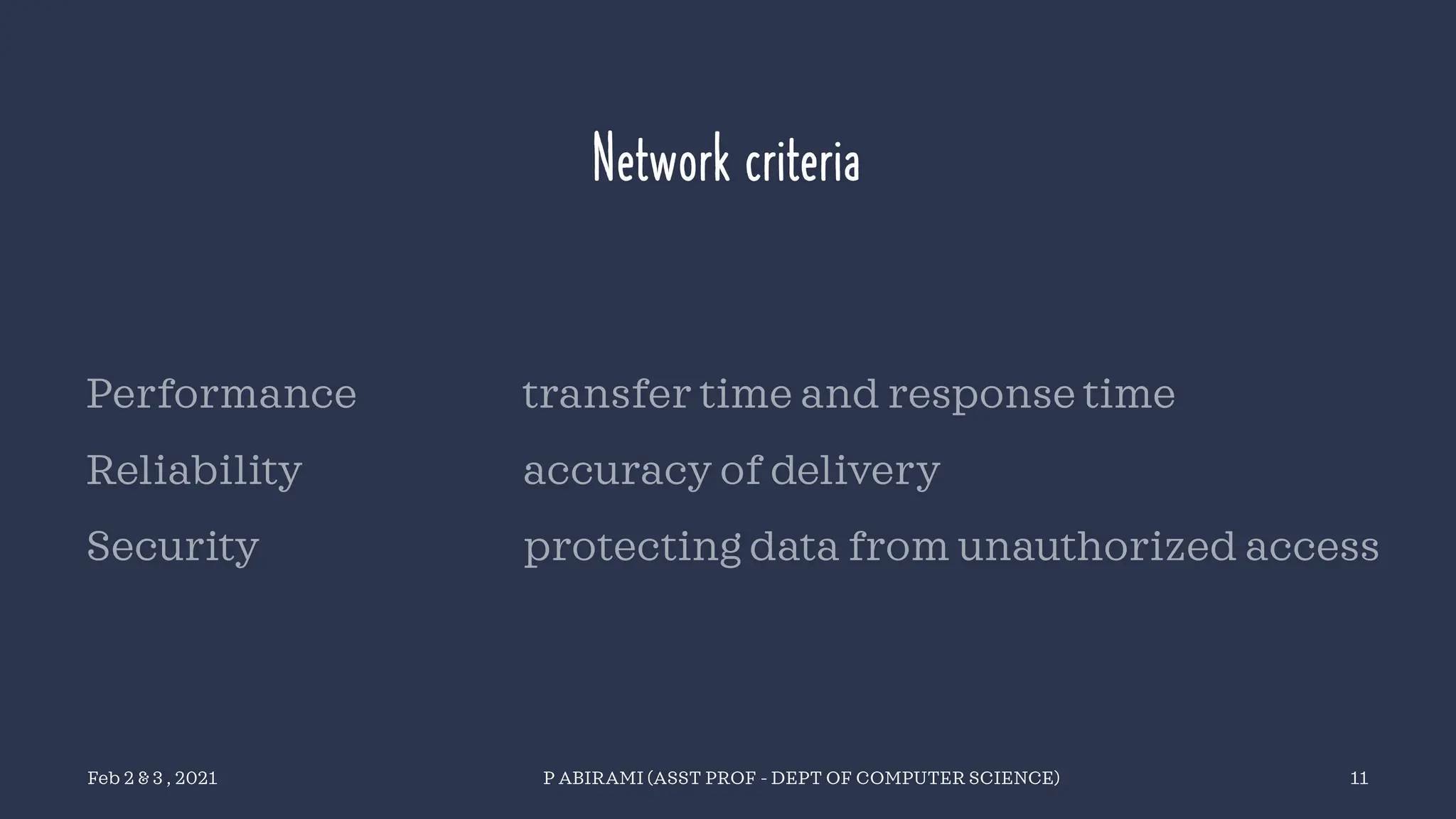

Network criteria
11
Feb 2 & 3 , 2021

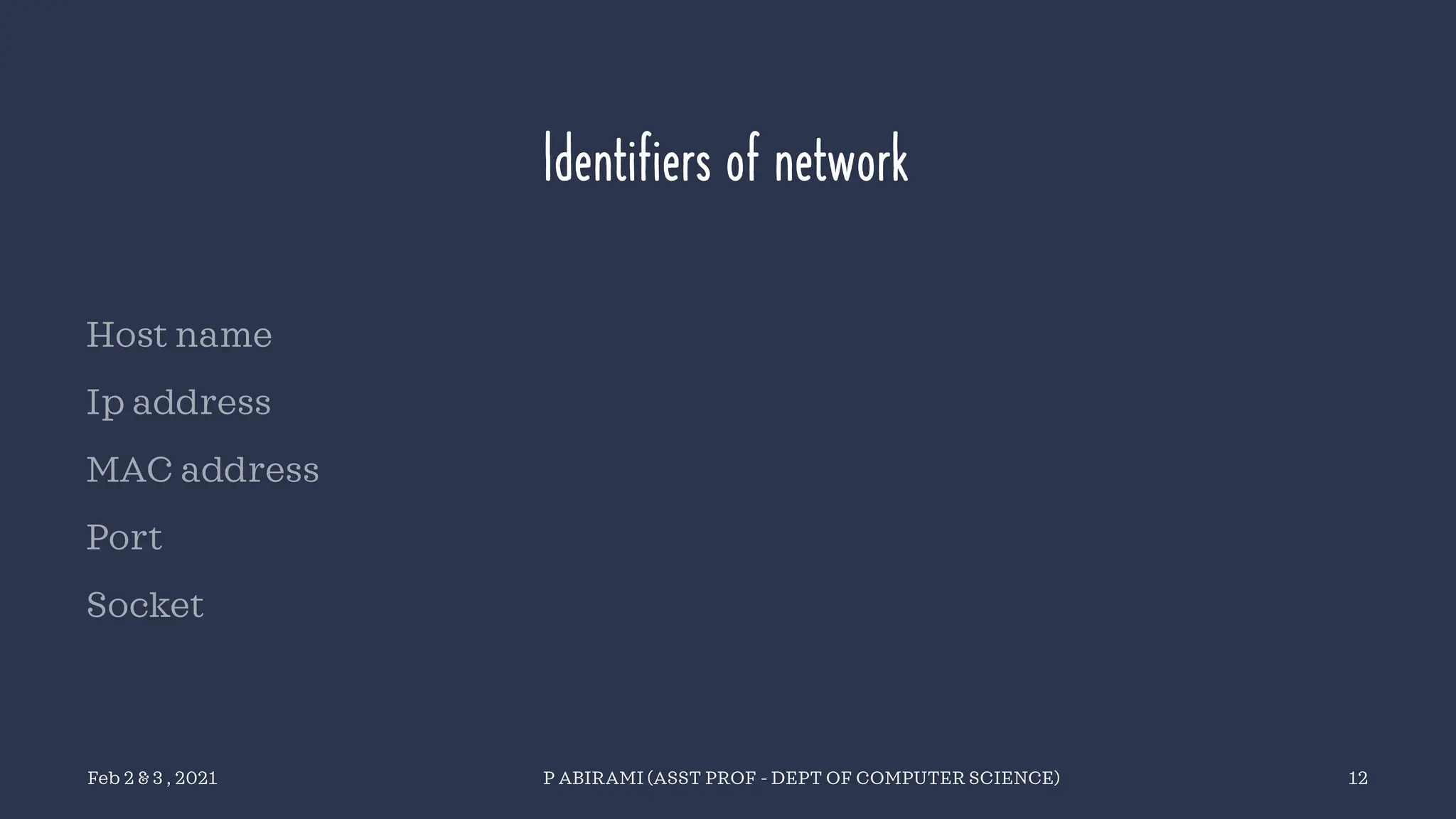

Identifiers of network
12
Feb 2 & 3 , 2021

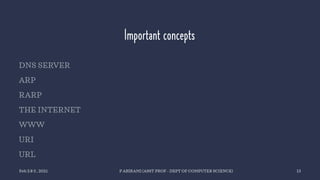

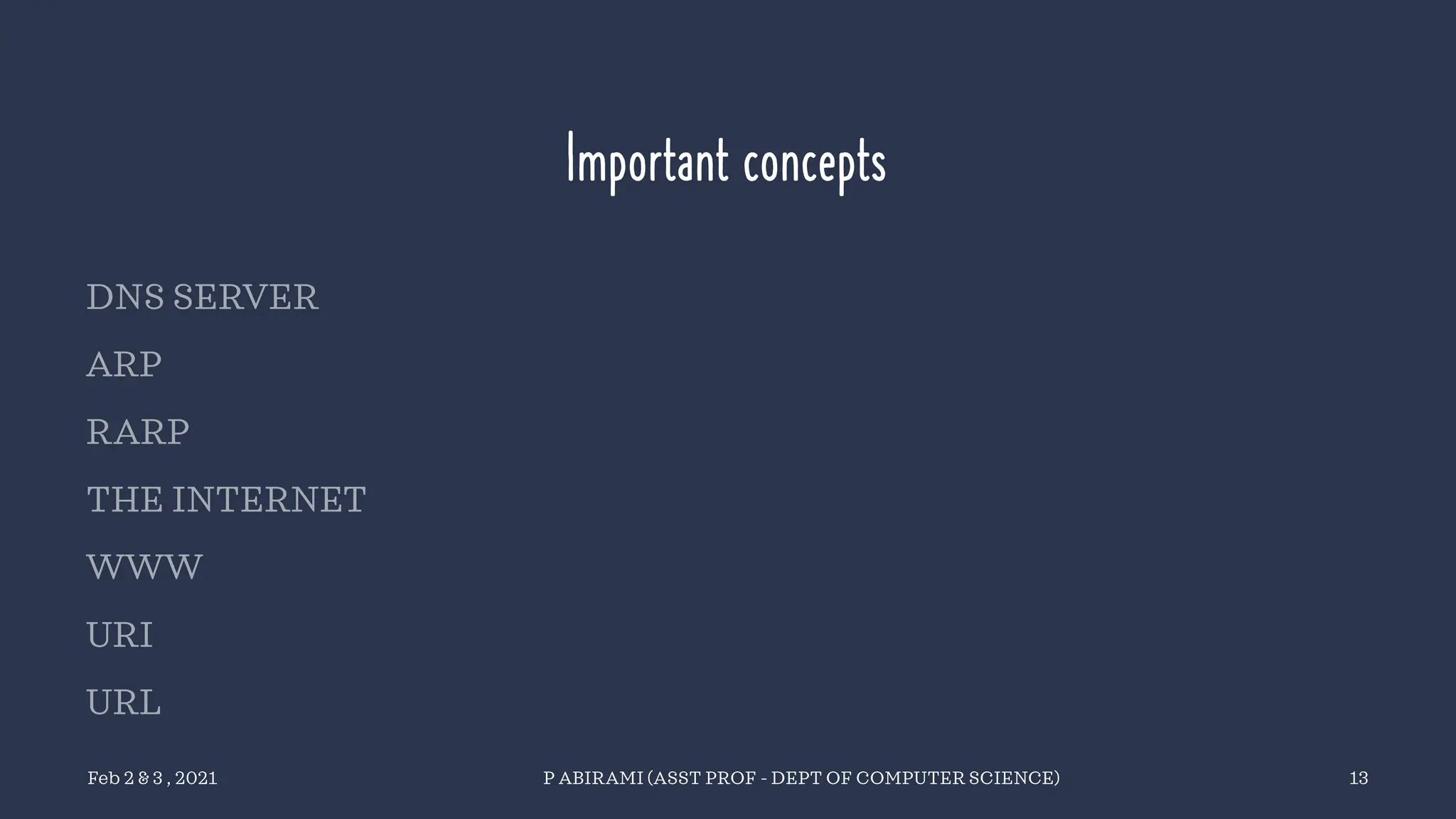

Important concepts
13
Feb 2 & 3 , 2021

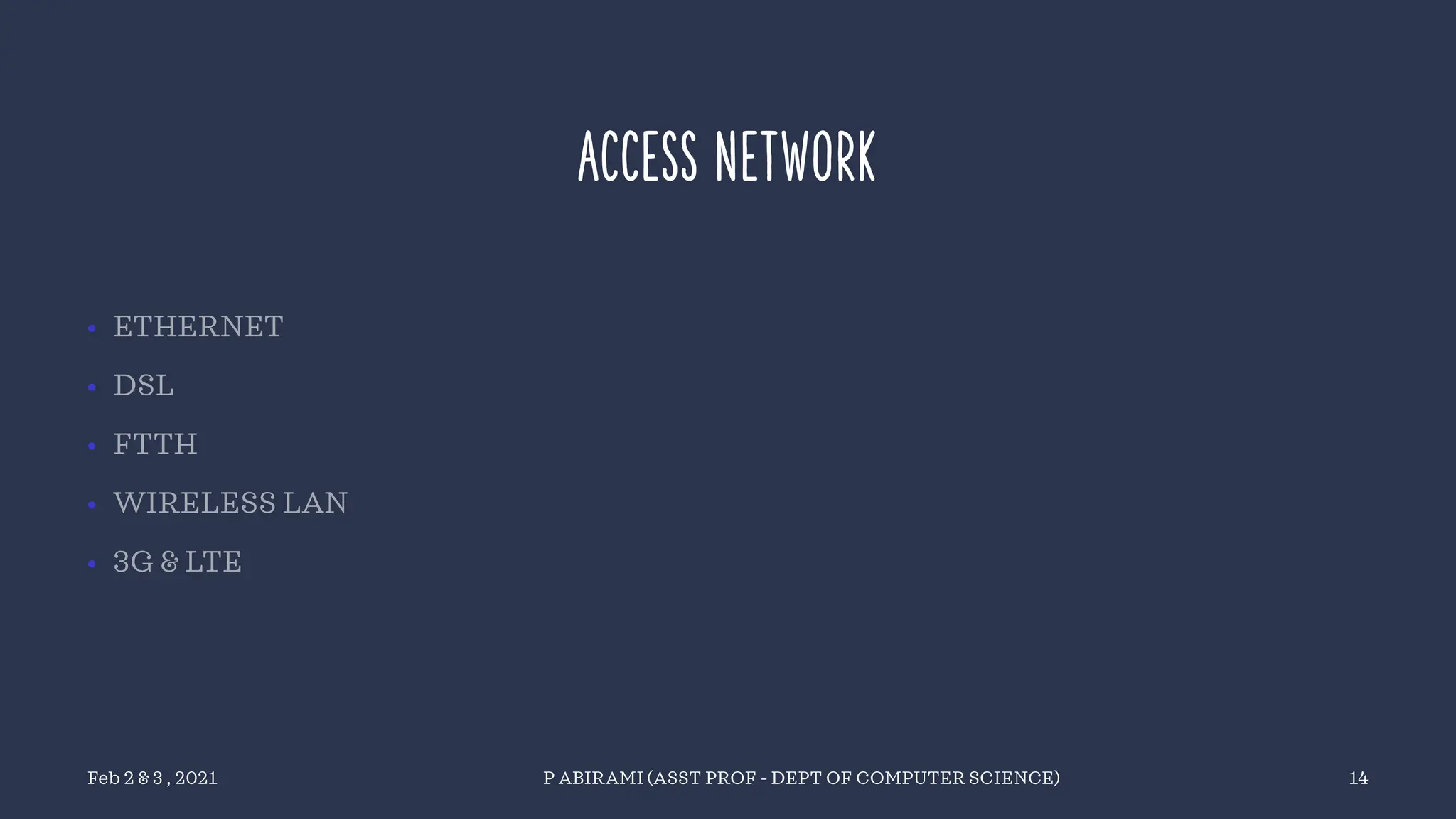

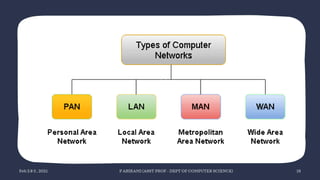

ACCESS NETWORK
•
•
•
•
•
14
Feb 2 & 3 , 2021

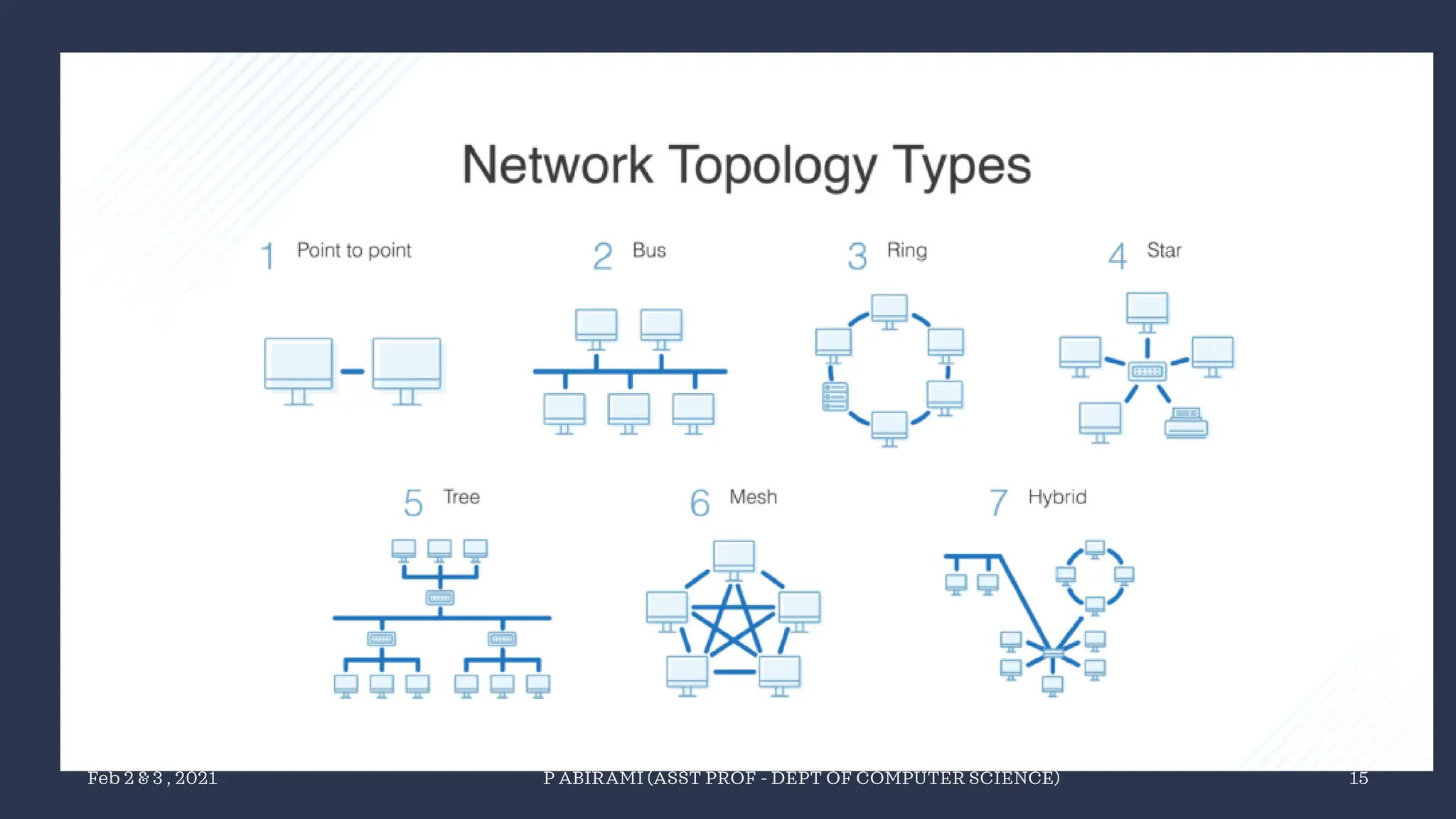

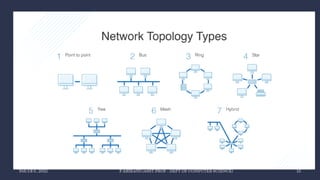

15
Feb 2 & 3 , 2021

16
Feb 2 & 3 , 2021

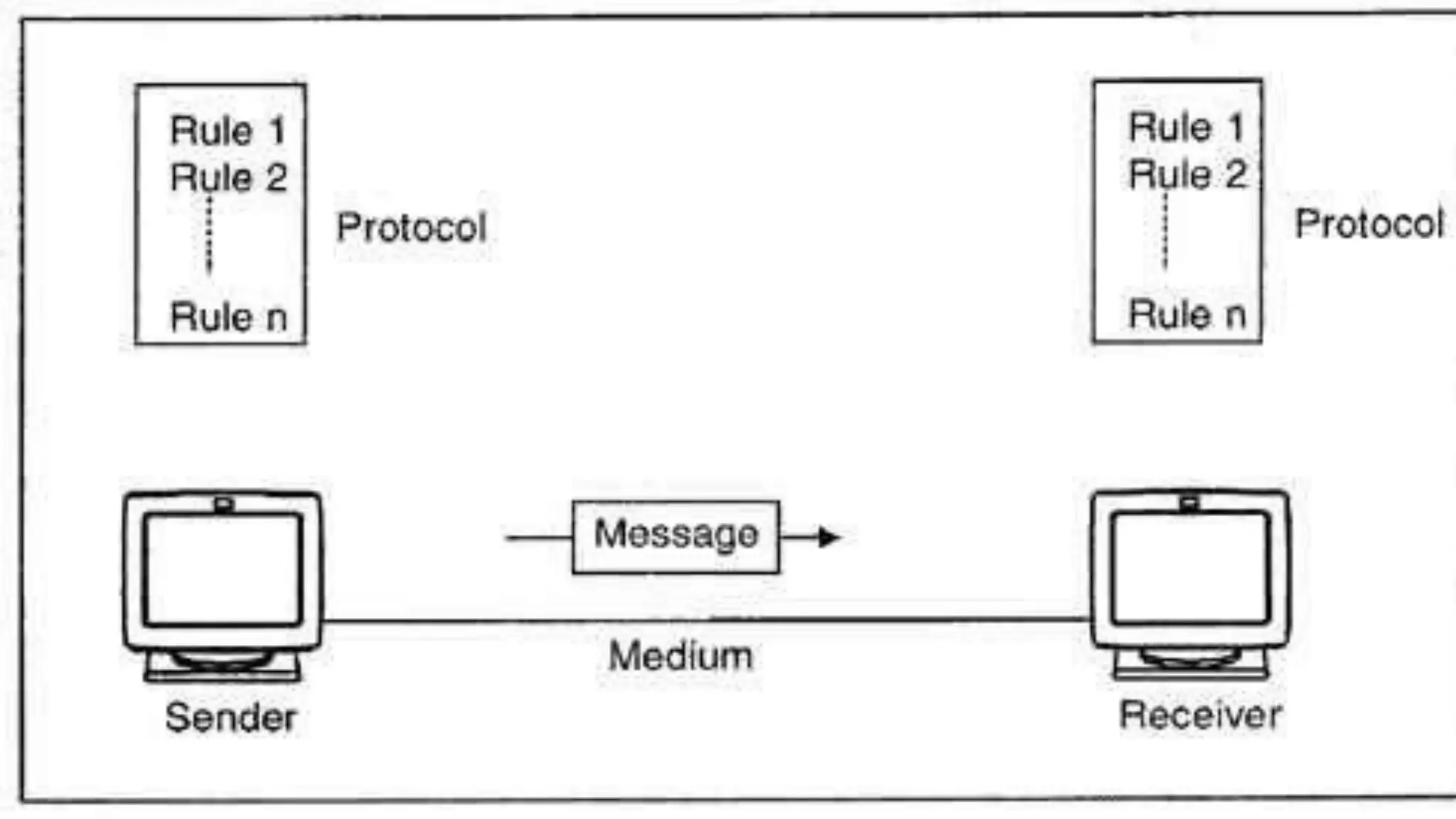

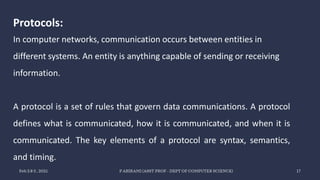

Protocols:

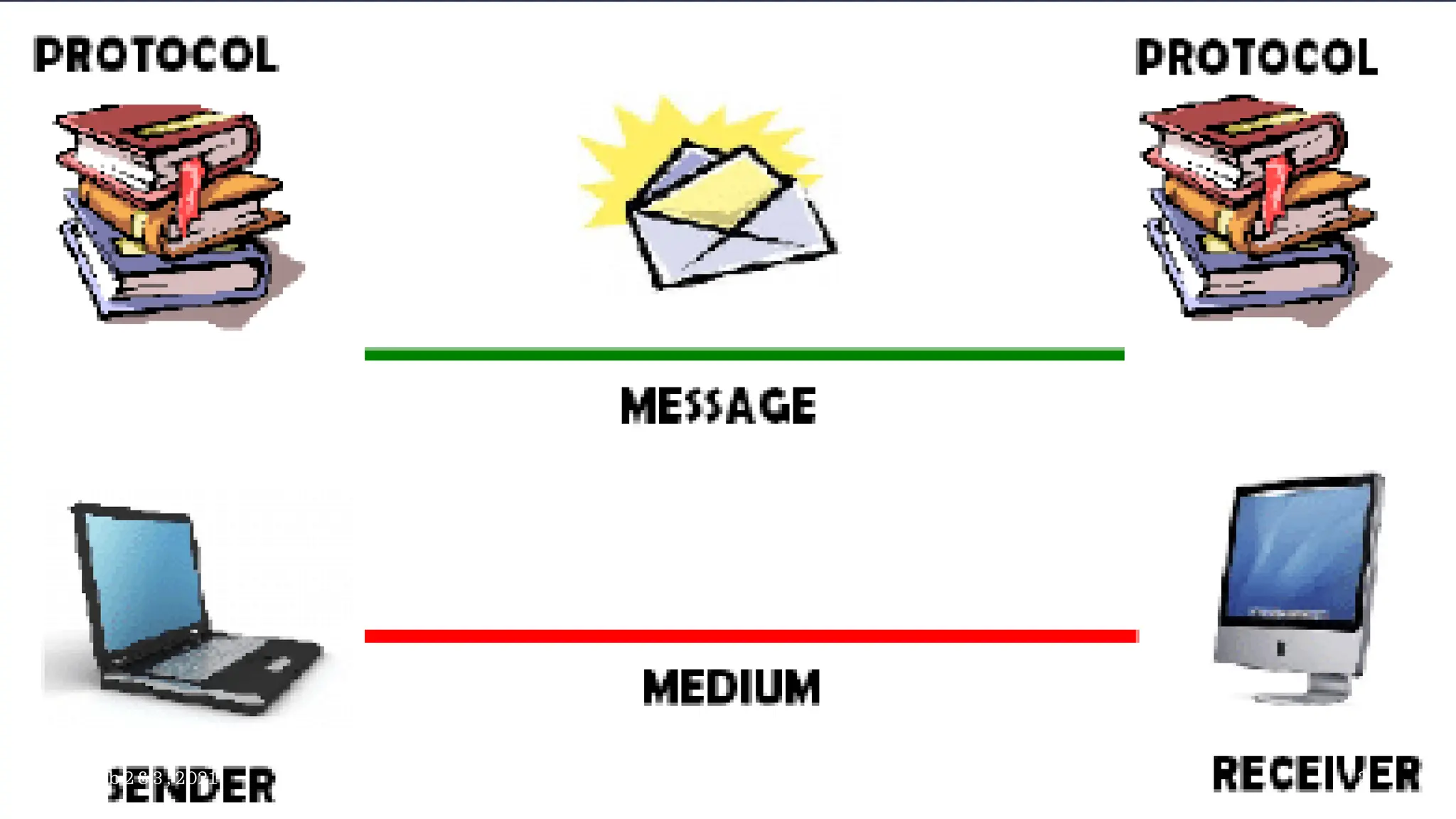

In computer networks, communication occurs between entities in
different systems. An entity is anything capable of sending or receiving
information.
A protocol is a set of rules that govern data communications. A protocol
defines what is communicated, how it is communicated, and when it is
communicated. The key elements of a protocol are syntax, semantics,
and timing.
17
Feb 2 & 3 , 2021

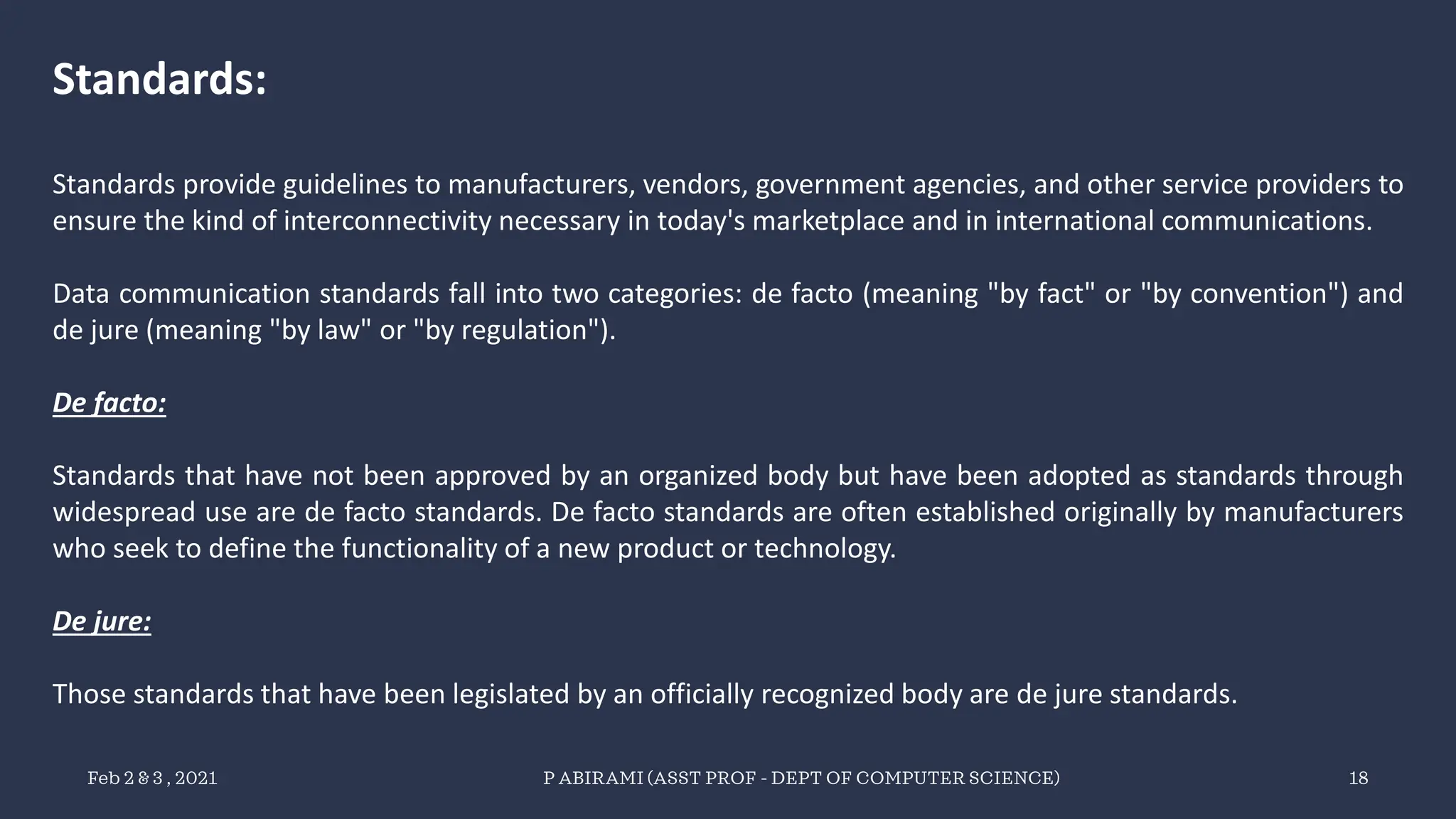

Standards:
Standards provide guidelines to manufacturers, vendors, government agencies, and other service providers to
ensure the kind of interconnectivity necessary in today's marketplace and in international communications.
Data communication standards fall into two categories: de facto (meaning "by fact" or "by convention") and
de jure (meaning "by law" or "by regulation").
De facto:
Standards that have not been approved by an organized body but have been adopted as standards through
widespread use are de facto standards. De facto standards are often established originally by manufacturers
who seek to define the functionality of a new product or technology.
De jure:
Those standards that have been legislated by an officially recognized body are de jure standards.
18
Feb 2 & 3 , 2021

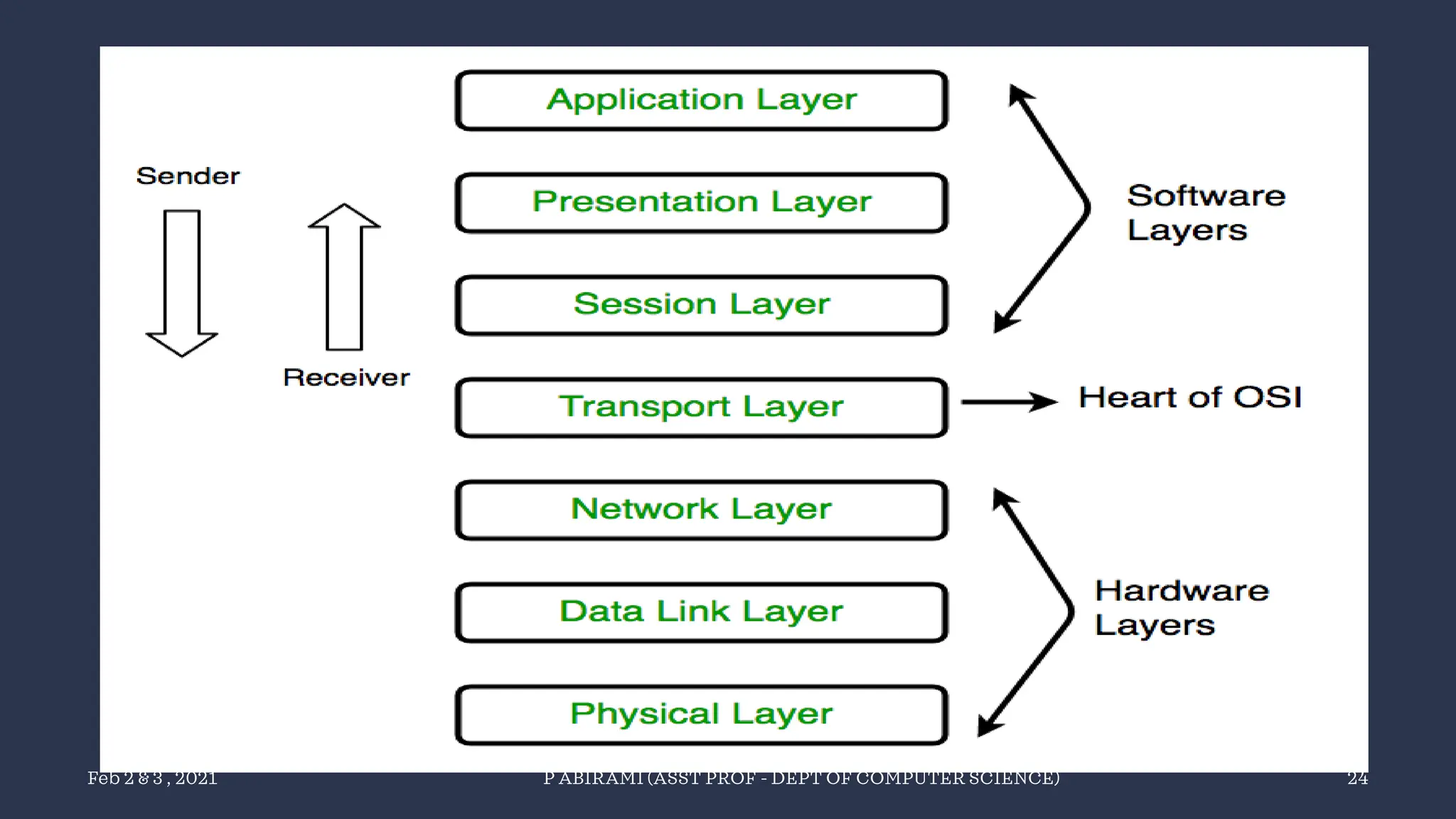

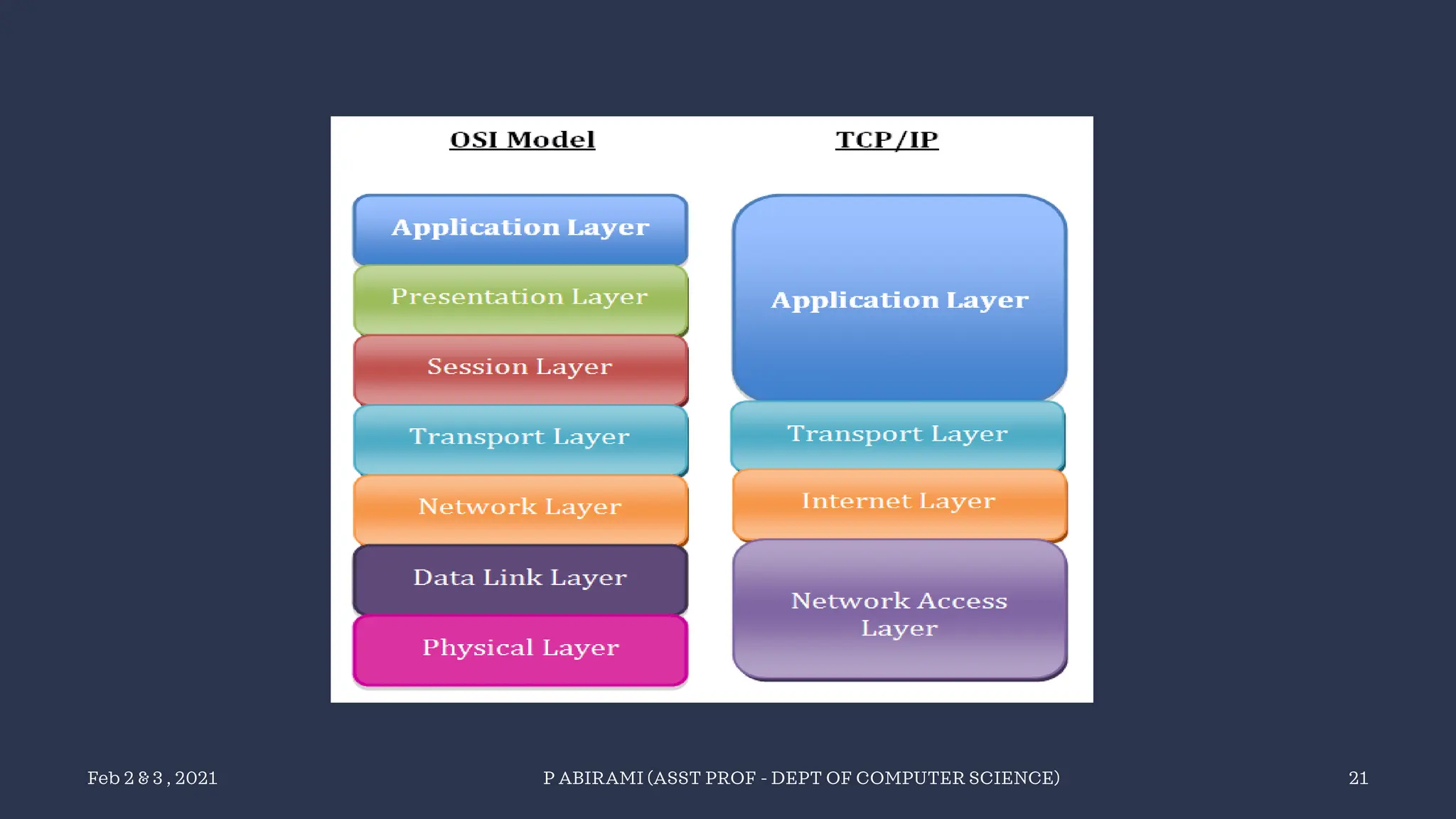

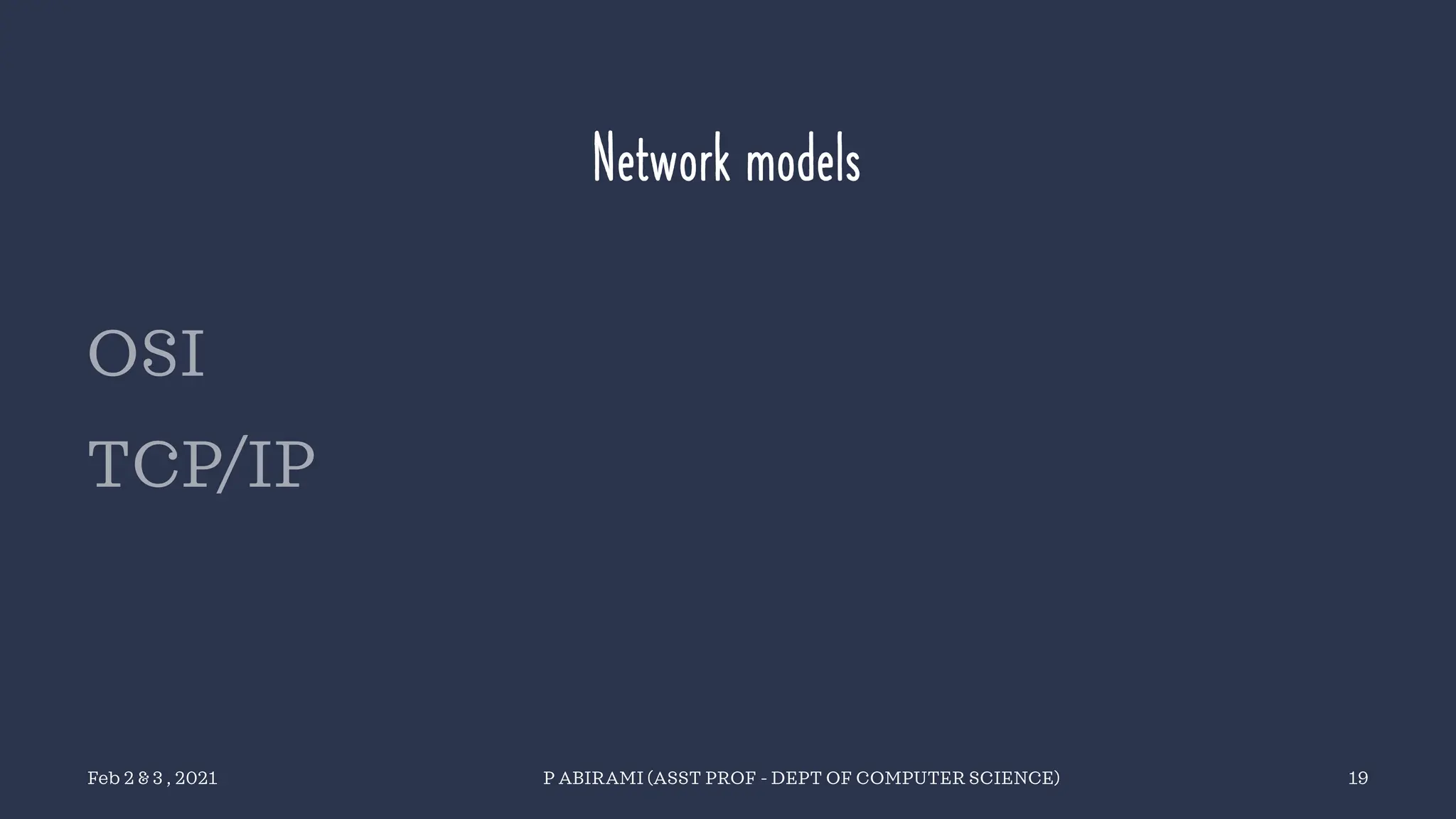

Network models
19
Feb 2 & 3 , 2021

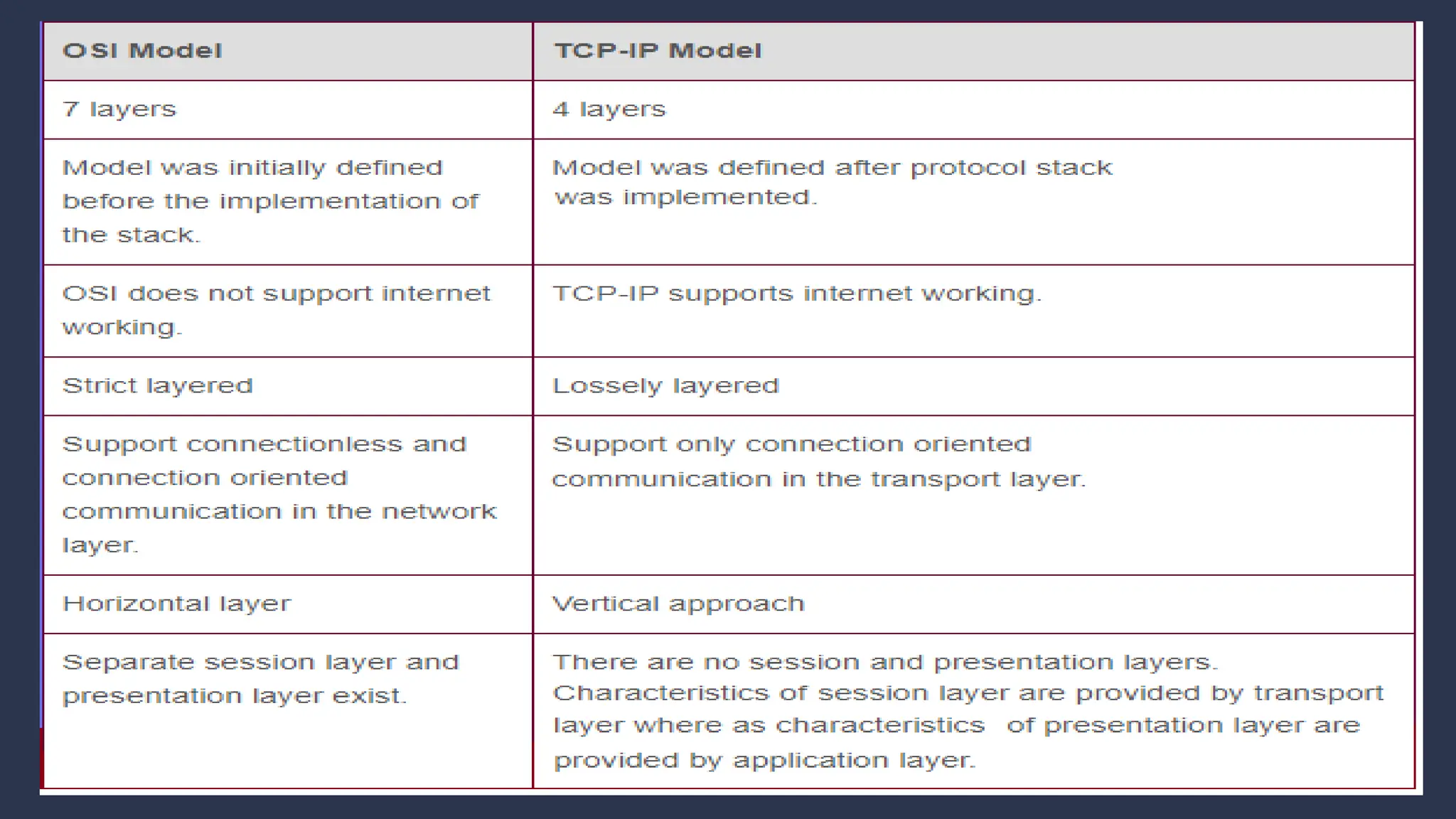

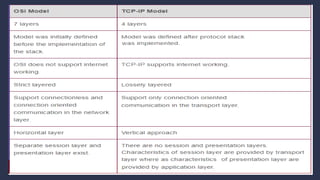

20
Feb 2 & 3 , 2021

21
Feb 2 & 3 , 2021

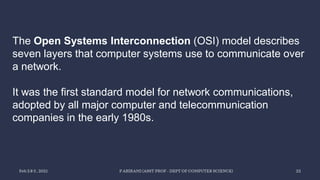

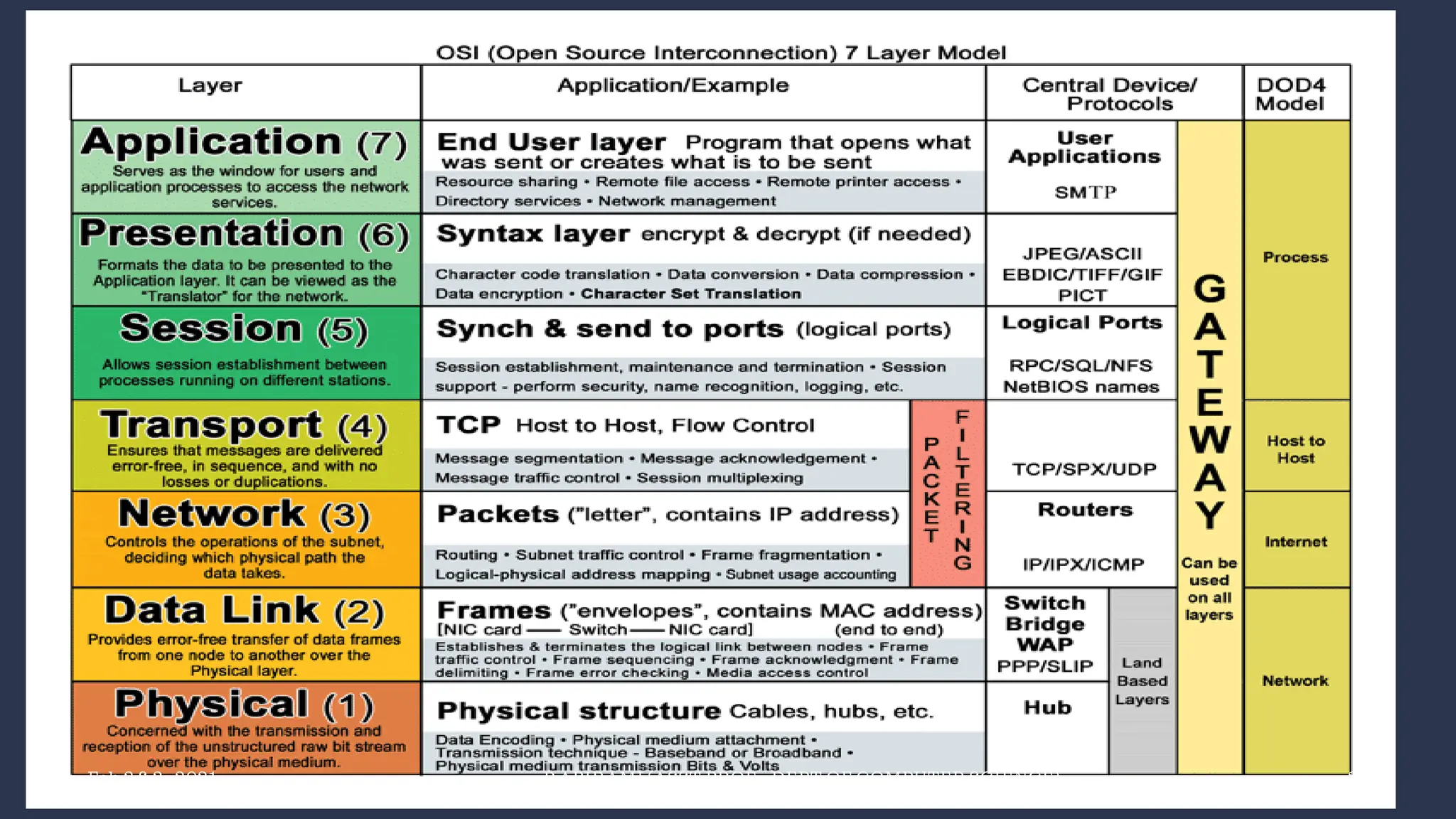

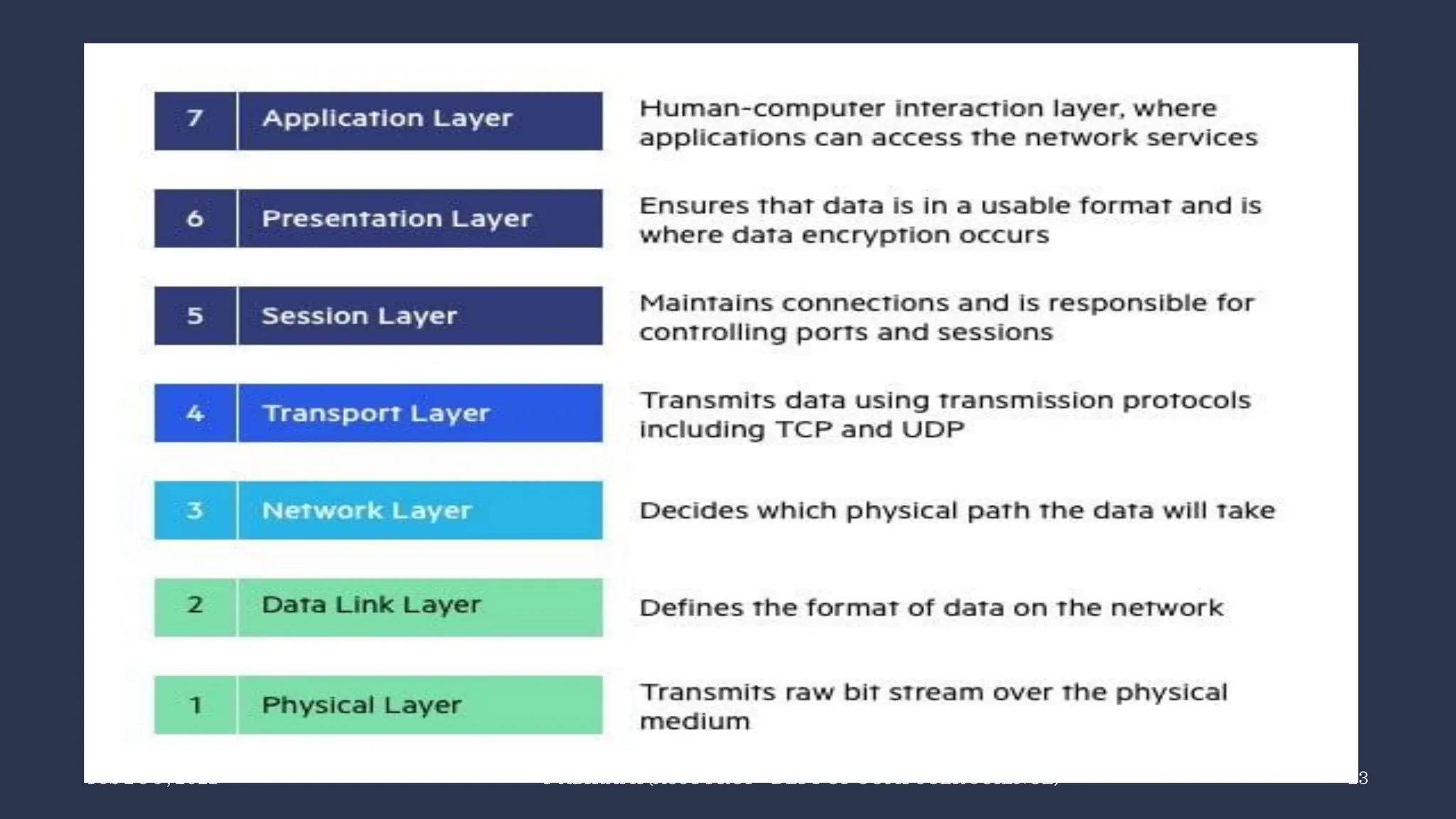

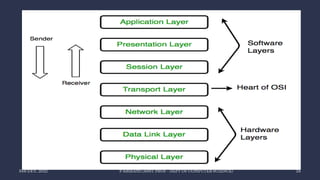

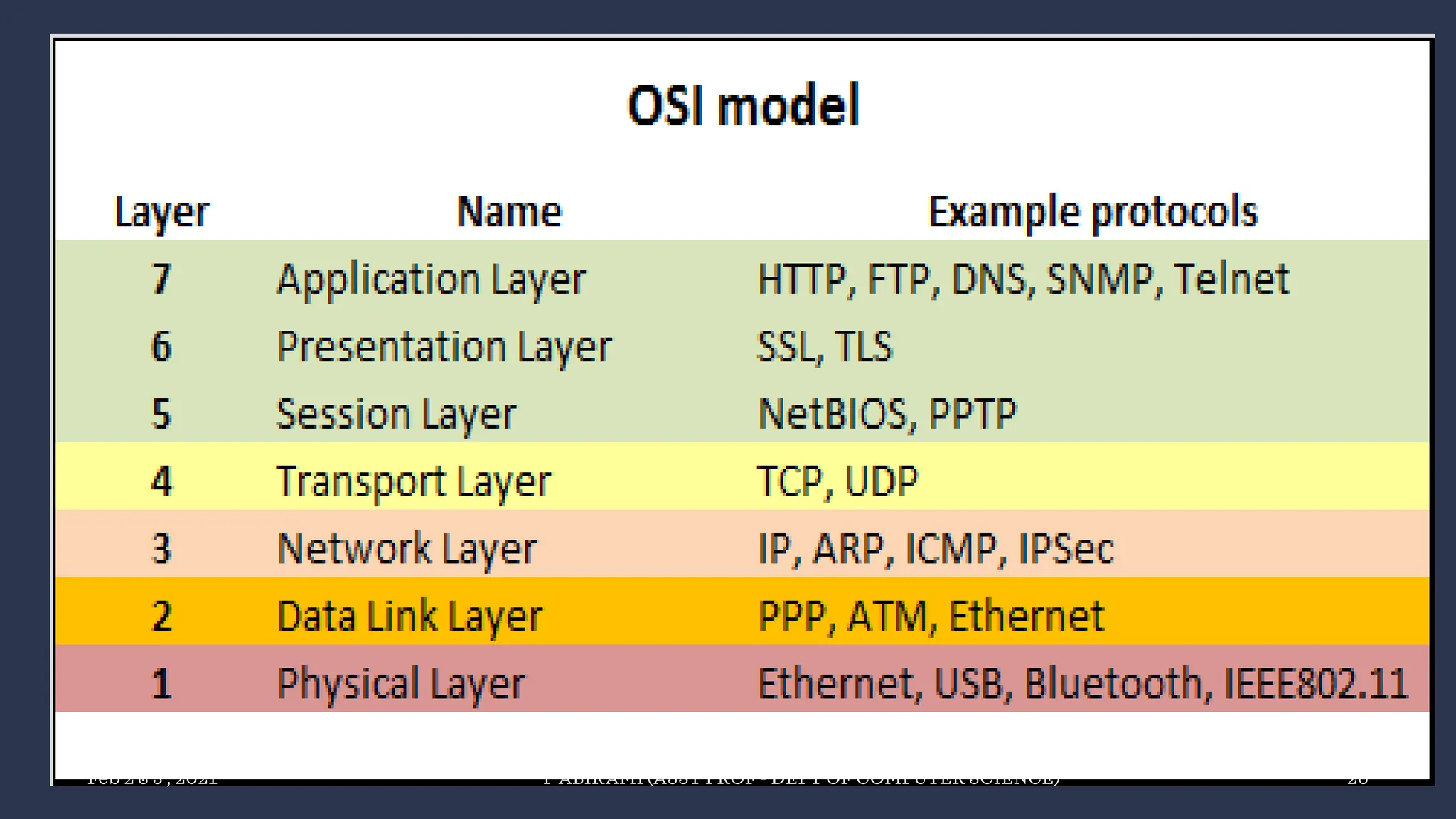

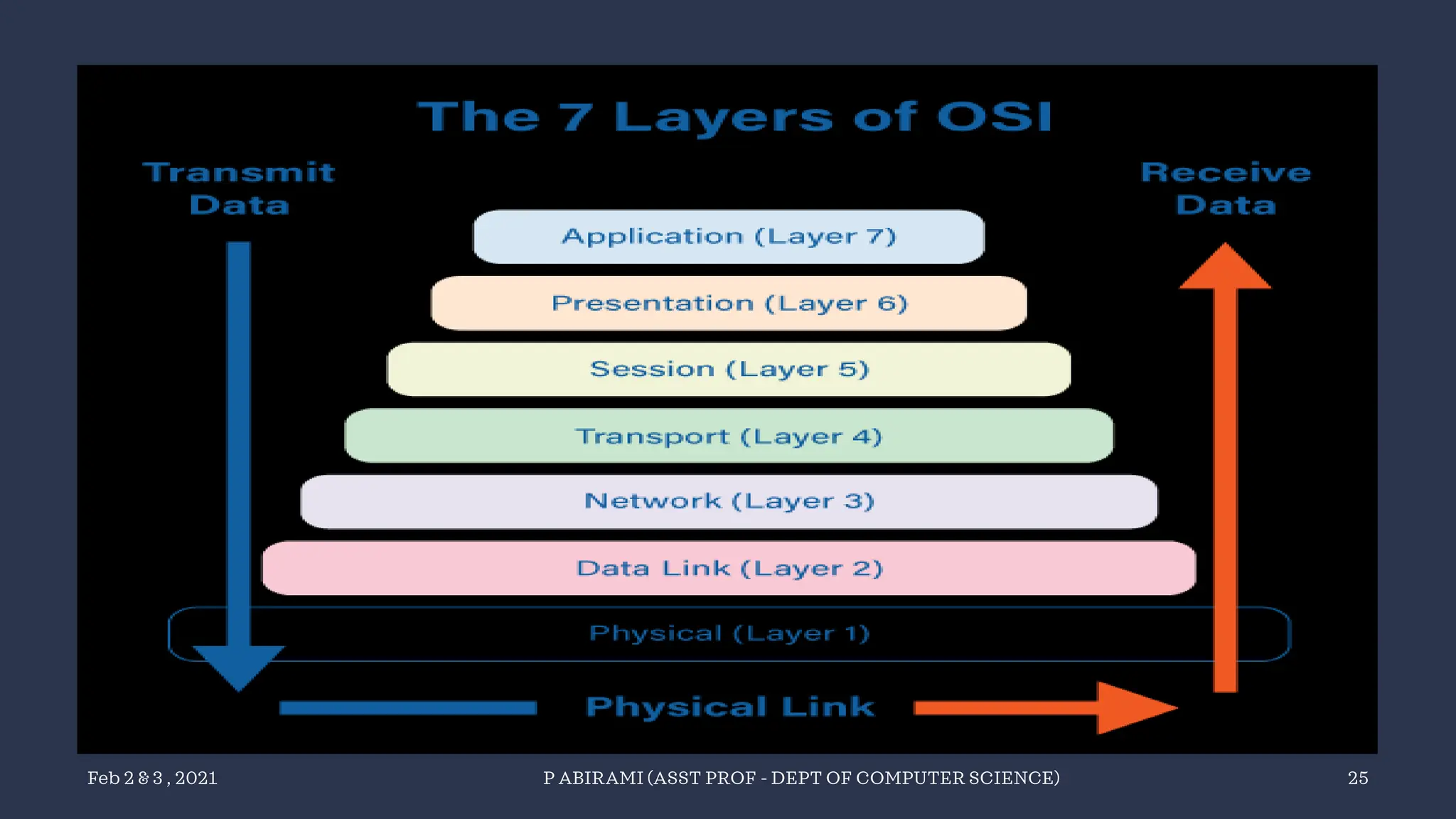

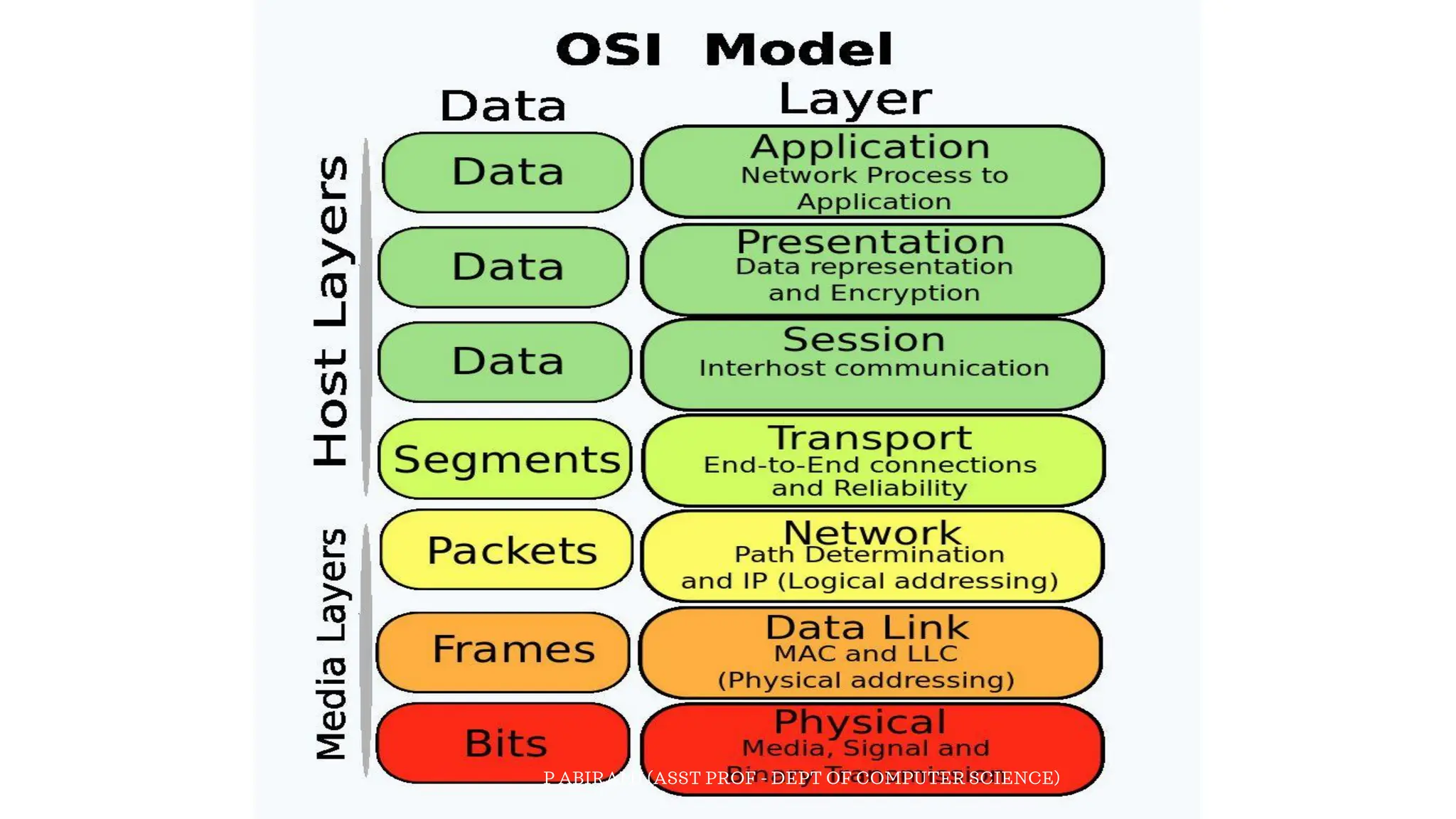

The Open Systems Interconnection (OSI) model describes
seven layers that computer systems use to communicate over
a network.
It was the first standard model for network communications,
adopted by all major computer and telecommunication
companies in the early 1980s.
22
Feb 2 & 3 , 2021

23
Feb 2 & 3 , 2021

24
Feb 2 & 3 , 2021

25
Feb 2 & 3 , 2021

26
Feb 2 & 3 , 2021

27
Feb 2 & 3 , 2021

28
Feb 2 & 3 , 2021

Physical layers
29
Feb 2 & 3 , 2021

30
Feb 2 & 3 , 2021

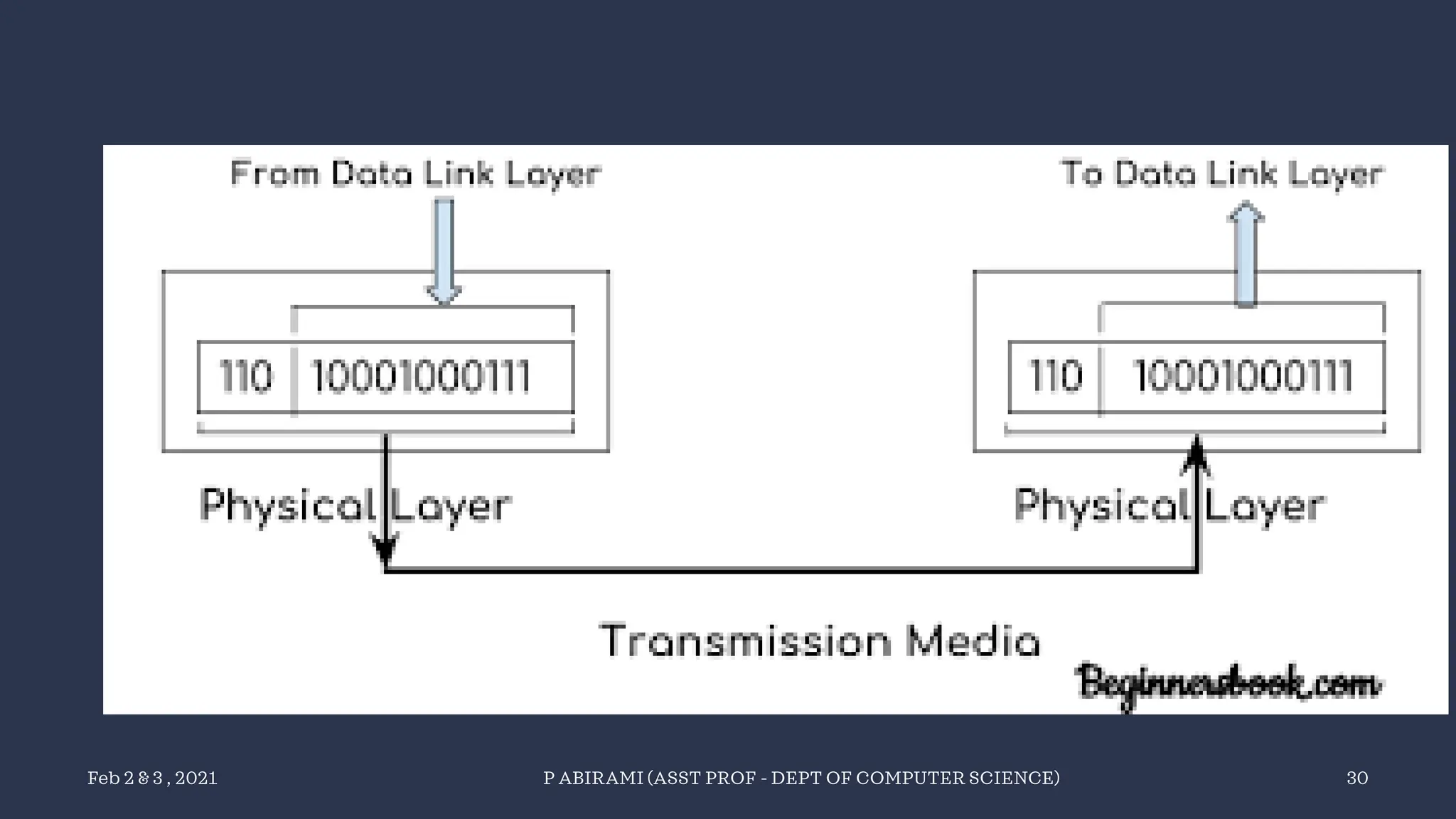

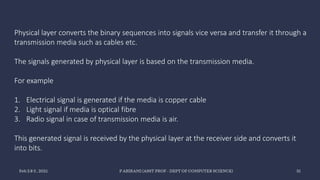

Physical layer converts the binary sequences into signals vice versa and transfer it through a
transmission media such as cables etc.
The signals generated by physical layer is based on the transmission media.
For example
1. Electrical signal is generated if the media is copper cable
2. Light signal if media is optical fibre
3. Radio signal in case of transmission media is air.
This generated signal is received by the physical layer at the receiver side and converts it
into bits.
31
Feb 2 & 3 , 2021

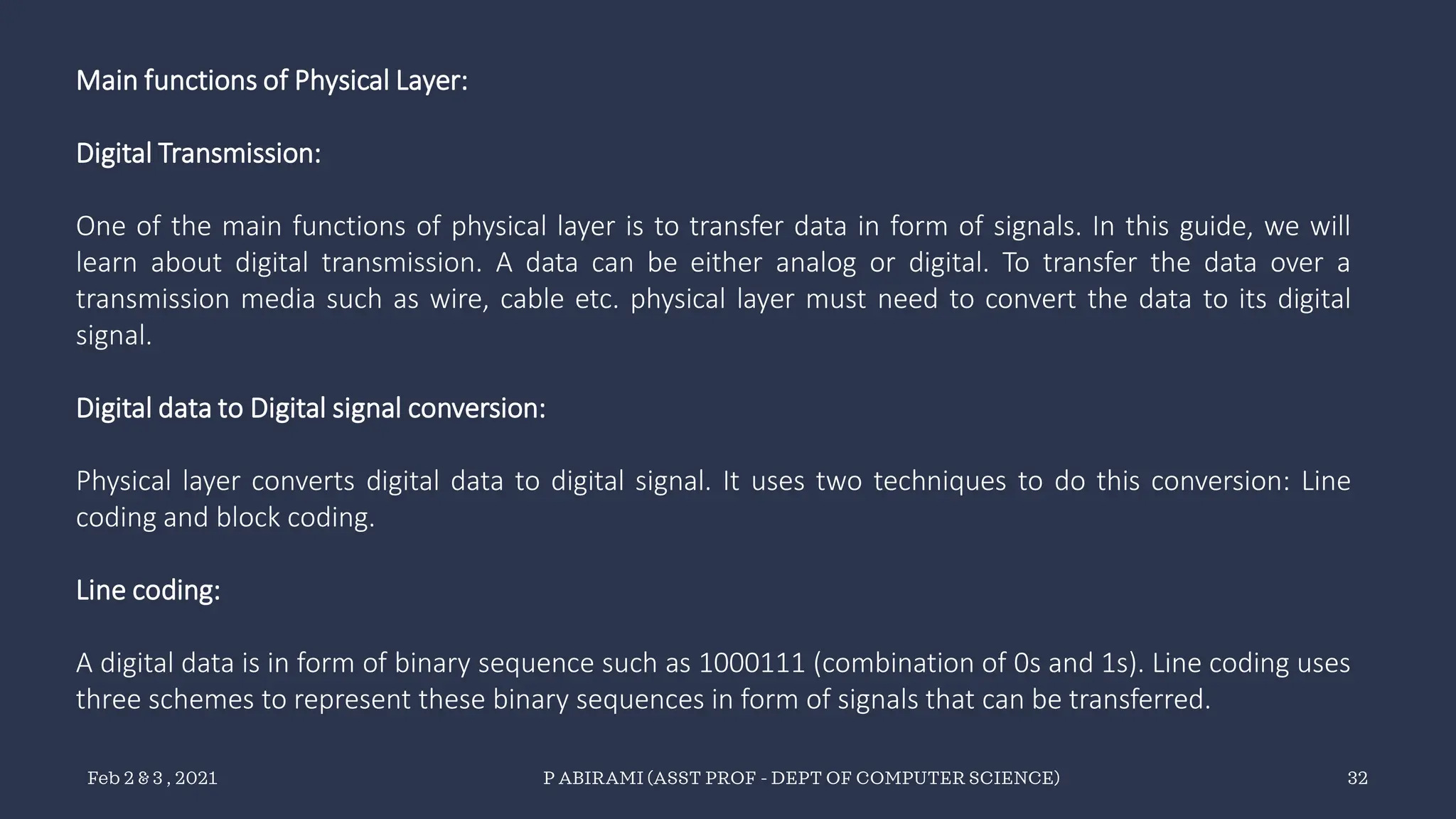

Main functions of Physical Layer:
Digital Transmission:
One of the main functions of physical layer is to transfer data in form of signals. In this guide, we will
learn about digital transmission. A data can be either analog or digital. To transfer the data over a
transmission media such as wire, cable etc. physical layer must need to convert the data to its digital
signal.
Digital data to Digital signal conversion:
Physical layer converts digital data to digital signal. It uses two techniques to do this conversion: Line
coding and block coding.
Line coding:
A digital data is in form of binary sequence such as 1000111 (combination of 0s and 1s). Line coding uses
three schemes to represent these binary sequences in form of signals that can be transferred.
32
Feb 2 & 3 , 2021

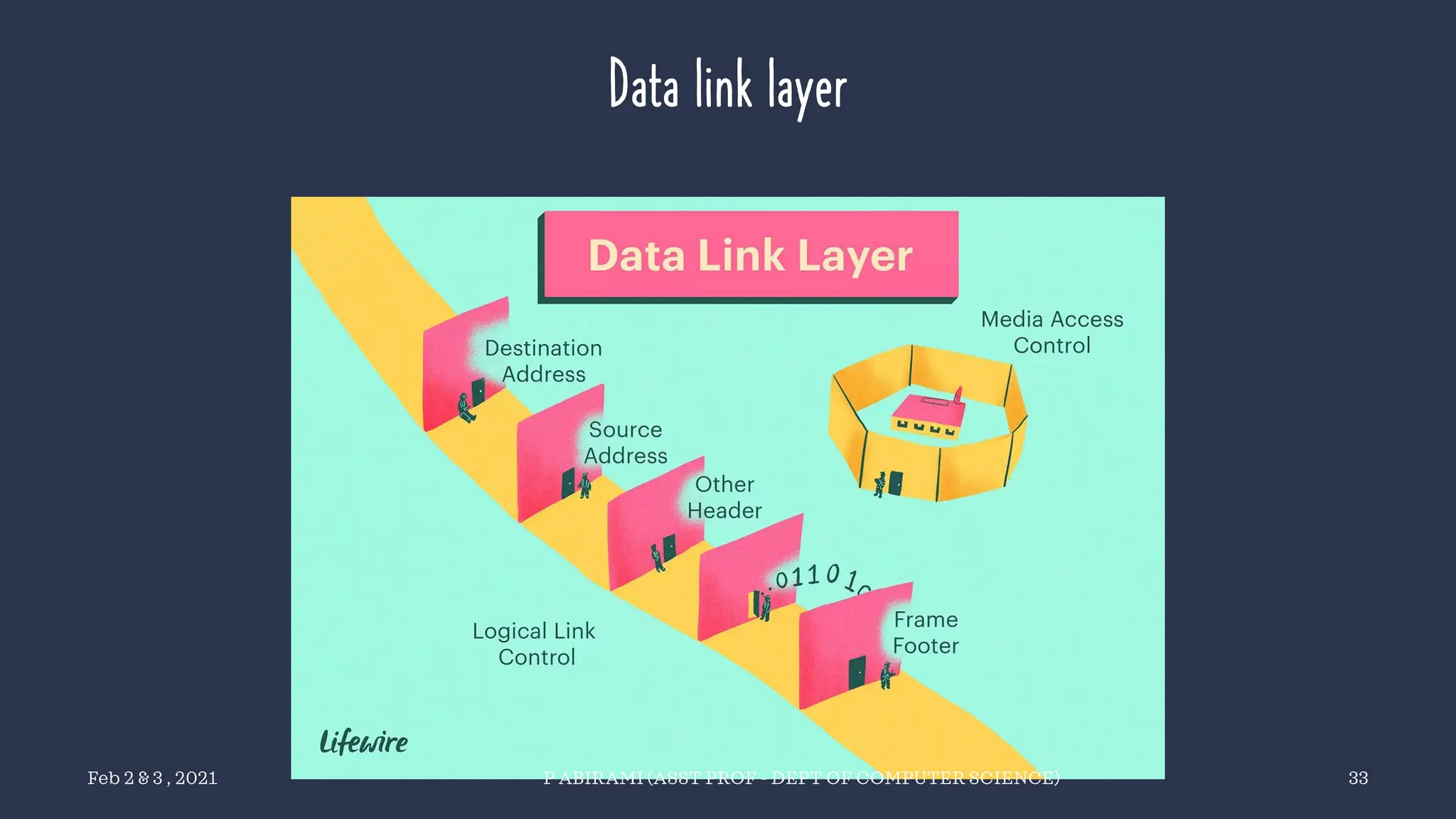

Data link layer
33
Feb 2 & 3 , 2021

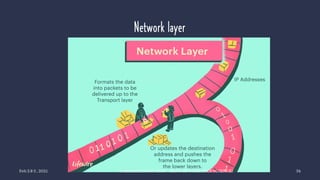

Network layer
34
Feb 2 & 3 , 2021

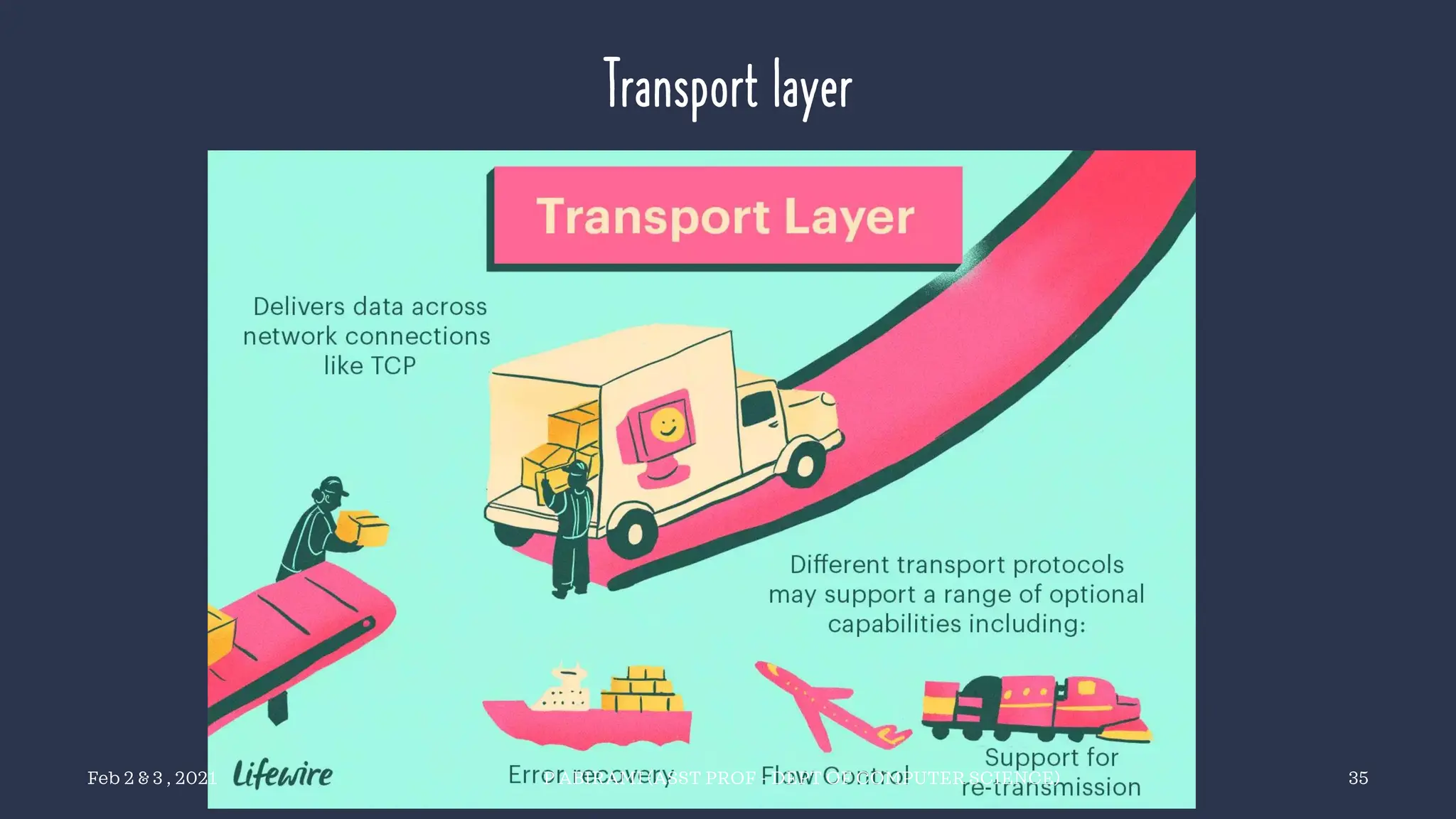

Transport layer
35
Feb 2 & 3 , 2021

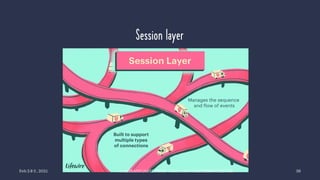

Session layer
36
Feb 2 & 3 , 2021

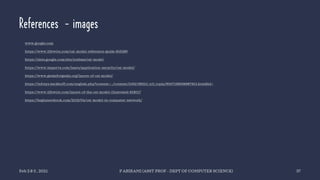

References - images
