1. 儀錶板與應用系統 Part 2：
Dashboards
Emma Guo
2013/12/11

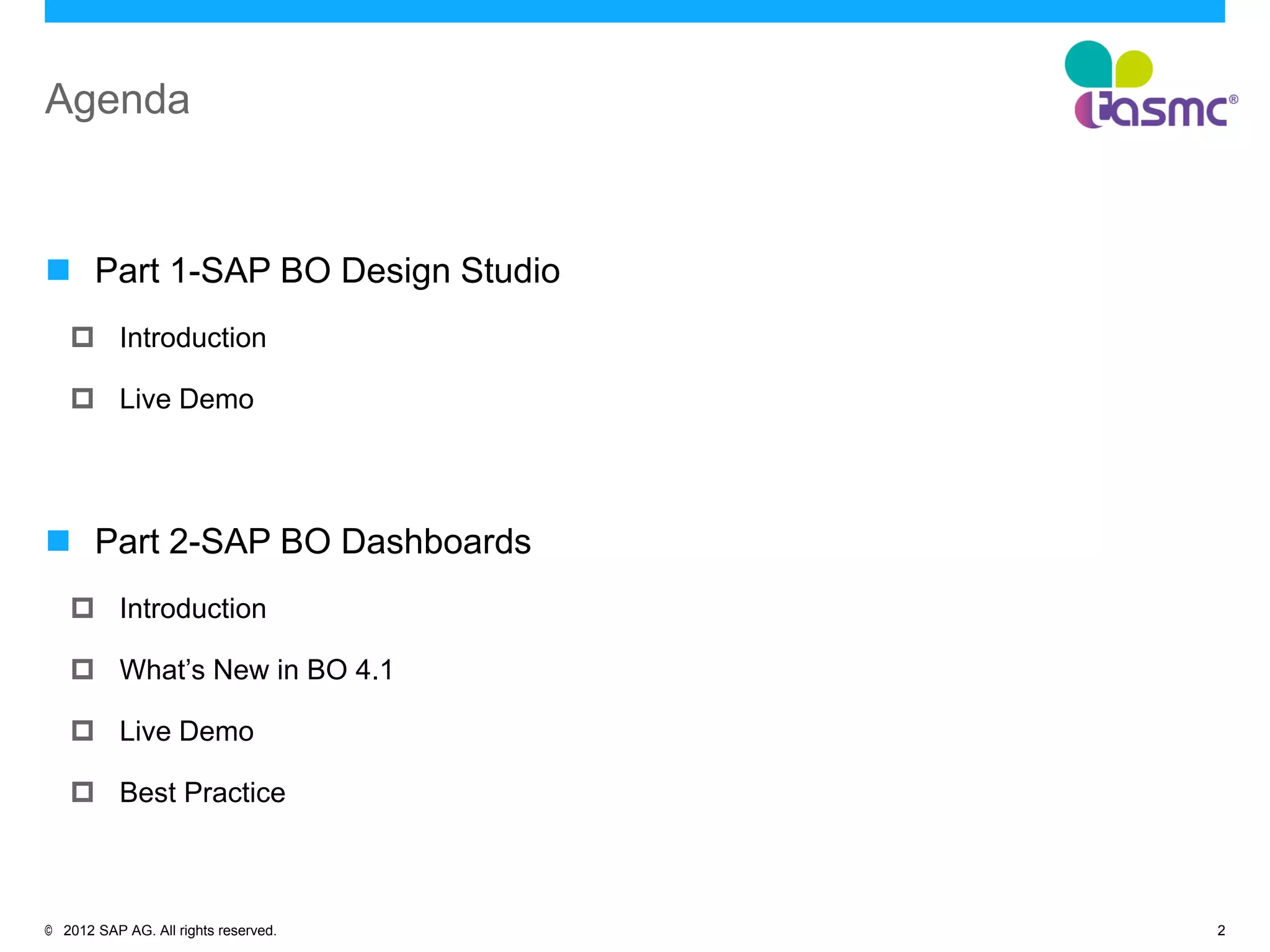

2. Agenda
 Part 1-SAP BO Design Studio
 Introduction
 Live Demo
 Part 2-SAP BO Dashboards
 Introduction
 What’s New in BO 4.1
 Live Demo
 Best Practice
© 2012 SAP AG. All rights reserved.
2

3. SAP BI 4.1 商業智慧解決策略
單一平台滿足所有洞察力
© 2012 SAP AG. All rights reserved.
3

4. Professionally Authored Visualizations Tend
to be Dashboards
 A DASHBOARD is…
 A visual display of…
o Information for strategic decisions
down to operational for daily
decisions
o Multiple dashboards can be linked
based role to provide a storyline
 Created for the purpose of…
o Alignment of organization to
objectives
o Monitoring of KPIs
o Decision making and actions to
improve business results
© 2012 SAP AG. All rights reserved.
4

5. Dashboards and apps：Build Engaging Experiences
SAP BusinessObjects Dashboards
© 2012 SAP AG. All rights reserved.
SAP BusinessObjects Design Studio
5

6. Two Experiences to Cover Customer Needs
SAP BusinessObjects
Dashboards
 Visually compelling dashboards
across multiple sources and
kinds of data
© 2012 SAP AG. All rights reserved.
SAP BusinessObjects
Design Studio
 BI applications and guided
analysis on top of multidimensional data
6

7. SAP BO Dashboards

8. 簡介
SAP BusinessObjects Dashboards (儀錶板)
 是一個拖放視覺化工具，提供互動式的圖表，透過滑鼠點擊拖放功能
表和滑動軸，清晰地呈現資料，方便決策者與資料互動並測試未來的
業務方案。
© 2012 SAP AG. All rights reserved.
31

9. SAP BO Dashboards 功能與特色

高互動性


互動式即時儀表板(drill-down)
What-if 假設分析功能
© 2012 SAP AG. All rights reserved.
32

10. 高互動儀表板：銷售區域分析
© 2012 SAP AG. All rights reserved.
33

11. SAP BO Dashboards 功能與特色

User-friendly的設計版面

提供常用的視覺化元件資料庫

使用預先建立的範本和範例
© 2012 SAP AG. All rights reserved.
34

12. 視覺化元件資料庫
折線圖
圓餅圖
© 2012 SAP AG. All rights reserved.
區域圖
組合圖
儀表圖
35

13. 簡易美化儀錶板範例

主題

配色
© 2012 SAP AG. All rights reserved.
36

14. SAP BO Dashboards 功能與特色

高彈性

直接連線到 SAP 語意層、SAP BW和其他即時資料來源

將儀表板匯出到BI launch pad、報表、簡報和 PDF
© 2012 SAP AG. All rights reserved.
37

15. 儀錶板連線 Dashboard Connectivity
動態連結性

儀錶板和資料來源是分開的，當資料來源更新時，不須重新設計儀錶板。

透過權限設定，可以讓符合權限資格的使用者才看得到資料。
Dashboards連線種類

Universe

SAP BW

XML

Web Services

…
© 2012 SAP AG. All rights reserved.
38

16. 匯出檔案

可匯出的檔案類型：
 Flash (.swf)
 PDF
 PPT
 Word
© 2012 SAP AG. All rights reserved.
39

17. © 2012 SAP AG. All rights reserved.
40

18. © 2012 SAP AG. All rights reserved.
41

19. © 2012 SAP AG. All rights reserved.
42

20. © 2012 SAP AG. All rights reserved.
43

21. What’s New in 4.1 & Mobile 5.x

22. SAP BusinessObjects Dashboards
Download online dashboards for offline sharing on desktop
Offline support for flash dashboards
• In Designer, turn on offline support by
checking "Allow This Dashboard to be
Used Offline"
• During runtime, right click on
Dashboards, and click "Download
dashboard with current data to local"
© 2012 SAP AG. All rights reserved.
45

23. Mobile相容性功能
Mobile相容性－
提示目前儀表板中未支援的元件
元件庫－
可直接切換成僅檢視Mobile支援的
元件，在設計儀表板時，就不會用到
未支援的元件。
預覽 (in mobile view) －
預覽儀表板在iPad上的呈現
© 2012 SAP AG. All rights reserved.
46

24. SAP BusinessObjects Mobile 5.0
Dashboards specific enhancements: more charts
More Charts for Mobile Dashboards
 Waterfall Chart
 Bubble Plot
Waterfall Chart
Bubble Plot
© 2012 SAP AG. All rights reserved.
47

25. SAP BusinessObjects Mobile 5.0
Dashboards specific enhancements: extended charting capabilities
Added HTML Chart Data Label support for mobile








Line Chart
Column Chart
Bar Chart
Stacked Column Chart
Stacked Bar Chart
Column Line Chart
Waterfall Chart
Bubble Plot
Dynamic positioning
 Label
 Arts
 Single values
© 2012 SAP AG. All rights reserved.
48

26. SAP BusinessObjects Mobile 5.0
Dashboards specific enhancements: extended connectivity
Support Query As a Web Services(QaaWS) Connection
 Includes offline support
Connection Refresh button
© 2012 SAP AG. All rights reserved.
49

27. SAP BusinessObjects Mobile 5.0
Dashboards specific enhancements: Android device support
Design one mobile dashboard for both Android and iOS
© 2012 SAP AG. All rights reserved.
50

28. Dashboards Live Design Demo

29. Demo Sample
© 2012 SAP AG. All rights reserved.
52

30. Dashboard Best Practices (cont.)
Use Colors, Labels, And Borders To Identify Data
Types
To
make it easier for you or other members of your organization to maintain
Dashboards models, it is a good idea to use colors, labels, and borders to identify
cells or ranges of cells in the spreadsheet and to hint at their use.
© 2012 SAP AG. All rights reserved.
53

31. SAP BO DashboardsDesign Best Practices

32. Dashboard Run Time (Initial and Load)
© 2012 SAP AG. All rights reserved.
55

33. Dashboard Best Practices
Understanding dashboard initialization time
Six main factors to consider
1. Size of the dashboard flash file (.SWF)
2. Number of components
3. Number of Excel cells used
4. Amount of Excel calculations used
5. Number and size of bindings to Excel ranges
6. Number of queries or connections set to refresh during the
Initializing … message (waits until the last one completes)
© 2012 SAP AG. All rights reserved.
56

34. Dashboard Best Practices (cont.)
Run queries after dashboard has initialized
Do not run queries during Initializing … message
 Edit query  Usage Options
 Deselect Refresh Before
Components Are Loaded
Run queries after Initializing … message
 Add a Query Refresh Button canvas
 Select queries to run
 In Trigger Behavior, select
Refresh After Components
Are Loaded
© 2012 SAP AG. All rights reserved.
57

35. Dashboard Best Practices (cont.)
Where to define calculations
Define
your calculations in the universe layer, so they are run on the server side
for best performance
Any
calculations defined in the Excel layer run client side in the Flash player and
will cause more performance overhead on load and when the spreadsheet
changes at runtime
o If you have to, use Excel for some simple calculations
o Avoid any functions that refer to multiple cells or a range
– SUM, COUNT, SUMIF, COUNTIF, INDEX, MATCH, HLOOKUP, VLOOKUP, etc..
o Avoid repeating logic in a cell, as it will need to run twice
– =IF(SUM(A2:A100)=1000,1000, SUM(A2:A100))
o Avoid chaining cells together when you don’t need to
© 2012 SAP AG. All rights reserved.
58

36. Thank You!
Contact Information:
Emma Guo
emma.guo@tasmc.com.tw
