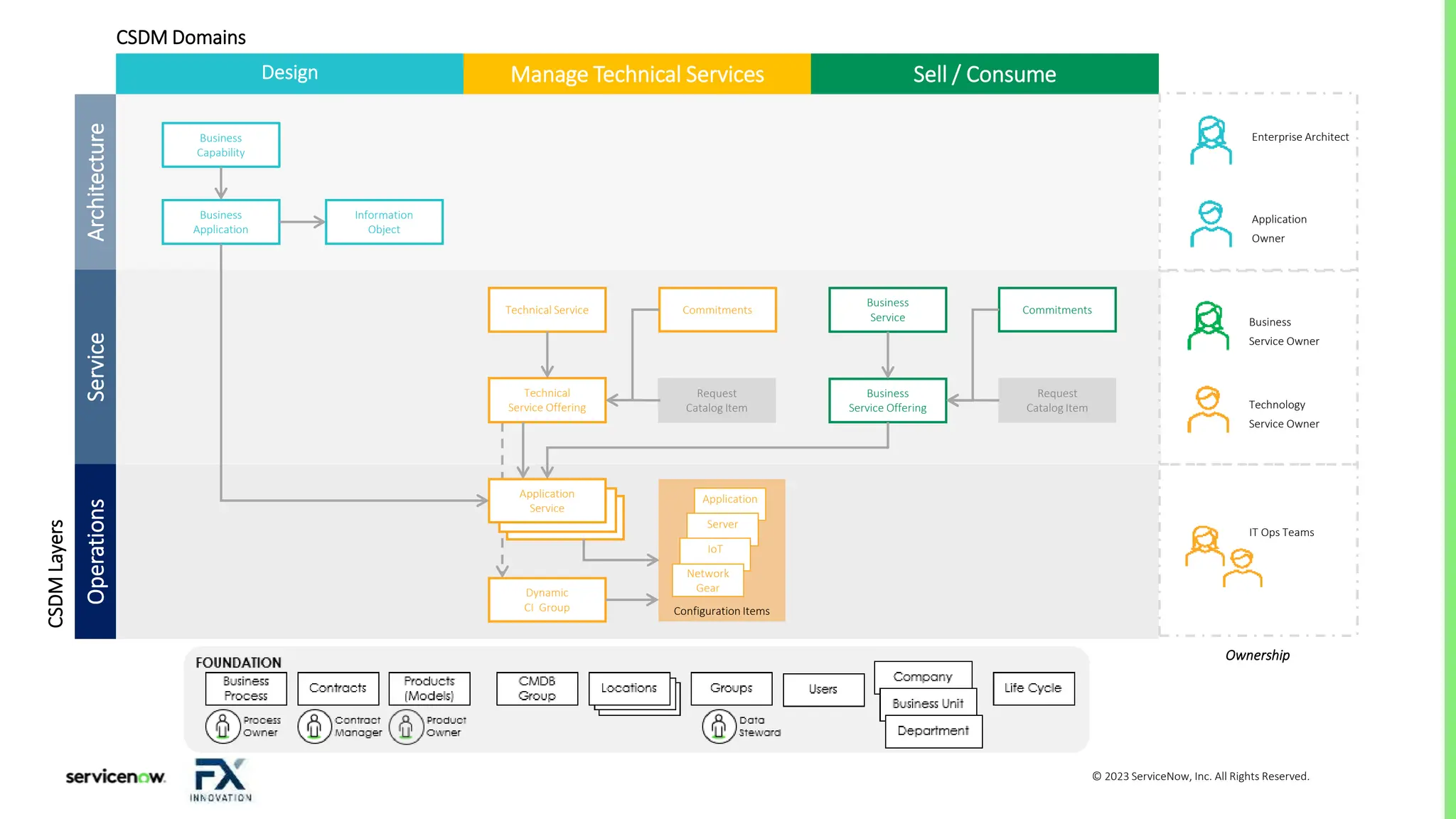

- 1. © 2023 ServiceNow,Inc. All Rights Reserved. Design Manage Technical Services Sell / Consume Architecture Service Operations Business Capability Business Application Information Object Request Catalog Item Technical Service Technical Service Offering Application Service Dynamic CI Group Configuration Items Application Server IoT Network Gear Request Catalog Item Business Service Offering Business Service Commitments Commitments Enterprise Architect Application Owner Business Service Owner Technology Service Owner IT Ops Teams Ownership CSDM Domains CSDM Layers
- 2. © 2023 ServiceNow,Inc. All Rights Reserved. Business Capability Business Application Information Object Enterprise Architect Application Owner Domain Foundation Design Build Manage Technical Services Sell / Consume DESIGN Business Consumer Business Relationship Manager Customer Service Manager The Common Service Data Model 3.0 Request Catalog Item Business Service Offering Business Service Service Portfolio Locations Business Process FOUNDATION Process Owner Contract Manager Product Owner Data Steward Company Business Unit Department Contracts Products (Models) CMDB Group Locations Locations Groups Users Life Cycle Configuration Items Request Catalog Item Technical Service Application Service Dynamic CI Group Technical Service Offering Technical Service Offering Application Server IoT Network Gear Technical Consumer Technology Service Owner (Infrastructure) Technology Service Owner (Delivery) Application Service Owner (Delivery) MANAGE TECHNICAL SERVICES Technical Service Technical Service Technical Service Offering Service Owner MANAGE PORTFOLIO SELL / CONSUME
- 3. © 2023 ServiceNow,Inc. All Rights Reserved. Common Service Data Model Tables and relationships Conceptual Model Physical Model cmdb_ci_business_capability cmdb_ci_business_app cmdb_ci_information_object Business Capability Business Application Information Object cmdb_ci_query_based_service “Service Classification” = Technical Service cmdb_ci_appl * - various Dynamic CI Group Application Infrastructure CIs cmdb_ci_service_technical “Service Classification” = Technical Service Technical Service service_offering “Service Classification” = Technical Service Technical Service Offering service_portfolio (not a CMDB CI) sc_catalog (not a CMDB CI) Service Portfolio Request Catalog cmdb_ci_service “Service Classification” = Business Service Business Service service_offering “Service Classification” = Business Service Business Service Offering Application Service Business Capability Application Business Application Business Application Technical Service Technical Service Offering Service Portfolio Business Service Business Service Offering Business Application Information Object Application Service Application Prescribed Relationships Infrastructure CIs Technical Service Offering Application Service Business Service Business Service Offering Application Service Provided by Uses Consumes Depends on Runs on uses reference attribute uses reference attribute uses reference attribute Contains Depends on Business Capability Provided by Business Service Business Application Business Application uses reference attribute Application Service Application Service Depends on/sends Data To Technical Service Offering Dynamic CI Group Contains Dynamic CI Group Infrastructure CIs Uses related list cmdb_ci_service_auto: For Manual & Service Mapping: cmdb_ci_service_discovered Query Based: cmdb_ci_query_based_service Tag Based: cmdb_ci_service_by_tags “Service Classification” = Application Service Application Service Domain Design Manage Technical Services Sell / Consume Foundation
Editor's Notes
- #2 Copyright Einar & Partners Architecutre : 360 view of the architecture, available capabilities and application inventory Service : how we offer, consume and market services from a technical and business perspective Operations : what éléments make up the backbone of the services the organization delivers? Another to represent the CSDM frameowork is to use layers. The first CSDM layer is the architectural layer, it’s pretty much the same as the CSDM design domain. Carré de sable des architectes. Défini ton inventaire d’application d’affaires et les capacités d’affaires pour atteindre les objectifs stratégies de l’organisation. Then we have the service layer, it is everything about the services that we deliver to our consumers – be it customers or end users, so this is where we document business and technical services as well as their offerings and commitments Then we have the operational layer – this is where our configuration items reside but also the application service + definition de application service The application service has no commitments and no offerings but they rather bring together borth worlds of the services world and the operational world. They are the bridge that we are looking for bridging services and operations. Because bridging services and ops is that this is all about right? A business needs to know whatt exactyly is impacted – if there is for example an outage or security vulnerability Application CI : - On a web server that we are using for our internet application, we might have three verions of tomcat installed. But we don,t know which one of these tomcat installation is now used in our application service, thereforware we have application CI, its an instance of the software that is running on a device, so occupying memory space and it is part of an application service
- #3 represents a standard and shared set of service-related definitions across our products and platform that will enable and support true service level reporting while providing prescriptive guidance on service modeling within the CMDB. These service-related definitions span the ServiceNow® product portfolio and the Now Platform ServiceNow products are standardizing their use of data from the CMDB. That standard is the CSDM which identifies where to place service and application related data within the CMDB. Current and future products from ServiceNow that utilize the CMDB may require data to be found in the CMDB framework identified within this white paper. Without CI data in these prescribed CMDB tables, you may not receive the full value of the ServiceNow platform. This very conceptual and will require and separate workshop to discuss how to model your data.
