1. CROSS-PLATFORM CONFIGURATION
MANAGEMENT WITH
DESIRED STATE CONFIGURATION
Ravikanth C
Windows PowerShell MVP
PowerShellMagazine.com
@ravikanth

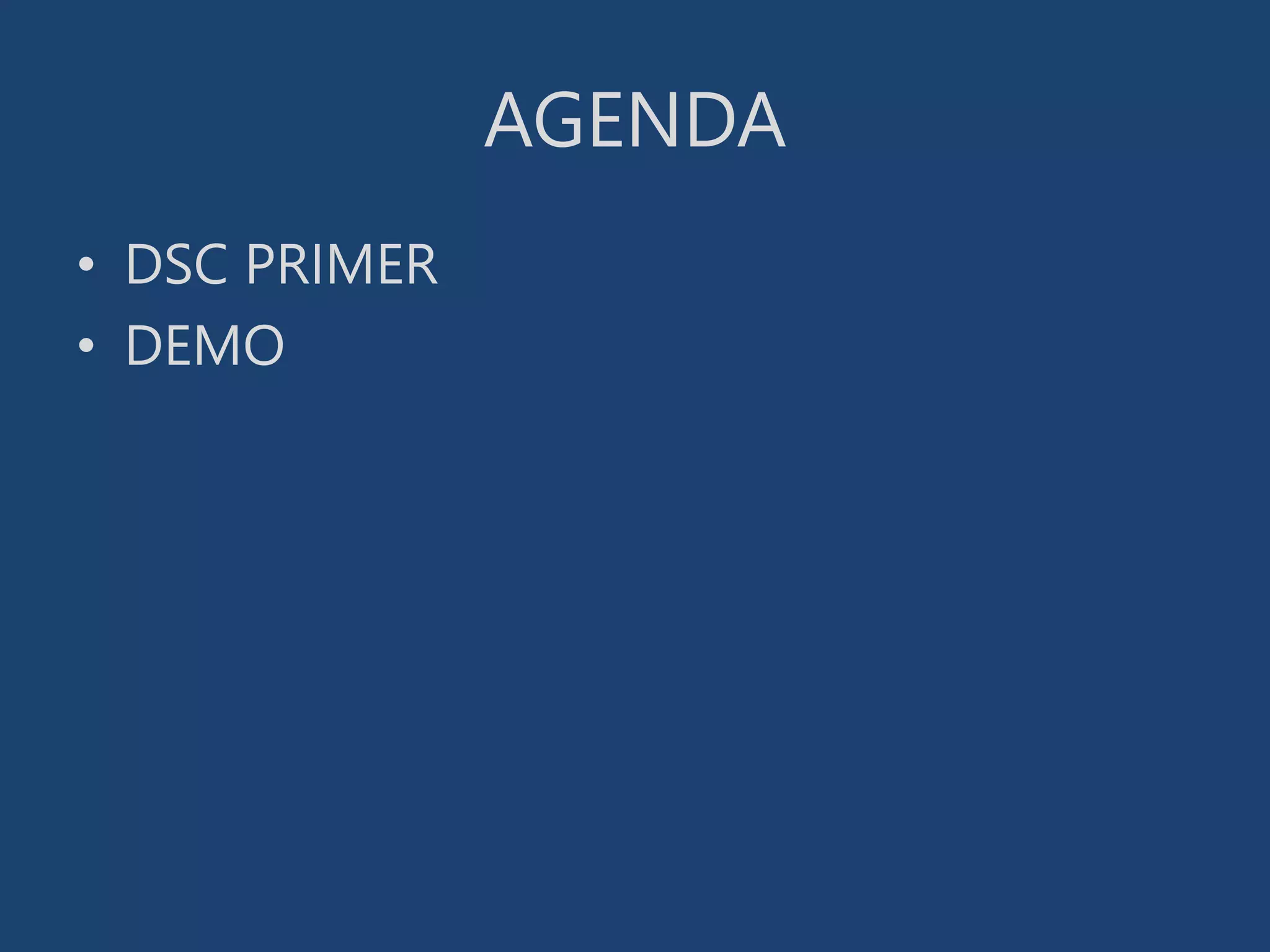

2. AGENDA
• DSC PRIMER
• DEMO

3. DSC PRIMER
• Address challenges in
– Continuous Delivery and Integration
– Configuration Management
• Management Platform
– Available for Windows and Linux/Unix
• Provides
– Language Extensions
– Resources
– PowerShell Cmdlets
• Declarative Style (DSL)
• Push and Pull configuration delivery

4. DSC PRIMER
What about these and
many others?

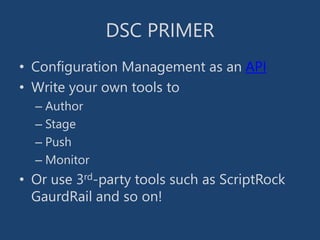

5. DSC PRIMER
• Configuration Management as an API
• Write your own tools to
– Author
– Stage
– Push
– Monitor
• Or use 3rd-party tools such as ScriptRock
GaurdRail and so on!

6. DSC PRIMER
• Configuration is stored at:
– Windows: C:WindowsSystem32Configuration
– Linux: /opt/omi-1.0.8/etc/dsc/configuration
• Current.mof – Present configuration (N)
• Backup.mof – Copy of Current.mof
• Pending.mof – Configuration changes
pending
• Previous.mof – N-1 configuration
• MetaConfig.mof – LCM configuration

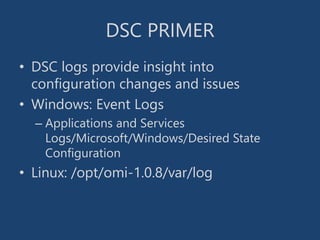

7. DSC PRIMER
• DSC logs provide insight into
configuration changes and issues
• Windows: Event Logs
– Applications and Services
Logs/Microsoft/Windows/Desired State
Configuration
• Linux: /opt/omi-1.0.8/var/log

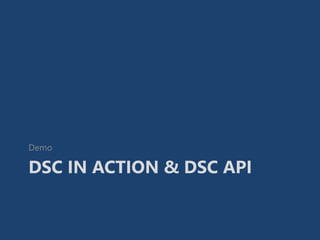

8. DSC IN ACTION & DSC API
Demo

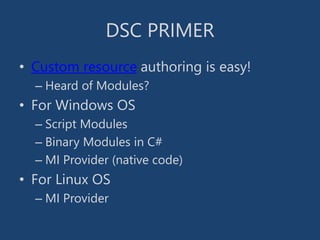

9. DSC PRIMER
• Custom resource authoring is easy!
– Heard of Modules?
• For Windows OS
– Script Modules
– Binary Modules in C#
– MI Provider (native code)
• For Linux OS
– MI Provider

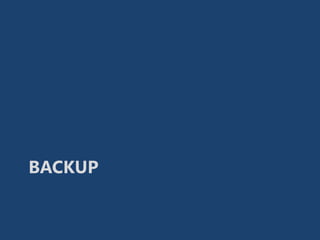

10. BACKUP

11. DECLARATIVE SYNTAX
Configuration ArchiveDemo {
Node SRV3-WS2012R2 {
Archive ArchiveDemo {
Path = "10.10.10.101BackupScripts.zip"
DestinationPath = "C:Scripts"
Ensure="Present"
}
}
}
ArchiveDemo
.PS1

12. DSC ARCHITECTURE

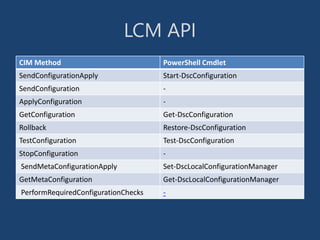

13. LCM API
CIM Method PowerShell Cmdlet
SendConfigurationApply Start-DscConfiguration
SendConfiguration -
ApplyConfiguration -
GetConfiguration Get-DscConfiguration
Rollback Restore-DscConfiguration
TestConfiguration Test-DscConfiguration
StopConfiguration -
SendMetaConfigurationApply Set-DscLocalConfigurationManager
GetMetaConfiguration Get-DscLocalConfigurationManager
PerformRequiredConfigurationChecks -

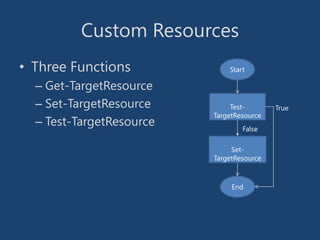

14. Custom Resources
• Three Functions
– Get-TargetResource
– Set-TargetResource
– Test-TargetResource
Start
Test-
TargetResource
Set-
TargetResource
False
End
True
