Installation Guide
-
Microsoft Dynamic CRM 2015
Full Installation with IFD Configurations
Version 1.0
Page 1​of 81


CRM 2015 Full Installation Guide

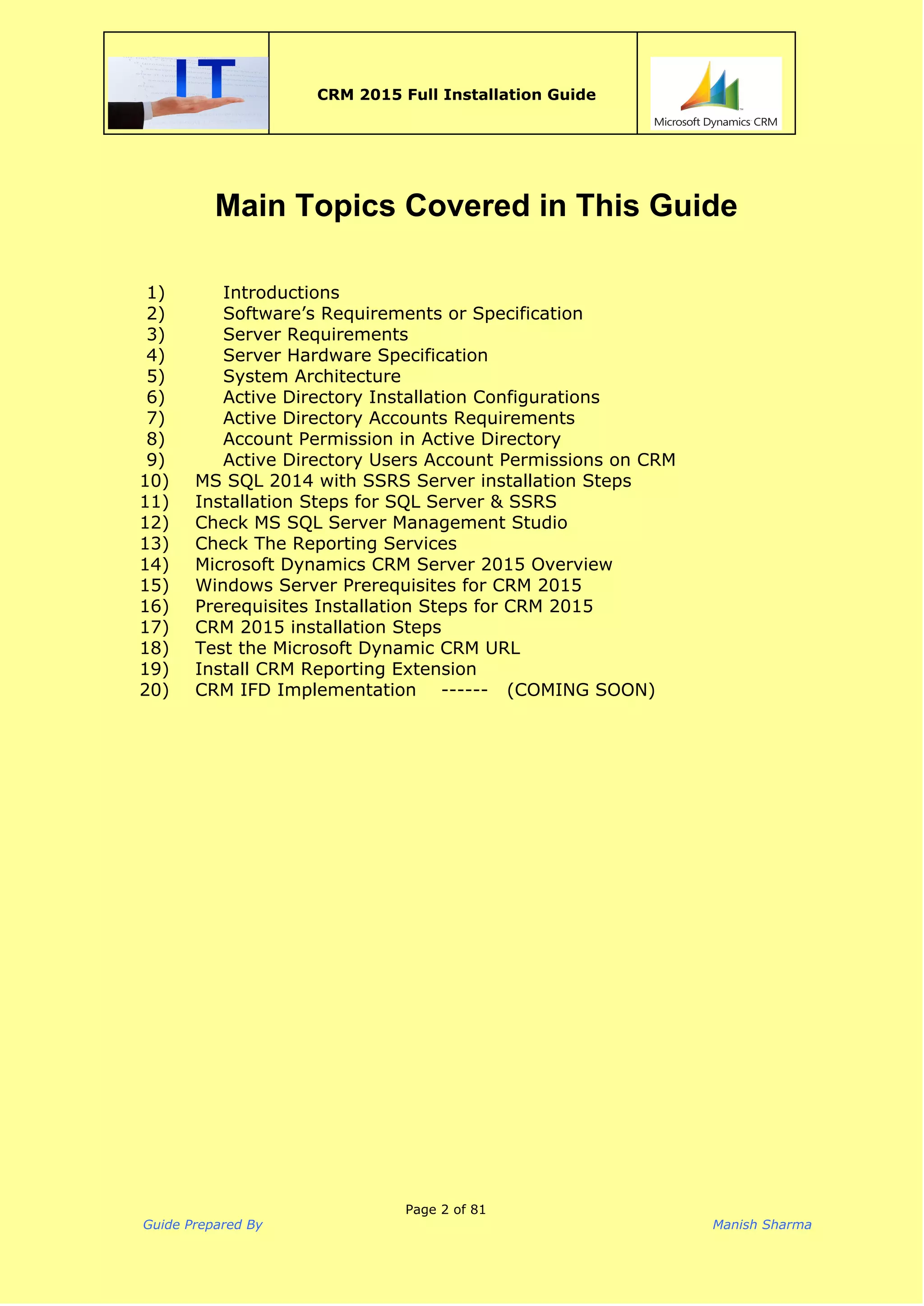

Main Topics Covered in This Guide


1) Introductions
2) Software’s Requirements or Specification
3) Server Requirements
4) Server Hardware Specification
5) System Architecture
6) Active Directory Installation Configurations
7) Active Directory Accounts Requirements
8) Account Permission in Active Directory
9) Active Directory Users Account Permissions on CRM
10) MS SQL 2014 with SSRS Server installation Steps
11) Installation Steps for SQL Server & SSRS
12) Check MS SQL Server Management Studio
13) Check The Reporting Services
14) Microsoft Dynamics CRM Server 2015 Overview
15) Windows Server Prerequisites for CRM 2015
16) Prerequisites Installation Steps for CRM 2015
17) CRM 2015 installation Steps
18) Test the Microsoft Dynamic CRM URL
19) Install CRM Reporting Extension
20) CRM IFD Implementation ------ (COMING SOON)
Page 2 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

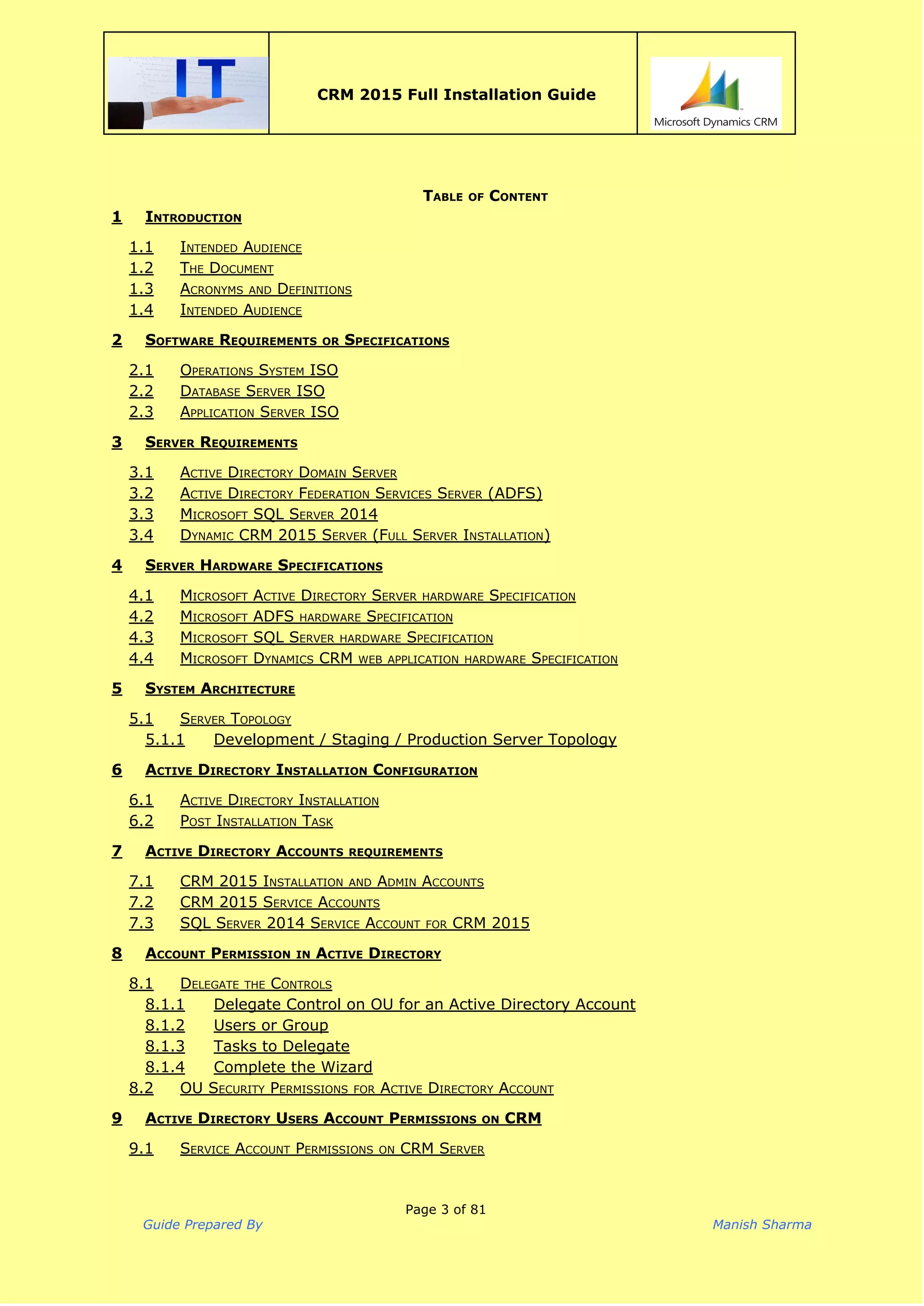

TABLE OF CONTENT
1 INTRODUCTION
1.1 INTENDED AUDIENCE
1.2 THE DOCUMENT
1.3 ACRONYMS AND DEFINITIONS
1.4 INTENDED AUDIENCE
2 SOFTWARE REQUIREMENTS OR SPECIFICATIONS
2.1 OPERATIONS SYSTEM ISO
2.2 DATABASE SERVER ISO
2.3 APPLICATION SERVER ISO
3 SERVER REQUIREMENTS
3.1 ACTIVE DIRECTORY DOMAIN SERVER
3.2 ACTIVE DIRECTORY FEDERATION SERVICES SERVER (ADFS)
3.3 MICROSOFT SQL SERVER 2014
3.4 DYNAMIC CRM 2015 SERVER (FULL SERVER INSTALLATION)
4 SERVER HARDWARE SPECIFICATIONS
4.1 MICROSOFT ACTIVE DIRECTORY SERVER HARDWARE SPECIFICATION
4.2 MICROSOFT ADFS HARDWARE SPECIFICATION
4.3 MICROSOFT SQL SERVER HARDWARE SPECIFICATION
4.4 MICROSOFT DYNAMICS CRM WEB APPLICATION HARDWARE SPECIFICATION
5 SYSTEM ARCHITECTURE
5.1 SERVER TOPOLOGY
5.1.1 Development / Staging / Production Server Topology
6 ACTIVE DIRECTORY INSTALLATION CONFIGURATION
6.1 ACTIVE DIRECTORY INSTALLATION
6.2 POST INSTALLATION TASK

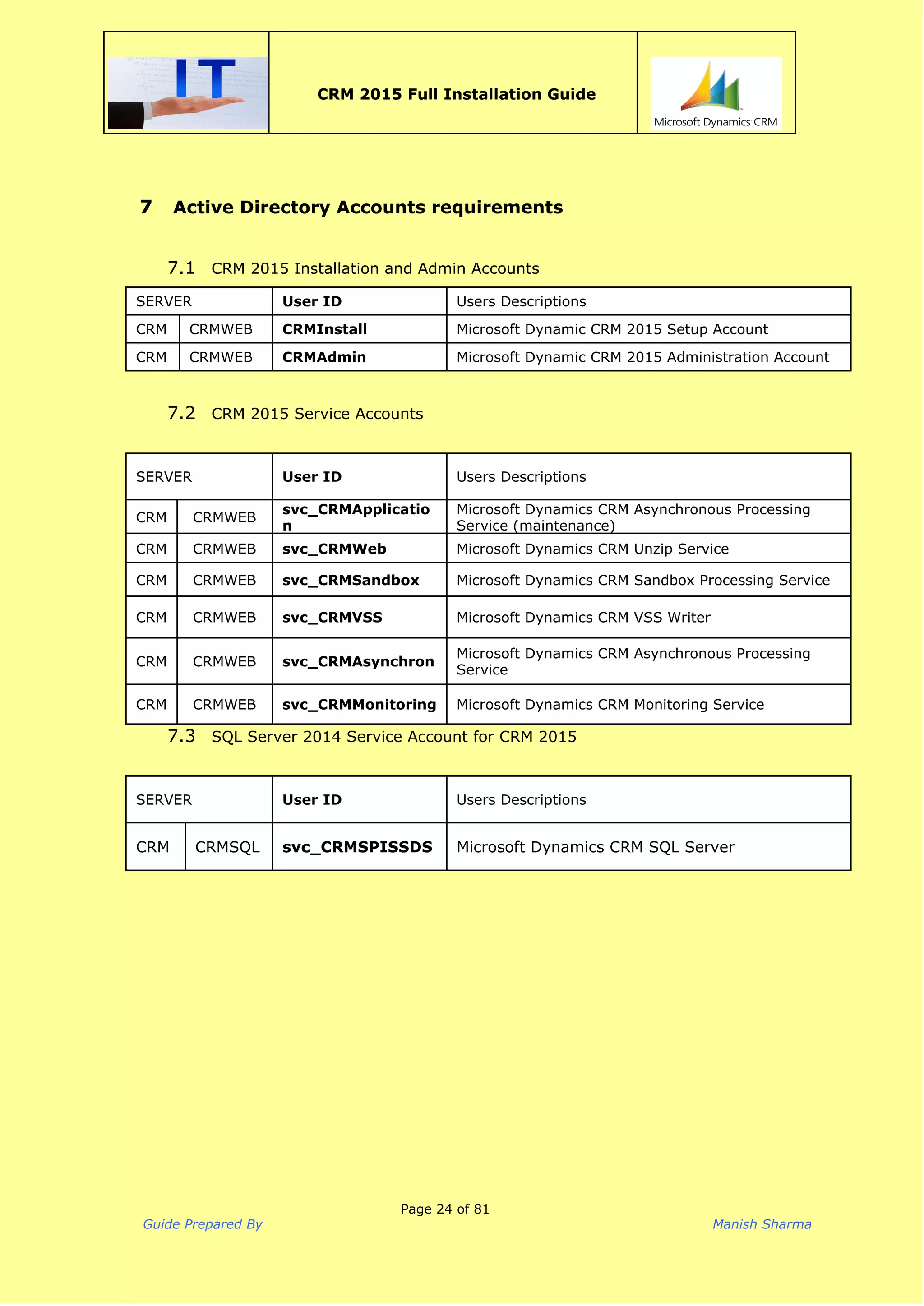

7 ACTIVE DIRECTORY ACCOUNTS REQUIREMENTS
7.1 CRM 2015 INSTALLATION AND ADMIN ACCOUNTS
7.2 CRM 2015 SERVICE ACCOUNTS
7.3 SQL SERVER 2014 SERVICE ACCOUNT FOR CRM 2015

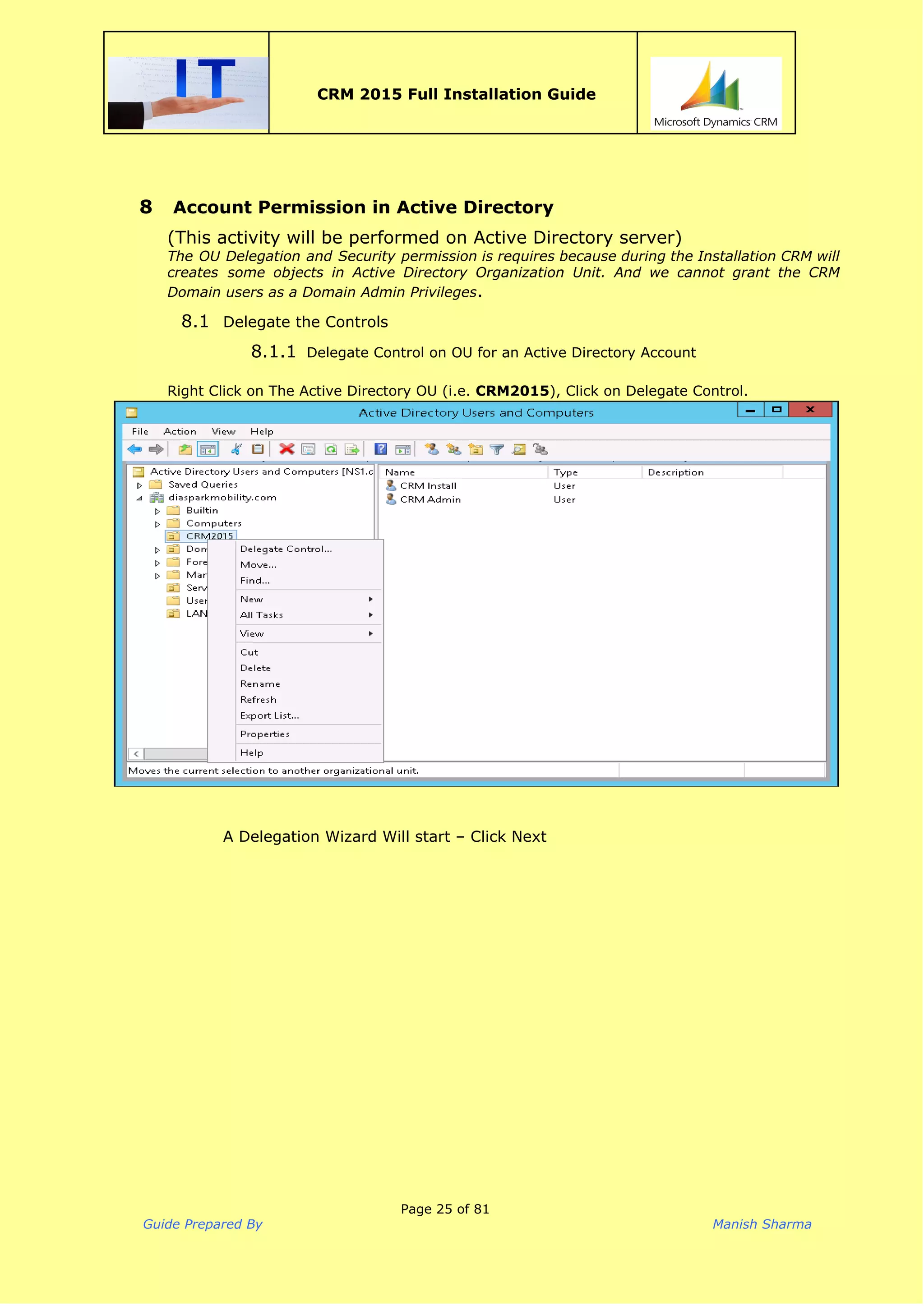

8 ACCOUNT PERMISSION IN ACTIVE DIRECTORY
8.1 DELEGATE THE CONTROLS
8.1.1 Delegate Control on OU for an Active Directory Account

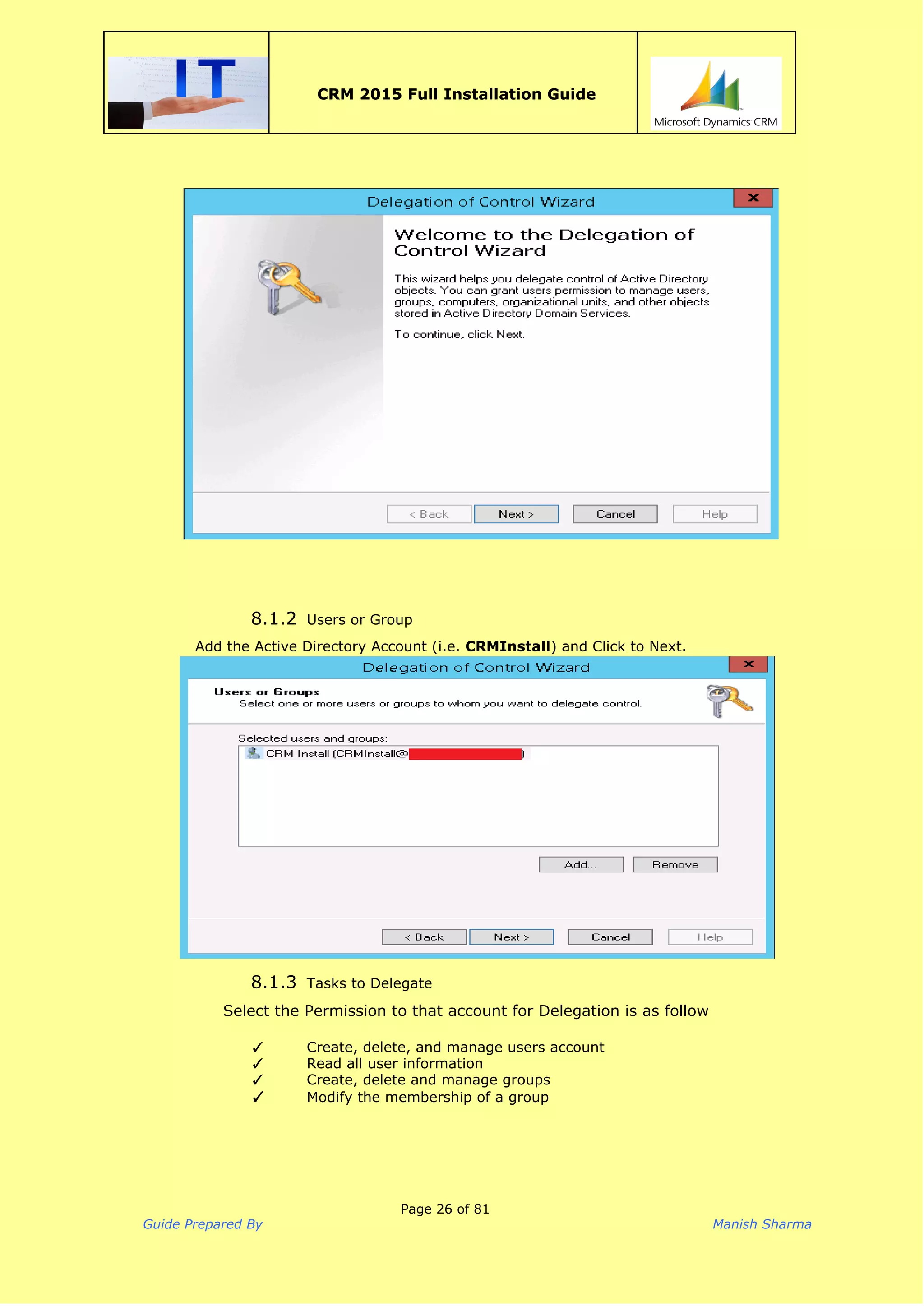

8.1.2 Users or Group
8.1.3 Tasks to Delegate

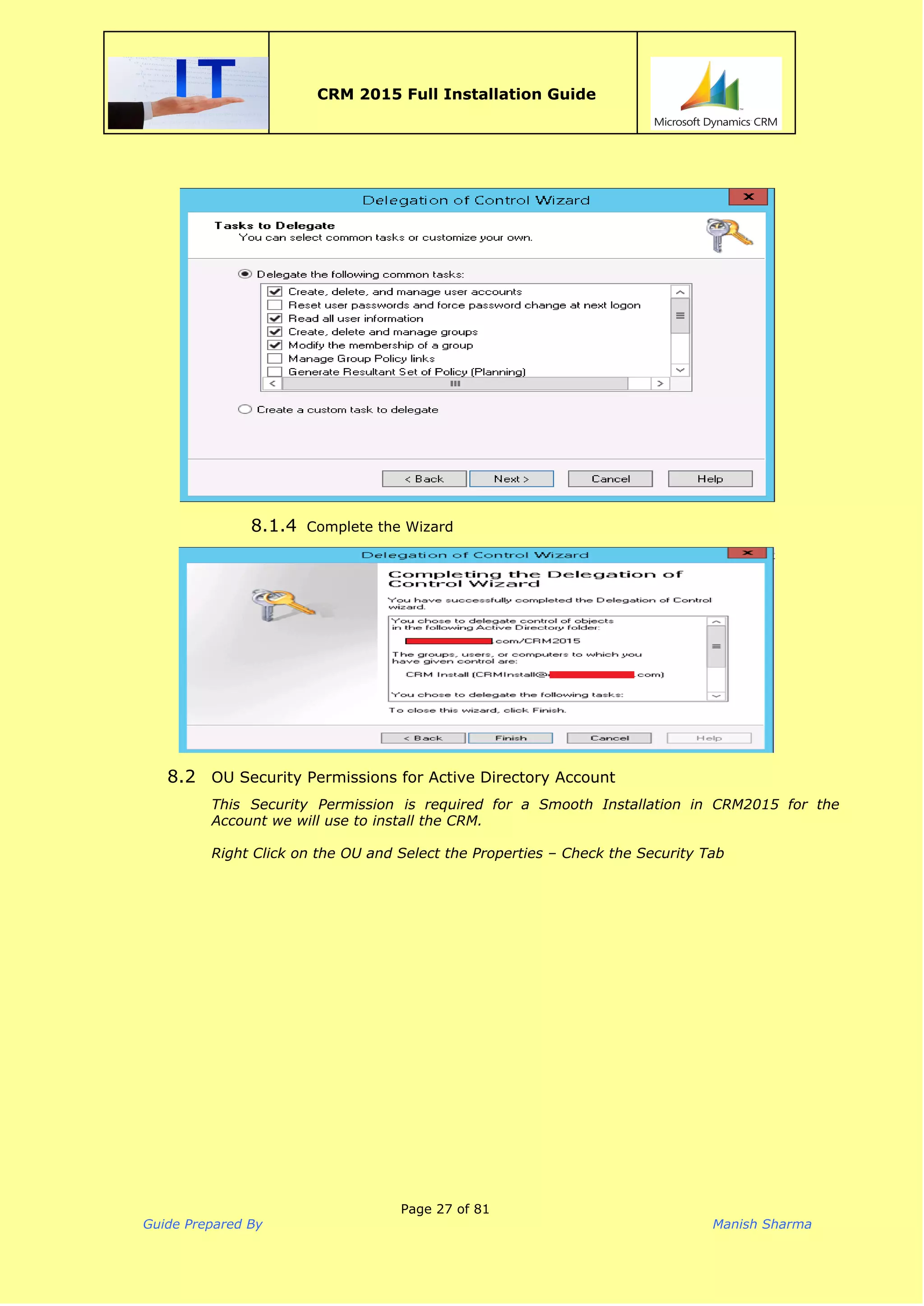

8.1.4 Complete the Wizard

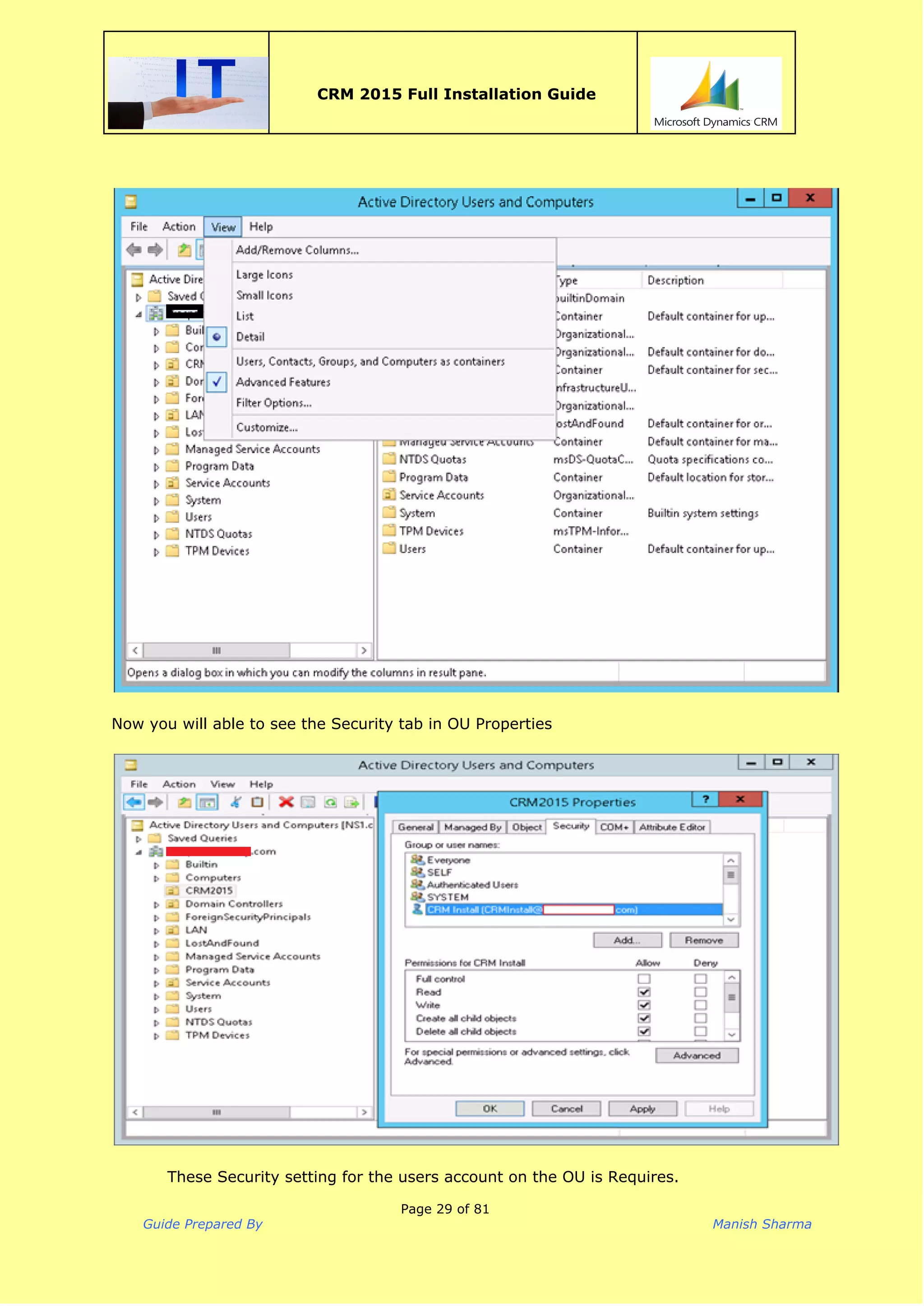

8.2 OU SECURITY PERMISSIONS FOR ACTIVE DIRECTORY ACCOUNT

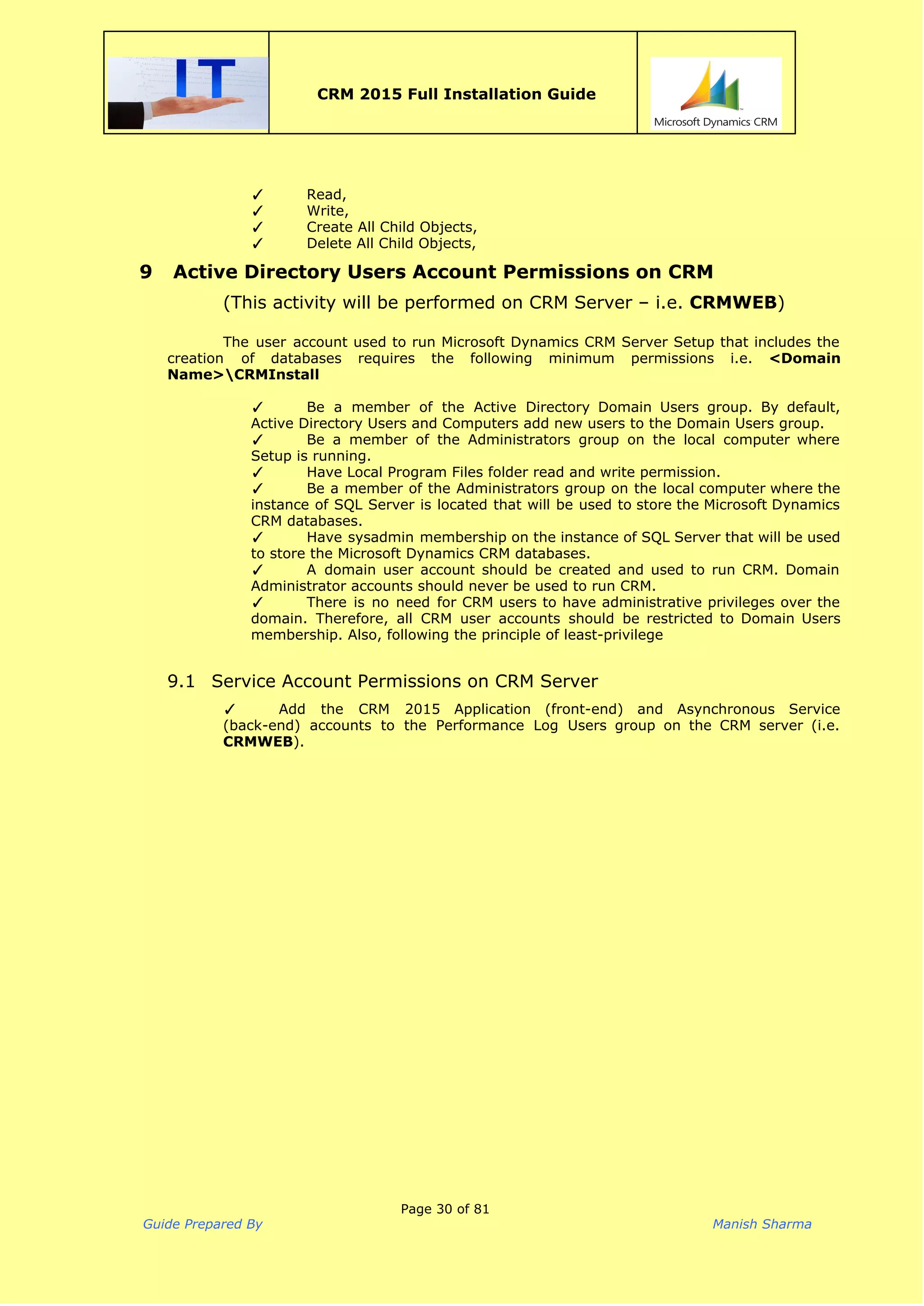

9 ACTIVE DIRECTORY USERS ACCOUNT PERMISSIONS ON CRM

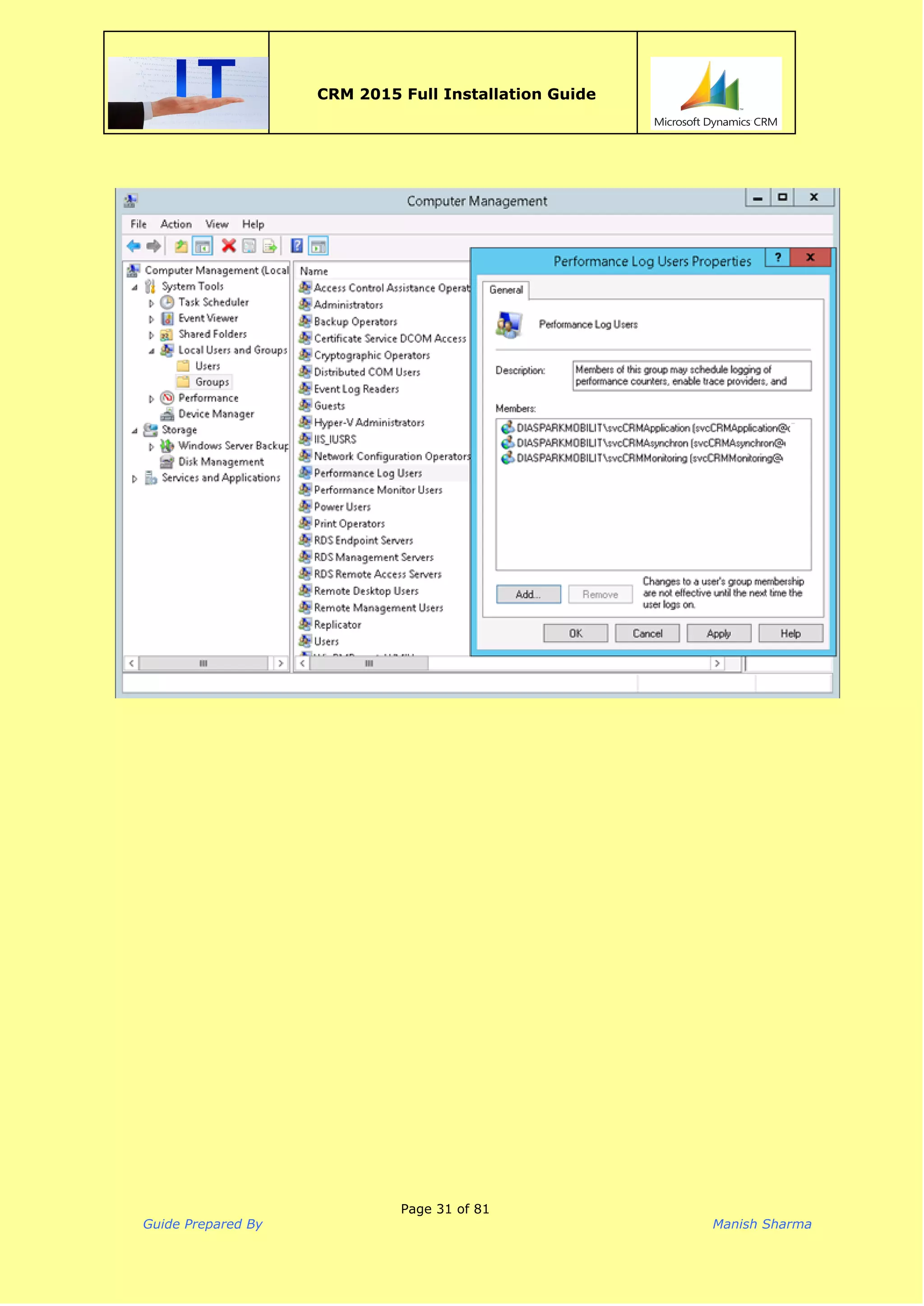

9.1 SERVICE ACCOUNT PERMISSIONS ON CRM SERVER
Page 3 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

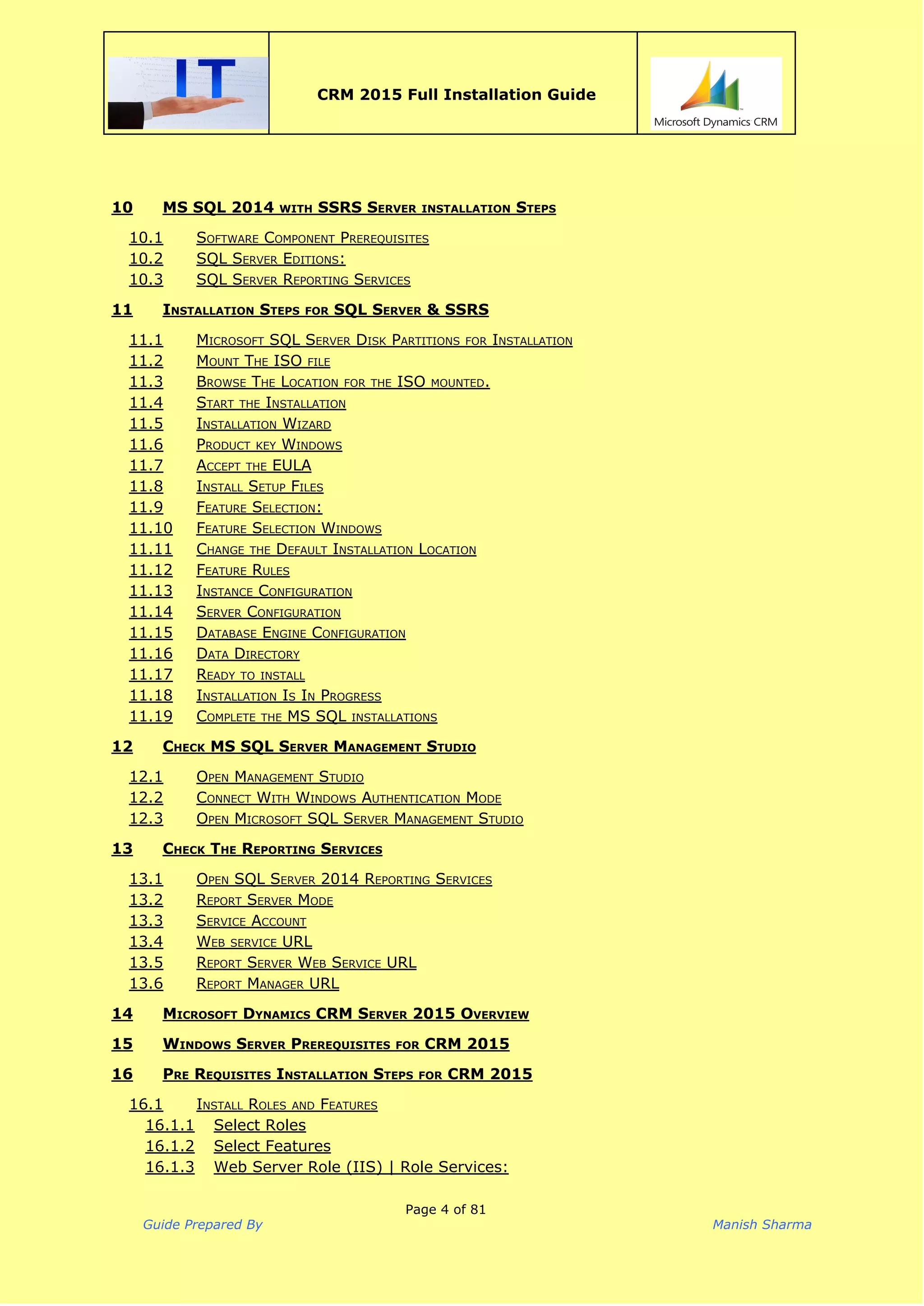

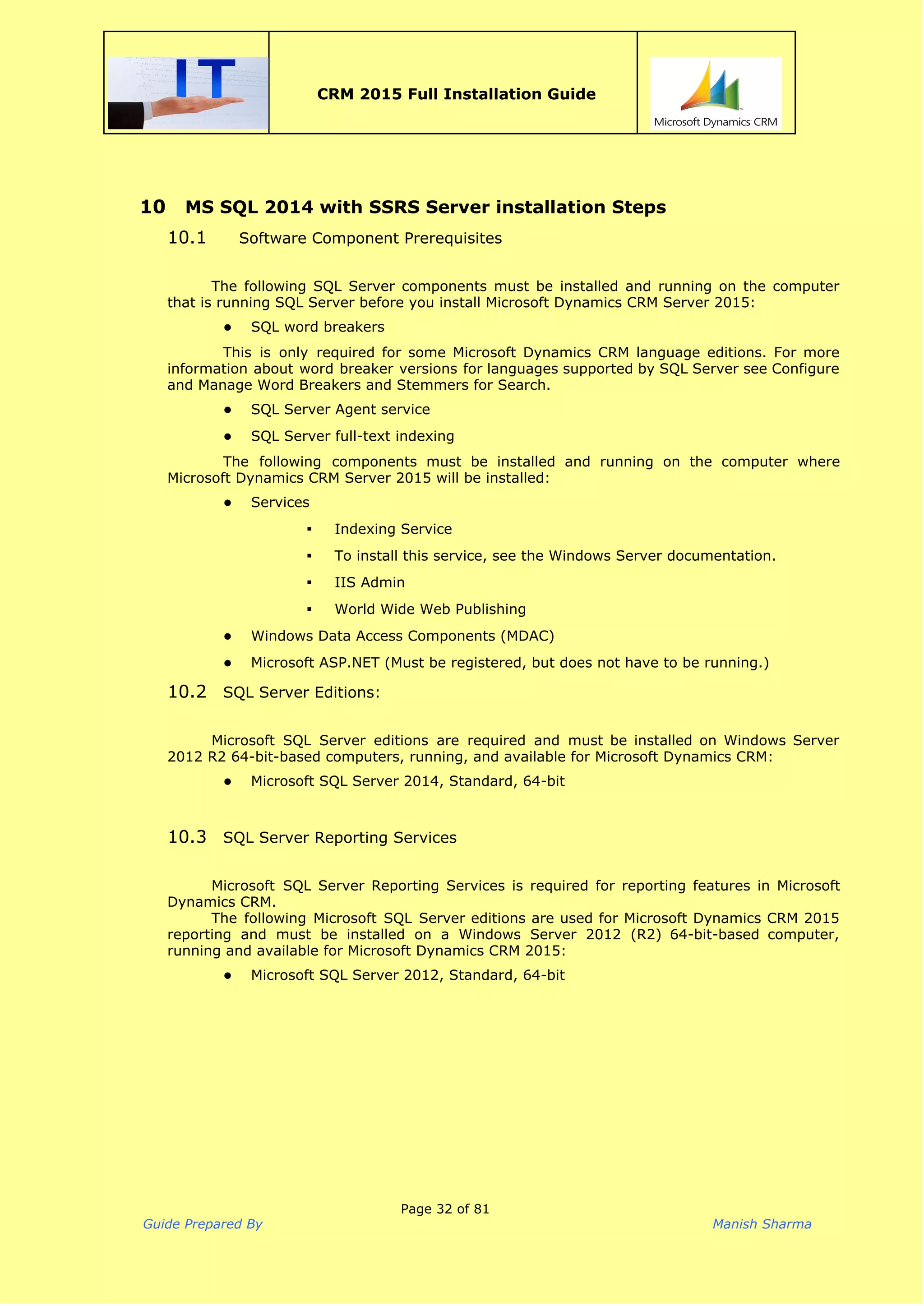

10 MS SQL 2014 WITH SSRS SERVER INSTALLATION STEPS
10.1 SOFTWARE COMPONENT PREREQUISITES
10.2 SQL SERVER EDITIONS:
10.3 SQL SERVER REPORTING SERVICES

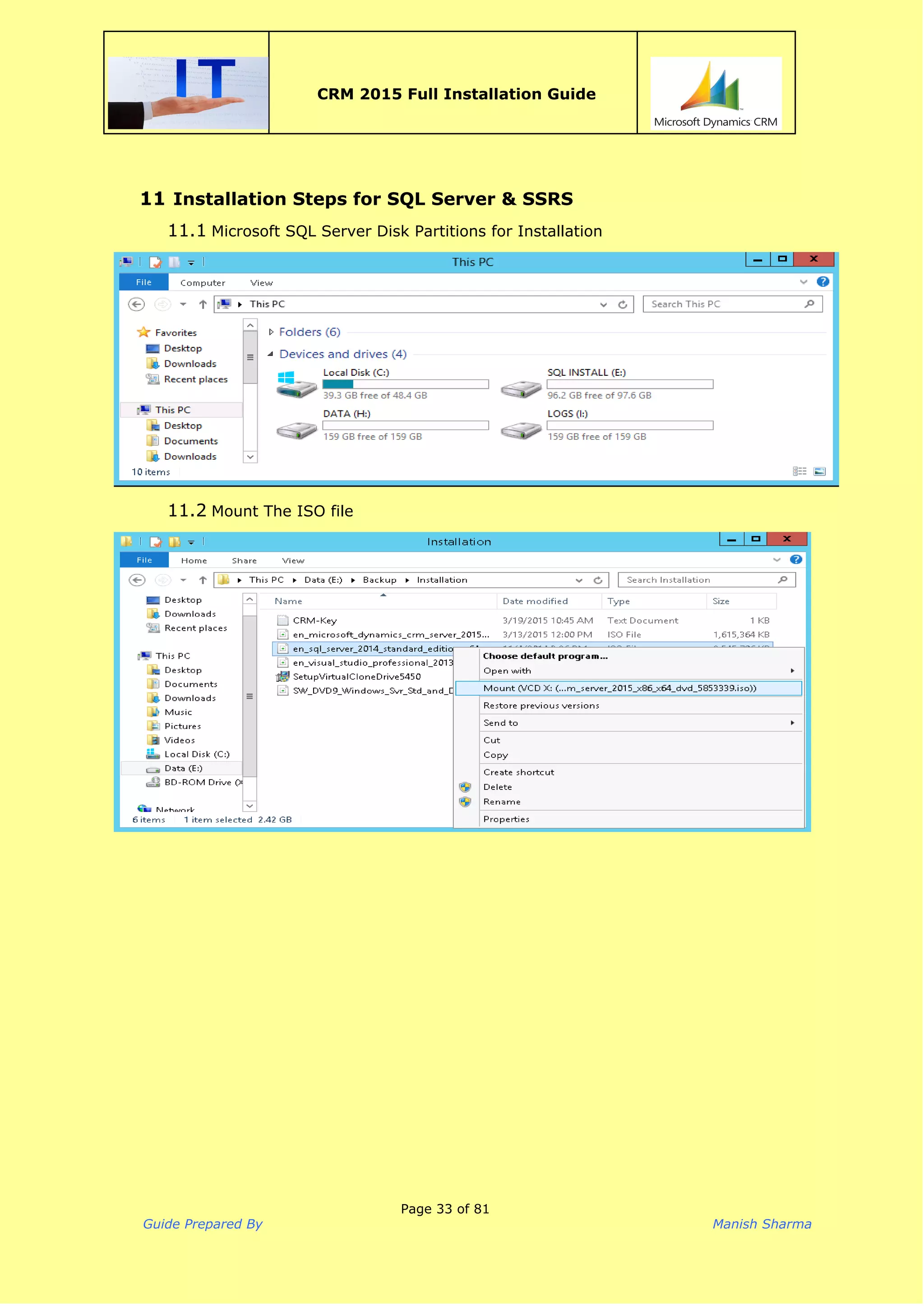

11 INSTALLATION STEPS FOR SQL SERVER & SSRS
11.1 MICROSOFT SQL SERVER DISK PARTITIONS FOR INSTALLATION
11.2 MOUNT THE ISO FILE

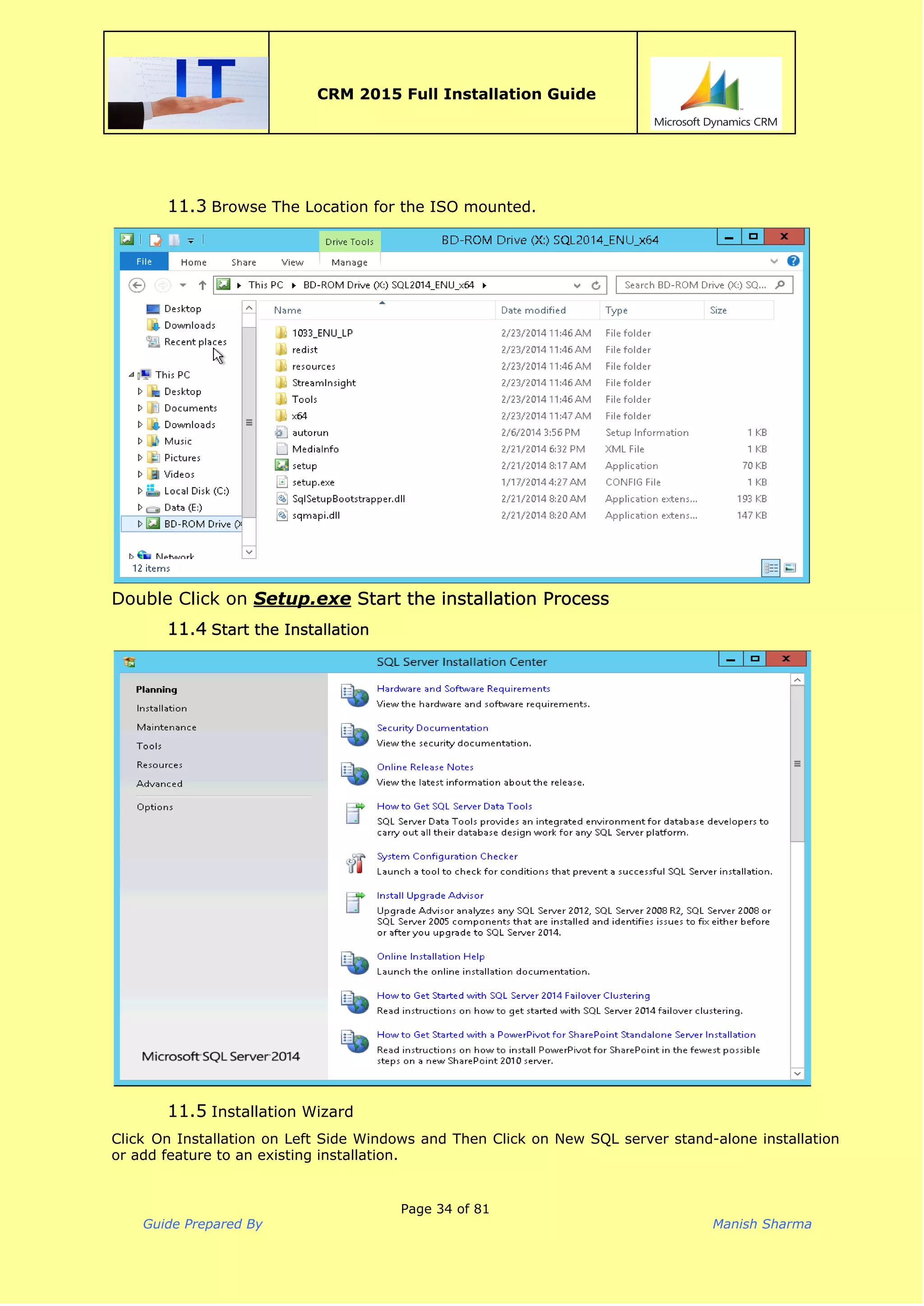

11.3 BROWSE THE LOCATION FOR THE ISO MOUNTED.
11.4 START THE INSTALLATION
11.5 INSTALLATION WIZARD

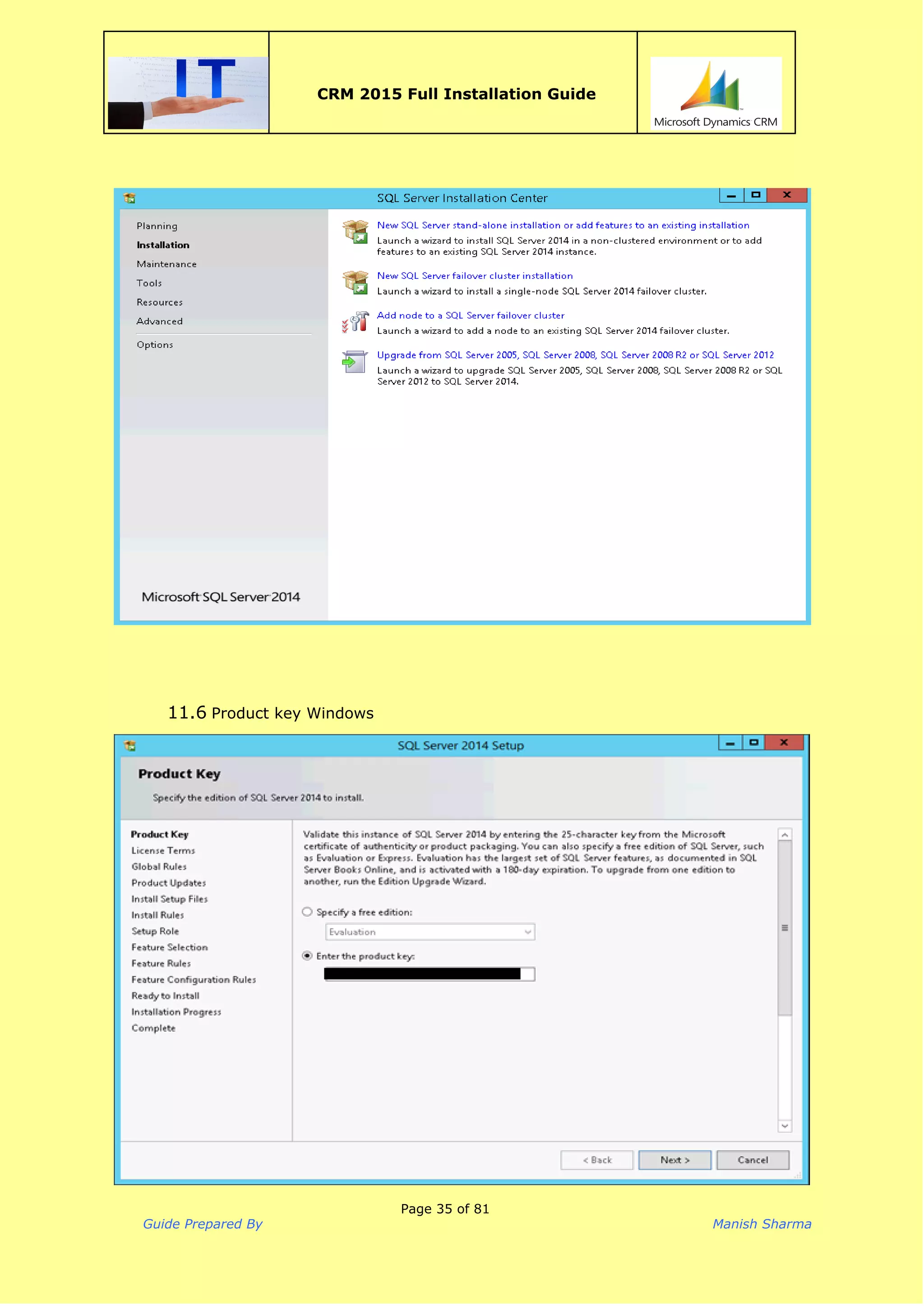

11.6 PRODUCT KEY WINDOWS

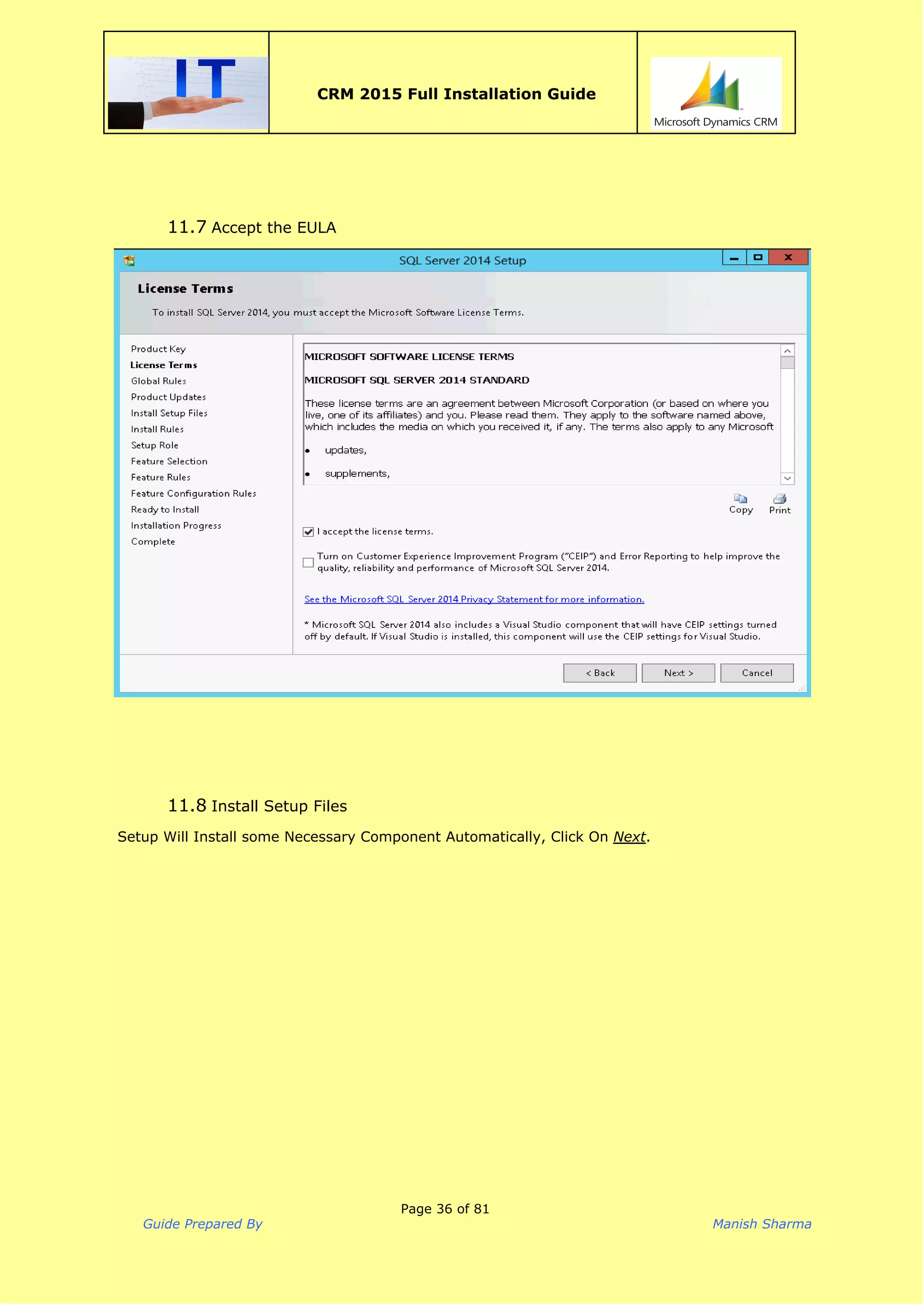

11.7 ACCEPT THE EULA
11.8 INSTALL SETUP FILES

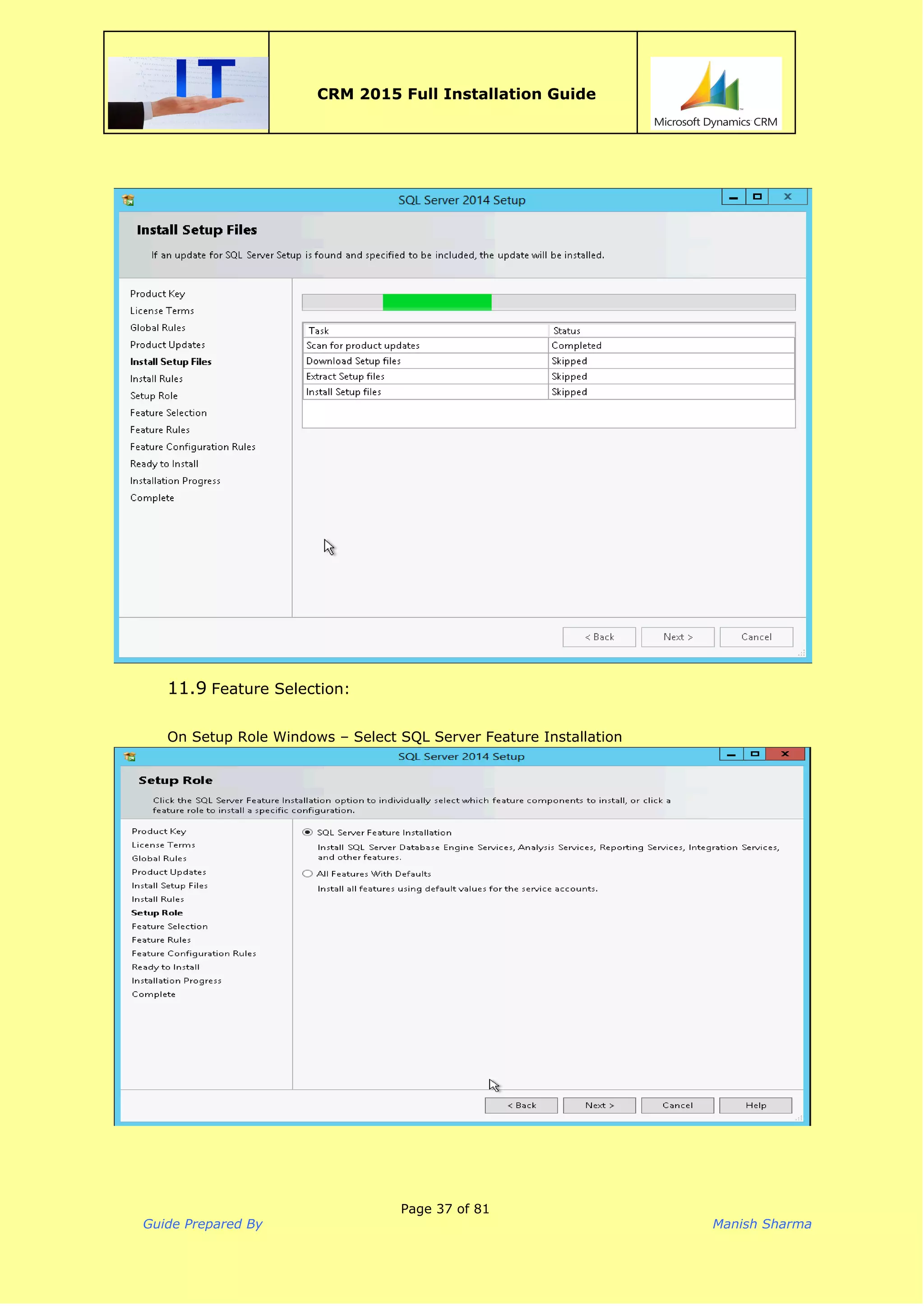

11.9 FEATURE SELECTION:

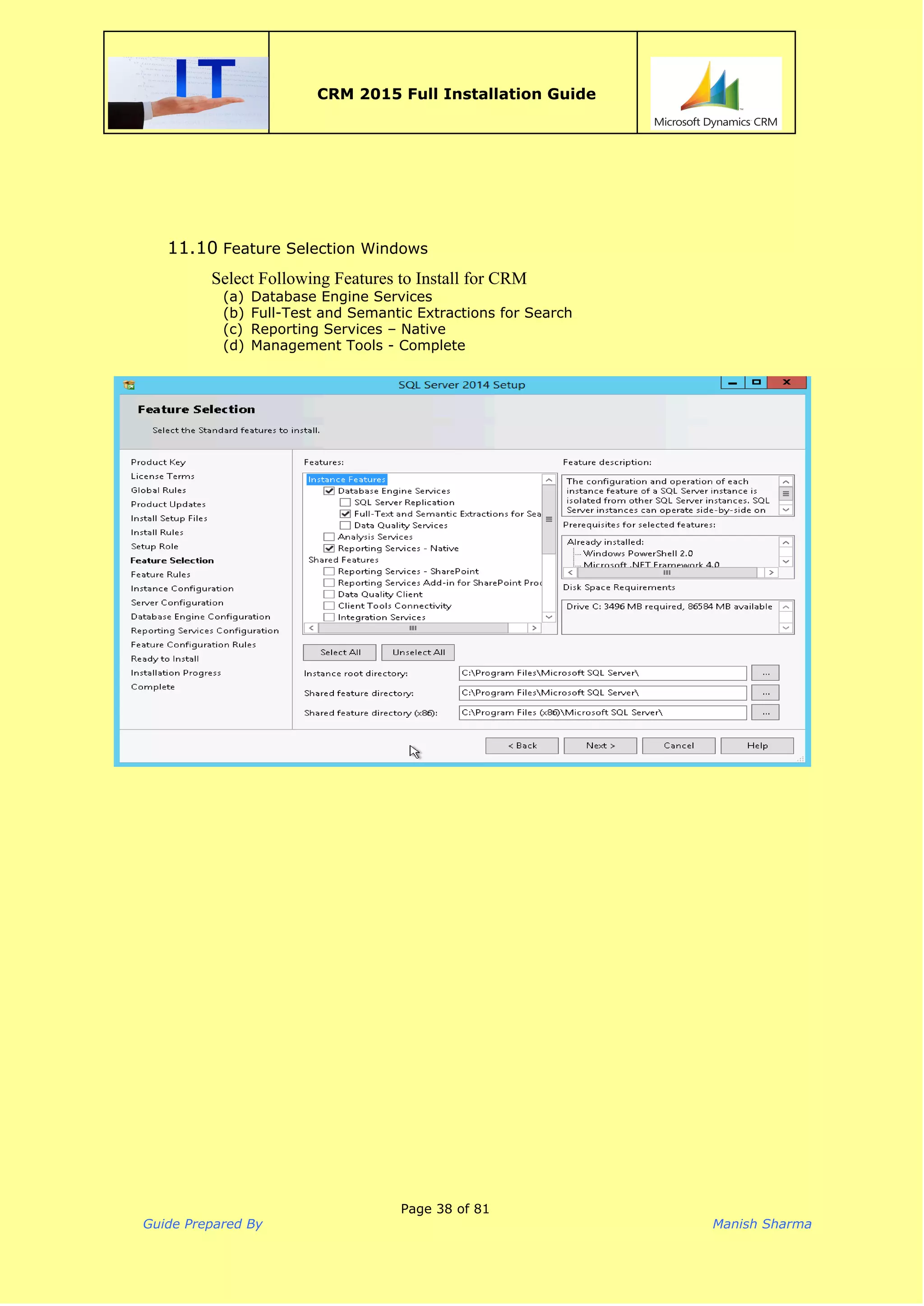

11.10 FEATURE SELECTION WINDOWS

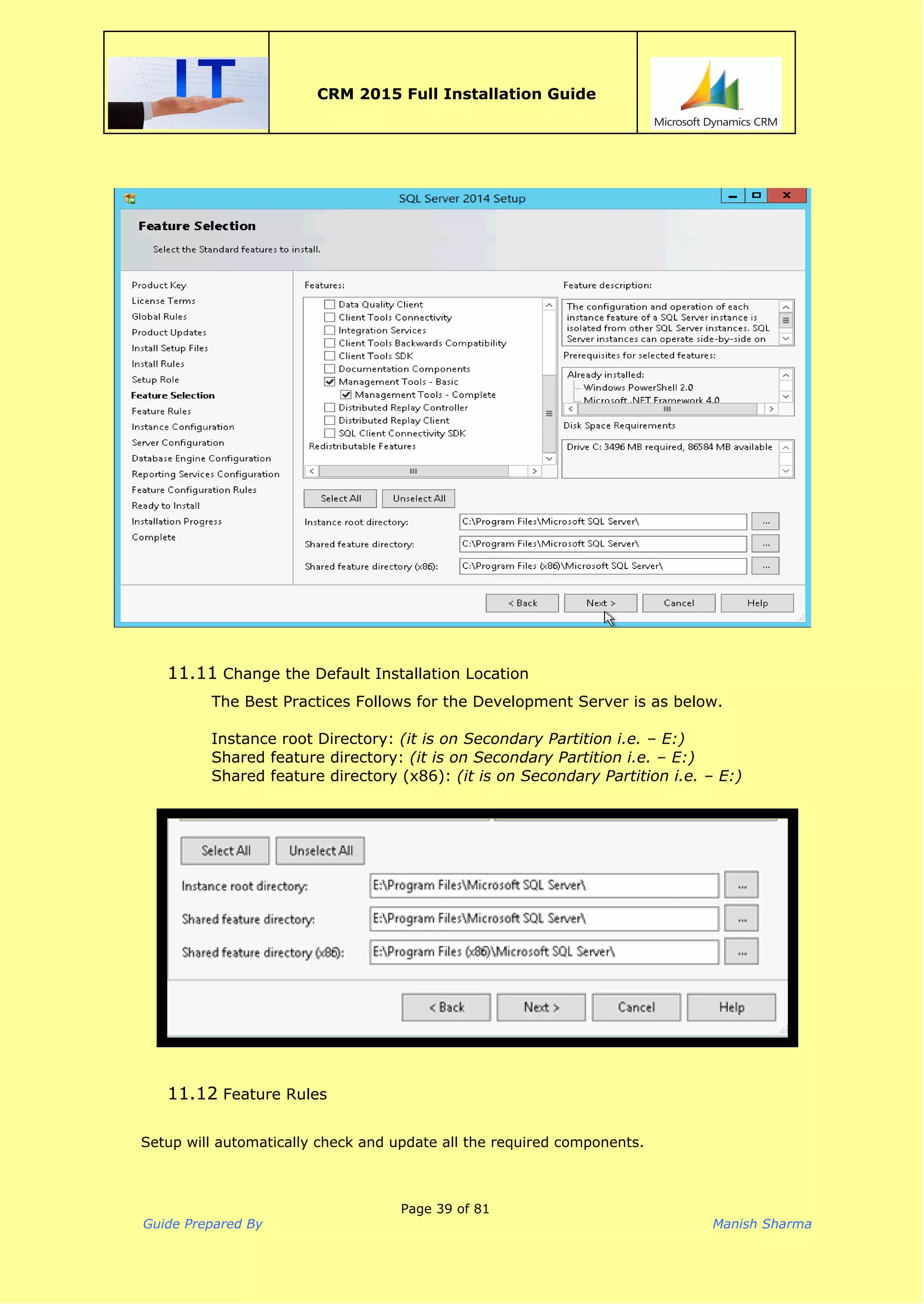

11.11 CHANGE THE DEFAULT INSTALLATION LOCATION
11.12 FEATURE RULES

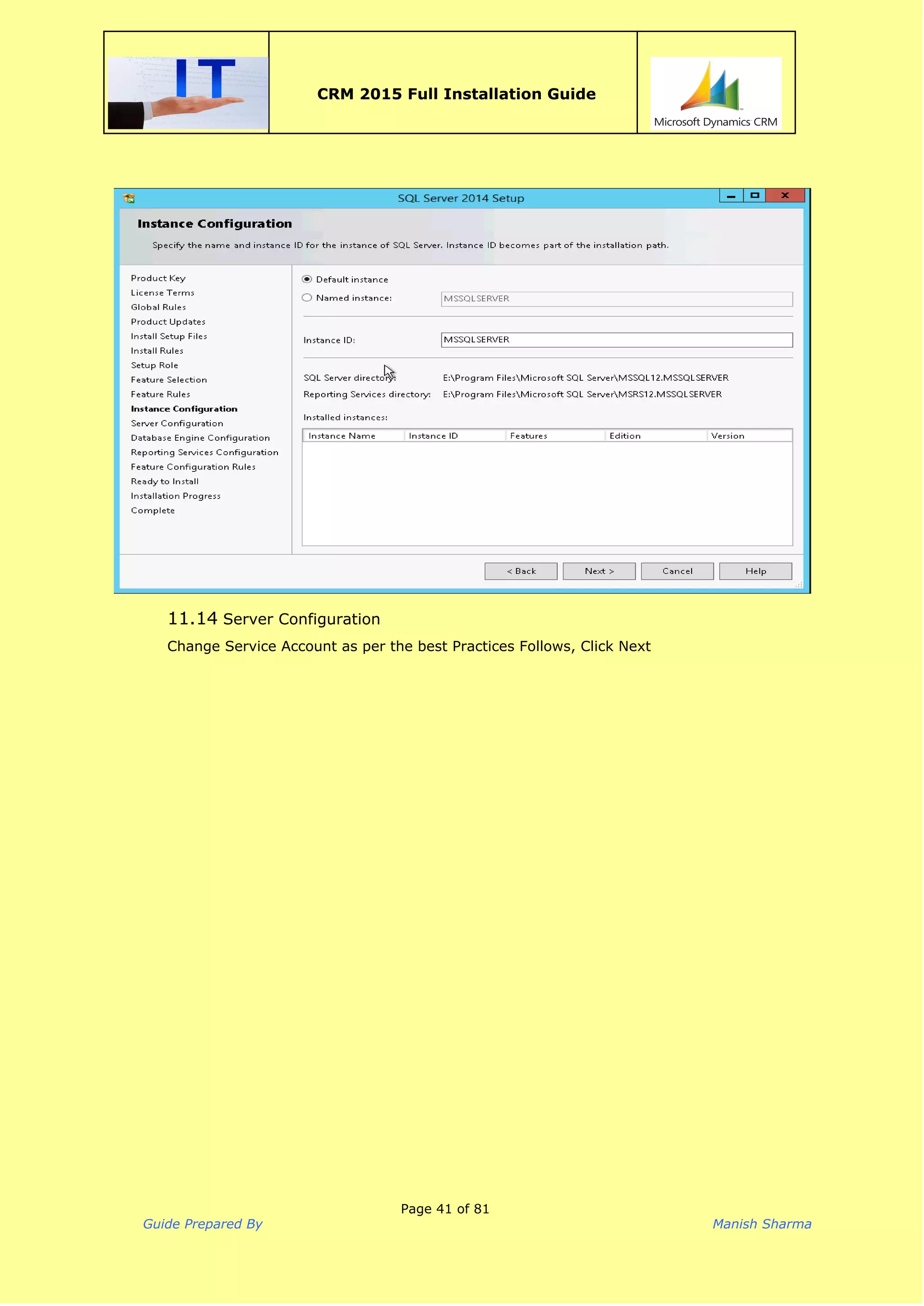

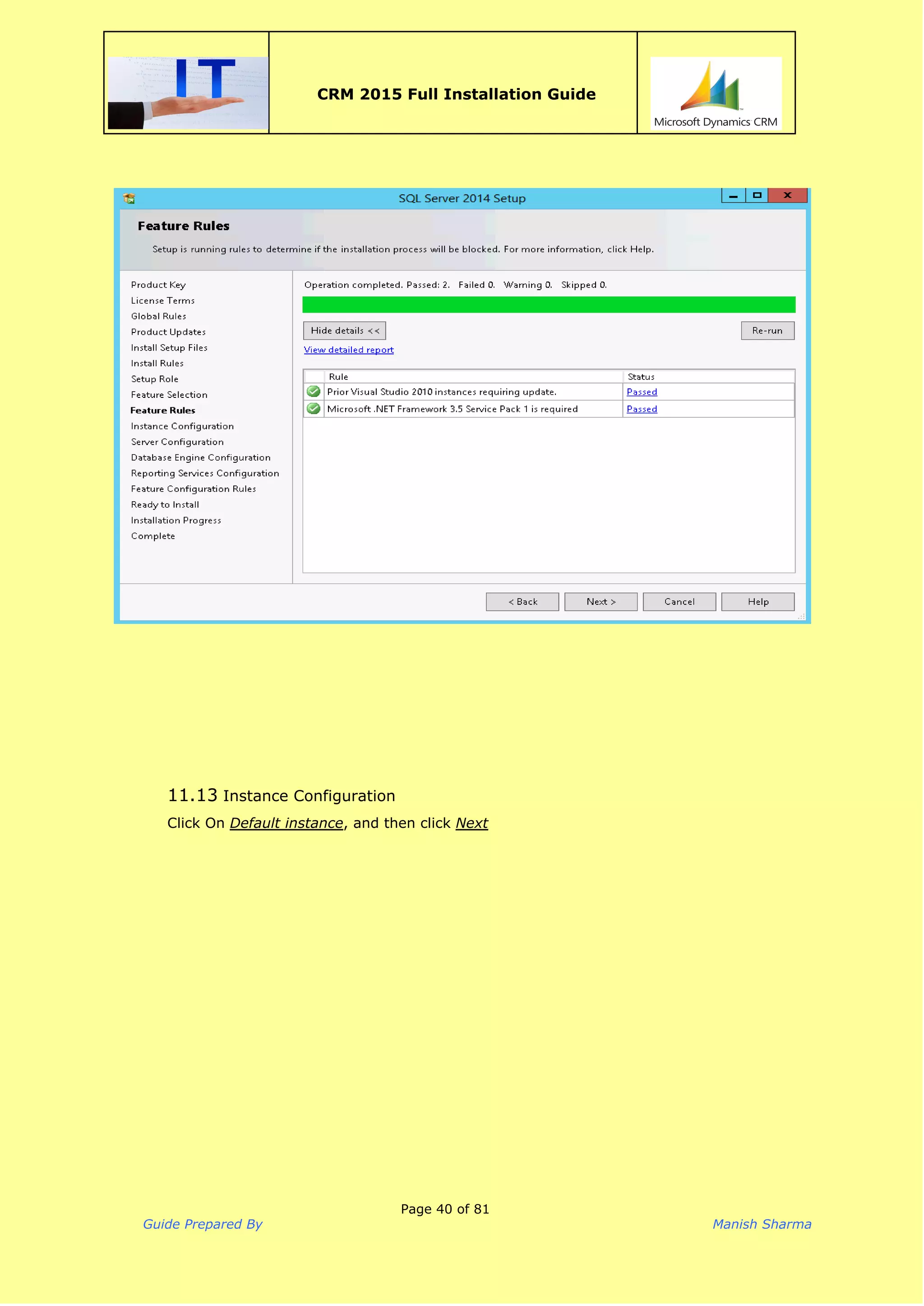

11.13 INSTANCE CONFIGURATION
11.14 SERVER CONFIGURATION
11.15 DATABASE ENGINE CONFIGURATION

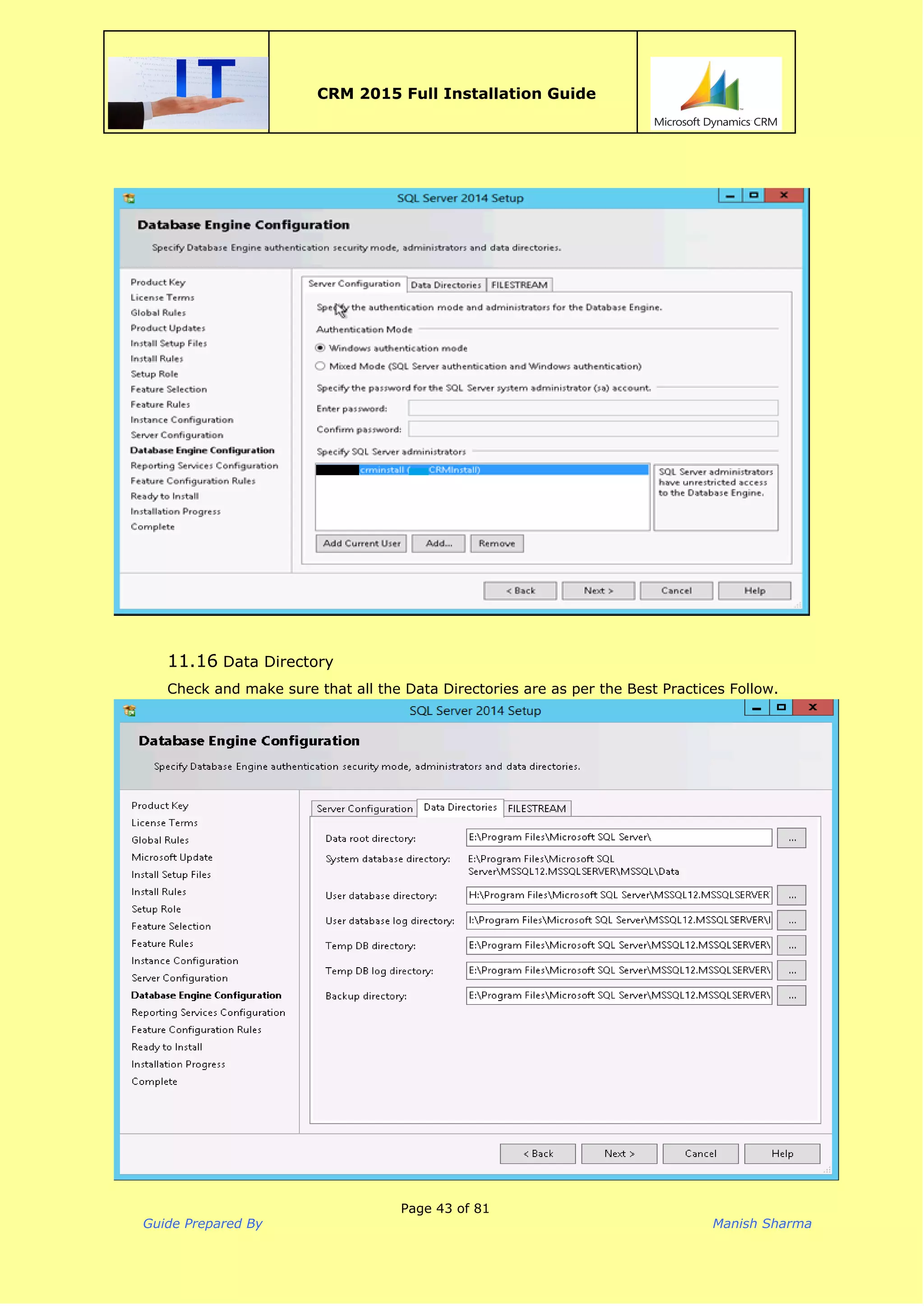

11.16 DATA DIRECTORY

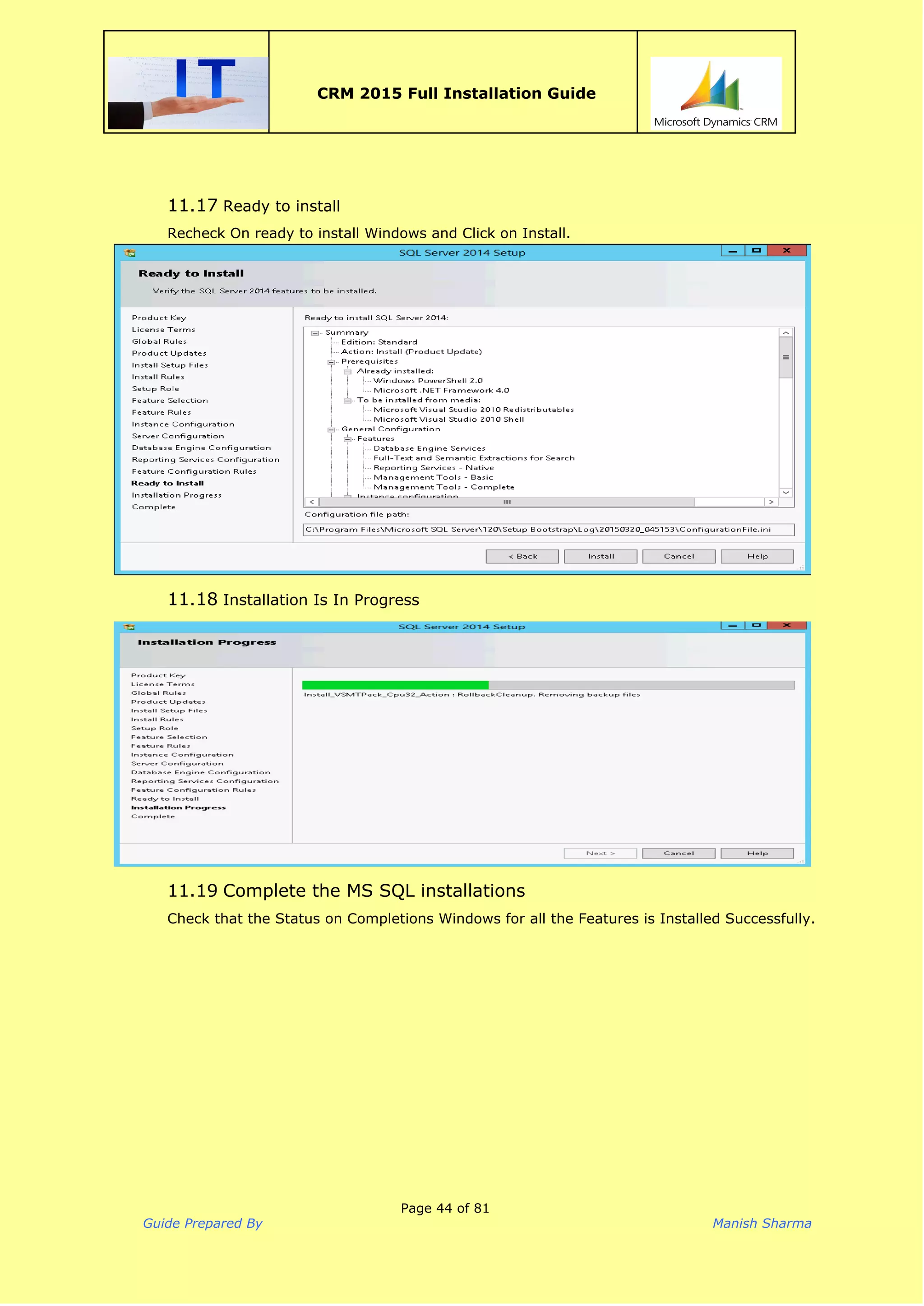

11.17 READY TO INSTALL
11.18 INSTALLATION IS IN PROGRESS
11.19 COMPLETE THE MS SQL INSTALLATIONS

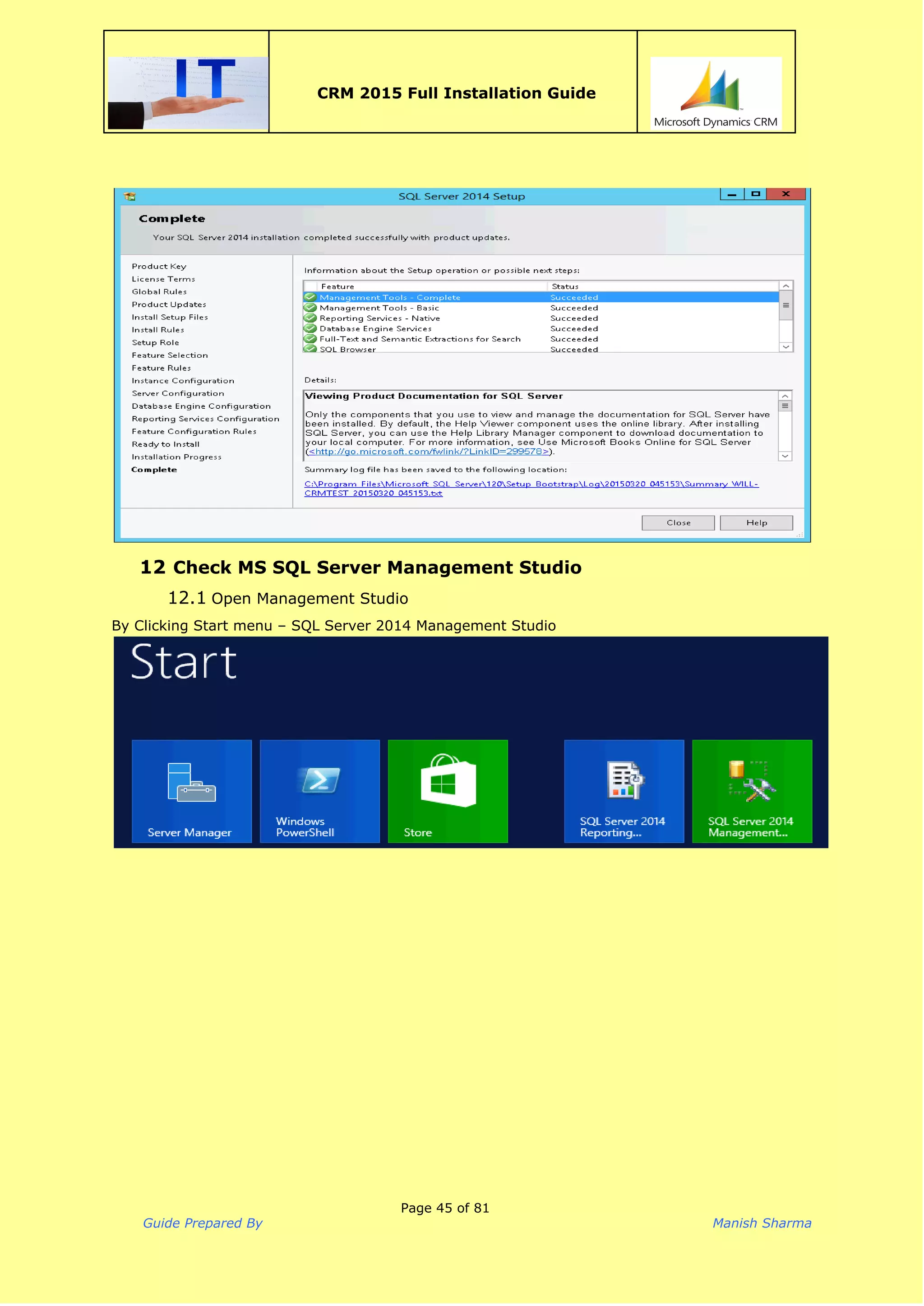

12 CHECK MS SQL SERVER MANAGEMENT STUDIO
12.1 OPEN MANAGEMENT STUDIO

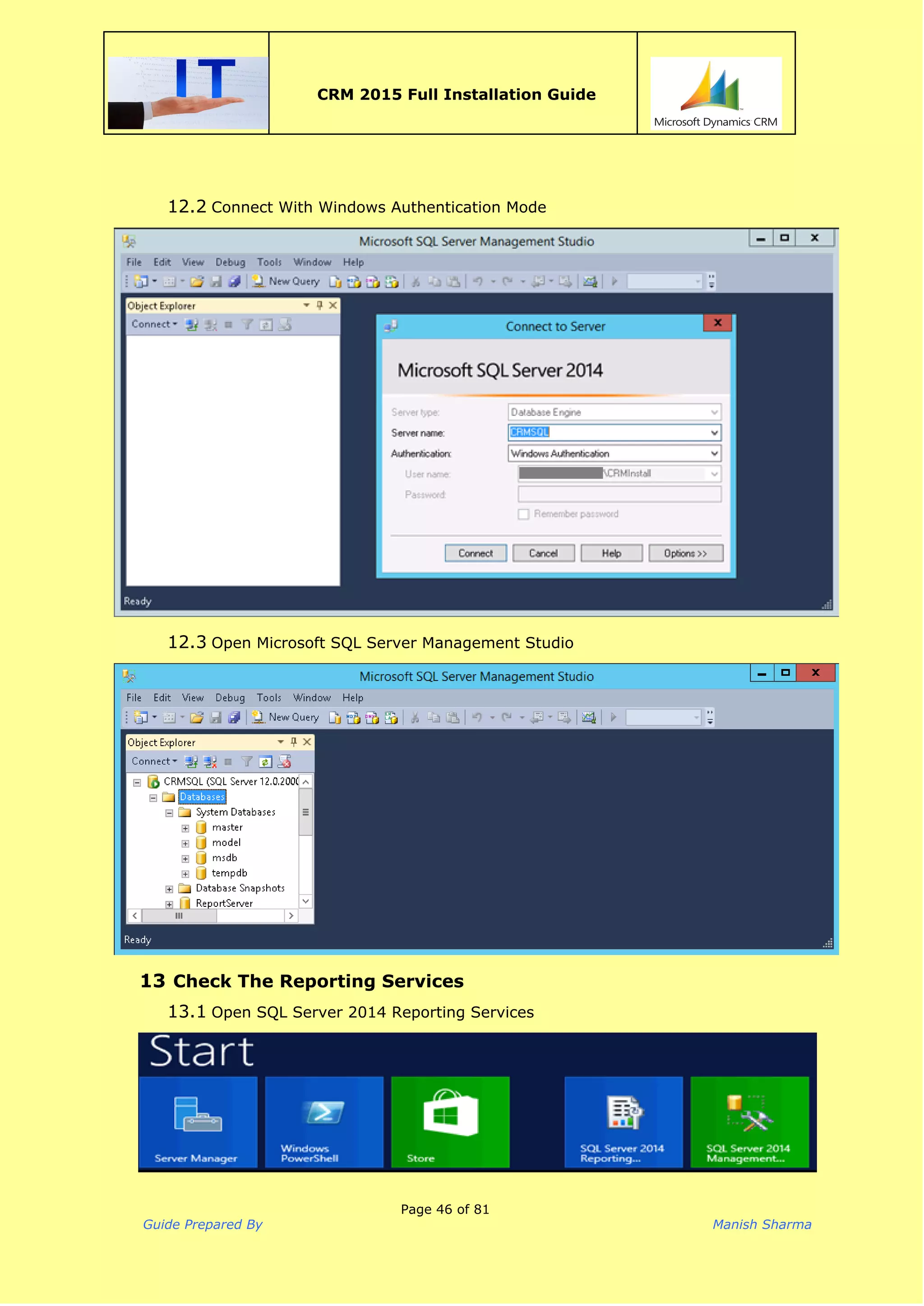

12.2 CONNECT WITH WINDOWS AUTHENTICATION MODE
12.3 OPEN MICROSOFT SQL SERVER MANAGEMENT STUDIO
13 CHECK THE REPORTING SERVICES
13.1 OPEN SQL SERVER 2014 REPORTING SERVICES

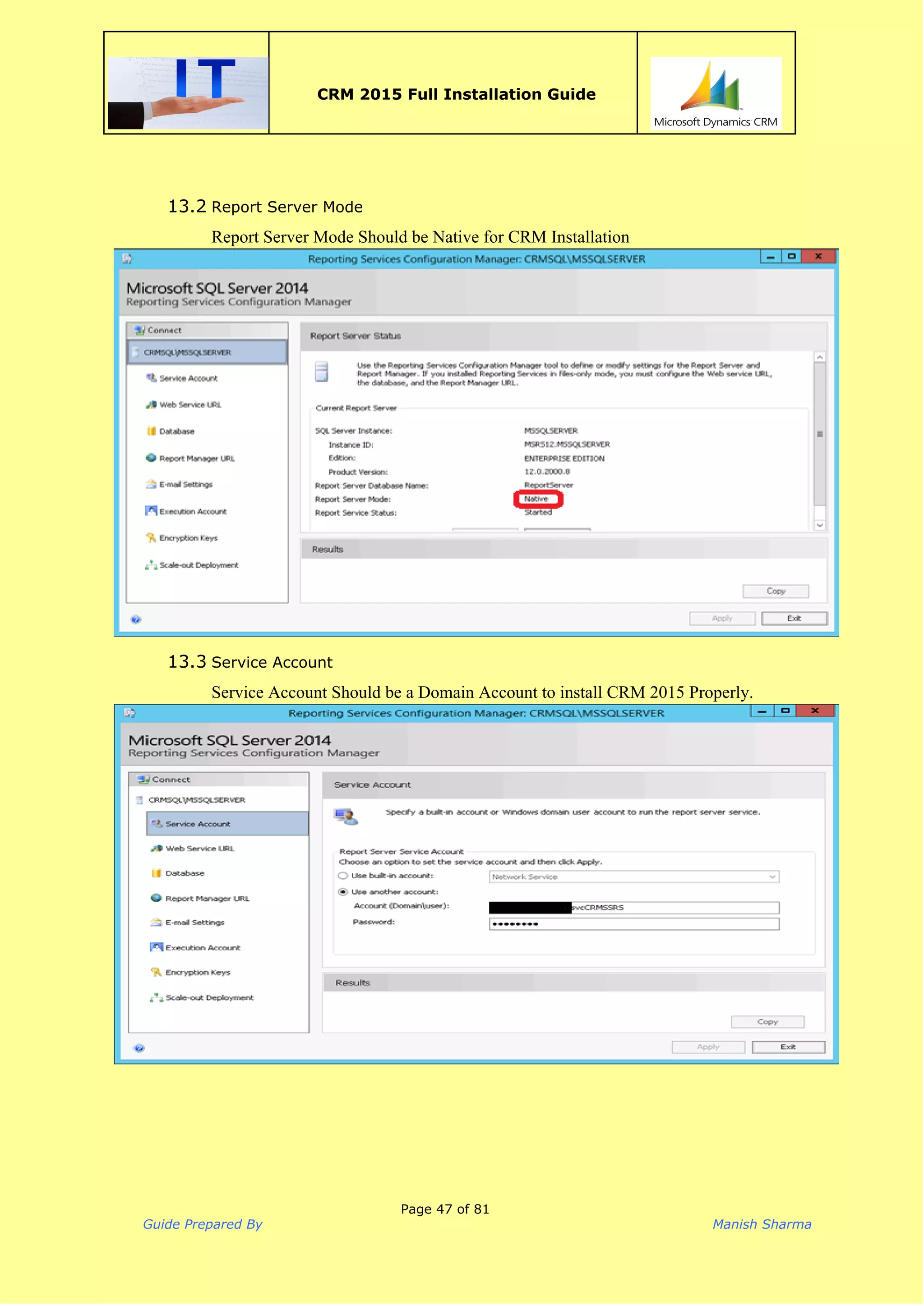

13.2 REPORT SERVER MODE
13.3 SERVICE ACCOUNT

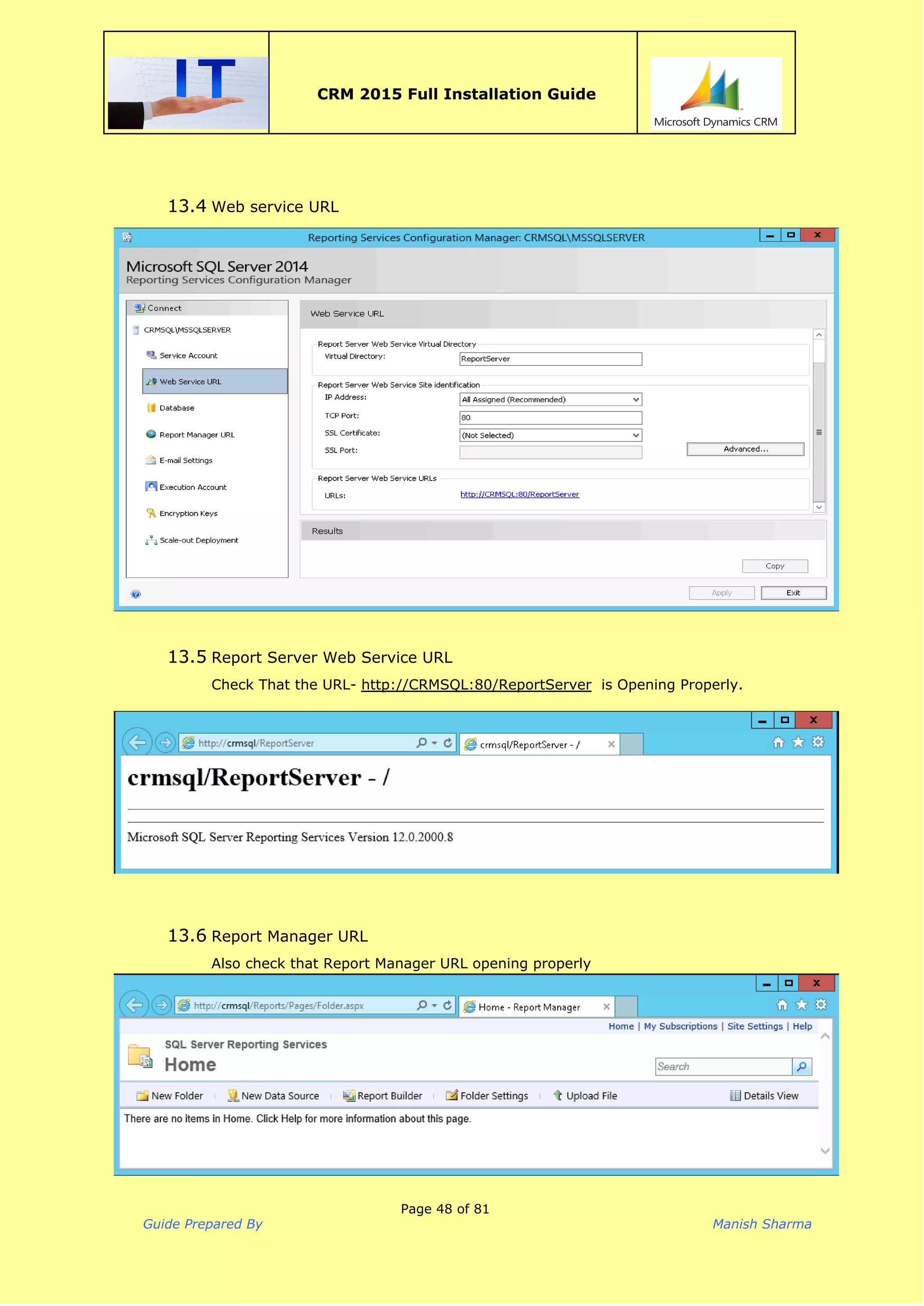

13.4 WEB SERVICE URL
13.5 REPORT SERVER WEB SERVICE URL
13.6 REPORT MANAGER URL
14 MICROSOFT DYNAMICS CRM SERVER 2015 OVERVIEW
15 WINDOWS SERVER PREREQUISITES FOR CRM 2015

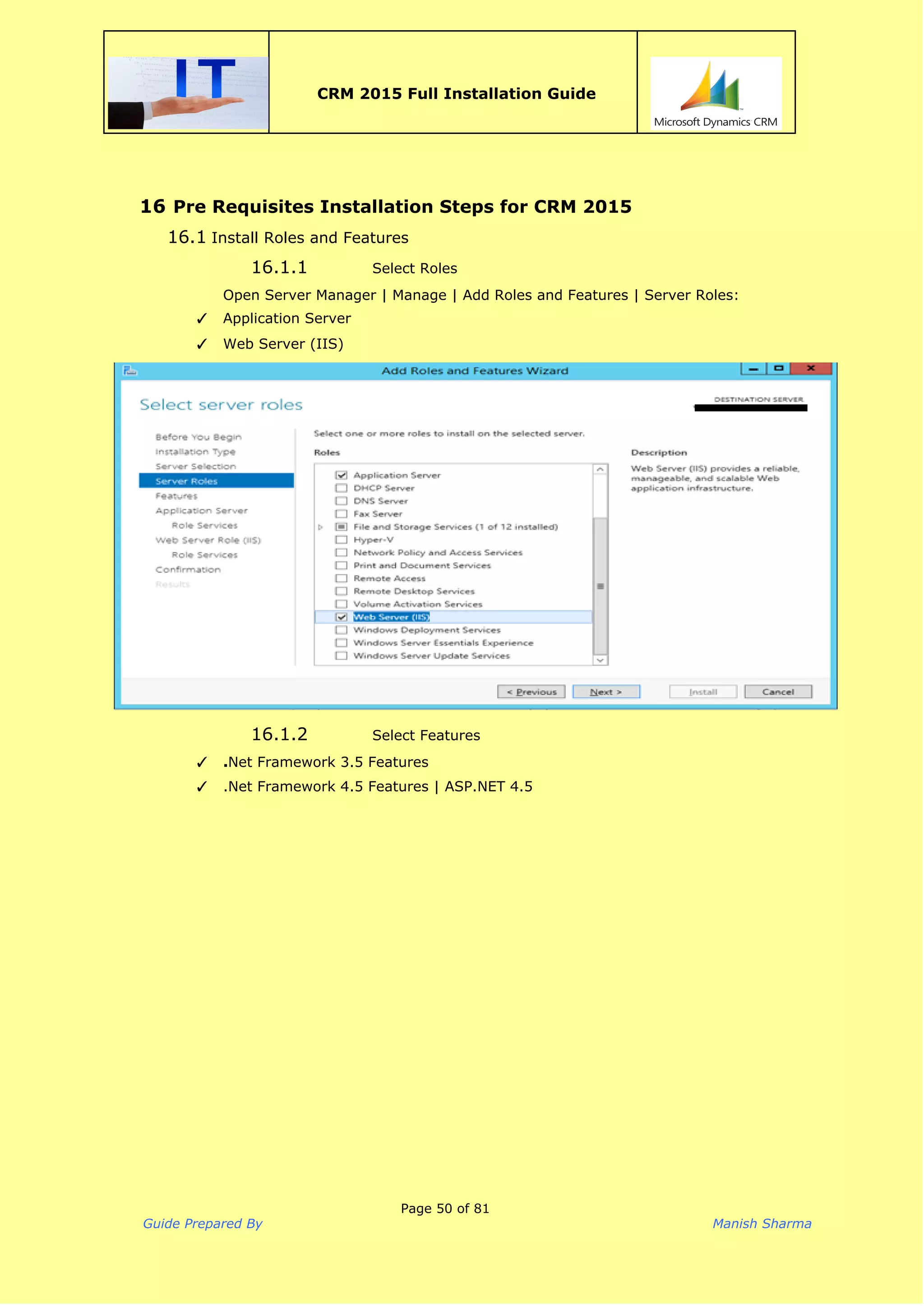

16 PRE REQUISITES INSTALLATION STEPS FOR CRM 2015
16.1 INSTALL ROLES AND FEATURES
16.1.1 Select Roles
16.1.2 Select Features

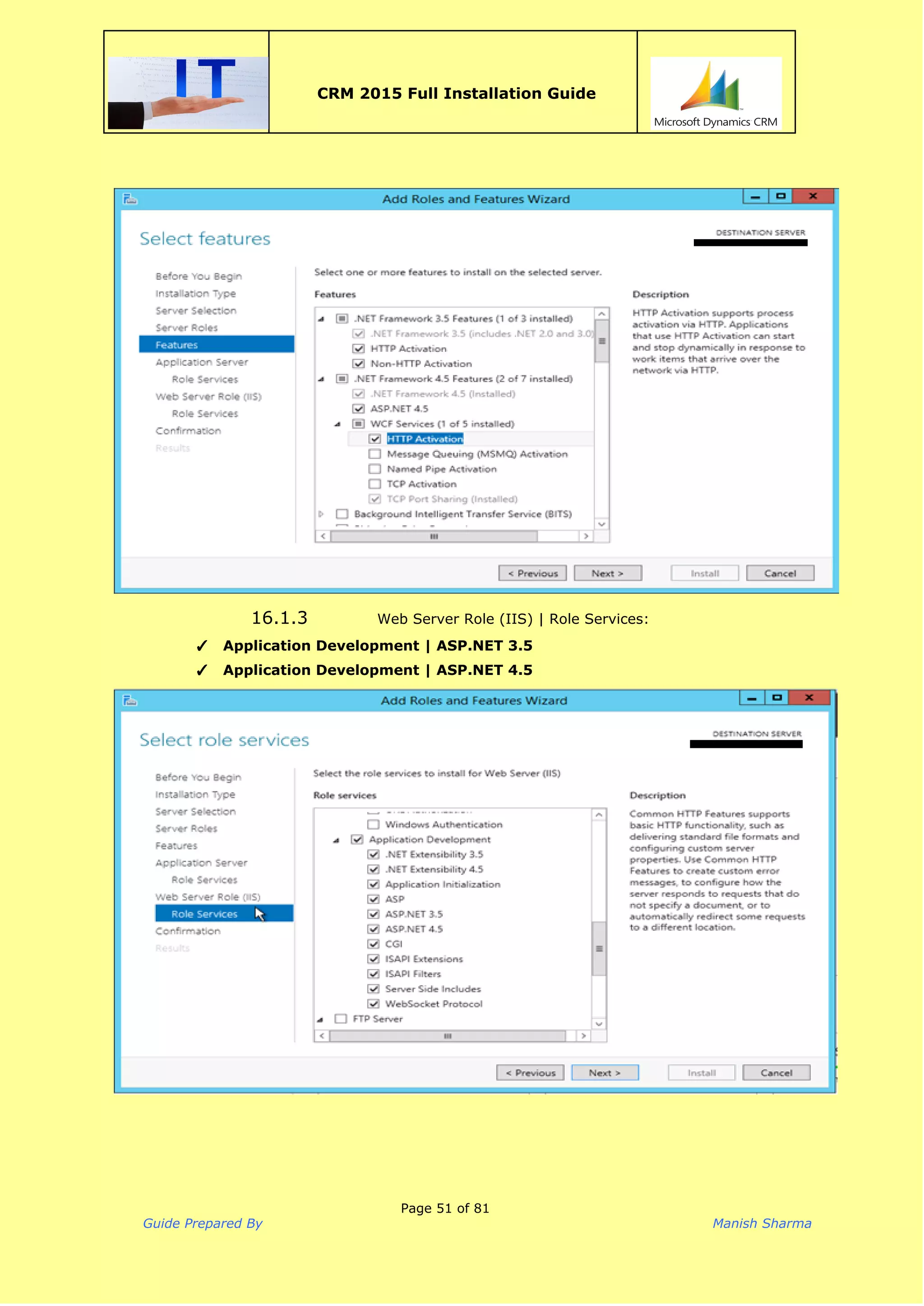

16.1.3 Web Server Role (IIS) | Role Services:
Page 4 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

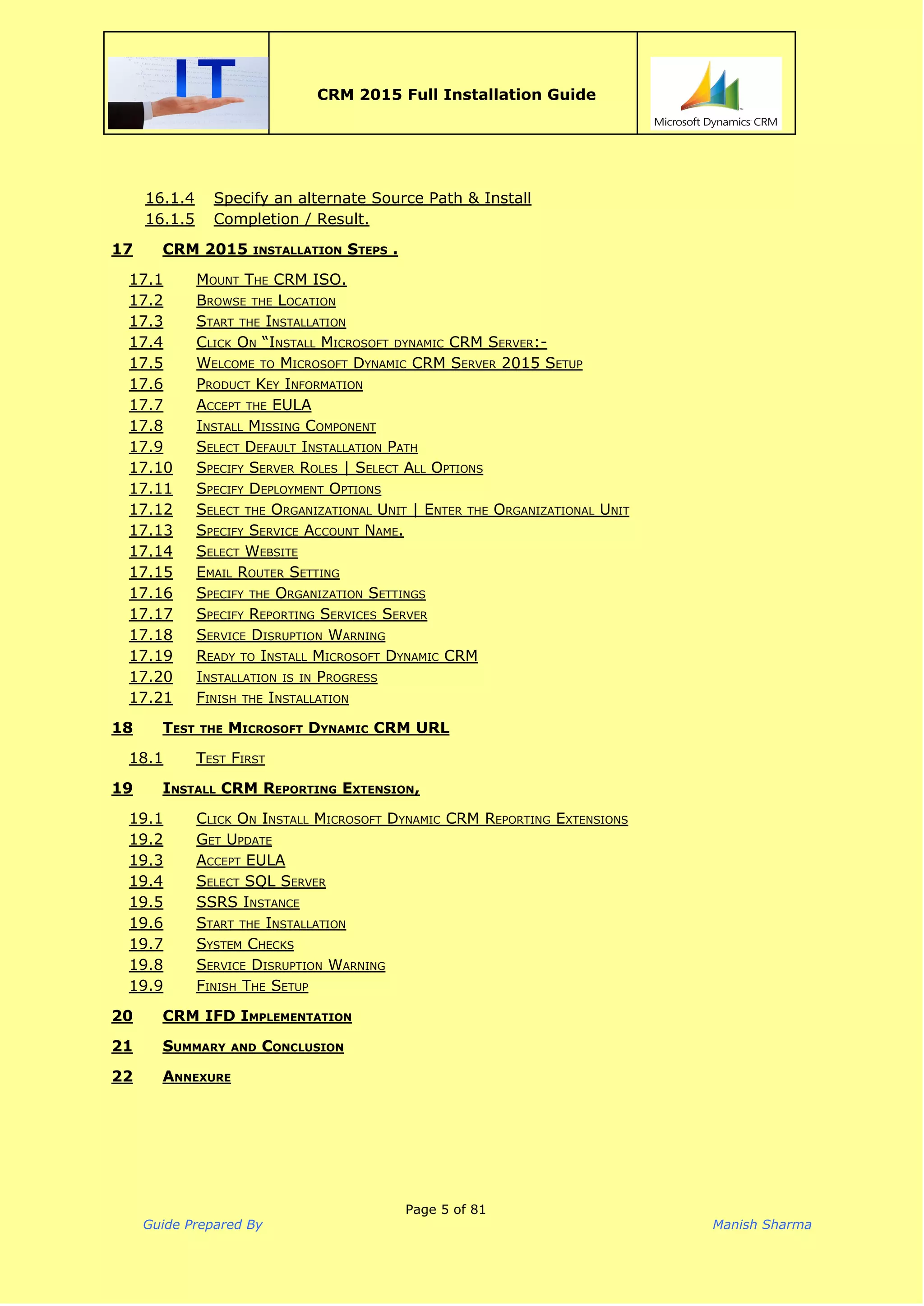

16.1.4 Specify an alternate Source Path & Install

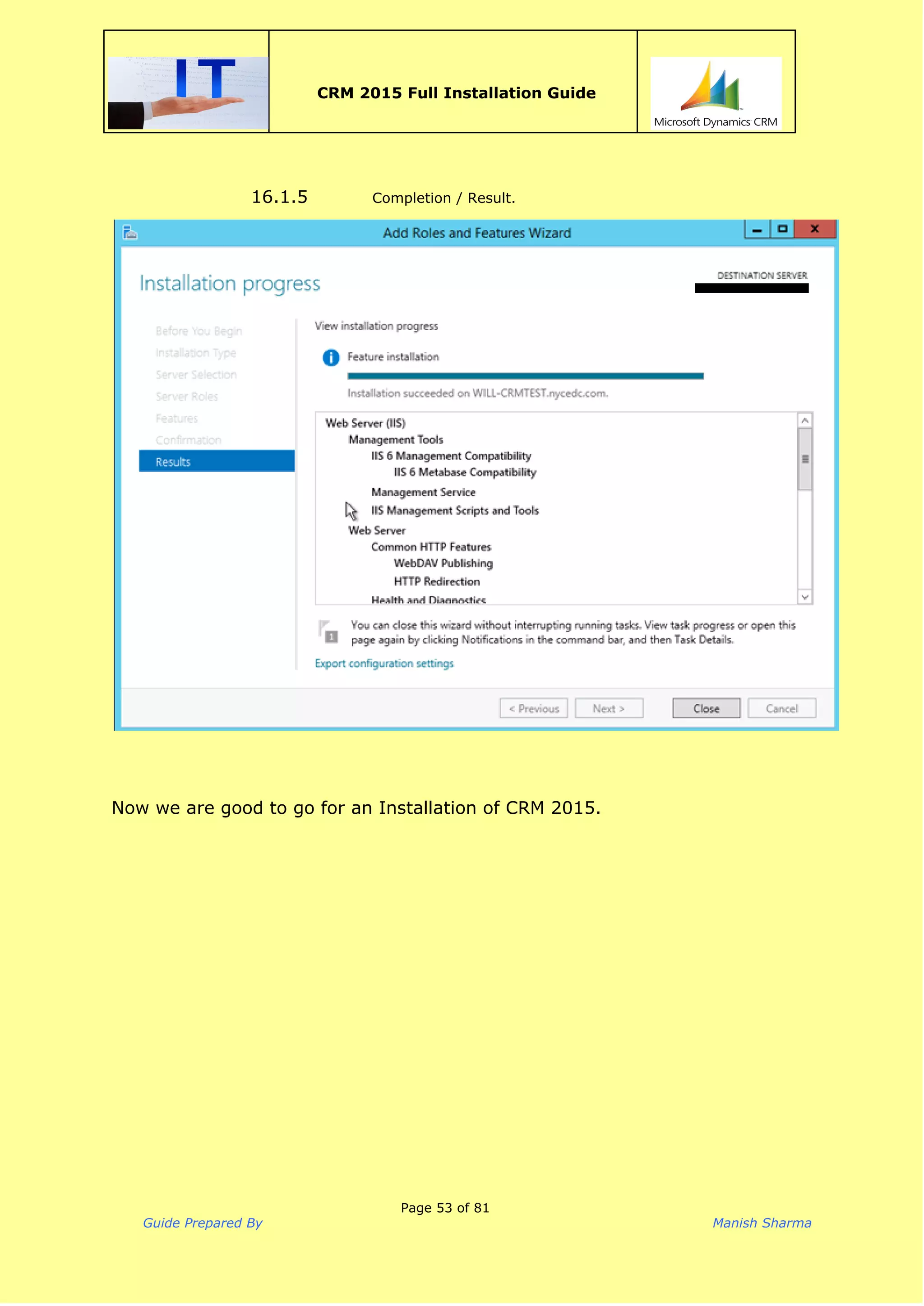

16.1.5 Completion / Result.

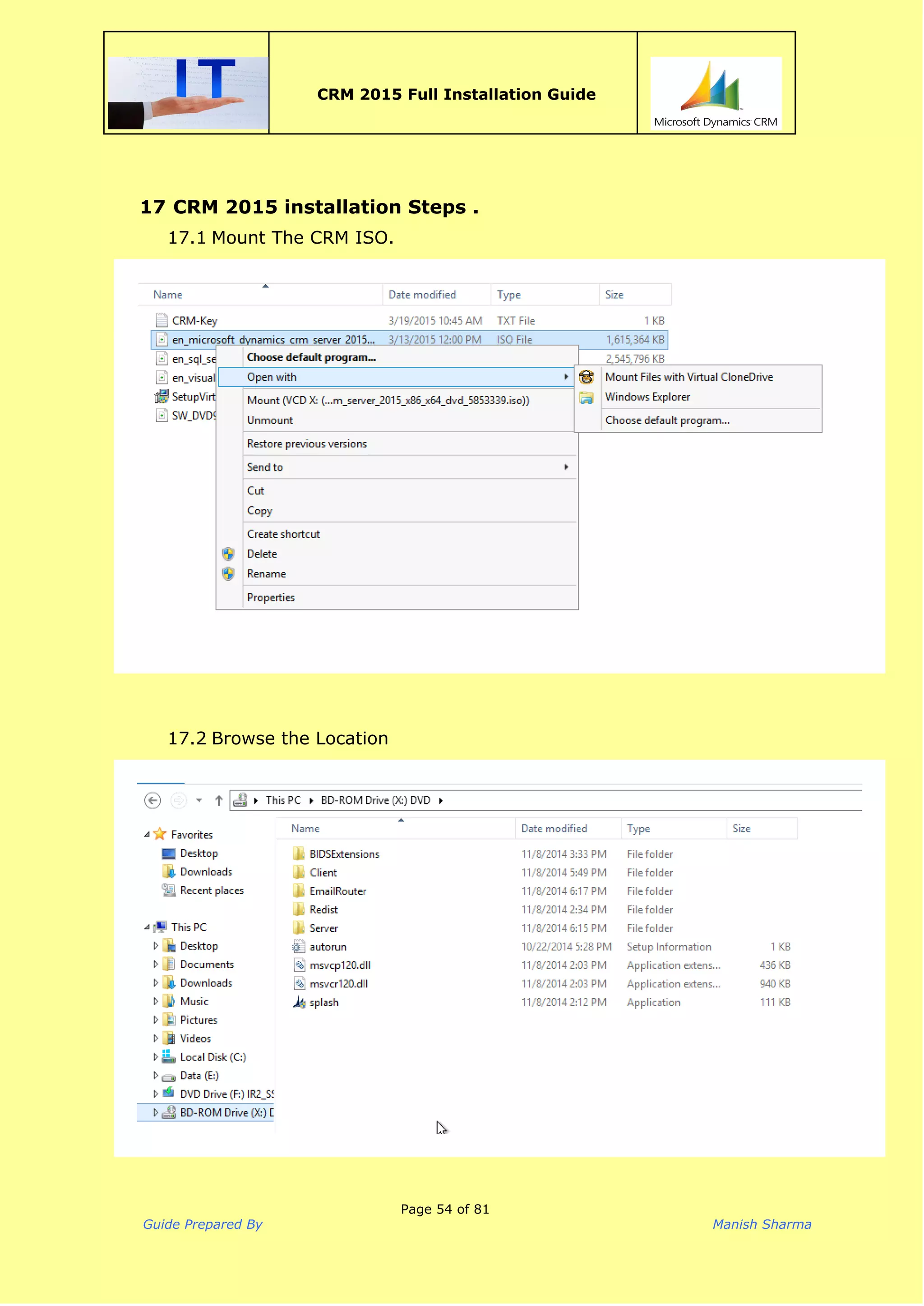

17 CRM 2015 INSTALLATION STEPS .
17.1 MOUNT THE CRM ISO.
17.2 BROWSE THE LOCATION
17.3 START THE INSTALLATION
17.4 CLICK ON “INSTALL MICROSOFT DYNAMIC CRM SERVER:-

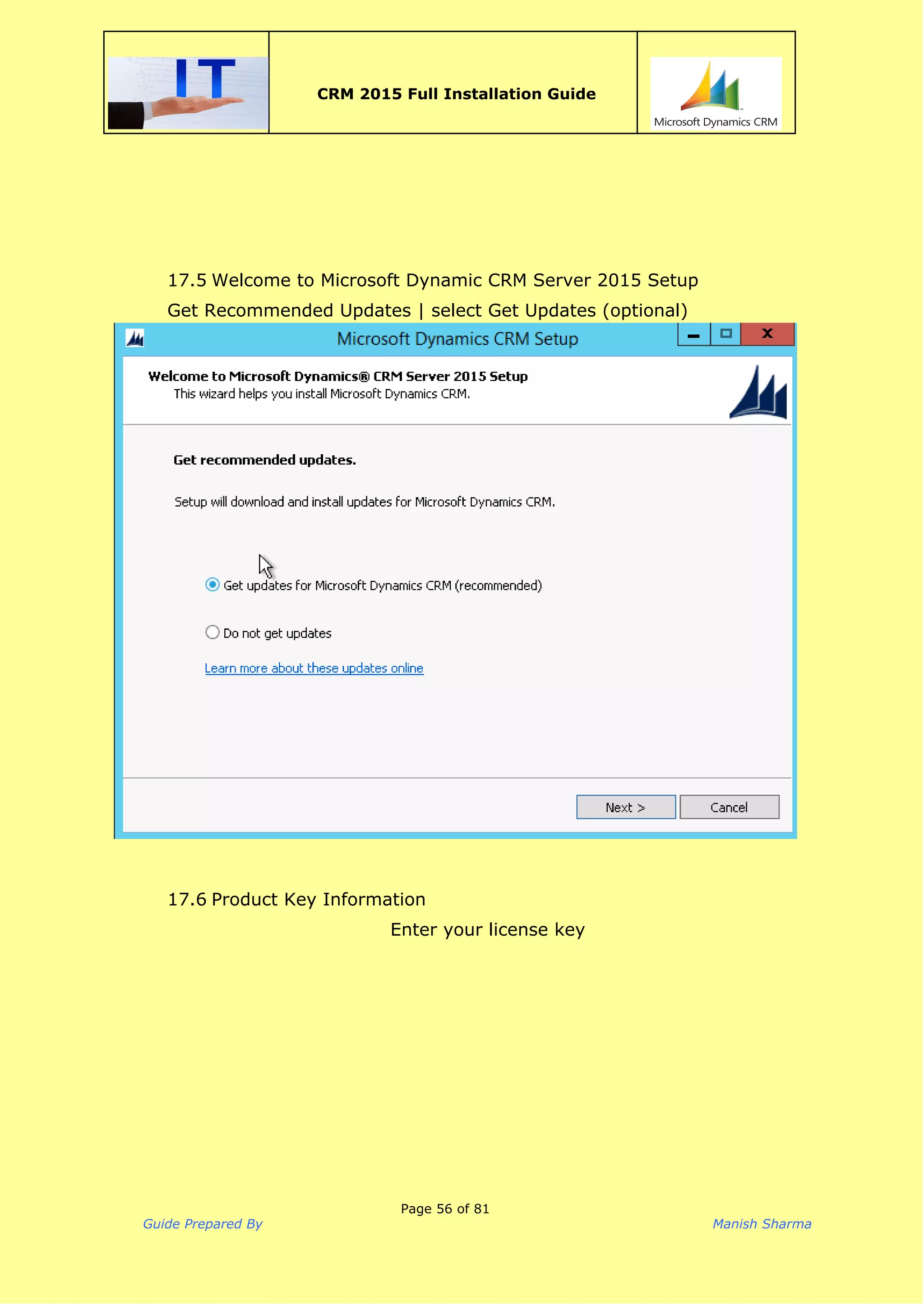

17.5 WELCOME TO MICROSOFT DYNAMIC CRM SERVER 2015 SETUP

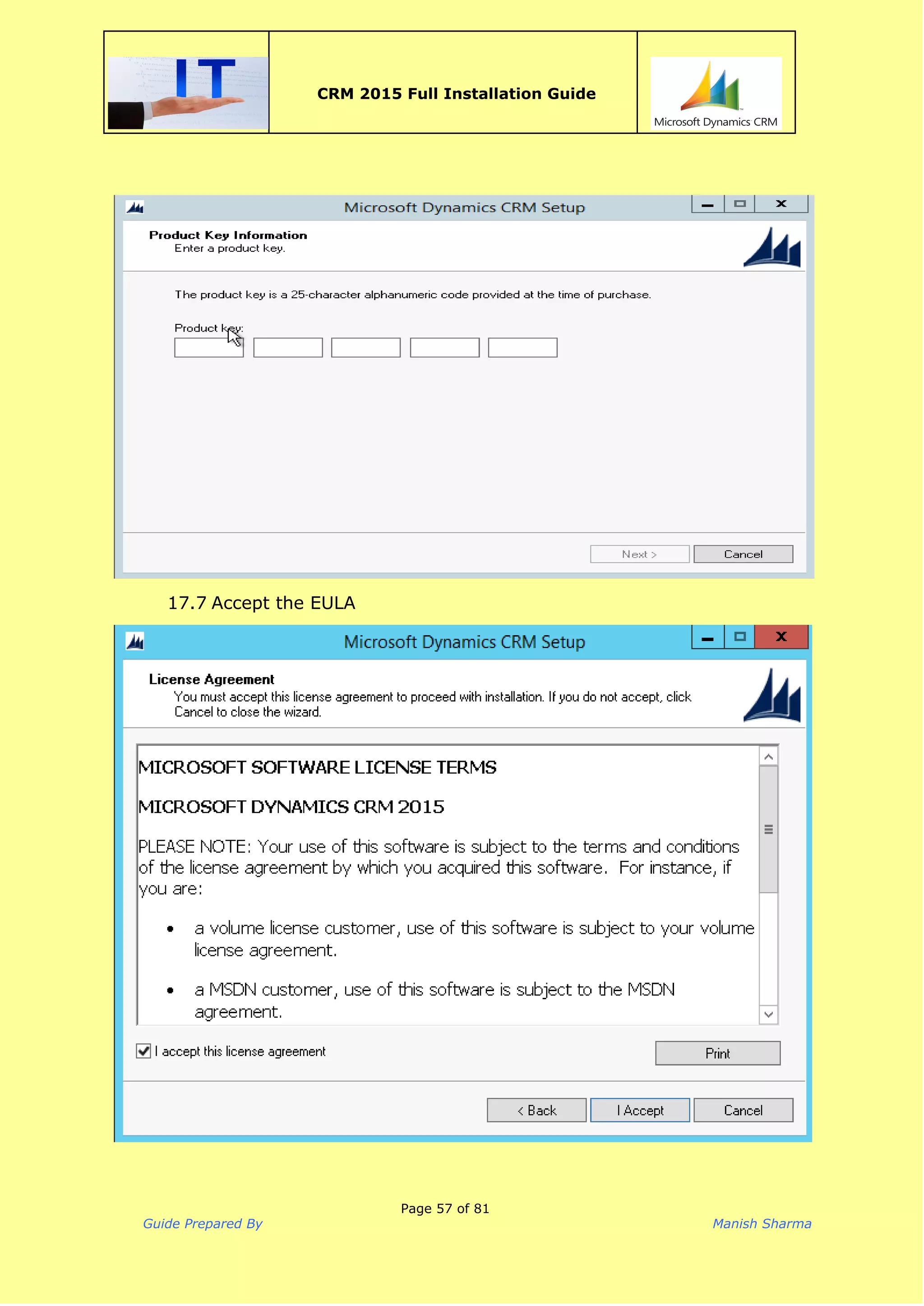

17.6 PRODUCT KEY INFORMATION
17.7 ACCEPT THE EULA

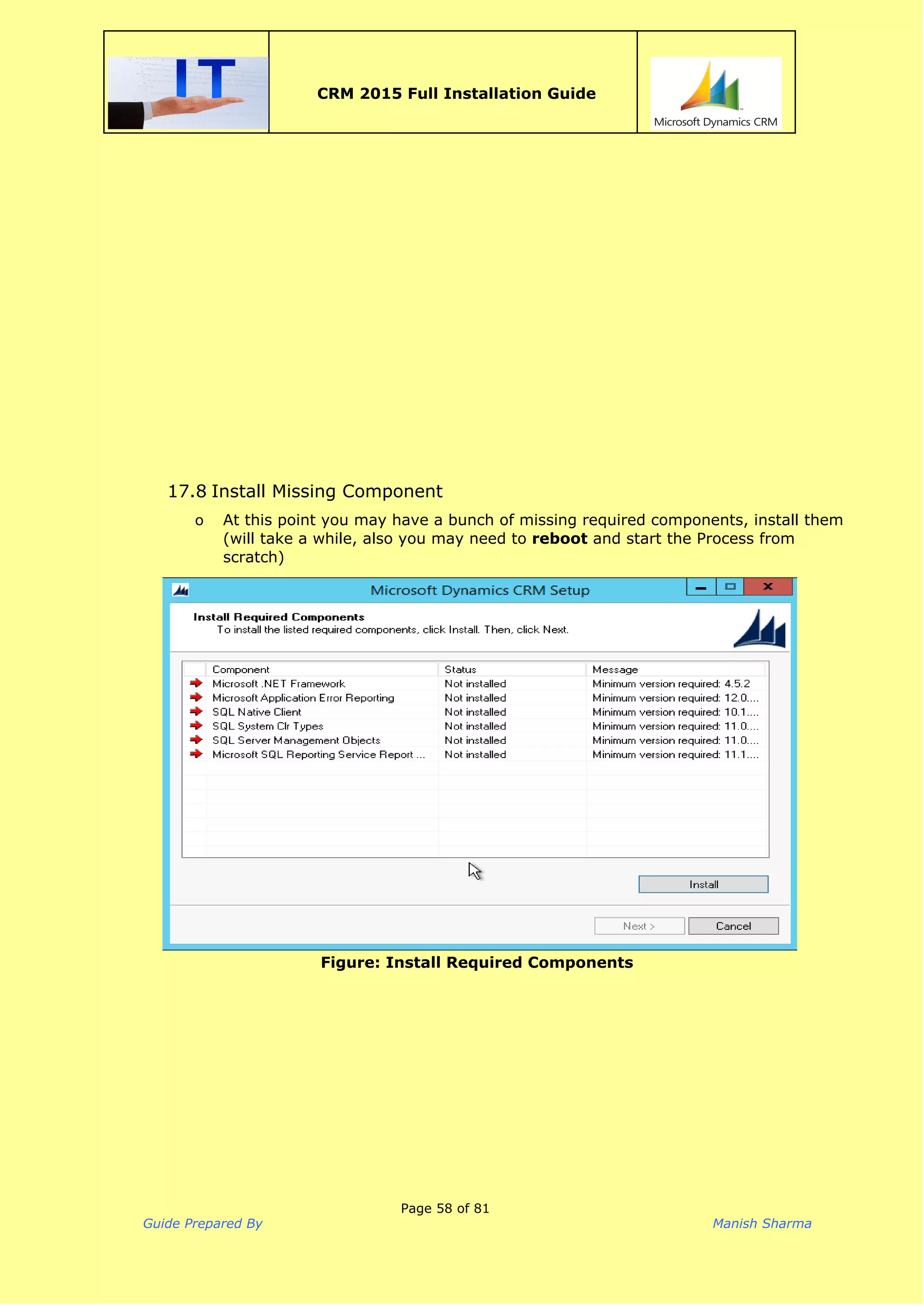

17.8 INSTALL MISSING COMPONENT

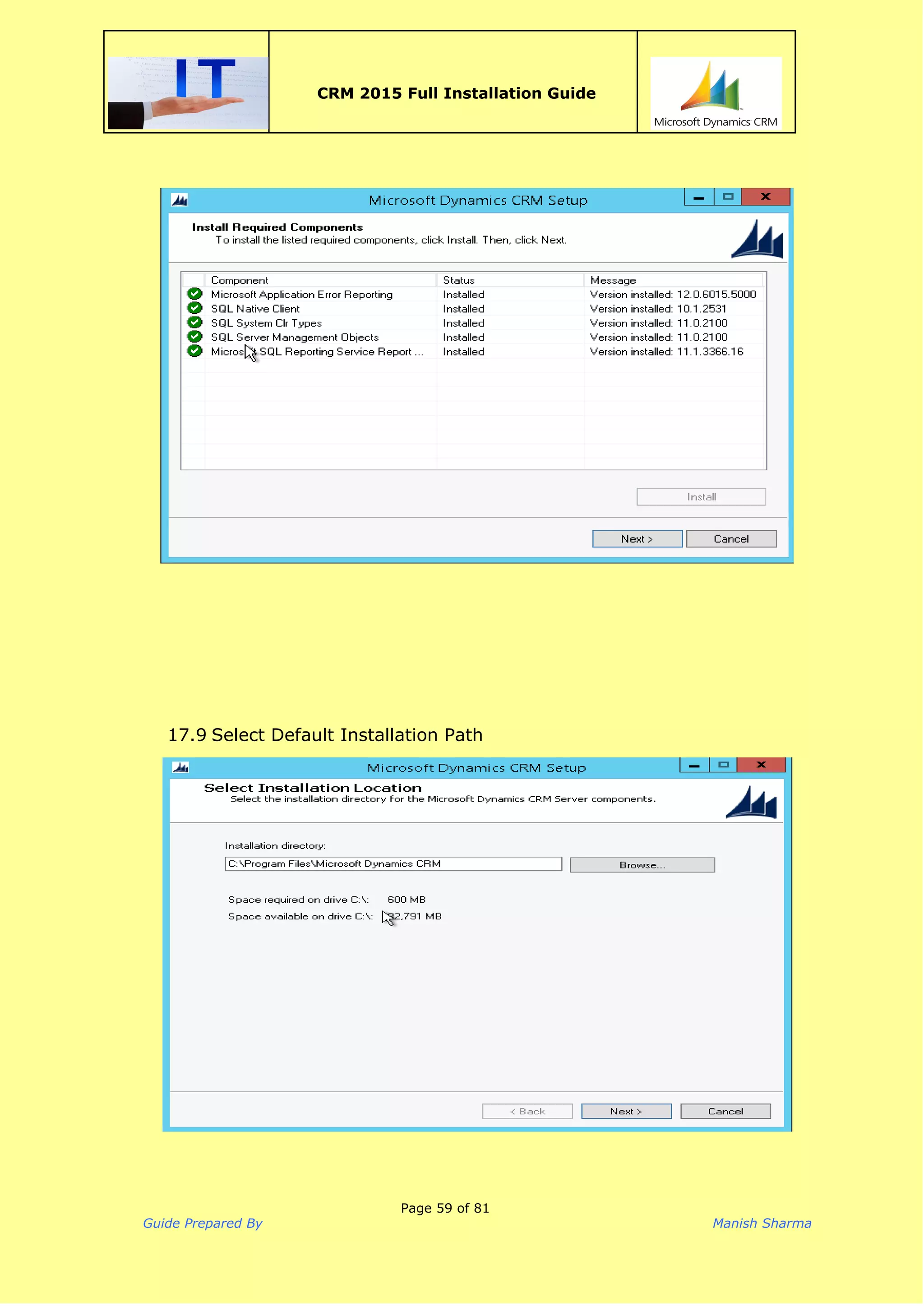

17.9 SELECT DEFAULT INSTALLATION PATH

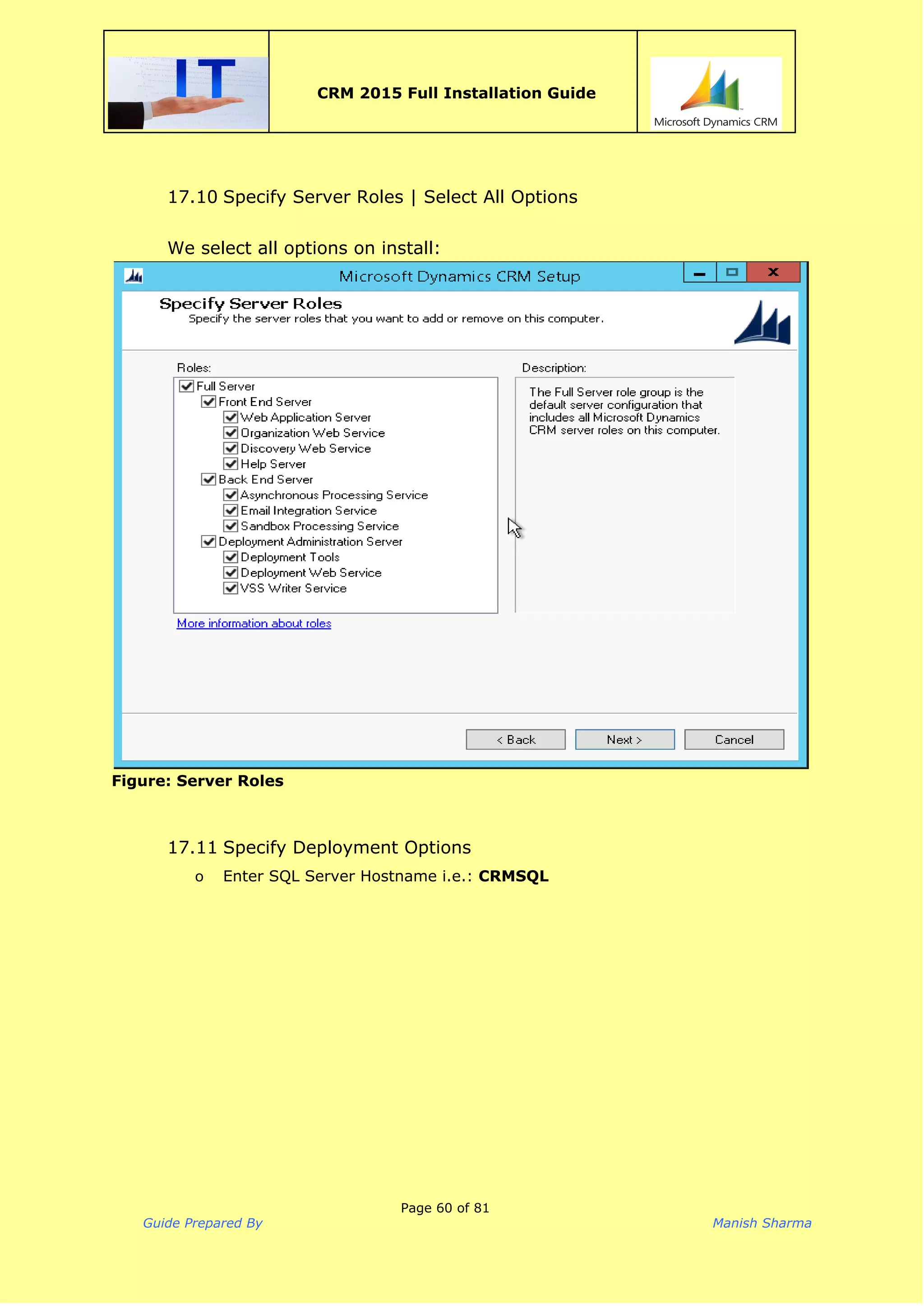

17.10 SPECIFY SERVER ROLES | SELECT ALL OPTIONS
17.11 SPECIFY DEPLOYMENT OPTIONS

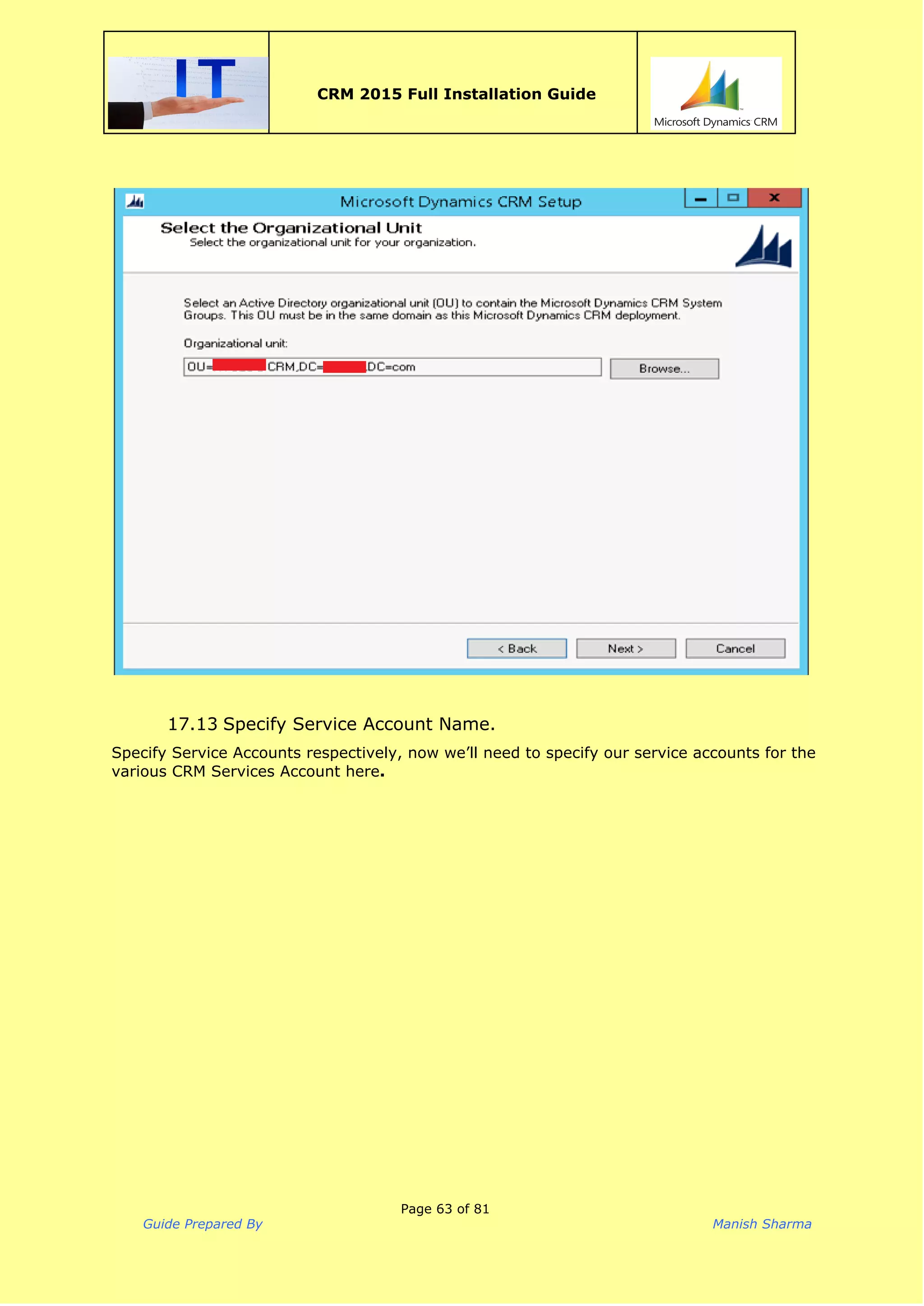

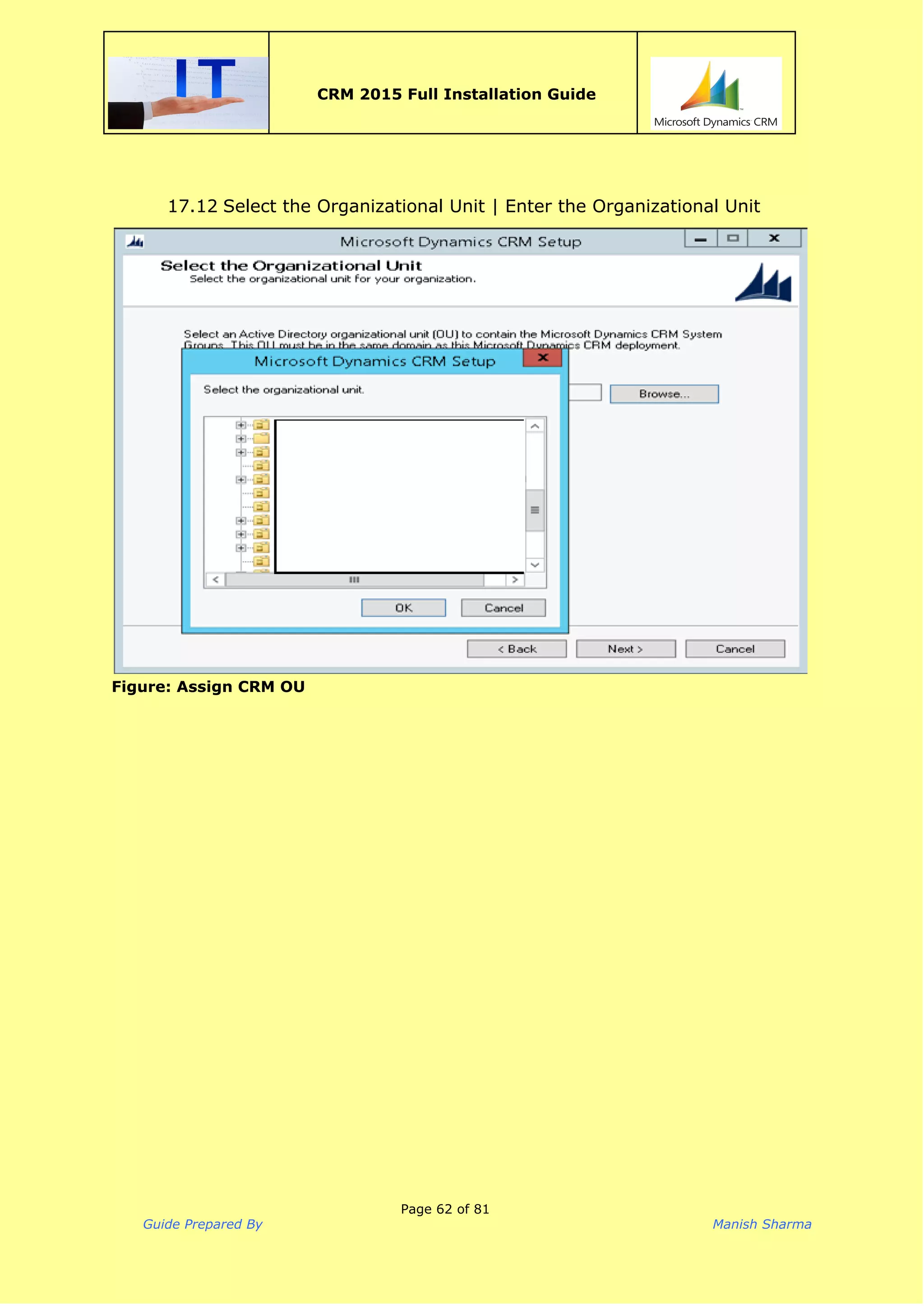

17.12 SELECT THE ORGANIZATIONAL UNIT | ENTER THE ORGANIZATIONAL UNIT

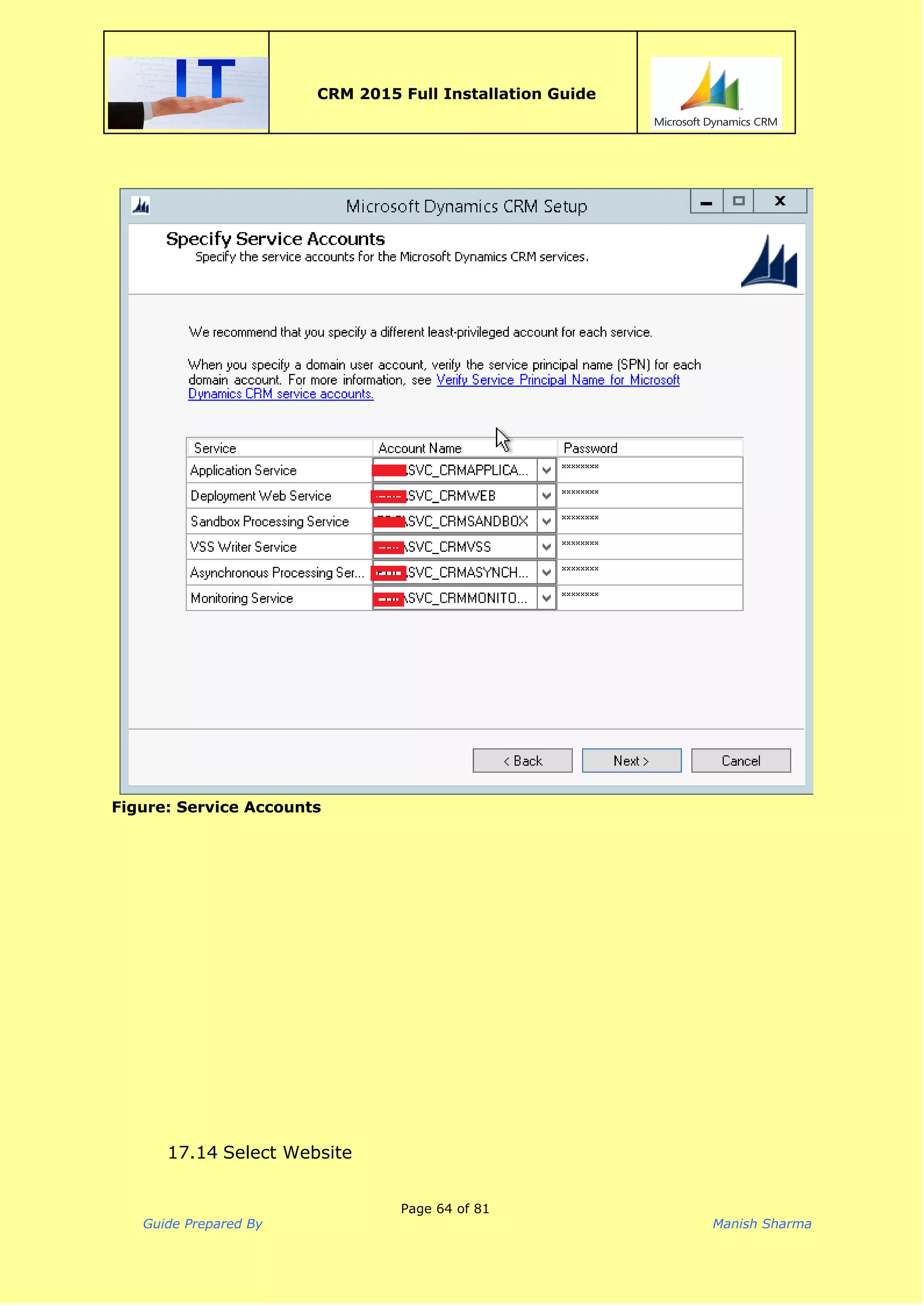

17.13 SPECIFY SERVICE ACCOUNT NAME.

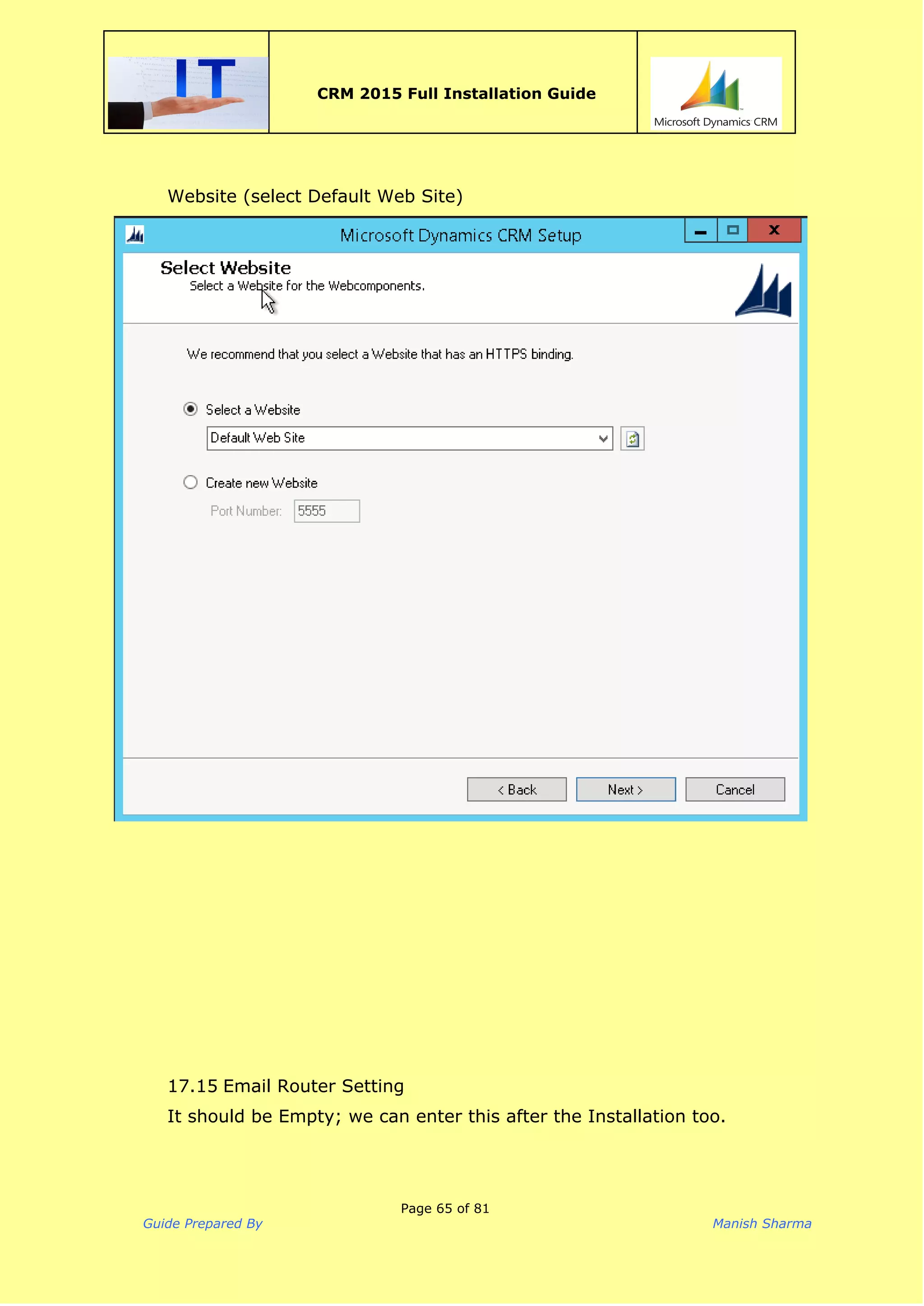

17.14 SELECT WEBSITE

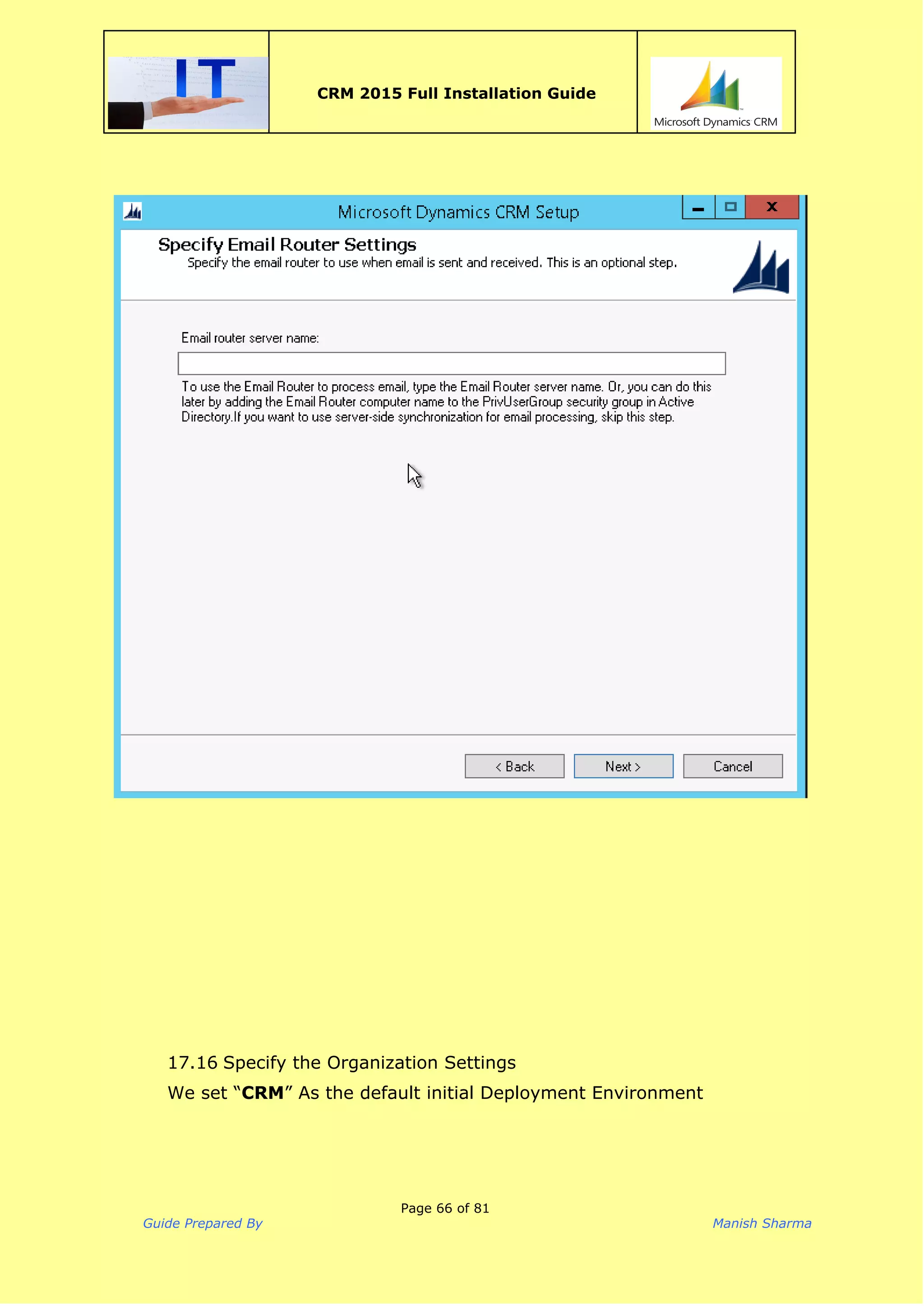

17.15 EMAIL ROUTER SETTING

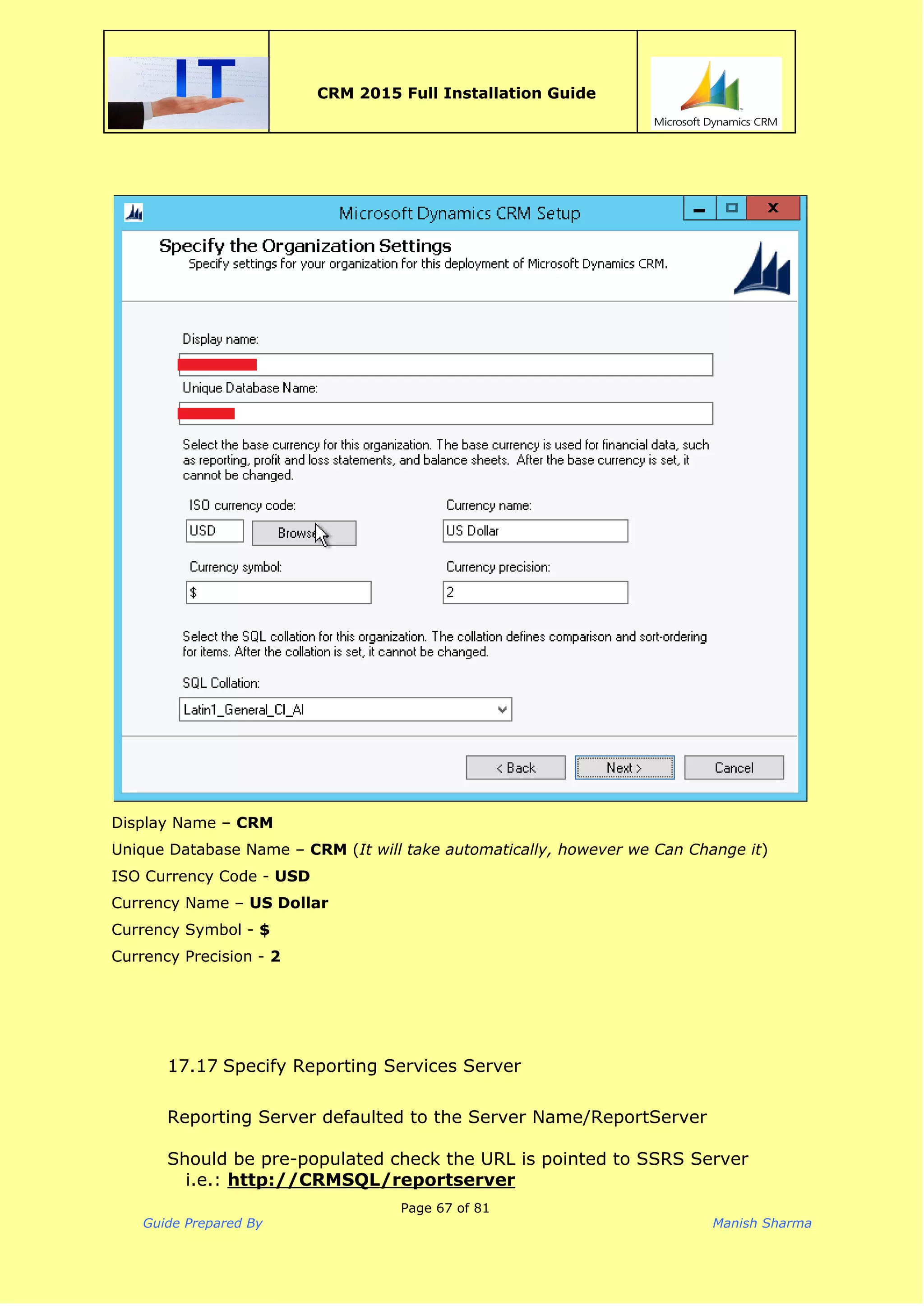

17.16 SPECIFY THE ORGANIZATION SETTINGS

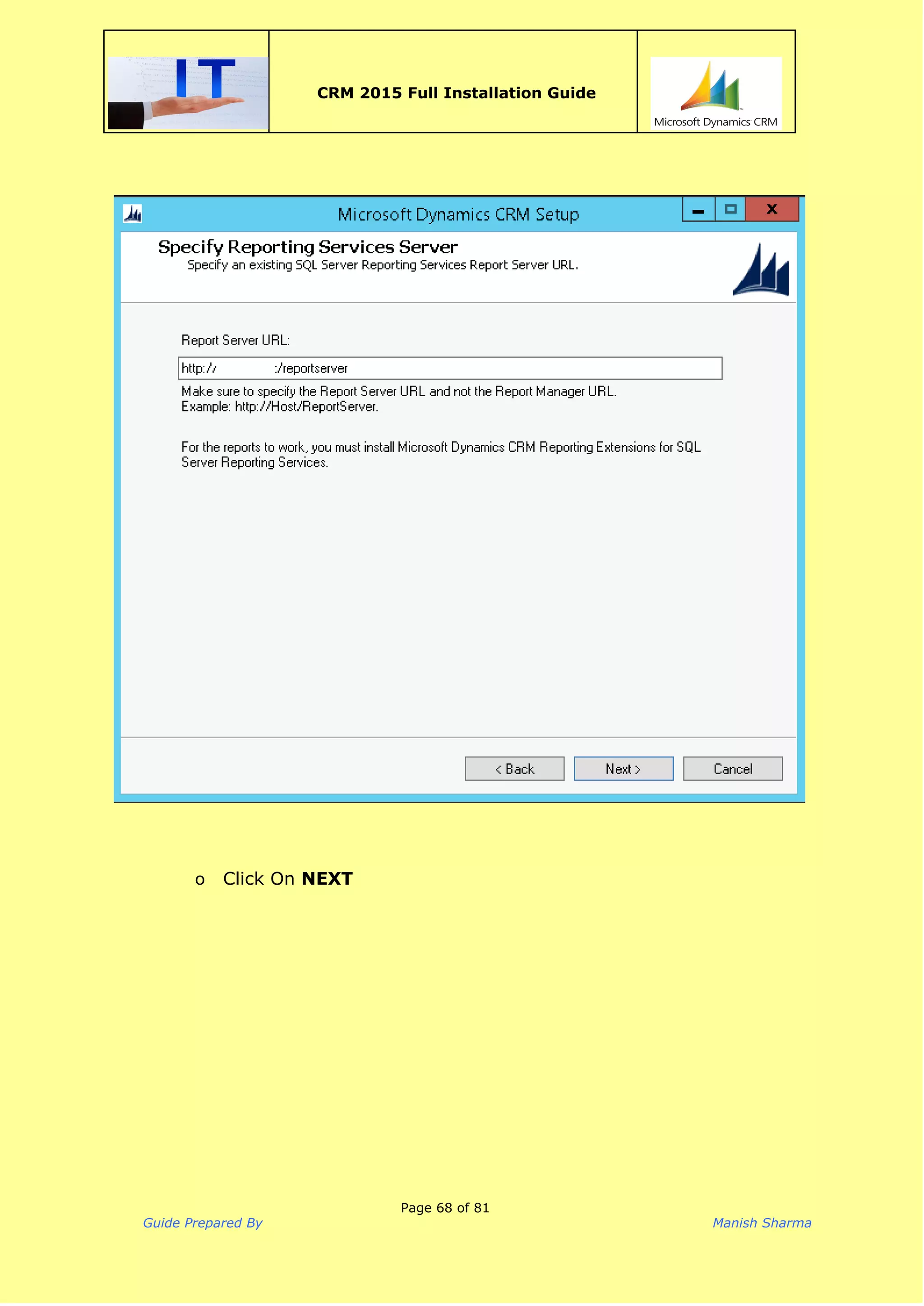

17.17 SPECIFY REPORTING SERVICES SERVER
17.18 SERVICE DISRUPTION WARNING
17.19 READY TO INSTALL MICROSOFT DYNAMIC CRM

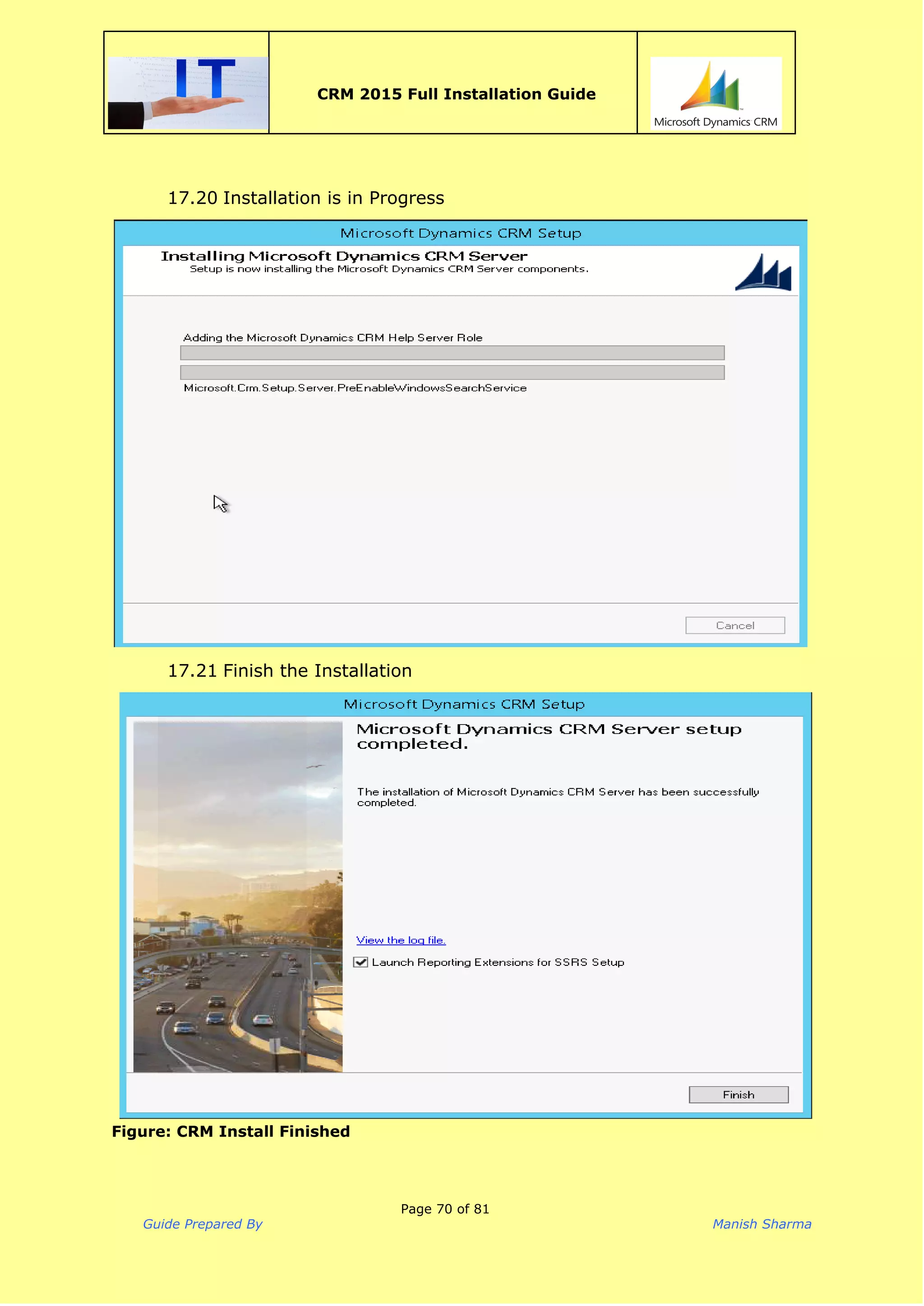

17.20 INSTALLATION IS IN PROGRESS
17.21 FINISH THE INSTALLATION

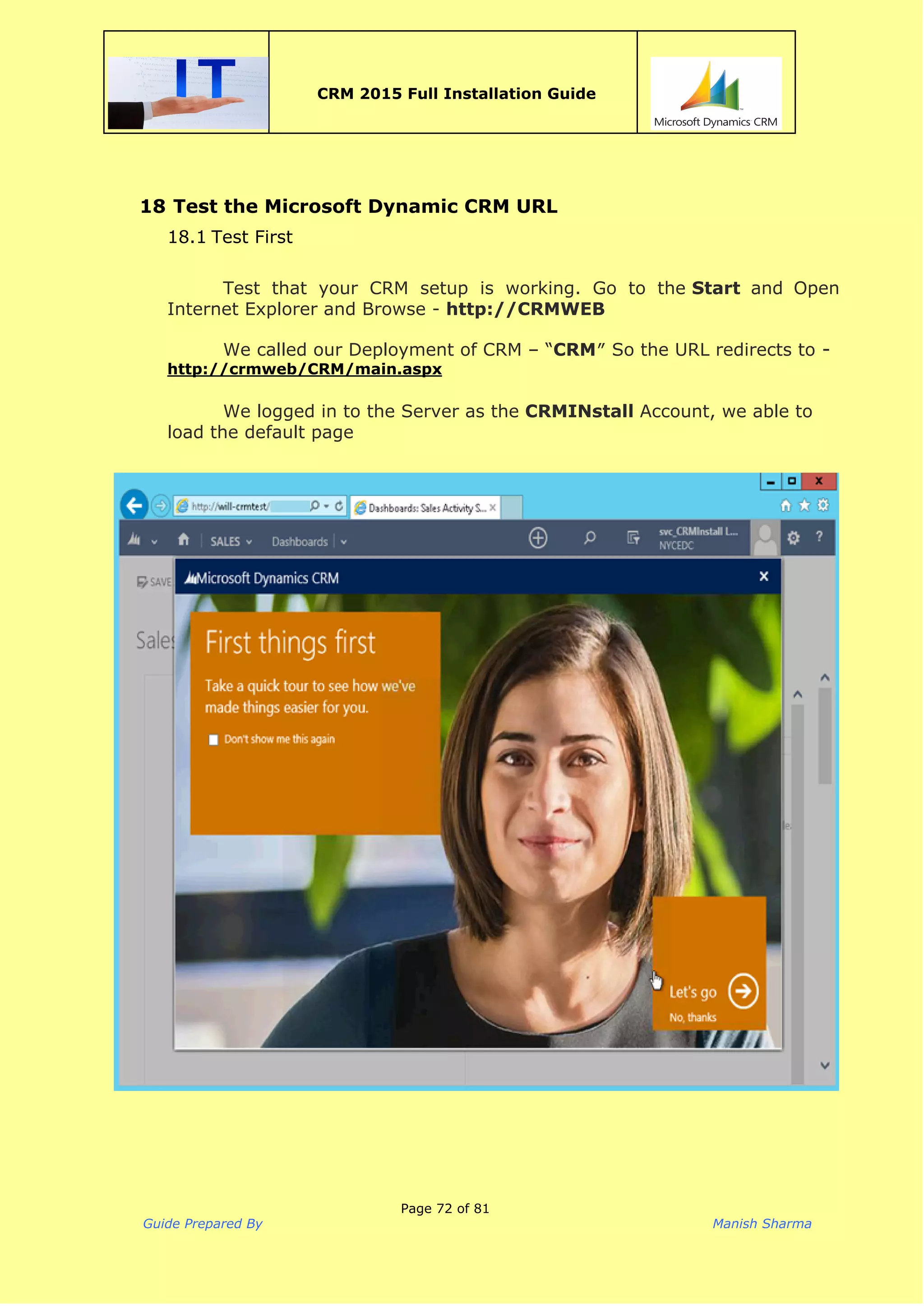

18 TEST THE MICROSOFT DYNAMIC CRM URL
18.1 TEST FIRST

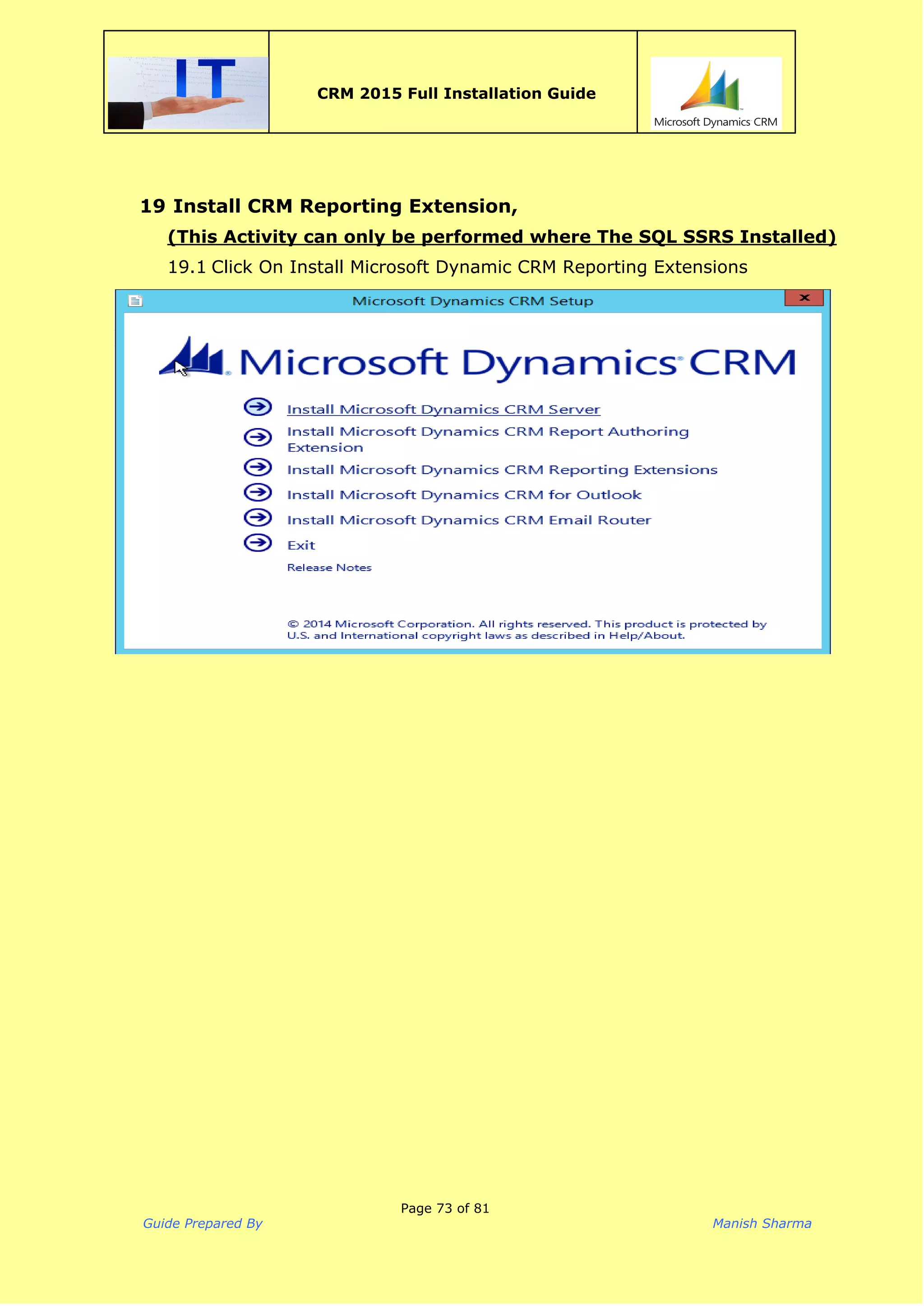

19 INSTALL CRM REPORTING EXTENSION,
19.1 CLICK ON INSTALL MICROSOFT DYNAMIC CRM REPORTING EXTENSIONS

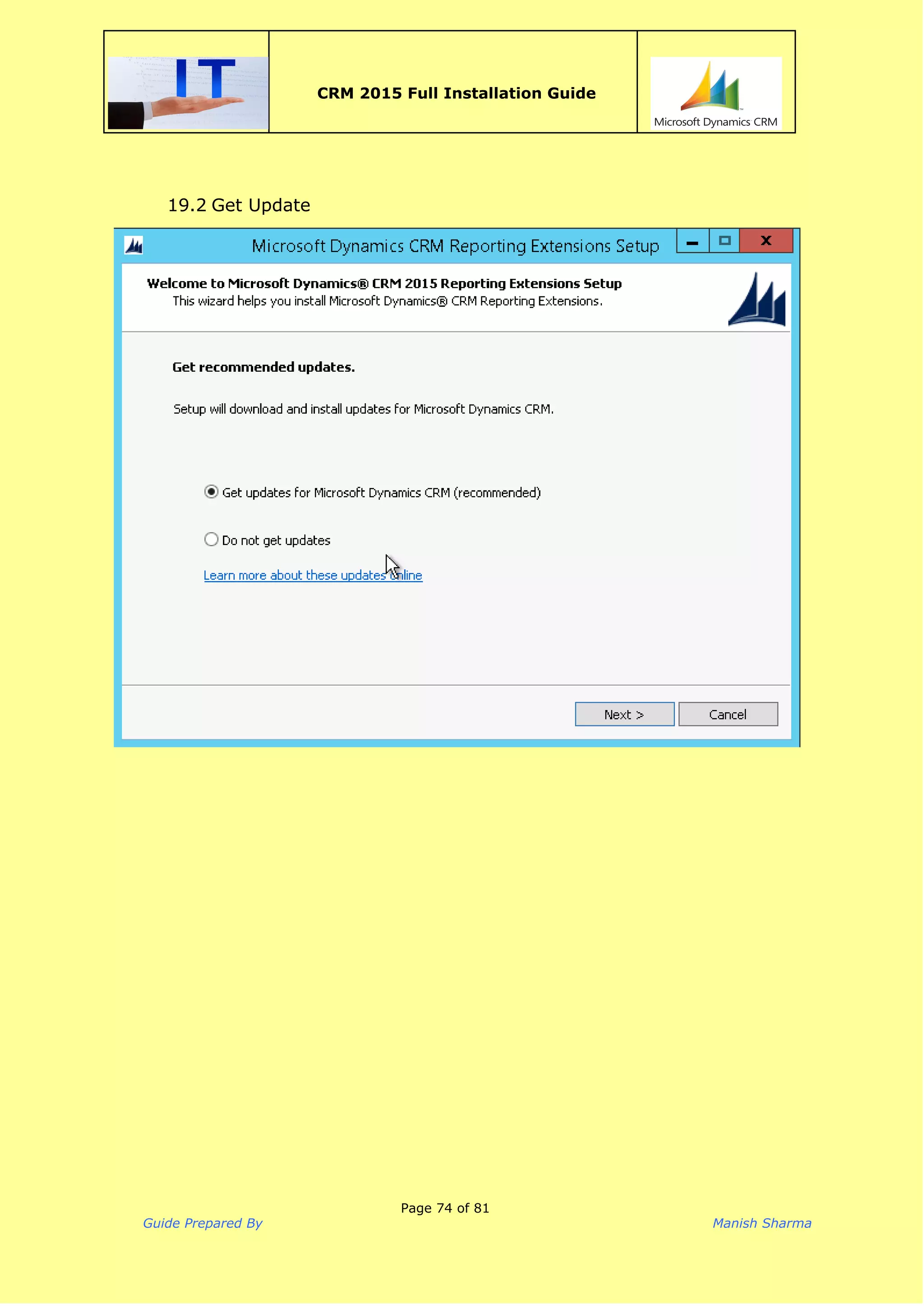

19.2 GET UPDATE

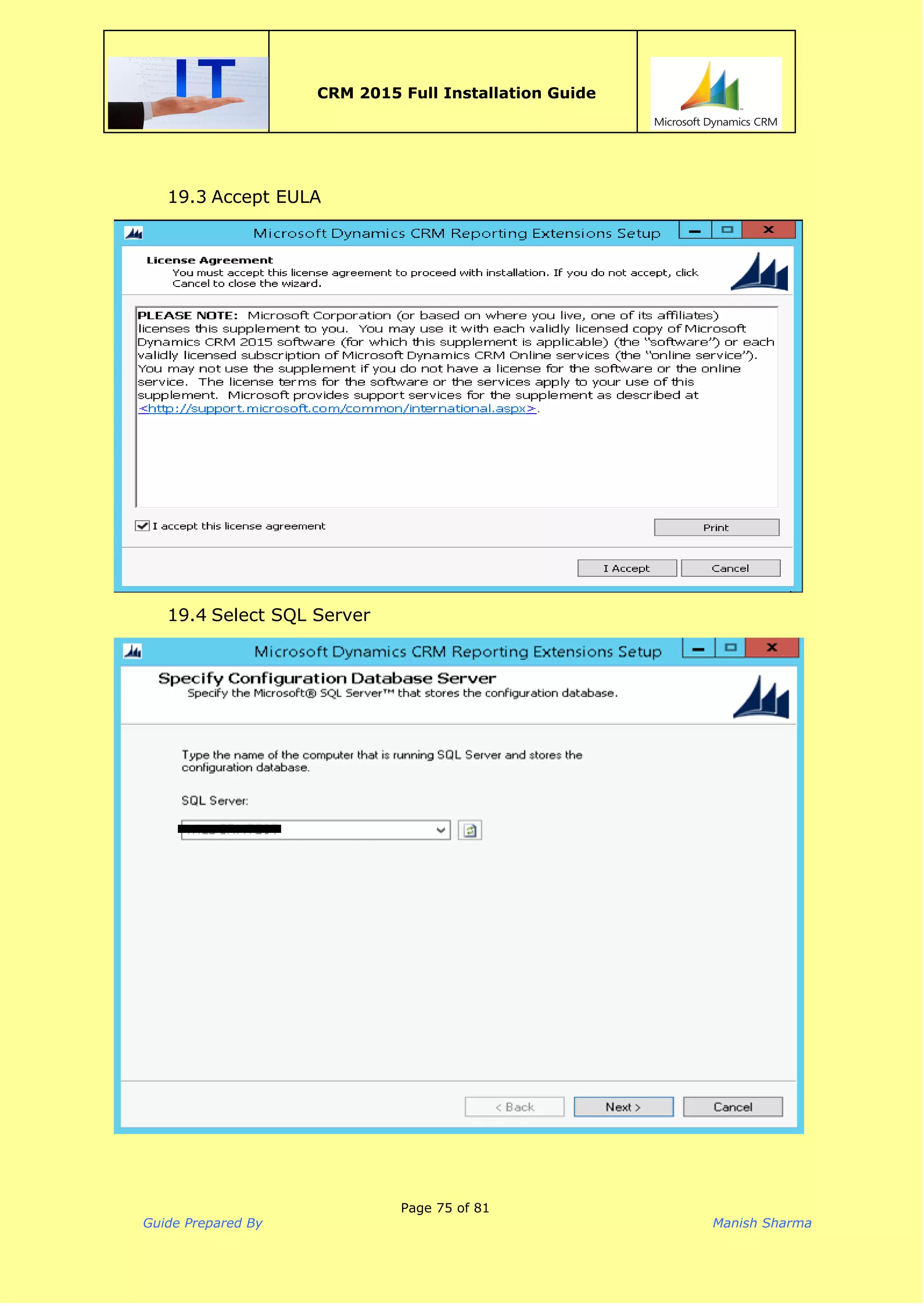

19.3 ACCEPT EULA
19.4 SELECT SQL SERVER

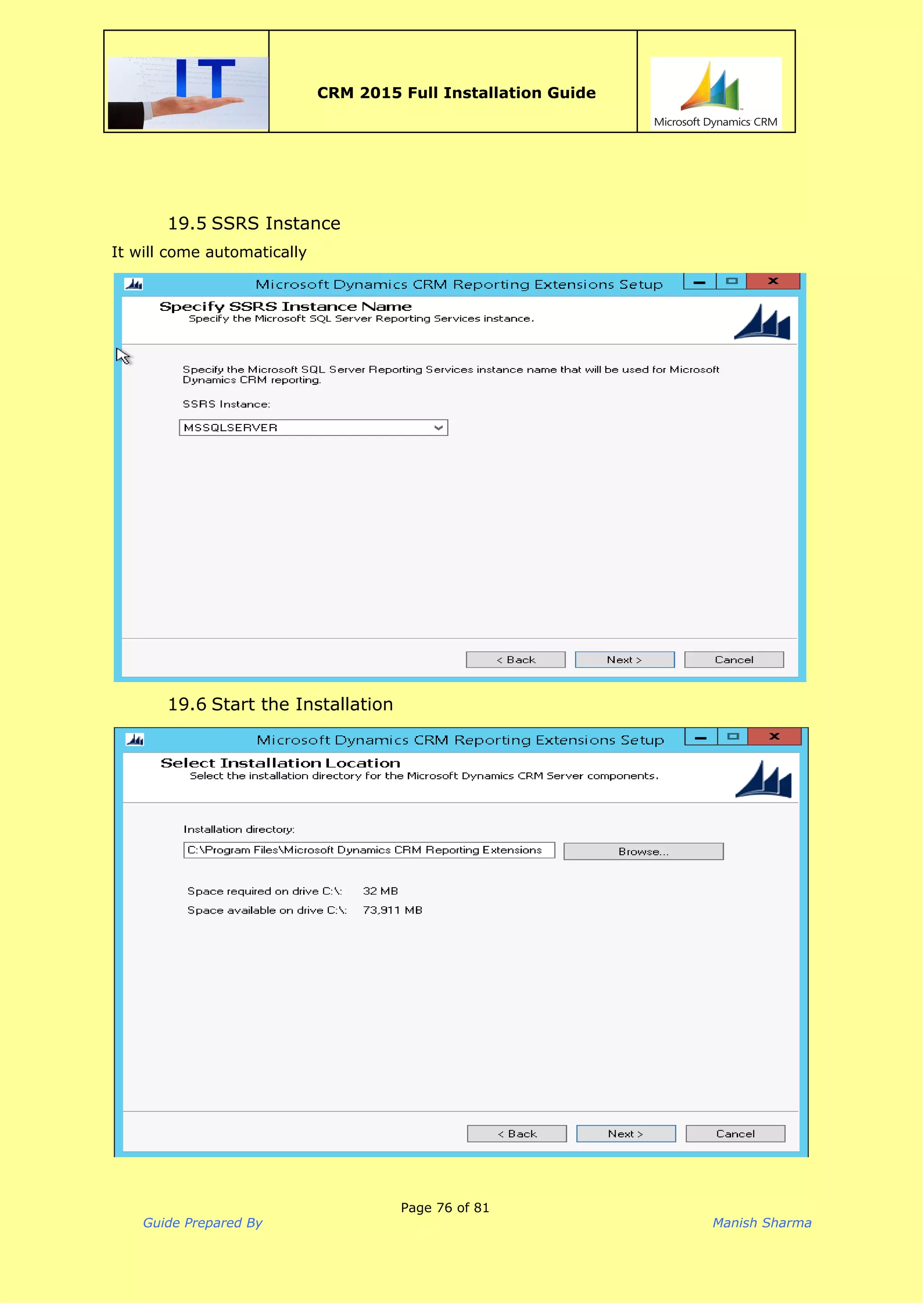

19.5 SSRS INSTANCE
19.6 START THE INSTALLATION

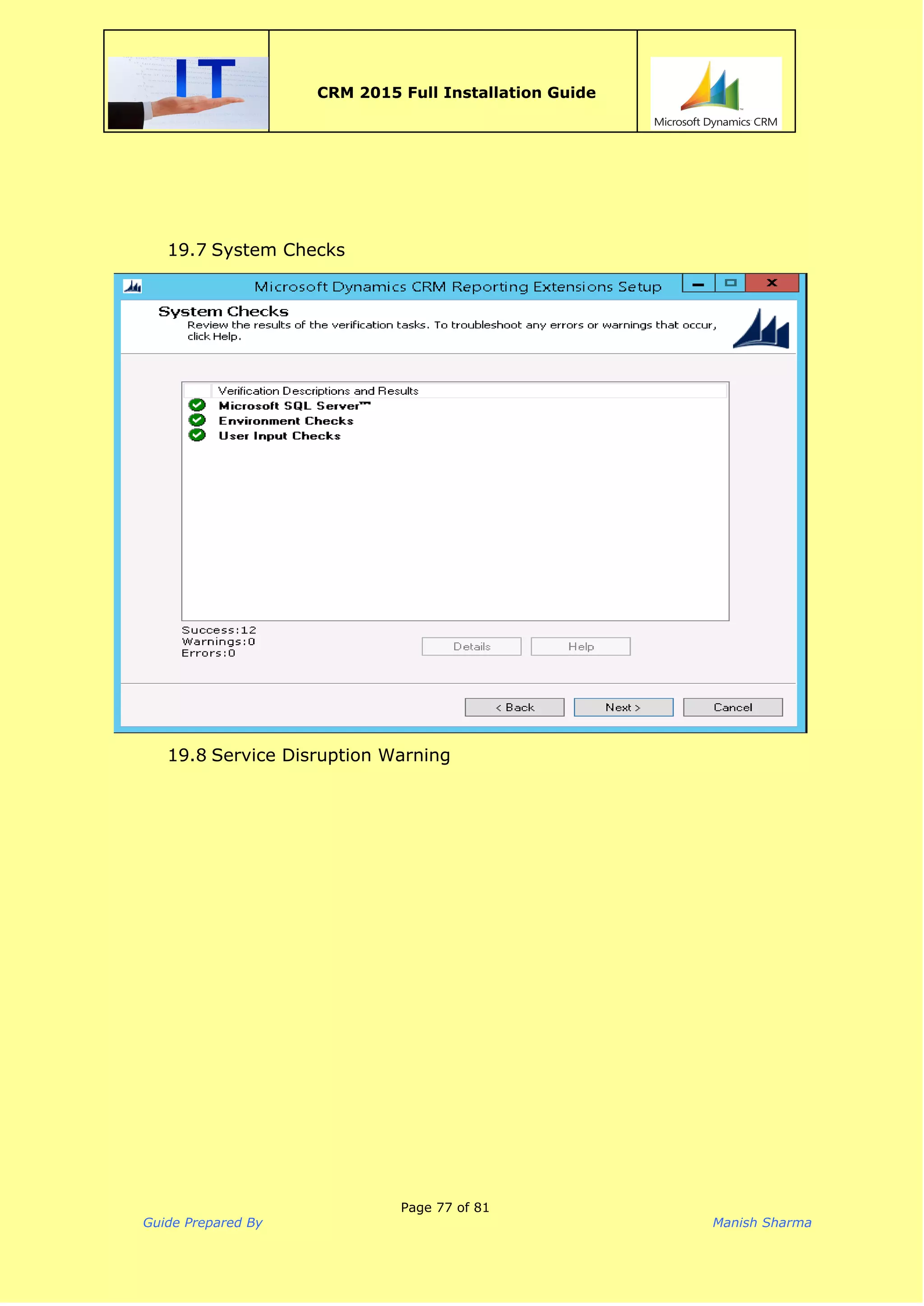

19.7 SYSTEM CHECKS
19.8 SERVICE DISRUPTION WARNING

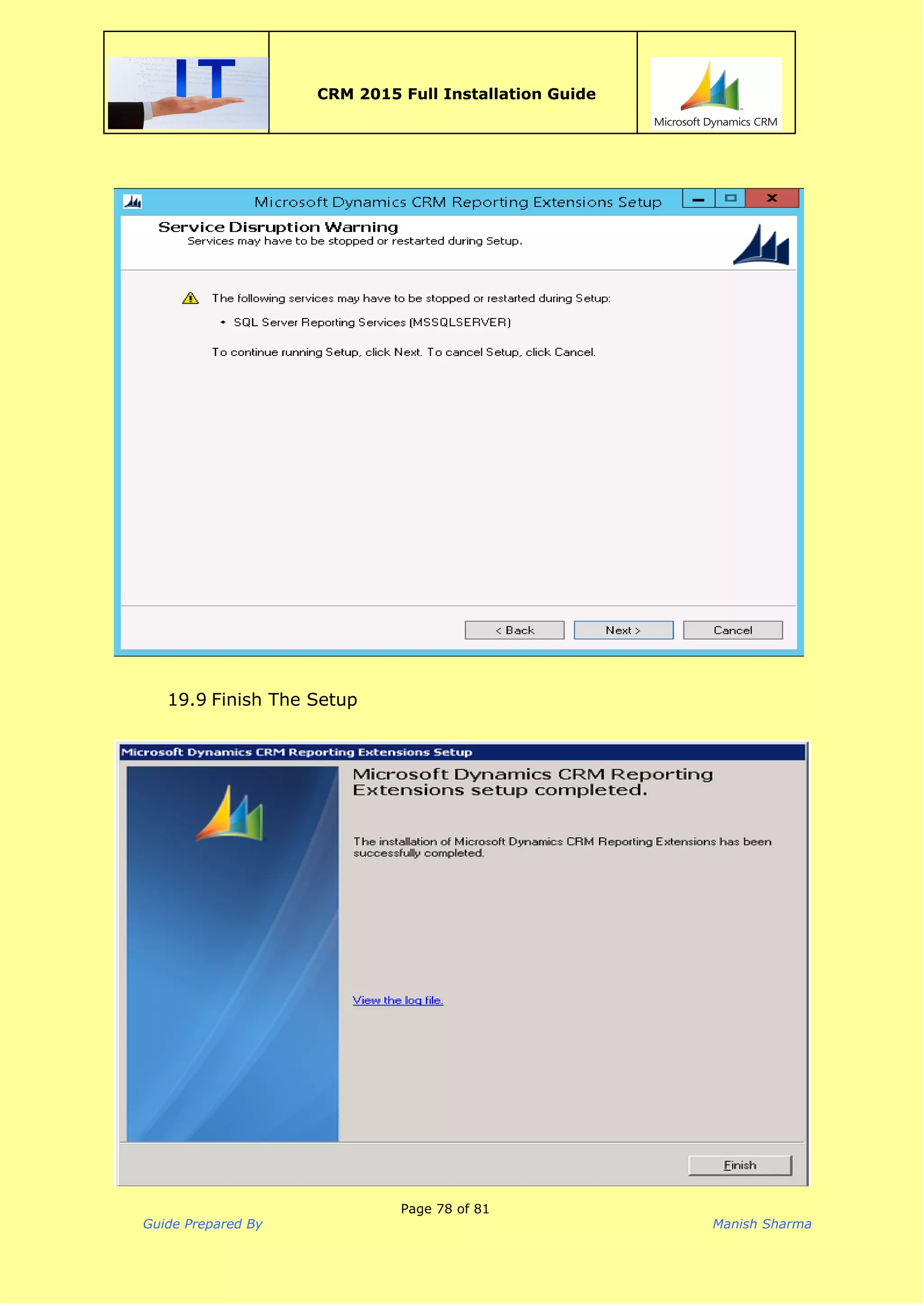

19.9 FINISH THE SETUP

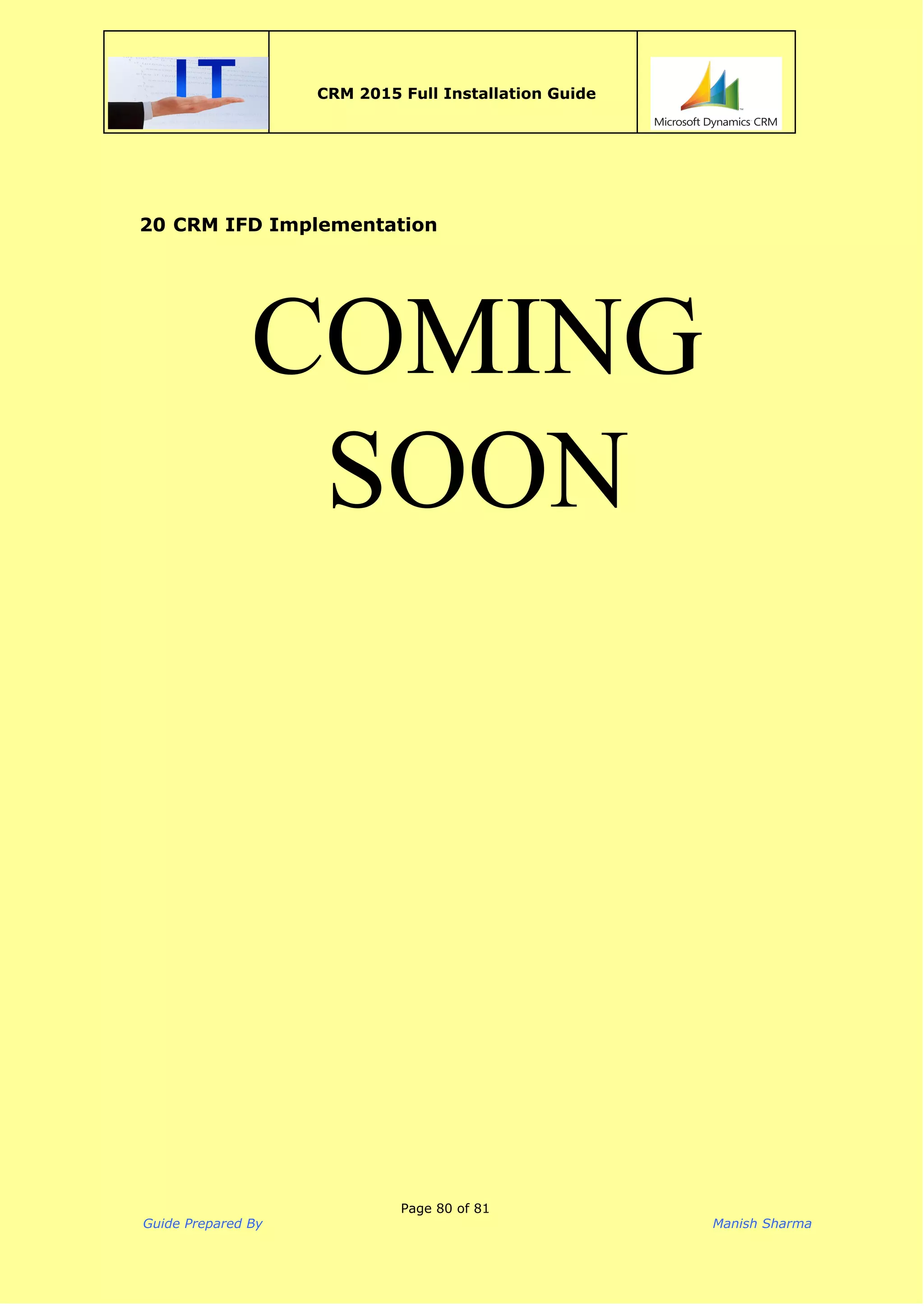

20 CRM IFD IMPLEMENTATION

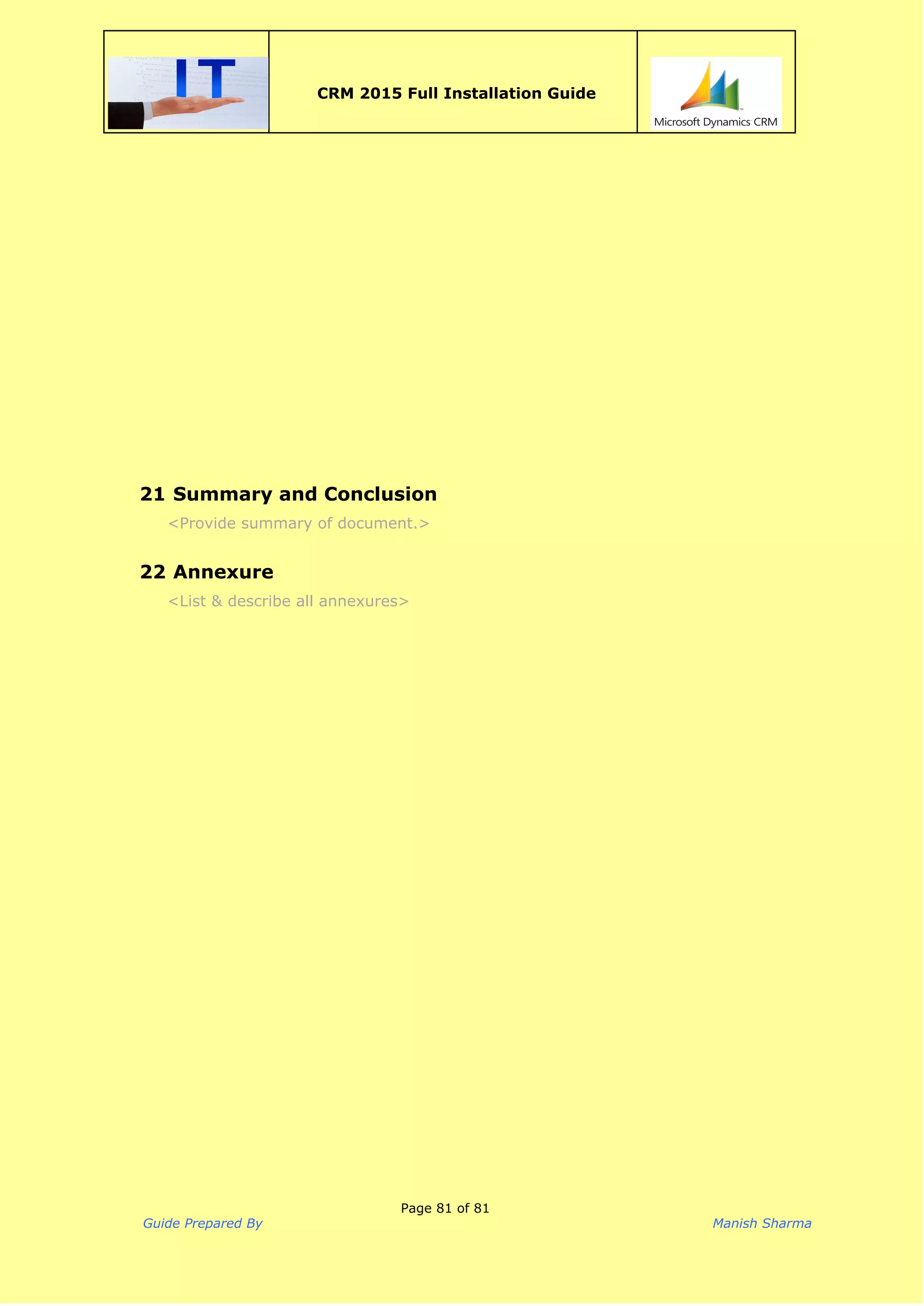

21 SUMMARY AND CONCLUSION
22 ANNEXURE
Page 5 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 6 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

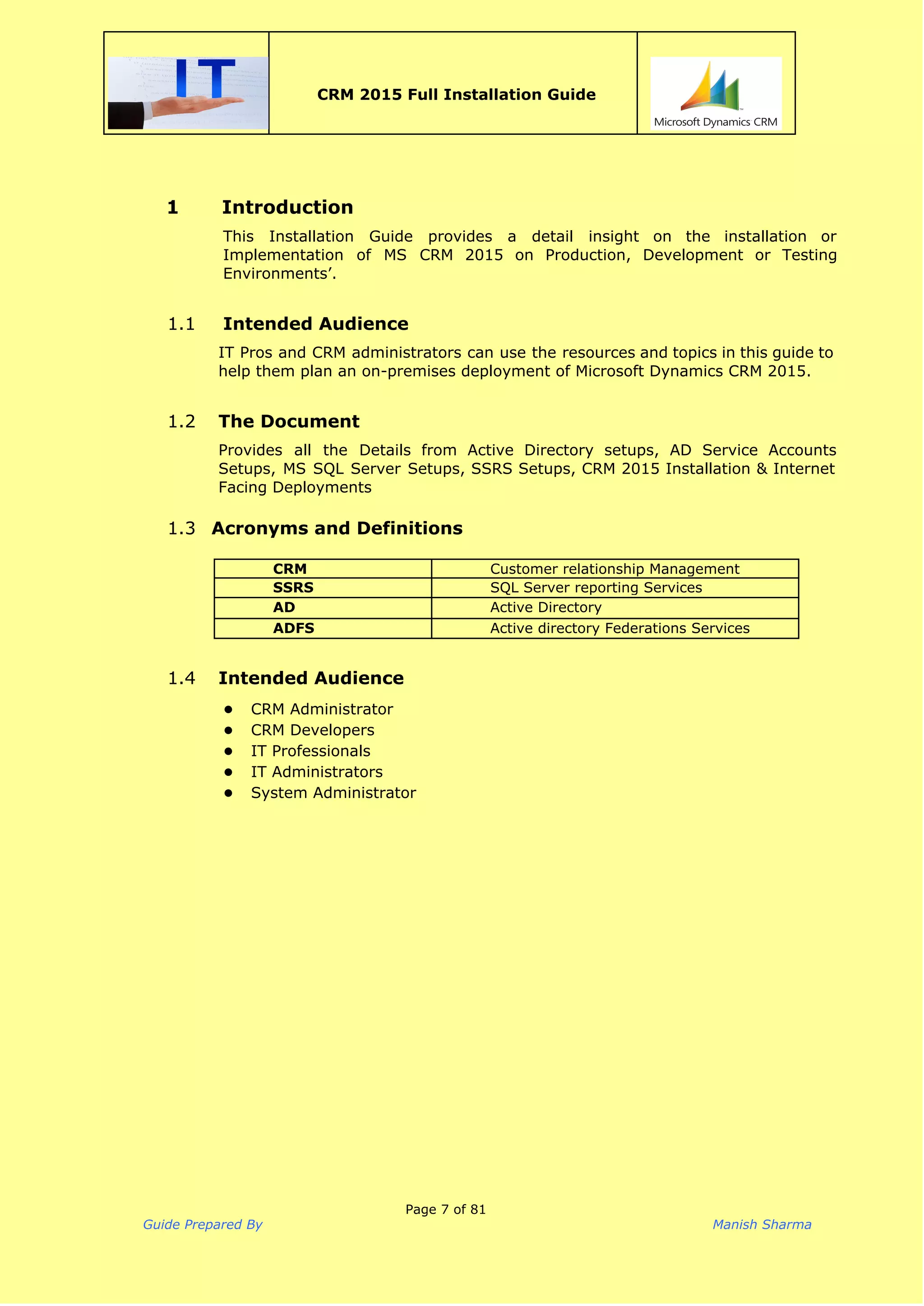

1 Introduction
This Installation Guide provides a detail insight on the installation or
Implementation of MS CRM 2015 on Production, Development or Testing
Environments’.
1.1 Intended Audience
IT Pros and CRM administrators can use the resources and topics in this guide to
help them plan an on-premises deployment of Microsoft Dynamics CRM 2015.

1.2 The Document
Provides all the Details from Active Directory setups, AD Service Accounts
Setups, MS SQL Server Setups, SSRS Setups, CRM 2015 Installation & Internet
Facing Deployments

1.3 Acronyms and Definitions
CRM Customer relationship Management
SSRS SQL Server reporting Services
AD Active Directory
ADFS Active directory Federations Services
1.4 Intended Audience
● CRM Administrator
● CRM Developers
● IT Professionals
● IT Administrators
● System Administrator
Page 7 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

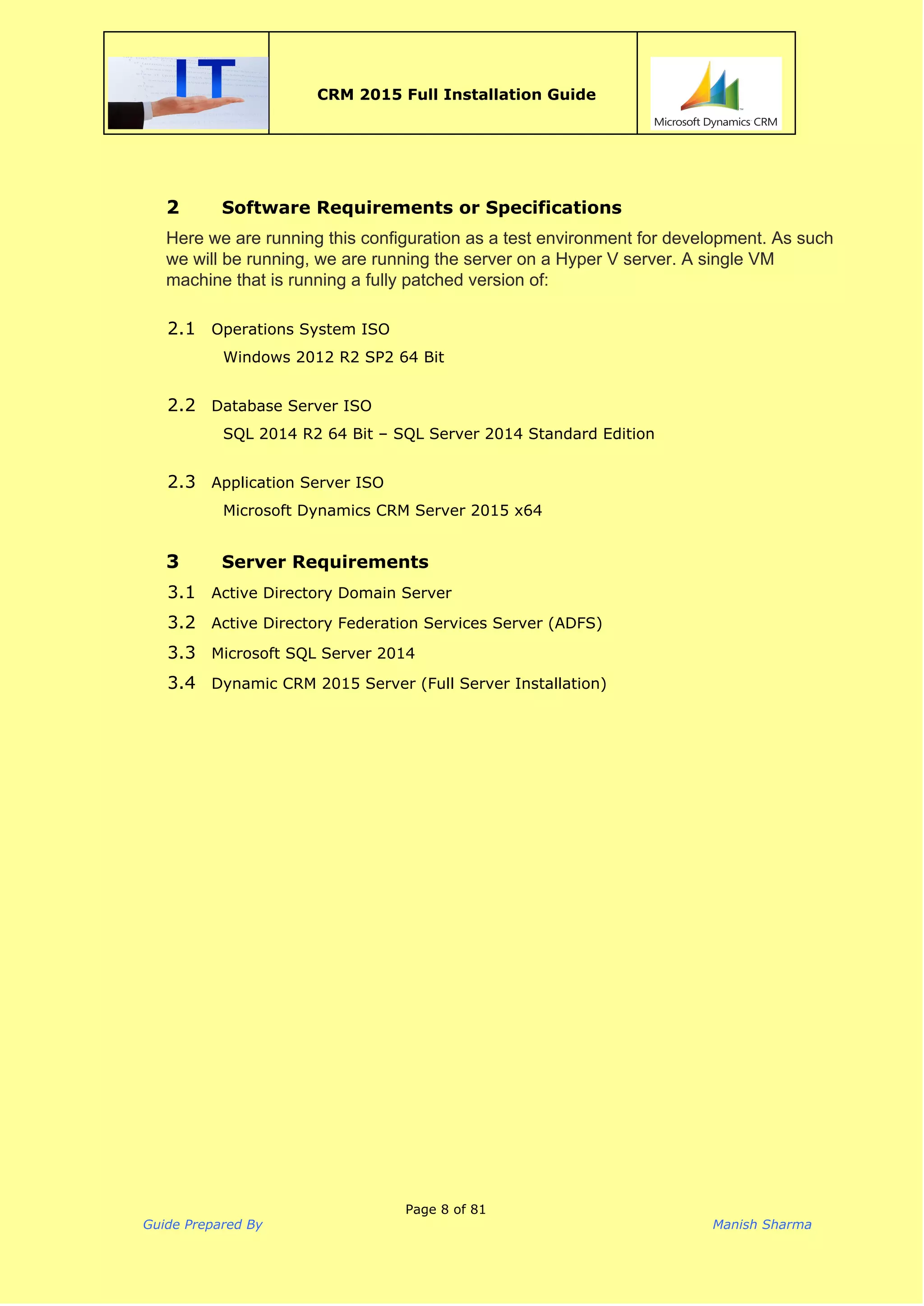

2 Software Requirements or Specifications
Here we are running this configuration as a test environment for development. As such
we will be running, we are running the server on a Hyper V server. A single VM
machine that is running a fully patched version of:
2.1 Operations System ISO
Windows 2012 R2 SP2 64 Bit

2.2 Database Server ISO
SQL 2014 R2 64 Bit – SQL Server 2014 Standard Edition

2.3 Application Server ISO
Microsoft Dynamics CRM Server 2015 x64
3 Server Requirements
3.1 Active Directory Domain Server
3.2 Active Directory Federation Services Server (ADFS)
3.3 Microsoft SQL Server 2014
3.4 Dynamic CRM 2015 Server (Full Server Installation)

Page 8 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

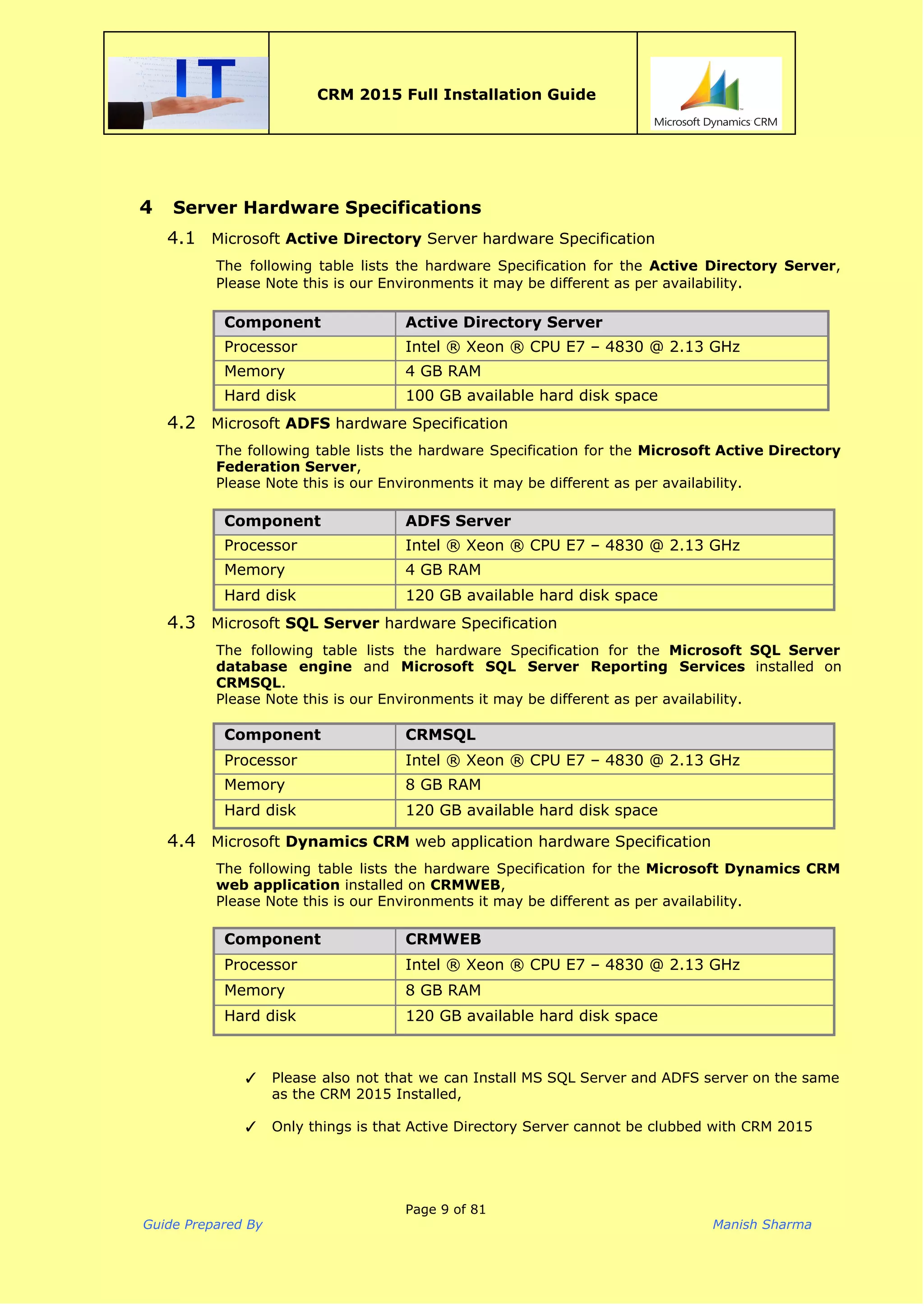

4 Server Hardware Specifications
4.1 Microsoft ​Active Directory​Server hardware Specification
The following table lists the hardware Specification for the ​Active Directory Server​,
Please Note this is our Environments it may be different as per availability​.
Component Active Directory Server
Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz
Memory 4 GB RAM
Hard disk 100 GB available hard disk space
4.2 Microsoft ​ADFS​hardware Specification
The following table lists the hardware Specification for the ​Microsoft Active Directory
Federation Server​,
Please Note this is our Environments it may be different as per availability.
Component ADFS Server
Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz
Memory 4 GB RAM
Hard disk 120 GB available hard disk space
4.3 Microsoft ​SQL Server​hardware Specification
The following table lists the hardware Specification for the ​Microsoft SQL Server
database engine and ​Microsoft SQL Server Reporting Services installed on
CRMSQL​.
Please Note this is our Environments it may be different as per availability.
Component CRMSQL
Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz
Memory 8 GB RAM
Hard disk 120 GB available hard disk space
4.4 Microsoft ​Dynamics CRM​web application hardware Specification
The following table lists the hardware Specification for the ​Microsoft Dynamics CRM
web application​installed on ​CRMWEB​,
Please Note this is our Environments it may be different as per availability.
Component CRMWEB
Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz
Memory 8 GB RAM
Hard disk 120 GB available hard disk space
✓ Please also not that we can Install MS SQL Server and ADFS server on the same
as the CRM 2015 Installed,
✓ Only things is that Active Directory Server cannot be clubbed with CRM 2015
Page 9 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

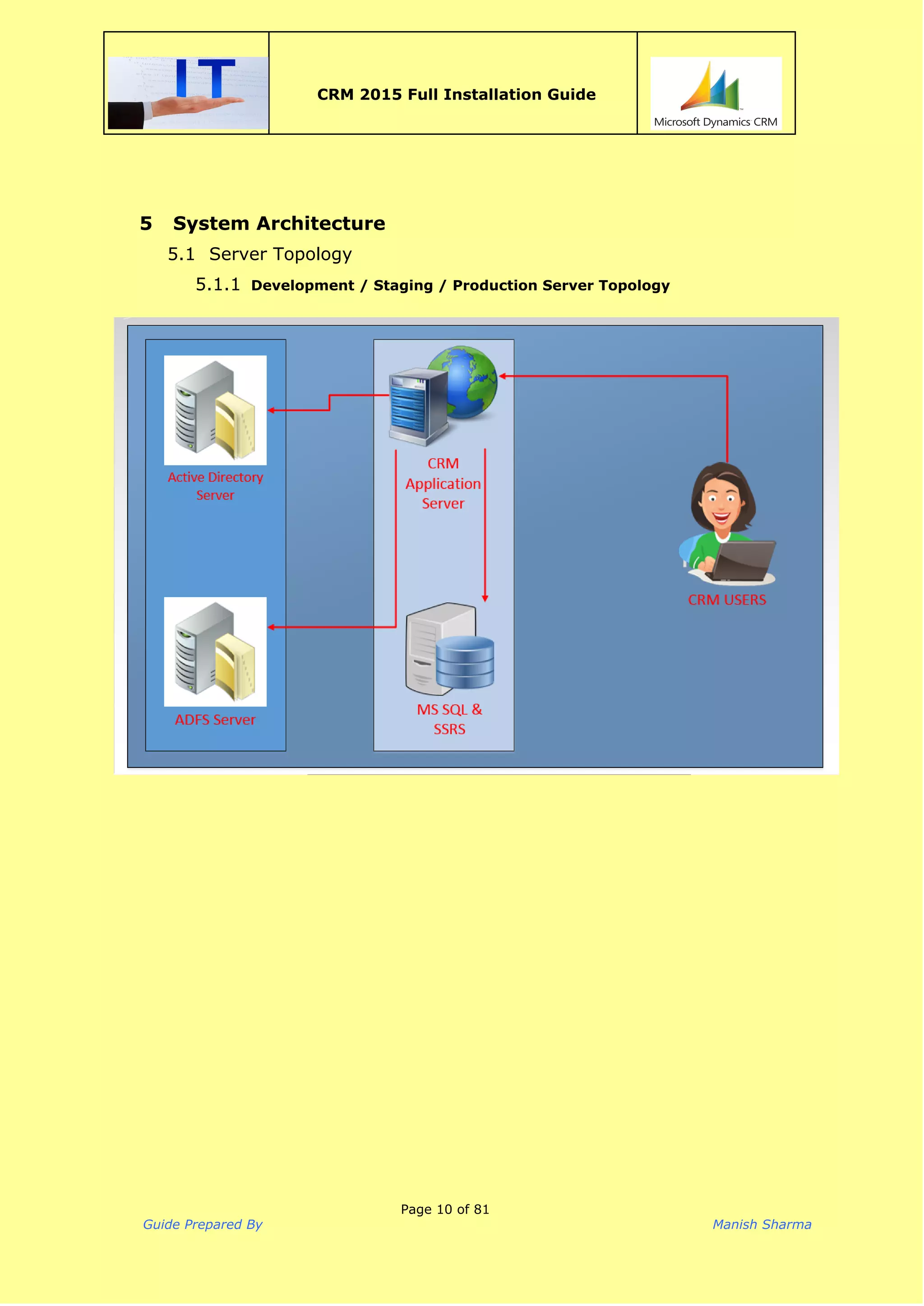

5 System Architecture
5.1 Server Topology
5.1.1 Development / Staging / Production Server Topology

Page 10 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 11 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

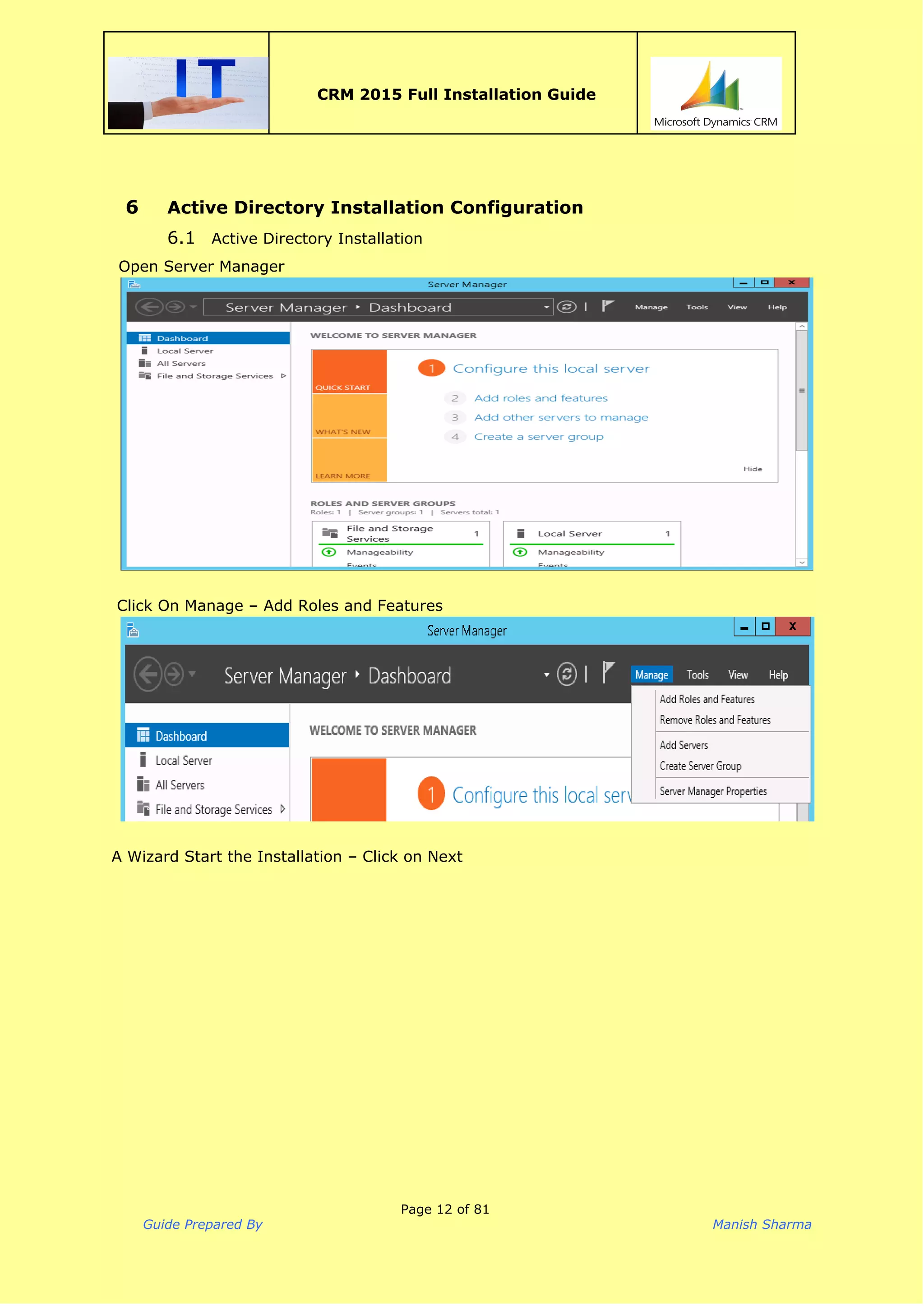

6 Active Directory Installation Configuration
6.1 Active Directory Installation
Open Server Manager


Click On Manage – Add Roles and Features


A Wizard Start the Installation – Click on Next
Page 12 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

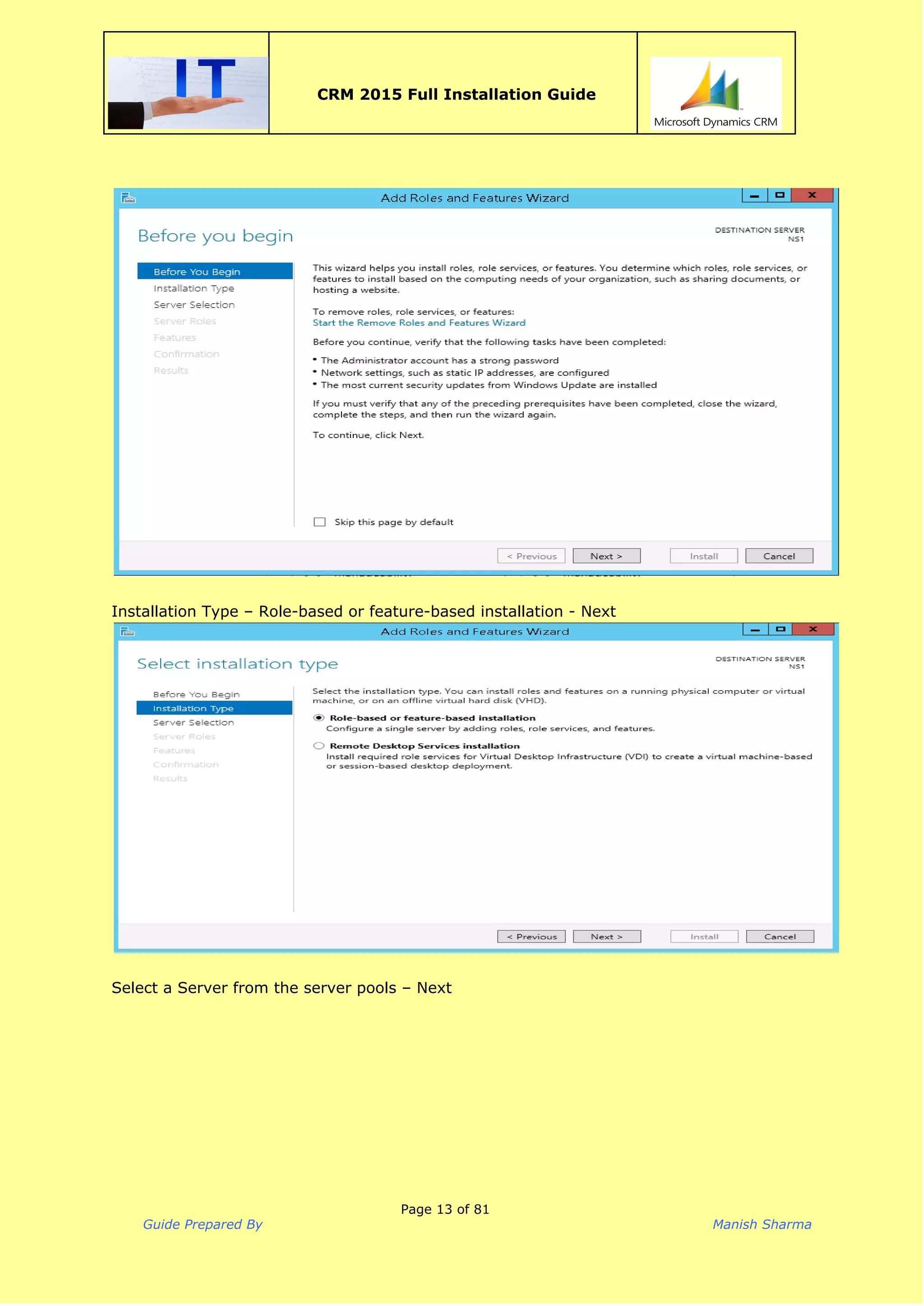

Installation Type – Role-based or feature-based installation - Next

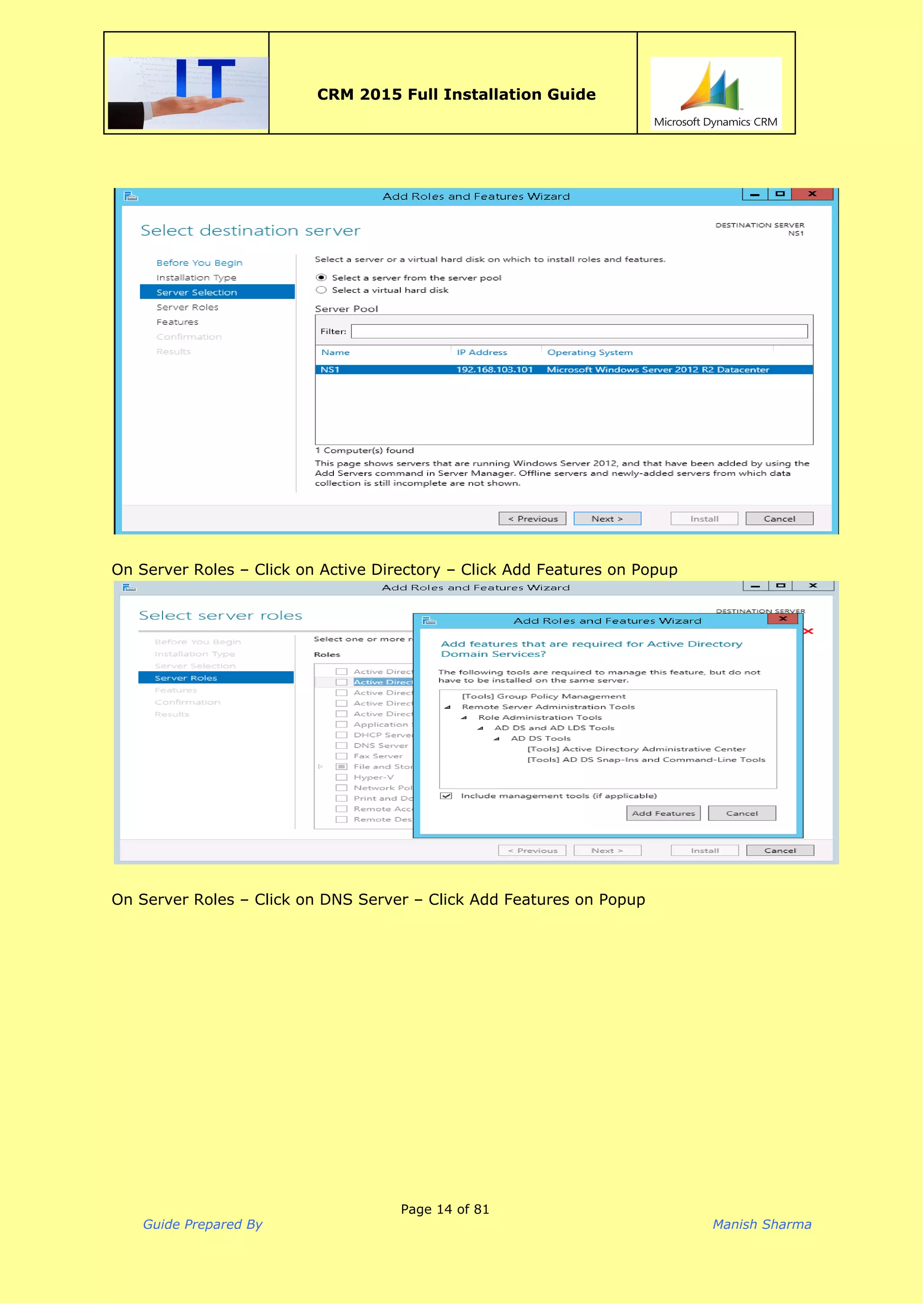

Select a Server from the server pools – Next
Page 13 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide



On Server Roles – Click on Active Directory – Click Add Features on Popup


On Server Roles – Click on DNS Server – Click Add Features on Popup

Page 14 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

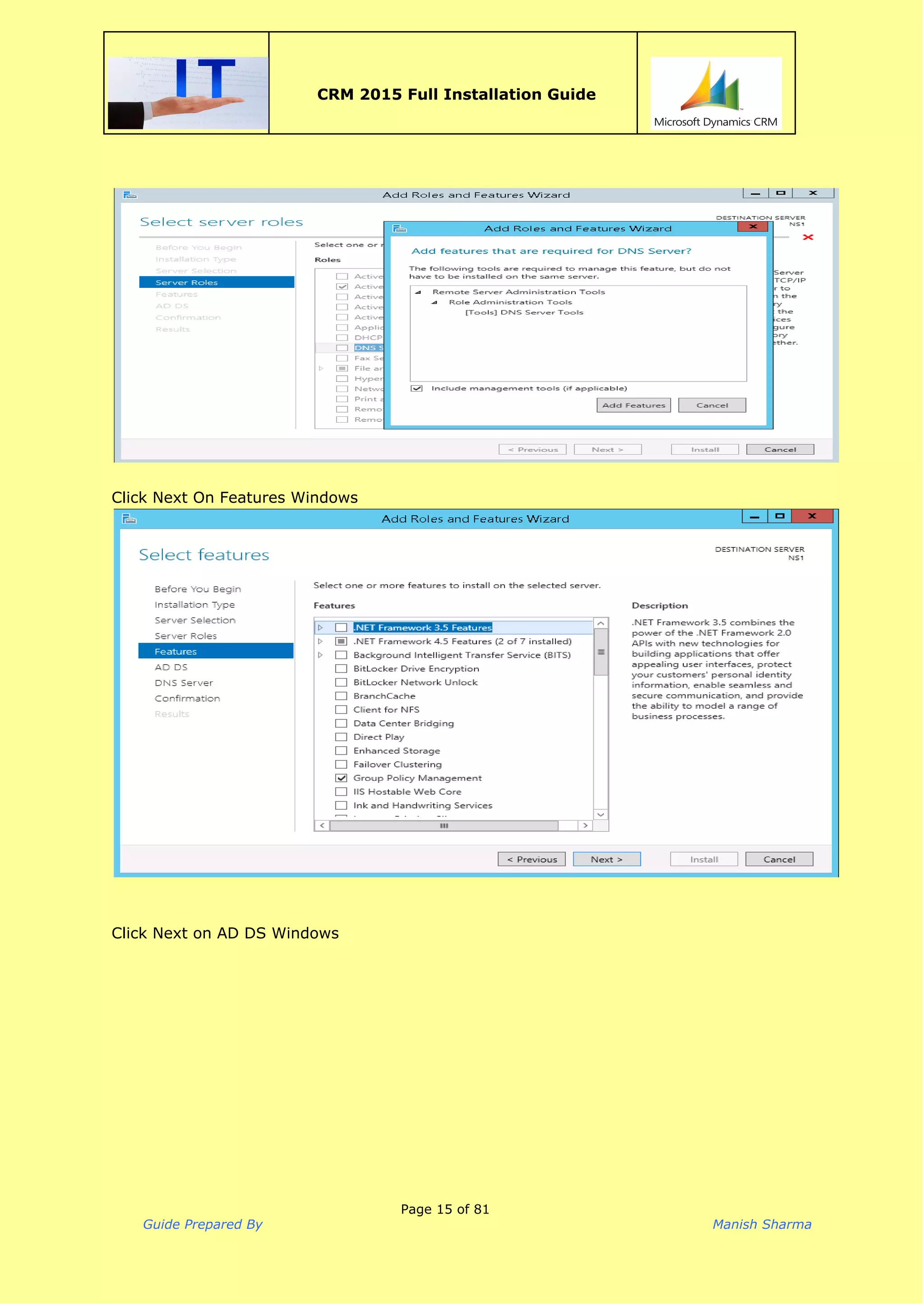

Click Next On Features Windows



Click Next on AD DS Windows
Page 15 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

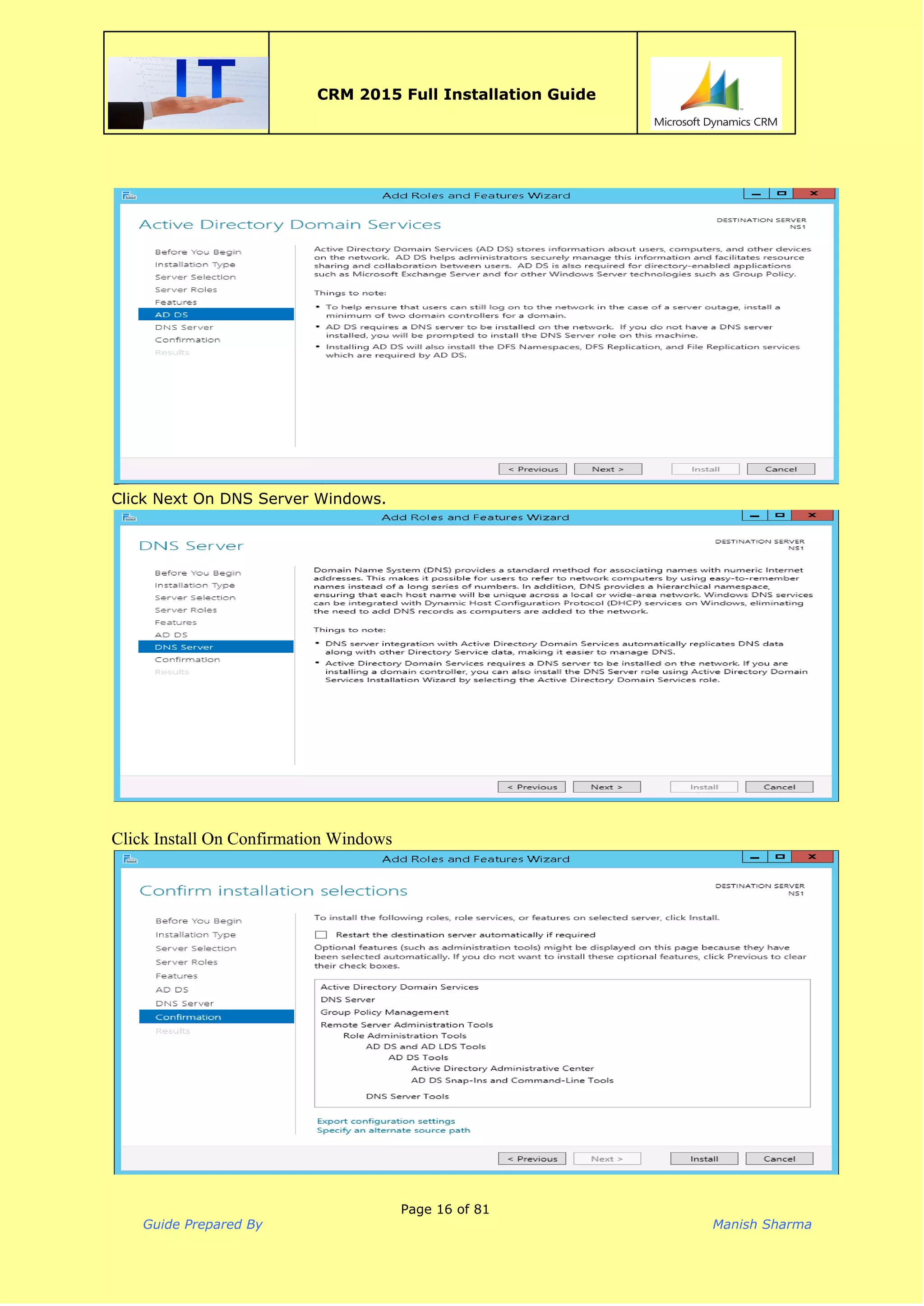

Click Next On DNS Server Windows.


Click Install On Confirmation Windows

Page 16 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

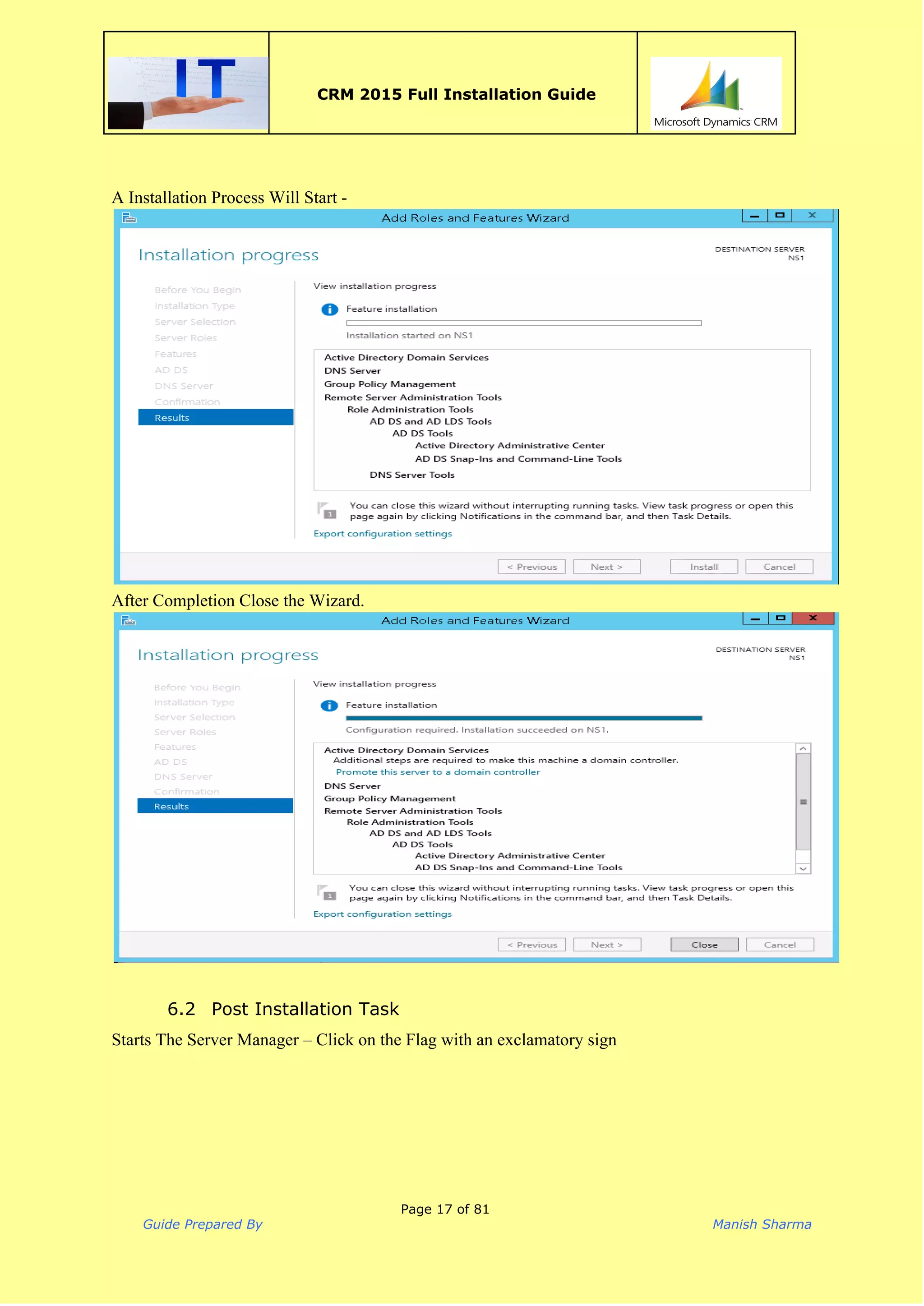

A Installation Process Will Start ­

After Completion Close the Wizard.


6.2 Post Installation Task
Starts The Server Manager – Click on the Flag with an exclamatory sign

Page 17 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

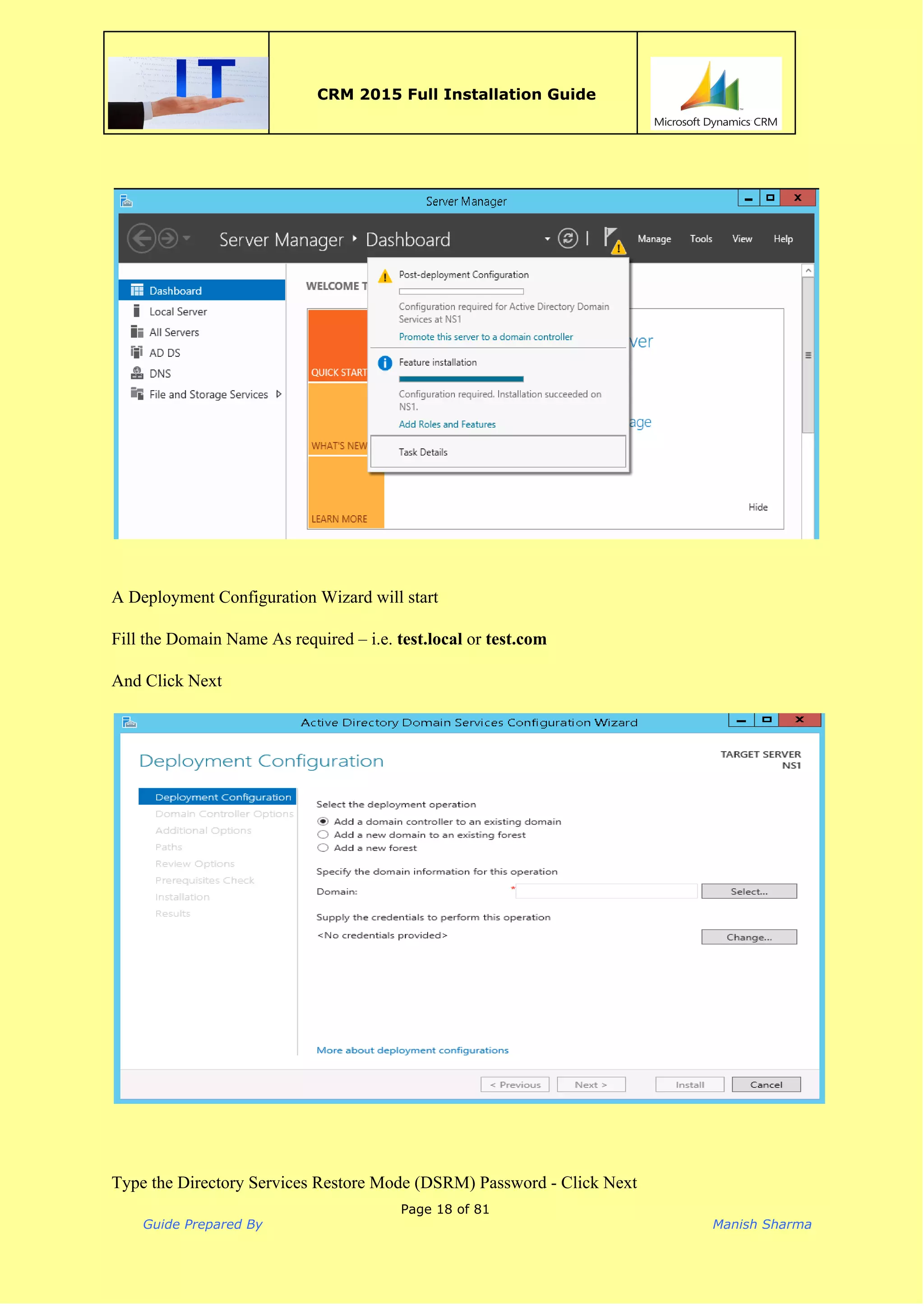

A Deployment Configuration Wizard will start

Fill the Domain Name As required – i.e. ​test.local​ or ​test.com

And Click Next

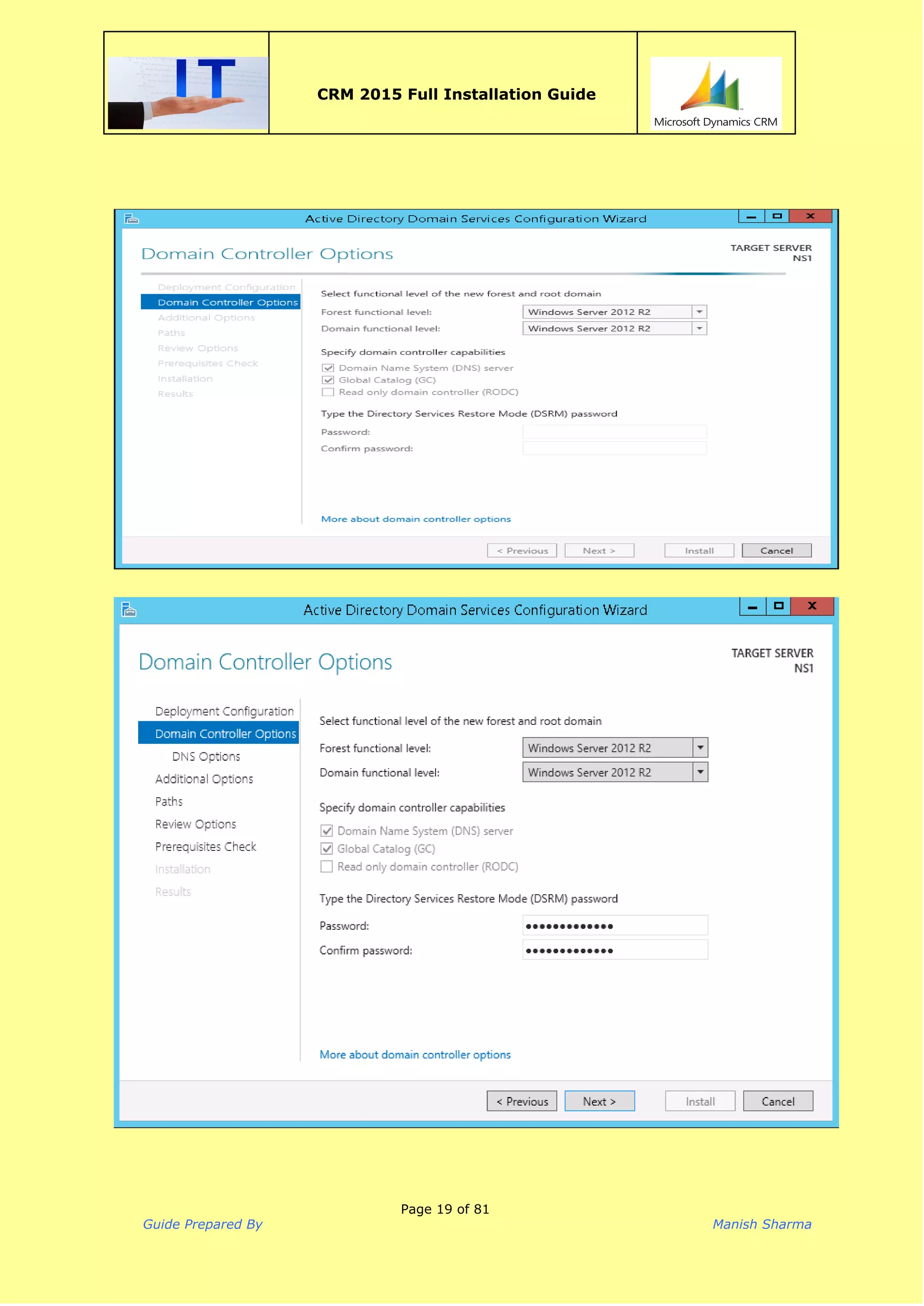

Type the Directory Services Restore Mode (DSRM) Password ­ Click Next
Page 18 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide







Page 19 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

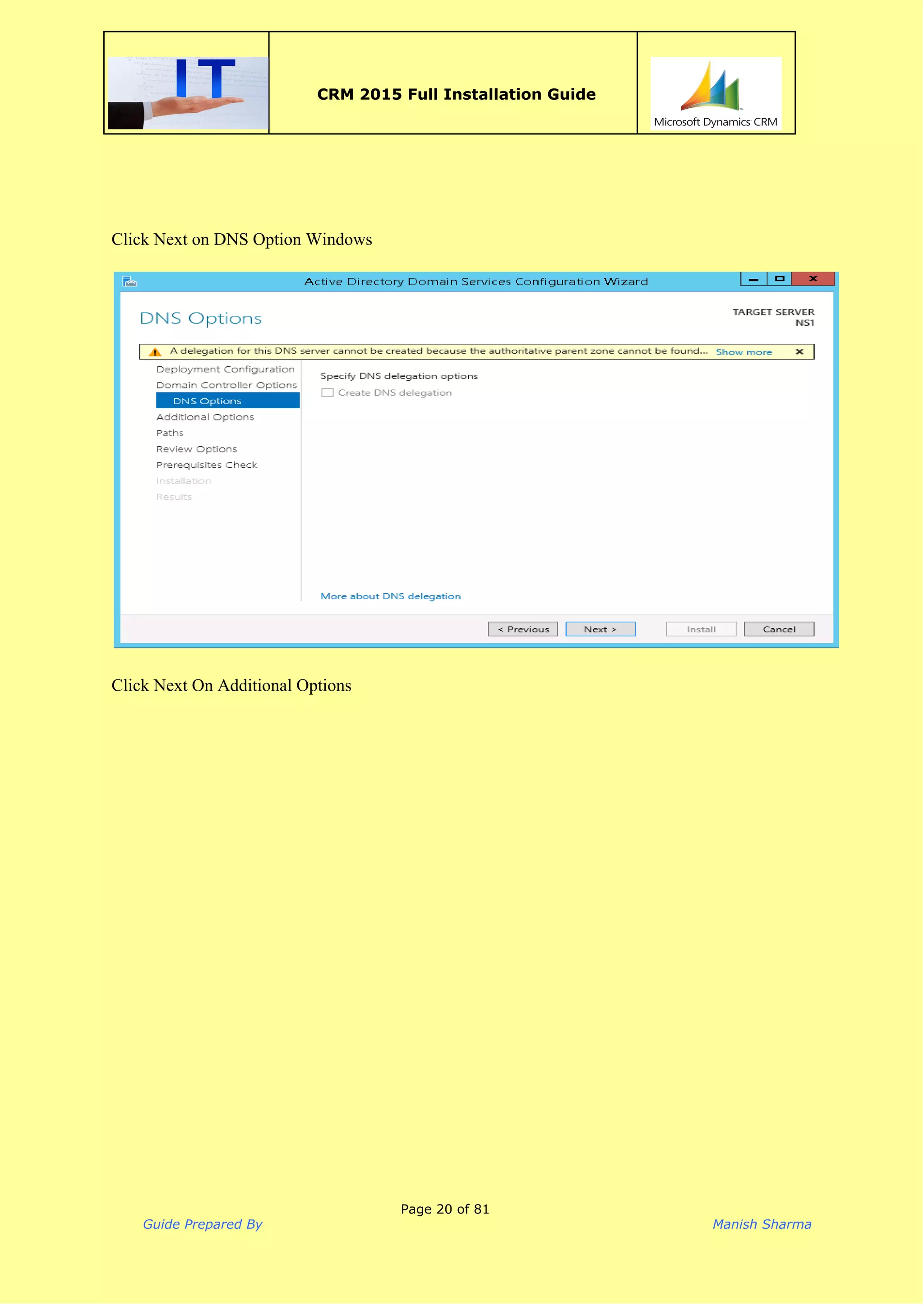

Click Next on DNS Option Windows

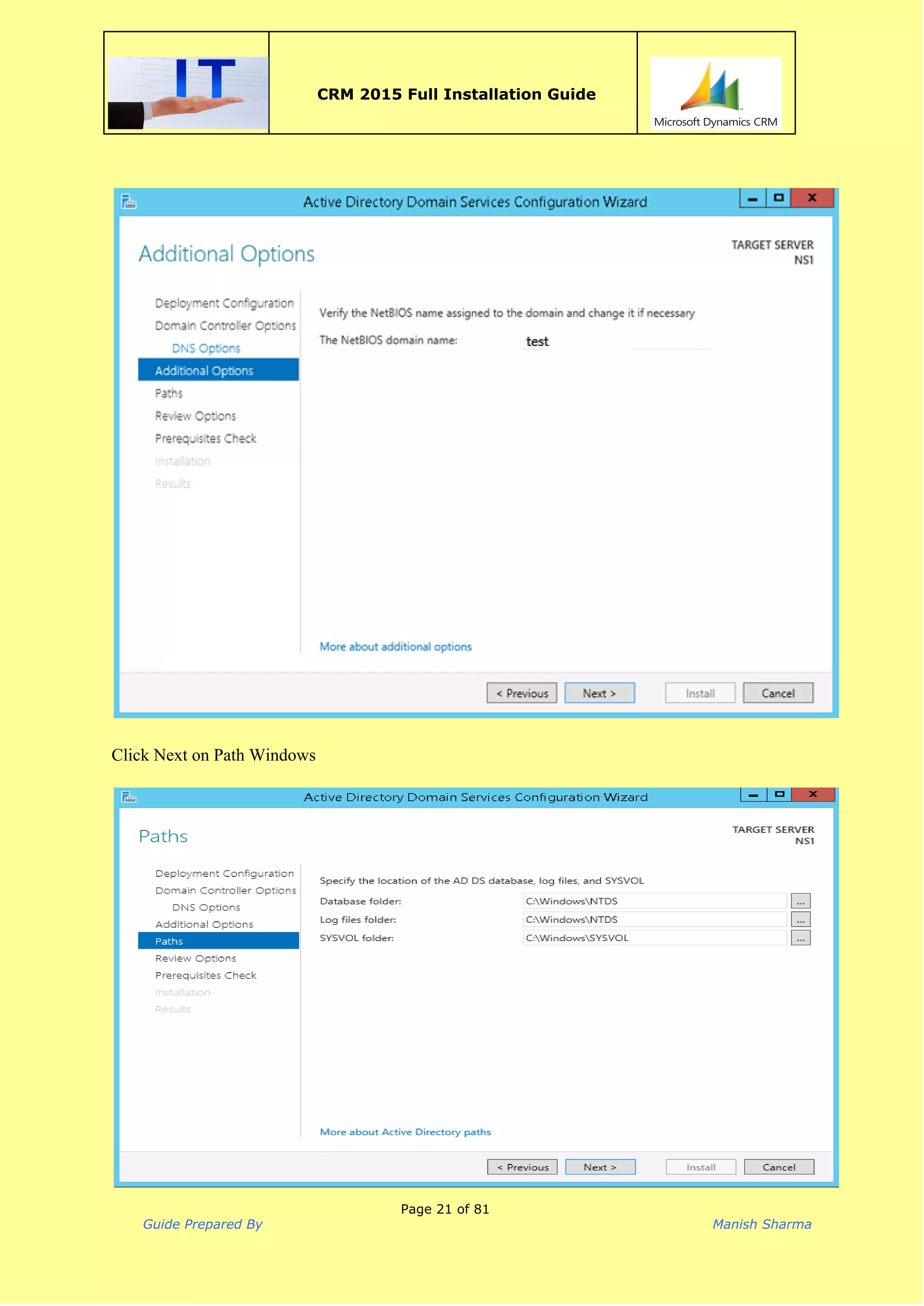

Click Next On Additional Options

Page 20 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide



Click Next on Path Windows


Page 21 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

.

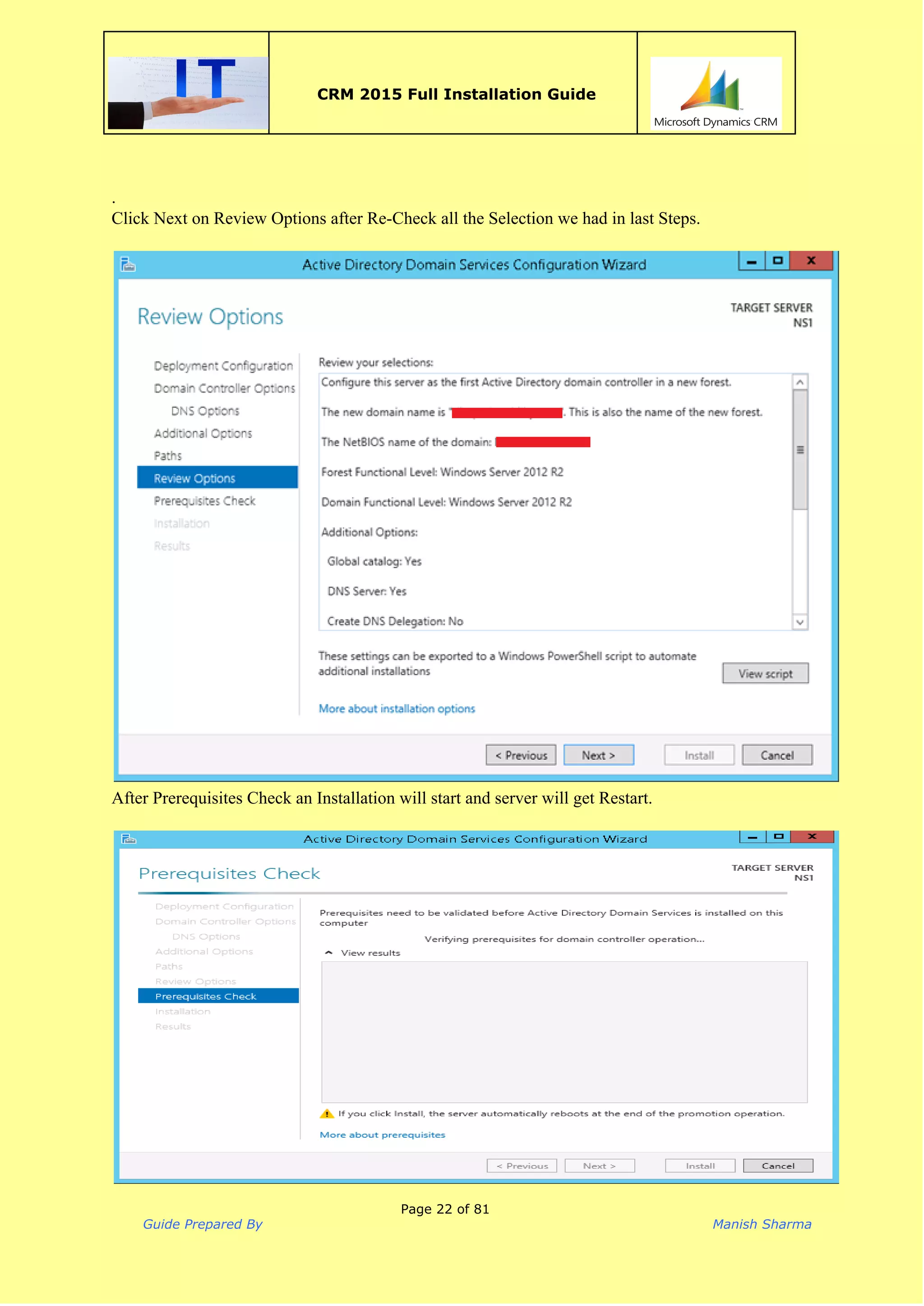

Click Next on Review Options after Re­Check all the Selection we had in last Steps.

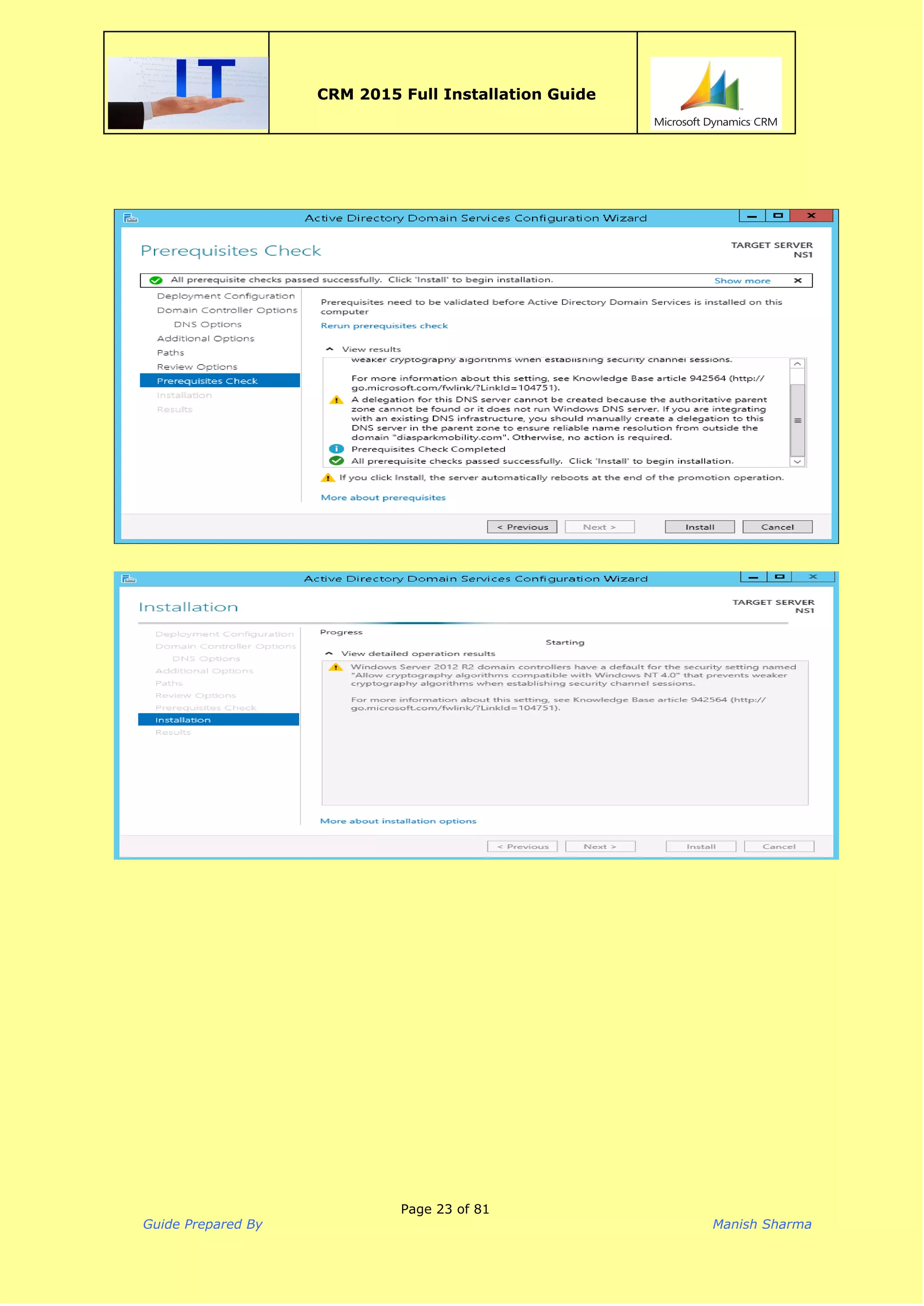

After Prerequisites Check an Installation will start and server will get Restart.


Page 22 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide






Page 23 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

7 Active Directory Accounts requirements

7.1 CRM 2015 Installation and Admin Accounts
SERVER User ID Users Descriptions
CRM CRMWEB CRMInstall Microsoft Dynamic CRM 2015 Setup Account
CRM CRMWEB CRMAdmin Microsoft Dynamic CRM 2015 Administration Account
7.2 CRM 2015 Service Accounts
SERVER User ID Users Descriptions
CRM CRMWEB
svc_CRMApplicatio
n
Microsoft Dynamics CRM Asynchronous Processing
Service (maintenance)
CRM CRMWEB svc_CRMWeb Microsoft Dynamics CRM Unzip Service
CRM CRMWEB svc_CRMSandbox Microsoft Dynamics CRM Sandbox Processing Service
CRM CRMWEB svc_CRMVSS Microsoft Dynamics CRM VSS Writer
CRM CRMWEB svc_CRMAsynchron
Microsoft Dynamics CRM Asynchronous Processing
Service
CRM CRMWEB svc_CRMMonitoring Microsoft Dynamics CRM Monitoring Service
7.3 SQL Server 2014 Service Account for CRM 2015

SERVER User ID Users Descriptions
CRM CRMSQL svc_CRMSPISSDS Microsoft Dynamics CRM SQL Server
Page 24 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

8 Account Permission in Active Directory
(This activity will be performed on Active Directory server)
The OU Delegation and Security permission is requires because during the Installation CRM will
creates some objects in Active Directory Organization Unit. And we cannot grant the CRM
Domain users as a Domain Admin Privileges​.
8.1 Delegate the Controls
8.1.1 Delegate Control on OU for an Active Directory Account

Right Click on The Active Directory OU (i.e. ​CRM2015​), Click on Delegate Control.
A Delegation Wizard Will start – Click Next
Page 25 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

8.1.2 Users or Group
Add the Active Directory Account (i.e. ​CRMInstall​) and Click to Next.
8.1.3 Tasks to Delegate
Select the Permission to that account for Delegation is as follow
✓ Create, delete, and manage users account
✓ Read all user information
✓ Create, delete and manage groups
✓ Modify the membership of a group
Page 26 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

8.1.4 Complete the Wizard
8.2 OU Security Permissions for Active Directory Account
This Security Permission is required for a Smooth Installation in CRM2015 for the
Account we will use to install the CRM.
Right Click on the OU and Select the Properties – Check the Security Tab
Page 27 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

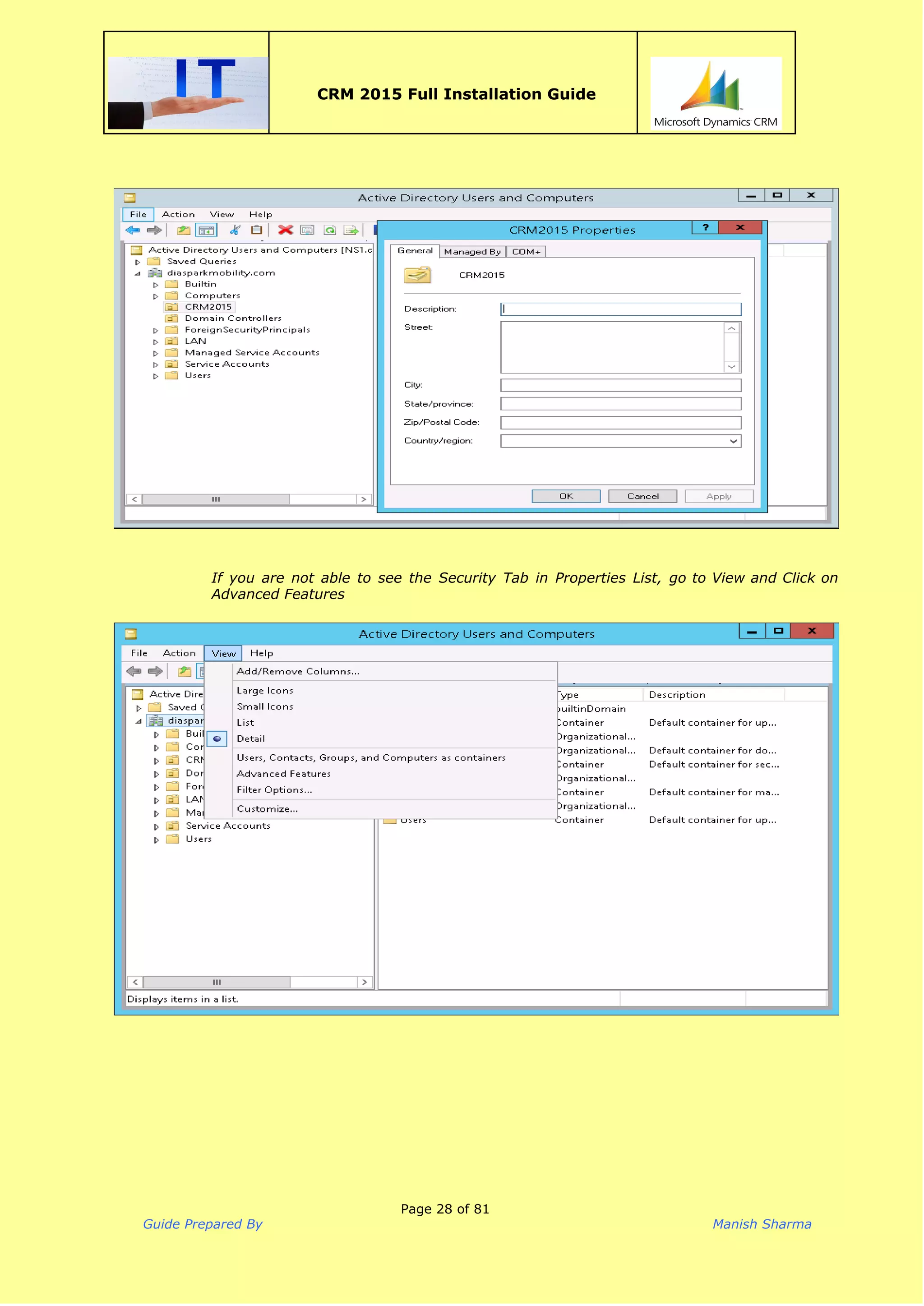

If you are not able to see the Security Tab in Properties List, go to View and Click on
Advanced Features
Page 28 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Now you will able to see the Security tab in OU Properties
These Security setting for the users account on the OU is Requires.
Page 29 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

✓ Read,
✓ Write,
✓ Create All Child Objects,
✓ Delete All Child Objects,
9 Active Directory Users Account Permissions on CRM
(This activity will be performed on CRM Server – i.e. ​CRMWEB​)

The user account used to run Microsoft Dynamics CRM Server Setup that includes the
creation of databases requires the following minimum permissions i.e. ​<Domain
Name>CRMInstall
✓ Be a member of the Active Directory Domain Users group. By default,
Active Directory Users and Computers add new users to the Domain Users group.
✓ Be a member of the Administrators group on the local computer where
Setup is running.
✓ Have Local Program Files folder read and write permission.
✓ Be a member of the Administrators group on the local computer where the
instance of SQL Server is located that will be used to store the Microsoft Dynamics
CRM databases.
✓ Have sysadmin membership on the instance of SQL Server that will be used
to store the Microsoft Dynamics CRM databases.
✓ A domain user account should be created and used to run CRM. Domain
Administrator accounts should never be used to run CRM.
✓ There is no need for CRM users to have administrative privileges over the
domain. Therefore, all CRM user accounts should be restricted to Domain Users
membership. Also, following the principle of least-privilege
9.1 Service Account Permissions on CRM Server
✓ Add the CRM 2015 Application (front-end) and Asynchronous Service
(back-end) accounts to the Performance Log Users group on the CRM server (i.e.
CRMWEB​).

Page 30 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 31 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

10 MS SQL 2014 with SSRS Server installation Steps
10.1 Software Component Prerequisites
The following SQL Server components must be installed and running on the computer
that is running SQL Server before you install Microsoft Dynamics CRM Server 2015:
● SQL word breakers
This is only required for some Microsoft Dynamics CRM language editions. For more
information about word breaker versions for languages supported by SQL Server see Configure
and Manage Word Breakers and Stemmers for Search.
● SQL Server Agent service
● SQL Server full-text indexing
The following components must be installed and running on the computer where
Microsoft Dynamics CRM Server 2015 will be installed:
● Services
▪ Indexing Service
▪ To install this service, see the Windows Server documentation.
▪ IIS Admin
▪ World Wide Web Publishing
● Windows Data Access Components (MDAC)
● Microsoft ASP.NET (Must be registered, but does not have to be running.)
10.2 SQL Server Editions:
Microsoft SQL Server editions are required and must be installed on Windows Server
2012 R2 64-bit-based computers, running, and available for Microsoft Dynamics CRM:
● Microsoft SQL Server 2014, Standard, 64-bit
10.3 SQL Server Reporting Services
Microsoft SQL Server Reporting Services is required for reporting features in Microsoft
Dynamics CRM.
The following Microsoft SQL Server editions are used for Microsoft Dynamics CRM 2015
reporting and must be installed on a Windows Server 2012 (R2) 64-bit-based computer,
running and available for Microsoft Dynamics CRM 2015:
● Microsoft SQL Server 2012, Standard, 64-bit
Page 32 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11 Installation Steps for SQL Server & SSRS
11.1 Microsoft SQL Server Disk Partitions for Installation
11.2 Mount The ISO file
Page 33 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.3 Browse The Location for the ISO mounted.
Double Click on ​Setup.exe​Start the installation Process
11.4 Start the Installation
11.5 Installation Wizard
Click On Installation on Left Side Windows and Then Click on New SQL server stand-alone installation
or add feature to an existing installation.
Page 34 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.6 Product key Windows
Page 35 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.7 Accept the EULA
11.8 Install Setup Files
​Setup Will Install some Necessary Component Automatically, Click On ​Next​.
Page 36 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.9 Feature Selection:

On Setup Role Windows – Select SQL Server Feature Installation
Page 37 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.10 Feature Selection Windows
Select Following Features to Install for CRM
(a) Database Engine Services
(b) Full-Test and Semantic Extractions for Search
(c) Reporting Services – Native
(d) Management Tools - Complete
Page 38 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.11 Change the Default Installation Location
The Best Practices Follows for the Development Server is as below.
Instance root Directory:​(it is on Secondary Partition i.e. – E:)
Shared feature directory: ​(it is on Secondary Partition i.e. – E:)
Shared feature directory (x86): ​(it is on Secondary Partition i.e. – E:)
11.12 Feature Rules
Setup will automatically check and update all the required components.
Page 39 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.13 Instance Configuration
Click On ​Default instance​, and then click ​Next
Page 40 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.14 Server Configuration
Change Service Account as per the best Practices Follows, Click Next
Page 41 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.15 Database Engine Configuration
✓ Select Windows Authentication Mode
✓ On Specify SQL server Administrator | Click On Add Current User
Page 42 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.16 Data Directory
Check and make sure that all the Data Directories are as per the Best Practices Follow.
Page 43 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

11.17 Ready to install
Recheck On ready to install Windows and Click on Install.
11.18 Installation Is In Progress
11.19 Complete the MS SQL installations
Check that the Status on Completions Windows for all the Features is Installed Successfully.
Page 44 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

12 Check MS SQL Server Management Studio
12.1 Open Management Studio
By Clicking Start menu – SQL Server 2014 Management Studio
Page 45 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

12.2 Connect With Windows Authentication Mode
12.3 Open Microsoft SQL Server Management Studio
13 Check The Reporting Services
13.1 Open SQL Server 2014 Reporting Services
Page 46 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

13.2 Report Server Mode
Report Server Mode Should be Native for CRM Installation

13.3 Service Account
Service Account Should be a Domain Account to install CRM 2015 Properly.

Page 47 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

13.4 Web service URL
13.5 Report Server Web Service URL
Check That the URL- ​http://CRMSQL:80/ReportServer​is Opening Properly.
13.6 Report Manager URL
Also check that Report Manager URL opening properly
Page 48 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

14 Microsoft Dynamics CRM Server 2015​Overview
This Document covers the procedure to install Microsoft Dynamics CRM Server 2015 on a
Server that does not already have Microsoft Dynamics CRM installed
Microsoft Dynamics CRM Server 2015 supports Internet Information Services (IIS) versions
8.0 and 8.5.
It is recommended that you install and run IIS in Native Mode before you install Microsoft
Dynamics CRM Server. However, if IIS is not installed and it is required for a Microsoft Dynamics
CRM server role, Microsoft Dynamics CRM Server Setup will install it
15 Windows Server Prerequisites for CRM 2015
The following components must be installed and running on the computer where Microsoft
Dynamics CRM Server 2015 will be installed:
● Services
o Indexing Service To install this service, see the Windows Server
documentation.
o IIS Admin
o World Wide Web Publishing
● Windows Data Access Components (MDAC)
● Microsoft ASP.NET (Must be registered, but does not have to be running.)
● Indexing Service
● IIS Admin
● World Wide Web Publishing
Page 49 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

16 Pre Requisites Installation Steps for CRM 2015
16.1 Install Roles and Features
16.1.1 Select Roles
Open Server Manager | Manage | Add Roles and Features | Server Roles:
✓ Application Server
✓ Web Server (IIS)
16.1.2 Select Features
✓ .​Net Framework 3.5 Features
✓ .Net Framework 4.5 Features | ASP.NET 4.5
Page 50 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

16.1.3 Web Server Role (IIS) | Role Services:
✓ Application Development | ASP.NET 3.5
✓ Application Development | ASP.NET 4.5
Page 51 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

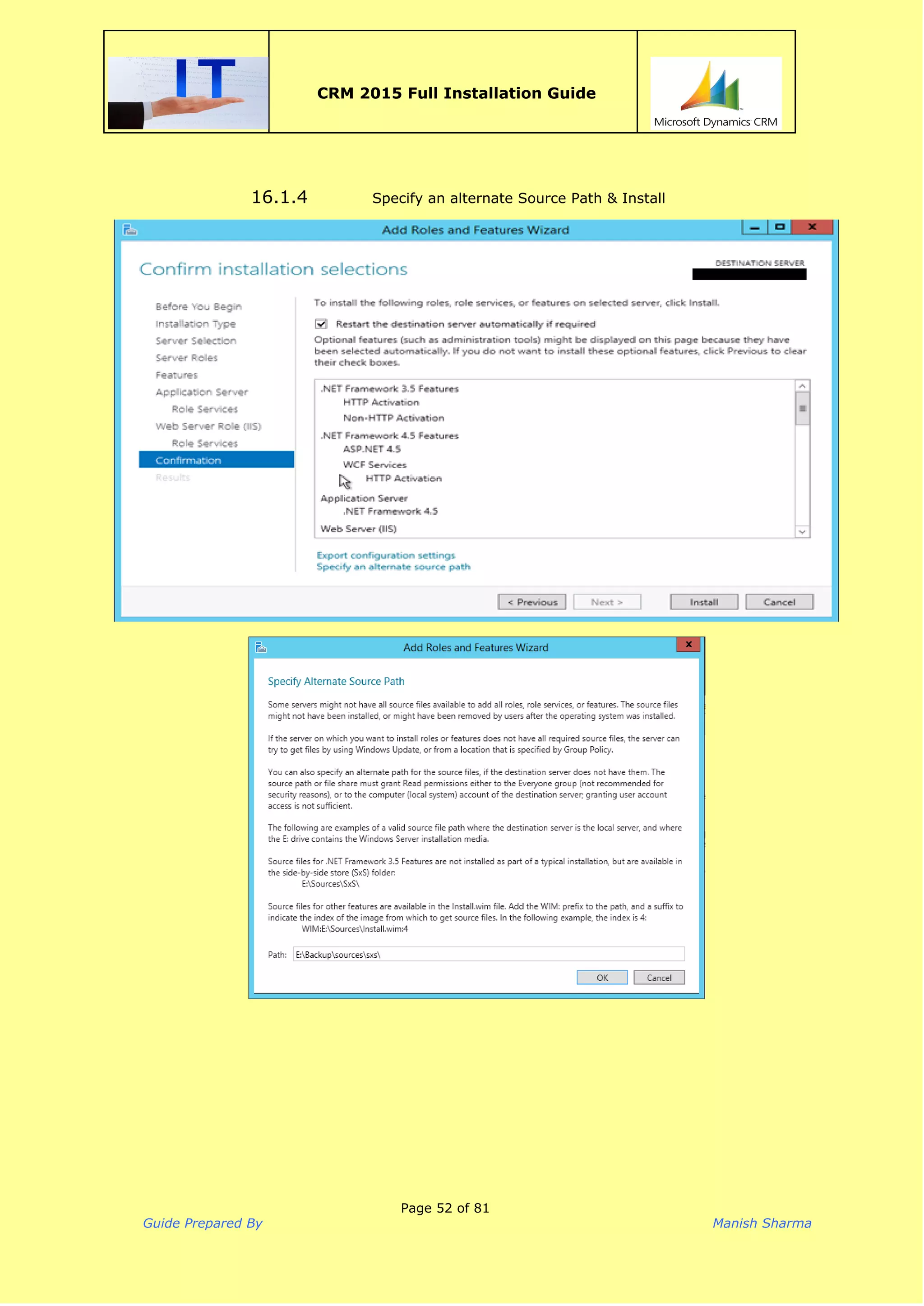

16.1.4 Specify an alternate Source Path & Install
Page 52 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

16.1.5 Completion / Result.
Now we are good to go for an Installation of CRM 2015.
Page 53 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17 CRM 2015 installation Steps .
17.1 Mount The CRM ISO.
17.2 Browse the Location
Page 54 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

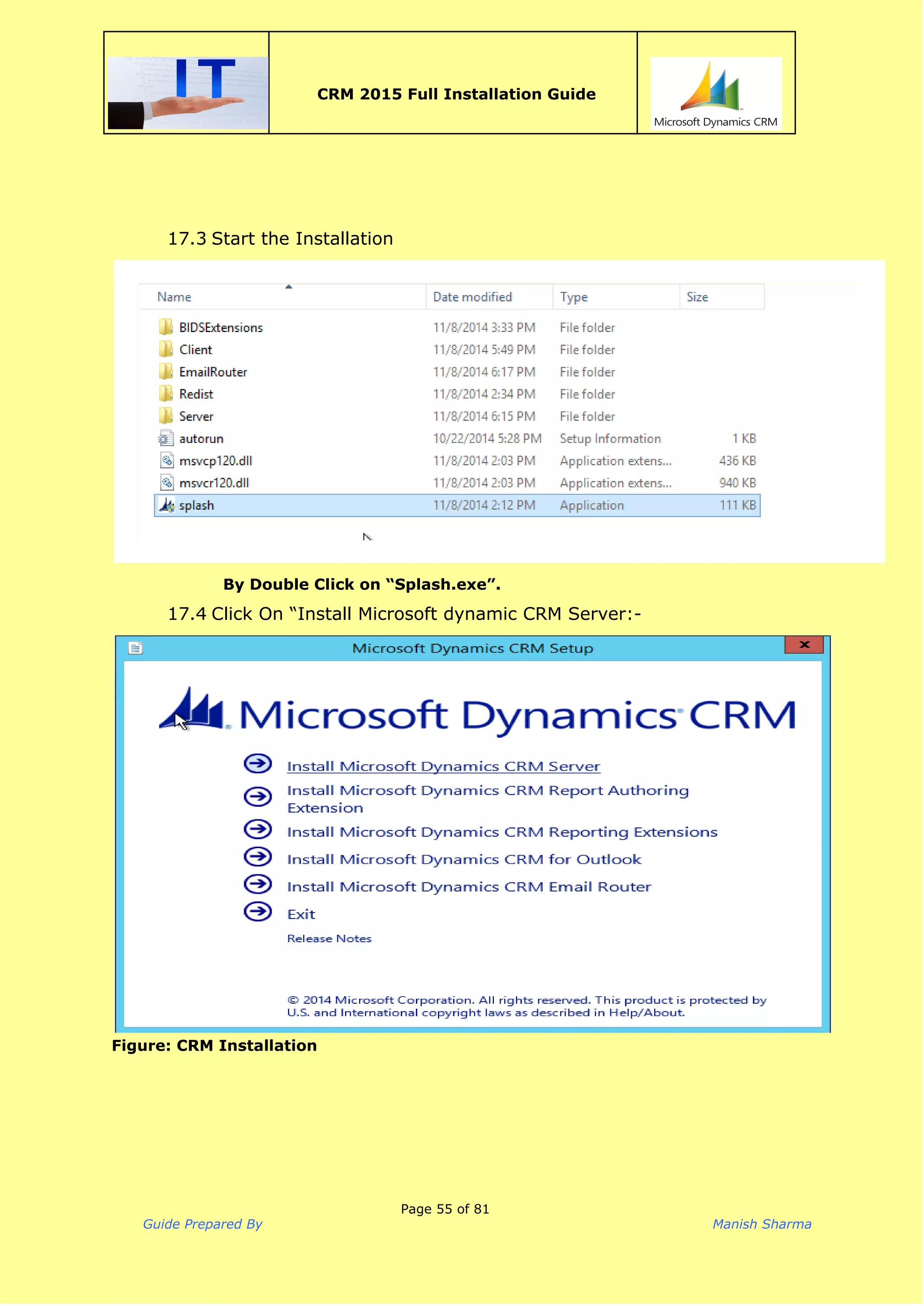

17.3 Start the Installation
By Double Click on “Splash.exe”.
17.4 Click On “Install Microsoft dynamic CRM Server:-
Figure: CRM Installation
Page 55 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.5 Welcome to Microsoft Dynamic CRM Server 2015 Setup
Get Recommended Updates | select Get Updates (optional)
17.6 Product Key Information
Enter your license key
Page 56 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.7 Accept the EULA
Page 57 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.8 Install Missing Component
o At this point you may have a bunch of missing required components, install them
(will take a while, also you may need to ​reboot​and start the Process from
scratch)
Figure: Install Required Components
Page 58 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.9 Select Default Installation Path
Page 59 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.10 Specify Server Roles | Select All Options
We select all options on install:
Figure: Server Roles

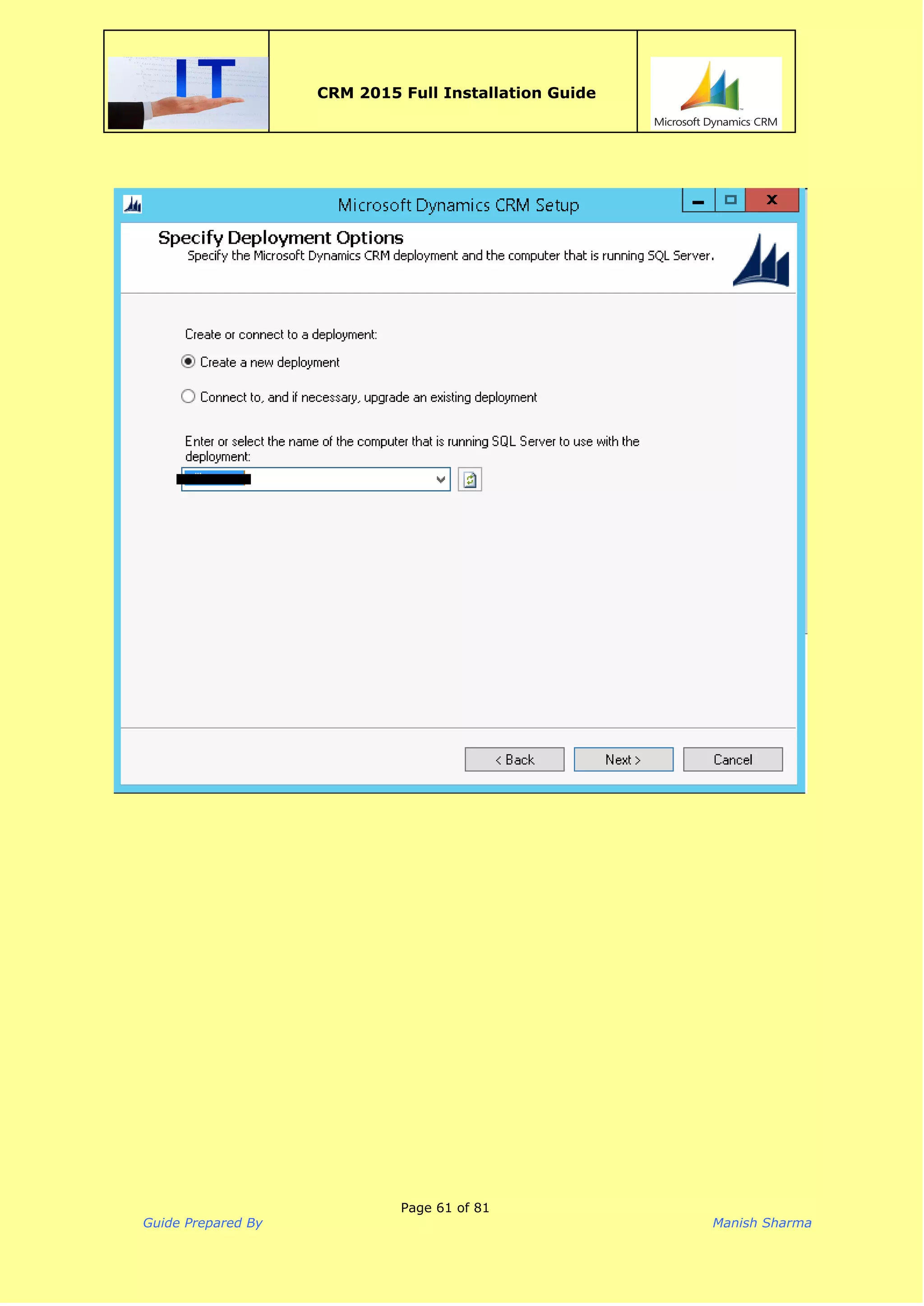

17.11 Specify Deployment Options
o Enter SQL Server Hostname i.e.: ​CRMSQL
Page 60 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 61 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.12 Select the Organizational Unit | Enter the Organizational Unit
Figure: Assign CRM OU
Page 62 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.13 Specify Service Account Name.
Specify Service Accounts respectively, now we’ll need to specify our service accounts for the
various CRM Services Account here​.
Page 63 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Figure: Service Accounts
17.14 Select Website
Page 64 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Website (select Default Web Site)
17.15 Email Router Setting
It should be Empty; we can enter this after the Installation too.
Page 65 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.16 Specify the Organization Settings
We set “​CRM​” As the default initial Deployment Environment
Page 66 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Display Name – ​CRM
Unique Database Name – ​CRM​(​It will take automatically, however we Can Change it​)
ISO Currency Code - ​USD
Currency Name – ​US Dollar
Currency Symbol - ​$
Currency Precision - ​2
17.17 Specify Reporting Services Server
Reporting Server defaulted to the Server Name/ReportServer
Should be pre-populated check the URL is pointed to SSRS Server
i.e.: ​http://CRMSQL/reportserver
Page 67 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

o Click On ​NEXT
Page 68 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.18 Service Disruption Warning
o Click On ​NEXT
17.19 Ready to Install Microsoft Dynamic CRM
o Click On Install – A Installation will start
Page 69 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

17.20 Installation is in Progress
17.21 Finish the Installation
Figure: CRM Install Finished
Page 70 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 71 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

18 Test the Microsoft Dynamic CRM URL
18.1 Test First
Test that your CRM setup is working. Go to the ​Start ​and Open
Internet Explorer and Browse - ​http://CRMWEB
We called our Deployment of CRM – “​CRM​″ So the URL redirects to​-
http://crmweb/CRM/main.aspx
We logged in to the Server as the​CRMINstall ​Account, we able to
load the default page
Page 72 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19 Install CRM Reporting Extension,
(This Activity can only be performed where The SQL SSRS Installed)
19.1 Click On Install Microsoft Dynamic CRM Reporting Extensions
Page 73 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19.2 Get Update
Page 74 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19.3 Accept EULA
19.4 Select SQL Server
Page 75 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19.5 SSRS Instance
It will come automatically
19.6 Start the Installation
Page 76 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19.7 System Checks
19.8 Service Disruption Warning
Page 77 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

19.9 Finish The Setup
Page 78 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

Page 79 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide

20 CRM IFD Implementation

COMING
SOON




Page 80 of 81
Guide Prepared By Manish Sharma

CRM 2015 Full Installation Guide



21 Summary and Conclusion
<Provide summary of document.>
22 Annexure
<List & describe all annexures>


Page 81 of 81
Guide Prepared By Manish Sharma

More Related Content

What's hot

IBM WebSphere Application Server (Clustering) Concept
IBM WebSphere Application Server (Clustering) ConceptIBM WebSphere Application Server (Clustering) Concept
IBM WebSphere Application Server (Clustering) Conceptejlp12

Ch02 撰寫與設定Servlet
Ch02 撰寫與設定ServletCh02 撰寫與設定Servlet
Ch02 撰寫與設定ServletJustin Lin

WebSphere Application Server Family (Editions Comparison)
WebSphere Application Server Family (Editions Comparison)WebSphere Application Server Family (Editions Comparison)
WebSphere Application Server Family (Editions Comparison)ejlp12

IBM WebSphere Application Server version to version comparison
IBM WebSphere Application Server version to version comparisonIBM WebSphere Application Server version to version comparison
IBM WebSphere Application Server version to version comparisonejlp12

Wintel & Windows Server support Profile
Wintel & Windows Server support ProfileWintel & Windows Server support Profile
Wintel & Windows Server support ProfileKuldeep Pathak

서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...
서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...
서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...Amazon Web Services Korea

VMworld 2017 Core Storage
VMworld 2017 Core StorageVMworld 2017 Core Storage
VMworld 2017 Core StorageCormac Hogan

IBM Websphere concepts
IBM Websphere conceptsIBM Websphere concepts
IBM Websphere conceptsKuldeep Saxena

Anil purswani Resume
Anil purswani ResumeAnil purswani Resume
Anil purswani ResumeAnil Purswani

Virtual desktop infrastructure
Virtual desktop infrastructureVirtual desktop infrastructure
Virtual desktop infrastructureGokulan Subramani

Webhooks: Reeling in Success with ArcGIS Enterprise Integration
Webhooks: Reeling in Success with ArcGIS Enterprise IntegrationWebhooks: Reeling in Success with ArcGIS Enterprise Integration
Webhooks: Reeling in Success with ArcGIS Enterprise IntegrationSafe Software

再考、3つの仮想デスクトップイメージ管理と比較
再考、3つの仮想デスクトップイメージ管理と比較再考、3つの仮想デスクトップイメージ管理と比較
再考、3つの仮想デスクトップイメージ管理と比較Citrix Systems Japan

Microsoft System Center Service Manager on a Single Computer
Microsoft System Center Service Manager on a Single ComputerMicrosoft System Center Service Manager on a Single Computer
Microsoft System Center Service Manager on a Single ComputerShahab Al Yamin Chawdhury

Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門
Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門
Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門Citrix Systems Japan

Introduction to Hyper-V
Introduction to Hyper-VIntroduction to Hyper-V
Introduction to Hyper-VMark Wilson

AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS ::: Game...
AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS :::  Game...AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS :::  Game...
AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS ::: Game...Amazon Web Services Korea

30 important-virtualization-vmware-interview-questions-with-answers
30 important-virtualization-vmware-interview-questions-with-answers30 important-virtualization-vmware-interview-questions-with-answers
30 important-virtualization-vmware-interview-questions-with-answersLatif Siddiqui

Sccm hands-on-lab
Sccm hands-on-labSccm hands-on-lab
Sccm hands-on-labDPA


What's hot (20)

IBM WebSphere Application Server (Clustering) Concept
IBM WebSphere Application Server (Clustering) ConceptIBM WebSphere Application Server (Clustering) Concept
IBM WebSphere Application Server (Clustering) Concept

Ch02 撰寫與設定Servlet
Ch02 撰寫與設定ServletCh02 撰寫與設定Servlet
Ch02 撰寫與設定Servlet

WebSphere Application Server Family (Editions Comparison)
WebSphere Application Server Family (Editions Comparison)WebSphere Application Server Family (Editions Comparison)
WebSphere Application Server Family (Editions Comparison)

IBM WebSphere Application Server version to version comparison
IBM WebSphere Application Server version to version comparisonIBM WebSphere Application Server version to version comparison
IBM WebSphere Application Server version to version comparison

Wintel & Windows Server support Profile
Wintel & Windows Server support ProfileWintel & Windows Server support Profile
Wintel & Windows Server support Profile

Application Testing Suite
Application Testing SuiteApplication Testing Suite
Application Testing Suite

서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...
서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...
서버리스 기반 데이터베이스 모델링 및 운영 노하우 알아보기 - 변규현 SW 엔지니어, 당근마켓 / 김선형 CTO, 티클 :: AWS Sum...

VMworld 2017 Core Storage
VMworld 2017 Core StorageVMworld 2017 Core Storage
VMworld 2017 Core Storage

IBM MQ Series For ZOS
IBM MQ Series For ZOSIBM MQ Series For ZOS
IBM MQ Series For ZOS

IBM Websphere concepts
IBM Websphere conceptsIBM Websphere concepts
IBM Websphere concepts

Anil purswani Resume
Anil purswani ResumeAnil purswani Resume
Anil purswani Resume

Virtual desktop infrastructure
Virtual desktop infrastructureVirtual desktop infrastructure
Virtual desktop infrastructure

Webhooks: Reeling in Success with ArcGIS Enterprise Integration
Webhooks: Reeling in Success with ArcGIS Enterprise IntegrationWebhooks: Reeling in Success with ArcGIS Enterprise Integration
Webhooks: Reeling in Success with ArcGIS Enterprise Integration

再考、3つの仮想デスクトップイメージ管理と比較
再考、3つの仮想デスクトップイメージ管理と比較再考、3つの仮想デスクトップイメージ管理と比較
再考、3つの仮想デスクトップイメージ管理と比較

Microsoft System Center Service Manager on a Single Computer
Microsoft System Center Service Manager on a Single ComputerMicrosoft System Center Service Manager on a Single Computer
Microsoft System Center Service Manager on a Single Computer

Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門
Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門
Microsoft Hyper-V Server 2012 とCitrix XenDesktop 7で始めるデスクトップ仮想化入門

Introduction to Hyper-V
Introduction to Hyper-VIntroduction to Hyper-V
Introduction to Hyper-V

AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS ::: Game...
AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS :::  Game...AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS :::  Game...
AWS for Games - 게임만을 위한 AWS 서비스 길라잡이 (레벨 200) - 진교선, 솔루션즈 아키텍트, AWS ::: Game...

30 important-virtualization-vmware-interview-questions-with-answers
30 important-virtualization-vmware-interview-questions-with-answers30 important-virtualization-vmware-interview-questions-with-answers
30 important-virtualization-vmware-interview-questions-with-answers

Sccm hands-on-lab
Sccm hands-on-labSccm hands-on-lab
Sccm hands-on-lab


Viewers also liked

Reasons to Upgrade to Microsoft Dynamics CRM 2015
Reasons to Upgrade to Microsoft Dynamics CRM 2015Reasons to Upgrade to Microsoft Dynamics CRM 2015
Reasons to Upgrade to Microsoft Dynamics CRM 2015ITK Consulting

imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...
imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...
imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...Anastasia Phillips

Microsoft Dynamics CRM for Nonprofits
Microsoft Dynamics CRM for NonprofitsMicrosoft Dynamics CRM for Nonprofits
Microsoft Dynamics CRM for Nonprofitssarahbar

Crm stream step 1 upgrade to msdyncrm 2015 - m-hance three steps to success...
Crm stream step 1   upgrade to msdyncrm 2015 - m-hance three steps to success...Crm stream step 1   upgrade to msdyncrm 2015 - m-hance three steps to success...
Crm stream step 1 upgrade to msdyncrm 2015 - m-hance three steps to success...m-hance

Microsoft Dynamics CRM 2015 Spring Release - UR1
Microsoft Dynamics CRM 2015 Spring Release - UR1Microsoft Dynamics CRM 2015 Spring Release - UR1
Microsoft Dynamics CRM 2015 Spring Release - UR1C5 Insight

Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue Estimation
Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue EstimationSmarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue Estimation
Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue EstimationJukka Niiranen

Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline Development
Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline DevelopmentSmarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline Development
Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline DevelopmentJukka Niiranen

Dynamics crm 2015 setup a demo virtual machine.
Dynamics crm 2015  setup a demo virtual machine.Dynamics crm 2015  setup a demo virtual machine.
Dynamics crm 2015 setup a demo virtual machine.Stw Serviesgroup

E book Microsoft Dynamics CRM 2013 Personal Dashboard for End Users
E book Microsoft Dynamics CRM 2013 Personal Dashboard for End UsersE book Microsoft Dynamics CRM 2013 Personal Dashboard for End Users
E book Microsoft Dynamics CRM 2013 Personal Dashboard for End UsersAileen Gusni

Microsoft Dynamics CRM 2015 Pre-sales Presentation Material
Microsoft Dynamics CRM 2015 Pre-sales Presentation MaterialMicrosoft Dynamics CRM 2015 Pre-sales Presentation Material
Microsoft Dynamics CRM 2015 Pre-sales Presentation MaterialAileen Gusni

Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead Qualification
Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead QualificationSmarter Sales Process in Dynamics CRM 2015 - Part 1: Lead Qualification
Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead QualificationJukka Niiranen


Viewers also liked (11)

Reasons to Upgrade to Microsoft Dynamics CRM 2015
Reasons to Upgrade to Microsoft Dynamics CRM 2015Reasons to Upgrade to Microsoft Dynamics CRM 2015
Reasons to Upgrade to Microsoft Dynamics CRM 2015

imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...
imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...
imason Webinar: Microsoft Dynamics CRM 2015 - 5 Hot New Features to Ignite Yo...

Microsoft Dynamics CRM for Nonprofits
Microsoft Dynamics CRM for NonprofitsMicrosoft Dynamics CRM for Nonprofits
Microsoft Dynamics CRM for Nonprofits

Crm stream step 1 upgrade to msdyncrm 2015 - m-hance three steps to success...
Crm stream step 1   upgrade to msdyncrm 2015 - m-hance three steps to success...Crm stream step 1   upgrade to msdyncrm 2015 - m-hance three steps to success...
Crm stream step 1 upgrade to msdyncrm 2015 - m-hance three steps to success...

Microsoft Dynamics CRM 2015 Spring Release - UR1
Microsoft Dynamics CRM 2015 Spring Release - UR1Microsoft Dynamics CRM 2015 Spring Release - UR1
Microsoft Dynamics CRM 2015 Spring Release - UR1

Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue Estimation
Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue EstimationSmarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue Estimation
Smarter Sales Process in Dynamics CRM 2015 - Part 2: Revenue Estimation

Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline Development
Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline DevelopmentSmarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline Development
Smarter Sales Process in Dynamics CRM 2015 - Part 3: Pipeline Development

Dynamics crm 2015 setup a demo virtual machine.
Dynamics crm 2015  setup a demo virtual machine.Dynamics crm 2015  setup a demo virtual machine.
Dynamics crm 2015 setup a demo virtual machine.

E book Microsoft Dynamics CRM 2013 Personal Dashboard for End Users
E book Microsoft Dynamics CRM 2013 Personal Dashboard for End UsersE book Microsoft Dynamics CRM 2013 Personal Dashboard for End Users
E book Microsoft Dynamics CRM 2013 Personal Dashboard for End Users

Microsoft Dynamics CRM 2015 Pre-sales Presentation Material
Microsoft Dynamics CRM 2015 Pre-sales Presentation MaterialMicrosoft Dynamics CRM 2015 Pre-sales Presentation Material
Microsoft Dynamics CRM 2015 Pre-sales Presentation Material

Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead Qualification
Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead QualificationSmarter Sales Process in Dynamics CRM 2015 - Part 1: Lead Qualification
Smarter Sales Process in Dynamics CRM 2015 - Part 1: Lead Qualification


Similar to MSD CRM 2015 Installation Guide

Microsoft dynamics crm 2011 installation
Microsoft dynamics crm 2011 installation Microsoft dynamics crm 2011 installation
Microsoft dynamics crm 2011 installation Naveen Kumar

How to install Microsoft Dynamics CRM 2011
How to install Microsoft Dynamics CRM 2011How to install Microsoft Dynamics CRM 2011
How to install Microsoft Dynamics CRM 2011ashrawi92

ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_edited
ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_editedELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_edited
ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_editedElizabeth Wilcox

Sharepoint 2007 Install Best Practice Phase 1
Sharepoint 2007 Install Best Practice  Phase 1Sharepoint 2007 Install Best Practice  Phase 1
Sharepoint 2007 Install Best Practice Phase 1LiquidHub

Sage 300 ERP v2014 Compatibility Guide
Sage 300 ERP v2014 Compatibility GuideSage 300 ERP v2014 Compatibility Guide
Sage 300 ERP v2014 Compatibility GuideBurCom Consulting Ltd.

Install, configure and customize TFS 2013
Install, configure and customize TFS 2013Install, configure and customize TFS 2013
Install, configure and customize TFS 2013Davide Benvegnù

Getting Started With Share Point 2010
Getting Started With Share Point 2010Getting Started With Share Point 2010
Getting Started With Share Point 2010Elaine Van Bergen

MIIM v4 Installation Guide - Server 2012
MIIM v4 Installation Guide - Server 2012MIIM v4 Installation Guide - Server 2012
MIIM v4 Installation Guide - Server 2012samuelhuber

Upgrading Oracle SOA Suite to 11g: A Real-World Success Story
Upgrading Oracle SOA Suite to 11g: A Real-World Success StoryUpgrading Oracle SOA Suite to 11g: A Real-World Success Story
Upgrading Oracle SOA Suite to 11g: A Real-World Success StoryRevelation Technologies

Deploying Microsoft System Center in Days
Deploying Microsoft System Center in DaysDeploying Microsoft System Center in Days
Deploying Microsoft System Center in DaysPowerONPlatforms

Dynamics Ax Retail Installation Vijay Sharma
Dynamics Ax Retail Installation Vijay SharmaDynamics Ax Retail Installation Vijay Sharma
Dynamics Ax Retail Installation Vijay SharmaVijay Sharma

Microsoft exchange-server-2013-installation
Microsoft exchange-server-2013-installationMicrosoft exchange-server-2013-installation
Microsoft exchange-server-2013-installationtakdirlovely09

Simple Farm Server Deployment
Simple Farm Server DeploymentSimple Farm Server Deployment
Simple Farm Server DeploymentLiquidHub

Simple Farm Server Deployment
Simple Farm Server DeploymentSimple Farm Server Deployment
Simple Farm Server DeploymentLiquidHub

Presentation building the ibm®lotus®domino®8.5 infrastructure
Presentation   building the ibm®lotus®domino®8.5 infrastructurePresentation   building the ibm®lotus®domino®8.5 infrastructure
Presentation building the ibm®lotus®domino®8.5 infrastructurexKinAnx

Microsoft Virtualization Overview
Microsoft Virtualization OverviewMicrosoft Virtualization Overview
Microsoft Virtualization Overviewwebhostingguy

Gp Installation Presentation
Gp Installation PresentationGp Installation Presentation
Gp Installation Presentationguest2fc298

Gp Installation Presentation
Gp Installation PresentationGp Installation Presentation
Gp Installation Presentationddauphin


Similar to MSD CRM 2015 Installation Guide (20)

Microsoft dynamics crm 2011 installation
Microsoft dynamics crm 2011 installation Microsoft dynamics crm 2011 installation
Microsoft dynamics crm 2011 installation

How to install Microsoft Dynamics CRM 2011
How to install Microsoft Dynamics CRM 2011How to install Microsoft Dynamics CRM 2011
How to install Microsoft Dynamics CRM 2011

ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_edited
ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_editedELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_edited
ELW_Symantec_SD 7 1 Upgrade and Install_Draft1_Charles_edited

Sharepoint 2007 Install Best Practice Phase 1
Sharepoint 2007 Install Best Practice  Phase 1Sharepoint 2007 Install Best Practice  Phase 1
Sharepoint 2007 Install Best Practice Phase 1

Sage 300 ERP v2014 Compatibility Guide
Sage 300 ERP v2014 Compatibility GuideSage 300 ERP v2014 Compatibility Guide
Sage 300 ERP v2014 Compatibility Guide

Install, configure and customize TFS 2013
Install, configure and customize TFS 2013Install, configure and customize TFS 2013
Install, configure and customize TFS 2013

Getting Started With Share Point 2010
Getting Started With Share Point 2010Getting Started With Share Point 2010
Getting Started With Share Point 2010

MIIM v4 Installation Guide - Server 2012
MIIM v4 Installation Guide - Server 2012MIIM v4 Installation Guide - Server 2012
MIIM v4 Installation Guide - Server 2012

Upgrading Oracle SOA Suite to 11g: A Real-World Success Story
Upgrading Oracle SOA Suite to 11g: A Real-World Success StoryUpgrading Oracle SOA Suite to 11g: A Real-World Success Story
Upgrading Oracle SOA Suite to 11g: A Real-World Success Story

Deploying Microsoft System Center in Days
Deploying Microsoft System Center in DaysDeploying Microsoft System Center in Days
Deploying Microsoft System Center in Days

Dynamics Ax Retail Installation Vijay Sharma
Dynamics Ax Retail Installation Vijay SharmaDynamics Ax Retail Installation Vijay Sharma
Dynamics Ax Retail Installation Vijay Sharma

Vmm 2012 upgrade
Vmm 2012 upgradeVmm 2012 upgrade
Vmm 2012 upgrade

Microsoft exchange-server-2013-installation
Microsoft exchange-server-2013-installationMicrosoft exchange-server-2013-installation
Microsoft exchange-server-2013-installation

Microsoft Exchange Server 2013 Installation
Microsoft Exchange Server 2013 InstallationMicrosoft Exchange Server 2013 Installation
Microsoft Exchange Server 2013 Installation

Simple Farm Server Deployment
Simple Farm Server DeploymentSimple Farm Server Deployment
Simple Farm Server Deployment

Simple Farm Server Deployment
Simple Farm Server DeploymentSimple Farm Server Deployment
Simple Farm Server Deployment

Presentation building the ibm®lotus®domino®8.5 infrastructure
Presentation   building the ibm®lotus®domino®8.5 infrastructurePresentation   building the ibm®lotus®domino®8.5 infrastructure
Presentation building the ibm®lotus®domino®8.5 infrastructure

Microsoft Virtualization Overview
Microsoft Virtualization OverviewMicrosoft Virtualization Overview
Microsoft Virtualization Overview

Gp Installation Presentation
Gp Installation PresentationGp Installation Presentation
Gp Installation Presentation

Gp Installation Presentation
Gp Installation PresentationGp Installation Presentation
Gp Installation Presentation


Recently uploaded

Generative AI Use Cases and Applications.pdf
Generative AI Use Cases and Applications.pdfGenerative AI Use Cases and Applications.pdf
Generative AI Use Cases and Applications.pdfalexjohnson7307

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAnitaRaj43

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightSafe Software

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024Lorenzo Miniero

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxFIDO Alliance

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxjbellis

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxFIDO Alliance

Simplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptxSimplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptxMarkSteadman7

Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptxCyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptxMasterG

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuidePixlogix Infotech

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontologyjohnbeverley2021

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentationyogeshlabana357357

Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Skynet Technologies

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch TuesdayIvanti

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)Samir Dash

The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...SOFTTECHHUB

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)Wonjun Hwang

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMKumar Satyam

How to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in PakistanHow to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in Pakistandanishmna97


Recently uploaded (20)

Generative AI Use Cases and Applications.pdf
Generative AI Use Cases and Applications.pdfGenerative AI Use Cases and Applications.pdf
Generative AI Use Cases and Applications.pdf

AI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by AnitarajAI in Action: Real World Use Cases by Anitaraj
AI in Action: Real World Use Cases by Anitaraj

The Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and InsightThe Zero-ETL Approach: Enhancing Data Agility and Insight
The Zero-ETL Approach: Enhancing Data Agility and Insight

WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024WebRTC and SIP not just audio and video @ OpenSIPS 2024
WebRTC and SIP not just audio and video @ OpenSIPS 2024

ADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptxADP Passwordless Journey Case Study.pptx
ADP Passwordless Journey Case Study.pptx

Vector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptxVector Search @ sw2con for slideshare.pptx
Vector Search @ sw2con for slideshare.pptx

Design Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptxDesign Guidelines for Passkeys 2024.pptx
Design Guidelines for Passkeys 2024.pptx

Simplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptxSimplifying Mobile A11y Presentation.pptx
Simplifying Mobile A11y Presentation.pptx

Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptxCyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx
Cyber Insurance - RalphGilot - Embry-Riddle Aeronautical University.pptx

JavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate GuideJavaScript Usage Statistics 2024 - The Ultimate Guide
JavaScript Usage Statistics 2024 - The Ultimate Guide

Six Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal OntologySix Myths about Ontologies: The Basics of Formal Ontology
Six Myths about Ontologies: The Basics of Formal Ontology

AI mind or machine power point presentation
AI mind or machine power point presentationAI mind or machine power point presentation
AI mind or machine power point presentation

Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...
Human Expert Website Manual WCAG 2.0 2.1 2.2 Audit - Digital Accessibility Au...

2024 May Patch Tuesday
2024 May Patch Tuesday2024 May Patch Tuesday
2024 May Patch Tuesday

Overview of Hyperledger Foundation
Overview of Hyperledger FoundationOverview of Hyperledger Foundation
Overview of Hyperledger Foundation

AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)
AI+A11Y 11MAY2024 HYDERBAD GAAD 2024 - HelloA11Y (11 May 2024)

The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...
The Ultimate Prompt Engineering Guide for Generative AI: Get the Most Out of ...

CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)CORS (Kitworks Team Study 양다윗 발표자료 240510)
CORS (Kitworks Team Study 양다윗 발표자료 240510)

Introduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDMIntroduction to use of FHIR Documents in ABDM
Introduction to use of FHIR Documents in ABDM

How to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in PakistanHow to Check GPS Location with a Live Tracker in Pakistan
How to Check GPS Location with a Live Tracker in Pakistan


MSD CRM 2015 Installation Guide

  • 1. Installation Guide - Microsoft Dynamic CRM 2015 Full Installation with IFD Configurations Version 1.0 Page 1​of 81
  • 2.   CRM 2015 Full Installation Guide   Main Topics Covered in This Guide      1) Introductions 2) Software’s Requirements or Specification 3) Server Requirements 4) Server Hardware Specification 5) System Architecture 6) Active Directory Installation Configurations 7) Active Directory Accounts Requirements 8) Account Permission in Active Directory 9) Active Directory Users Account Permissions on CRM 10) MS SQL 2014 with SSRS Server installation Steps 11) Installation Steps for SQL Server & SSRS 12) Check MS SQL Server Management Studio 13) Check The Reporting Services 14) Microsoft Dynamics CRM Server 2015 Overview 15) Windows Server Prerequisites for CRM 2015 16) Prerequisites Installation Steps for CRM 2015 17) CRM 2015 installation Steps 18) Test the Microsoft Dynamic CRM URL 19) Install CRM Reporting Extension 20) CRM IFD Implementation ------ (COMING SOON) Page 2 of 81 Guide Prepared By Manish Sharma
  • 3.   CRM 2015 Full Installation Guide   TABLE OF CONTENT  1 INTRODUCTION 1.1 INTENDED AUDIENCE 1.2 THE DOCUMENT 1.3 ACRONYMS AND DEFINITIONS 1.4 INTENDED AUDIENCE 2 SOFTWARE REQUIREMENTS OR SPECIFICATIONS 2.1 OPERATIONS SYSTEM ISO 2.2 DATABASE SERVER ISO 2.3 APPLICATION SERVER ISO 3 SERVER REQUIREMENTS 3.1 ACTIVE DIRECTORY DOMAIN SERVER 3.2 ACTIVE DIRECTORY FEDERATION SERVICES SERVER (ADFS) 3.3 MICROSOFT SQL SERVER 2014 3.4 DYNAMIC CRM 2015 SERVER (FULL SERVER INSTALLATION) 4 SERVER HARDWARE SPECIFICATIONS 4.1 MICROSOFT ACTIVE DIRECTORY SERVER HARDWARE SPECIFICATION 4.2 MICROSOFT ADFS HARDWARE SPECIFICATION 4.3 MICROSOFT SQL SERVER HARDWARE SPECIFICATION 4.4 MICROSOFT DYNAMICS CRM WEB APPLICATION HARDWARE SPECIFICATION 5 SYSTEM ARCHITECTURE 5.1 SERVER TOPOLOGY 5.1.1 Development / Staging / Production Server Topology 6 ACTIVE DIRECTORY INSTALLATION CONFIGURATION 6.1 ACTIVE DIRECTORY INSTALLATION 6.2 POST INSTALLATION TASK 7 ACTIVE DIRECTORY ACCOUNTS REQUIREMENTS 7.1 CRM 2015 INSTALLATION AND ADMIN ACCOUNTS 7.2 CRM 2015 SERVICE ACCOUNTS 7.3 SQL SERVER 2014 SERVICE ACCOUNT FOR CRM 2015 8 ACCOUNT PERMISSION IN ACTIVE DIRECTORY 8.1 DELEGATE THE CONTROLS 8.1.1 Delegate Control on OU for an Active Directory Account 8.1.2 Users or Group 8.1.3 Tasks to Delegate 8.1.4 Complete the Wizard 8.2 OU SECURITY PERMISSIONS FOR ACTIVE DIRECTORY ACCOUNT 9 ACTIVE DIRECTORY USERS ACCOUNT PERMISSIONS ON CRM 9.1 SERVICE ACCOUNT PERMISSIONS ON CRM SERVER Page 3 of 81 Guide Prepared By Manish Sharma
  • 4.   CRM 2015 Full Installation Guide   10 MS SQL 2014 WITH SSRS SERVER INSTALLATION STEPS 10.1 SOFTWARE COMPONENT PREREQUISITES 10.2 SQL SERVER EDITIONS: 10.3 SQL SERVER REPORTING SERVICES 11 INSTALLATION STEPS FOR SQL SERVER & SSRS 11.1 MICROSOFT SQL SERVER DISK PARTITIONS FOR INSTALLATION 11.2 MOUNT THE ISO FILE 11.3 BROWSE THE LOCATION FOR THE ISO MOUNTED. 11.4 START THE INSTALLATION 11.5 INSTALLATION WIZARD 11.6 PRODUCT KEY WINDOWS 11.7 ACCEPT THE EULA 11.8 INSTALL SETUP FILES 11.9 FEATURE SELECTION: 11.10 FEATURE SELECTION WINDOWS 11.11 CHANGE THE DEFAULT INSTALLATION LOCATION 11.12 FEATURE RULES 11.13 INSTANCE CONFIGURATION 11.14 SERVER CONFIGURATION 11.15 DATABASE ENGINE CONFIGURATION 11.16 DATA DIRECTORY 11.17 READY TO INSTALL 11.18 INSTALLATION IS IN PROGRESS 11.19 COMPLETE THE MS SQL INSTALLATIONS 12 CHECK MS SQL SERVER MANAGEMENT STUDIO 12.1 OPEN MANAGEMENT STUDIO 12.2 CONNECT WITH WINDOWS AUTHENTICATION MODE 12.3 OPEN MICROSOFT SQL SERVER MANAGEMENT STUDIO 13 CHECK THE REPORTING SERVICES 13.1 OPEN SQL SERVER 2014 REPORTING SERVICES 13.2 REPORT SERVER MODE 13.3 SERVICE ACCOUNT 13.4 WEB SERVICE URL 13.5 REPORT SERVER WEB SERVICE URL 13.6 REPORT MANAGER URL 14 MICROSOFT DYNAMICS CRM SERVER 2015 OVERVIEW 15 WINDOWS SERVER PREREQUISITES FOR CRM 2015 16 PRE REQUISITES INSTALLATION STEPS FOR CRM 2015 16.1 INSTALL ROLES AND FEATURES 16.1.1 Select Roles 16.1.2 Select Features 16.1.3 Web Server Role (IIS) | Role Services: Page 4 of 81 Guide Prepared By Manish Sharma
  • 5.   CRM 2015 Full Installation Guide   16.1.4 Specify an alternate Source Path & Install 16.1.5 Completion / Result. 17 CRM 2015 INSTALLATION STEPS . 17.1 MOUNT THE CRM ISO. 17.2 BROWSE THE LOCATION 17.3 START THE INSTALLATION 17.4 CLICK ON “INSTALL MICROSOFT DYNAMIC CRM SERVER:- 17.5 WELCOME TO MICROSOFT DYNAMIC CRM SERVER 2015 SETUP 17.6 PRODUCT KEY INFORMATION 17.7 ACCEPT THE EULA 17.8 INSTALL MISSING COMPONENT 17.9 SELECT DEFAULT INSTALLATION PATH 17.10 SPECIFY SERVER ROLES | SELECT ALL OPTIONS 17.11 SPECIFY DEPLOYMENT OPTIONS 17.12 SELECT THE ORGANIZATIONAL UNIT | ENTER THE ORGANIZATIONAL UNIT 17.13 SPECIFY SERVICE ACCOUNT NAME. 17.14 SELECT WEBSITE 17.15 EMAIL ROUTER SETTING 17.16 SPECIFY THE ORGANIZATION SETTINGS 17.17 SPECIFY REPORTING SERVICES SERVER 17.18 SERVICE DISRUPTION WARNING 17.19 READY TO INSTALL MICROSOFT DYNAMIC CRM 17.20 INSTALLATION IS IN PROGRESS 17.21 FINISH THE INSTALLATION 18 TEST THE MICROSOFT DYNAMIC CRM URL 18.1 TEST FIRST 19 INSTALL CRM REPORTING EXTENSION, 19.1 CLICK ON INSTALL MICROSOFT DYNAMIC CRM REPORTING EXTENSIONS 19.2 GET UPDATE 19.3 ACCEPT EULA 19.4 SELECT SQL SERVER 19.5 SSRS INSTANCE 19.6 START THE INSTALLATION 19.7 SYSTEM CHECKS 19.8 SERVICE DISRUPTION WARNING 19.9 FINISH THE SETUP 20 CRM IFD IMPLEMENTATION 21 SUMMARY AND CONCLUSION 22 ANNEXURE Page 5 of 81 Guide Prepared By Manish Sharma
  • 6.   CRM 2015 Full Installation Guide   Page 6 of 81 Guide Prepared By Manish Sharma
  • 7.   CRM 2015 Full Installation Guide   1 Introduction This Installation Guide provides a detail insight on the installation or Implementation of MS CRM 2015 on Production, Development or Testing Environments’.   1.1 Intended Audience IT Pros and CRM administrators can use the resources and topics in this guide to help them plan an on-premises deployment of Microsoft Dynamics CRM 2015.     1.2 The Document Provides all the Details from Active Directory setups, AD Service Accounts Setups, MS SQL Server Setups, SSRS Setups, CRM 2015 Installation & Internet Facing Deployments    1.3 Acronyms and Definitions CRM Customer relationship Management SSRS SQL Server reporting Services AD Active Directory ADFS Active directory Federations Services 1.4 Intended Audience ● CRM Administrator ● CRM Developers ● IT Professionals ● IT Administrators ● System Administrator Page 7 of 81 Guide Prepared By Manish Sharma
  • 8.   CRM 2015 Full Installation Guide   2 Software Requirements or Specifications Here we are running this configuration as a test environment for development. As such  we will be running, we are running the server on a Hyper V server. A single VM  machine that is running a fully patched version of:  2.1 Operations System ISO Windows 2012 R2 SP2 64 Bit   2.2 Database Server ISO SQL 2014 R2 64 Bit – SQL Server 2014 Standard Edition   2.3 Application Server ISO Microsoft Dynamics CRM Server 2015 x64 3 Server Requirements 3.1 Active Directory Domain Server 3.2 Active Directory Federation Services Server (ADFS) 3.3 Microsoft SQL Server 2014 3.4 Dynamic CRM 2015 Server (Full Server Installation)   Page 8 of 81 Guide Prepared By Manish Sharma
  • 9.   CRM 2015 Full Installation Guide   4 Server Hardware Specifications 4.1 Microsoft ​Active Directory​Server hardware Specification The following table lists the hardware Specification for the ​Active Directory Server​, Please Note this is our Environments it may be different as per availability​. Component Active Directory Server Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz Memory 4 GB RAM Hard disk 100 GB available hard disk space 4.2 Microsoft ​ADFS​hardware Specification The following table lists the hardware Specification for the ​Microsoft Active Directory Federation Server​, Please Note this is our Environments it may be different as per availability. Component ADFS Server Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz Memory 4 GB RAM Hard disk 120 GB available hard disk space 4.3 Microsoft ​SQL Server​hardware Specification The following table lists the hardware Specification for the ​Microsoft SQL Server database engine and ​Microsoft SQL Server Reporting Services installed on CRMSQL​. Please Note this is our Environments it may be different as per availability. Component CRMSQL Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz Memory 8 GB RAM Hard disk 120 GB available hard disk space 4.4 Microsoft ​Dynamics CRM​web application hardware Specification The following table lists the hardware Specification for the ​Microsoft Dynamics CRM web application​installed on ​CRMWEB​, Please Note this is our Environments it may be different as per availability. Component CRMWEB Processor Intel ® Xeon ® CPU E7 – 4830 @ 2.13 GHz Memory 8 GB RAM Hard disk 120 GB available hard disk space ✓ Please also not that we can Install MS SQL Server and ADFS server on the same as the CRM 2015 Installed, ✓ Only things is that Active Directory Server cannot be clubbed with CRM 2015 Page 9 of 81 Guide Prepared By Manish Sharma
  • 10.   CRM 2015 Full Installation Guide   5 System Architecture 5.1 Server Topology 5.1.1 Development / Staging / Production Server Topology   Page 10 of 81 Guide Prepared By Manish Sharma
  • 11.   CRM 2015 Full Installation Guide   Page 11 of 81 Guide Prepared By Manish Sharma
  • 12.   CRM 2015 Full Installation Guide   6 Active Directory Installation Configuration 6.1 Active Directory Installation Open Server Manager     Click On Manage – Add Roles and Features     A Wizard Start the Installation – Click on Next Page 12 of 81 Guide Prepared By Manish Sharma
  • 13.   CRM 2015 Full Installation Guide       Installation Type – Role-based or feature-based installation - Next     Select a Server from the server pools – Next Page 13 of 81 Guide Prepared By Manish Sharma
  • 14.   CRM 2015 Full Installation Guide       On Server Roles – Click on Active Directory – Click Add Features on Popup     On Server Roles – Click on DNS Server – Click Add Features on Popup   Page 14 of 81 Guide Prepared By Manish Sharma
  • 15.   CRM 2015 Full Installation Guide       Click Next On Features Windows       Click Next on AD DS Windows Page 15 of 81 Guide Prepared By Manish Sharma
  • 16.   CRM 2015 Full Installation Guide     Click Next On DNS Server Windows.     Click Install On Confirmation Windows    Page 16 of 81 Guide Prepared By Manish Sharma
  • 17.   CRM 2015 Full Installation Guide   A Installation Process Will Start ­     After Completion Close the Wizard.      6.2 Post Installation Task Starts The Server Manager – Click on the Flag with an exclamatory sign     Page 17 of 81 Guide Prepared By Manish Sharma
  • 18.   CRM 2015 Full Installation Guide         A Deployment Configuration Wizard will start    Fill the Domain Name As required – i.e. ​test.local​ or ​test.com     And Click Next            Type the Directory Services Restore Mode (DSRM) Password ­ Click Next  Page 18 of 81 Guide Prepared By Manish Sharma
  • 19.   CRM 2015 Full Installation Guide               Page 19 of 81 Guide Prepared By Manish Sharma
  • 20.   CRM 2015 Full Installation Guide       Click Next on DNS Option Windows         Click Next On Additional Options    Page 20 of 81 Guide Prepared By Manish Sharma
  • 21.   CRM 2015 Full Installation Guide       Click Next on Path Windows      Page 21 of 81 Guide Prepared By Manish Sharma
  • 22.   CRM 2015 Full Installation Guide   .  Click Next on Review Options after Re­Check all the Selection we had in last Steps.      After Prerequisites Check an Installation will start and server will get Restart.      Page 22 of 81 Guide Prepared By Manish Sharma
  • 23.   CRM 2015 Full Installation Guide               Page 23 of 81 Guide Prepared By Manish Sharma
  • 24.   CRM 2015 Full Installation Guide   7 Active Directory Accounts requirements   7.1 CRM 2015 Installation and Admin Accounts SERVER User ID Users Descriptions CRM CRMWEB CRMInstall Microsoft Dynamic CRM 2015 Setup Account CRM CRMWEB CRMAdmin Microsoft Dynamic CRM 2015 Administration Account 7.2 CRM 2015 Service Accounts SERVER User ID Users Descriptions CRM CRMWEB svc_CRMApplicatio n Microsoft Dynamics CRM Asynchronous Processing Service (maintenance) CRM CRMWEB svc_CRMWeb Microsoft Dynamics CRM Unzip Service CRM CRMWEB svc_CRMSandbox Microsoft Dynamics CRM Sandbox Processing Service CRM CRMWEB svc_CRMVSS Microsoft Dynamics CRM VSS Writer CRM CRMWEB svc_CRMAsynchron Microsoft Dynamics CRM Asynchronous Processing Service CRM CRMWEB svc_CRMMonitoring Microsoft Dynamics CRM Monitoring Service 7.3 SQL Server 2014 Service Account for CRM 2015   SERVER User ID Users Descriptions CRM CRMSQL svc_CRMSPISSDS Microsoft Dynamics CRM SQL Server Page 24 of 81 Guide Prepared By Manish Sharma
  • 25.   CRM 2015 Full Installation Guide   8 Account Permission in Active Directory (This activity will be performed on Active Directory server) The OU Delegation and Security permission is requires because during the Installation CRM will creates some objects in Active Directory Organization Unit. And we cannot grant the CRM Domain users as a Domain Admin Privileges​. 8.1 Delegate the Controls 8.1.1 Delegate Control on OU for an Active Directory Account   Right Click on The Active Directory OU (i.e. ​CRM2015​), Click on Delegate Control. A Delegation Wizard Will start – Click Next Page 25 of 81 Guide Prepared By Manish Sharma
  • 26.   CRM 2015 Full Installation Guide   8.1.2 Users or Group Add the Active Directory Account (i.e. ​CRMInstall​) and Click to Next. 8.1.3 Tasks to Delegate Select the Permission to that account for Delegation is as follow ✓ Create, delete, and manage users account ✓ Read all user information ✓ Create, delete and manage groups ✓ Modify the membership of a group Page 26 of 81 Guide Prepared By Manish Sharma
  • 27.   CRM 2015 Full Installation Guide   8.1.4 Complete the Wizard 8.2 OU Security Permissions for Active Directory Account This Security Permission is required for a Smooth Installation in CRM2015 for the Account we will use to install the CRM. Right Click on the OU and Select the Properties – Check the Security Tab Page 27 of 81 Guide Prepared By Manish Sharma
  • 28.   CRM 2015 Full Installation Guide   If you are not able to see the Security Tab in Properties List, go to View and Click on Advanced Features Page 28 of 81 Guide Prepared By Manish Sharma
  • 29.   CRM 2015 Full Installation Guide   Now you will able to see the Security tab in OU Properties These Security setting for the users account on the OU is Requires. Page 29 of 81 Guide Prepared By Manish Sharma
  • 30.   CRM 2015 Full Installation Guide   ✓ Read, ✓ Write, ✓ Create All Child Objects, ✓ Delete All Child Objects, 9 Active Directory Users Account Permissions on CRM (This activity will be performed on CRM Server – i.e. ​CRMWEB​)   The user account used to run Microsoft Dynamics CRM Server Setup that includes the creation of databases requires the following minimum permissions i.e. ​<Domain Name>CRMInstall ✓ Be a member of the Active Directory Domain Users group. By default, Active Directory Users and Computers add new users to the Domain Users group. ✓ Be a member of the Administrators group on the local computer where Setup is running. ✓ Have Local Program Files folder read and write permission. ✓ Be a member of the Administrators group on the local computer where the instance of SQL Server is located that will be used to store the Microsoft Dynamics CRM databases. ✓ Have sysadmin membership on the instance of SQL Server that will be used to store the Microsoft Dynamics CRM databases. ✓ A domain user account should be created and used to run CRM. Domain Administrator accounts should never be used to run CRM. ✓ There is no need for CRM users to have administrative privileges over the domain. Therefore, all CRM user accounts should be restricted to Domain Users membership. Also, following the principle of least-privilege 9.1 Service Account Permissions on CRM Server ✓ Add the CRM 2015 Application (front-end) and Asynchronous Service (back-end) accounts to the Performance Log Users group on the CRM server (i.e. CRMWEB​).   Page 30 of 81 Guide Prepared By Manish Sharma
  • 31.   CRM 2015 Full Installation Guide   Page 31 of 81 Guide Prepared By Manish Sharma
  • 32.   CRM 2015 Full Installation Guide   10 MS SQL 2014 with SSRS Server installation Steps 10.1 Software Component Prerequisites The following SQL Server components must be installed and running on the computer that is running SQL Server before you install Microsoft Dynamics CRM Server 2015: ● SQL word breakers This is only required for some Microsoft Dynamics CRM language editions. For more information about word breaker versions for languages supported by SQL Server see Configure and Manage Word Breakers and Stemmers for Search. ● SQL Server Agent service ● SQL Server full-text indexing The following components must be installed and running on the computer where Microsoft Dynamics CRM Server 2015 will be installed: ● Services ▪ Indexing Service ▪ To install this service, see the Windows Server documentation. ▪ IIS Admin ▪ World Wide Web Publishing ● Windows Data Access Components (MDAC) ● Microsoft ASP.NET (Must be registered, but does not have to be running.) 10.2 SQL Server Editions: Microsoft SQL Server editions are required and must be installed on Windows Server 2012 R2 64-bit-based computers, running, and available for Microsoft Dynamics CRM: ● Microsoft SQL Server 2014, Standard, 64-bit 10.3 SQL Server Reporting Services Microsoft SQL Server Reporting Services is required for reporting features in Microsoft Dynamics CRM. The following Microsoft SQL Server editions are used for Microsoft Dynamics CRM 2015 reporting and must be installed on a Windows Server 2012 (R2) 64-bit-based computer, running and available for Microsoft Dynamics CRM 2015: ● Microsoft SQL Server 2012, Standard, 64-bit Page 32 of 81 Guide Prepared By Manish Sharma
  • 33.   CRM 2015 Full Installation Guide   11 Installation Steps for SQL Server & SSRS 11.1 Microsoft SQL Server Disk Partitions for Installation 11.2 Mount The ISO file Page 33 of 81 Guide Prepared By Manish Sharma
  • 34.   CRM 2015 Full Installation Guide   11.3 Browse The Location for the ISO mounted. Double Click on ​Setup.exe​Start the installation Process 11.4 Start the Installation 11.5 Installation Wizard Click On Installation on Left Side Windows and Then Click on New SQL server stand-alone installation or add feature to an existing installation. Page 34 of 81 Guide Prepared By Manish Sharma
  • 35.   CRM 2015 Full Installation Guide   11.6 Product key Windows Page 35 of 81 Guide Prepared By Manish Sharma
  • 36.   CRM 2015 Full Installation Guide   11.7 Accept the EULA 11.8 Install Setup Files ​Setup Will Install some Necessary Component Automatically, Click On ​Next​. Page 36 of 81 Guide Prepared By Manish Sharma
  • 37.   CRM 2015 Full Installation Guide   11.9 Feature Selection:   On Setup Role Windows – Select SQL Server Feature Installation Page 37 of 81 Guide Prepared By Manish Sharma
  • 38.   CRM 2015 Full Installation Guide   11.10 Feature Selection Windows Select Following Features to Install for CRM  (a) Database Engine Services (b) Full-Test and Semantic Extractions for Search (c) Reporting Services – Native (d) Management Tools - Complete Page 38 of 81 Guide Prepared By Manish Sharma
  • 39.   CRM 2015 Full Installation Guide   11.11 Change the Default Installation Location The Best Practices Follows for the Development Server is as below. Instance root Directory:​(it is on Secondary Partition i.e. – E:) Shared feature directory: ​(it is on Secondary Partition i.e. – E:) Shared feature directory (x86): ​(it is on Secondary Partition i.e. – E:) 11.12 Feature Rules Setup will automatically check and update all the required components. Page 39 of 81 Guide Prepared By Manish Sharma
  • 40.   CRM 2015 Full Installation Guide   11.13 Instance Configuration Click On ​Default instance​, and then click ​Next Page 40 of 81 Guide Prepared By Manish Sharma
  • 41.   CRM 2015 Full Installation Guide   11.14 Server Configuration Change Service Account as per the best Practices Follows, Click Next Page 41 of 81 Guide Prepared By Manish Sharma
  • 42.   CRM 2015 Full Installation Guide   11.15 Database Engine Configuration ✓ Select Windows Authentication Mode ✓ On Specify SQL server Administrator | Click On Add Current User Page 42 of 81 Guide Prepared By Manish Sharma
  • 43.   CRM 2015 Full Installation Guide   11.16 Data Directory Check and make sure that all the Data Directories are as per the Best Practices Follow. Page 43 of 81 Guide Prepared By Manish Sharma
  • 44.   CRM 2015 Full Installation Guide   11.17 Ready to install Recheck On ready to install Windows and Click on Install. 11.18 Installation Is In Progress 11.19 Complete the MS SQL installations Check that the Status on Completions Windows for all the Features is Installed Successfully. Page 44 of 81 Guide Prepared By Manish Sharma
  • 45.   CRM 2015 Full Installation Guide   12 Check MS SQL Server Management Studio 12.1 Open Management Studio By Clicking Start menu – SQL Server 2014 Management Studio Page 45 of 81 Guide Prepared By Manish Sharma
  • 46.   CRM 2015 Full Installation Guide   12.2 Connect With Windows Authentication Mode 12.3 Open Microsoft SQL Server Management Studio 13 Check The Reporting Services 13.1 Open SQL Server 2014 Reporting Services Page 46 of 81 Guide Prepared By Manish Sharma
  • 47.   CRM 2015 Full Installation Guide   13.2 Report Server Mode Report Server Mode Should be Native for CRM Installation    13.3 Service Account Service Account Should be a Domain Account to install CRM 2015 Properly.    Page 47 of 81 Guide Prepared By Manish Sharma
  • 48.   CRM 2015 Full Installation Guide   13.4 Web service URL 13.5 Report Server Web Service URL Check That the URL- ​http://CRMSQL:80/ReportServer​is Opening Properly. 13.6 Report Manager URL Also check that Report Manager URL opening properly Page 48 of 81 Guide Prepared By Manish Sharma
  • 49.   CRM 2015 Full Installation Guide   14 Microsoft Dynamics CRM Server 2015​Overview This Document covers the procedure to install Microsoft Dynamics CRM Server 2015 on a Server that does not already have Microsoft Dynamics CRM installed Microsoft Dynamics CRM Server 2015 supports Internet Information Services (IIS) versions 8.0 and 8.5. It is recommended that you install and run IIS in Native Mode before you install Microsoft Dynamics CRM Server. However, if IIS is not installed and it is required for a Microsoft Dynamics CRM server role, Microsoft Dynamics CRM Server Setup will install it 15 Windows Server Prerequisites for CRM 2015 The following components must be installed and running on the computer where Microsoft Dynamics CRM Server 2015 will be installed: ● Services o Indexing Service To install this service, see the Windows Server documentation. o IIS Admin o World Wide Web Publishing ● Windows Data Access Components (MDAC) ● Microsoft ASP.NET (Must be registered, but does not have to be running.) ● Indexing Service ● IIS Admin ● World Wide Web Publishing Page 49 of 81 Guide Prepared By Manish Sharma
  • 50.   CRM 2015 Full Installation Guide   16 Pre Requisites Installation Steps for CRM 2015 16.1 Install Roles and Features 16.1.1 Select Roles Open Server Manager | Manage | Add Roles and Features | Server Roles: ✓ Application Server ✓ Web Server (IIS) 16.1.2 Select Features ✓ .​Net Framework 3.5 Features ✓ .Net Framework 4.5 Features | ASP.NET 4.5 Page 50 of 81 Guide Prepared By Manish Sharma
  • 51.   CRM 2015 Full Installation Guide   16.1.3 Web Server Role (IIS) | Role Services: ✓ Application Development | ASP.NET 3.5 ✓ Application Development | ASP.NET 4.5 Page 51 of 81 Guide Prepared By Manish Sharma
  • 52.   CRM 2015 Full Installation Guide   16.1.4 Specify an alternate Source Path & Install Page 52 of 81 Guide Prepared By Manish Sharma
  • 53.   CRM 2015 Full Installation Guide   16.1.5 Completion / Result. Now we are good to go for an Installation of CRM 2015. Page 53 of 81 Guide Prepared By Manish Sharma
  • 54.   CRM 2015 Full Installation Guide   17 CRM 2015 installation Steps . 17.1 Mount The CRM ISO. 17.2 Browse the Location Page 54 of 81 Guide Prepared By Manish Sharma
  • 55.   CRM 2015 Full Installation Guide   17.3 Start the Installation By Double Click on “Splash.exe”. 17.4 Click On “Install Microsoft dynamic CRM Server:- Figure: CRM Installation Page 55 of 81 Guide Prepared By Manish Sharma
  • 56.   CRM 2015 Full Installation Guide   17.5 Welcome to Microsoft Dynamic CRM Server 2015 Setup Get Recommended Updates | select Get Updates (optional) 17.6 Product Key Information Enter your license key Page 56 of 81 Guide Prepared By Manish Sharma
  • 57.   CRM 2015 Full Installation Guide   17.7 Accept the EULA Page 57 of 81 Guide Prepared By Manish Sharma
  • 58.   CRM 2015 Full Installation Guide   17.8 Install Missing Component o At this point you may have a bunch of missing required components, install them (will take a while, also you may need to ​reboot​and start the Process from scratch) Figure: Install Required Components Page 58 of 81 Guide Prepared By Manish Sharma
  • 59.   CRM 2015 Full Installation Guide   17.9 Select Default Installation Path Page 59 of 81 Guide Prepared By Manish Sharma
  • 60.   CRM 2015 Full Installation Guide   17.10 Specify Server Roles | Select All Options We select all options on install: Figure: Server Roles 17.11 Specify Deployment Options o Enter SQL Server Hostname i.e.: ​CRMSQL Page 60 of 81 Guide Prepared By Manish Sharma
  • 61.   CRM 2015 Full Installation Guide   Page 61 of 81 Guide Prepared By Manish Sharma
  • 62.   CRM 2015 Full Installation Guide   17.12 Select the Organizational Unit | Enter the Organizational Unit Figure: Assign CRM OU Page 62 of 81 Guide Prepared By Manish Sharma
  • 63.   CRM 2015 Full Installation Guide   17.13 Specify Service Account Name. Specify Service Accounts respectively, now we’ll need to specify our service accounts for the various CRM Services Account here​. Page 63 of 81 Guide Prepared By Manish Sharma
  • 64.   CRM 2015 Full Installation Guide   Figure: Service Accounts 17.14 Select Website Page 64 of 81 Guide Prepared By Manish Sharma
  • 65.   CRM 2015 Full Installation Guide   Website (select Default Web Site) 17.15 Email Router Setting It should be Empty; we can enter this after the Installation too. Page 65 of 81 Guide Prepared By Manish Sharma
  • 66.   CRM 2015 Full Installation Guide   17.16 Specify the Organization Settings We set “​CRM​” As the default initial Deployment Environment Page 66 of 81 Guide Prepared By Manish Sharma
  • 67.   CRM 2015 Full Installation Guide   Display Name – ​CRM Unique Database Name – ​CRM​(​It will take automatically, however we Can Change it​) ISO Currency Code - ​USD Currency Name – ​US Dollar Currency Symbol - ​$ Currency Precision - ​2 17.17 Specify Reporting Services Server Reporting Server defaulted to the Server Name/ReportServer Should be pre-populated check the URL is pointed to SSRS Server i.e.: ​http://CRMSQL/reportserver Page 67 of 81 Guide Prepared By Manish Sharma
  • 68.   CRM 2015 Full Installation Guide   o Click On ​NEXT Page 68 of 81 Guide Prepared By Manish Sharma
  • 69.   CRM 2015 Full Installation Guide   17.18 Service Disruption Warning o Click On ​NEXT 17.19 Ready to Install Microsoft Dynamic CRM o Click On Install – A Installation will start Page 69 of 81 Guide Prepared By Manish Sharma
  • 70.   CRM 2015 Full Installation Guide   17.20 Installation is in Progress 17.21 Finish the Installation Figure: CRM Install Finished Page 70 of 81 Guide Prepared By Manish Sharma
  • 71.   CRM 2015 Full Installation Guide   Page 71 of 81 Guide Prepared By Manish Sharma
  • 72.   CRM 2015 Full Installation Guide   18 Test the Microsoft Dynamic CRM URL 18.1 Test First Test that your CRM setup is working. Go to the ​Start ​and Open Internet Explorer and Browse - ​http://CRMWEB We called our Deployment of CRM – “​CRM​″ So the URL redirects to​- http://crmweb/CRM/main.aspx We logged in to the Server as the​CRMINstall ​Account, we able to load the default page Page 72 of 81 Guide Prepared By Manish Sharma
  • 73.   CRM 2015 Full Installation Guide   19 Install CRM Reporting Extension, (This Activity can only be performed where The SQL SSRS Installed) 19.1 Click On Install Microsoft Dynamic CRM Reporting Extensions Page 73 of 81 Guide Prepared By Manish Sharma
  • 74.   CRM 2015 Full Installation Guide   19.2 Get Update Page 74 of 81 Guide Prepared By Manish Sharma
  • 75.   CRM 2015 Full Installation Guide   19.3 Accept EULA 19.4 Select SQL Server Page 75 of 81 Guide Prepared By Manish Sharma
  • 76.   CRM 2015 Full Installation Guide   19.5 SSRS Instance It will come automatically 19.6 Start the Installation Page 76 of 81 Guide Prepared By Manish Sharma
  • 77.   CRM 2015 Full Installation Guide   19.7 System Checks 19.8 Service Disruption Warning Page 77 of 81 Guide Prepared By Manish Sharma
  • 78.   CRM 2015 Full Installation Guide   19.9 Finish The Setup Page 78 of 81 Guide Prepared By Manish Sharma
  • 79.   CRM 2015 Full Installation Guide   Page 79 of 81 Guide Prepared By Manish Sharma
  • 80.   CRM 2015 Full Installation Guide   20 CRM IFD Implementation   COMING  SOON          Page 80 of 81 Guide Prepared By Manish Sharma
  • 81.   CRM 2015 Full Installation Guide        21 Summary and Conclusion <Provide summary of document.>  22 Annexure <List & describe all annexures>     Page 81 of 81 Guide Prepared By Manish Sharma
