Alexis
23 posts
Member since:
Aug 2010
Link to this postPosted 17 Sep 2010
Hi,
         I have a problem to add LinkButton in Radgrid. i'm using DataTable as a source for RadGrid.The
First Column of Datatable must come as Link Button on RadGrid. but the column of Datatable will not be
static(if the DataTable has 5 columns in one scenario then the DataTable can has 50 columns in another
scenario). It can change. so i cant use Item template  on RadGrid for this problem.
My Requirement is,
1. The First column of DataTable data will bind to Grid as LinkButton.
2. I need to add some event handler for that LinkButton.

  Plz send me some sample code for this. I need it urgently....
Thanks in advance.
Alexis
Reply

ANSWER

Princy
17421 posts
Member since:
Mar 2007
ANSWER

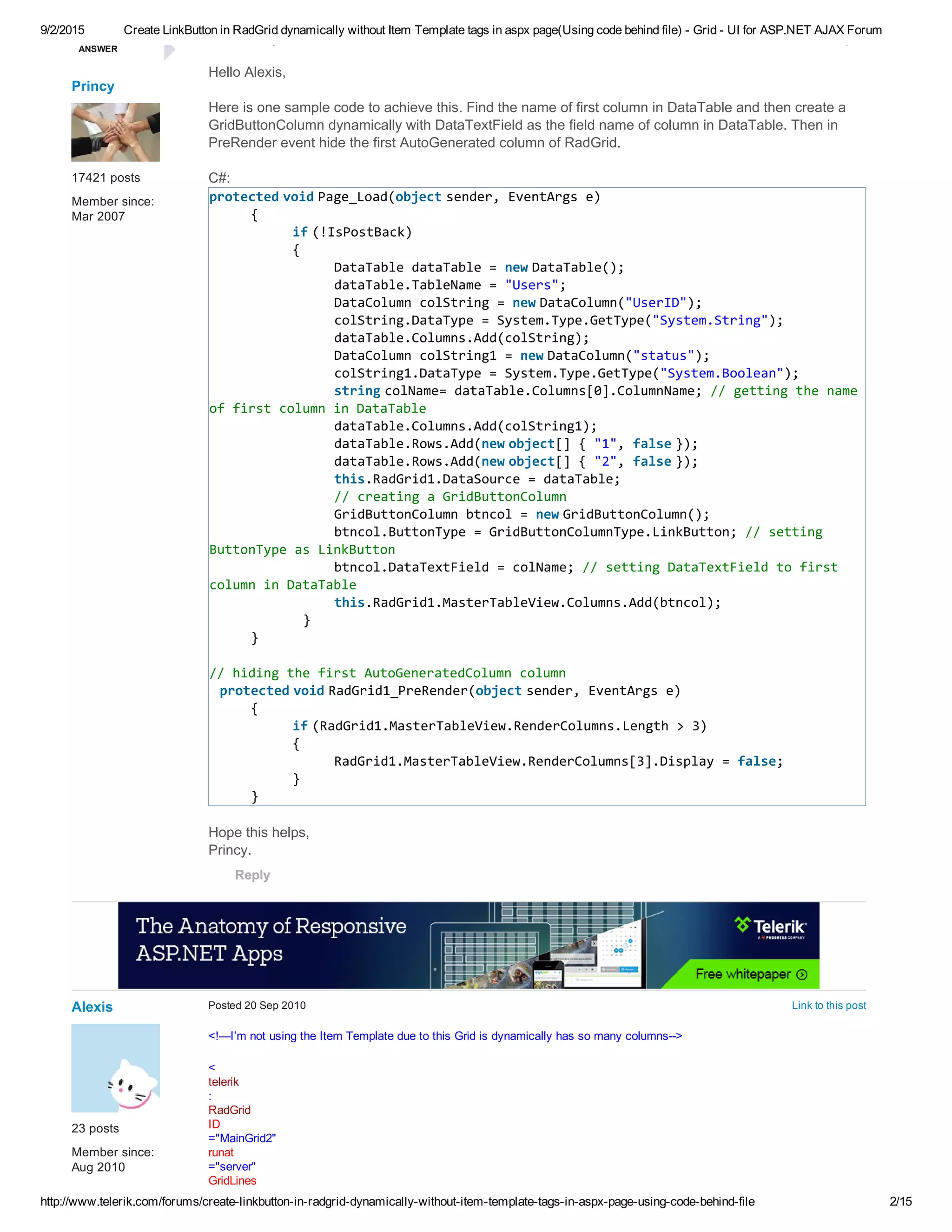

Hello Alexis,
Here is one sample code to achieve this. Find the name of first column in DataTable and then create a
GridButtonColumn dynamically with DataTextField as the field name of column in DataTable. Then in
PreRender event hide the first AutoGenerated column of RadGrid.

C#:
protected void Page_Load(object sender, EventArgs e)
     {
         if (!IsPostBack)
         {
             DataTable dataTable = new DataTable();
             dataTable.TableName = "Users";
             DataColumn colString = new DataColumn("UserID");
             colString.DataType = System.Type.GetType("System.String");
             dataTable.Columns.Add(colString);
             DataColumn colString1 = new DataColumn("status");
             colString1.DataType = System.Type.GetType("System.Boolean");
             string colName= dataTable.Columns[0].ColumnName; // getting the name
of first column in DataTable
             dataTable.Columns.Add(colString1);
             dataTable.Rows.Add(new object[] { "1", false });
             dataTable.Rows.Add(new object[] { "2", false });
             this.RadGrid1.DataSource = dataTable;
             // creating a GridButtonColumn
             GridButtonColumn btncol = new GridButtonColumn();
             btncol.ButtonType = GridButtonColumnType.LinkButton; // setting
ButtonType as LinkButton
             btncol.DataTextField = colName; // setting DataTextField to first
column in DataTable
             this.RadGrid1.MasterTableView.Columns.Add(btncol);
          }
     }

// hiding the first AutoGeneratedColumn column
protected void RadGrid1_PreRender(object sender, EventArgs e)
     {
         if (RadGrid1.MasterTableView.RenderColumns.Length > 3)
         {
             RadGrid1.MasterTableView.RenderColumns[3].Display = false;
         }
     }
Hope this helps,
Princy.
Reply

Alexis
23 posts
Member since:
Aug 2010
<!—I’m not using the Item Template due to this Grid is dynamically has so many columns>
<
telerik
:
RadGrid
ID
="MainGrid2"
runat
="server"
GridLines

="Both"
Skin
="Outlook">

<
ClientSettings
>

<
Scrolling

AllowScroll
="True"
UseStaticHeaders
="false"
aveScrollPosition
="true
FrozenColumnsCount
="0"

/>


</
ClientSettings
>

</
telerik
:
RadGrid
>

MainGrid2.DataSource = dT;
//datasource is DataTable
string
colName = dT.Columns[0].ColumnName;
//getting the first column name
GridButtonColumn
btncol =
new
GridButtonColumn
();
btncol.ButtonType =
GridButtonColumnType
.LinkButton;
btncol.DataTextField = colName;
this
.MainGrid2.MasterTableView.Columns.Add(btncol);
// in the output,a new column is added in the grid at the firstPlace.
MainGrid2.DataBind();
I attached one image in which i clearly mentioned my query...
   DataTable dT = HtmlTableParser.ParseTable(pvt);
                string colName = dT.Columns[0].ColumnName;                GridButtonColumn btncol = new GridButtonColumn();                btncol.ButtonType = GridButtonColumnType.LinkButton;                btncol.DataTextField = colName;                 this.MainGrid2.MasterTableView.Columns.Add(btncol);                MainGrid2.DataSource = dT;                MainGrid2.DataBind();
Reply

Princy Link to this postPosted 20 Sep 2010

Princy
17421 posts
Member since:
Mar 2007
Hello Alexis,
Make sure that you have added the code in PreRender event to hide the first column in DataTable. Also
check whether you have used the correct the index of column to hide.
Otherwise you can try the following approach to hide the column in DataTable, where headervalue is
columnuniquename.
C#:
     {
        RadGrid1.MasterTableView.GetColumnSafe("HeaderValue").Display = false; //
hide the column in DataTable using its  field name
     }
Thanks,
Princy.
Reply

Alexis
23 posts
Member since:
Aug 2010
Thank u so much Princy...
              Now that coding is working fine... then i need to add Event Hander to all that Link buttons which
are binded to that Gird by using C# coding(not in aspx page)... plz help me on this....
Event Name is : OnClick()
Event Hander is like : Header_Click()
I need the Answer urgently... Plz help me on this...
thanks
Alexis
Reply

Princy
ANSWER
Hello Alexis,
A better option to execute some server side code when clicking the LinkButton would be adding a

17421 posts
Member since:
Mar 2007
A better option to execute some server side code when clicking the LinkButton would be adding a
CommandName to GridButtonColumn. Then in ItemCommand event check with the CommandName,
that you set.
Otherwise if you want to attach a click event to LinkButton, then the following code will be useful.
C#:
GridButtonColumn btncol = new GridButtonColumn();
btncol.ButtonType = GridButtonColumnType.LinkButton;
btncol.DataTextField = colName;
btncol.UniqueName = "NewButton"; // adding UniqueName
protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
    {
        if (e.Item is GridDataItem)
        {
            GridDataItem item = (GridDataItem)e.Item;
            LinkButton linkBtn = (LinkButton)item["NewButton"].Controls[0];
            linkBtn.Click += new EventHandler(Header_Click); // adding click event
to LinkButton
        }
    }
    protected void Header_Click(object sender, EventArgs e)
    {

    }
Thanks,
Princy.
Reply

Alexis
23 posts
Member since:
Aug 2010
Link to this postPosted 21 Sep 2010Thanks for Your Great Help Princy....
Again i need ur hand to help me. i want to apply one style sheet for that Linkbutton which are inside in the
Grid(First Column). Because Initially the link button is looks in Blue color. then after i click it, it'll become as
Pink or someother color.
my requirement is
1) It needs to be in same color(specially in Black Color). so how can i use this Stylesheet for Link button
dynamically?
Style Sheet Coding
.PivotGrid
{ textdecoration:none;   color:#000;   fontsize:12px;}
2) I need to add Tool Tip for that Link button which are in Grid first column. how can i use the Tool Tip
property... Plz Help me on this...
(Need Answer Urgently),
Thanks,
Alexis.
Reply

Princy
ANSWER
Hello Alexis,
Try the following code snippet to assign CssClass and ToopTip dynamically.

17421 posts
Member since:
Mar 2007
C#:
protected void RadGrid1_ItemCreated(object sender, GridItemEventArgs e)
     {
         {
             linkBtn.ToolTip ="new tooltip"; //setting ToolTip
             linkBtn.CssClass = "PivotGrid"; // assigning CSSClass
         }
     }
Thanks,
Princy.
Reply

Alexis
23 posts
Member since:
Aug 2010
Hi Princy,
                  As of now ur coding is working fine for me.... now i need ur help for someother work....
My Req is :
1). I’m placing cursor on Amelia(u can see in that attachment), I want to show the toop tip with that name.
but its showing New Tool Tip.
How can I get what I’m looking for this implementation. Can u help me on this Princy?
2).Is it possible to show the Rad Grid header in some other way?
Alexis Princy Smith Michel
Age Salary Age Salary Age Salary Age Salary
25 5000US
D
26 5000US
D
35 6000USD 24 4000USD
I want to show the Rad Grid Header with 2 headers... Main Header, and sub header with each main
header... also i need this to be done by dynamically... We get this header as DataRow from Data Table.
but we are loop throughing to display this format on header, but we cant get this format on Rad Grid...
Can u plz help us regarding this....
3) How can i assign Fore color to Rad Grid Headers alternate columns in programmatically?

We need Solution urgently... Plz Help us as soon as possible....
Thanks in Advance,
Alexis
Reply

Princy
ANSWER
Hello Alexis,
1) Try the following code in ItemDataBound event to set Tooltip with that cell value.
C#:

17421 posts
Member since:
Mar 2007
protected void RadGrid1_ItemDataBound(object sender, GridItemEventArgs e)
    {
        {
            linkBtn.ToolTip = linkBtn.Text;
        }
    }
2)Please go through the following link which discusses how to set multiple headers at run time.
Adding Multiple Header Rows at Runtime in RadGrid
3) The following code shows how to set alternative font colors for RadGrid headers
C#:
     {
         int i=0;
         foreach (GridColumn col in RadGrid1.MasterTableView.AutoGeneratedColumns)
         {
             if(i%2==0)
                RadGrid1.MasterTableView.AutoGeneratedColumns[i].HeaderStyle.ForeColor
= System.Drawing.Color.Blue;
             i++;
         }
     }
Thanks,
Princy.
Reply

Alexis
23 posts
Hi Princy,
Thanks for ur fabulous reply... I've a doubt on Multiple Row as Header to Radgrid at
Runtime.... I'm getting the below content as string at runtime. but i cant use the HeaderTemplate tag for
radgrid...
     <TABLE id="Table1" cellSpacing="1" cellPadding="1" width="300"border="1">
        <TR>

Member since:
Aug 2010
         <TD colspan="2" align="center"><b>Address</b></TD>
        </TR>
        <TR>
         <TD width="50%"><b>City</b></TD>
         <TD width="50%"><b>Postal code</b></TD>
        </TR>
       </TABLE>
1) Is it possible to assign this table to Rad Grid HeaderTemplate at Runtime?
2) Is it possible to Assign the Sorting options to RadGrid Headers(For City,  and for Postal Code)?
or
3) How to assign the AllowSorting property to all the columns in RadGrid which are binded with
DataTable. Plz keep in mind that I'm not using Item Template... ????
Plz Help me on this.... I need the solution Urgently....

Thanks in advance...
Alexis
Reply

Iana Tsolova
3382 posts
ADMIN
Hello Alexis,
In order to use the preceding code for the header template, I suggest that you define it in custom class
implementing the ITemplate interface. Then you use it, you can define the grid dynamically on Page_Init
as explained in this article.
Then to enable to sorting for the headers, you can use LinkButtons instead of simple text. Set the
CommandName to sort, and handle the sort command in the ItemCommand event.
All the best,
Iana
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you
care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the
priority of the items
ä
Reply

Alexis
23 posts
Member since:
Hi Lana,
              Thanks for ur reply...   I dont understand clearly about the sorting options which u explained in
previous response.. I need some more sample codes for get knowledge on this sorting....  (I dont use
ItemTemplate in my coding, I'm directly bounding the data from DataTable to RadGrid as Princy helped
me in this Forum).
we need solution urgently... Plz help us on this regard....

Aug 2010
Thanks in Advance
Alexis
Reply

Iana Tsolova
3382 posts
ADMIN
Hello Alexis,
I does not matter how you create the controls, declaratively or dynamically. In both cases you need to set
the same properties for them. Find more about implementing sorting for GridTemplateColumns in the
below articles:
http://www.telerik.com/help/aspnetajax/grdsortingforhyperlinktemplatecolumns.html
http://www.telerik.com/help/aspnetajax/grdapplycustomsortcriteria.html
Best wishes,
Iana
the Telerik team
Do you want to have your say when we set our development plans? Do you want to know when a feature you
care about is added or when a bug fixed? Explore the Telerik Public Issue Tracking system and vote to affect the
priority of the items
ä
Reply

Jittu
18 posts
Member since:
Sep 2012
Hi,
I have created a link button in the Databound event for RadGrid but I am unable to write the Onclick
event for the Link Button. The requirement is, if the cell value is empty I need to provide a Add link and
when clicked opens a pop to add.
Can you please help me on this.
protected void RadGrid1_ItemDataBound(object sender, Telerik.Web.UI.GridItemEventArgs
e)
         {
             {
                 if (item["FieldName"].Text == " ")
                 {
                     LinkButton MyLinkButton = new LinkButton();
                     MyLinkButton.Text = "Add";
                     item["FieldName"].Controls.Add(MyLinkButton);
                         item["FieldName"].ForeColor = System.Drawing.Color.Red;
}
}
}
Reply

Shinu
17764 posts
Member since:
Mar 2007
Hi,
Try attaching the event in ItemCreated event as shown below.
C#:
protected void RadGrid1_ItemCreated(object sender, Telerik.Web.UI.GridItemEventArgs e)
{
{

     {
        MyLinkButton.Click += new EventHandler( MyLinkButton_Click);
      }
}
}
void  MyLinkButton_Click(object sender, EventArgs e)
{
}
Thanks,
Shinu.
Reply

Jittu
18 posts
Member since:
Sep 2012
Hi Shinu,
Thanks for the reply .I have tried doing that but its not working. It doesn't even add the Link button.
Rajini
Reply

Shinu
17764 posts
Member since:
Mar 2007
Hi,
In general the proper place for adding controls to the grid items is in ItemCreated. But in the case of
adding controls to the cells of GridBoundColumn,you cannot use ItemCreated only, but a combination of
ItemCreated and ItemDataBound. This is due to the fact that the control created in ItemCreated will be
erased when databinding this control. Also, if you create the control in ItemDataBound when the controls
are created from ViewState, the grid will not raise ItemDataBound, and the control will not be created and
would not raise postback events. The solution for such cases is to create the control in ItemDataBound
and recreate this control if needed on ItemCreated for subsequent postbacks. Here is the sample code.
C#:

C#:
{
{
     {
        MyLinkButton.Click += new EventHandler(MyLinkButton_Click);
      }
}
}
{
}
e)
{
{
     {
     }
}
}
Thanks,
Shinu.
Reply

Jittu
18 posts
Member since:
Sep 2012
Hi Shinu,
It dint work out . When I click on the Add Link Button it does a post back and removes the Add link button
itself. It does not do a click event.Please help me on this.
Thanks,
Rajini
Reply

Shinu
17764 posts
Member since:
Mar 2007
Hi,
Please try the following code snippet as a work around for this issue.
C#:
public static ArrayList IndexArray = new ArrayList();
e)
{
     {

         MyLinkButton.ID = "ID";

         {

             IndexArray.Add(item.GetDataKeyValue("DataKeyName").ToString());
//storing the DataKeyValue of the row whose cell value is empty in an ArrayList
             item["FieldName"].ForeColor =
System.Drawing.Color.Red;
         }
     }
}
{
     //your code
}
{
     {
         MyLinkButton.ID = "ID";
         {
         }
         foreach (string id  in IndexArray)
         {
             string datakey = item.GetDataKeyValue("DataKeyName").ToString();
             if (datakey == id)
             {
                 MyLinkButton.Click += new EventHandler(MyLinkButton_Click);
//attaching click events for the cell with empty value
             }
         }
     }
}
Thanks,
Shinu.
Reply

Jittu
18 posts
Member since:
Sep 2012
Hi Shinu,
Thanks for your reply .It works perfectly fine.
Thank you so much.
THanks,
Rajini
Reply


arun
4 posts
Member since:
Sep 2010
Link to this postPosted 15 Oct 2013
Shinu,
  I tried to implement your code, The columns show up fine in red but they are not clickable, Can you tell
me what  am I missing.

public static ArrayList IndexArray = new ArrayList();

       void GridCommon_ItemDataBound(object sender, GridItemEventArgs e)
       {
           {
               LinkButton link = new LinkButton();

               link.Text = "Add";
               link.ID = "LinkID";

               if (item["PortfolioName"].Text == " ")
               {
                   IndexArray.Add(item.GetDataKeyValue("ID").ToString());
                   item["PortfolioName"].Controls.Add(link);
                   item["PortfolioName"].ForeColor = System.Drawing.Color.Red;
               }

           }
       }

       protected void PortfolioLink_Click(object sender, EventArgs e)
       {

       }

       void GridCommon_ItemCreated(object sender, GridItemEventArgs e)
       {
           {
               link.Text = "Add";
               link.ID = "LinkID";
               if (item["PortfolioName"].Text == " ")
               {
                   item["PortfolioName"].ForeColor = System.Drawing.Color.Red;
               }
               foreach (string id in IndexArray)
               {
                   string datakey = item.GetDataKeyValue("ID").ToString();
                   if (datakey == id)
                   {
                       item["PortfolioName"].ForeColor =
System.Drawing.Color.Red;
                       link.Click += new EventHandler(PortfolioLink_Click);
                   }
               }
           }

           }
Reply

Kostadin
1369 posts
ADMIN
Link to this postPosted 18 Oct 2013
Hello Arun,
I have already answered your support ticket, I would ask you to continue our conversation there. I am
providing the answer here if somebody else facing a similar issue as yours.
"I assume that is too late in page live cycle to attache an event handler of the button on one of those
events (ItemDataBound and ItemCreated). A suitable solution is to create the link button on item load
event."
Regards,
Kostadin
Telerik
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the
ä

Back to Top
Post a reply
If you want to get updates on new releases, tips and tricks and sneak peeks at our product labs directly from the
developers working on the RadControls for ASP.NET AJAX, subscribe to the blog feed now.ä
Reply

Create link button in radgrid dynamically without item template tags in aspx page(using code behind file) grid - ui for asp

More Related Content

What's hot

Viewers also liked

Recently uploaded

Create link button in radgrid dynamically without item template tags in aspx page(using code behind file) grid - ui for asp
