This document provides an overview and agenda for a MuleSoft meetup on hosting a website using a MuleSoft application. The agenda includes an introduction to using the HTTP Load Static Resource and Parse Template components to create dynamic web pages from MuleSoft. The demonstration will show how to set up a basic web server flow and capture data from responsive web pages. Challenges faced with implementing a RAML-based solution are also discussed. Attendees are encouraged to provide feedback and nominate topics for future meetups.

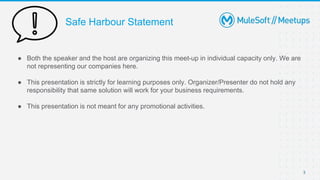

3. Safe Harbour Statement
● Both the speaker and the host are organizing this meet-up in individual capacity only. We are
not representing our companies here.
● This presentation is strictly for learning purposes only. Organizer/Presenter do not hold any
responsibility that same solution will work for your business requirements.
● This presentation is not meant for any promotional activities.
3
4. A recording of this meetup will be uploaded to events page within 24 hours.
Questions can be submitted/asked at any time in the Chat/Questions & Answers Tab.
Make it more Interactive!!!
Give us feedback! Rate this meetup session by filling feedback form at the end of the day.
We Love Feedbacks!!! Its Bread & Butter for Meetup.
Housekeeping
4
5. Introduction
● About the Organizers
5
Shubham Chaurasia
Billennium India
Professional Integration Developer
A SHOW OF HANDS:
Who is new to this Meetup?
Giridhar Meka
Sr. Technical Architect
6. Certified MuleSoft Developer
4 years of Total Experience, 3+ years in MuleSoft
Working as a Senior MuleSoft Developer at HashedIn By
Deloitte
Speaker
6
Prithwish Karforma
Senior MuleSoft Developer

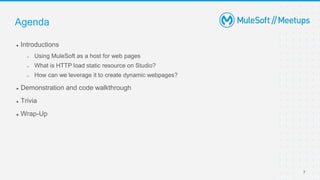

7. 7
● Introductions
Using MuleSoft as a host for web pages
What is HTTP load static resource on Studio?
How can we leverage it to create dynamic webpages?
● Demonstration and code walkthrough
● Trivia
● Wrap-Up
Agenda
8. MuleSoft allows us to package and host website content
Once deployed to CloudHub or Anypoint Platform, the website becomes
accessible to end-user
We can parse HTML and inject DataWeave snippets within the code to make the
response page dynamic
Provide a visual response to the end-user in the form of a web-page rather than
the usual JSON/CSV/XML response body.
MuleSoft as a web server
8

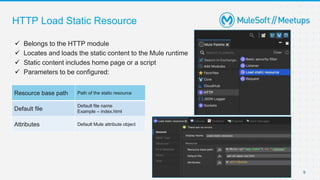

9. Belongs to the HTTP module
Locates and loads the static content to the Mule runtime
Static content includes home page or a script
Parameters to be configured:
HTTP Load Static Resource
9
Resource base path Path of the static resource
Default file
Default file name
Example – index.html
Attributes Default Mule attribute object
10. Process a template and obtain the results
A template in this context is any text with
embedded DataWeave scripts in them
These texts are parsed, the scripts replaced
by their results
It belongs to the core module
Parameters to be configured:
Parse Template
10
Content If not using an external file as template, put file content here
Location If referenced external file, path should be provided here
11. Steps to create basic web server
11
Step 1: Set up basic flow with HTTP Listener followed by Load static resource
Step 2: The HTTP Listener Configuration shall be reused later
Step 3: For Load Static Resource parameters, ensure the base path is a project path (app.home)
so that it works after deployment to CloudHub
12. Steps to create basic web server
12
Step 4: Set up a flow with HTTP Listener with the same Listener configuration as mentioned in Step 2,
but with a different path.
Step 5: Set up the DataWeave snippet to insert in to the HTML code
Step 6: Set up the HTML code and put the variable name with the DataWeave snippet
13. Capturing data from responsive webpage
13
When using a form in HTML, the input tag can be used to pass parameters.
They are passed as ‘application/x-www-form-urlencoded’ media-type within query parameters
Upon type casting it to ‘application/json’ we can use them in our Mule code

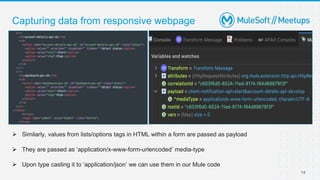

14. Capturing data from responsive webpage
14
Similarly, values from lists/options tags in HTML within a form are passed as payload
They are passed as ‘application/x-www-form-urlencoded’ media-type
Upon type casting it to ‘application/json’ we can use them in our Mule code

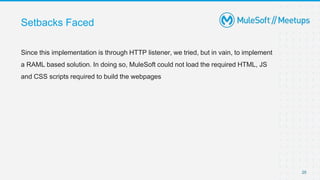

16. Setbacks Faced
Since this implementation is through HTTP listener, we tried, but in vain, to implement
a RAML based solution. In doing so, MuleSoft could not load the required HTML, JS
and CSS scripts required to build the webpages
25
19. Take a stand !
19
● Nominate yourself for the next meetup speaker and suggest a topic as well.
20. 20
● Share:
○ Tweet using the hashtag #MuleSoftMeetups
○ Join Mysore Group: https://meetups.mulesoft.com/mysore/
● Feedback:
○ Fill out the survey feedback and suggest topics for upcoming events
○ Contact MuleSoft at meetups@mulesoft.com for ways to improve the program
○ Reach out to Mysore Meetup Leaders (Shubham/Giridhar) to suggest topics
for next Meetup
What’s next?
21. Get ready to WIN a MuleSoft Voucher from MuleSoft
Quiz Time
