Shanghai Shinho Fiber Communication Co., Ltd. is a manufacturer of fiber fusion splicers and test equipment, boasting strong R&D and production capabilities, including OEM/ODM services. Their products, such as the X-series fiber fusion splicers, feature advanced technology and stable performance, widely used in telecom and fiber optic projects. The company emphasizes reliability, quality assurance, and ongoing innovation in their offerings.

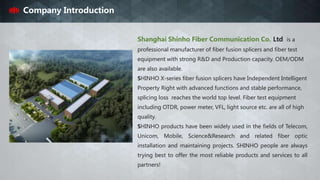

3. Shanghai Shinho Fiber Communication Co. Ltd is a
professional manufacturer of fiber fusion splicers and fiber test
equipment with strong R&D and Production capacity. OEM/ODM
are also available.
SHINHO X-series fiber fusion splicers have Independent Intelligent
Property Right with advanced functions and stable performance,
splicing loss reaches the world top level. Fiber test equipment
including OTDR, power meter, VFL, light source etc. are all of high
quality.
SHINHO products have been widely used in the fields of Telecom,
Unicom, Mobile, Science&Research and related fiber optic
installation and maintaining projects. SHINHO people are always
trying best to offer the most reliable products and services to all
partners!
Company Introduction

4. Organization Structure
Operation DirectorProduction Director
InformationDept.
ProductionDept.
QualityControl
Dept.
QADept.
QCDept.
MachineAss.
OpticalDept.
ElectricDept.
PartsAssembly
Warehouse
Purchase
Dept.
Gerneral Manager
R&D Director
StructuralR&D
Dept.
SoftwareR&D
Dept.
CircuitR&DDept.
SalesDept.
After-sales
Overseassales
Domesticsales
Administrative
Dept.
HRDept.
AdminDept.
FinancialDept.
Mouldfactory

5. R&D and production

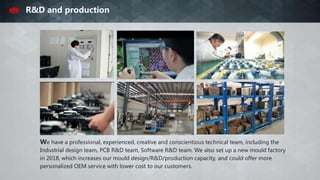

We have a professional, experienced, creative and conscientious technical team, including the
Industrial design team, PCB R&D team, Software R&D team. We also set up a new mould factory
in 2018, which increases our mould design/R&D/production capacity, and could offer more
personalized OEM service with lower cost to our customers.

6. SHINHO PRODUCTS
INTRODUCTION

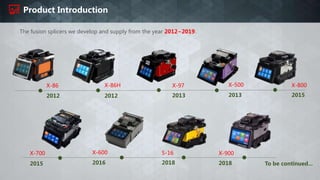

7. The fusion splicers we develop and supply from the year 2012~2019.
Product Introduction
2012 2012 2013 2015
X-86 X-86H X-97
X-600 S-16 X-900
2016 2018 2018 To be continued...
X-500
2013
X-800
X-700
2015

8. Product Introduction
●High definition 5.7' colorful LCD
●4 motors PAS core to core digital alignment
●Intelligent Arc calibration automatically
●360°rubber armor protecting from shock
●Battery supports about 300 cycles splicing and heating
●Specially designed for outdoor FTTx installation & maintaining

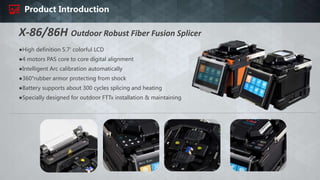

X-86/86H Outdoor Robust Fiber Fusion Splicer

9. Production Introduction

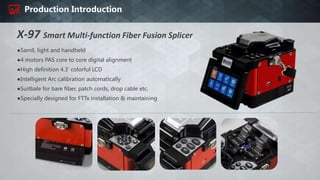

X-97 Smart Multi-function Fiber Fusion Splicer
●Samll, light and handheld
●4 motors PAS core to core digital alignment
●High definition 4.3' colorful LCD
●Intelligent Arc calibration automatically
●Suitbale for bare fiber, patch cords, drop cable etc.
●Specially designed for FTTx installation & maintaining

10. Production Introduction

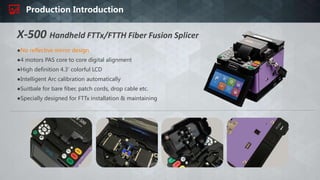

X-500 Handheld FTTx/FTTH Fiber Fusion Splicer
●No reflective mirror design
●4 motors PAS core to core digital alignment
●High definition 4.3' colorful LCD
●Intelligent Arc calibration automatically
●Suitbale for bare fiber, patch cords, drop cable etc.
●Specially designed for FTTx installation & maintaining

11. Production Introduction
●4 motors PAS core to core digital alignment
●6 seconds typical splicing and 26 seconds heating
●Inductive automatic heater, not heating without fibers
●360° rubber armor protects machine from drop & shock
●Suitable for bare fiber, patch cords, drop cable etc.
●Specially designed for FTTx installation & maintaining

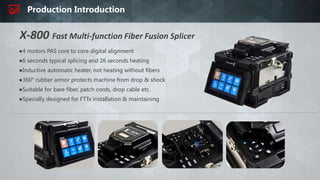

X-800 Fast Multi-function Fiber Fusion Splicer

12. Production Introduction

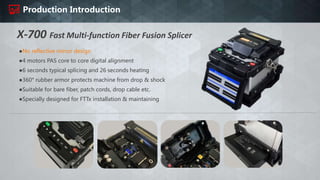

X-700 Fast Multi-function Fiber Fusion Splicer
●No reflective mirror design
●4 motors PAS core to core digital alignment
●6 seconds typical splicing and 26 seconds heating
●360° rubber armor protects machine from drop & shock
●Suitable for bare fiber, patch cords, drop cable etc.
●Specially designed for FTTx installation & maintaining

13. Production Introduction
●Samll, light and handheld
●4 motors PAS digital accurate alignment
●7 seconds typical splicing and 26 seconds heating
●Inductive automatic heater, not heating without fibers
●Suitable for bare fiber, patch cords, drop cable etc.
●Specially designed for FTTx installation & maintaining
X-600 Mini FTTx Fiber Fusion Splicer

14. Production Introduction
●Core to core digital alignment
●Automatic ARC value & fiber position calibration
●6 seconds typical splicing and 18 seconds heating
●High definition colorful LCD with new GUI design
●Industrial design, anti-shock, anti-dust & waterproof
●Suitable for bare fiber, patch cords, drop cable etc.

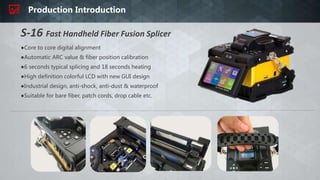

S-16 Fast Handheld Fiber Fusion Splicer

15. Production Introduction
●6 motors accurate core alignment
●Identifying fiber types automatically
●Upgraded CPU with 30% power saving
●6 seconds typical splicing and 16 seconds heating
●Automatic & real-time ARC & fiber position calibration
●Industrial design, anti-shock, anti-dust & waterproof
●Real-time heating temperature monitoring
●Suitable for bare fiber, patch cords, drop cable etc.

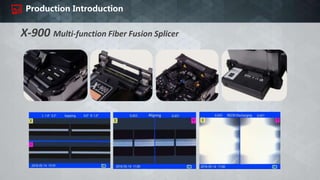

X-900 Multi-function Fiber Fusion Splicer

16. X-900 Multi-function Fiber Fusion Splicer
Production Introduction

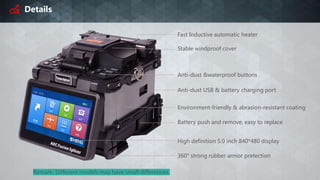

17. Details
Fast Inductive automatic heater
High definition 5.0 inch 840*480 display
360° strong rubber armor pretection
Battery push and remove, easy to replace
Anti-dust USB & battery charging port
Anti-dust &waterproof buttons
Environment-friendly & abrasion-resistant coating
Stable windproof cover
Remark: Different models may have small differences.

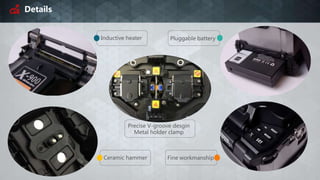

18. Details
Inductive heater
Ceramic hammer
Pluggable battery
Fine workmanship
Precise V-groove desgin
Metal holder clamp

19. Details

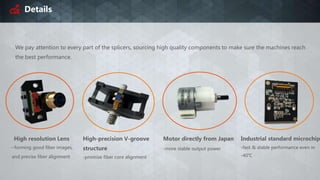

We pay attention to every part of the splicers, sourcing high quality components to make sure the machines reach
the best performance.
High resolution Lens
--forming good fiber images,
and precise fiber alignment
High-precision V-groove
structure
-promise fiber core alignment
Motor directly from Japan
-more stable output power
Industrial standard microchip
-fast & stable performance even in
-40℃

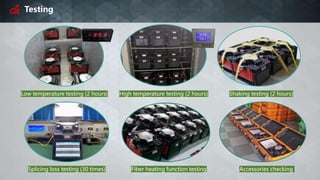

20. Testing Every machine will pass the these testing.
Low temperature testing (2 hours) High temperature testing (2 hours) Shaking testing (2 hours)
Splicing loss testing (30 times) Fiber heating function testing Accessories checking

21. Testing
Anti-shock Anti-dustWaterproof

22. Main specs comparison
Model/
Item
X-86/86H X-97/X-500 X-800/X-700 X-600 S-16 X-900
Applicable fiber
SM, MM,
DS,NZDS, etc.
SM, MM,
DS,NZDS, etc.
SM, MM,
DS,NZDS, etc.
SM, MM,
DS,NZDS, etc.
SM, MM,
DS,NZDS, etc.
SM, MM,
DS,NZDS, etc.
Return loss >60dB >60dB >60dB >60dB >60dB >60dB
Operate mode Manual/Auto Manual/Auto Manual/Auto Manual/Auto Manual/Auto Manual/Auto
Motor number 4 4 4 4 4 6
Splicing time (s) 8 7 6 7 6 6
Heating time (s) 28 26 20 26 18 16
Battery (mAh) 8800 5200 5200 4400 5200 5200
Size(mm)(L*W*H) 190x170x170 149x120x127 160x130x140 200x123x95 160x136x140 156x141x156
Weight (kg) 2.75 1.95 2.20 1.60 2.20 2.45
Rubber armor Yes No Yes No Yes Yes
Magnification 300X 250X 250X 250X 250X 250X
LCD Display 5.7" 4.3" 4.3" 4.3" 4.3" 5.0"
Electrodes lifetime ≥4000 ≥4000 ≥4000 ≥4000 ≥4000 ≥4000
Operating condition Altitude: 0-5000m, Humidity: 0-95%, Temperature: -25℃～+50℃;Wind speed: max 15m/s

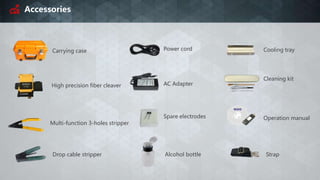

23. Accessories
Carrying case
High precision fiber cleaver AC Adapter
Power cord
Multi-function 3-holes stripper
Spare electrodes
Drop cable stripper Alcohol bottle
Cooling tray
Cleaning kit
Strap
Operation manual

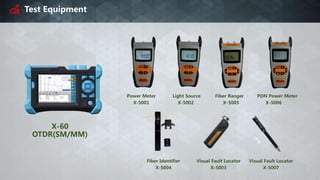

24. Test Equipment
X-60
OTDR(SM/MM)
Fiber Identifier
X-5004
Light Source Fiber Ranger PON Power Meter
X-5002 X-5005 X-5006
Power Meter
X-5001
Visual Fault Locator
X-5003
Visual Fault Locator
X-5007

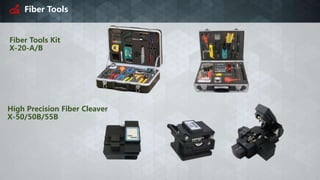

25. Fiber Tools
Fiber Tools Kit
X-20-A/B
High Precision Fiber Cleaver
X-50/50B/55B

26. WHY CHOOSE SHINHO

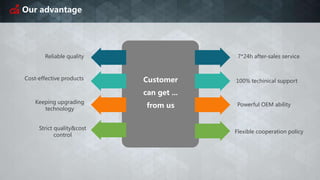

27. 7*24h after-sales service
Customer
can get ...
from us
100% techinical support
Powerful OEM ability
Reliable quality
Cost-effective products
Keeping upgrading
technology
Strict quality&cost
control
Flexible cooperation policy
Our advantage

28. Certificates
Our factory has passed the ISO 9001:2015 Quallity Management System. All of our splicers have
passed CE & RoHS Certificates. And every splicer and test equipment will get a Calibration
Certificate before delivery. Customers can get reliable quality promise from us.

29. SHANGHAI SHINHO FIBER COMMUNICATION CO., LTD
www.xhfiber.com
THANK YOU !
