CQRS recepies HOW TO BUILD YOUR ARCHITECTURE Francesco Garavaglia 04/2016
2 About me  over 10 years of experience in IT consulting companies.  Took part in large scale projects  Energy Markets  Bank  Insurance  Pay attention to Software architecture and Business value  Photographer  High-Aggressive-I-eat-you-German-Shepherd-Protected-by  LinkedIn Page: https://it.linkedin.com/in/francesco-garavaglia-3333653b About me

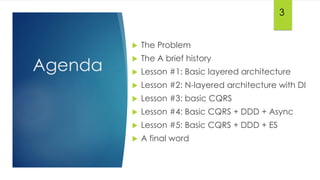

Agenda  The Problem  The A brief history  Lesson #1: Basic layered architecture  Lesson #2: N-layered architecture with DI  Lesson #3: basic CQRS  Lesson #4: Basic CQRS + DDD + Async  Lesson #5: Basic CQRS + DDD + ES  A final word 3
What problems are we trying to solve? 4
Typical ”Fitting- all” architecture Client Remote Facade Application Service Data Access Layer Data Storage Domain Object Domain Object DTO DTO Infrastructure(log,security,etc.) The Problem
6 Typical ”Fitting-all” architecture  You can find it on microsoft web site: Layered Application Guidelines: http://msdn.microsoft.com/en-us/library/ee658109  If microsoft says «Use it», it’s obviously the best practice The Problem
What’s wrong? 7
8 Nothing
Thanks FRANCESCO.GARAVAGLIA@GMAIL.COM
10
11 Wait, Breath & re-think
12 Typical ”Fitting-all” architecture Client Remote Facade Application Service Data Access Layer Data Storage Domain Object Domain Object DTO DTO Infrastructure(log,security,etc.) What’s wrong:  Temporal coupling  Physical coupling (inteconnected objetcs)  Scalability not considered at the core of the design (scalability gets hacked in too late)  Mapping DB structures up to UI The Problem
13 Many perspectives on data Customer Online Ordering System Pricing Inventory Sales Product Unit Price Promotional Price Promotion End Date Stock Keeping Unit (SKU) Quantity On Hand (QOH) Location Code Price Quantity Ordered Name What about the lifecycles for the data? The Problem
14 One big model to capture it ALL …. ….. ….. …. ….. ….. …. ….. ….. …. ….. ….. The Problem
16 My Treasure ONE MODEL TO RULE THEM ALL ONE MODEL TO FIND THEM ONE MODEL TO BRING THEM ALL AND IN THE DARKNESS BIND THEM The Problem
17 The database determines our scalability The Problem
18 And databases often scale poorly To solve the performance problems for a few, you have to upgrade it all The Problem
19 Alternatively we can use Read replicas Master Slave SlaveSlaveSlave You’re now eventually consistent The Problem
20 Or introduce caching… What’s your synchronization mechanism? ? The Problem
21 Typical causes:  Too many layers  Big data models  Anemic domain model  Focus on frameworks instead of on the domain  Scalability not considered at the core of the design (scalability gets hacked in too late) Time Complexity Complexity of code and solution The Problem
22 Try new Solution The Problem
Architecture Pyramid 23 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc.
What about software???? 24A brief history
A brief history A brief history: Once upon a time.... 25
A brief history One upon a time, a marketing team came in to announce to developers what they have sold 26
27 A brief story  We need an e-commerce portal  We need now  Do it fast  We need every features:  Order  Product catalog  Suppliers  Available for all devices in the world A brief history
A brief history Developers have started their work.... 28
A brief history Developers continue their works.... 29
A brief history After a while... 30

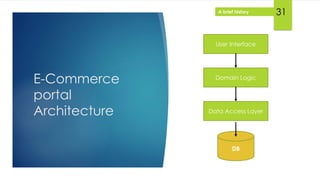

A brief history E-Commerce portal Architecture User Interface Domain Logic Data Access Layer DB 31
A brief history But another feature was asked by the business... 32
... And developers start to work again... 33A brief history
A brief history ... After one year... 34
A brief history The Monolith appears! 35

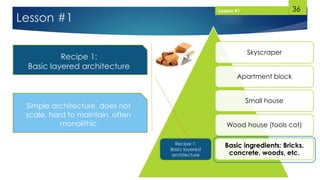

36 Lesson #1 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc. Simple architecture, does not scale, hard to maintain, often monolithic Recipe 1: Basic layered architecture Recipe 1: Basic layered architecture Lesson #1
37 Basic Layered Architecture Ingredients Basic coding skills Some infrastructure pieces (DB, etc.) Difficulty: Time: from 25 min to infinity Preparation: Just throw basic code skills in. Mix it up with a database and UI and everything will be fine Client reviews • Can be set up very quickly • Easy to understand • No need for experienced developers. Juniors can make it • Leads quickly to unmaintainable monolith code blocks • Not easily evolvable for quickly changing business requirements • Not scalable • Low perfomances if charge gets bigger • Not testable. You’d better have end-to-end integration tests Lesson #1
Lesson #1 We need a refactor!!! 38
Lesson #2 How do we refator a monolith? 39
Lesson #2  Decouple every component  Evolve domain independently.  Handle business needs easier 40
Lesson #2  Decouple every component  Handle business logic in isolated domain  Write unit test because every change is a breaking one  We have to think it over, but for now let’s wrap up what we’ve learnt 41
42 Decoupling  Let’s decouple from DB:  Let’s decouple from everything else  «Is the best-practice recommended by Microsoft» Entity Framework Unity Lesson #2
Lesson #2 Business asks for more features for Orders, Suppliers, stuff.... 43
Lesson #2 We need a refactor!!! 44
Lesson #2 Add more Layers!!!! 45
46 Decoupling (2) Lesson #2
47 Layered Architecture v.2 UI OrderViewModel Order OrderController OrderMapper IOrderMapper SqlOrderRepository IOrderRepository DB PresentationDomainInfrastructure public class OrderController { public OrderController ( IOrderValidator order validator, IOrderMapper orderMapper, IOrderRepository orderRepository ISupplierRepository supplierRepository IAuthorizationFactory authorizationFactory, IUnitOfWork unitOfWork, IUserFactory userFactory ISession session, ILogger logger, IOrderCache orderCache) { } } Lesson #2
Lesson #2 We need more data on UI and different views per user or device... 48
49 But...  But our model doesn’t support it  Every time we add a new view our model is broken…  Views are slower. Users complain… Lesson #2
50 Lesson #2 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc. Simple architecture, does not scale, hard to maintain, often monolithic Recipe 1: Basic layered architecture Recipe 2: n-layered architecture with DI Domain centric, refactorable and evolvable Lesson #2
51 N-Layered architecture with DI Ingredients OOP skills With SOLID principles would be event better ORMs and IOCs Some infrastructure pieces (DB, etc.) Difficulty: Time: Reasonable Preparation: One must know OOP concepts and the best would be also to be aware of SOLID principles… Client reviews • Can be set up rather quickly • Easy to understand • Can be tested • Can lead to unmaintainable monolith code blocks • Not easily evolvable for quickly changing business requirements • Not scalable • Low perfomances if charge gets bigger Lesson #2
Lesson #3  Read and Write from separate logics  CQRS 53
Lesson #3 CQRS? 54

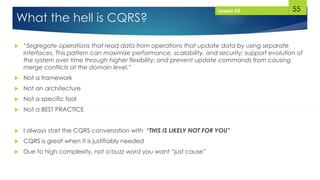

55 What the hell is CQRS?  “Segregate operations that read data from operations that update data by using separate interfaces. This pattern can maximize performance, scalability, and security; support evolution of the system over time through higher flexibility; and prevent update commands from causing merge conflicts at the domain level.”  Not a framework  Not an architecture  Not a specific tool  Not a BEST PRACTICE  I always start the CQRS conversation with “THIS IS LIKELY NOT FOR YOU”  CQRS is great when it is justifiably needed  Due to high complexity, not a buzz word you want “just cause” Lesson #3
56 What the hell is CQRS?  CQS (Command Query Separation) applied to Architecture  Split Read from Write stuff  CQRS ends up being a composition of tools and concepts  No two CQRS implementations are identical Users decide actions according to the real world experience (things they know which are not in the system) and read Model Humans decide according to different sets of info (ex: faces, pictures, surnames, ecc) CQS: Command Query Separation • Command methods change state • Query methods read state • One object in code for state change and querying works • Using the same data store is ok • Supports shared schema with read replica concepts Lesson #3
57 What is CQRS?  CQRS: Command & Query Responsibility Segregation “Two objects where there once was one”  Command objects change state  Query objects read state  Two objects represented in code  One for state change  One for querying data  Decoupled model for different concerns Lesson #3 public class UserWriteService { // Commands public void Move(User user, string newAddress); //... } public class UserReadService { // Queries public User GetUser(int userId); //... }
58 Segregation opens doors  Scale reads from writes independently  Remove contention  Decouple read model from write model  Different data shapes  Flexibility in modeling different concerns  Ability to capture with why the state changed  Not just changing the state Lesson #3
59 CQRS: Command  Message  Handler changes state  Always returns void (nothing)  Commands encapsulate the user’s intent but do not contain business logic,  Not a CRUD style operation Lesson #3 public class MoveCustomerCommand : Command { public Address NewAddress { get; set; } } public class CustomerHandler IHandleMessage<MoveCustomerCommand> { public void Handle(MoveCustomerCommand cmd) { …. } }
60 CQRS: Query  Does not change state  Has return value  Also a type of message Lesson #3
61 CQS vs. CQRS: Feature matrix CQS CQRS Zero coupling between domain logic (state) and reporting (read) concerns X More robust scalability options X Decouples domain concerns from display concerns X Object model specific to its responsibility X Different data stores/shapes for domain logic and reporting concerns X Option to performance optimize data storage for write and read layer(s) X X Can be used with a message based architecture X X Easy deployment story X Less code complexity X Less pieces to manage X Coupled read and write model X Lesson #3
62 How does CQRS work? Lesson #3 Create Order Change Address CommandBus Command captures the intent of the user After database is updated, publish result to view model Query Event Bus A queue can be utilized to optimize write performance Scale out as many copies as needed Persistent View Model schema matches UI view model Domain Handles Commands
63 CQRS in code  Abstract interfaces for Command and Query public interface ICommand { } public interface ICommandHandler<in TCommand> where TCommand : ICommand { void Execute(TCommand command); } public interface ICommandDispatcher { void Execute<TCommand>(TCommand command) where TCommand : ICommand; } public interface IQuery<TResult> { } public interface IQueryHandler<in TQuery, out TResult> where TQuery : IQuery<TResult> { TResult Execute(TQuery query); } public interface IQueryDispatcher { TResult Execute<TQuery, TResult>(TQuery query) where TQuery : IQuery<TResult>; } public class CommandDispatcher : ICommandDispatcher { private readonly IDependencyResolver _resolver; public CommandDispatcher(IDependencyResolver resolver) { _resolver = resolver; } public void Execute<TCommand>(TCommand command) where TCommand : ICommand { if(command == null) { throw new ArgumentNullException("command"); } var handler = _resolver.Resolve<ICommandHandler<TCommand>>(); if (handler == null) { throw new CommandHandlerNotFoundException(typeof(TCommand)); } handler.Execute(command); } } Lesson #3
64 CQRS in code  Implementation for SignOn: public class SignOnCommand : ICommand { public AssignmentId Id { get; private set; } public LocalDateTime EffectiveDate { get; private set; } public SignOnCommand(AssignmentId assignmentId, LocalDateTime effectiveDate) { Id = assignmentId; EffectiveDate = effectiveDate; } }  To execute: _commandDispatcher.Execute(new SignOnCommand(new AssignmentId(rawId), effectiveDate)); public class SignOnCommandHandler : ICommandHandler<SignOnCommand> { private readonly AssignmentRepository _assignmentRepository; private readonly SignOnPolicyFactory _factory; public SignOnCommandHandler(AssignmentRepository assignmentRepository, SignOnPolicyFactory factory) { _assignmentRepository = assignmentRepository; _factory = factory; } public void Execute(SignOnCommand command) { var assignment = _assignmentRepository.GetById(command.Id); if (assignment == null) { throw new MeaningfulDomainException("Assignment not found!"); } var policy = _factory.GetPolicy(); assignment.SignOn(command.EffectiveDate, policy); } } Lesson #3
65 CQRS in code  Query Dispatcher: public class QueryDispatcher : IQueryDispatcher { private readonly IDependencyResolver _resolver; public QueryDispatcher(IDependencyResolver resolver) { _resolver = resolver; } public TResult Execute<TQuery, TResult>(TQuery query) where TQuery : IQuery<TResult> { if (query == null) { throw new ArgumentNullException("query"); } var handler = _resolver.Resolve<IQueryHandler<TQuery, TResult>>(); if (handler == null) { throw new QueryHandlerNotFoundException(typeof(TQuery)); } return handler.Execute(query); } } Lesson #3
66 CQRS in code  Adding more pseudo-aspects: public class TransactionalCommandDispatcher : ICommandDispatcher { private readonly ICommandDispatcher _next; private readonly ISessionFactory _sessionFactory; public TransactionalCommandDispatcher(ICommandDispatcher next, ISessionFactory sessionFactory) { _next = next; _sessionFactory = sessionFactory; } public void Execute<TCommand>(TCommand command) where TCommand : ICommand { using (var session = _sessionFactory.GetSession()) using (var tx = session.BeginTransaction()) { try { _next.Execute(command); tx.Commit(); } catch { tx.Rollback(); throw; } } } } Lesson #3
67 Architecture v3 Lesson #3
Lesson #3  Wow, the speed of views has increased!  We can scale up read and write side independently  Easy to handle more business request about views and queries in denormalized DB 68
Lesson #3 Even of it’s better we still have problems Why we have impacts between different business lines? Why it takes so much time for a new feature? And we always don’t get exactly what we want. There is always a confusion. 69
70 Lesson #3 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc. Simple architecture, does not scale, hard to maintain, often monolithic Recipe 1: Basic layered architecture Recipe 3: Hexagonal with basic CQRS Decoupled and easy to integrate with external systems Domain centric, refactorable and evolable Recipe 2: N- layered architecture with DI Lesson #3

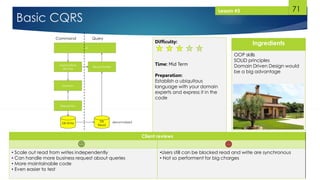

71 Basic CQRS Ingredients OOP skills SOLID principles Domain Driven Design would be a big advantage Difficulty: Time: Mid Term Preparation: Establish a ubiquitous language with your domain experts and express it in the code Client reviews • Scale out read from writes independently • Can handle more business request about queries • More maintainable code • Even easier to test •Users still can be blocked read and write are synchronous • Not so performent for big charges Lesson #3
Lesson #4 Where do we put the major effort? 72
What is the strategic advantage for the company? 73Lesson #4
But how do we find the best model for a business… 74Lesson #4
Lesson #4  Ask to the Business 75
Lesson #4  Event Storming = Domain Discovery tool of the business 76
77 Event Storming  Event Storming is a fun way of bringing developers and business experts together and drive your analysis from the outside and quickly explore complex business domains in hours instead of days/weeks. Event Storming (or Model storming) is a way of starting your analysis from the outside and quickly explore complex business domains. Invented by Alberto Brandolini See http://ziobrando.blogspot.dk/2013/11/introducing- event-storming.html Lesson #4
Lesson #4 Finally, Events! We think only about them! 78
Lesson #4  One Event, One handler: the aggregates  Event + Aggregates = DDD 79
80 Domain Driven Design  I’s not a technology or a metodology: I’s a set o principles and patterns for focusing design effort where it matter most.  It’s much more than events  Ubiquitous language  Bounded Context  Context map  Model  Domain event  Aggregates Application Bounded Context Business Compon ent Autonomous Business Component Lesson #4
81 Domain Driven Design  Domain:  A Domain is a Sphere of Knowledge, Influence or Activity  A Domain is represented by the Ubiquitous Language  A Domain encapsulates a Domain Model  A Domain lives within a Bounded Context  Ubiquitous language  A major reason for failure of software projects is a failure of people, the failure to communicate  The Ubiquitous Language is a shared language between the business and the development teams  The UL comes from the business, and is enriched by the development teams  Domain Experts  Domain Experts are the primary point of contact the development teams have with the business  They are the Experts on their part of the business, not just users of the system  They should have deep knowledge of the subject Domain Lesson #4
82 Domain Driven Design  Entities:  Entities are the “things” within your Model  An Entity is defined by being unique, and uniquely identifiable  Value Objects:  Value Objects are the “things” within your model that have no uniqueness  They are equal in all ways to another Value Object if all their properties match  Value Objects are interchangeable  Domain Model:  A Domain Model is a representation of the relationships between the Entities and Value Objects in your Domain  It may look similar to UML or a class relationship diagram, but it is not one  SEVERAL MODELS!!!!  The Domain Model should be recognisable and understandable by the business Lesson #4
83 Domain Driven Design  Aggregates:  “An aggregate is a collection of items that are gathered together to form a total quantity” - Wikipedia  An Aggregate Root is the root item containing a number of parts that form a whole  An AR is more likely to match a Use Case than any model structure  Bounded Contexts  When you have multiple models you should consider Bounded Contexts  Each BC is a self contained “mini application” containing it’s own model, persistence and code base  To map between BCs you use a Context Map  Anti-Corruption Layer  An Anti-Corruption Layer is a method to isolate two systems, allowing systems to be integrated without knowledge of each other  An ACL presents a Facade to both systems, defined in terms of their specific models  ACLs maintain the integrity of a Domain Lesson #4
84 Domain Driven Design  Events:  describe changes in the system state  An Event Bus can be utilized to dispatch events to subscribers  Events primary purpose update the read model  Events can also provider integration with external systems  CQRS can also be used in conjunction with Event Sourcing. Event Sourcing Captures all changes to an application state as a sequence of events. The current state is constructed by applying the events in the order they were recorded. Not only does it give us the current state, but we can also use the event log to reconstruct past states, and as a foundation to automatically adjust the state to cope with retroactive changes. Summarized from Martin Fowler – http://martinfowler.com/eaaDev/EventSourcing.html Lesson #4
85 Hexagonal architecture or Port and Adapter  Ports are API or contracts in and out of the domain  Adapters translate between Ports and external dependencies  Swap out external dependencies implementation using different adapters or using mocks Domai n UI API Data Store External Services Ports Adapters Lesson #4
86 The Domain at the center of everything  Push everything to the sides and concentrate on the middle  For big app components => Hexagonal architecture to split into smaller chunk  Either monolithic app or micro-services Lesson #4

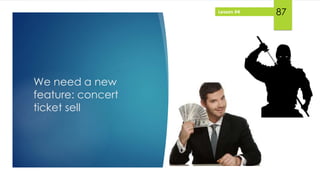

Lesson #4 We need a new feature: concert ticket sell 87
Lesson #4  Done 88
Lesson #4 System is unusable: users are blocked 89
Lesson #4 WTF… 90
91
Lesson #4  Express business intent in commands and facts in events  Command, it’s business intent like “Place Order”  Event, it’s business immutable fact like “OrderPlaced”  Make events asynchronous 92
93 Different architectures Composite UI UI Data Access Layer Web / Application Tier Background server Tier Storage Tier DDD layered application Write model Read model Legacy application Domain A Domain B Domain C Domain D CRUD architecture (simple non-core domain functionality) DDD (core domain functionality) CQRS (core domain functionality) Legacy subsystem Lesson #4
94 Domain Repository DB Write Read Model Application service DB Read UI Command Handler Event Bus Read model generator Another context application Command Event Dependency Architecture v4 Lesson #4 Command Bus
95 Domain Repository DB Write Read Model Application service DB Read DB Write Read ModelApplication service DB Read Command Handler Command Bus Event Bus Read model generator ACL Command Handler Domain Repository Read model generator UI Command Event Dependency Architecture v4.1 Lesson #4
96 Domain Repository DB Write Read Model Application service DB Read DB Write Application service UI Command Handler Command Bus Event Bus Read model generator ACL Command Handler Domain Repository Command Event Dependency Architecture v4.2 Lesson #4
Lesson #4 There is a trap  Views are not refreshed immediately  Event syncronization 97
Lesson #4 98 There is a trap  event synchronization
99 Write side Read side UI Write Model DB Write Read Model DB Read Update write side data store Update read side data store Read data Transaction Scope Event synchronization Lesson #4

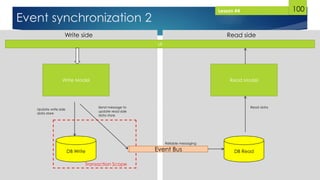

100 Write side Read side UI Write Model DB Write Read Model DB Read Update write side data store Send message to update read side data store Read data Transaction Scope Event Bus Reliable messaging Event synchronization 2 Lesson #4
Lesson #4 I would like to know if user before placing an Order removes Items if we propose them more useful articles with our recommendation system 101
102 But...  We don’t have a History Lesson #4

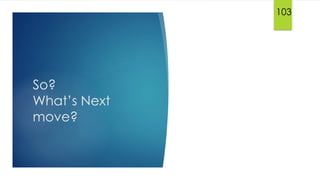

So? What’s Next move? 103
105 Lesson #4 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc. Simple architecture, does not scale, hard to maintain, often monolithic Recipe 1: Basic layered architecture Receipe 4: Hexagonal with CQRS + DDD Easily scalable and high performances Domain centric, refactorable and evolable Recipe 2: N- layered architecture with DI Decoupled and easy to integrate with external systems Receipe 3: Hexagonal with basic CQRS Lesson #4
106 Basic CQRS + DDD + Async Ingredients Good OOP skills SOLID principles Domain Driven Design modeling Good knowledge of messaging infrastructure Difficulty: Time: Long Term Preparation: Gather business intent in form of Commands, map it to business events and synchronize everything async Client reviews • Handles concurrent domains • Scale out read from writes independently • Can handle more business request about queries • Business process explicit • Even easier to test • Many moving parts • Sometimes integration points between systems are harder to grasp • Bad things can happen if no integration events command are stored Domain Repositor y DB Write Read Model Application service DB Read DB Write Application service UI Command Handler Command Bus Event Bus Read model generator ACL Command Handler Domain Repositor y Lesson #4
Lesson #5  All you need to do is using your events 10 7
Lesson #5 But for legal thing, we would like an audit log system 10 8
Lesson #5 We need a time machine… 10 9
110 Order Order line Item Shipping information Order Created Added 2 items 245 Added 3 items 455 Removed 2 items 245 Added shipping info Order placed Event Sourcing  Event as a storage mechanism Lesson #5
111 Order Created Added 2 items 245 Added 3 items 455 Removed 2 items 245 Added shipping info Order placed Snapshot Put on stack Added 3 items 455 Removed 2 items 245 Added shipping info Order placed Snapshot Event Sourcing: Rolling snapshot Lesson #5
112 Domain Event Store Read Model Application service DB Read UI Command Handler Command Bus Event Bus Read model generator Another context application Command Event Dependency Architecture v5 Lesson #5
113 Domain Event Store Read Model Application service DB Read DB Write Read ModelApplication service DB Read UI Command Handler Command Bus Event Bus Read model generator ACL Command Handler Domain Repository Read model generator Command Event Dependency Architecture v5.1 Lesson #5
114 Domain Event Store Read Model Application service UI Command Handler Command Bus Event Bus Another context application Command Event Dependency Event Sourcing Lesson #5
Lesson #5 Our system seems to be on the right track now!! 115

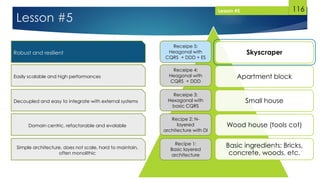

116 Lesson #5 Skyscraper Apartment block Small house Wood house (tools cot) Basic ingredients: Bricks, concrete, woods, etc. Simple architecture, does not scale, hard to maintain, often monolithic Recipe 1: Basic layered architecture Domain centric, refactorable and evolable Recipe 2: N- layered architecture with DI Decoupled and easy to integrate with external systems Receipe 3: Hexagonal with basic CQRS Easily scalable and high performances Receipe 4: Heagonal with CQRS + DDD Robust and resilient Receipe 5: Heagonal with CQRS + DDD + ES Lesson #5
117 Basic CQRS + DDD + ES Ingredients Good OOP skills SOLID principles Domain Driven Design modeling Good knowledge of messaging infrastructure Functional thinking Difficulty: Time: Long Term Preparation: Make your events talk Client reviews • Handles concurrent domains • Scale out read from writes independently • Can handle more business request about queries • Business process explicit • Audit log, testing and infinite business views on data • Many moving parts • Sometimes integration points between systems are harder to grasp • Bad things can happen if no integration events command are stored Domain Event Store Read Model Application service DB Read DB Write Read Model Application service DB Read UI Command Handler Command Bus Event Bus Read model generator ACL Command Handler Domain Repository Read model generator Lesson #5
THIS IS CQRS
119 What CQRS is not? A final word
120 Is CQRS for me?  What kind of problem do I try to solve ?  Collaborative domain  Locking the data without blocking the user  Read data scalability  Performance optimization  Complex workflows / Temporal data / Stale data A final word

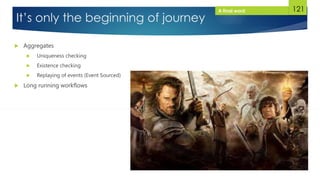

121 It’s only the beginning of journey  Aggregates  Uniqueness checking  Existence checking  Replaying of events (Event Sourced)  Long running workflows A final word
122 Referencials  Greg Young’s Simplest Solution: https://github.com/gregoryyoung/m-r  Simple CQRS demo approach: https://www.youtube.com/watch?v=tTbHR5KScEE  Fowler’s book  DDD book by Eric Evans [Blue Book]  DDD book by Vernon [Red Book] A final word
Thanks FRANCESCO.GARAVAGLIA@GMAIL.COM
