Introduction to problem solving skill for software engineering. Including: - Problem definition - Ladder of abstraction - Causal Analysis - Trade-off Analysis - Separation Principles

1. Filling in the gap
between realities
A guide to problem solving
for software engineers
Grokking -Thanh Dinh 26/02/2022

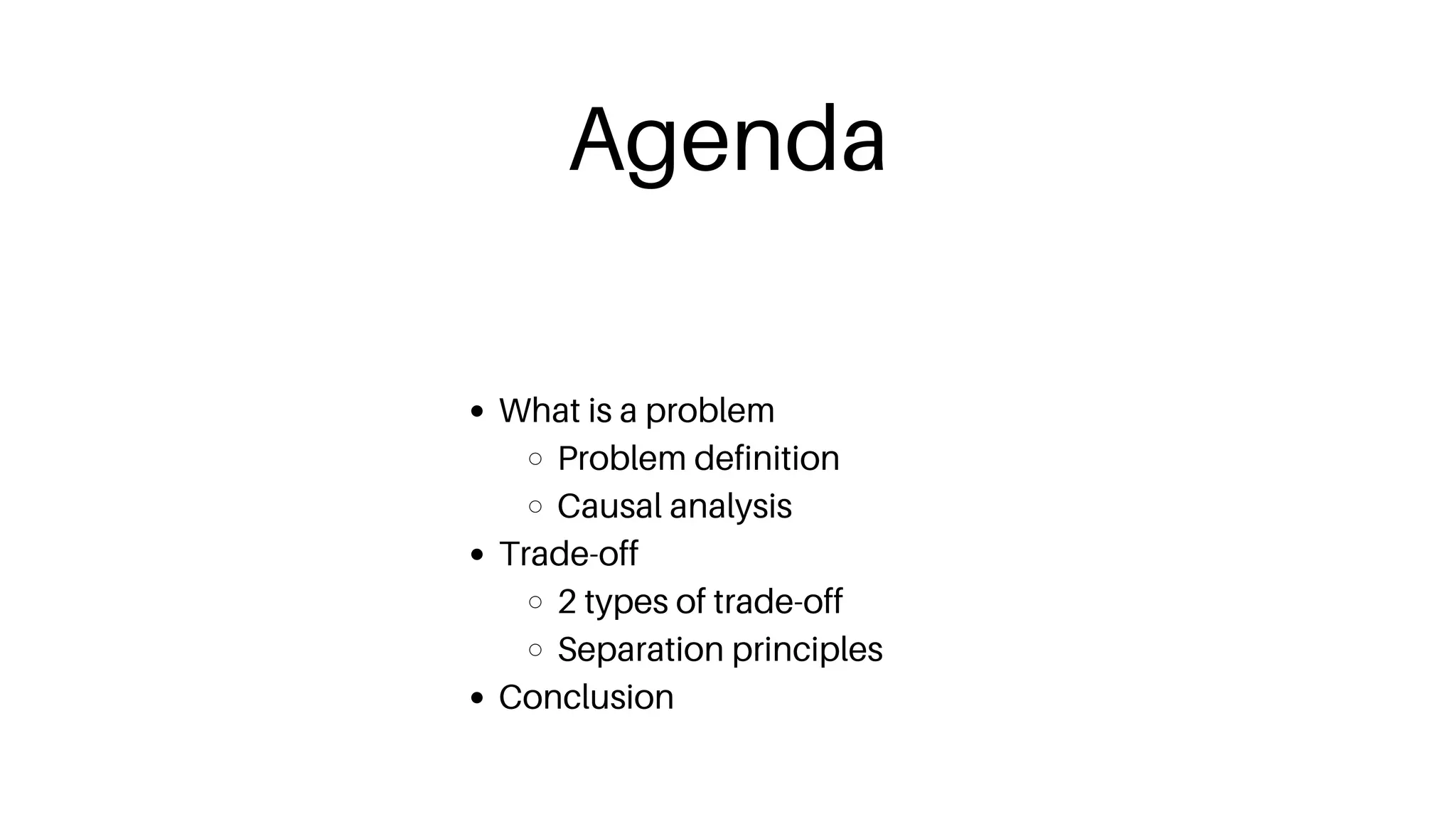

2. Agenda
What is a problem
Problem definition
Causal analysis
Trade-off
2 types of trade-off
Separation principles
Conclusion

3. What is a problem?
A tale of two realities

4. The elevator
problem
Lengthy elevator wait
People in an office building started to
complain to building management
about the long wait time for elevators.
As part of office building staff, you are
tasked with solving this problem. How
do you solve it?

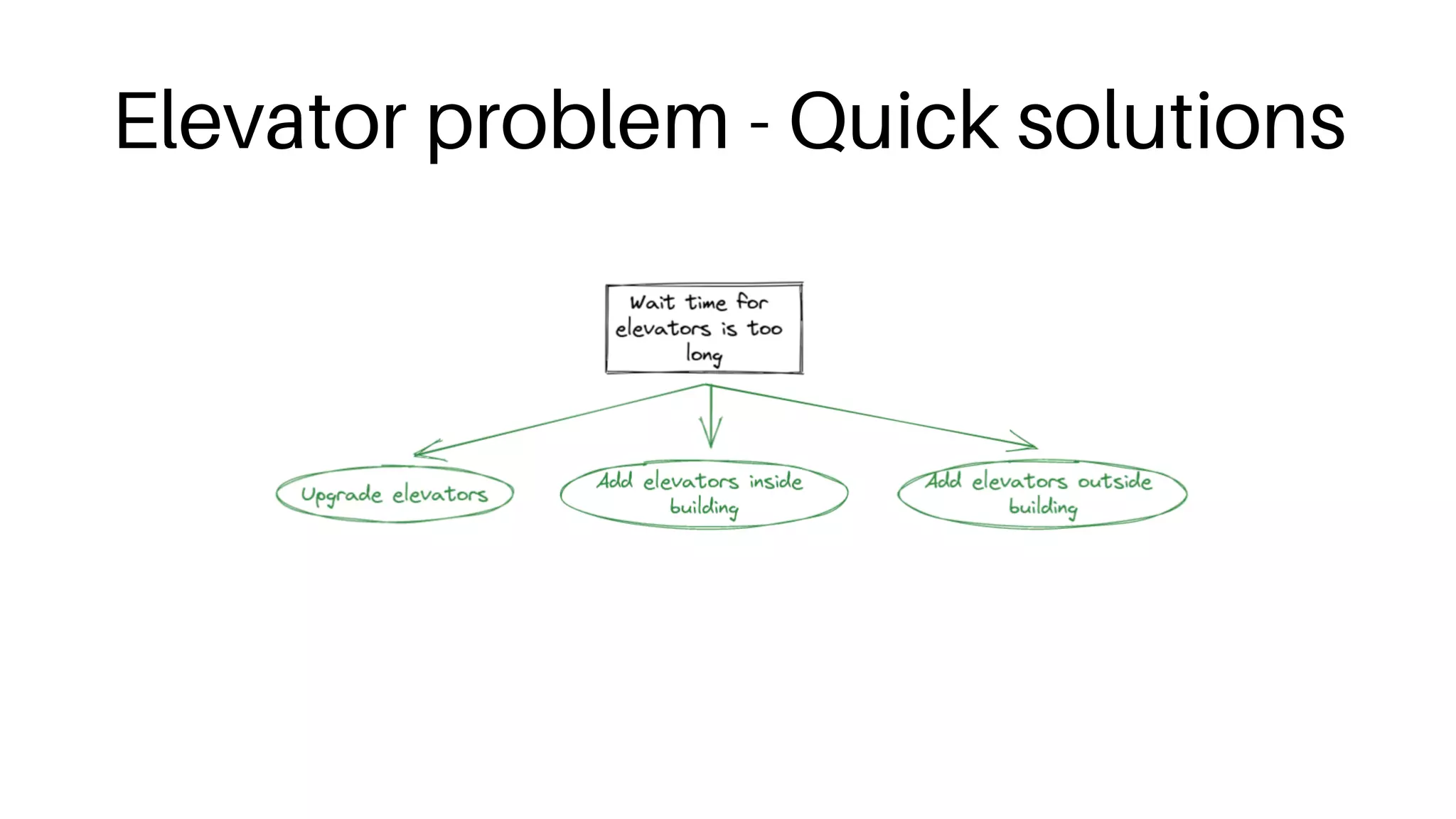

5. Elevator problem - Quick solutions

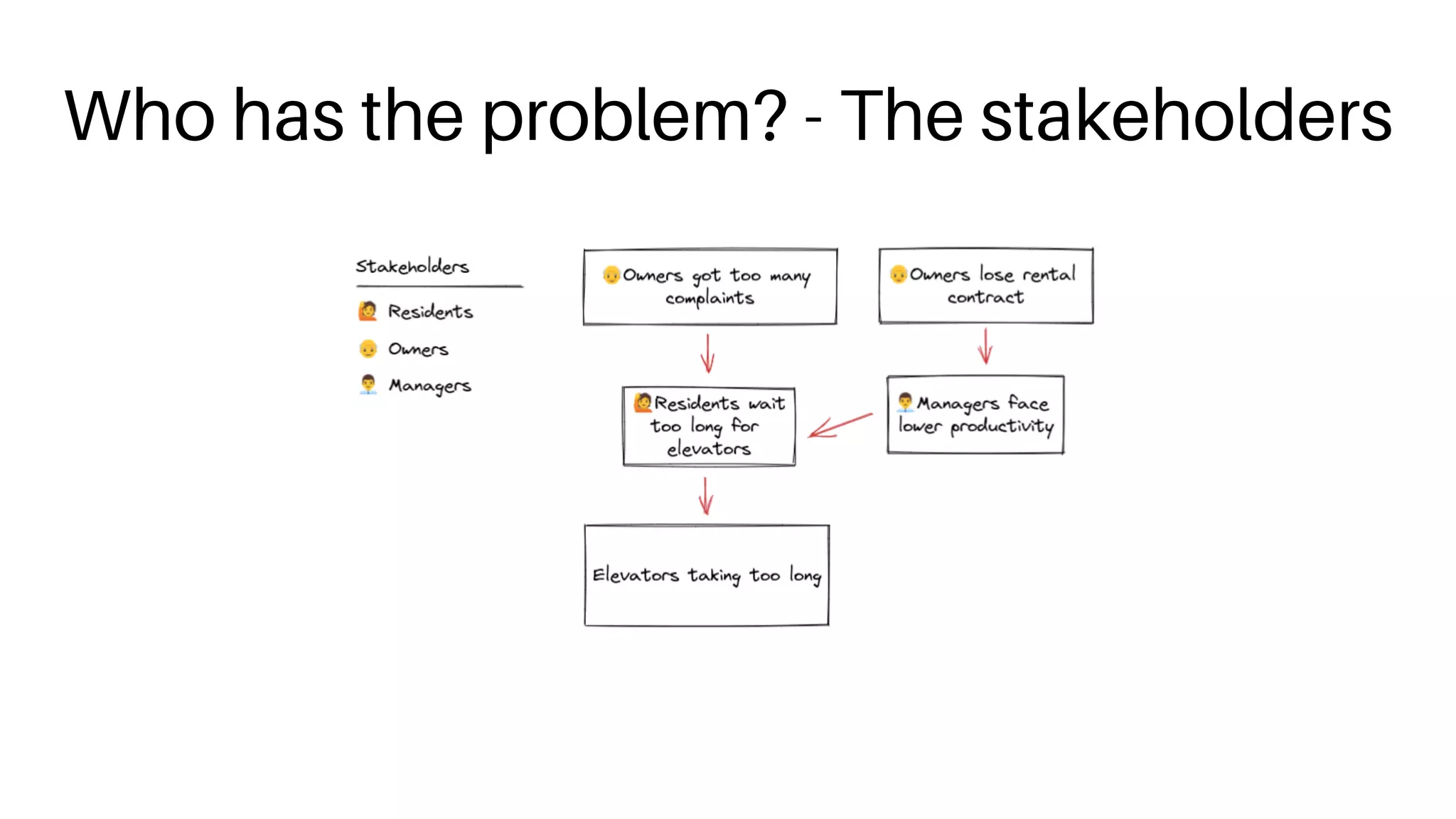

6. Who has the problem? - The stakeholders

7. Stakeholders - Clients vs Users

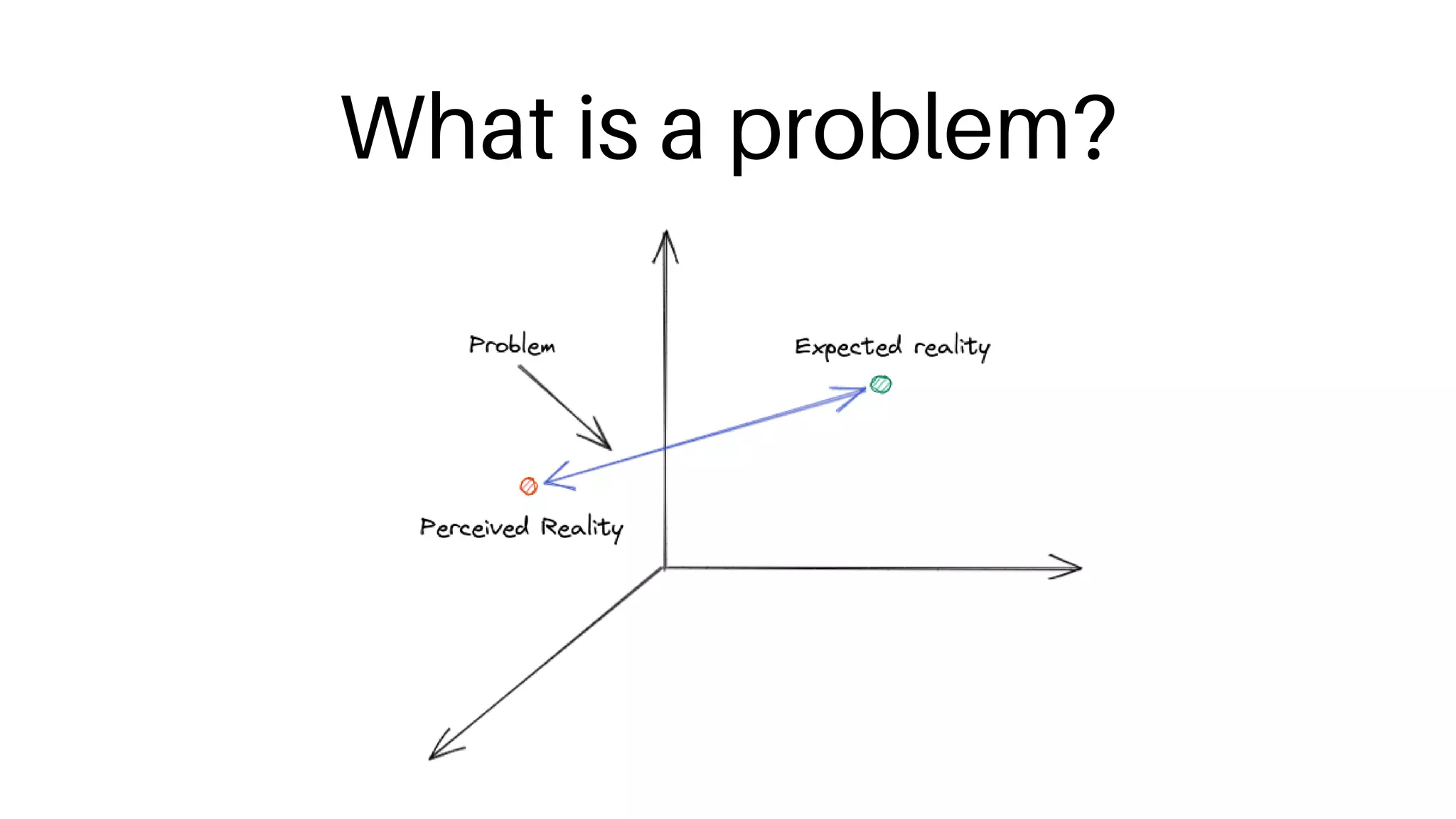

8. What is a problem?

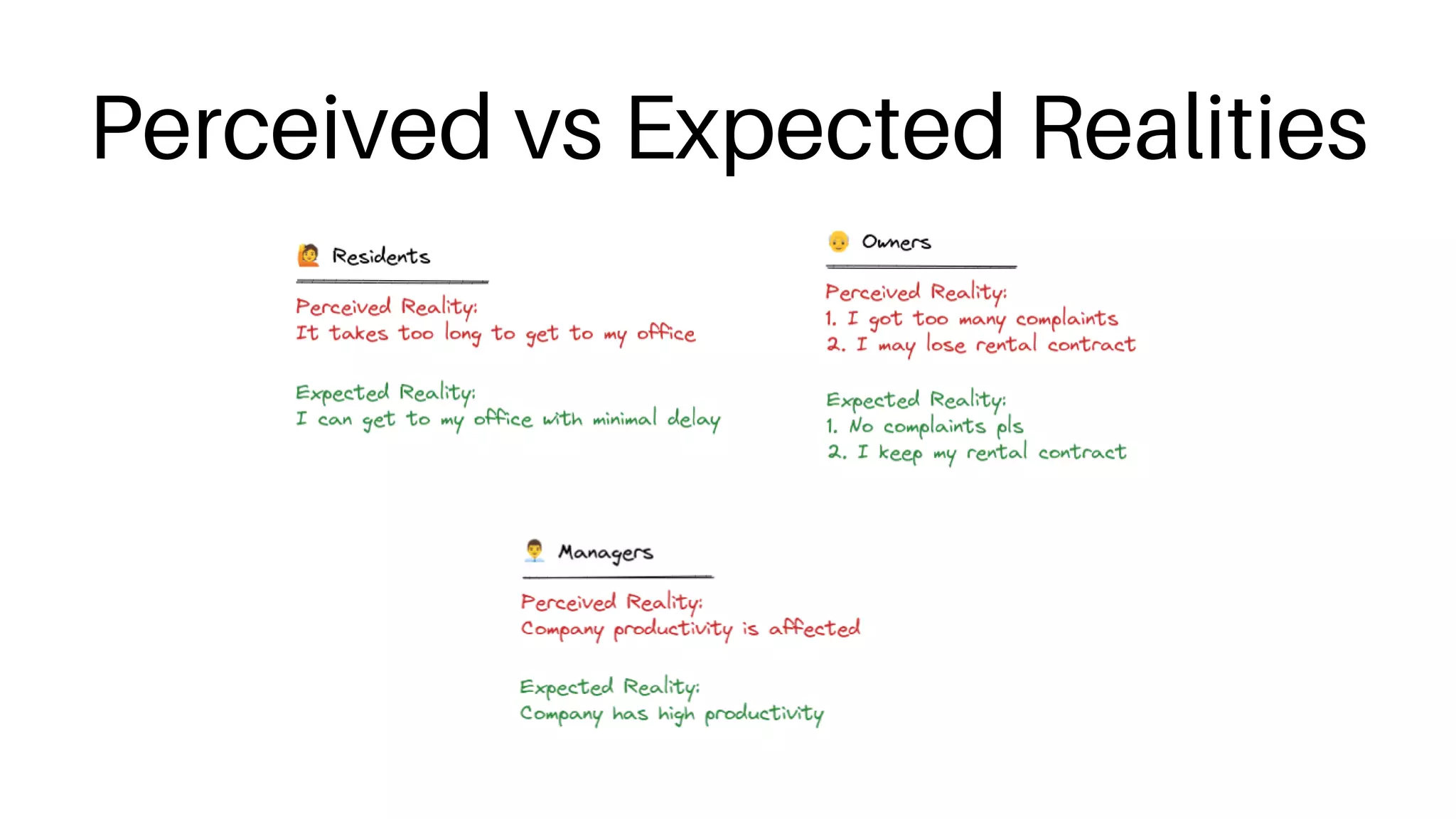

9. Perceived vs Expected Realities

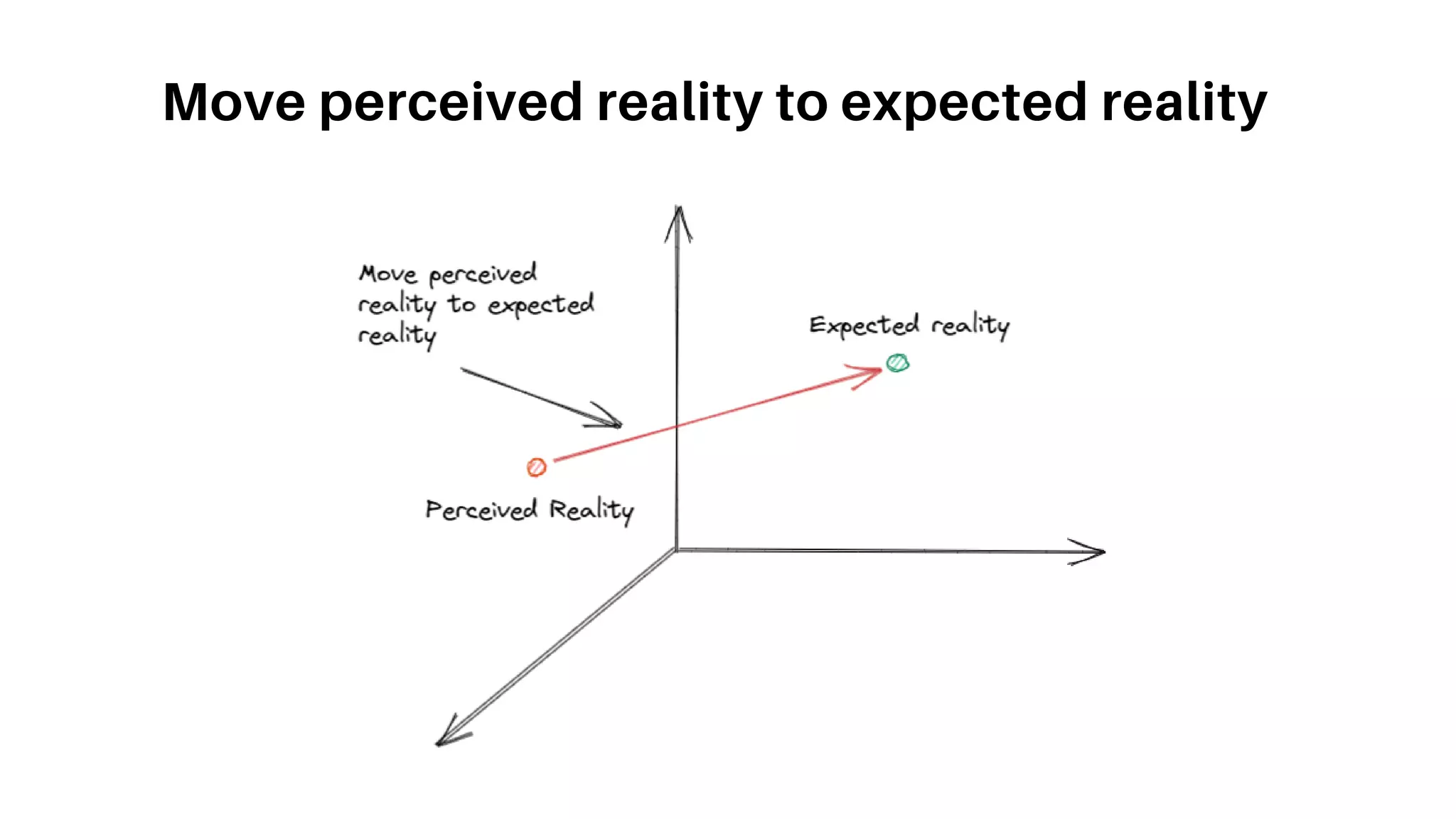

10. Move perceived reality to expected reality

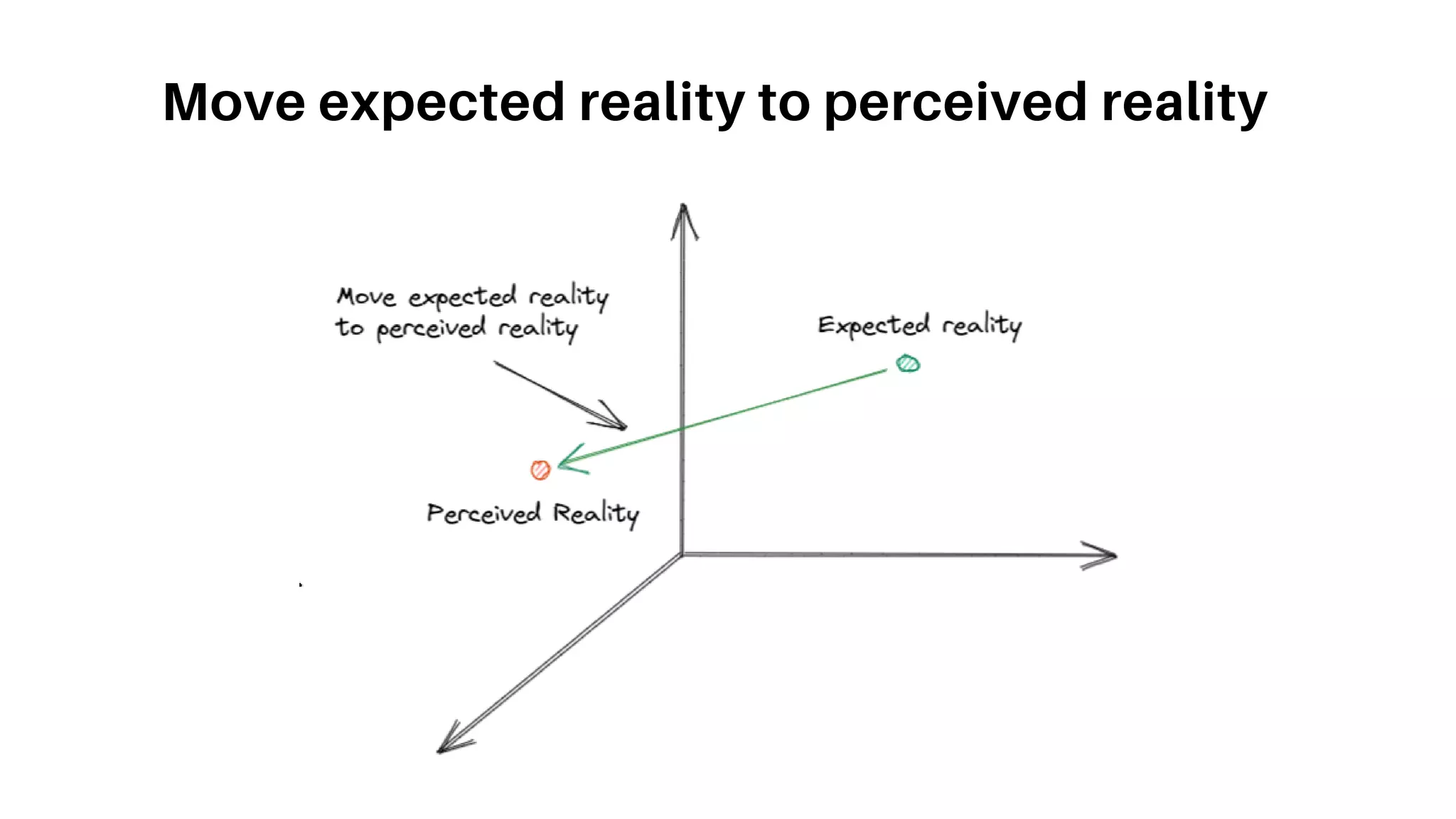

11. Move expected reality to perceived reality

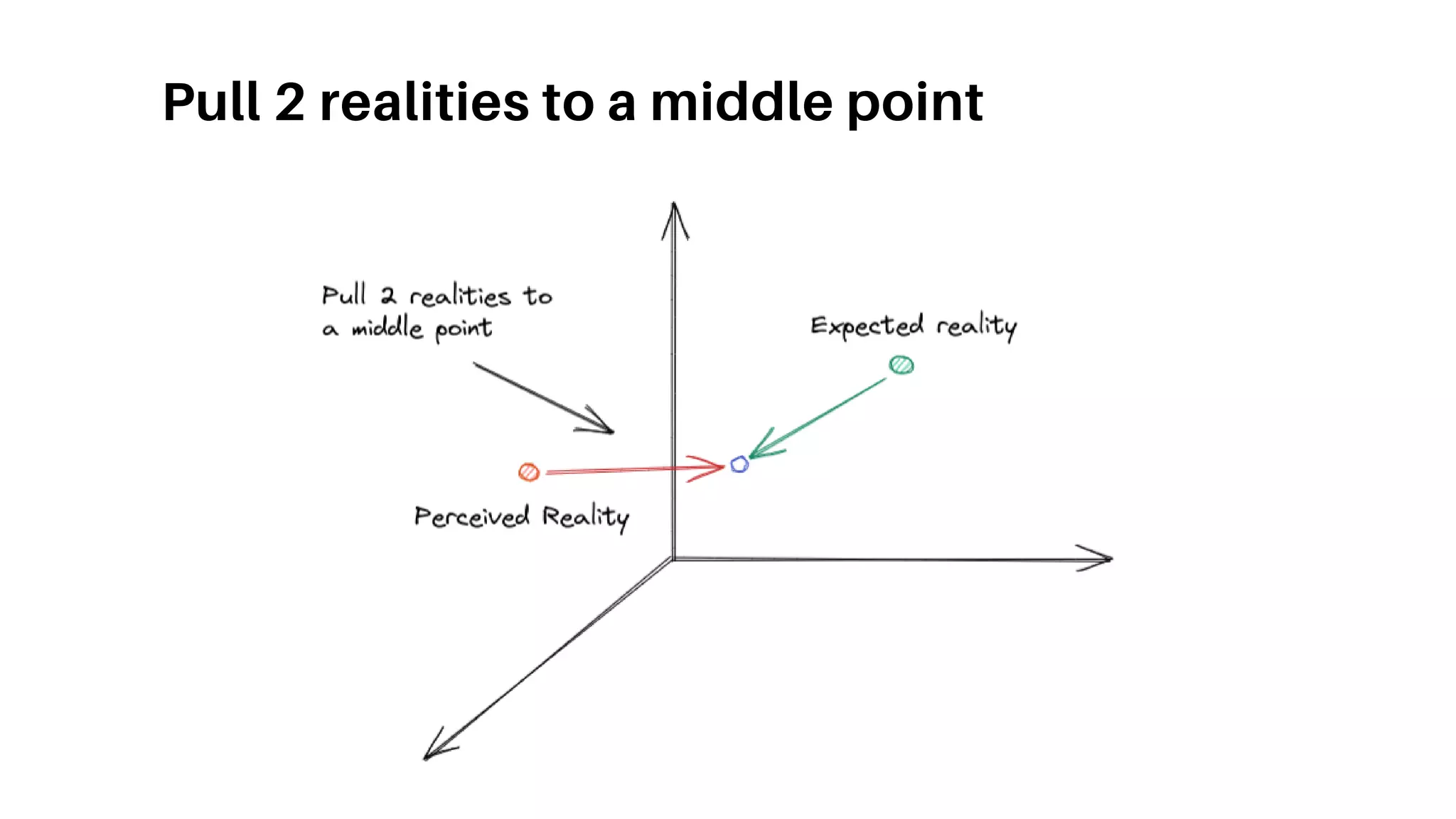

12. Pull 2 realities to a middle point

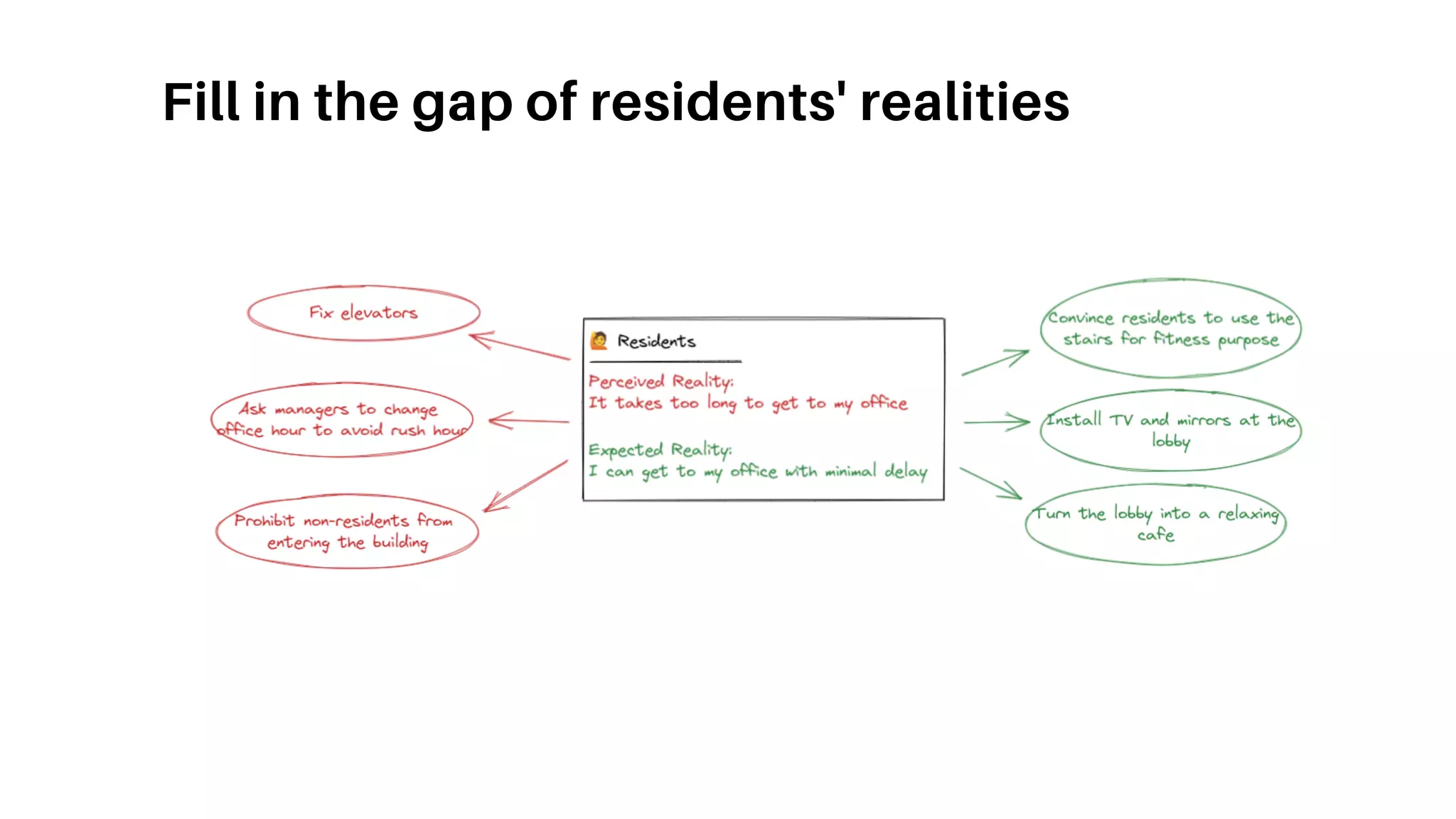

13. Fill in the gap of residents' realities

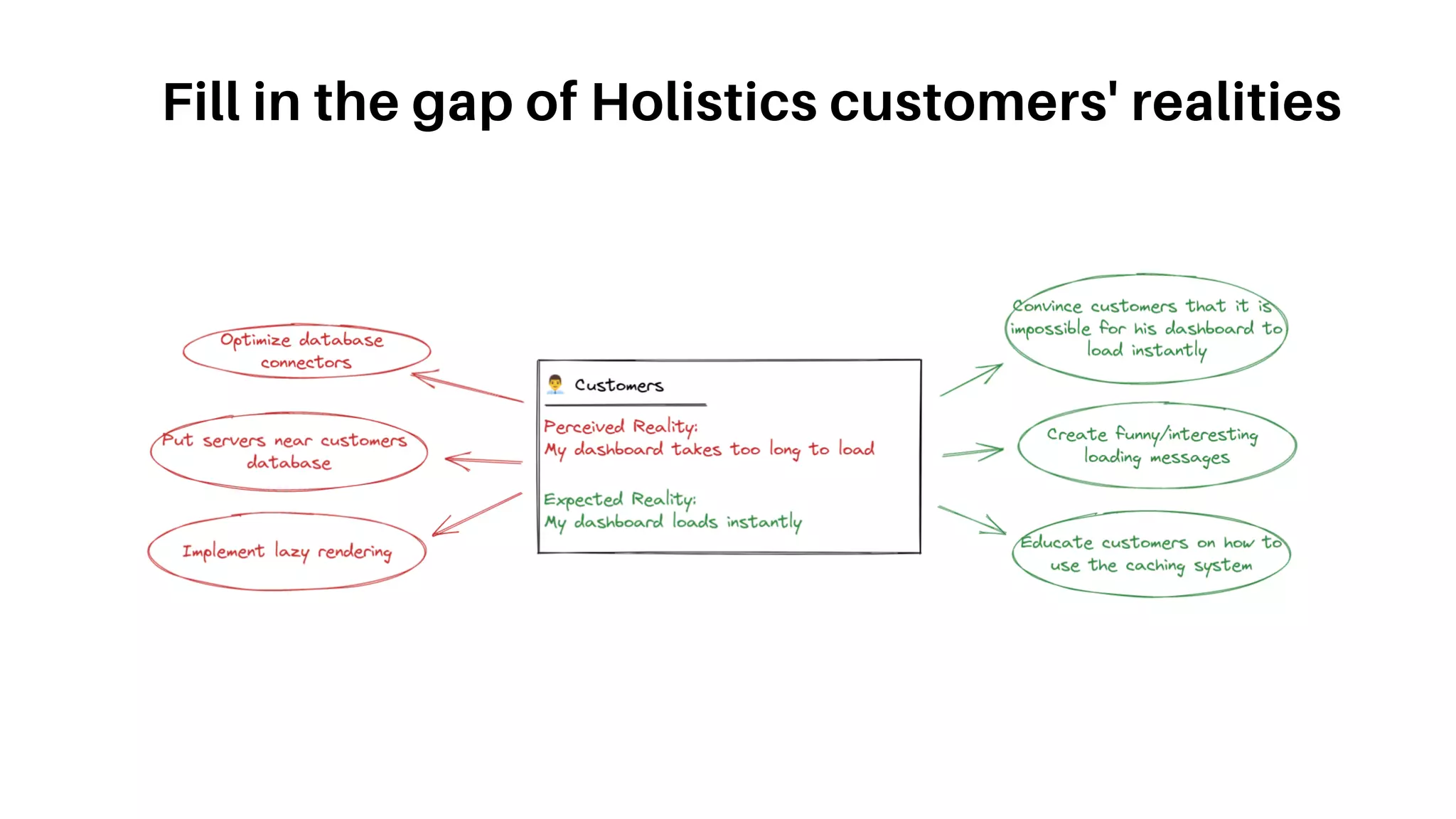

14. Fill in the gap of Holistics customers' realities

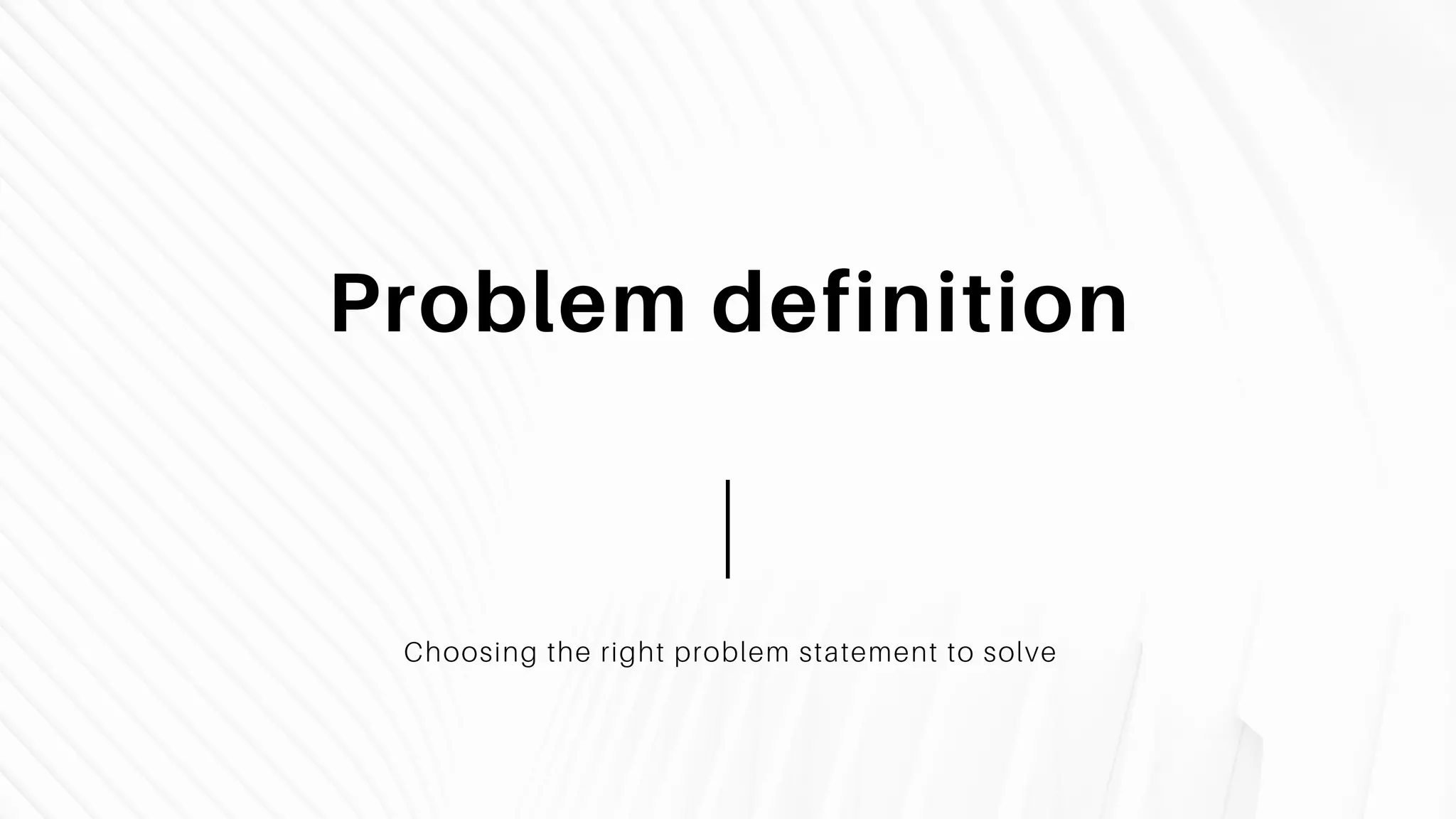

15. Problem definition
Choosing the right problem statement to solve

16. A problem well-stated is a
problem half-solved.
John Dewey

17. Startup is about finding the
right problem to solve.
Anonymous

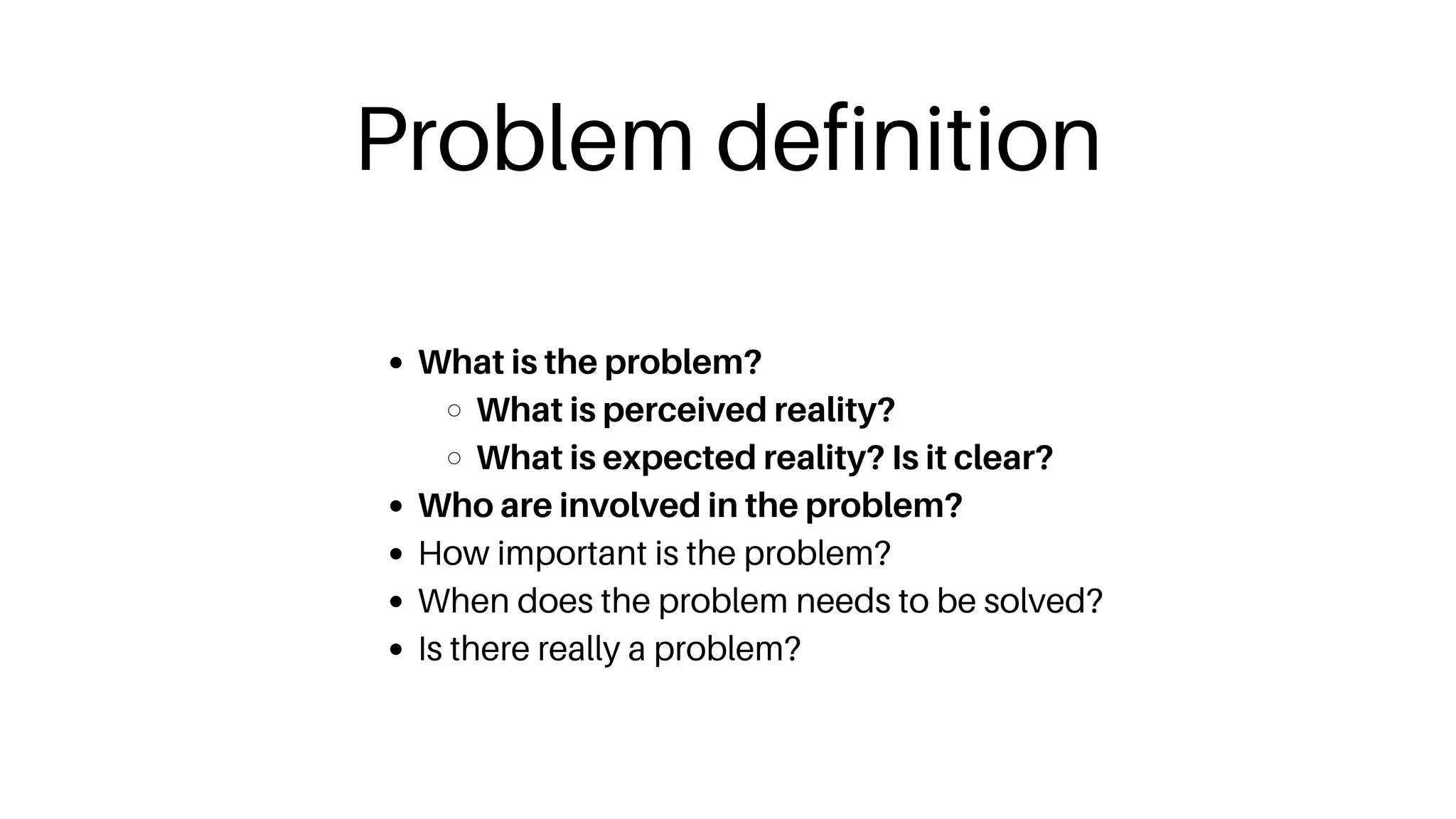

18. Problem definition
What is the problem?
What is perceived reality?
What is expected reality? Is it clear?
Who are involved in the problem?
How important is the problem?
When does the problem needs to be solved?
Is there really a problem?

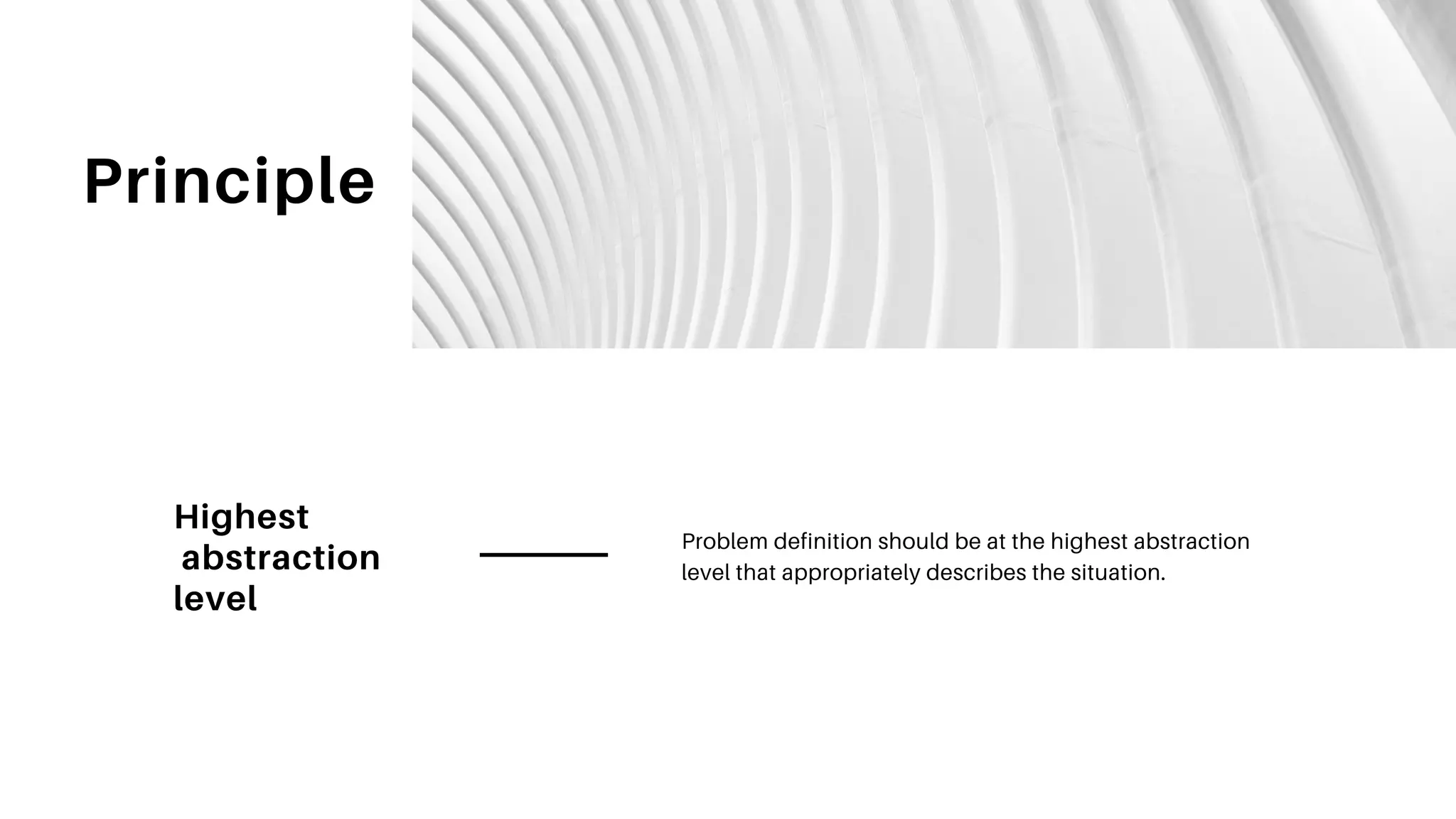

20. Highest
abstraction
level
Problem definition should be at the highest abstraction
level that appropriately describes the situation.
Principle

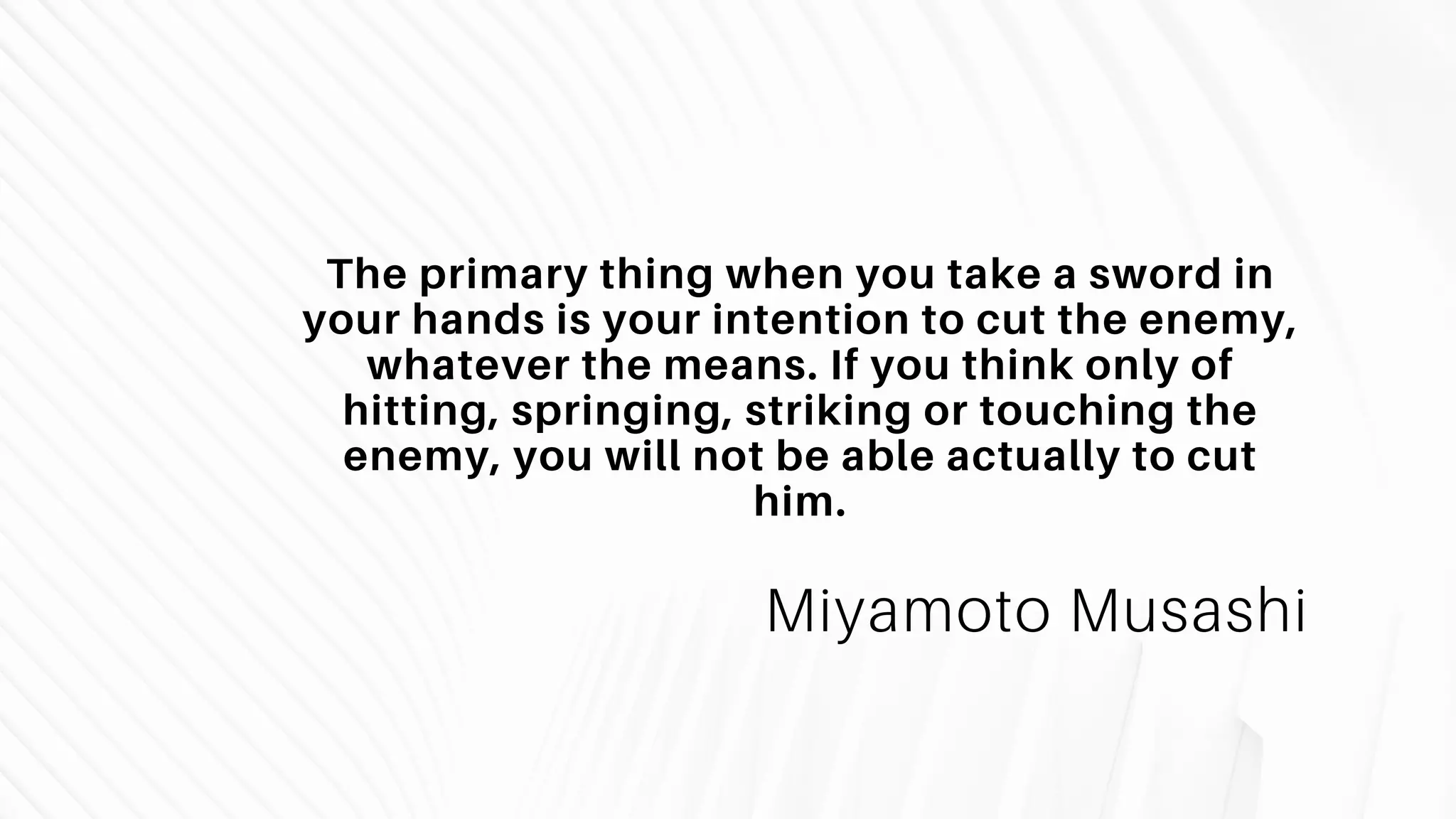

21. The primary thing when you take a sword in
your hands is your intention to cut the enemy,
whatever the means. If you think only of
hitting, springing, striking or touching the
enemy, you will not be able actually to cut
him.
Miyamoto Musashi

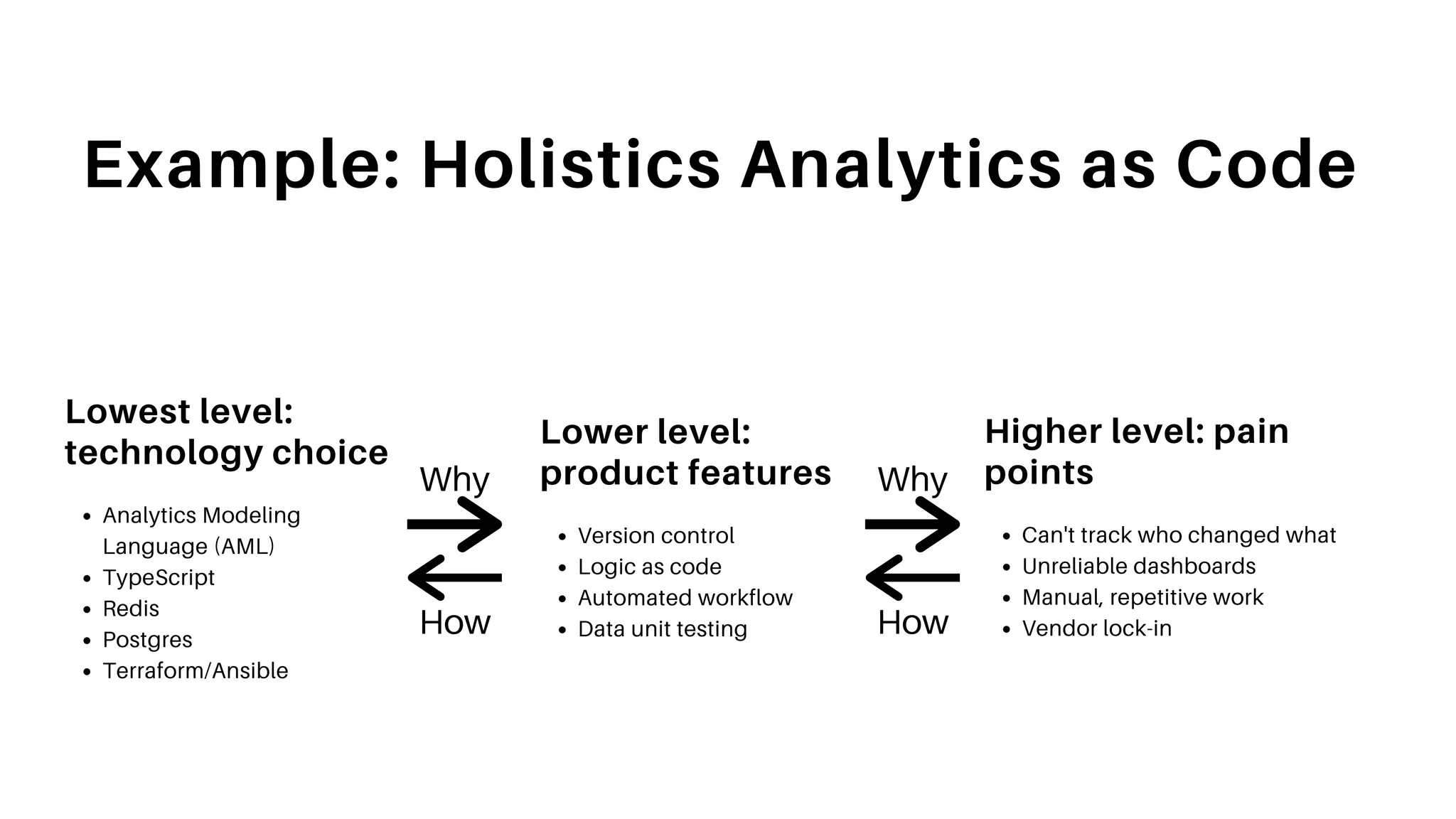

22. Example: Holistics Analytics as Code
Lower level:
product features
Version control
Logic as code
Automated workflow
Data unit testing
Higher level: pain
points
Can't track who changed what
Unreliable dashboards
Manual, repetitive work
Vendor lock-in
Why
How
Lowest level:
technology choice
Analytics Modeling
Language (AML)
TypeScript
Redis
Postgres
Terraform/Ansible
Why
How

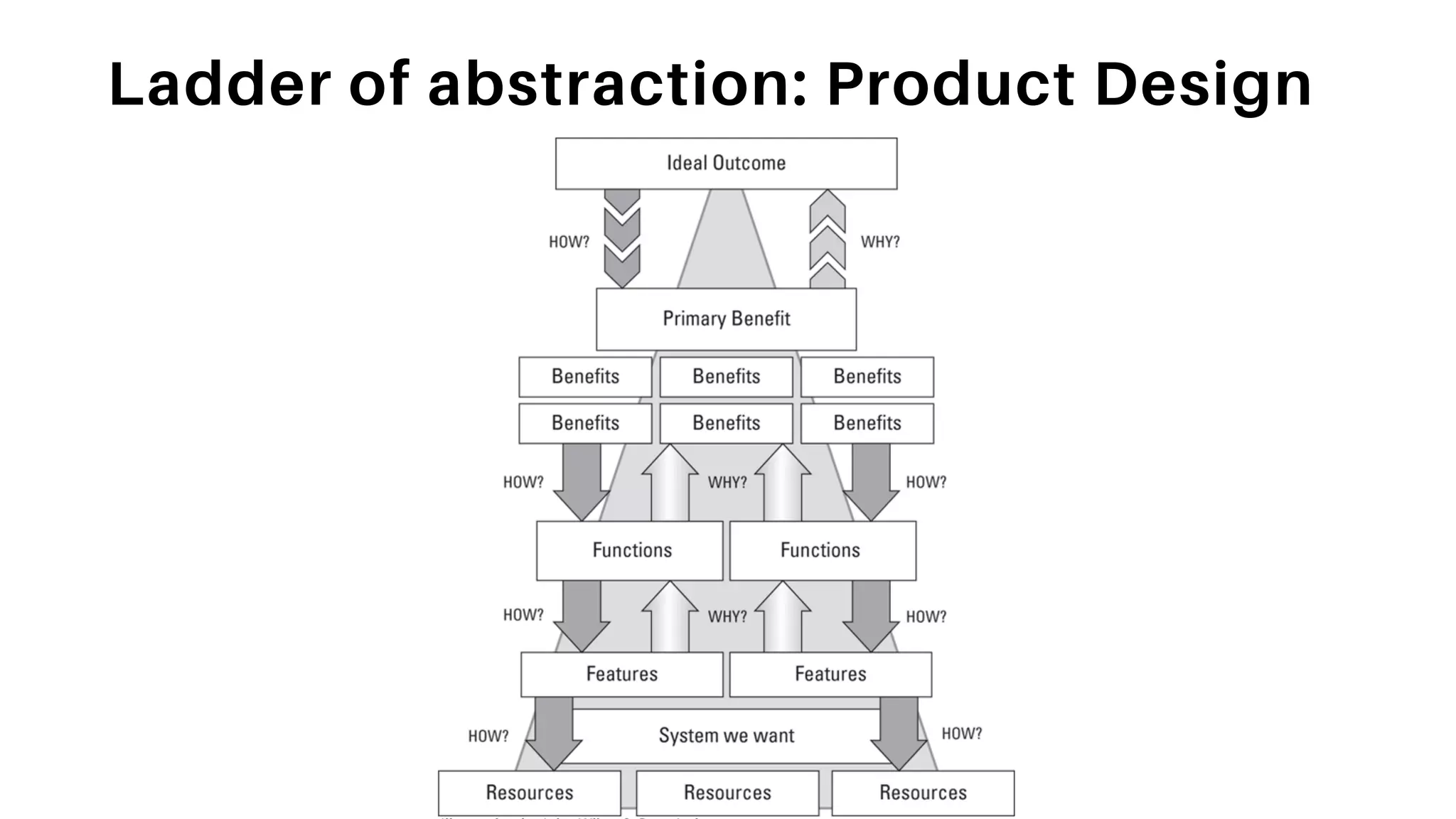

23. Ladder of abstraction: Product Design

24. Causal analysis
Knowing what causes the problem

25. The elevator
problem
Lengthy elevator wait
People in an office building started to
complain to building management
about the long wait time for elevators.
As part of office building staff, you are
tasked with solving this problem. How
do you solve it?

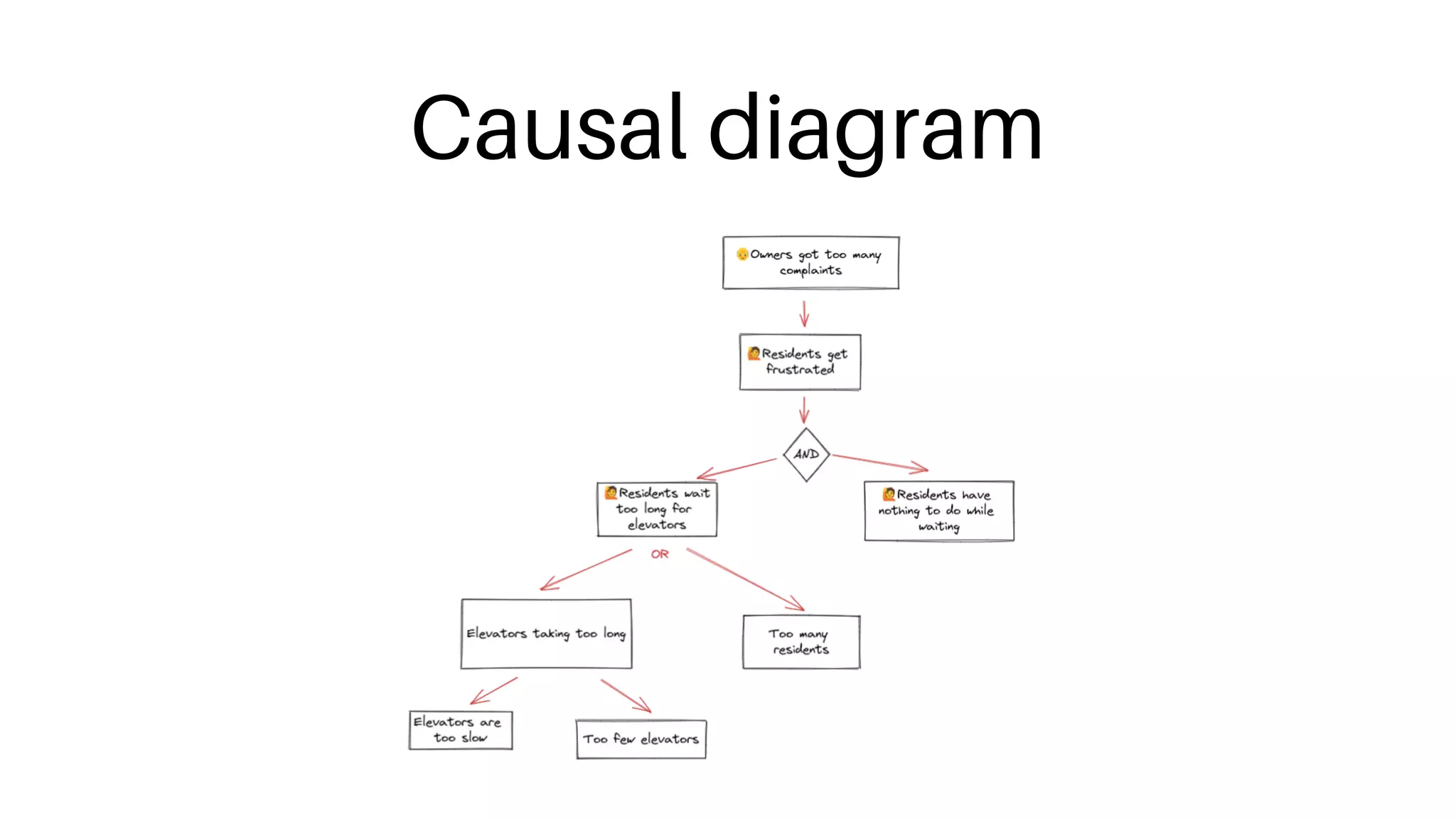

26. Causal diagram

27. Non-linear
causal
relationship
In many cases, the causal chain is not linear that can be
described as a tree. Changing one variable can affect itself
through cycles.
Cycles mean there's no definite root cause of the problem.
Pitfall

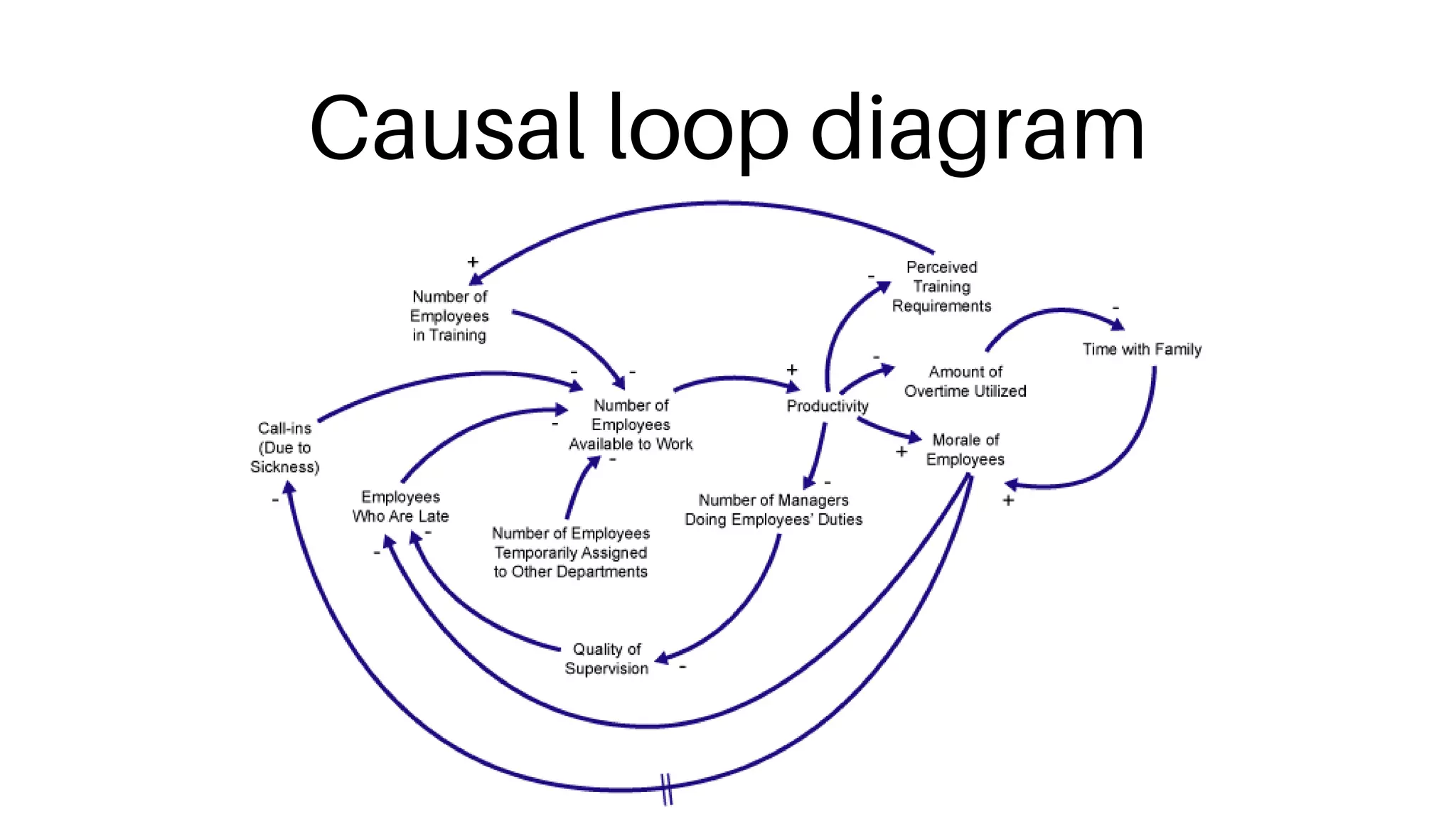

28. Causal loop diagram

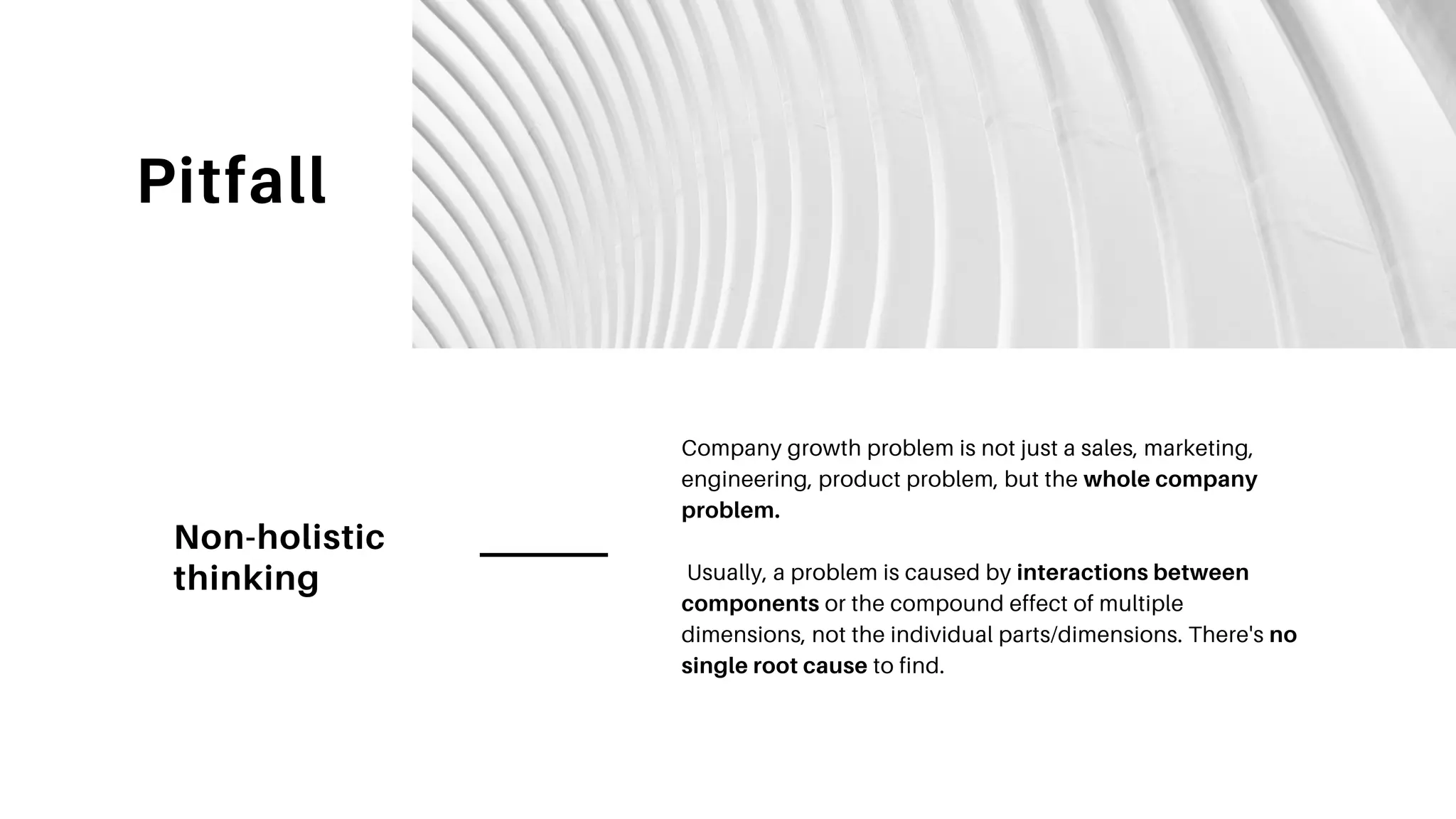

29. Non-holistic
thinking
Company growth problem is not just a sales, marketing,
engineering, product problem, but the whole company
problem.
Usually, a problem is caused by interactions between
components or the compound effect of multiple
dimensions, not the individual parts/dimensions. There's no
single root cause to find.
Pitfall

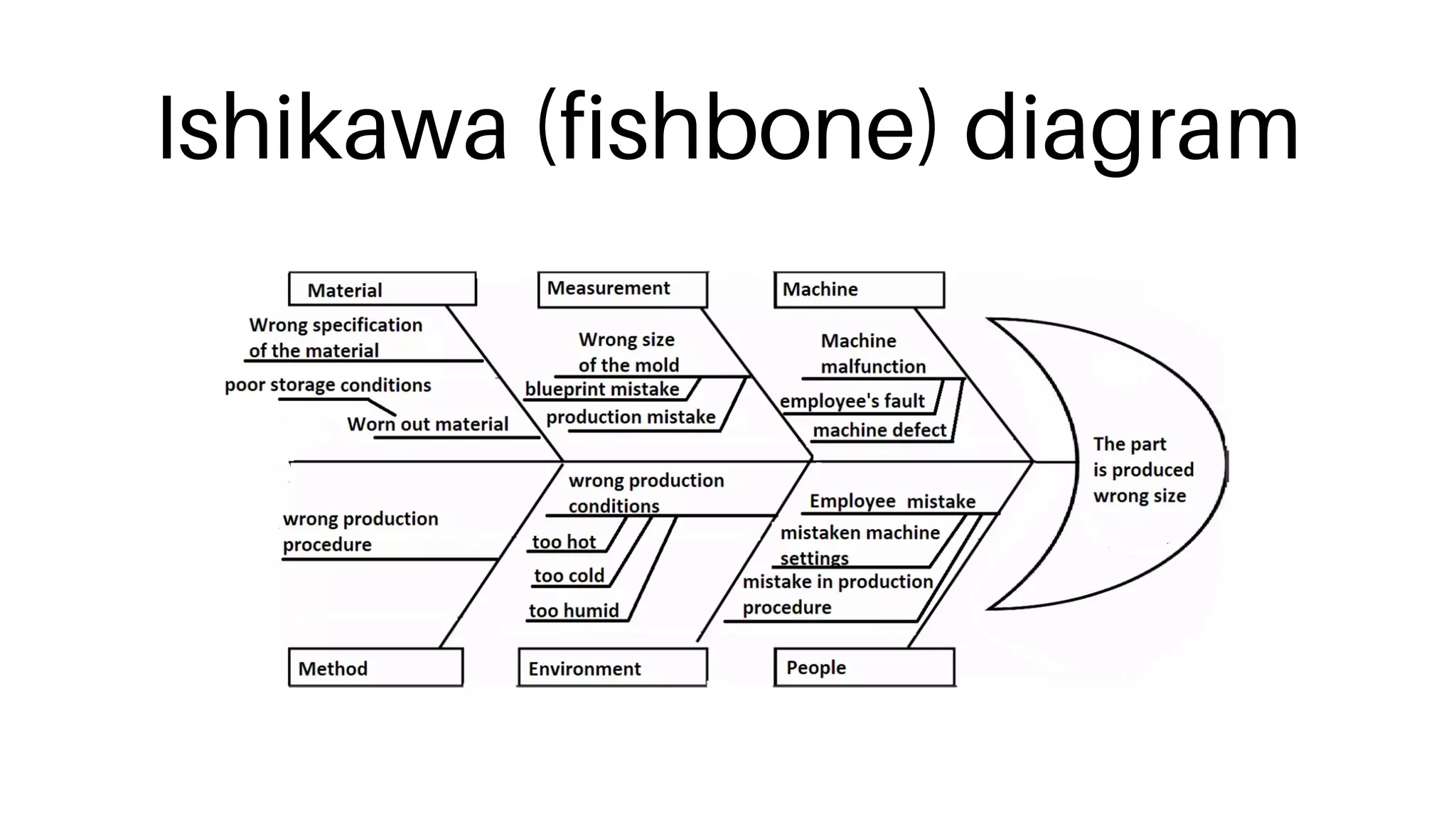

30. Ishikawa (fishbone) diagram

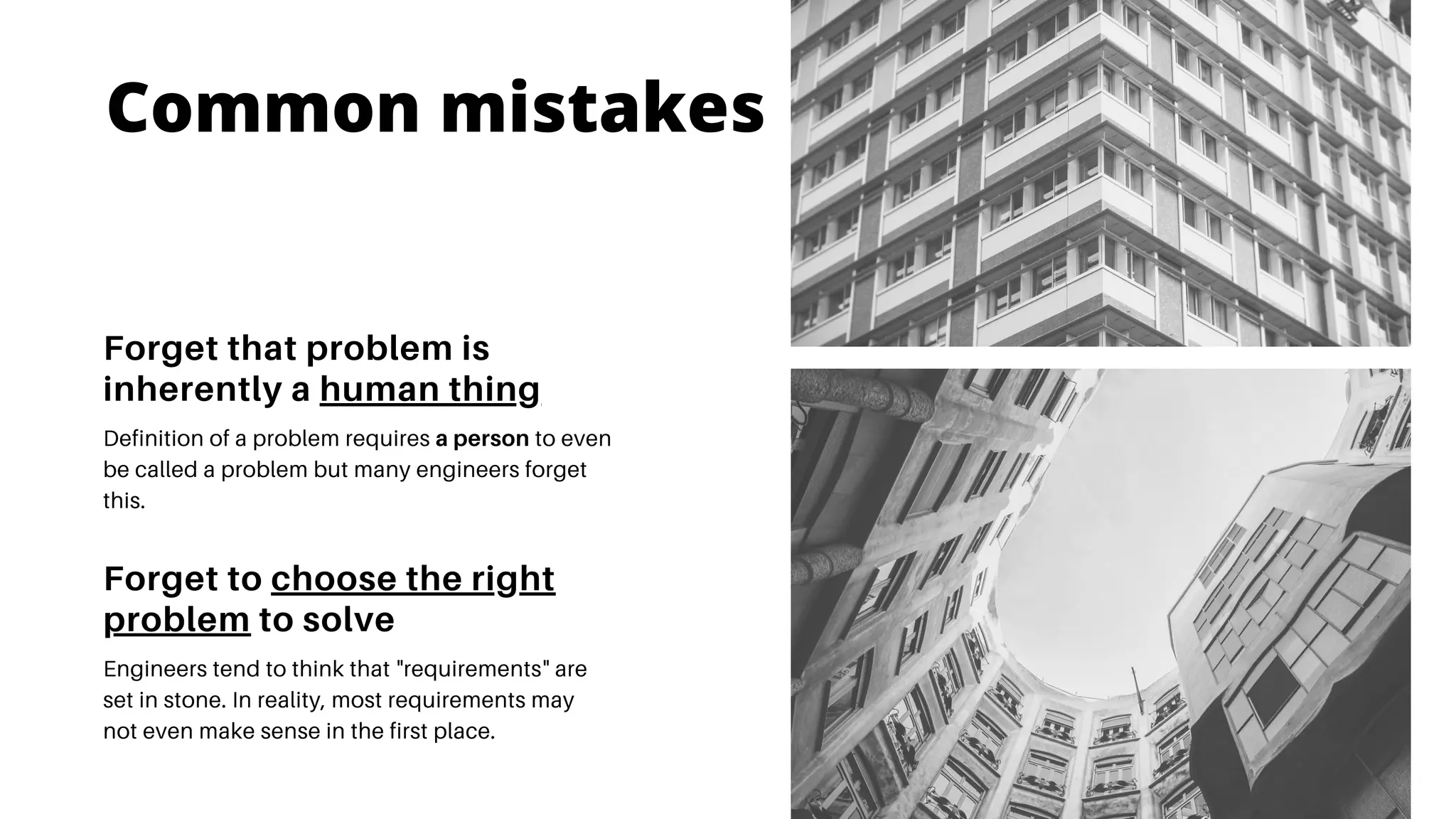

31. Forget that problem is
inherently a human thing
Definition of a problem requires a person to even
be called a problem but many engineers forget
this.
Forget to choose the right
problem to solve
Engineers tend to think that "requirements" are
set in stone. In reality, most requirements may
not even make sense in the first place.
Common mistakes

32. Trade-off
Which one will you choose?

33. You face a trade-off when it
is hard to choose a solution
Thus you must have already found solutions
in order to have trade-offs

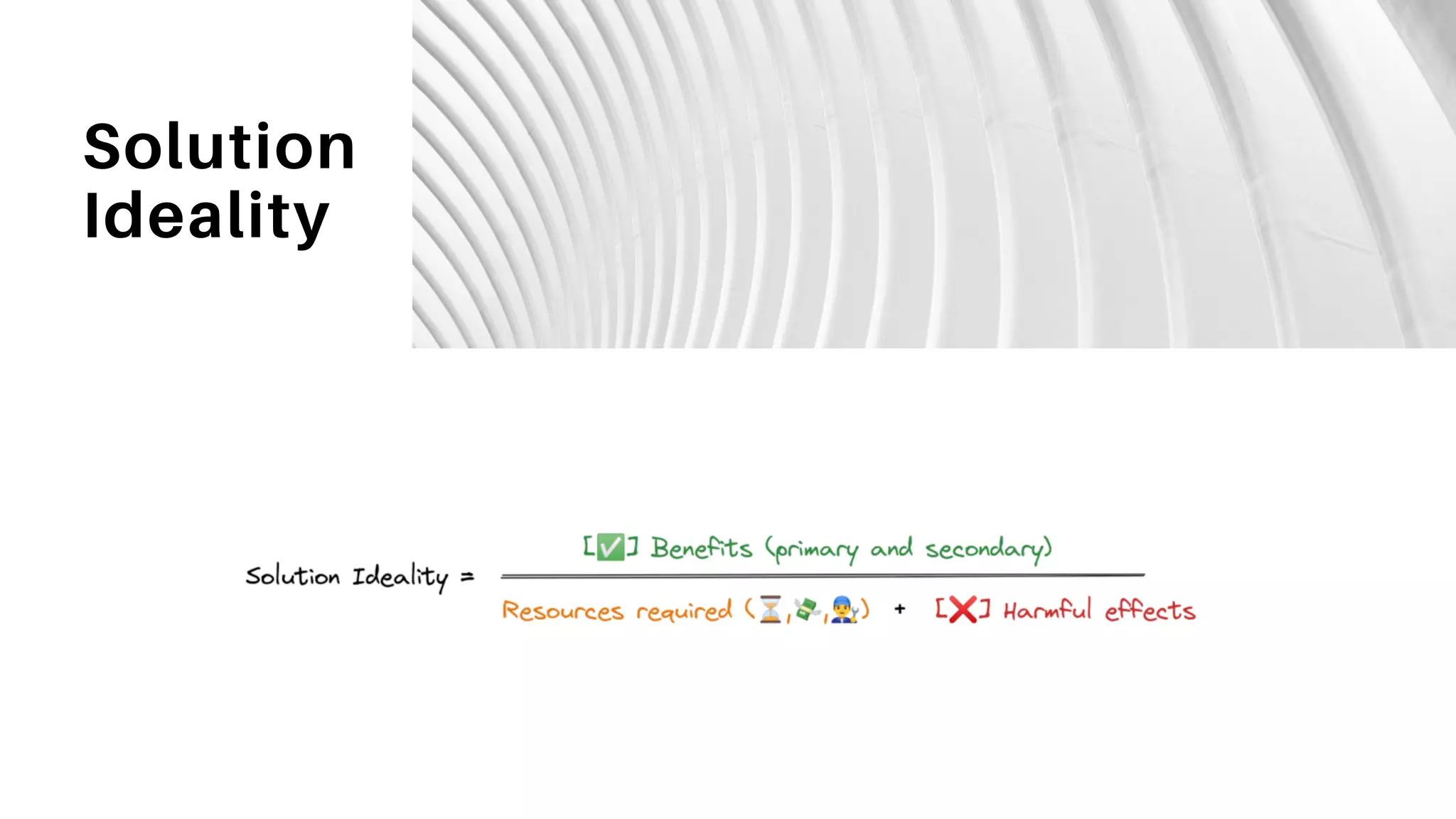

34. Solution
Ideality

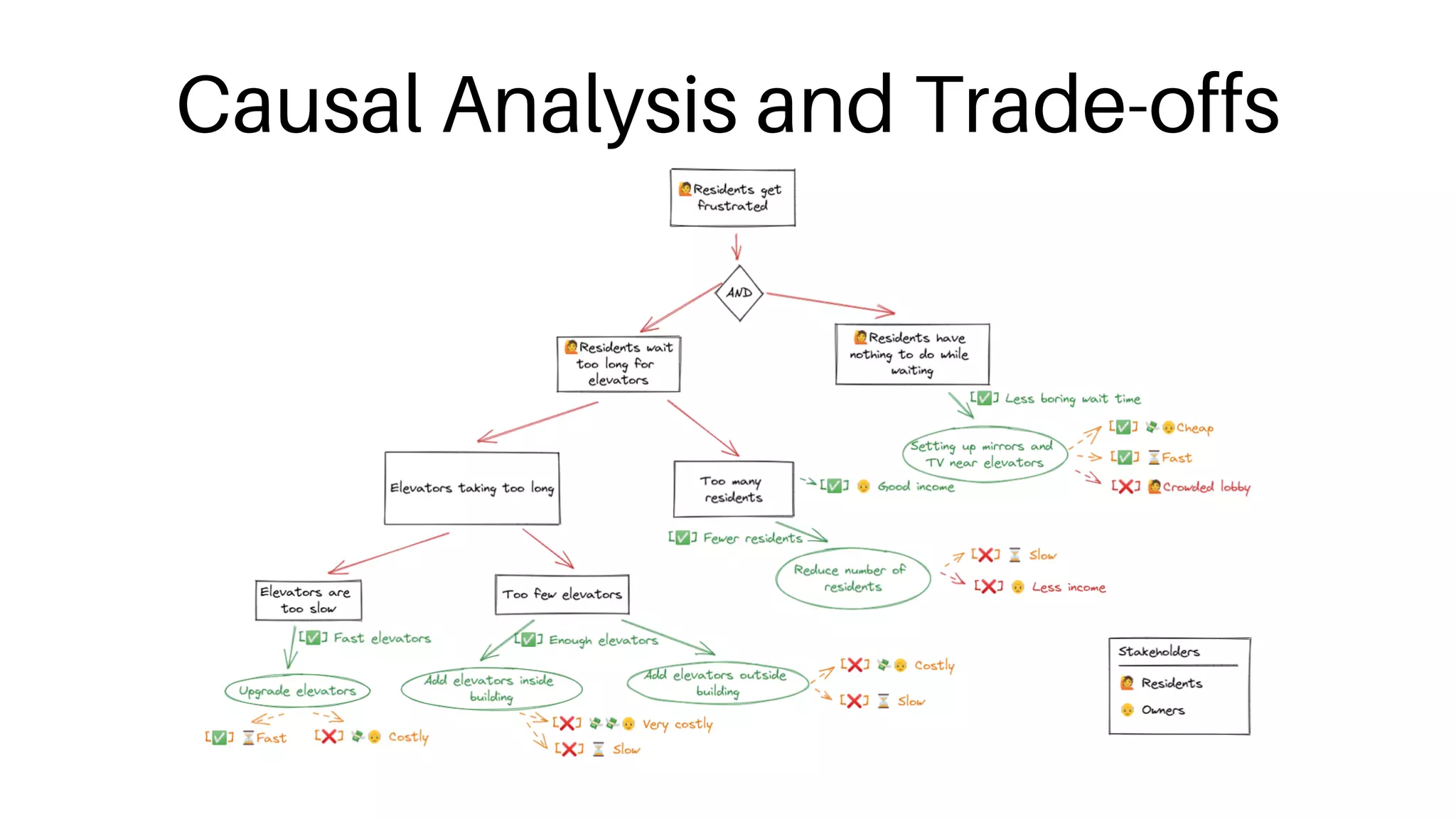

35. Causal Analysis and Trade-offs

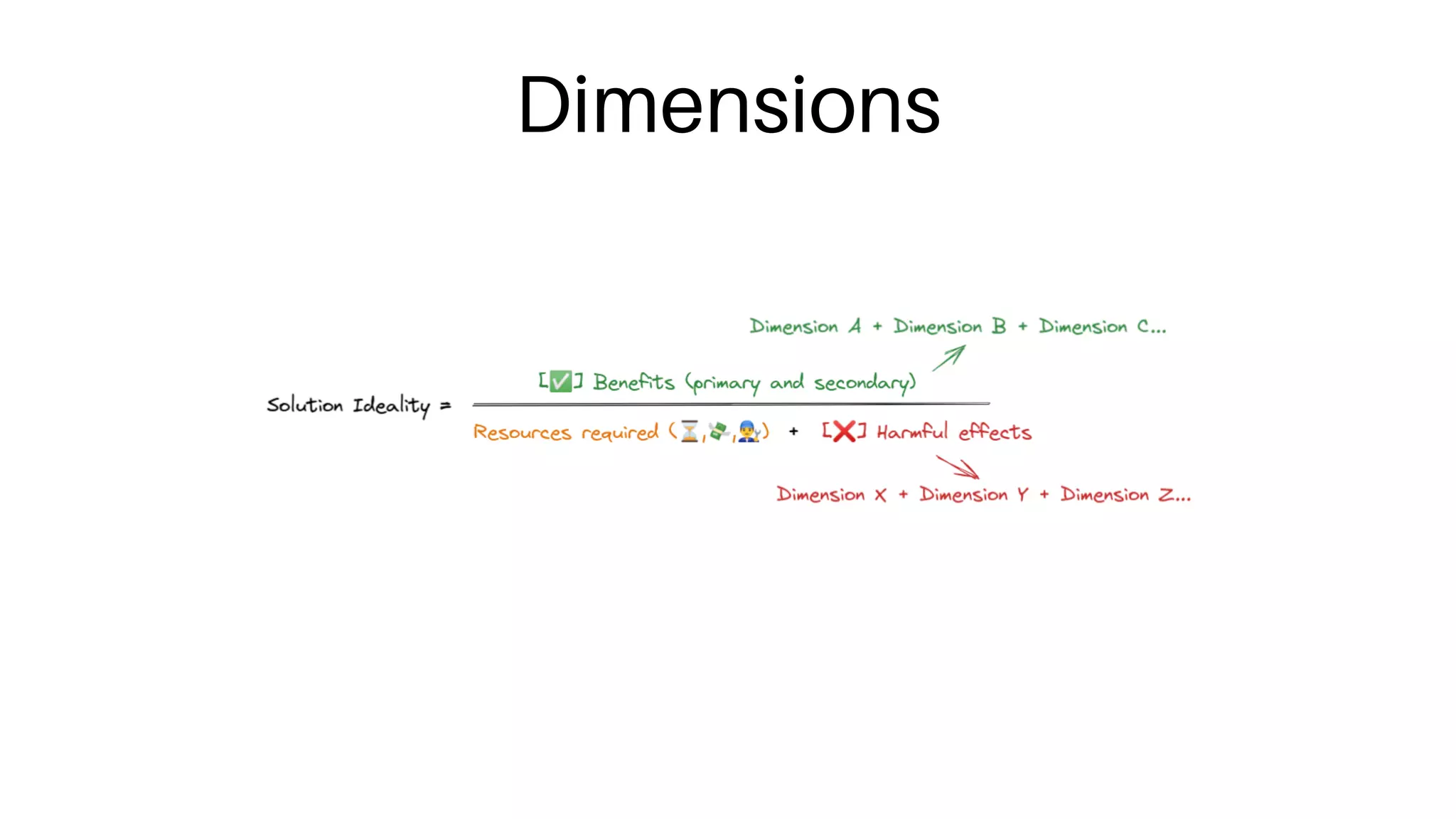

36. Dimensions

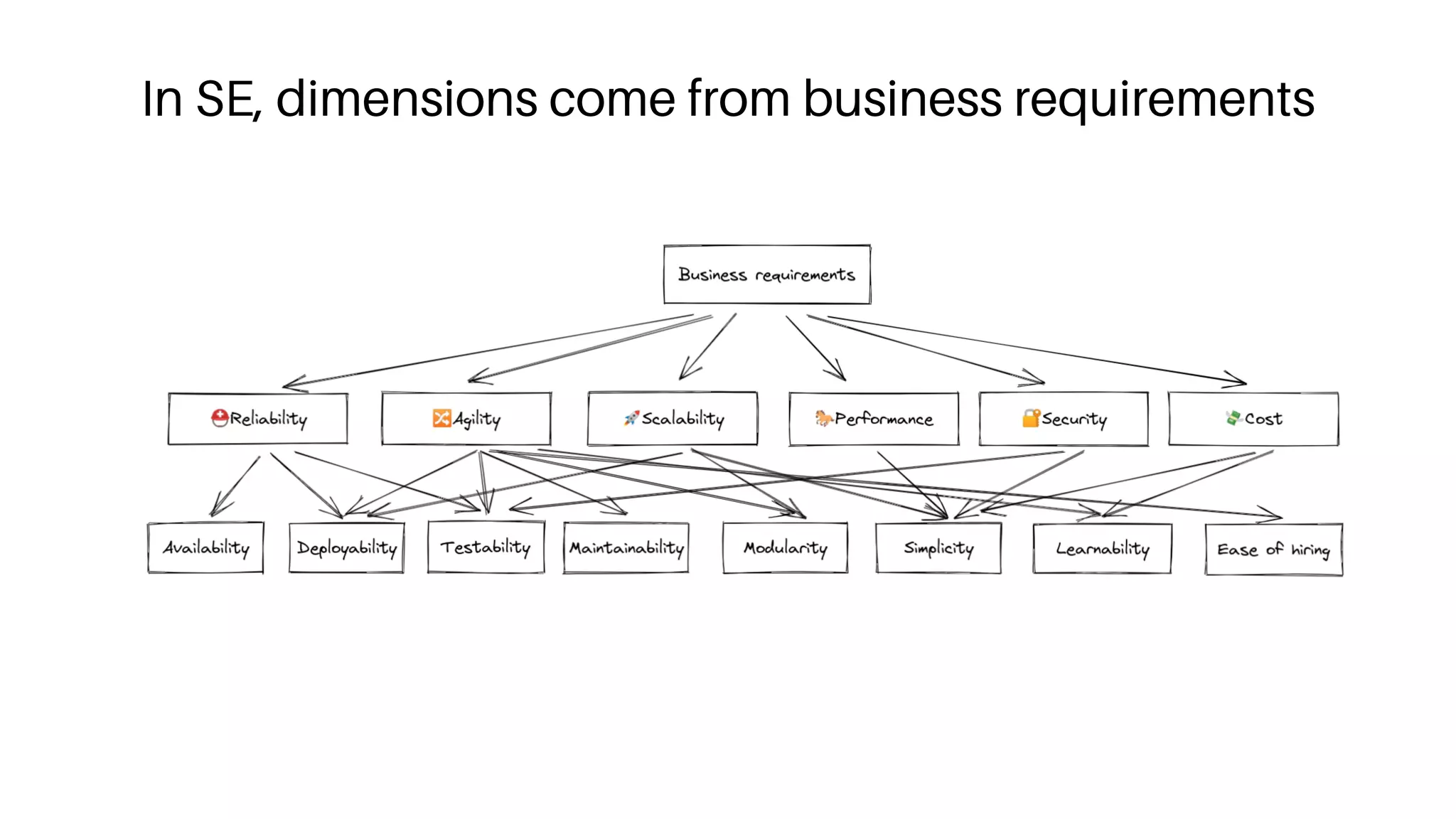

37. In SE, dimensions come from business requirements

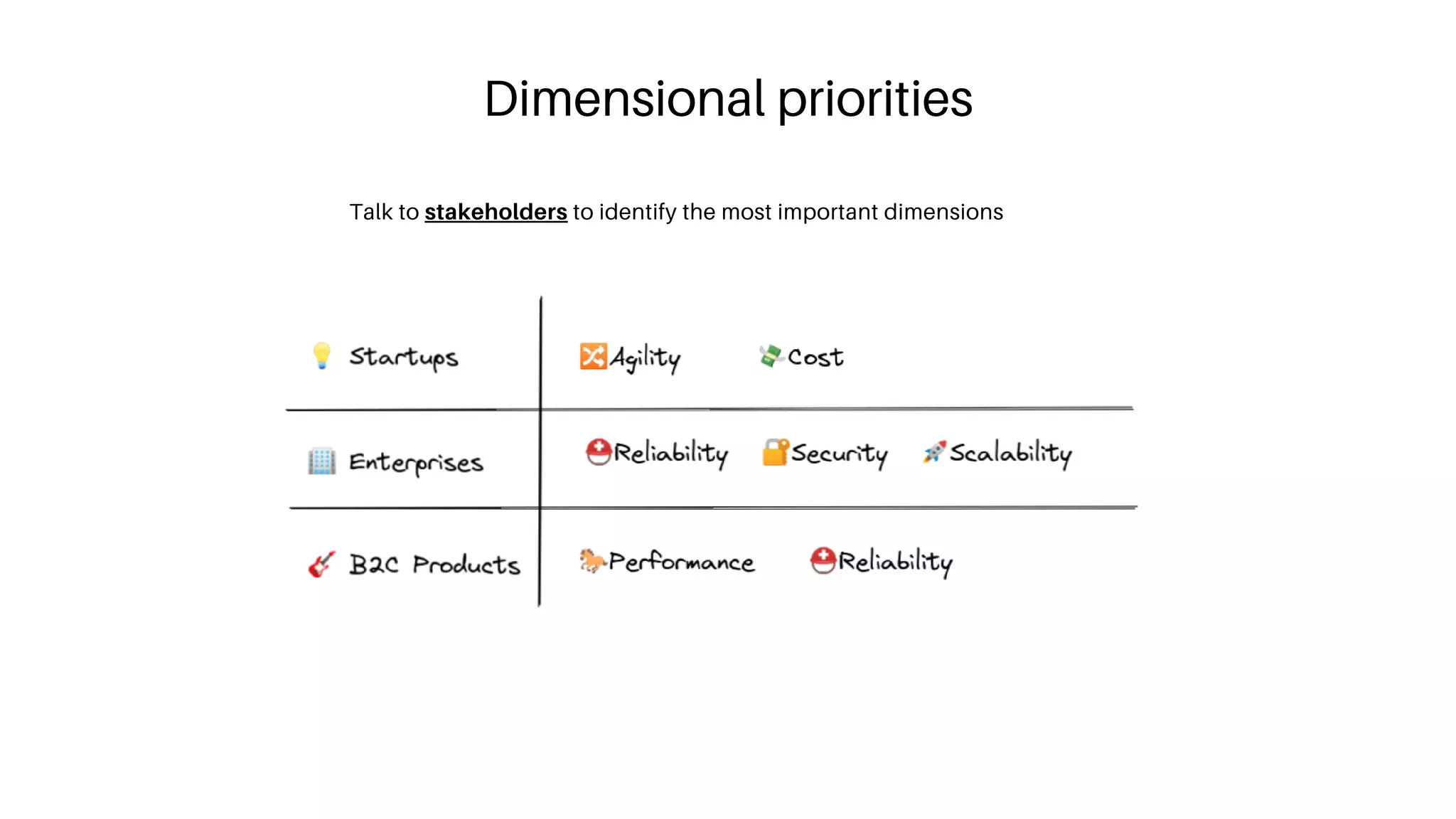

38. Dimensional priorities
Talk to stakeholders to identify the most important dimensions

39. There are 2 types
of trade-off

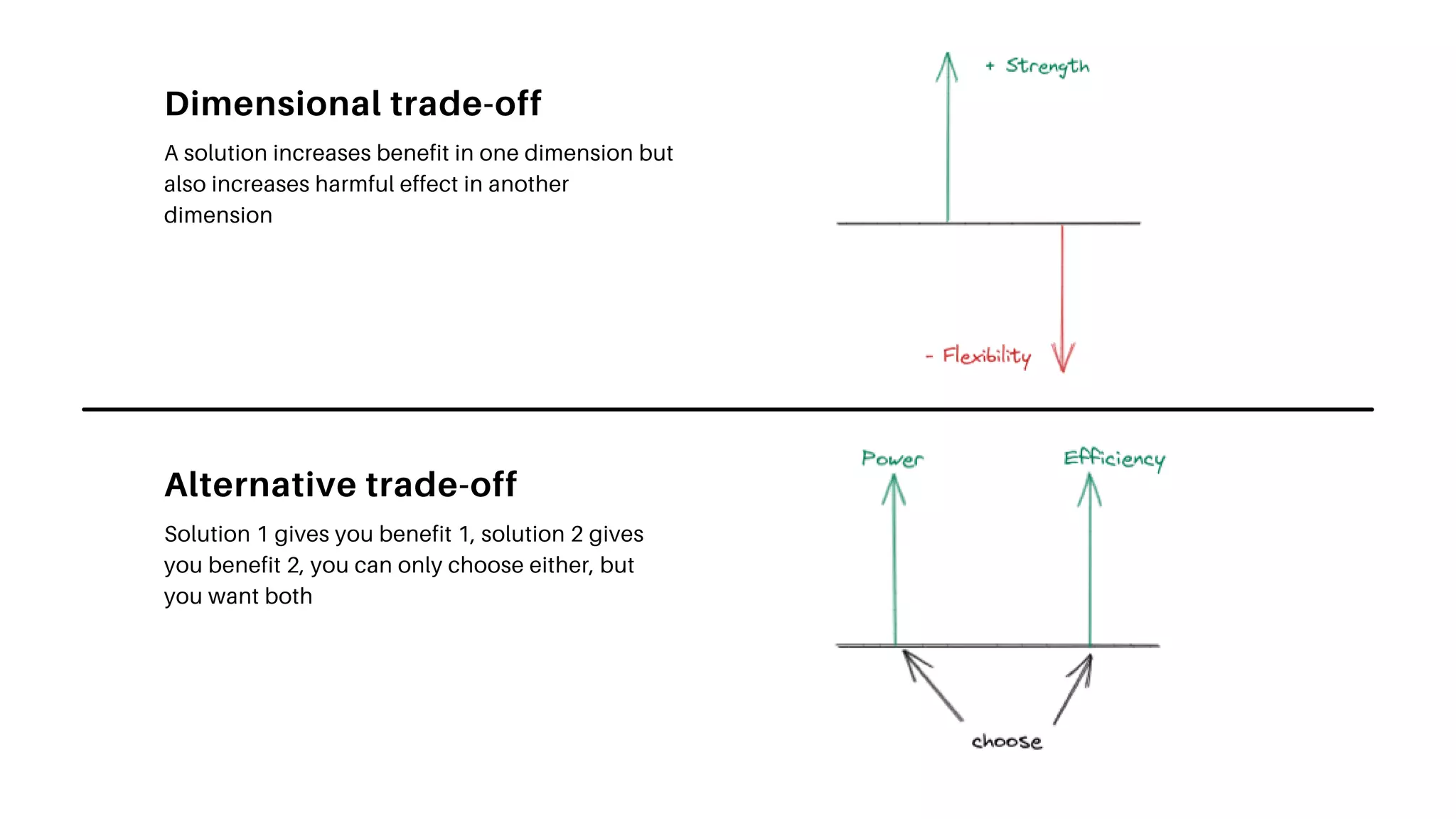

40. Dimensional trade-off
A solution increases benefit in one dimension but
also increases harmful effect in another
dimension
Alternative trade-off
Solution 1 gives you benefit 1, solution 2 gives
you benefit 2, you can only choose either, but
you want both

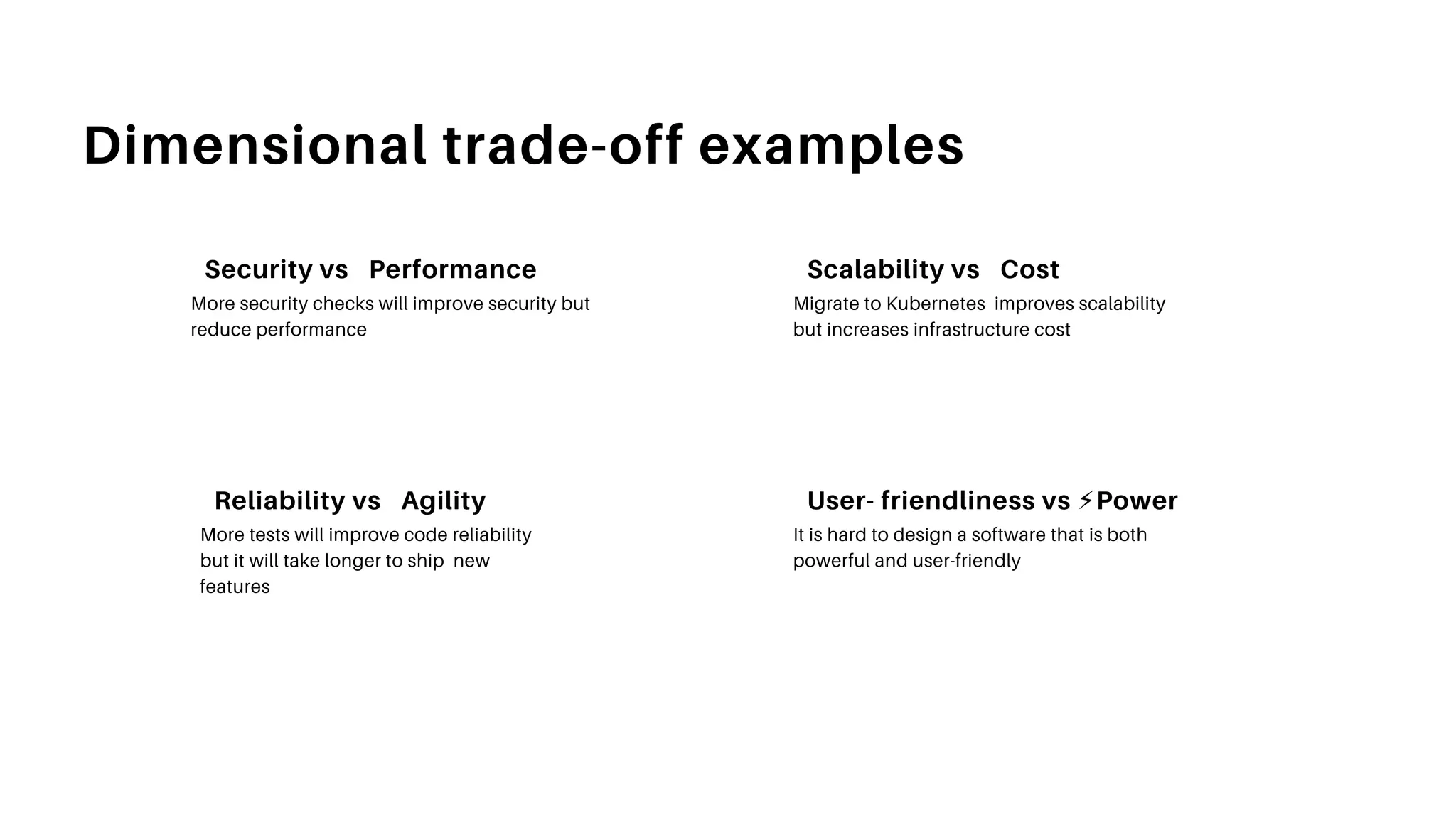

41. Dimensional trade-off examples
More security checks will improve security but
reduce performance
🔐Security vs 🐎Performance
More tests will improve code reliability
but it will take longer to ship new
features
⛑Reliability vs 🔀Agility
Migrate to Kubernetes improves scalability
but increases infrastructure cost
🚀Scalability vs 💸Cost
It is hard to design a software that is both
powerful and user-friendly
💖User- friendliness vs ⚡Power

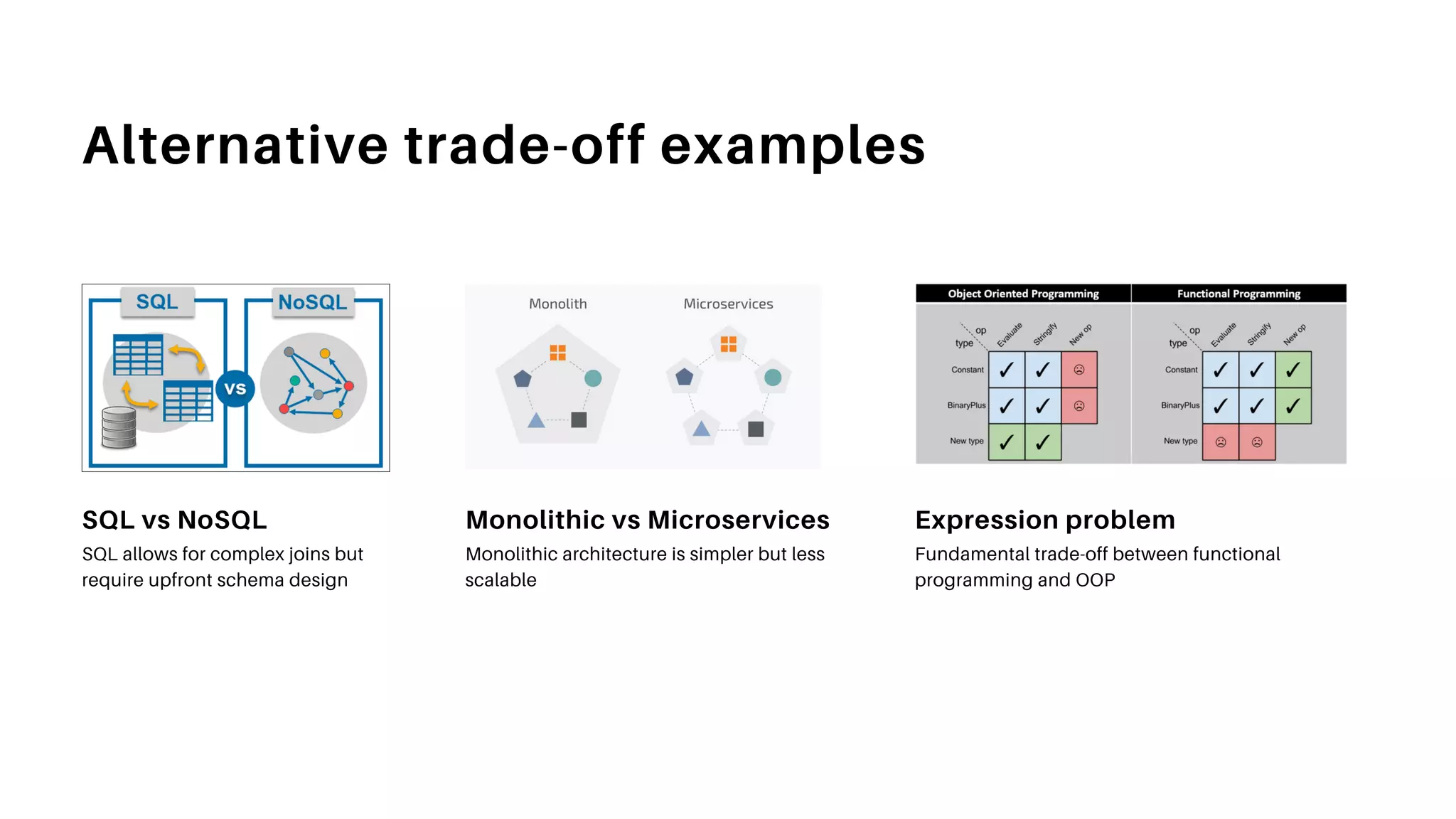

42. Alternative trade-off examples
SQL allows for complex joins but
require upfront schema design
SQL vs NoSQL
Monolithic architecture is simpler but less
scalable
Monolithic vs Microservices
Fundamental trade-off between functional
programming and OOP
Expression problem

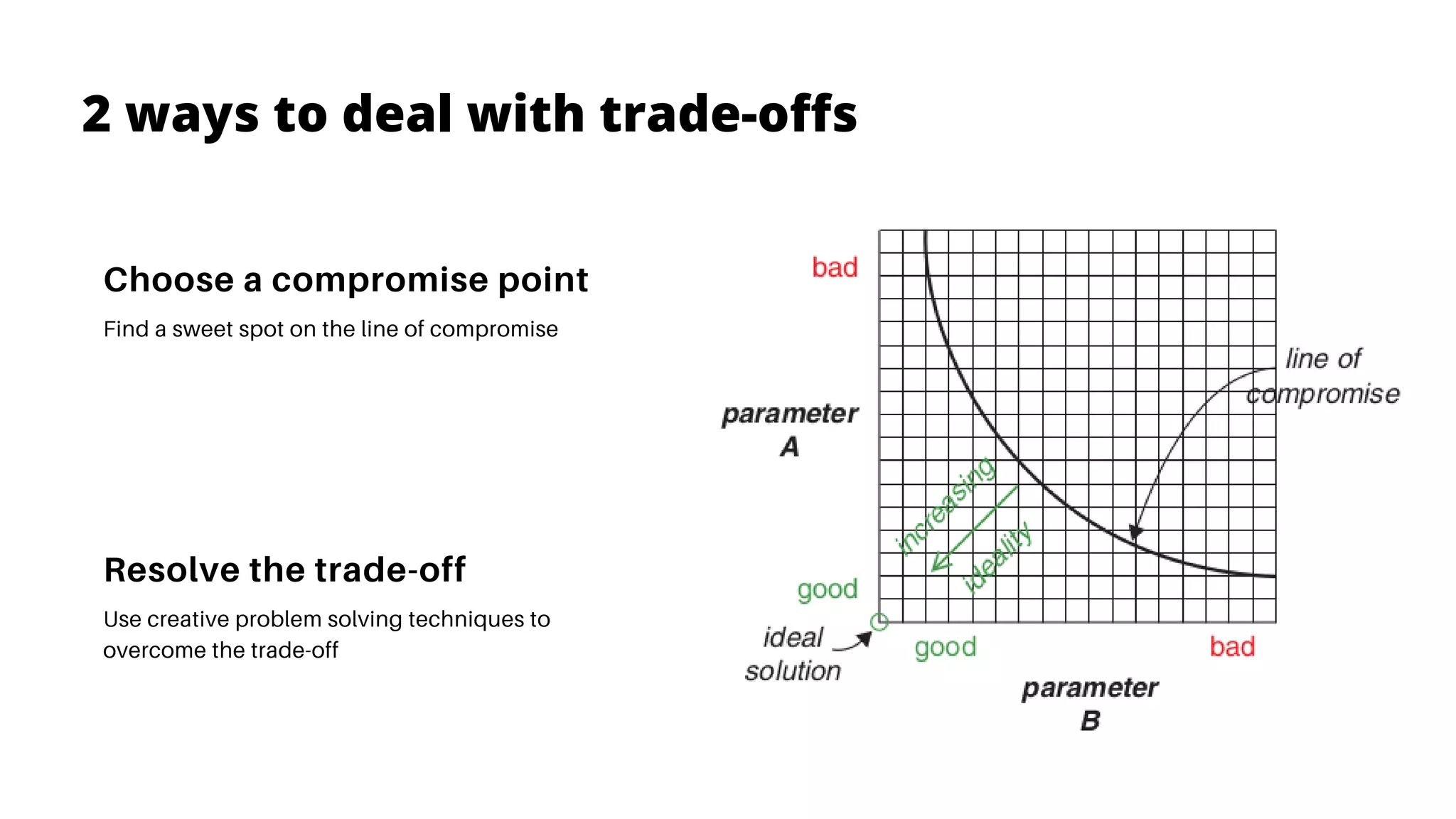

44. Choose a compromise point
Find a sweet spot on the line of compromise
Resolve the trade-off
Use creative problem solving techniques to
overcome the trade-off
2 ways to deal with trade-offs

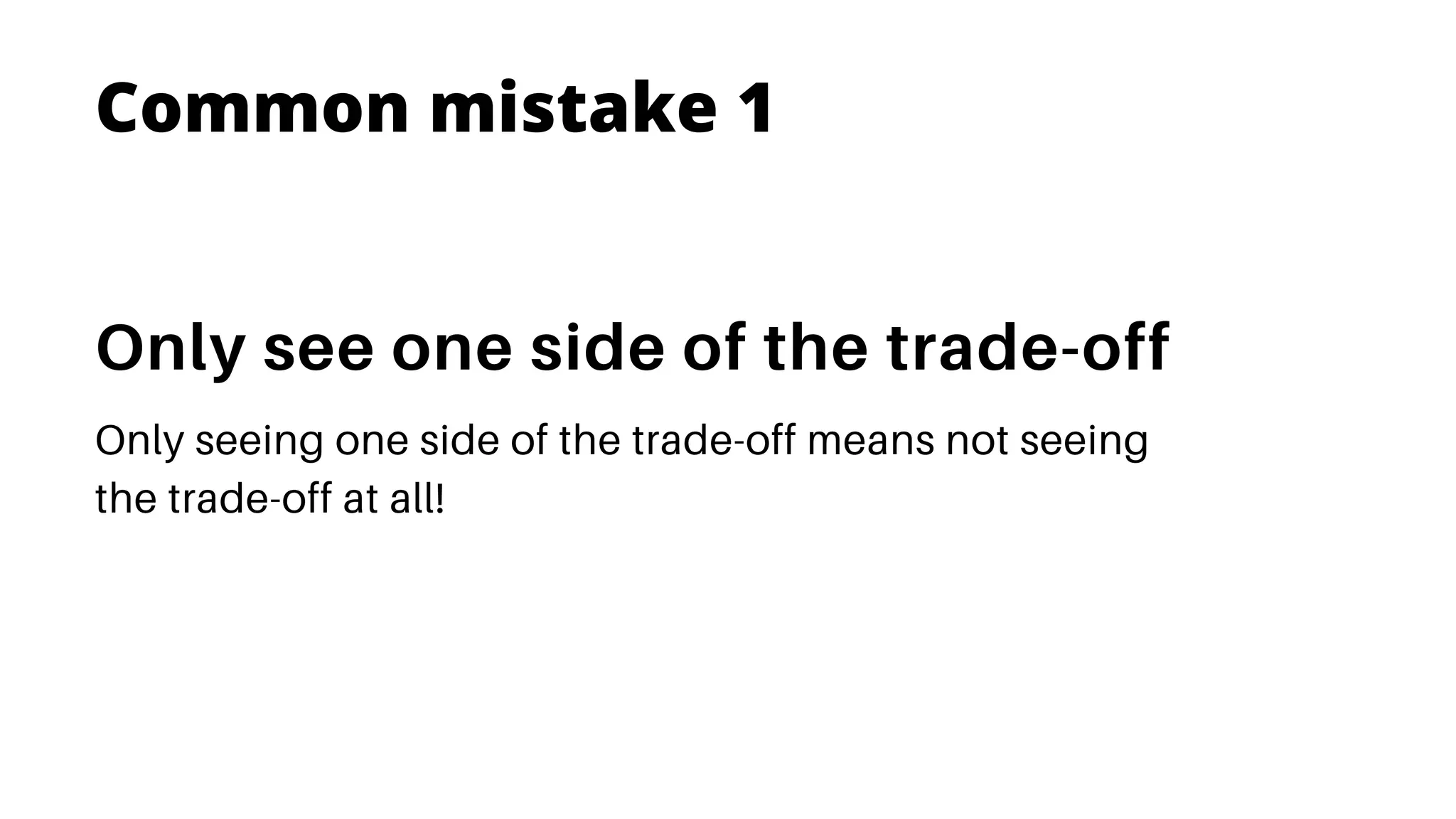

45. Only see one side of the trade-off
Only seeing one side of the trade-off means not seeing
the trade-off at all!
Common mistake 1

46. Programmers know the benefits of everything
and the trade-offs of nothing.
Architects need to understand both.
Rich Hickey

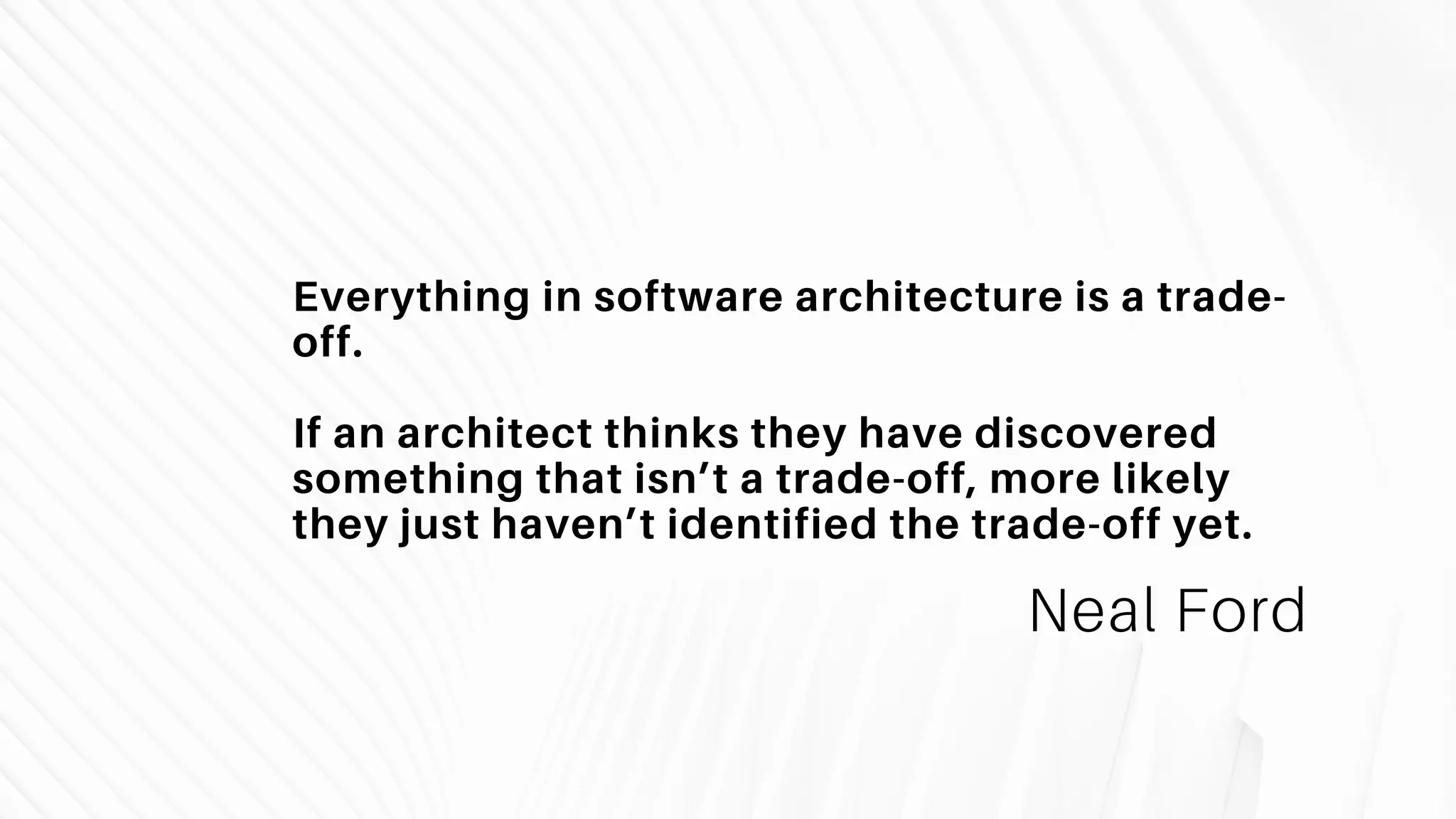

47. Everything in software architecture is a trade-
off.
If an architect thinks they have discovered
something that isn’t a trade-off, more likely
they just haven’t identified the trade-off yet.
Neal Ford

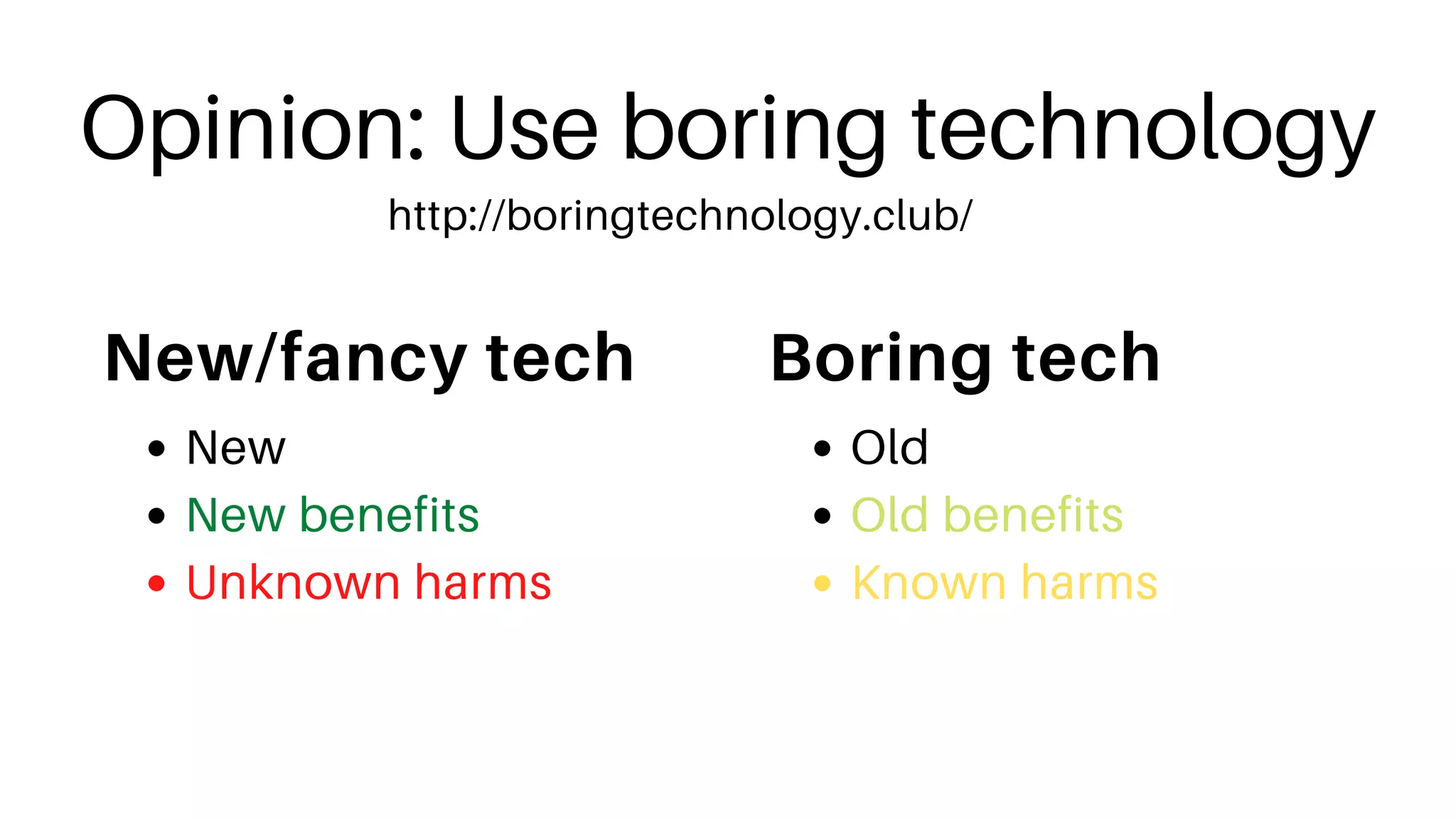

48. Opinion: Use boring technology
New
New benefits
Unknown harms
New/fancy tech
Old
Old benefits
Known harms
Boring tech
http://boringtechnology.club/

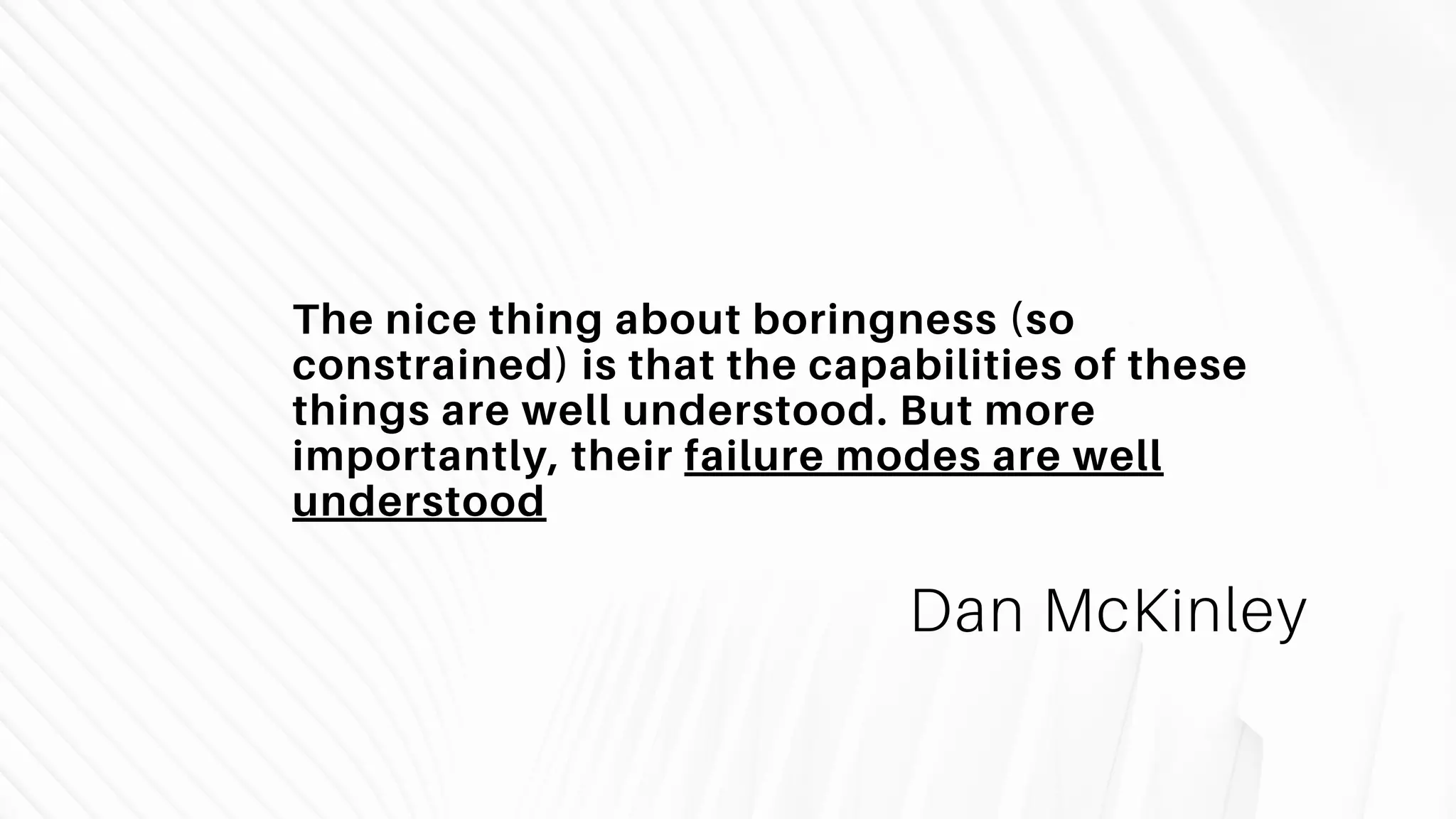

49. The nice thing about boringness (so
constrained) is that the capabilities of these
things are well understood. But more
importantly, their failure modes are well
understood
Dan McKinley

50. Not realize that trade-offs are
not set in stone
Trade-offs are hard to overcome but in many
cases, they are not set in stone. You can resolve
them through separation techniques.
Common mistake 2

51. The root of many trade-offs are due to couplings.
Resolve the coupling, you can resolve the trade-off
Why separation?

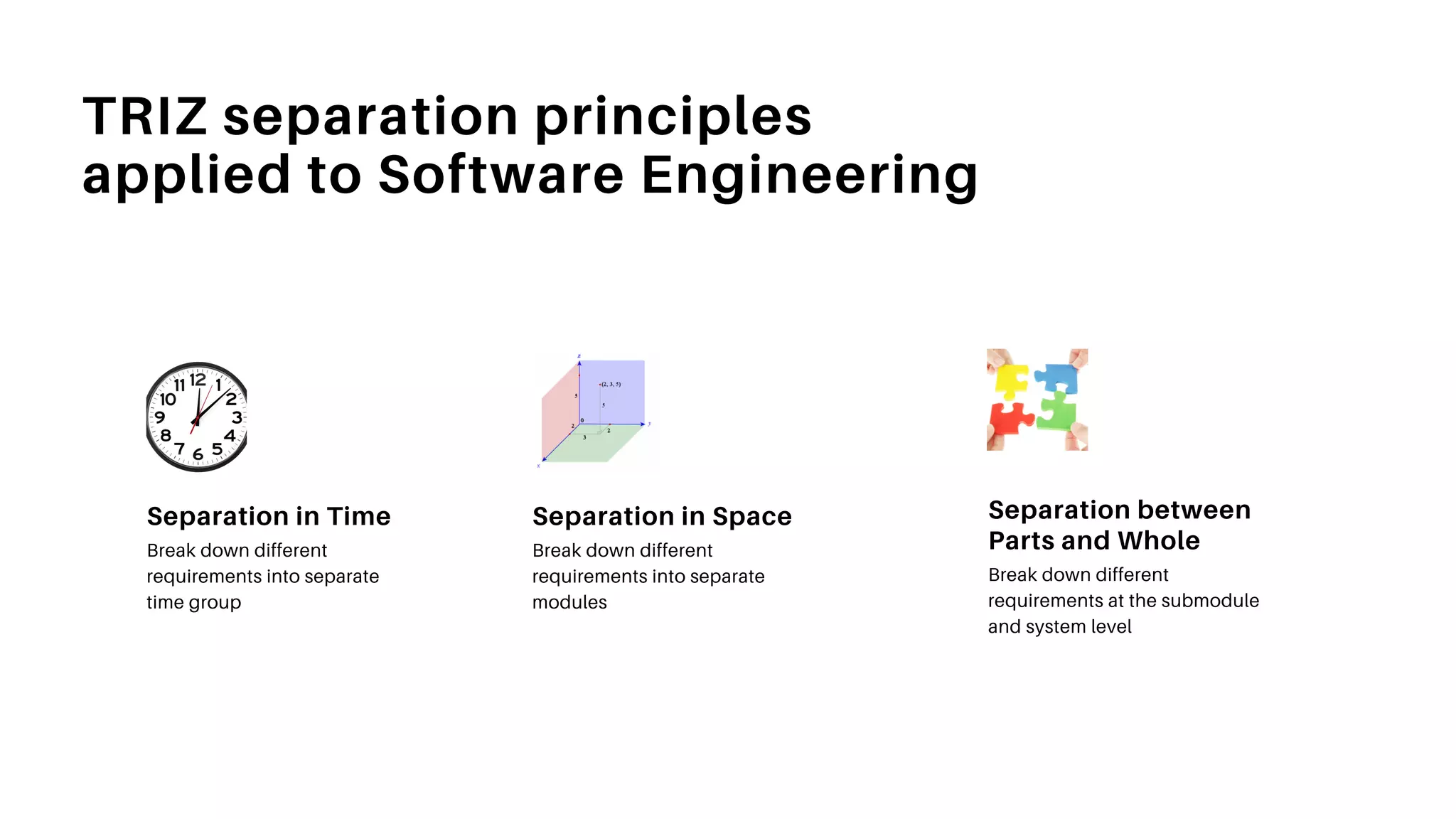

52. TRIZ separation principles
applied to Software Engineering
Break down different
requirements into separate
time group
Separation in Time
Break down different
requirements into separate
modules
Separation in Space
Break down different
requirements at the submodule
and system level
Separation between
Parts and Whole

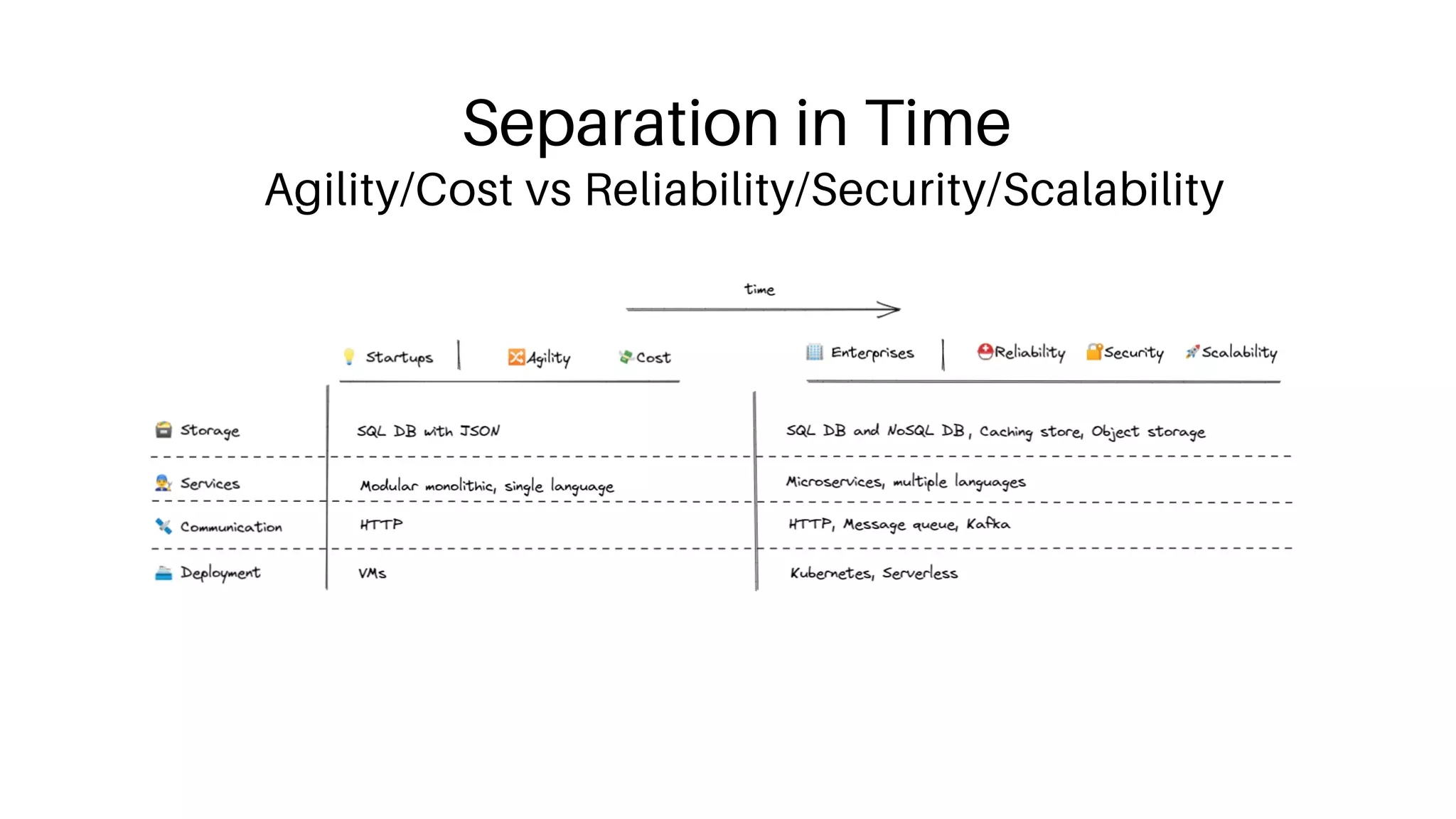

53. Separation in Time
Agility/Cost vs Reliability/Security/Scalability

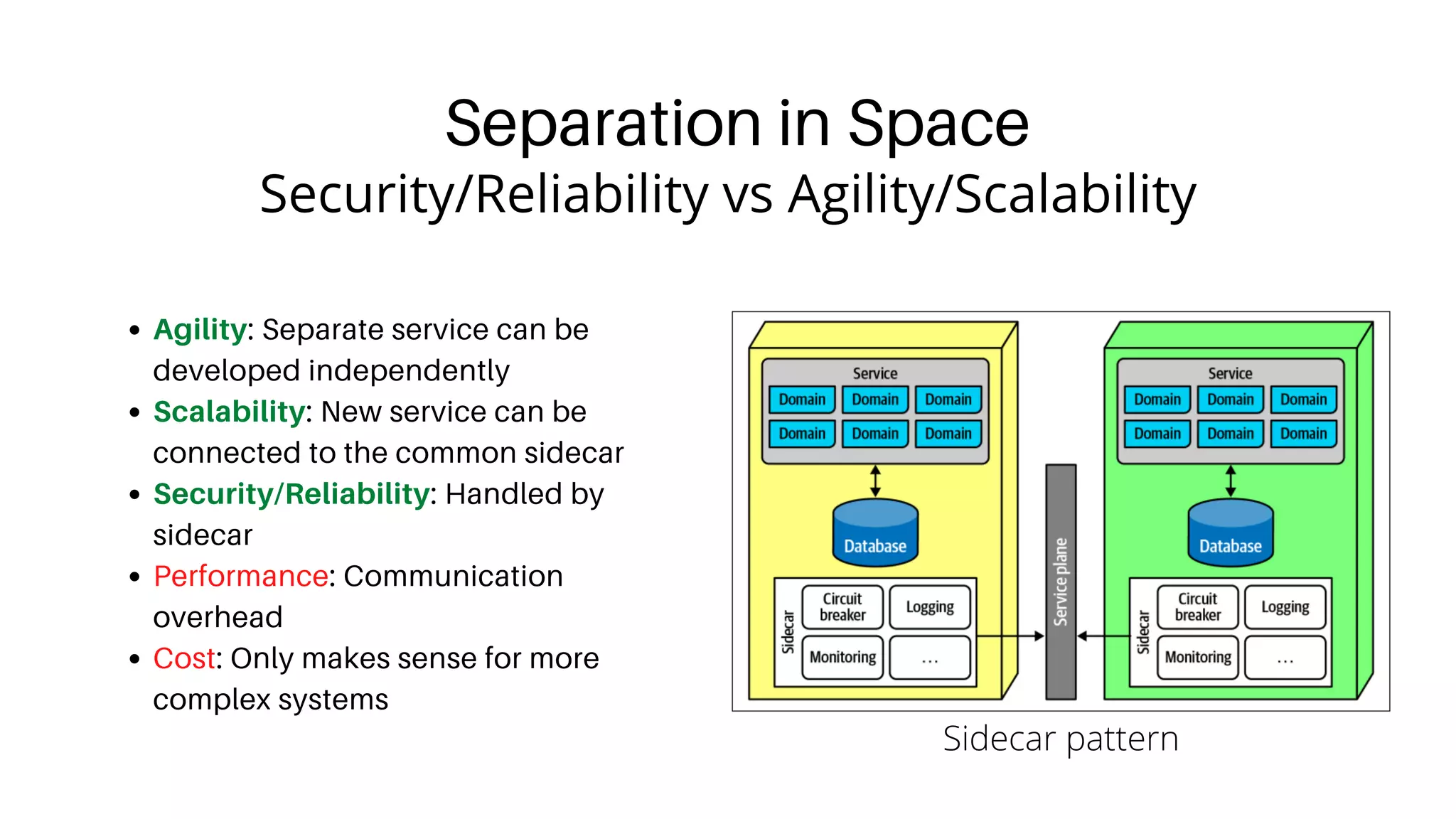

54. Separation in Space
Agility: Separate service can be
developed independently
Scalability: New service can be
connected to the common sidecar
Security/Reliability: Handled by
sidecar
Performance: Communication
overhead
Cost: Only makes sense for more
complex systems
Security/Reliability vs Agility/Scalability
Sidecar pattern

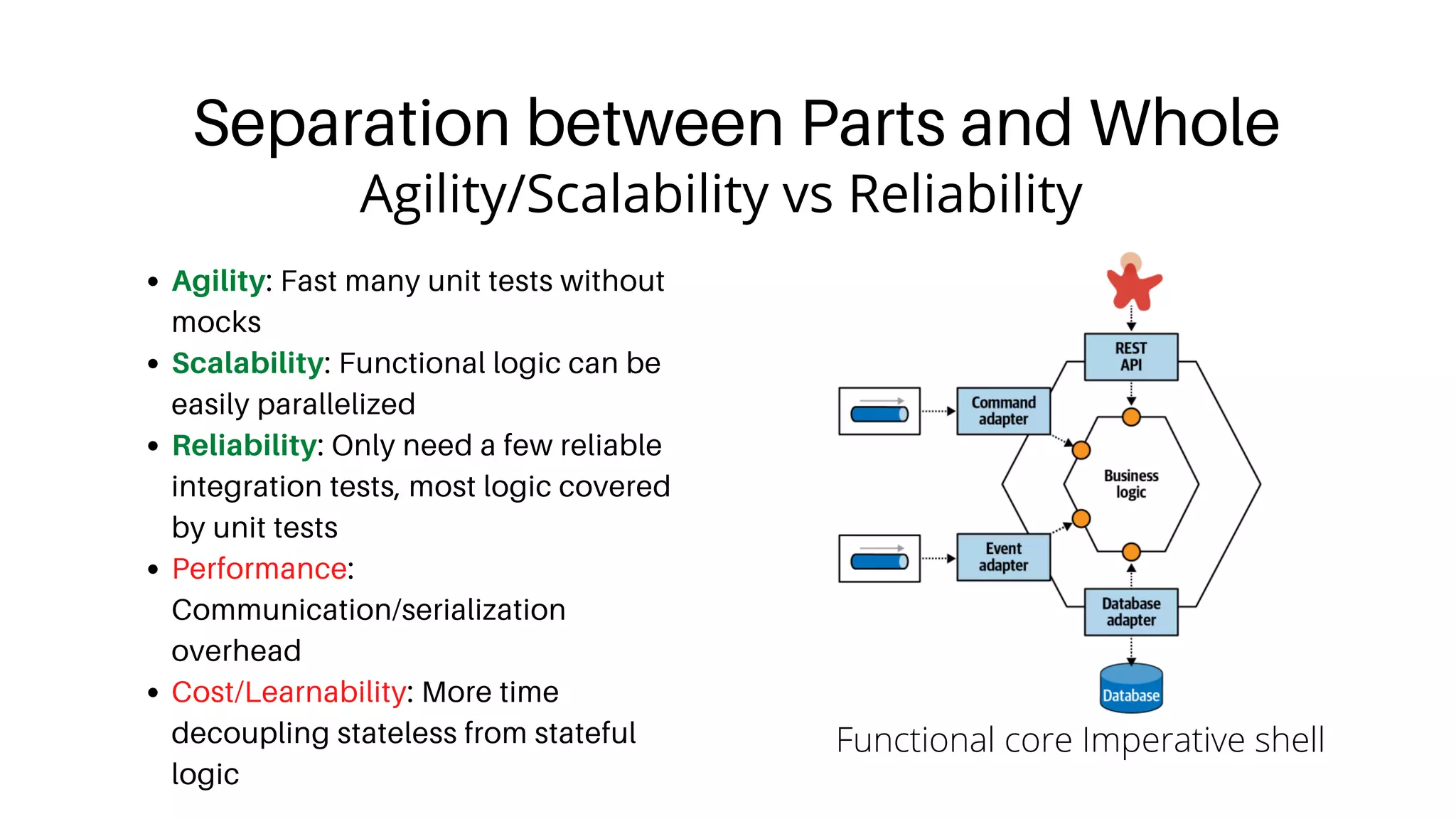

55. Separation between Parts and Whole
Agility/Scalability vs Reliability
Agility: Fast many unit tests without
mocks
Scalability: Functional logic can be
easily parallelized
Reliability: Only need a few reliable
integration tests, most logic covered
by unit tests
Performance:
Communication/serialization
overhead
Cost/Learnability: More time
decoupling stateless from stateful
logic
Functional core Imperative shell

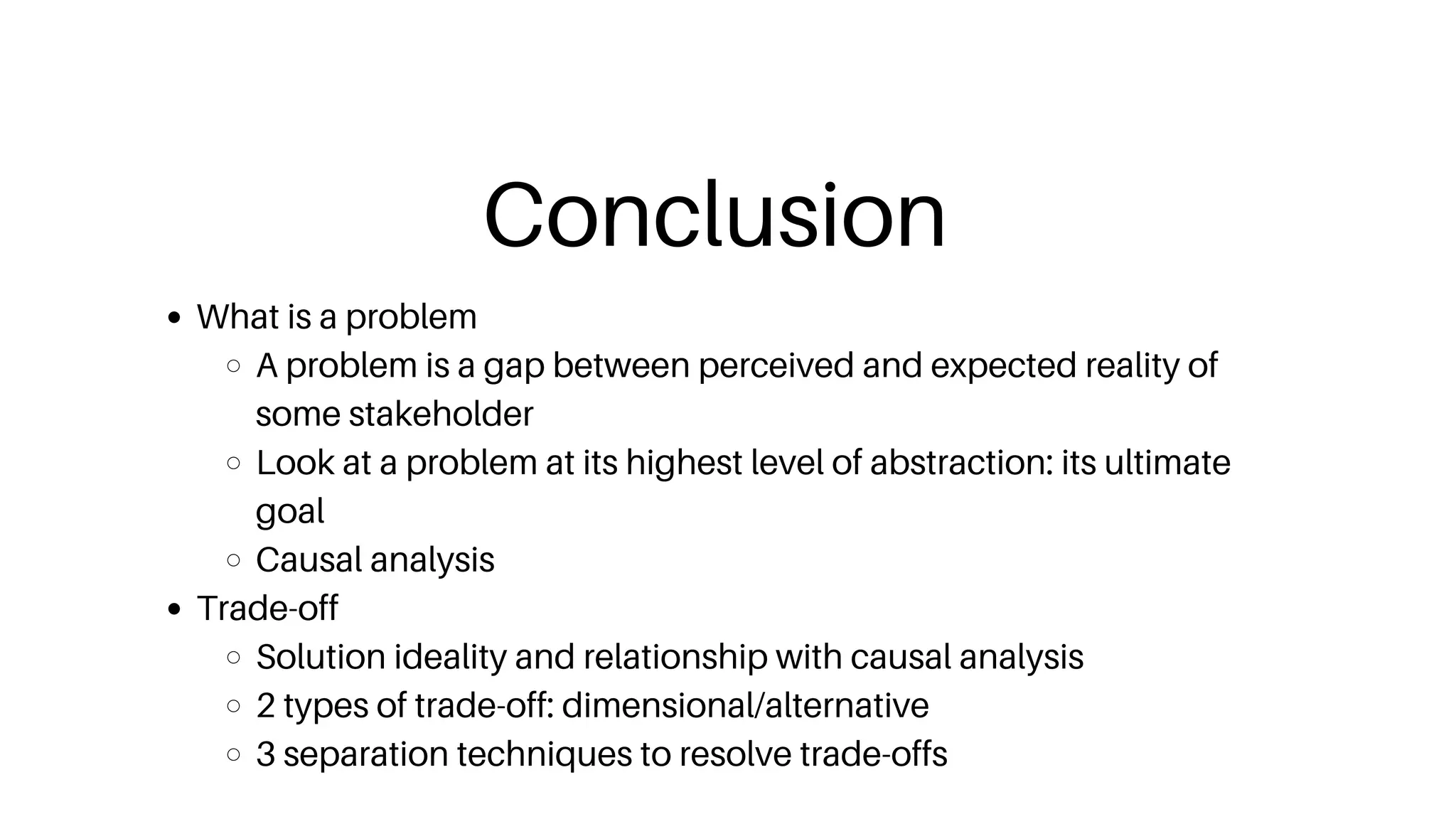

56. Conclusion
What is a problem
A problem is a gap between perceived and expected reality of
some stakeholder
Look at a problem at its highest level of abstraction: its ultimate
goal
Causal analysis
Trade-off
Solution ideality and relationship with causal analysis
2 types of trade-off: dimensional/alternative
3 separation techniques to resolve trade-offs

57. Further readings

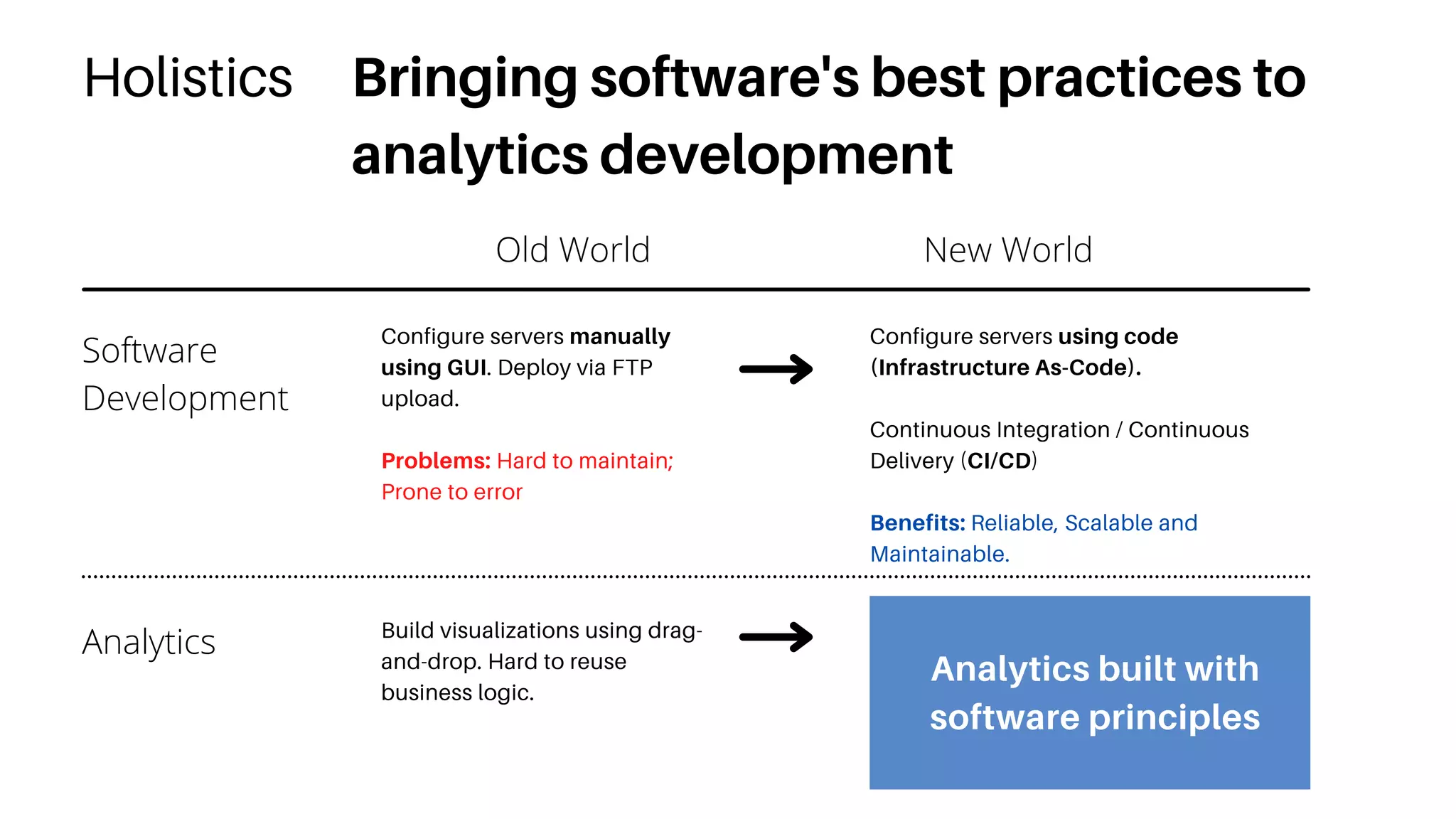

58. Bringing software's best practices to
analytics development
Old World New World
Software
Development
Analytics
Configure servers manually
using GUI. Deploy via FTP
upload.
Problems: Hard to maintain;
Prone to error
Configure servers using code
(Infrastructure As-Code).
Continuous Integration / Continuous
Delivery (CI/CD)
Benefits: Reliable, Scalable and
Maintainable.
Build visualizations using drag-
and-drop. Hard to reuse
business logic.
Analytics built with
software principles
Holistics

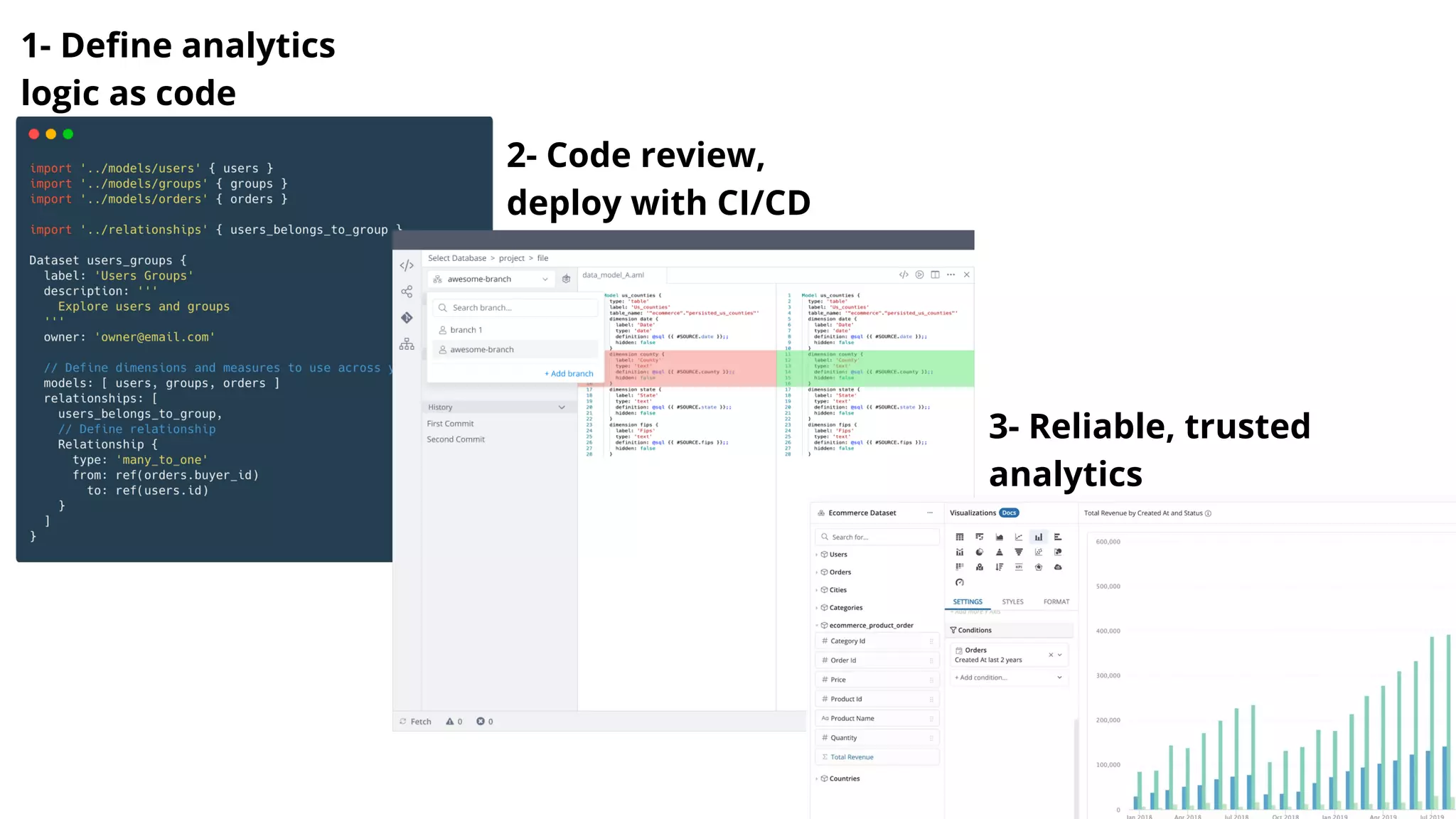

59. 1- Define analytics
logic as code
2- Code review,
deploy with CI/CD
3- Reliable, trusted
analytics

60. Work with Holistics
t

61. Our Culture
Problem-Solving Centric: (as seen from today's talk) We
think from first principles, question assumptions, and
deliberate tradeoffs carefully.
Personal Development: We invest so that as the company
grows, the people grow.
Technical Coaching & Mentorship
Pair Programming
Learning by Teaching...

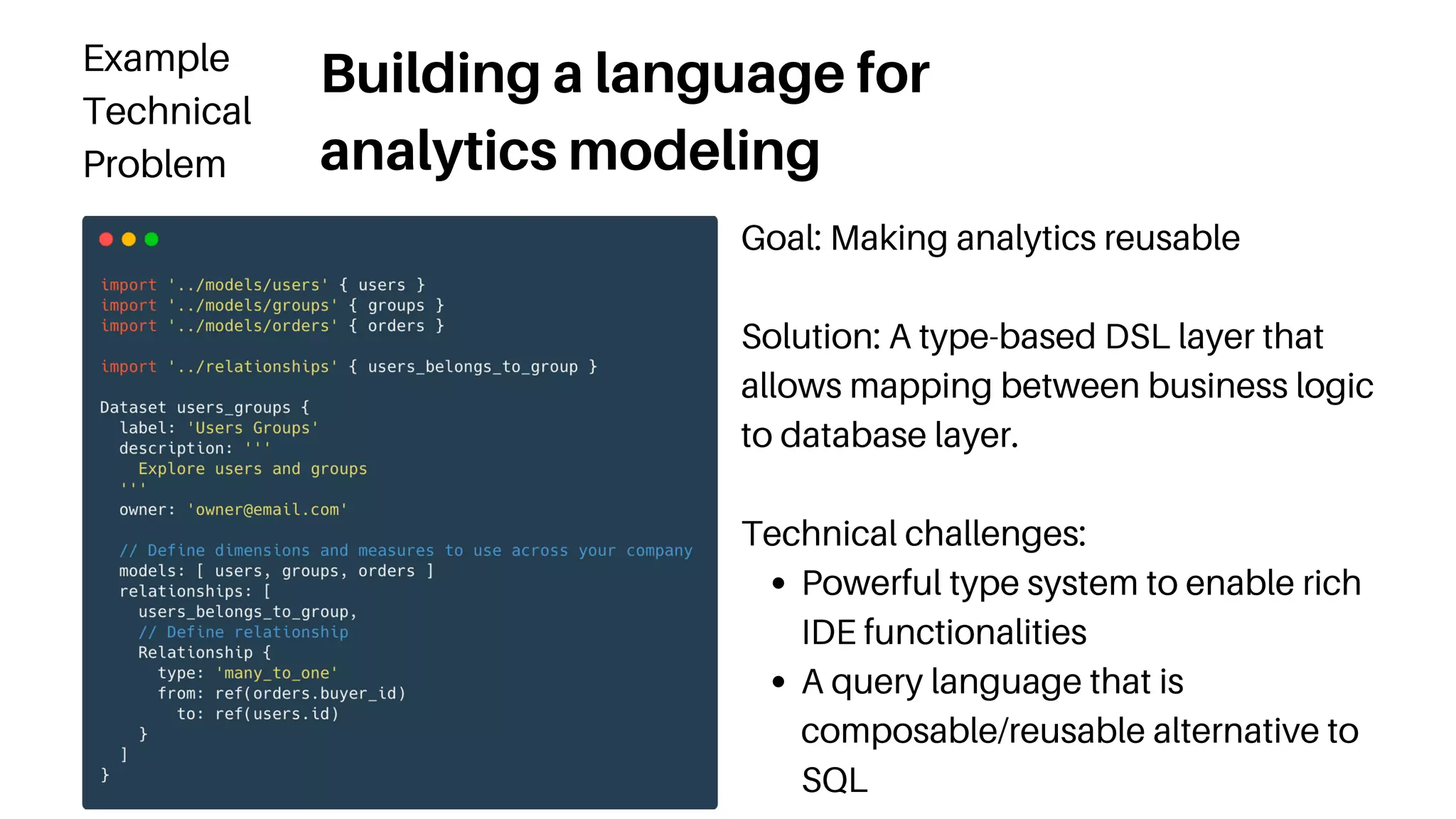

62. Building a language for
analytics modeling
Example
Technical
Problem
Powerful type system to enable rich
IDE functionalities
A query language that is
composable/reusable alternative to
SQL
Goal: Making analytics reusable
Solution: A type-based DSL layer that
allows mapping between business logic
to database layer.
Technical challenges:
